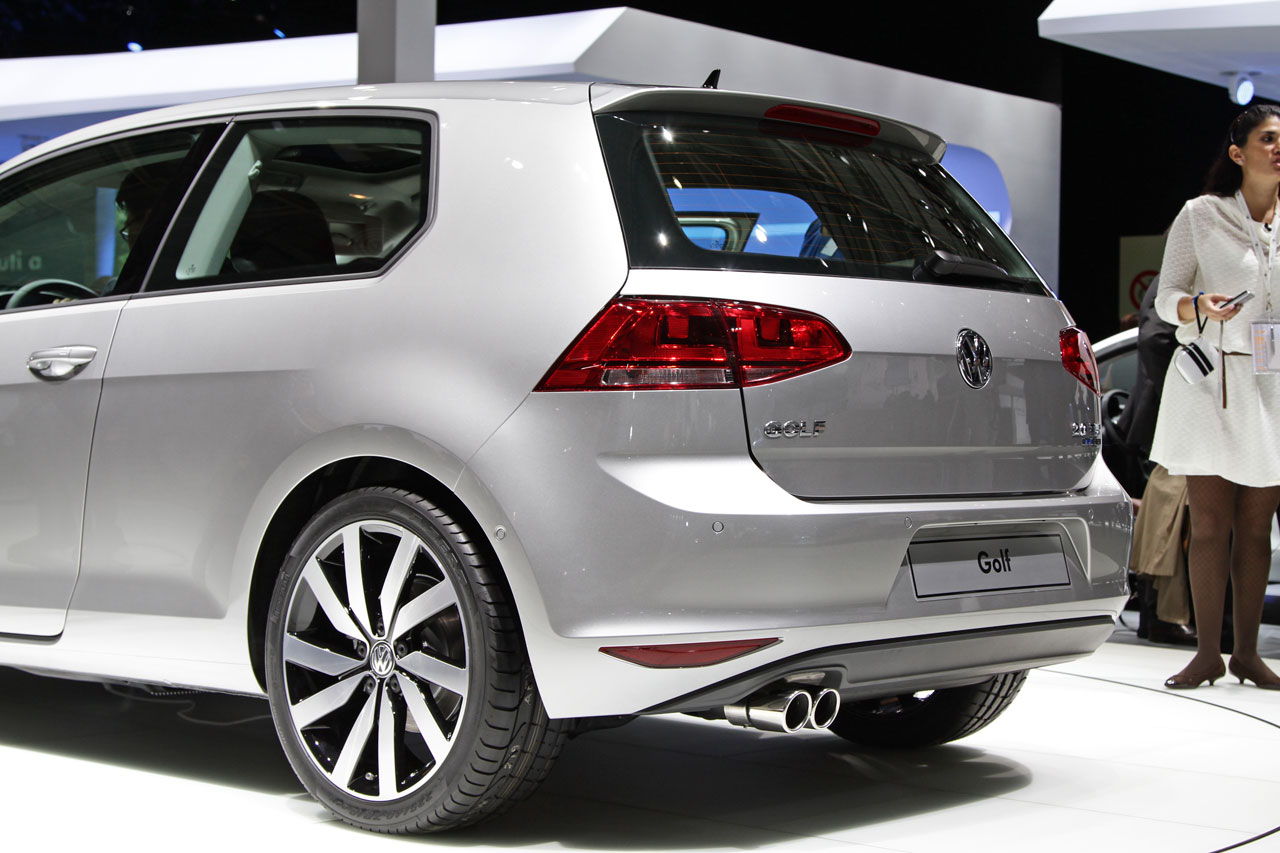

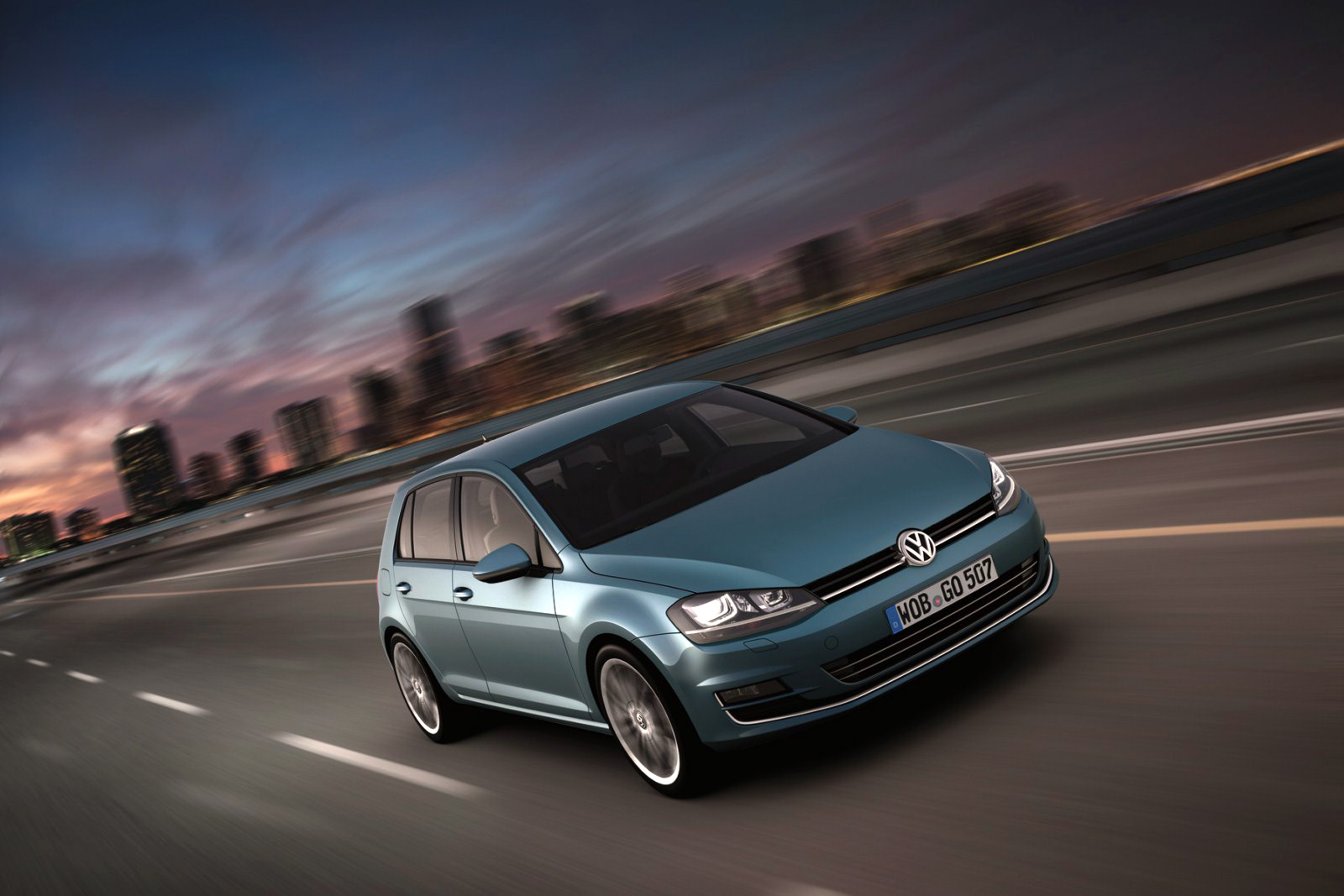

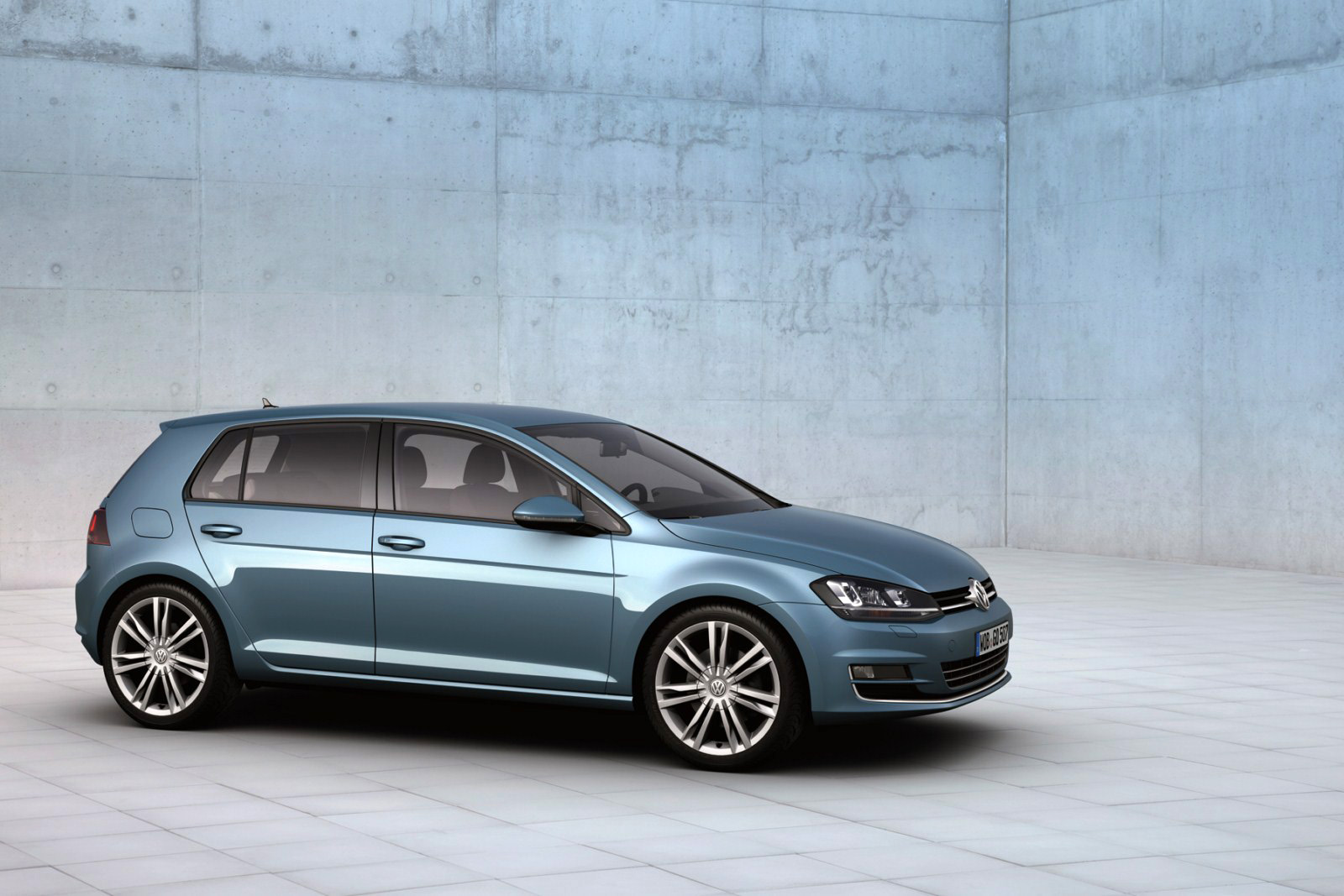

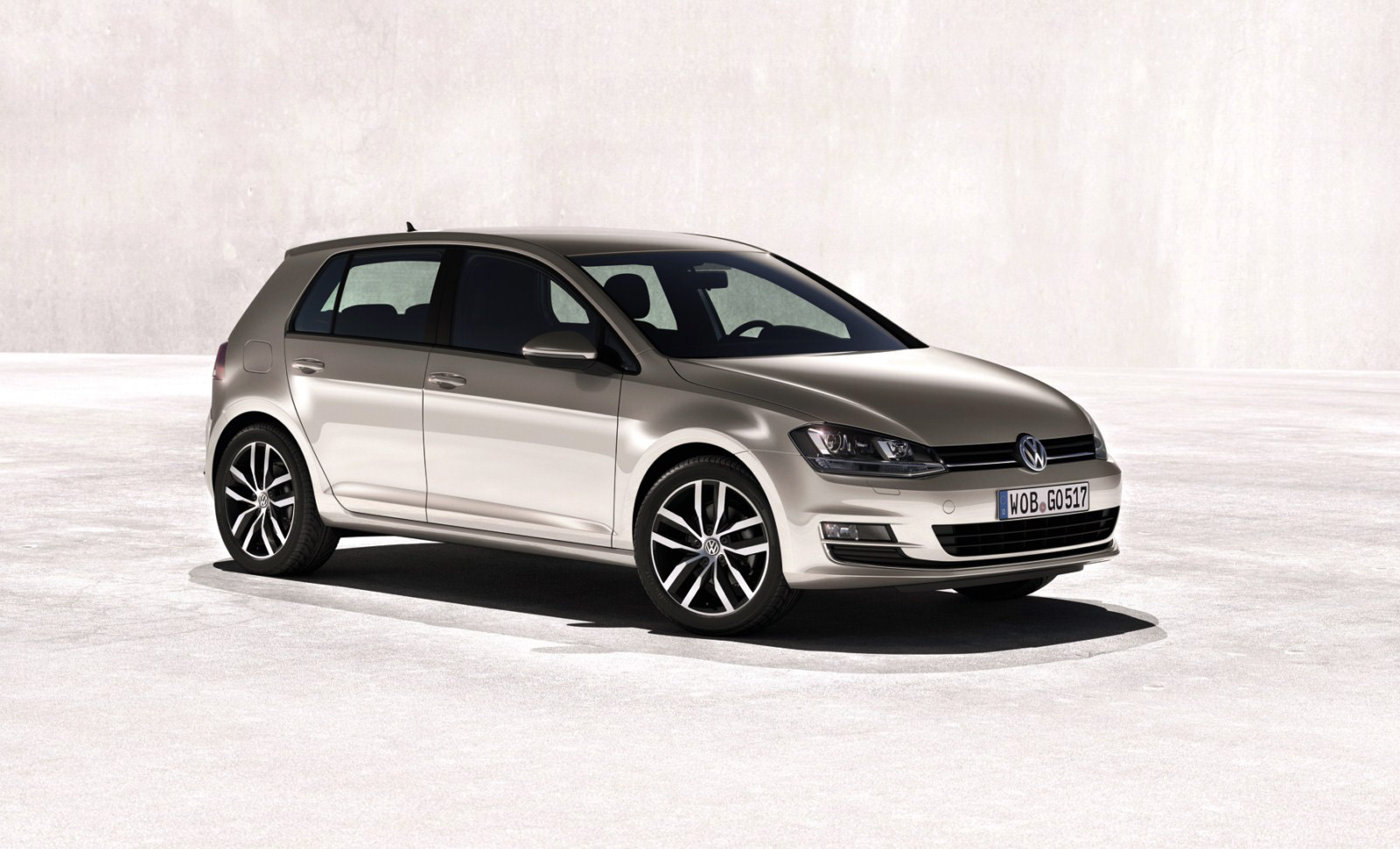

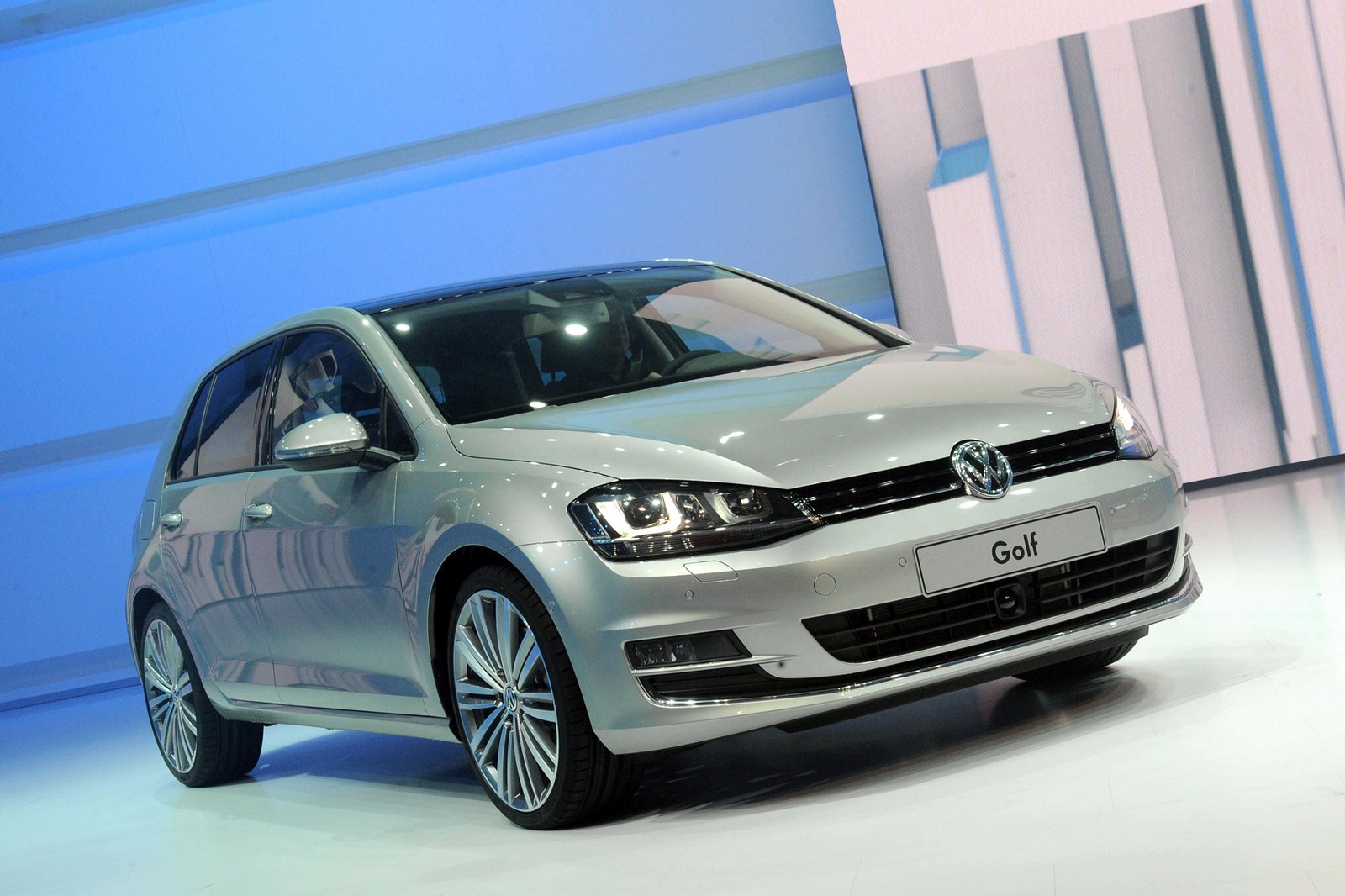

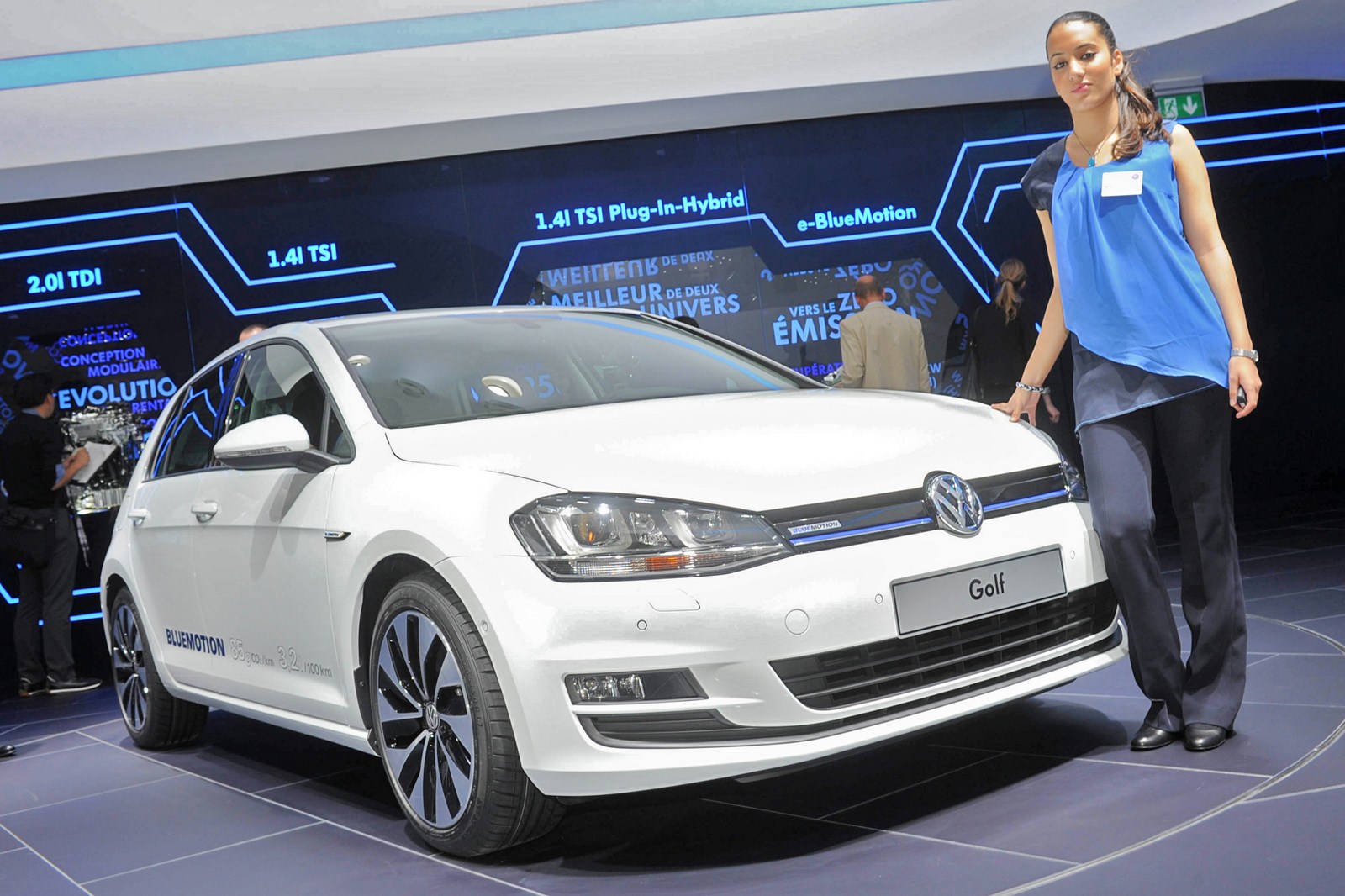

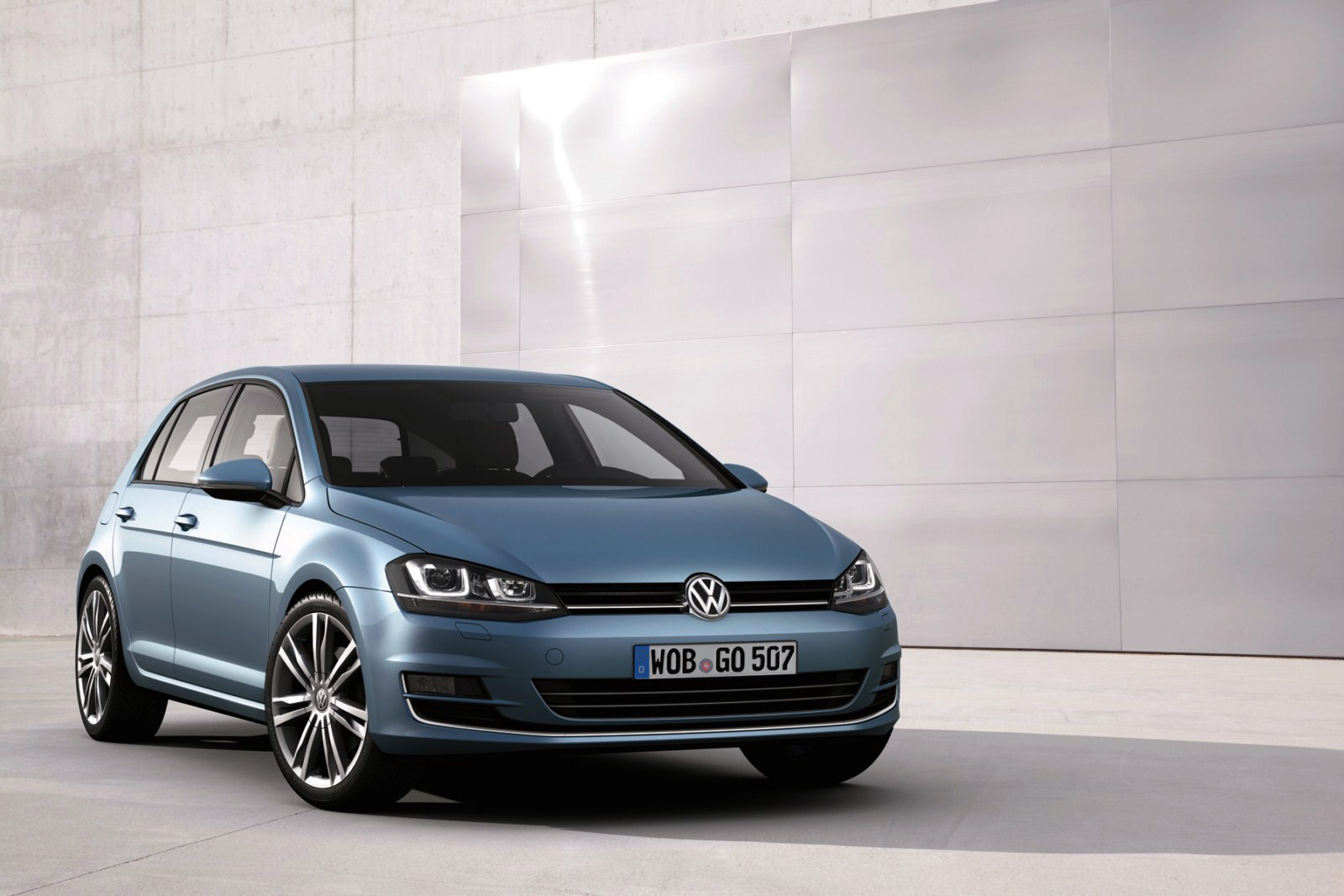

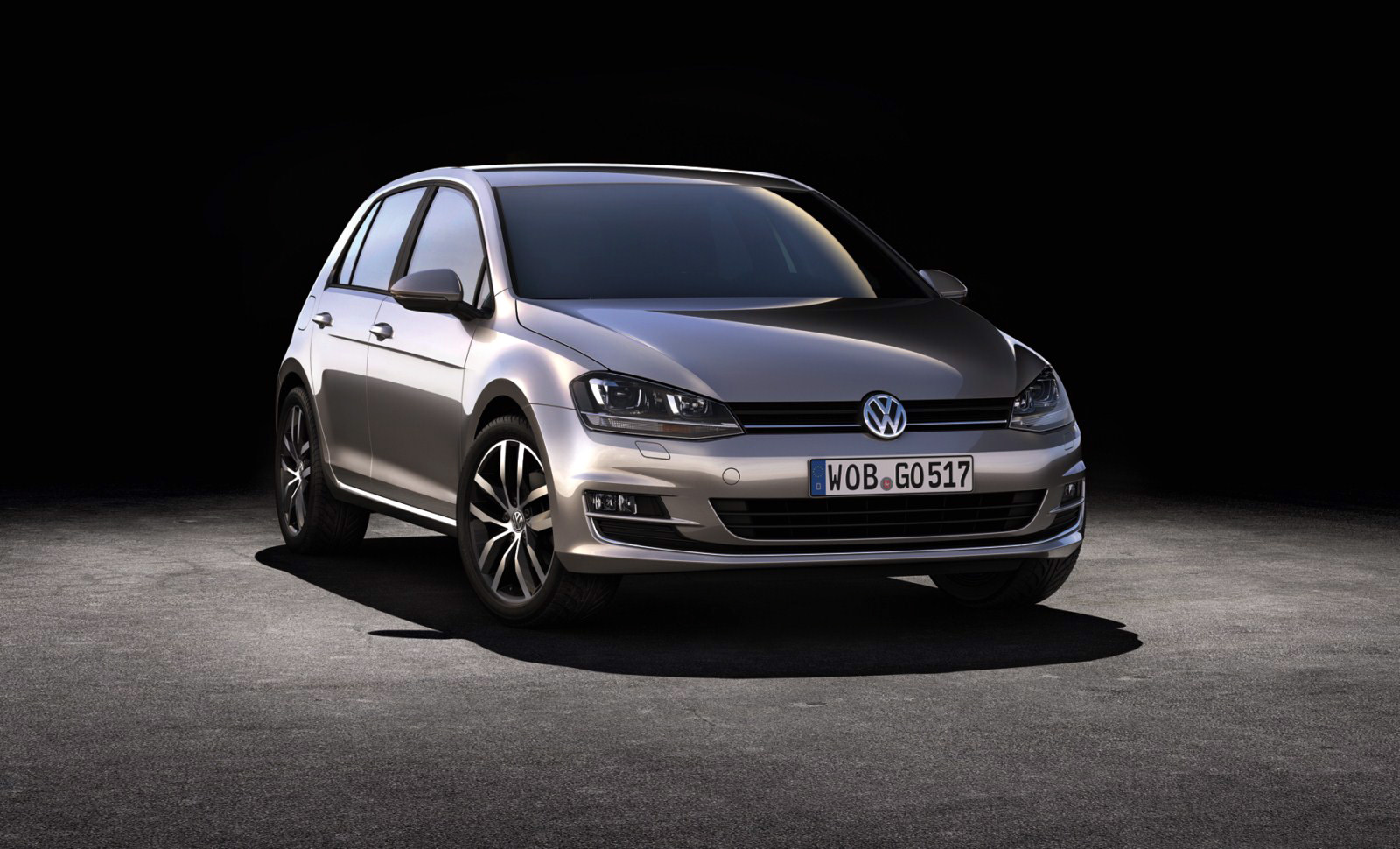

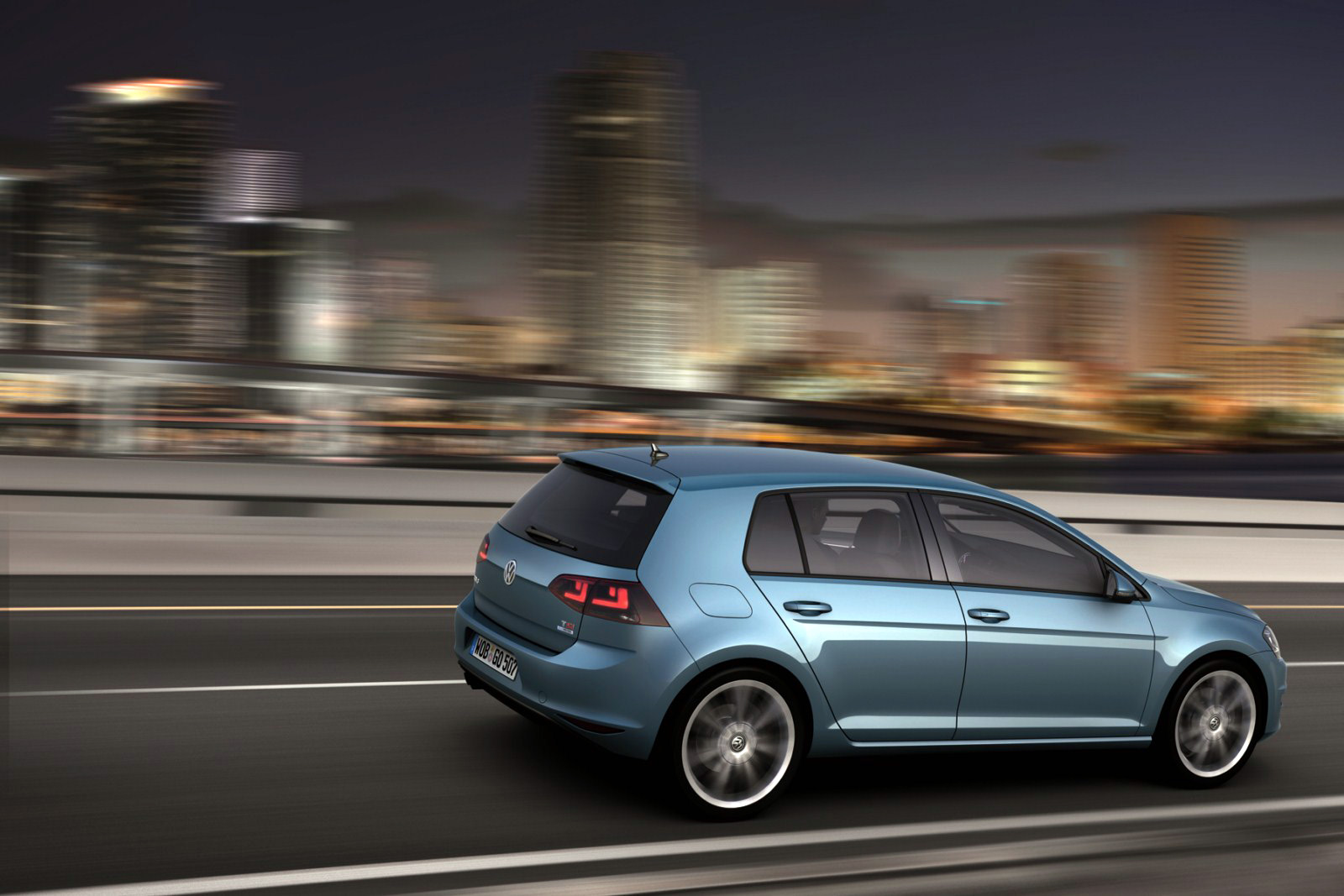

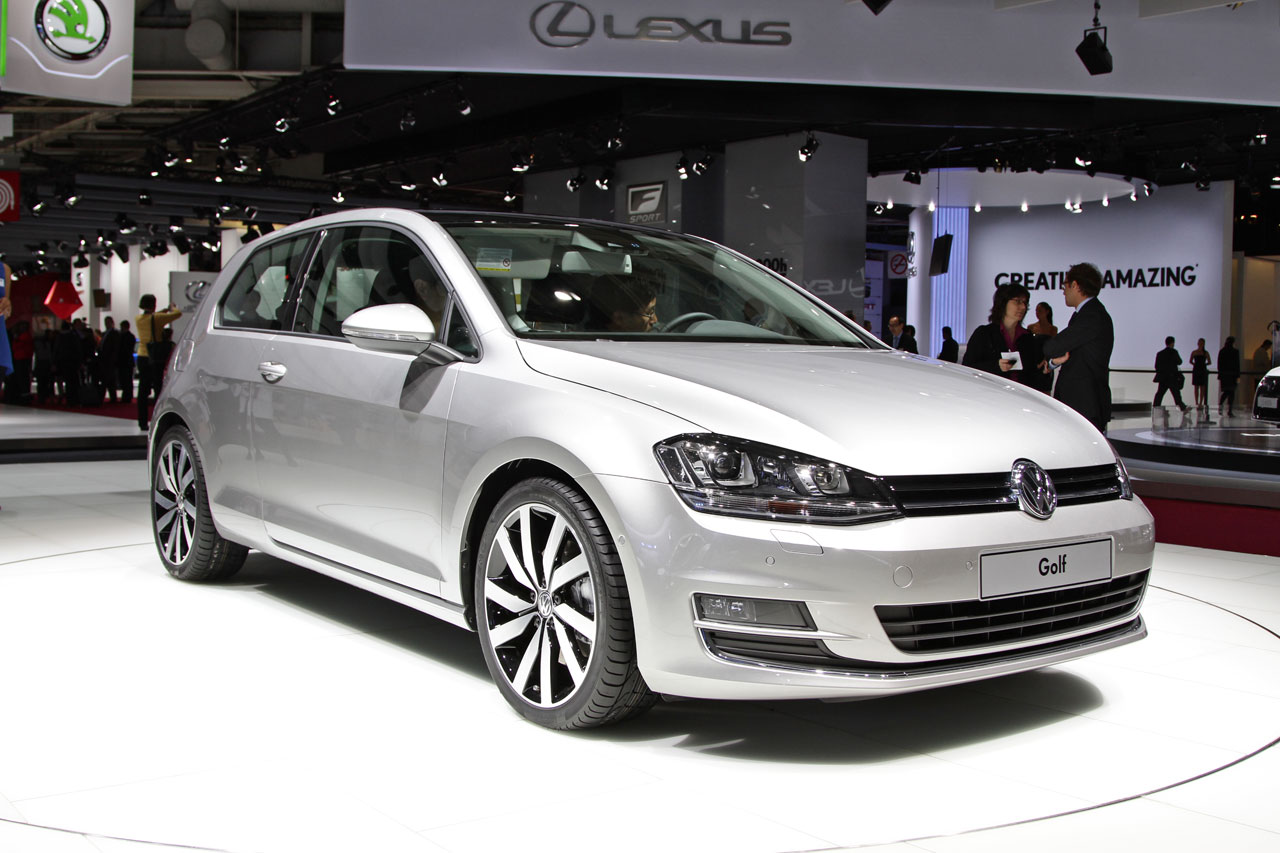

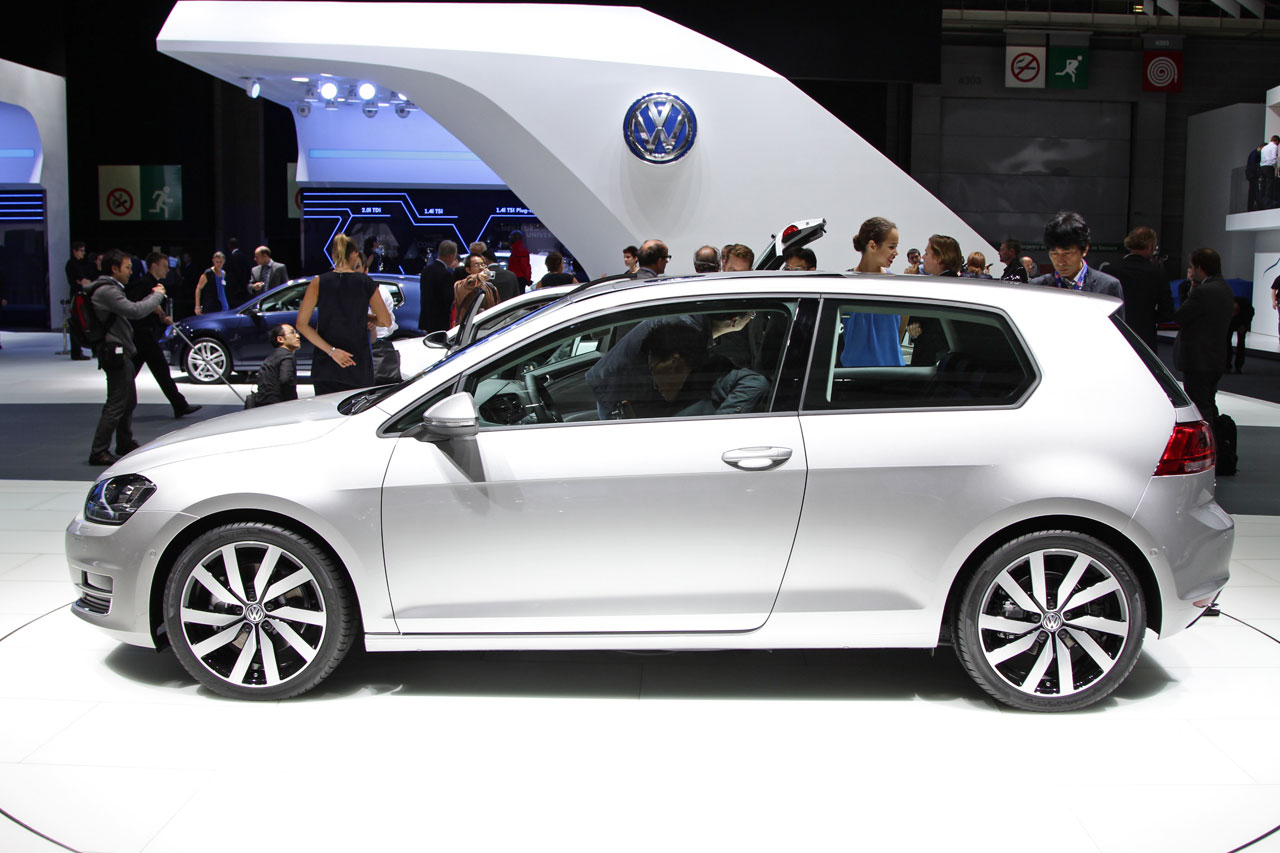

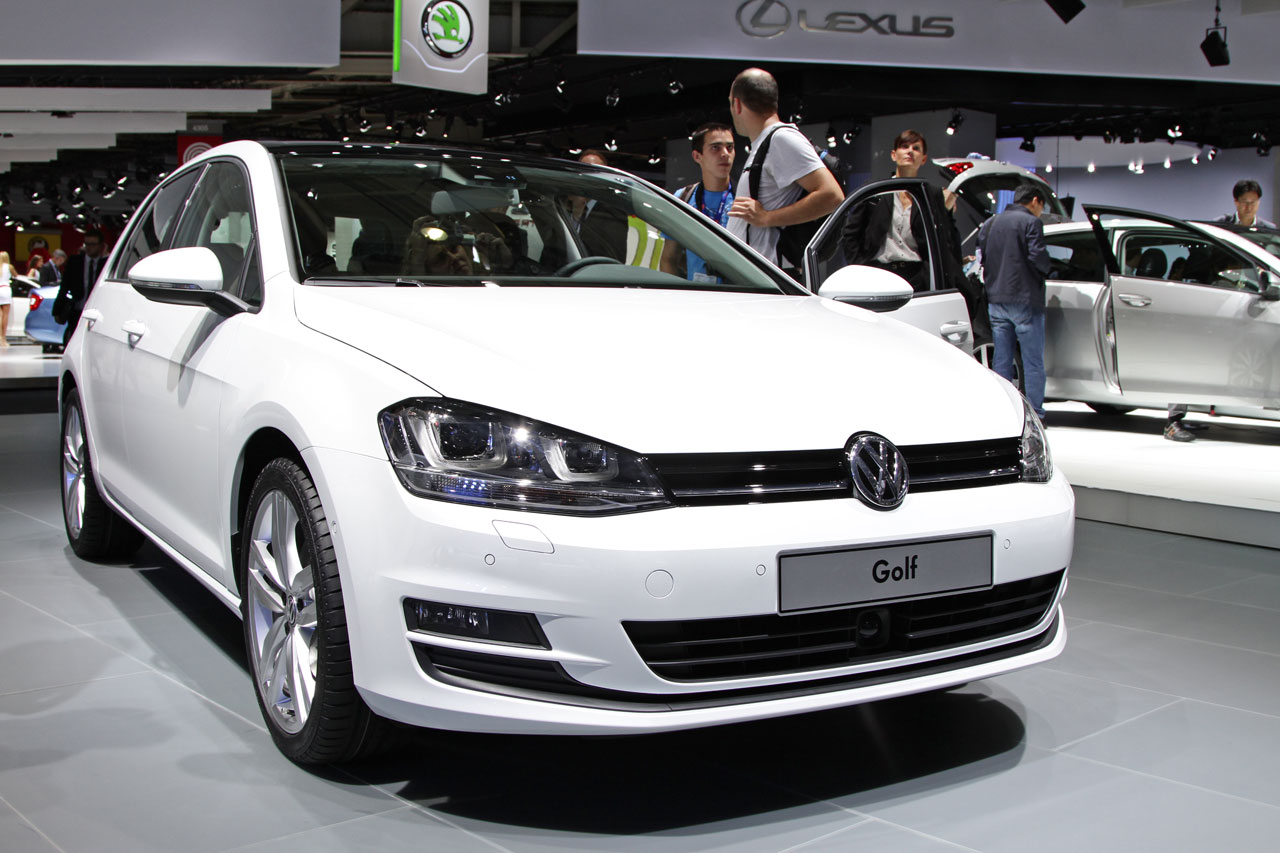

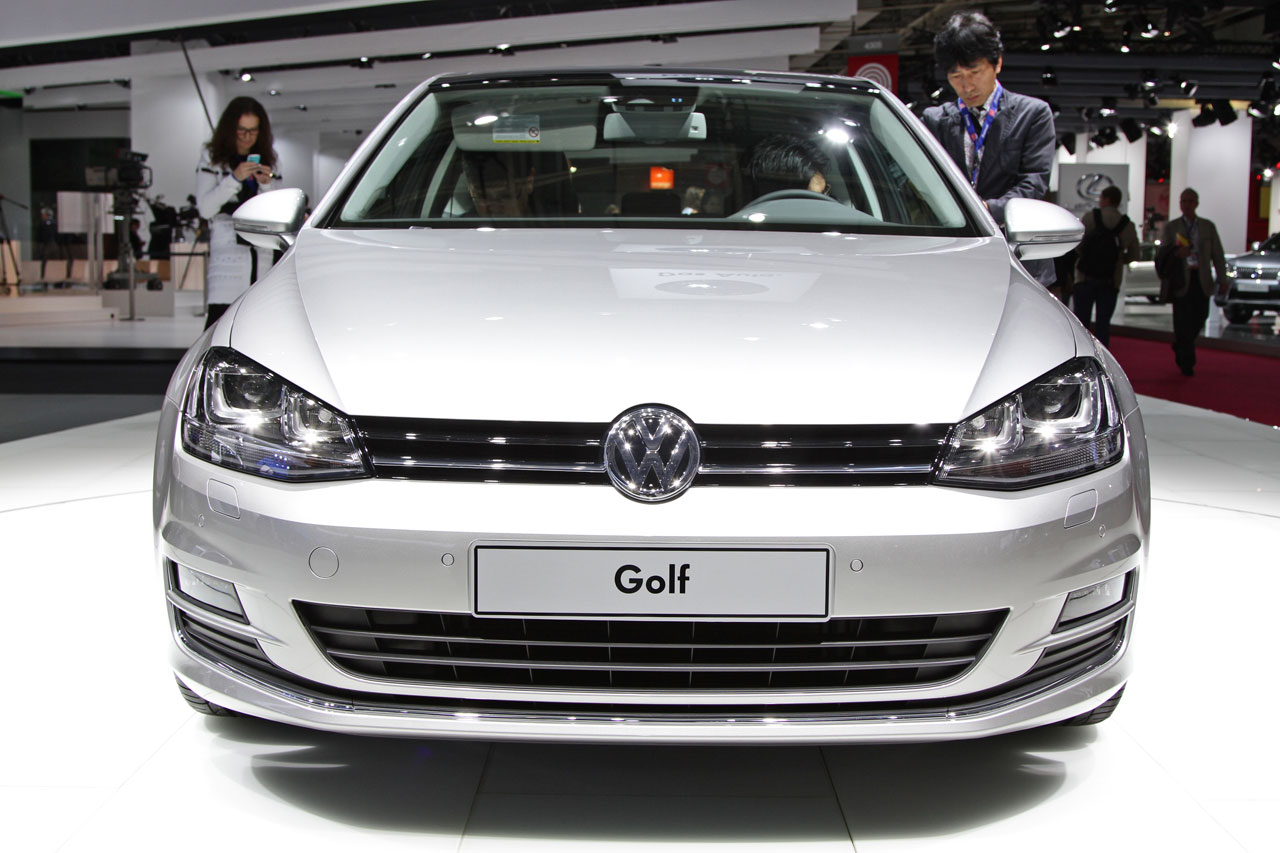

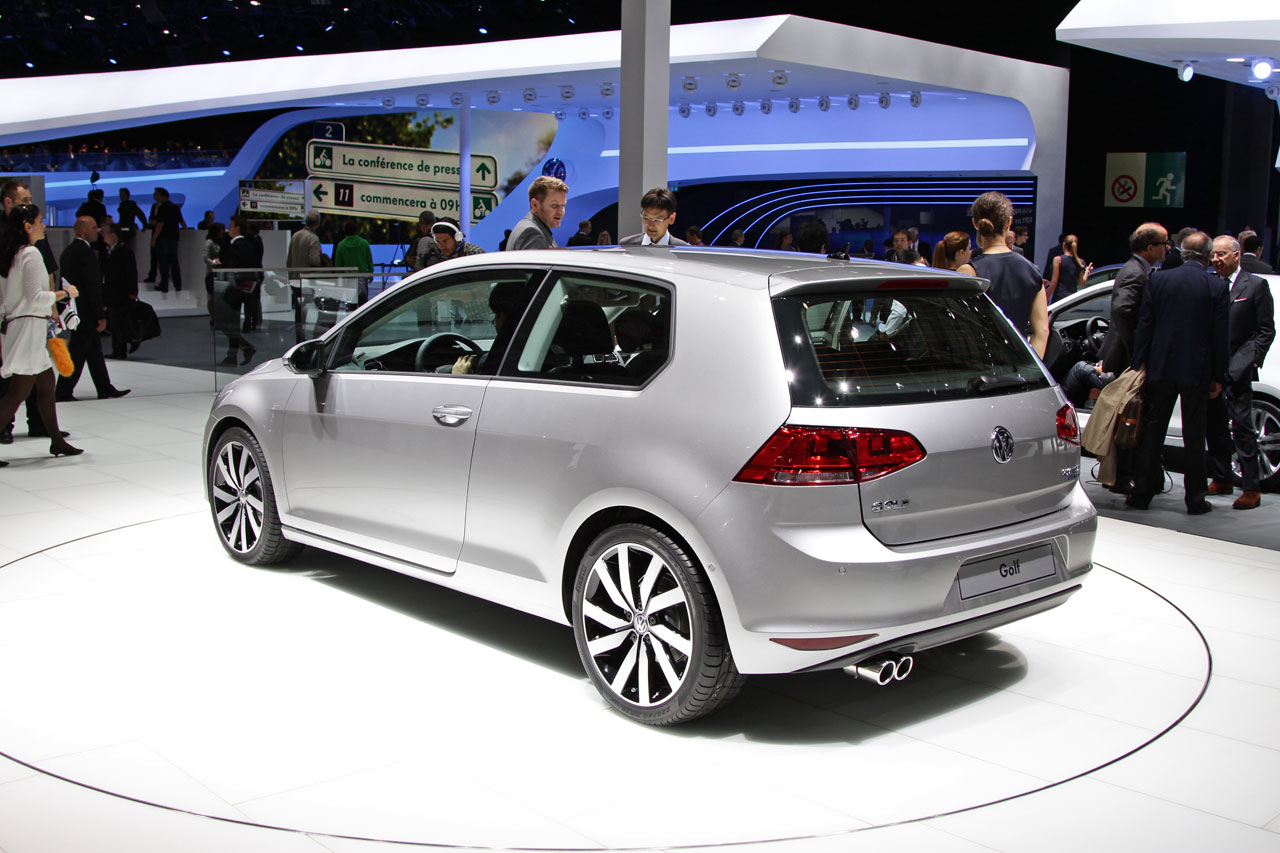

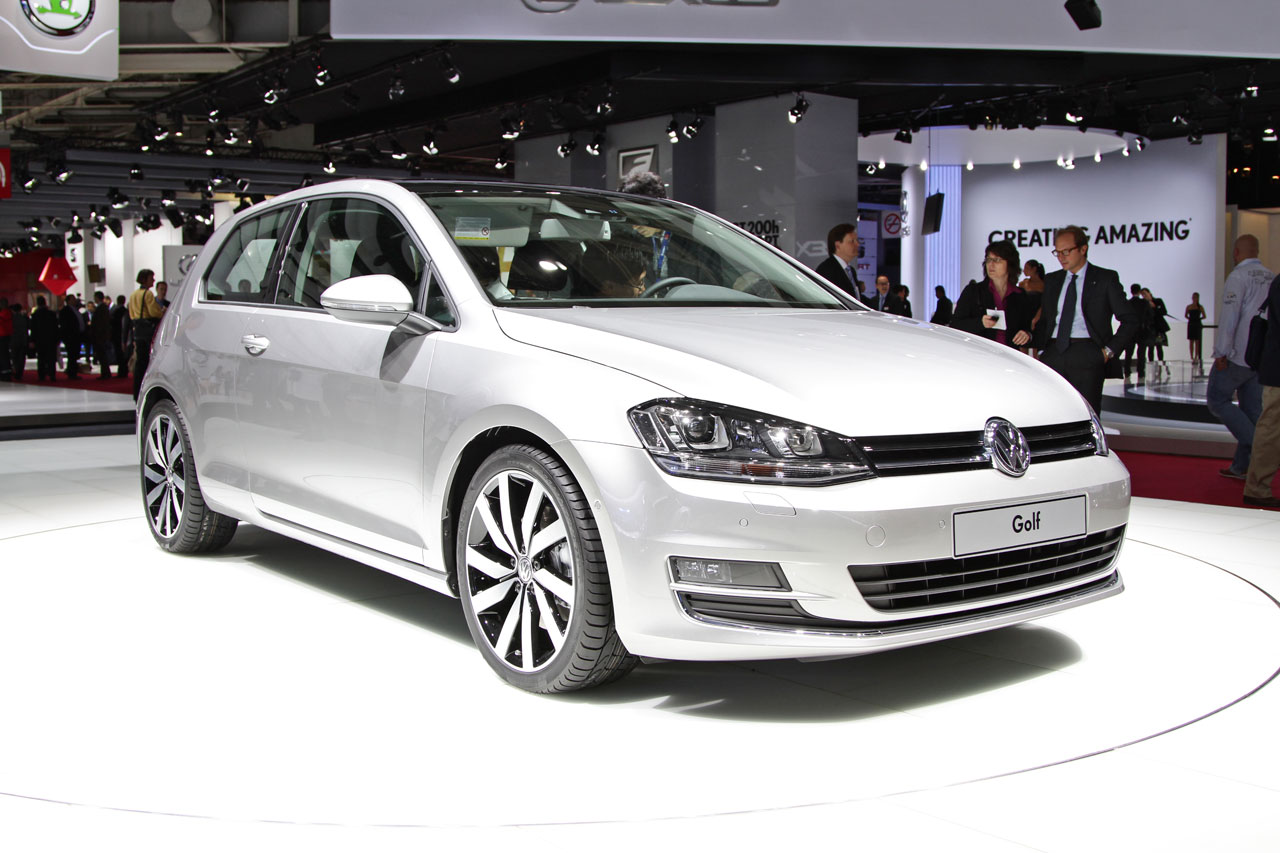

H Volkswagen παρουσίασε στο Παρίσι την 7η γενιά του Golf. Διαθέτει συντηρητικό σχεδιασμό, δημιουργία του αρχισχεδιαστή της VW, Walter de Silva και στην ουσία αποτελεί την εξέλιξη του Golf 6 έχοντας μια φρεσκάδα και νέα στοιχεία, δίνοντας του μια πιο coupe σχεδίαση από το απερχόμενο μοντέλο. Διαθέτει έντονη “C” πίσω κολόνα, απότομα κεκλιμένο παρμπρίζ, μικρό παράθυρο στη μπροστά κολόνα, κεκλιμένη γραμμή οροφής και φορά λεπτά φωτιστικά σώματα LED μπροστά-πίσω (σίγουρα θα υπάρχουν και απλά φώτα αλογόνου στις απλές εκδόσεις). Μετά από 29 εκατ. πωλήσεις, δεν νομίζω κάποιος περίμενε από την Volkswagen να κάνει ριζικές αλλαγές στον σχεδιασμό.

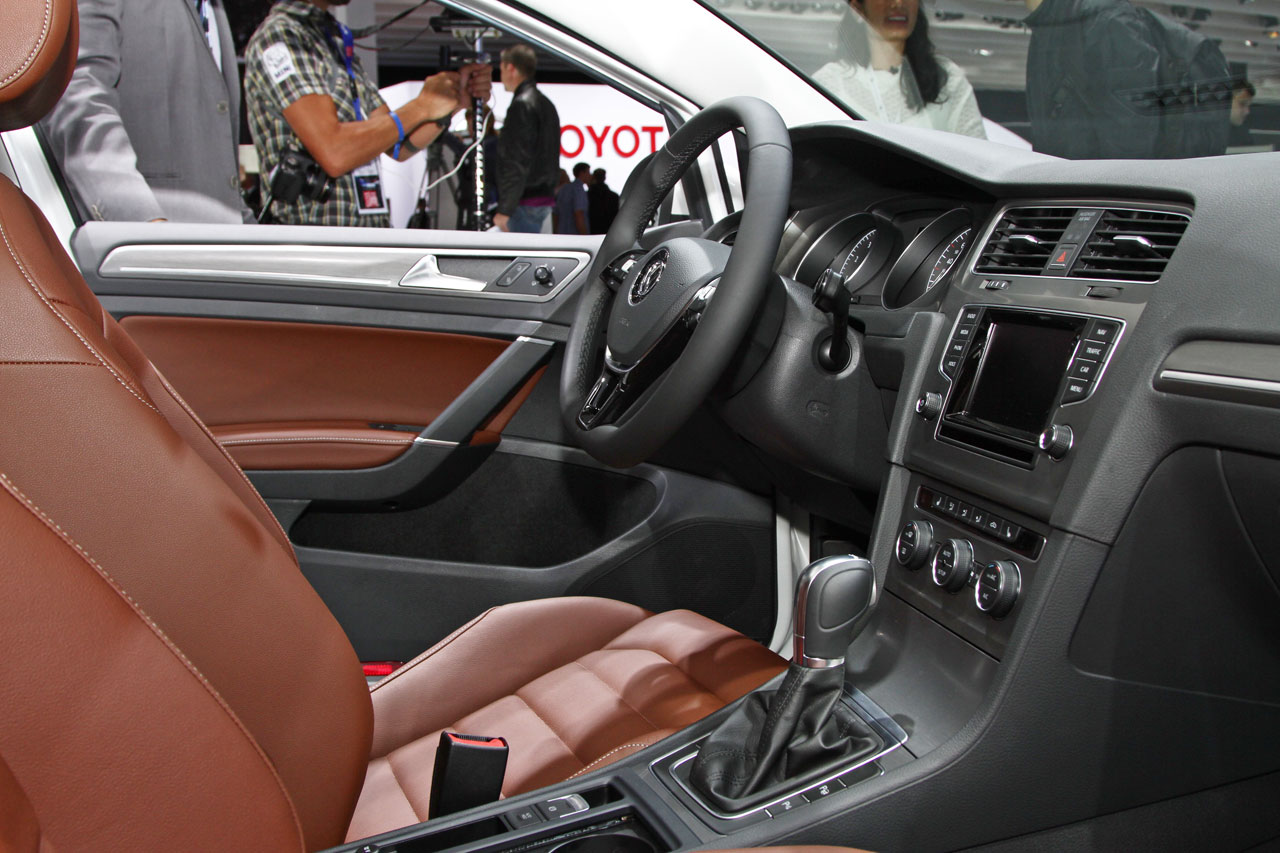

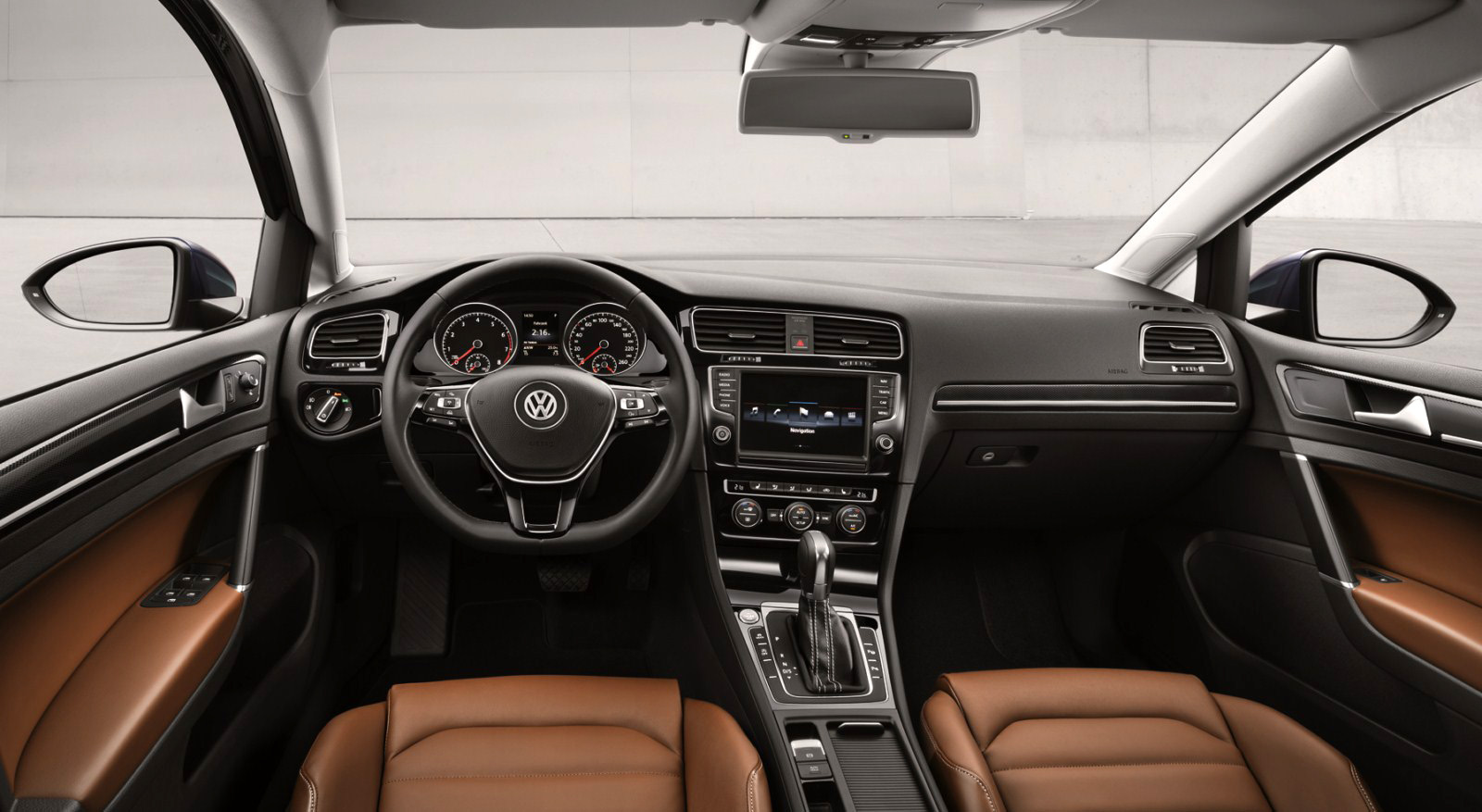

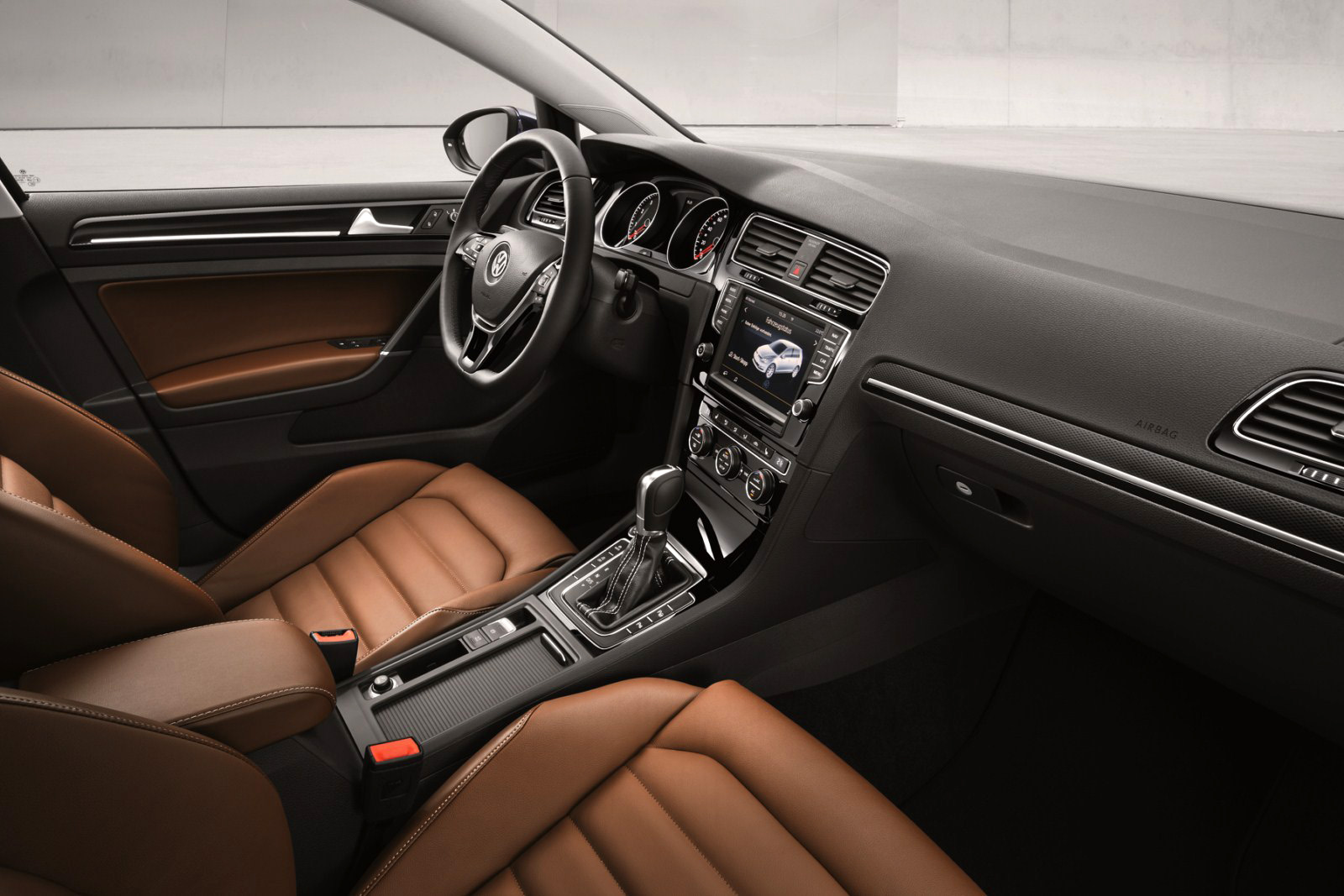

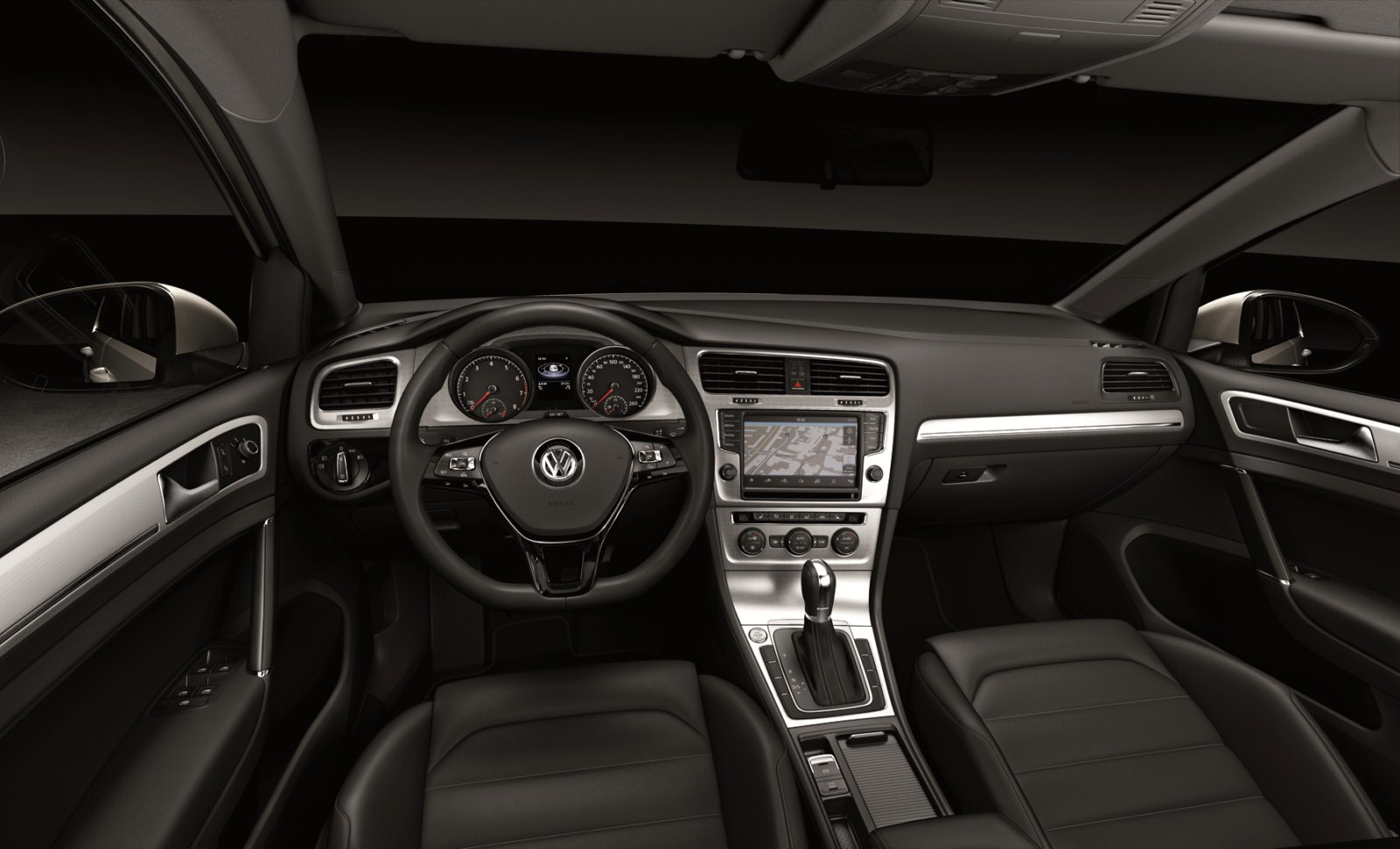

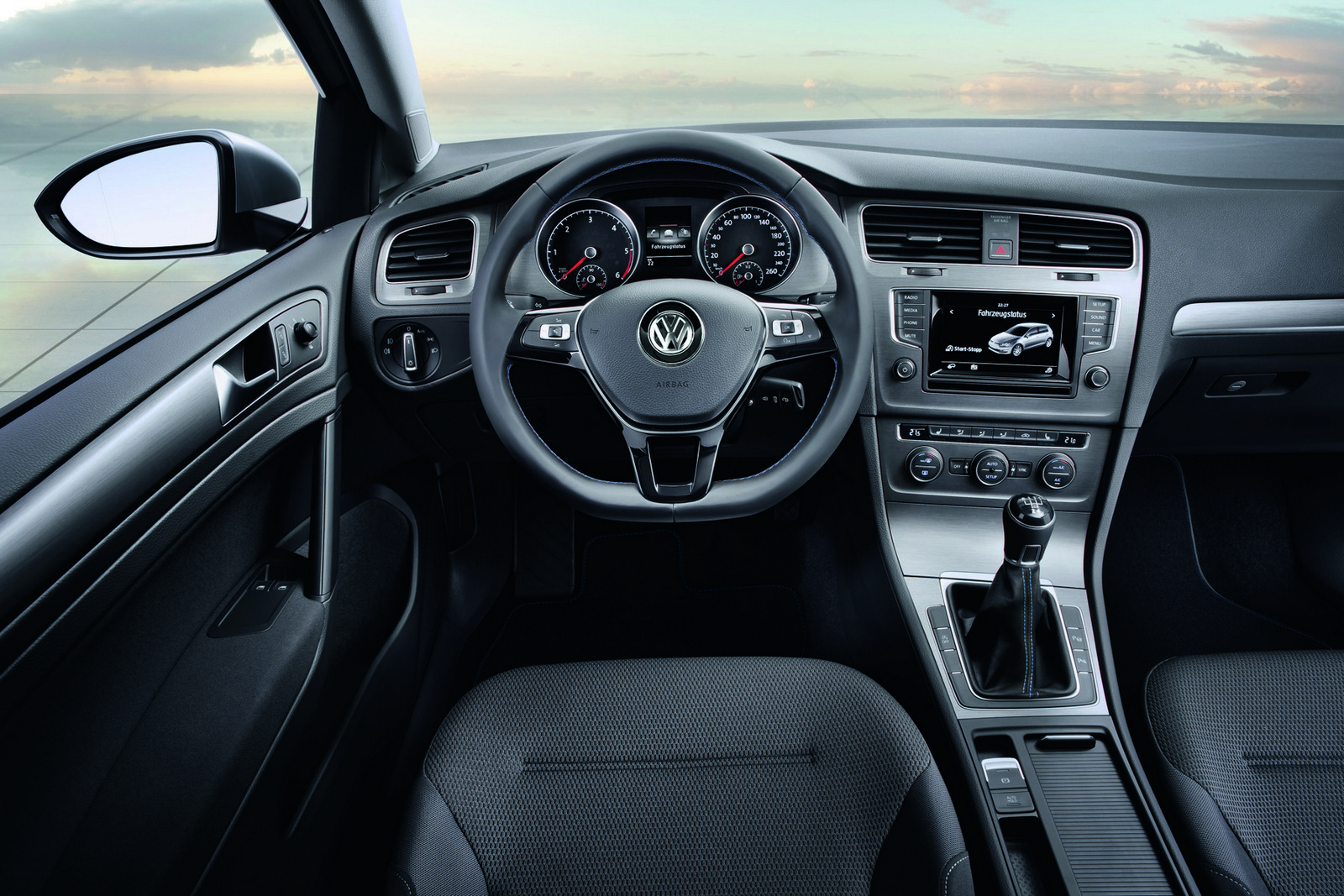

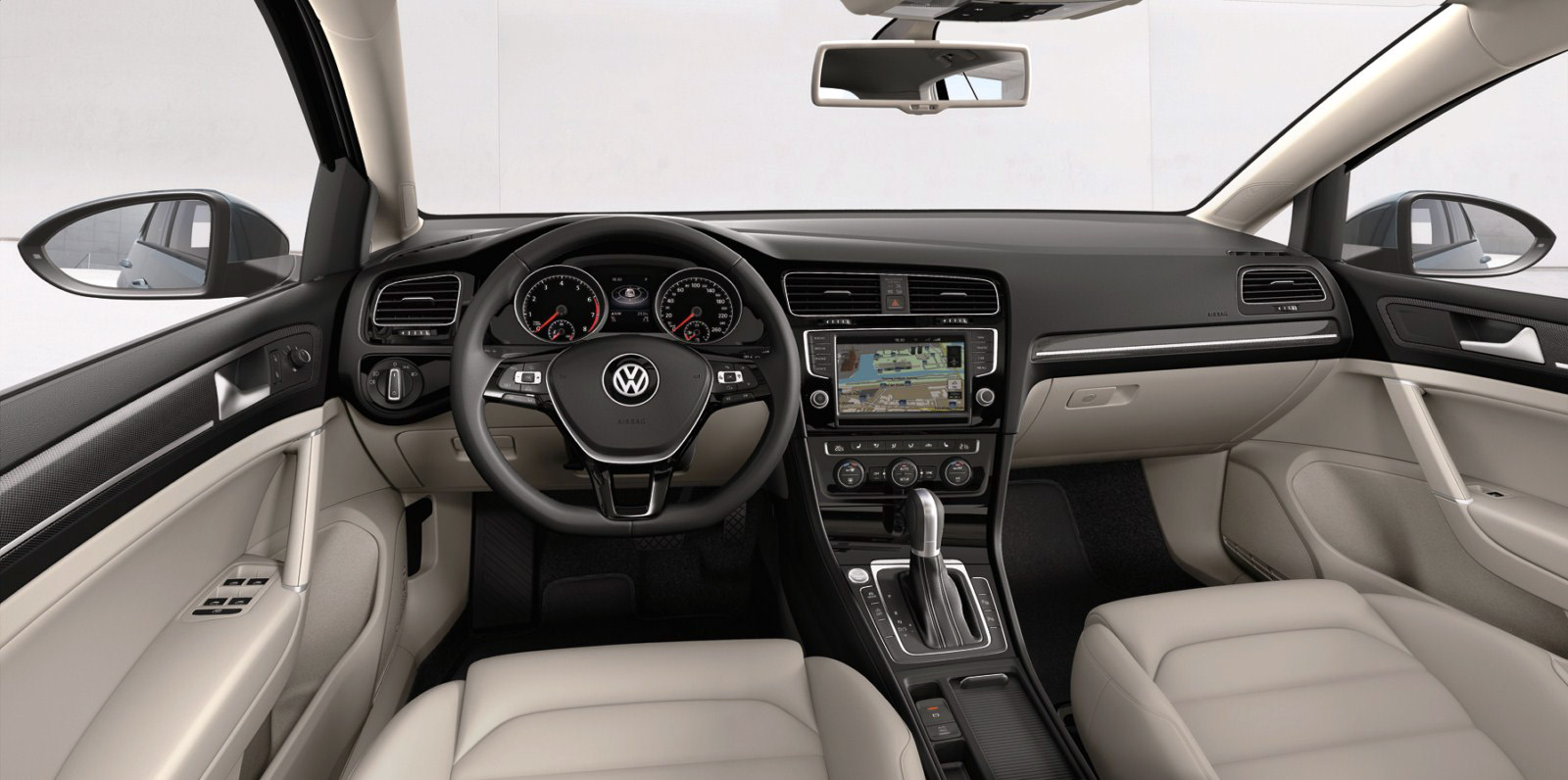

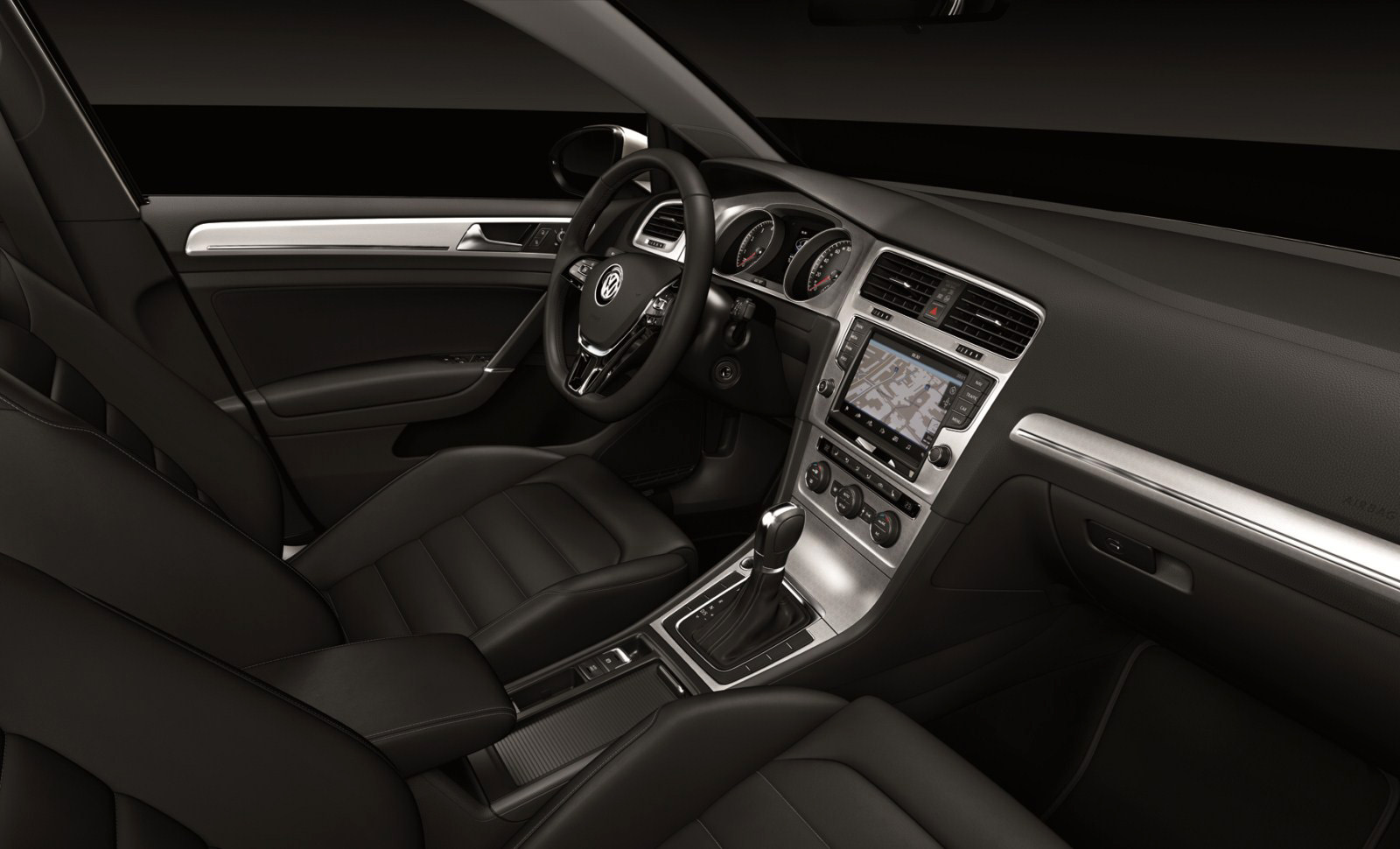

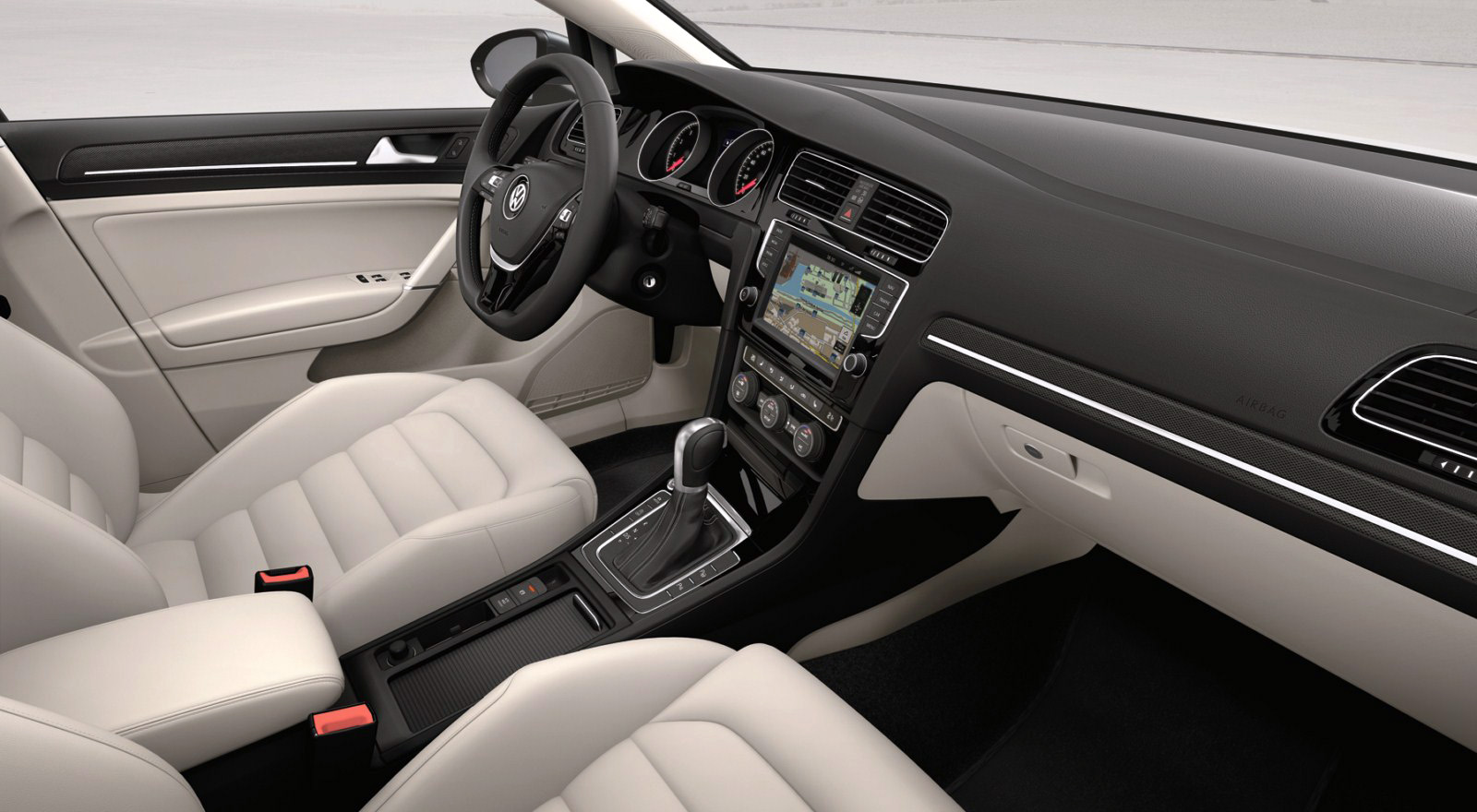

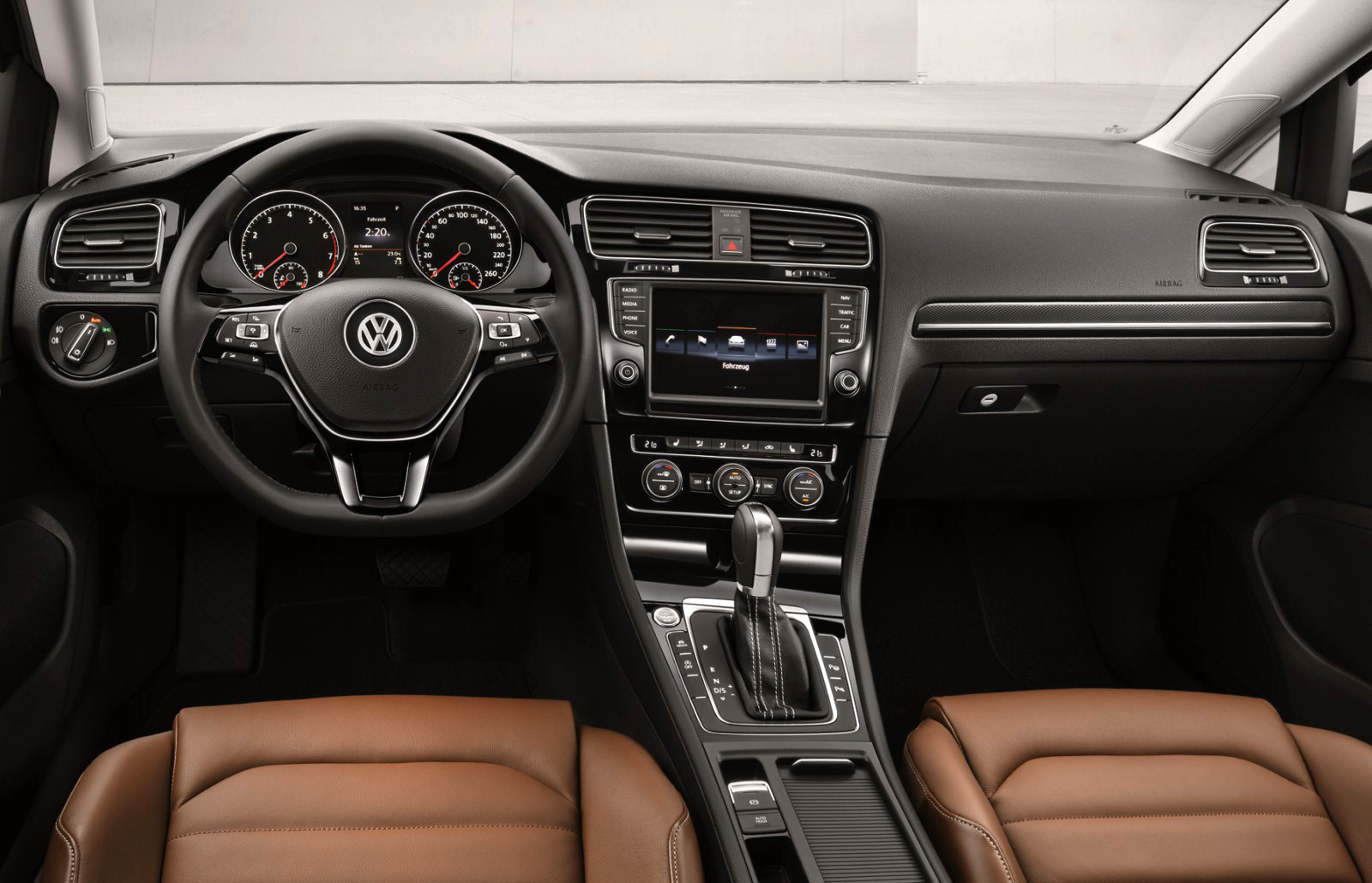

Το εσωτερικό του σου αποπνέει μια στιβαρότητα και πολυτέλεια και διαθέτει νέας σχεδίασης κοφτό πολυλειτουργικό τιμόνι με χρωμιομένα διακοσμητικά. Η LCD οθόνη πολλαπλών λειτουργιών έχει μεγαλώσει και θυμίζει αυτή του νέου Beetle. Θα υπάρχουν 3 διαθέσιμες οθόνες στη κεντρική κονσόλα. Μια entry-level ασπρόμαυρη 5″, μια έγχρωμη 5,8″ και μια 8,0″ με δυνατότητα αναπαραγωγής 3D υλικού, ενώ το χειρόφρενο του έχει αντικατασταθεί από ένα ηλεκτρονικό σύστημα. Όλες παίζουν MP3/Bluetooth/iPod/AUX/SD Card. Νέοι είναι και οι αεραγωγοί με την κεντρική κονσόλα να είναι ελαφρώς στραμμένη στον οδηγό και να συνεχίζει να έχει συντηρητική σχεδίαση και να θυμίζει αρκετά αυτή του Passat. O πίνακας οργάνων του αποτελείται από δύο μεγάλα όργανα του ταχύμετρου και του στροφόμετρου και στη μέση υπάρχει μια μεγάλη ψηφιακή οθόνη.
Θα είναι διαθέσιμο σε τρία επίπεδα εξοπλισμό, Trendline, Comfortline και Highline. Η πρώτη διαθέτει κλιματισμό, μεταλλικά διακοσμητικά, ηλεκτρικά παράθυρα και κλειδαριές, αναδιπλούμενα πίσω καθίσματα και ζάντες 15″. Η Comfortline διαθέτει δερμάτινο τιμόνι και επιλογέα ταχυτήτων και βελούτε πατάκια. Επίσης υπάρχει το Composition Touch σύστημα ενημέρωσης και ψυχαγωγίας, σύστημα ανίχνευσης κόπωσης, αισθητήρες παρκαρίσματος και ζάντες αλουμινίου 16″. Η Highline διαθέτει χρωμιομένα διακοσμητικά, προβολείς xenon, ζάντες 17″, ατμοσφαιρικό φωτισμό, και υφασμάτινα/Alcantara καθίσματα.
Η λίστα του επιπλέον εξοπλισμού είναι μεγάλη και ανάμεσα τους συναντάμε πίσω αερόσακους με κόστος 355 ευρώ, η μεγάλη πανοραμική οροφή 1.050 ευρώ, η ηλεκτρονική ελεγχόμενη ανάρτηση DCC 990 ευρώ, τα δερμάτινα καθίσματα 1.990 ευρώ, τα απλά φώτα xenon 850 ευρώ, το ενεργό Cruise Control 550 ευρώ, το σύστημα προειδοποίησης αλλαγής λωρίδας 710 ευρώ, το σύστημα αναγνώρισης των πινακίδων οδικής σήμανσης 320 ευρώ και άλλα πολλά.

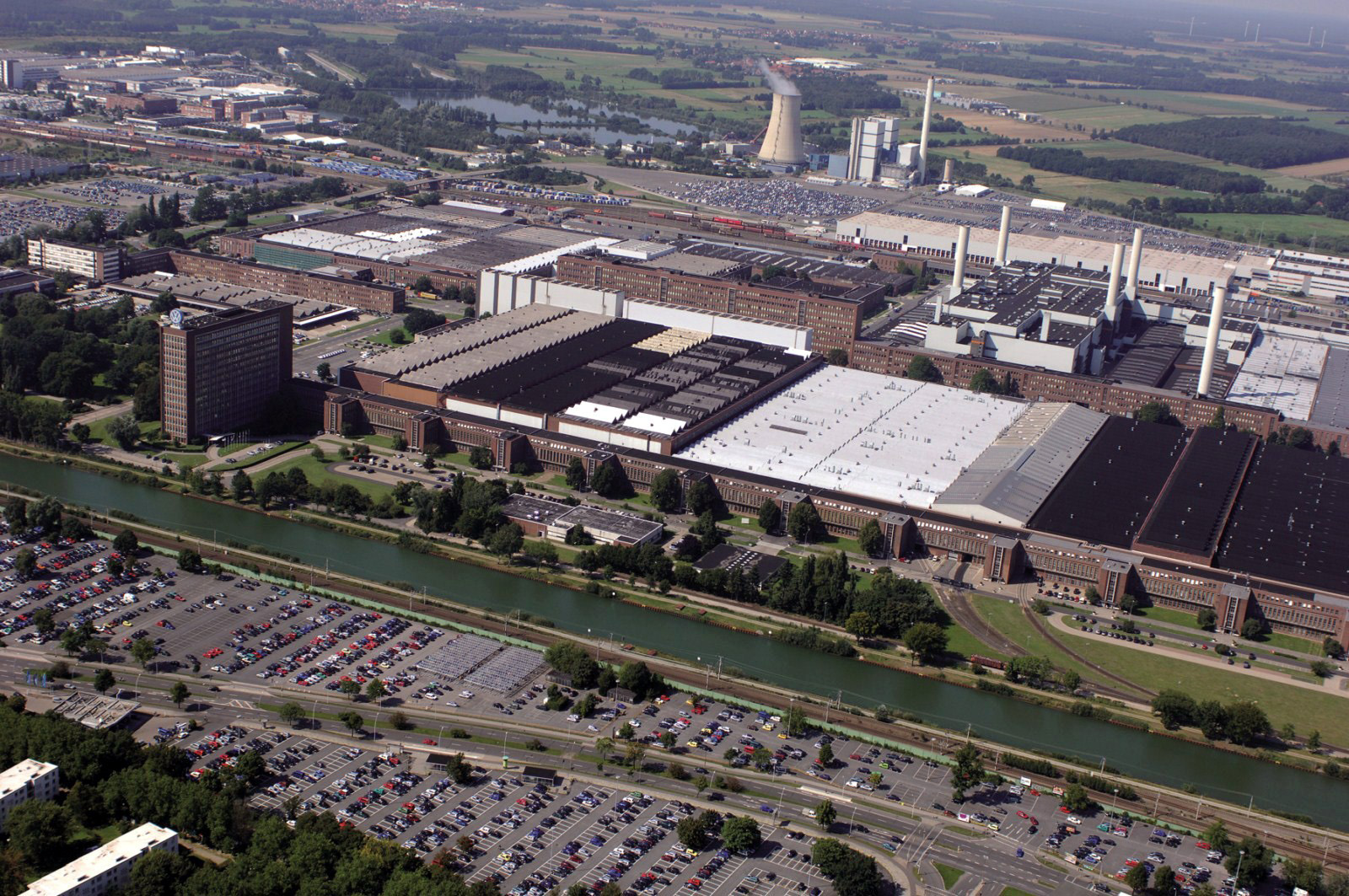

Η κατασκευή του έχει ήδη ξεκινήσει στα εργοστάσια της VW στο Wolfsburg και στο Zwickau στη Γερμανία. Έχει διαστάσεις 4,255 μέτρα μήκος, 1,799 μέτρα πλάτος, 1,452 μέτρα ύψος, μεγαλύτερο κατά 56 mm μήκος και 13mm πλάτος, κοντύτερο κατά 28 mm, το μεταξόνιο του έχει αυξηθεί κατά 59 mm, αγγίζοντας τα 2.637 mm ενώ το μπροστά μετατρόχιο έχει μεγαλώσει κατά 8 mm και το πίσω κατά 6 mm. Οι μπροστινοί τροχοί έχουνε τοποθετηθεί κατά 43 mm πιο μπροστά βοηθώντας έτσι να αυξηθούν οι χώροι στο εσωτερικό.
Οι αυξημένες διαστάσεις έχουν ως αποτέλεσμα ο χώρος στο εσωτερικό της καμπίνας να έχει αυξηθεί κατά 14 mm φτάνοντας πλέον τα 1.750 mm, ο χώρος των ποδιών των πίσω επιβατών έχει μεγαλώσει κατά 15 mm, ενώ ο χώρος των ώμων έχει αυξηθεί κατά 31 mm μπροστά (1.420 mm) και 30 mm πίσω (1.469 mm). Τα μπροστά καθίσματα βρίσκονται πιο κοντά στο πάτωμα και έχουνε μεταφερθεί 20 mm πιο πίσω.
Σε ότι αφορά τον χώρο των αποσκευών αυτός αγγίζει τα 380 λίτρα, 30 περισσότερα από αυτόν την προηγούμενης γενιάς. Το χαμηλό κατώφλι του, 685 mm, διευκολύνει την φόρτωση ογκωδών αντικειμένων. Με την αναδίπλωση των πίσω καθισμάτων αλλά και αυτή του συνοδηγού, το συνολικό μήκος φόρτωσης αγγίζει τα 2.412 mm.
Οι πωλήσεις του θα ξεκινήσουν από τον Νοέμβριο του 2012 και ζυγίζει μόλις 1.050 κιλά, 100 κιλά λιγότερα σε σχέση με το Golf 6. Η Volkswagen αναφέρει ότι η μείωση των κιλών αυτών επιτεύχθηκε κατά 38 κιλά λόγω της λεπτότερου χάλυβα και αλουμινίου στο σώμα του αυτοκινήτου, κατά 26 κιλά λόγω των αλουμινένιων μερών στο σασί, 12 κιλά από τον εξοπλισμό και 3 κιλά από τη νέα καλωδίωση. Το συνολικό βάρος του Golf στην βασική έκδοση ανέρχεται στα 1.050 κιλά. Ως αποτέλεσμα του μικρότερου βάρους, μειώθηκε και η μέση κατανάλωση του, ξεκινώντας από 13,9% φτάνοντας έως τα 23% σε μερικές εκδόσεις.
Η μεγάλη διαφορά του νέου Golf είναι ότι κατασκευάζεται πάνω στη νέα αρθρωτή πλατφόρμα MQB, την ίδια που φορά και το ολοκαίνουργιο Audi A3 με την ανάρτηση του να αποτελείται από γόνατα MacPherson μπροστά και πολλαπλών συνδέσμων πίσω. Το σύστημα διεύθυνσης του διαθέτει 5 προγράμματα Eco, Sport, Normal, Individual και Comfort.
Κάτω από το καπό δεν έχει γίνει κάποια έκπληξη και έτσι το νέο Golf θα φορά μια γκάμα TSI και TDI κινητήρων οι οποίοι θα αποδίδουν περισσότερο σε σχέση με τους τωρινούς. Θα υπάρχει ο 1.400αρης TSI που θα αποδίδει από 140 άλογα, ο 2.0-λιτρος TDI θα αποδίδει 184 άλογα με 379 Nm ροπής, ενώ η έκδοση GTD θα φορά ένα twin-turbo πετρελαιοκινητήρα απόδοσης 223 ίππων. Επίσης θα τοποθετηθεί και ο νέος 1.400αρης TSI κινητήρας με σύστημα απενεργοποίησης των δύο κυλίνδρων, που τοποθετήθηκε αρχικά στο Volkswagen Polo BlueGT, ενώ θα φορεθεί και στο νέο A3. Επίσης θα υπάρχει και μια πλήρως ηλεκτρική έκδοση η οποία θα ονομάζεται E-Golf. Θα υπάρχει επίσης ο νέος TDI 1.600 κ.εκ. της οικογένειας EA288, ο οποίος θα αποδίδει 105 άλογα, θα έχει μέση κατανάλωση 3,8 λίτρα/100 χλμ και θα εκπέμπει 99 γρ/χλμ.

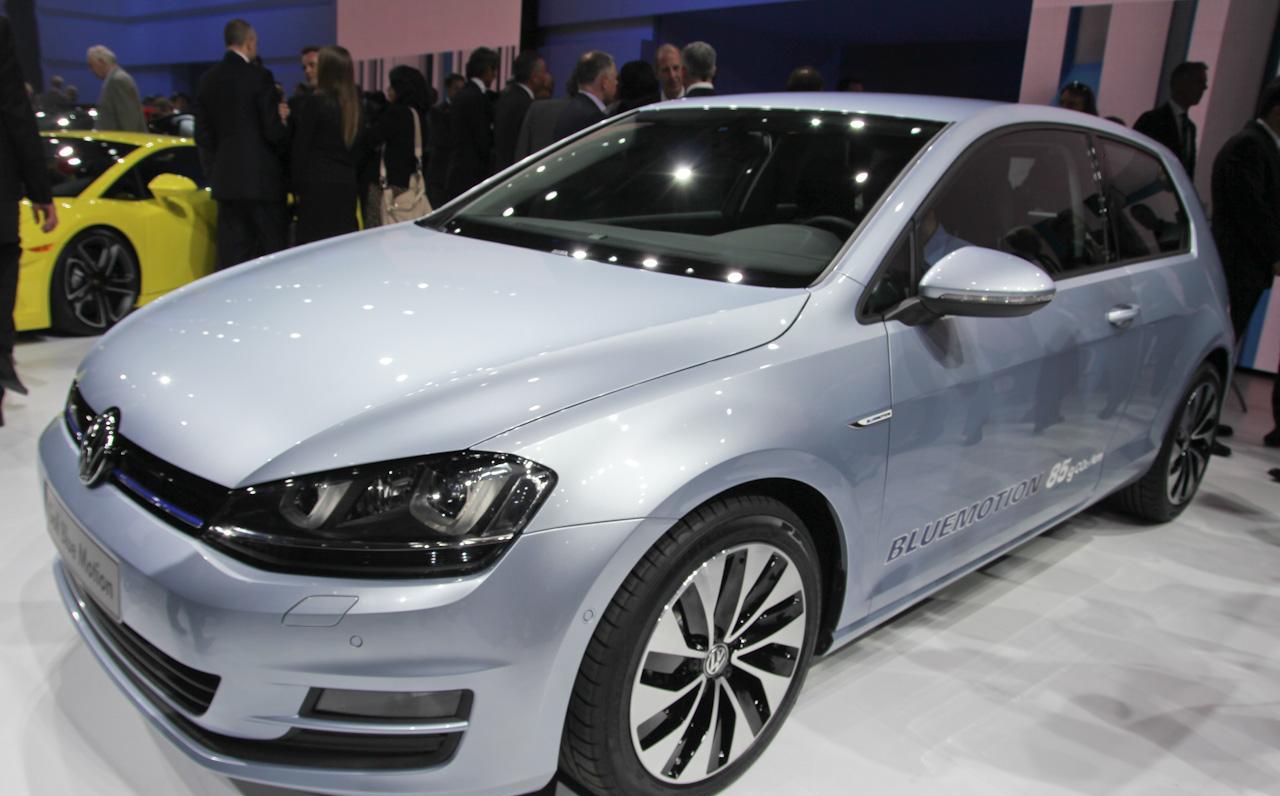

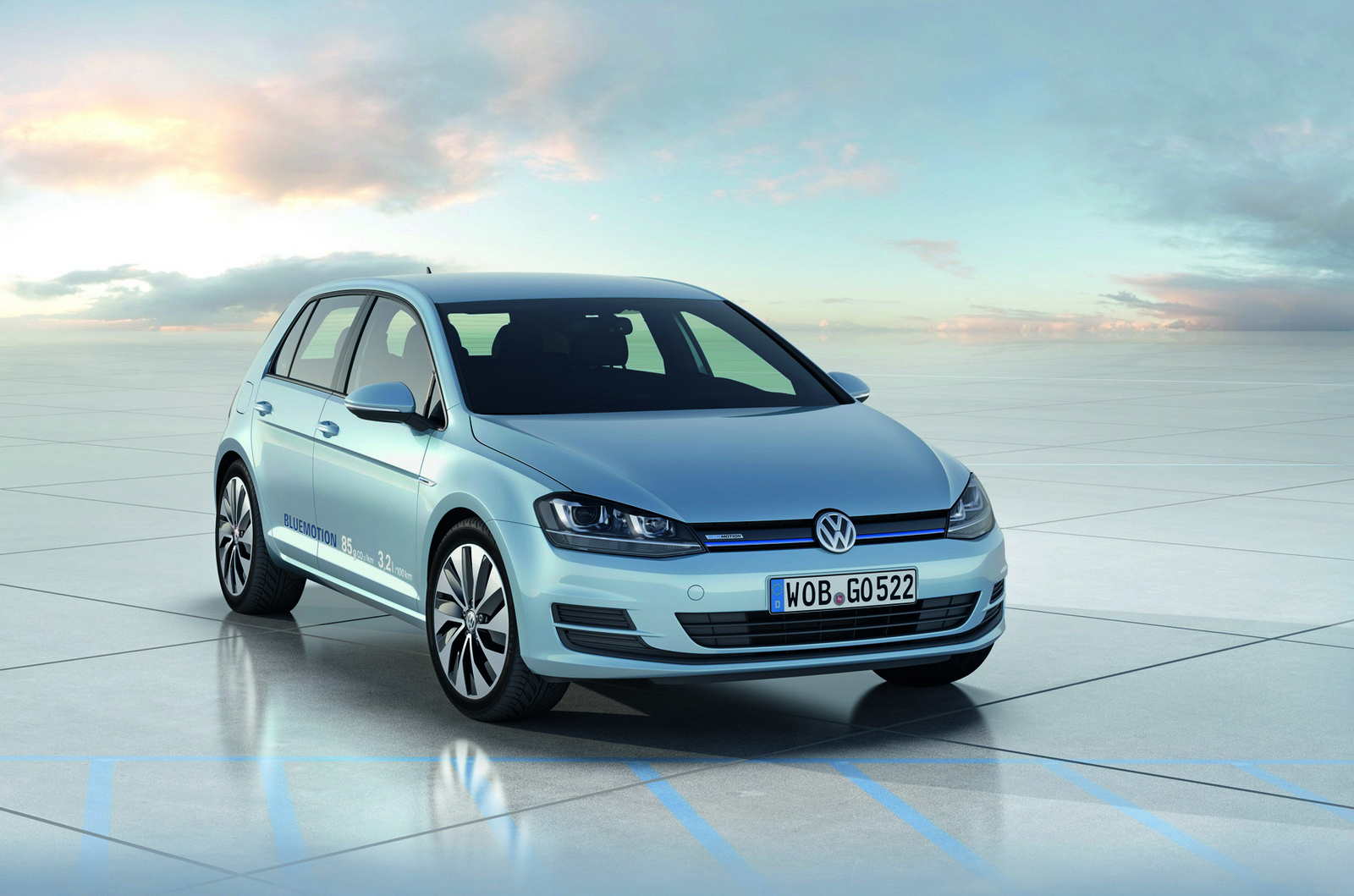

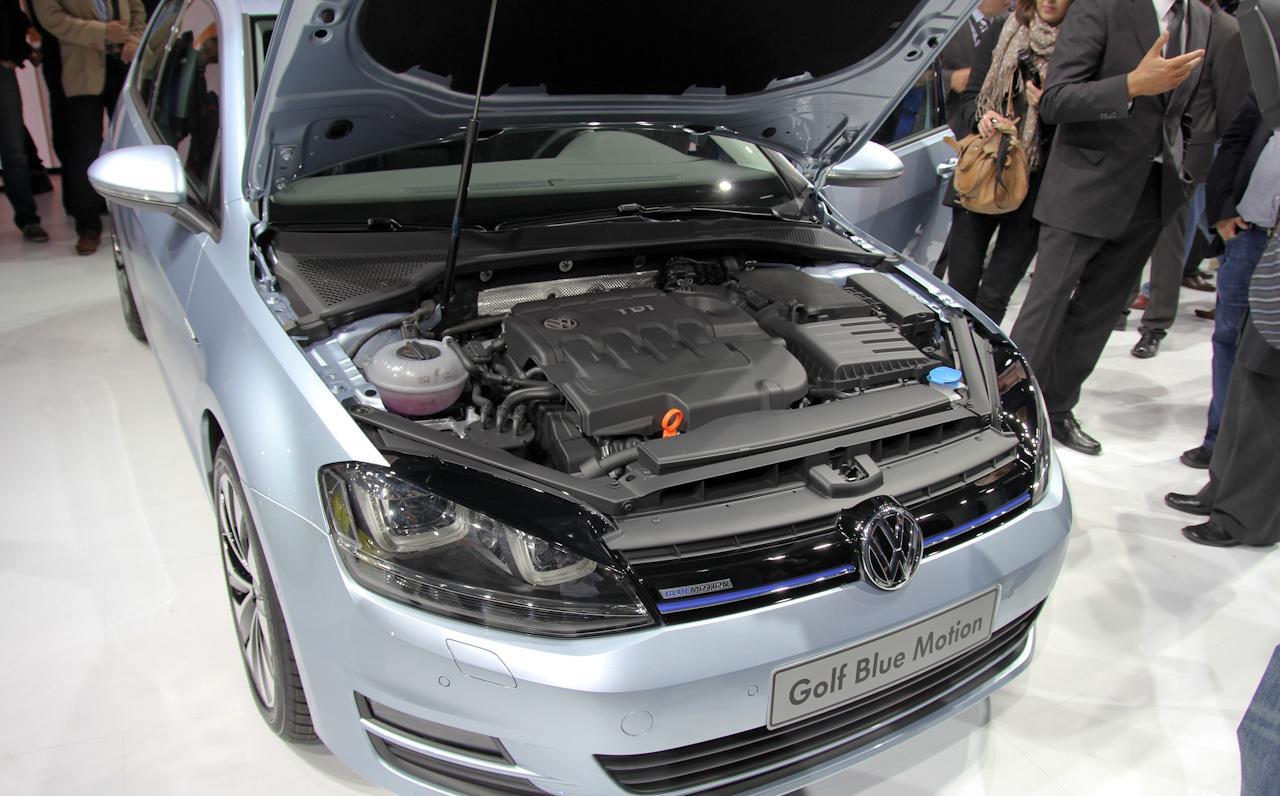

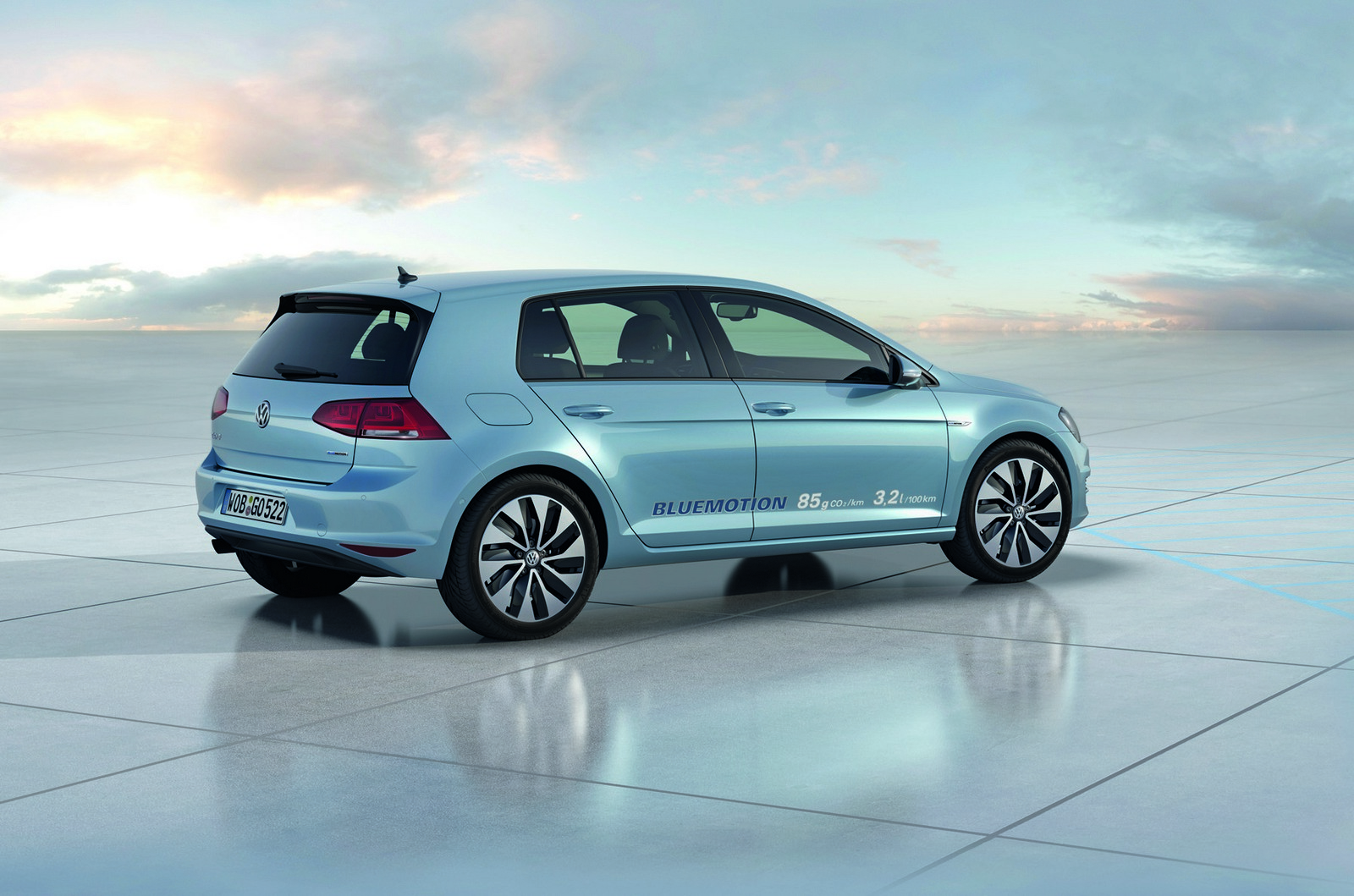

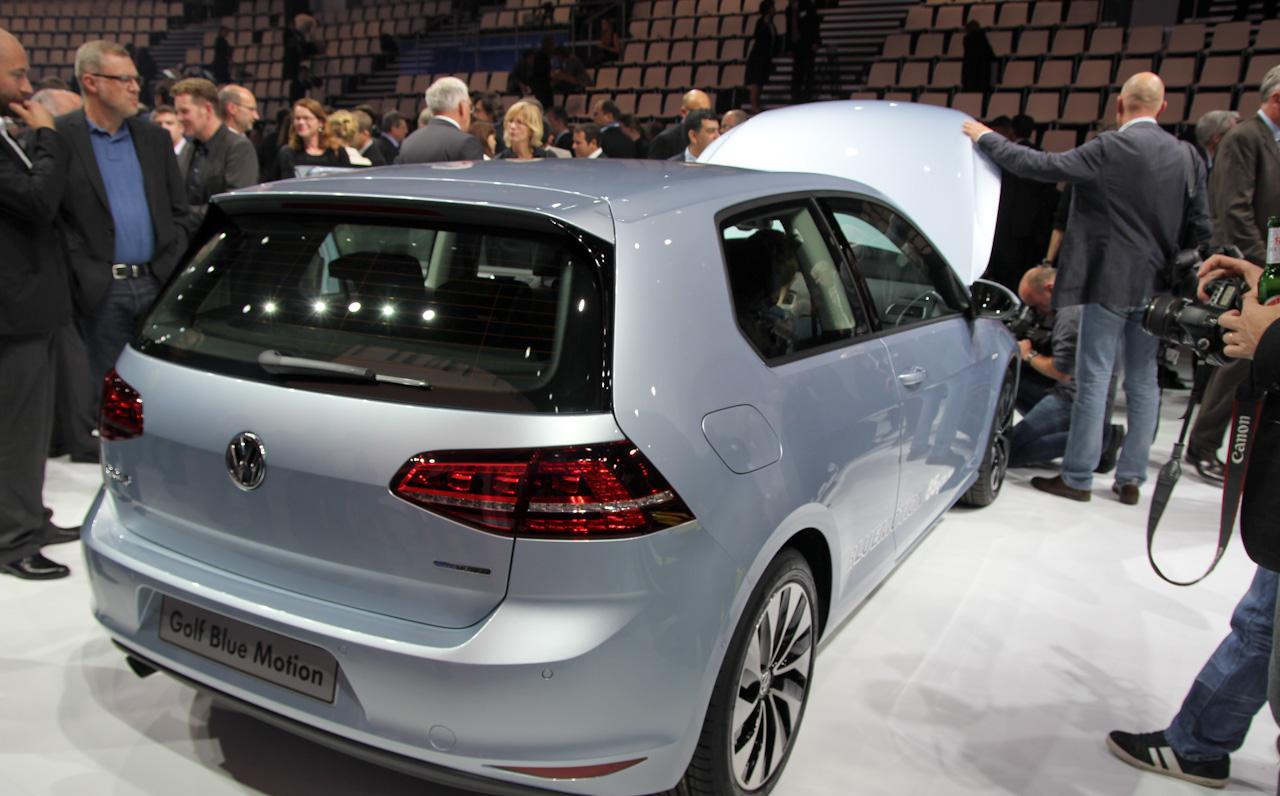

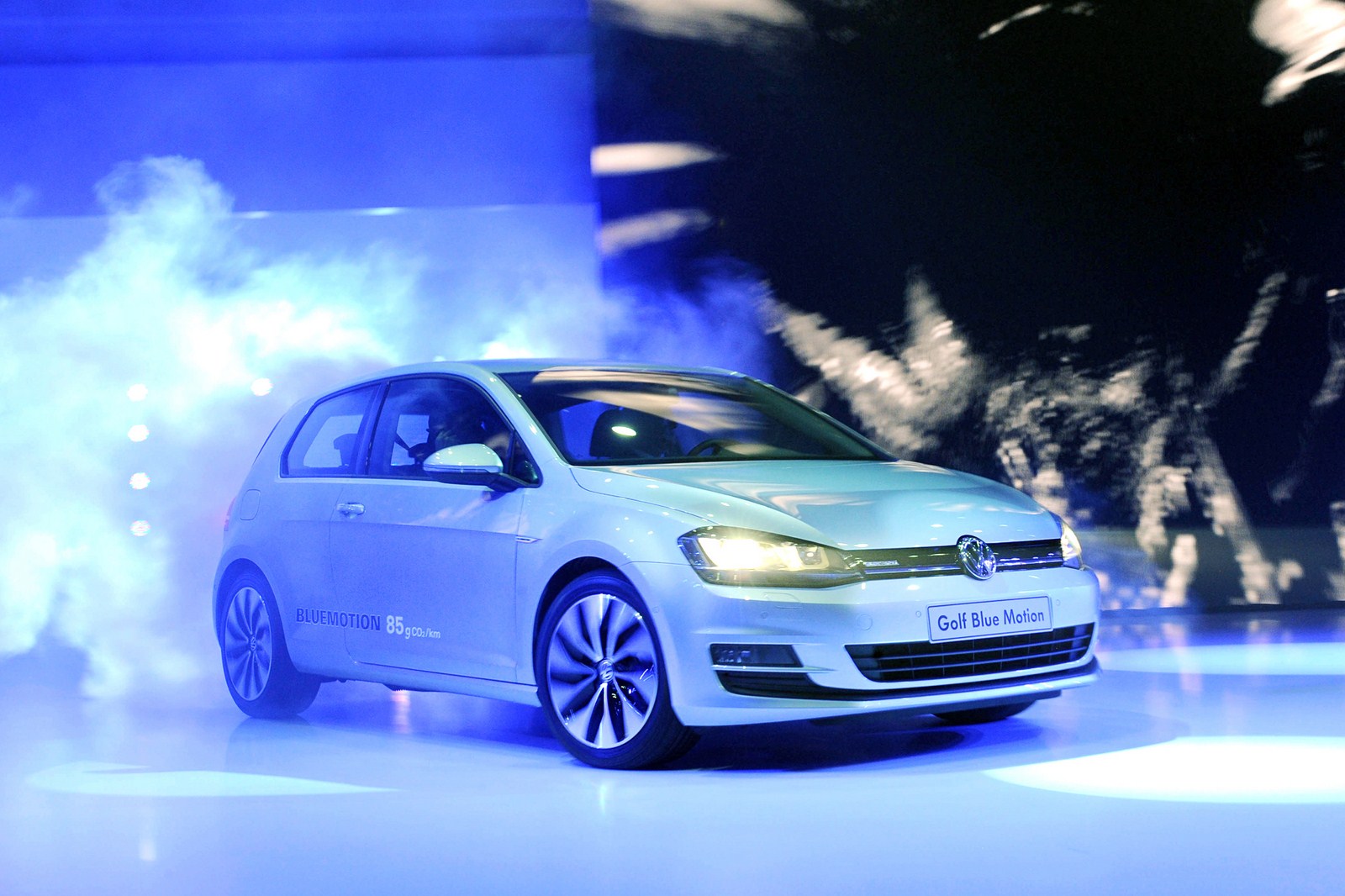

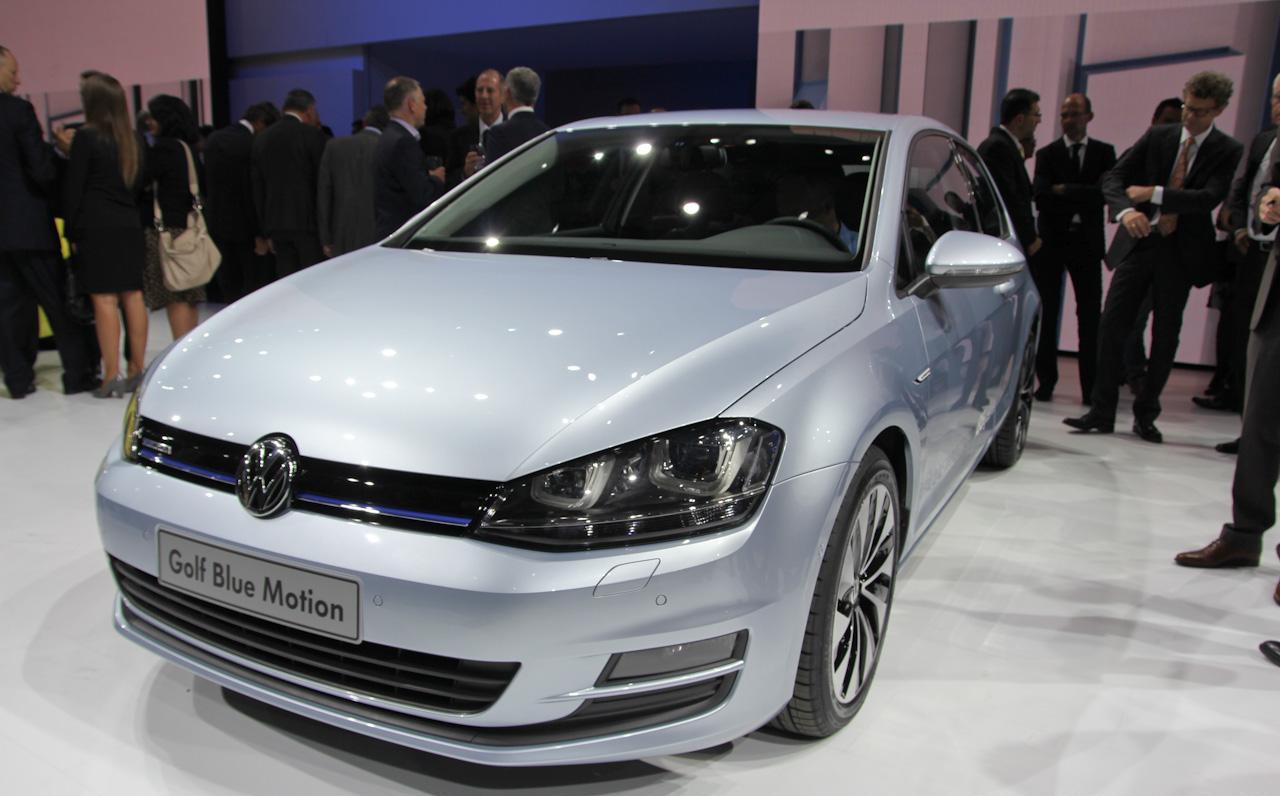

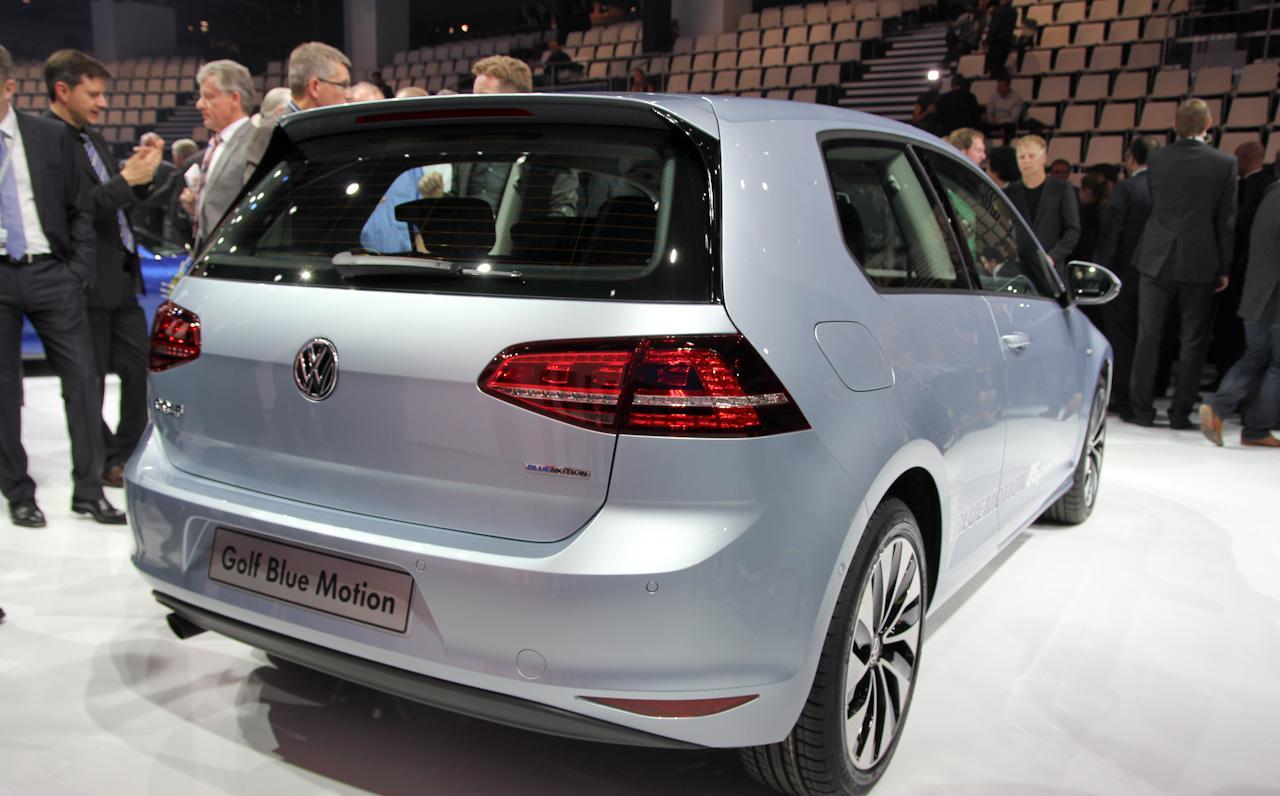

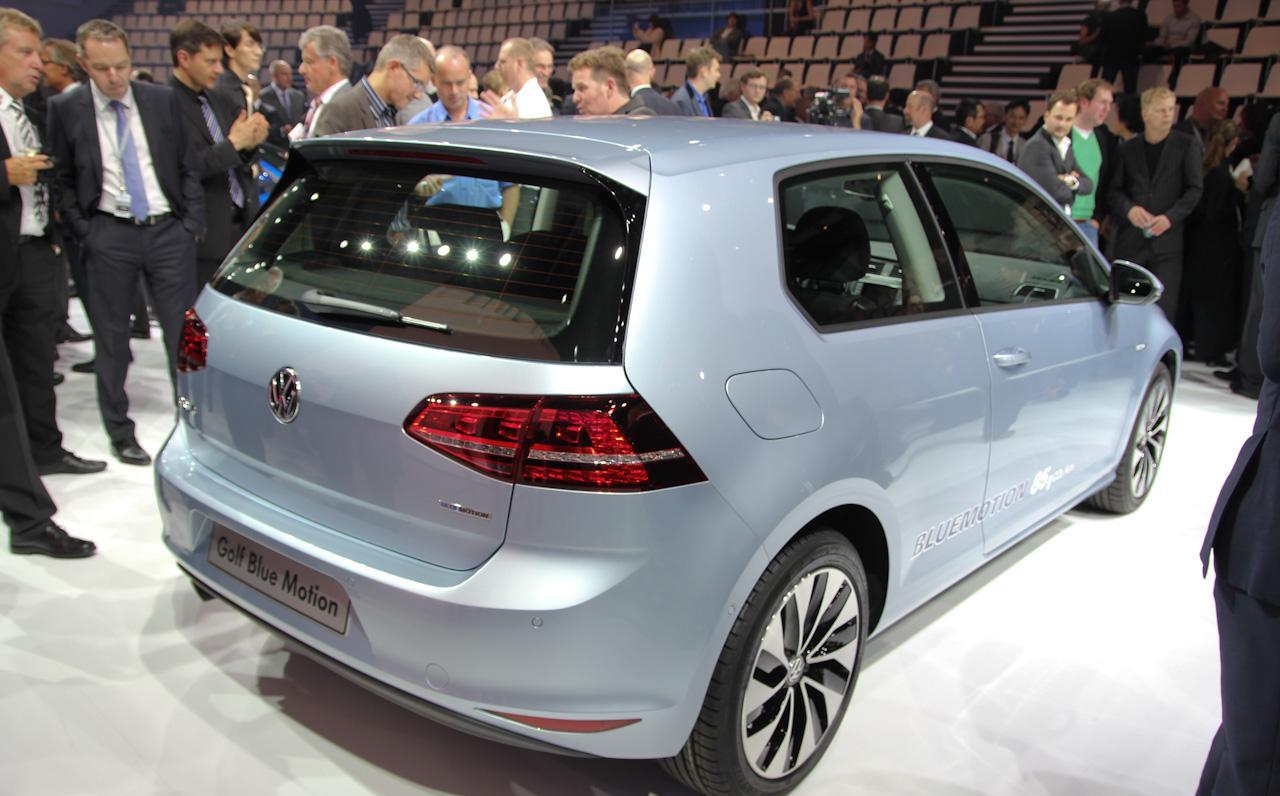

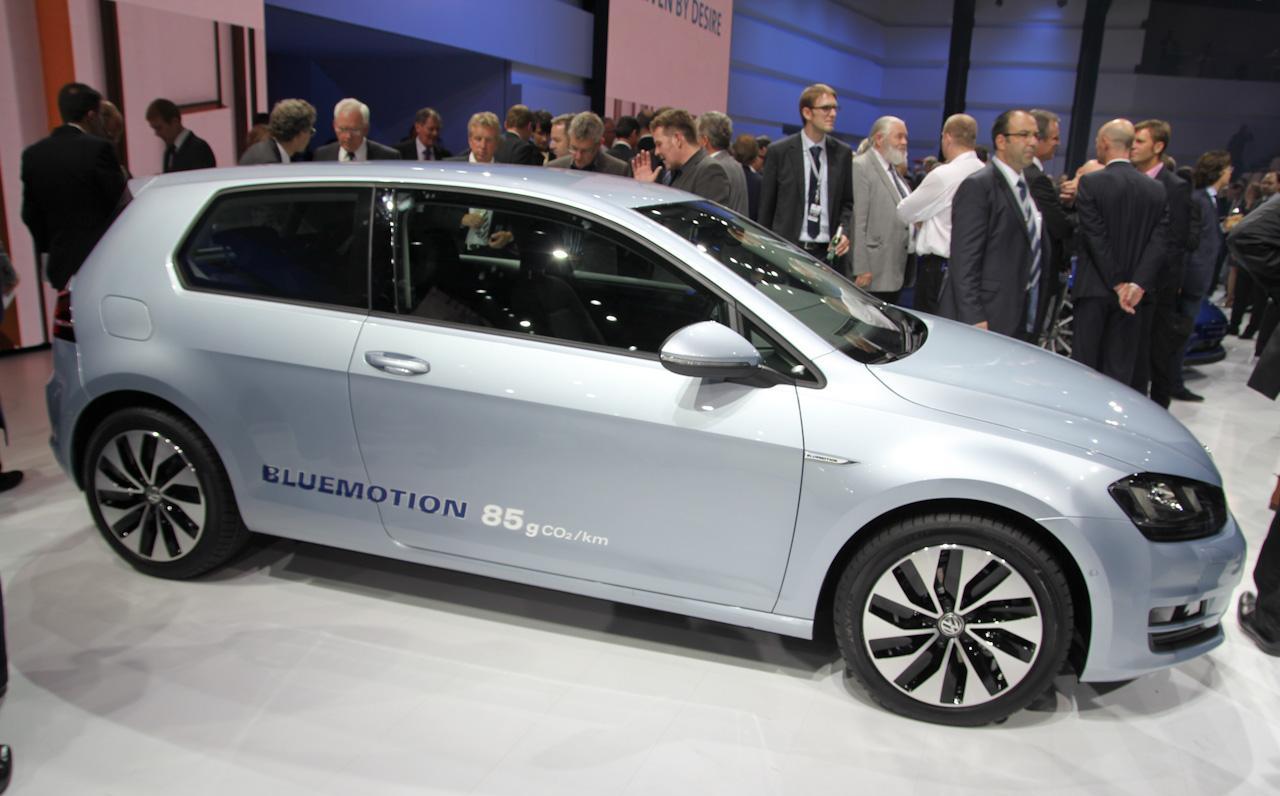

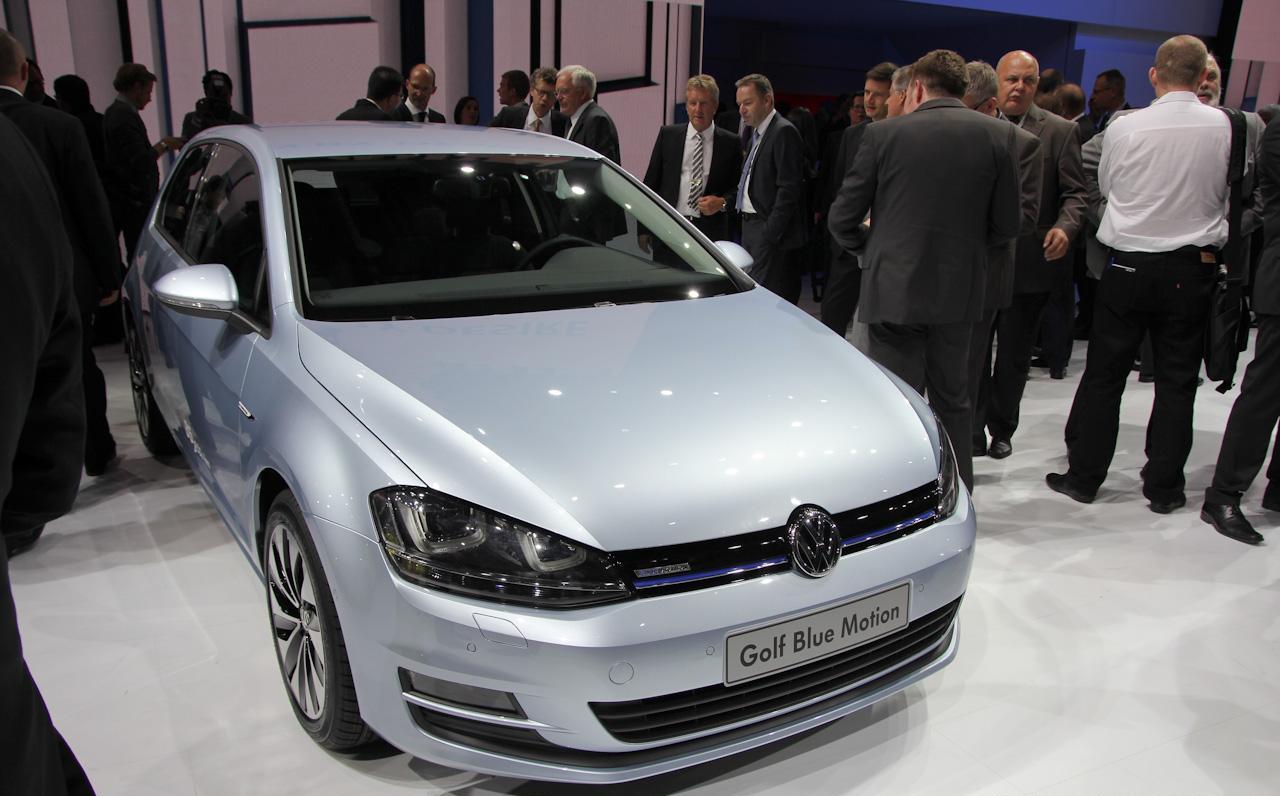

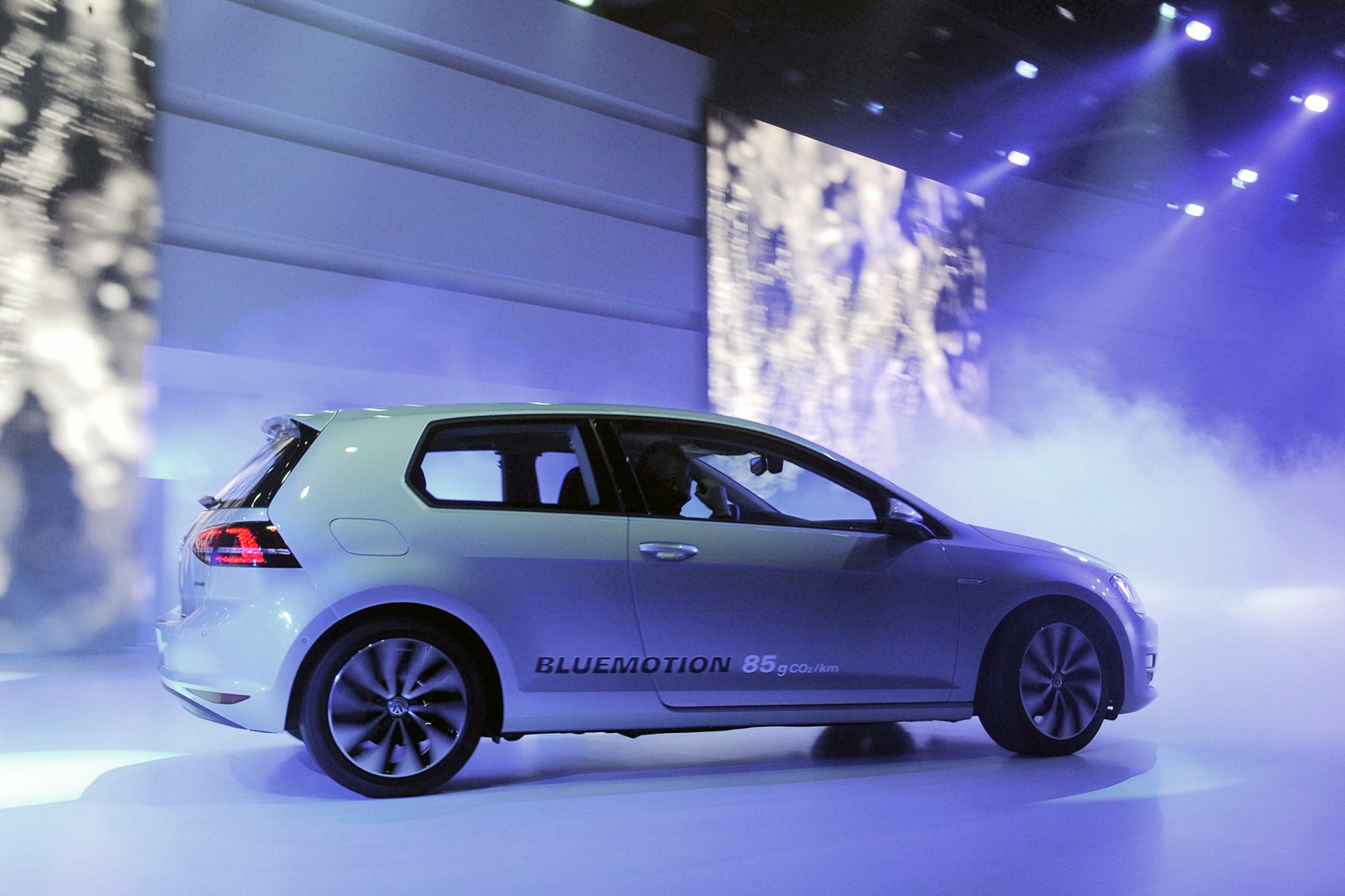

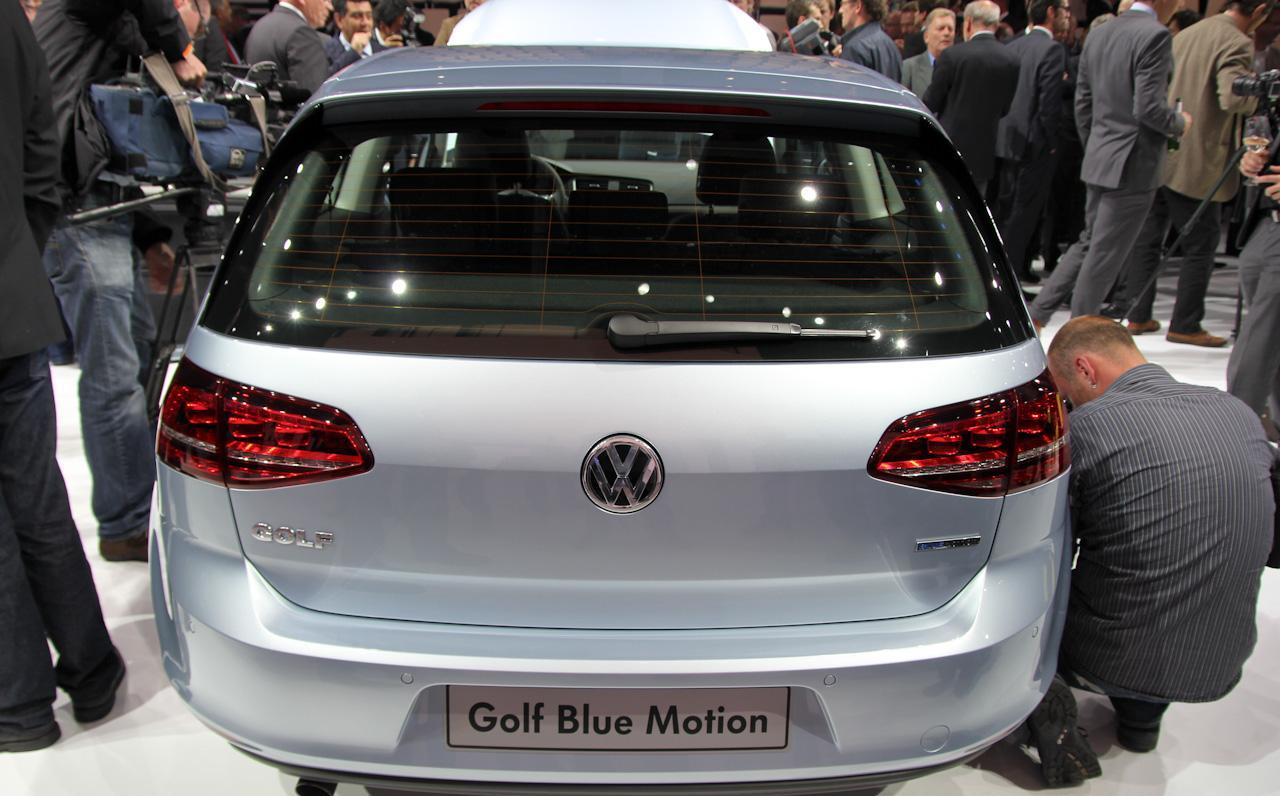

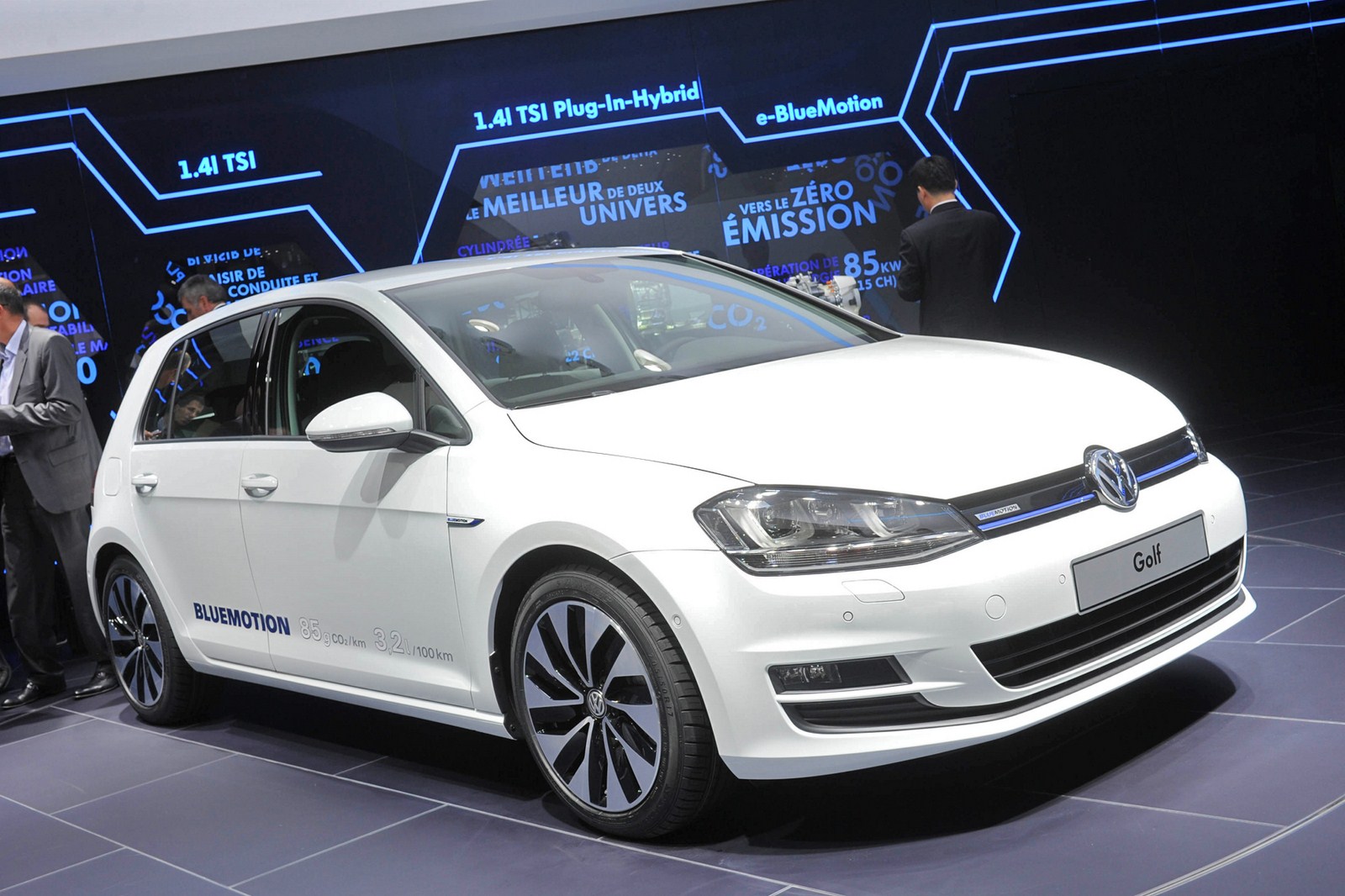

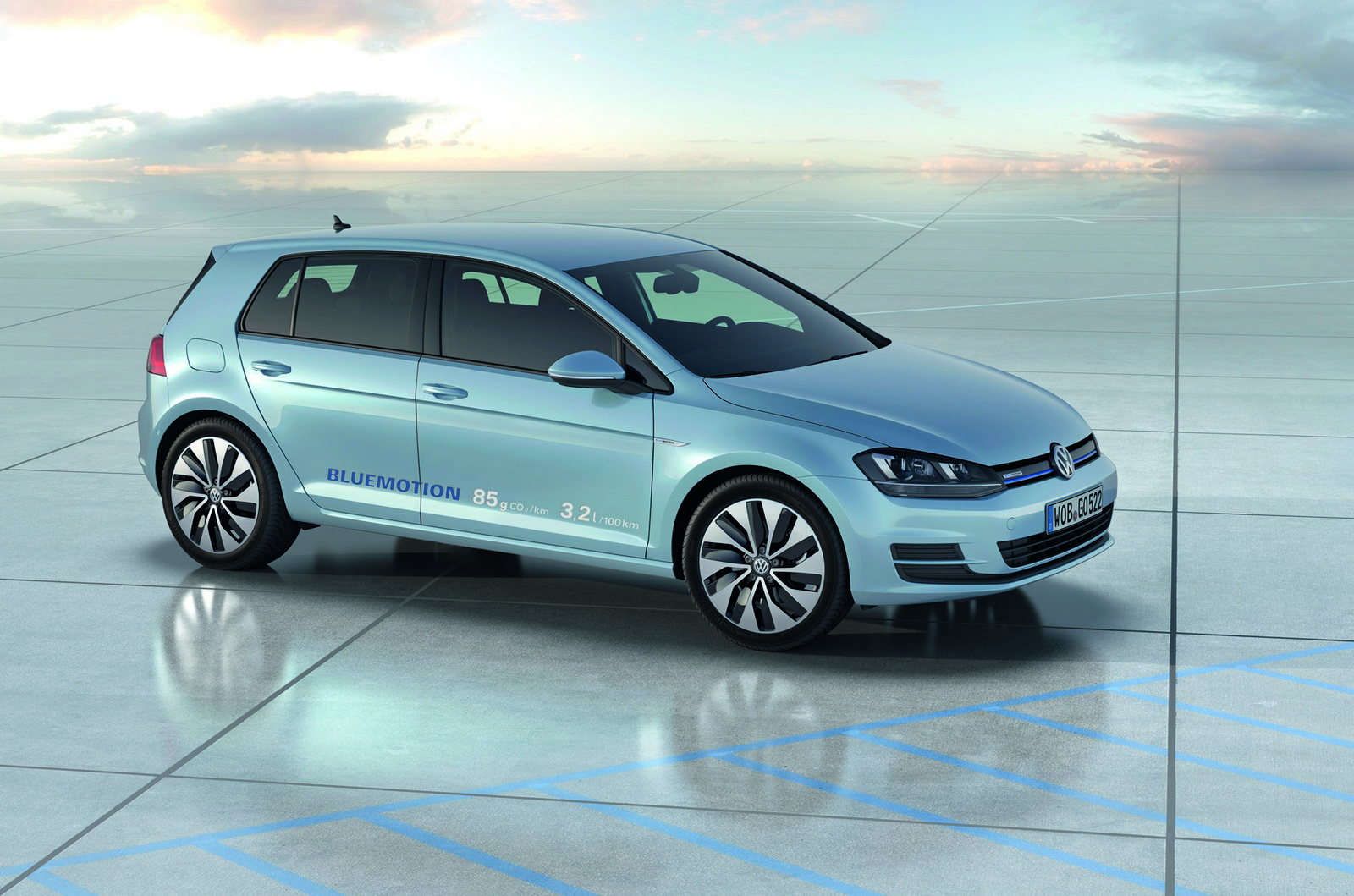

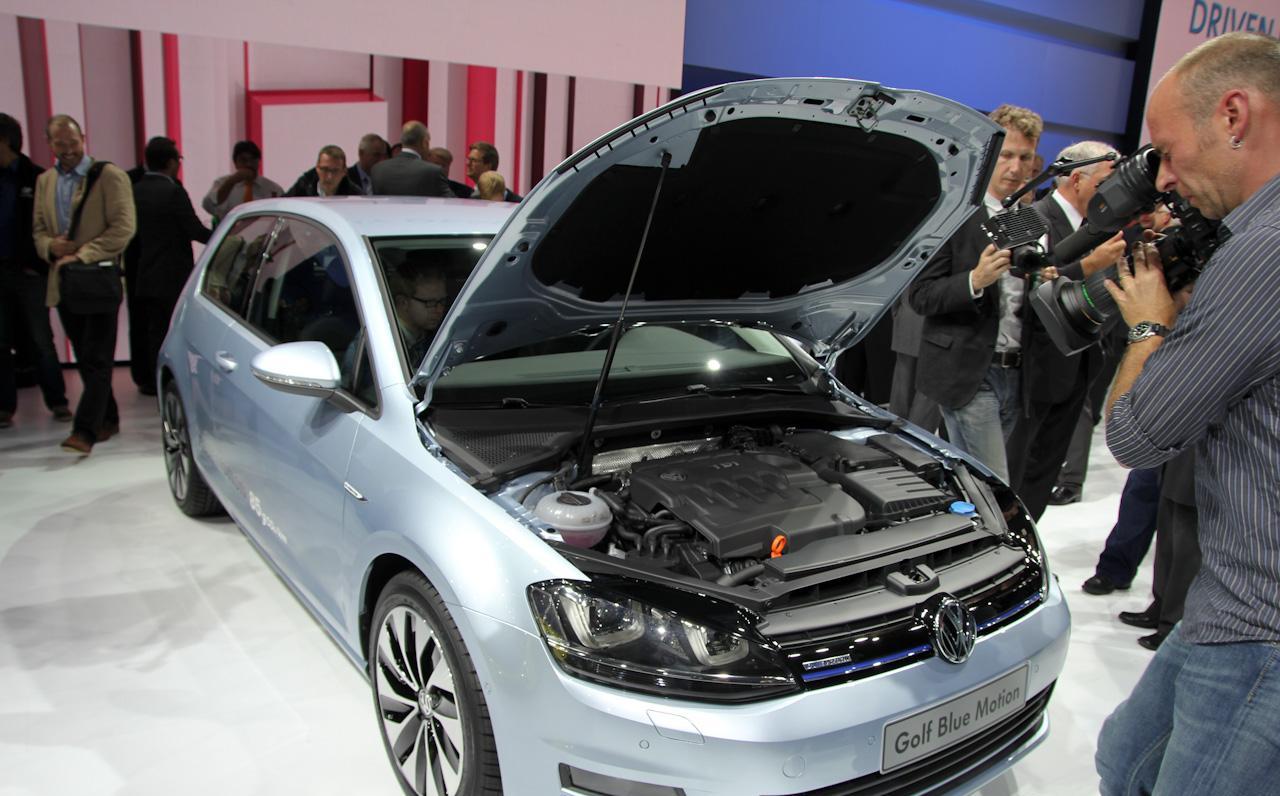

Η έκδοση BlueMotion θα κυκλοφορήσει στις αγορές το καλοκαίρι του 2013 και πρόκειται για το πιο οικονομικό Golf που έχει βγει ποτέ. Φορά τον νέο TDI 1.600 κ.εκ. της οικογένειας EA288, ο οποίος αποδίδει 110 άλογα με 250 Nm ροπής, με μέση κατανάλωση μόλις 3,2 λίτρα/100 χλμ και 85 γρ/χλμ εκπομπές CO2, με την τελική ταχύτητα να αγγίζει τα 202 χλμ/ώρα.
Με ένα ντεπόζιτο 50 λίτρων, το Golf BlueMotion έχει θεωρητική αυτονομία 1.562 χλμ. Η Volkswagen αναφέρει ότι θα είναι το καθαρότερο αυτοκίνητο της κατηγορίας του, ακόμη και από το Toyota Prius, χάρη στο ελαφρύ του βάρος, μόλις 1.050 κιλά και στον χαμηλό αεροδυναμικό συντελεστή, 0.274 Cd. Συνδυάζεται με ένα 5-τάχυτο μηχανικό κιβώτιο και διαθέτει σύστημα Star/Stop, καθώς και σύστημα ανάκτησης ενέργειας κατά το φρενάρισμα. Η Volkswagen κατάφερε και μείωση την κατανάλωση καυσίμου κατά 15%αφού μείωσε το βάρος του απόβαρου κατά 26 κιλά και το βάρος του σώματος κατά 37 κιλά.
Η απόσταση από το έδαφος έχει χαμηλώσει κατά 15 mm, διαθέτει κλειστή γρίλια και η έκδοση παραγωγής θα είναι διαθέσιμη σε δύο εκδόσεις εξοπλισμού Trendline και Comfortline. Περισσότερες λεπτομέρειες μπορείς να βρεις στο δελτίο τύπου που ακολουθεί.
Η έκδοση Golf 1.2 TSI BlueMotion εκπέμπει 113 γρ/χλμ CO2. Ο 1.400αρης TSI στην έκδοση με τα 140 άλογα, όταν συνδυάζεται με το 7-τάχυτο DSG κιβώτιο, θα έχει μέση κατανάλωση 4,8 λίτρα/100 χλμ με 112 γρ/χλμ εκπομπές CO2.
Αρχικά θα είναι διαθέσιμο με τον 1.200αρη TSI με τα 85 άλογα με το σύστημα απενεργοποίησης των δύο κυλίνδρων, κάνοντας το Golf να είναι το πρώτο μοντέλο που τον φορά. Αποδίδει 85 άλογα με 4,9 λίτρα/100 χλμ μέση κατανάλωση, με 113 γρ/χλμ εκπομπές CO2. Ακολουθεί ο 1.400αρης TSI με τα 140 άλογα και το σύστημα απενεργοποίησης των δύο κυλίνδρων, με μέση κατανάλωση 4,8 λίτρα/100 χλμ και 112 γρ/χλμ εκπομπές CO2.
Από πλευράς πετρελαιοκινητήρων, θα φορά τον νέο 1.600αρη με τα 105 άλογα, της οικογένειας EA288, έχοντας μέση κατανάλωση 3,8 λίτρα/100 χλμ και 99 γρ/χλμ εκπομπές CO2. Κορυφαίος ο 2,0-λιτρος TDI με τα 150 άλογα και μέση κατανάλωση 4,1 λίτρα/100 χλμ και 106 γρ/χλμ εκπομπές CO2.

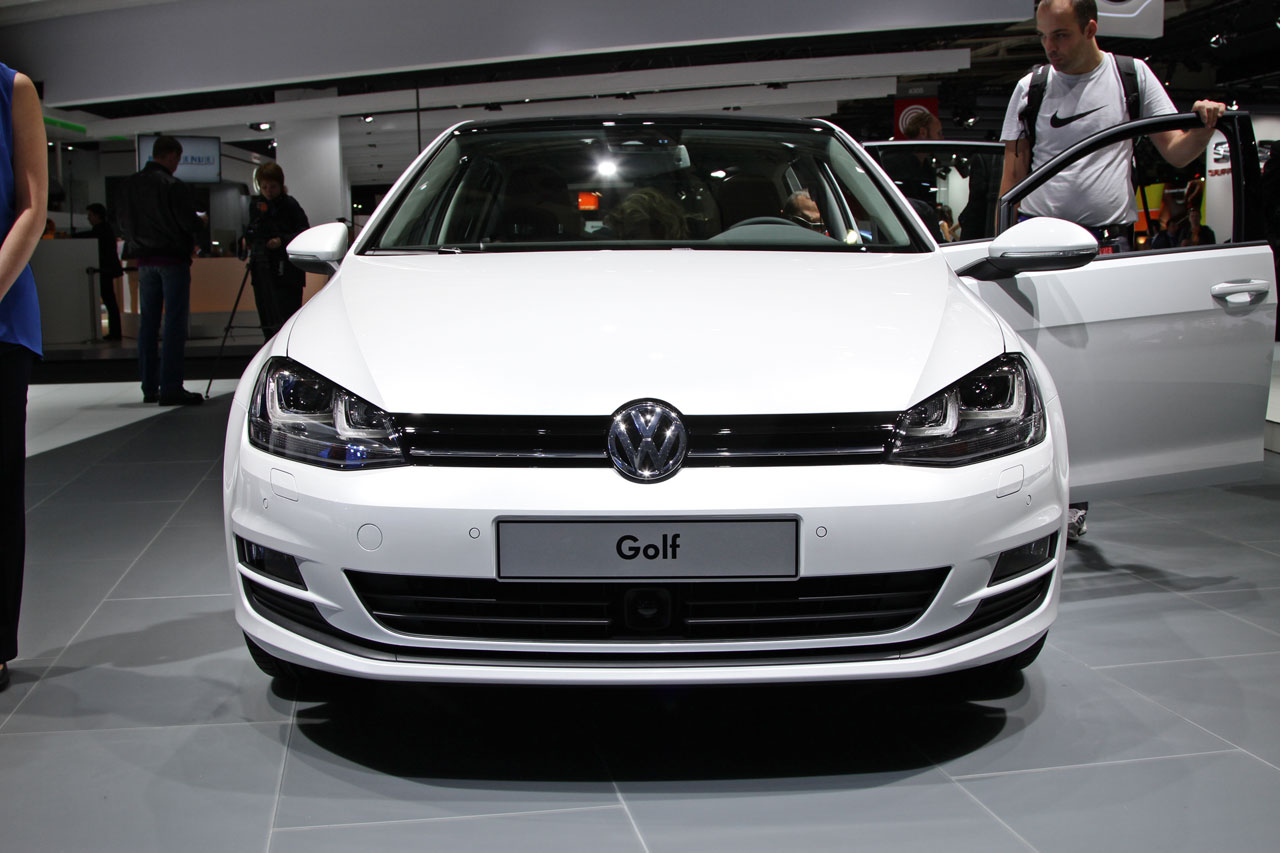

Σε ότι αφορά την GTI έκδοση. Στο Παρίσι παρουσιάζεται το GTI Concept με την έκδοση παραγωγής να παρουσιάζεται 7 μήνες μετά, στην έκθεση της Γενεύης τον Μάρτιο του 2013.
Διαθέτει νέα ανάρτηση με το σώμα του αυτοκινήτου να είναι κατασκευασμένο από ένα ελαφρύτερο χάλυβα υψηλής αντοχής αλλά και πολλά μέρη αλουμινίου όπως η οροφή και το καπό. Φορά το νέο ηλεκτρονικό μπροστά διαφορικό VAQ, το οποίο έκανε ένα από τα πρωτότυπα Golf GTI να γυρίσει στο Nurburgring 8 δευτερόλεπτα γρηγορότερα σε σχέση με την τωρινή γενιά.
Μηχανικά φορά τον 2,0-λιτρο TFSI κινητήρα απόδοσης 220 ίππων και για πρώτη φορά, υπάρχει ένα προαιρετικό πακέτο το οποίο κάνει τον κινητήρα να αποδίδει 230 άλογα. Έχει μέγιστη ροπή 350 Nm ροπής και η VW υποστηρίζει ότι έχει μέση κατανάλωση 6,6 λίτρα/100 χλμ. Τα 0-100 χλμ/ώρα τα κάνει σε 6,6 δευτερόλεπτα με τελική ταχύτητα 246 χλμ/ώρα. Με το πακέτο με τα 230 άλογα, τα 0-100 χλμ/ώρα τα κάνει σε 6,5 δευτερόλεπτα με τελική ταχύτητα 250 χλμ/ώρα.
Διαθέτει κυψελωτή γρίλια, με κόκκινη γραμμή, νέες ζάντες 17″ και 18″, κόκκινες δαγκάνες φρένων, διπλές χρωμιομένες απολήξεις, αεροτομή και LED πίσω φωτιστικά σώματα. Η ανάρτηση του έχει χαμηλώσει κατά 15 mm και φορά νέους προφυλακτήρες και μαύρα πλαϊνά spoiler.
Στο εσωτερικό του διαθέτει σπορ μπάκετ καθίσματα με τις χαρακτηριστικές καρό υφασμάτινες επενδύσεις, κοφτό δερμάτινο πολυλειτουργικό τιμόνι και δερμάτινο επιλογέα ταχυτήτων σε σχήμα golf με κόκκινες ραφές, μαύρα γυαλιστερά διακοσμητικά με χρωμιομένες λεπτομέρειες, μαύρη οροφή, νέος πίνακας οργάνων με έγχρωμη οθόνη, κρυφός κόκκινος φωτισμός καθώς και αλουμινένια πεντάλ.
Η έκδοση R θα παρουσιαστεί στην έκθεση της Φρανκφούρτης τον Σεπτέμβριο του 2013, θα είναι τετρακίνητο και οι φήμες θέλουν να αποδίδει 290 άλογα. Η Volkswagen δοκίμασε να χωρέσει τον 2.500 κ.εκ TFSI κινητήρα των TT-RS και RS3, αλλά η λύση απορρίφθηκε λόγω χώρου. Έτσι το νέο Golf R θα φορά τον δυνατό 2,0-λιτρο TFSI EA888. Για πρώτη φορά, το Golf θα αποκτήσει plug-in υβριδική έκδοση η οποία θα αποδίδει 246 άλογα με 5.6 λίτρα/100 χλμ μέση κατανάλωση.
Σε ότι αφορά τα συστήματα που θα φορά το νέο Golf. Θα υπάρχει ένα ενεργό cruise control, ένα ημι-αυτόματο σύστημα παρκαρίσματος καθώς και ένα 8″ σύστημα ενημέρωσης και ψυχαγωγίας. Θα υπάρχουν τετρακίνητες 4Motion εκδόσεις καθώς και ενεργοί προφυλακτήρες στις Bluemotion εκδόσεις. To σύστημα διεύθυνσης του θα είναι μεταβλητής υποβοήθησης, με πέντε προγράμματα, Eco, Sport, Normal, Individual και Comfort.

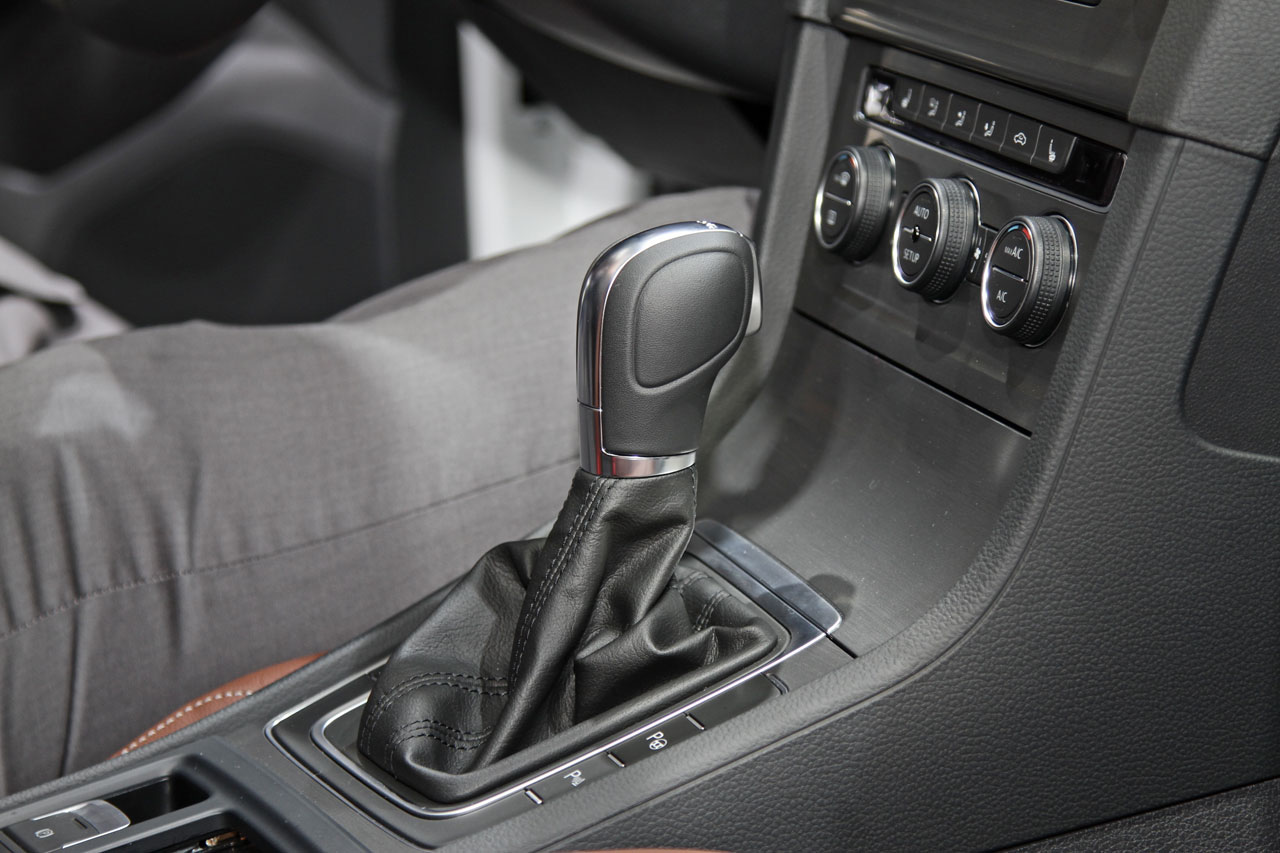

Σε ότι αφορά τα κιβώτια ταχυτήτων. Τα entry-level μοντέλα θα εφοδιάζονται με ένα 5-τάχυτο μηχανικό κιβώτιο με τα υπόλοιπα μοντέλα να έχουν την δυνατότητα να φορέσουν 6-τάχυτα μηχανικά κιβώτια και αυτόματα κιβώτια διπλού συμπλέκτη DSG 6 και 7 σχέσεων.
Από πλευράς εξοπλισμού θα διαθέτει ενεργό cruise control αυτόματο σύστημα φρεναρίσματος με ταχύτητες έως 30 χλμ/ώρα (παρόμοιο με αυτό που φορά το up!, σύστημα ειδοποίησης αλλαγής λωρίδας, σύστημα ανίχνευσης κόπωσης, σύστημα αναγνώρισης των πινακίδων οδικής σήμανσης, τον νέο βοηθό παρκαρίσματος OPS με γραφικό σύστημα 360 μοιρών, ενεργά φωτιστικά σώματα και το σύστημα PreCrash το οποίο σφίγγει τις ζώνες ασφαλείας και κλείνει τα παράθυρα, σε περίπτωση που καταλάβει σύγκρουση αλλά και το σύστημα Front Assist το οποίο λειτουργεί σε ταχύτητες έως 150 χλμ/ώρα και σκανάρει τον δρόμο και σε ενδεχόμενο σύγκρουσης, φέρνει τα τακάκια πιο κοντά στους δίσκους για αμεσότερο φρενάρισμα.
Στο μέλλον θα δούμε το Golf Plus, την πεντάπορτη wagon έκδοση, το Golf CC καθώς και το δίπορτο Golf cabrio. Oι πωλήσεις της πεντάπορτης έκδοσης του νέου Golf θα ξεκινήσουν από τον Νοέμβριο του 2012 στη Γερμανία με αρχική τιμή τις 16.975 ευρώ. Περισσότερες λεπτομέρειες μπορείς να βρεις στο δελτίο τύπου που ακολουθεί.
[Πηγή: Volkswagen | Live Photos: Autoblog.nl]
[learn_more caption=”Δελτίο Τύπου”]
World premiere of the new Golf in Berlin
Seventh generation of bestseller is up to 100 kg lighter and 23 per cent more fuel efficient than previous model
Wolfsburg / Berlin, 04 September 2012 – Thousands of invited guests experienced the world premiere of the new Golf this evening in Berlin. The New National Gallery proved a fitting venue for the perfected seventh generation of the car that has defined an entire vehicle class with regard to vehicle weight, emissions, comfort and safety.
Six generations of the Golf – 1974 to 2012. That represents 38 years of continuous success for the world bestseller with sales totalling 29.13 million cars. It has also made a tremendous economic impact, safeguarding jobs, and has served as an influential measure of technical progress over the epochs,” says Prof. Dr. Martin Winterkorn, Chairman of the Board of Management of Volkswagen AG. The corporate chief continues: “We want to continue this success story in the seventh generation Golf. Although the new Golf is safer, more comfortable and spacious than the previous model, it is up to 100 kg lighter and – in the case of the new 140 PS petrol engine that features cylinder deactivation and a combined fuel consumption of just 4.8 l / 100 km – it is up to 23 per cent more fuel efficient.”
Conceptually, the new Golf is based on the Modular Transverse Matrix. This means that everything was redesigned: from the body and powertrain to the interior – as well as all information and entertainment systems and its many new assistance systems. Volkswagen developed two entirely new generations of engines for the Golf that offer a power range from 63 kW / 85 PS to 110 kW / 150 PS. All engine versions are equipped with a standard stop/start system and battery regeneration, which contribute towards improved fuel economy. The common rail engine with 77 kW / 105 PS, for example, which can hardly be made out as a diesel, only consumes 3.8 litres of fuel per 100 km, equivalent to CO2 emissions of 99 g/km. Once again, the Golf BlueMotion sets the new benchmarks for the model series with CO2 emissions of just 85 g/km and a combined fuel consumption of 3.2 litres of diesel per 100 km.
The new Golf. Das Auto. The world premiere. ‘The key to perfection’
The new Golf. In brief
The new Golf – up to 100 kg lighter and 23 per cent more fuel-efficient
Seventh stage of Golf evolution shows clearly added dynamism and precision
The Golf as a 3-litre car: with consumption of 3.2 litres and 85g/km CO2, the Golf BlueMotion sets new standards
Wolfsburg / Berlin, 04 September 2012
“Six generations of the Golf – from 1974 to 2012. That’s 38 years of continual success, sales of 29.13 million units of a world best seller, an enormous economic factor, a guarantee of secure jobs and an enduring reflection of technical progress,” remarks Prof. Dr. Martin Winterkorn, Group Chairman, Volkswagen AG. “With the seventh generation of the Golf,” continues Winterkorn, “we now aim to carry on this story of success. This Volkswagen’s great potential is demonstrated by the fact that with this car we have been able to reverse the upward spiral in weight: although the new Golf is safer, more comfortable and more spacious than its predecessor, it has been made up to 100 kg lighter and – in the case of the new 140 PS petrol engine model with cylinder cut-off and fuel consumption figures of 4.8 litres per 100 kilometres – 23 per cent more fuel-efficient.”
Affordable – the Golf can do everything better and costs less
3.8 l/100 km. With the new Golf, figures at this level are not the exception, but the rule: the base petrol model (TSI) consumes 4.9 l/100 km and the entry-level diesel (TDI) 3.8. The TSI models thus beat the CO2 mark of 115 g/km, while at 99 g/km of CO2 the TDIs come in under the 100 g/km threshold. The best figures are ultimately delivered once again by the Golf BlueMotion: utilising the most efficient systems from Volkswagen’s technological toolkit, it emits just 85 g/km of CO2 and consumes on average only 3.2 litres of diesel per 100 kilometres, thus setting new standards for the Golf range. Prof. Dr. Winterkorn: “This duty to build sustainable cars in large numbers is something that we’ve always been conscious of here at Volkswagen. It was therefore important to us to build the most fuel-efficient Golf ever, which at the same time had to remain affordable. And we’ve succeeded in doing that. The Golf Mk7 is extremely fuel efficient, equipped as standard with the Stop/Start system and brake energy recovery mode and yet – to take Germany as an example – at a base price of €16,975 not a cent more than its predecessor’s entry level model.”
Europe – up to 119,000 tons less CO2 per year
13.9 per cent less CO2 on average. Dr. Ulrich Hackenberg, Volkswagen Brand Development Director, adds more on the subject of sustainability: “We estimate that by virtue of the new Golf fleet – with CO2 emissions reduced on average across the entire engine range by 13.9 per cent – 119,000 tons less CO2 a year will be produced in Europe alone.”
Progressive – first Volkswagen with multi-collision brakes
Safety and comfort at a new level. The hunt for every last gram must meanwhile not be allowed to lead to advances being achieved at the expense of retrograde steps in other areas. And here too Volkswagen demonstrates that the Golf stands more than ever for a democratisation of progress and for perfection in every detail: with added space (extra legroom in the back and 30 litres more boot capacity); new pioneering safety systems such as the multi-collision brakes (fitted as standard) and a proactive passenger protection system (PreCrash), plus Adaptive Cruise Control (ACC) with Front Assist and city emergency brake function; a new progressive steering system and rear axle; a driving profile selector, a touchscreen as standard in all models and a completely redesigned world of information and entertainment systems with a display in the top versions that reacts to hand movements via a proximity sensor.
Confident – one of the best-known designs enhanced further
Unmistakable features. What is now seven generations of the Golf have written a story of success not only in technical and economic achievement, but also in industrial design. The Golf’s exterior form is today one of the most familiar product designs in the world. Walter de Silva, Head of Design, Volkswagen AG: “One of the keys to the Golf’s success lies in its continuity: there are but a handful of cars in the world with a design that, like the Golf’s, has been refined, tweaked and enhanced down the decades and thus become timeless.” Klaus Bischoff, Head Designer, Volkswa¬gen Brand: “The Golf’s unmistakable product features include the typical C-pillars, the long roofline and typical window line and the characteristic front and rear sections with their transverse elements. These details make the new Golf more unique, more valuable and more durable than the majority of other compact cars. You could also say that the Golf’s design is inherently stable.”
Premium proportions. “The language of form,” says Bischoff, “is logical, solid, product-focussed, pure and precise and reflects the brand’s design DNA as a perfect model of creativity. The base architecture of the new Golf is therefore unmistakable. It feels uncomplicated, strong, comprehensible, reliable and safe. Starting with the pure element of this clear base architecture, details such as the economical use and placement of sculptural lines are more like fine nuances. Also extremely important is the fact that the proportions of the Golf Mk7 have changed significantly, making the car look more premium-class than ever.” Marc Lichte, leading designer for the exterior explains: “The proportions have changed so significantly because we have taken advantage here of the Modular Transverse Matrix. The front wheels, for example, have moved 43 millimetres further forward. The front overhang is therefore shorter and at the same time the bonnet looks longer.” Klaus Bischoff confirms this: “Visually, the passenger compartment has moved towards the rear, creating what is called a ‘car-backward’ impression. That’s what we call the proportions of premium-class vehicles, on which the bonnet is long and the passenger compartment a long way towards the back. On the new Golf we thus have proportions that you otherwise only get in higher-class segments of the market.”

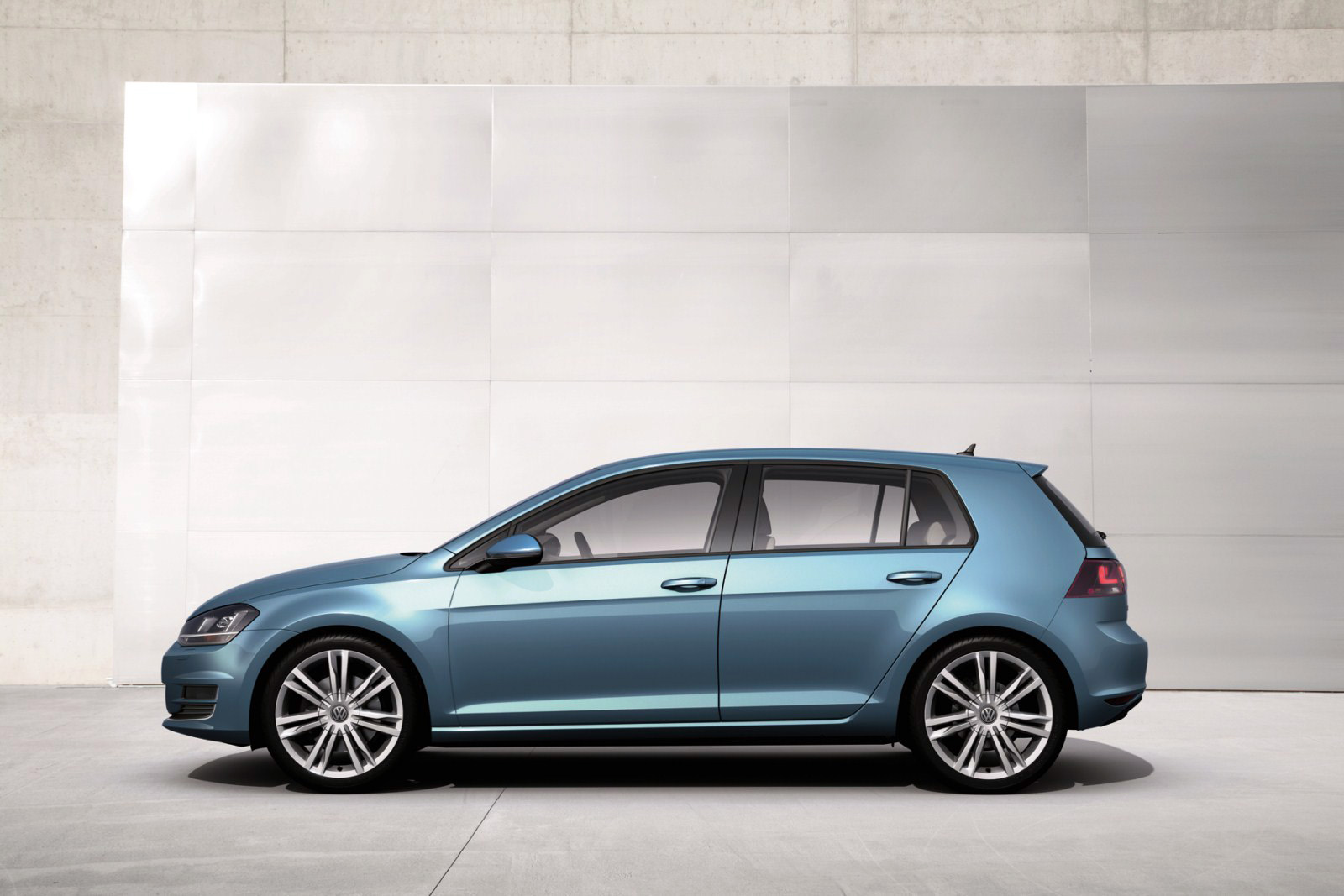

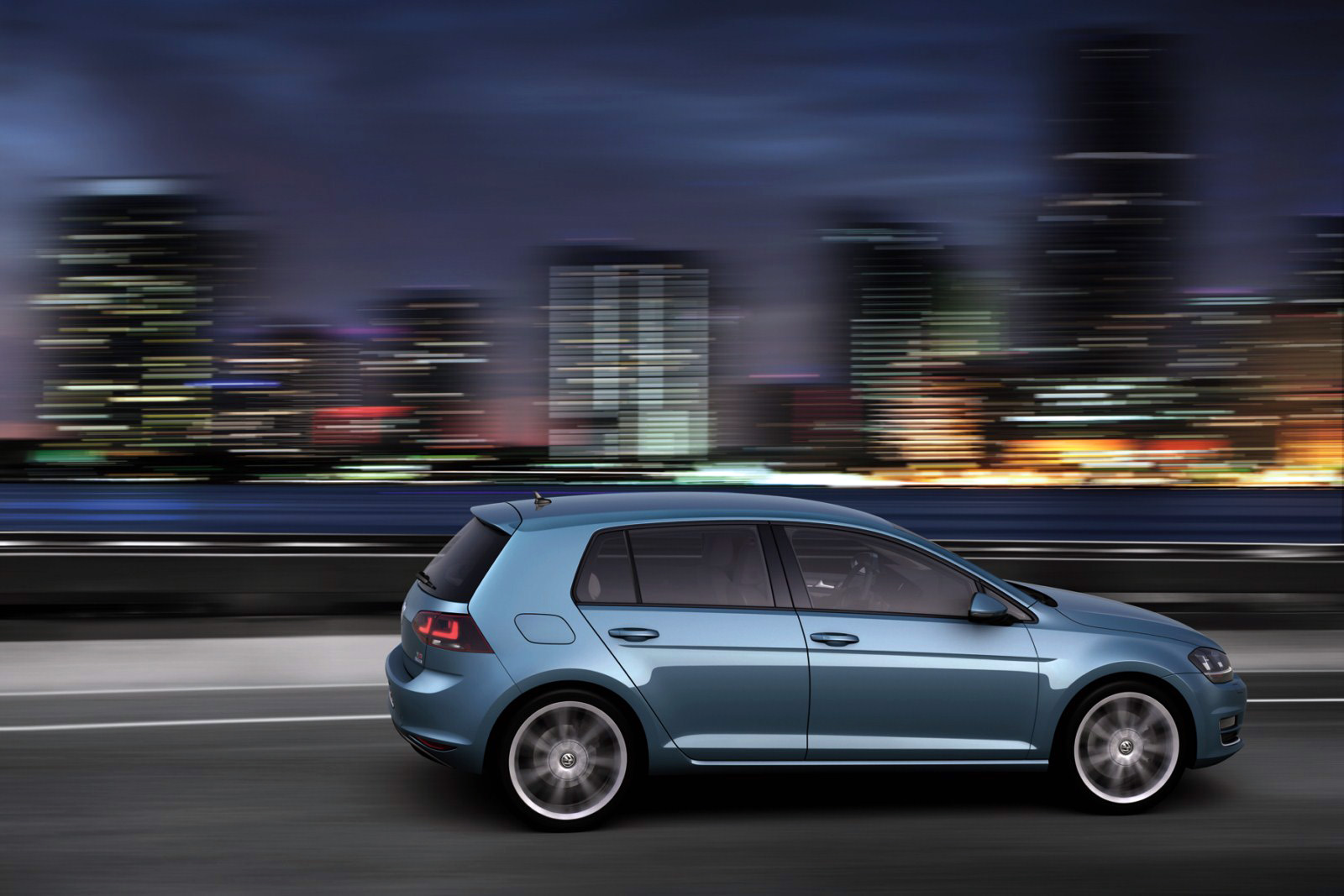

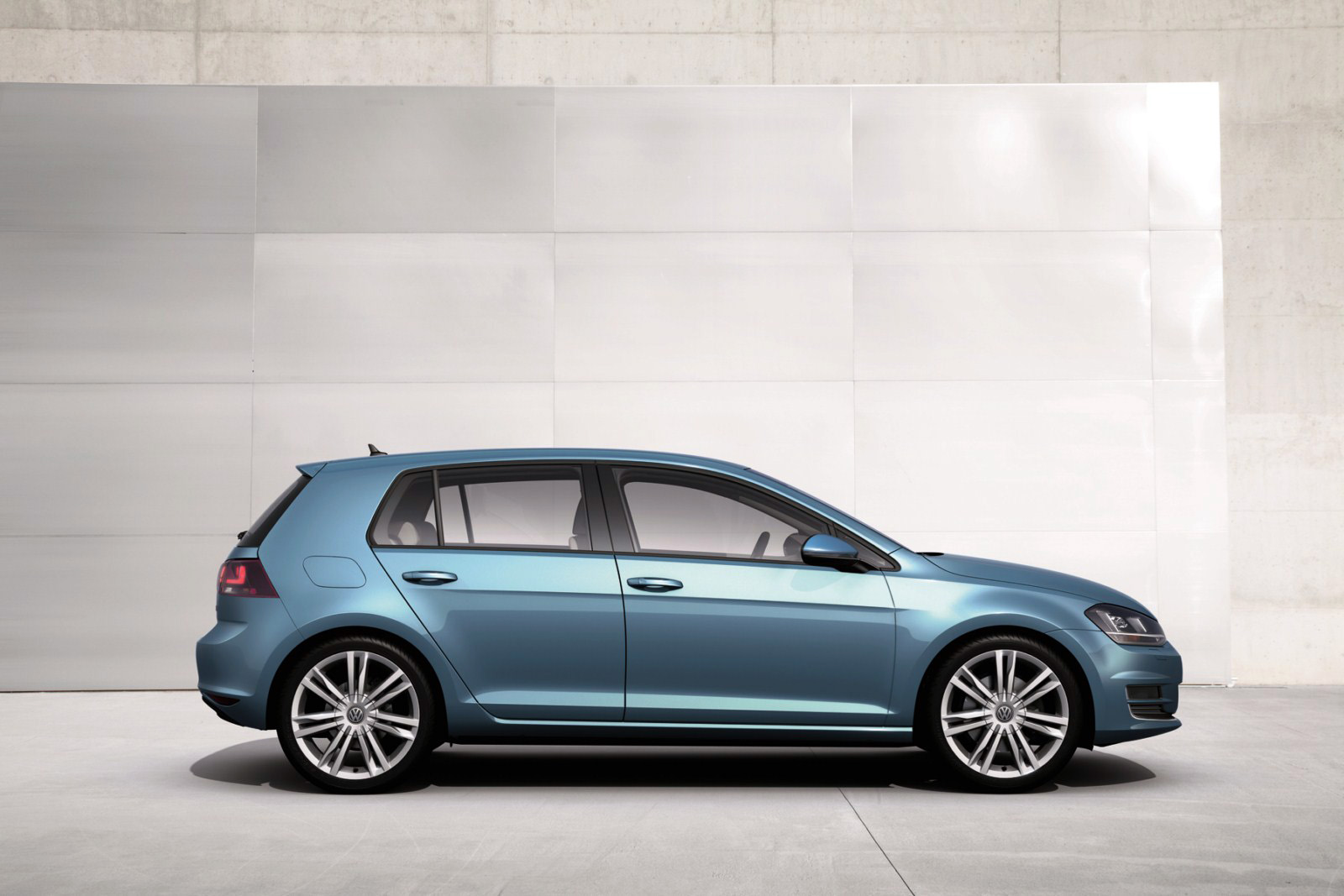

Silhouette with powerful lines. Marc Lichte: “And we sought to underline these modified proportions with design elements. Below the door handles we have integrated the now clearly visible, very sharp character line. While this line is broken by the wheel arches, it is otherwise continuous and is stylistically reflected in the chrome bars of the radiator grille and headlights and at the back in the white lateral bars of the rear light clusters. Set deep down all the way around, this line lowers the apparent centre of gravity and makes the car appear more solid on the road. Another important element is the new line along the side shoulder directly below the windows. This line starts at the front in the headlight, then glides under the wing mirror, which is positioned right on the line, all the way through to the rear side window, underling the premium proportions of the new Golf.”
One of the world’s most familiar C-pillar. Klaus Bischoff adds: “The silhouette’s character is particularly defined by two further elements – typical Golf elements: the C-pillars and the roofline. Looking at the car from the side the precisely contoured C-pillar catches the eye, resembling the drawn string of a bow and thus giving the Golf a speedy appearance even when static, while at the same time paying homage to the Golf Mk2 and Mk4 – both design icons. The contour of the roofline has also been completely redesigned. Here too – above the side windows – the Golf displays a further line, which runs from the roof-edge spoiler right through to the A-pillars. In their interplay with each other the light-refracting lines, the apparently flying wing mirrors and the striking C-pillars produce a very muscular, sporty and self-assured feel.”

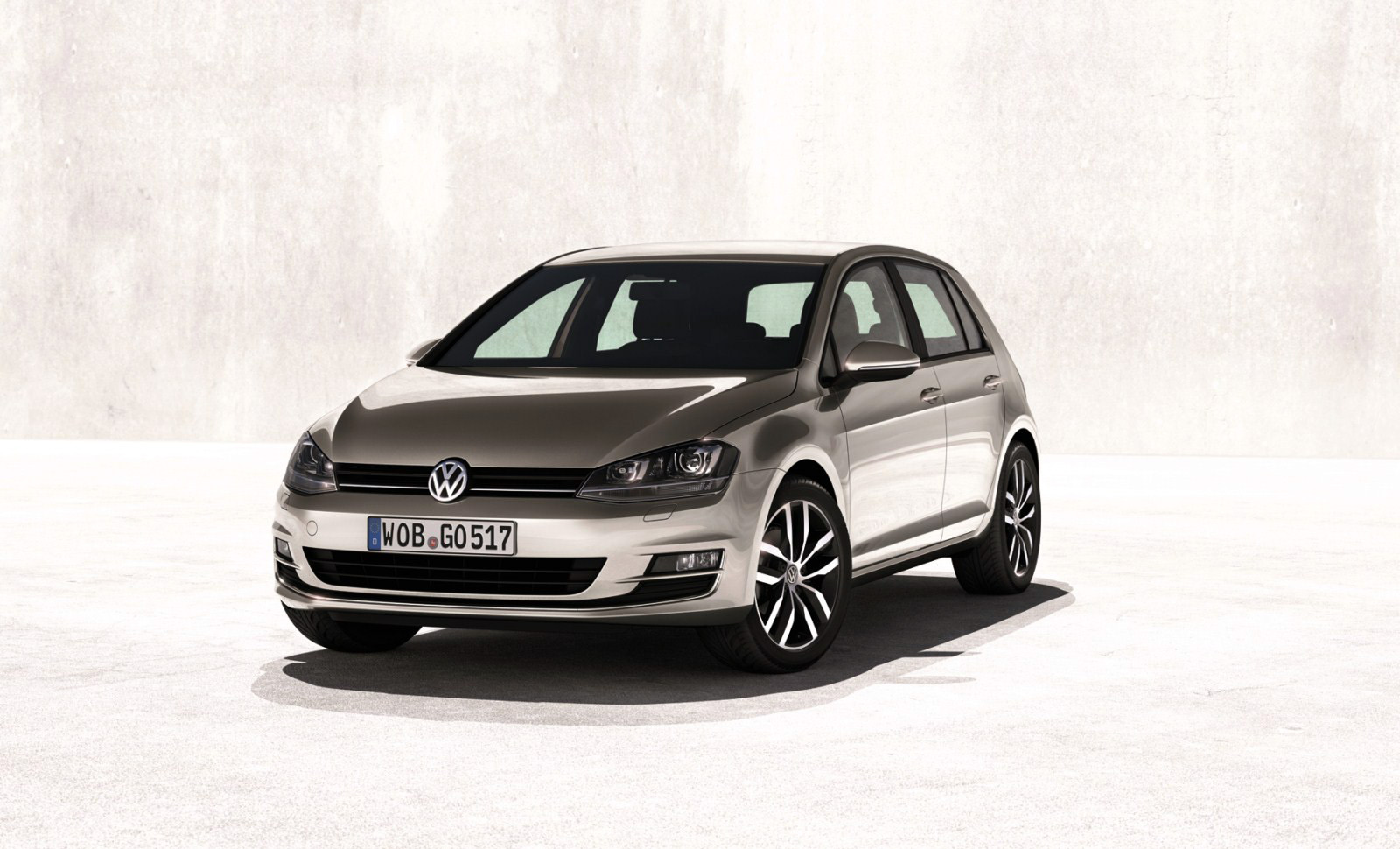

Front section clearly Volkswagen and also clearly Golf. The Volkswagen design DNA manifests itself in a ‘face’ that has appealing features. In addition, in the same way as on the first Golf, it defines horizontally balanced elements that create a certain width. Together this produces – especially in the case of the new Golf with its slightly upward sweeping headlights – a front section that is instantly recognisable in any rear view mirror as that of a Volkswagen. Compared to its predecessor, the new Golf also displays completely restructured modulation of its surfaces. While on the Golf Mk6 the wings were higher than the bonnet, this is now the other way round.

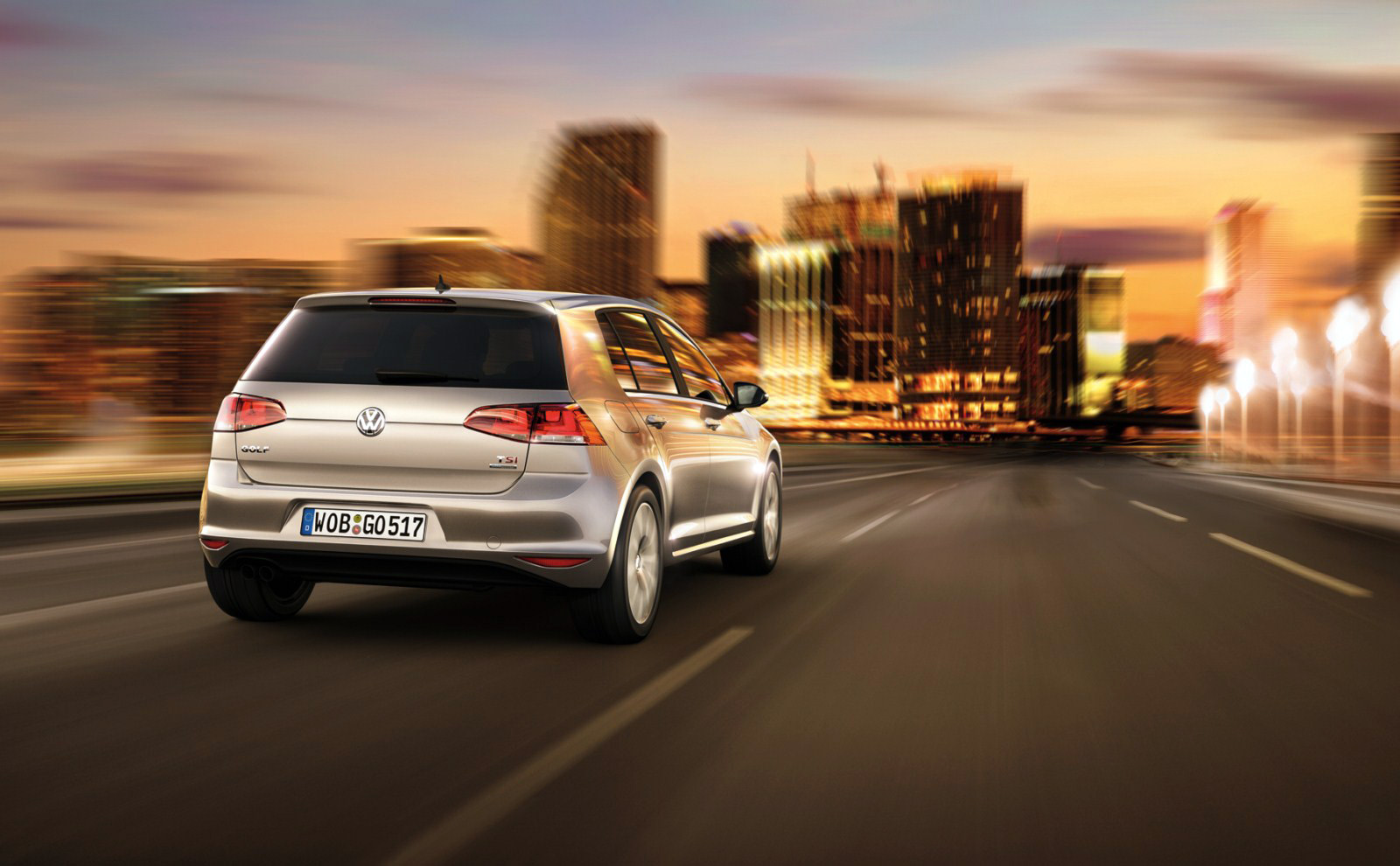

Rear section scores visually and in detail. All new and yet familiar – that applies to the back as well. Typical elements here include the clear geometry of the rear lights, the rear window stretching all the way to the C-pillars and the large homogenous surface around the Volkswagen badge. In the hunt for perfection, however, all of that would – in typical Volkswagen fashion – be considered too little in terms of detail if it did not also provide some very tangible benefits. And included among these in the case of the new Golf is the fact that, even with all the great aesthetics, the designers have succeeded in reducing the height of the boot sill to just 665 mm. That is the best figure in this entire segment of the market and another example of perfection in attention to detail – a side note that gains in significance the first time a customer goes shopping in their new Golf.
The new Golf. Design – the key to perfection
Golf exterior one of the world’s most recognisable product designs
Seventh stage of Golf evolution shows clearly added dynamism and precision
Golf reflects par excellence the principles of Volkswagen’s design DNA
Wolfsburg / Berlin, 04 September 2012
There is but a handful of cars with a design that, like the Golf’s, has been constantly refined, tweaked and enhanced down the decades and has thus become timeless. In this process the Volkswagen designers repeatedly gave a new edge to the Golf’s product features. These include the typical C-pillars, the long roofline and the characteristic front and rear sections. These details also make the new Golf more special, more valuable and more durable than any other compact car.
The design of the new Golf
In developing the new Golf the teams led by head designers Walter de Silva (Group) and Klaus Bischoff (Brand) based their work on the one hand on a great deal of creative freedom that allows many different approaches for a new design, while on the other also on the principles of the Volkswagen design DNA. A look at this DNA reveals the key to the new Golf’s design.
Development of the DNA. Over recent years, the Volkswagen designers have crystallised a selection of core elements from the brand’s history, which they term its ‘historic DNA’. All current Volkswagen designs correspond to this DNA, with the cars therefore conveying a modern, progressive impression, which nevertheless – and this is the key – feels familiar. This DNA includes elements such as the first Golf’s roofline, side windows and radiator grille crossbeam in its reduced form and the Golf Mk4’s typical C-pillars and wheel arches.
This DNA creates a unique, unmistakable language of product features and design. The language of product features leaves on the one hand a familiar feeling and yet on the other a new sensation in the eyes of the observer. The features are visual characteristics such as functionality, robustness, honesty and reliability. These characteristics are generated by a language of form perfected over many years. It creates the typical Volkswagen product design that today enjoys success around the globe.
Premium proportions. “This language of form,” explains Bischoff, “is logical, solid, product-focussed, pure and precise and reflects the brand’s design DNA as a perfect model of creativity. The base architecture of the new Golf is therefore unmistakable. It comes over as simple, strong, understandable, reliable and safe. Starting from the pure element of this clear base architecture, details such as the economical use and placement of sculptural lines are more like fine nuances. Another extremely important point is the fact that with the seventh generation the Golf’s proportions have completely changed, making the car look more premium-class than ever before!”
Marc Lichte, leading designer for the exterior, explains: “The proportions have changed, as we have taken advantage here of the Modular Transverse Matrix. The front wheels, for example, have moved 43 millimetres further forward. The front overhang is therefore shorter and at the same time the bonnet looks longer.” Klaus Bischoff confirms this: “Visually, the passenger compartment has moved towards the rear, creating what is called a ‘car-backward’ impression. That’s what we call the proportions of premium-class vehicles, on which the bonnet is long and the passenger compartment a long way towards the back. On the new Golf we thus have proportions that you otherwise only get in higher-class segments of the market.”

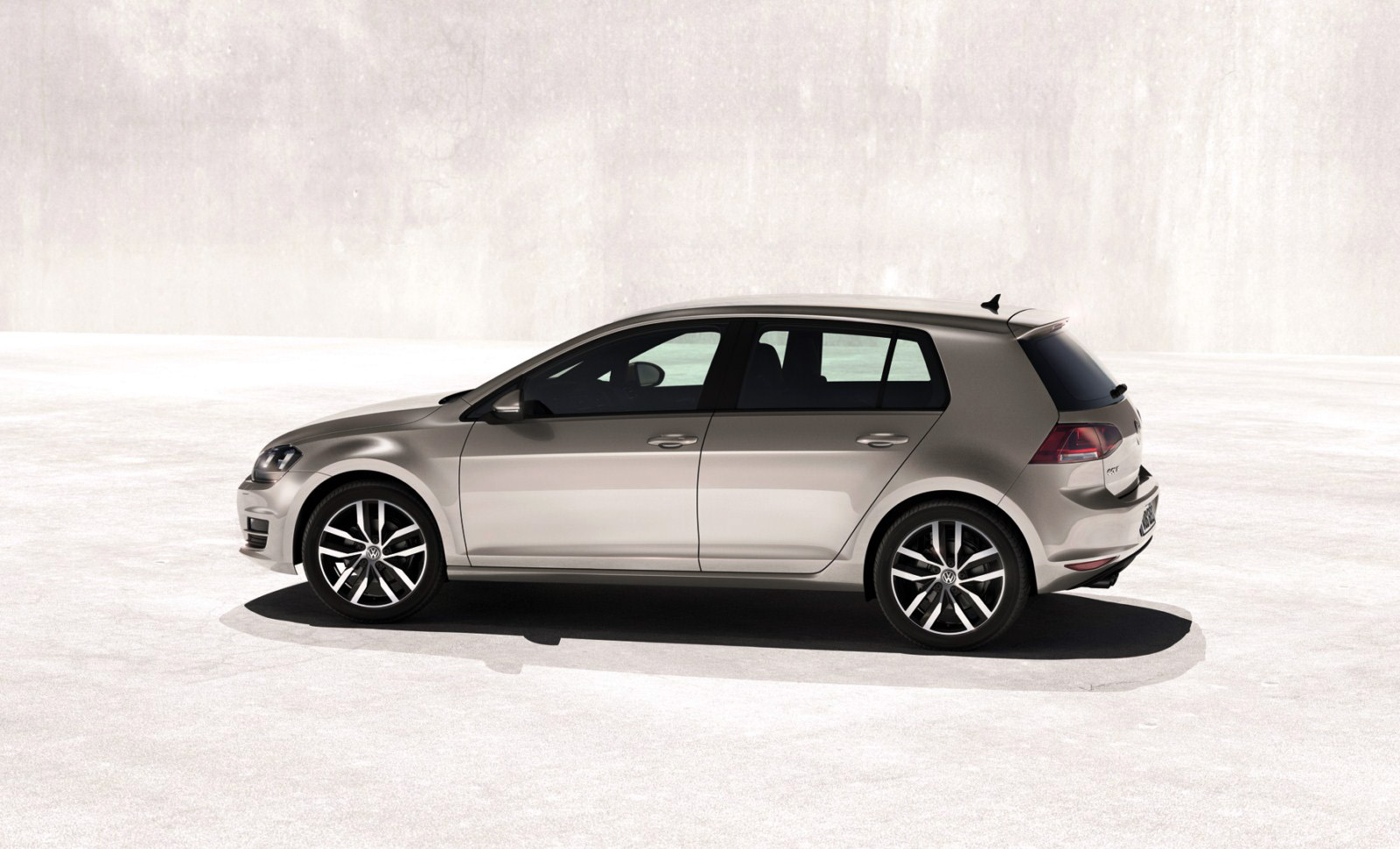

Silhouette with powerful lines. Marc Lichte: “And we sought to underline these modified proportions with design elements. Below the door handles we have integrated the now clearly visible and very sharp character line. While this line is broken by the wheel arches, it is otherwise continuous and is stylistically reflected in the chrome bars of the radiator grille and headlights and at the back in the white lateral bars of the rear light clusters. Set deep down all the way around, this line lowers the apparent centre of gravity and makes the car appear more solid on the road. Another striking element is the new line along the side shoulder directly below the windows. This line begins at the front in the headlight, then glides under the wing mirror, which is positioned right on the line, all the way through to the rear side window, underling the premium proportions of the new Golf.” The wheel arches are particularly prominent as well and along with the wider track, the longer wheelbase and tyre dimensions of up to 18 inches make the Golf appear more powerful.
“Two further features,” explains Klaus Bischoff, “are characteristic of the new Golf silhouette. Two typical Golf elements: the C-pillar and the roofline. On the previous Golf the character line still cut through the C-pillar. This is no longer the case on the new Golf. The C-pillar thus runs along one homogenous surface from the start of the roof all the way to the rear wheel arch. Above the wheel arch, however, it picks up more strongly the entire width of the car – and as a result, seen from behind or diagonally from the rear, the new Golf looks more solid and more powerful. Viewed straight on from the side the precision of the C-pillar design catches the eye, resembling the drawn string of a bow and thus giving the Golf a speedy appearance even when static, while at the same time paying homage to the Golf Mk2 and Mk4 – both design icons.” On the right-hand side of the vehicle even the shape of the fuel cap is integrated into this arrow element. Head Designer Klaus Bischoff continues: “The contour of the roofline has also been completely redesigned. Here, too – above the side windows – the Golf now displays a further line, which runs from the roof-edge spoiler right through to the A-pillars. It is one of those character features that give the Golf a particularly high-value look from the side as well – a line that at first fleeting glance perhaps remains unnoticed, yet is a further detail en route to visual precision.”

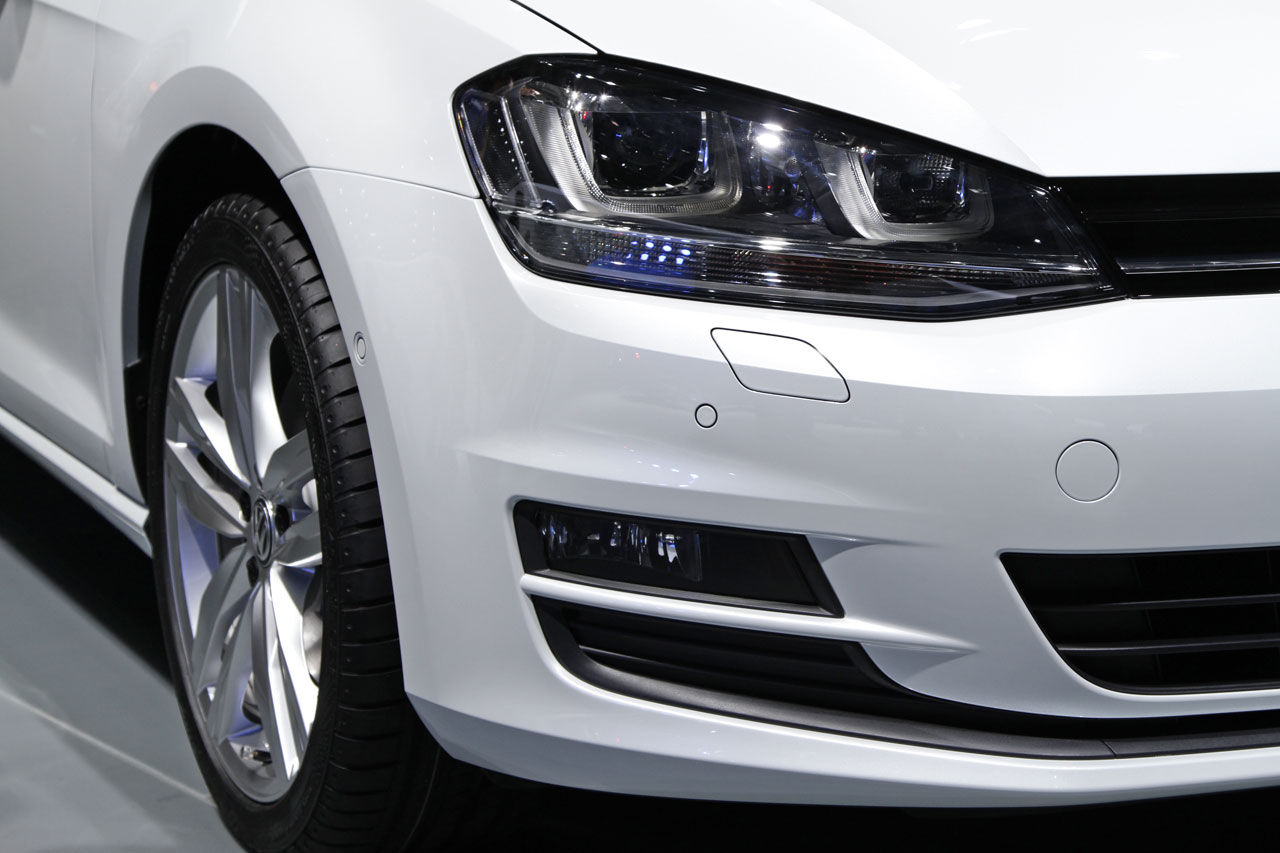

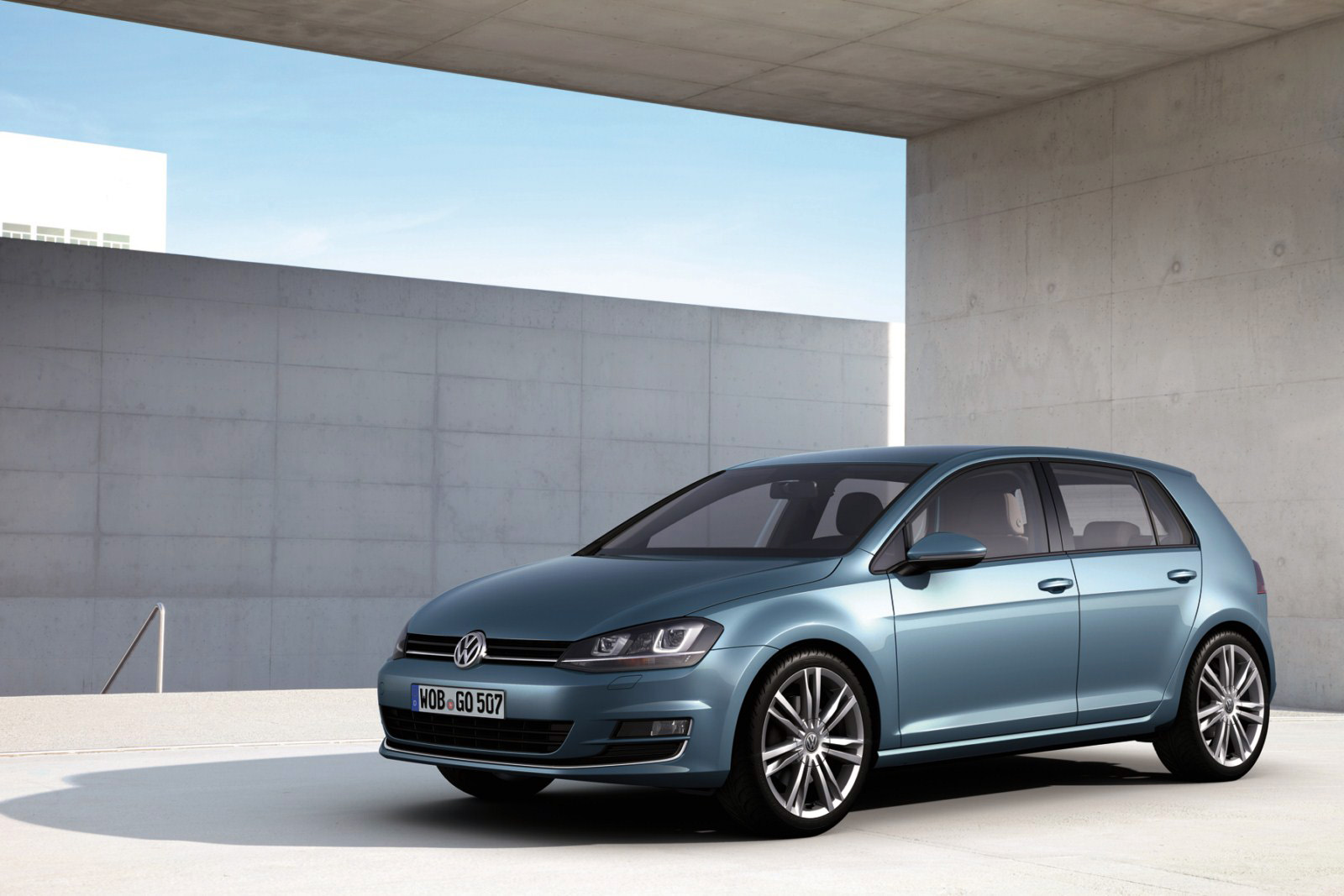

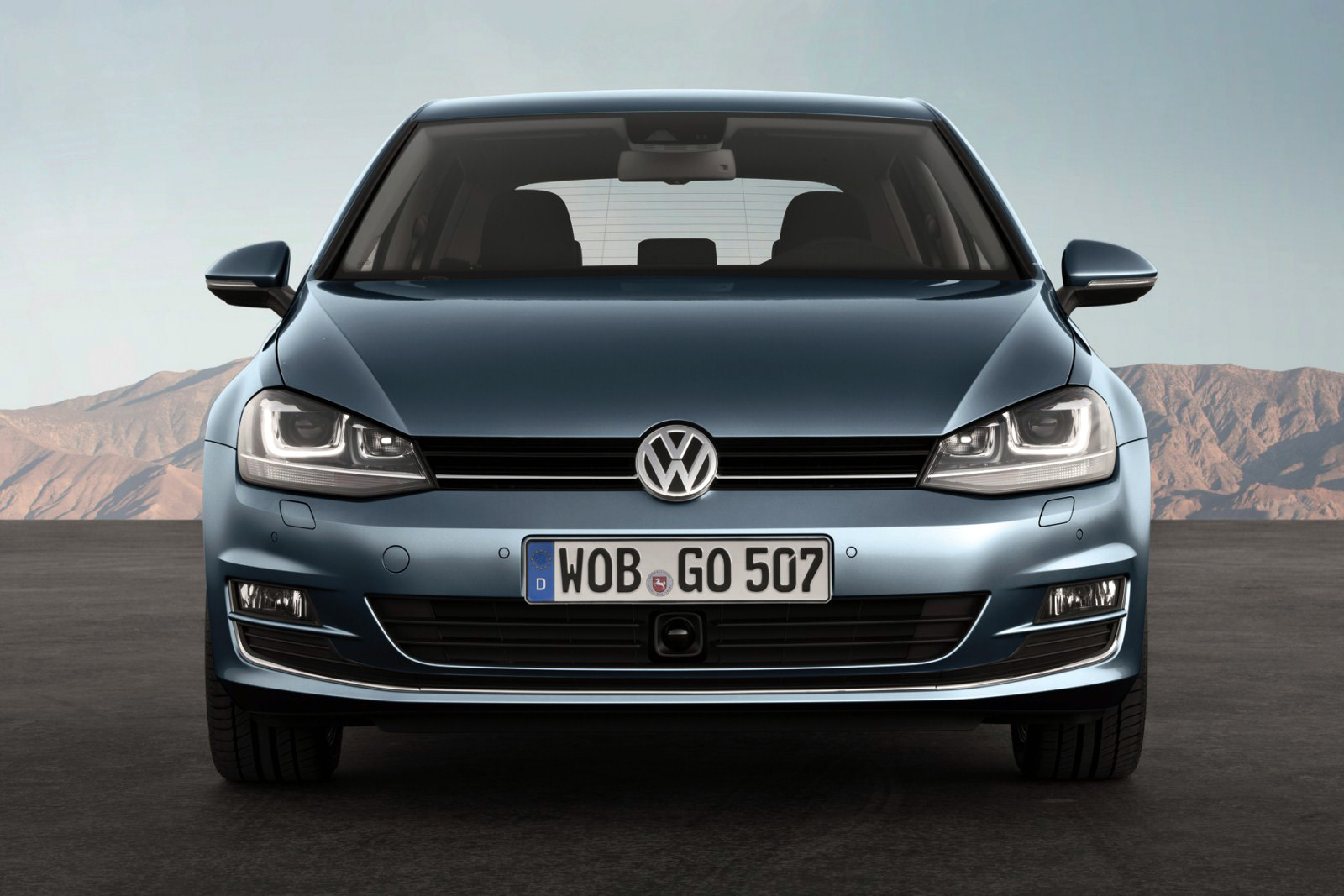

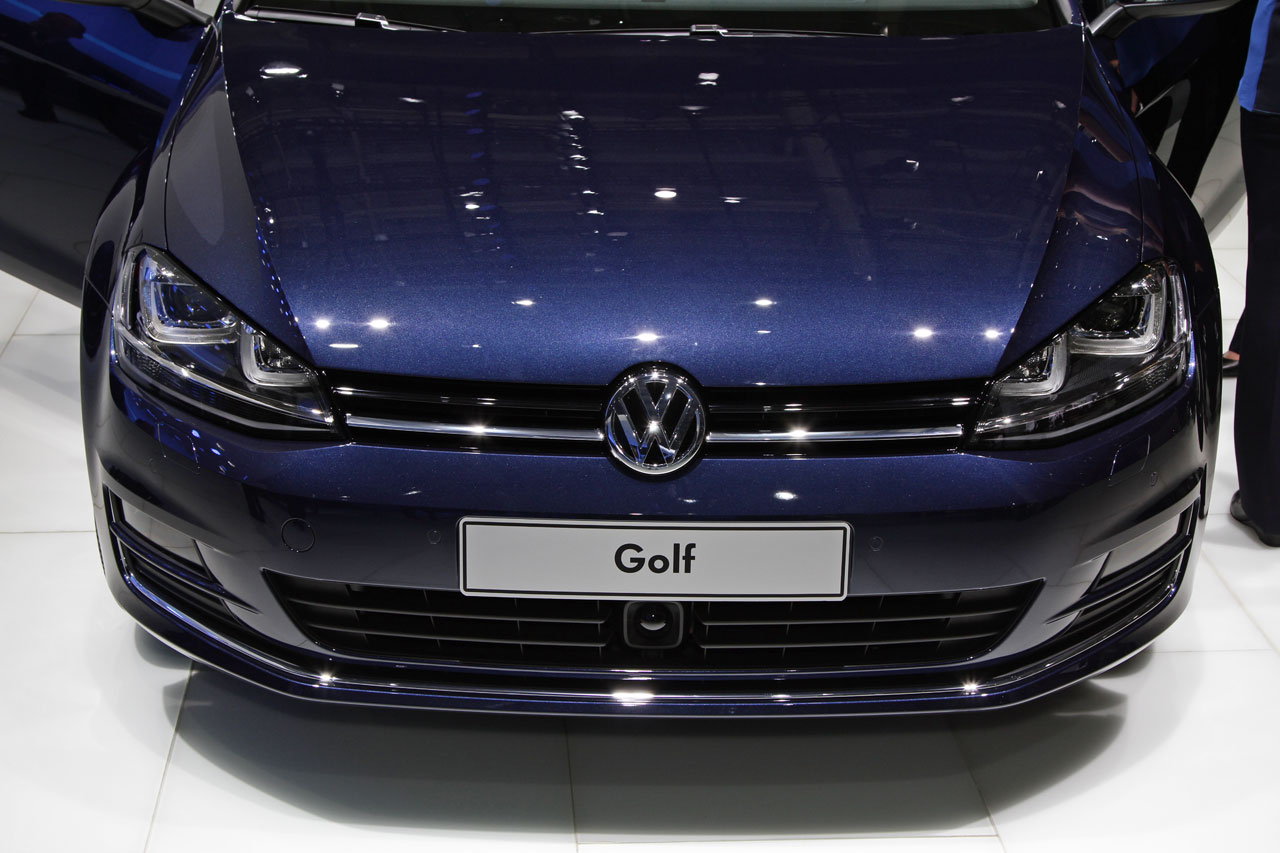

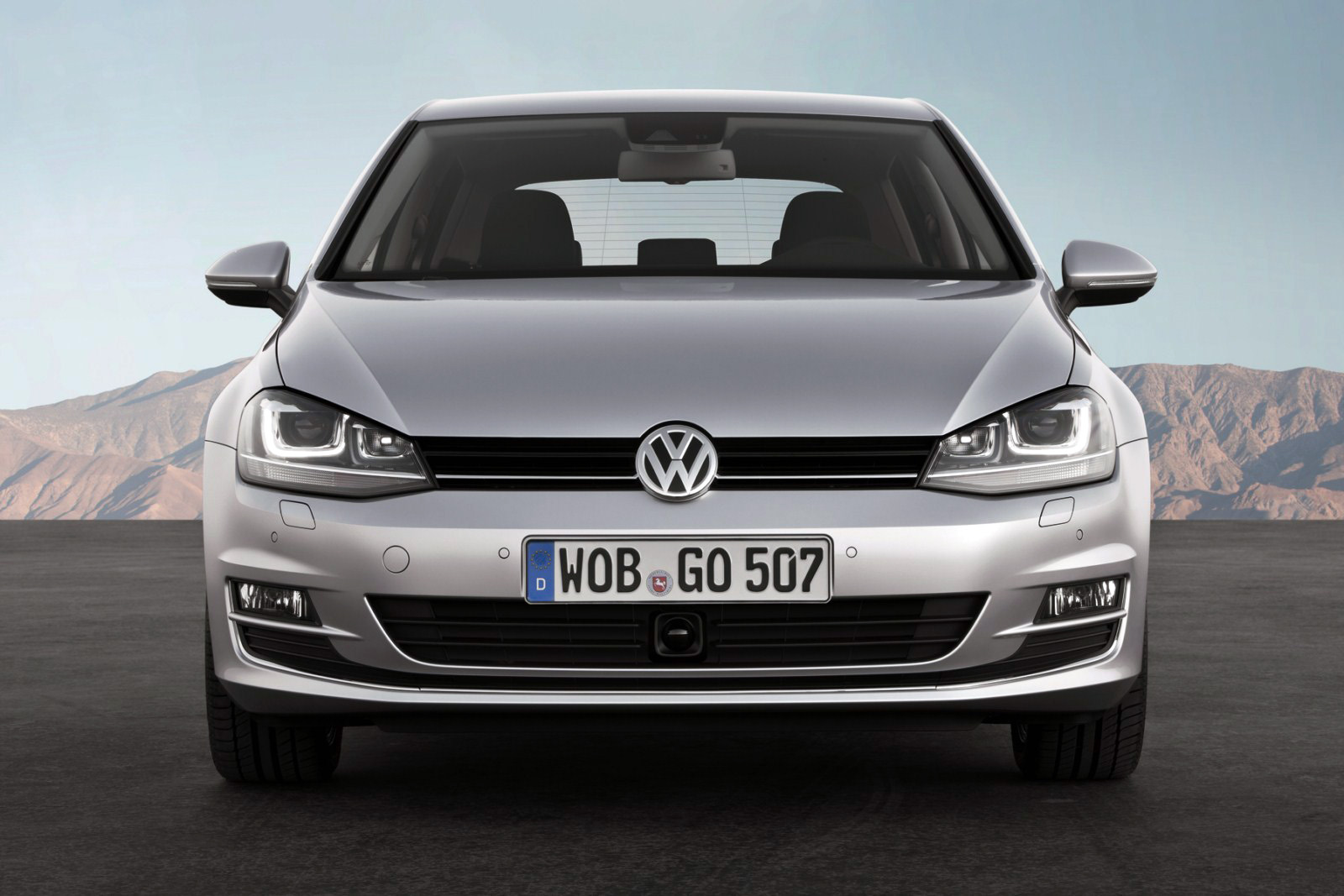

The front section. The Volkswagen design DNA manifests itself in a ‘face’ that has appealing features. In addition, in the same way as on the first Golf, it defines horizontally balanced elements that create a certain width. Together they produce a front section that is recognisable in every rear view window as that of a Volkswagen. Each Volkswagen class has its own character attributes in this respect. In the Golf class these include, for example, the slightly upward sweeping headlights and a defined maximum height for the radiator grille.
Compared to its predecessor, the new Golf displays completely restructured modulation of its surfaces. While on the Golf Mk6 the wings were higher than the bonnet – effectively framing it – this is now the other way round. On the sides the crease lines form the wings’ lowest points, before the latter transfer vertically into the wheel arches. The top border of the wings is formed by a line, as if cut by a knife, that begins at the A-pillars. All of the lines together form a V-shaped bonnet.
Beneath the bonnet then come the redesigned headlights and the comparatively narrow band of the radiator grille. At the bottom the radiator grille is bordered – to the left and right of the chrome Volkswagen badge – by a chrome bar, which where xenon headlights are fitted is continued in the headlight housing. Particularly striking is the xenon headlight’s LED daytime running light. Meanwhile the bottom air inlet, in conjunction with the body-coloured area beneath the headlights, supports the strong horizontal arrangement of the front section design. The air inlet is now framed by a body-coloured area that even with the car’s very self-assured look gives it the typical Volkswagen smile. Another core design element is the bend at the outer ends of the bumper, which produces – especially in aerial view – a change of shape.

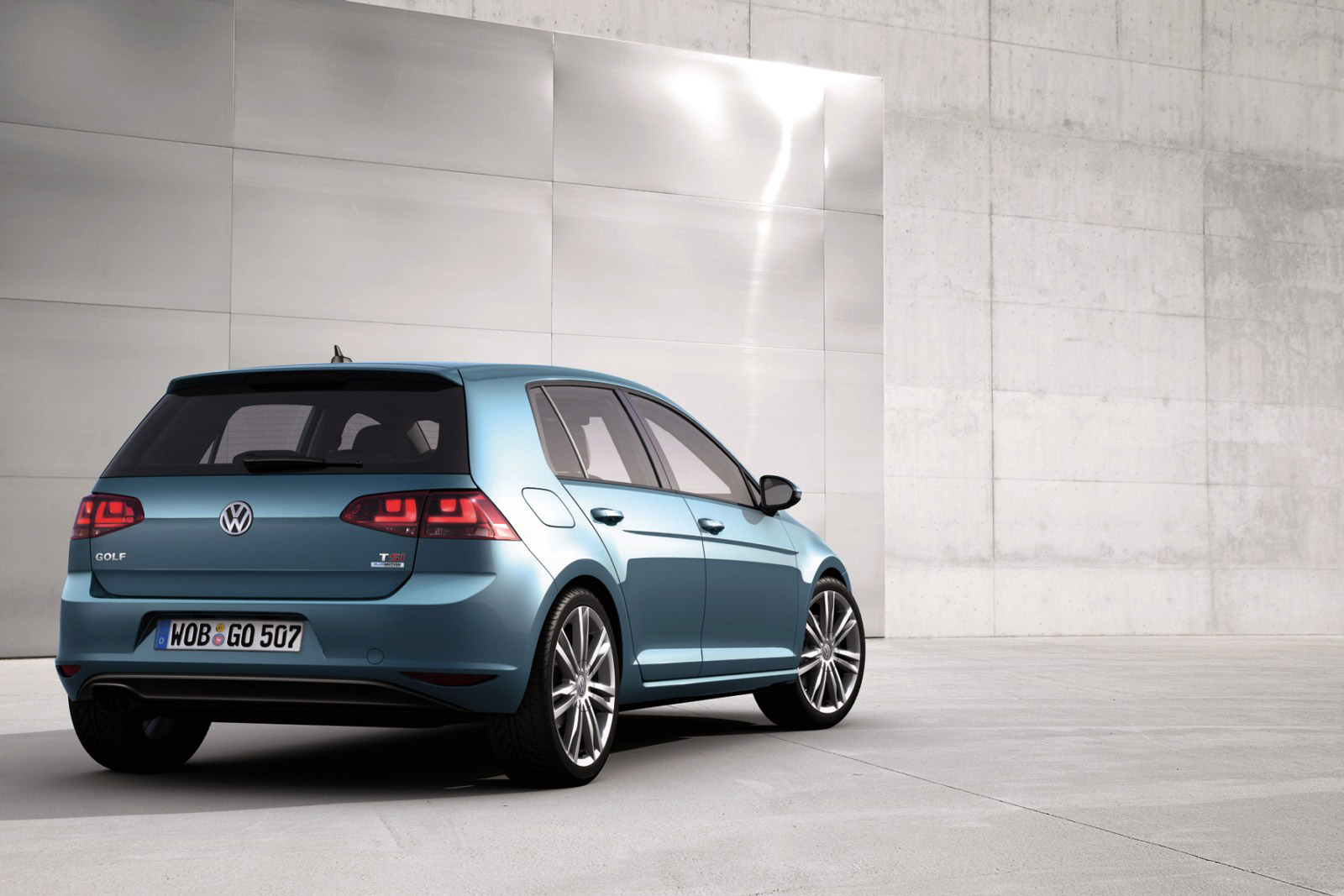

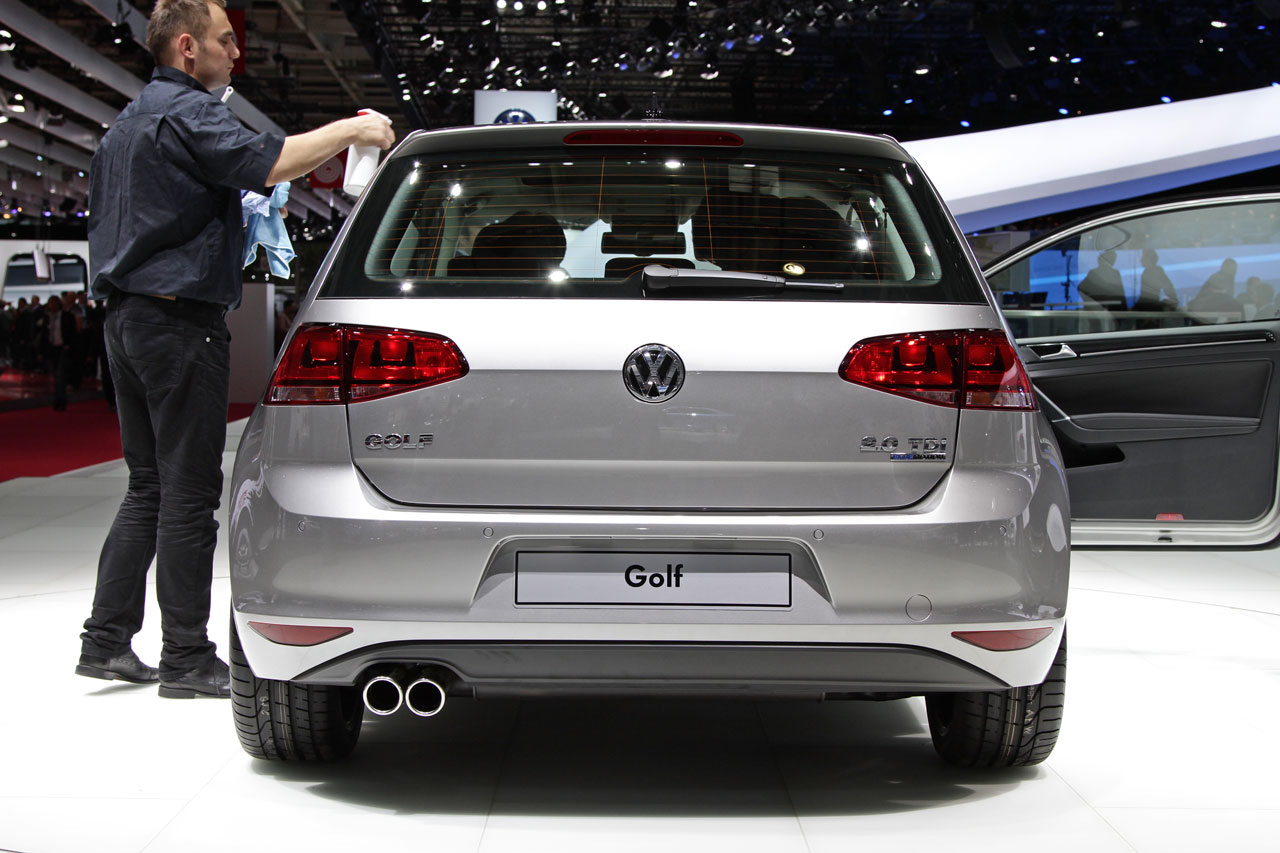

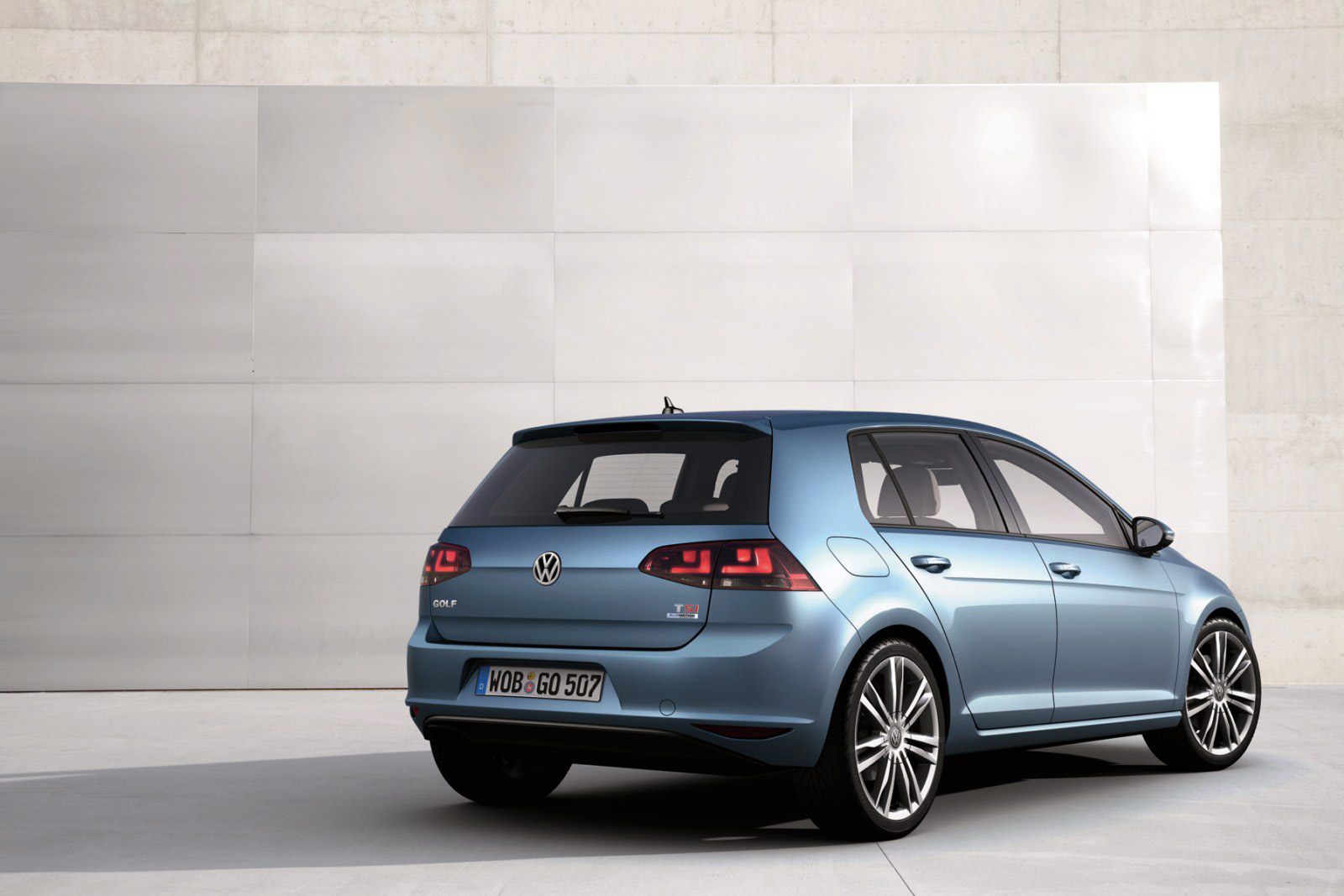

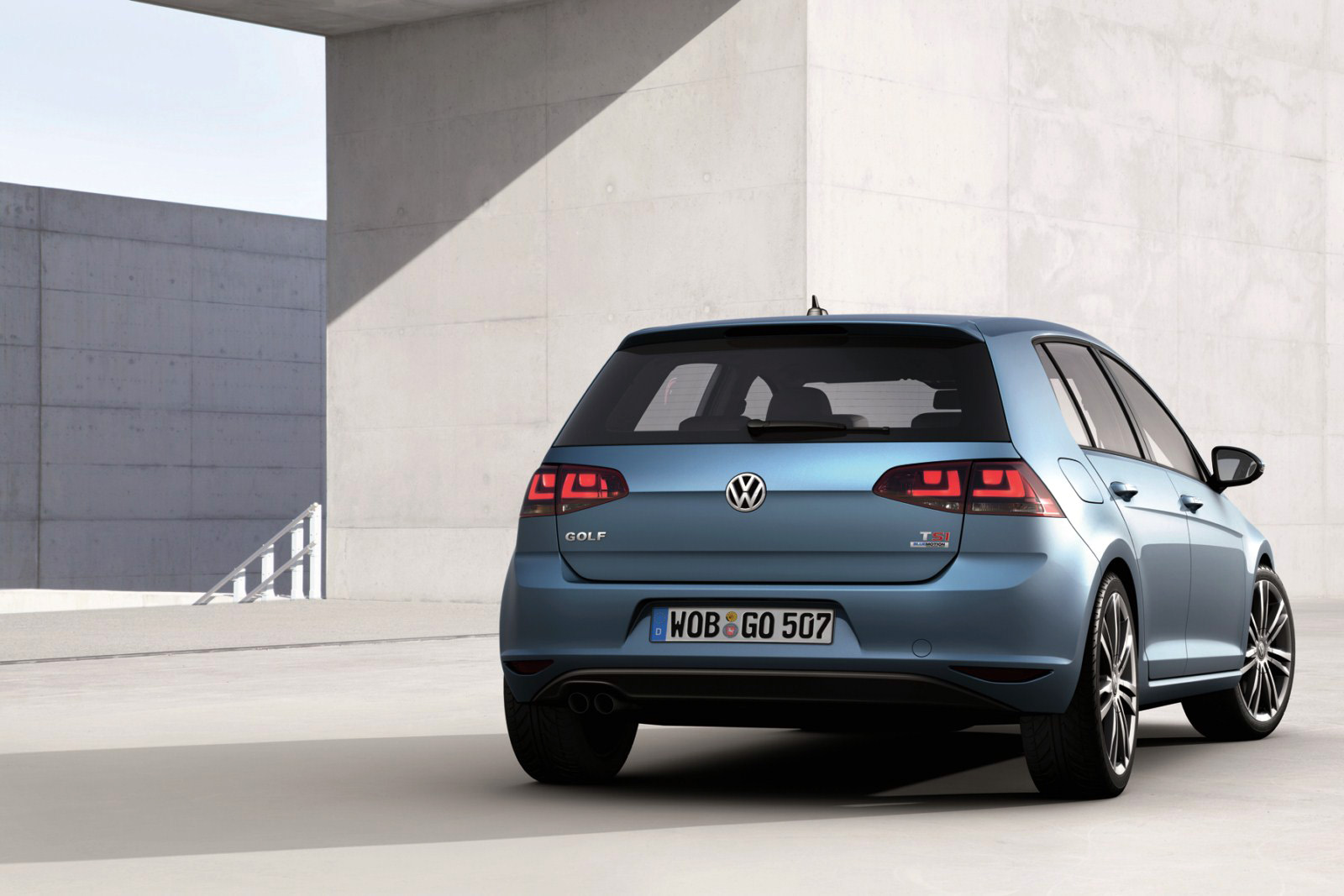

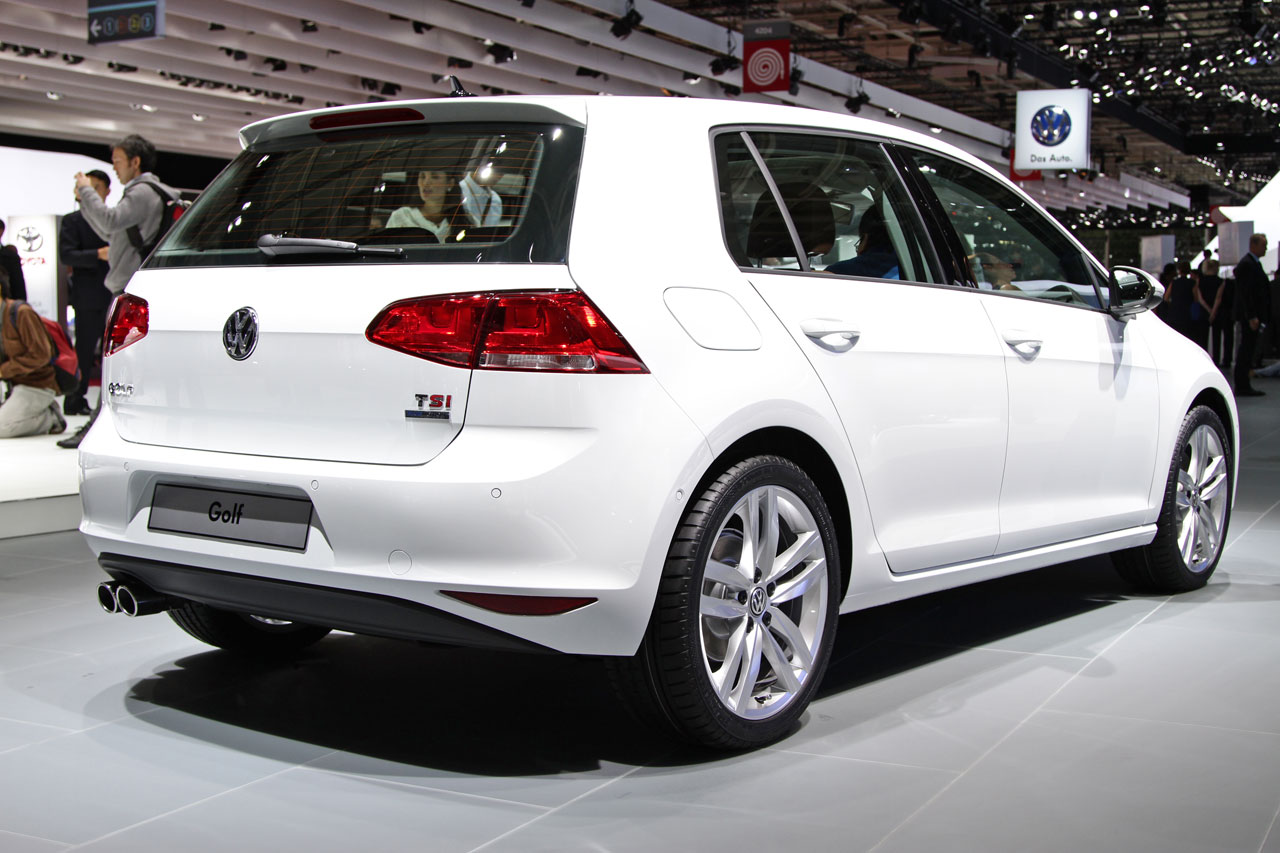

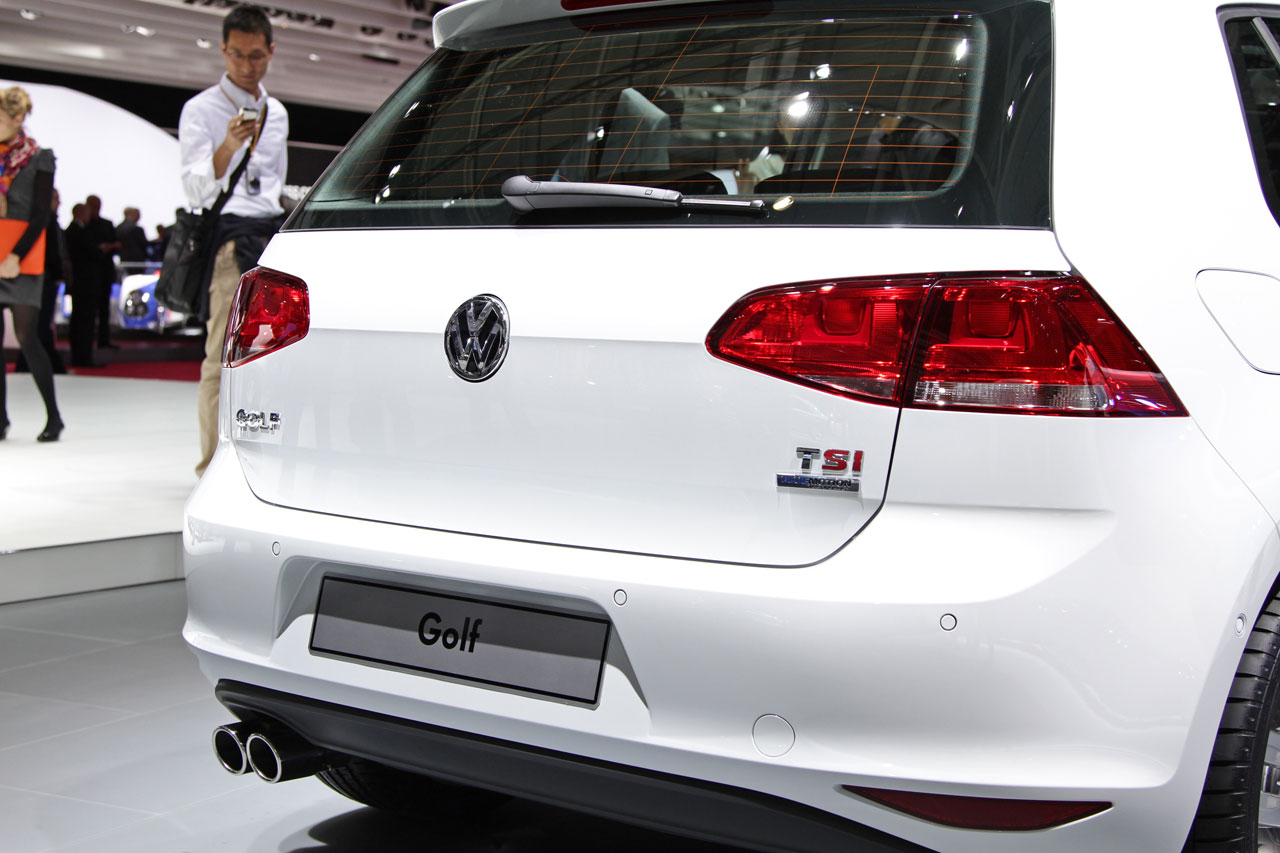

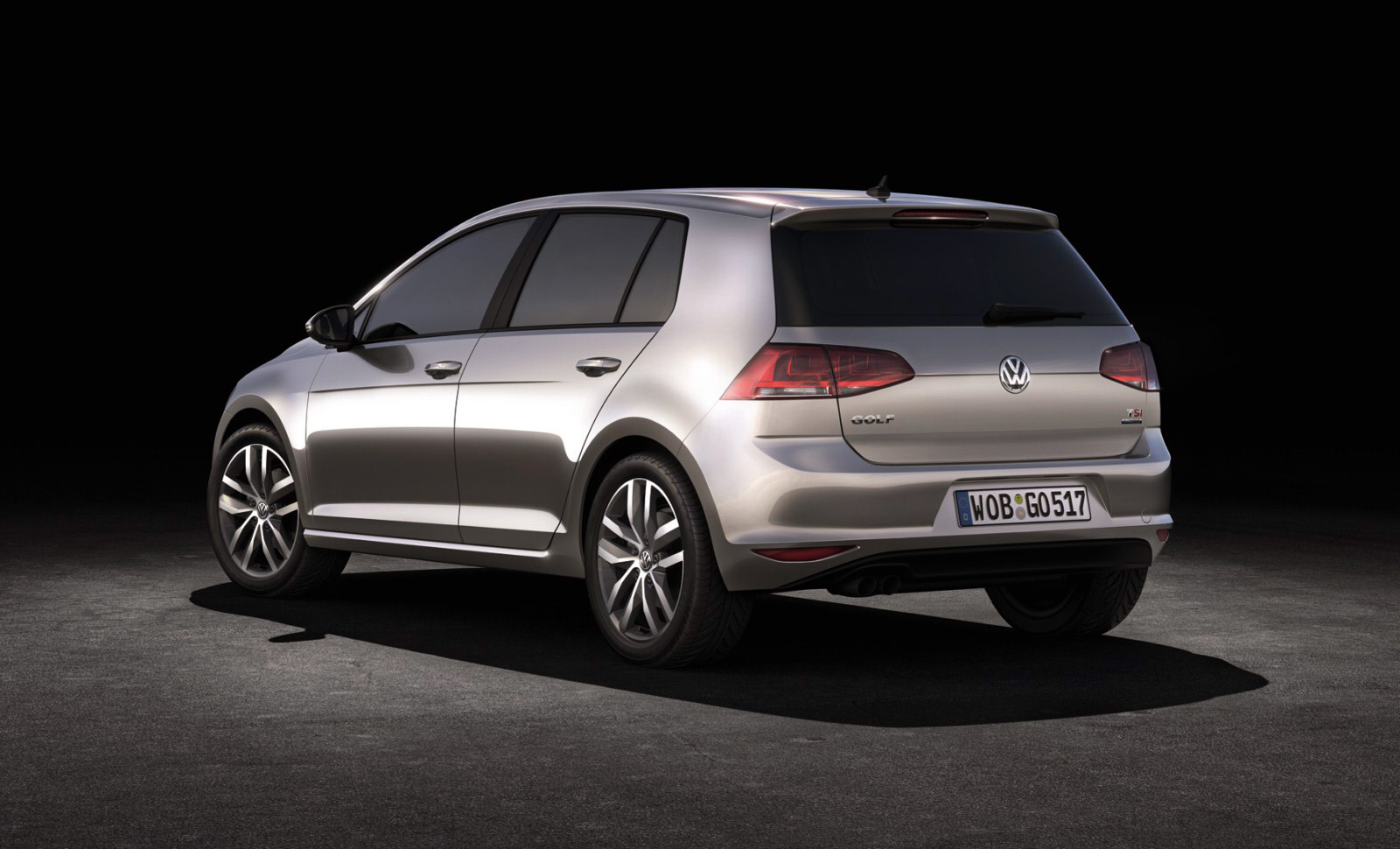

The rear view. Typical Golf elements at the rear include the clear geometry of the rear lights, the rear window stretching all the way to the C-pillars and the large homogenous surface around the Volkswagen badge. Iconic: even without the badge or model name the seventh generation of this best-seller is instantly recognisable as a Golf. And yet every line is new. That applies both to the rear light clusters (with striking L-shaped contours, narrower on the inside and ending at the C-pillar on the outside) and to the tailgate, which reaches much lower down, and the lowest boot sill height in its class (665mm). A horizontal light-refracting edge near the bottom of the tailgate, which continues on the bumper, and the boot sill running parallel below this underline the sportily full width of the new Golf. These elements also correspond to the lines of the now much more pronounced and optically ‘extended’ bumper. The bumper itself is fully painted right down to the bottom, with only the centrally integrated diffuser, which also incorporates the exhaust pipe, kept black.

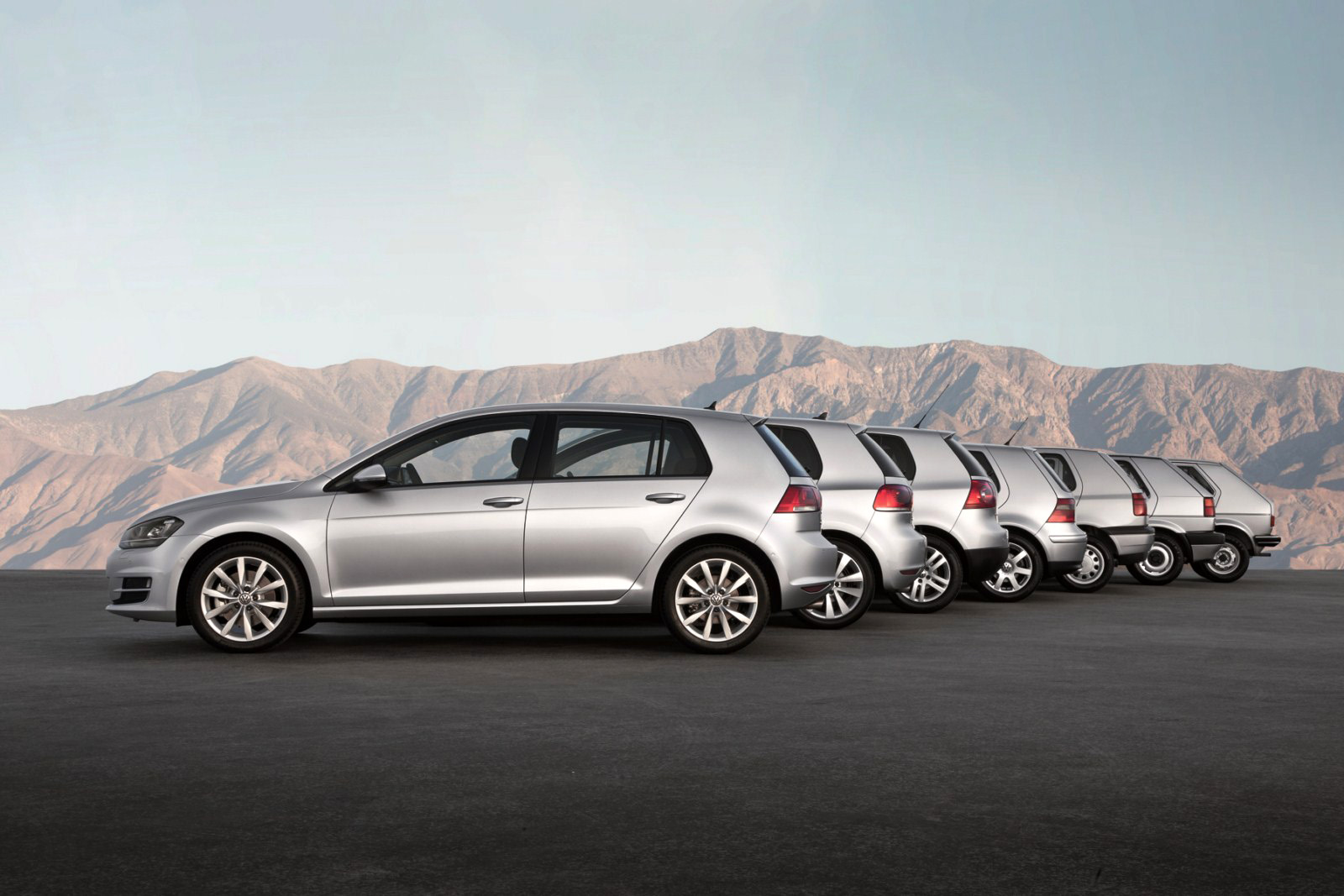

The new Golf. History – 38 years of global success
Over 29 million sales of the predecessors to the new Golf
Global bestseller: the Golf has been the world’s best-selling car since 1974
Style icons: Golf Mk1 and Golf Mk4 define the model to this day
Wolfsburg / Berlin, 04 September 2012
Officially there has never been any numbering by Volkswagen of the Golf generations, so no Golf Mk1, Mk2, Mk3, Mk4, Mk5, Mk6 or Mk7. With now seven generations of the car it is, however, easier to place them historically if through this press pack that numbering system now ‘officially’ enters into the Golf’s history. The fact is that with – as of 31st July 2012 – exactly 29.13 million units sold since 1974, the Volkswagen Golf, including its derivatives such as the Cabriolet and Variant, is one of the most successful motorcars in the world.

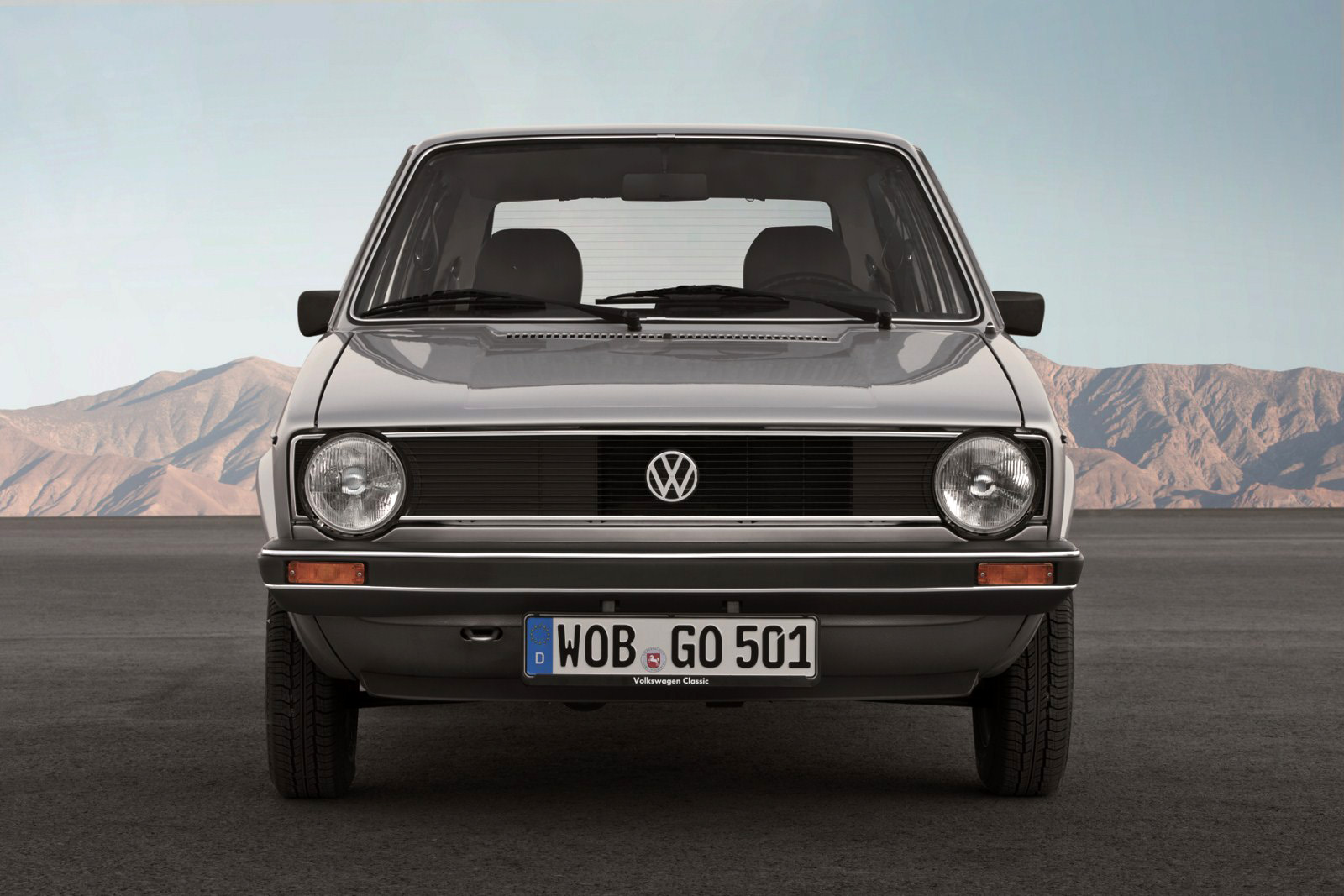

Golf Mk1 – 1974 to 1983
The first full-production Golf rolled off the production line in Wolfsburg in March 1974 and was in Volkswagen dealerships that May. In those showrooms, where for decades the Beetle and thus rear-mounted engines and rear-wheel drive had dominated the scene, a new era had thus dawned: that of the transversely mounted front engine and front-wheel drive. This trend had been heralded a short time earlier by the Scirocco and – as the first Volkswagen front-wheel drive car, based on the K70 taken over from NSU – the Passat, launched in 1973. With the launch of the Golf, the highest volume vehicle category had now also been switched to the new technology.
As the successor to the legendary Beetle, of which over 21.5 million units were made, the Golf Mk1 designed by Giorgio Giugiaro had to live up to the great expectations of continuing the success story of what until then was the world’s most successful car. In the spring of 1974, nobody could really be sure that this would indeed be achieved. However, the modern and reliable drive system, the spacious internal layout with a tailgate and fold-down rear seat and ultimately the design as well won over the market to such an extent that production of the one-millionth Golf was already being celebrated in October 1976.
Volkswagen wrote at that time about the new car: “The Golf offers maximum luggage space and safety. It is laid out uncompromisingly for practical use. The low beltline provides clarity, the sloping bonnet allows a clear view of the road right up to just in front of the car and the low rear window makes reversing easy.” And that applies to this day.
Like every Golf thereafter, the first generation too was already a reflection of the progress and automotive trends of its era. Thus, for example, in launching the first Golf GTI (in 1976) Volkswagen heralded the introduction of greater dynamism in this class, while the Golf D (naturally aspirated diesel engine, 1976) and the later Golf GTD (turbodiesel, 1982) marked the breakthrough for diesel cars in the compact segment. In 1979, with the Golf Cabriolet – at times the world’s best-selling open-top car – Volkswagen brought a breath of fresh air into a vehicle category that by that time had long been simply called the ‘Golf class’. 6.72 million units of the first generation Golf, including all derivatives and the Jetta (at that time based on the same body), were sold across every continent of the globe – the Golf had proved itself a worthy successor to the Beetle.

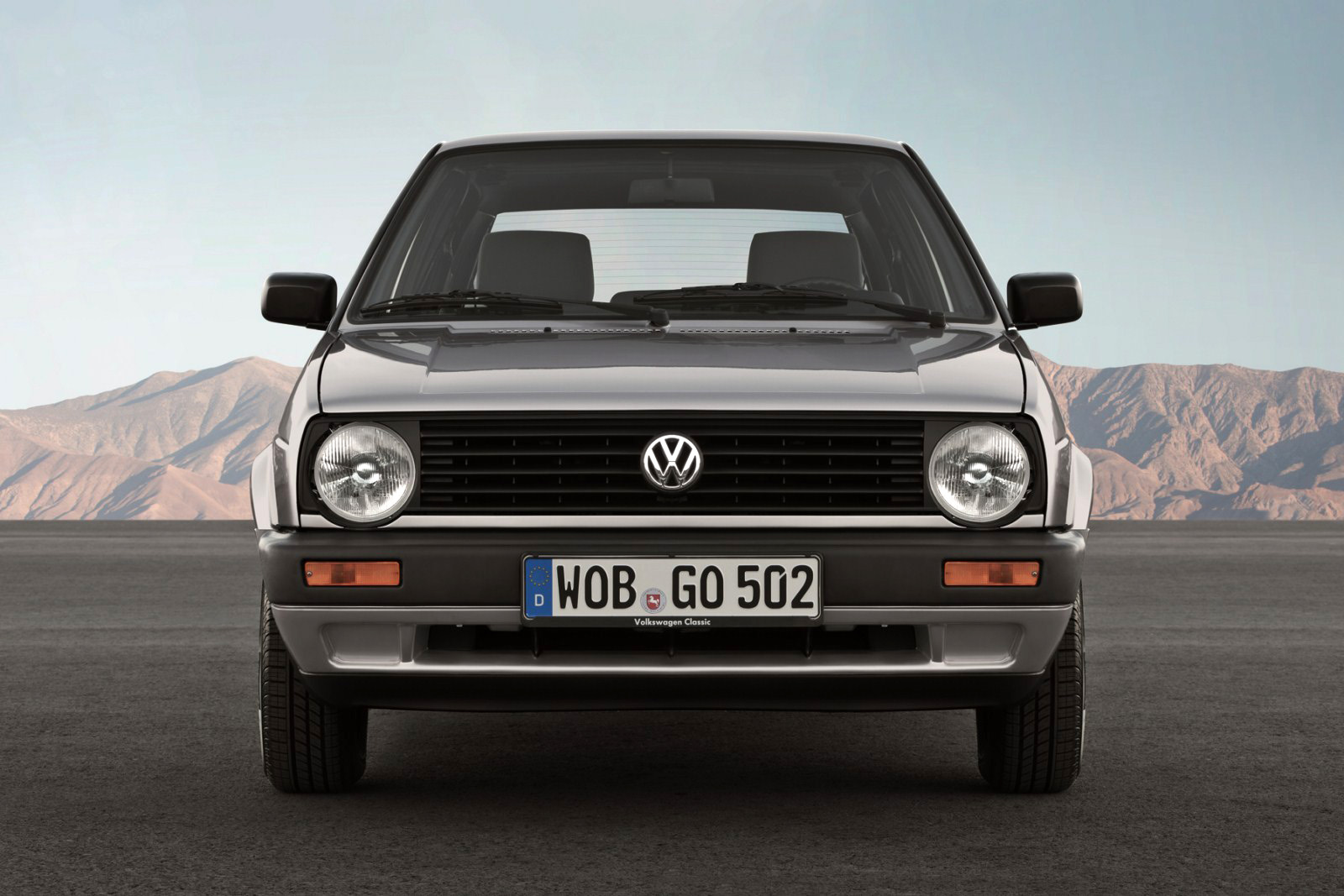

Golf Mk2 – 1983 to 1991
While its predecessor had already become a favourite of all driving instructors and learner drivers, the second Golf now cemented itself in their minds as their permanent number one choice. As of August 1983, they no longer sat quite so close to each other, as that year’s press pack pointed out: “The wheelbase is now 75 mm longer, while the track width at the front has been increased by 23 mm and at the back by 50 mm. Total length has increased by 170 mm (now 3.99 m) and the width by 55 mm (now 1.42 m)… The level of comfort, measured by the space between accelerator pedal and rear seatback, has increased by 37 mm to 1,837 mm, while elbow room in the front is now 92 mm wider and in the back is up by 112 mm. On the four-door model the increase is even 120 mm.”
It was the Golf with which the regulated catalytic converter (1984), the anti-lock braking system (ABS, 1986) and power-steering first took off in the Golf class and with which four-wheel drive (Syncro, 1986) was available for the first time. And as far back as 1989 – 23 years ago – Volkswagen was already unveiling a prototype of this Golf with an electric engine and another with a hybrid drive system. In June 1988, 14 years after its debut, the Golf had also broken through the magical production mark of 10 million units. In 1991, after 6.41 million of its kind had been sold, the Golf Mk2 gave way to make room for the successor.

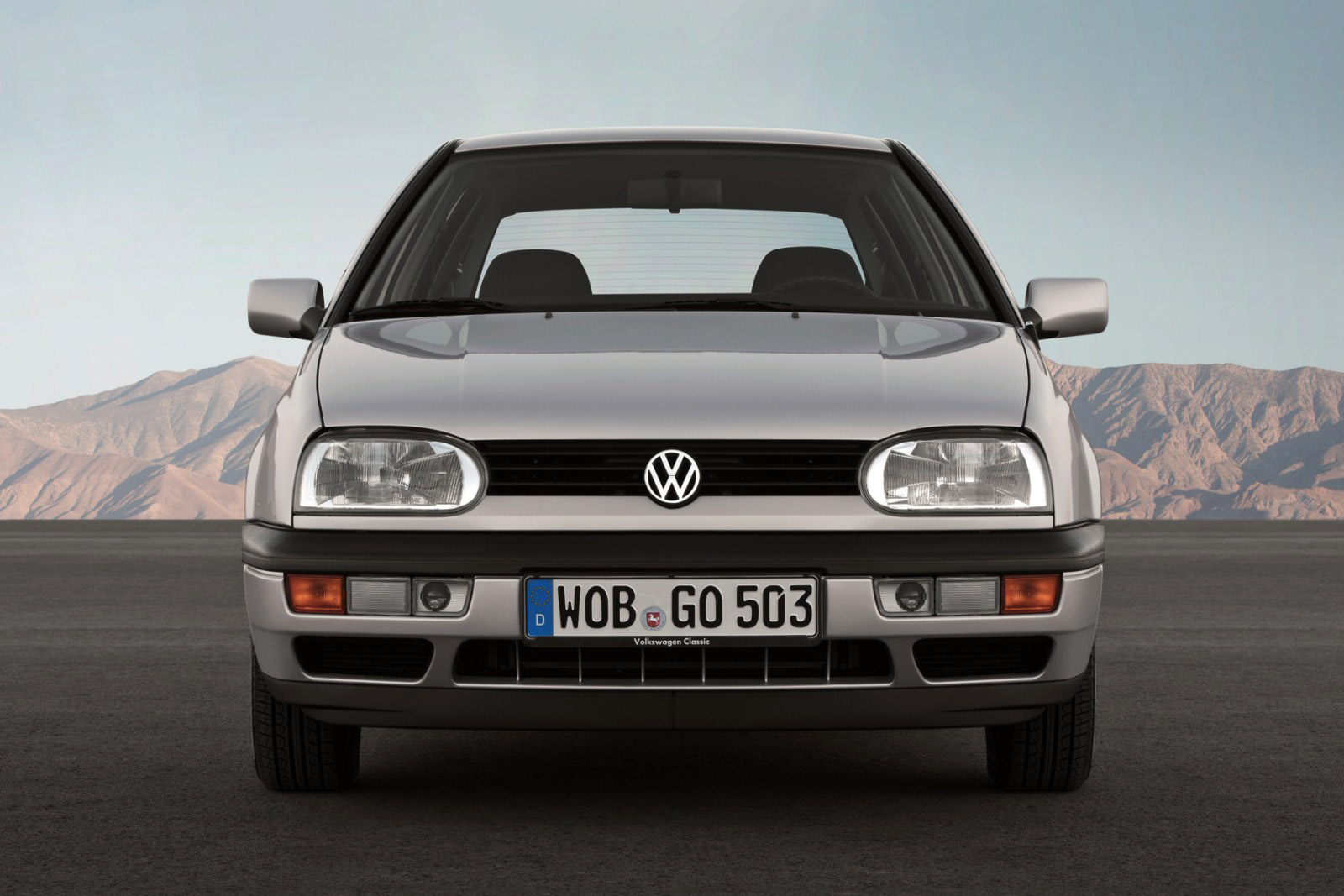

Golf Mk3 – 1991 to 1997
With the launch of the third generation of the Golf in August 1991, Volkswagen heralded a new era of safety. The Golf Mk3 was the first of the series to have front airbags (as of 1992), while major advances in the area of car body construction also resulted in significantly improved crash safety qualities. Looking back it can be said that with this Golf Volkswagen truly democratised passive safety, as the improved protection benefited millions of car drivers all over the globe.
However, there are also numerous other Golf milestones associated with the Mk3. Many new features made their debuts in this new Golf: the first six cylinder engine (VR6), the Ecomatic transmission, cruise control, the first oxidation catalytic converter for diesel engines (1991), the first direct injection diesel engines (TDI in 1993 and SDI in 1995) and the first side airbags (1996). Also in September 1996, ABS became a standard feature on all Golf models. In 1993, based on the Golf Mk3, Volkswagen had also introduced a new cabriolet, a new four-wheel drive model (Syncro II) and the first Golf Variant (an estate). A year later, in May 1994, Volkswagen celebrated production of the 15-millionth Golf. In 1997, after having made 4.96 million of the cars, the third generation came to the end of the line.

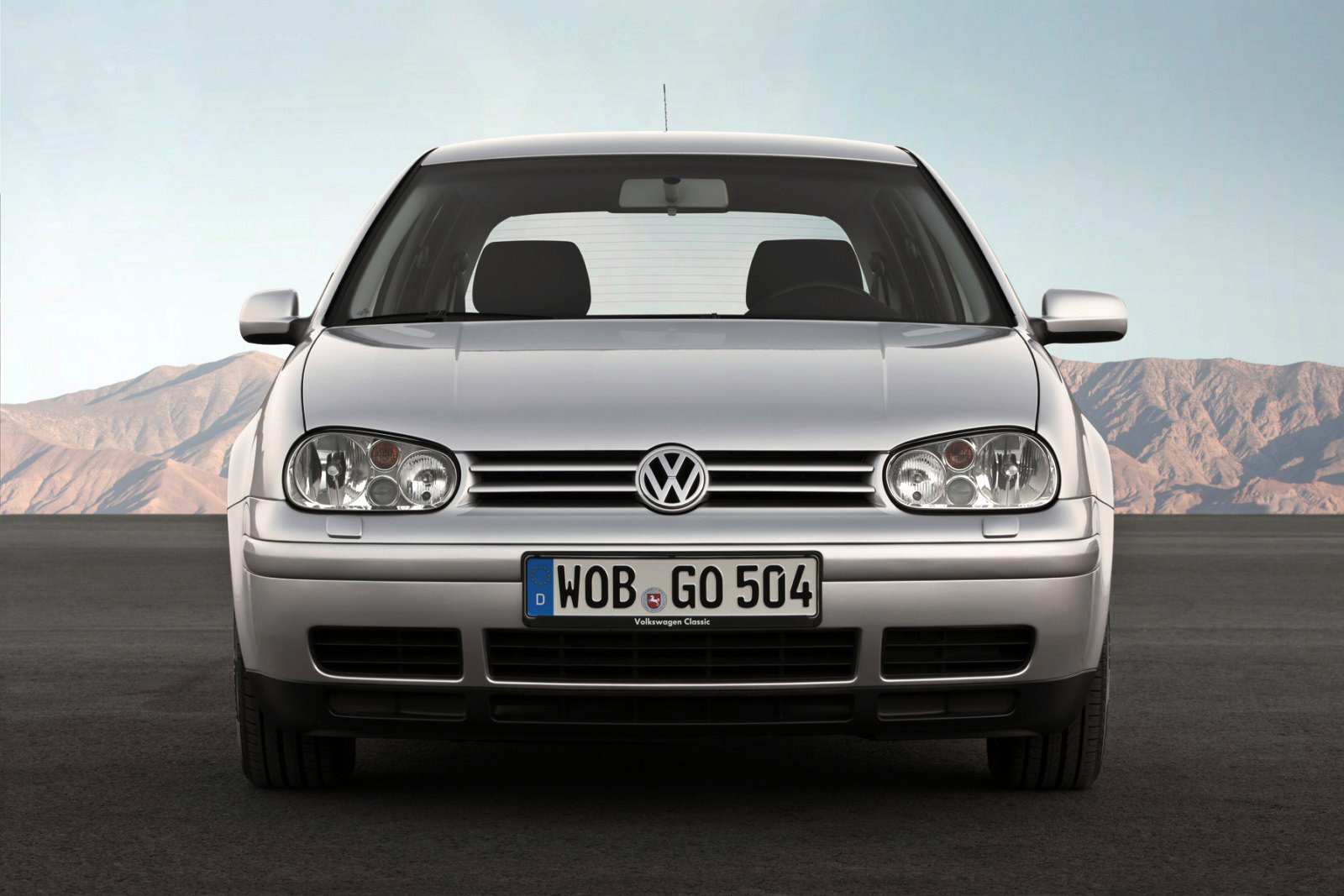

Golf Mk4 – 1997 to 2003
Under the direction of Volkswagen’s then Head Designer (Group), Harmut Warkuß, the Mk4 crystallised the clear, precise design that more than ever before paid its dues to the history of the Volkswagen brand and at the same time set its course to the future. It is in this era that the Volkswagen design DNA has its origins. Today, the Golf Mk4 is regarded by design experts as a style icon and as a pioneering step for the model – not least because with all its clarity and characteristic C-pillar design it created a link back to the Golf Mk1 of 1974.
However, the Golf Mk4 was not only pioneering in terms of its looks, it was groundbreaking in engineering terms as well. With this car Volkswagen achieved a totally new standard of quality in this segment of the market and thus became the first manufacturer to break through the vehicle class boundaries. With the debut of ESC (in 1998) and the brake assistant system, safety also continued to be further democratised. Also in 1998, Volkswagen unveiled the first four-wheel drive Golf with a Haldex clutch – the Golf 4MOTION. A year later, ESC became a standard feature, initially in Germany. In the same year, the first Golf with six-speed transmission made its debut. There then followed in 2001 the Golf GTI 132kW (launched to mark the GTI’s 25th anniversary and now already sought-after as a classic) and in 2002 the first Golf with petrol direct injection (FSI) and the debut of window airbags fitted as standard. Also in 2002, Volkswagen launched what at the time was the sportiest Golf ever: the R32, with a top speed of 250 km/h. It was this top model that in 2003 was the first ever to be available with the revolutionarily fast and fuel-efficient direct shift gearbox (DSG), the automatic transmission of the new age. In the same year, after production of 4.92 million units, the Golf Mk4 – the first fully galvanised Golf and the first available with satellite navigation and xenon headlights – made way on the production lines for the Golf Mk5.

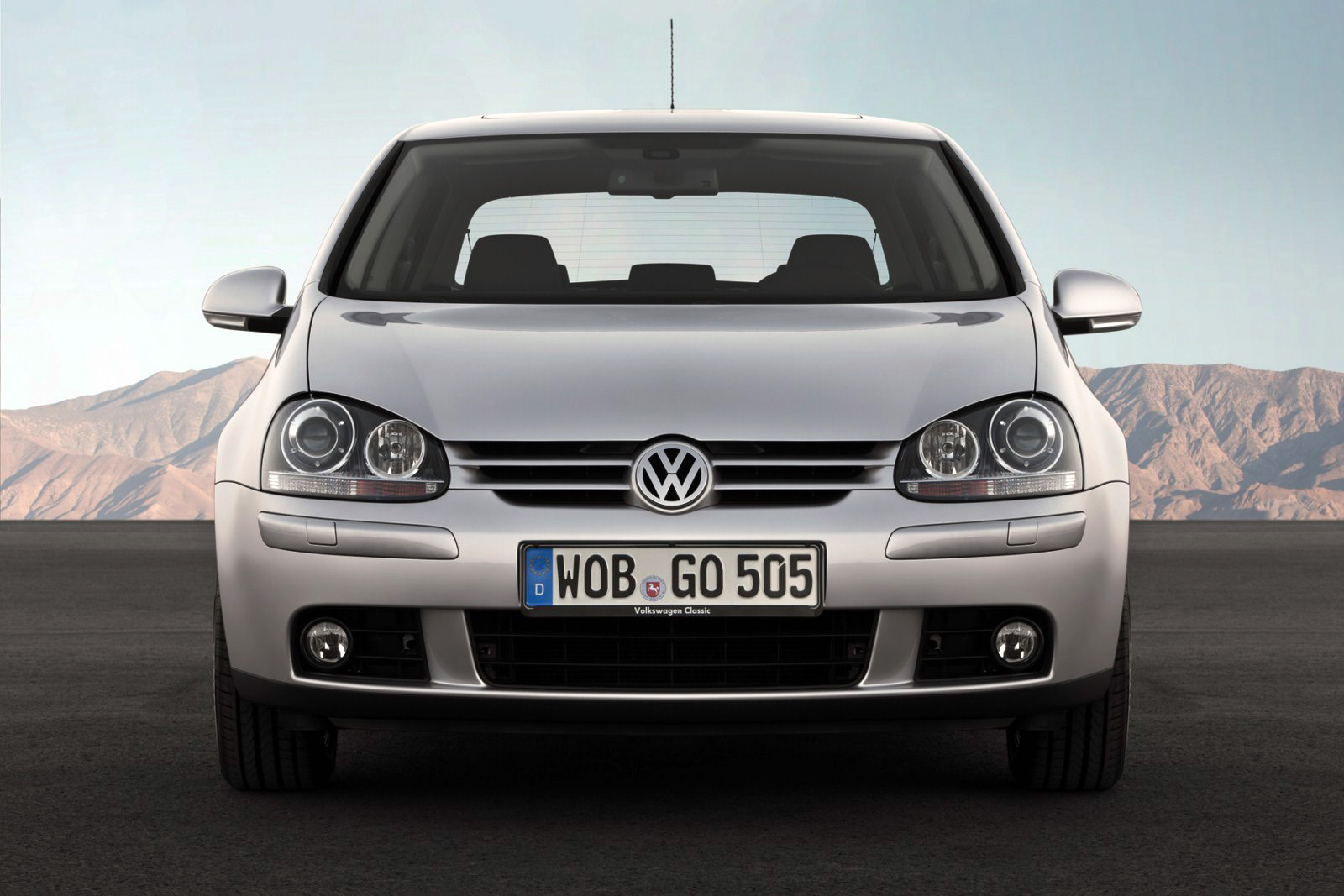

Golf Mk5 – 2003 to 2008
This was the Golf that boasted levels of comfort and dynamic handling that left many a competitor in its class way behind. The same went for the car’s quality. One factor that underlines the stability of the laser-welded bodywork was the 35 per cent increase in torsion rigidity demonstrated when the Golf Mk5 made its debut in 2003. On request, the Golf was now also available for the first time with side airbags – together with the six standard airbags (front, side front and window) there were thus eight protective air buffers on board.
In terms of comfort and dynamic handling the Golf Mk5 scored in numerous areas, including: its new four-link rear suspension and new seven-speed DSG, bi-xenon headlights, rain sensor and panoramic sliding sunroof, plus the debut of the first turbocharged direct injection petrol engine in the Golf GTI (in 2004) and the world’s first twincharger (in the 2006 TSI), combining turbo and superchargers. In parallel with this, new vehicle body variants also made the Golf attractive to a wider spectrum of drivers. 2006 saw the launch of the Golf Plus and 2007 of the CrossGolf, a new compact MPV, and of the Golf BlueMotion, which set a new benchmark with average fuel consumption of just 4.5 l/100km. By the time the Golf Mk6 was unveiled in 2008, over 3.27 million units of the Golf Mk5 in all of its versions had been produced.

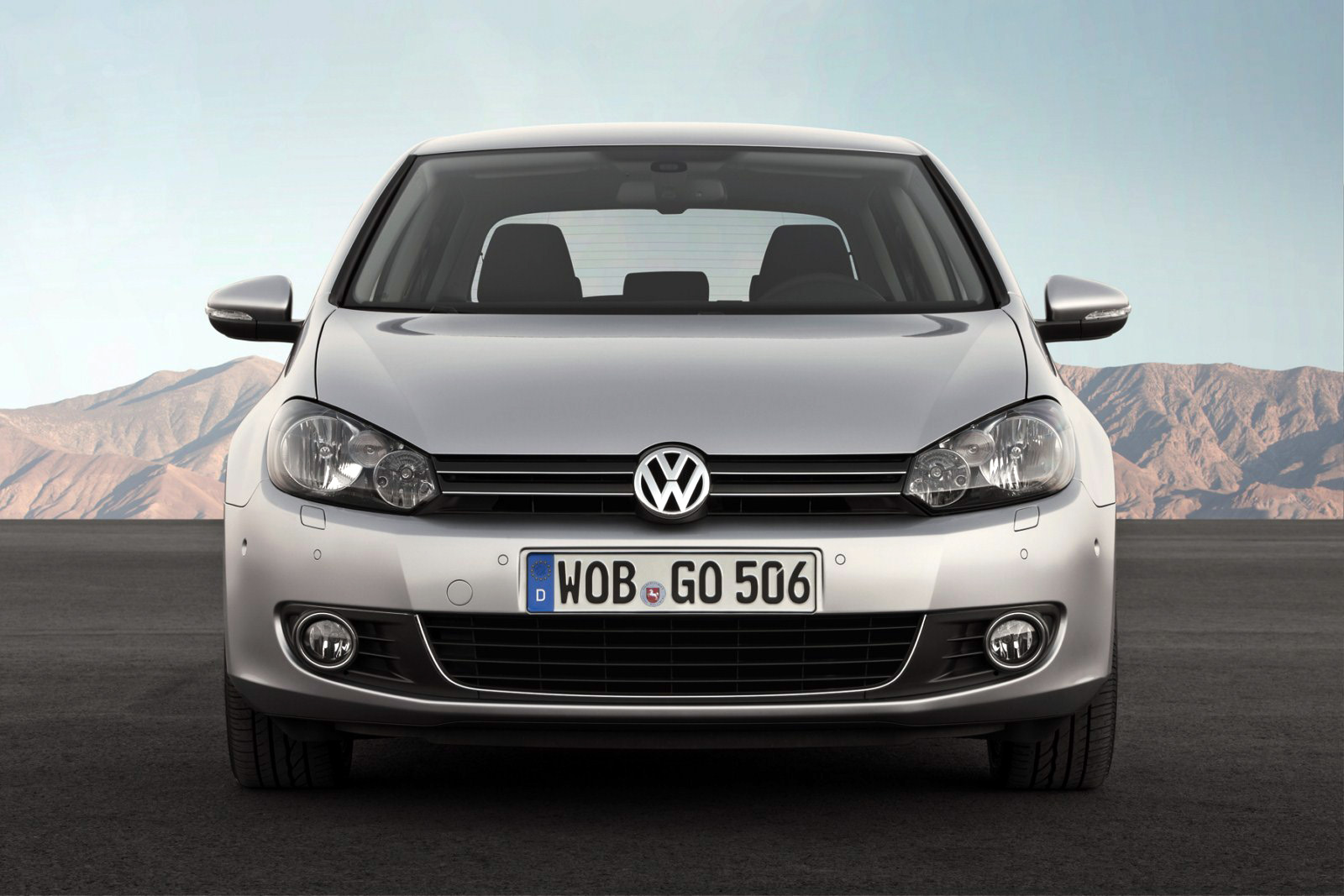

Golf Mk6 – 2008 to 2012
In just four years, a further 2.85 million Golfs had been produced by the end of July 2012, based on the sixth generation of the car launched in 2008. And once again safety made great advances, too: the car body, again laser-welded, was so robust that it passed the EuroNCAP crash test with flying colours, gaining the maximum five stars. There was now also a further airbag fitted as standard: the driver’s knee airbag.
In respect of quality the Golf Mk6’s interior in particular ranked as pioneering. Meanwhile an increasing number of TSI engines and switching the turbodiesel engines (TDI) from unit injection to the common rail system produced more dynamic handling and lower fuel consumption. The top performer here was the second Golf BlueMotion with average fuel consumption of now just 3.8 l/100km, equating to 99 g/km CO2. New assistance systems such as Light Assist automatic main beam management, ParkAssist, hill start assistant and technologies such as electronic DCC dynamic chassis control made the ‘World Car of the Year 2009’ the most advanced Golf to date. Also available were features such as the Stop/Start system and brake energy recovery mode, dynamic cornering lights and LED rear light clusters. Even if the Golf Mk6 has now been topped by the Mk7, its outstanding product features and superb design will ensure that the sixth generation Golf remains – as a used car too – one of the most successful cars on the market for many a year to come.
The new Golf. Lightweight design – searching for every gram
100 kg less weight reduces fuel consumption appreciably
Body-in-white weighs 23 kg less thanks to progressive design

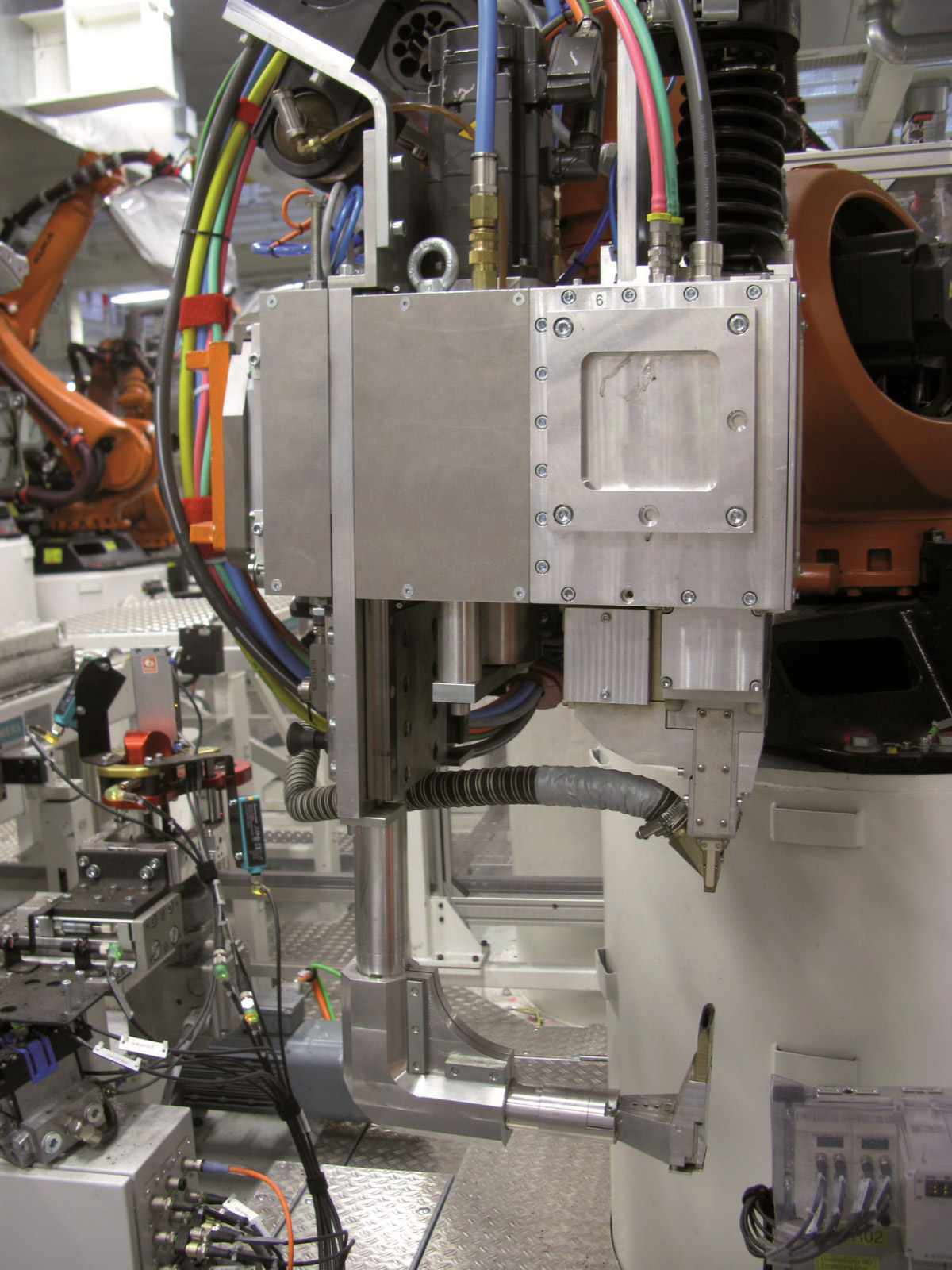

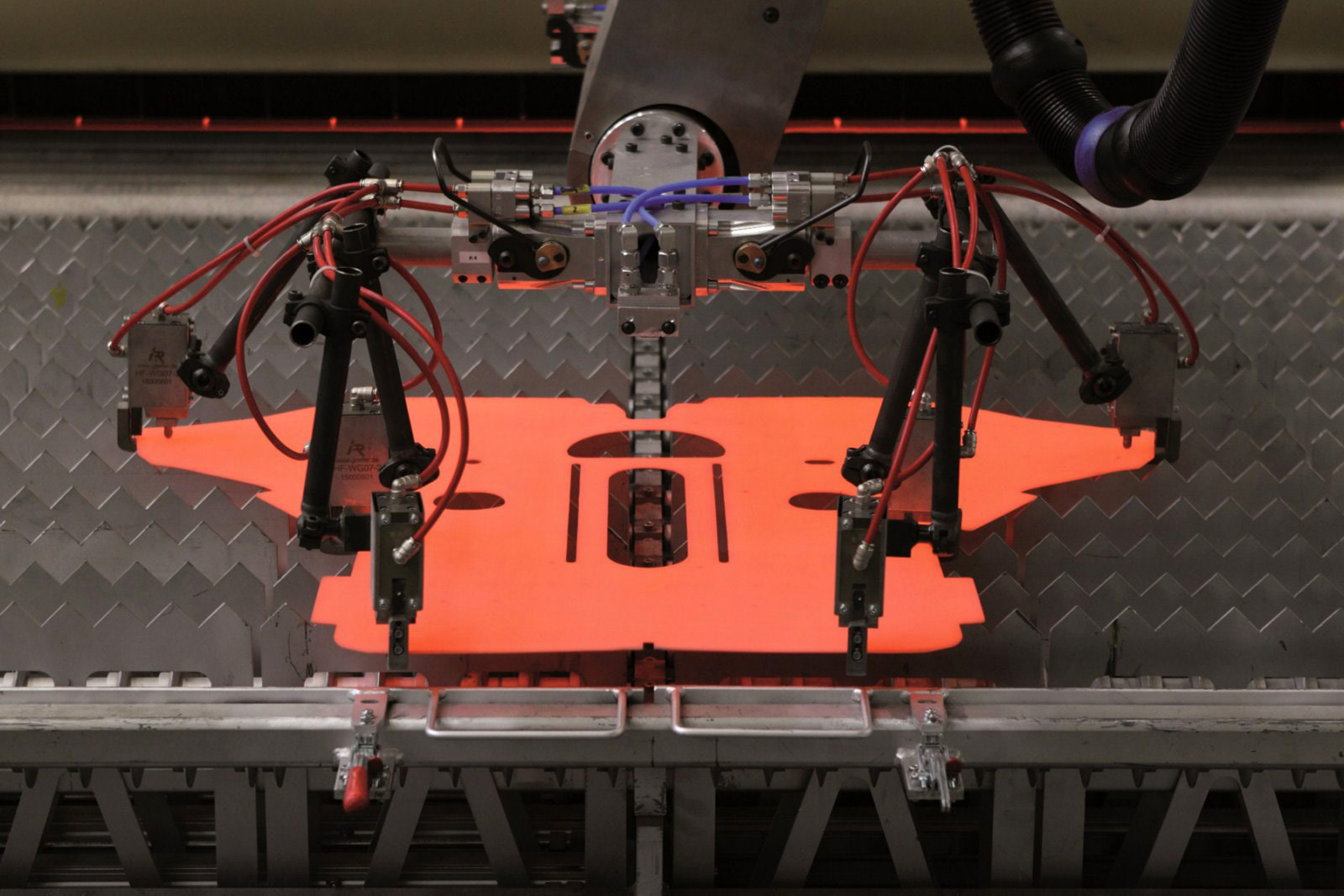

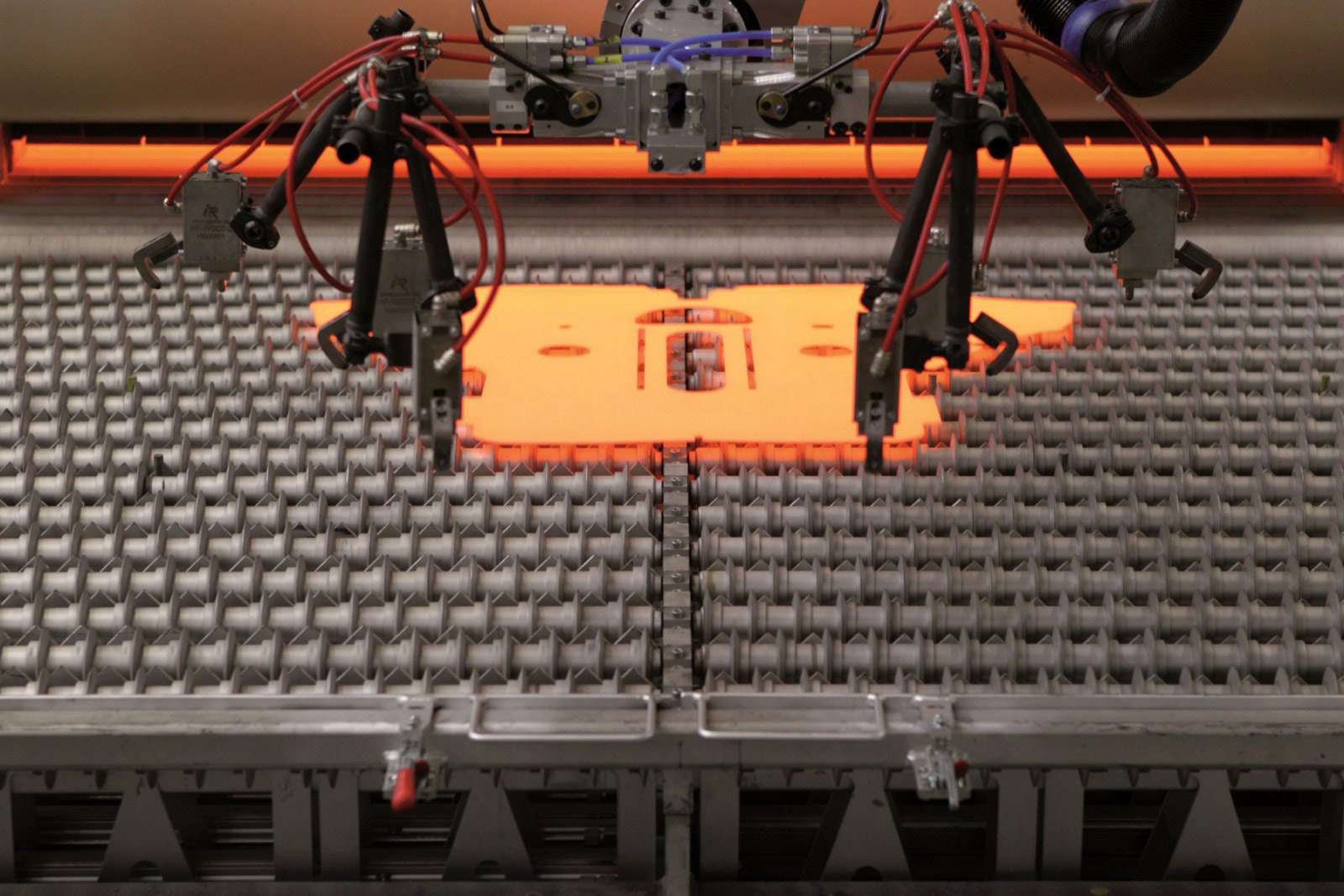

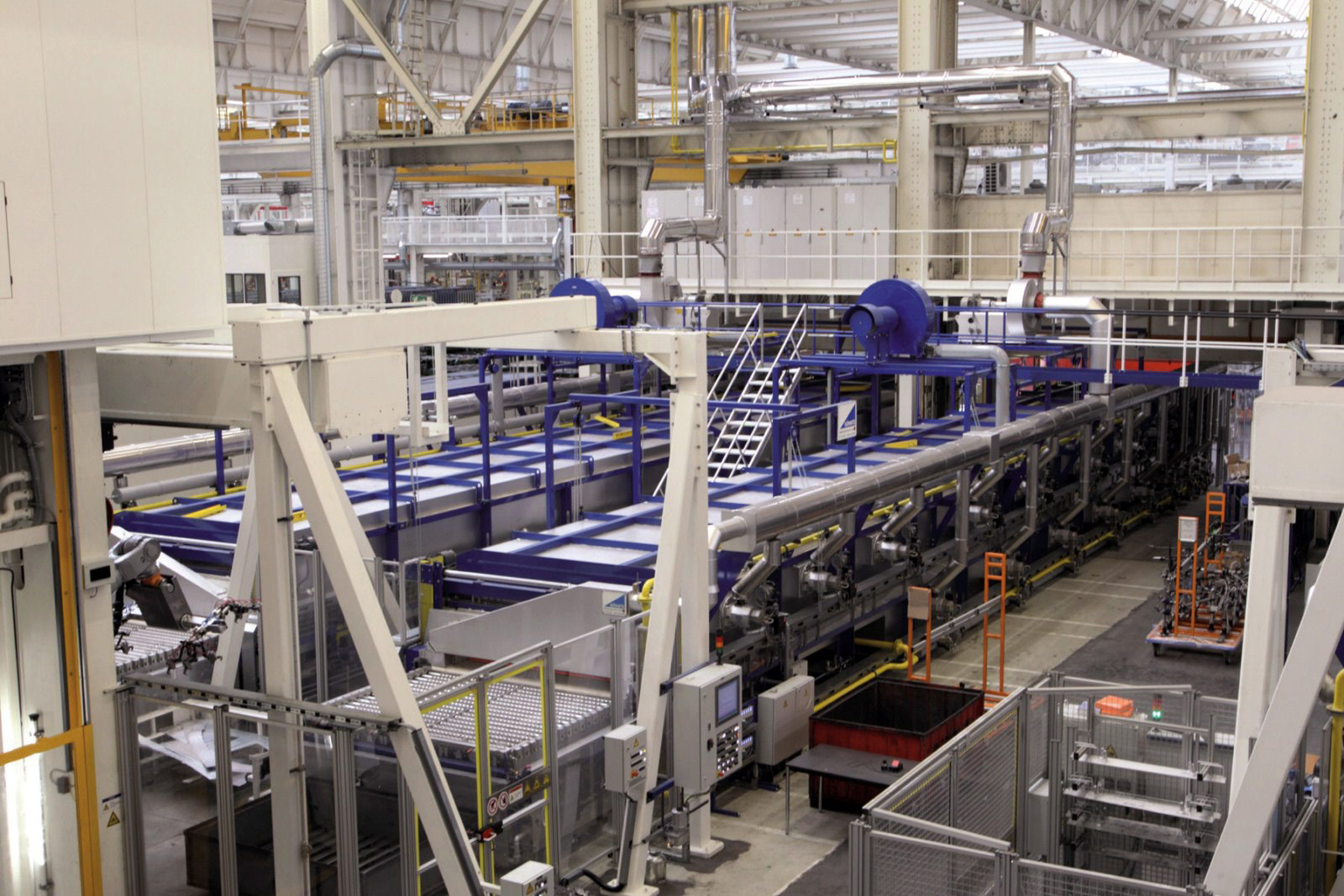

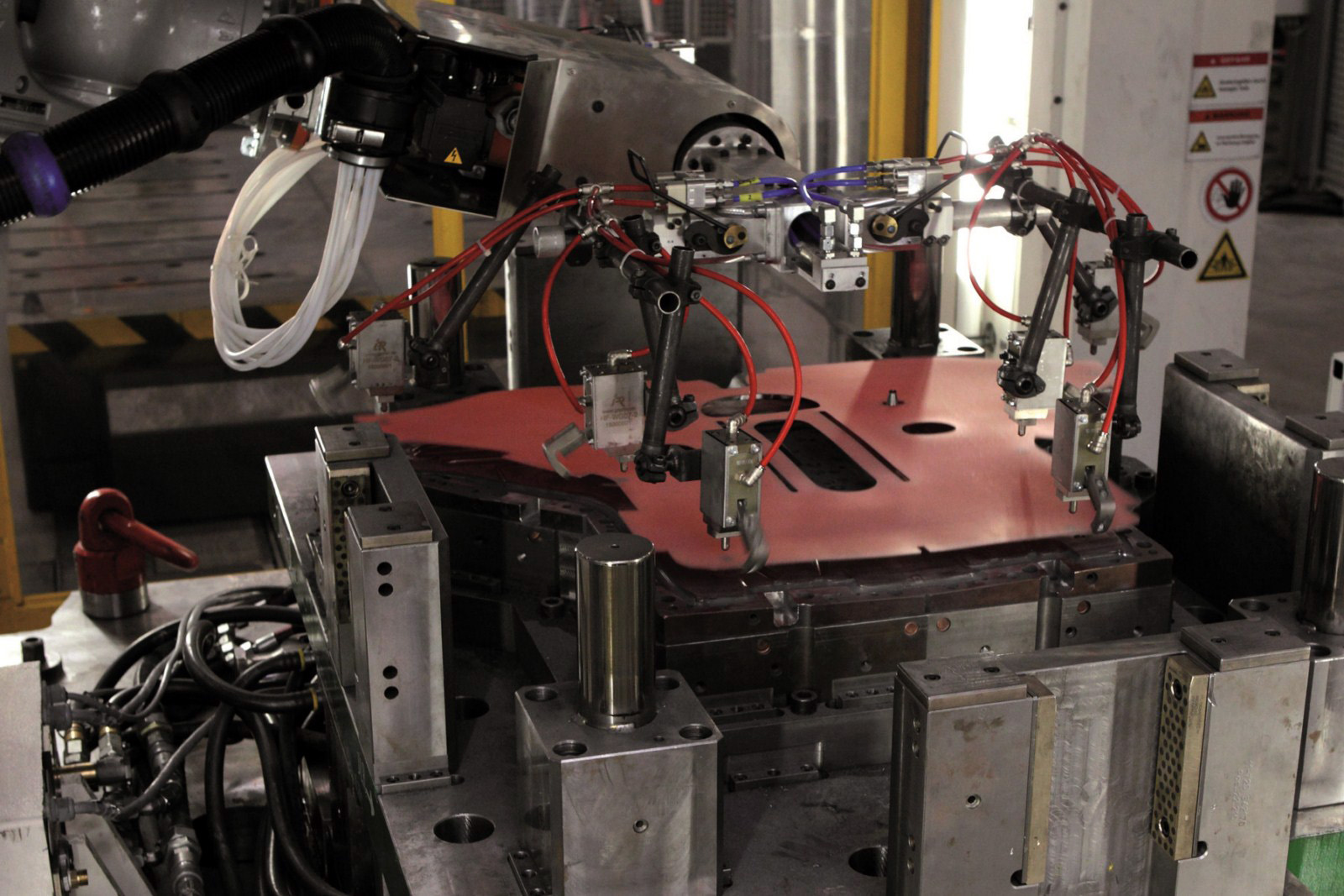

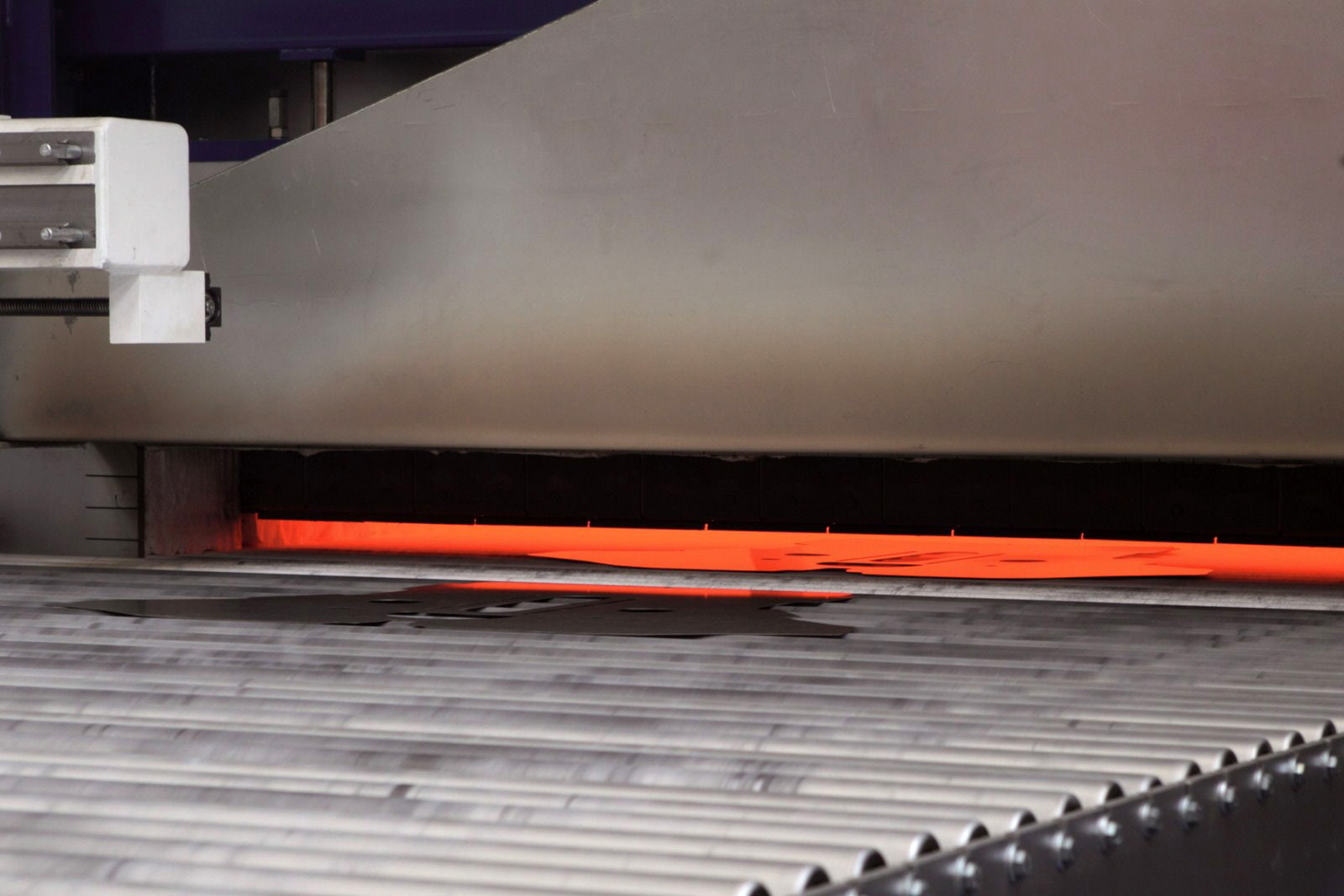

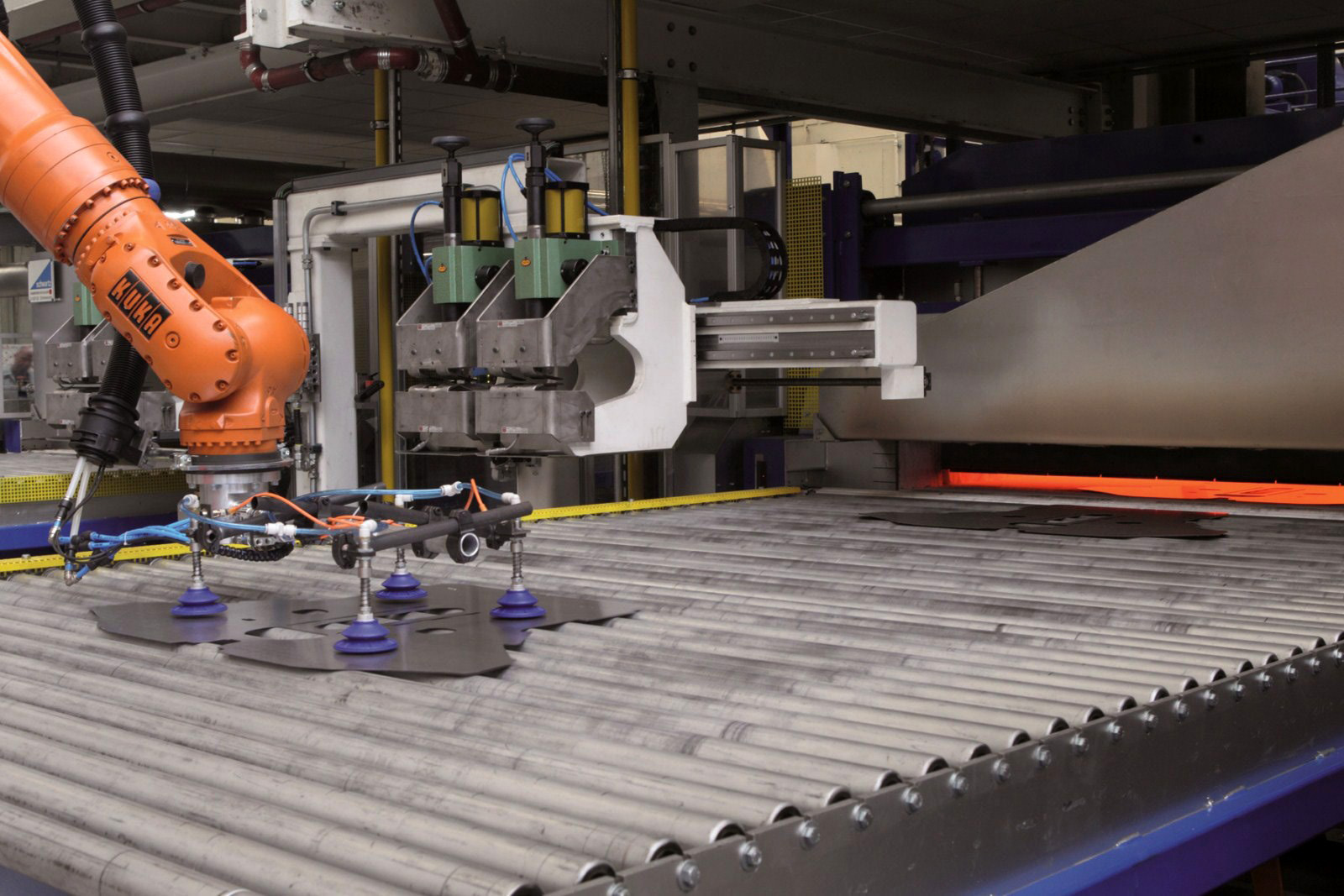

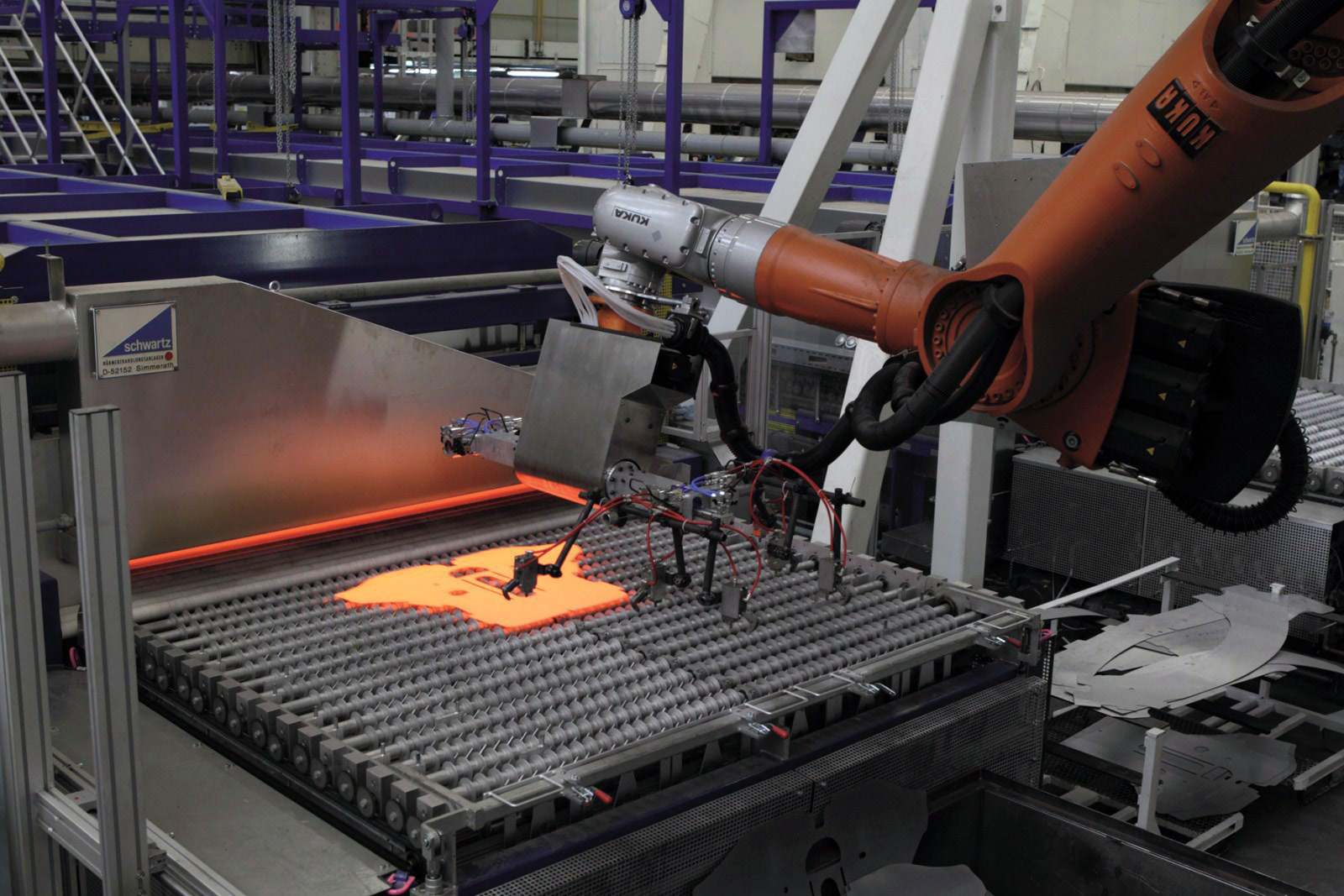

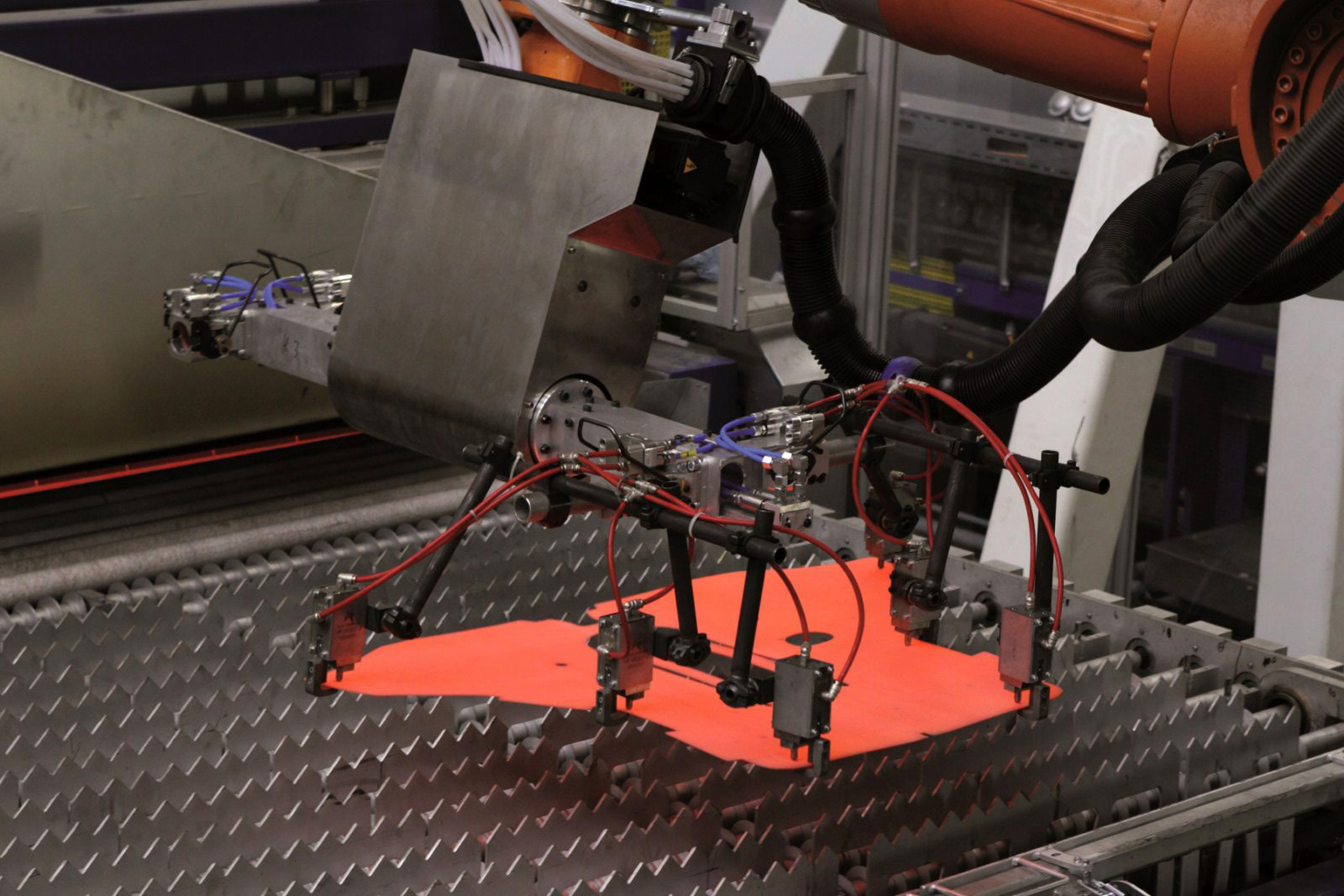

Innovative manufacturing methods reduce weight and enhance safety
Wolfsburg / Berlin, 04 September 2012
Saving up to 100 kg in weight is a complex task, especially in the compact class. The fact is that not every carmaker is pursuing the route of lightweight design – searching for every last gram – as methodically or thoroughly as Volkswagen. The reason is clear: intensive research and development work costs money. The fact that despite its higher specification the base price of the seventh generation Golf has not gone up by a single cent is a reflection of the innovative power of this brand.
Overall vehicle – how savings add up to 100 kg
If you divide the Golf up into the primary areas of electrical equipment, engines, running gear and superstructure, an analysis yields – depending on model, specification and type of engine – the following split for the weight reduction:
Up to -6.0 kg = Electrical
Up to -40.0 kg = Engines
Up to -26.0 kg = Running gear
Up to -37.0 kg = Superstructure
In purely mathematical terms the total potential saving is thus even as much as 109 kilograms. Due, however, to the configuration options that can be implemented in practice, the maximum achieved in any one vehicle is 100 kg. The greatest weight reduction is achieved from the engines and superstructure. It is particularly interesting to look into the details of the superstructure (car body and interior) and the 37 kilograms saved here, as it shows how lightweight design that is compatible with large-scale production can be achieved in 2012.
Superstructure – how savings add up to 37 kg
-0.4 kg = Dashboard
-1.4 kg = Module cross-member (beneath dashboard)
-2.7 kg = Air conditioning
-7.0 kg = Front and rear seats (depending on version)
-23.0 kg = Body
-2.5 kg = Miscellaneous
Dashboard. 0.4 kg doesn’t sound like much. But this is where perfection in the details comes into play. If you ignore 0.4 kg, you will never ultimately achieve 100 kg. Volkswagen not only succeeded in making the dashboard 20 per cent lighter thanks to a new thermoplastic foam injection process – the load-bearing, sandwich-like structure beneath the elegant surface consists of this material – but also in making it 20 per cent more rigid at the same time.
Module cross-member. 1.4 kg here also contributes towards overcoming the upward weight spiral. Mounted on the module cross-member are both the steering gear and the dashboard. Altogether the cross-member weighs 5.8 kg. The reduction in weight was achieved with a lightweight construction concept using steel components. Based on an analysis by Finite Element Method (FEM) computations, the structure of the module cross-member was designed to be as light as possible and as strong as necessary. Optimal steel wall thicknesses and structural design measures, such as specially worked-in corrugations, improved the rigidity of the cross-member, while also reducing its weight by the aforementioned 1.4 kg. Utilising methods such as the Finite Element Method, engineers at Volkswagen are essentially emulating examples found in nature, where the natural world is able to attain an astonishing ratio between the cross-section of a part’s structure and its rigidity – e.g. in a stalk of grass or grain. That is the right way to go.
Air conditioning. The Golf’s entire air-conditioning system has been redesigned and is 2.7 kg lighter. Independent of its weight, all of the Golf air-conditioning units with their highly efficient refrigerant cycles set standards in terms of comfort and efficiency. That’s because they run very quietly (up to 5 dB(A) lower), reach the desired temperature significantly faster and are very energy-efficient (up to 4 Amps less) due to a new type of blower control with intelligent climate control. The 2.7 kg weight reduction is achieved by such design modifications as optimised thickness of various system components walls, reduced diameters of pressure lines, a new fastening system and a weight-optimised high-performance heat exchanger.
Seating system. Along with numerous minor modifications to the seats, weight was reduced – especially from the rear backrests – to save a total of up to 7 kg. Once again, the Finite Element Method (FEM) and high-strength steels combined with laser welding made it possible to optimise wall thicknesses and profile geometries. Engineers achieved weight savings of over 15 per cent in this way and by using lighter backrest latch mechanisms.

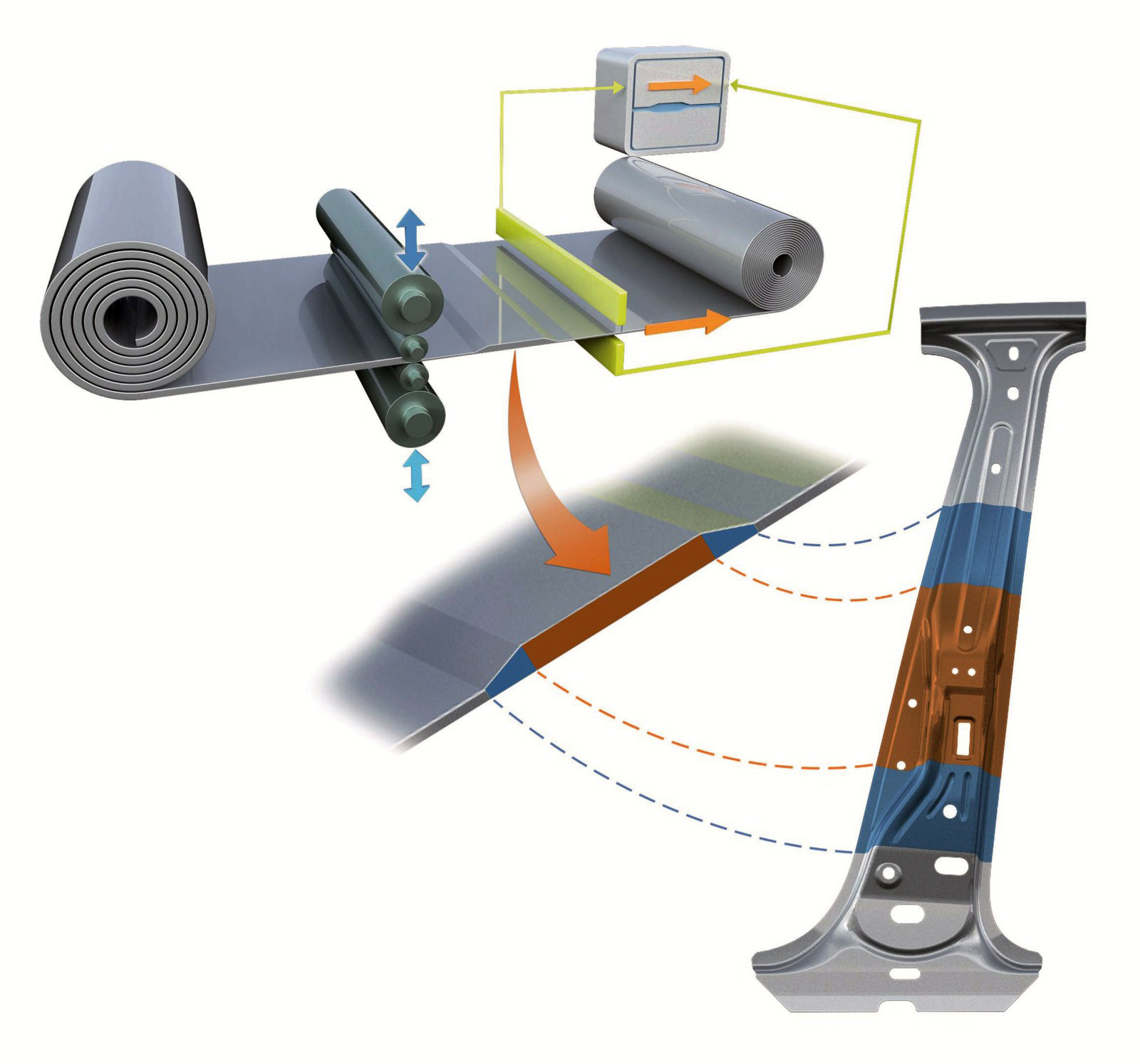

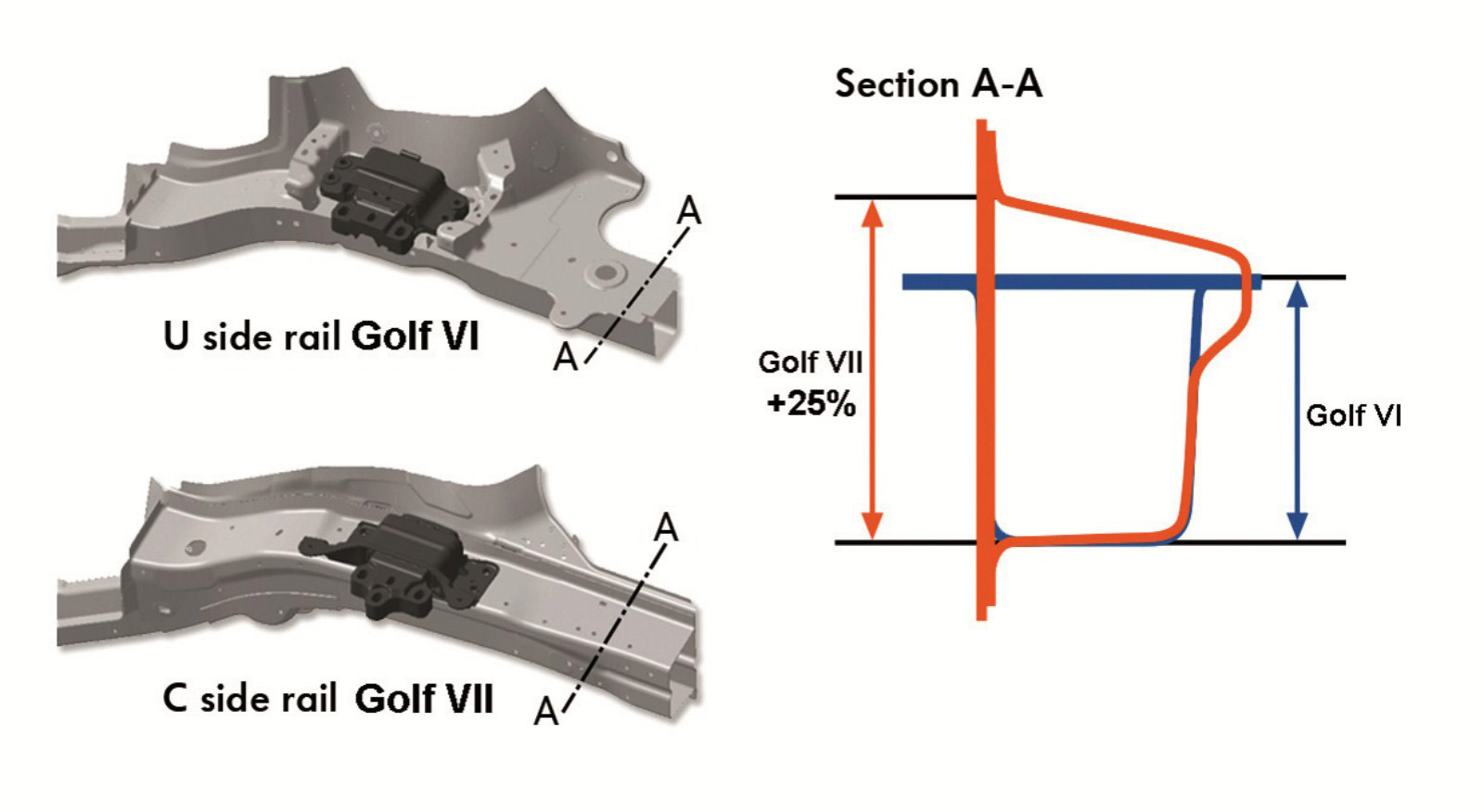

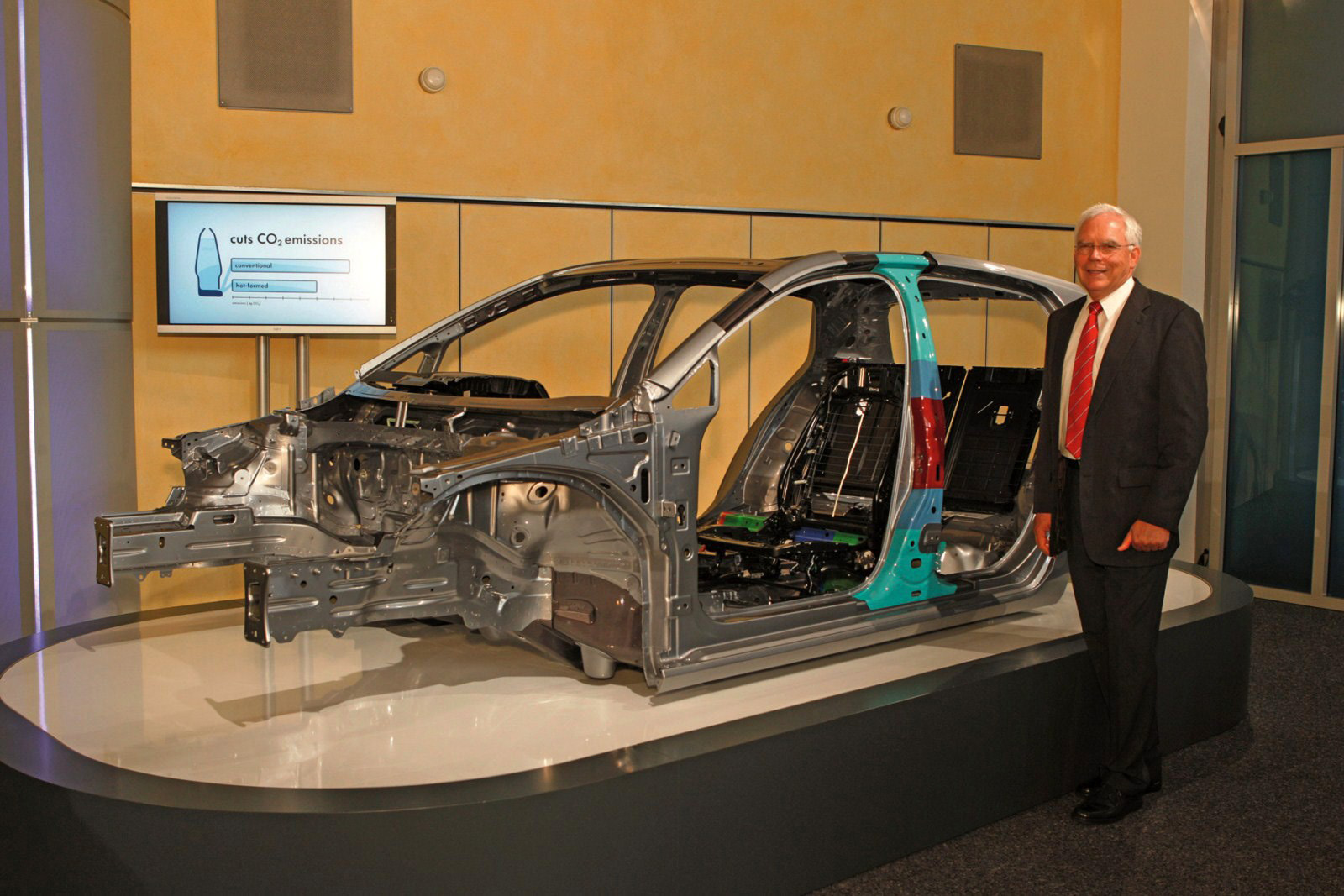

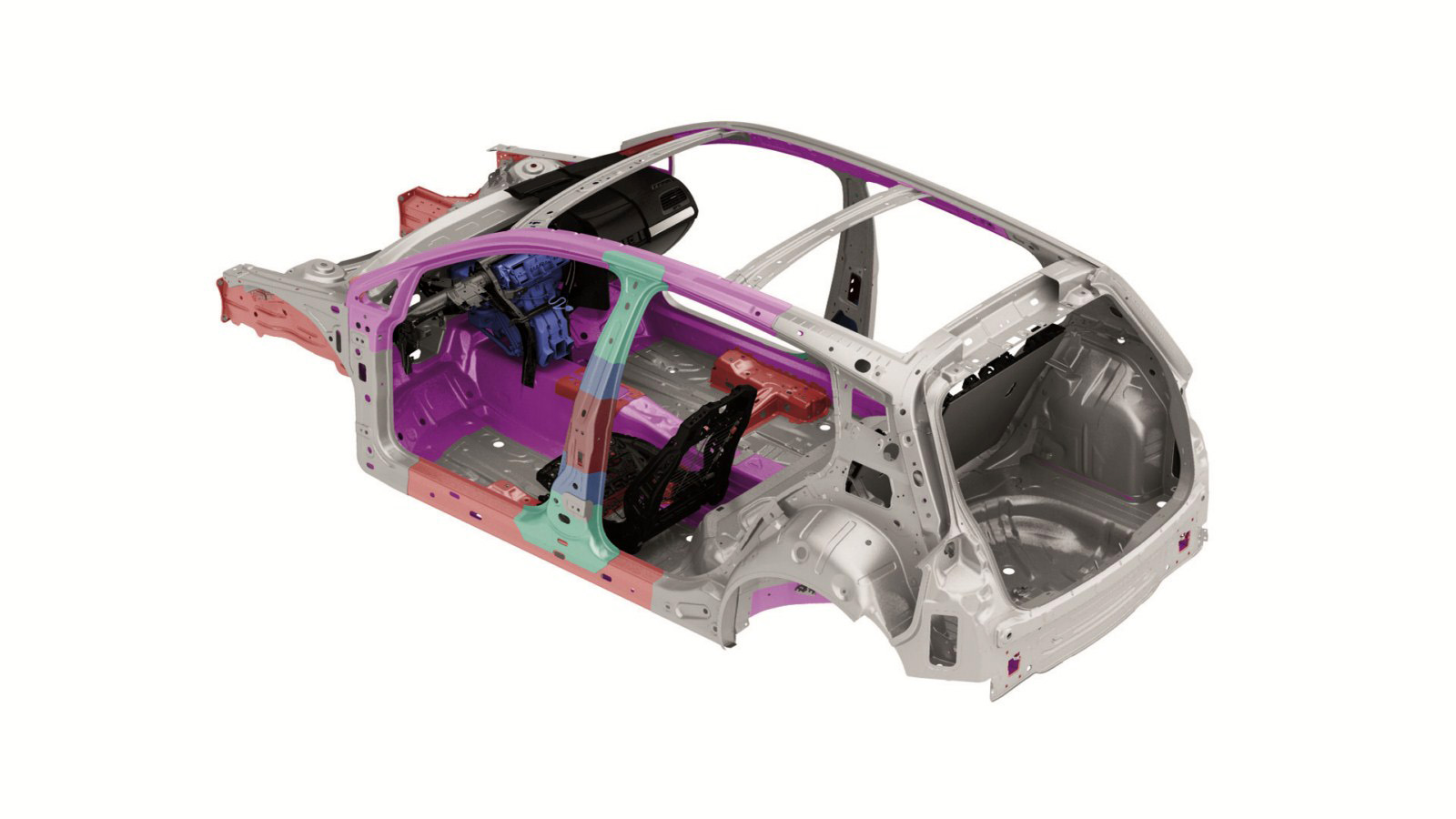

Body. The body must be strong and rigid to guarantee optimal safety and maximum comfort. Nonetheless, its structure should remain athletically lean, so that the overall vehicle is light and efficient. Strong yet lightweight – harmonising these two parameters continues to be one of the greatest challenges in the automotive world. Especially when the car – like the Golf – needs to be an affordable car for millions of people. Highly expensive materials like aluminium, magnesium or even carbon-fibre are therefore excluded in this segment – at least when they are used in grand style. That is why Volkswagen relies on the synergies of the Modular Transverse Matrix (MQB), innovative utilisation of high-strength steels and advanced production methods. A 23 kg reduction in weight with more stringent crash and rigidity requirements as well as larger vehicle dimensions – achieved without additional costs – demonstrate that this can be done successfully.
The new Golf. Engines – fuel consumption drastically reduced
Completely new Golf engines up to 23 per cent more fuel-efficient
105 PS TDI consumes just 3.8 litres of diesel per 100 km; 140 PS TSI needs just 4.8 litres of petrol
With consumption of 3.2 litres, the Golf BlueMotion will set the new best-in-class benchmark
Wolfsburg / Berlin, 04 September 2012
The fact that the new Golf is conceptually based on the Modular Transverse Matrix has far-reaching consequences: this Golf has been completely redesigned in practically every area – the vehicle body, the interior, the engines, all of the information and entertainment systems and the numerous new driver assistance systems. Elements carried forward were in the main technical features that were already future proof in the previous model – for instance the six- and seven-speed direct shift gearbox (DSG). Everything else is new. And that ‘new’ really means new! For example, the engines: none of them was carried forward unmodified. To be precise, Volkswagen developed two completely new engine generations for the Golf. Every version is fitted as standard with a Stop/Start system (reducing fuel consumption by up to four per cent) and brake energy recovery mode (cutting CO2 by around four per cent). With all measures combined it was possible to reduce CO2 emissions by up to 23 per cent.
Driver profile selection. For the first time the Golf is now also being offered with a driver profile selection system, a tool with which forward-thinking drivers can achieve a particularly efficient style of driving. There are a total of four – and, in combination with DCC (adaptive chassis control), five – driving modes available: Eco, Sport, Normal, Individual and, in combination with DCC, Comfort. In the Eco driving profile engine management, air conditioning and other ancillary systems are controlled such that optimum fuel consumption is achieved. In addition on vehicles with DSG when driving in Eco mode there is a ‘coasting’ function available. If a driver takes their foot off the accelerator – for example, when drawing up to traffic lights or on downhill stretches – the DSG disengages and the engine idles. As long as the driver drives appropriately, the Golf’s kinetic energy can thus be put to optimum use.
The petrol engines
The petrol engines used are exclusively turbocharged and direct-injection TSI engines (four valves, four cylinders). The petrol engines offered at launch on the new Golf deliver 63 kW / 85 PS and 103 kW / 140 PS. Even the base model excels with an average fuel consumption figure of just 4.9 l/100km (equivalent to 113 g/km of CO2) – 0.6 litres less than the previous corresponding model. For the first time there will also be a Golf with cylinder cut-off (ACT active cylinder management). The model fitted with this is a 140 PS TSI, which already satisfies the future EU6 standard. Average fuel consumption is just 4.8 l/100km (112 g/km CO2). By way of comparison: the 18 PS weaker corresponding engine in the already fuel-efficient previous model (90 kW / 122 PS) consumed 6.2 l/100km (144 g/km CO2).
ACT – how it works in detail. The 1.4 TSI engine’s active cylinder management (ACT) is truly pioneering. Volkswagen is the world’s first manufacturer to install this fuel-saving technological innovation in a mass-market four-cylinder engine. In the case of the new Golf Mk7 this is the 103 kW / 140 PS TSI. The principle of the active cylinder management system: when the load on the engine is low or moderate, two cylinders get shut down, thus reducing fuel consumption in the EU driving cycle by 0.4 l/100km. The cut-off system becomes active between 1,400 and 4,000 rpm at a torque level of up to 85Nm.
The diesel engines

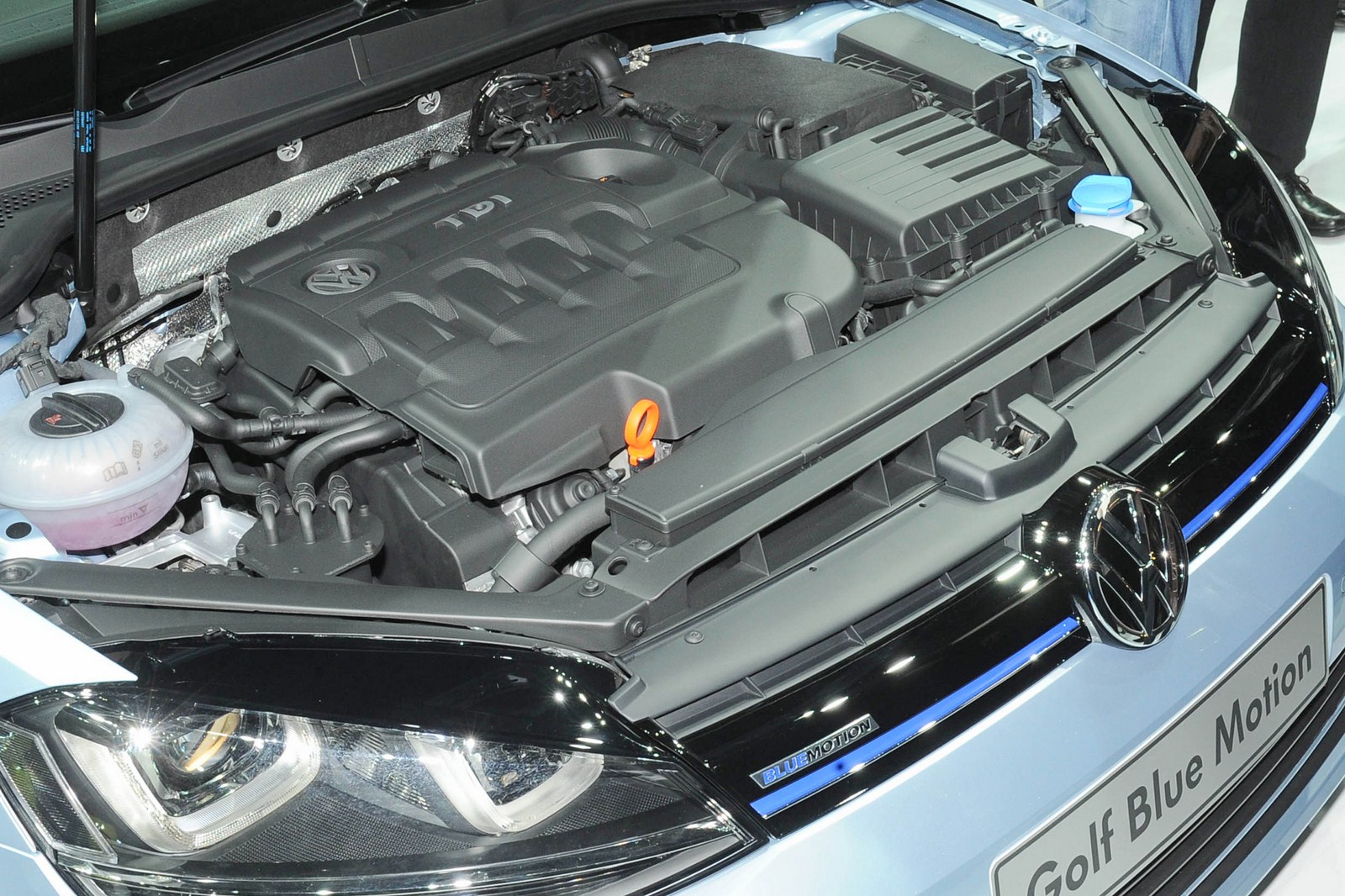

Everything is also new on the diesel front. The diesel injection engines, also four-cylinder, four-valve versions and here too generally turbocharged, initially deliver 77 kW / 105 PS and 110 kW / 150 PS. Just how efficiently the diesel engines work in the new Golf is shown by the TDI base model with 105 PS and average fuel consumption of just 3.8 l/100km (99 g/km CO2). The Golf Mk6 achieved this figure only with the BlueMotion model, not however with the base model as is the case with the new Golf. In addition, the Golf’s 150 PS TDI is also extremely efficient, as underlined by its average fuel consumption of 4.1 l/100km (106 g/km CO2). The best figures are ultimately delivered once again by the Golf BlueMotion: making thorough use of all the individual solutions in Volkswagen’s technological toolkit, the new Golf BlueMotion emits just 85 g/km of CO2 and consumes on average only 3.2 litres of diesel per 100 kilometres, thus setting new standards – a typical example of Volkswagen’s innovative strength, demonstrating, after all, that the company always incorporates the findings of one BlueMotion generation into the next production model and thus delivers constant enhancements.
The new Golf. Innovations – democratising high-tech
New Golf is first Volkswagen with multi-collision brakes
Standard multi-collision brake reduces severity of secondary collisions
New Golf makes debut with PreCrash system and progressive steering
Wolfsburg / Berlin, 04 September 2012
The new Golf is the first car in the compact class in which – despite significant gains in comfort and safety – the weight of the car has been reduced by up to 100 kg. This fact underscores Volkswagen’s success in the mass production of progressive automobiles. In parallel, an armada of new technologies substantiates the innovative power of the brand in the compact class. In the Golf, these technologies are more attainable for more people than ever before.
New systems – optimised safety and convenience
New assistance systems include the multi-collision brake – the Volkswagen Group is the only carmaker in the world to implement such a system as standard in a compact car – a proactive occupant protection system, standard XDS electronic differential lock (as found in the previous-generation Golf GTI), ACC adaptive cruise control plus Front Assist and a City Emergency Braking function, Lane Assist lane-keeping assistant, fatigue detection, traffic sign recognition and the latest generation of the automatic parking assistant ParkAssist including OPS (360 degree display) as well as the automated light functions Light Assist and Dynamic Light Assist. There are other new technologies as well, such as progressive steering (optimised dynamic performance and better comfort), selection of driving profile with five modes (‘Eco’, ‘Sport’, ‘Normal’, ‘Individual’ and, in combination with DCC, ‘Comfort’), an electronic parking brake, a newly developed ergonomic sport seat (ergoActive seat), a guard against using the wrong fuel in the diesels, a new climate comfort windscreen that is also a first in this segment and a new generation of information and entertainment systems.
Assistance systems – automatic protection
Multi-collision braking system. An innovative new feature is the Golf’s multi-collision braking system, which has already won a safety innovation award from Germany’s largest automobile club (ADAC). Background: studies in accident research have found that approximately one-fourth of all traffic accidents involving personal injury are multiple-collision accidents – what is meant here is that there is a second impact after the initial collision.
The multi-collision braking system automatically brakes the vehicle when it is involved in an accident in order to significantly reduce its residual kinetic energy. Triggering of the multi-collision braking system is based on detection of a primary collision by the airbag sensors. Vehicle braking by means of the multi-collision braking system is limited by the ESC control unit to a maximum deceleration rate of 0.6 g. This value is the same as the deceleration level provided by Front Assist. The driver’s ability to control the car is thus assured even when automatic braking is triggered.
The driver can ‘override’ the multi-collision braking system at any time; for example, if the system recognises that the driver is accelerating, it gets disabled. The automatic system is also deactivated if the driver initiates hard braking at an even higher rate of deceleration. In essence, the multi-collision braking system applies the brakes until a vehicle speed of 10 km/h is reached. This residual vehicle speed can be used to steer to a safe location after the braking process.
Proactive occupant protection (PreCrash). Proactive occupant protection is a typical example of a technology that is being transferred from the luxury class to the compact class. Volkswagen first implemented the proactive occupant protection system in the Touareg. Now the system is making its debut in the Golf, making it one of the few vehicles in its class anywhere in the world to offer such a protection system.
If the proactive occupant protection system detects a potential accident situation – such as by the initiation of hard braking via an activated brake assistant – the seatbelts of the driver and front passenger are automatically pre-tensioned to ensure the best possible protection by the airbag and belt system. When a highly critical and unstable driving situation is detected – such as severe oversteer or understeer with ESC intervention – the side windows (except for a small gap) and sunroof are closed. That’s because the head and side airbags offer optimal support and thereby achieve their best possible effectiveness with windows and sunroof almost fully closed.
Adaptive cruise control. Until now, adaptive cruise control (ACC) was reserved for vehicles in higher segments such as the Volkswagen CC or Phaeton. Now ACC has arrived in the compact class with the Golf. The system uses a radar sensor integrated into the front of the car. ACC operates over a speed range from 30 to 160km/h with a manual gearbox and from 0 to 160km/h with DSG (dual clutch gearbox). On vehicles with DSG the Adaptive Cruise Control intervenes to such extent that depending on the situation the car gets slowed to a standstill and in Stop-and-Go mode automatically pulls away. ACC maintains a preselected speed and a defined distance and automatically brakes or accelerates in flowing traffic. The system dynamics can by individually varied by selecting one of the driving programmes from the driver profile selector available as an option on the new Golf.
Front Assist. Front Assist works like ACC with the radar sensor integrated into the front of the car, which permanently monitors the distance to the traffic ahead. Even with ACC switched off, Front Assist helps the driver in critical situations by preconditioning the brake system and alerting the driver by means of visual and audible warnings to any required reaction. If the driver fails to brake hard enough, the system automatically generates sufficient braking force to avoid a collision. Should the driver, meanwhile, not react at all, Front Assist automatically slows the car so that under optimum conditions the speed of any impact is minimised. The system also assists the driver by providing a warning if the car is getting too close to the vehicle in front. The new City Emergency Braking function is part of Front Assist.
City Emergency Braking function. The City Emergency Braking function, now available for the Golf for the first time, is a system extension of Front Assist and scans via radar sensor the area in front of the car. The new system works at speeds below 30 km/h. If the car is in danger of collision with a vehicle driving or parked up ahead and the driver fails to react, the brake system gets preconditioned in the same way as with Front Assist. If necessary, the City Emergency Braking function then initiates full application of the brakes in order to reduce the severity of the impact. In addition, if the driver fails to press the brake pedal sufficiently, the system will assist with maximum braking power.
Fatigue detection. This system, which was first introduced in the current Passat, detects waning driver concentration and warns the driver with an acoustic signal lasting five seconds. A visual message also appears on the instrument cluster recommending taking a break from driving. If the driver does not take a break within the next 15 minutes, the warning is repeated once. At the beginning of each trip, the system analyses a range of factors, including the driver’s characteristic steering behaviour. Once under way, the fatigue detection system continually evaluates signals such as steering angle. If monitored parameters indicate a deviation from the steering behaviour recorded at the beginning of the trip, then visual and acoustic warnings are produced. Independent of this monitoring, whenever the system is activated it recommends a driving break to the driver after 4 hours of continuous driving.
Lane Assist. In the Golf, this camera-based lane-keeping assistant with steering intervention operates with extended functionality: adaptive lane tracking. If desired, the system – used for the first time in the Golf – can now also maintain continuous tracking support, which optimises comfort and convenience. In addition, where necessary Lane Assist will correct the driver’s steering: as soon as it becomes evident that the driver is leaving the driving lane or is driving over the lane markings without setting the direction indicator, the system gently steers the other way.
Convenience systems – steering, braking, seeing
Progressive steering. Conventional steering systems operate with a constant gear ratio. However, the new optional steering system in the Golf operates with a progressive gear ratio. This noticeably reduces steering work in manoeuvring and parking. On country roads with lots of bends and in turning, meanwhile, the driver will notice a gain in dynamic performance due to the more direct gearing; the driver also does not need to turn the wheel as much.
Technically, progressive steering differs from the basic steering system by the rack and pinion’s variable tooth spacing and a more powerful electric motor. Its functional difference: unlike with constant steering ratios, which by necessity always represent a compromise between dynamic performance and comfort, here the steering rack’s toothing is modified by the steering stroke. As a result, the transition between indirect steering behaviour in the mid-range (straight-line driving) and direct steering behaviour at larger steering wheel angles is designed to be progressive, which, as mentioned above, enables significantly more agile steering behaviour in dynamic driving situations. Parking the car thus becomes more comfortable, as the wheel needs to be turned less.
Variable ratios have long been known in the area of hydraulic steering systems; however, the tuning of such a steering system is subject to very tight limits, so that the driver is not overtaxed by the transitional behaviour. With the Golf’s new progressive steering system the situation is completely different: the combination of the steering rack’s progressive steering ratio and the tuning potential of an electro-mechanical steering system is systematically exploited in the Golf to realise optimised steering behaviour that is sporty yet practical in everyday driving.
Electric parking brake. For drivers of larger Volkswagen cars, such as the Passat or Tiguan, the electric parking brake is already taken for granted. Now, this handbrake is also making its way into the Golf. Instead of a handbrake lever, there is a main control switch plus an Auto Hold switch on the centre console. The electric parking brake offers numerous advantages: eliminating the conventional hand-brake frees up more space on the centre console; in addition, the brake is automatically released when driving off, making hill starts easier. Last but not least, the Auto Hold function prevents unintentional rolling from a standstill position.
Dynamic Light Assist. Via a camera on the windscreen, the system analyses the traffic ahead and the oncoming traffic. Based on this data, the main beam automatically comes on at speeds of over 65 km/h and stays on. This is how Dynamic Light Assist works: with the help of the camera the system masks the main beam modules of the bi-xenon headlights with dynamic cornering lights only in those areas that it calculates could potentially disturb other road users. This function is technically implemented by a pivoting masking aperture between the reflector with the xenon filament and the lens. Along with lateral swivelling of the entire module and independent control of the left and right headlights, this additional aperture geometry is able to mask the light source and thereby avoid dazzling traffic ahead or any oncoming traffic.
Light Assist. For models with headlights with no dynamic cornering light, the base version of the automatic main beam assistant is available. Light Assist analyses traffic ahead and oncoming traffic – via a camera in the windscreen – and automatically controls activation and deactivation of the main beam (at 65 km/h and above).
Road sign recognition. Road sign recognition initially made its debut in the Phaeton. In the new Golf it will be available in combination with a satellite navigation system. If via a camera integrated in the windscreen near to the rear-view mirror the recognition system recognises any speed limit or ‘No overtaking’ signs, up to three of these will get shown on the combined instrument panel in front of the driver and on the navigation system’s display. This will also include all additional information and the signs will appear in a logical order: ones that always apply (e.g. a ‘130’ km/h speed limit) get shown in first place, while signs that only apply at certain times (e.g. ‘80 when wet’) appear in second place. If the rain sensor registers that it is starting to rain, the traffic sign that now comes into force, i.e. the ‘When wet’ sign, moves up into first place.
Park Assist 2.0. The latest version of the parking assistance system now facilitates not only assisted parking parallel to the carriageway, but also reverse parking at right angles to the road. In addition, Park Assist 2.0 is also equipped with a braking and parking space exit function. The system can be activated at speeds of up to 40 km/h by pressing a button on the centre console. Using the indicators, the driver selects the side on which the car is to be parked. If, using the ultrasound sensors, Park Assist detects a large enough parking space (a manoeuvring distance of 40 cm front and back is sufficient), the assisted parking can begin: having put the vehicle into reverse, all the driver has to do is operate the accelerator and brake. The car takes care of the steering. Beeps and visual information on the multifunction display assist the driver. If a collision is looming, the system can also actively apply the vehicle’s brakes.

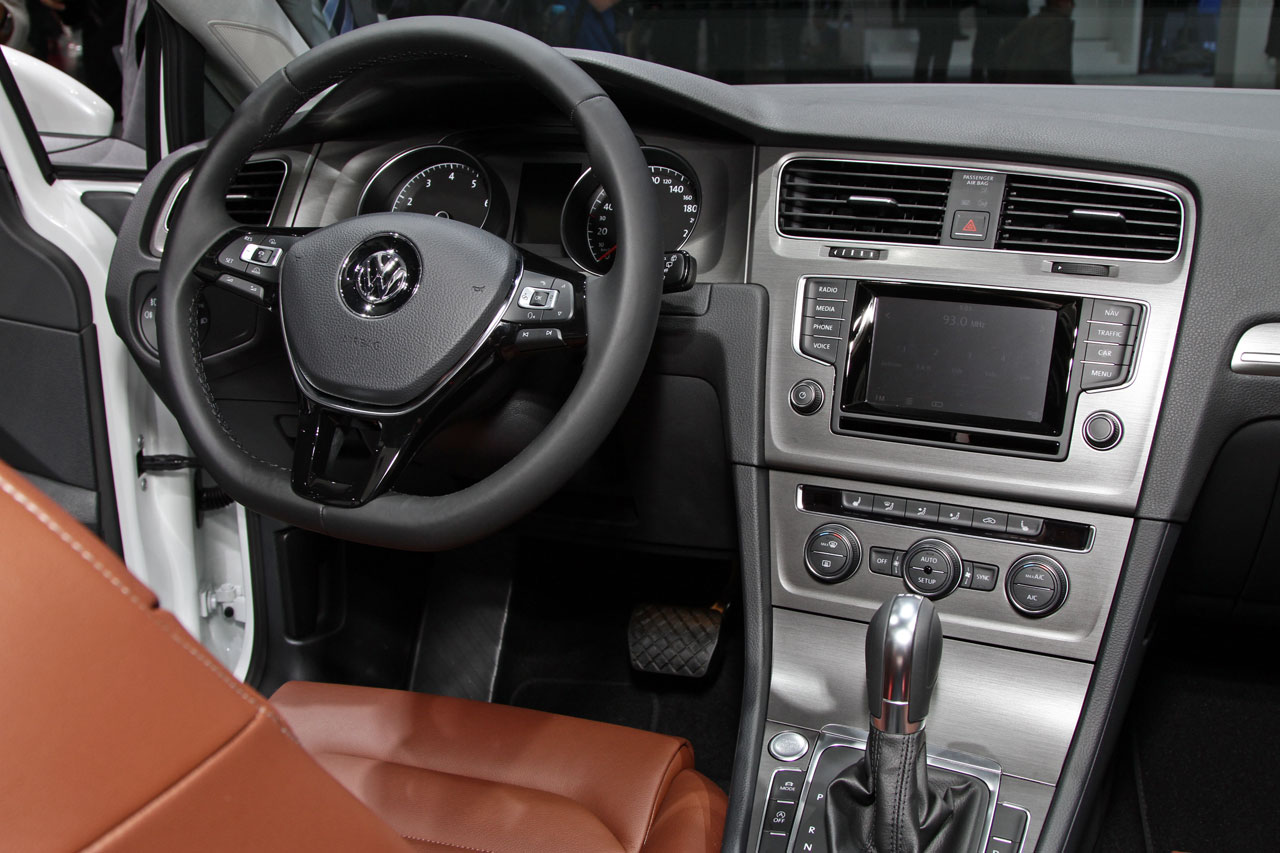

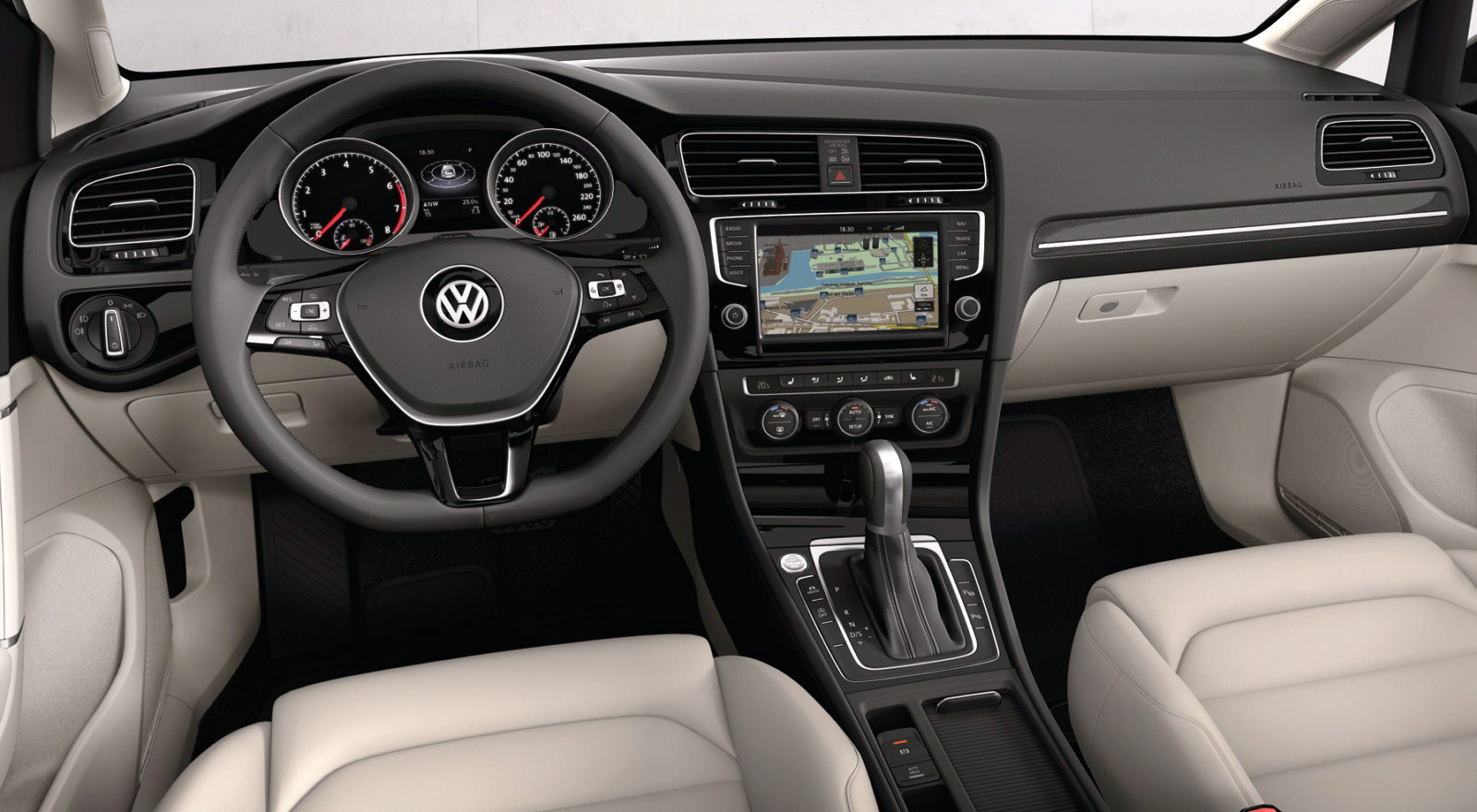

The new Golf. Infotainment systems – touchscreen as standard
First Volkswagen touchscreen with proximity sensor
Display automatically switches to operating mode as hand approaches
Three display sizes (5, 5.8, 8-inch); includes sat nav updates for three years
Wolfsburg / Berlin, 04 September 2012
Volkswagen is equipping the Golf with a new generation of radio and radio/navigation systems with completely new designs. All systems have a touchscreen as standard. The new device generation is available in six extension levels and in three different display sizes: 5-inch, 5.8-inch and 8-inch. For the first time, Volkswagen is implementing displays that have proximity sensors (5.8-inch display and above): as soon as the driver or front passenger moves a finger near to the touchscreen, the system automatically switches from display mode to input mode. The display mode shows a screen that is reduced to just the essentials. In operating mode, on the other hand, the elements that can be activated by touch are specially highlighted to simplify intuitive operation. The displays also have a function that enables lists to be scrolled or CD covers in the media library to be browsed by a wipe of the hand.
In designing the new generation of devices, Volkswagen’s primary goal was to integrate the most advanced infotainment applications into the Golf, which should be consistently easy to use – despite all of the complexity of today’s systems – i.e. they should be totally intuitive and therefore safe to use while driving.
Basic touchscreen – trip computer and interface

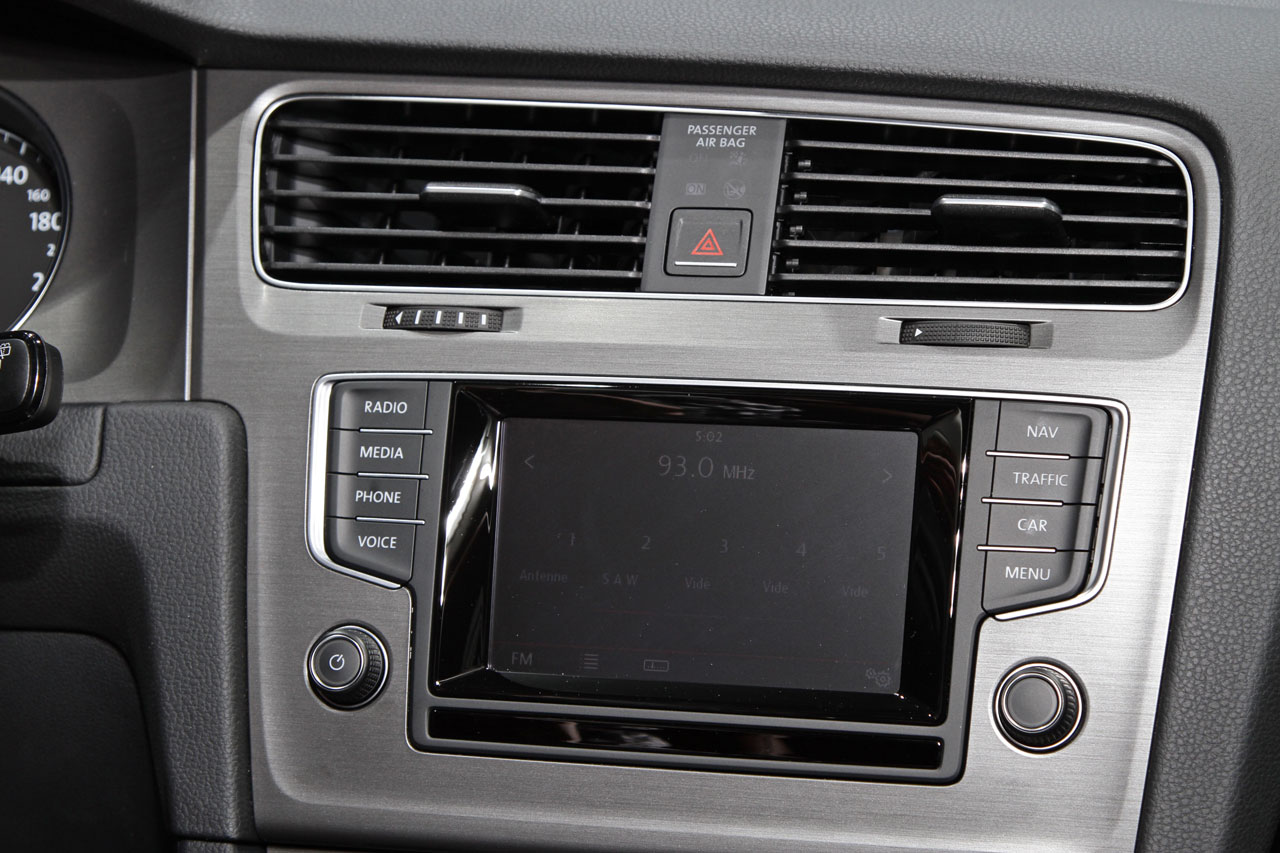

Standard display (5-inch). The standard unit in the new Golf is a 5-inch black-and-white display (400 x 240 pixel resolution). The functional scope of the production module includes trip computer information (average fuel economy, etc.), clock time and date, service menu (oil level, etc.), vehicle settings (e.g. winter tyre warning), adjustment of instrument lighting, language setting, climate control menu, Eco-HMI displays (information on power consumers and tips on an especially economical style of driving) and – depending on vehicle features – steering wheel heating, the visual display for the ParkPilot and driving profile selection.
Radio systems – proximity sensor on 5.8-inch model and above
‘Composition Touch’ radio (5-inch). The next level system specification comes as standard on the Comfortline and above in countries such as Germany and is otherwise available as an option. There are three buttons to the left and right of the touchscreen that are used to activate the ‘Radio’, ‘Media’, ‘Car’, ‘Setup’, ‘Sound’ and ‘Mute’ menus/functions. It also offers a CD card slot, aux-in interface and two push dials (e.g. for on/off, volume, mute). In this case, the standard module contains the added features of an FM/AM radio, loudspeakers (front), an interface for SD cards and an aux-in port.
‘Composition Colour’ radio (5-inch). Similar to the Composition Touch in terms of its device layout, but the Composition Colour is also equipped with such features as a colour display, FM/AM radio as well as front and rear loudspeakers and a CD drive (MP3 compatible). The CD drive is located in the glovebox along with the SD card slot.
‘Composition Media’ radio (5.8-inch). Equipped to offer even more extensive features is the Composition Media radio. Its capacitive colour display is 5.8 inches in size, and it is coupled with a proximity sensor that is integrated across the area beneath the display. The display also responds to wiping and zooming gestures, as used in similar fashion on modern smart phones. There are now also four buttons to the left and right of the touchscreen; in contrast to the 5-inch systems they also enable access – depending on vehicle features – to the ‘Phone’ and ‘Voice’ (voice control) menu levels. The Composition Media radio is equipped with these features in addition to those of the Composition Colour radio: optional telephone preparation (Bluetooth) and a USB interface (iPod/iPhone compatible). The USB and aux-in interfaces, meanwhile, are integrated in a separate compartment on the centre console in front of the gear shifter; this compartment also offers storage space for a smart phone.
Radio-navigation systems – map data updates included
‘Discover Media’ navigation function (5.8-inch). The Composition Media radio can have a navigation module (Discover Media) added to it. The features and functions are identical except for the navigation system that is then integrated with European map data and the associated second SD card slot; the navigation computer is located in the glovebox together with the CD player and SD card slot. Updates of the European navigation maps are included in the price for all units with a navigation module for a period of three years.
‘Discover Pro’ radio-navigation system (8-inch). The top radio-navigation system with a large 8-inch capacitive touchscreen is known as the Discover Pro. Features installed here – beyond those of the Discover Media – are a DVD drive instead of CD drive (audio and video), extended premium voice control (base version is available as option for Composition Media and Discover Media) and a 64-GB Flash memory; a UMTS telephone module is available as an option. Integration of the Compact Disc Database from Gracenote also enables state-of-the-art playback and management of media. In addition, the Discover Pro also operates as a WLAN hotspot (Internet access) for a WLAN-capable mobile device (smart phone or tablet).

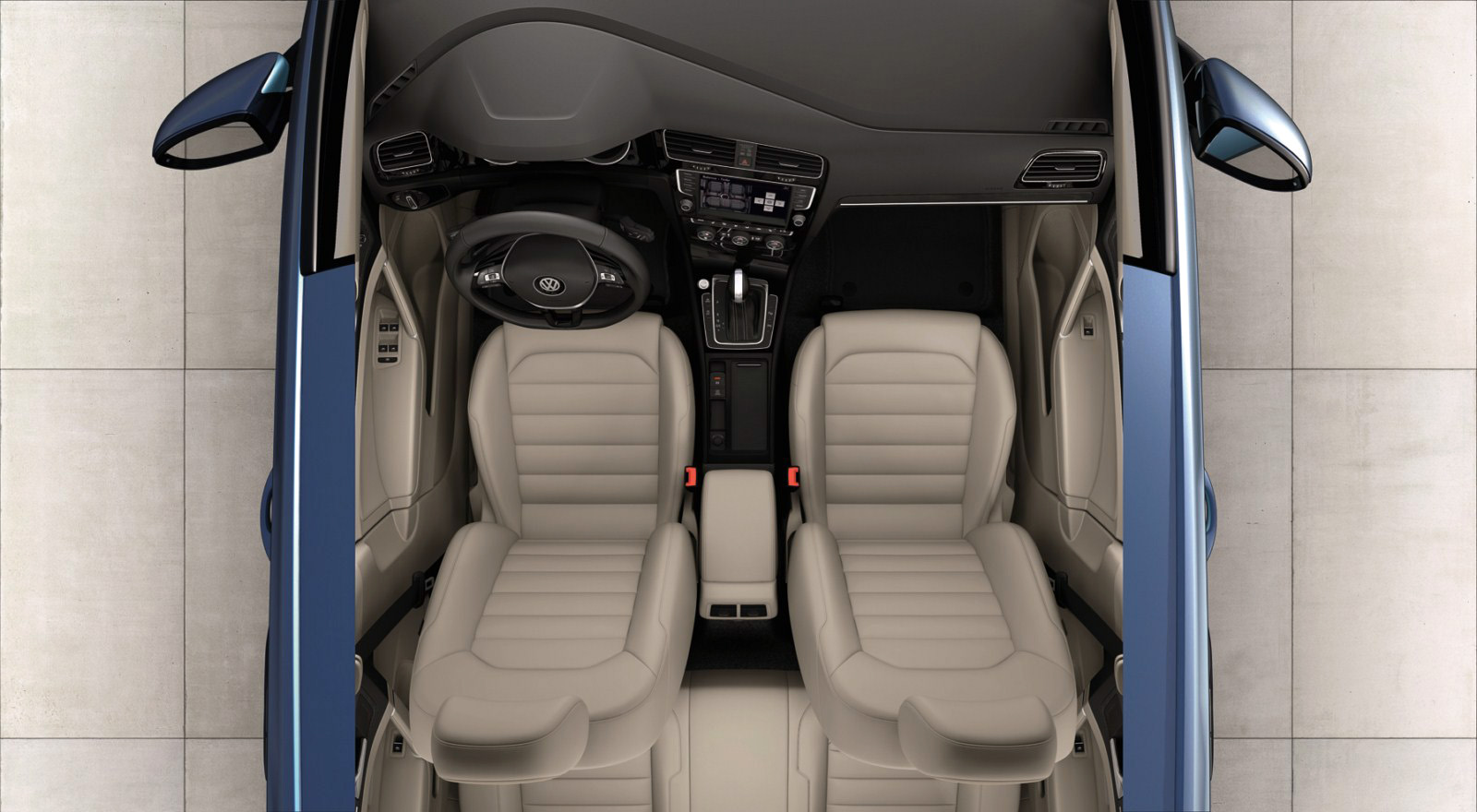

The new Golf. Interior – layout and ergonomics
New Golf offers noticeably more space and comfort
Well thought-out package enlarges boot space to 380 litres
First Volkswagen with inductive antenna interface for smart phones
Wolfsburg / Berlin, 04 September 2012

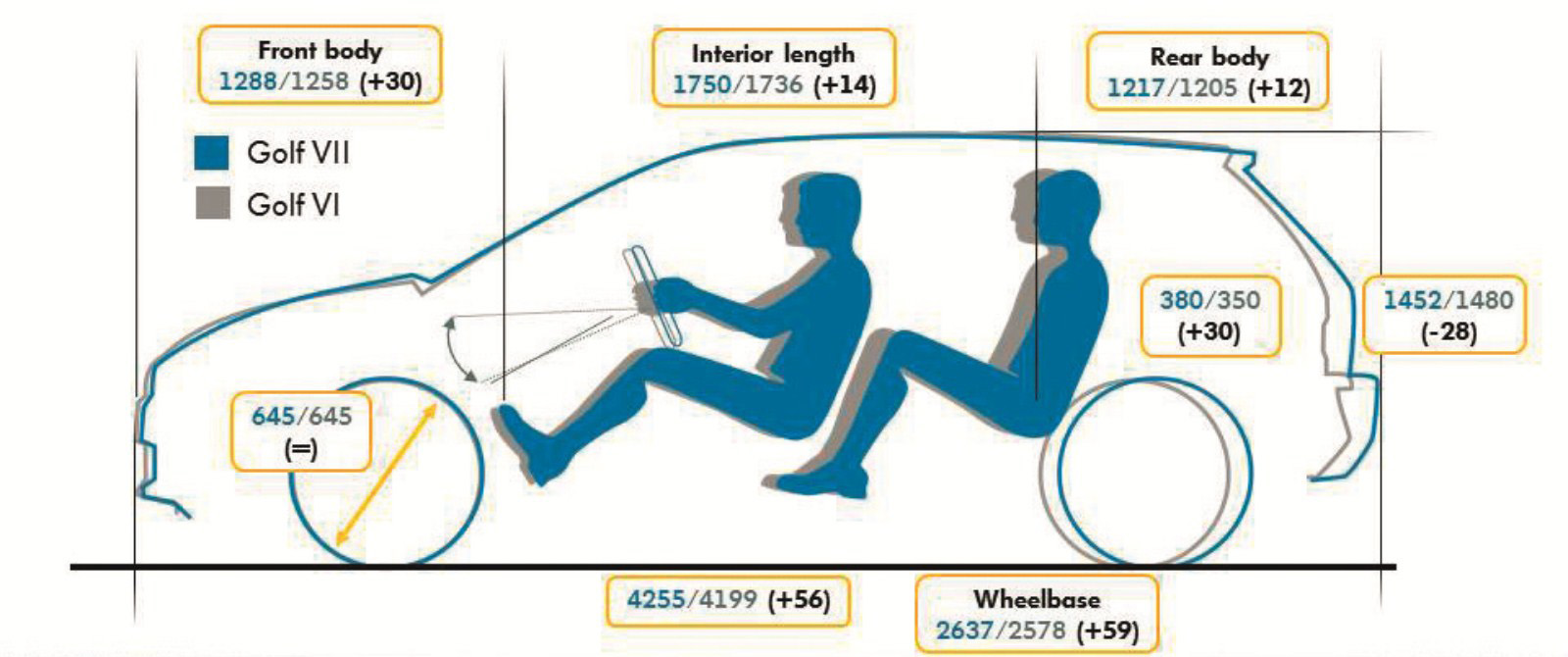

At 4,255 mm the new Golf is 56 mm longer than its predecessor, while the wheel track has also increased by 59 mm to a new width of 2,637 mm. Since the front wheels are also located 43 mm further forward, the interplay of the new dimensions creates sportier proportions, an improved crash structure and optimised interior space. At the same time, the body has been lowered in height by 28 mm (1,452 mm) – but headroom in the interior is still very good. On the exterior, aerodynamics have also benefited from the reduced height: the vehicle’s frontal area has been made 0.03 m2 smaller and its air drag (cd x A) has been reduced by almost 10 per cent. The Golf BlueMotion, for example, achieves a cd value of 0.27 and is thus one of the best performers in its class. Nonetheless, at 1,799 mm the new Golf has been designed to be 13 mm wider. In parallel, the track widths have been increased by 8 mm in front and 6 mm at the rear. These additional millimetres give the Volkswagen a fuller stance on the road.
Interior space – more end-to-end room
The slight increases in length and width, as well as the increased wheelbase and optimised track widths, have a perceptible effect on space in the interior, which is now 14 mm longer (1,750 mm). Passengers in the back can now enjoy 15 mm more legroom. Shoulder room has increased by 31 mm to 1,420 mm. Elbowroom has gone up by 22 mm to a width of now 1,469 mm. Shoulder and elbow space have also been increased in the back by 30 mm and 20 mm respectively.
The Golf Trendline and the mid-range Comfortline can be ordered with a front passenger backrest that folds fully forward. In addition, the 60:40 split backrest, which is standard on all versions of the new Golf, can also be folded down. When folded, a nearly level cargo floor is created with a length of 1,558 mm; the maximum cargo space length with the front passenger backrest folded down is 2,412 mm. On the Comfortline and above, the Golf also has an opening in the middle of the rear seat backrest for loading long items.
The space concept of the new Golf also exhibits numerous other improvements. Cargo capacity, for example, has grown by 30 litres to 380 litres; the variable cargo floor can also be lowered by 100 mm. Perfection in detail: the bootspace sill height is now just 665 mm (-17 mm) – the best figure in the car’s core market segment. In parallel, the maximum boot width has grown by 228 mm to 1,272 mm. Volkswagen has also increased the width of the bootspace opening: by 47 mm to 1,023 mm.
Styling and controls – sophisticated and intuitive
Significantly more room and even better ergonomics define the driver’s area. Taller drivers in particular will welcome the seat position that has been shifted back by 20 mm; the steering wheel’s adjustment range has also been modified. The pedal distances have been optimised as well thanks to the Modular Transverse Matrix; the space between the brake and accelerator pedals, for example, has increased by 16mm. Another ergonomic improvement: compared to the previous model, Volkswagen has raised the position of the gearbox controls by 20 mm; the gear shift grip now rests better in the driver’s hand.
Tomasz Bachorski, Head of Interior Design: “Every interior element has been redeveloped and redesigned. One noticeable feature here is the wide centre console that is oriented towards the driver, which is more typical of the luxury than the compact class. Never before have the traditionally high levels of objectivity and functionality in the Golf been implemented with such elegance and sophistication.” In the middle of the centre console, beneath the switch for the hazard warning lights, is the five- to eight-inch infotainment touchscreen with its menu keys and dials. All information and entertainment systems have been completely redeveloped and updated. For the first time, Volkswagen is introducing a generation of touchscreens with a proximity sensor and a function that reacts to wiping movements by the fingers (wipe and zoom movements as used on smart phones); the graphic design of the interface also corresponds to the new age of intuitive operation.
Located beneath the infotainment module are the well laid-out controls for climate control. This is followed by the lower section of the centre console that runs in a line up to the large centre armrest. The consistent design conveys a sense of sophistication of a luxury class model. To the right of the driver are the buttons for the new electronic parking brake and its Auto Hold function. Integrated in front of it is a storage compartment in which the multimedia interfaces (aux-in, USB and optional Apple interfaces) have been integrated. The compartment is also big enough to hold a smart phone.
There is a large storage compartment hidden under the centre armrest that can be adjusted by up to 100 mm in length and five stages in height. This compartment is also of a good size.
For the first time in a Volkswagen, there will also be an inductive link to an external aerial. The mobile phone is placed in the stowage bin in a universal holder where the phone’s antenna gets inductively ‘hooked up’ and connected to the vehicle’s external aerial. This produces the same advantages as with a fixed phone installation:
- Better reception and signal strength because an external aerial is being used.
- Less drain on the mobile phone battery. By linking to an external aerial, the phone only needs minimal power to send and receive.
- Minimal radiation in the passenger compartment.
Tomasz Bachorski again: “Visually distinctive in the interior – along with the centre console is the dashboard body, the upper section of the dashboard that is upholstered with a plastic material that is visually elegant and pleasing to the touch. It is subdivided by a seam that runs across the entire interior width towards the windscreen. Each of the outer areas of the dashboard body fuses homogeneously with the windowsill on each side.” Like the lower area of the dashboard, the lower door trim can also be ordered in a contrasting colour. Elegant: the inlays in the door panels have illuminated trim as part of the ambient lighting fitted as standard in the Highline. The switches for the electric windows are ergonomically easy to access in the armrests; located in front of the door handle on the driver’s side is the control for electric mirror adjustment. The door trim panels themselves display the motif of two intersecting curved lines, which logically divide the door trim’s functional areas: armrest, door handle, storage bin and loudspeaker. Tomasz Bachorski: “Elements of the ambient lighting provide for optimum illumination and an elegant atmosphere at night. The new, white lighting of the buttons and switches underlines the premium feeling.”
Seat comfort – ergonomics like in the luxury class
The seats of the new Golf are exceptionally comfortable. All five seating positions have been redesigned in the front and back. The seats exhibit excellent core properties: well-contoured body lines, optimal support for dynamic driving, and a high level of comfort on long trips. These characteristics were achieved by designing the foam contours to properly fit body shapes and by the cold foam cushioning sections’ optimised springing and damping properties. The two higher specification models, the Comfortline and Highline, are equipped with standard two-way lumbar support for the driver and front-seat passenger. The optional electric driver’s seat with 12 different positions offers even greater individual adjustment.
Another new development making its debut in the Golf is the ergoActive seat with extended adjustments for the driver. Along with the familiar seat height adjustment and seat heating, new features for this class of vehicle are adjustment options for seat depth and angle, electric four-way lumbar support and a massage function. The ergoActive seat also offers exceptionally good ergonomic properties, which have already earned it the official AGR seal (‘Healthy Backs’ campaign) in Germany.
The new Golf. Standard features – more on board
Despite an unchanged base price the specification is now even more comprehensive
Multi-collision brake, touchscreen, XDS, air conditioning and ESC all as standard
Golf Highline with xenon headlights and Alcantara sports seats
Wolfsburg / Berlin, 04 September 2012
Available at launch in three model lines, the Trendline (base model), Comfortline and Highline (top model), the new Golf has been enhanced in all areas compared to its predecessor. Nevertheless – and this fact is attributable among other factors to the synergies produced by the Modular Transverse Matrix – it has not become any more expensive to own a Golf. In Germany, for example, the new Golf 1.2 TSI Trendline delivering 63 kW / 85 PS costs €16,975. The price is thus exactly the same as the now superseded entry-level model delivering 59 kW / 80 PS (Golf 1.4 MPI). Compared to the Mk6 model with the corresponding engine – also a Golf 1.2 TSI delivering 63 kW / 85 PS – this actually produces in real terms a price reduction for the new Golf of €455. If you include in the price comparison the new Golf’s additional standard equipment (features like the 5-inch touchscreen, multi-collision braking, the XDS and the Stop/Start system), the price advantage in favour of the new model works out much greater still!
Every seventh generation Golf sold around the world will in general be fitted with seven airbags and Electronic Stability Control (ESC). In comparison to the previous model the added standard features on the Golf Trendline include items such as the touchscreen module with 5-inch TFT display, a fuel tank inlet with a guard to prevent putting in the wrong fuel (for the diesel versions), the (stow-away) luggage compartment cover, ECO-HMI (consumption-related graphics and information on the multifunction dashboard display), the multi-collision braking system, the electronic parking brake with Auto-Hold function, the XDS transverse differential lock, the Plus tyre pressure indicator, brake energy recovery mode, Stop/Start system and a variable floor in the boot.
Some of the other features also included as standard: daytime running lights, 195 tyres (15-inch), rear diffuser, green-tinted heat-shield windows, air conditioning, lockable glove compartment, chrome rings around the internal air vents, Easy Entry system (two-door versions), centre console with storage compartment, asymmetrically split, fold-down rear seatback, electrically adjustable wing mirrors, outside temperature indicator, electric windows, rear window wiper with intermittent setting, electromechanical power-steering, steering column with height and length adjustment, height-adjustable driver’s seat, dust and pollen filter, central locking with remote control, height adjustment and belt-tautening system for the seat belts in the front, disk brakes on all wheels and headrests optimised for maximum safety.
Compared to its predecessor the mid-range Comfortline is additionally equipped with the ParkPilot system front and back, a superior combined instrument cluster, drawers under the front seats, the new Composition Touch radio system including SD card interface and the fatigue detection system.
Some of the other features also included as standard, in addition to those on the Trendline: 16-inch alloy wheels, Comfort seats featuring the line’s own seat material and lumbar support in the front, rear bench seat with central armrest and opening for loading long items, chrome-look rotary light switches and wing mirror adjuster, storage nets on the front seat backs and a closable storage compartment in the roof, an additional 12 V socket in the boot, illuminated vanity mirror, ParkPilot front and back, fabric car mats and steering wheel and gear lever knob in leather.
The additional features on the top version of the new Golf compared to the Highline version of the Golf Mk6 are the new ambient lighting and chrome edging around the Volkswagen logo in the radiator grille. In addition to the features on the Golf Comfortline the specification includes, among others, the following: bespoke 17-inch alloy wheels, fog lights including cornering lights with chrome trim, dark red rear lights, sports seats in the front (with a central strip in Alcantara and fabric inner wings), chrome trim for the electric window switches, LED reading lights in the front and back, air conditioning, multifunction steering wheel, heated windscreen washer jets and front seats, plus xenon headlights including headlight washers.
SEVENTH GENERATION VOLKSWAGEN GOLF BREAKS COVER IN BERLIN

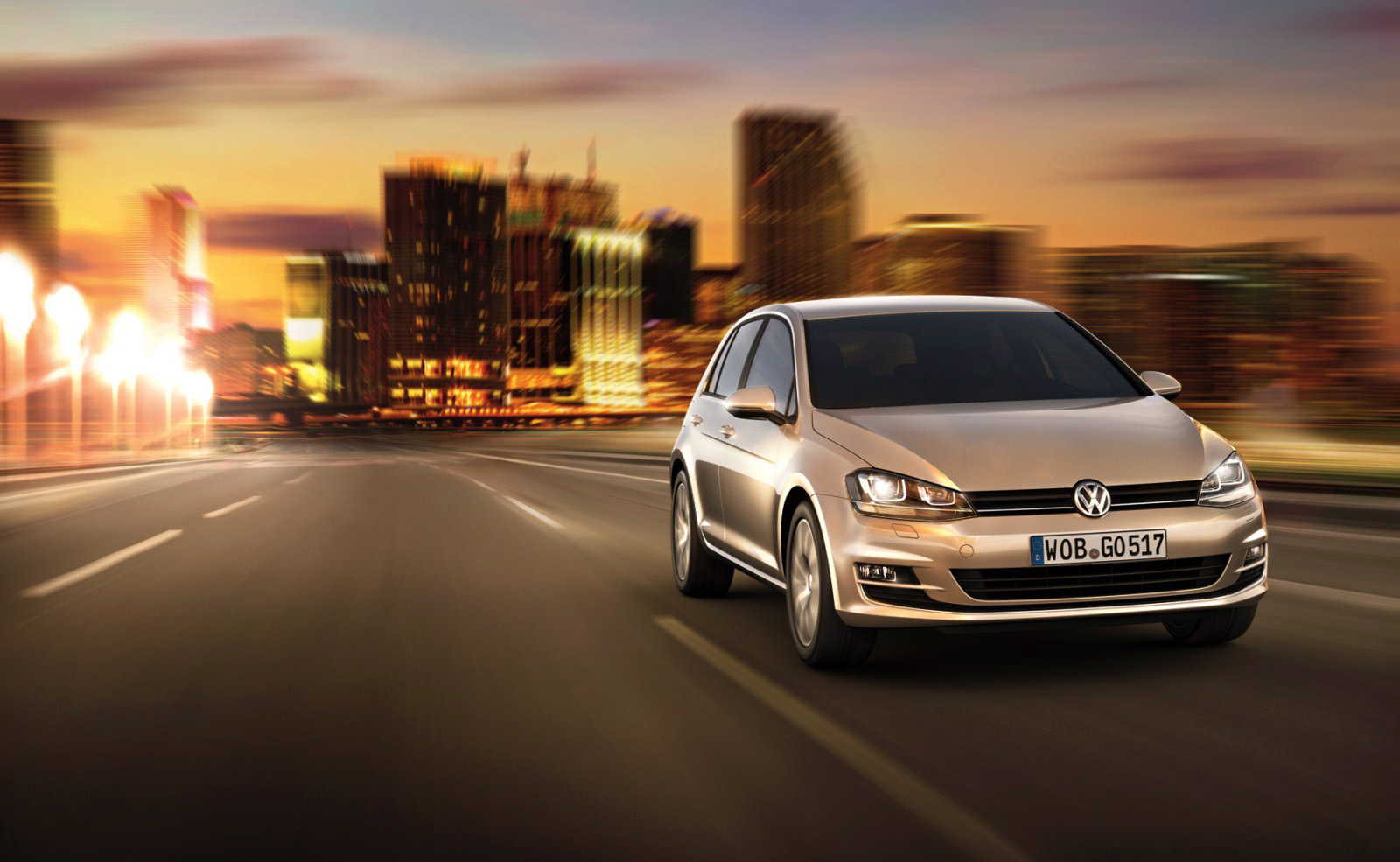

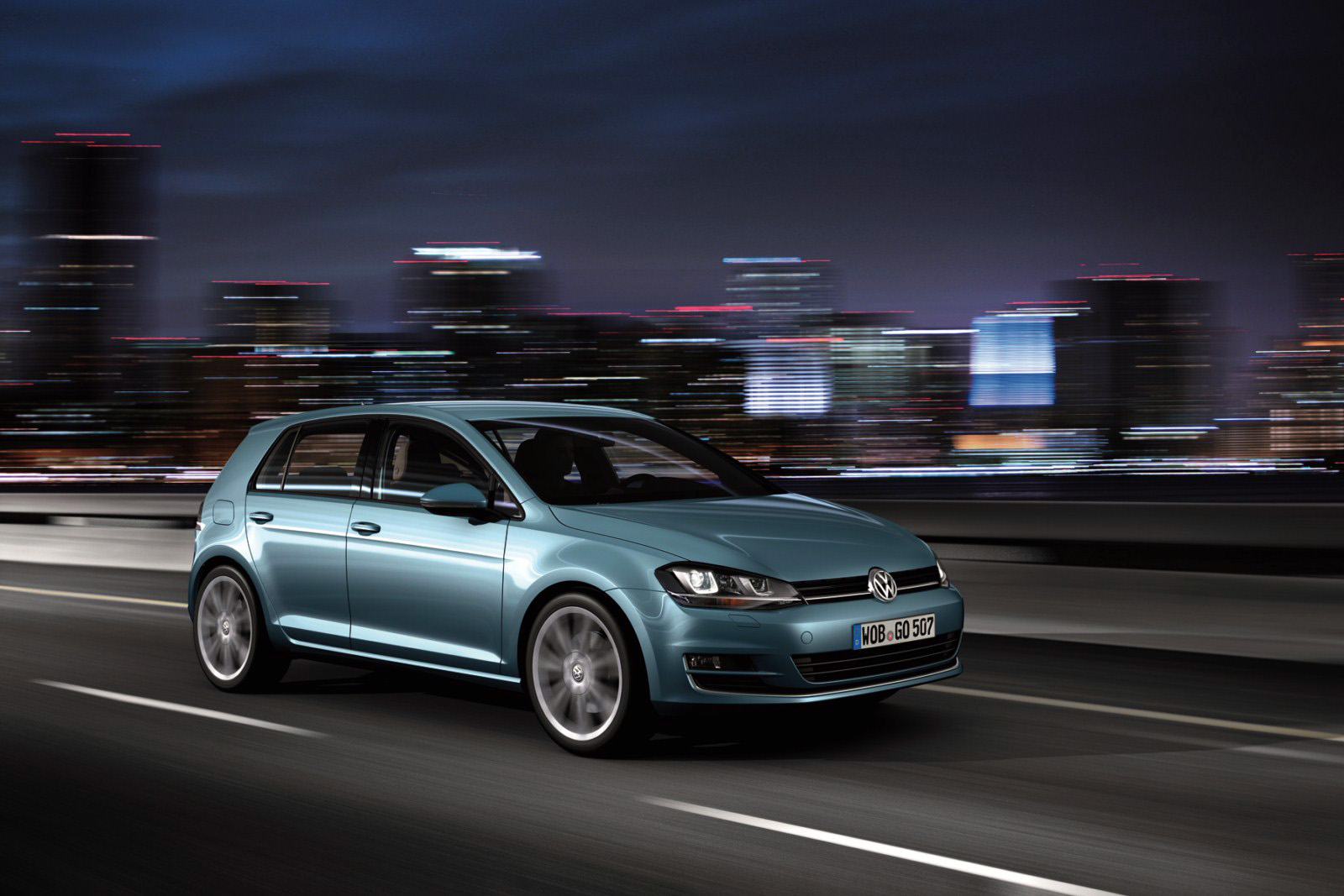

The all-new Volkswagen Golf has been unveiled in Berlin, 36 years after the original model redefined the small family car. The seventh generation Golf builds on the success of its predecessors, of which over 29 million have been sold, bringing new levels of comfort, practicality, safety and efficiency to the class.
Despite offering more room for passengers and more advanced technological features than ever before, new production techniques contribute to the Mk VII Golf being up to 100 kg lighter than the car it replaces, helping to make it up to 23 per cent more efficient than before. On top of this, the new Golf is also safer than ever, thanks not just to a stronger body structure (which is also 23 kg lighter) but also to a raft of standard and optional passive and active safety systems.
The new Golf is built on the so-called MQB (Modularer Querbaukasten) platform or Modular Transverse Matrix. This standardises many vehicle component parameters across brands and vehicle classes, and allows access to new powertrains and technologies, including innovations in the areas of safety and infotainment, which until now were reserved for vehicles in higher segments.

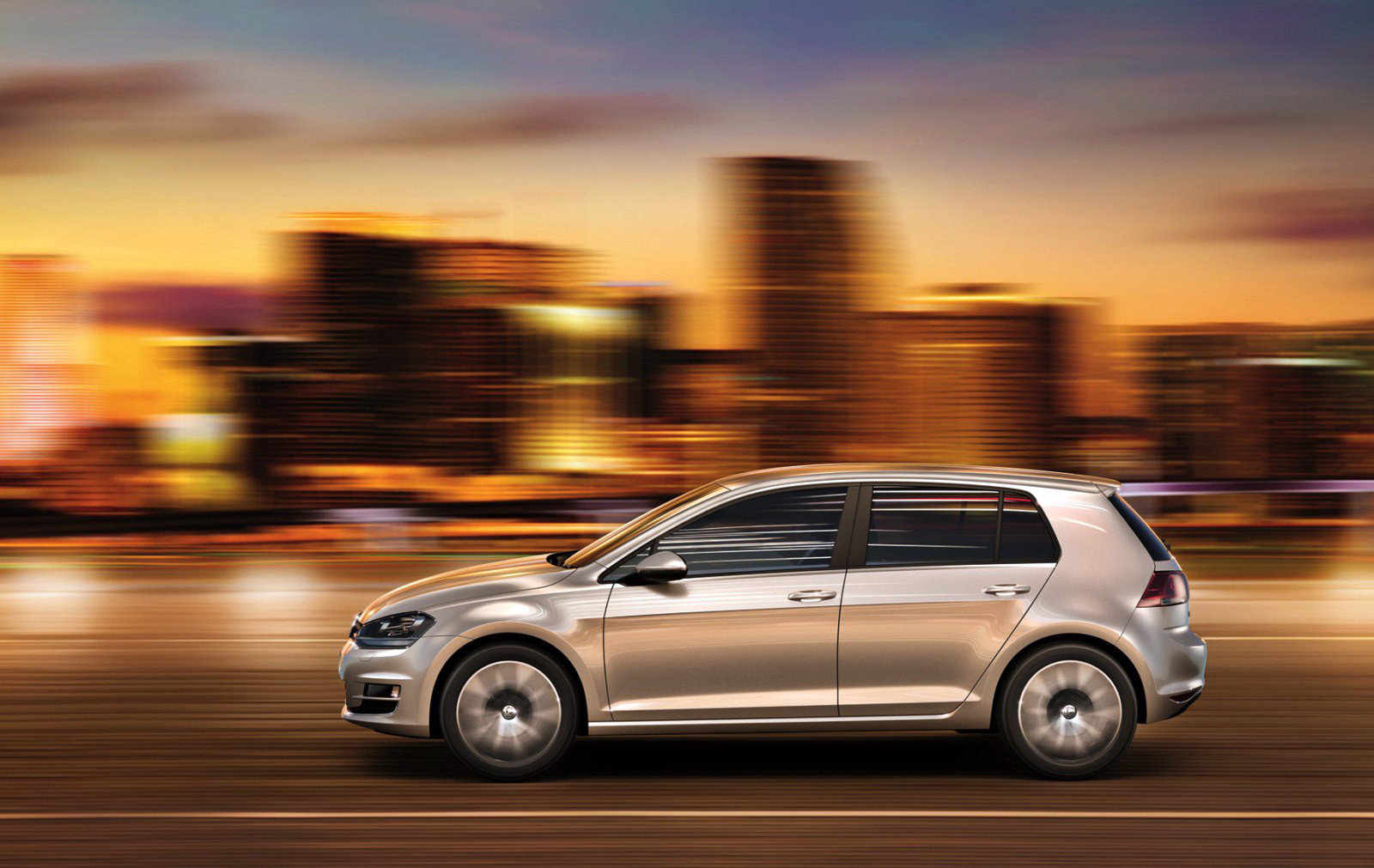

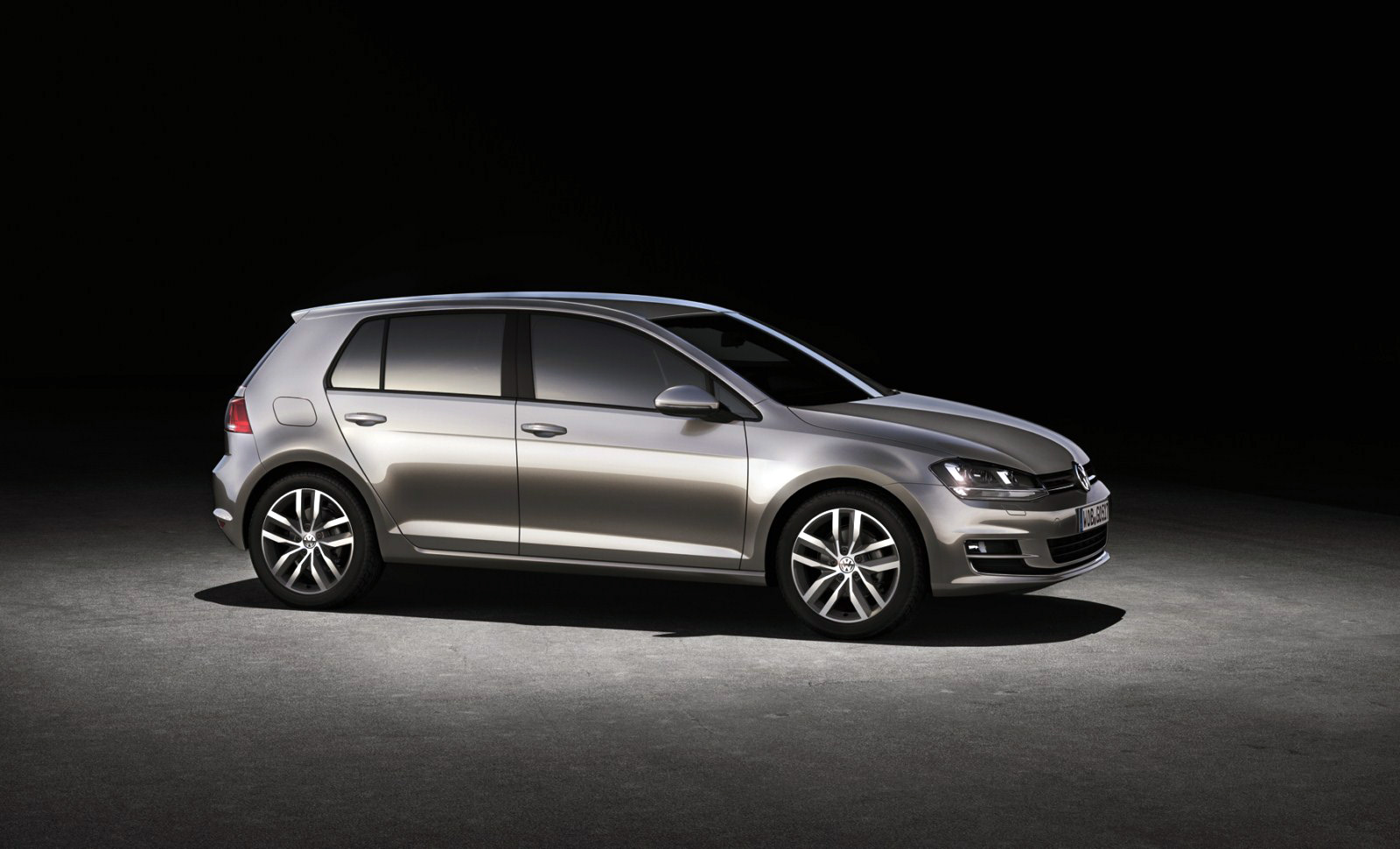

At 4,255 mm long, the new Golf is 56 mm longer than its predecessor, with a 59 mm longer wheelbase of 2,637 mm. The front wheels are 43 mm further forward, helping to generate more interior space, while the Golf is also 13 mm wider, at 1,799 mm, and 28 mm lower, at 1,452 mm. This helps to create a 10 per cent improvement in the drag co-efficient, which is now 0.27 Cd.
Though the new car’s dimensions are larger, its overall design is unmistakeably that of a Golf, thanks to a design DNA that has evolved through the decades. Walter de Silva, Head of Design for Volkswagen AG, said: ‘One of the keys to the Golf’s success lies in its continuity. There are a handful of cars with a design that, like the Golf’s, has been refined, tweaked and enhanced down the decades and thus become timeless.’
Inside the Golf there is more room than ever. Rear legroom is improved by 15 mm, and the front seats have been moved 20 mm further back, benefitting taller drivers. Front shoulder room is improved by 31 mm to 1,420 mm (at the rear it is 30 mm wider) and elbow room by 22 mm to 1,469 mm (20 mm wider at the rear). There is more room for luggage, too: the boot is 30 litres larger, at 380 litres, with a low 685 mm sill to make loading effortless. The front passenger seat can also optionally fold fully forward, creating a loadspace which is up to 2,412 mm long.
In the cockpit, the centre console is now angled more towards the driver, giving them easier, more ergonomic and direct access to auxiliary controls, including the new generation of touchscreen infotainment systems that is available on the Golf. All Golf models now have touchscreen systems as standard, starting in the UK with a 5.8-inch colour display system, and rising to the range-topping satellite navigation system with eight-inch colour display. It operates with finger gestures that will be familiar to smartphone users. Features include DAB digital radio, auxiliary inputs (including USB), Bluetooth telephone preparation and access to vehicle trip information.
Between the front seats, space is increased by virtue of the new electronic parking brake with auto-hold feature. And for the first time in a Volkswagen, the compartment under the centre armrest optionally includes a universal phone holder with inductive aerial, which not only increases the signal strength of a phone placed in it, but also reduces the drain on the phone’s battery.
The new Golf also features a number of innovative standard safety systems, while optional systems include many previously only available on vehicles in a class above. Standard on all new Golf models is a multi-collision brake system. This automatically brakes the vehicle after a collision, to reduce kinetic energy significantly and thus minimise the chance of a second impact. Research in Germany shows that around a quarter of accidents involving personal injury are multi-collision events. Also standard is the PreCrash system that made its debut on the Touareg. If it detects the possibility of an accident, it pre-tensions seatbelts and closes the windows and sunroof, leaving just a small gap, to ensure the best possible protection from the airbags.
Other electronic aids include Adaptive Cruise Control (standard in the UK from SE models upwards), which uses radar sensors to maintain a set distance from the vehicle in front; Front Assist, which can bring the vehicle to a complete stop and operates at speeds of up to 150 km/h (approx. 93 mph); and City Emergency Braking, which operates at up to 30 km/h (approx. 19 mph), and can reduce or prevent the chance of accidents occurring. A Driver Alert System, as introduced on the Passat, monitors the driver’s inputs, to detect any signs of tiredness; while a camera-operated Lane Assist system can help keep the car in a specific lane, providing countersteering assistance where necessary. A Dynamic Light Assist system optionally masks the vehicle’s high beam lighting, making for brilliant illumination without dazzling on-coming traffic.
The Golf’s steering now uses a variable ratio system that offers more agile steering in dynamic driving situations, while ensuring high-speed stability, and easy manoeuvring in the city. Specify the latest generation Park Assist, and the new Golf will even park itself in a space no more than 80 cm longer than the vehicle.
For the first time, the Golf is also available with driver profile selection, which allows the driver to choose from four modes – Eco, Sport, Normal and Individual; with a DSG gearbox a fifth option – Comfort – is also offered. Each of these modes alters the throttle mapping and engine management (among other parameters) to the chosen style, so in Eco mode, for example, the engine management, air conditioning and ancillary systems are controlled to achieve maximum fuel consumption.
Powering the Golf is a new range of petrol and diesel engines, all of which incorporate Stop/Start and battery regeneration systems. At launch, the petrol engines are a 1.2-litre TSI 85 PS unit returning 4.9 l/100 km (around 57.6 mpg and 113 g/km), and a 1.4-litre TSI 140 PS unit with Active Cylinder Technology, which can deactivate two of the cylinders, and achieves up to 4.8 l/100 km (58.9 mpg and 112 g/km). The launch diesel engines are a 1.6-litre unit with 105 PS, which returns 3.8 l/100 km (74.3 mpg and 99 g/km), and a 2.0-litre 150 PS unit which returns 4.1 l/100 km (68.9 mpg and 106 g/km).
Further details on the new Golf will be revealed at the Paris Motor Show. The car will go on sale from October, with the first UK deliveries expected in January 2013.
