Έκθεση Γενεύης 2011: Lamborghini Aventador LP700-4

Μετά από τις leaked φωτογραφίες και τα αναλυτικά δελτία τύπου της Lamborghini, η Aventador LP700-4 παρουσιάστηκε επίσημα από την Ιταλική φίρμα. Όλες τις λεπτομέρειες του αυτοκινήτου τις ξέραμε λίγο πολύ, απλά περιμέναμε τις επίσημες φωτογραφίες ώστε να δούμε την σχεδίαση του.

Λοιπόν, η Aventador LP700-4 έχει βάρος 1575 κιλών και διαθέτει carbon monocoque σασί από CFRP (carbon fiber-reinforced polymer) που ζυγίζει 147.5 κιλά όταν όλο το σώμα της ζυγίζει 229.5 κιλά και έχει ακαμψία 35.000 Nm, ανά βαθμό παραμόρφωσης.

Μηχανικά φορά τον νέο V12 6.5 λίτρων κινητήρα απόδοσης 700 ίππων με 690 Nm ροπής ο οποίος συνδέεται με ένα νέο 7-τάχυτο κιβώτιο ταχυτήτων της Graziano Trasmissioni Group.

Ο κινητήρας έχει σχεδιαστεί και κατασκευαστεί στο εργοστάσιο της Sant’Agata, ζυγίζει 235 κιλά, 18 λιγότερα από τον προκάτοχο του. Έχει περιεχόμενη γωνία 60 μοίρες και η διάμετρος του κάθε κυλίνδρου έχει αυξηθεί στα 95 mm έχοντας διαστάσεις 784mm μήκος, 848m πλάτος και 665mm ύψος. Η διαδρομή του από την άλλη έχει μειωθεί στα 76.5mm έχοντας συμπίεση 11.8:1.

Ο κινητήρας, θα συνεργάζεται με το ολοκαίνουργιο σειριακό 7-τάχυτο κιβώτιο που η Lambo το ονομάζει ISR (Independent Shifting Rods). Σε αντίθετη με τους υπολοίπους, η Lamborghini κατασκεύασε ένα νέο κιβώτιο μονού συμπλέκτη, που κάνει αλλαγές κατά 50% γρηγορότερα από τα αντίστοιχα κιβώτια διπλού συμπλέκτη.

Το κιβώτιο έχει ίδια φιλοσοφία με αυτά του διπλού συμπλέκτη, αλλά εδώ υπάρχουν 2 ανεξάρτητοι ράβδοι, η οποία η μία επιλέγει την υπάρχουσα ταχύτητα και η άλλη έχει προεπιλέξει ήδη την επόμενη. Οι αλλαγές γίνονται σε 50ms και ζυγίζει μόλις 79 κιλά! Φυσικά διαθέτει 3 προγράμματα (Strada, Sport, Corsa) με το τελευταίο να ενεργοποιείται όταν ο οδηγός του θέλει να μέγιστα από το αυτοκίνητο ενεργοποιώντας ταυτόχρονα και το σύστημα εκκίνησης για καλύτερες εκκινήσεις χωρίς σπινάρισμα.

Χάρη στη Haldex τετρακίνηση , κάνει τα 0-100 χλμ/ώρα σε 2.9 δευτερόλεπτα με την τελική του ταχύτητα να ανέρχεται στα 350 χλμ/ώρα.

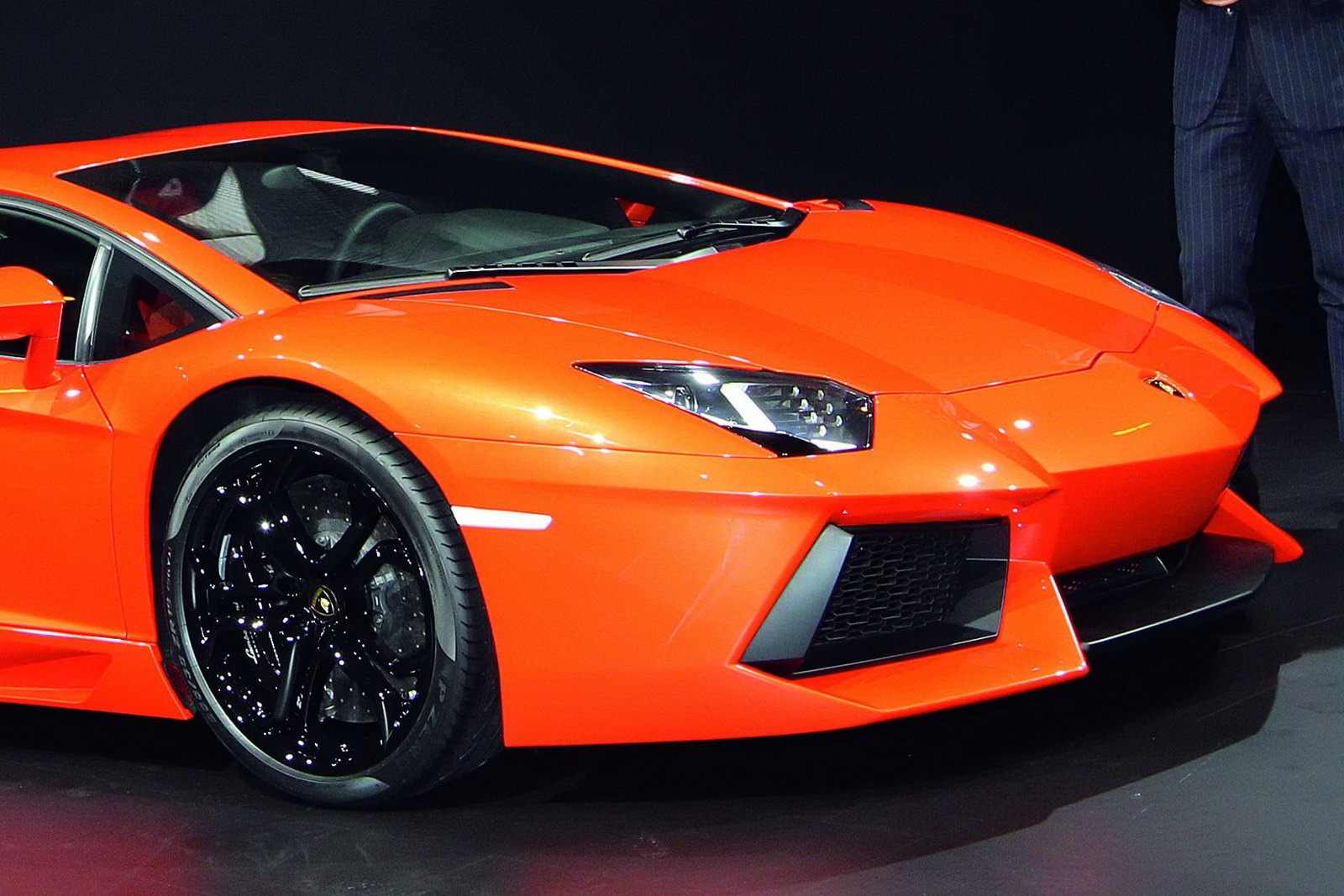

Το αυτοκίνητο είναι διαθέσιμο και στο νέο περλέ πορτοκαλί χρώμα Arancio Argos καθώς και με δίχρωμο εσωτερικό επενδυμένο με δέρμα Alcantara.

Οι παραδόσεις του θα ξεκινήσουν από το καλοκαίρι με τις τιμές να έχουν ως εξής:

• Europe: € 255.000 (suggested retail price taxes excluded)
• UK: GBP 201.900,00 (suggested retail price taxes excluded)
• USA: 379.700 USD (suggested retail price – GGT included)
• China: RMB 6.270.000,00 (suggested retail price taxes included)
• Japan: YEN 39.690.000,00 (suggested retail price taxes included)

Φωτογραφίες, δελτίο τύπου και αναλυτικά τεχνικά χαρακτηριστικά σε pdf στη συνέχεια.

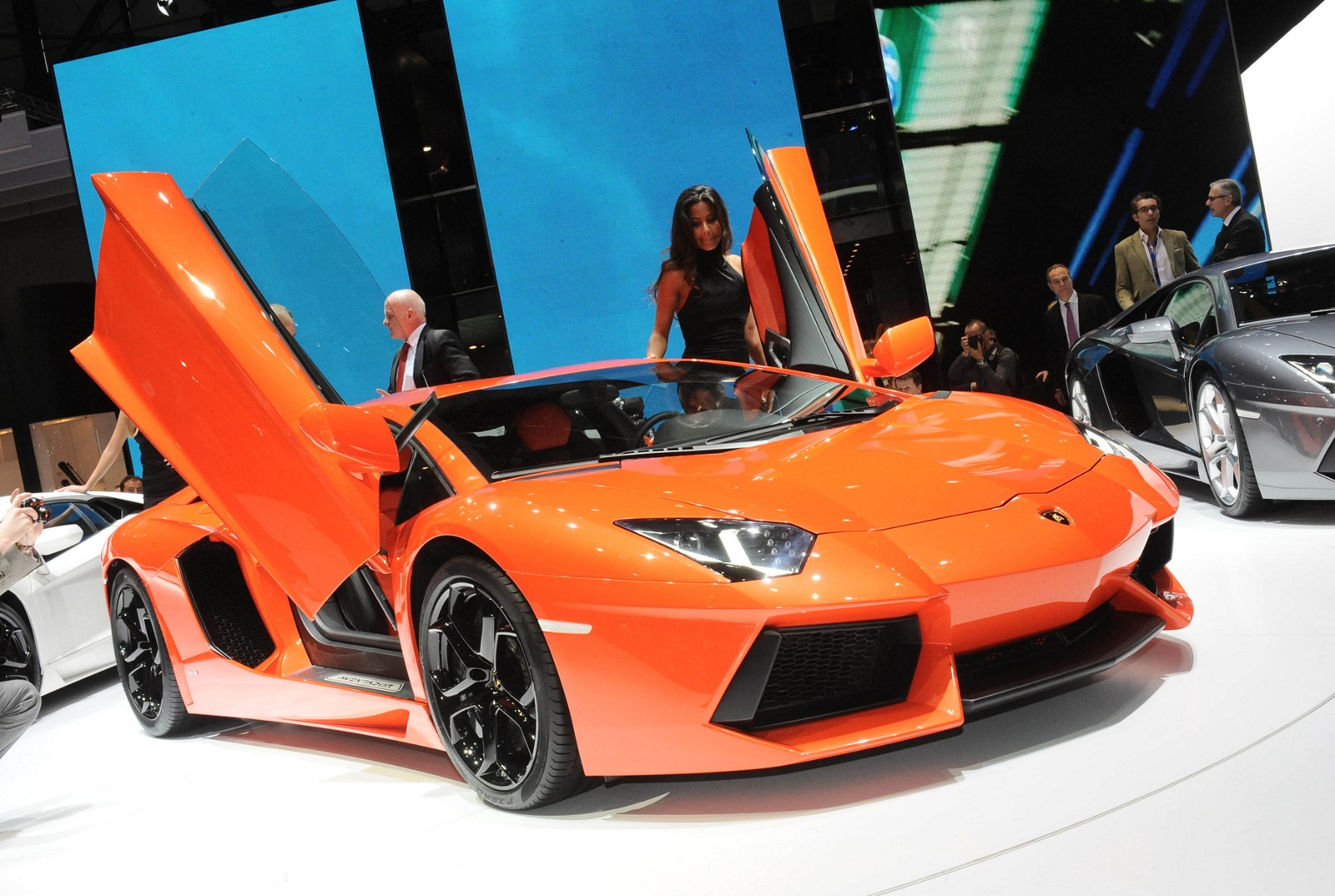

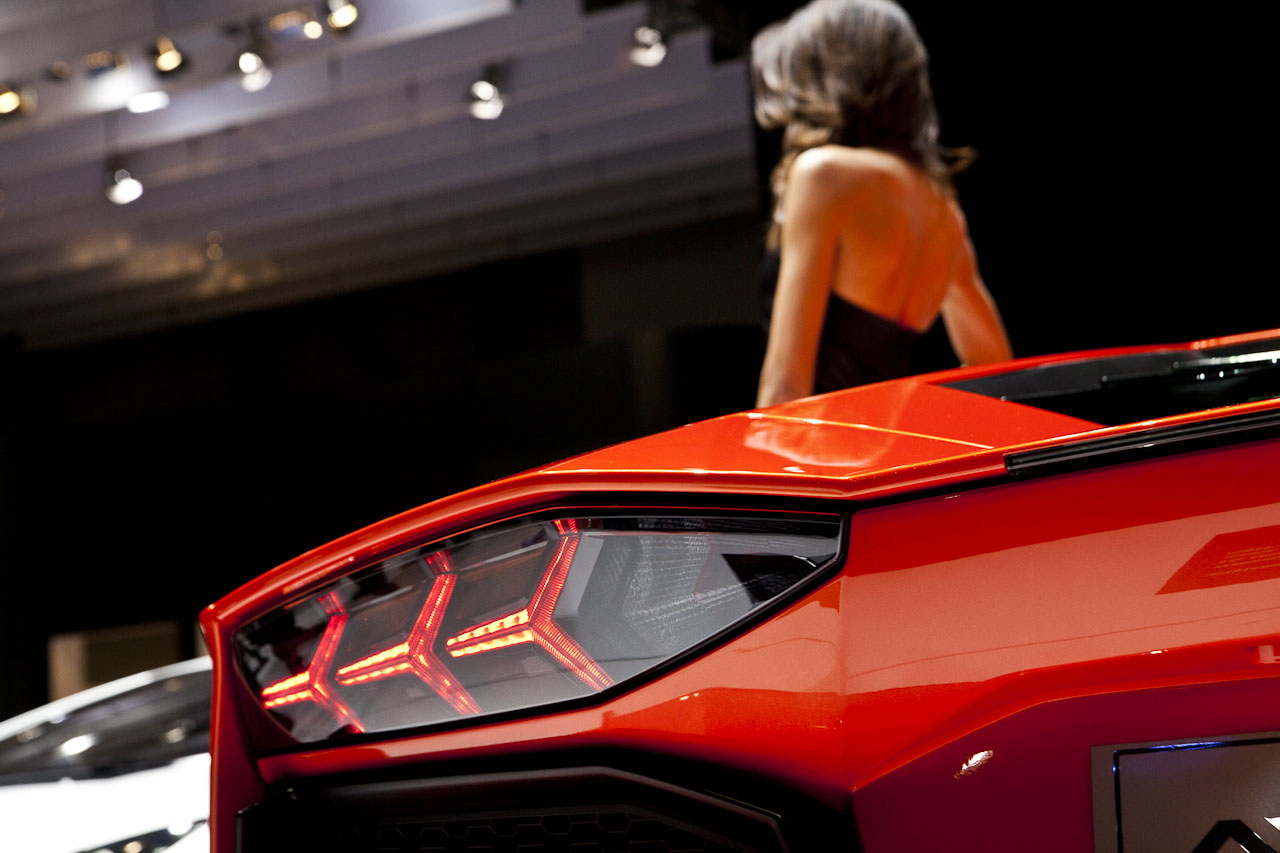

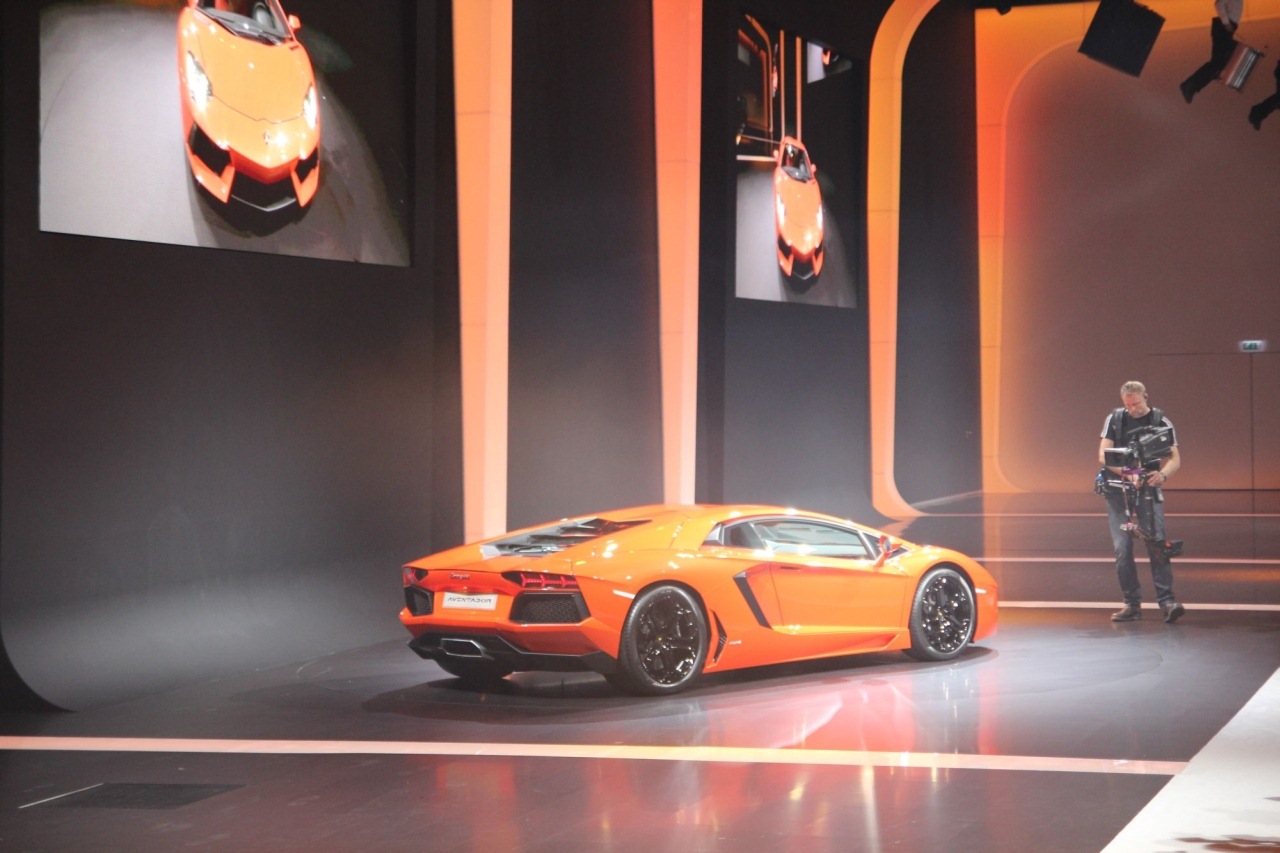

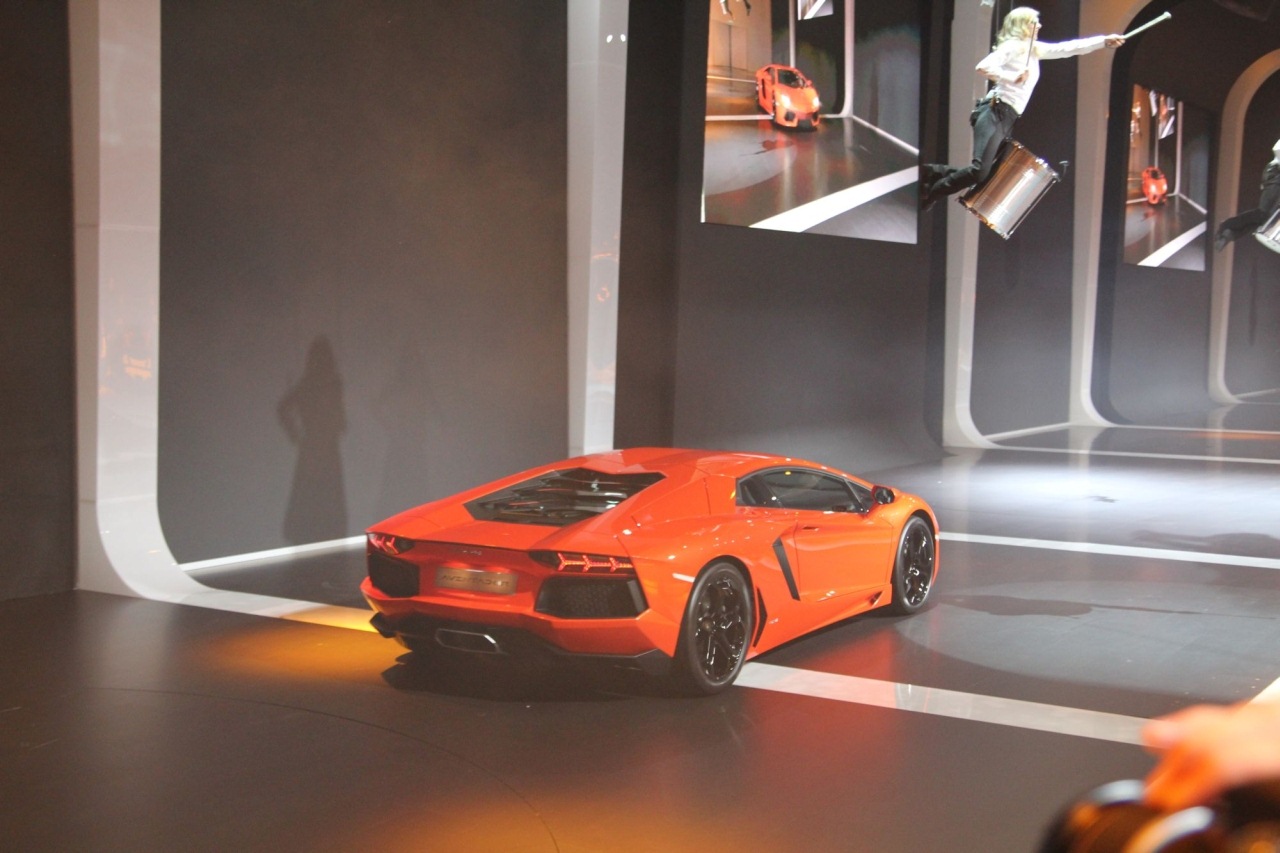

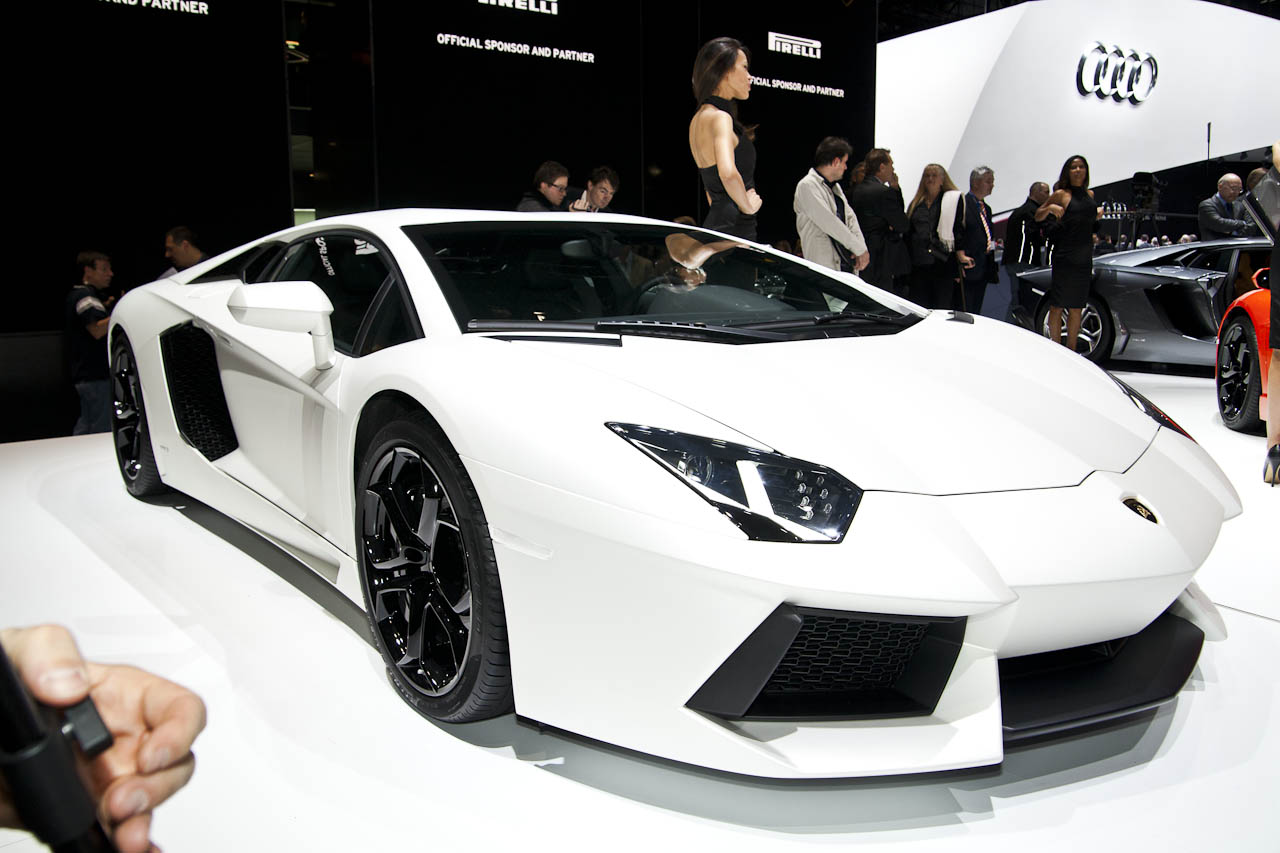

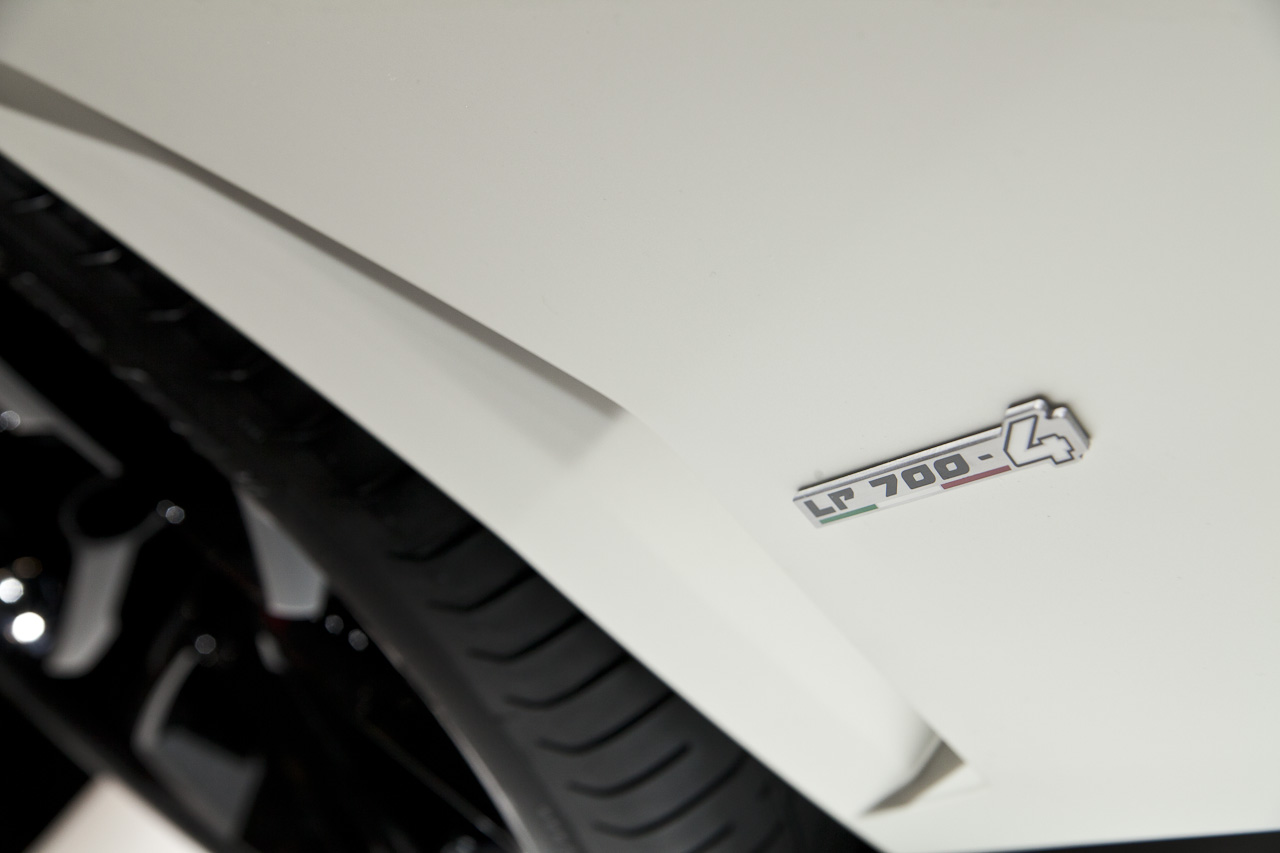

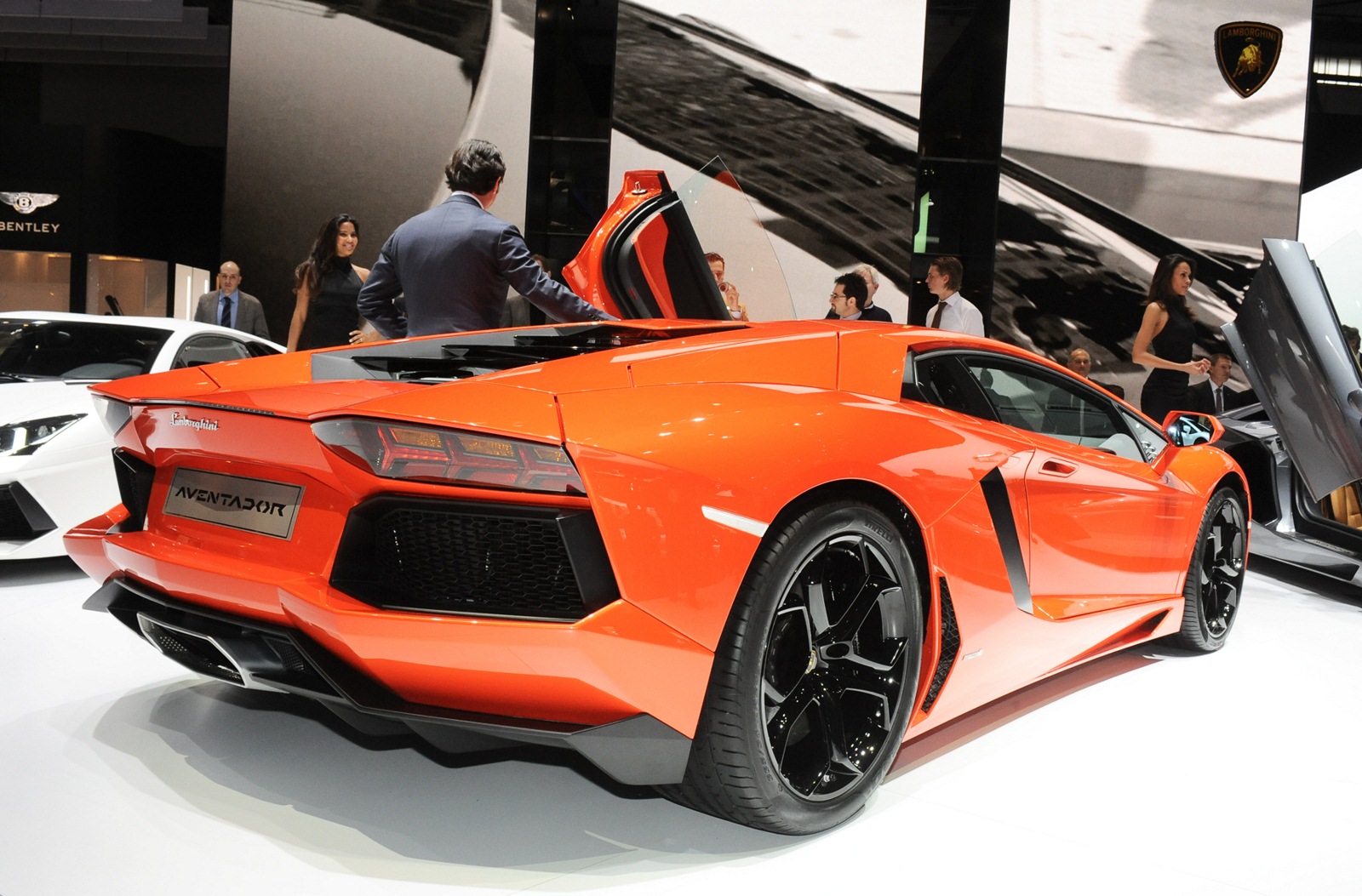

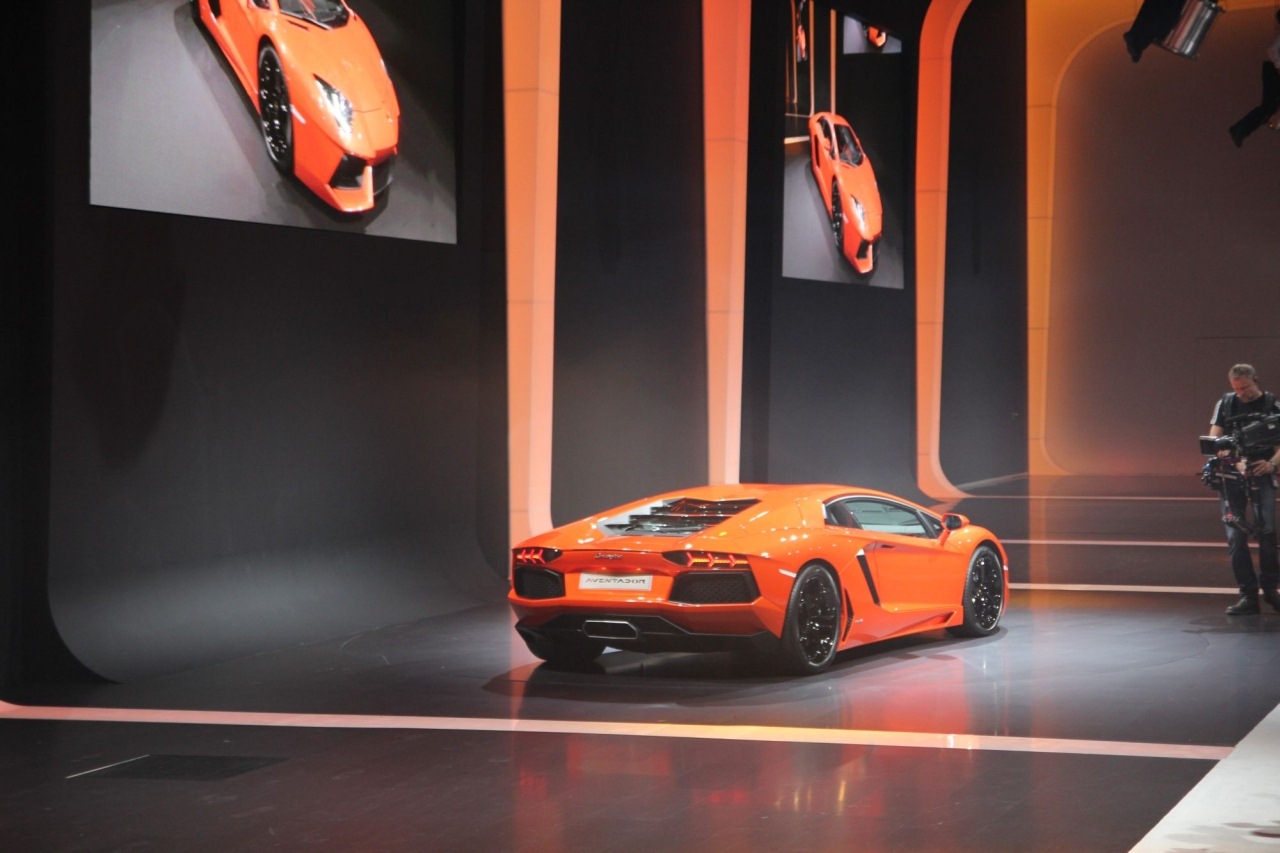

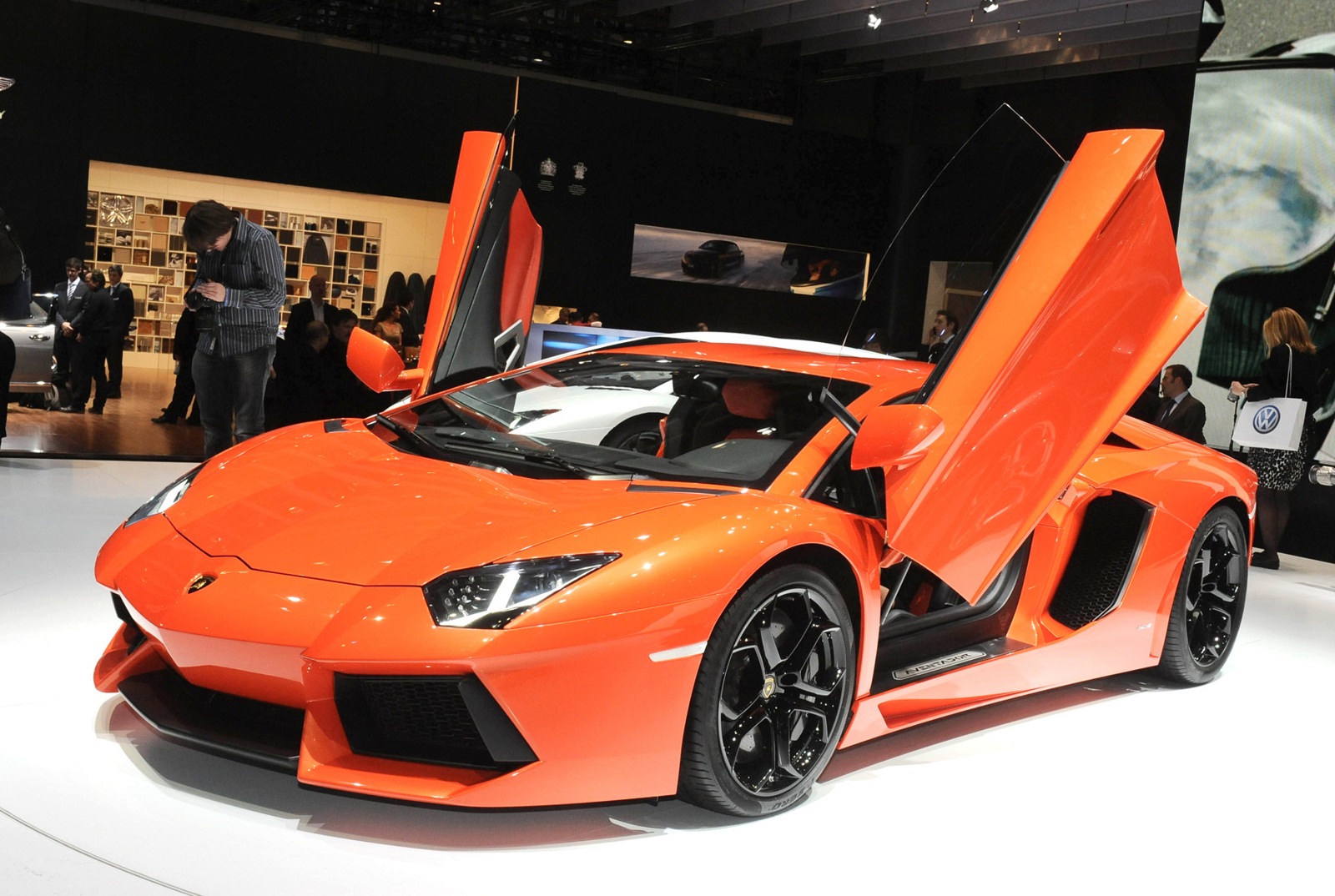

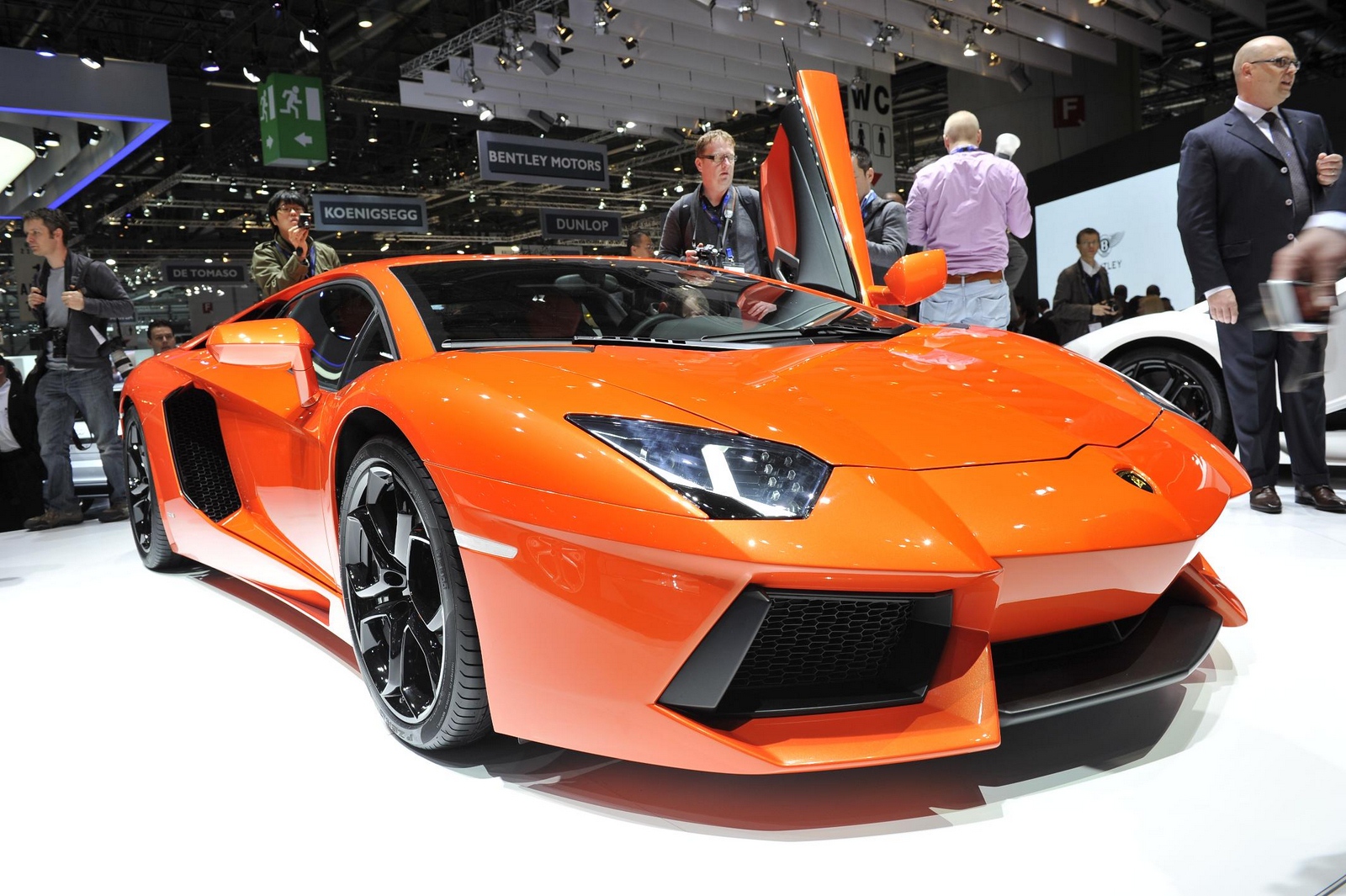

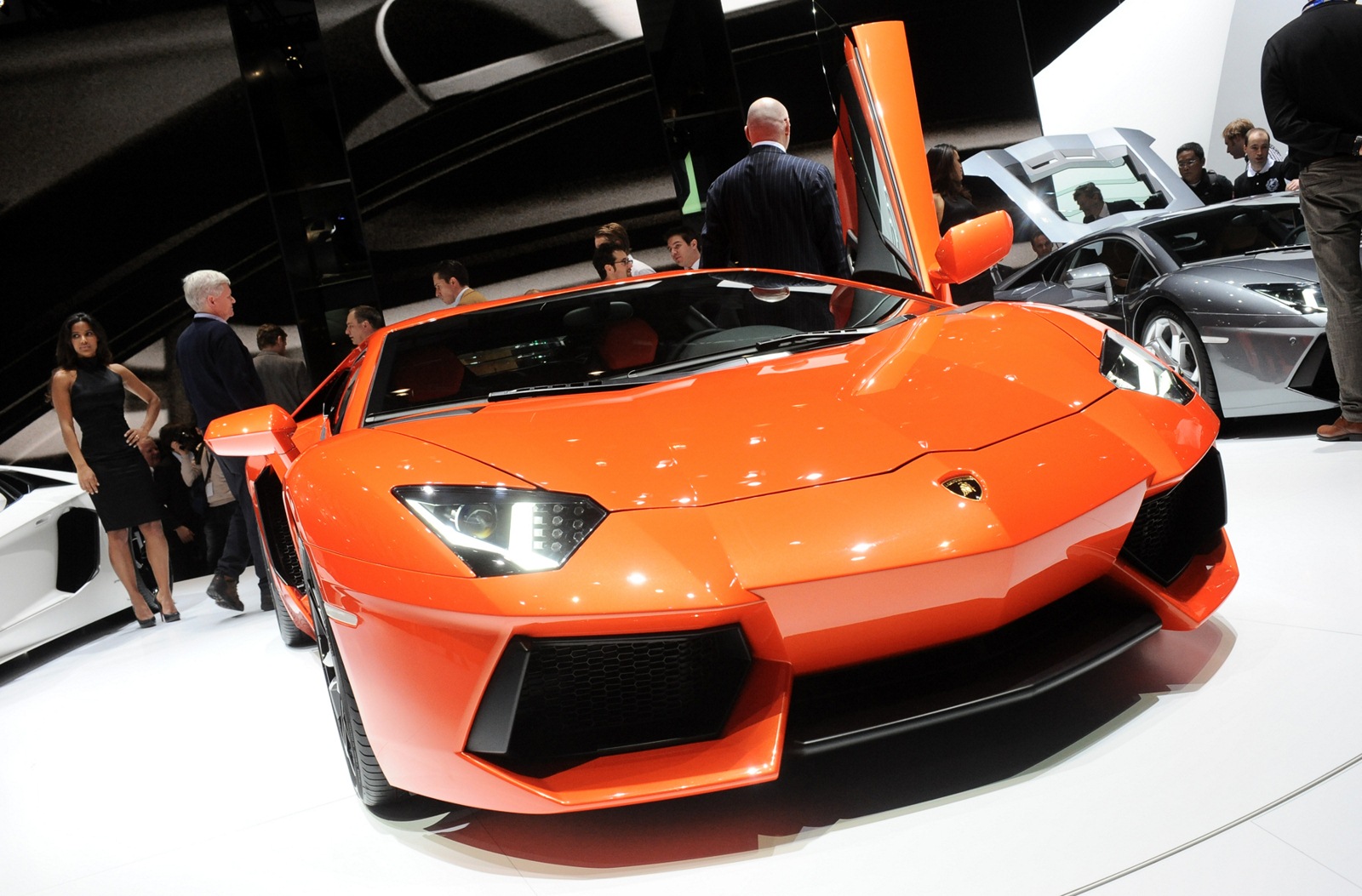

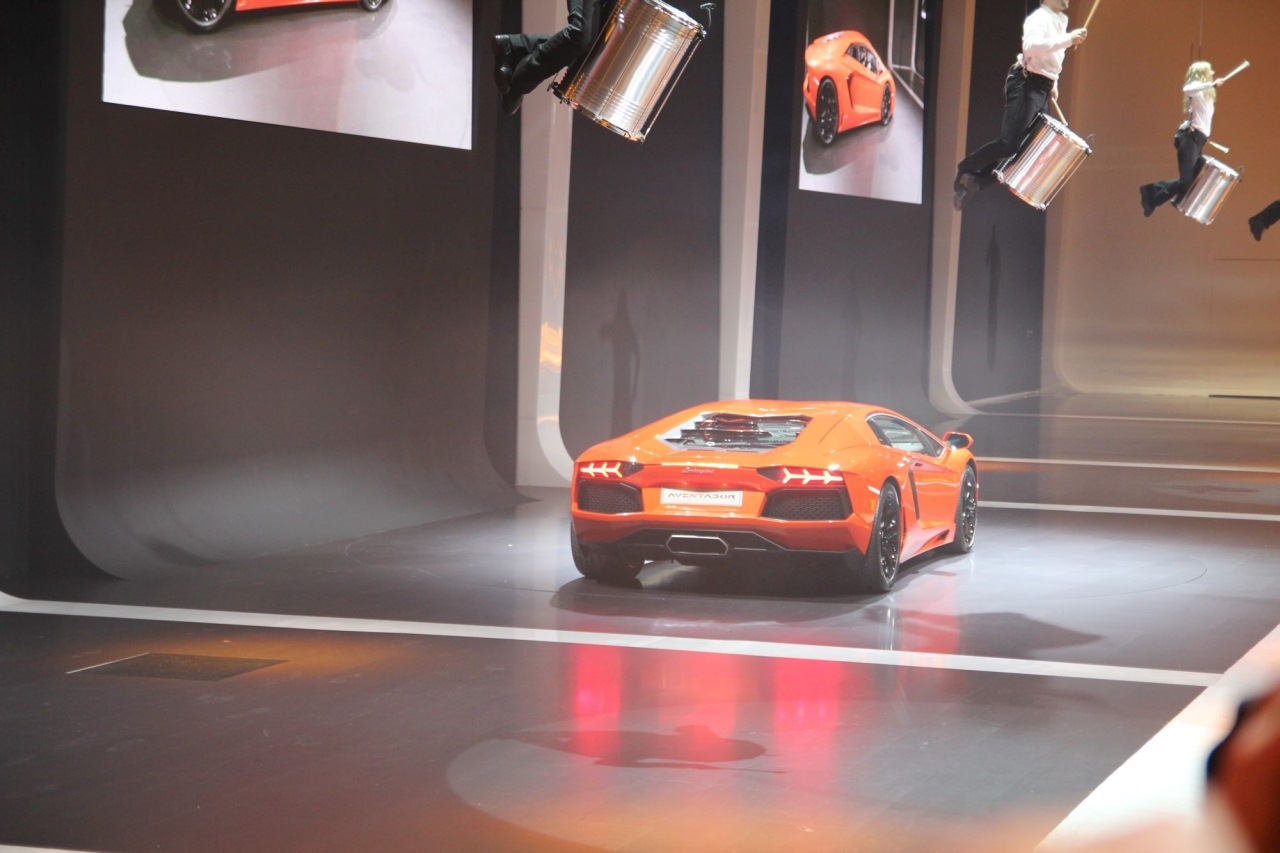

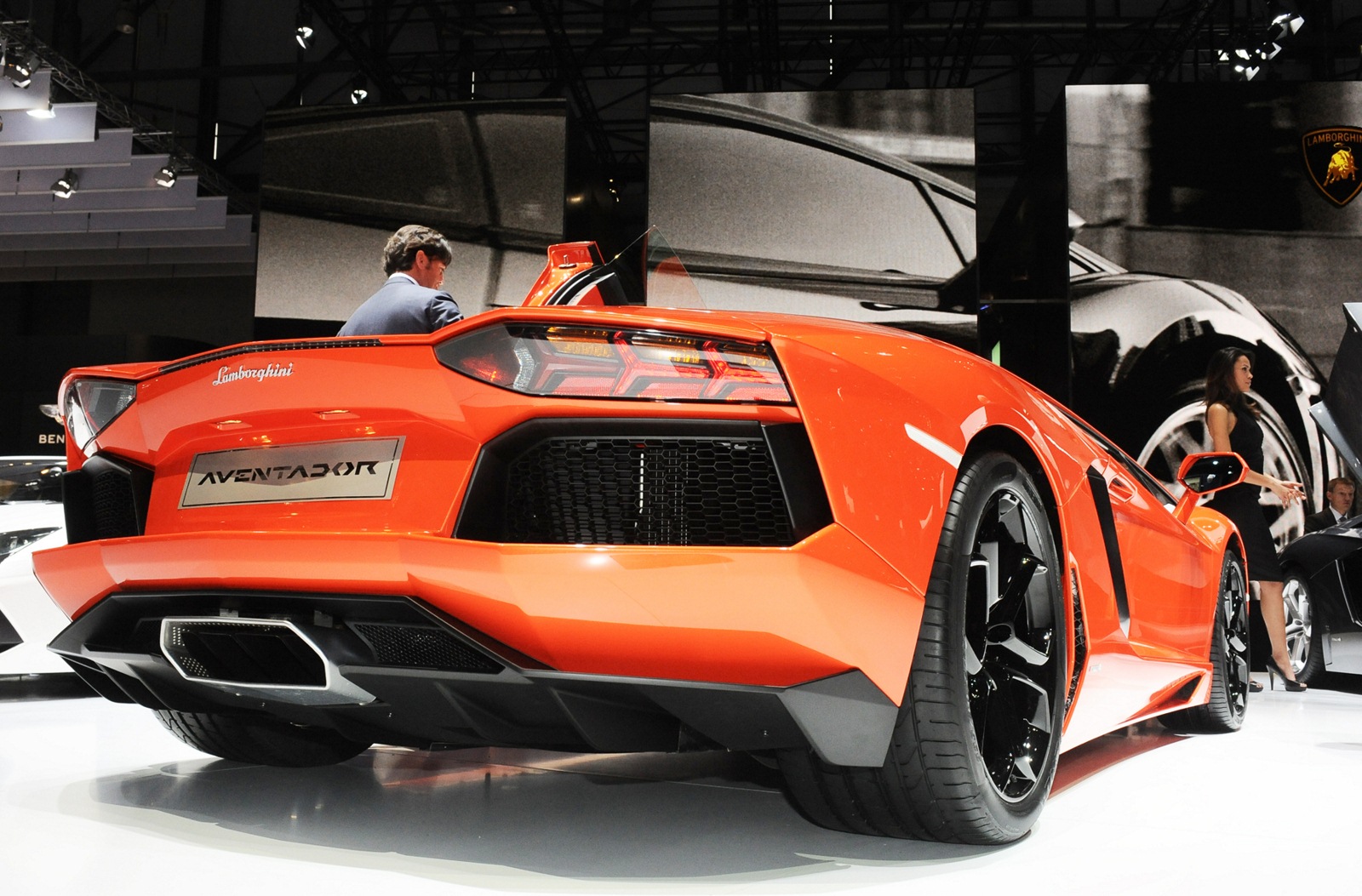

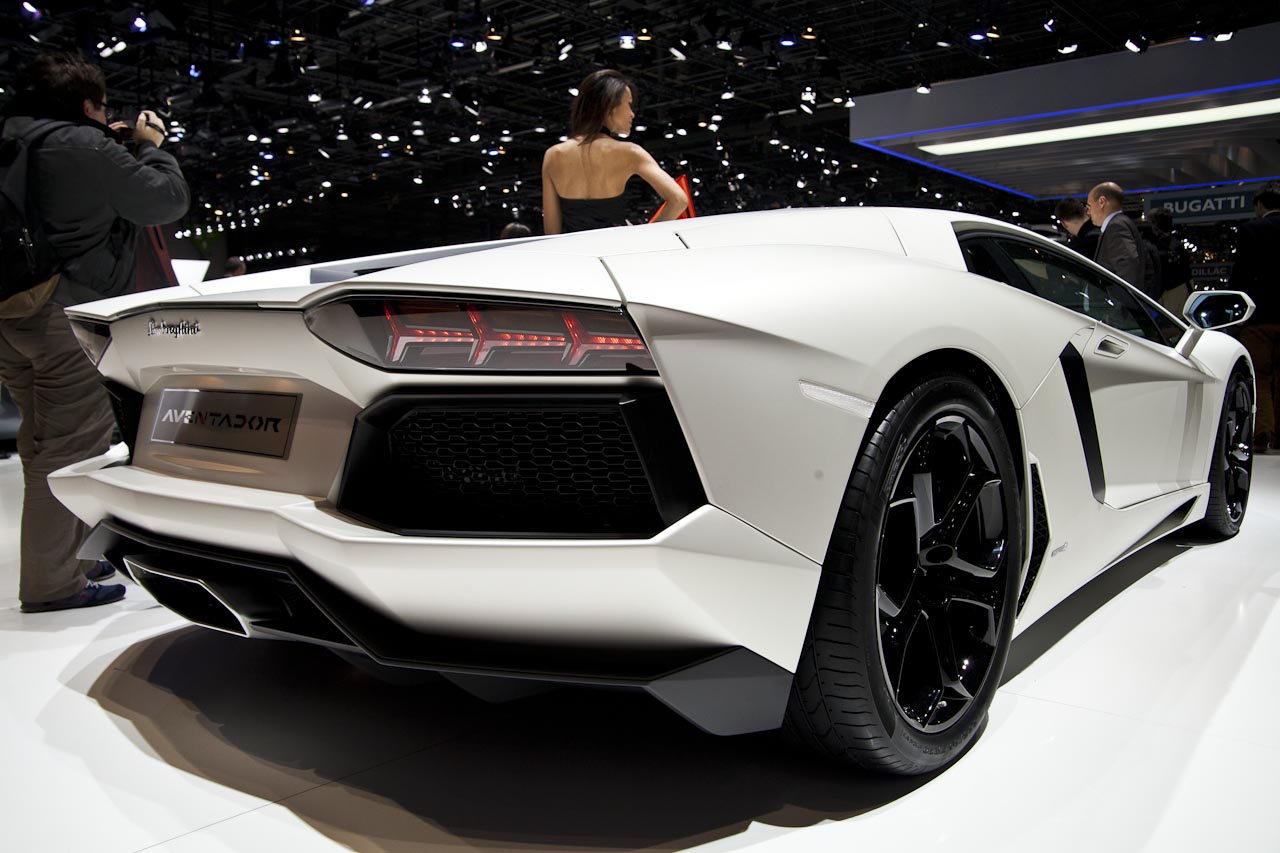

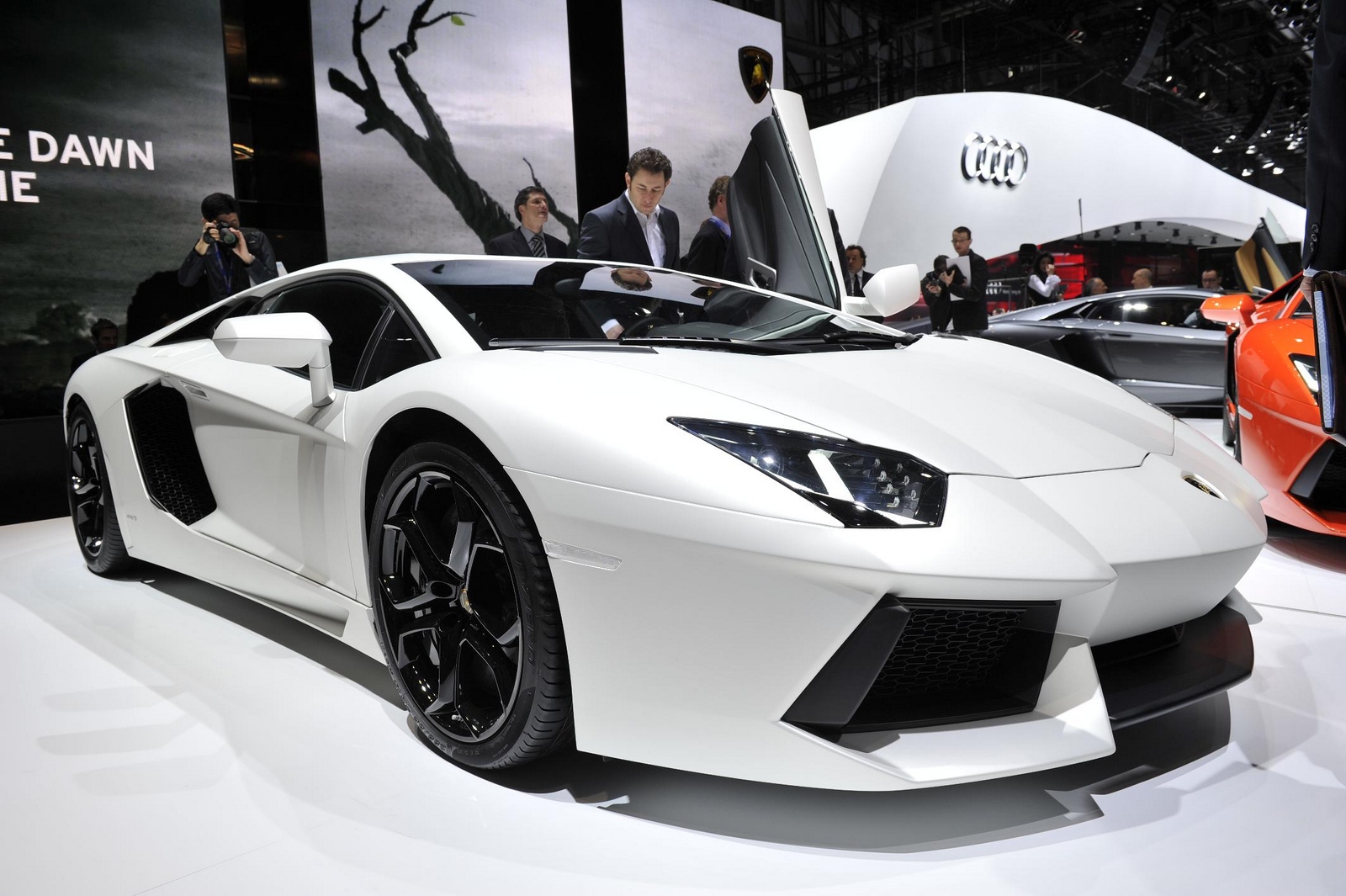

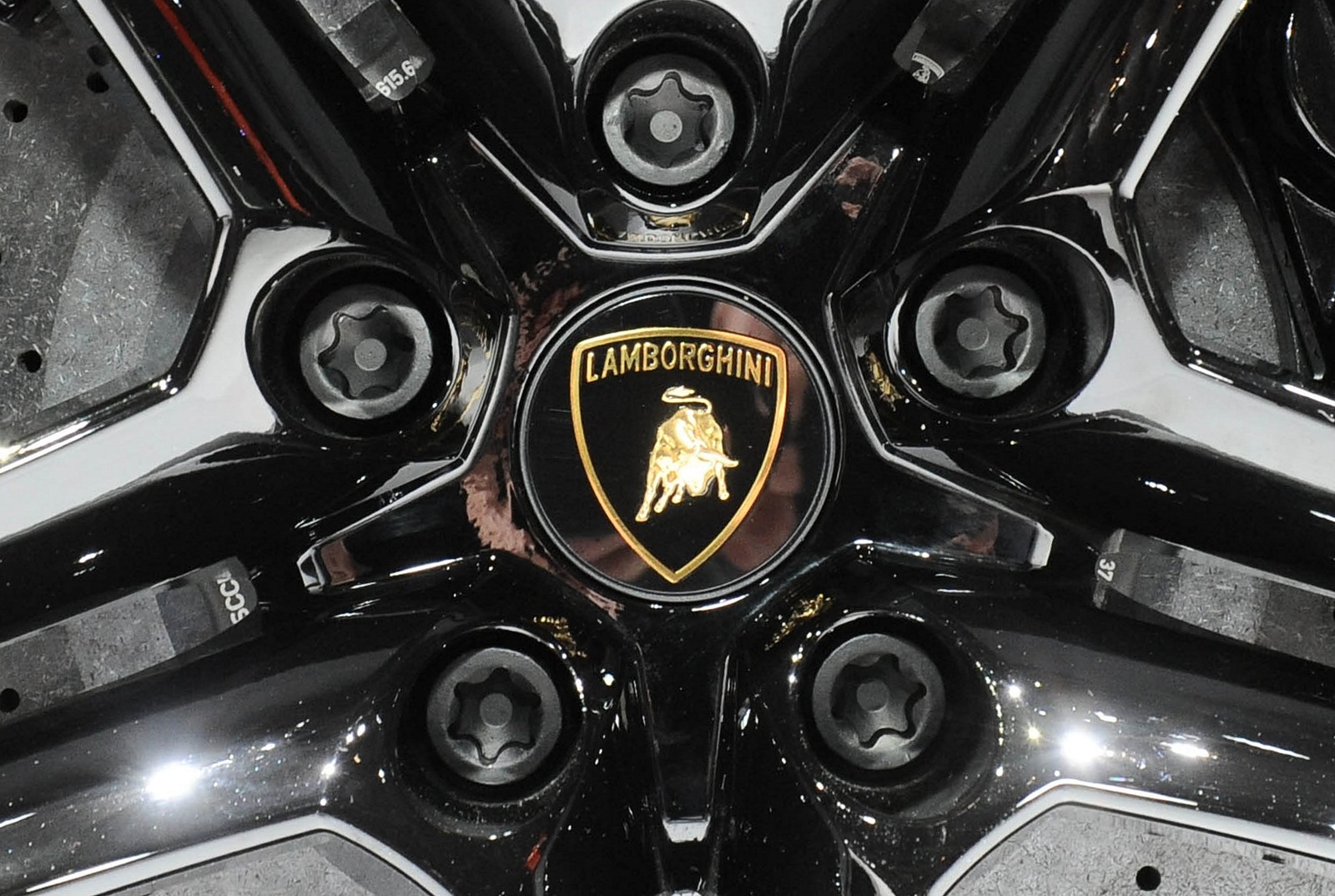

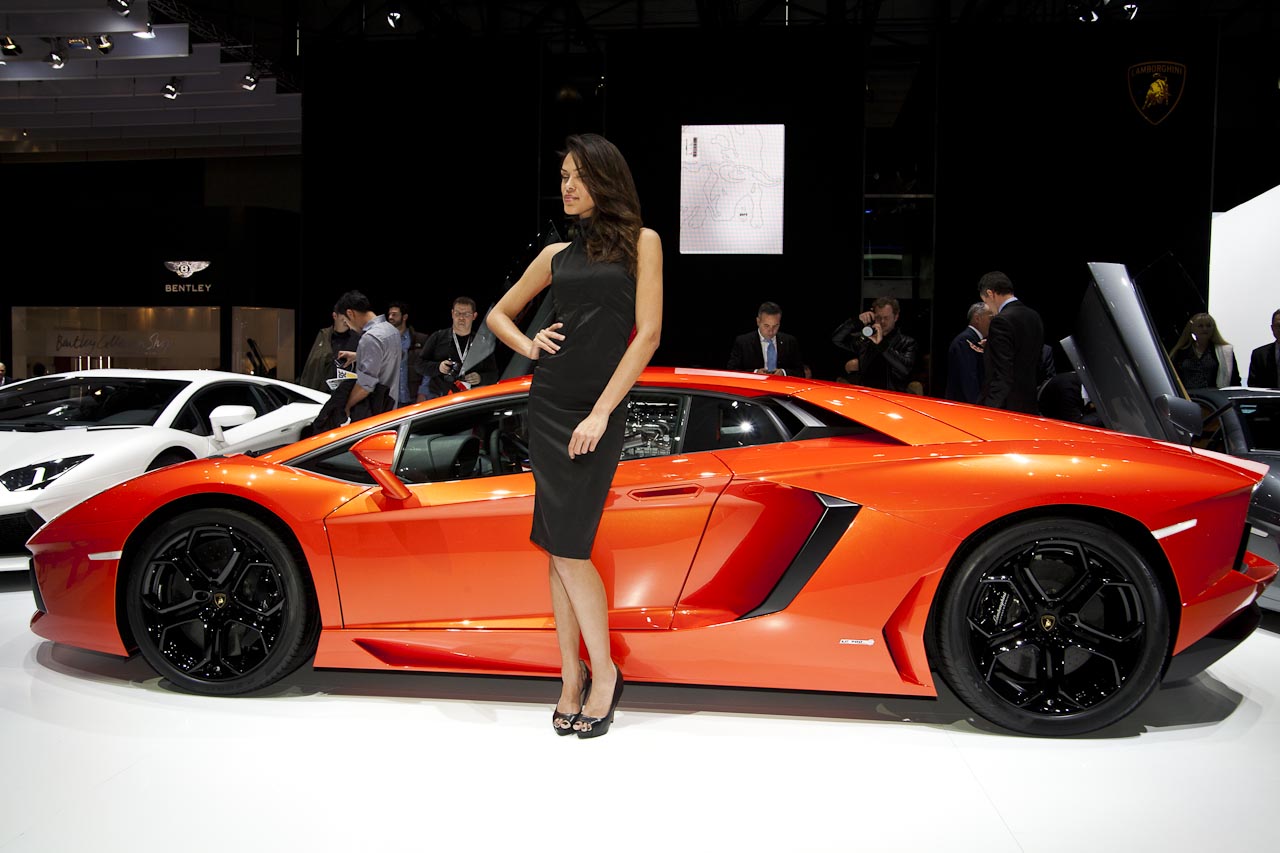

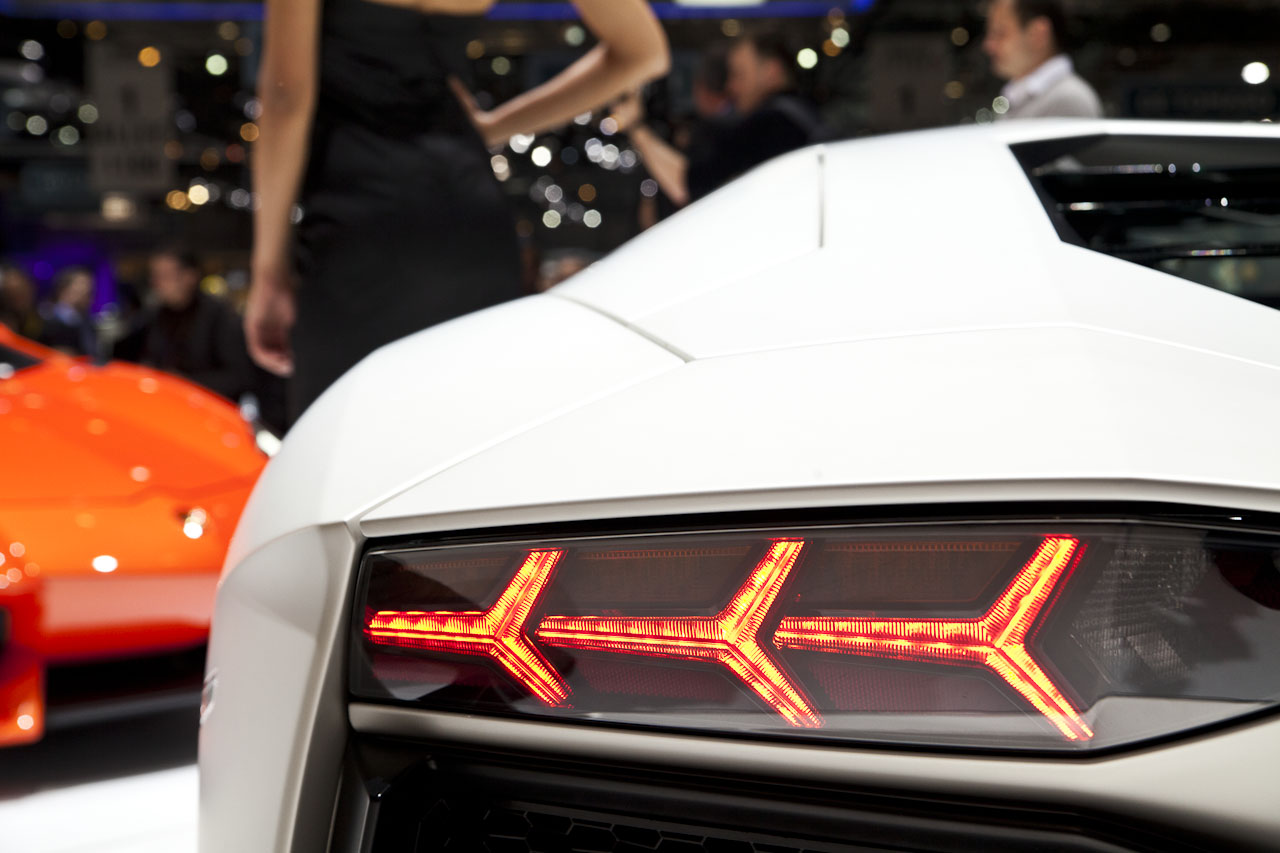

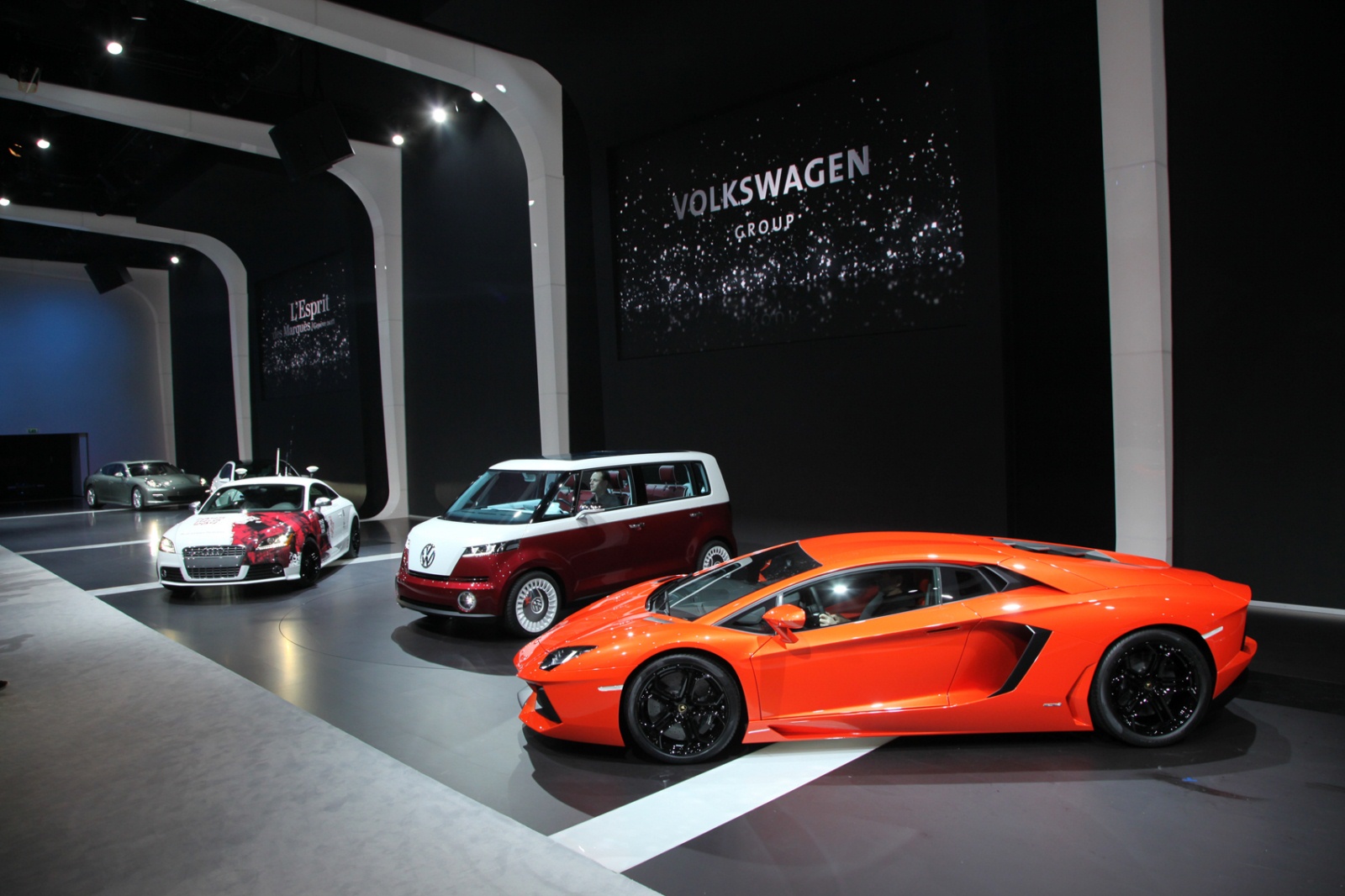

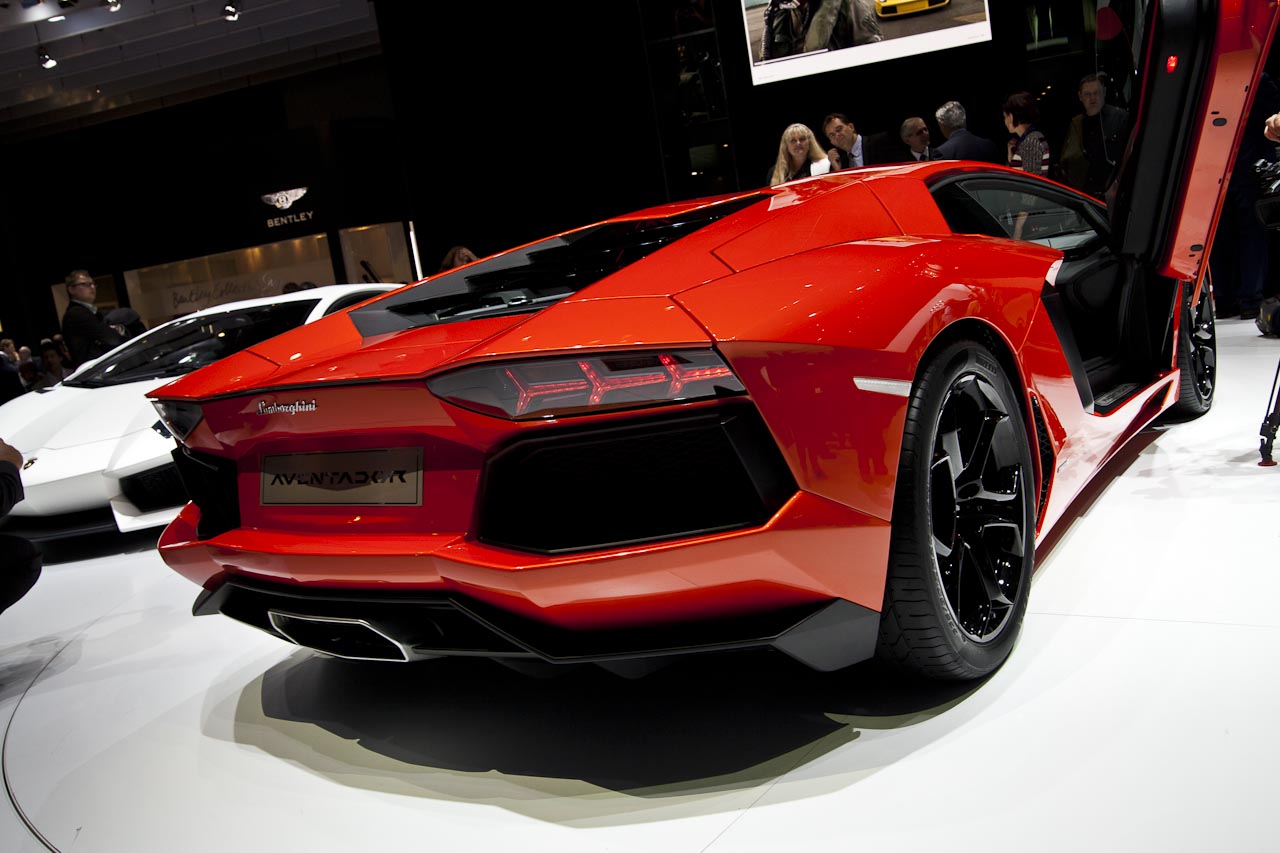

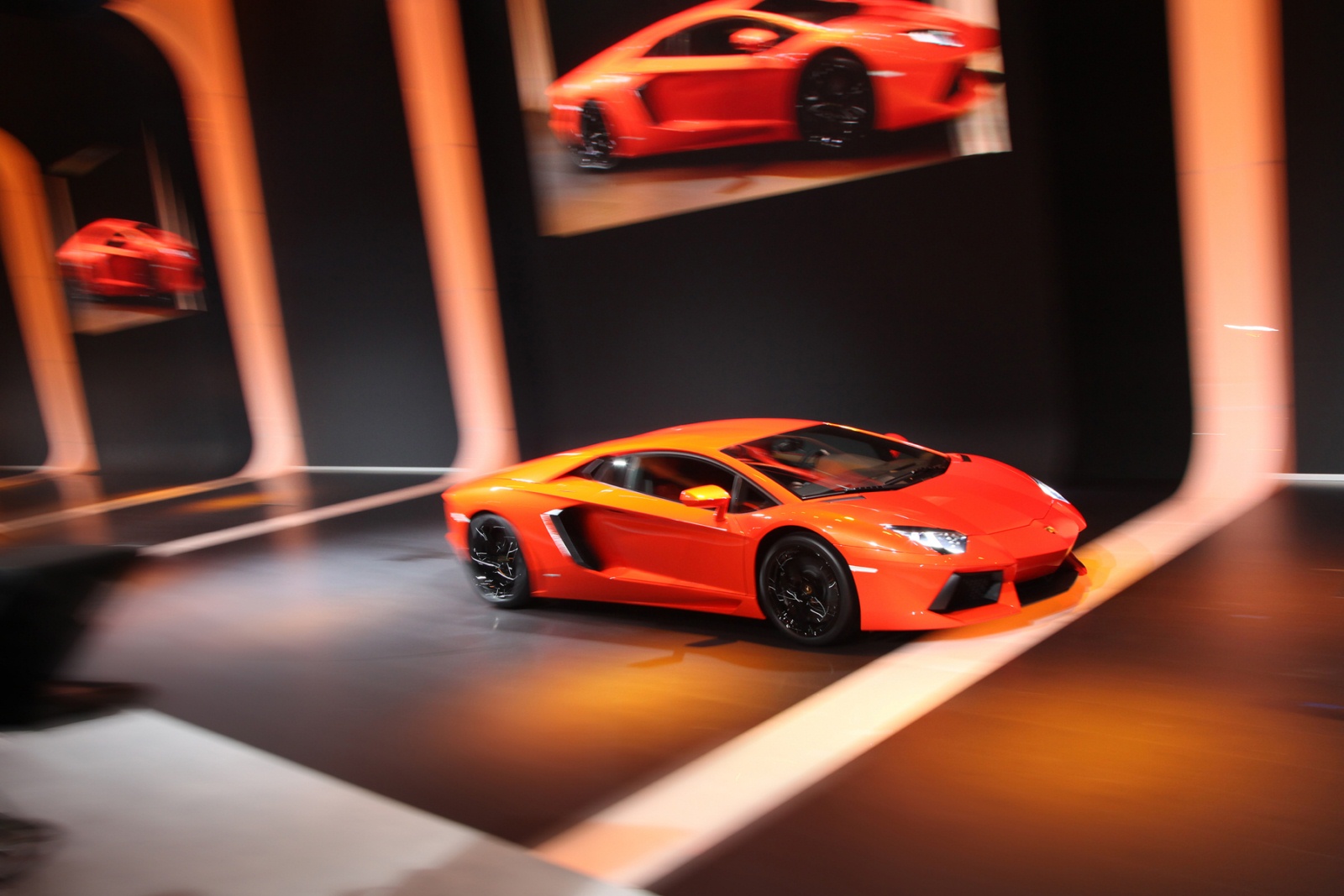

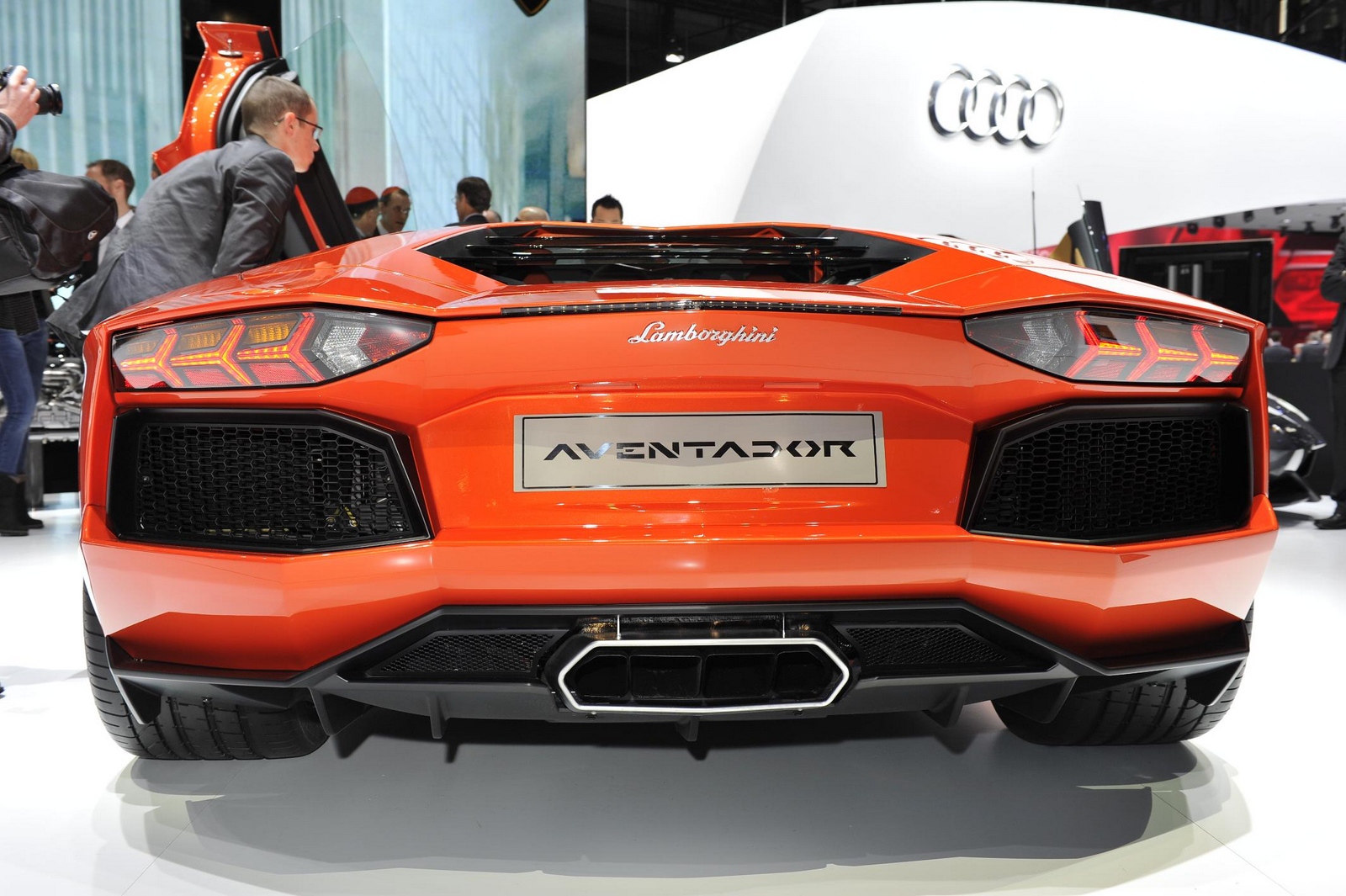

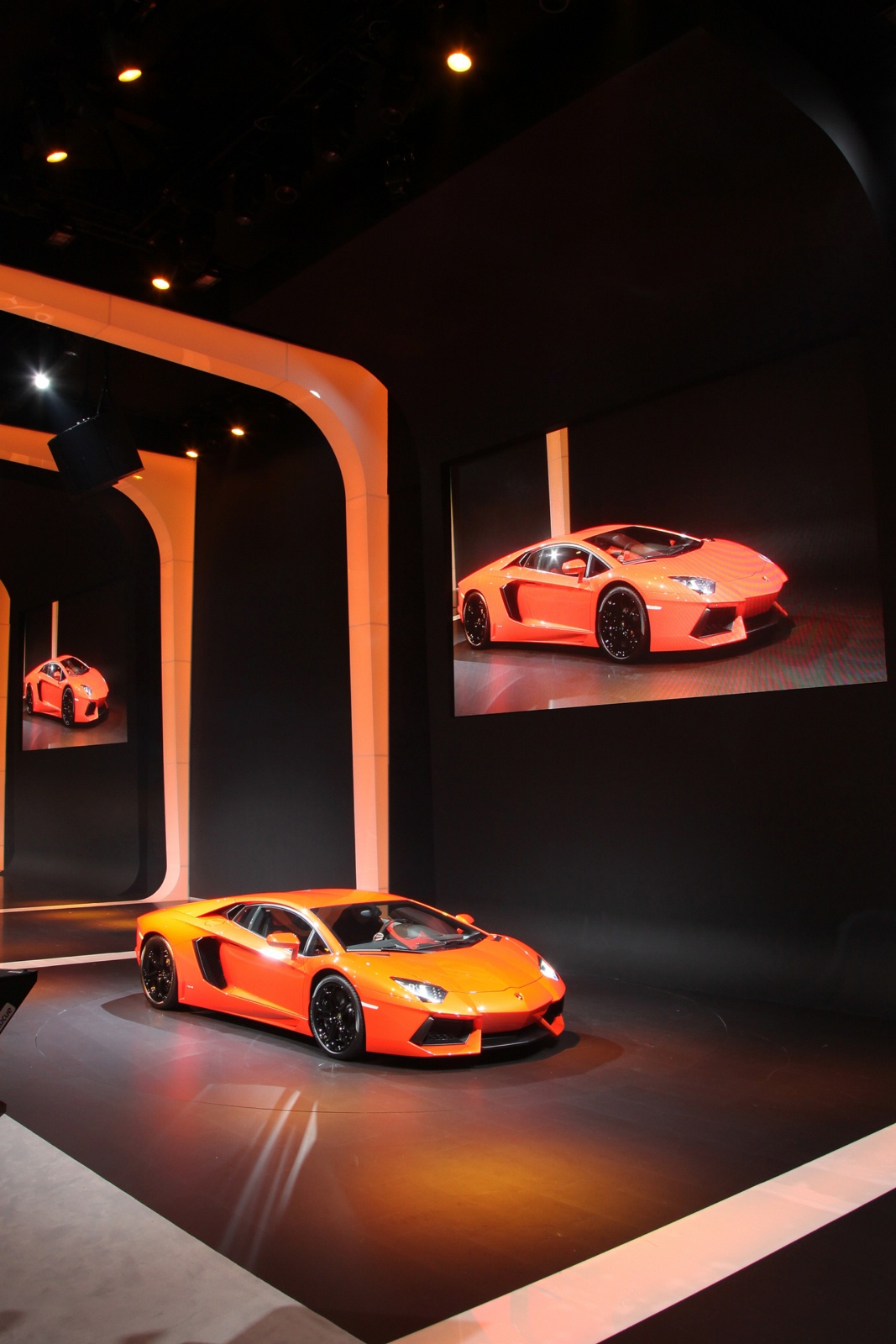

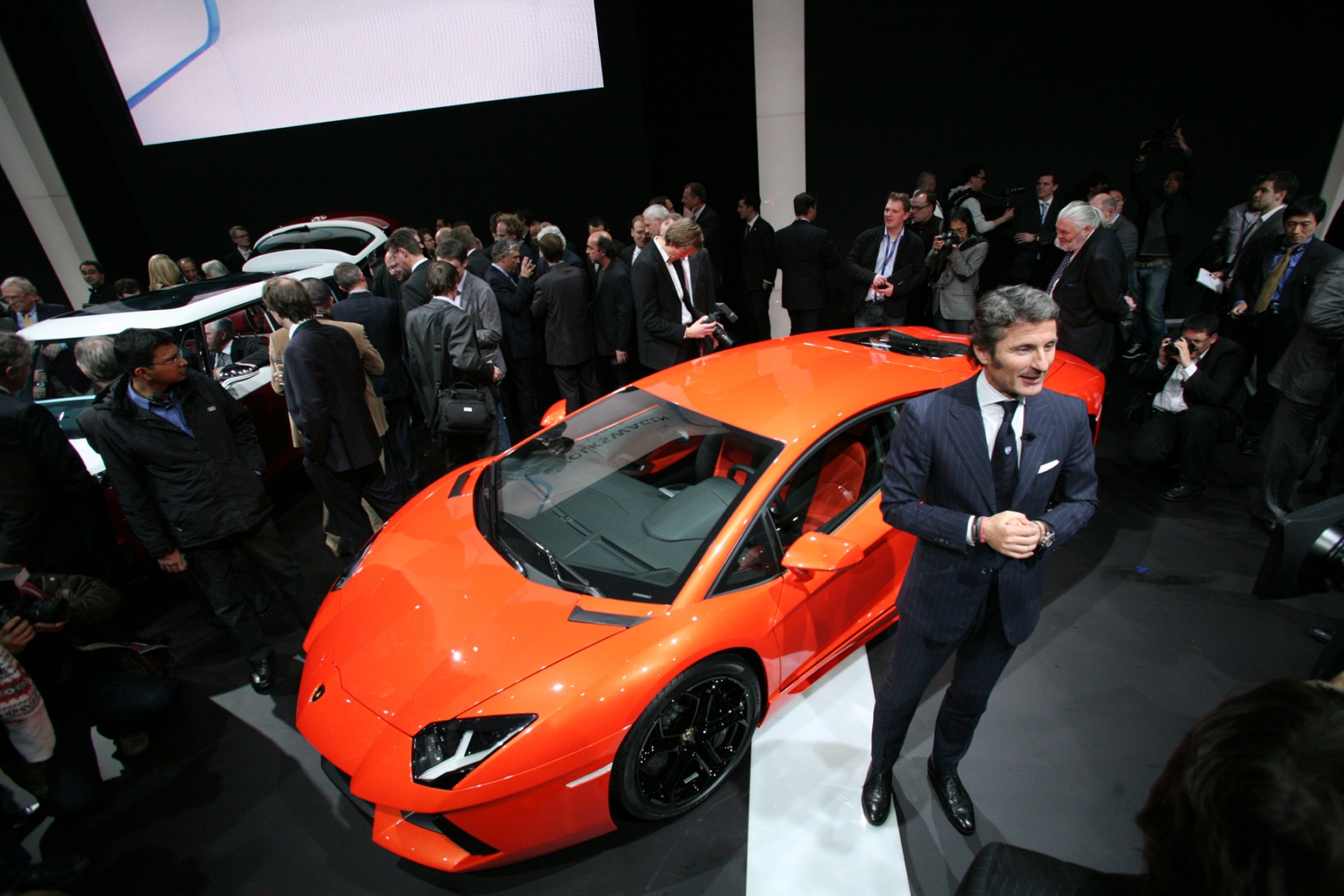

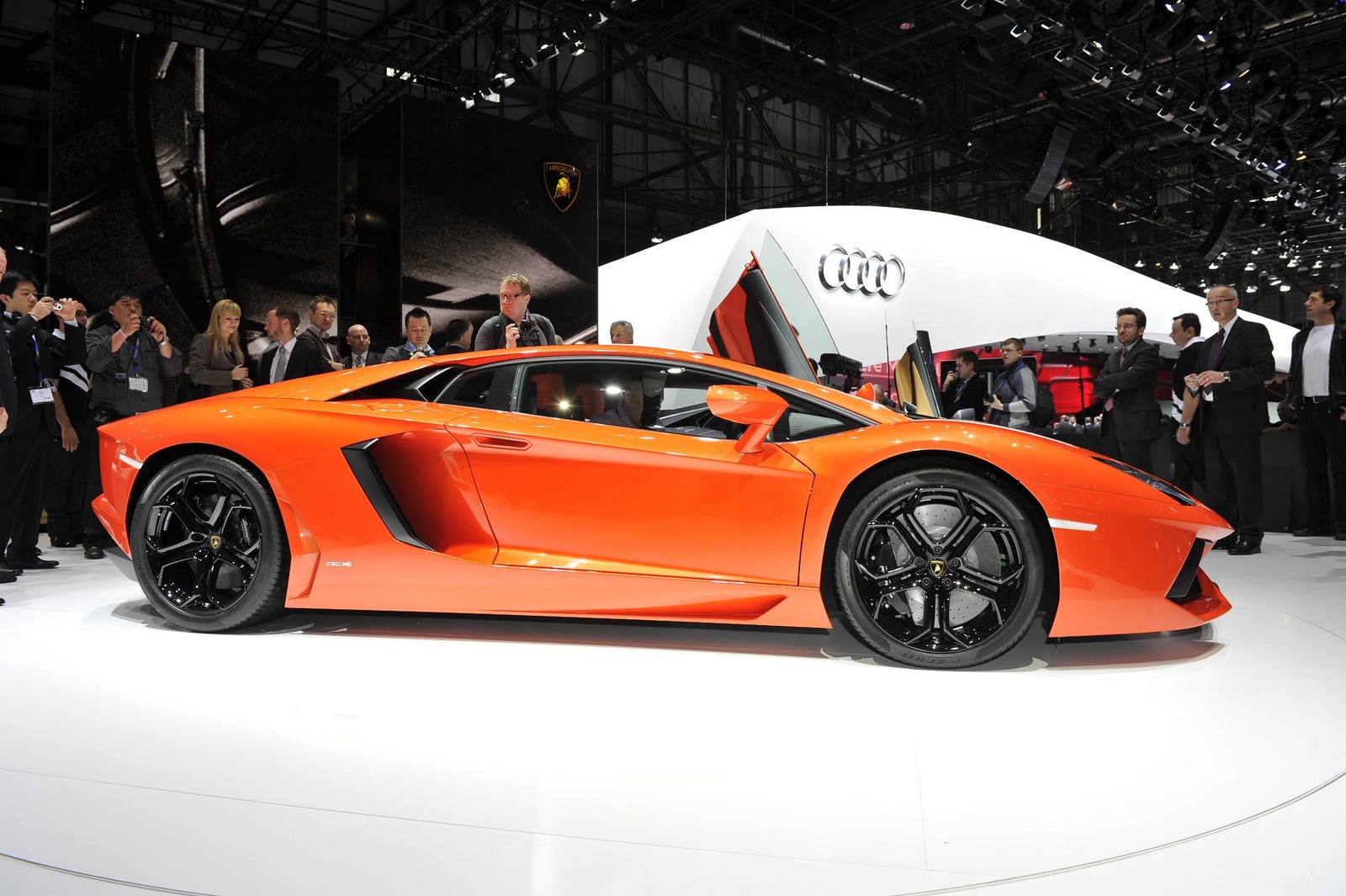

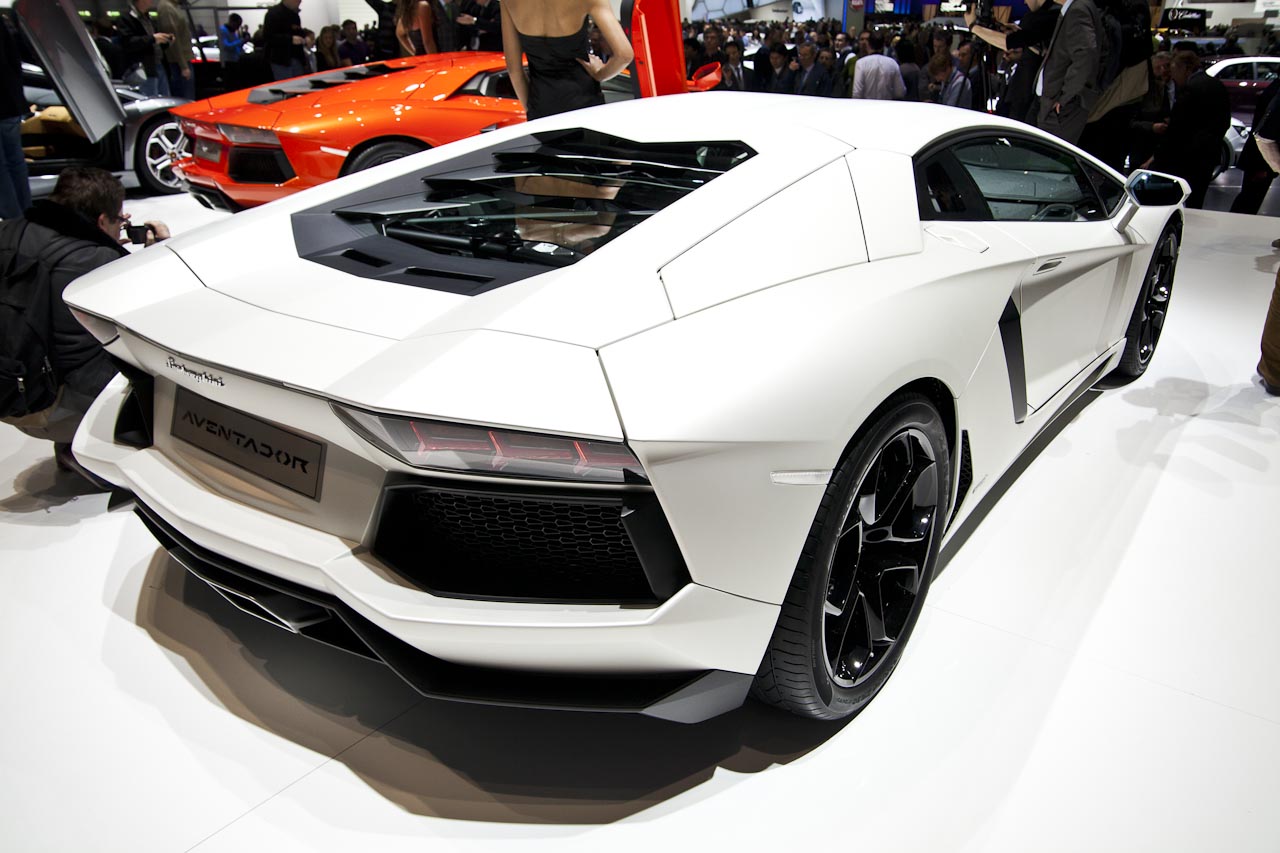

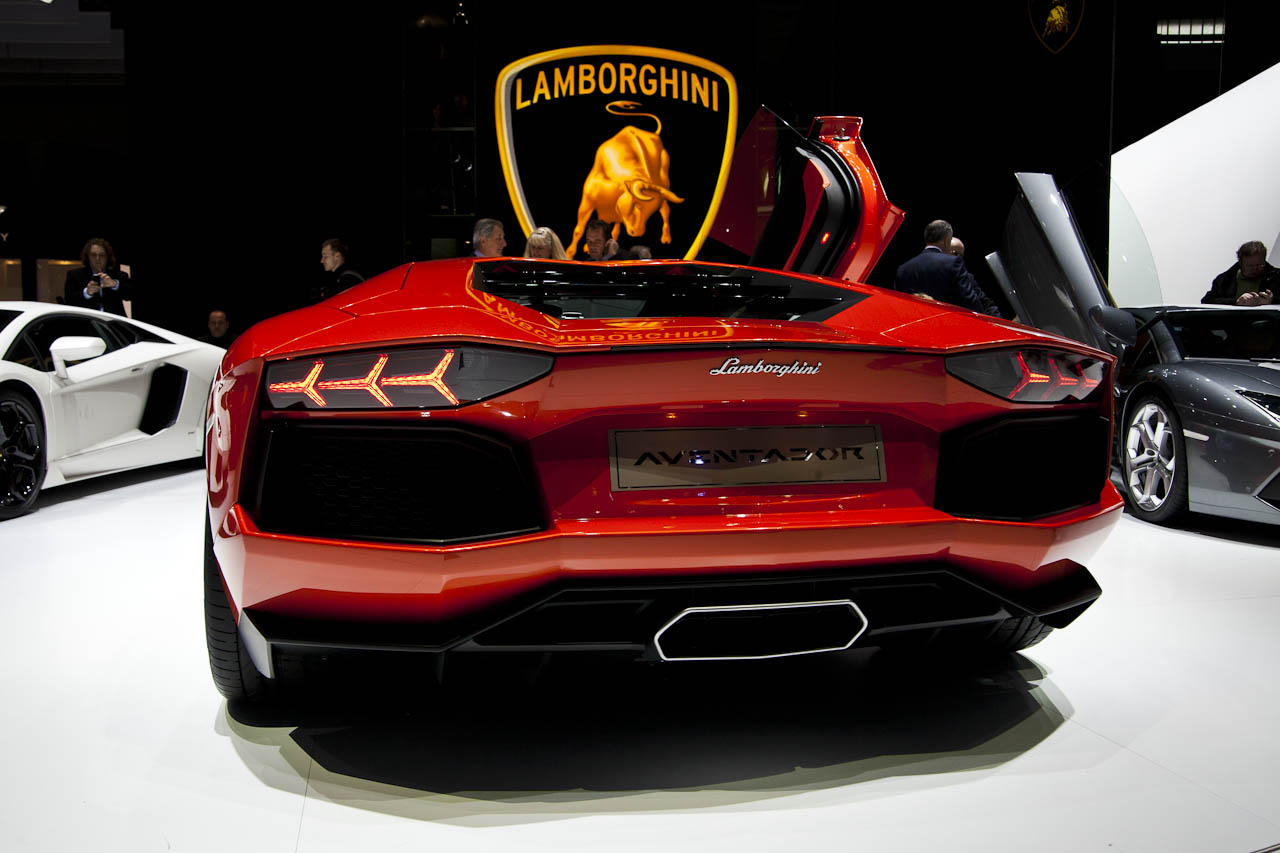

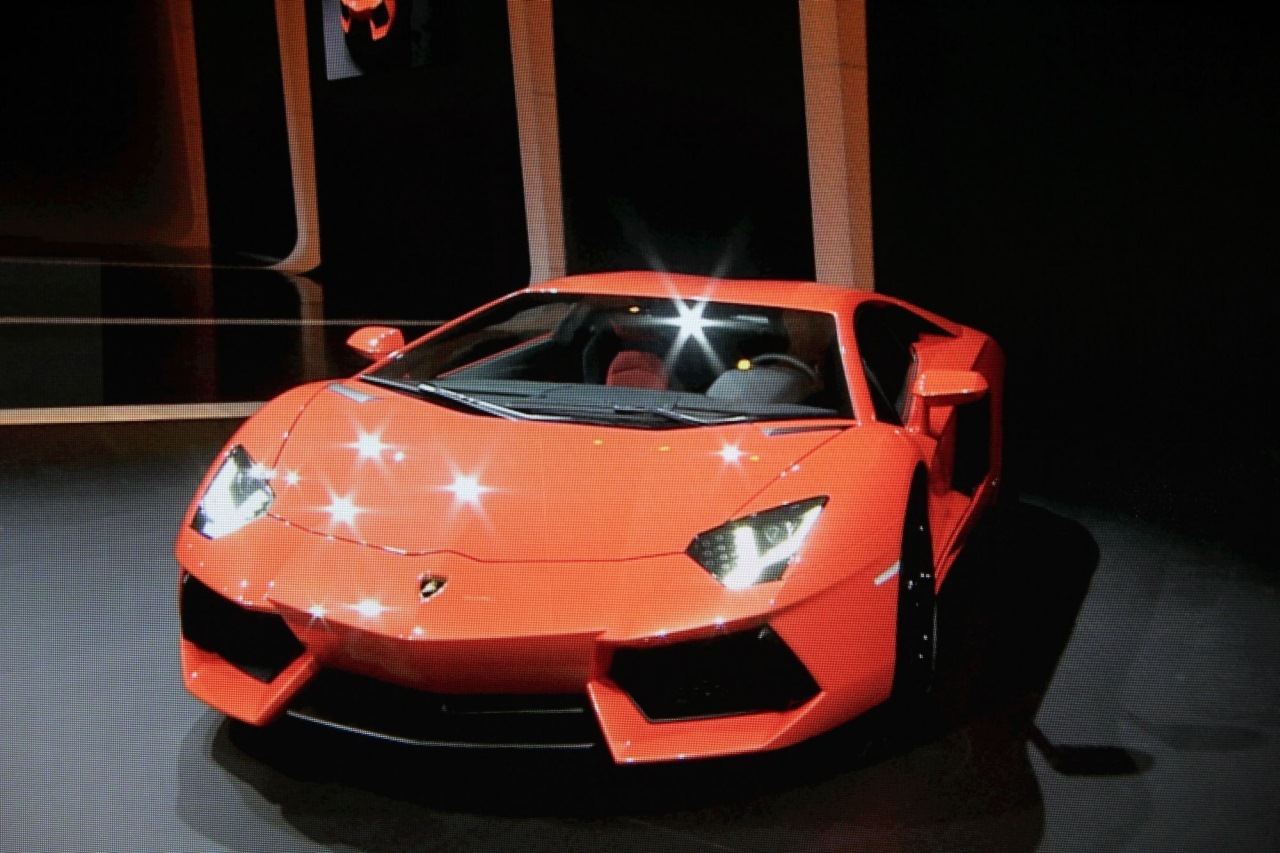

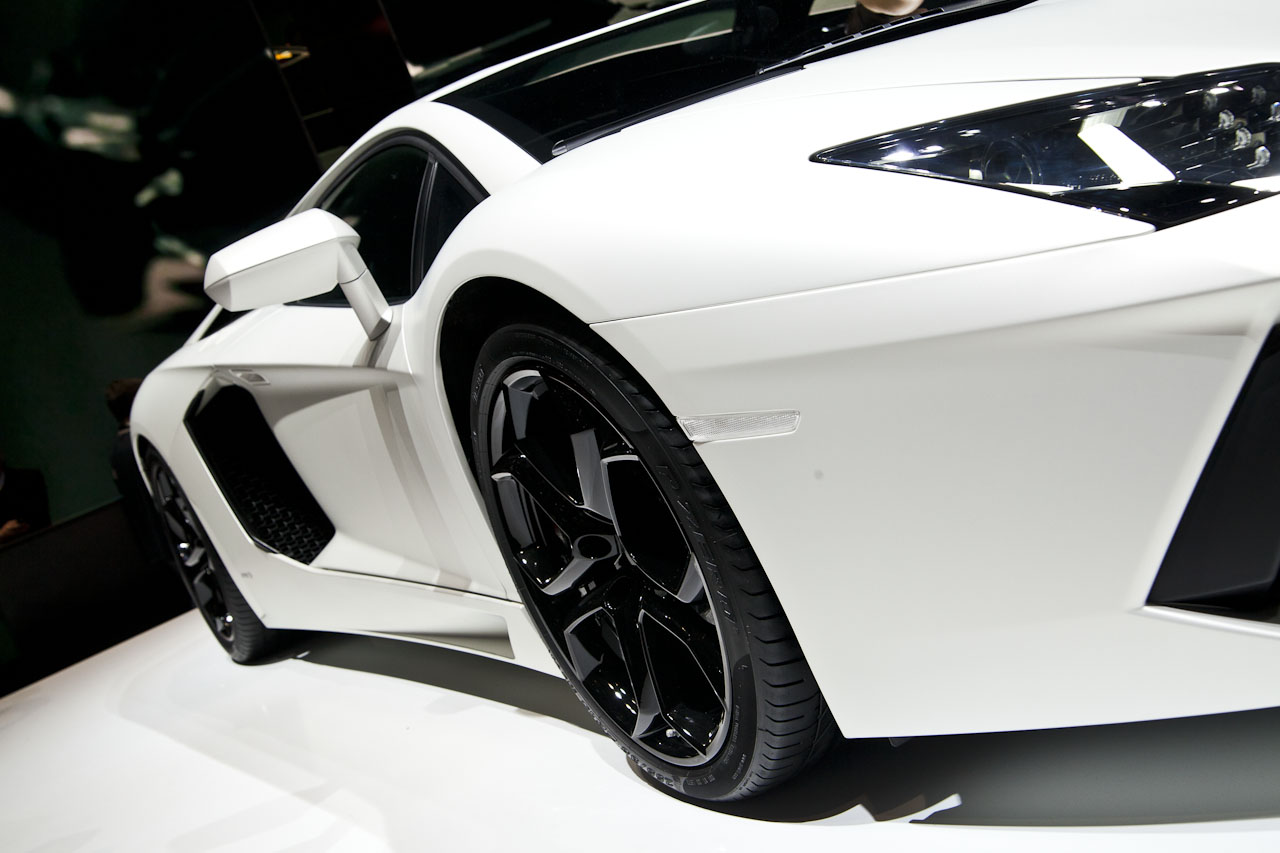

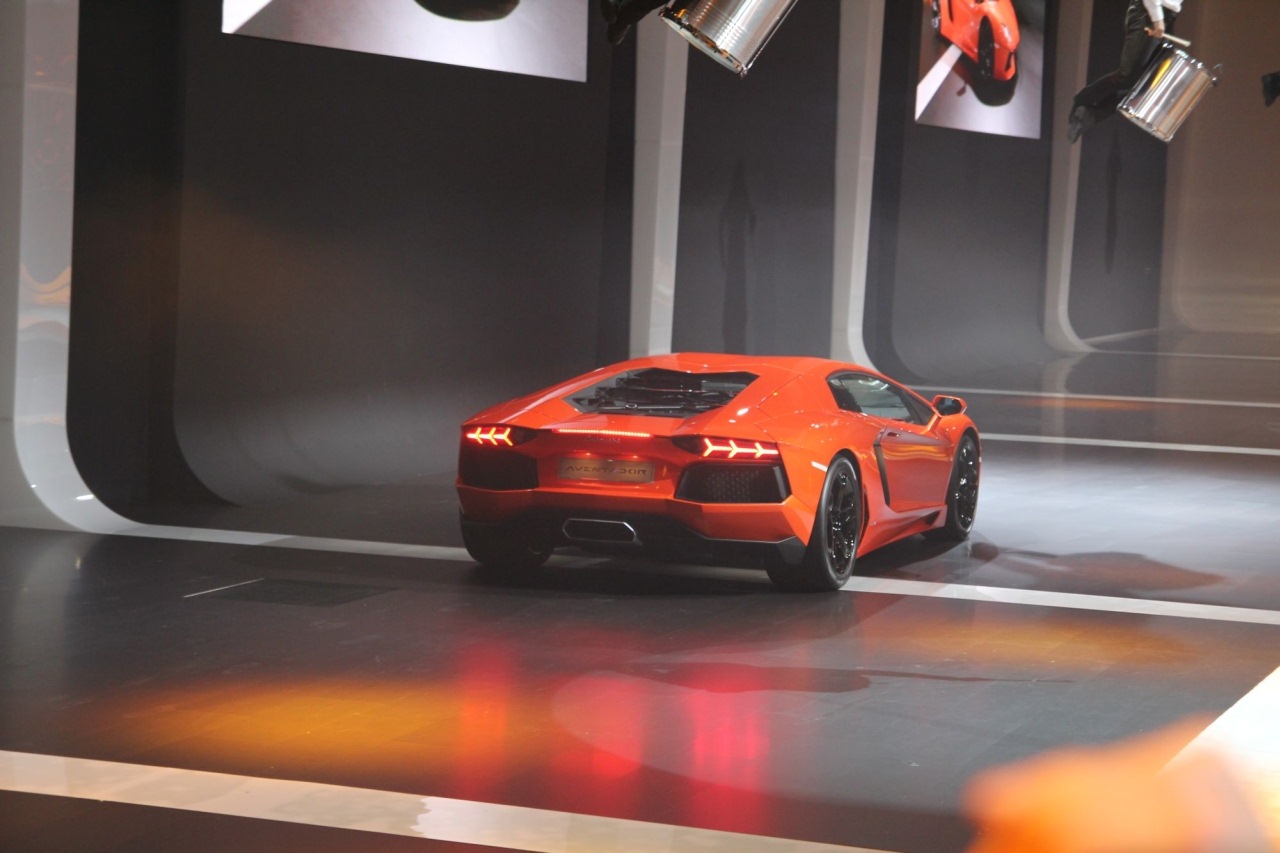

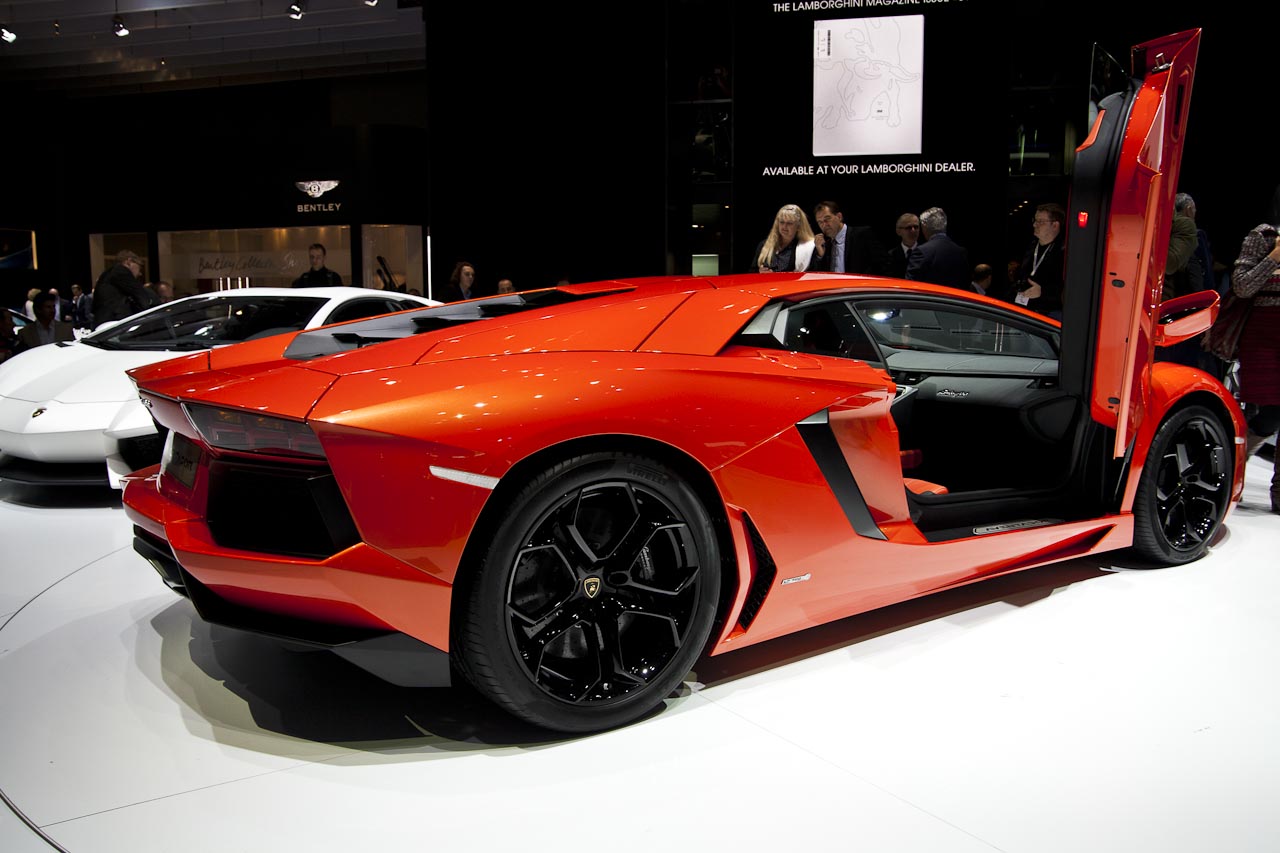

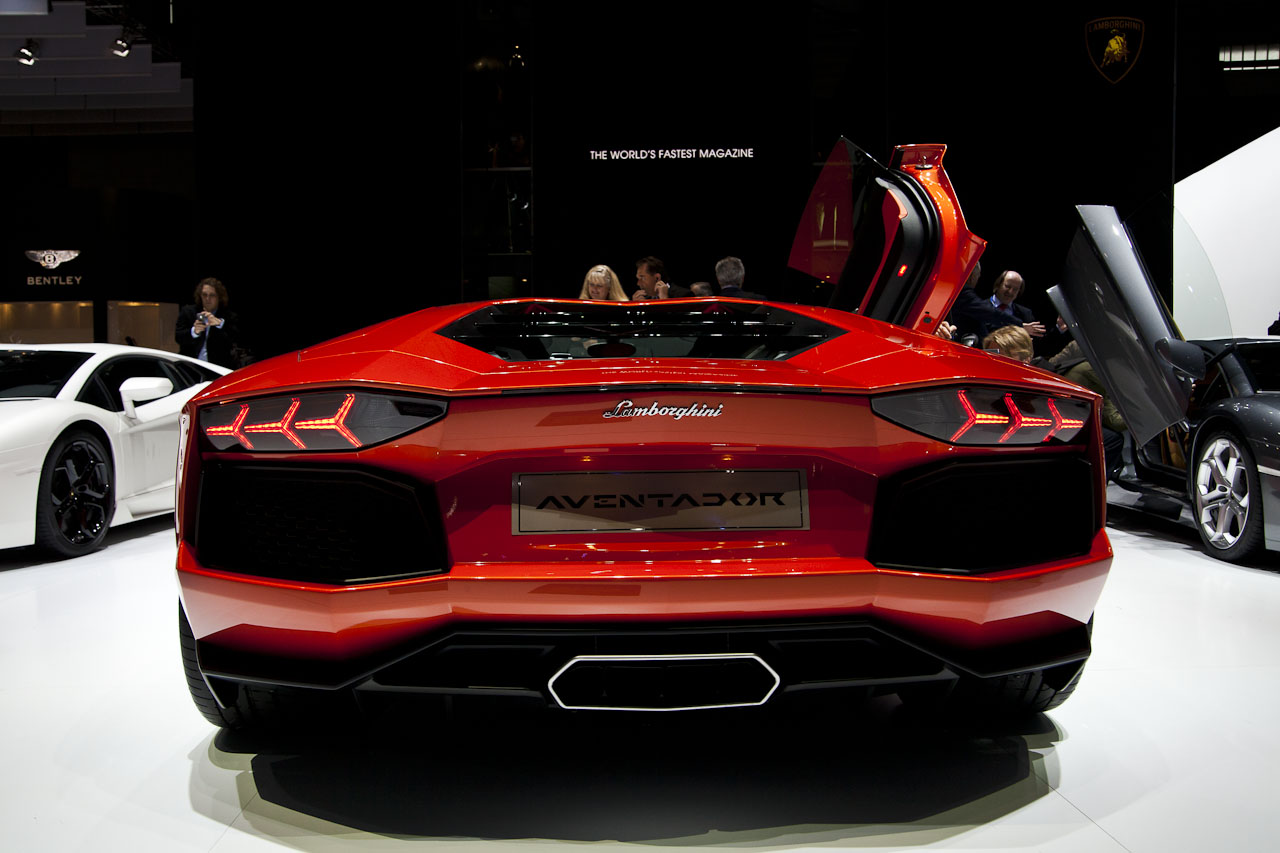

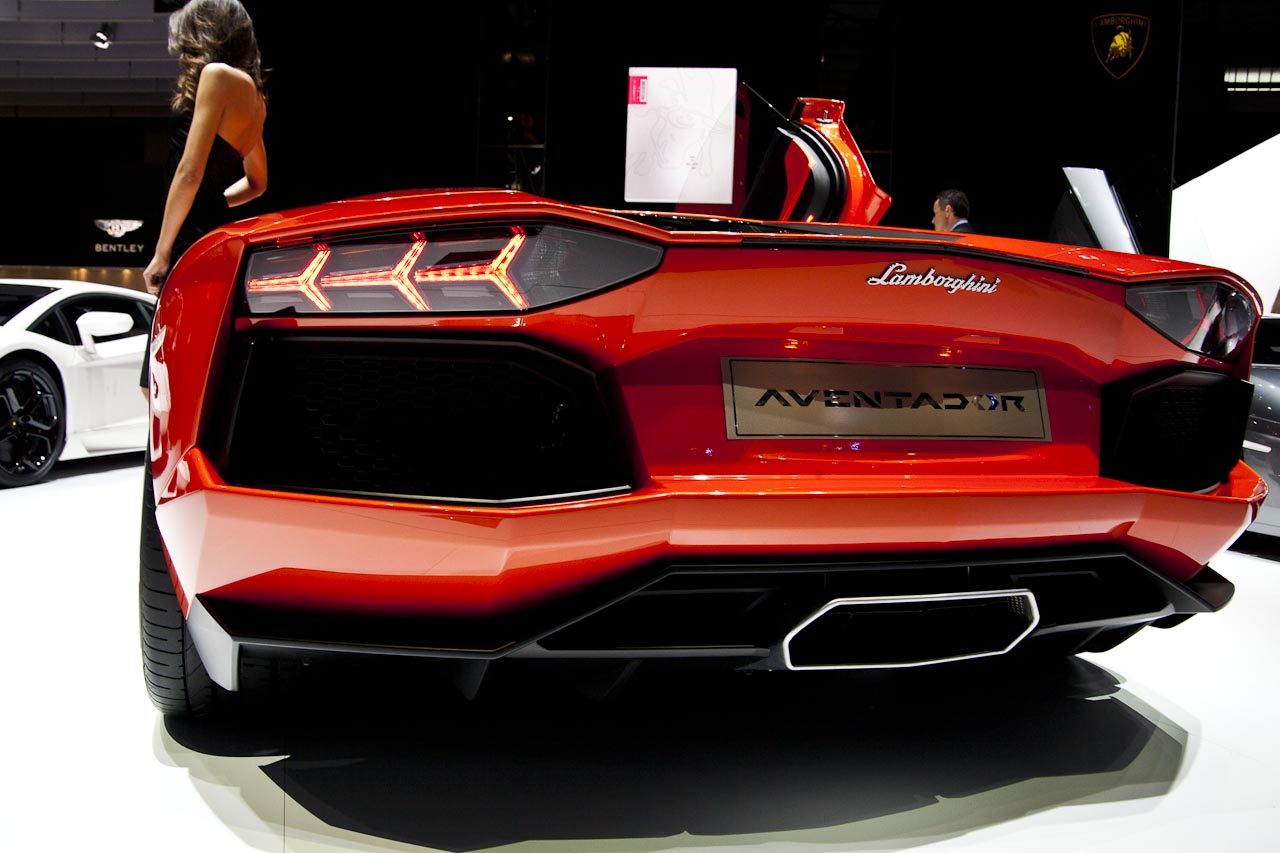

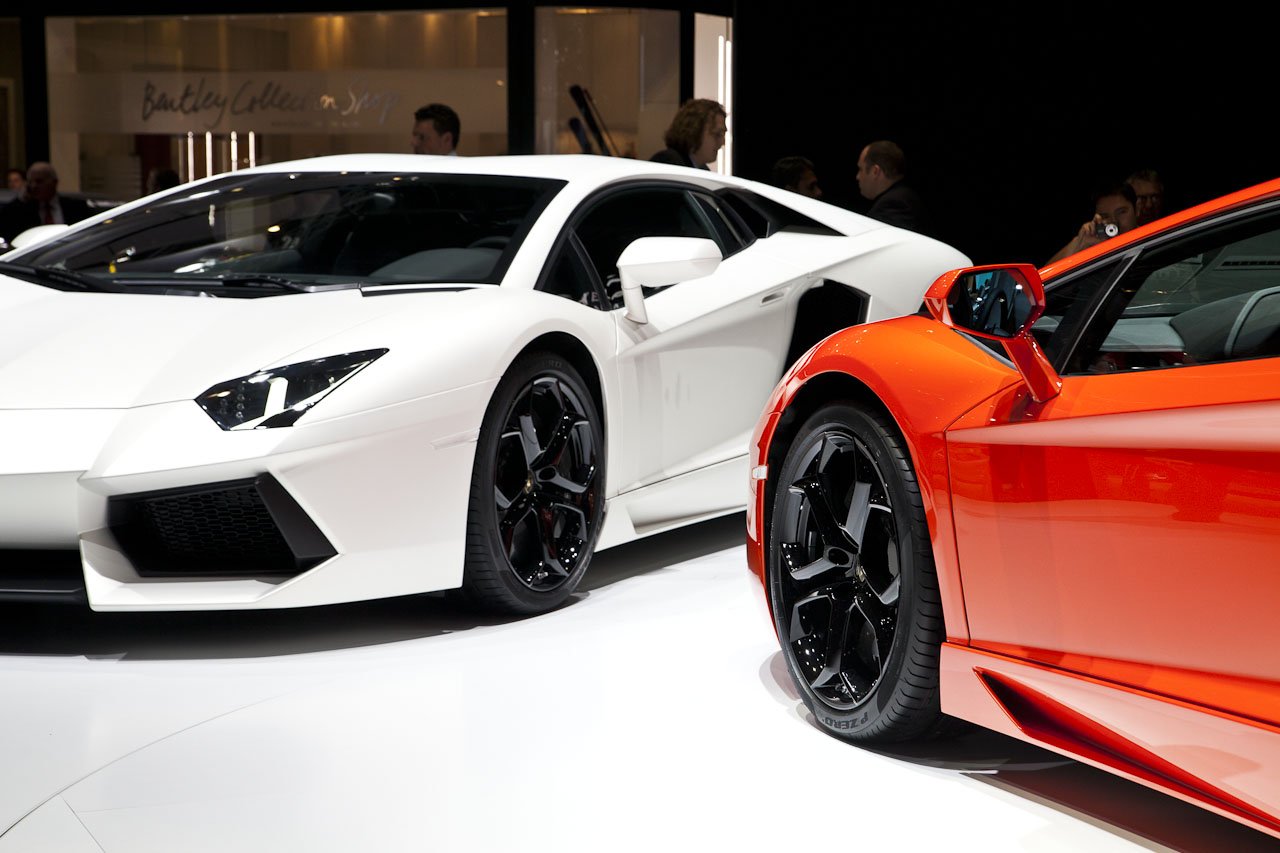

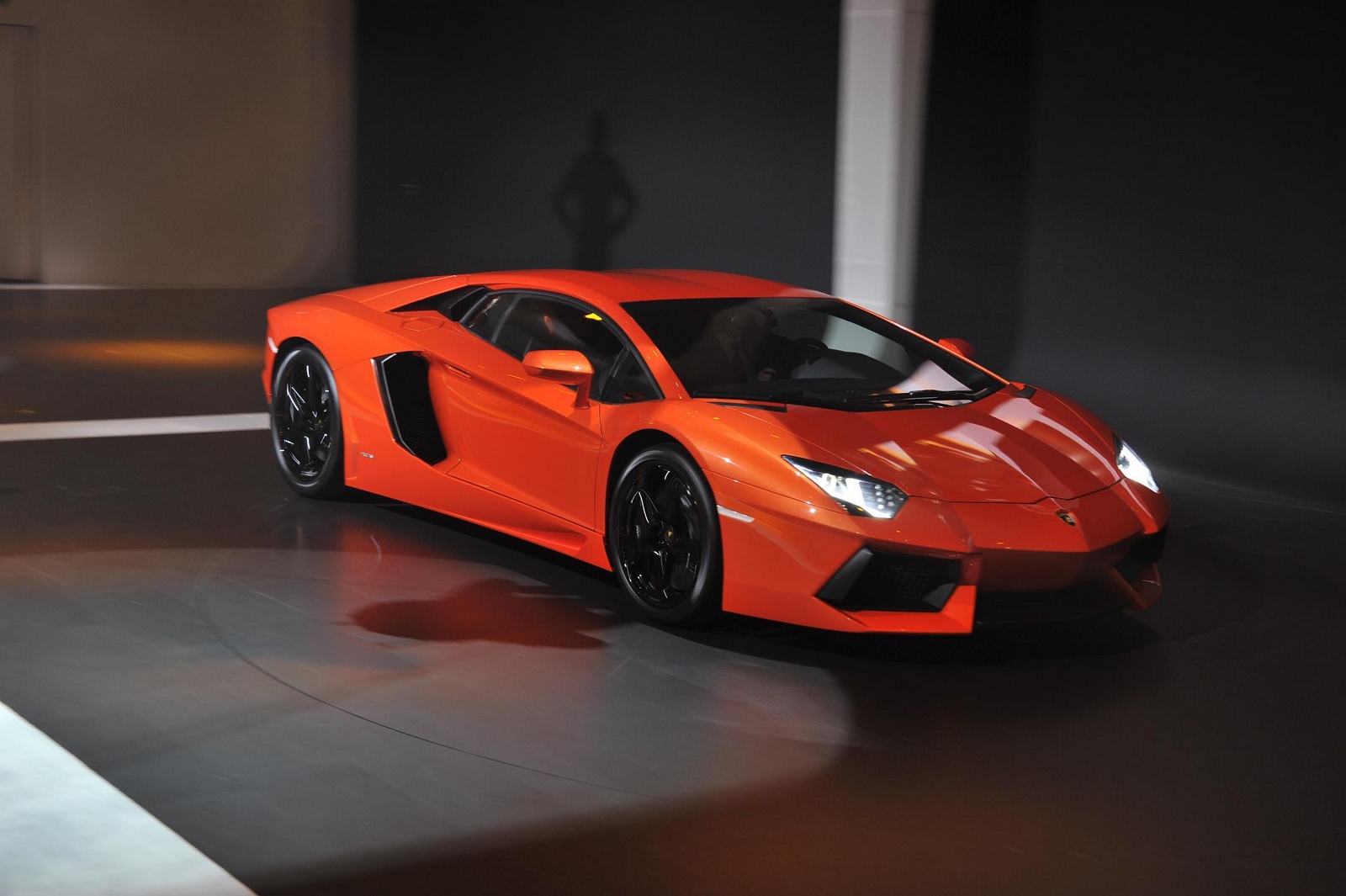

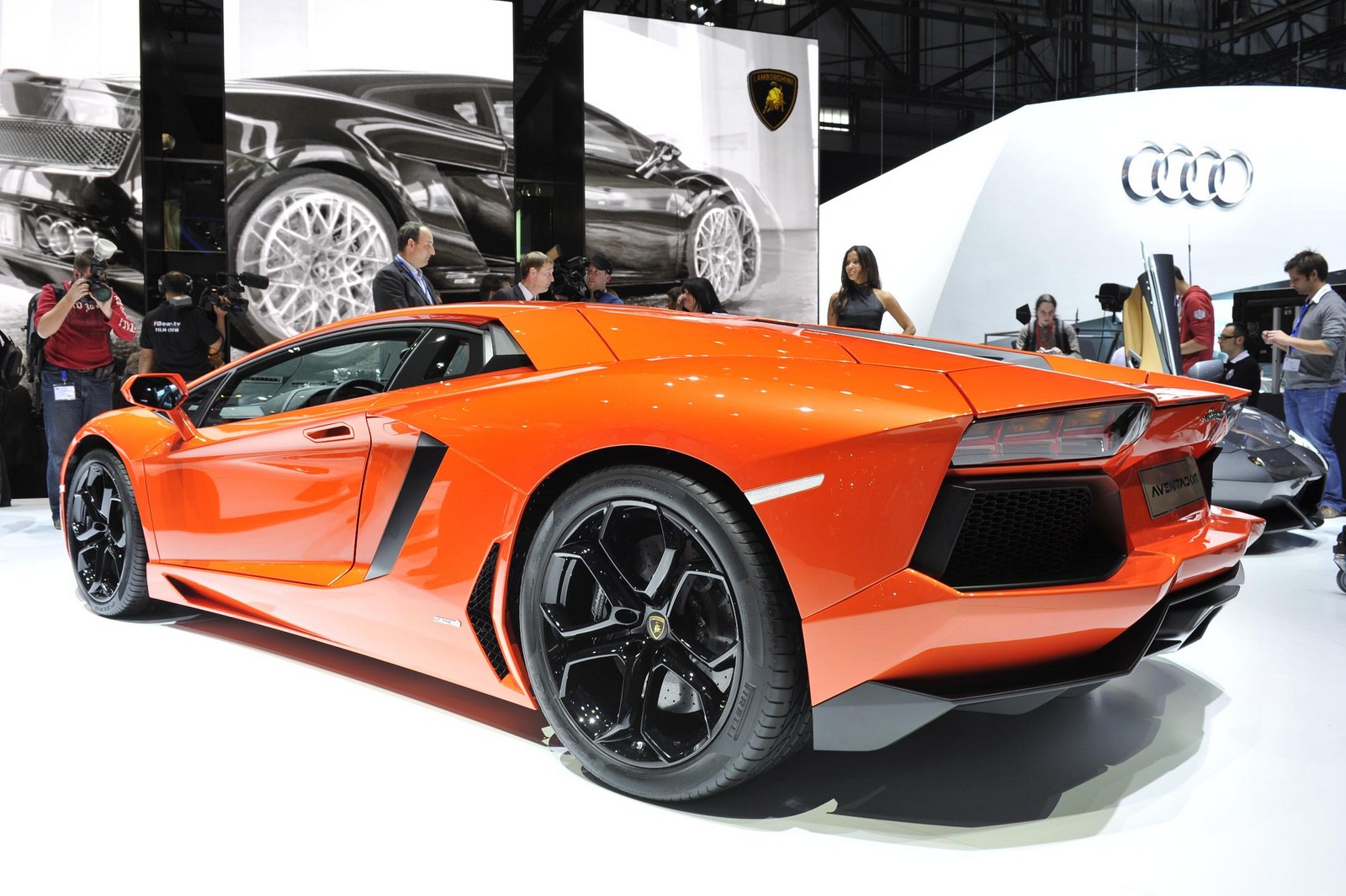

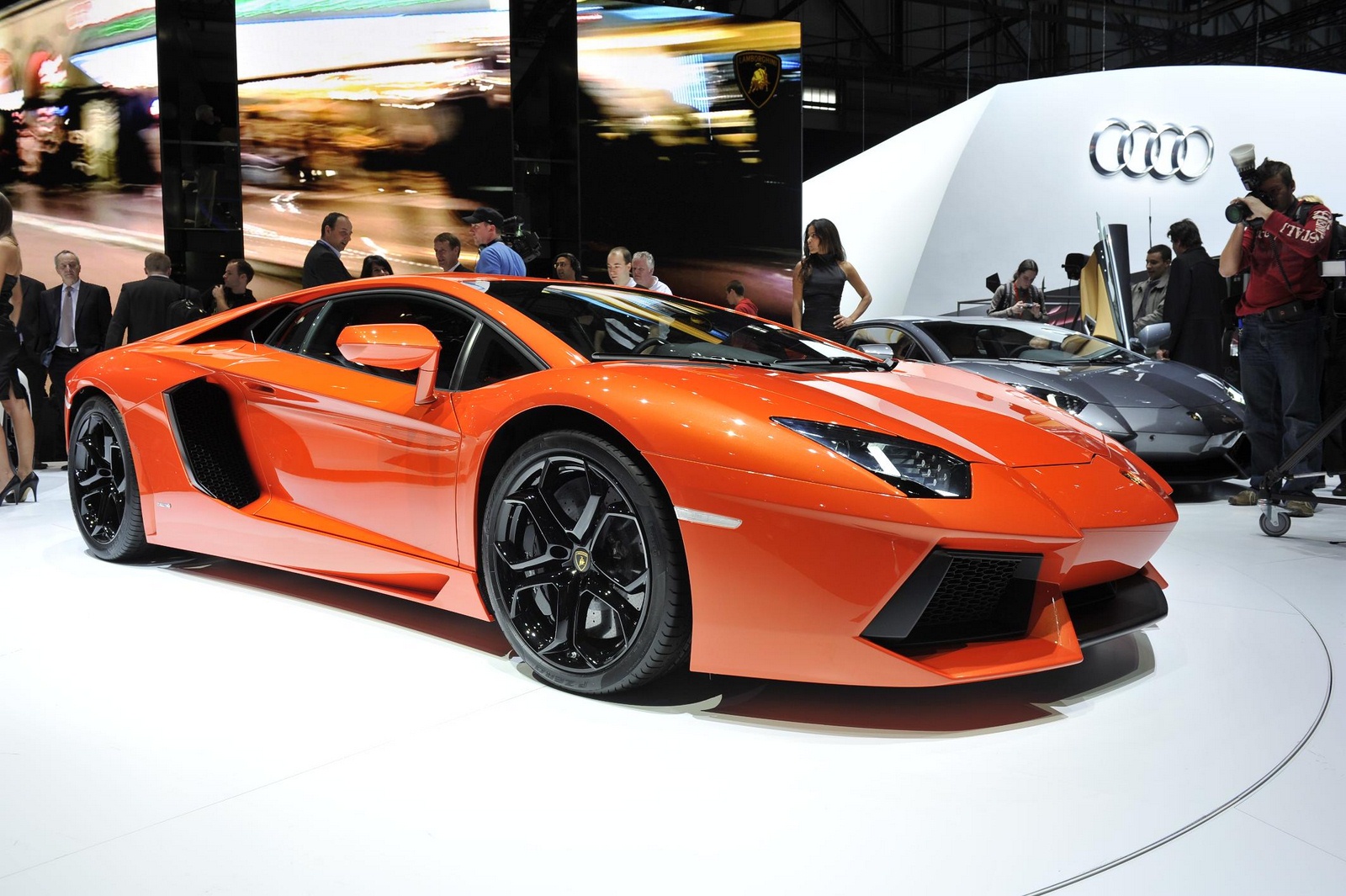

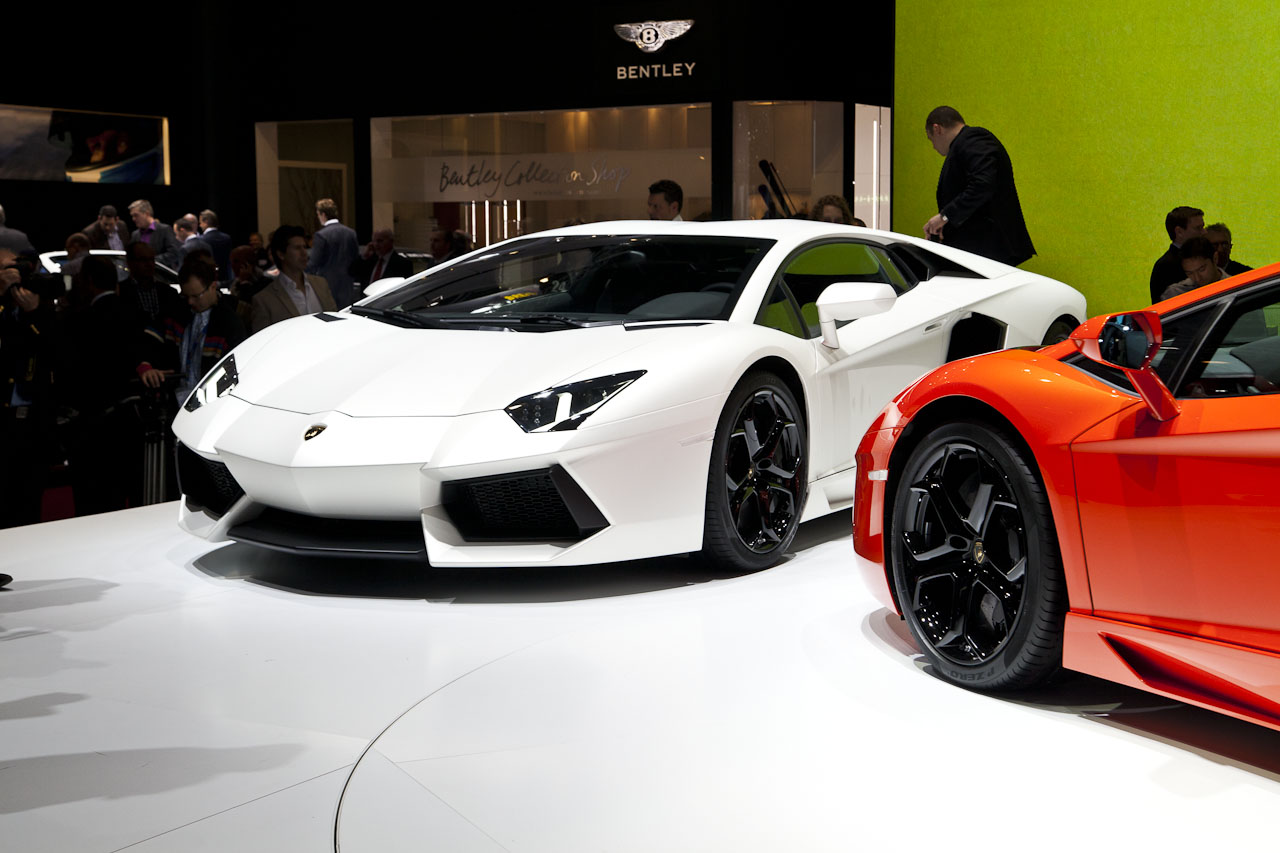

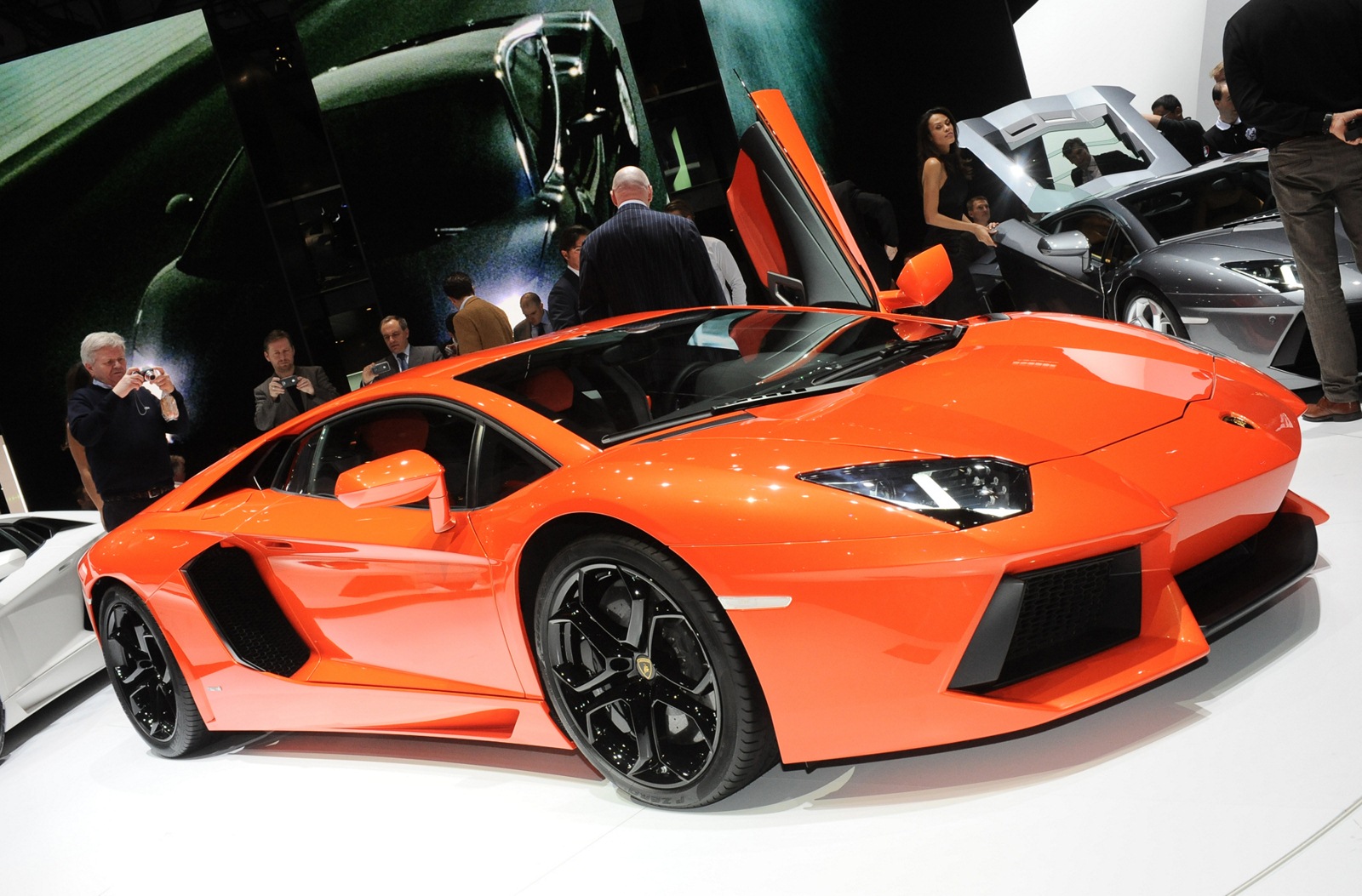

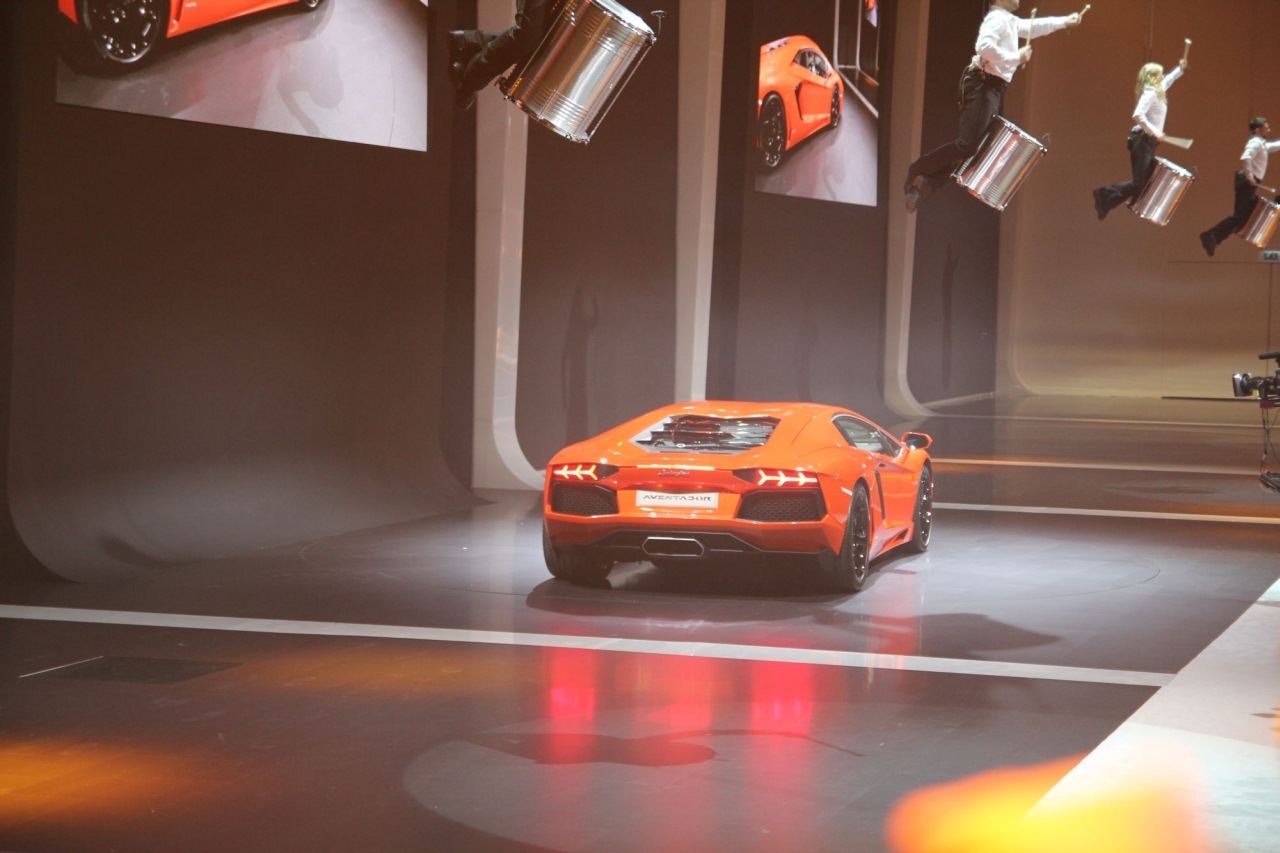

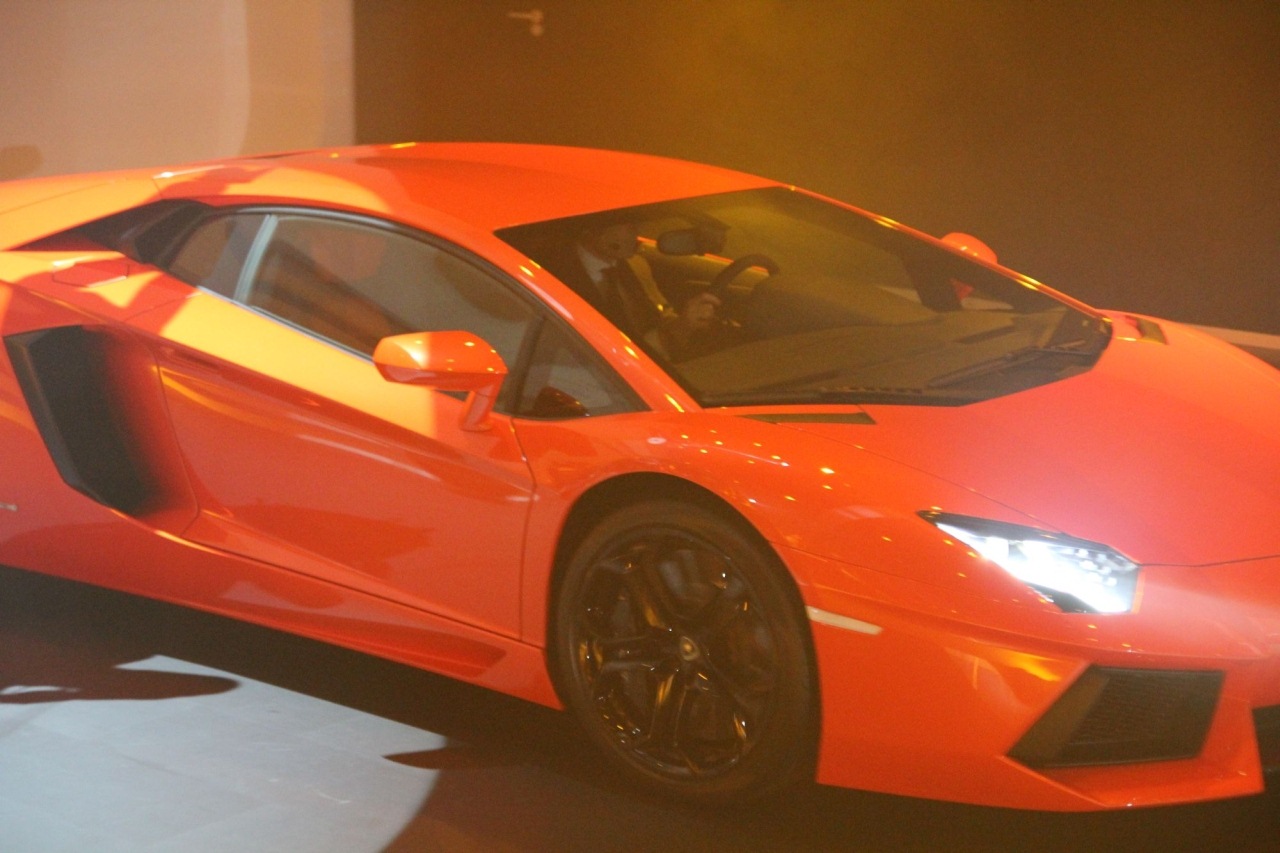

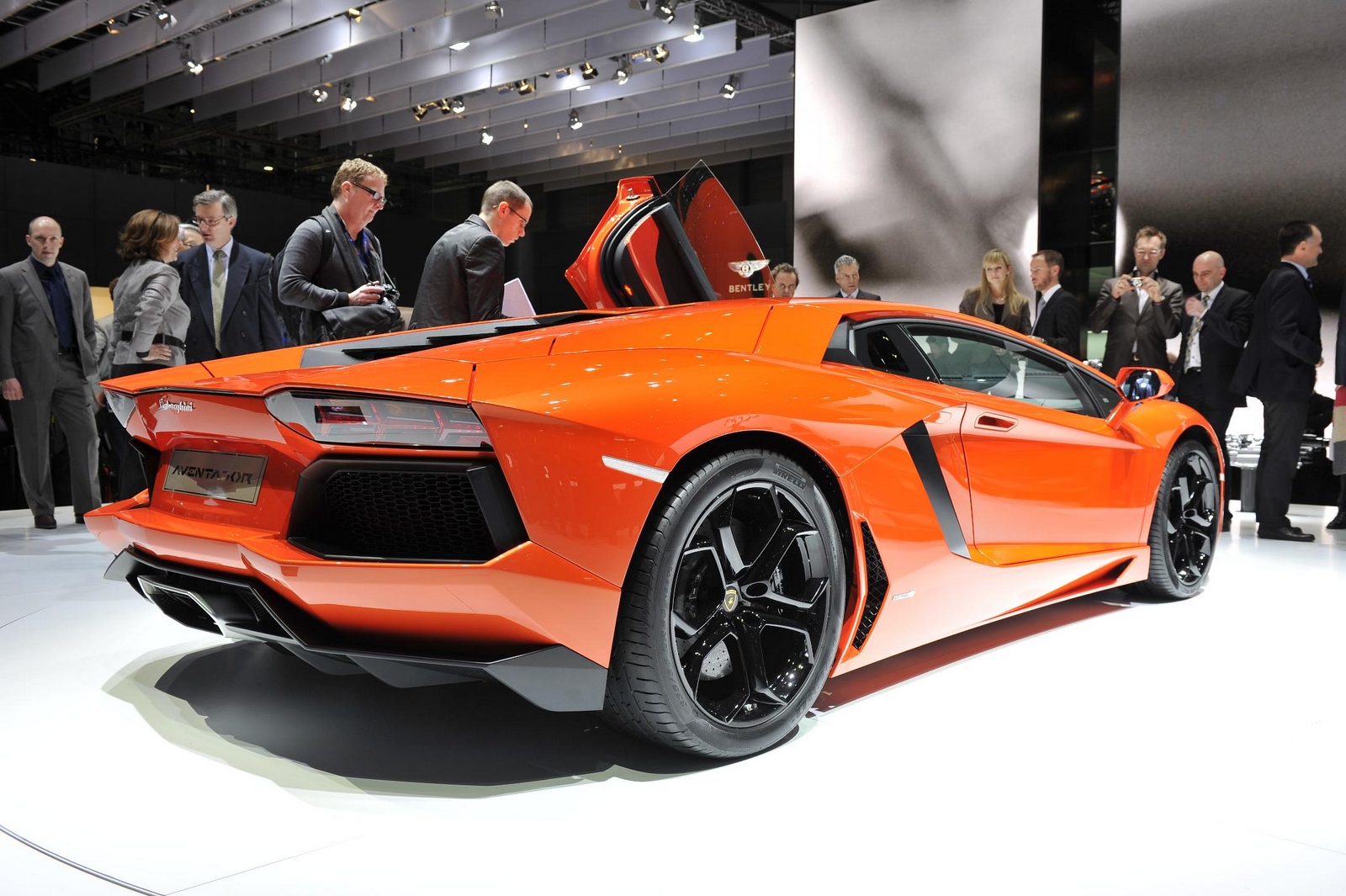

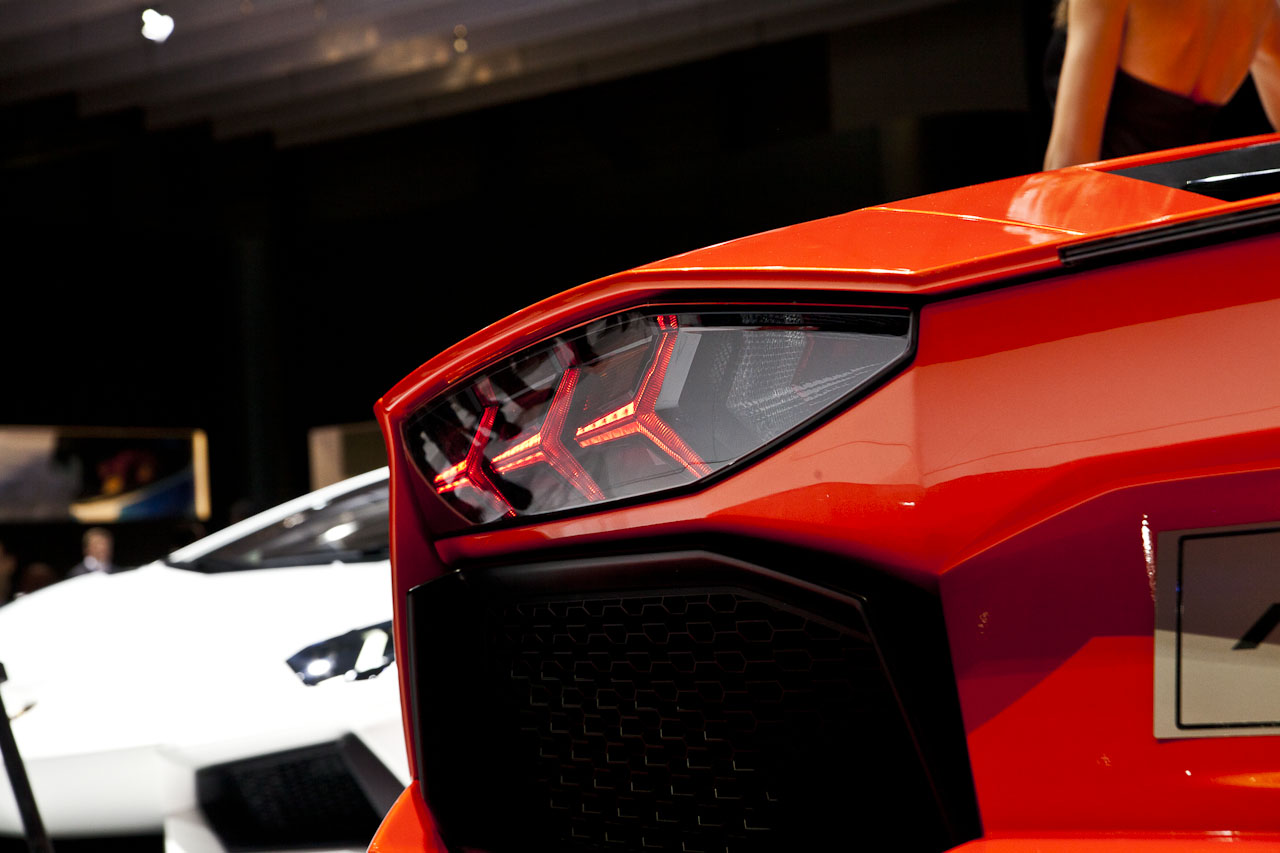

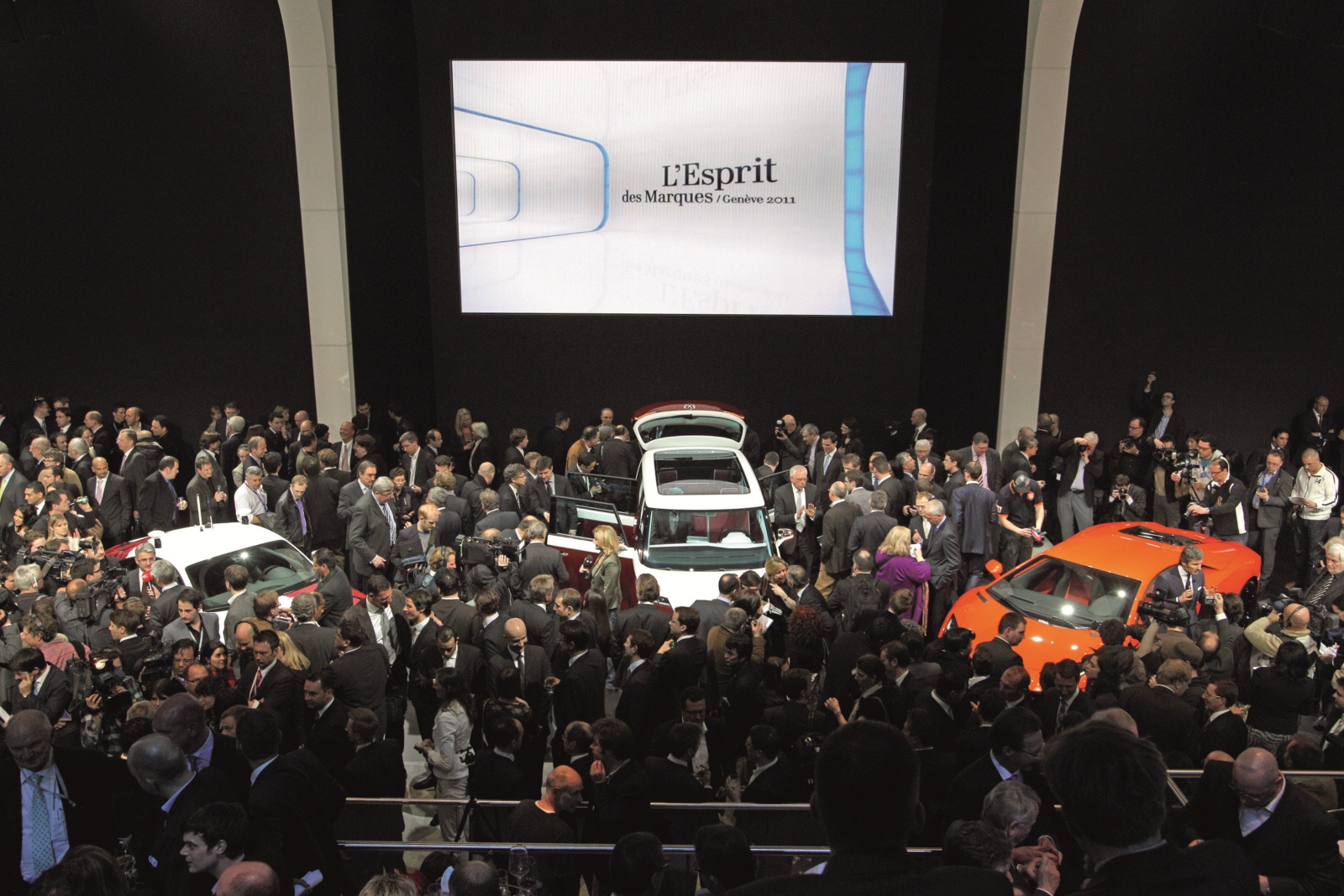

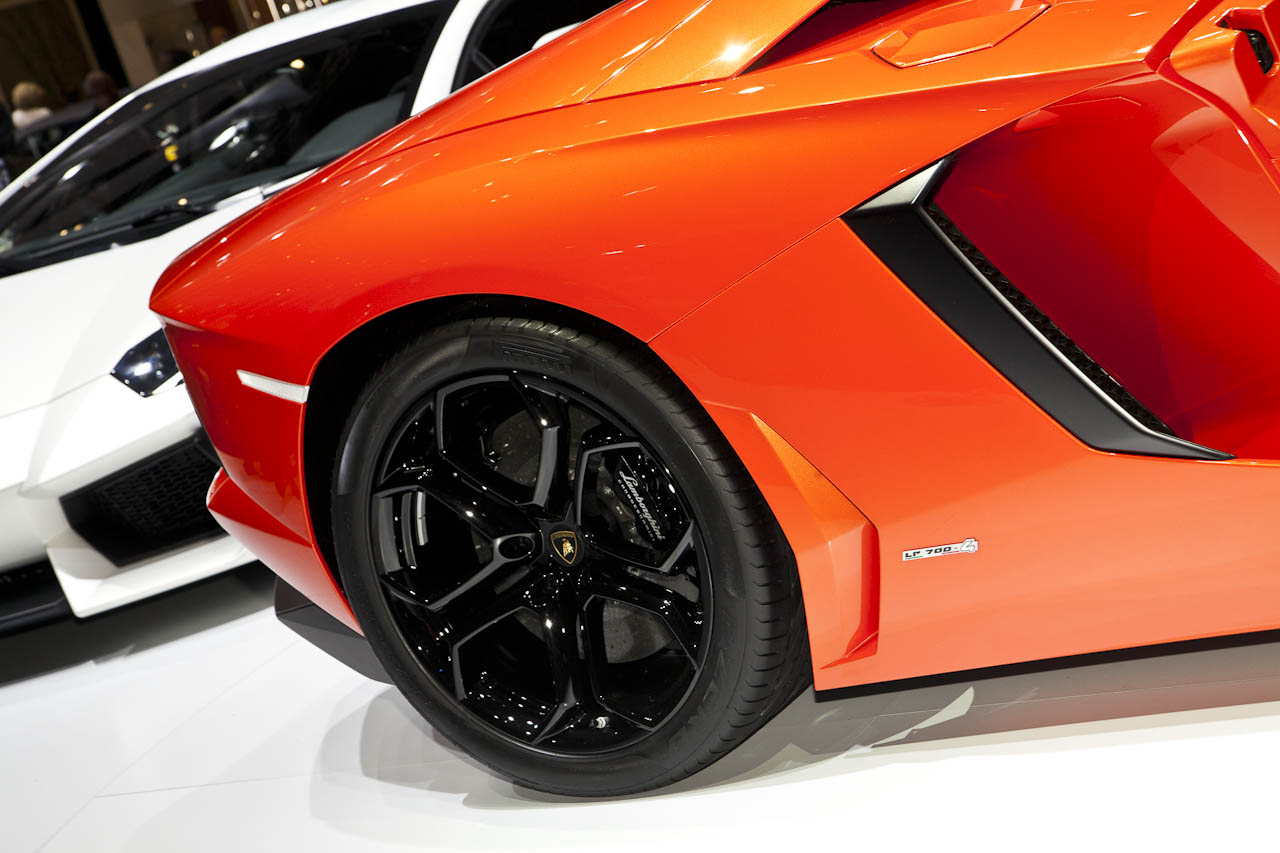

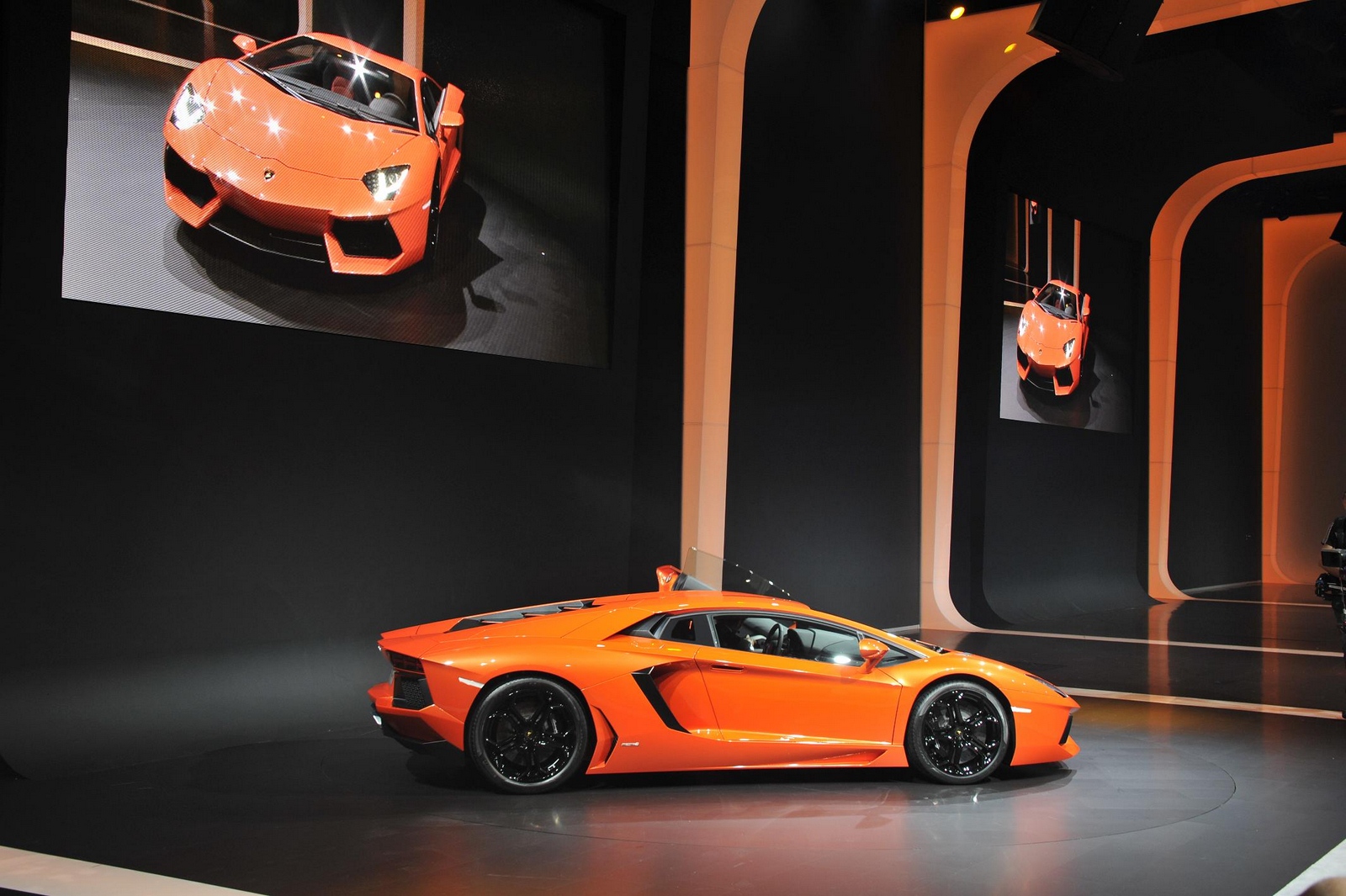

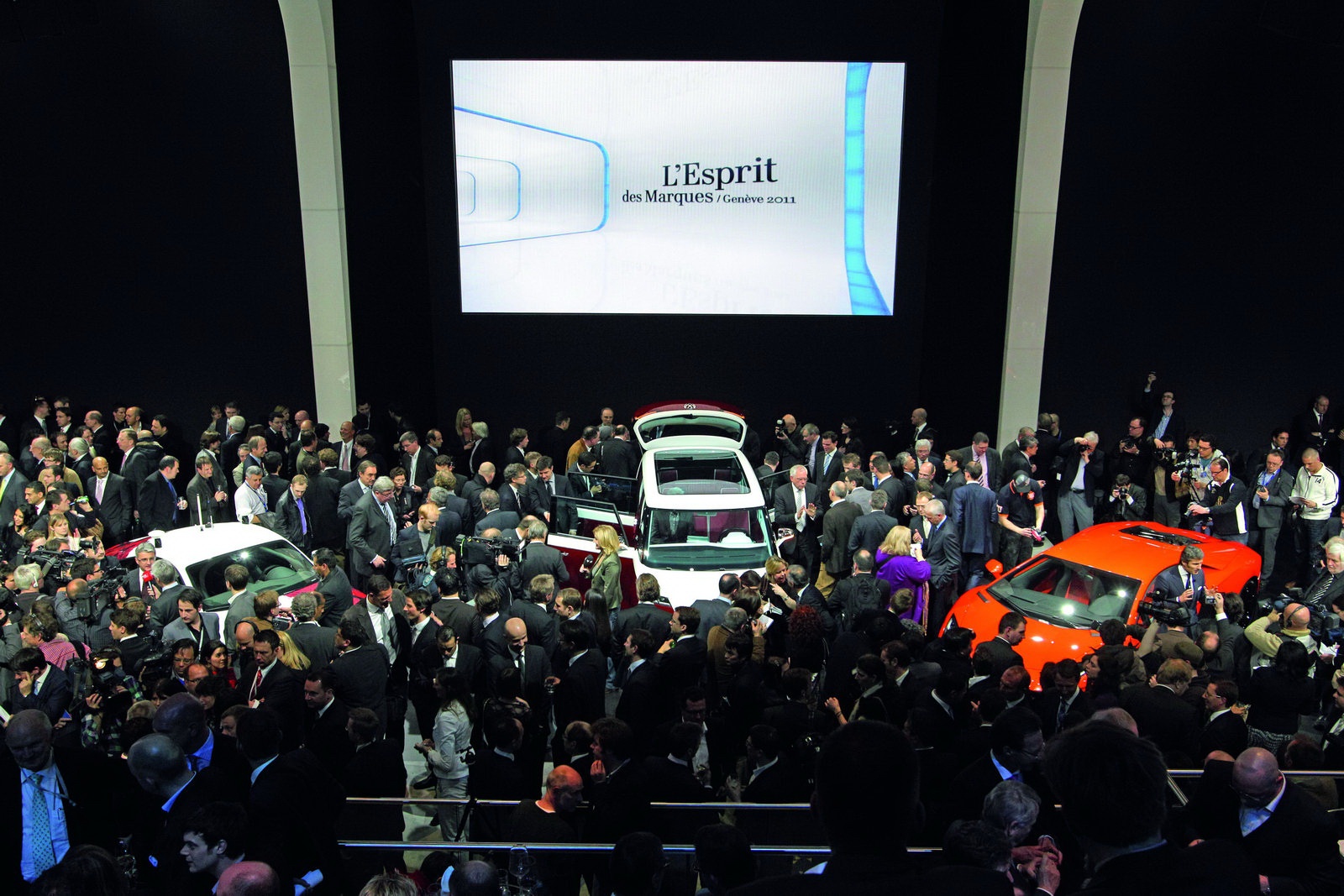

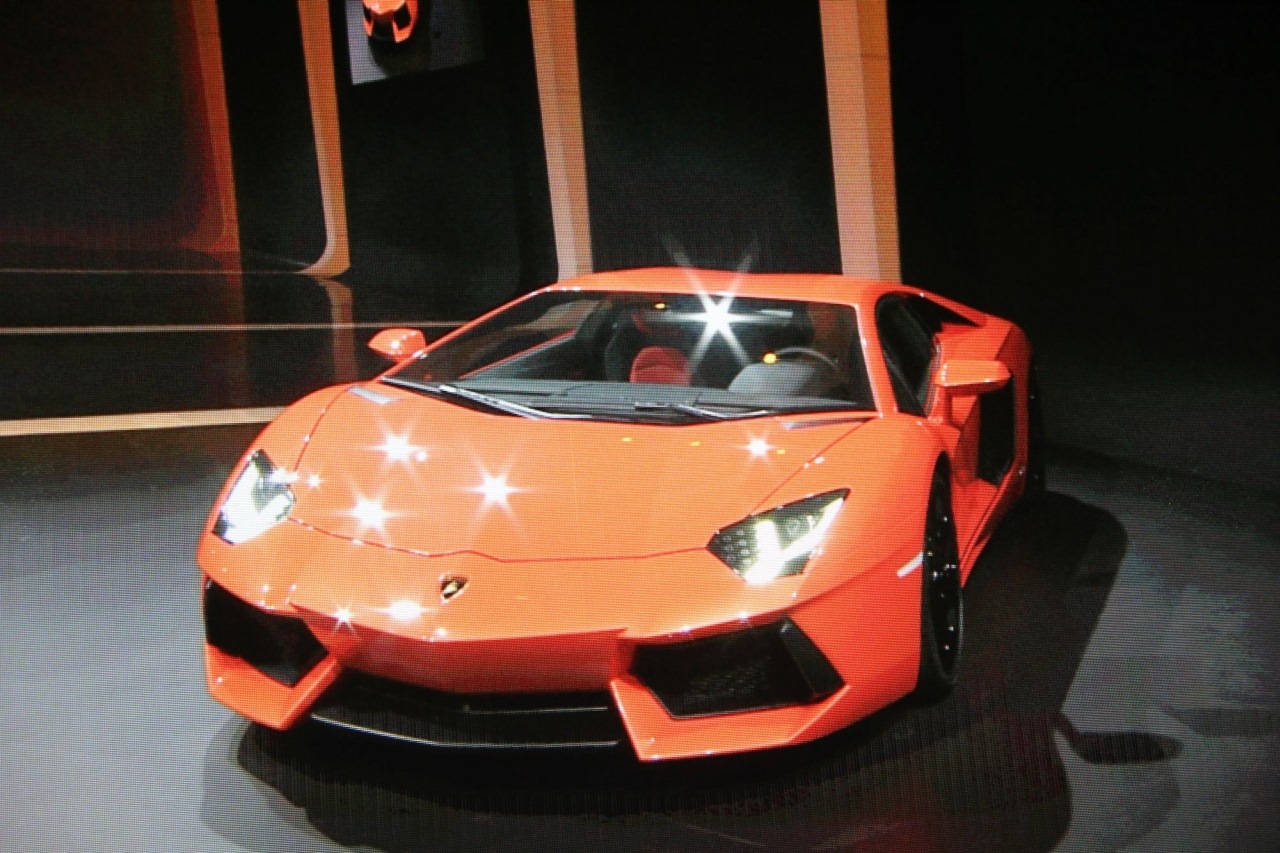

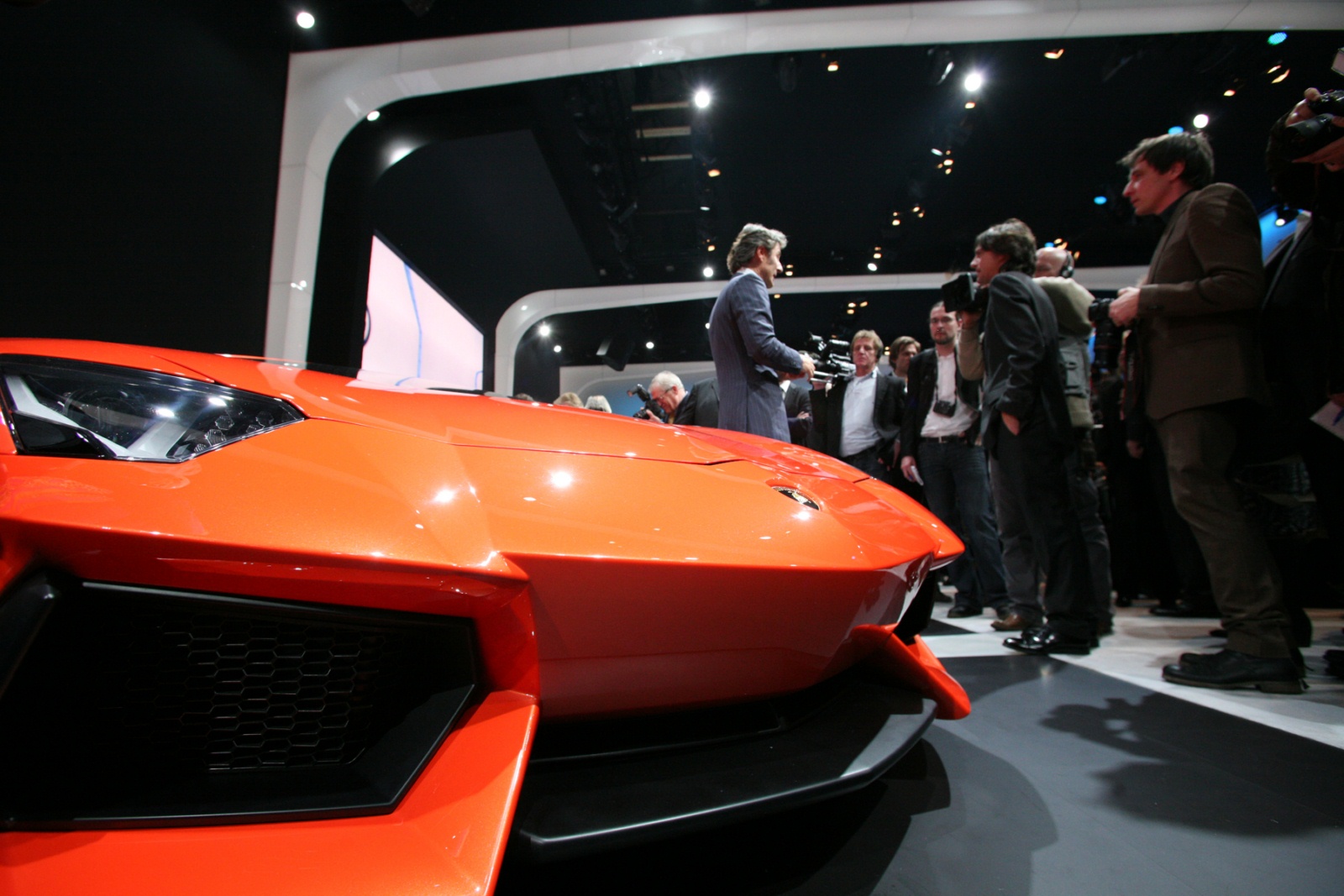

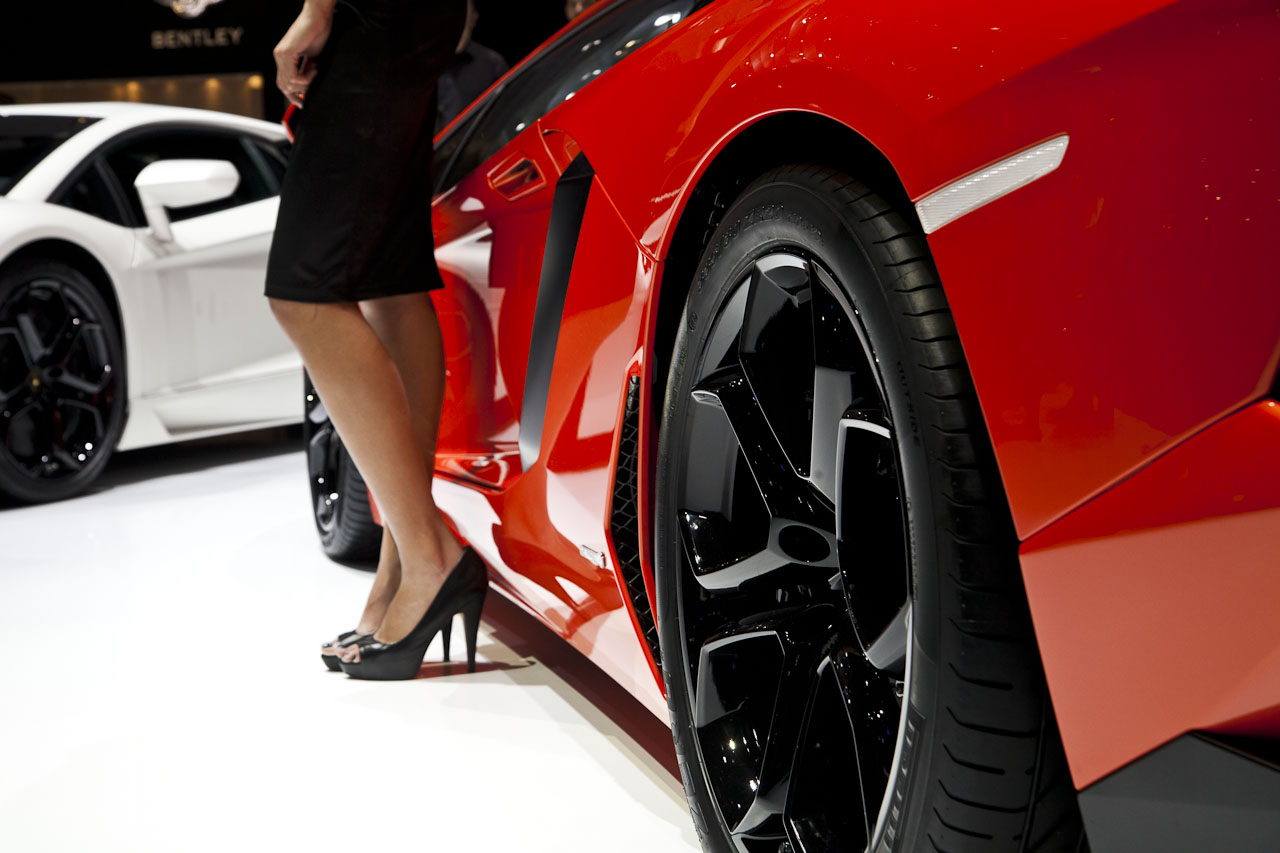

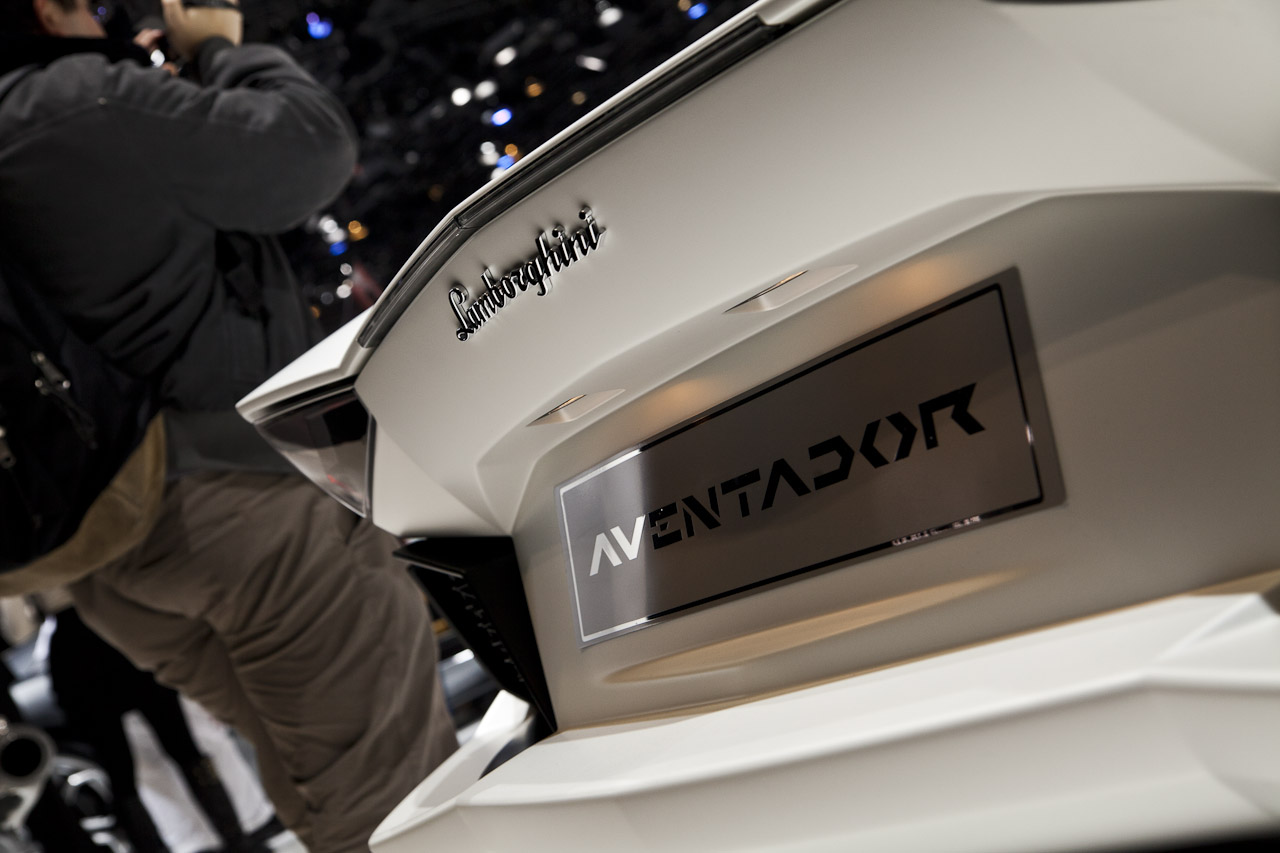

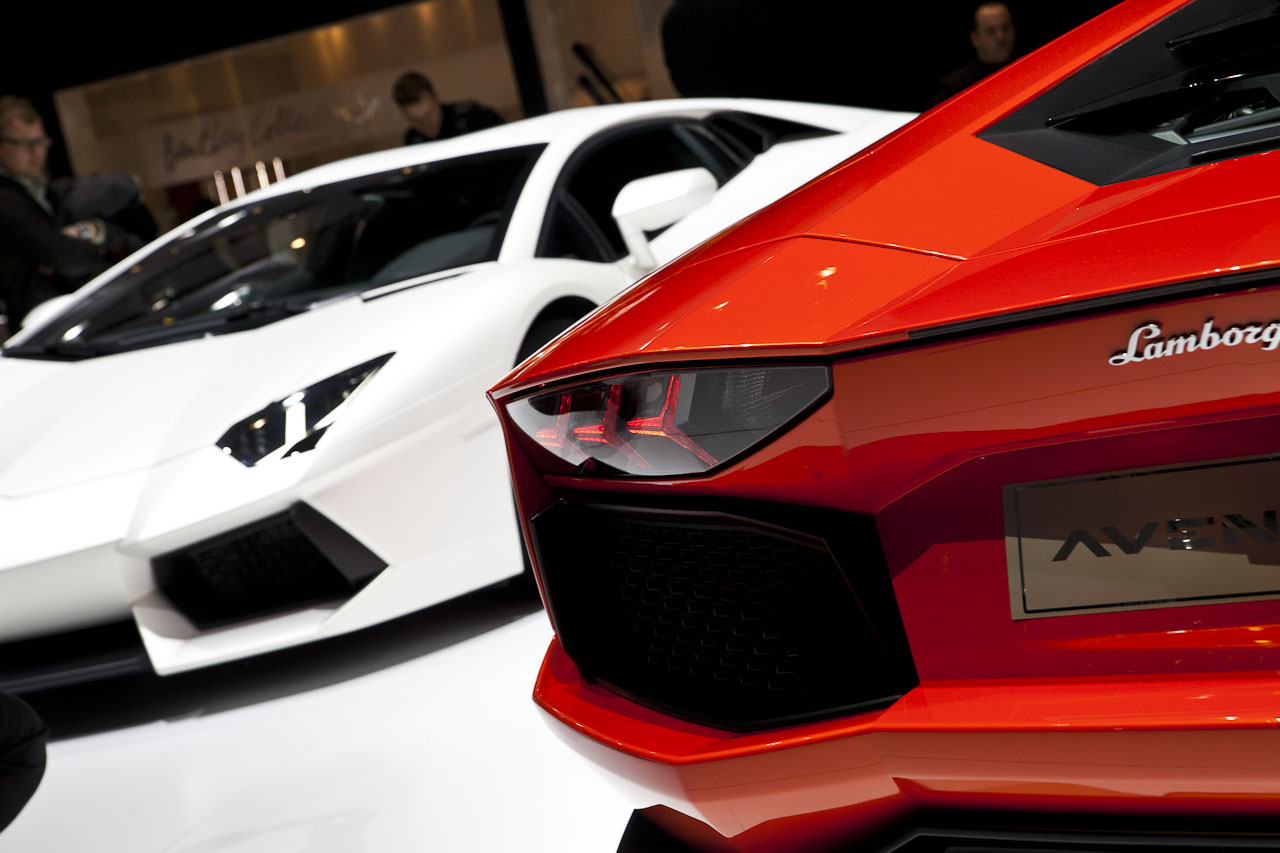

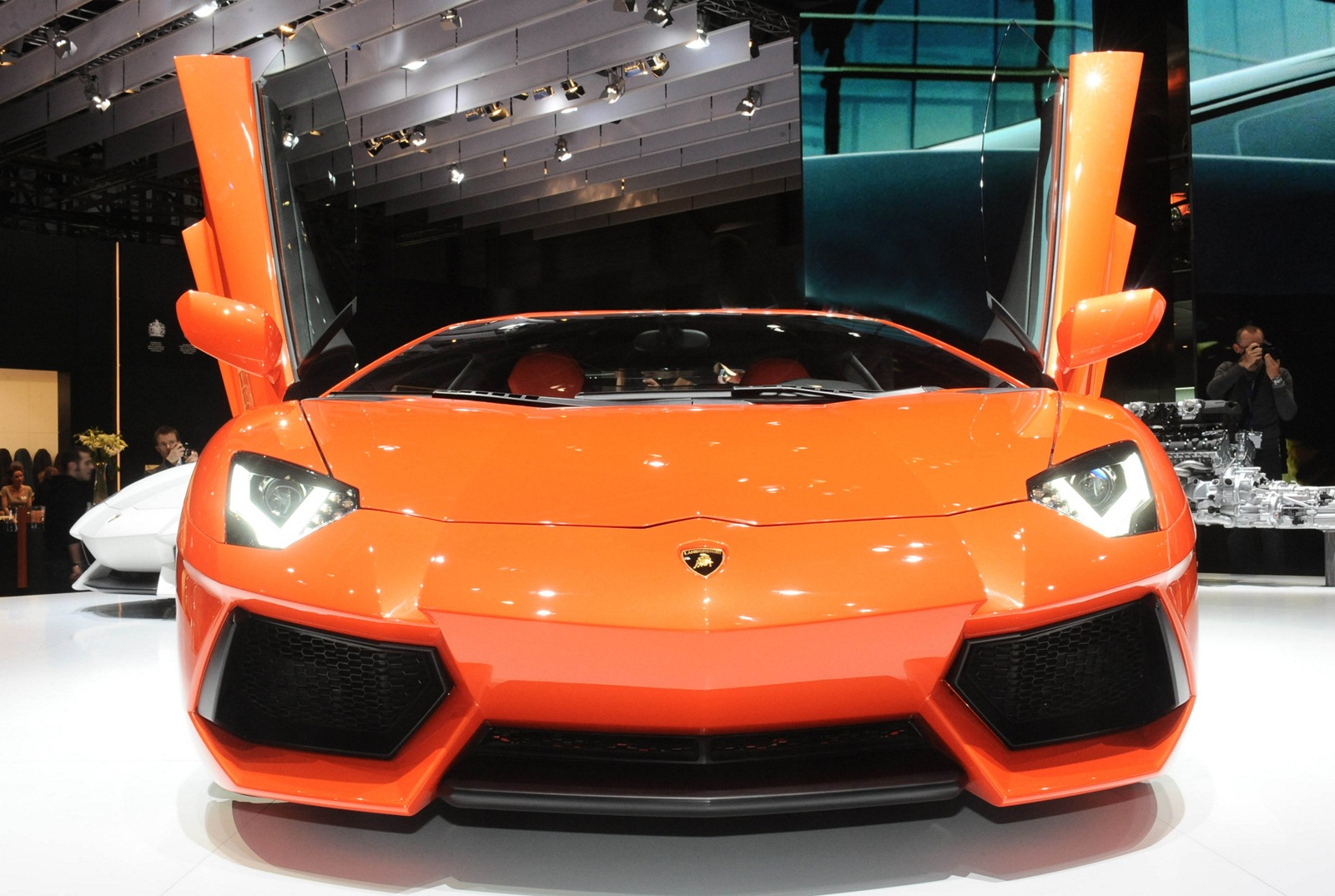

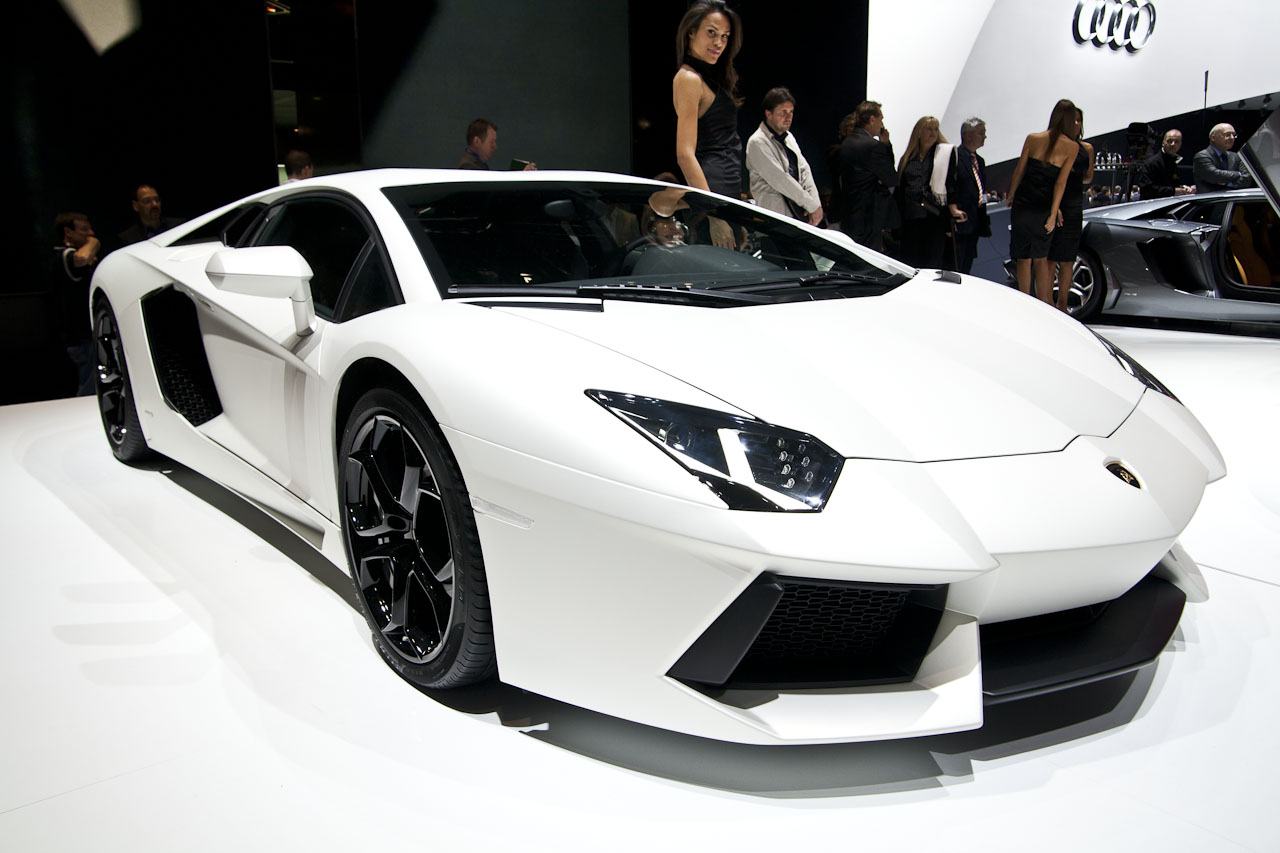

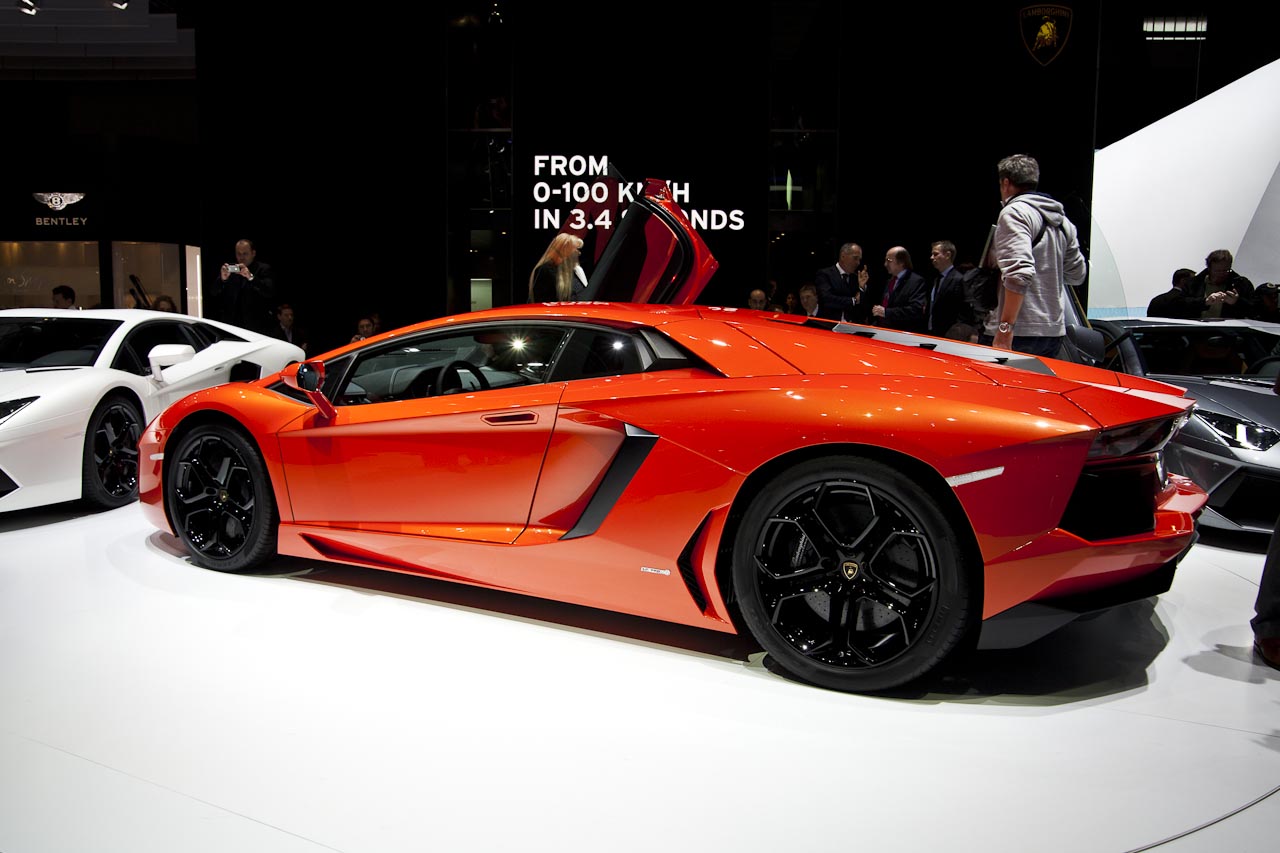

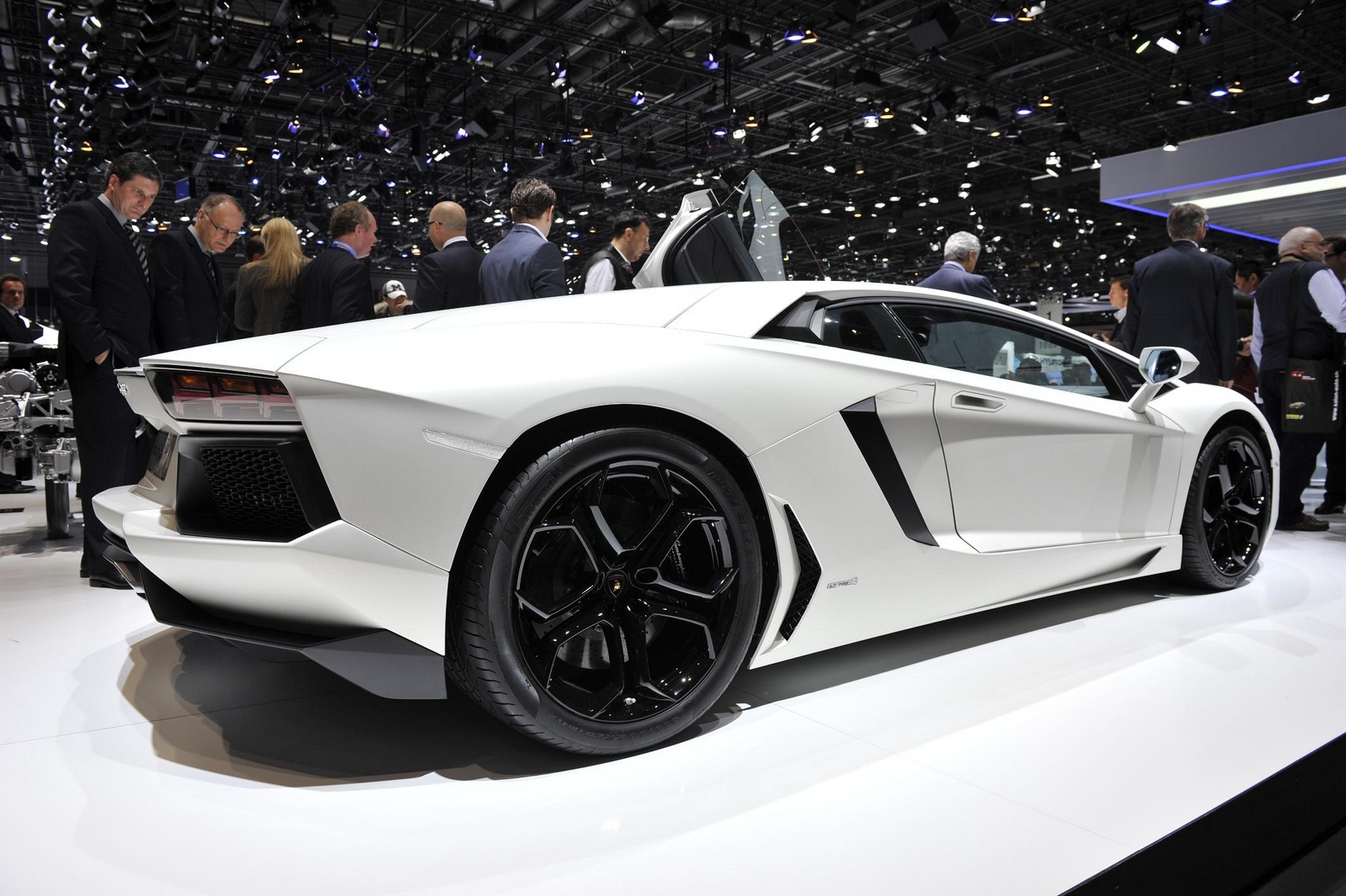

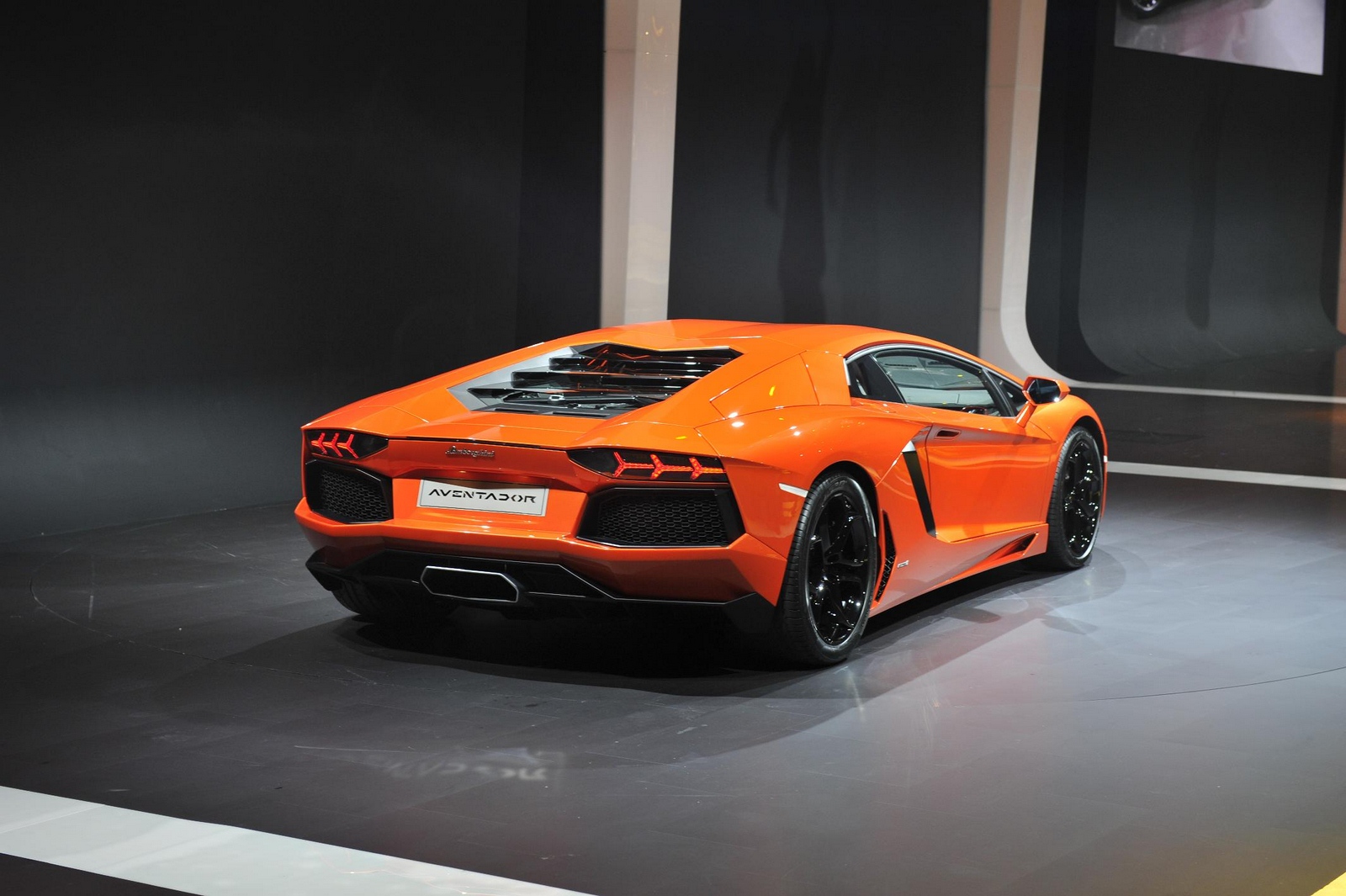

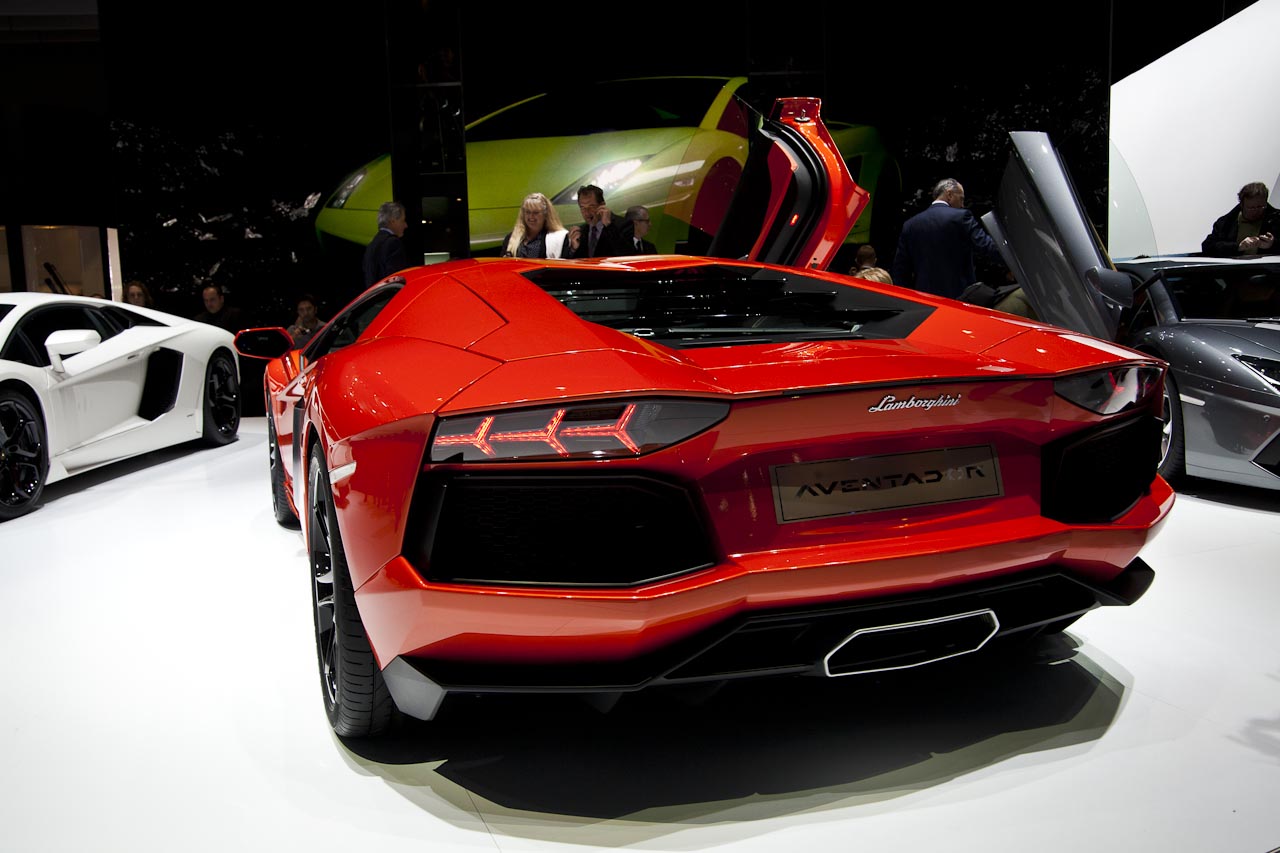

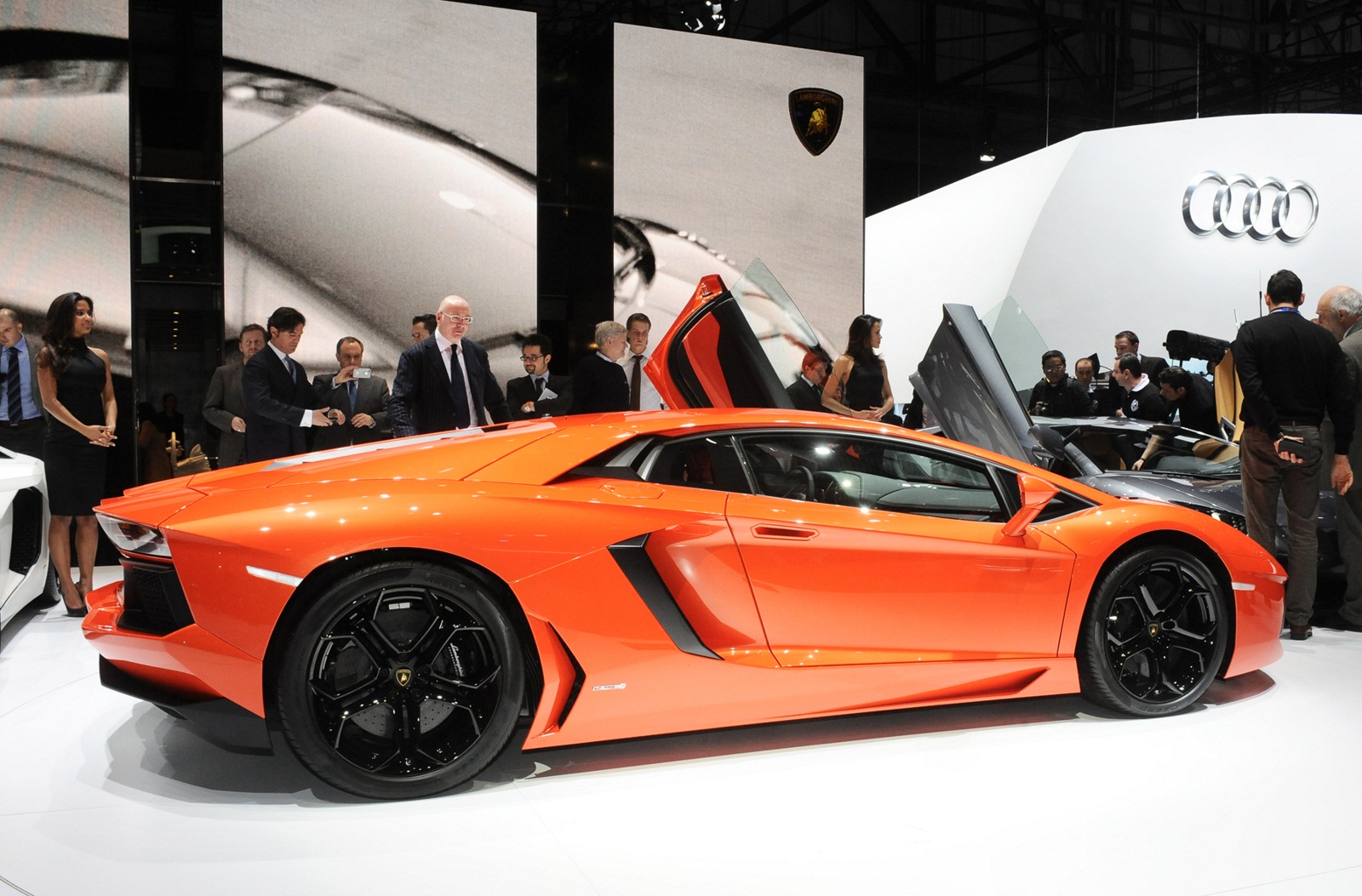

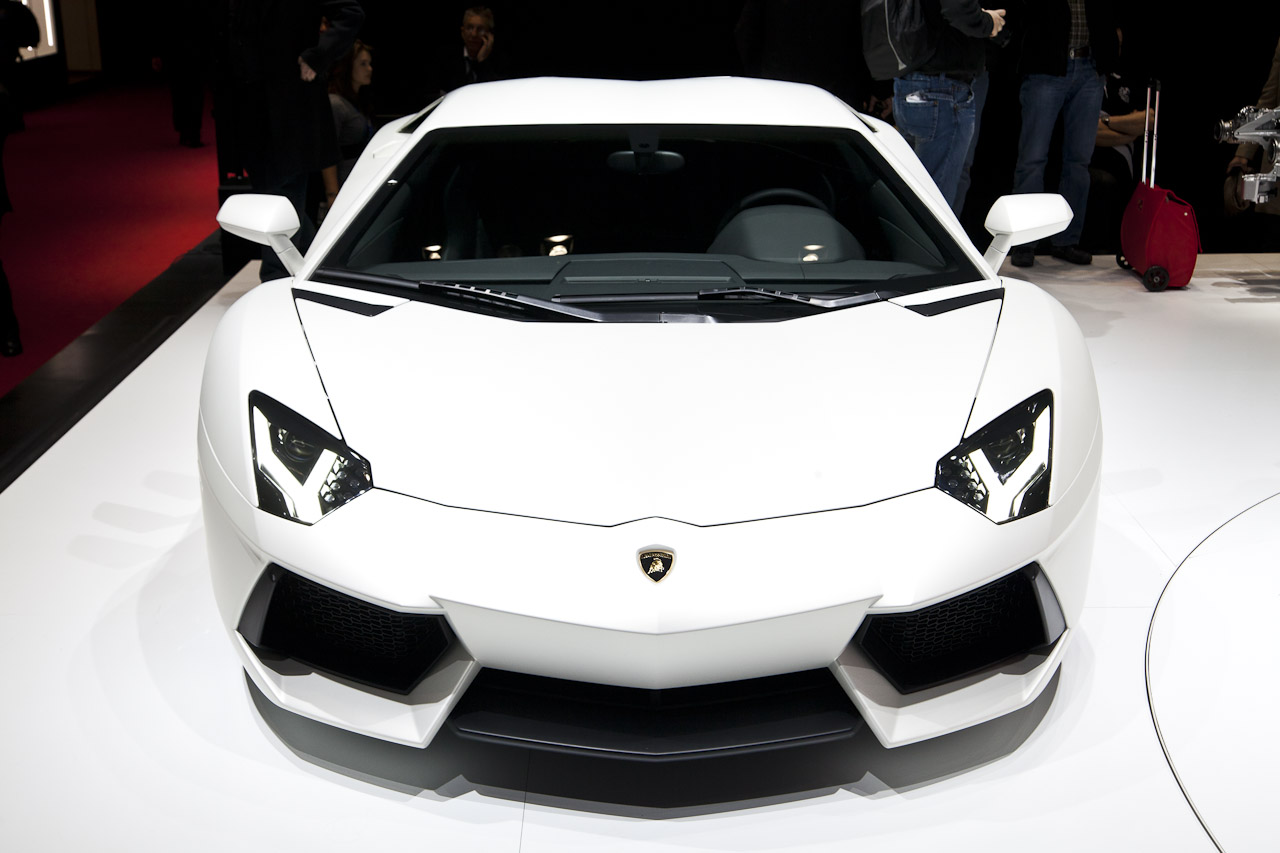

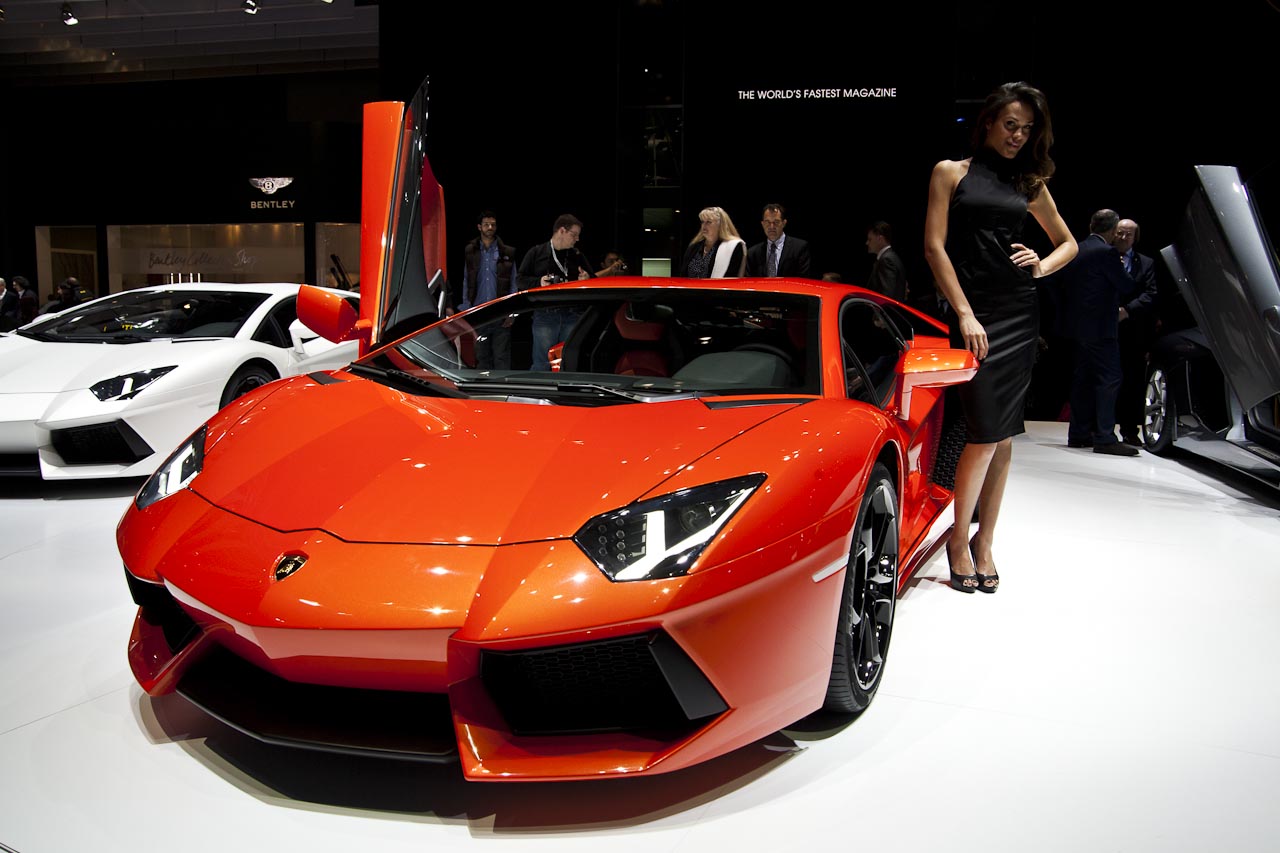

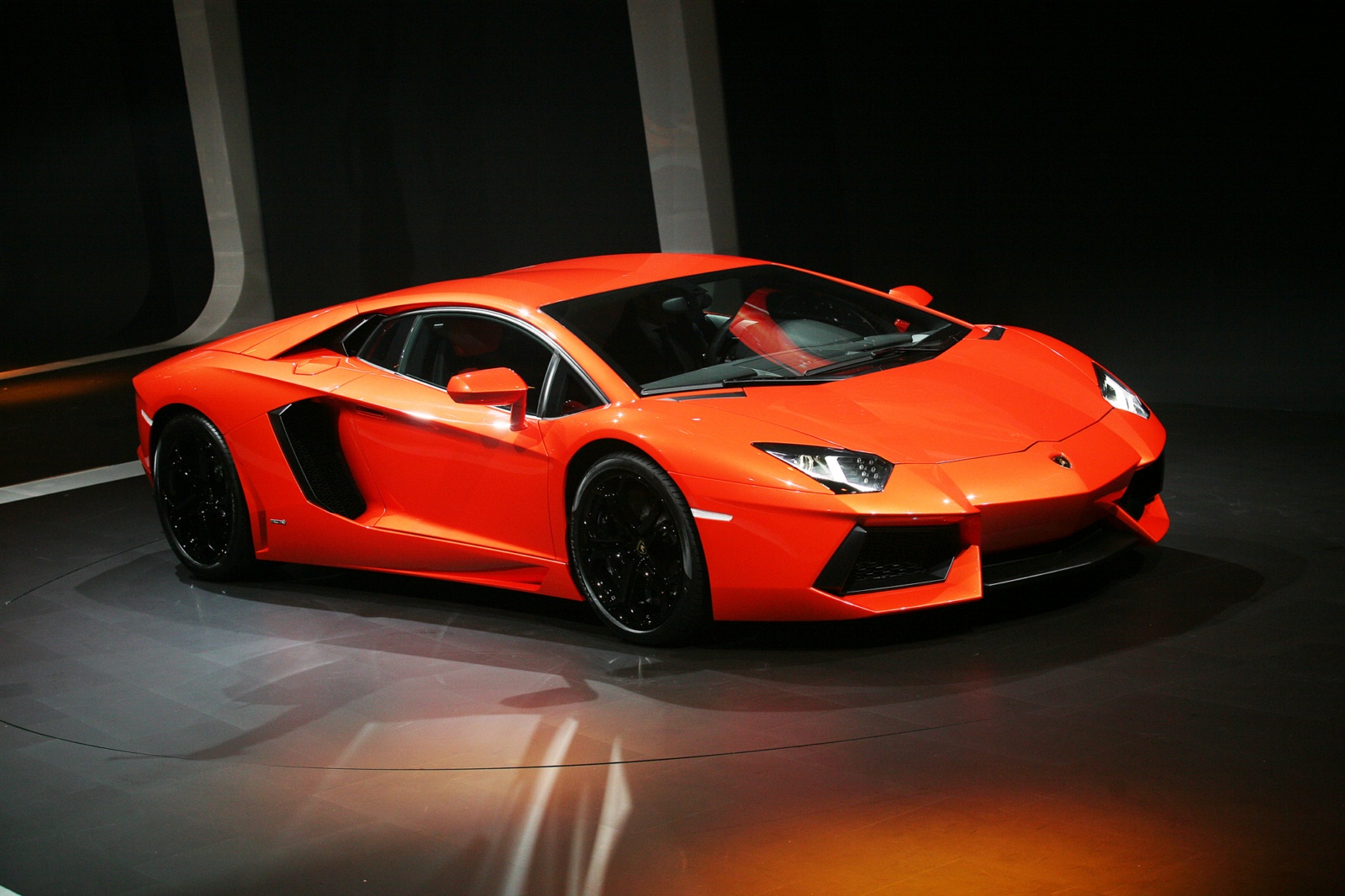

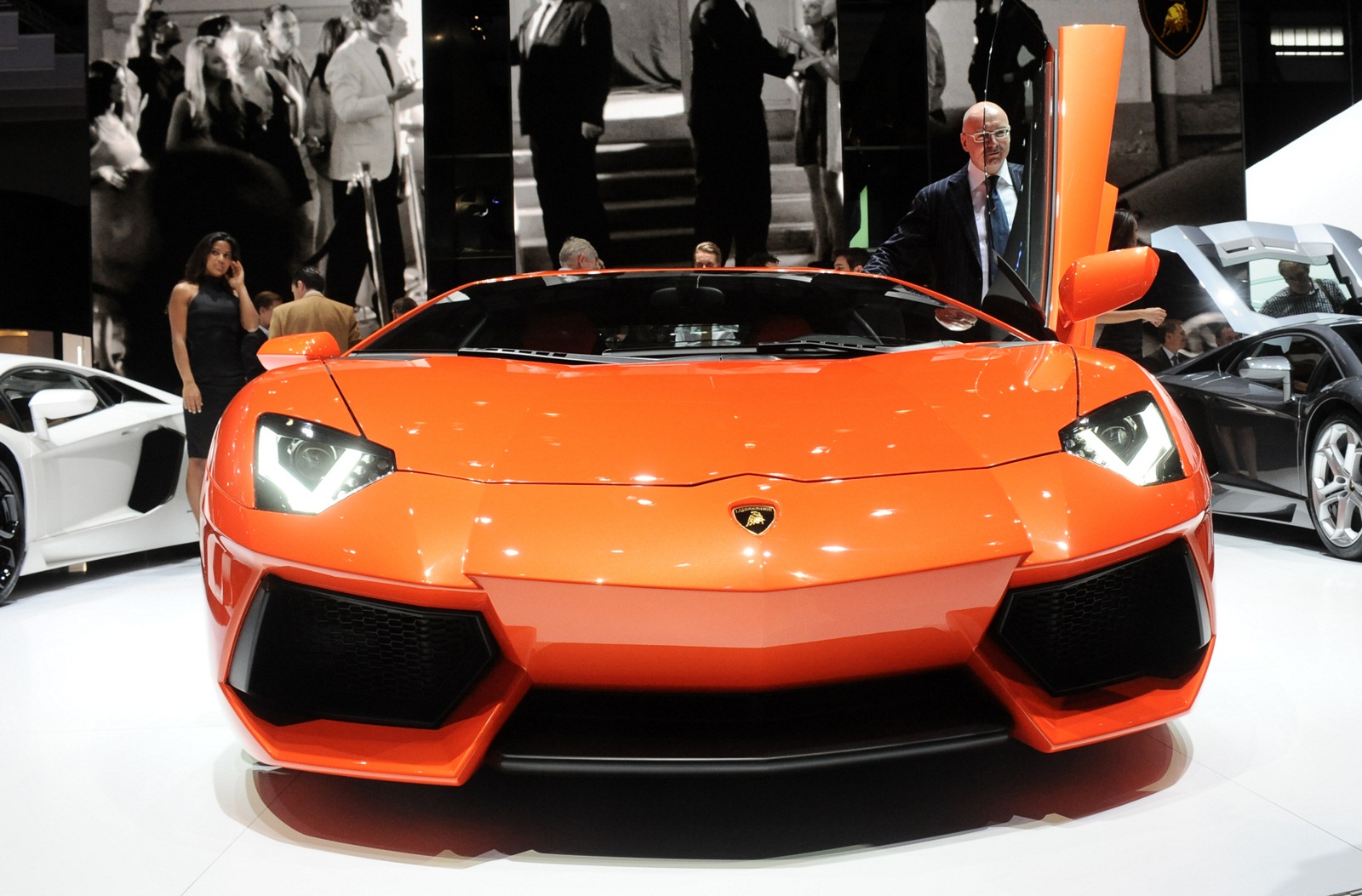

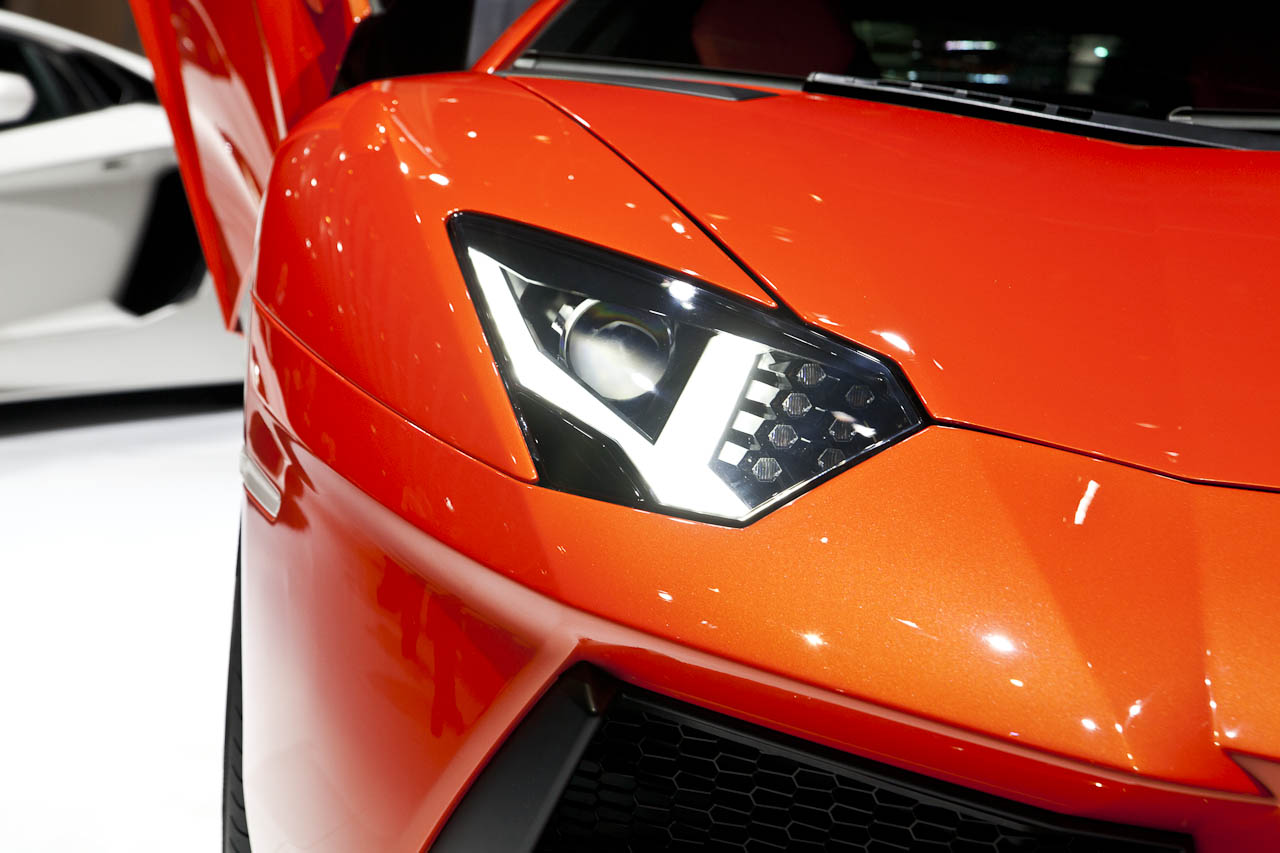

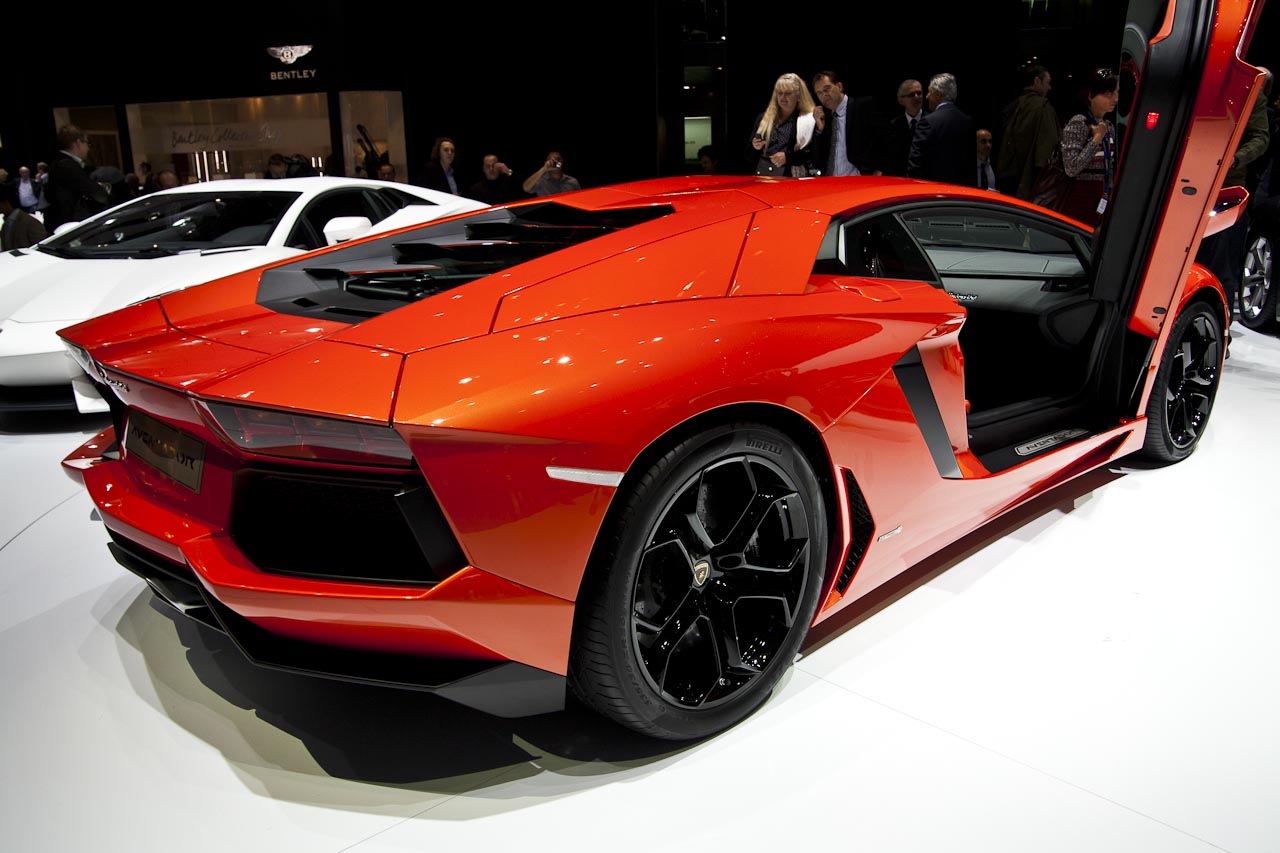

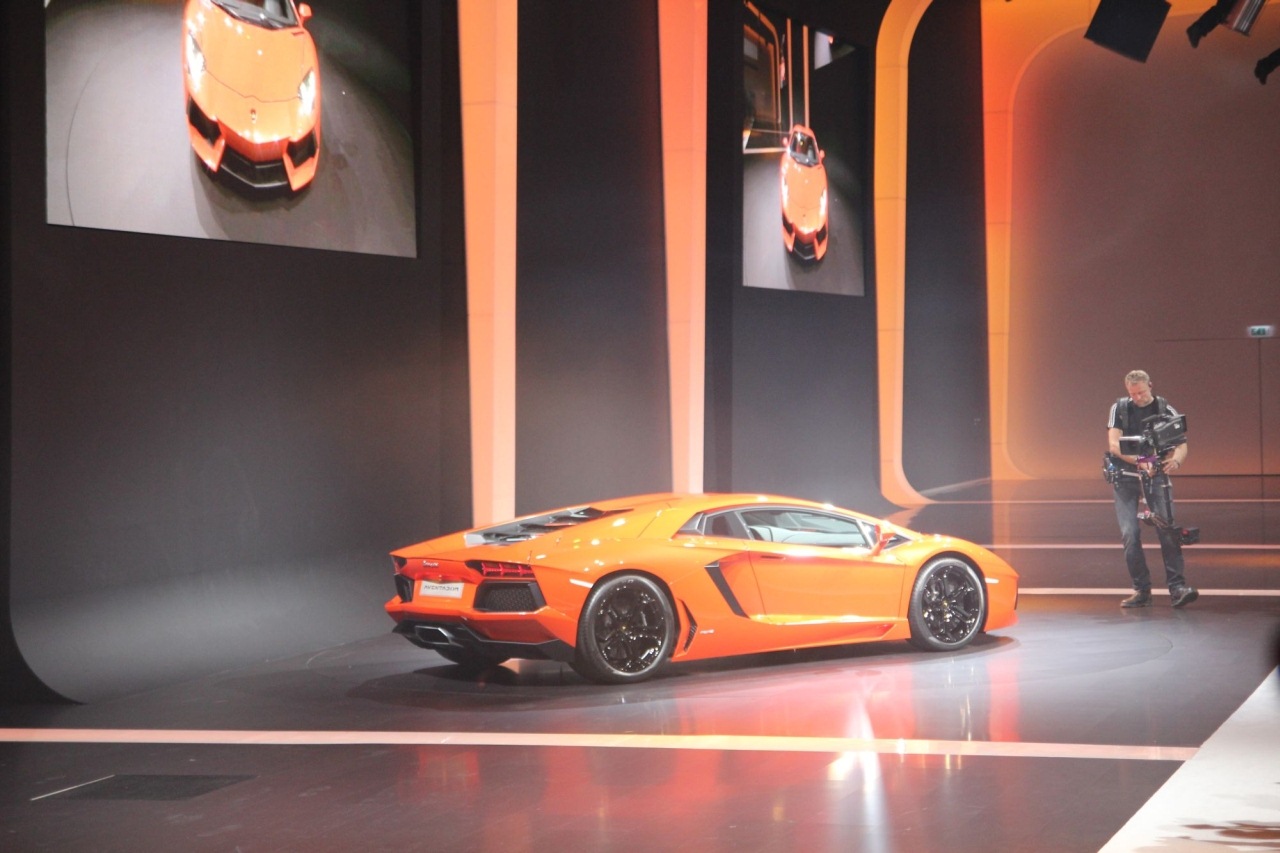

Update 1: Προστέθηκαν live φωτογραφίες

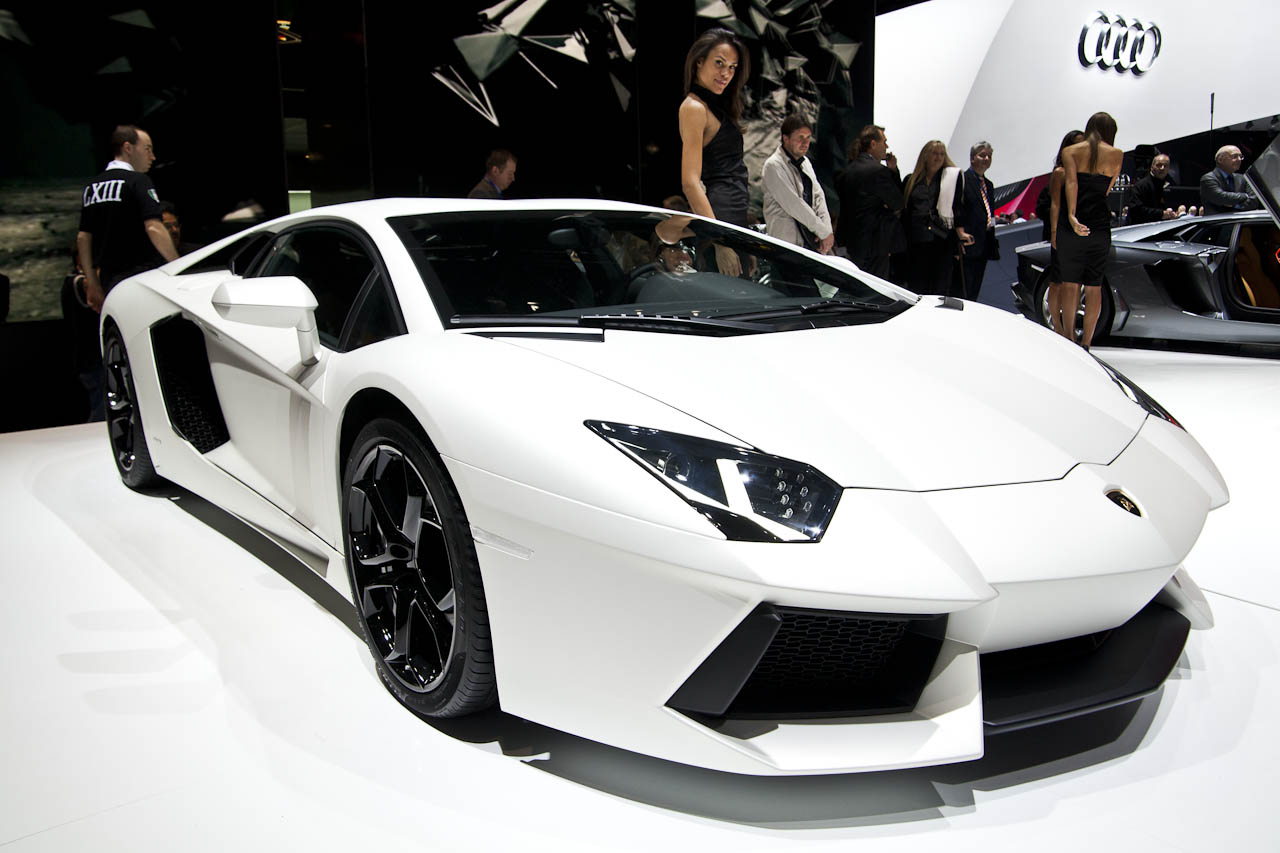

Update 2: Προστέθηκαν μερικές ακόμη live φωτογραφίες

[Πηγή: Lamborghini | Live Photos via Lamborghini, autoblog.nl, Casper Heij at Autoblog.nl]

[learn_more caption=”Δελτίο Τύπου”]

Lamborghini Aventador LP 700-4 – A new reference among super sports cars

• Innovative concept and phenomenal performance redefine the pinnacle of the super sports car segment
• Entirely new technology package, unique and powerful functional design language
• Innovative carbon-fiber monocoque
• New twelve-cylinder engine with 515 kW / 700 hp
• Super-fast shifting ISR (Independent Shifting Rods) transmission
• Pushrod suspension
• The very finest equipment and trim, extensive individualization

With the Aventador LP 700-4, Automobili Lamborghini is redefining the very pinnacle of the world super sports car market – brutal power, outstanding lightweight engineering and phenomenal handling precision are combined with peerless design and the very finest equipment to deliver an unparalleled driving experience. With the Aventador, Lamborghini is taking a big step into the future – and building on the glorious history of the brand with the next automotive legend. The first customers will take delivery of the new Lamborghini Aventador LP 700-4 in late summer 2011.

The technology package of the Lamborghini Aventador LP 700-4 is utterly unique. It is based on an innovative monocoque made from carbon-fiber that combines exceptional lightweight engineering with the highest levels of stiffness and safety. The new twelve-cylinder with 6.5 liters’ displacement and 515 kW / 700 hp brings together the ultimate in high-revving pleasure with astonishing low-end torque. Thanks to a dry weight of only 1,575 kilograms (3,472 lb), which is extremely low for this class of vehicle, the weight-to-power ratio stands at only 2.25 kilograms per hp (4.96 lb/hp). Even the fantastic 0-100 km/h (0-62 mph) acceleration figure of just 2.9 seconds and the top speed of 350 km/h (217 mph) do not fully describe the Aventador’s extreme performance. And yet, fuel consumption and CO2 emissions are down by around 20 percent compared with its predecessor, despite the considerable increase in power (+8%).

The ISR transmission is unique among road-going vehicles, guaranteeing the fastest shifting time (only 50 milliseconds) and a highly emotional shift feel, while the lightweight chassis with pushrod suspension delivers absolute handling precision and competition-level performance. The expressively-designed interior offers hi-tech features ranging from the TFT cockpit display with Drive Select Mode system. The Aventador will be built to the very highest quality standards in an all-new production facility in Sant’Agata Bolognese.

“With the Aventador LP 700-4, the future of the super sports car is now part of the present. Its exceptional package of innovative technologies is unique, its performance simply overwhelming,” says Stephan Winkelmann, President and CEO of Automobili Lamborghini. “The Aventador is a jump of two generations in terms of design and technology, it’s the result of an entirely new project, but at the same time it’s a direct and consistent continuation of Lamborghini’s brand values. It is extreme in its design and its performance, uncompromising in its standards and technology, and unmistakably Italian in its style and perfection. Overall, the dynamics and technical excellence of the Aventador LP 700-4 makes it unrivalled in the worldwide super sports car arena.”

Aventador: the name of one of the most courageous of all bulls

According to its tradition, Lamborghini’s new flagship bears the name of a bull – naturally, a particularly courageous specimen from the world of the Spanish Corrida. Aventador was the name of a bull that entered into battle in October 1993 at the Saragossa Arena, earning the “Trofeo de la Peña La Madroñera” for its outstanding courage.

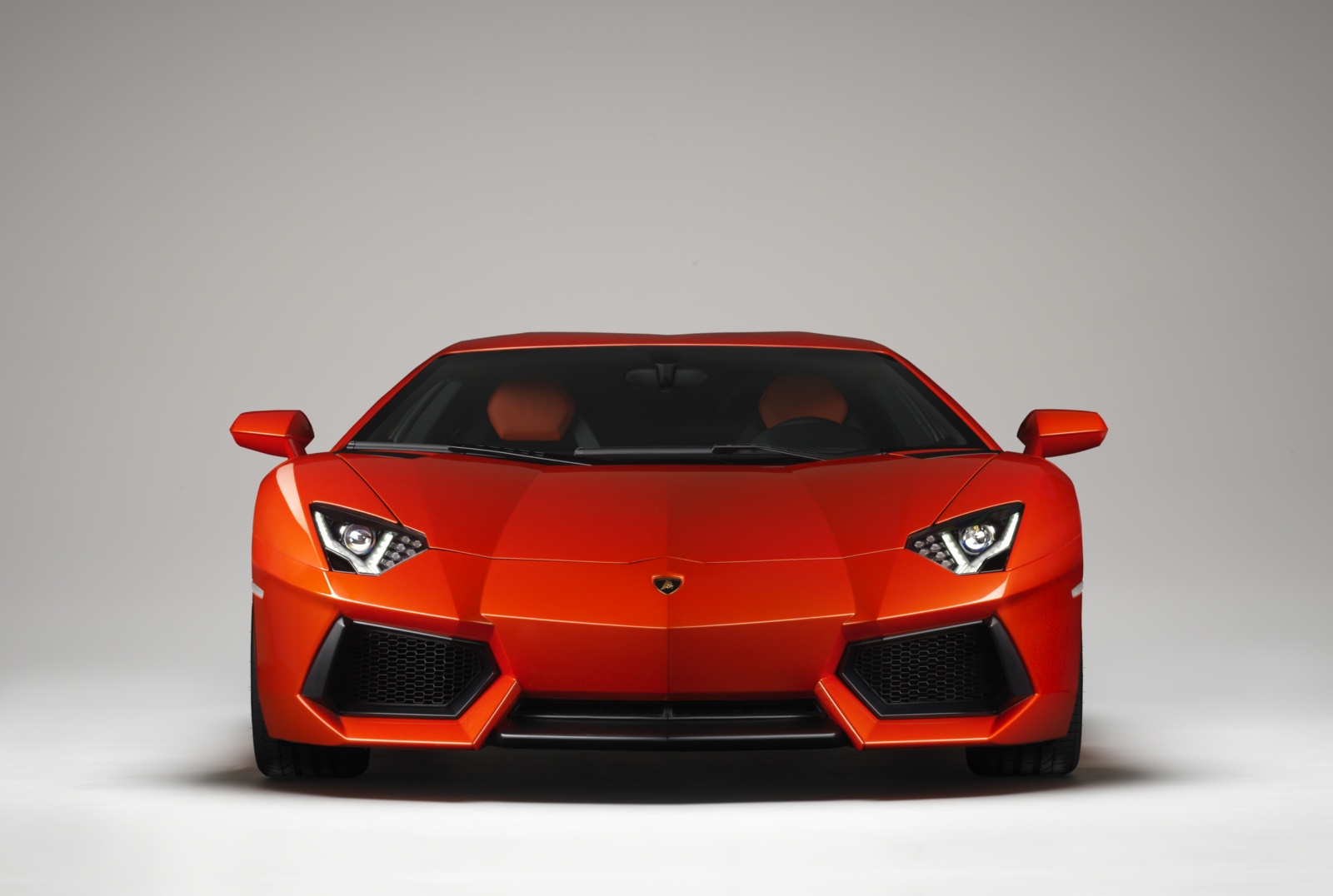

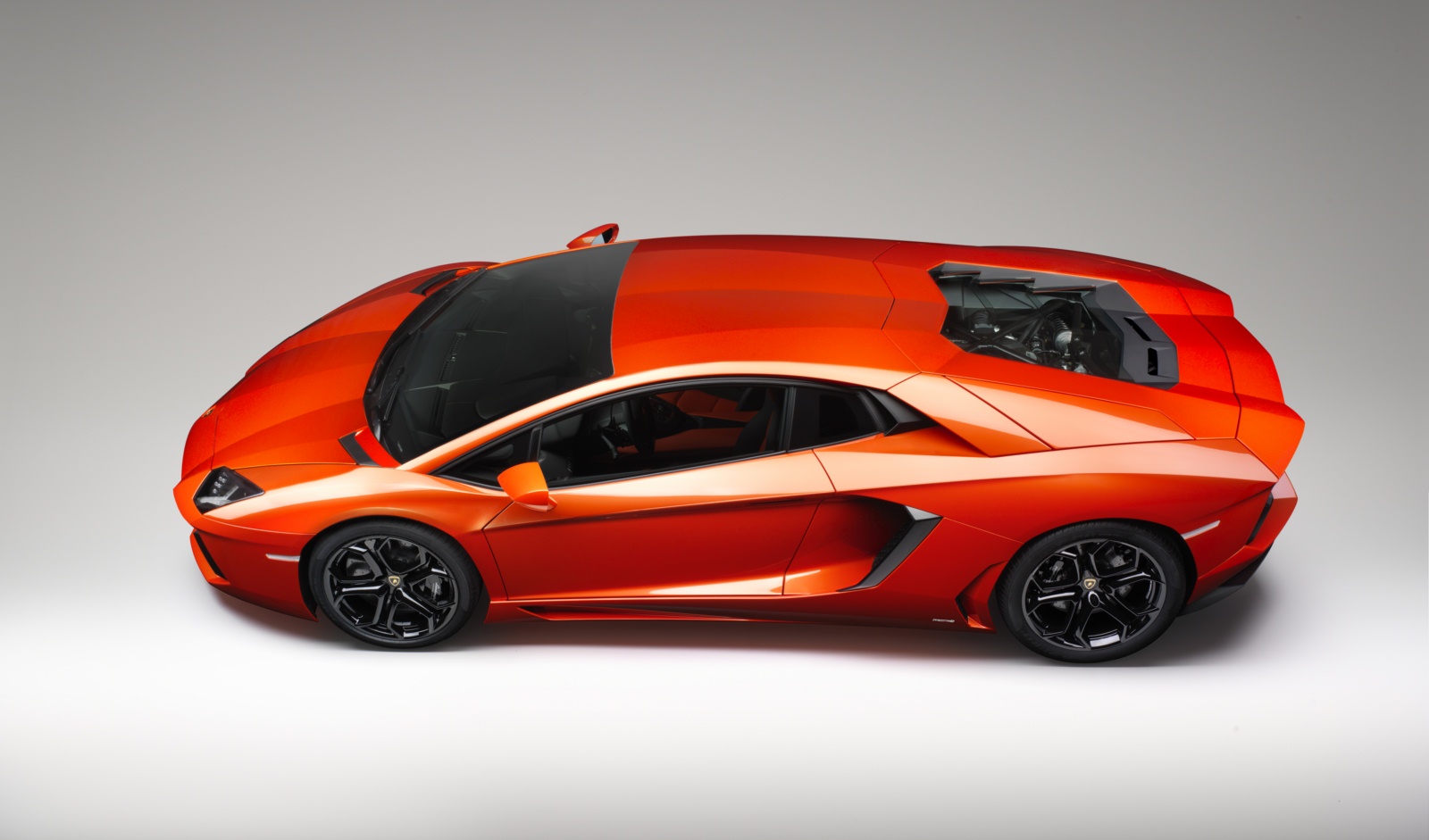

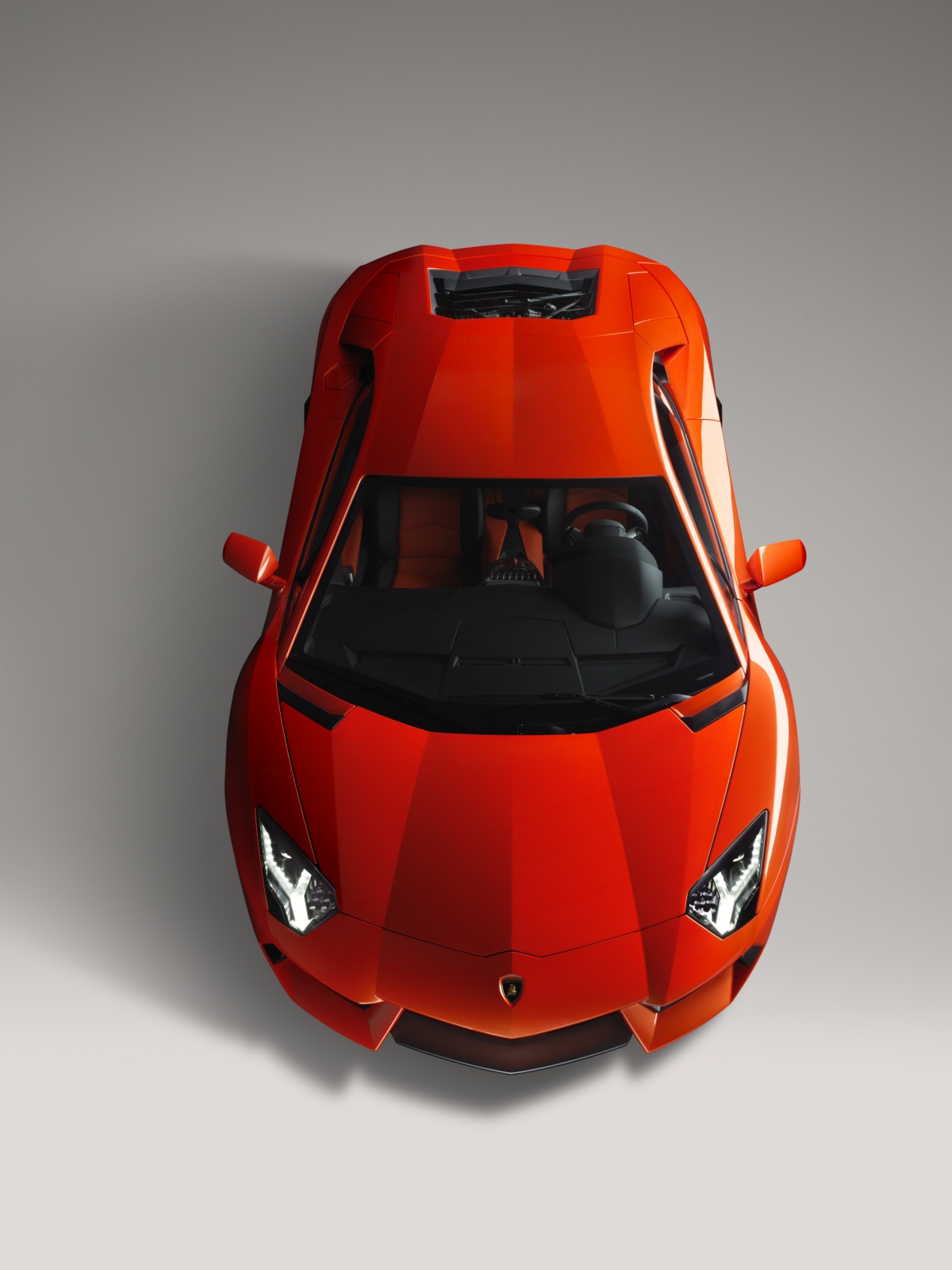

A sculpture of extreme dynamics

For Lamborghini, design is always the beauty of aggressive power, the elegance of breathtaking dynamics. From the very first glance, the new Aventador is unmistakably a Lamborghini, clothed in the brand’s characteristic and distinctive design language – with its extremely powerful proportions, its exact lines and precise surfaces, and with taut muscularity in every one of its details. The designers in the Centro Stile Lamborghini have carefully developed this design language to give the Aventador a significant new edge. It is an avantgarde work of art, an incredibly dynamic sculpture, from the sharply honed front end through the extremely low roofline to the distinctive rear diffuser. Every line has a clear function, every form is dictated by its need for speed, yet the overall look is nothing less than spectacular and breathtaking.

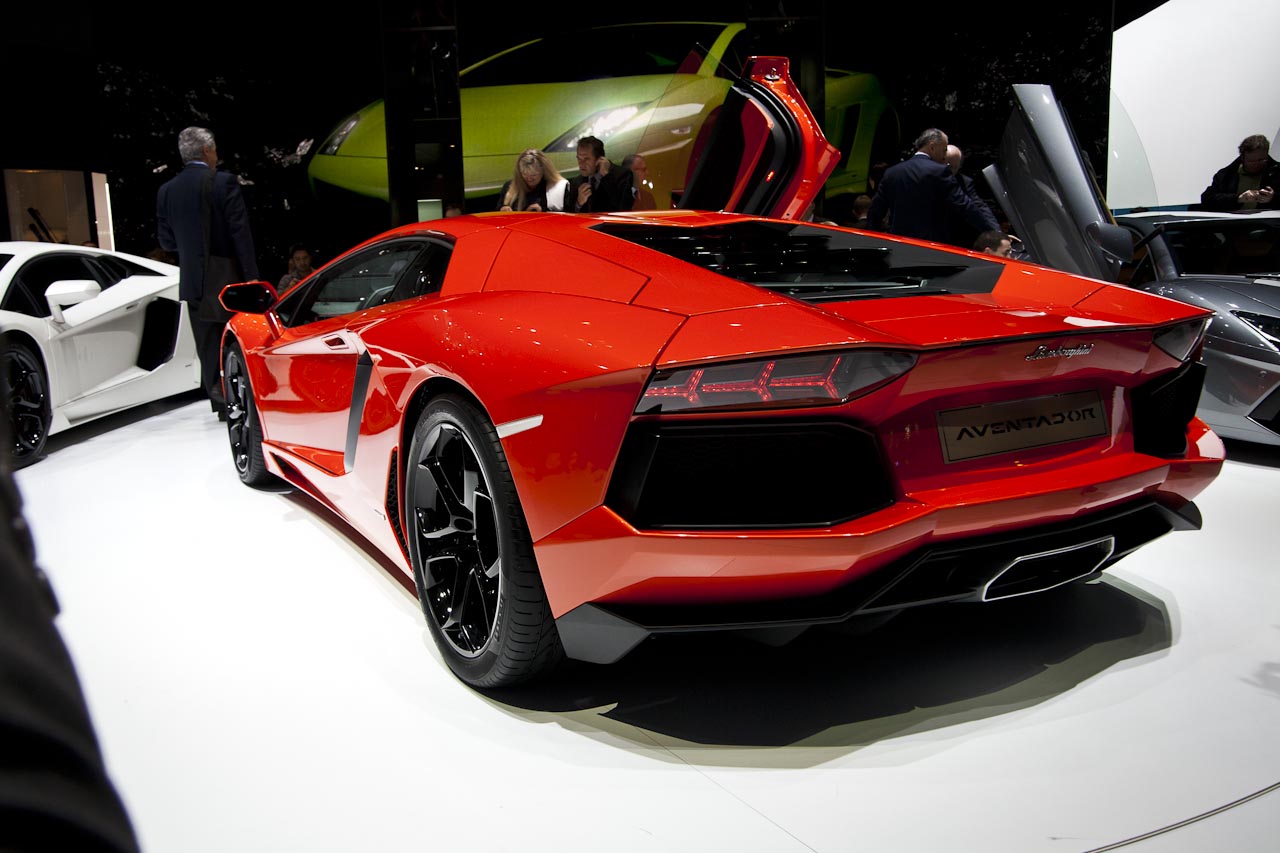

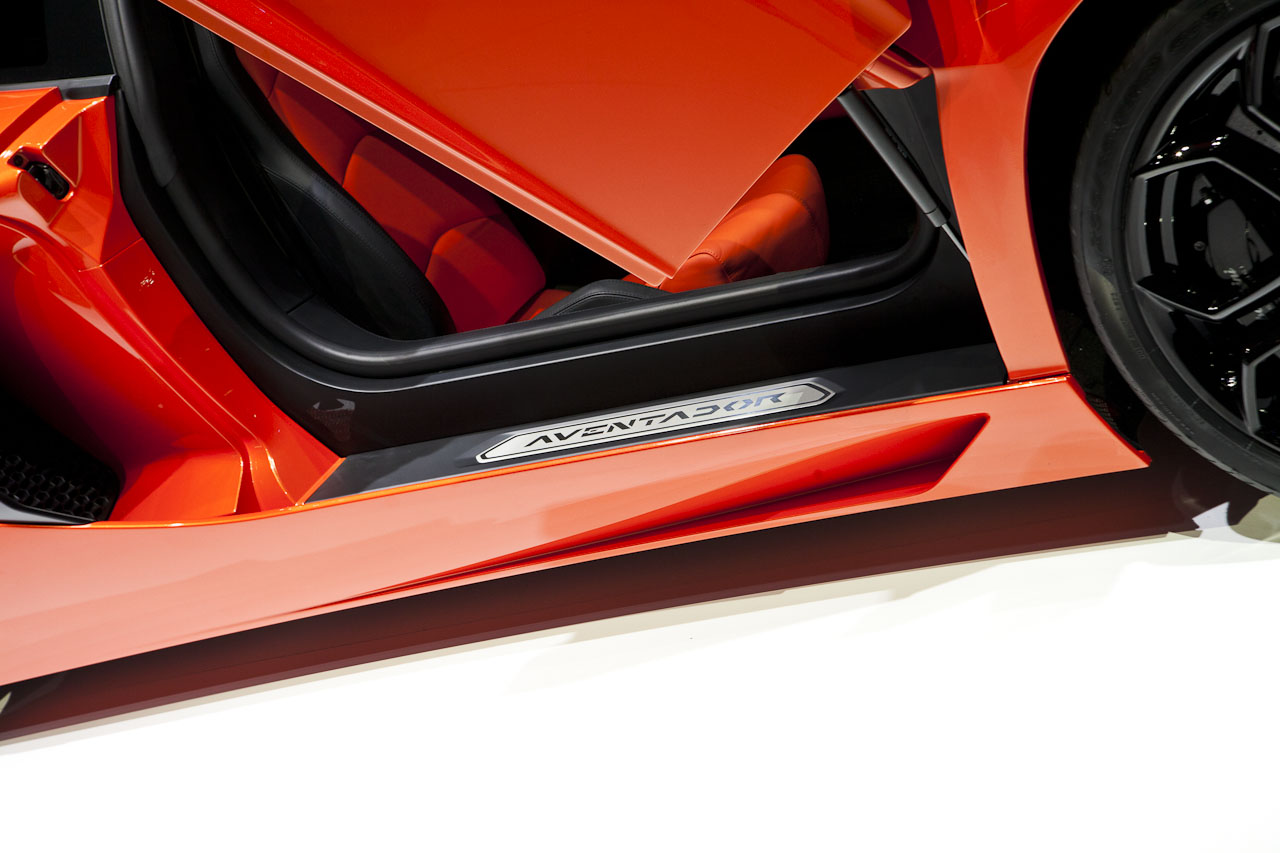

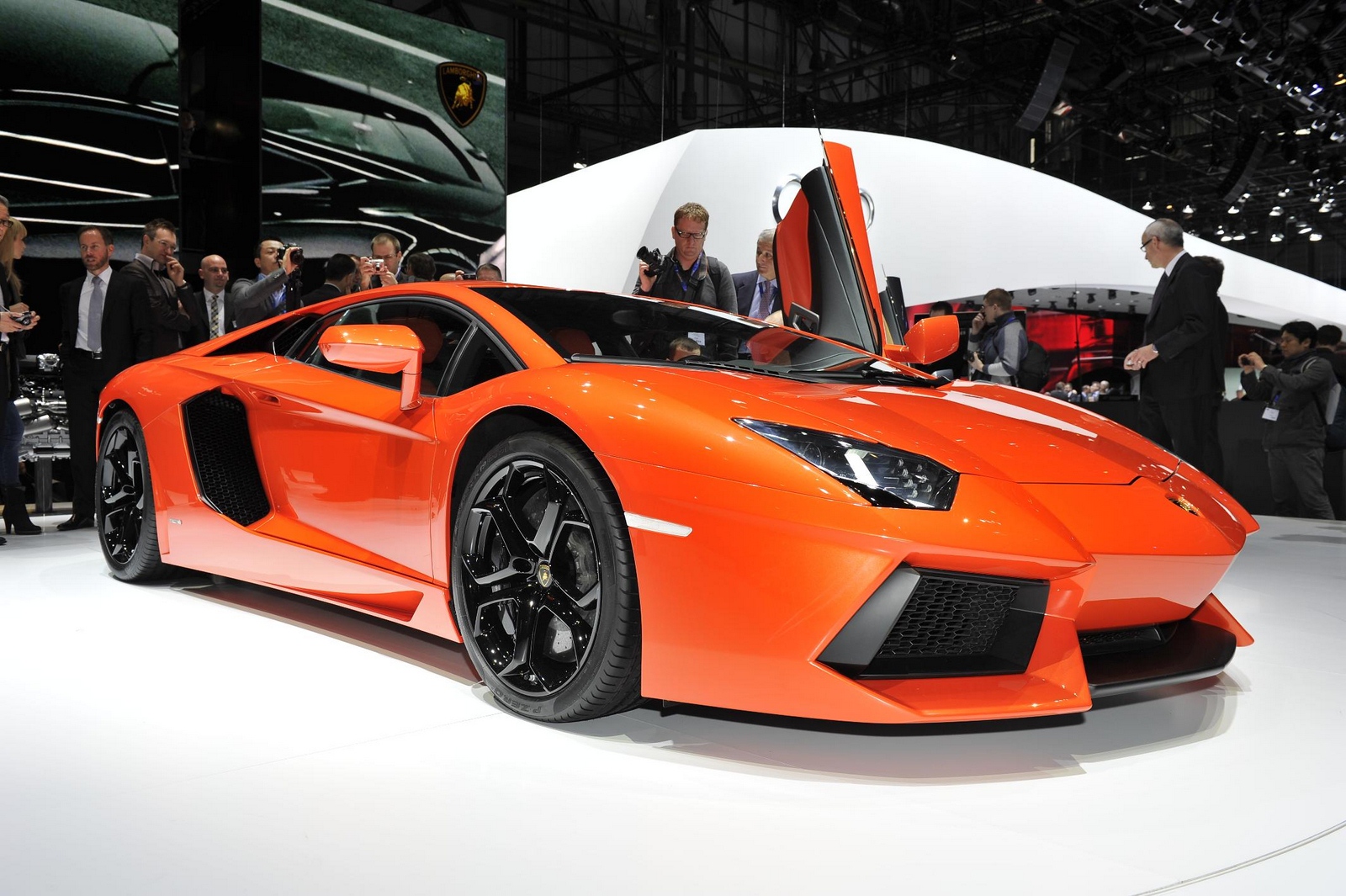

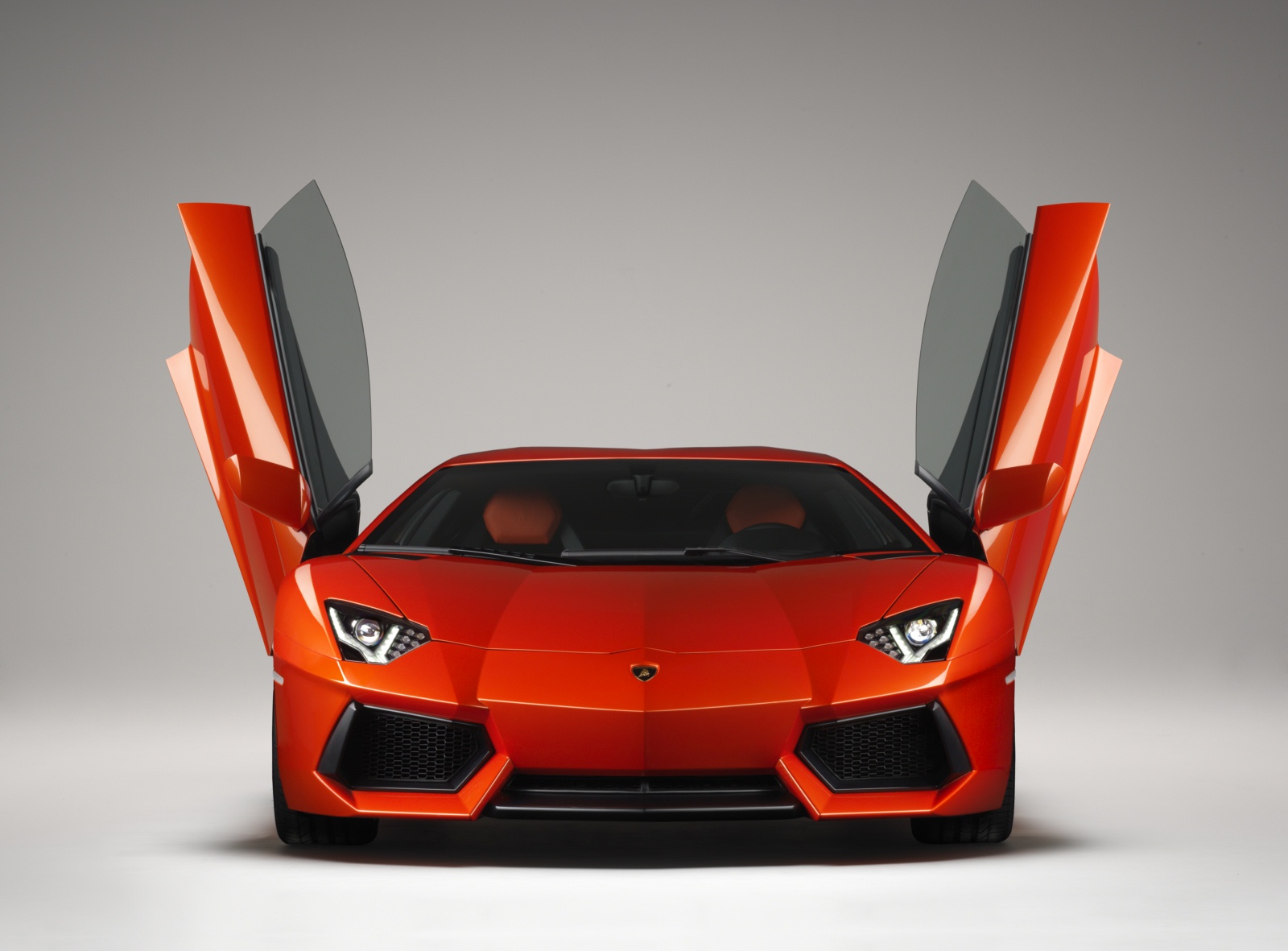

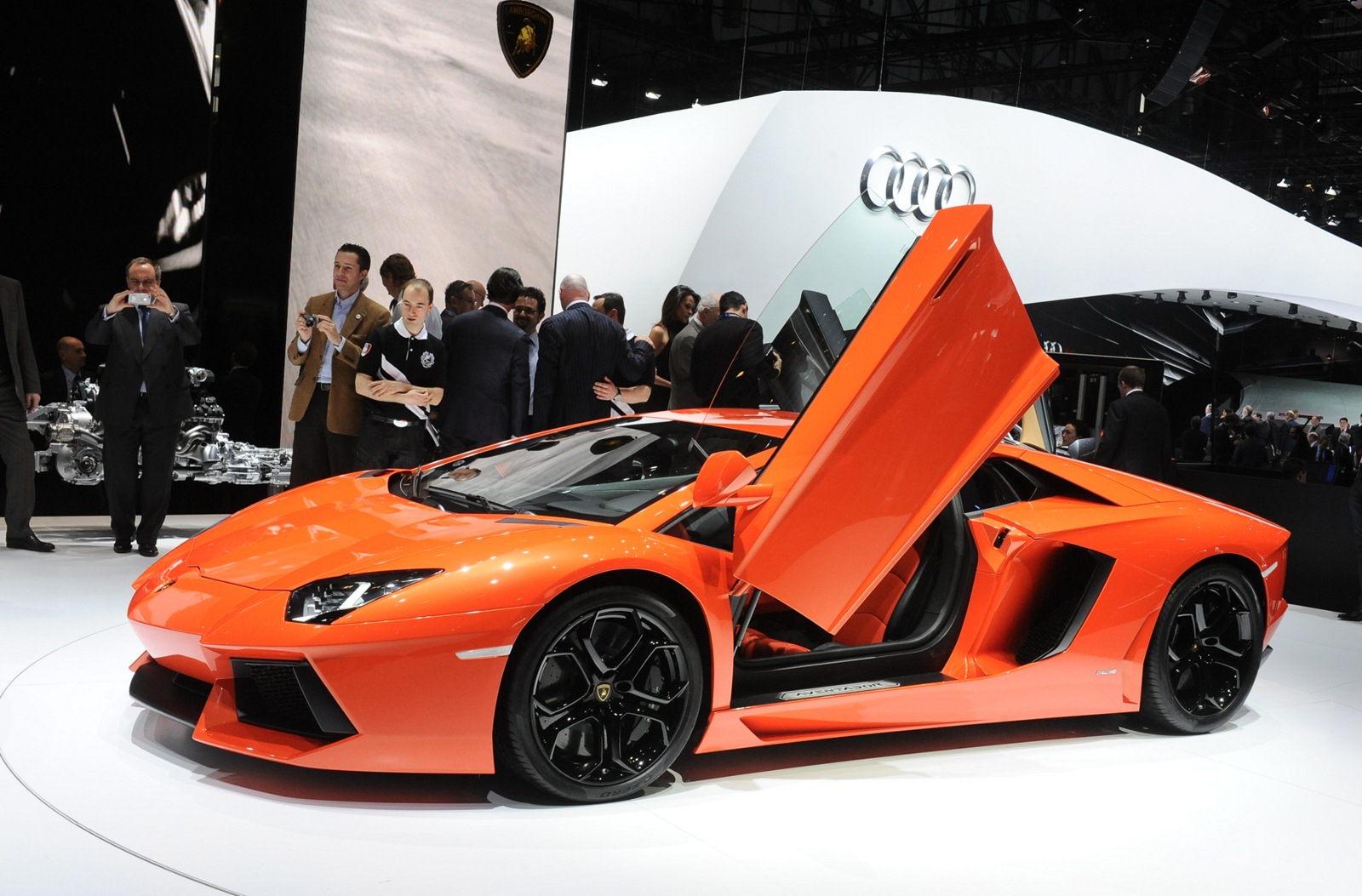

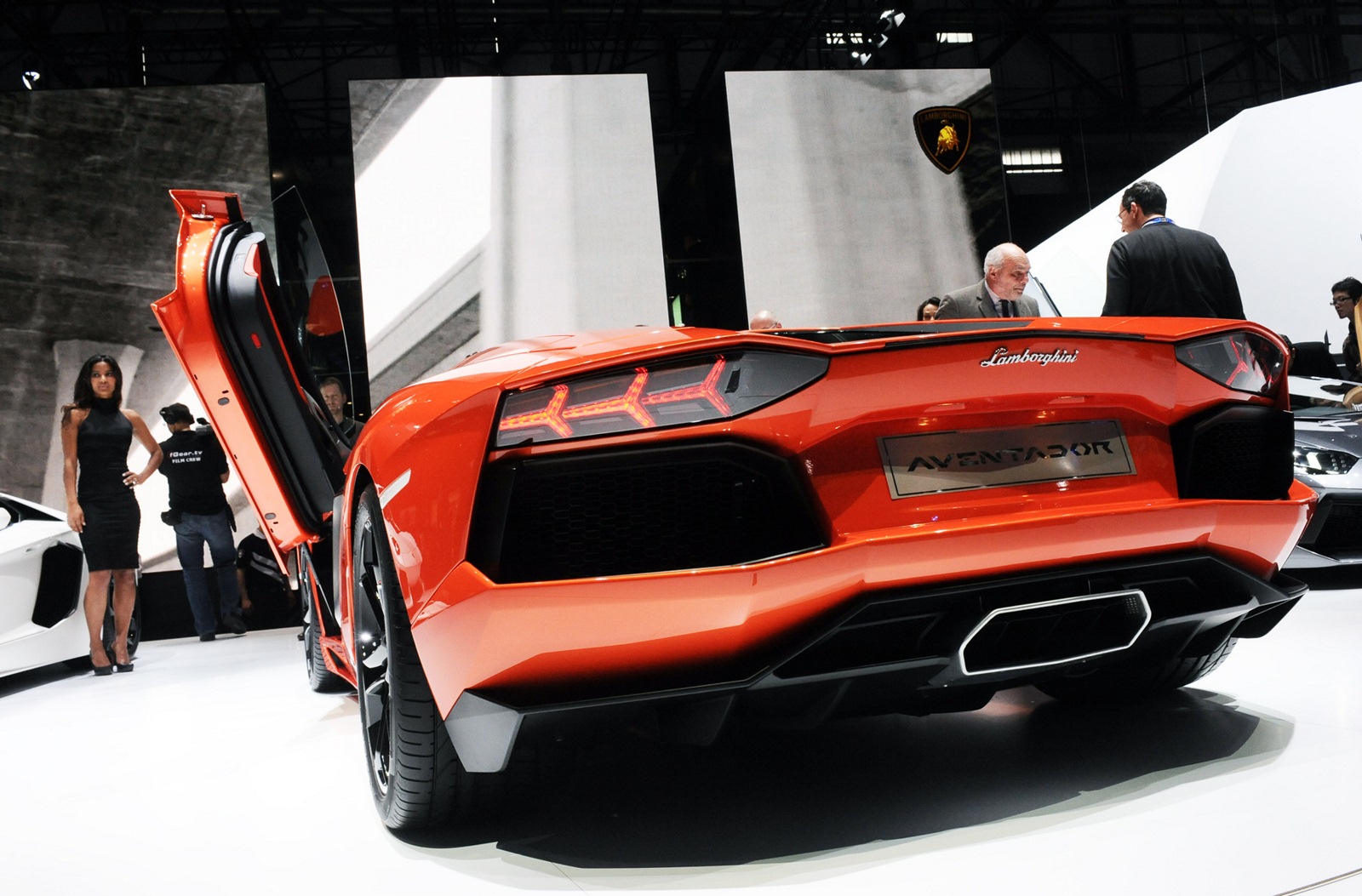

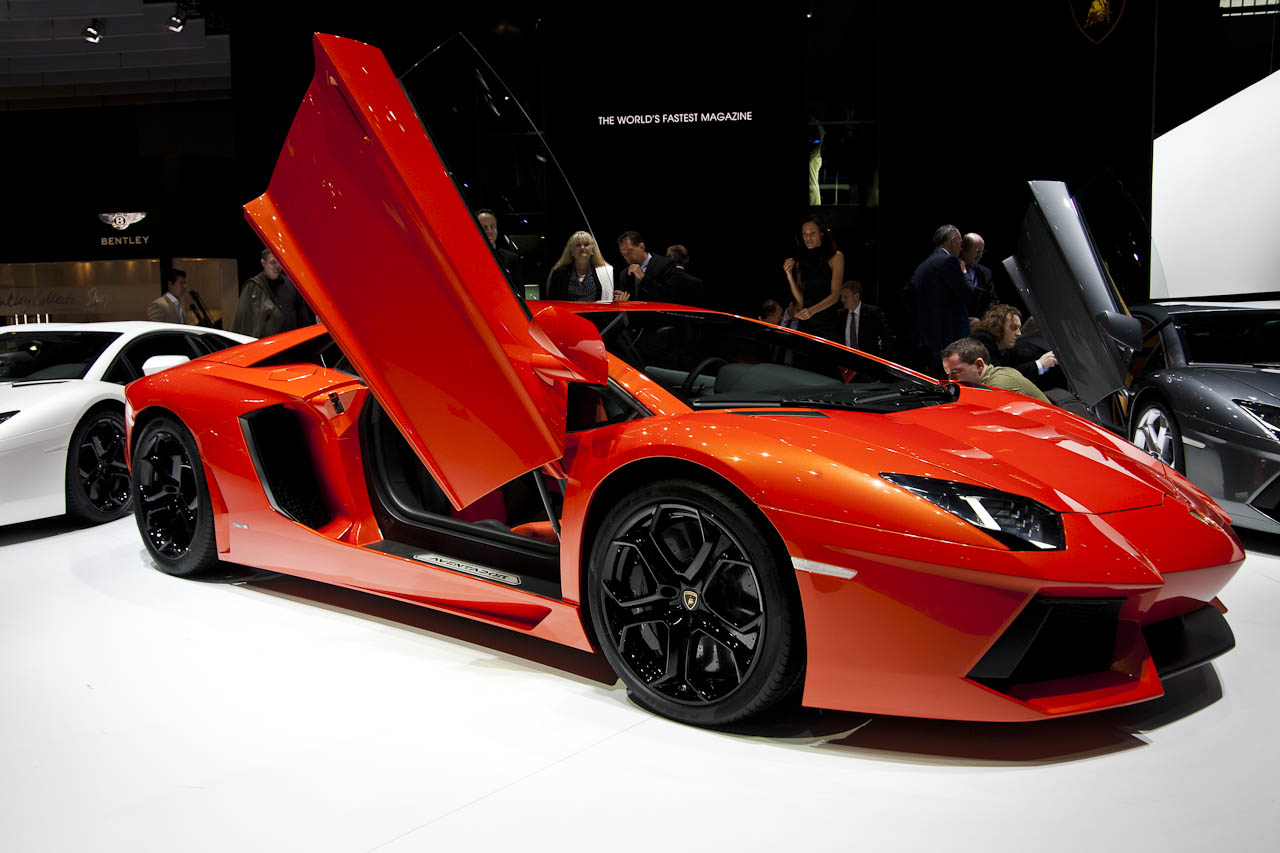

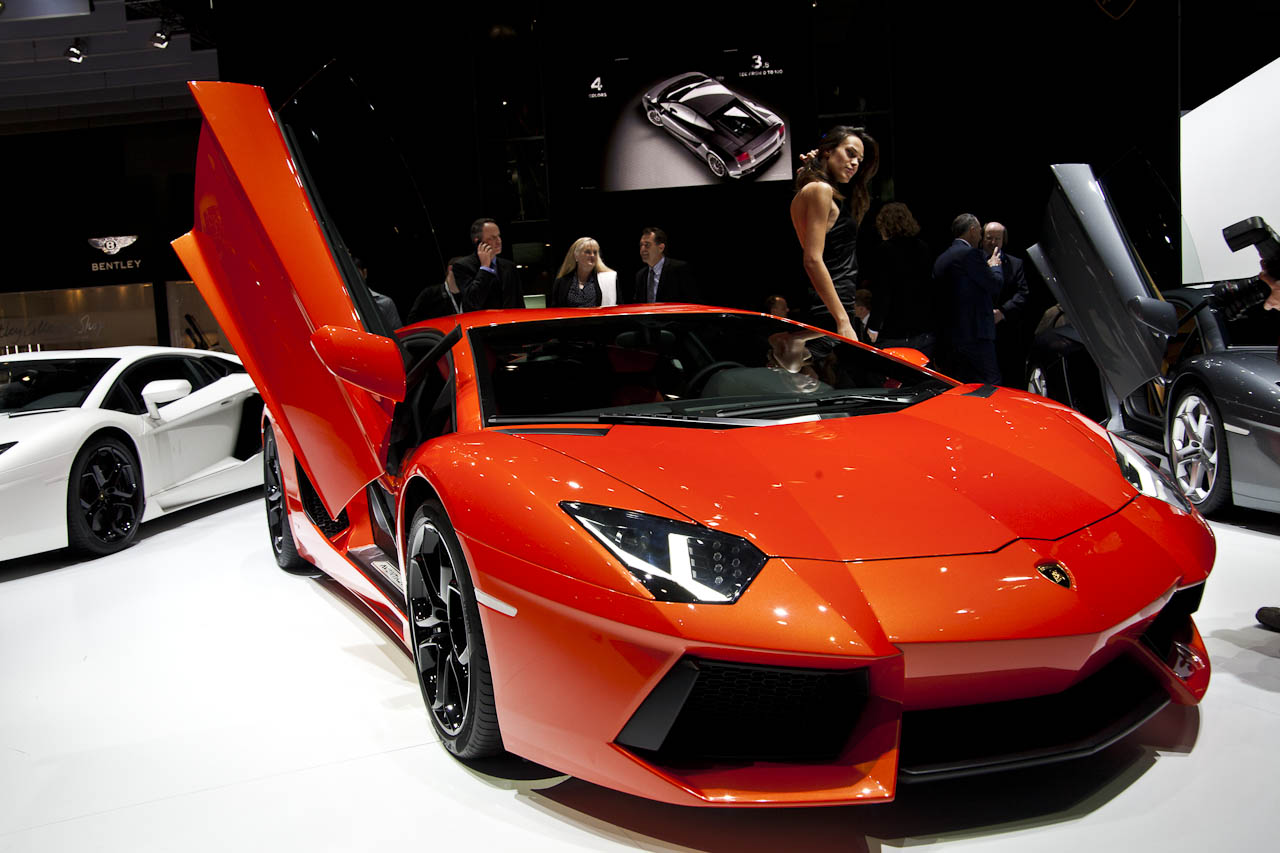

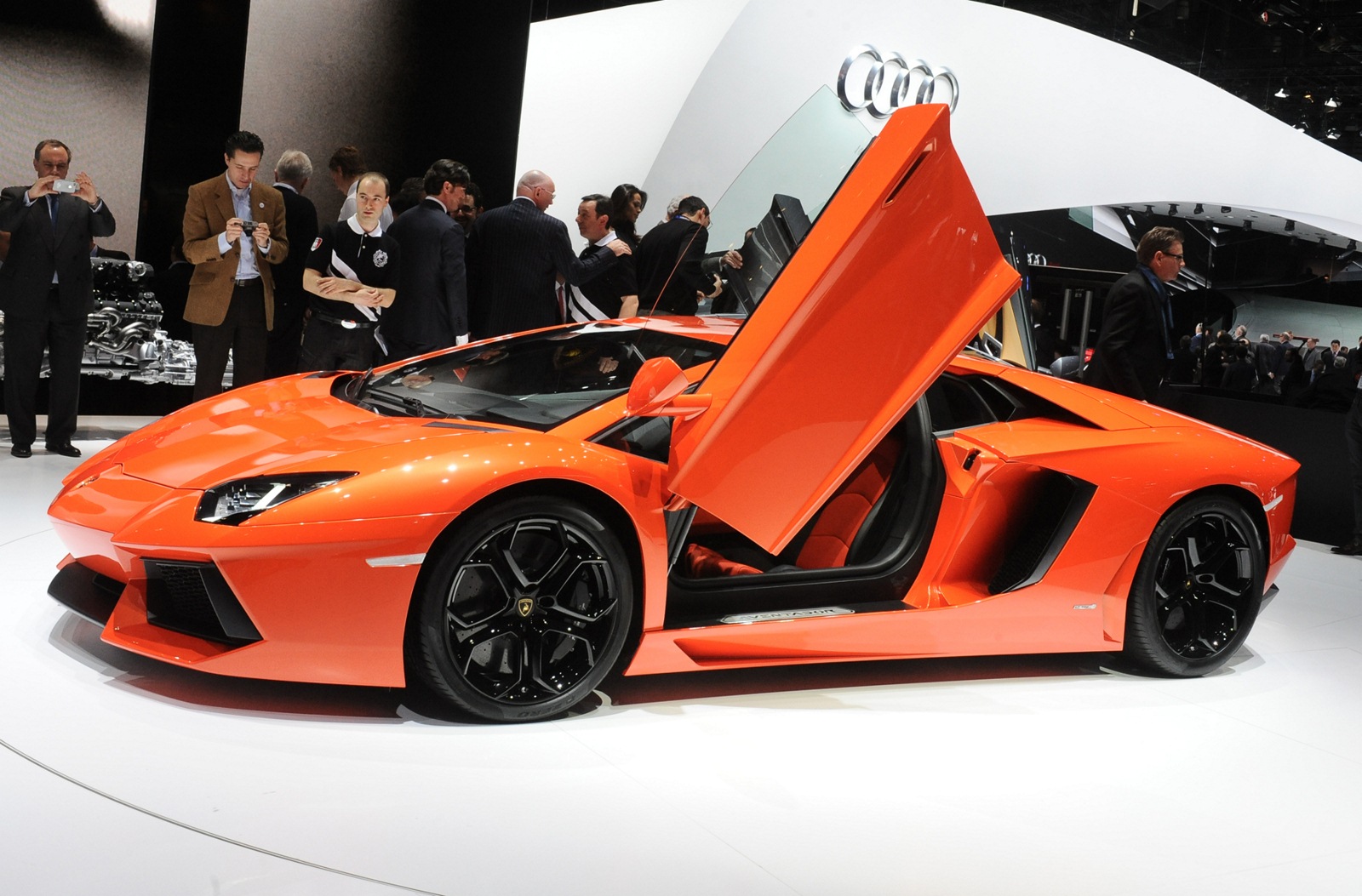

The doors open upward – of course

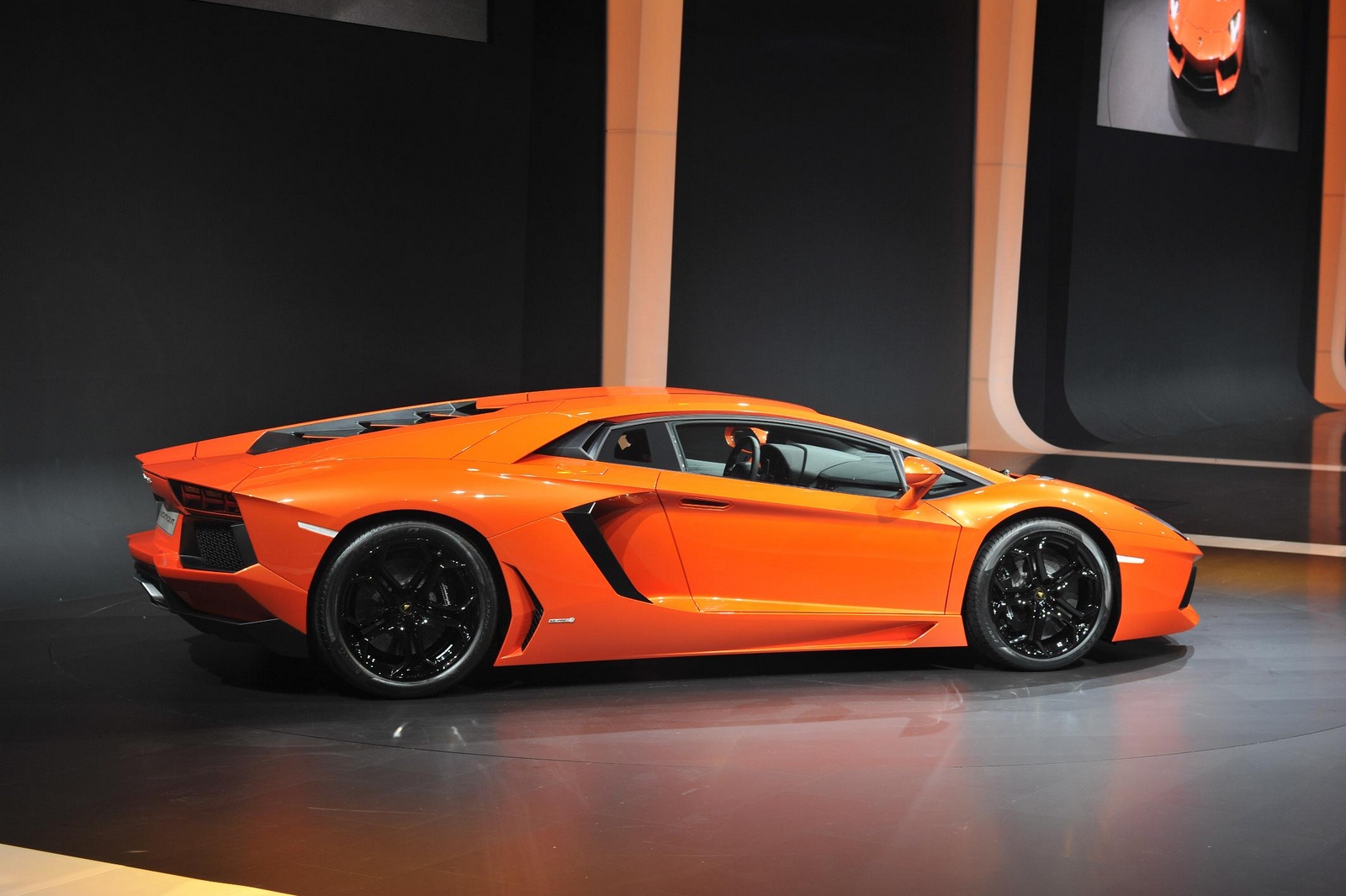

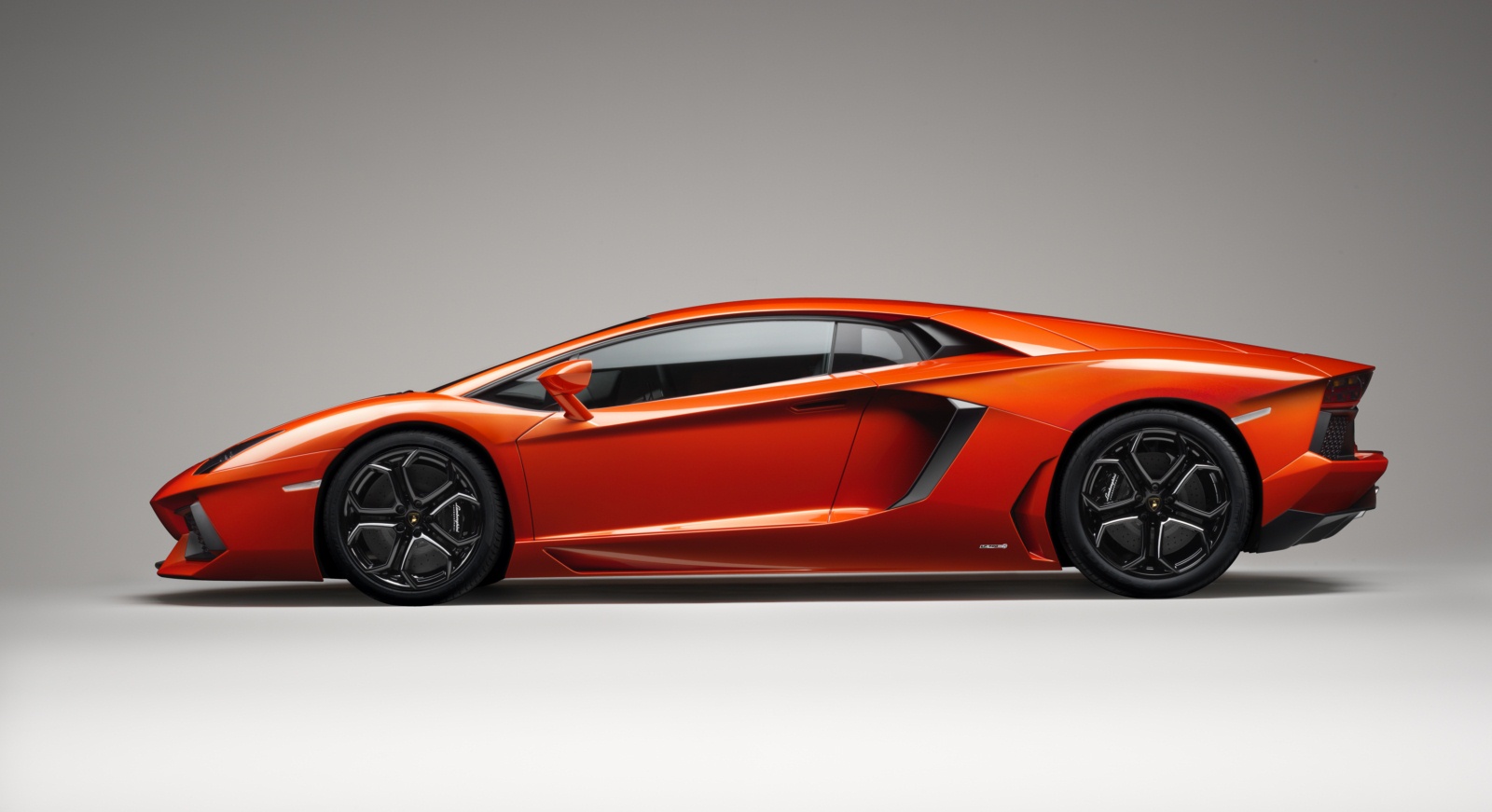

Truly impressive proportions come from an overall length of 4,78 meters (188.19 in.) matched with an impressive width of 2,26 meters (88.98 in.) including the exterior mirrors, and further accentuated by an extremely low height of just 1.136 mm (44.72 in.). It goes without saying that both doors of the carbon-fiber monocoque open upward – a feature that was first introduced in the now legendary Countach and then used for subsequent V12 models such as Diablo and Murciélago. However, the Aventador also evokes its immediate predecessor the Murciélago – electronically managed air intakes open depending on the outdoor temperature and the need for cooling air,ensuring maximum aerodynamic efficiency. And for those whishing to flaunt the heart of their Lamborghini, the optional transparent engine bonnet exhibits the twelve-cylinder engine like a technical work of art in a display case.

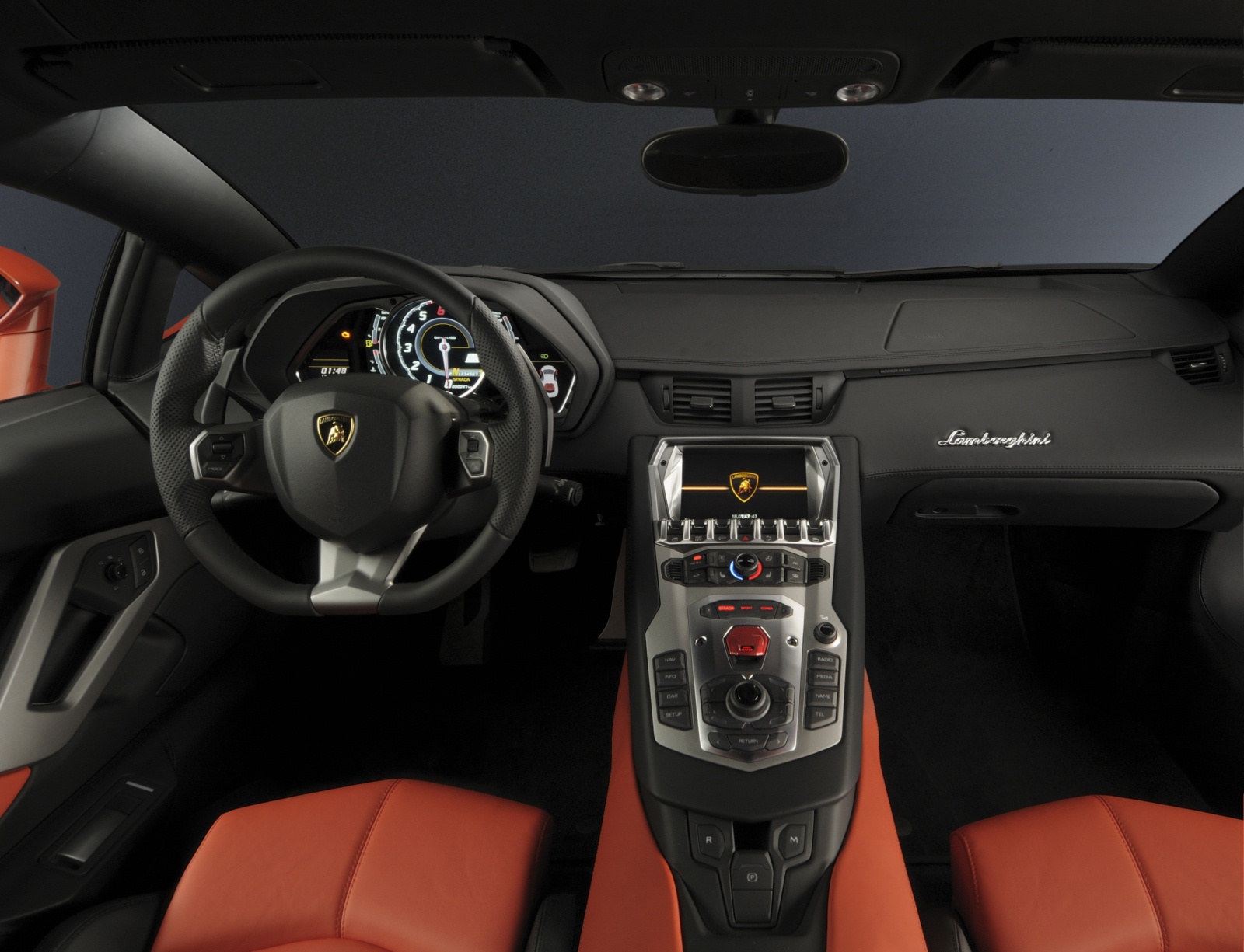

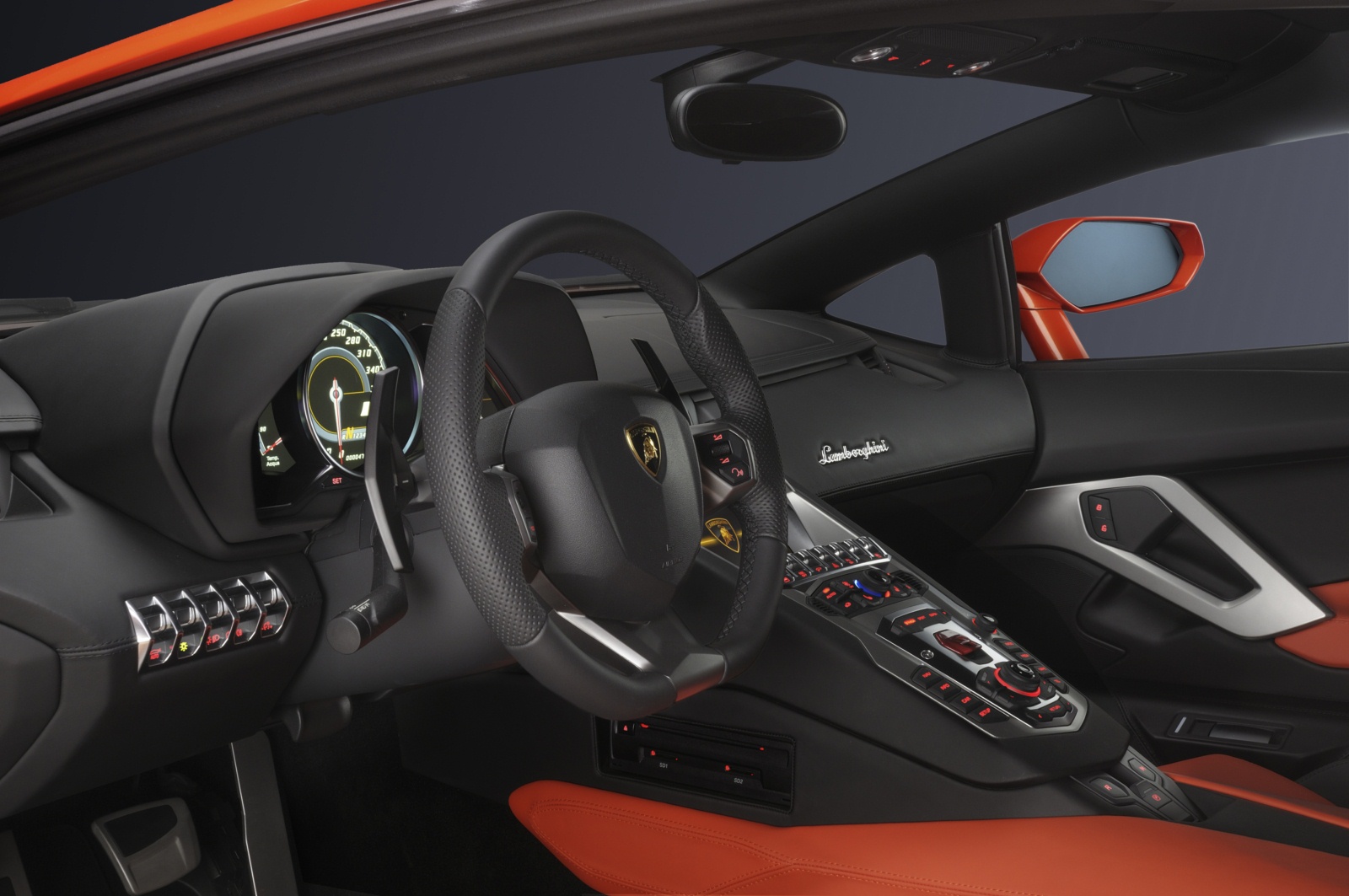

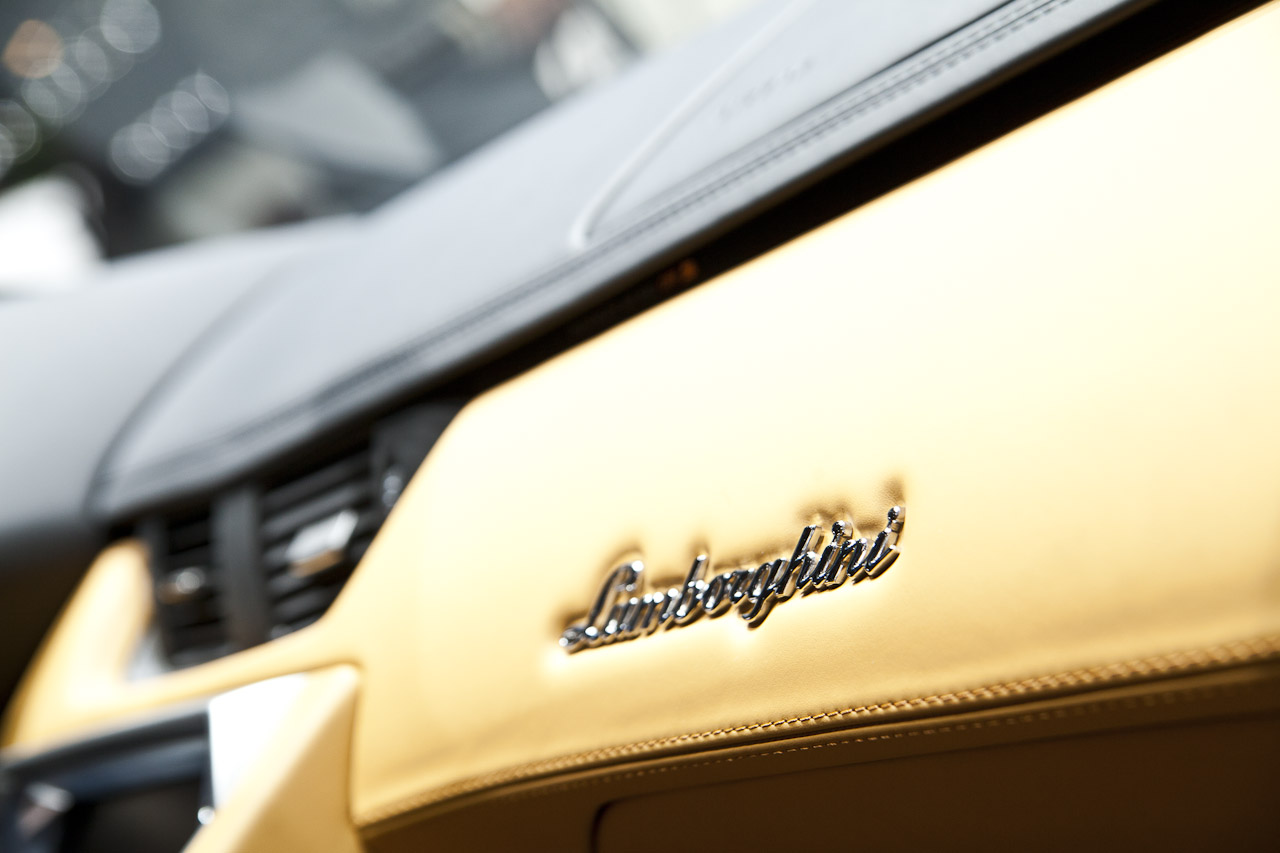

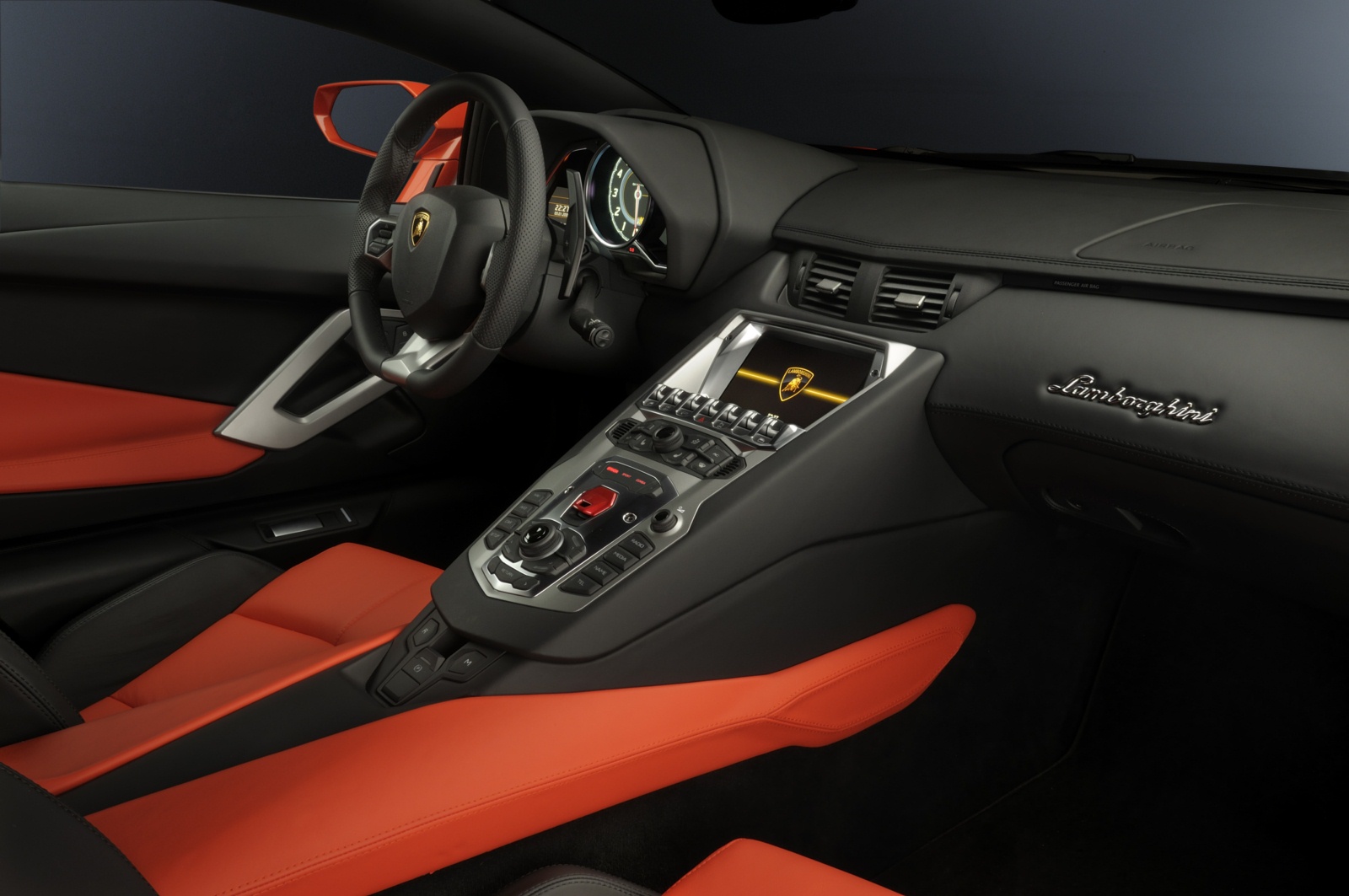

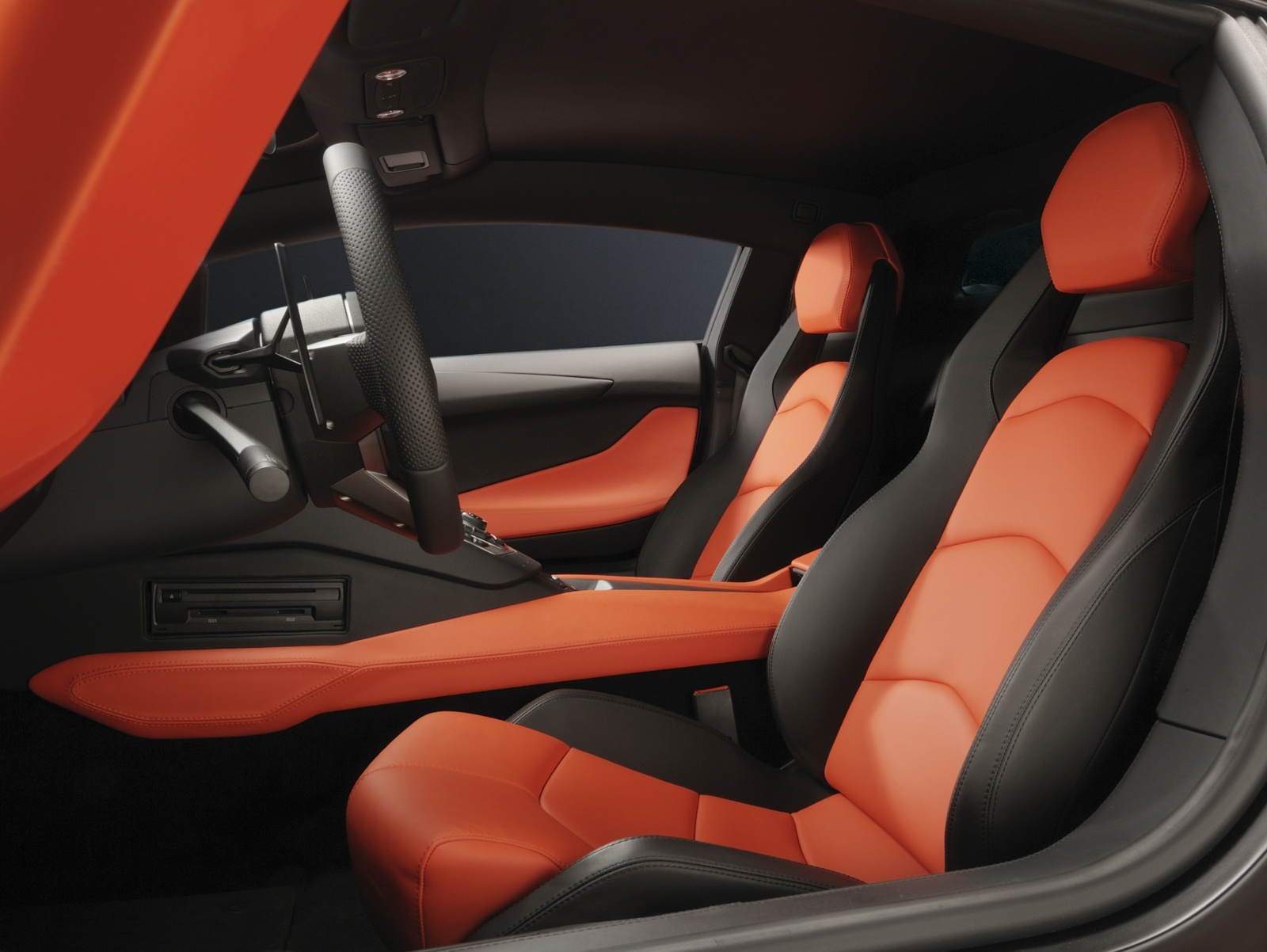

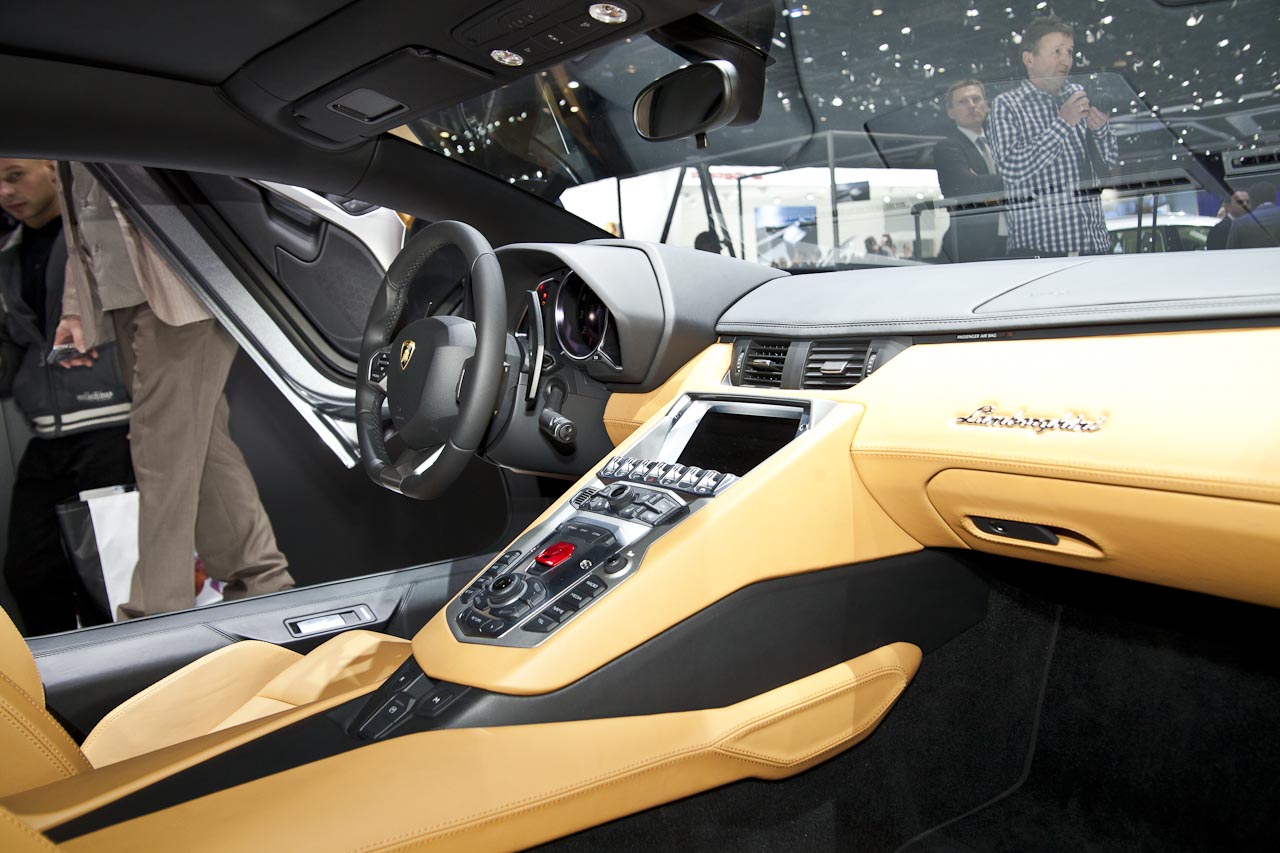

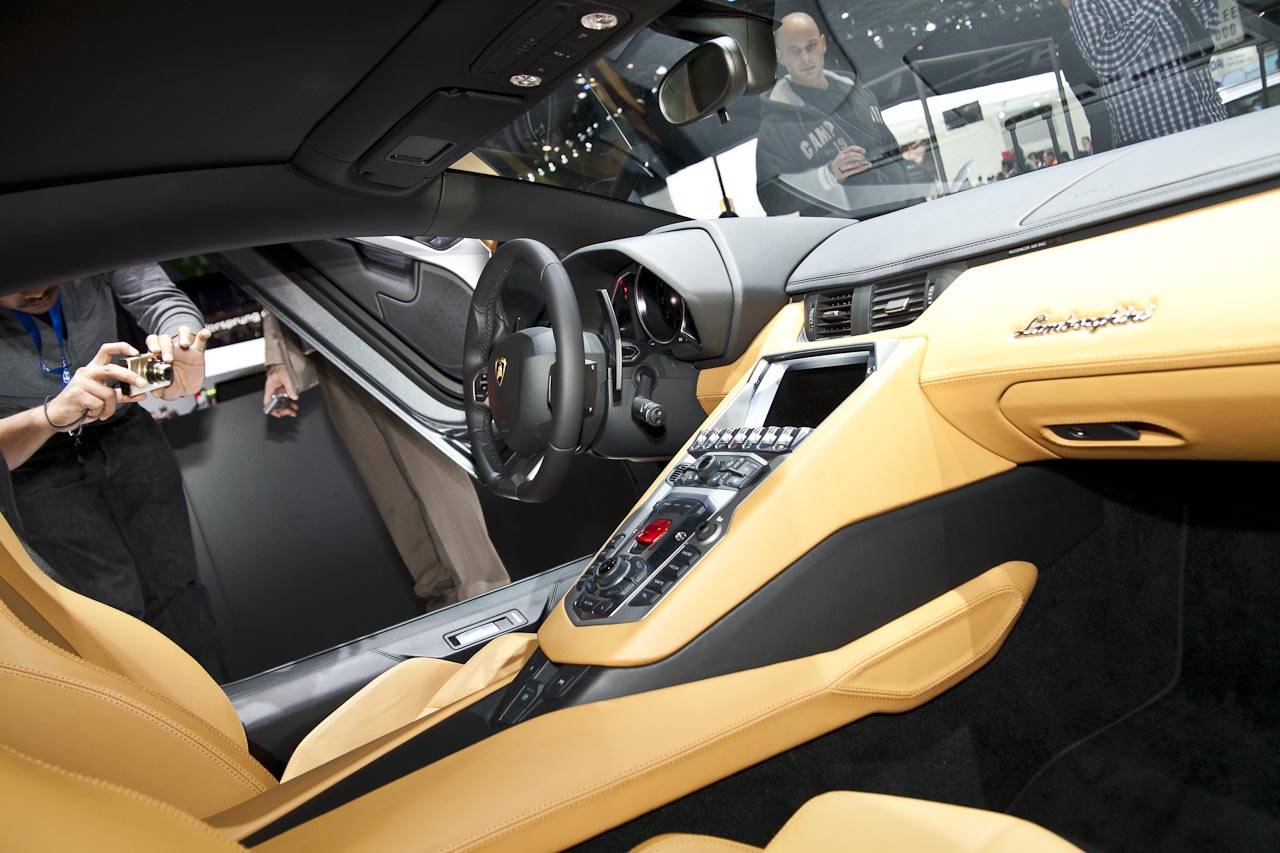

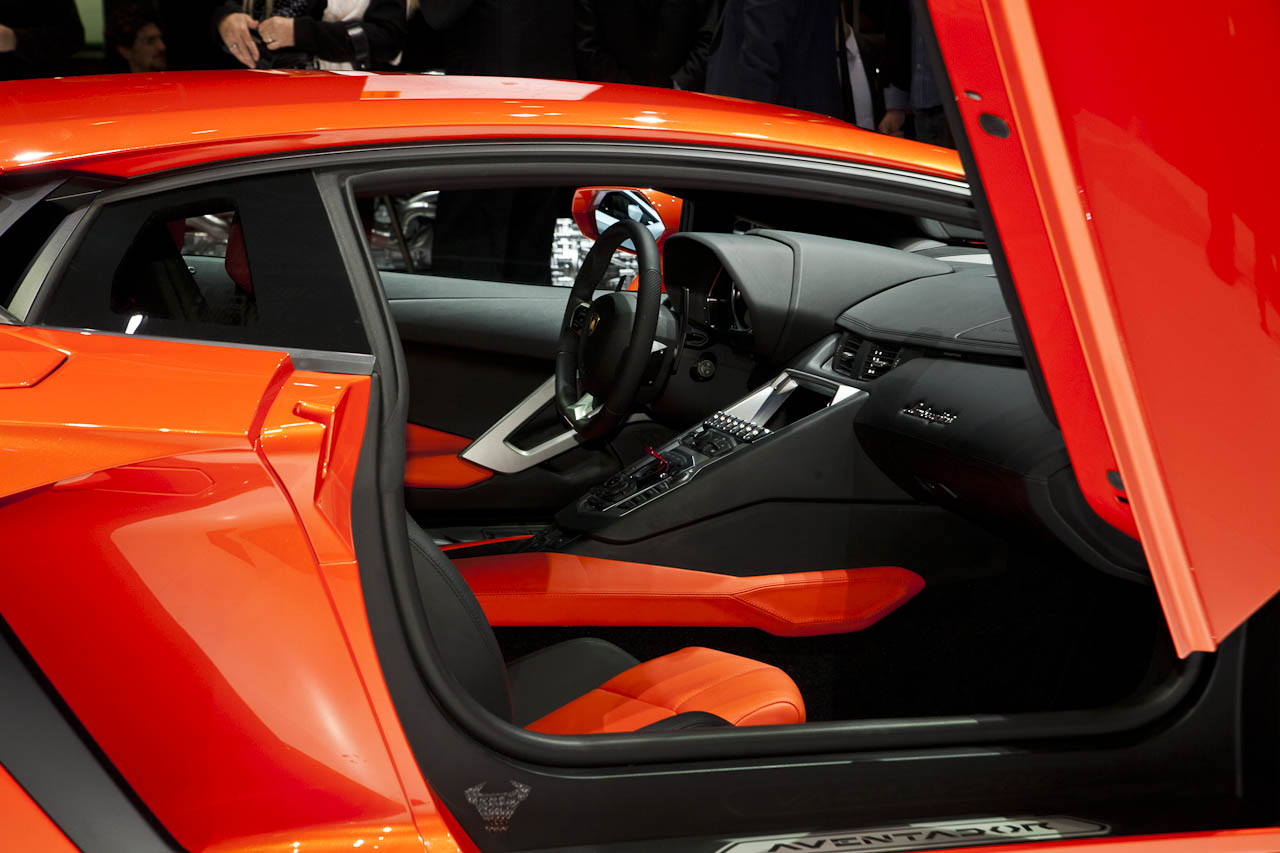

Exclusive and high-tech interior

The Aventador’s spacious interior combines the fine exclusivity of premium materials and perfect Italian craftsmanship with state-of-the-art technology and generous equipment. The red switch cover on the broad center tunnel encloses the start button used to awaken the twelve-cylinder. The interior is dominated by a next-generation dashboard – as in a modern airplane, the instruments are presented on a TFT-LCD screen using innovative display concepts. A second screen is dedicated to the standard-fit multimedia and navigation system.

Carbon-fiber monocoque

The new Lamborghini flagship has a full monocoque. The entire occupant cell, with tub and roof, is one single physical component. This ensures extreme rigidity and thus outstanding driving precision, as well as an extremely high level of passive safety for the driver and his passenger. The entire monocoque weighs only 147.5 kilograms (325.18 lb).

The monocoque, together with the front and rear Aluminium frames, features an impressive combination of extreme torsional stiffness of 35,000 Newton meters per degree and weighs only 229.5 kilograms (505.9 lb).

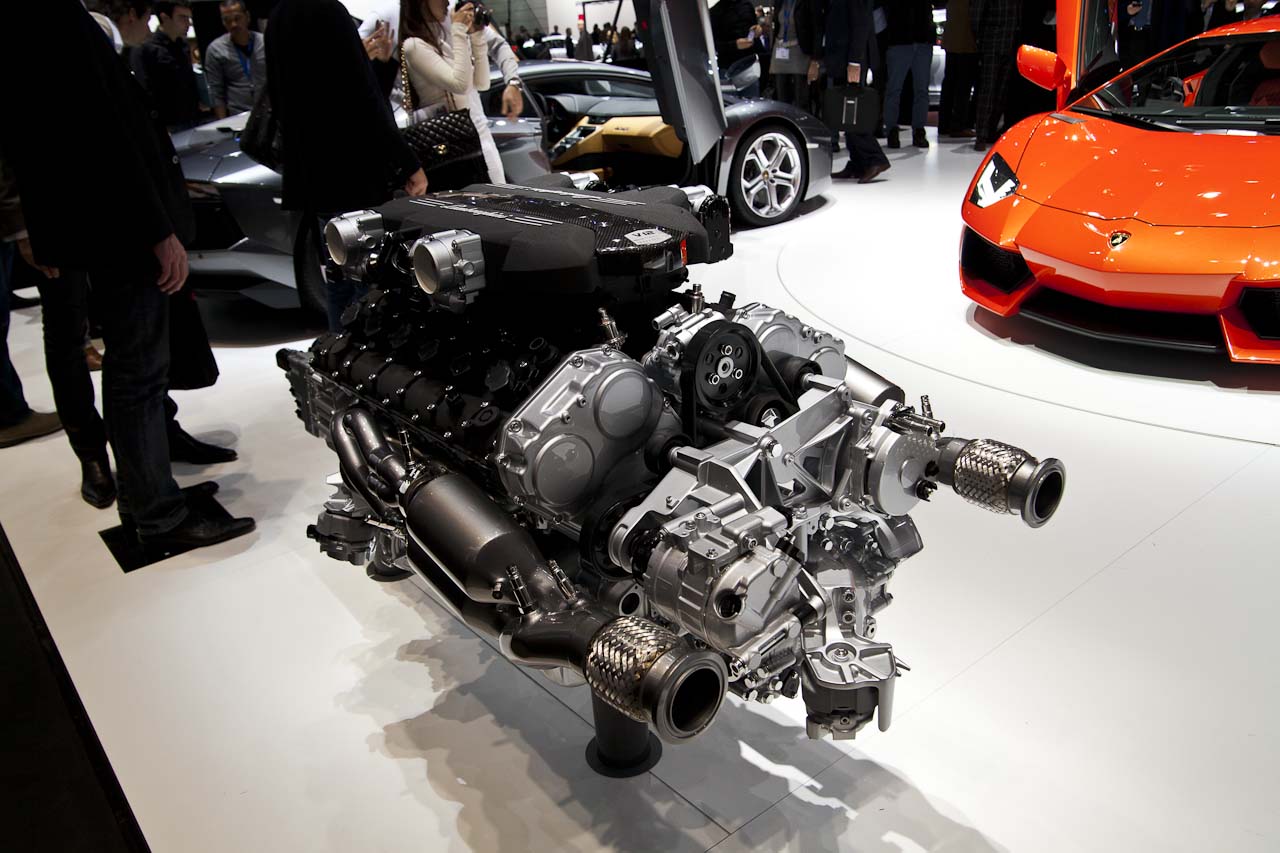

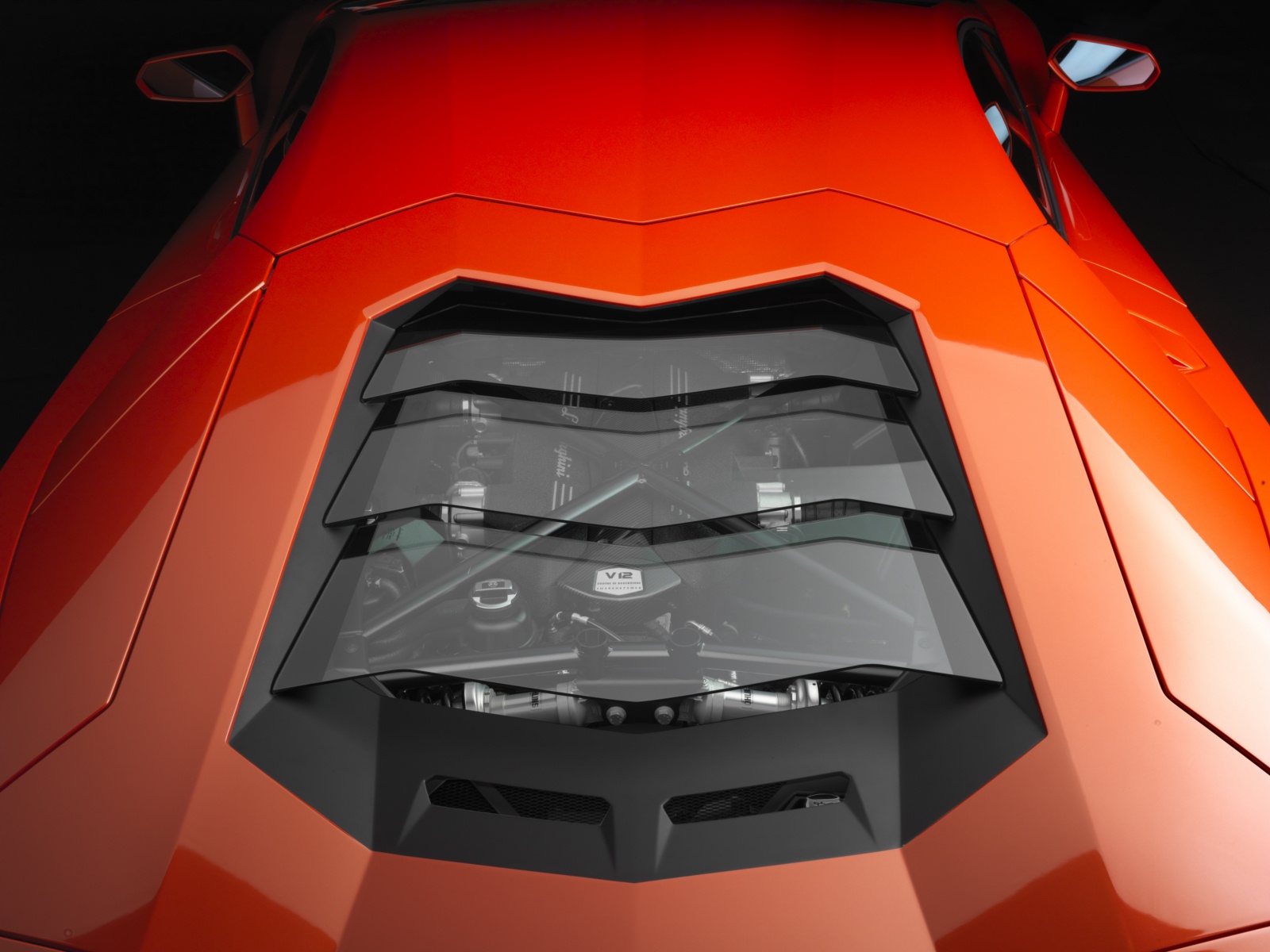

Maximum revs, amazing sound

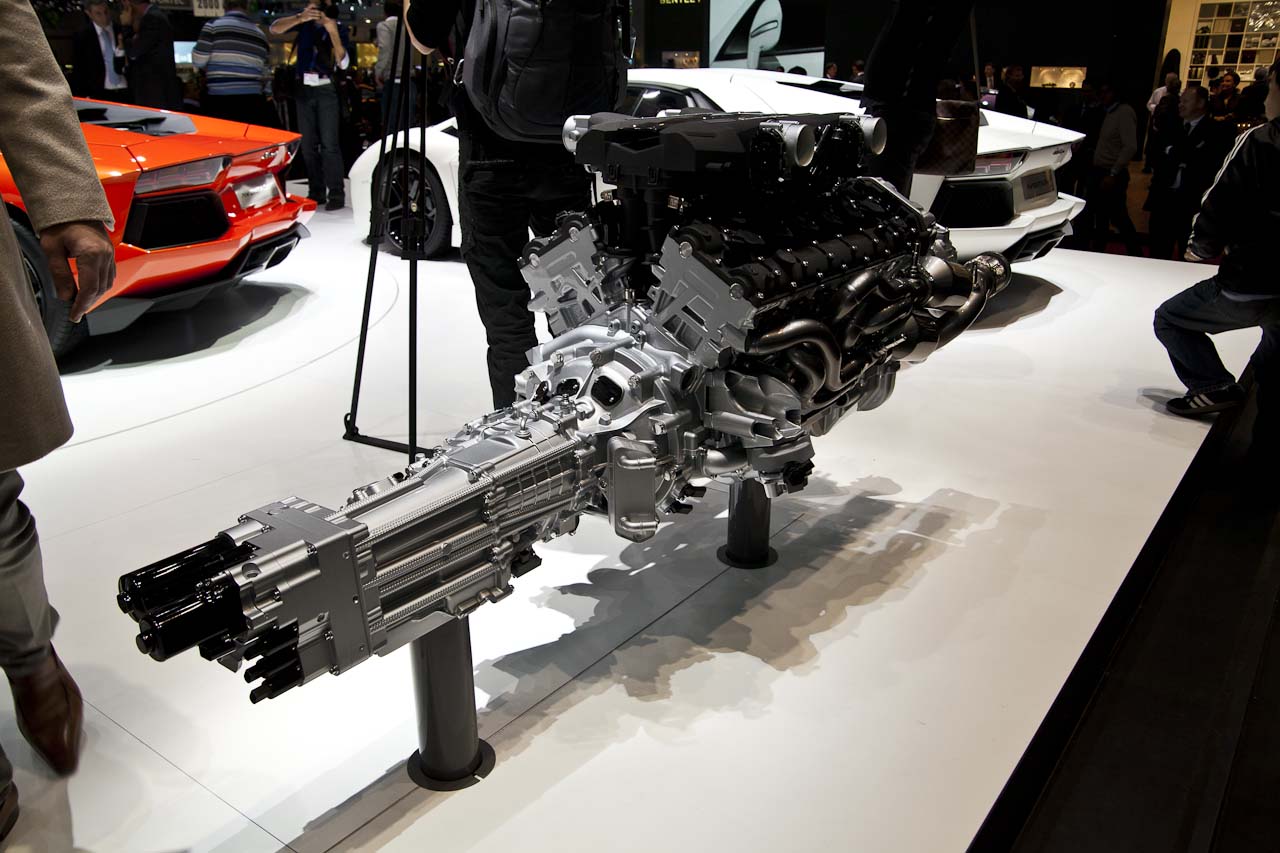

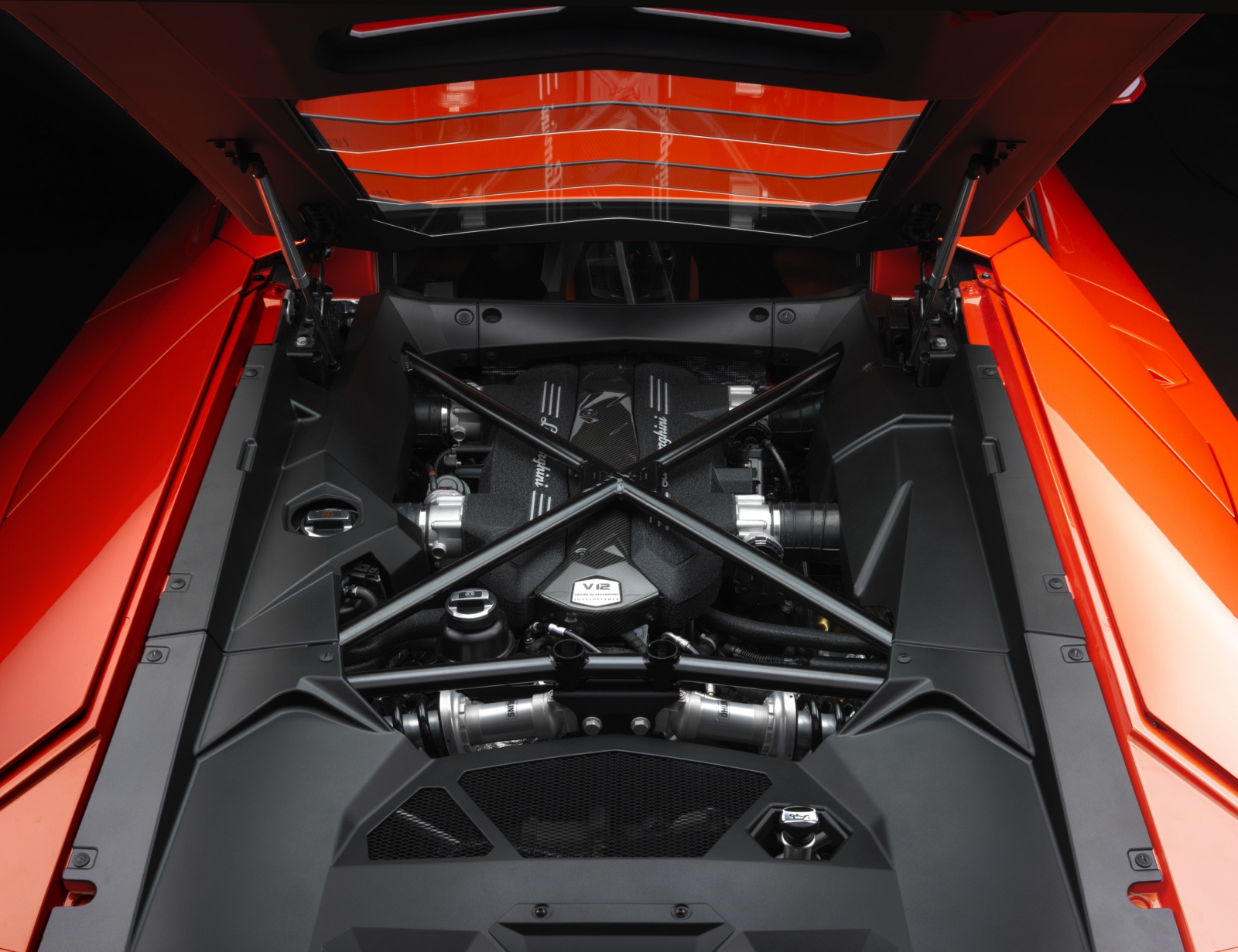

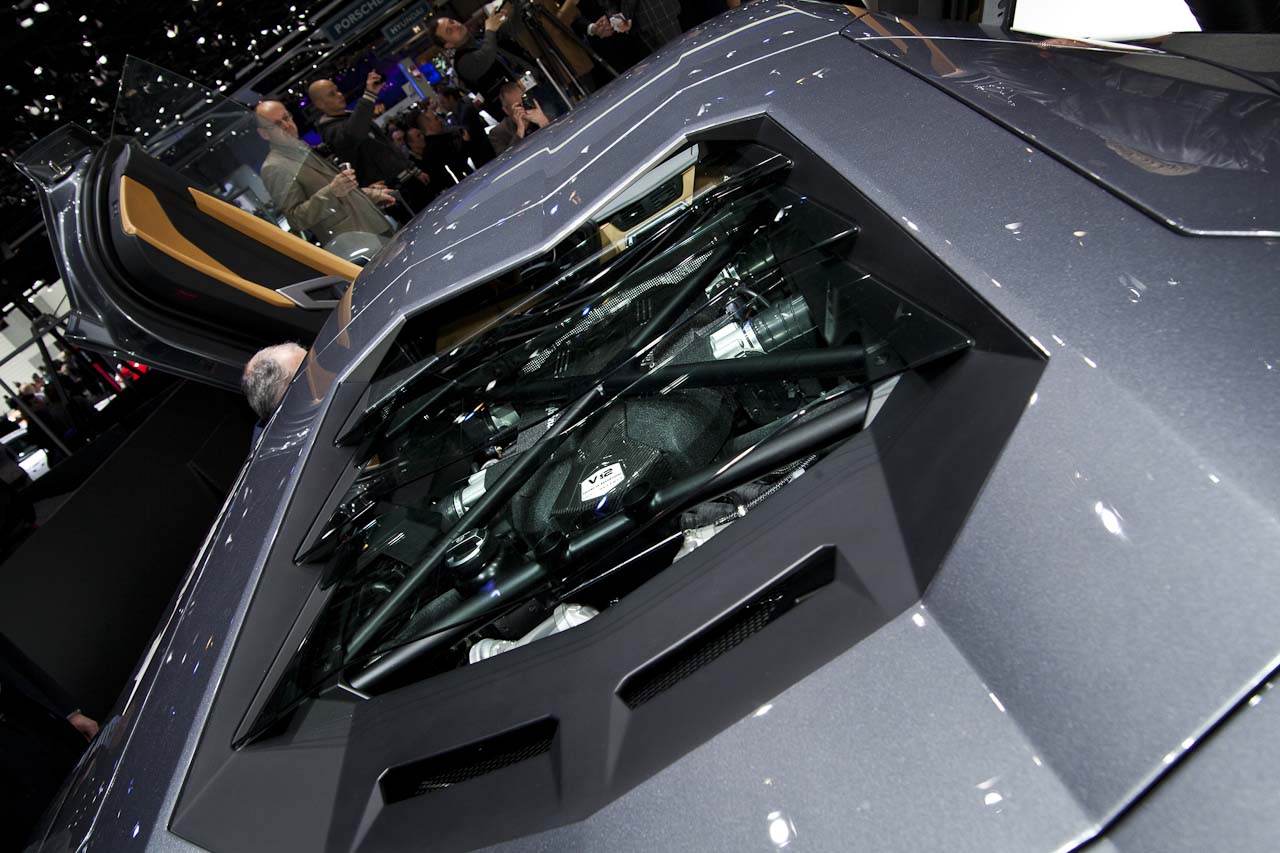

For the Aventador LP 700-4, the engineers in Lamborghini’s R&D Department have developed a completely new high-performance power unit – an extremely powerful and high-revving, but very compact power unit. At 235 kilograms (518 lb), it is also extremely lightweight. A V12 with 515 kW (700 hp) at 8,250 rpm sets a whole new benchmark, even in the world of super sports cars. The maximum torque output is 690 Newton meters (509 lb-ft) at 5,500 rpm. The extremely well-rounded torque curve, the bull-like pulling power in every situation, the spontaneous responsiveness and, last but not least, the finely modulated but always highly emotional acoustics are what make this engine a stunning power plant of the very highest order.

Innovative transmission for maximum performance

Engineers at Lamborghini have created the perfect mate for the new twelve-cylinder engine with the highly innovative ISR (Independent Shifting Rods) transmission. The development objective was clearly formulated – to build not only the fastest robotized gearbox, but also to create the world’s most emotional gear shift. Compared with a dual-clutch transmission, not only is the ISR gearbox much lighter, it also has smaller dimensions than a conventional manual unit – both key elements in the field of lightweight engineering for super sports cars.

Refined and safe with all-wheel drive

This kind of extreme power must be delivered reliably to the road. The driver of the Aventador LP 700-4 can depend fully on its permanent all-wheel drive – indicated by the 4 in the model designation. In the driveline, an electronically controlled Haldex coupling distributes the forces between front and rear. In a matter of milliseconds, this coupling adapts the force distribution to match the dynamic situation. A self-blocking rear differential together with a front differential electronically controlled by ESP make for even more dynamic handling. The Drive Select Mode System enables the driver to choose vehicle characteristics (engine, transmission, differential, steering and dynamic control) from three settings – Strada (road), Sport and Corsa (track) – to suit his individual preferences.

Pushrod suspension

Lamborghini has equipped its new V12 super sports car with an innovative and highly sophisticated suspension concept. The pushrod spring and damper concept was inspired by Formula 1 and tuned perfectly to meet the needs of a high-performance road-going vehicle. Together with aluminum double wishbone suspension and a carbon-fiber ceramic brake system, this lightweight chassis represents a further aspect of the new flagship’s unique technology concept.

Extensive assistance and safety systems

In the hands of its driver, the Lamborghini Aventador LP 700-4 is a high-precision machine – spontaneous, direct and always reliable. The driver is also assisted by the latest electronic systems such as the incredibly sporty, adjustable ESP system. When it comes to passive safety, front, head-thorax and knee airbags play their part alongside the extremely stiff carbon-fiber cell.

A rich and wide-ranging individualization program

A Lamborghini should always fit perfectly with the style and preferences of its owner. To this end, the range of individualization options is virtually inexhaustible. There is a selection of 13 production paint colors to choose from, three of which are highly sophisticated matt tones. A choice of two-tone interiors are offered with the “Sportivo” and “Elegante” versions, while a premium audio system and reversing camera are among the many technology options. And of course, the “Ad Personam” individualization program knows no limits when it comes to colors and materials.

The price of the Lamborghini Aventador and market delivery
UK: GBP 201.900,00 (suggested retail price taxes excluded)
Europe: € 255.000 (suggested retail price taxes excluded)
USA: 379.700 USD (suggested retail price – GGT included)
China: RMB 6.270.000,00 (suggested retail price taxes included)
Japan: YEN 39.690.000,00 (suggested retail price taxes included)

The first customers will take delivery of the new Lamborghini Aventador LP 700-4 in late summer 2011.

7. The History –

The twelve-cylinder at the heart of the brand with the bull

Lamborghini V12 – a long and glorious story. According to the history books, Ferruccio Lamborghini established a car company in the early sixties because he wanted to better the products on offer at the time from the competition, with the best possible technology and quality. The prototype for all later Lamborghini super sports cars was the 350 GTV study presented at the Turin Motor Show in 1963. It featured an all-new aluminium twelve-cylinder developed from scratch by engine designer Giotto Bizzarrini and boasted performance figures that were nothing short of breathtaking by the standards of the time. The 12-cylinder V-engine with 60 degree cylinder bank angle, four overhead camshafts (at a time when single camshafts were still the norm), a six bbl carburetor and dry sump lubrication, generated 360 hp at 8,000 rpm from a displacement of 3,497 cm3 that would take the concept car to a top speed of 280 km/h. The 350 GT series production version with conventional lubrication launched the following year produced 320 hp at 7,000 rpm from a displacement of 3,464 cm3.

It was exactly this engine that captured the imagination of show-goers at the 1966 Geneva Auto Salon in the Lamborghini Miura. Although its main features were already familiar from the 400 GT, this time the four-liter 60° twelve-cylinder was mounted transversely behind the cockpit, with transmission and differential in a single unit fixed directly to the frame.
The 320 hp made the series production Miura that followed the fastest production car of its time with a stated top speed of more than 280 km/h – and, with that, the first true super sports car. This engine was further developed over the years, with several iterations featuring in the Miura S (370 hp at 7,000 rpm, 285 km/h) and Miura SV (385 hp, 300 km/h). In the Miura Jota, a one-off made for racing, the V12 generated 440 hp at 8,500 rpm. However, applications for the four-liter were not limited to the mid-engine Miura. In the front-engine Islero, introduced in 1968, and in the 400 GT Jarama, it produced 350 hp, while in the futuristic Espada the figure was 325 hp (later also 350 hp). In 1974, the Espada also saw an automatic transmission offered for the first time.

The generational shift from the Miura to the new LP400 Countach took place in the early seventies. 1971 brought the prototype with a breathtaking, edgy form, the genes of which would ultimately re-emerge forty years later in present-day Lamborghini super sports cars. Marcello

Gandini’s design was a fitting outfit for a five-liter version of the V12.

However, this engine was dropped from the series production model in 1973 in favor of a further evolution of the four-liter unit. In the 1973 Countach – still without the “wing” or spoiler of the eighties – it was longitudinally mounted behind the driver, where it generated 375 hp at an impressive 8,000 rpm and reached a top speed of 300 km/h. The years that followed saw the Countach engine undergo a series of evolutionary developments, although still based on the familiar cornerstones of the first V12 unit. It was in 1985 that the Countach Quattrovalvole took displacement over the five-liter mark for the first time (5,167 cm3) and – as the name implies – featured a four-valve cylinder head. Output was an impressive 455 hp at 7,000 rpm.

In 1986, the five-liter V12 was presented with a completely new application – the Lamborghini LM002 may also have had the 450 hp engine mounted up front, but the 2.7 ton automobile was the first and only SUV produced by the brand, a four-door all-terrain vehicle. The late eighties saw the amazingly long career of the Countach near its end with the Countach Anniversario. The Diablo followed as its rightful heir, clad in a distinctly nineties outfit. By 1990, the V12 had increased to 5.7 liters and by the end of Diablo production to almost six liters, producing 492 hp. One year later, the Diablo VT was the brand’s first four-wheel drive sports car. Over the next few years, output grew steadily to 520 hp (1993 Diablo SE). The Diablo GT with 575 hp and the radical GTR with 590 hp both appeared in 1999. The Diablo 6.0 was the first model to feature the V12 with displacement expanded to six liters, its output ultimately reaching 550 hp.

The Murciélago was launched in 2001 as the first Lamborghini of the new era. It boasted a new 6.2 liter alloy V12 with a crankshaft running on seven bearings and dry sump lubrication. It generated 580 hp at 7,500 rpm and took the super sports car weighing just 1,650 kilograms to a top speed of 330 km/h. The maximum torque of 650 Nm was reached at just 5,400 rpm. At the 2006 Geneva Motor Show, Lamborghini unveiled the Murciélago LP 640, which produces 640 hp from the V12 unit that had been expanded to 6,496 cm3. In the strictly limited Lamborghini Reventón, the twelve-cylinder that is the very heart of the brand generated 650 hp. The grand finale came with the Murciélago LP 670-4 Superveloce with its 670 hp. However, 2011 marks the start of a new chapter in this glorious story…

[/learn_more]
