BiTurbo διαβάζεις και αναρωτιέσαι τι κάνουν εκεί στην Opel; Πόσα άλογα έκαναν να βγάζει το Insignia; 194 θα σου απαντήσω. Και η απορία σου γίνεται μεγαλύτερη. Τι σόι biturbo είναι αυτό τότε; Ας ξακαθαρίσουμε τα πράγματα. To Opel Insignia BiTurbo φορά τον twin-turbo CDTI 2.0-λιτρο πετρελαιοκινητήρα που αποδίδει 194 άλογα με 400 Nm ροπής. Τα 0-100 χλμ/ώρα τα κάνει σε 8.7 δευτ. και η τελική του ταχύτητα αγγίζει τα 230 χλμ/ώρα. Παρότι της καυτές επιδόσεις, έχει μέση κατανάλωση 4.9 λίτρα/100 χλμ και εκπομπές CO2 129 γρ/χλμ, βλέπεις αυτά είναι τα καλά των diesel κινητήρων.
Το αυτοκίνητο θα είναι διαθέσιμο σε όλες τις εκδόσεις του Insignia (sedan και wagon) με αρχική τιμή στην Γερμανία με 33.405 ευρώ και ο κινητήρας μπορεί να συνδυαστεί και με σύστημα τετρακίνησης. Περισσότερες λεπτομέρειες μπορείς να βρεις στο δελτίο τύπου που ακολουθεί.
Exclusive sequential double-turbo technology for Opel Insignia
- New 2.0 CDTI BiTurbo with unique intercooler system, front and all-wheel drive
- Agile, responsive and fluid power delivery: 143 kW/195 hp, 400 Nm torque
- Fuel consumption, emissions as low as 4.9 l/100 km (129 g/km CO2)
- SuperSport chassis with high performance strut now offered on all Insignia AWD
- New, radar-based driver assistance systems further boost safety
Rüsselsheim. Opel continues to enhance and refine its highly successful flagship, the Insignia. As of January 2012, Opel crowns the diesel offering with a new, dynamic yet highly efficient BiTurbo engine. The 2.0-liter CDTI power unit not only delivers 143 kW/195 hp and 400 Nm of torque; fuel consumption starts as low as 4.9 liters per 100 kilometers (129 g/km CO2). The Insignia BiTurbo is thus one of the most fuel efficient mid-size cars.
The highlight of the four-cylinder common rail engine is the sequential double turbo system with two charging stages. This technology has so far been limited to a few higher priced brands. However, Opel is now making it accessible to a wider segment of customers. Buyers have the option to combine the new engine with front or all-wheel drive (AWD). The Insignia 2.0 BiTurbo CDTI is available in all body styles starting at 33,405 Euro.
In the New Year, there will be more innovations in the Opel Insignia range. Every AWD variant can now be ordered with a SuperSport chassis featuring the front suspension from the Insignia OPC (Opel Performance Center) with high performance struts (HiPerStrut). This gives their driving dynamics an even sharper edge. In addition, new radar-based driver assistance systems further enhance active safety in the Insignia.
Intelligent BiTurbo technology boosts performance and cuts fuel consumption
The new 2.0 BiTurbo CDTI engine with 143 kW/195 hp and 400 Nm of torque is designed to deliver especially agile, responsive and fluid performance under acceleration. The Insignia BiTurbo accelerates from 0 to 100 km/h in just 8.7 seconds and has a top speed of 230 km/h. Fuel consumption and emissions however remain extremely low. The front-wheel drive notchback versions only use 4.9 liters of diesel per 100 kilometers (129 g CO2/km). All versions with manual transmission are equipped with Start/Stop, making the Insignia one of the most fuel efficient mid-size cars.
“In this class of power and torque, six-cylinder diesel engines with around three liter displacements are the usual choice. With our BiTurbo technology smaller engines produce even more output while enabling 30 percent lower fuel consumption and emissions,” says Insignia chief engineer, Volker Scharf. “This is a very good example of successful ‘downsizing’ by Opel.”
Sequential charging puts an end to turbo lag

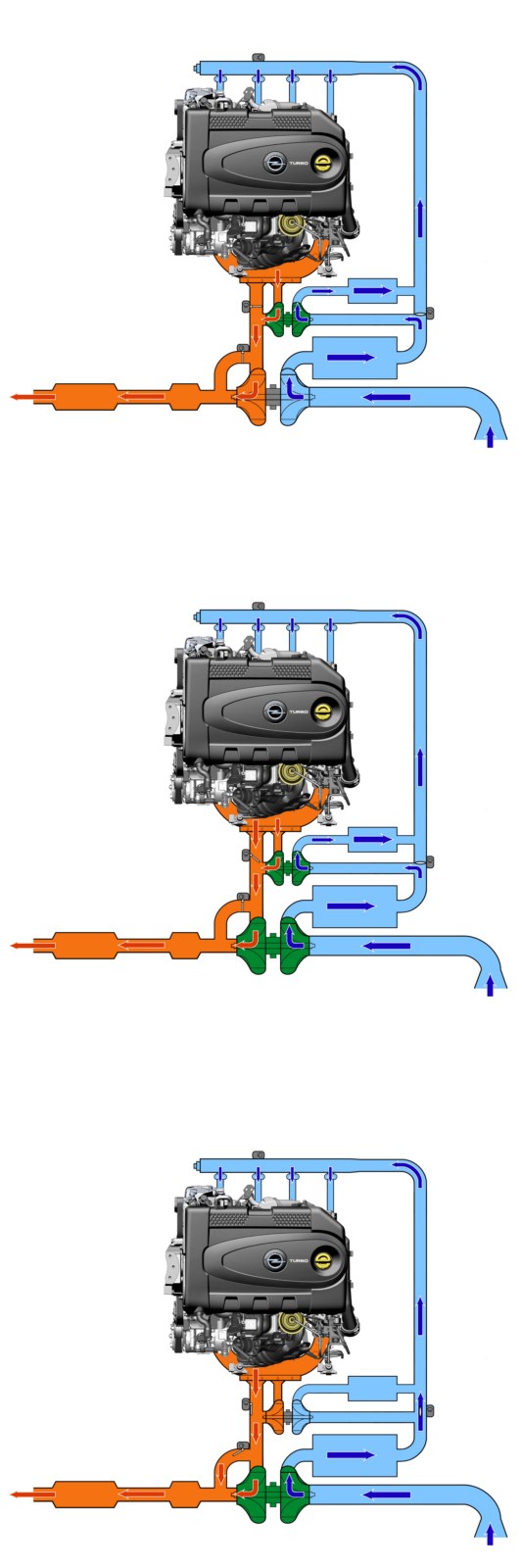

In the Insignia’s innovative BiTurbo system two turbochargers of different sizes work either separately or together. Among its competitors, Opel is the only manufacturer in the mid-size car segment to offer this sophisticated sequential turbocharging system in a diesel engine. The smaller turbocharger accelerates especially quickly at low engine speeds. This means the accelerator pedal responds without delay and the undesired “turbo lag” effect is prevented. Starting at 1500 rpm, the driver can already draw on 350 Nm – the average torque figure for powerful mid-size class diesels.
In the mid-range of rpm both turbochargers operate together, with the larger turbocharger pre-compressing the intake air, before it is fully compressed in the smaller one. A bypass valve is controlled continuously to pass on part of the exhaust gases to the larger turbo. As a result, the driver continues to enjoy powerful acceleration.
At higher rpm (from around 3000 rpm) all the gases flow directly to the larger turbocharger, maintaining the fluid power delivery at higher speeds.

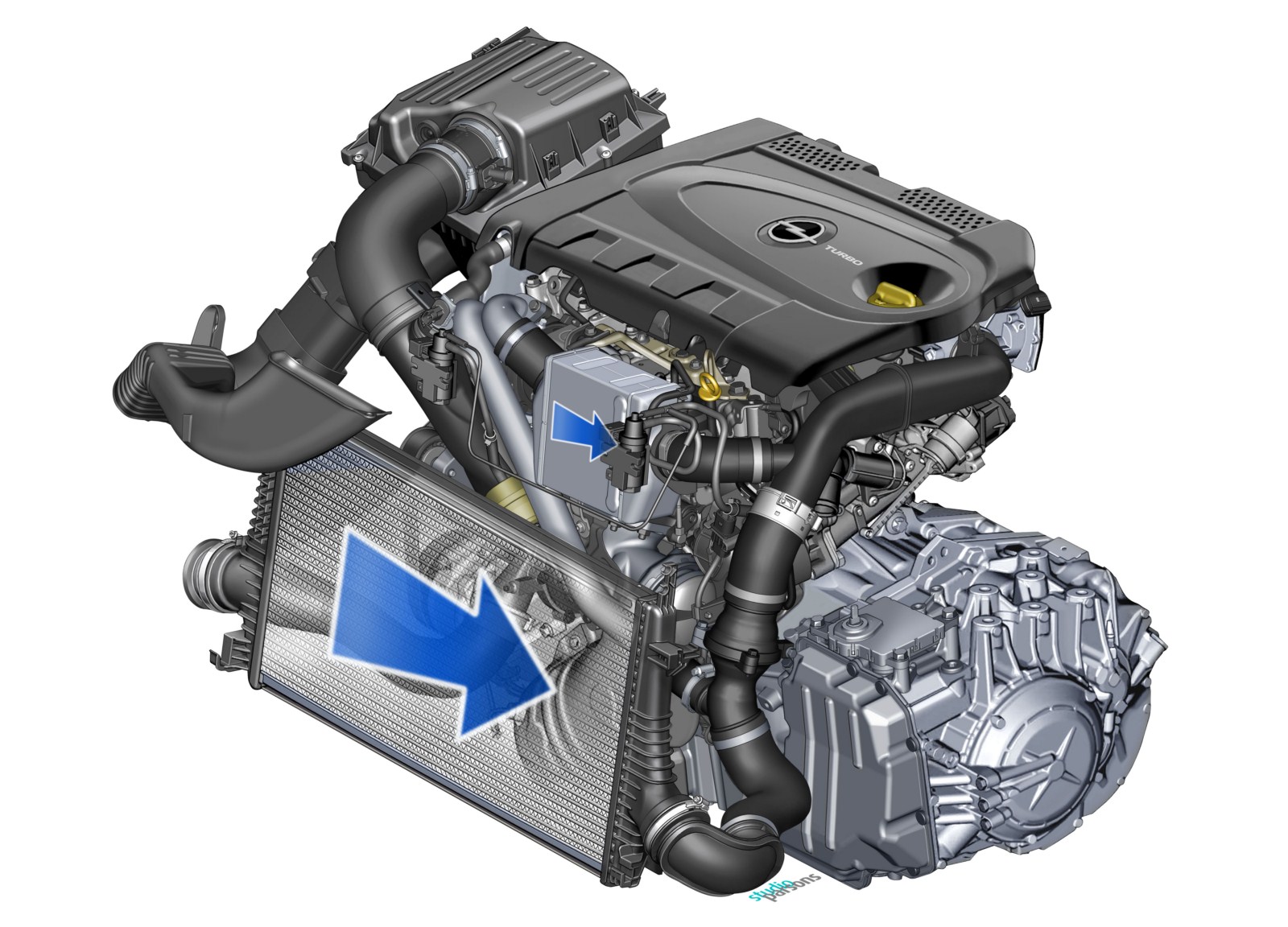

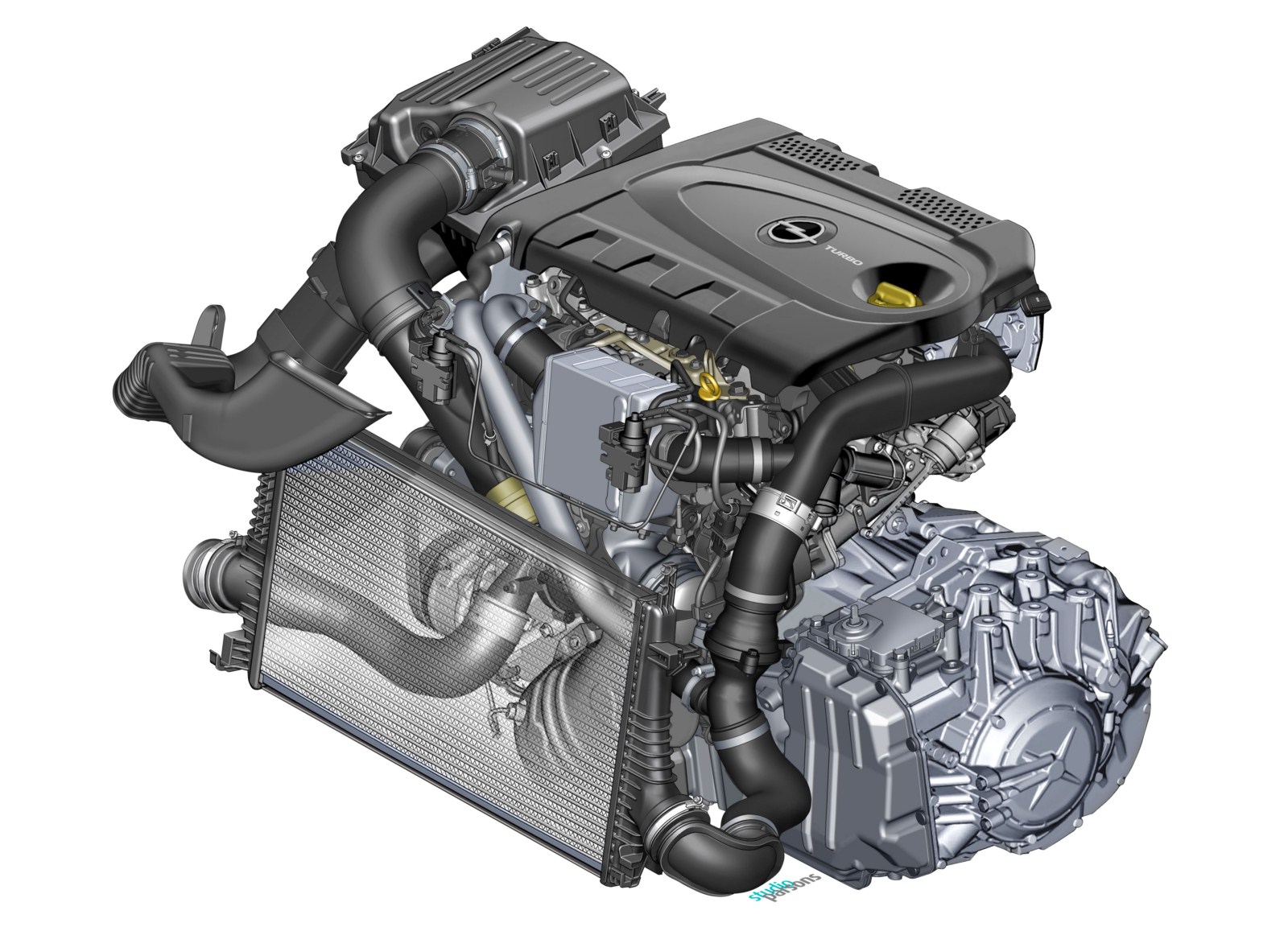

The main focus in the development in the 2.0 CDTI BiTurbo engine was to ensure a rapid build-up of charge air pressure in the low rpm range, while giving the accelerator added responsiveness in the mid rpm range. The engine air is ideally adjusted according to the rpm range and the needs of the two turbochargers of different size. At low rpms an additional, water-cooled intercooler that is exclusively linked to the small turbocharger ensures that the small volume of air passes in a short and direct path to the combustion chamber. In the mid rpm range, the bigger and more powerful turbocharger becomes increasingly involved. Its larger stream of air is cooled by the bigger, conventional intercooler. Opel is the first car brand to use such a “twin cooler system”.
Opel has further optimized its engine efficiency by employing its innovative Cleantech technology which controls the combustion process via a closed loop electronic circuit. Sensors fitted to the glow plugs measure the pressure 130,000 times per minute, ensuring that the engine always operates in the optimum window of maximum performance, as well as minimum fuel consumption and CO2 emissions. The third generation Common Rail direct injection system which runs at pressures of up to 2,000 bar, passes on fuel to ultra-precise, piezoelectrically activated nozzles which deliver up to eight injections per work cycle. This provides a very precise combustion process with minimized noise and emissions. .
With the new top-of-the-line 2.0 CDTI BiTurbo, the Opel Insignia range now boasts a spectrum of four common-rail direct injection turbo diesels with power outputs ranging from 81 kW/110 hp to 143 kW/195 hp.
Unparalleled offer in the mid-size segment
While the September 2011 model year enhancement of the Insignia family was particularly focused on lowering the fuel consumption of its best-selling models (new 1.4 Turbo ecoFLEX gasoline with only 134 g/km CO2 and new version of the 118 kW/160 hp, 2.0 CDTI ecoFLEX with only 115g CO2), the new features introduced early 2012 add significant premium qualities and technologies to Opel´s flagship model. The new 2.0 BiTurbo CDTI is available in all Insignia body variants -four-door hatchback, five door sedan and the Sports Tourer station wagon. Customers can also opt for a six-speed manual or automatic transmission as well as for front or all-wheel drive (with rear electronic slip differential).
Driving dynamics can be further enhanced by the optional mechatronic adaptive FlexRide chassis system. This level of choice is unparalleled in the mid-size segment.
SuperSport Chassis with High Performance Strut available for all Insignia 4×4
Another major innovation for all four-wheel drive versions of the Insignia is the optionally available SuperSport chassis. This technology which was previously confined to the sporty top-of-the-line OPC model (Opel Performance Center) is now being made available to a wider scope of customers. The package comprises the mechatronic FlexRide system complete with electronically adaptive damping system, a high performance Brembo brake system and the HiPerStrut (High Performance Strut) front wheel suspension known from the 325 hp Insignia OPC which further optimizes handling and steering precision.
New radar-based driver assistance systems further enhance safety
Not only performance enhancing features have been given a sharper edge: active safety has also received a significant boost thanks to a new radar system located behind the front grille. Insignia customers can now opt for the radar-based Adaptive Cruise Control (ACC). The new system maintains the selected speed during cruising, yet automatically adjusts the vehicle speed according to traffic conditions to secure a pre-set safety distance with vehicles ahead. Further functionalities are available in conjunction with the radar system: The Following Distance Indication (FDI) informs the driver visually about the distance to the car ahead; the Forward Collision Alert (FCA) provides a visual and an audible signal to warn the driver of an imminent collision with the car ahead; and the Collision Imminent Braking (CIB) automatically decelerates the vehicle if the risk of a collision is detected.
