Η Audi έδωσε μερικές πληροφορίες για τον V6 ΤDI κινητήρα του R18 TDI,του αγωνιστικού της για το Le Mans. Η Audi άφησε πίσω τον V10 για χάρη των νέων κανονισμών του Le Mans και ετοίμασε έναν νέο V6 3.7 λίτρων TDI απόδοσης 540 ίππων ο οποίος έχει αλουμινένιο μπλοκ, αρκετά σπάνια επιλογή για έναν πετρελαιοκινητήρα τόσο υψηλής συμπίεσης. Ο κινητήρας έχει περιεχόμενη γωνία 120º δίνοντας του έτσι χαμηλότερο κέντρο βάρους που αγγίζει σχεδόν τα επίπεδα ενός boxer κινητήρα. Οι πολλαπλές εξαγωγές πλέον ενώνονται σε ένα ενιαίο χταπόδι μέσα στο V.

Χάρη στο μικρό του μέγεθος, έδωσε την δυνατότητα τους αεροδυναμιστές να βελτιστοποιήσουν την αεροδυναμική του πρωτότυπο ενώ το χαμηλό του βάρος, επέτρεψε στους μηχανικούς να τοποθετήσουν έρματα σε διάφορα σημεία, πετυχαίνοντας έτσι καλύτερο ζύγισμα. Πίσω από τον κινητήρα βρίσκεται ένα νέο 6τάχυτο κιβώτιο ταχυτήτων, το σασί του αποτελείται από ένα μόνο κομμάτι carbon monocoque ώστε να κρατηθεί το βάρος χαμηλά και να αυξηθεί η ακαμψία. Αναλυτικότερες λεπτομέρειες μπορείς να βρεις στο δελτίο τύπου και στις νέες φωτογραφίες στη συνέχεια.

[Πηγή: Audi Motorsport]

Δελτίο Τύπου

Unique TDI engine for the Audi R18 TDI

  • Only six weeks to go before the 24 Hours of Le Mans
  • Compact V6 TDI power unit with single turbocharger
  • Exhaust manifold and VTG sit between cylinder banks

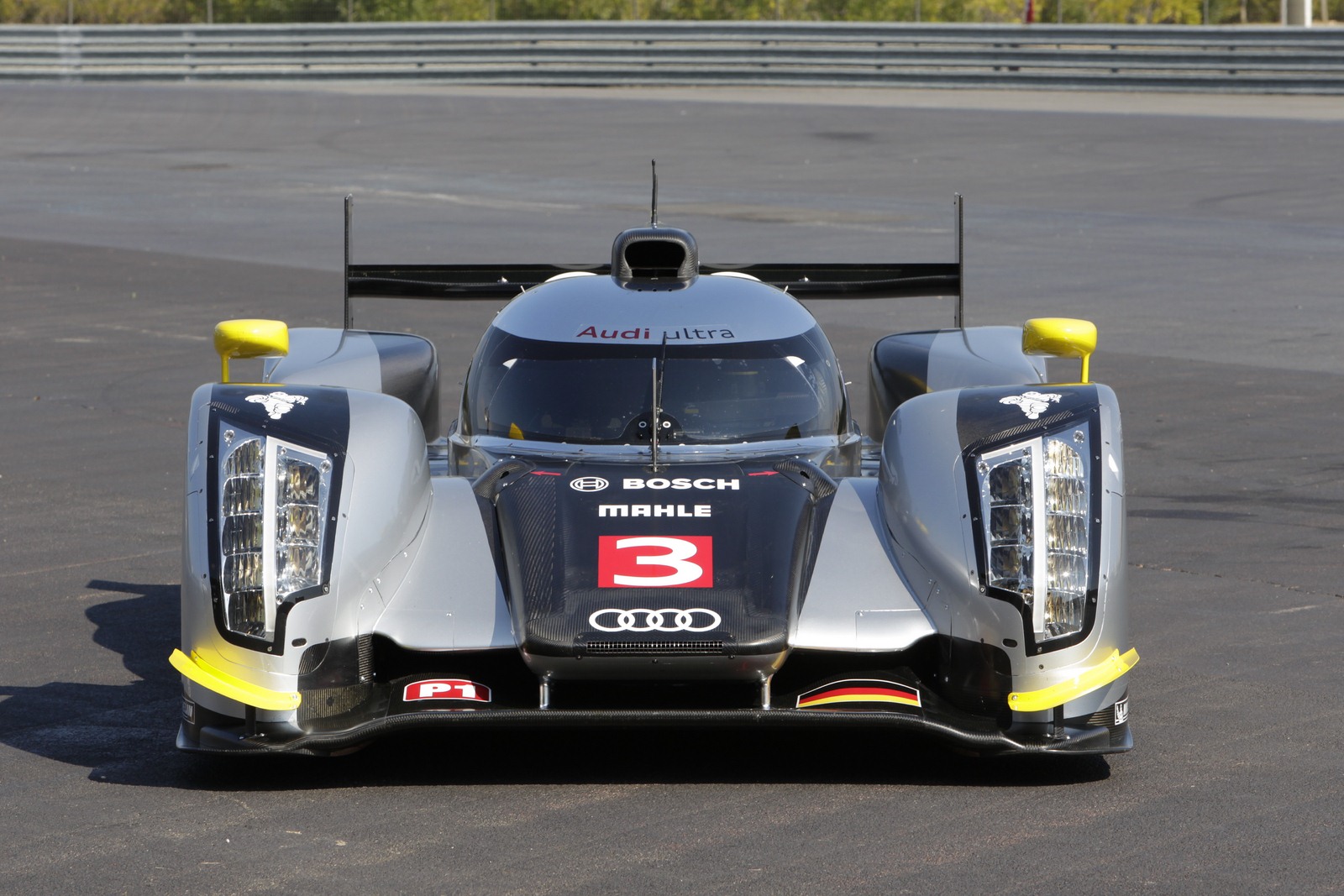

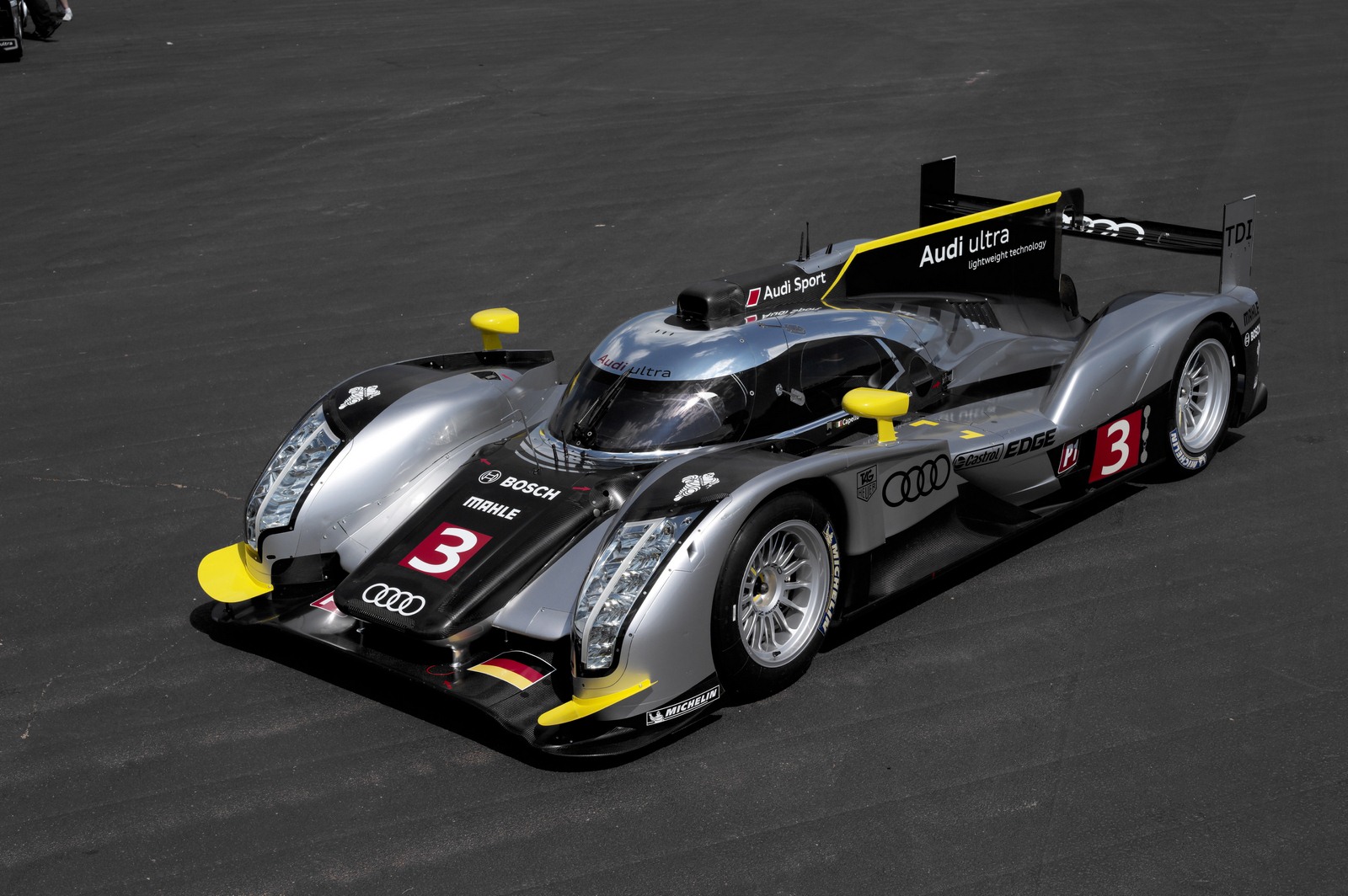

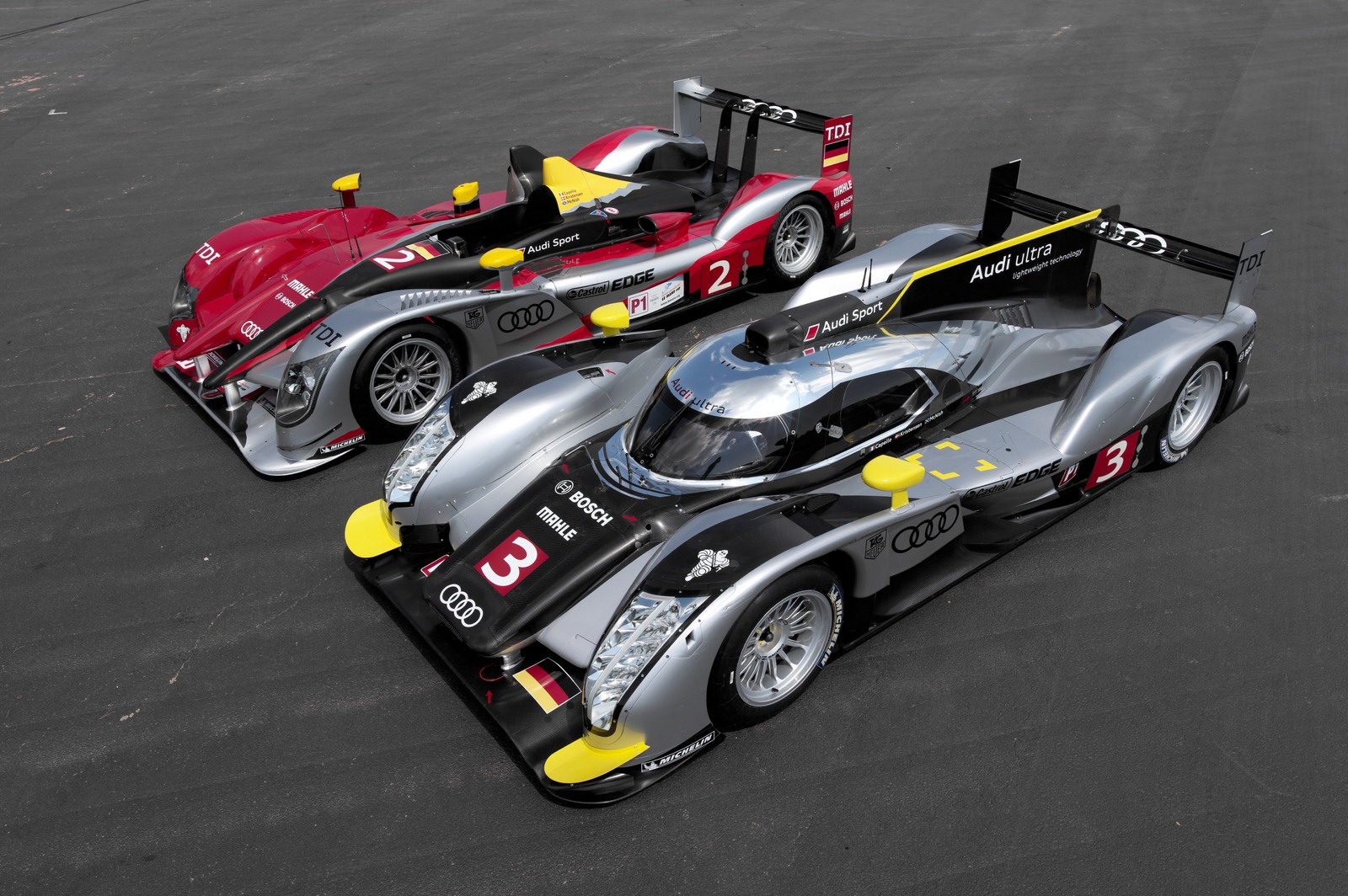

Ingolstadt, April 28, 2011 – The new Audi R18 TDI with which Audi targets its tenth victory in the famous 24 Hours of Le Mans on June 11/12 is ready today with “tomorrow’s” technology. During development of the new LMP1 sports car the integration and future electrification of the powertrain and various possible concepts for energy recuperation have been taken into account.

“We are very conscious of such systems,” explains Head of Audi Motorsport Dr. Wolfgang Ullrich. “In our opinion, just as soon as this technology proves to be the most efficient we will use it at Le Mans.”

Although diesel engines have been repeatedly restricted by the regulations since their victorious introduction in 2006, Audi relies on TDI power once again for its new LMP1. “Audi invented the TDI engine and is convinced that this technology remains one of the most efficient and modern forms to power a car – especially at Le Mans where engines with high specific power, low fuel consumption and low emissions are a necessity.”

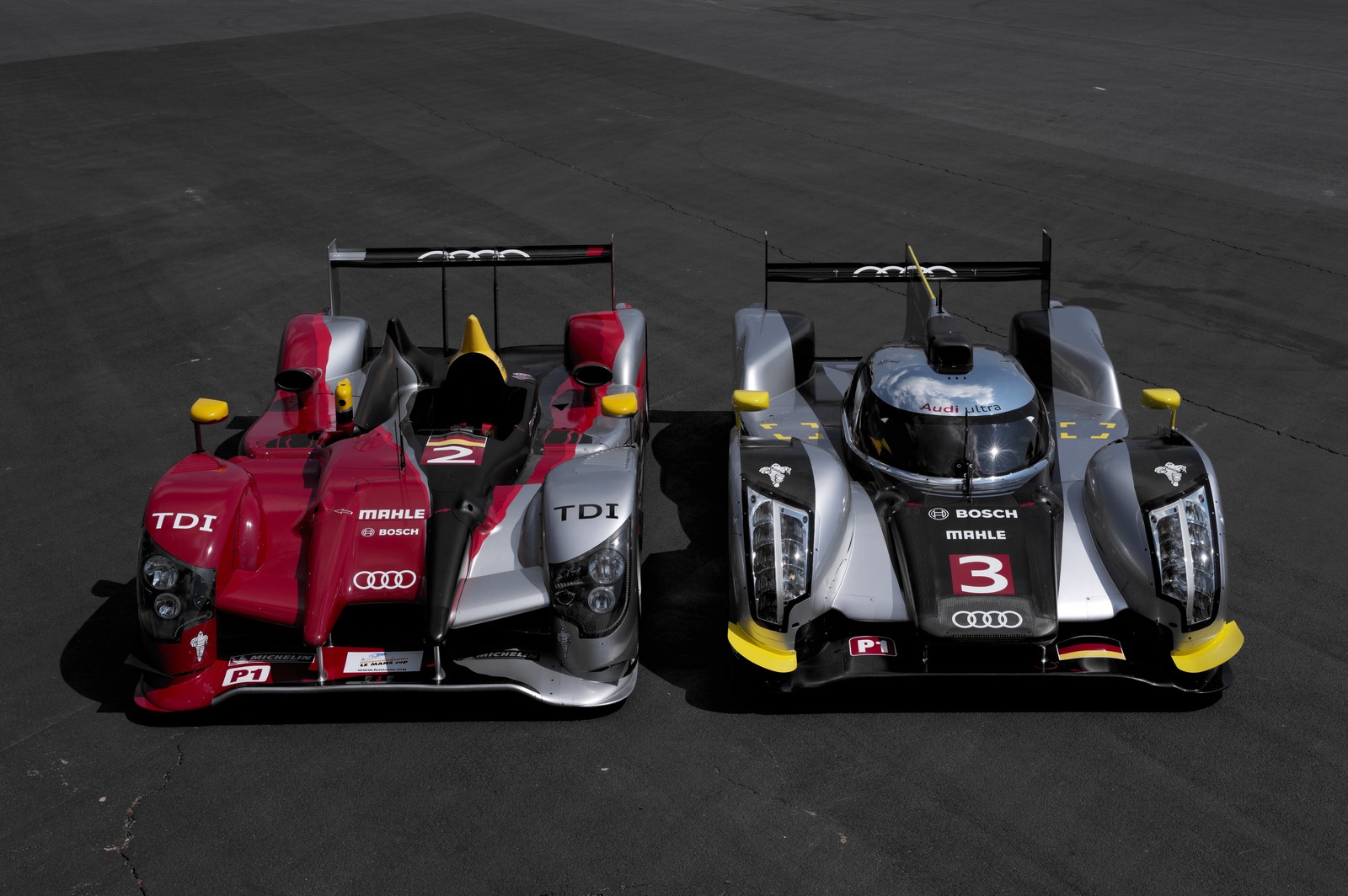

New regulations devised by the Automobile Club de L’Ouest (ACO) and introduced this year dictate significantly smaller engines. Audi has chosen a particularly compact 3.7 liter V6 TDI engine, which is about 25 per cent lighter than the V10 TDI power plant previously fitted to the older R15 TDI, and which leaves all options open for the technicians with regard to electrification and energy recuperation. “This would not be the case with a V8, for example, which is also permitted by the regulations,” explains Ulrich Baretzky, Head of Engine Development at Audi Sport.

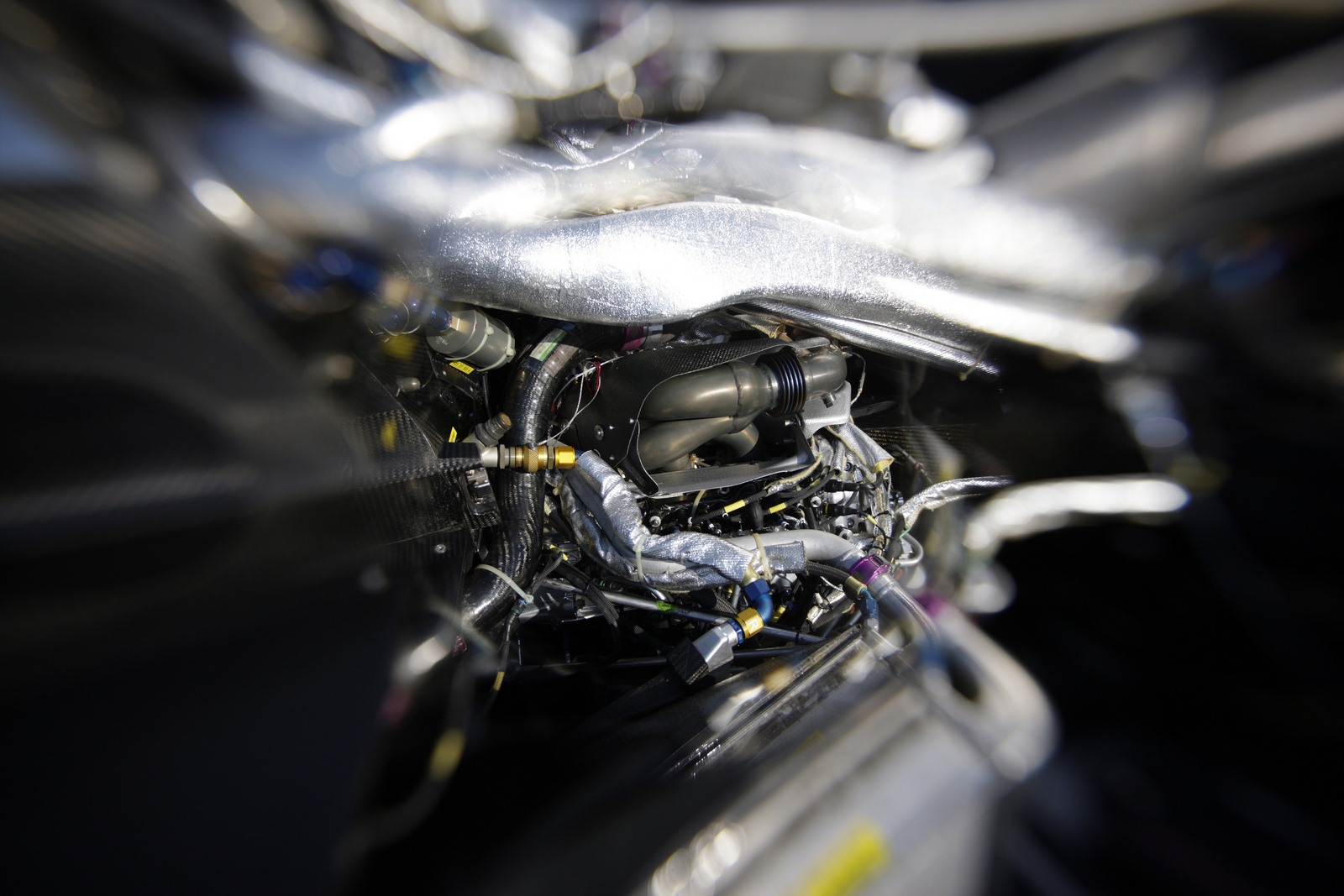

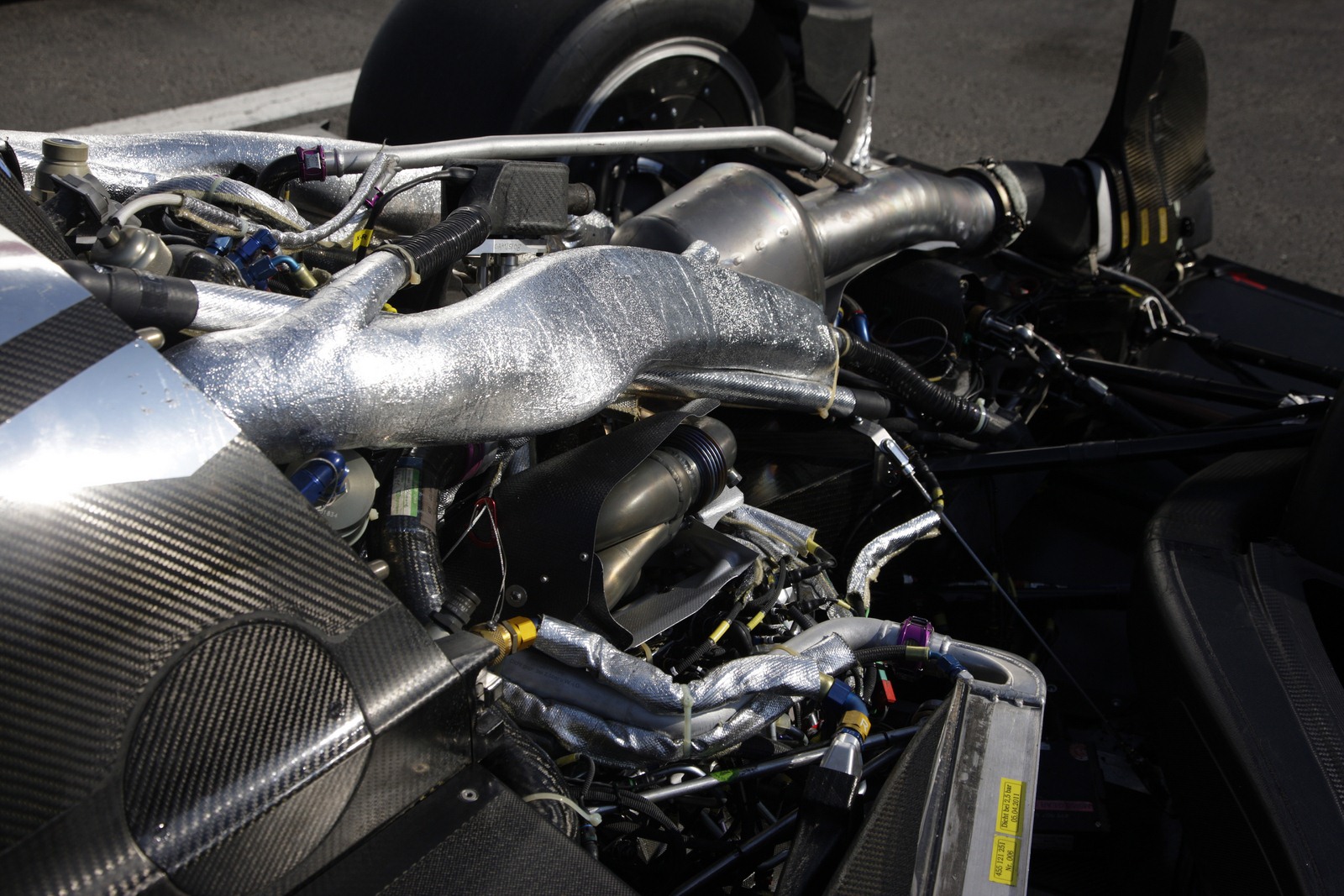

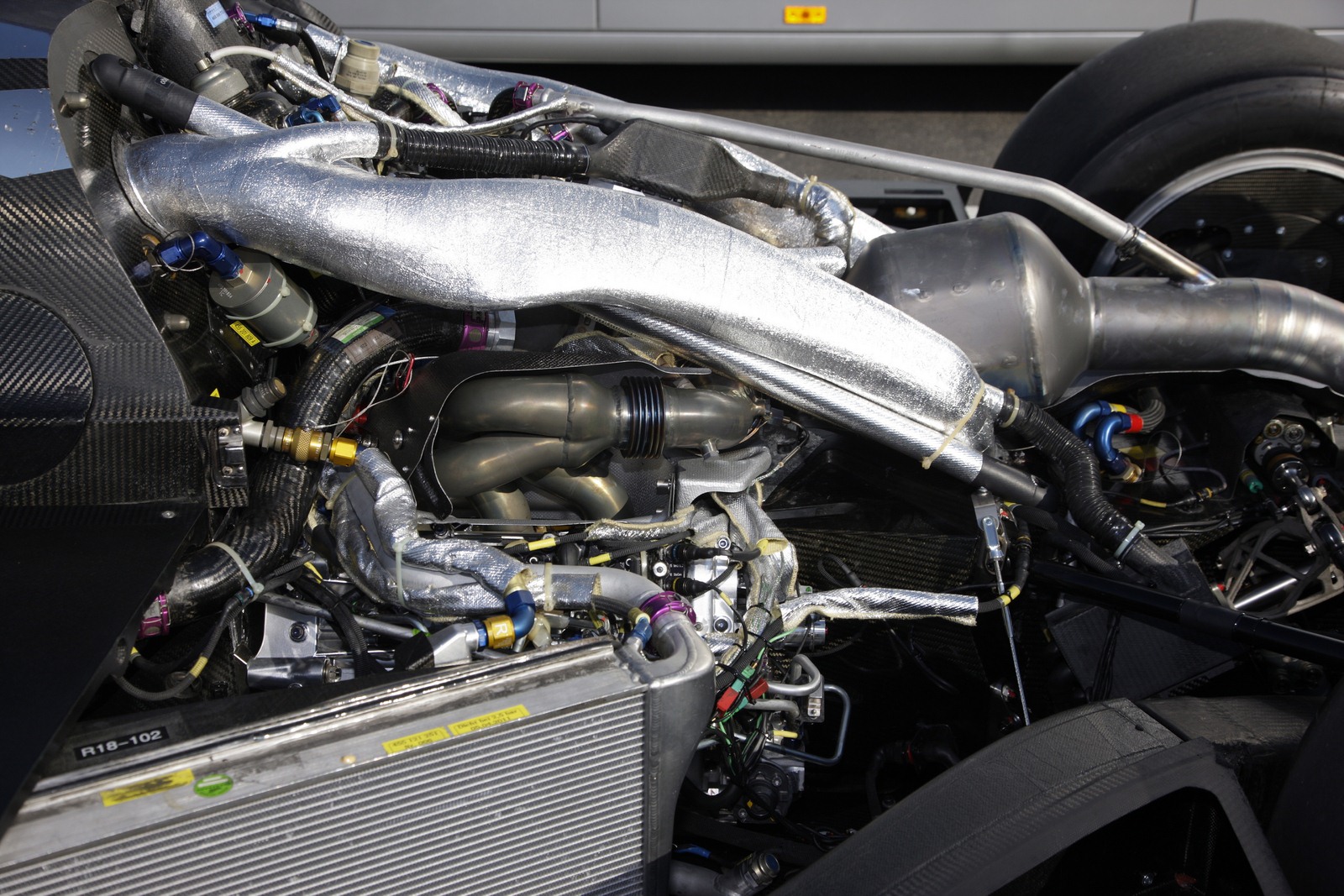

However, Audi does not only surprise with its extremely compact engine. The concept is also innovative for an LMP1 sports car. To lower the center of gravity as much as possible and to improve airflow through the car, the exhaust manifolds were migrated from the left and right hand sides of the engine to sit between the two cylinder banks. “Hot side inside” is the name given to this concept by specialists, which was implemented in similar form in Formula 1 in the 1980s. But the V6 TDI engine powering the Audi R18 TDI, which has a cylinder angle of 120 degrees and thus an extremely low center of gravity, is technically generations further along the line and is also a technology-demonstrator for future production engines.

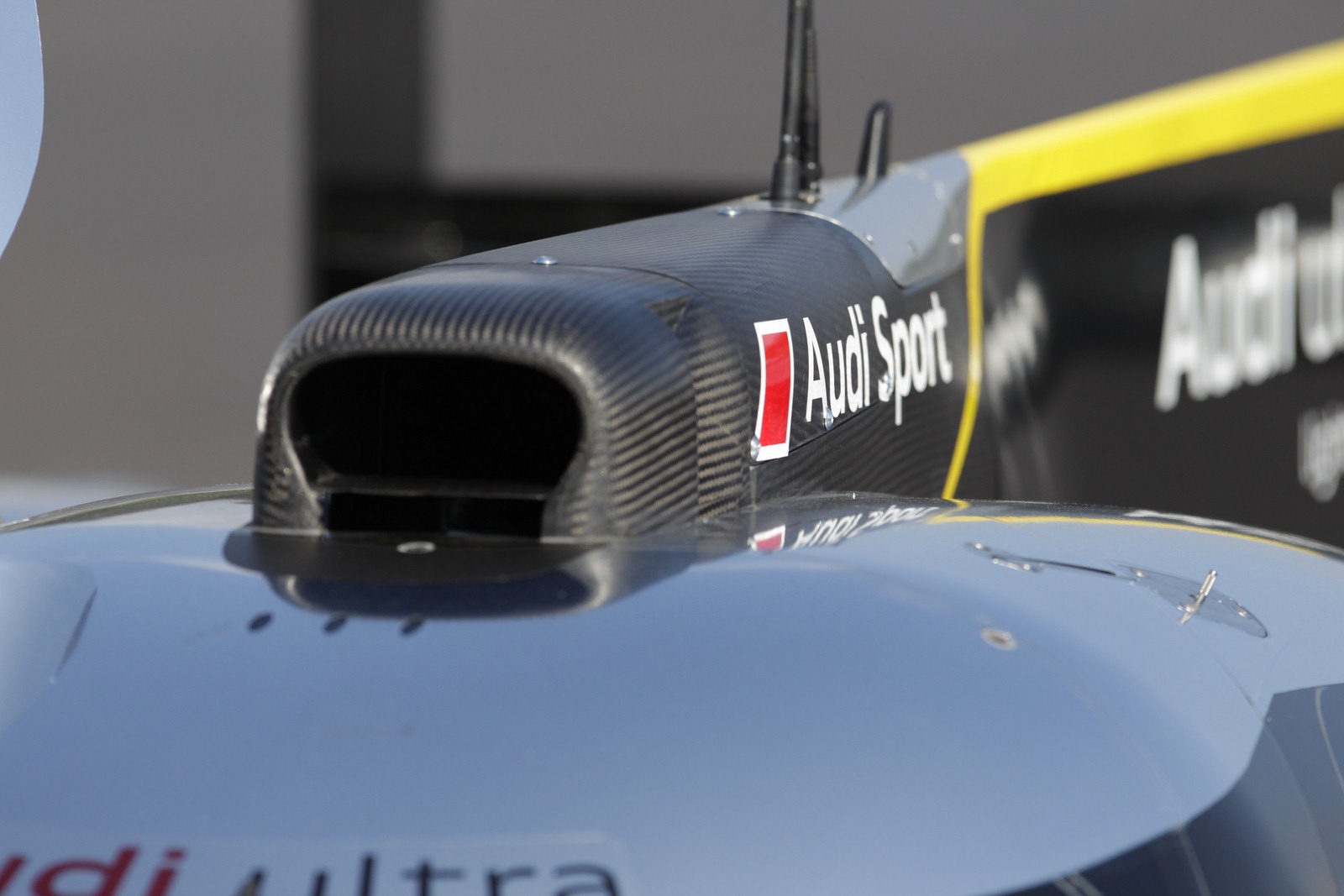

In contrast to previous Audi Le Mans sports cars, which all had twin turbochargers, the R18 TDI is quite logically now only fitted with a single turbocharger that also sits above the engine and draws its air directly through the air scoop mounted on the roof. “In this way we are able to convert the dynamic pressure generated at high speeds with minimal losses into power,” explains Dr. Martin Mühlmeier, Head of Technology at Audi Sport.

The mono-turbo concept developed in cooperation with Garrett was only made possible by the variable turbine geometry (VTG) already used victoriously in the R15 TDI. “Otherwise the response characteristics of such a large turbocharger would just be too bad,” explains Baretzky.

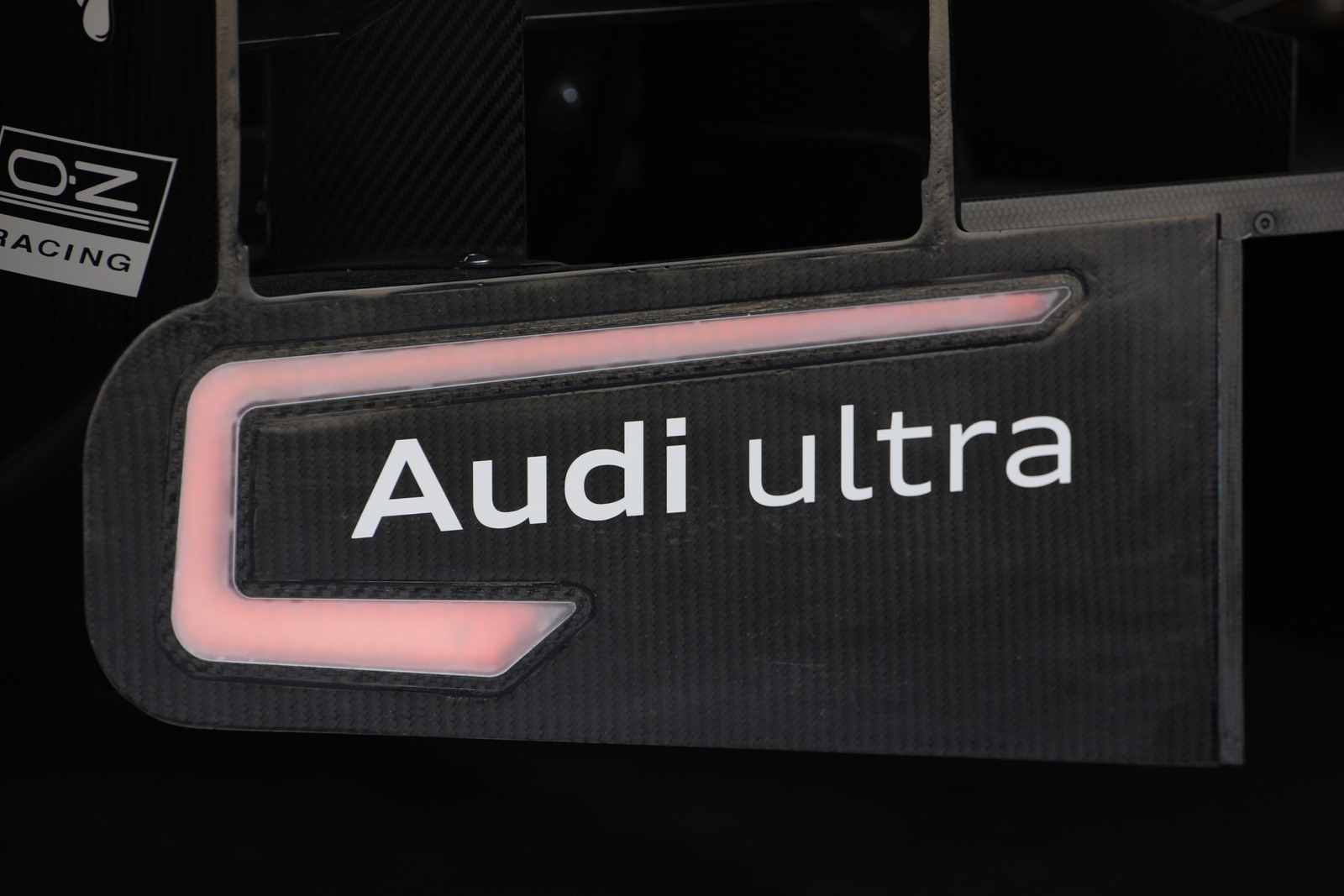

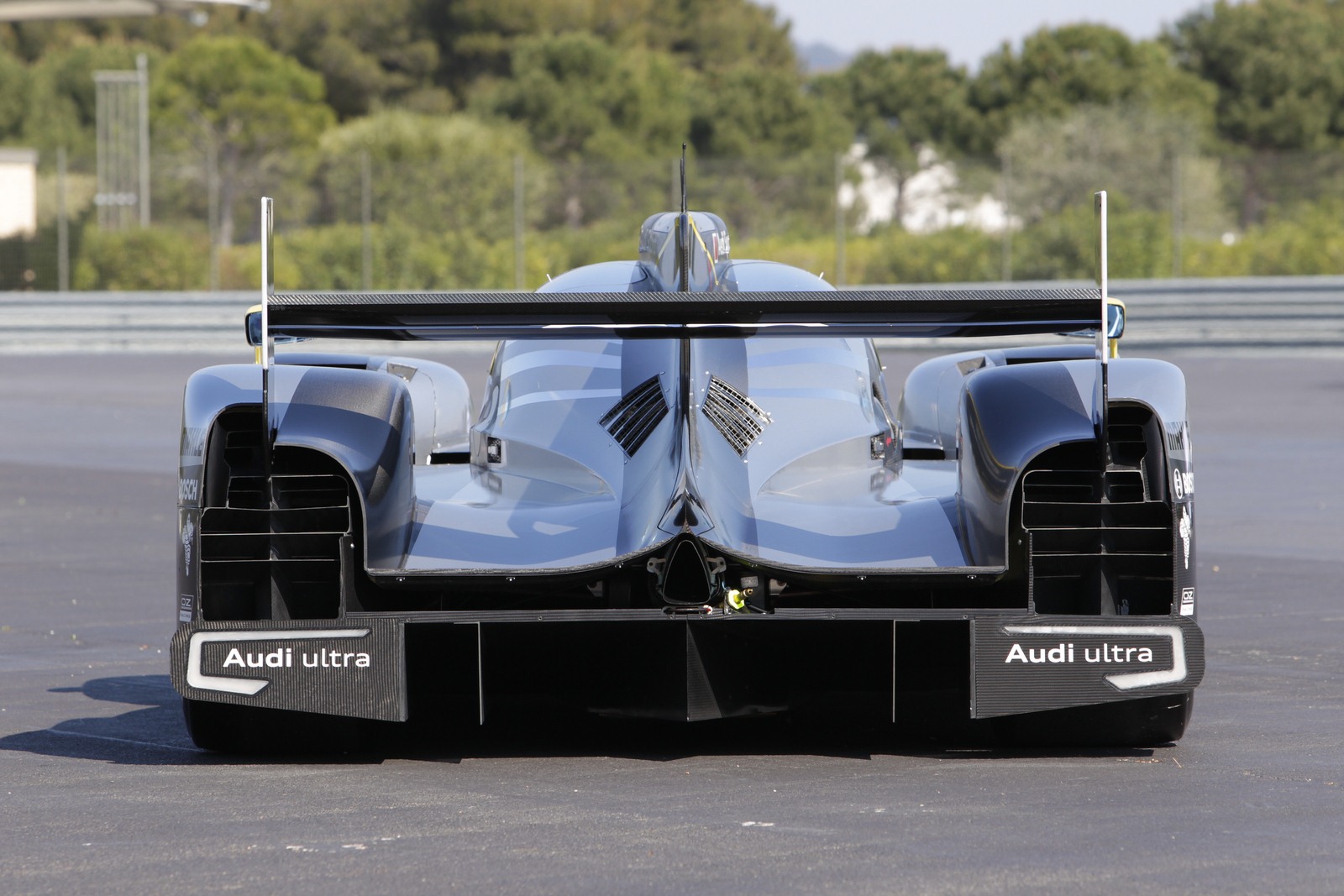

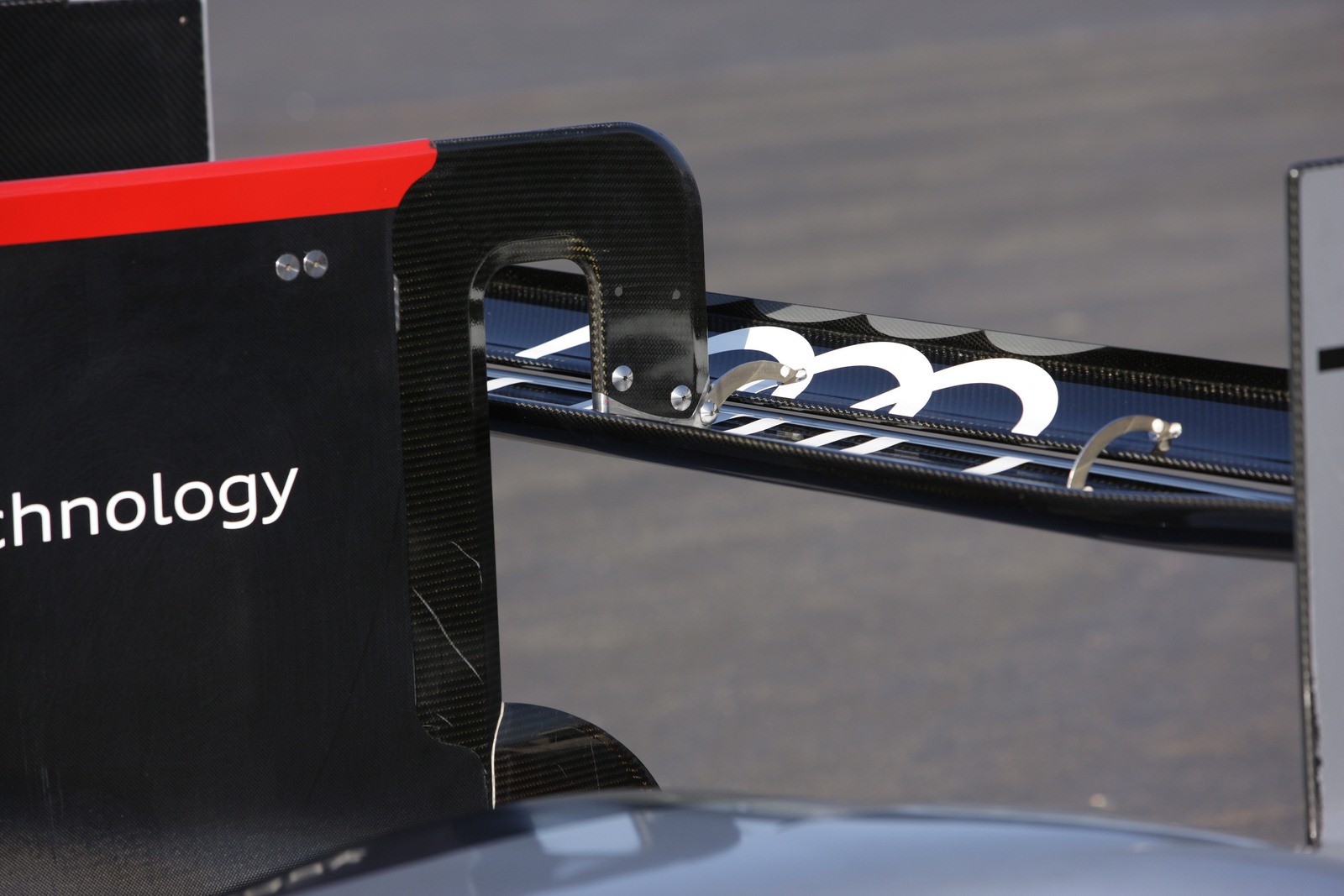

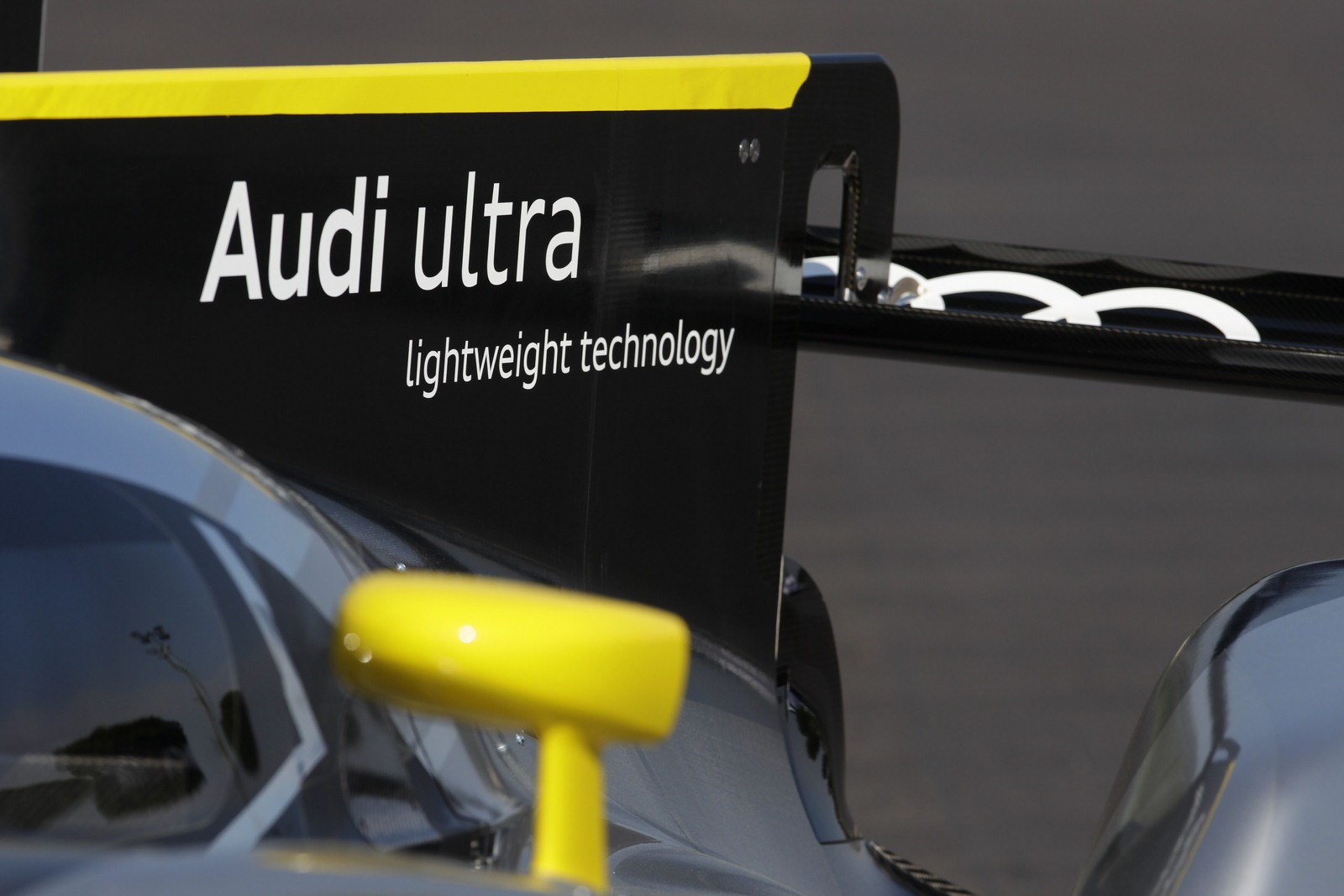

The concept was continued logically through a single pipe exhaust that exits at the rear of the R18 TDI below the new fin which is stipulated by the regulations. “This also stands for Audi ultra lightweight technology,” says Baretzky, “since we save components and weight – for example for a second diesel particle filter.”

Audi Sport has worked since July 2009 on the innovative engine concept for which numerous new routes had to be explored. To control the enormous ignition pressures and loads now only distributed between six cylinders, a unique method of cooling the cylinder heads was developed for the aluminum power unit, a concept that could also be interesting in the future for production.

Owing to the compact engine and uncluttered flanks, the airflow from the coolers can now exit practically unobstructed through the rear end. “We could increase the aerodynamic efficiency of the car as a result,” says Martin Mühlmeier, Head of Technology at Audi Sport. This aspect is even more important than ever before at Le Mans due to the reduction in engine power – for the Audi R18 TDI more than 397 kW (540 hp).

Another unique aspect of the new Le Mans sports car is its unusual sound. The Audi R18 TDI is probably the quietest race car Audi Sport has ever built. “Noise is unused energy,” stresses Dr. Wolfgang Ullrich who is delighted by the whispering murmur of the R18 TDI. “The sound is unique,” raves Le Mans record winner Tom Kristensen. “It’s hard to describe. You have to hear it yourself. I think it’s fantastic.”
