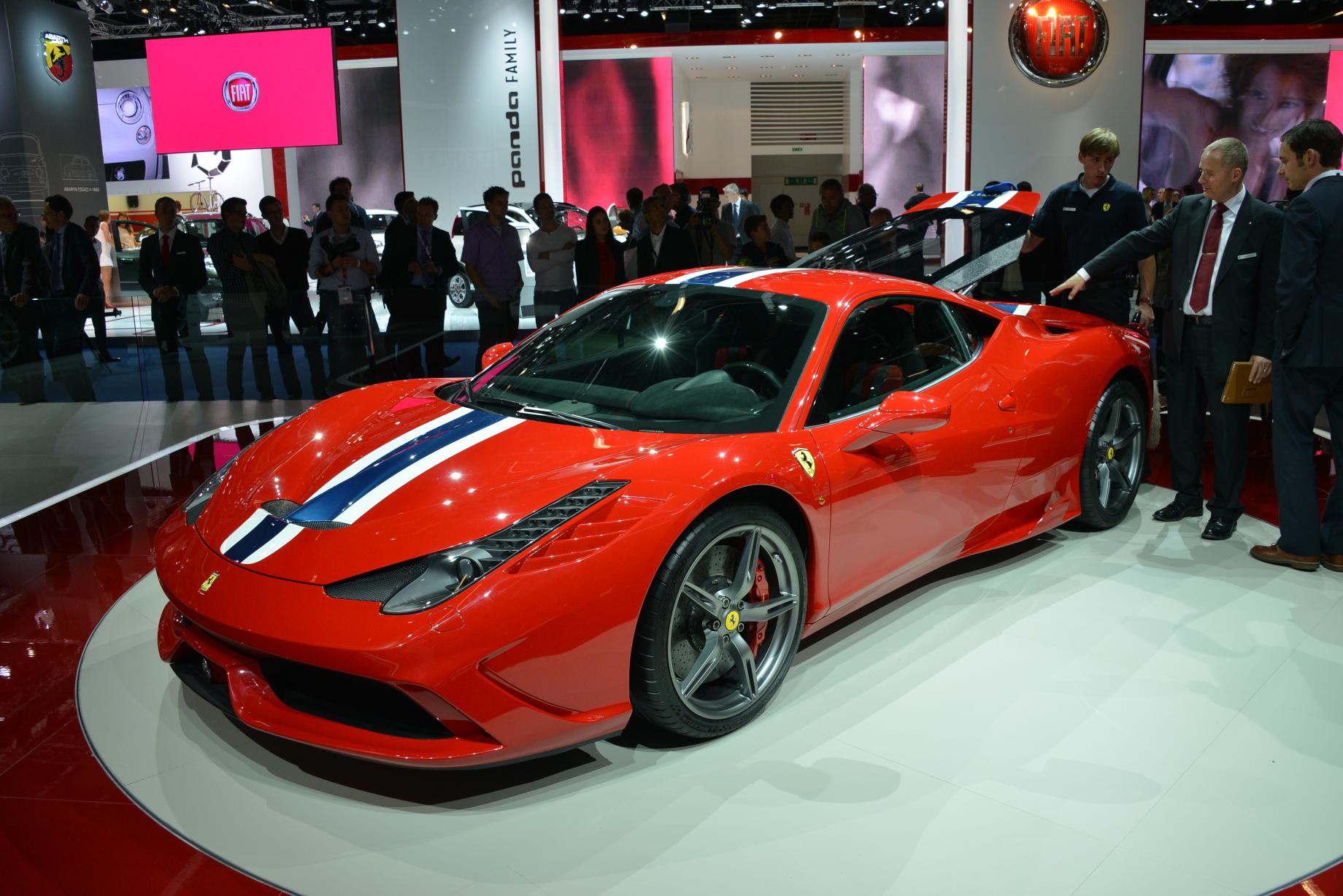

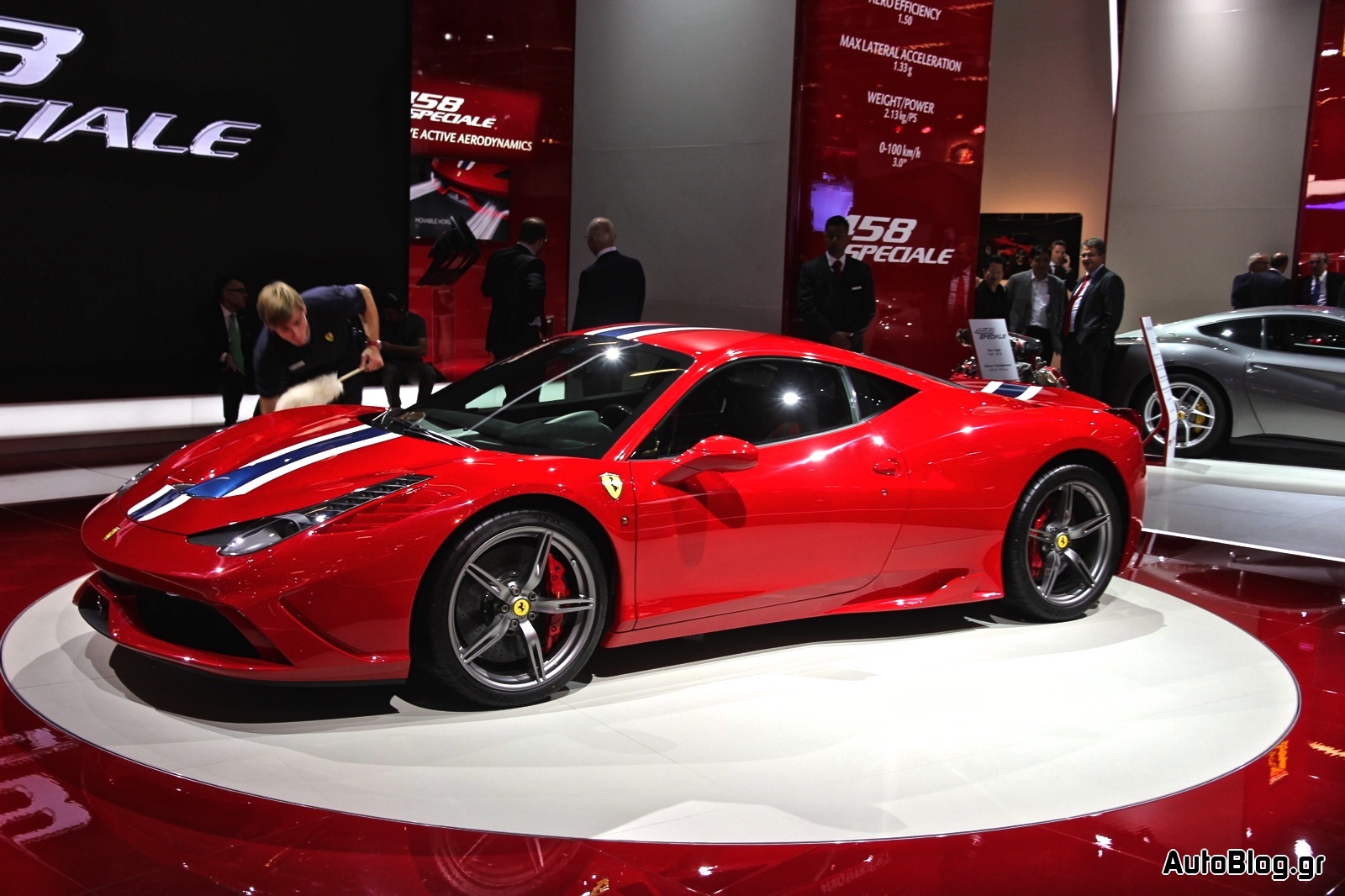

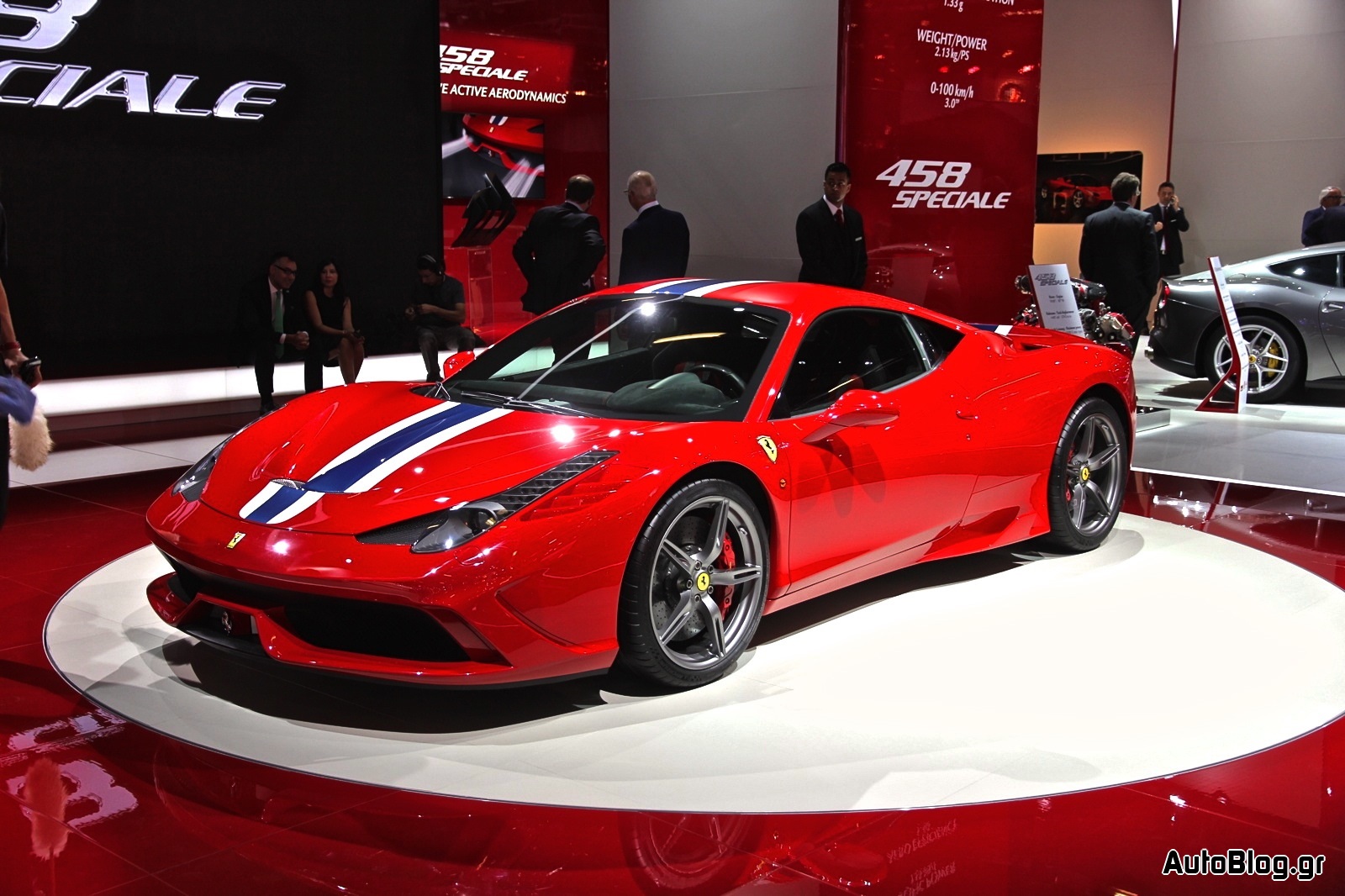

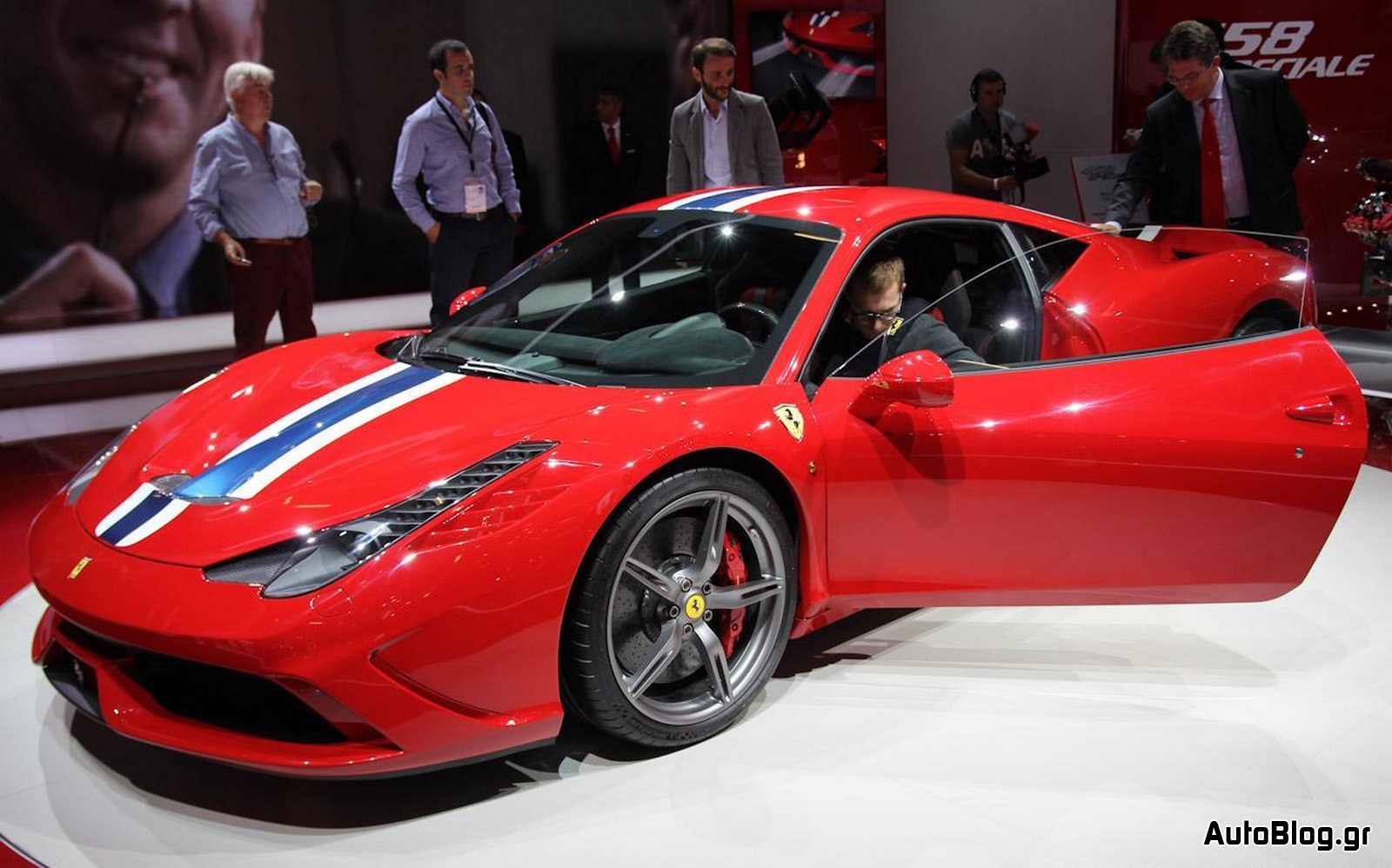

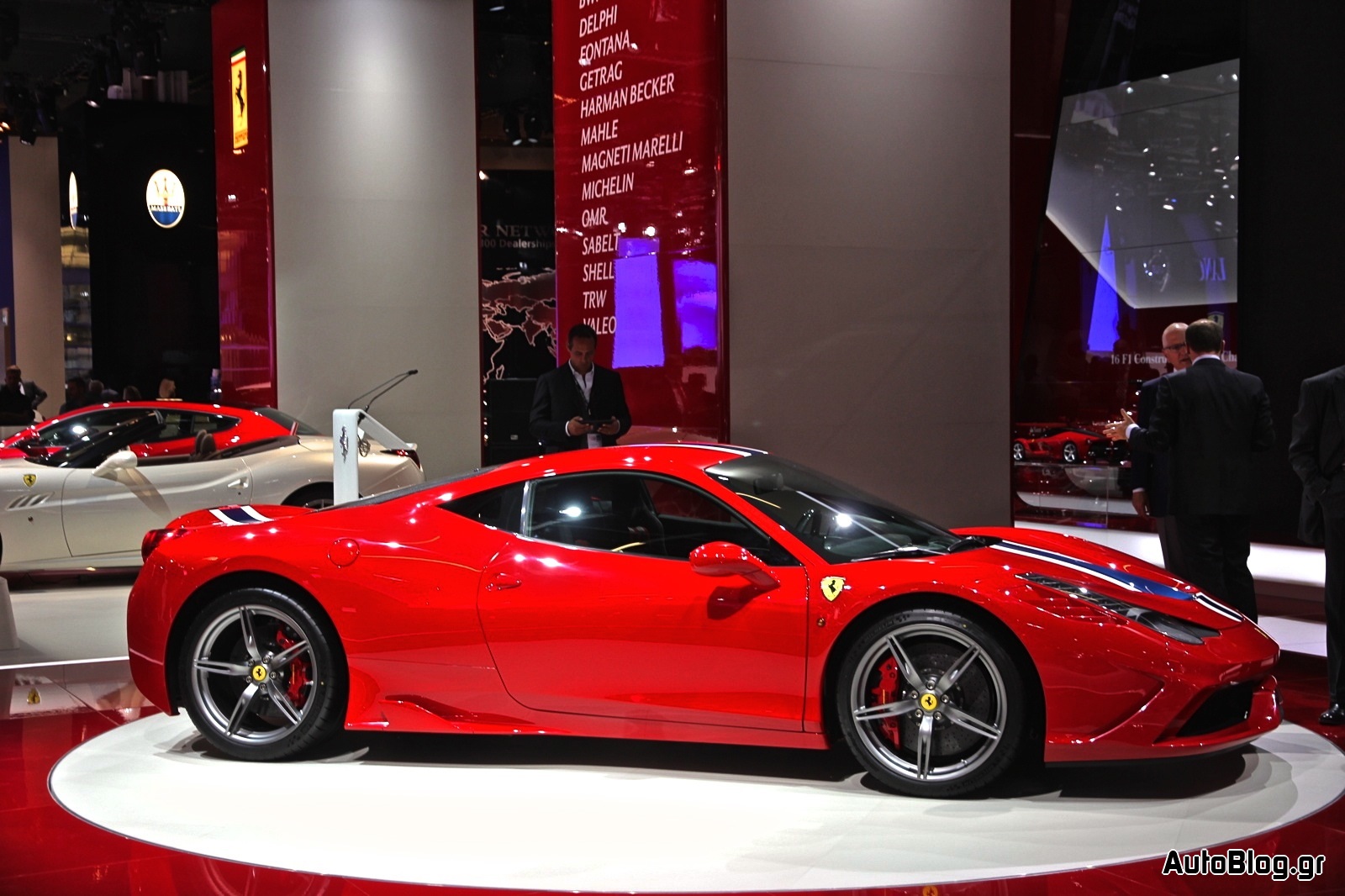

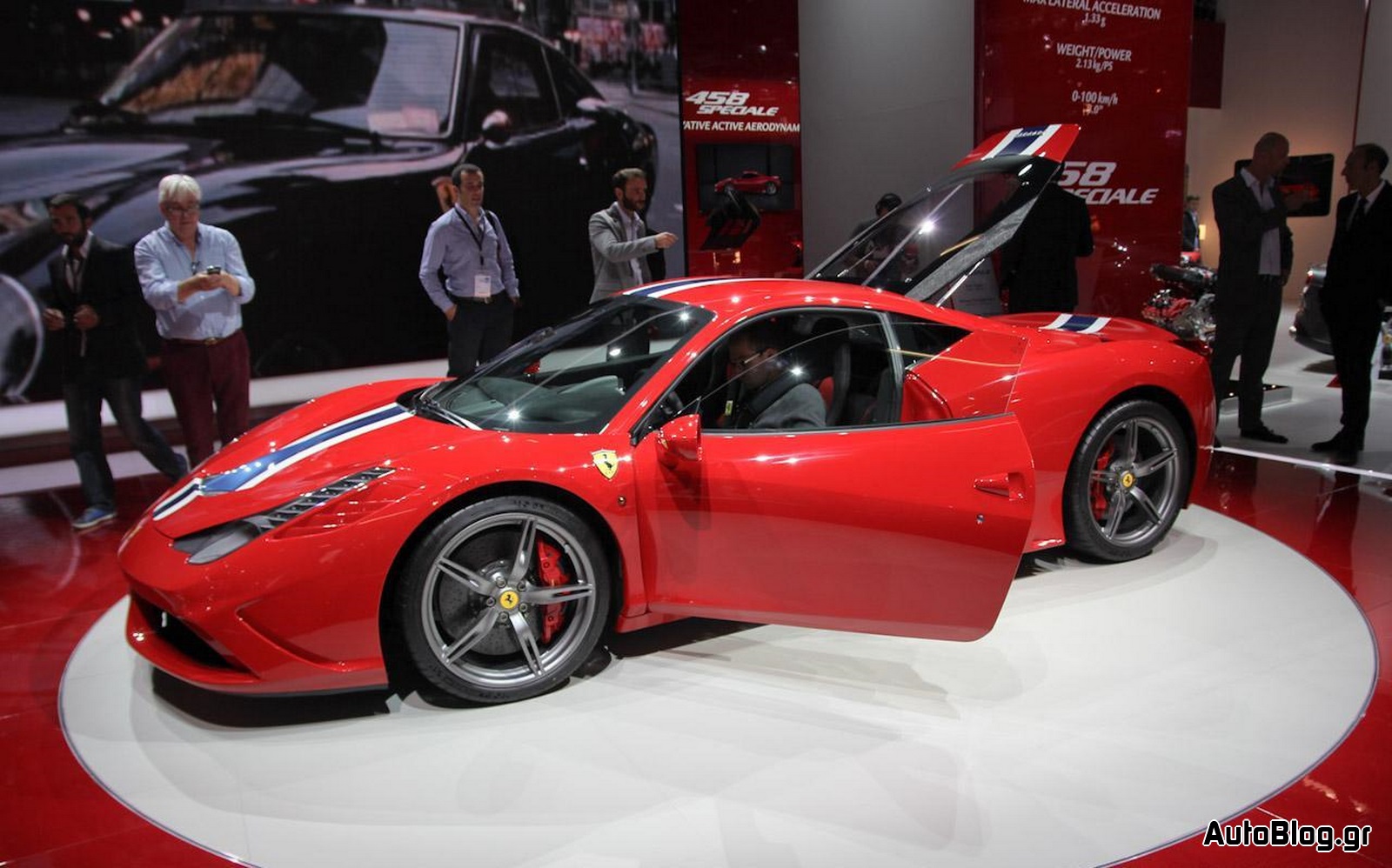

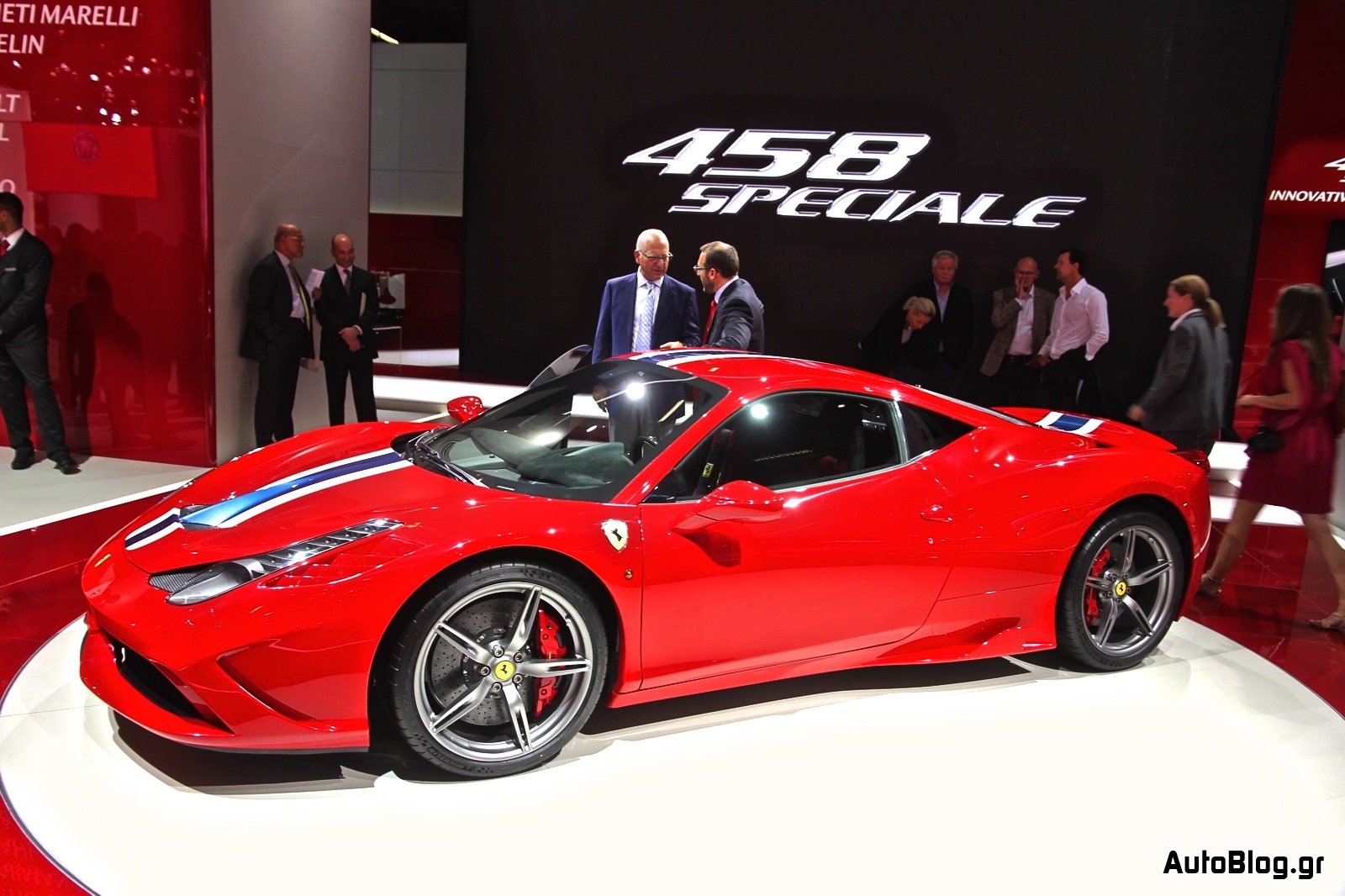

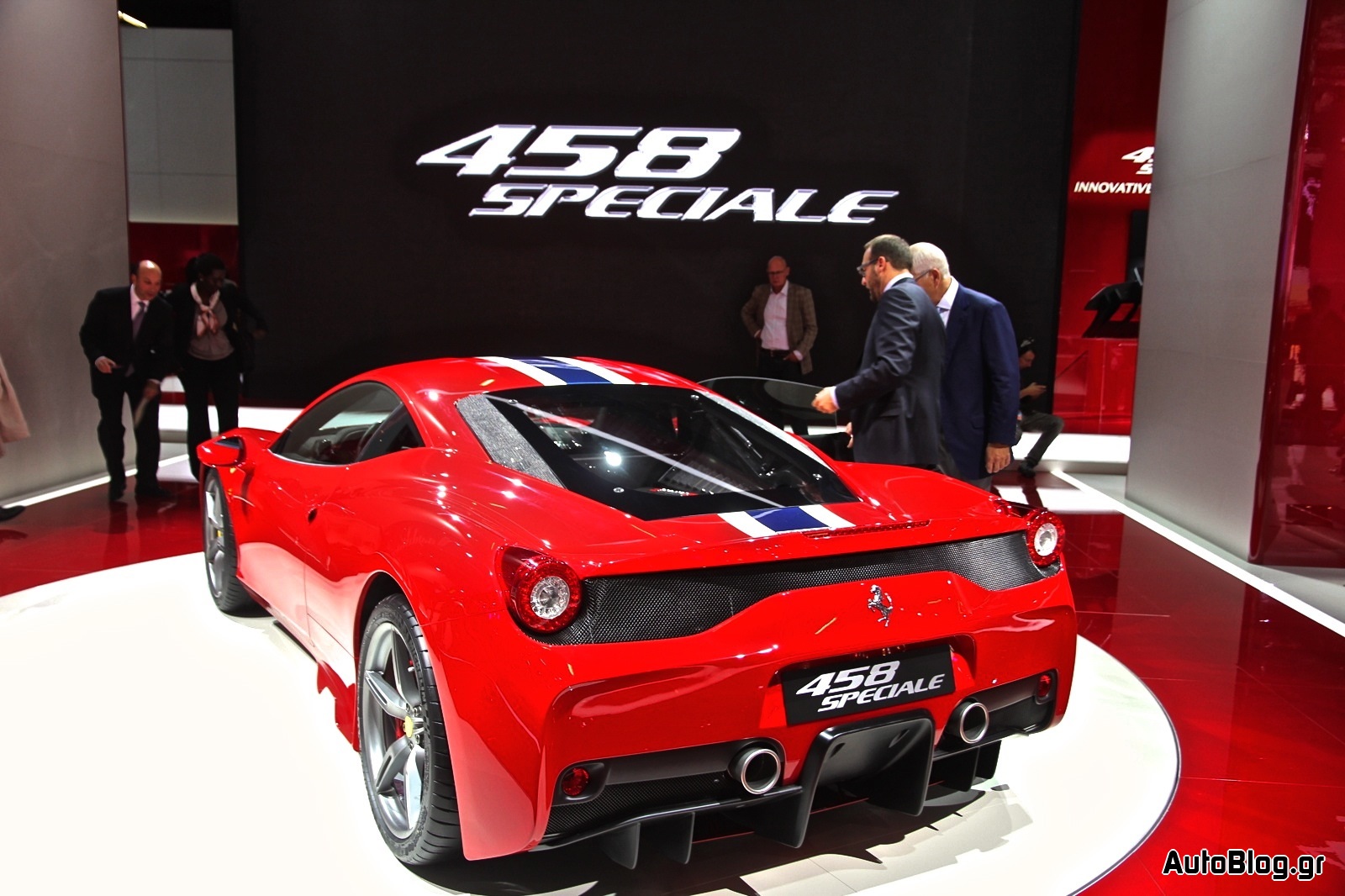

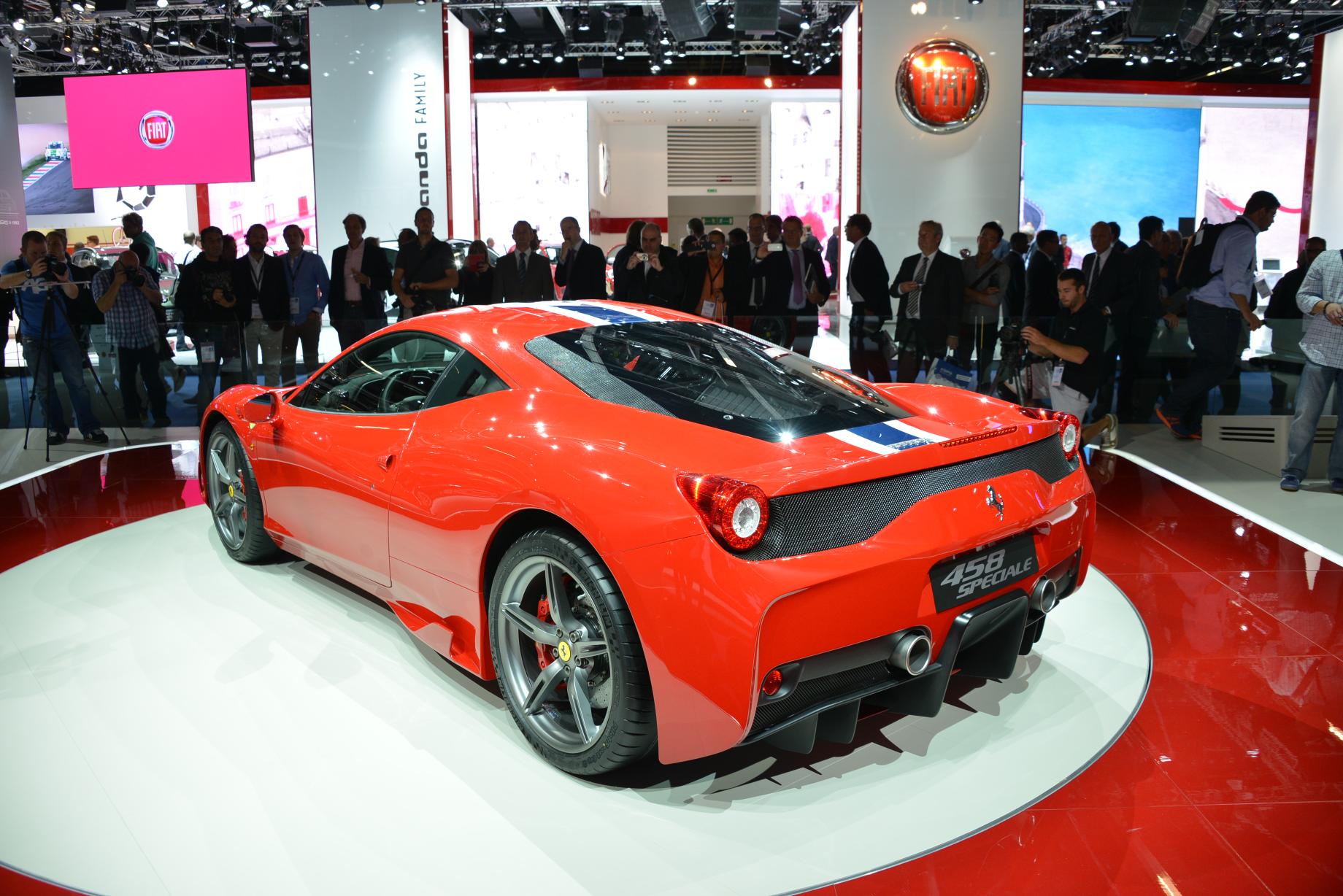

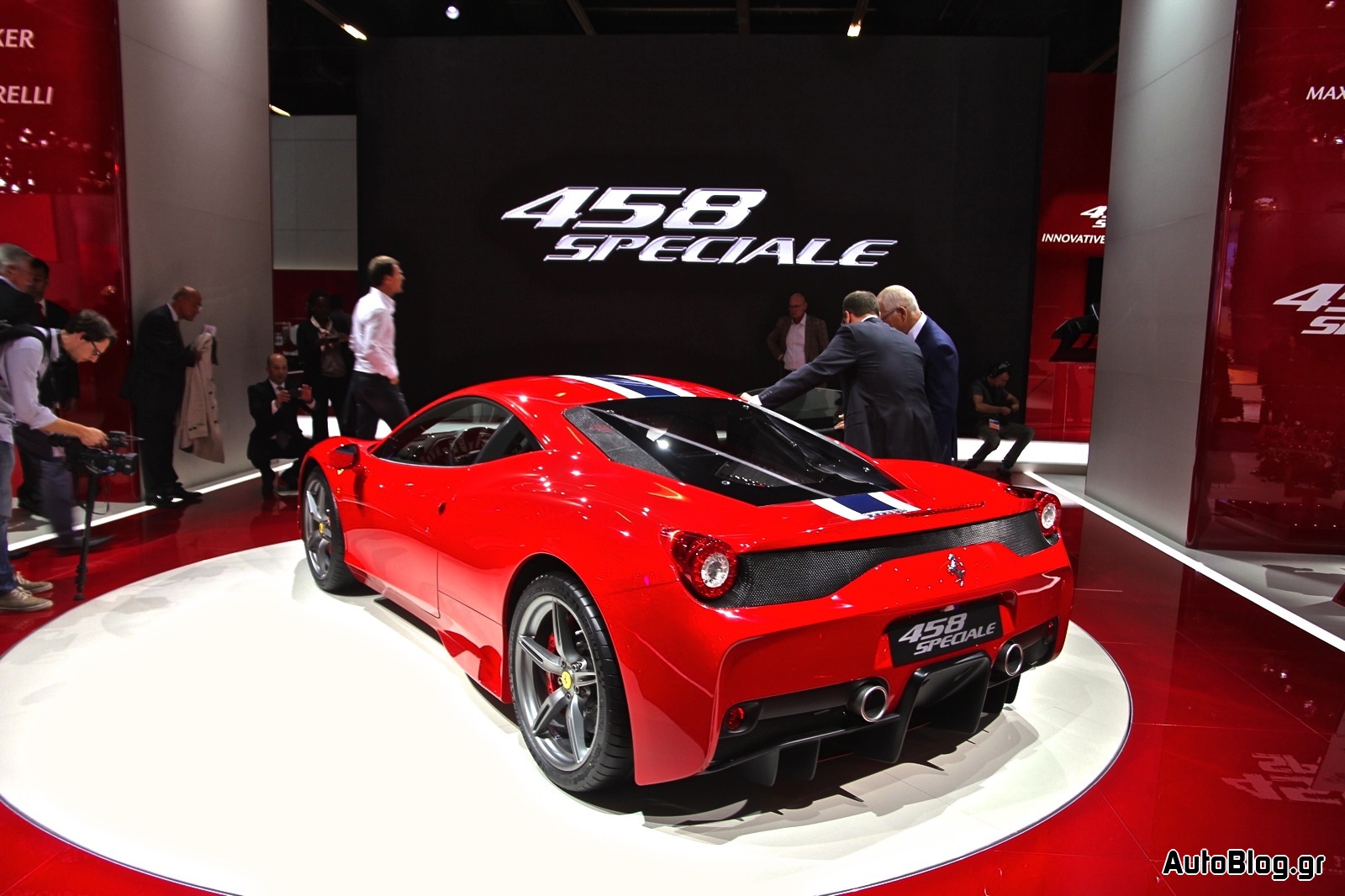

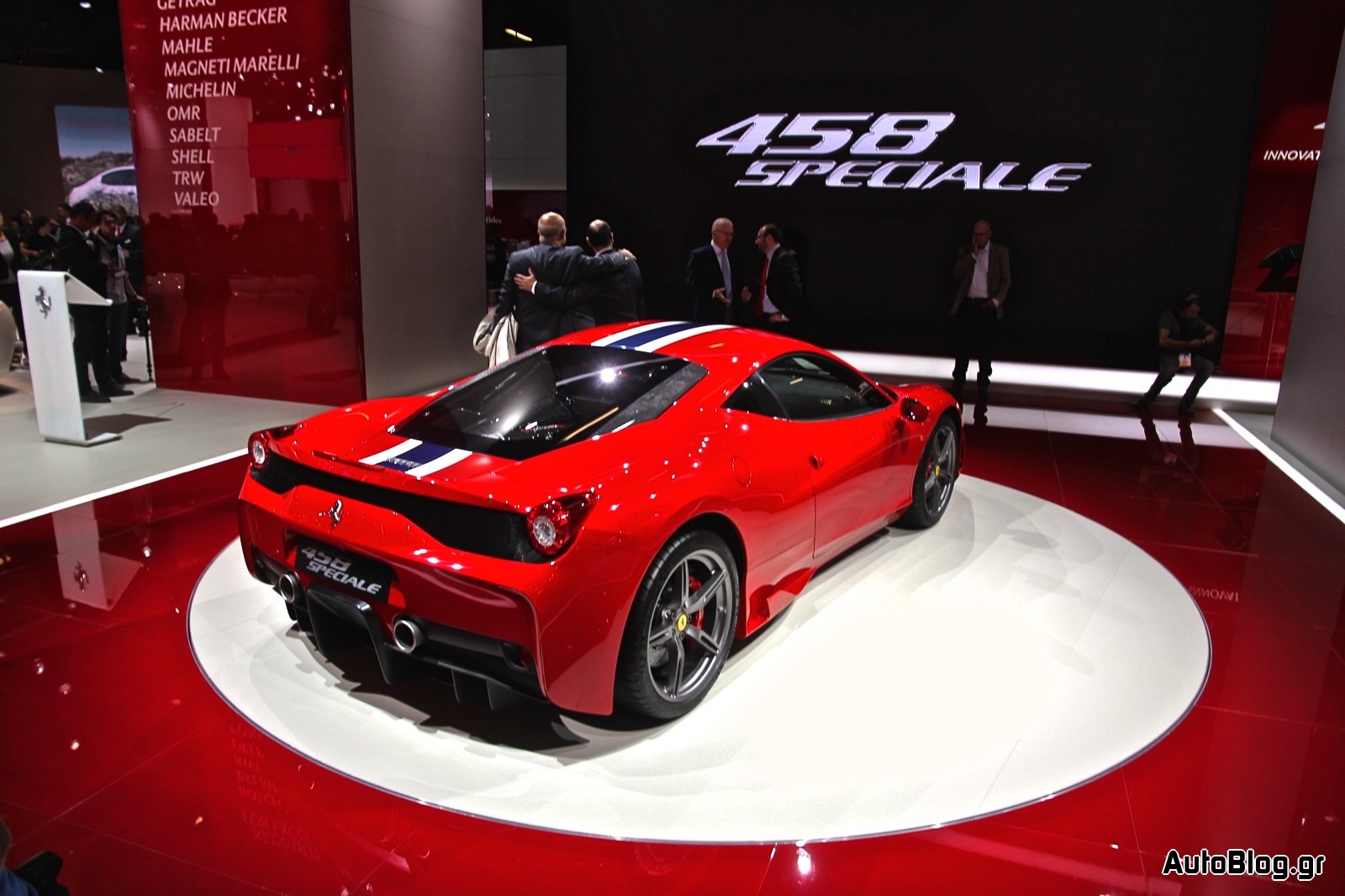

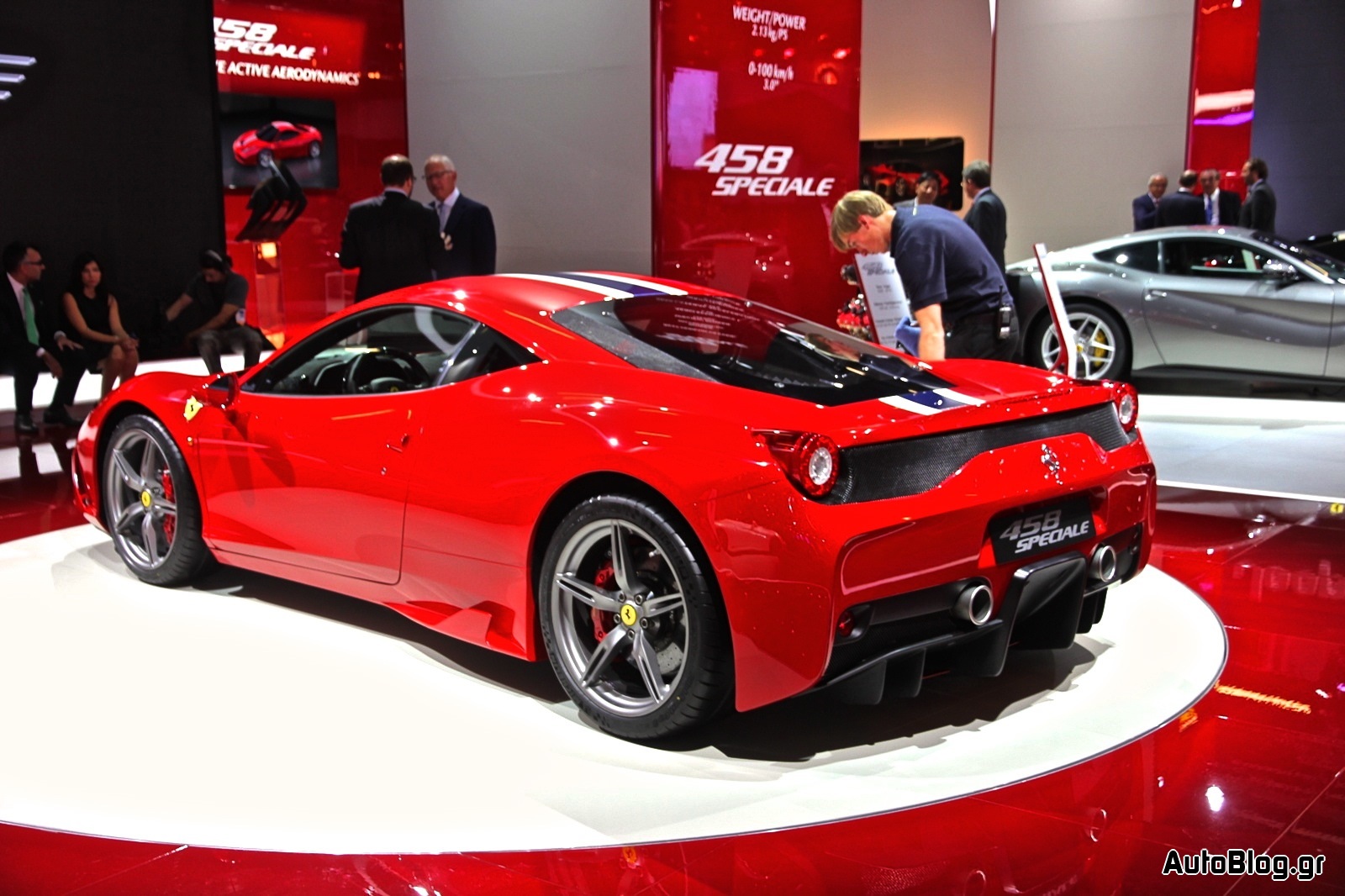

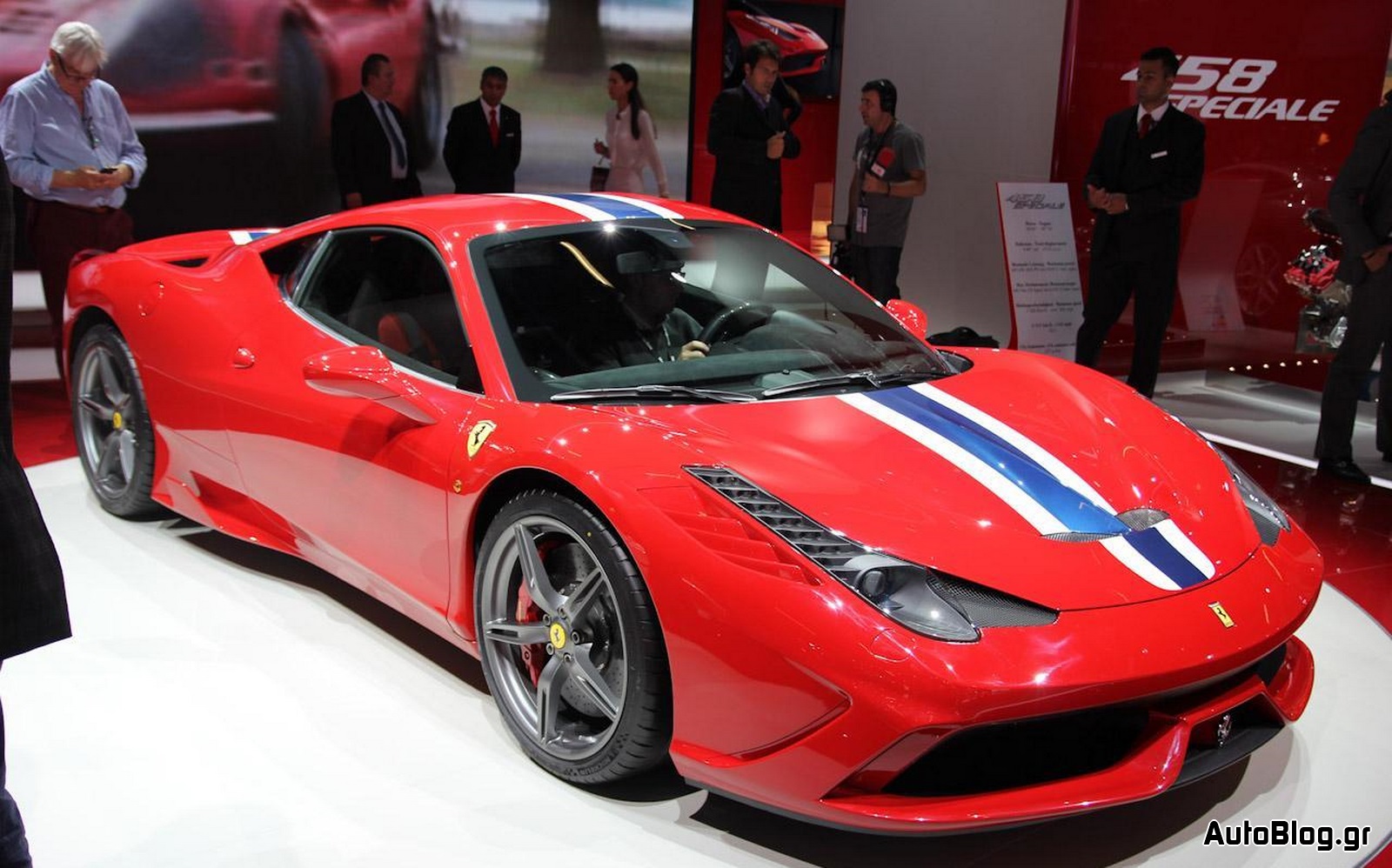

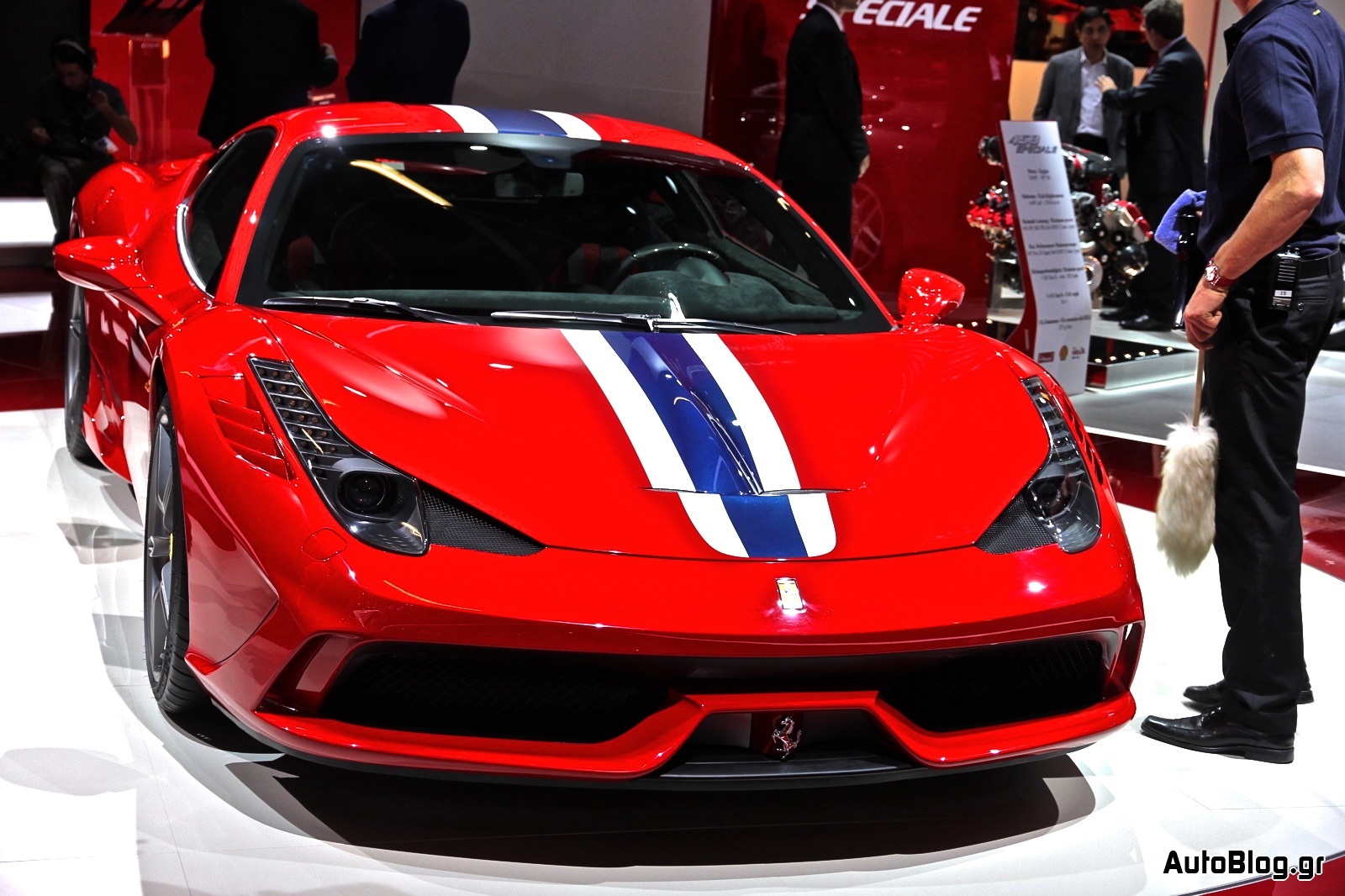

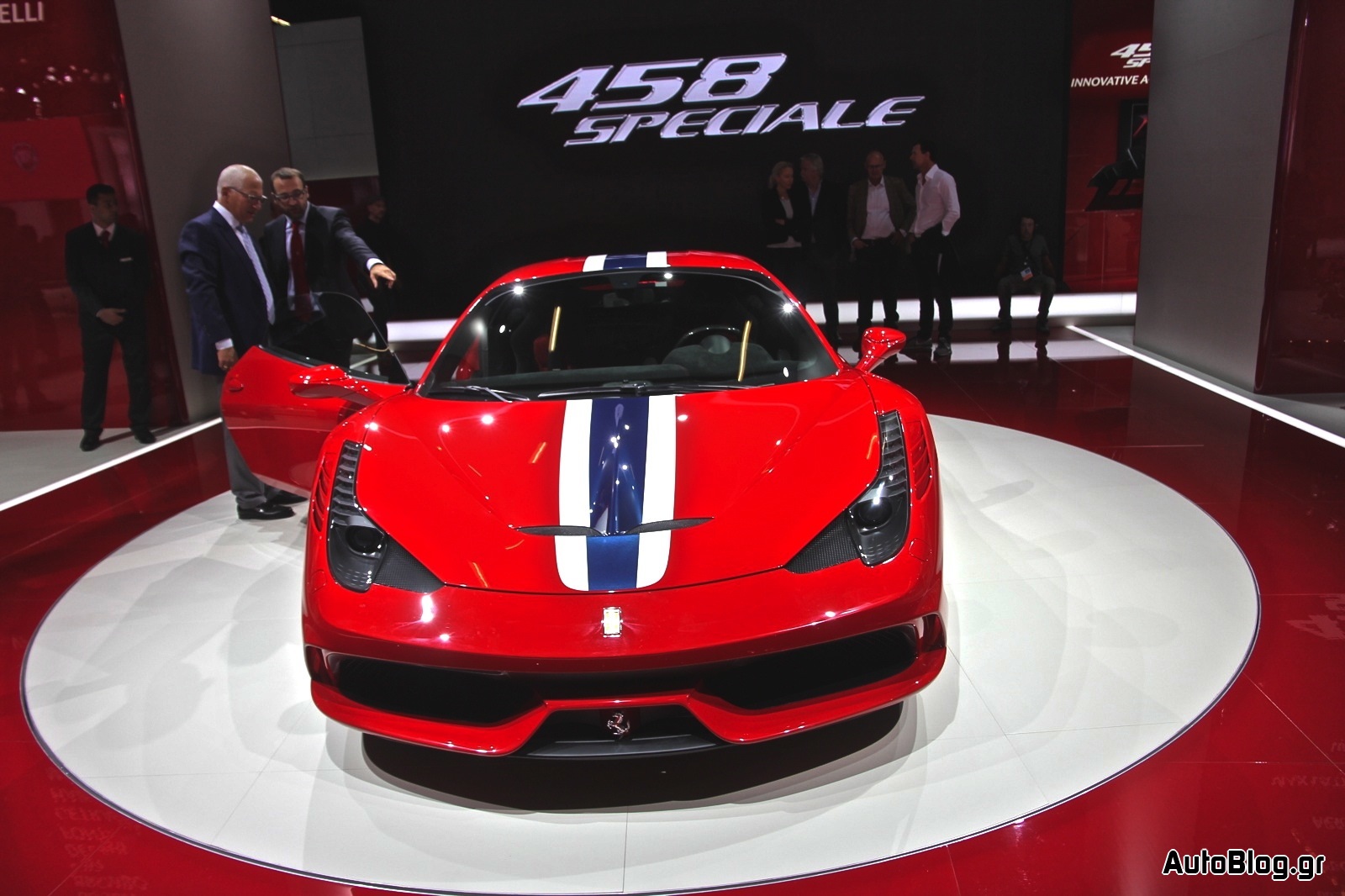

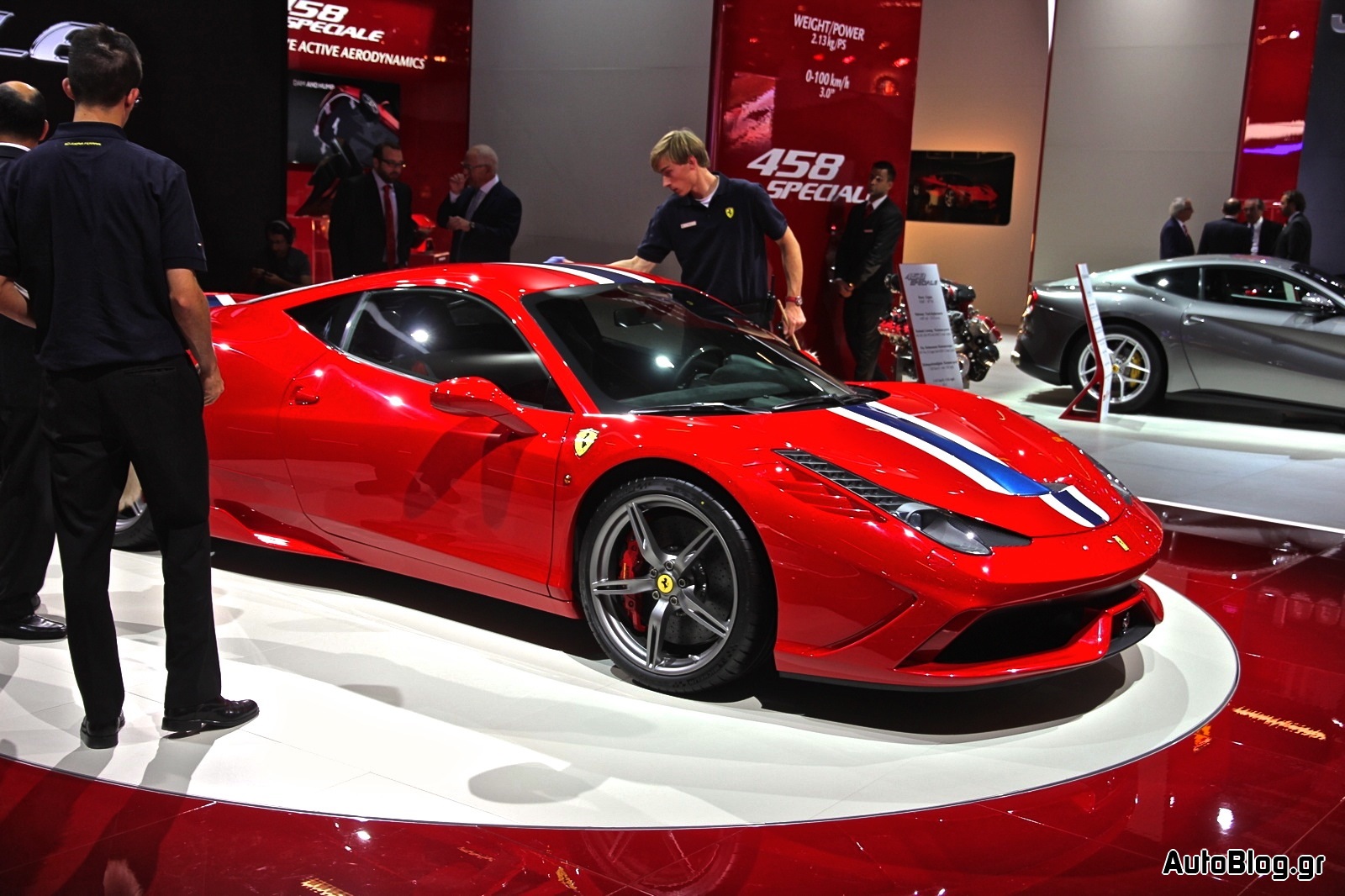

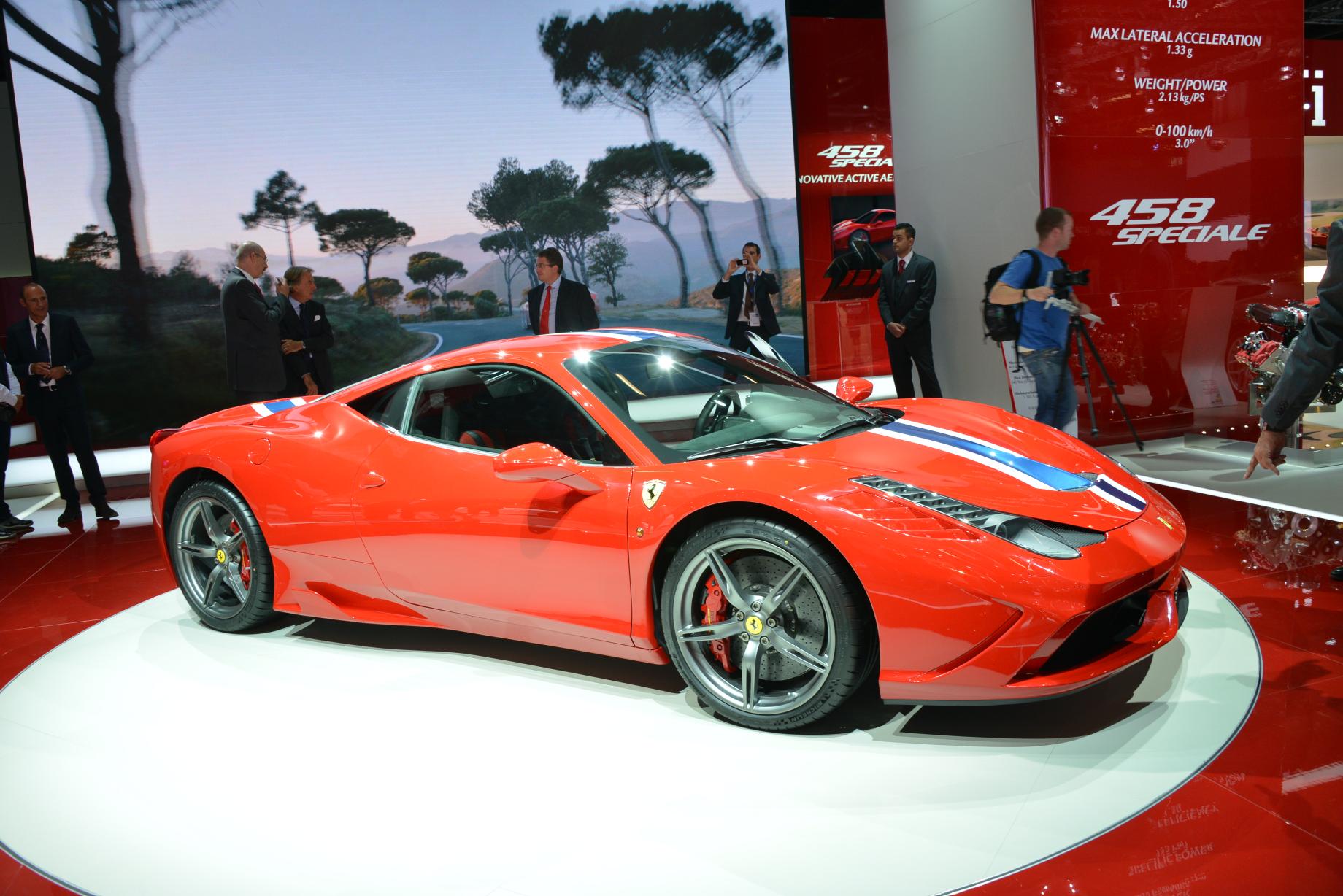

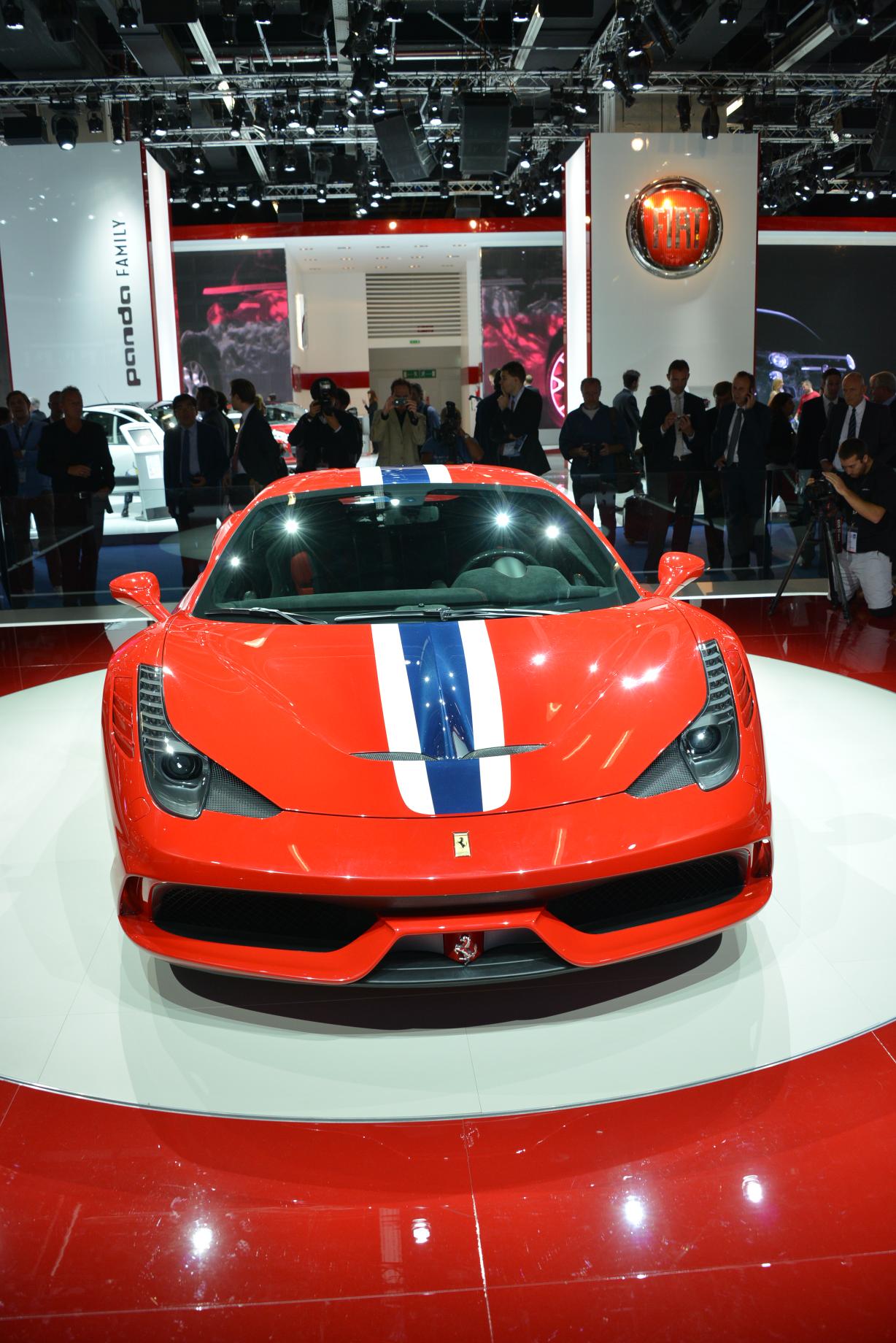

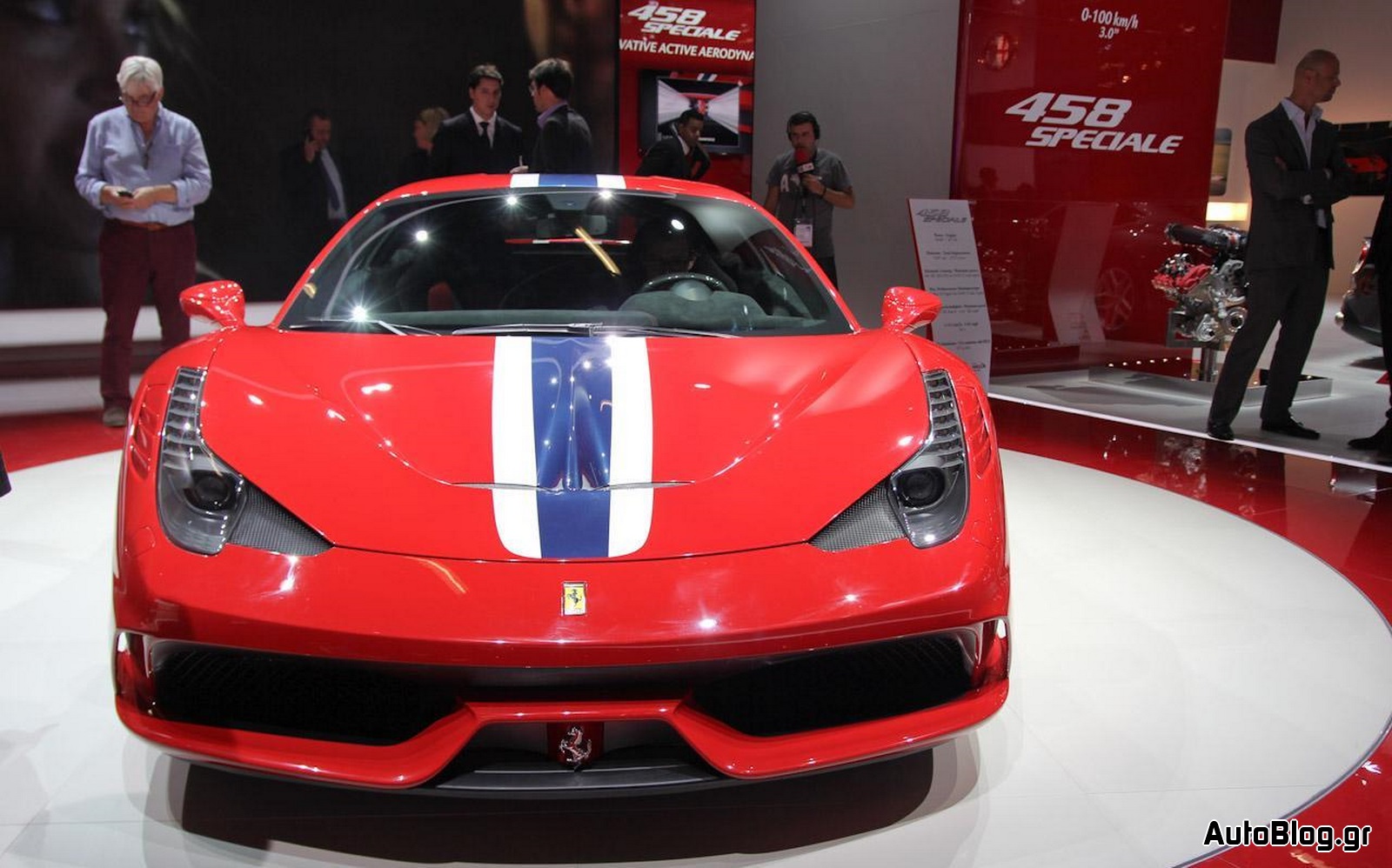

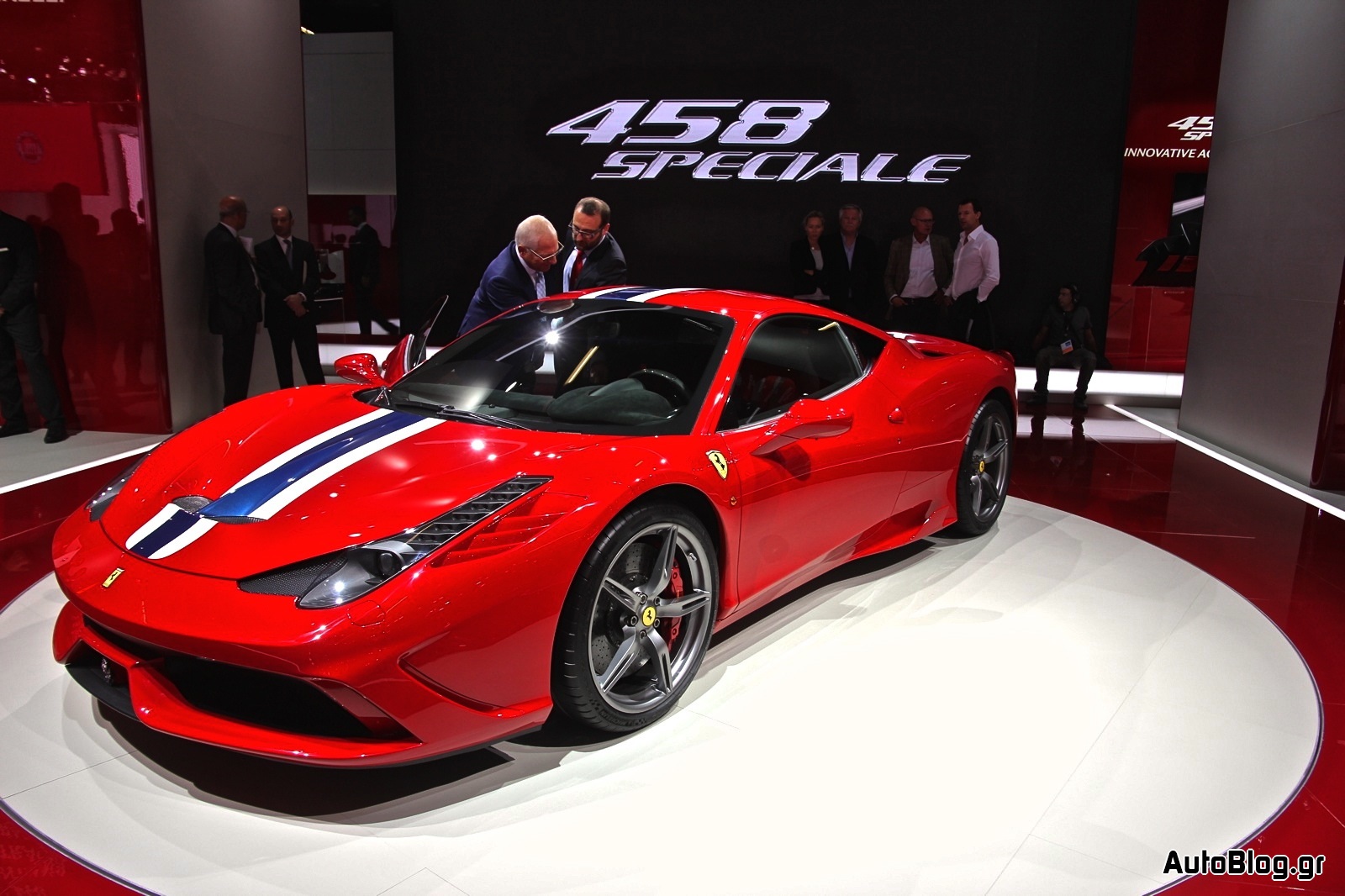

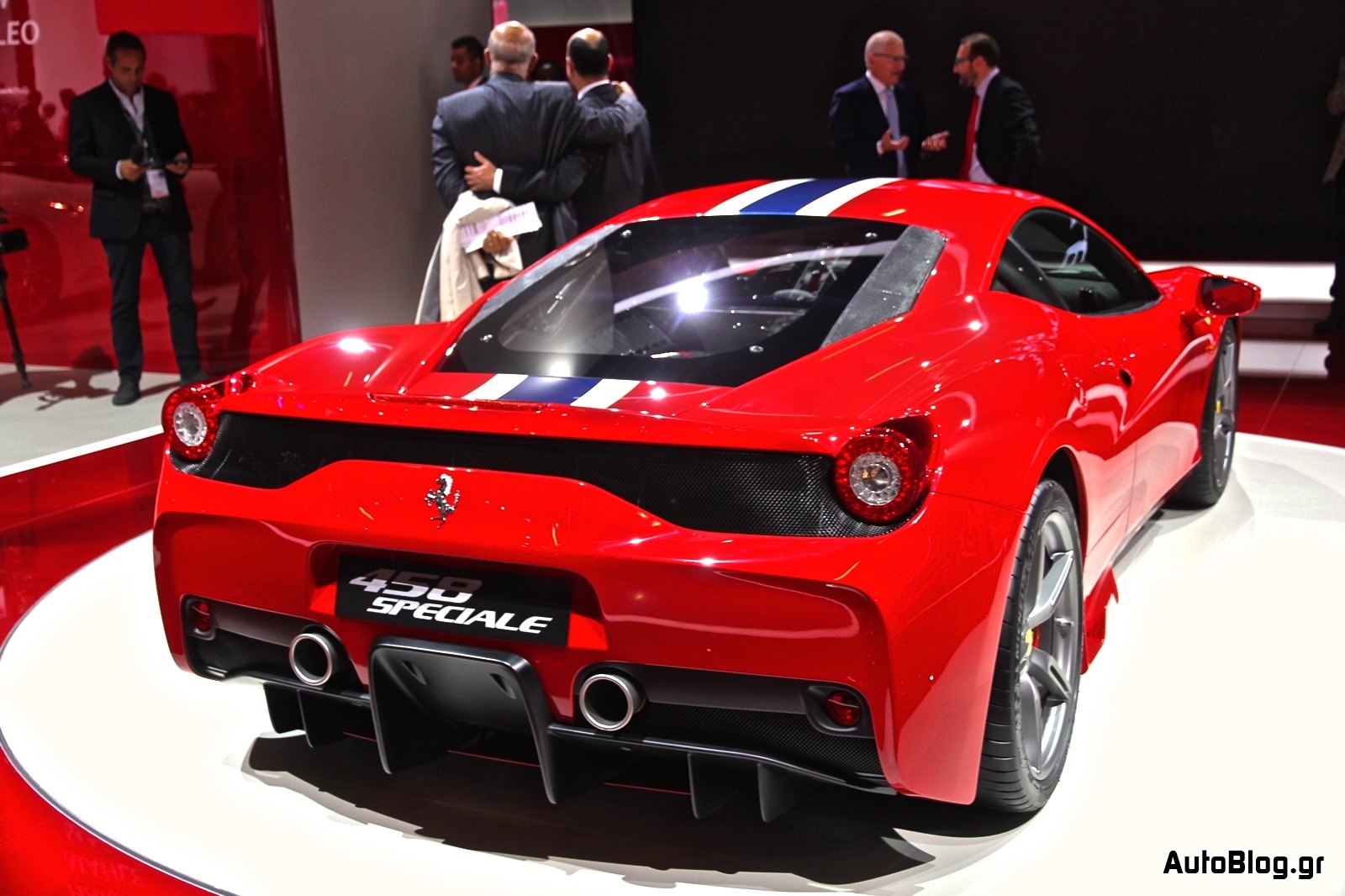

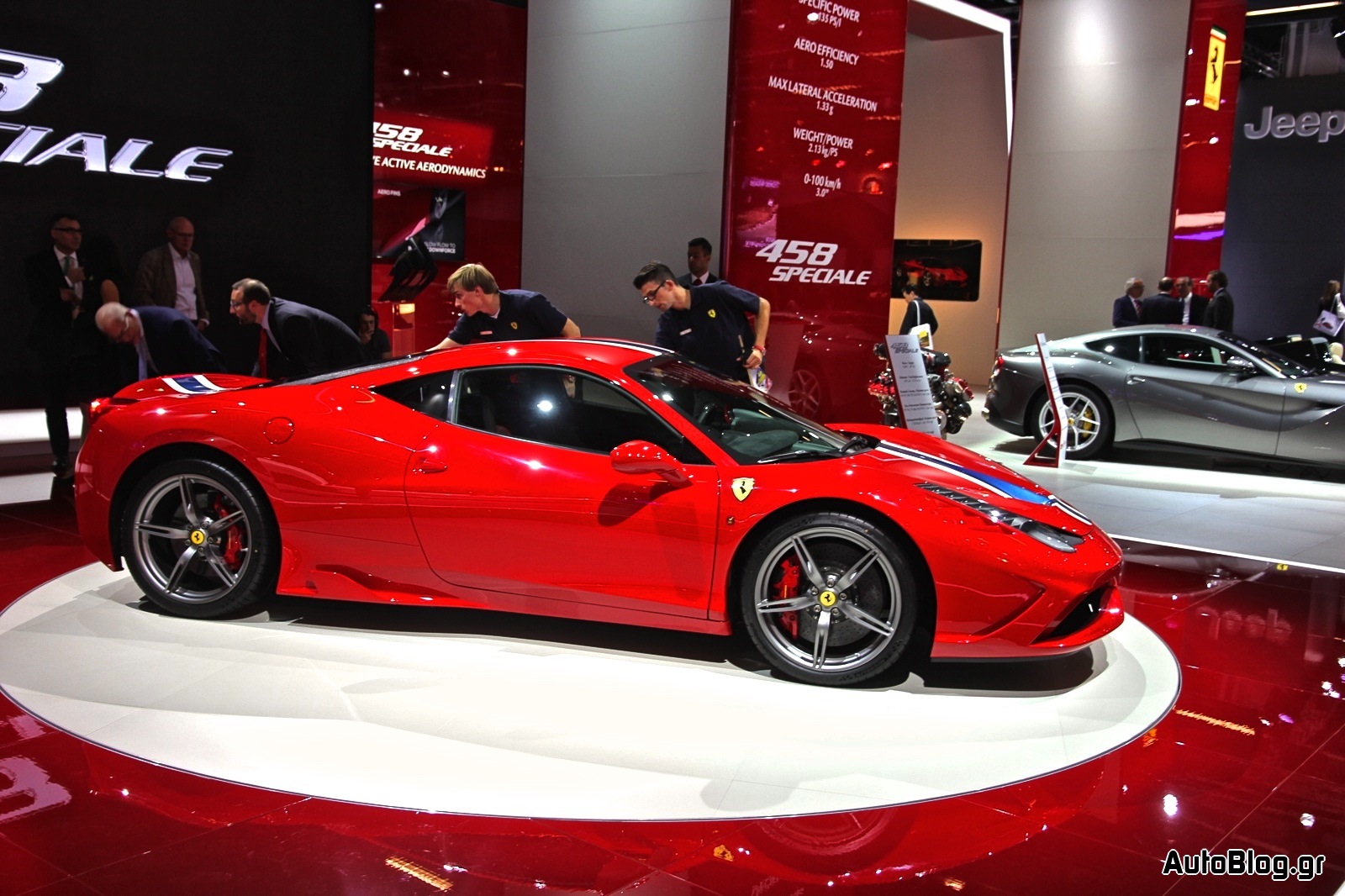

Η Ferrari, στην έκθεση της Φρανκφούρτης, παρουσίασε την πολυαναμενόμενη 458 Speciale.

Σχεδιασμένη για οδηγούς που ψάχνουν ένα «εστιασμένο sports car που προσφέρει ακραία οδηγικά συναισθήματα» η 458 Speciale ακολουθεί τα βήματα της Challenge Stradale και την 430 Scuderia και ενώ μπορεί να μην έχει τόσο «βαρύ» ή ευφάνταστο όνομα, εξακολουθεί να είναι πιο ελαφριά και πιο ισχυρή από το αυτοκίνητο στο οποίο βασίζεται, την 458 Italia δηλαδή.

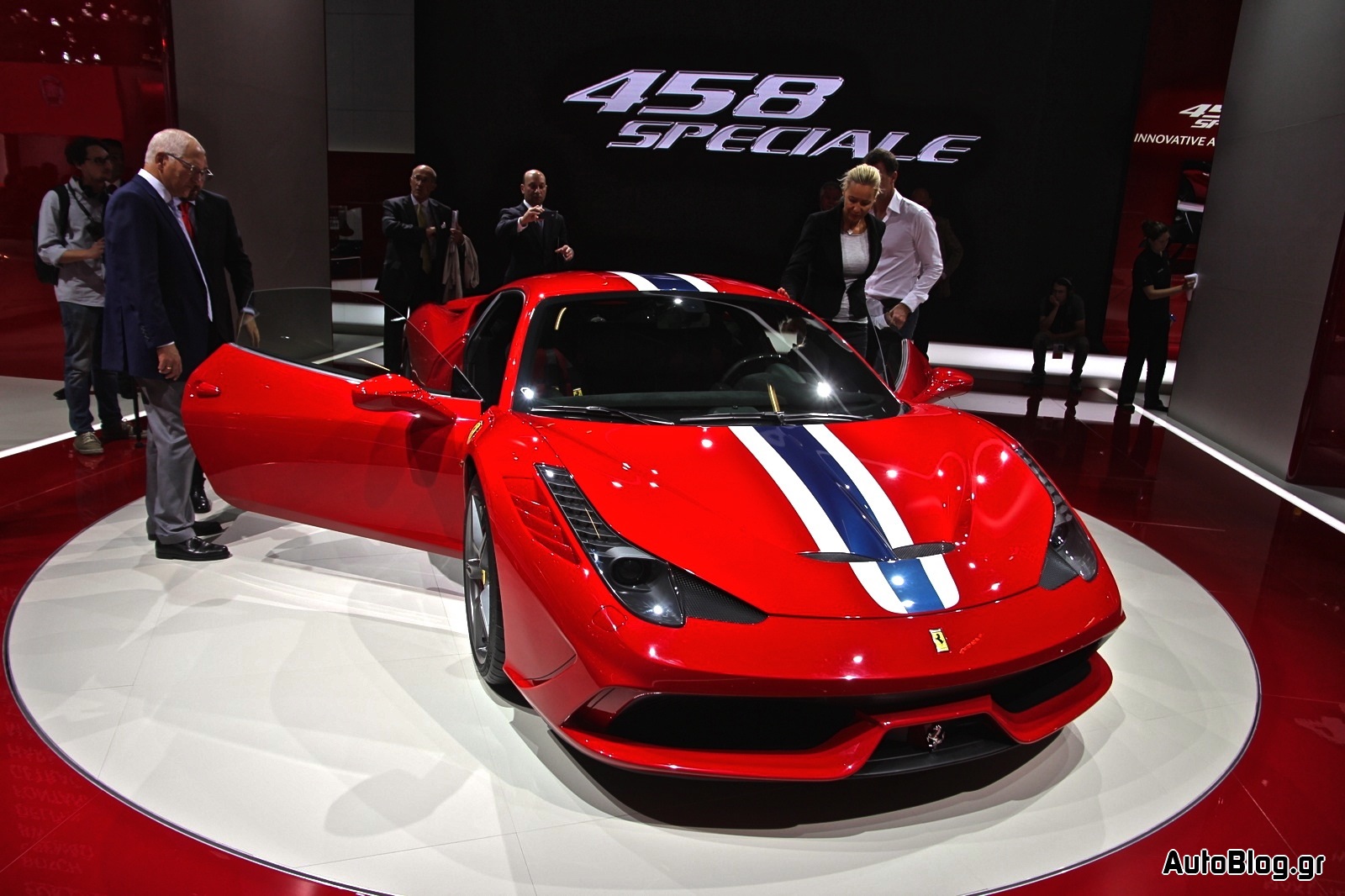

ferrari-458-speciale-live-in-frankfurt-motor-show-2013-1

Ο V8 των 4,5 λίτρων είναι αναβαθμισμένος τόσο ώστε να αποδίδει 605 άλογα στις 9.000 σ.α.λ. και 540Nm ροπής στις 6.000 σ.α.λ. Συνδυάζεται δε, με ένα επίσης βελτιωμένο αυτόματο κιβώτιο ταχυτήτων, διπλού συμπλέκτη. Αυτά, επιτρέπουν στο βάρους 1.290 κιλών supercar -100 κιλά ελαφρύτερη από την 458 Italia- να επιταχύνει έως τα 100km/h σε 3 δευτερόλεπτα και να ολοκληρώνει έναν γύρο στο Fiorano σε μόλις 1 λεπτό και 23,5 δευτερόλεπτα. Για να έχετε ένα σημείο αναφοράς, αυτός ο χρόνος είναι μόλις μισό δευτερόλεπτο πιο αργός από τον χρόνο που πέτυχε η F12 Berlinetta αλλά 1,5 δευτερόλεπτα πιο γρήγορος από αυτόν της 458 Italia.

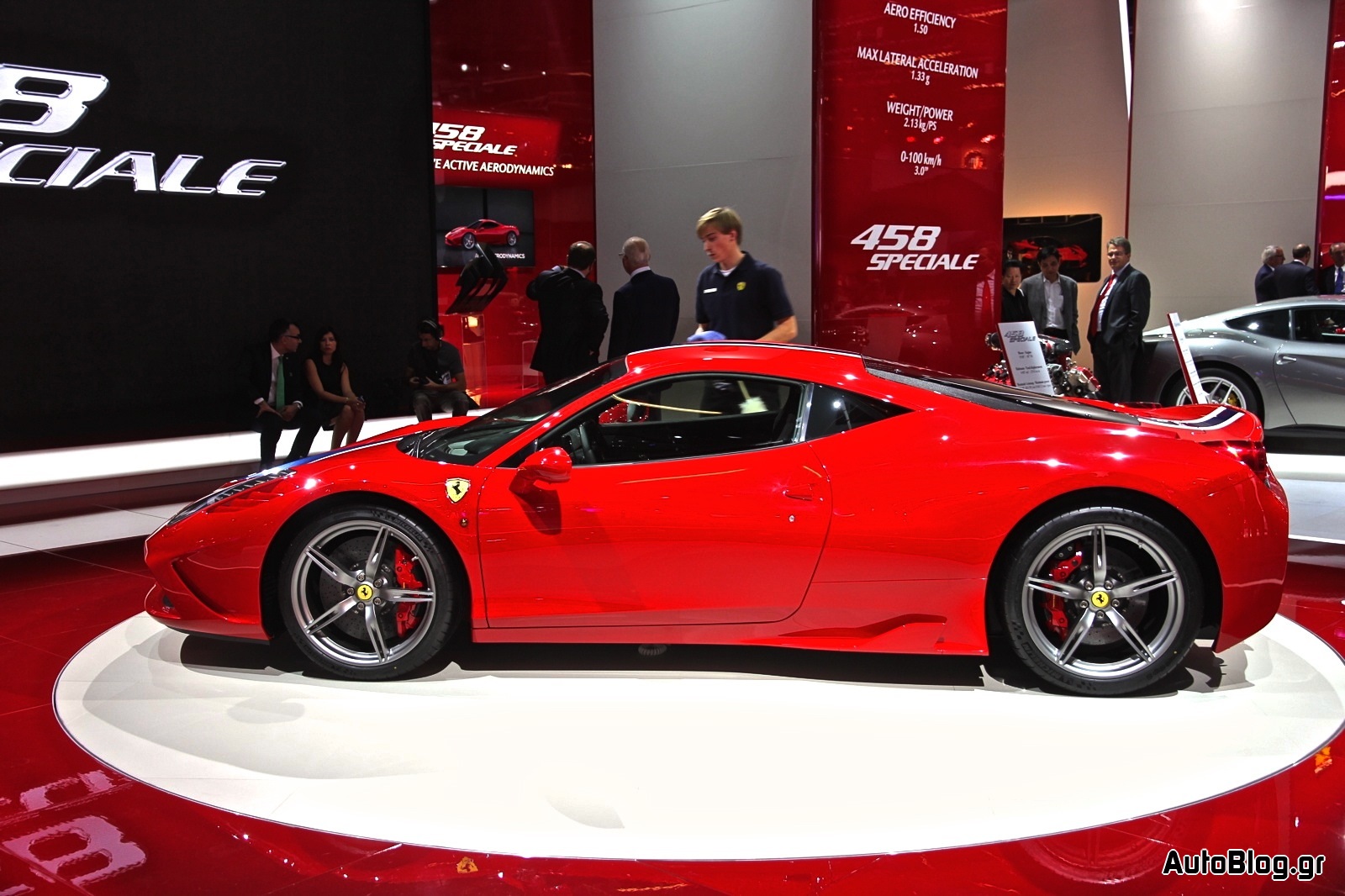

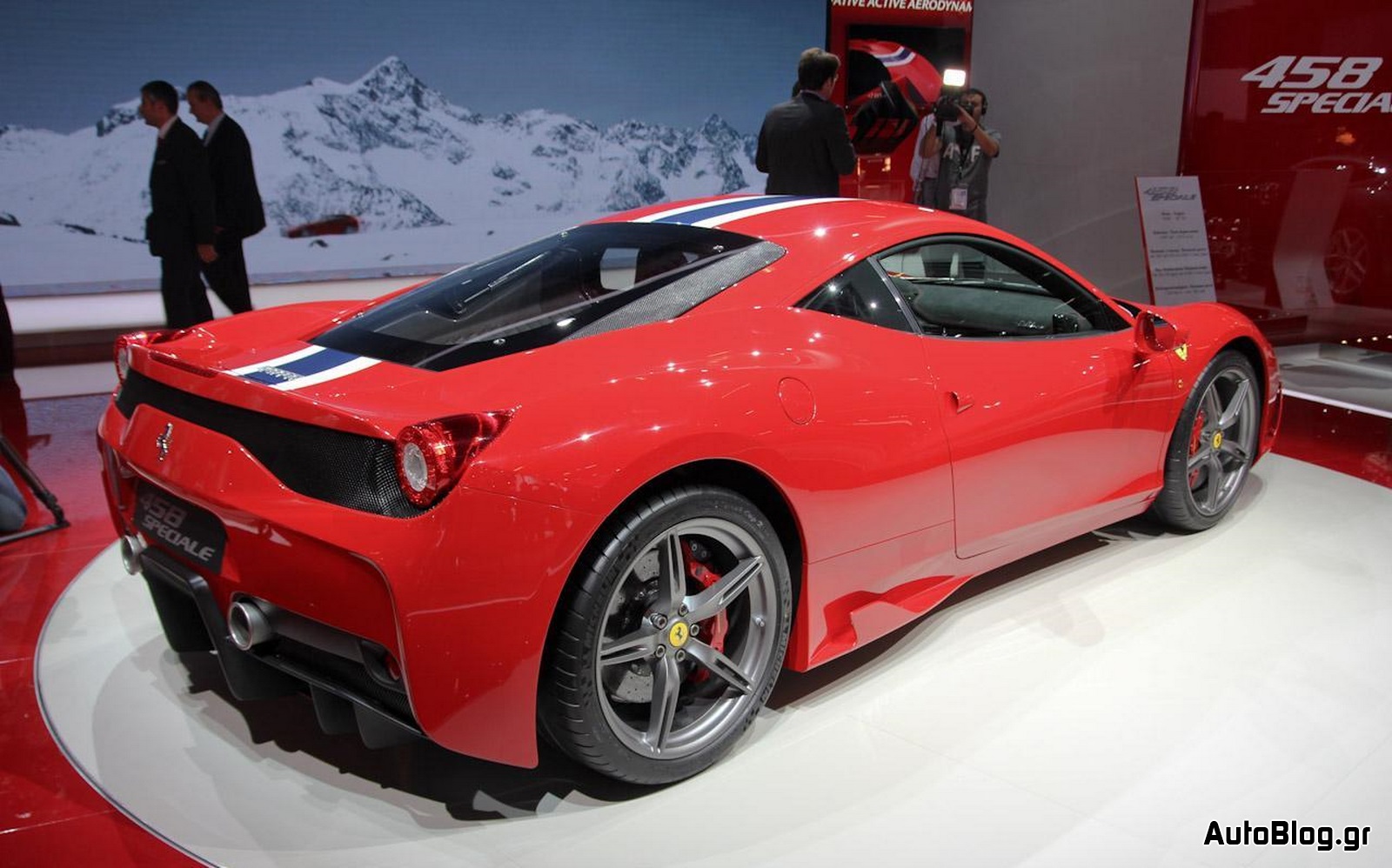

Ferrari 458 Speciale Live in Frankfurt Motor Show 2013 (10)

Όσον αφορά την οδική συμπεριφορά, το αυτοκίνητο είναι εξοπλισμένο με ένα αποκλειστικό για την Speciale Side Slip Angle Control σύστημα, που χρησιμοποιεί ένα πολύπλοκο αλγόριθμο για να υπολογίσει την γωνία ολίσθησης. Το σύστημα στη συνέχεια συγκρίνει την γωνία με δεδομένα αναφοράς και βελτιστοποιεί την παραγωγή ροπής μέσω του F1-Trac traction control και την κατανομή αυτής μέσω του E-Diff ηλεκτρονικού διαφορικού.

Ferrari 458 Speciale Live in Frankfurt Motor Show 2013 (20)

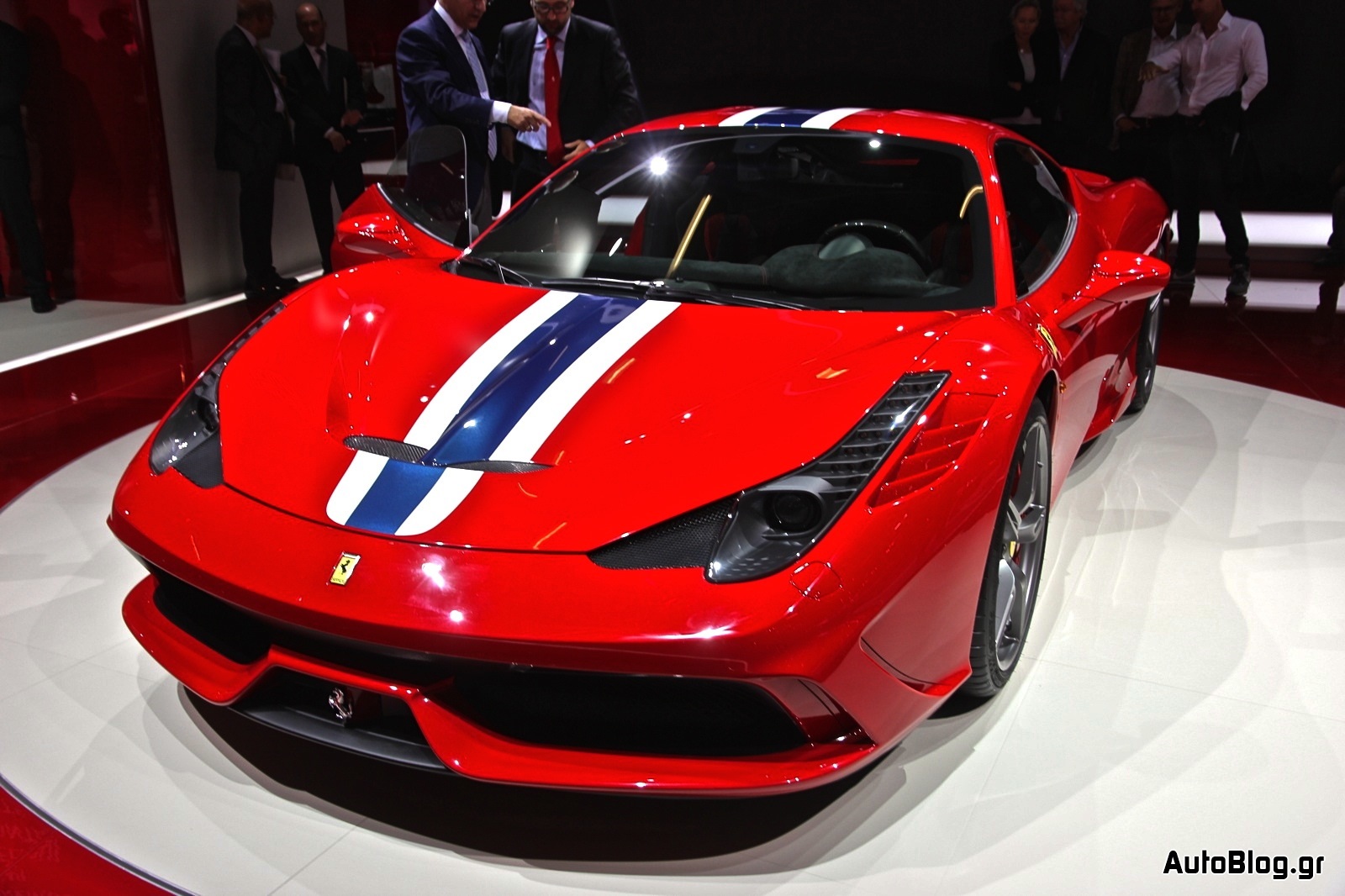

Η 458 Speciale διαθέτει επίσης αεροδυναμικό bodykit ώστε να έχει την καλύτερη δυνατή ισορροπία μεταξύ αεροδυναμικά παραγόμενης κάθετης δύναμης και drag, σπαρτιατικό εσωτερικό, φρένα επιδόσεων της Brembo και Michelin Pilot Sport Cup 2 ελαστικά.

Εκτός από τις φωτογραφίες που έχουμε στο Autoblog.gr αποκλειστικά για εσάς, η Ferrari έδωσε στη δημοσιότητα και 10 video. Ξεκινώντας από το πρώτο (είναι σε playlist) δυναμώστε τα ηχεία σας, καθίστε άνετα στον καναπέ ή την καρέκλα σας και απολαύστε.

IMG_9678

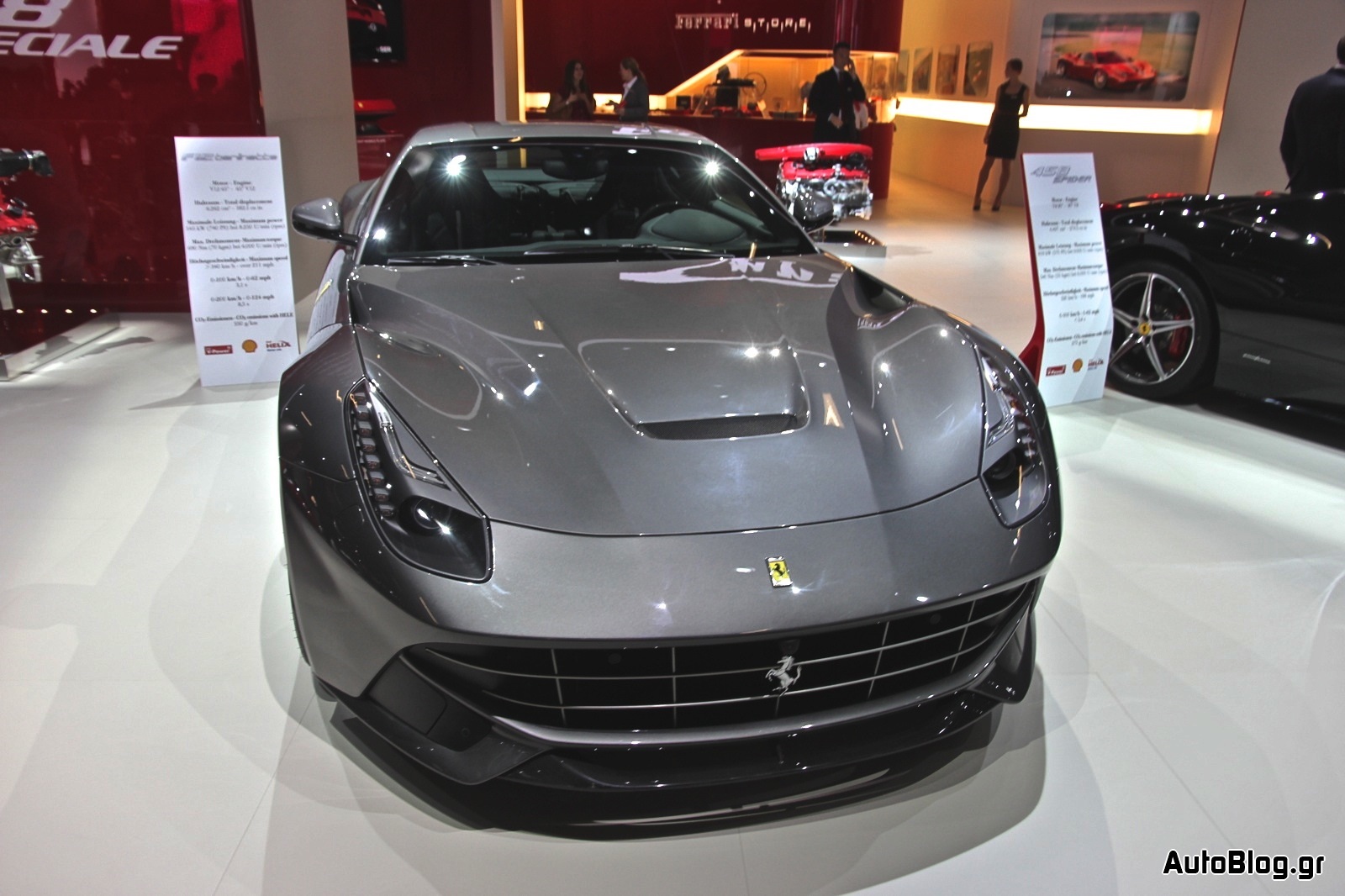

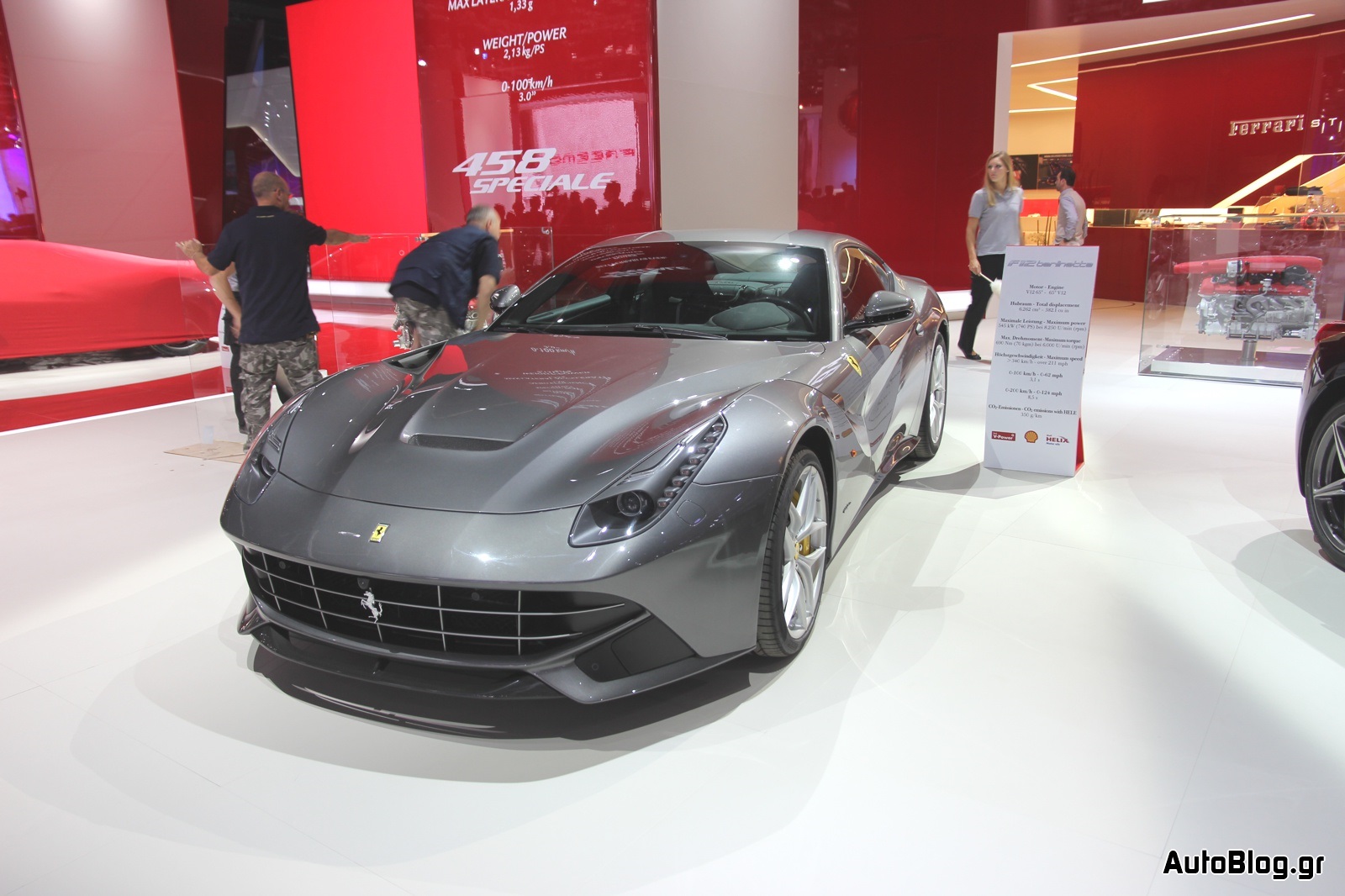

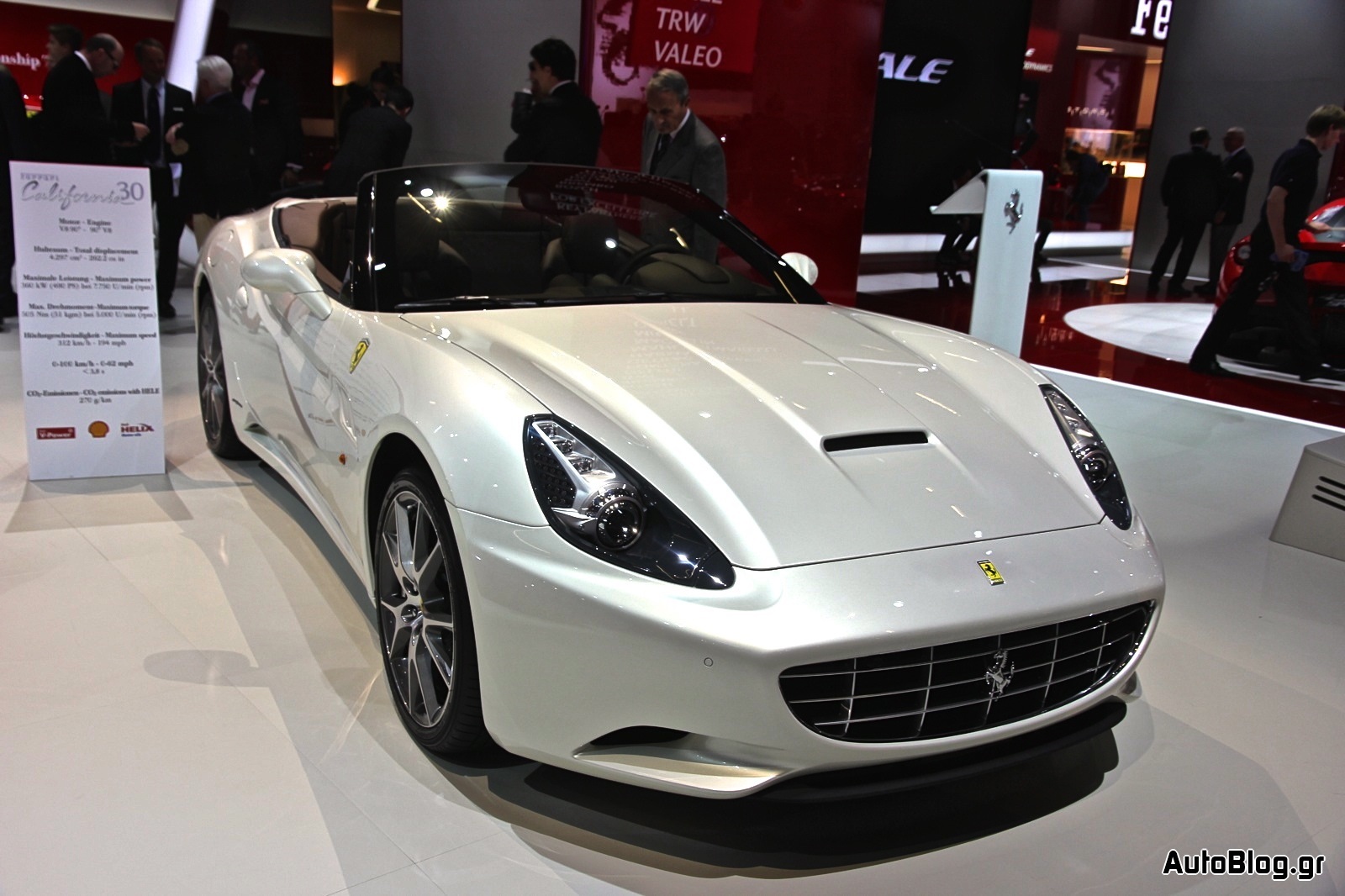

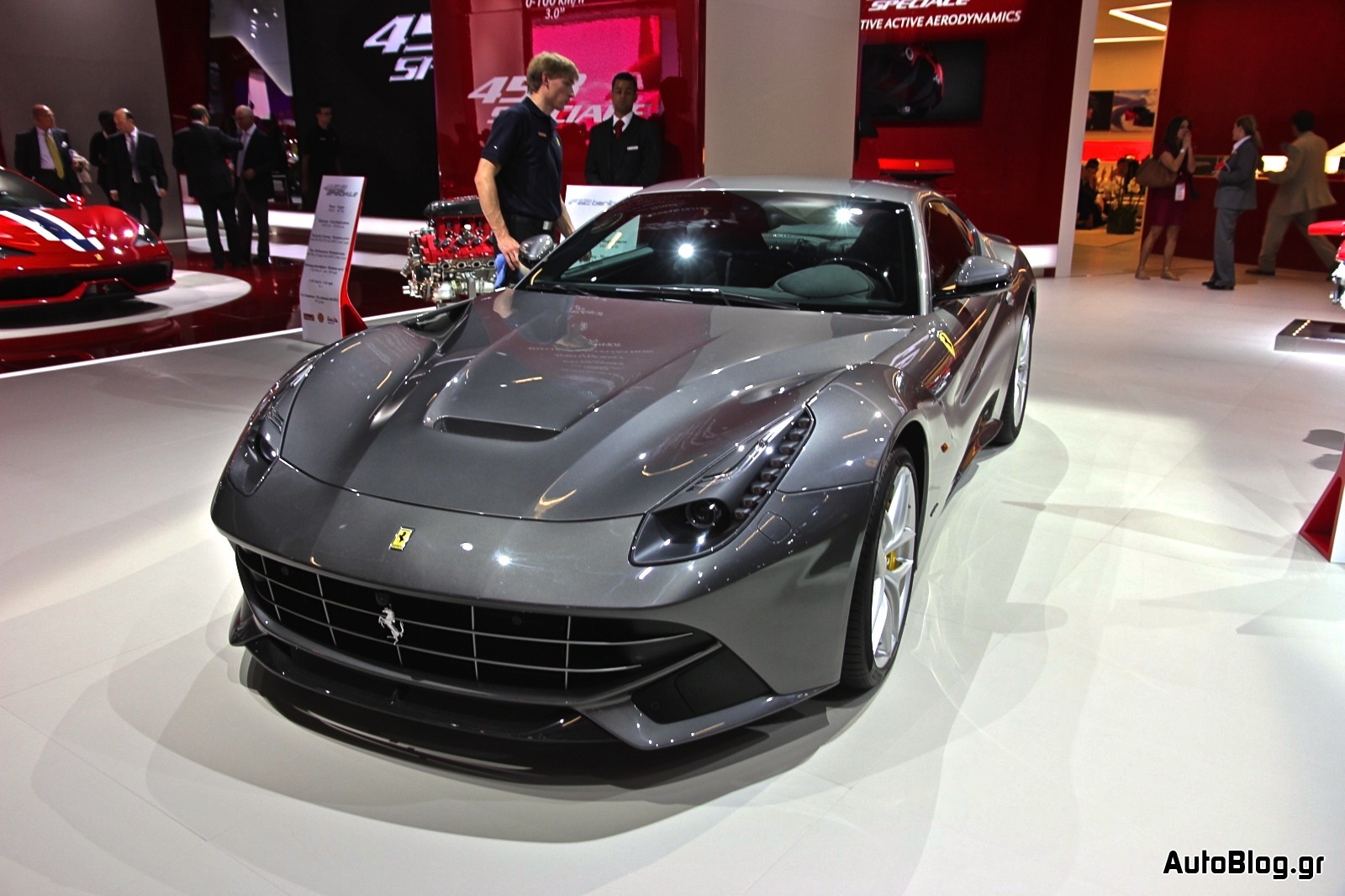

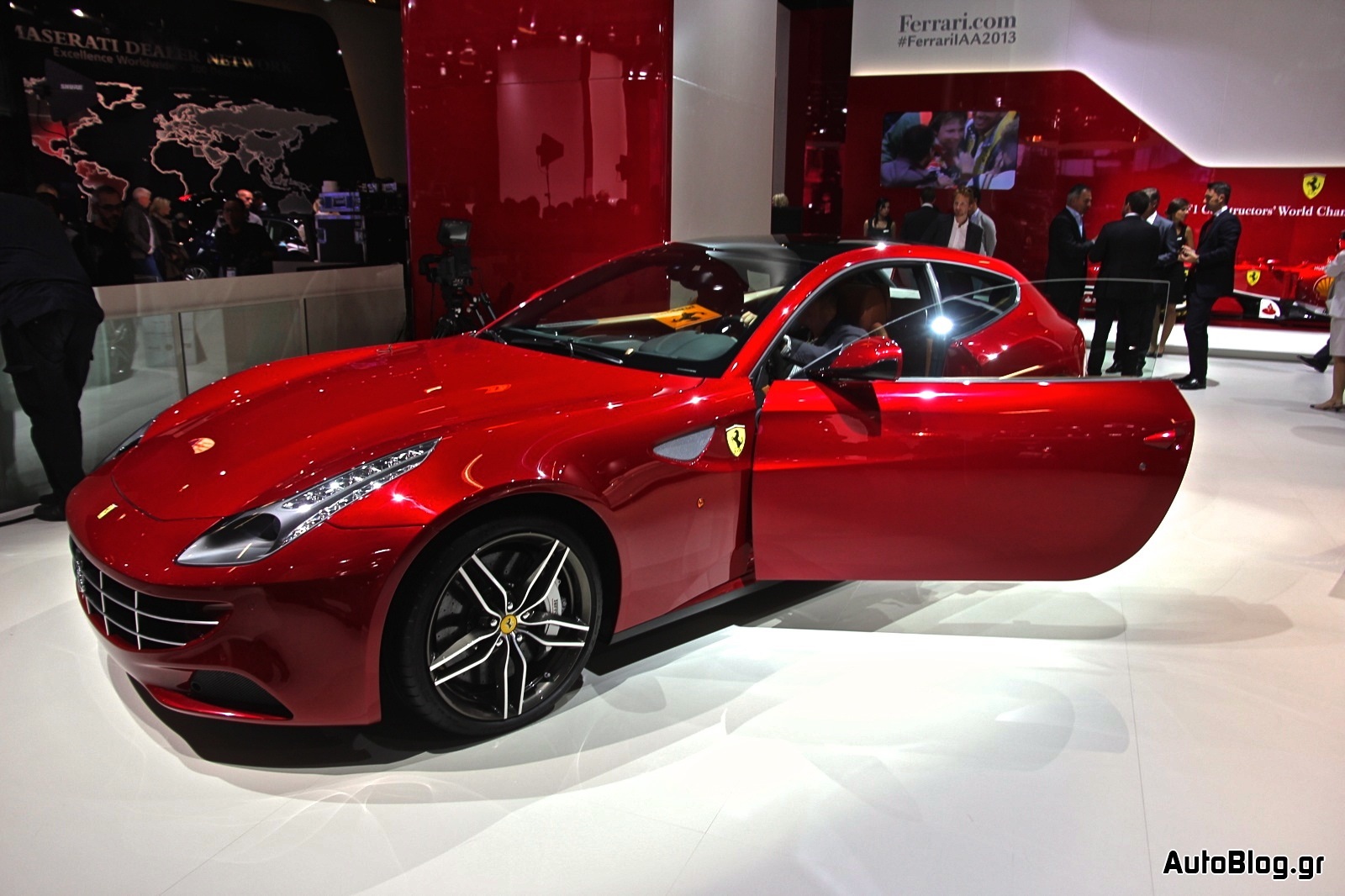

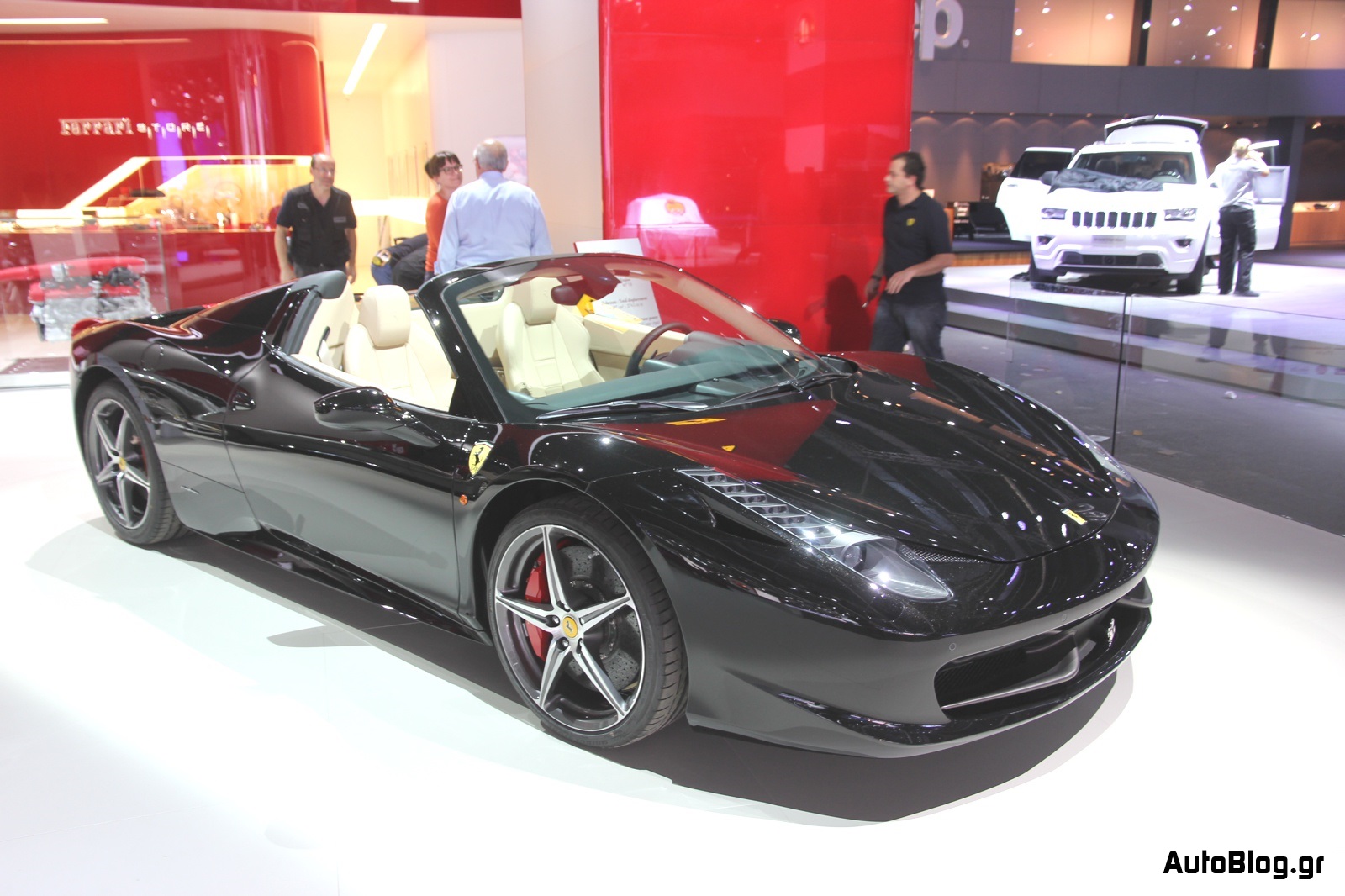

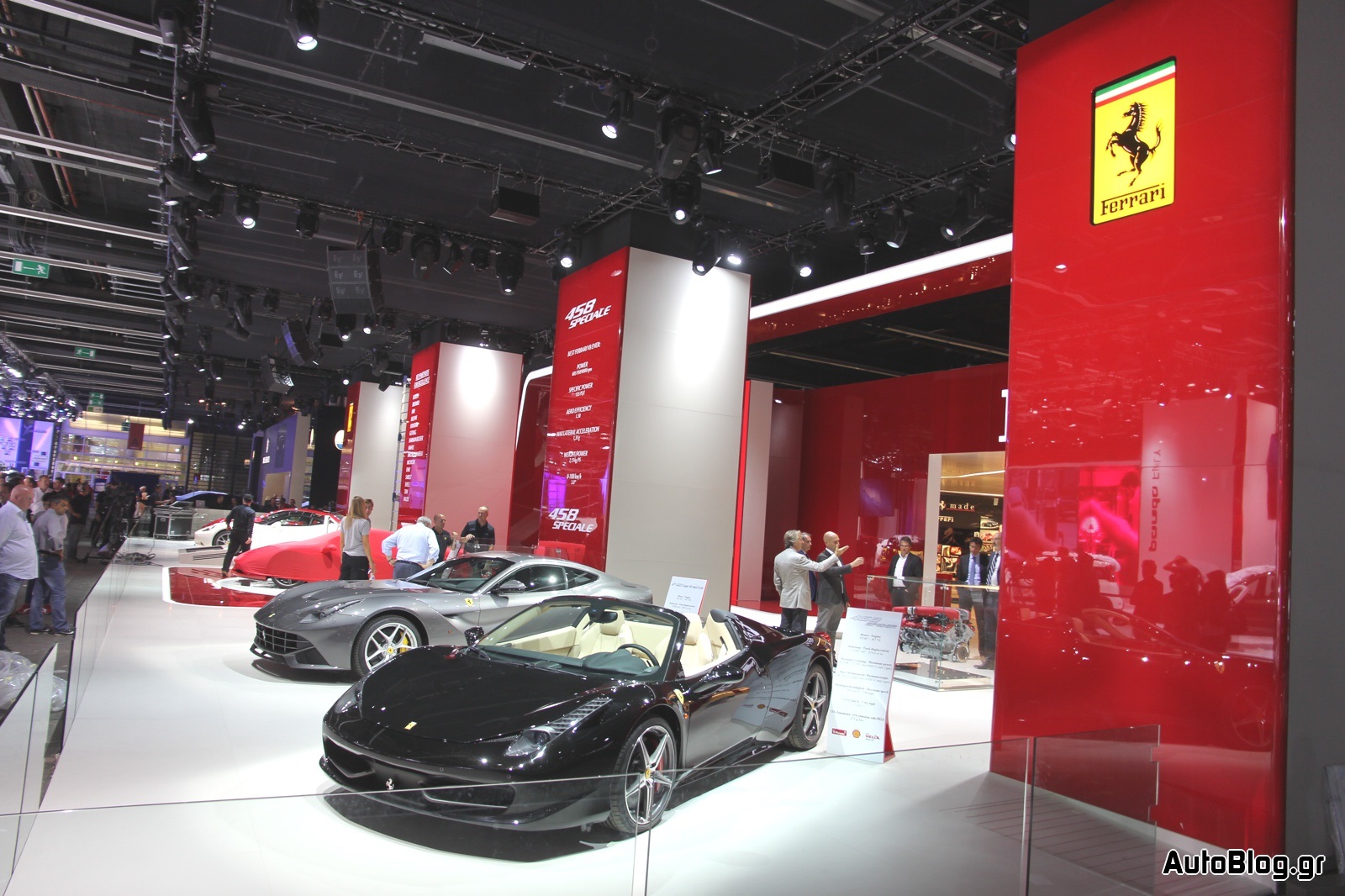

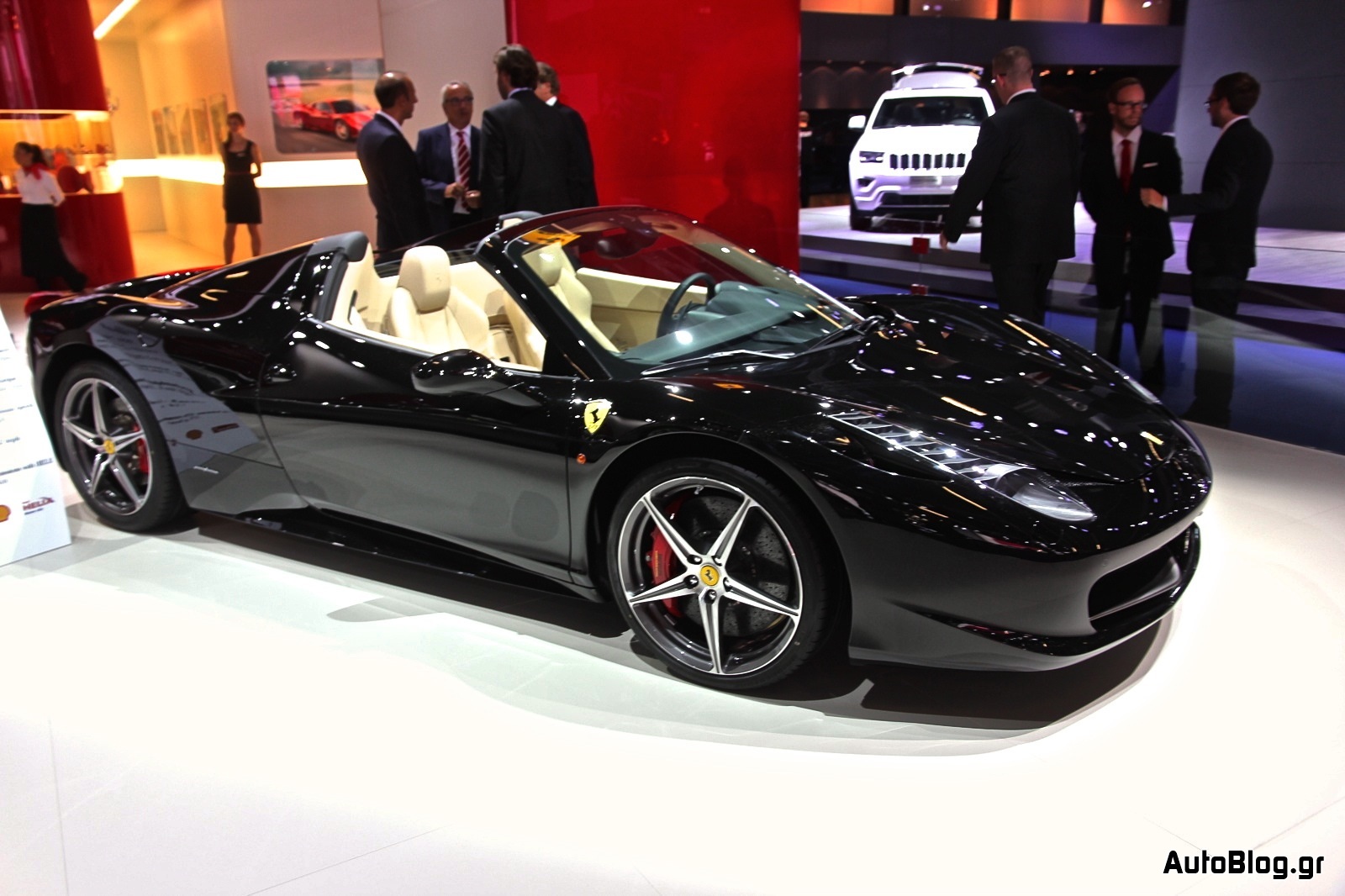

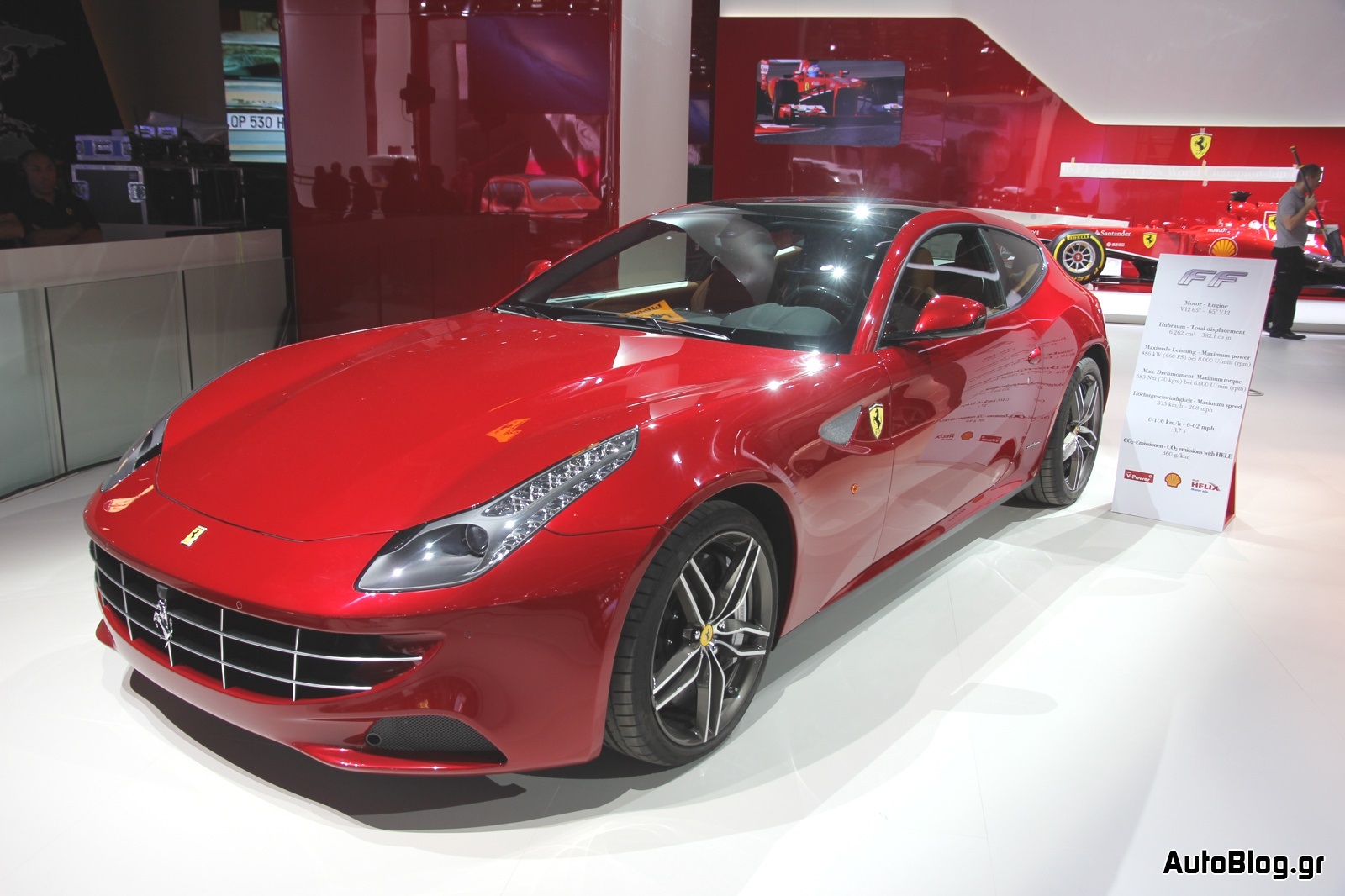

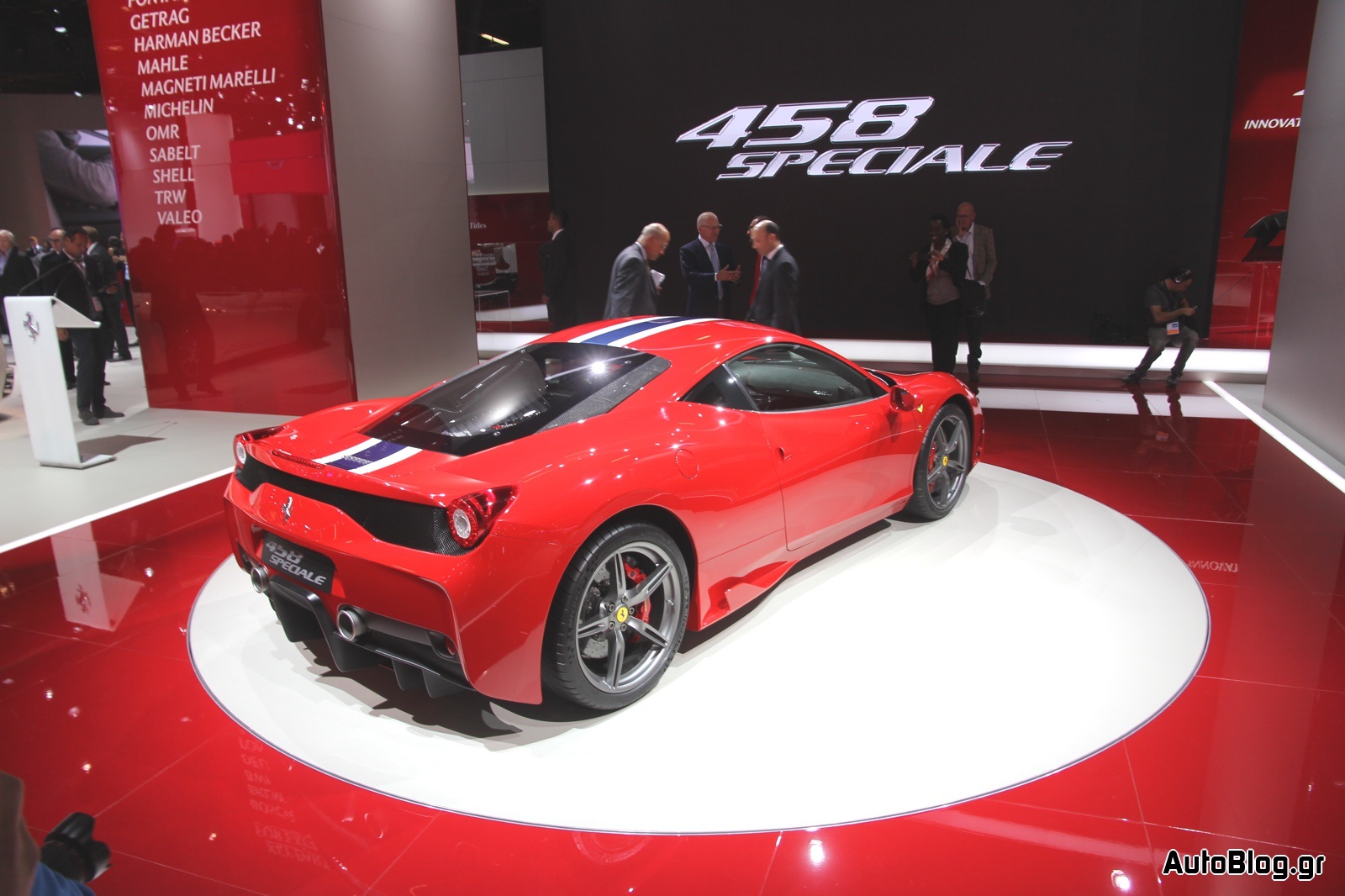

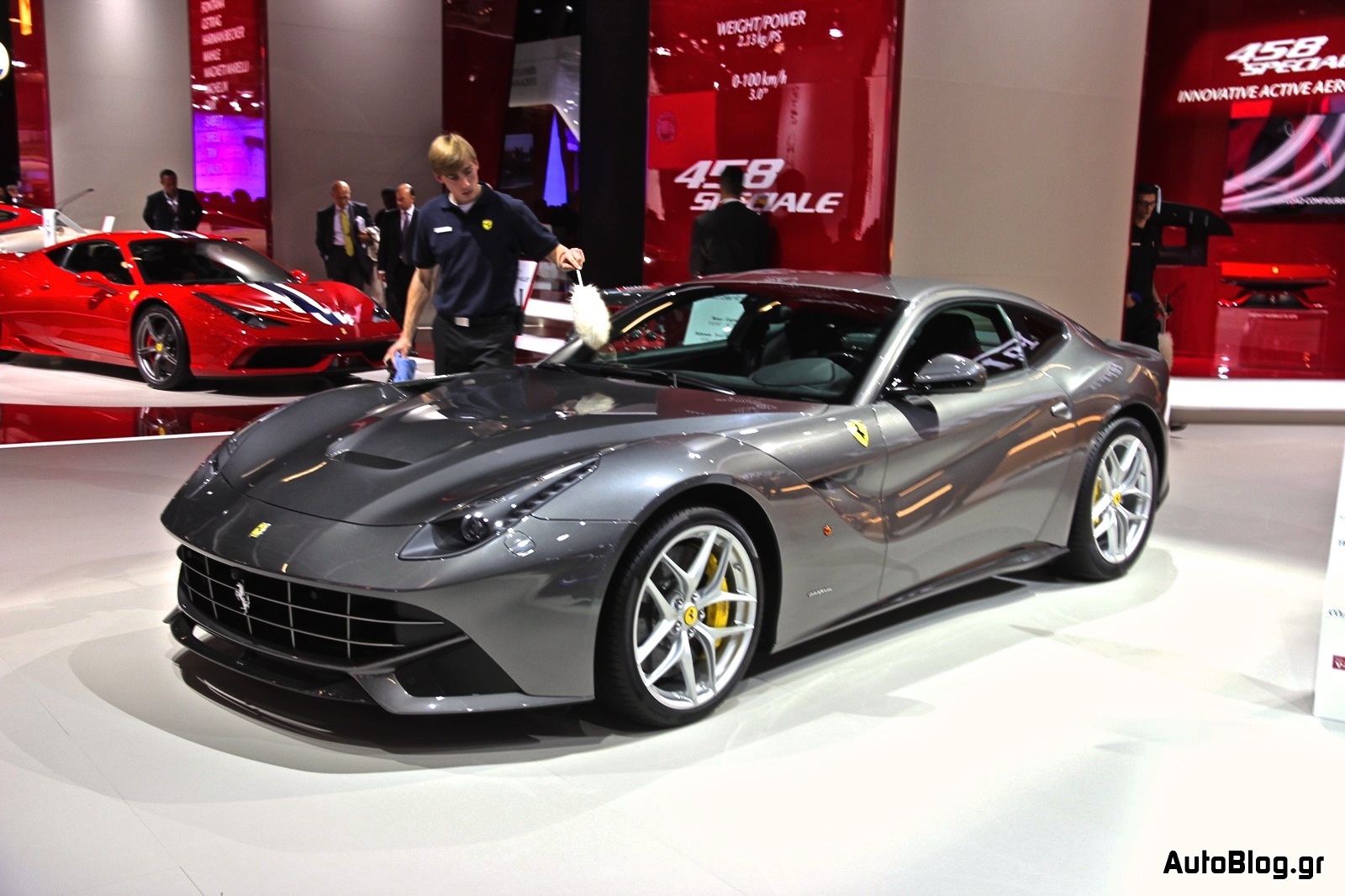

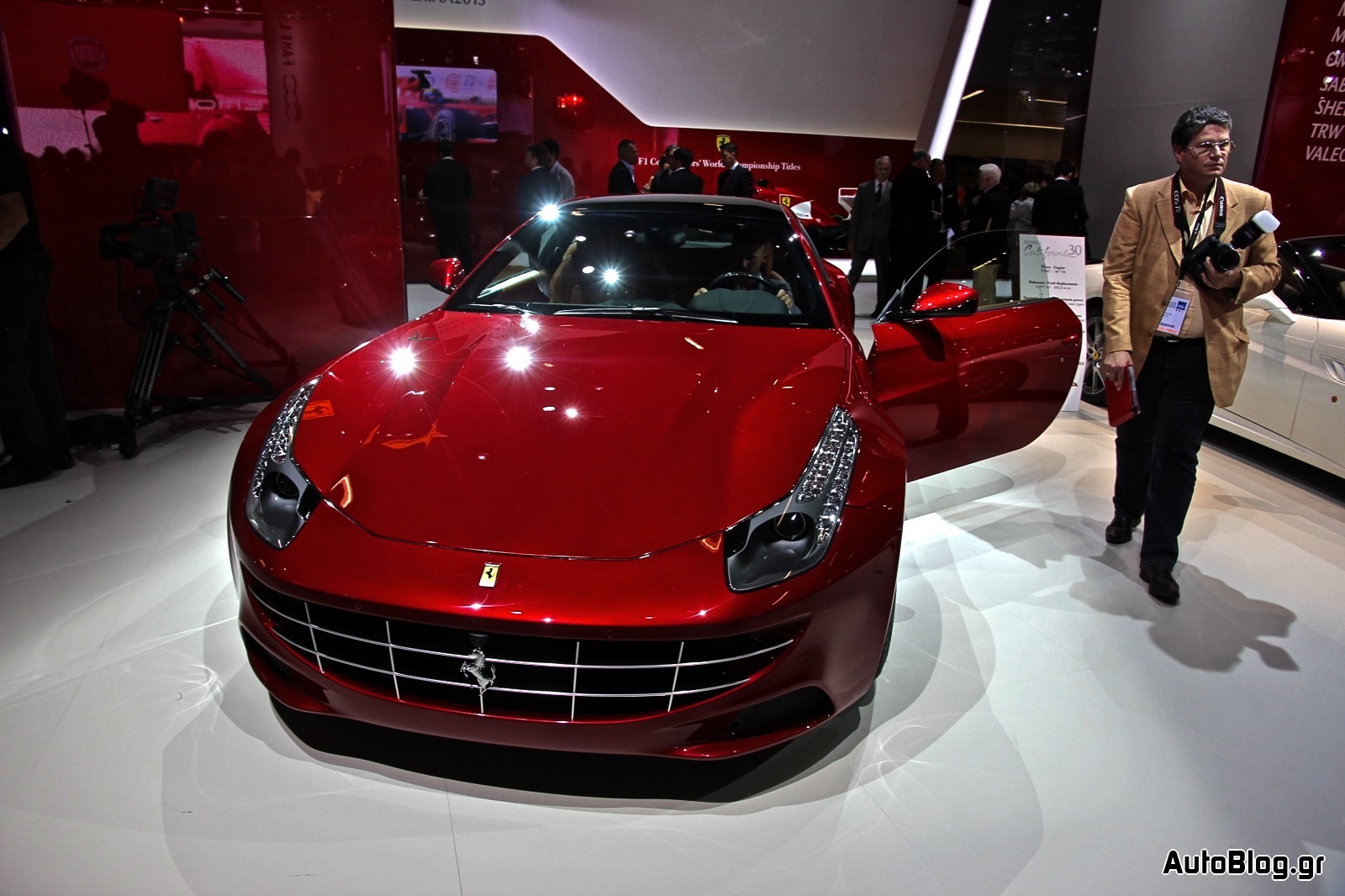

Τέλος η Ferrari στο περίπτερο της έχει μια FF, μια California, μια F12berlinetta και μια 458 Spider.

http://www.youtube.com/watch?v=7sOCNQ_bb60&list=PLzbdvw99SKOf-8bMYqUdAjeYR2WLs67ds

[Πηγή: Ferrari]

Δελτίο Τύπου

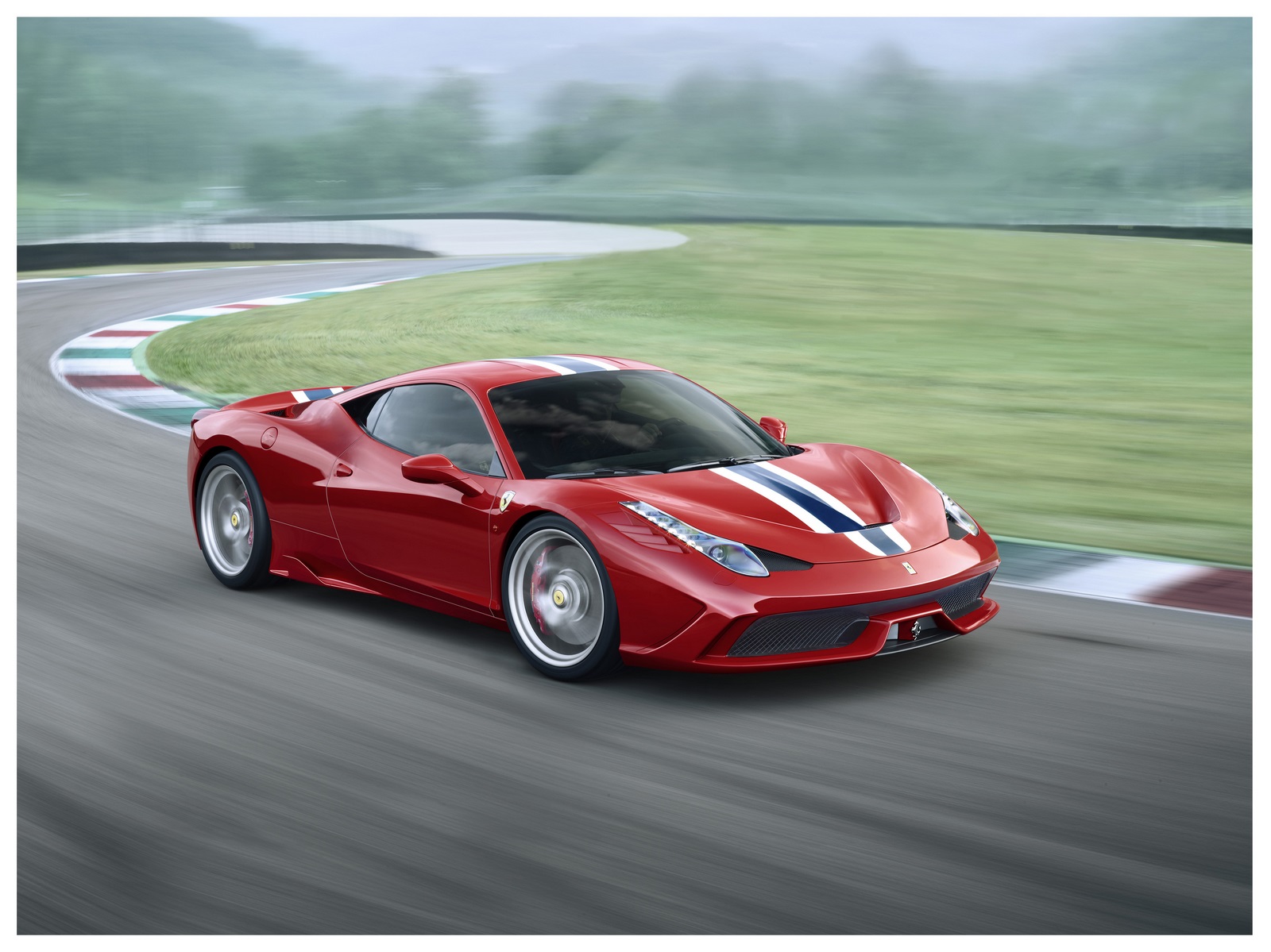

The 458 speciale debuts at the Frankfurt international motor show

World premieres in engine, active aerodynamics and side slip angle control for the new special-series

The new car completes the most comprehensive and exclusive range Frankfurt, 10th September 2013 – Ferrari’s stand at this year’s Frankfurt International Motor Show displays the most comprehensive range in its history. The newest addition is the 458 Speciale, an extreme sports car that joins the Coupé and Spider versions of the multi-award-winning 458.

The models exhibited are the concrete results of the Prancing Horse’s commitment to continuous investment. The company has poured 1,400 million euro into product development over the last five years and has set aside a further 2,000 million for the next five-year period. These figures do not, of course, include investments in Formula One, the technological advances and knowledge from which are routinely and extensively transferred to production models, with the new 458 Speciale being unveiled today the perfect case in point.

As with all Ferrari special series models, the 458 Speciale boasts an array of technological innovations that make it a thoroughly unique model designed for owners looking for an even more focused sports car that offers extreme driving emotions. The innovations span the entire car and include both Ferrari patents and world firsts, particularly with regard to the engine, active aerodynamics and electronic controls that mark this car out.

Thanks to the Maranello engineers’ meticulous development, the technical differences between the458 Speciale and the 458 Italia are unprecedented compared to the previous Challenge Stradale and 430 Scuderia special series.

Whether on the road or on the track, drivers will feel immediately at one with the 458 Speciale thanks to the speed with which it responds to every input and the consequently natural control that it offers, even in extreme manoeuvres. This finely-tuned handling balance enables the car to reach the highest performance levels of any Ferrari V8.

The engine is the most powerful naturally-aspirated Ferrari V8 ever, punching out 605 cv at 9000 rpm and delivering an exceptionally high specific power output of 135 cv/l, comparable to power units designed for the track. The engine is produced in the factory’s in-house foundry using the same machinery and processes as employed by the F1 team. The F1 dual-clutch transmission’s new control logics deliver an even keener sense of urgency during acceleration, while the Fast Down-shift makes response to commands even more prompt when the car is shifting down through the gears.

One of the car’s main characteristics is new Ferrari-patented mobile aerodynamic solutions at the front and the rear of the car which ensure that different aerodynamic configurations can be adopted in cornering, where maximum downforce is essential, and on straights where, instead, drag must be reduced to a minimum. The 458 Speciale has an excellent downforce (Cl) value of 0.53. Thanks to the aforementioned active aerodynamics, the latter does not penalise the Cd which is just 0.35.

The 458 Speciale also confirms Ferrari’s leadership in vehicle electronics. Its Side Slip Angle Control (SSC) is a world first. Thanks to a sophisticated new algorithm, which computes lateral acceleration, yaw angle, steering wheel angle and speed, SSC instantaneously calculates the car’s side slip angle, comparing it with reference data, and then allowing smooth, controllable power oversteer, by optimising both torque management via F1-Trac traction control and the E-Diff electronic differential.

All of the components in the Brembo braking system have been evolved employing solutions introduced on the LaFerrari. Part and parcel of the Speciale’s development included Michelin Pilot Sport Cup2 tyres which were specifically honed for it in an intensive collaboration programme to boost performance over a single lap in the dry, performance consistency over multiple laps, and grip in the wet.

Weighing in at an extremely light 1290 kg, the 458 Speciale has an extraordinary weight-power ratio of 2.13 kg/cv, which translates into record-breaking performance: 0 to 100 km/h acceleration in a scorching 3.0” and a Fiorano lap time of just 1’23”5.

In collaboration with Pininfarina, the Ferrari Styling Centre has sculpted forms that are more performance-oriented than ever. The modifications to the bodywork were mostly made to underscore the car’s sporty character, and a huge effort was lavished on fulfilling aerodynamic demands without impinging on Ferrari’s signature styling features and aesthetic standards.

The cockpit features a distinctly racing-inspired atmosphere, with simplicity the order of the day. Lightweight exclusive materials, such as Alcantara and carbon-fibre, dominate, yet it still exudes the sense of craftsmanship and sophistication typical of all Ferrari interiors. The cockpit’s ergonomic layout, with all controls either on the steering wheel or clustered around the driver, is boosted too by the bridge which puts the gearbox commands at an ideal angle to the driver.

The range

Flanking the 458 Speciale on the stand, and representing the company’s more performance-oriented sports car range, are an F12berlinetta finished in Ferro Met with black interior, and a 458 Spider in Nero Stellato and Sabbia interior. The Prancing Horse’s GT heritage is ably represented by the California30, a convertible that marries performance and versatility. The car on the stand sports Bianco Italia bodywork and a Nero Daytona cockpit, and is flanked by the four-seater, four-wheel drive FF in Rosso Maranello with panoramic glass roof.

The Ferrari range is at the leading-edge in terms of environmental responsibility. The Prancing Horse’s substantial investment in emissions and fuel consumption reduction has resulted in average power output being boosted by 100 cv whilst slashing a massive 40 per cent off CO2 emissions.

Ferrari’s business strategy, which sees the company present on 62 markets worldwide, focuses strongly on retaining the Prancing Horse’s signature exclusivity to protect the brand and the value of the cars. A range of unique, excellence-oriented service contributes to this also.

The latter include the Tailor Made service for clients wishing to personalise their cars to a truly bespoke standard. The Tailor Made atelier has its own area on the stand, featuring an FF in Grigio Abu Dhabi with detailing in vintage Grigio Ferro Met. The cabin boasts a luxury trim that encompasses buttery-soft “Soul Aretha” Frau leather in warm, deep hues, and also “Solaro”, a stunningly refined, elegant tailoring fabric with a wonderfully opulent, iridescent finish. Wood trim (teak and ash) and L-pattern stitching further enhance the unique allure of this car.

458 Speciale content and technical specifications

Production Positioning

The 458 Speciale joins the Ferrari range alongside the 458 Italia and 458 Spider and, like all special-series Ferraris, is aimed at a specific kind of owner, in this case those looking for an even more focused sports car that offers extreme driving emotions.

Whether on the road or on the track, drivers will feel immediately at one with the 458 Speciale thanks to the speed with which it responds to every input and the consequently natural control that it offers, even in extreme manoeuvres. This finely-tuned handling balance enables the car to reach the highest performance levels of any Ferrari V8.

Ferrari’s core engineering philosophy centres around pushing the envelope with each new model whilst maintaining the innate chassis balance and handling that ensures that even non-professional drivers can extract maximum performance and driving pleasure. With the new 458 Speciale all clients will be able to drive on the limit on the track as well as experience the exhilaration of genuinely sporty driving even at lower speeds on demanding roads.

The new berlinetta is, in fact, the result of the search for extreme technology, driving thrills and performance, with the application of advanced technical solutions for the powertrain, aerodynamics and vehicle dynamics. Those achievements set it apart from the 458 Italia from which it is derived, to an extent unprecedented in the previous Challenge Stradale and 430 Scuderia special series.

The 458 Speciale’s performance is exceptional across the board, thanks to factors such as an extraordinary weight-power ratio of 2.13 kg/cv, 0-100 km/h longitudinal acceleration in 3 seconds, lateral acceleration of 1.33 g and a Fiorano lap time of 1’23”5. The 458 Speciale is an extremely entertaining car to drive even in less extreme situations, too: its unparalleled agility, in fact, is reflected in a response time to commands of just 0.060 seconds.

POWERTRAIN

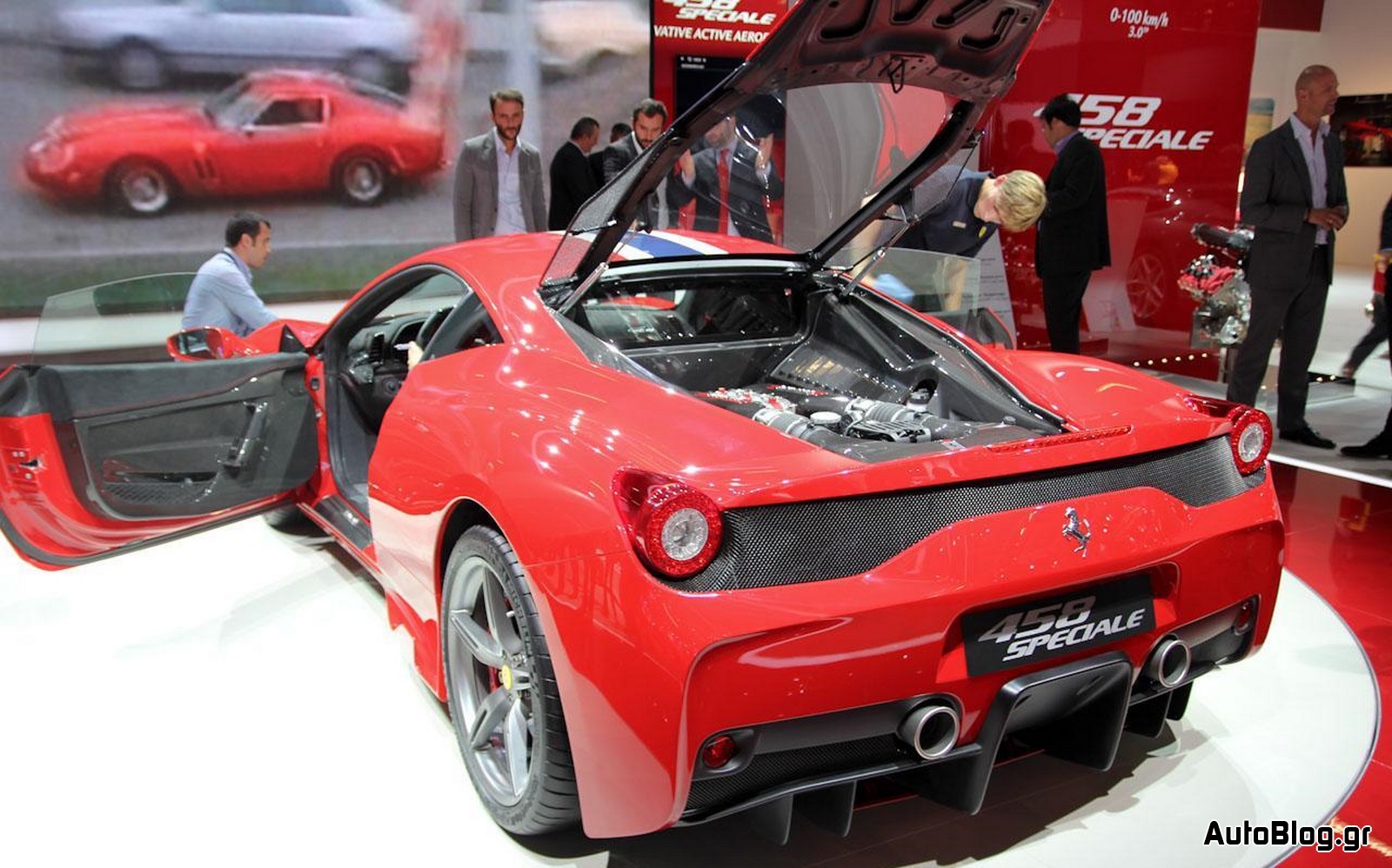

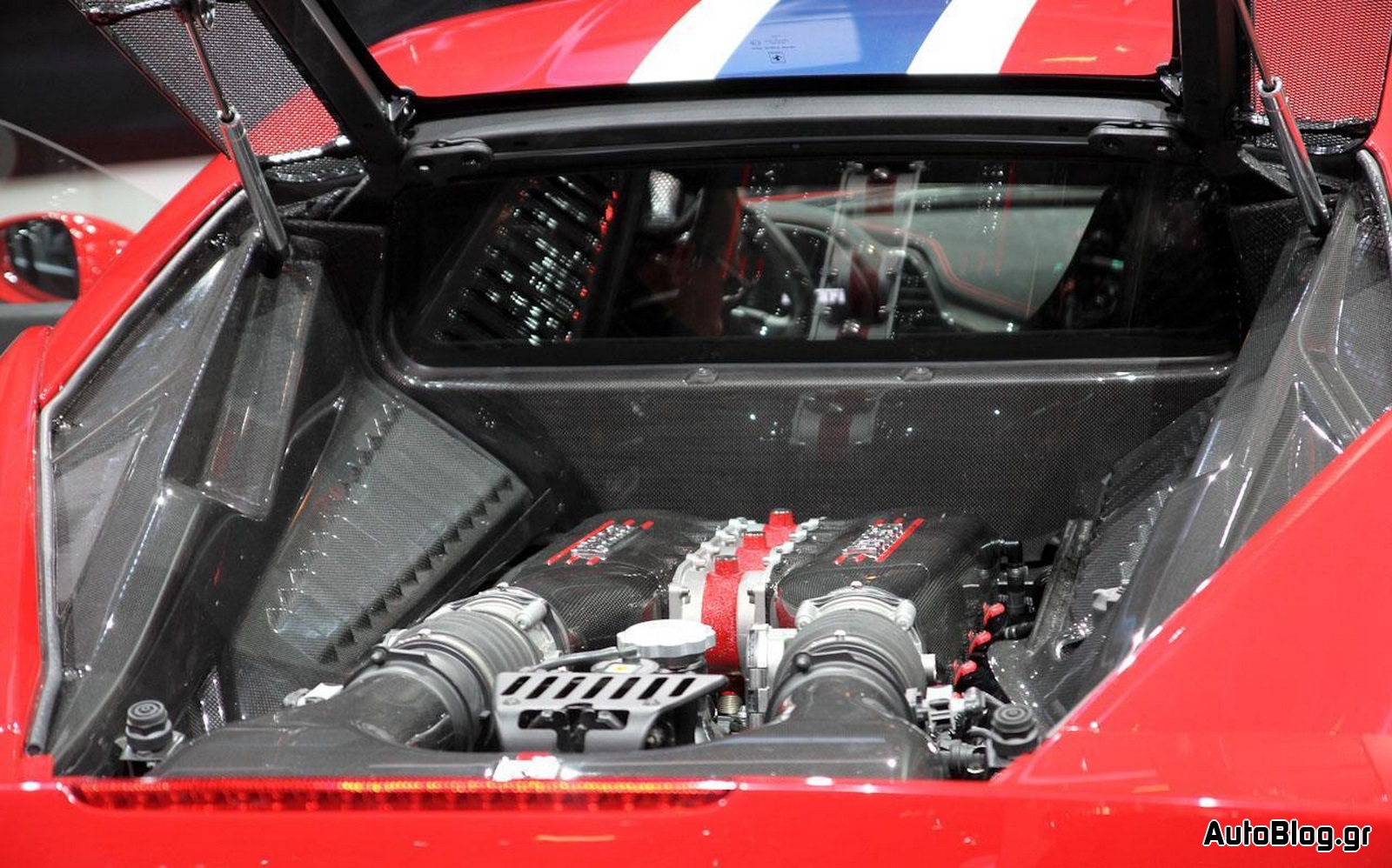

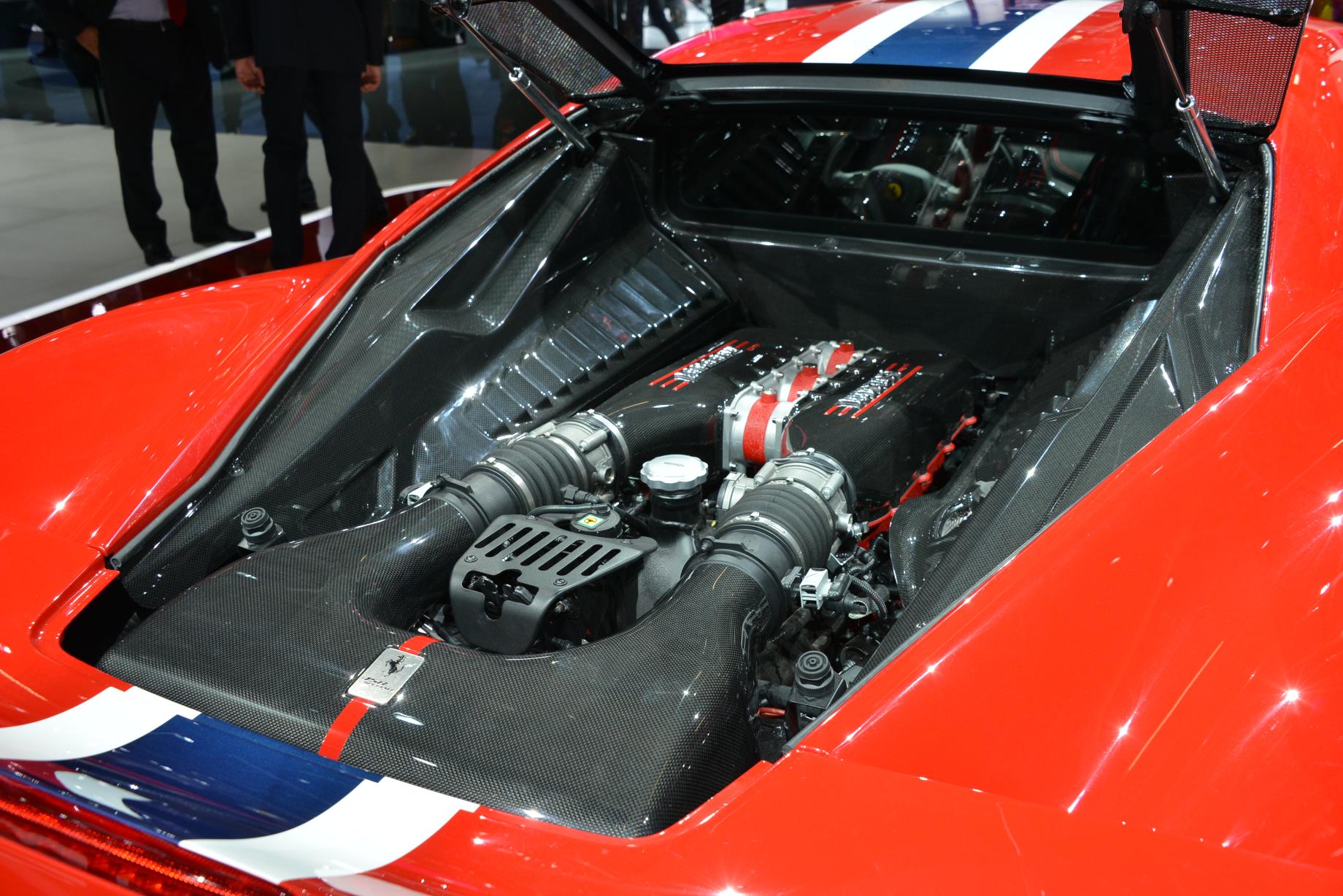

The 458 Speciale’s mid-rear-mounted 4497 cc GDI engine is the most powerful naturally aspirated Ferrari 8-cylinder ever developed, punching out 605 cv at 9000 rpm and maximum torque of 540 Nm at 6000 rpm, while its record 135 cv/l specific power output is also the highest ever achieved by a naturally-aspirated road-going engine.

F1 technology transfer to the 458 Speciale was of fundamental importance to its development, including the production processes. The engine is produced in the factory’s in-house foundry using the same machinery and processes as employed by the F1 team for complex components with the extreme structural and dimensional characteristics needed for a naturally-aspirated engine capable of hitting 9000 rpm.

To achieve these results, Maranello’s engineers have maximised the 458’s V8 potential, carrying out detailed refinements to all the components to optimise combustion, volumetric and mechanical efficiency.

Maximum combustion efficiency is guaranteed by a highly evolved knock control system which senses the ionisation across the spark plug gap thereby optimising combustion across the entire rev range.

The other main challenge aside from boosting power was to improve torque across the entire power curve. This involved increasing the compression ratio to an exceptional 14:1, the highest value ever achieved by a naturally-aspirated V8, which was achieved by modifying piston geometries.

The fluid-dynamics of the combustion chamber were revised to optimise both the intake and exhaust phases. The intakes feature new geometry, both with regard to the manifolds and the cylinder heads, with shorter inlet ducts (-10 mm) in the former instance, and in the latter a higher valve lift (+5%). A new cam profile not only increases valve lift but also helps reduce average pressure during the pumping cycle.

The 458 Speciale’s increased power and torque are also the result of redesigning various engine components and reducing internal friction. The pistons are made from a new material that reduces overall mass. New materials were also used for the con-rod bushings while specific heat treatment (DLC: Diamond-Like Carbon) on the piston pins makes for greater fatigue and wear resistance. The crankshaft was also redesigned to optimise and improve lubrication of the main bearings in all conditions of use.

Around 8 kg was also slashed off the engine’s overall weight by the redesign of the intake (carbon-fibre plenums and air filter box as well as shortened inlet ducts) and exhaust (in aluminium) systems. Once again Ferrari drew heavily on its extensive F1 experience, particularly with regard to the intake system, which now has a new carbon-fibre plenum and filter box, new materials for the pistons and con-rod bearings.

AERODYNAMICS

One of the car’s main characteristics is new Ferrari-patented mobile aerodynamic solutions at the front and the rear of the car which ensure that different aerodynamic configurations can be adopted in cornering, where maximum downforce is essential, and on straights where, instead, drag must be reduced to a minimum.

The 458 Speciale has an excellent downforce (Cl) value of 0.53. Thanks to the aforementioned active aerodynamics, the latter does not penalise the Cd which is just 0.35.

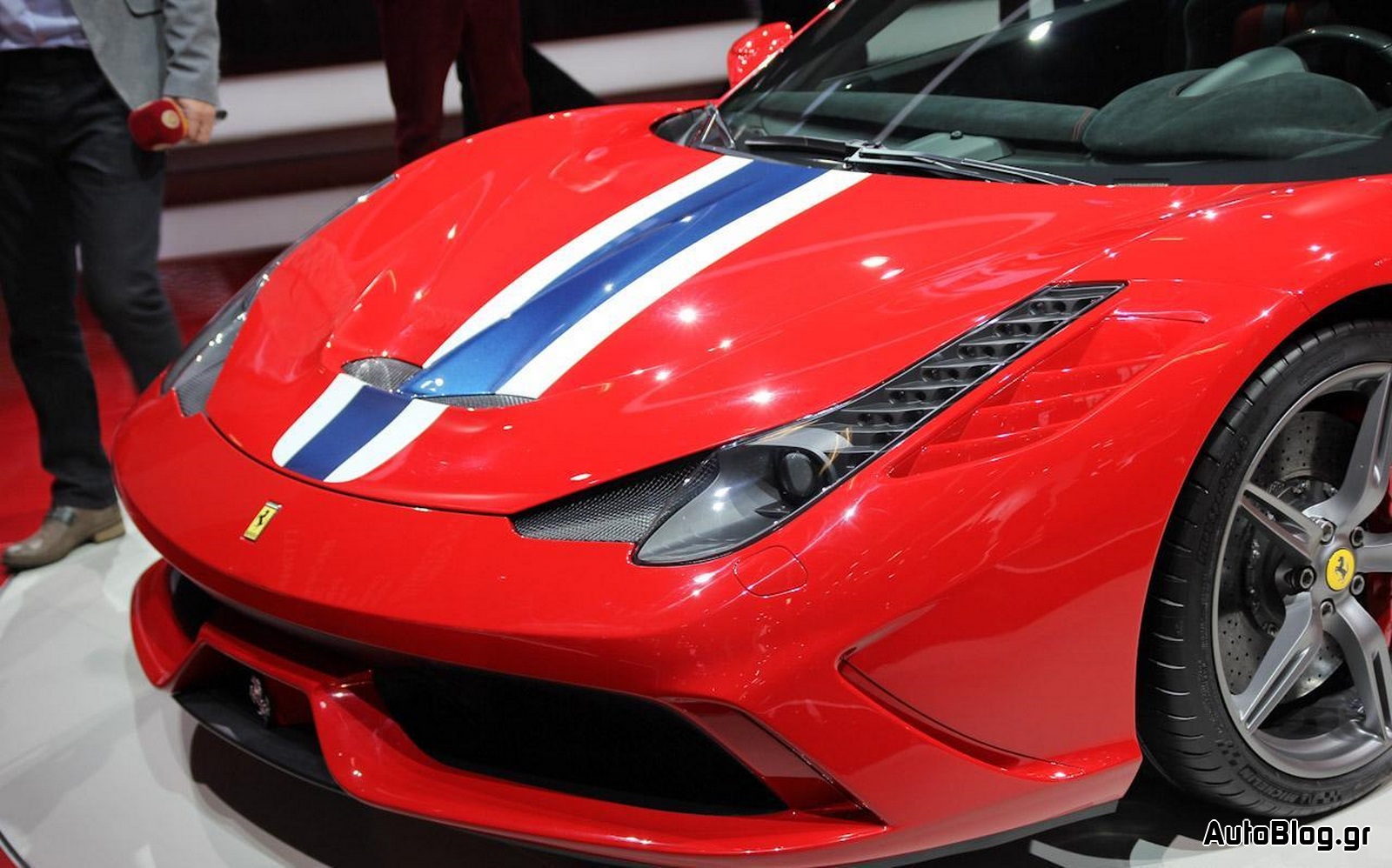

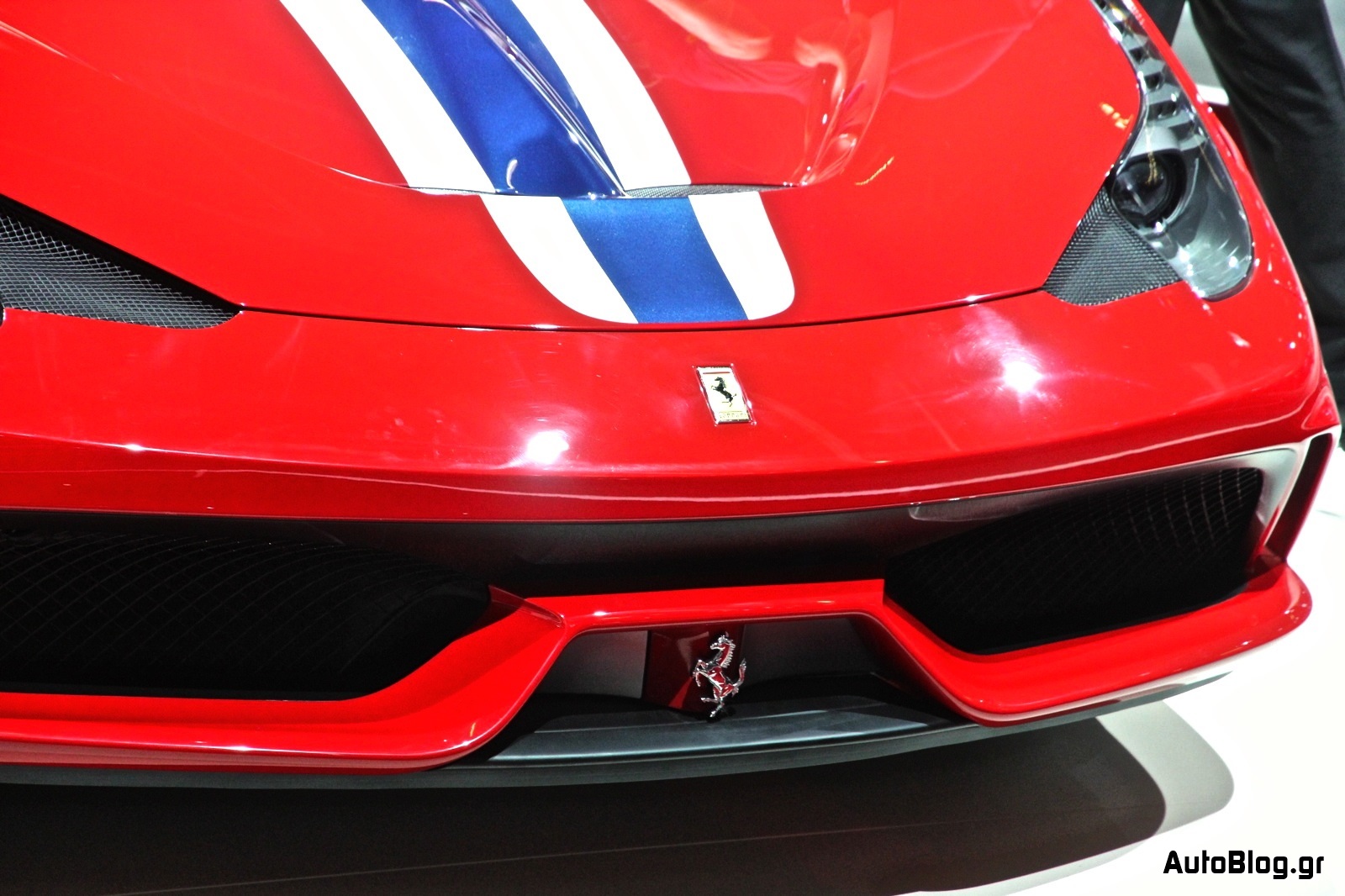

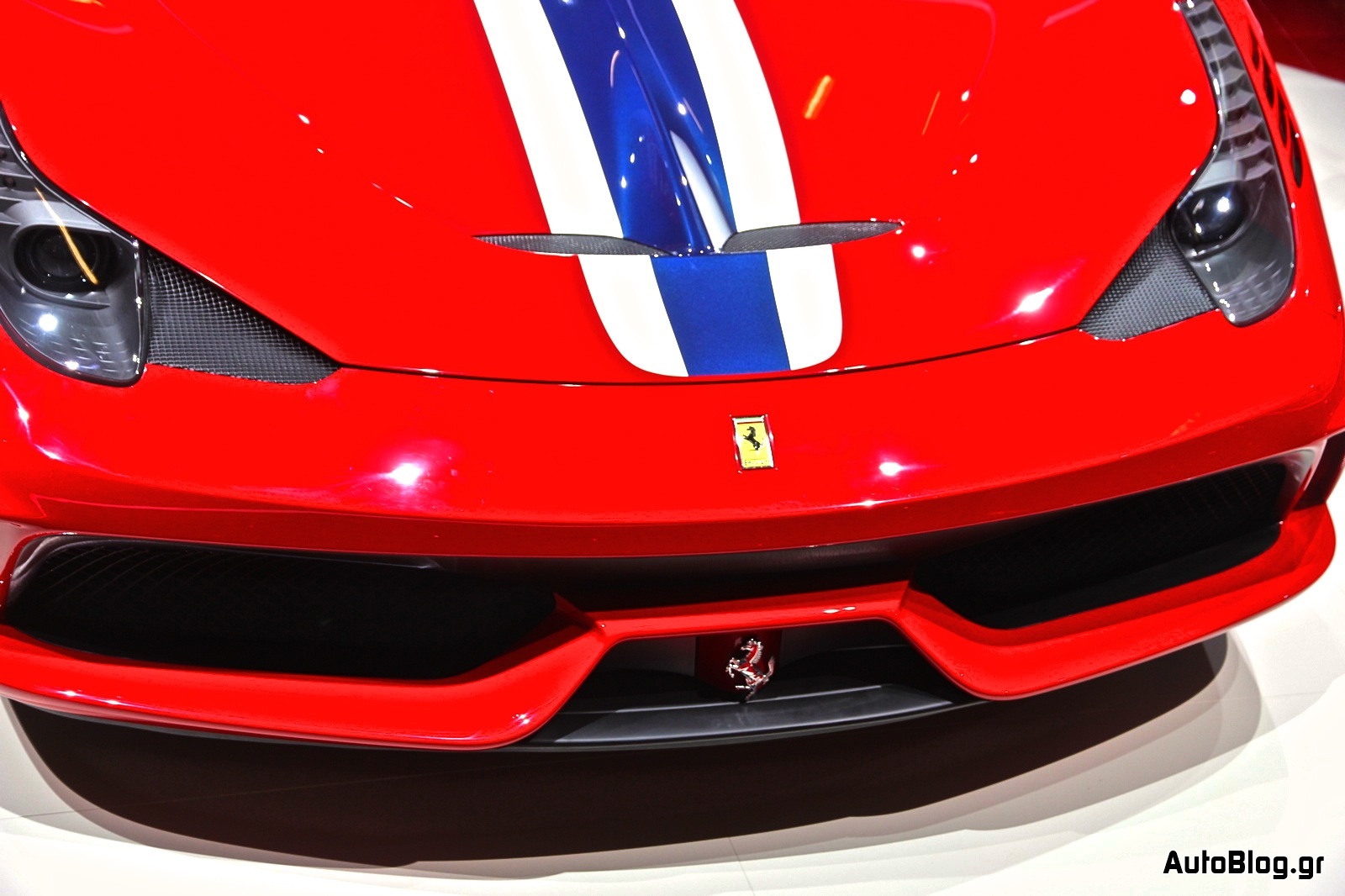

Of particular note are the innovative solutions adopted at the front of the car, with two vertical flaps in the centre and the horizontal flap below them. At relatively low speeds, the vertical flaps are closed, channelling air into the radiators to guarantee the necessary cooling for the engine. However, at speeds in excess of 170 km/h, the flaps open, reducing the volume of air flowing into the radiators, thereby cutting drag. At speeds of over 220km/h the horizontal flap lowers to balance downforce between the front and rear axles, leading to a 20 per cent shift in overall downforce towards the rear.

The turning vanes at either side of the front bumper slow the air flow which increases downforce, thereby shifting the aerodynamic balance 4 per cent over the front. Thanks to their shape, the aerodynamic fins ahead of the rear wheels increase downforce very much in the same way as the front turning vanes.

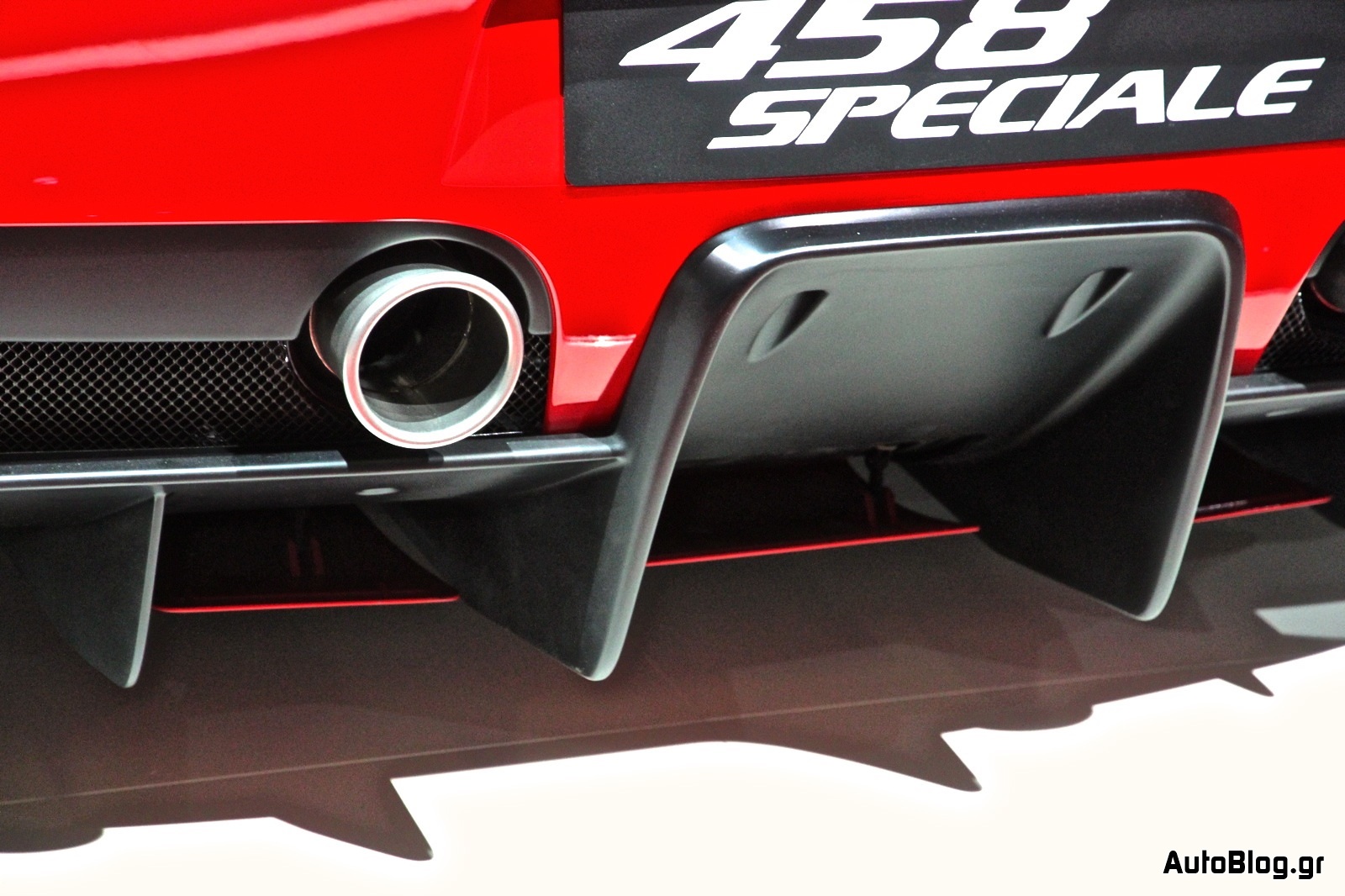

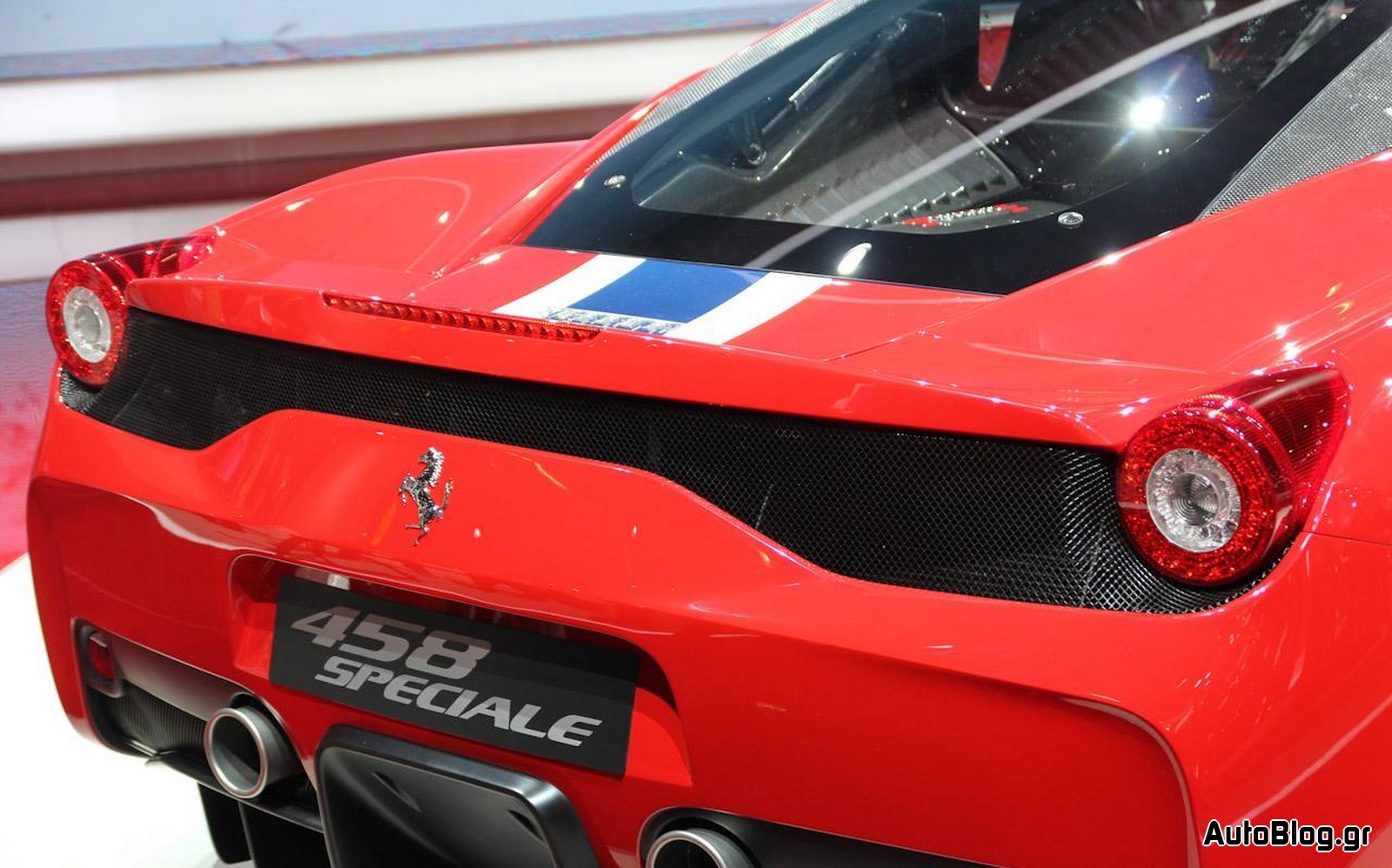

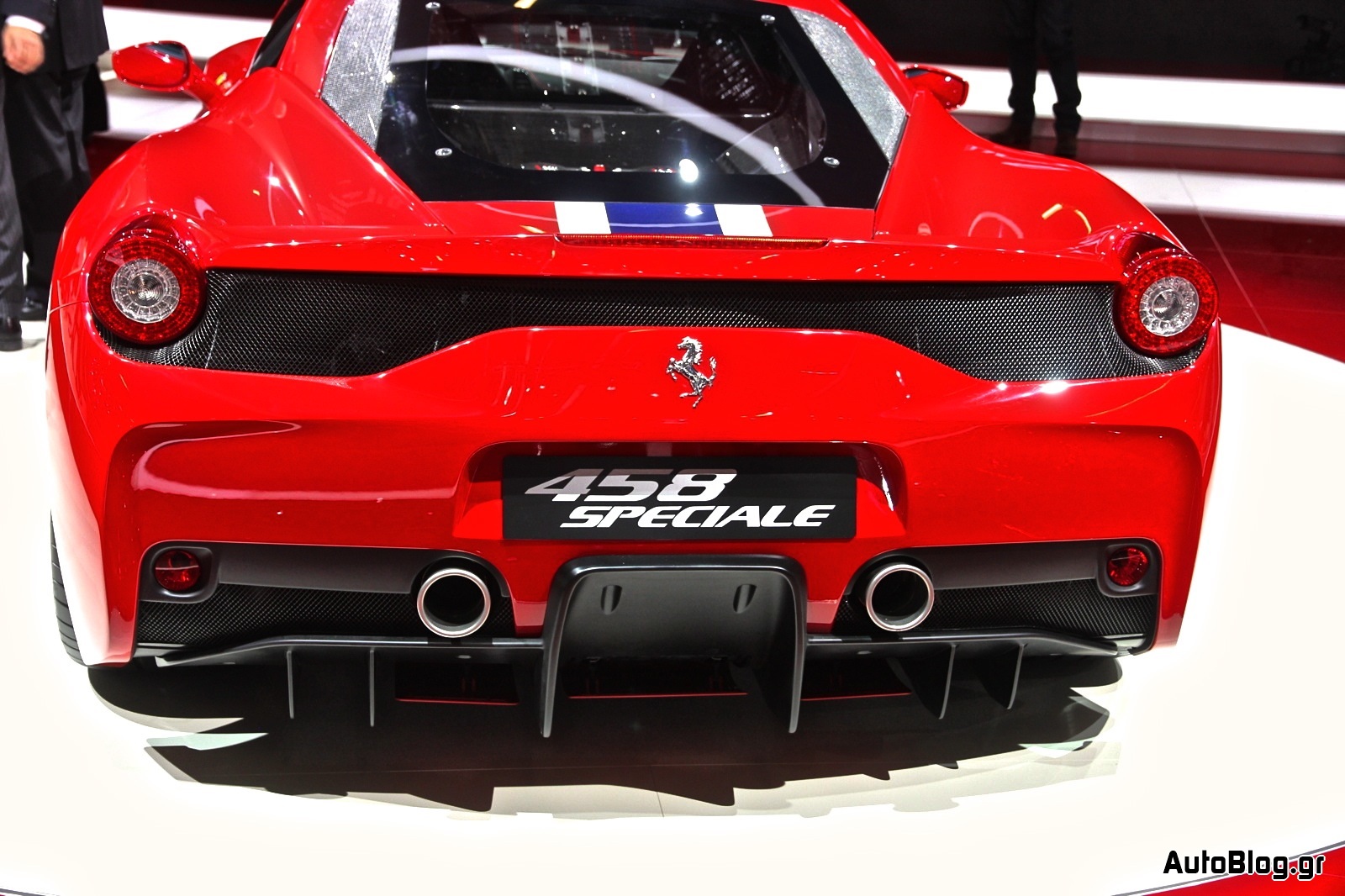

The rear spoiler has a larger surface area and more pronounced shape which has improved the efficiency of the underbody, increasing downforce. Moving the position of the tailpipes also allowed a new diffuser to be designed which optimises the extraction capacity of the underbody. The rear flaps have two different configurations: raised for high downforce and lowered to minimise drag. Sophisticated sensors and a specific algorithm allow the flaps to be lowered by as much as a 17° angle, thereby stalling the diffuser and reducing Cd by 3 points.

DYNAMICS The 458 Speciale’s dynamic behaviour guarantees maximum driving emotions in all situations, allowing drivers to match and improve their own limits with ease and delivering an intense driving experience even at lower speeds.

Nimble and responsive, the car is at its best over really twisty routes with demanding switchbacks and camber changes. New technical features have not only improved the 458 Speciale’s lap time over single laps, but also the repeatability of that performance on subsequent laps without needing to be a professional driver, offering unprecedented levels of driving pleasure.

Side Slip Angle Control (SSC) The 458 Speciale sees the introduction of Side Slip Angle Control (SSC) for more effortless car control on the limit, thereby greatly enhancing driver enjoyment.

Thanks to sophisticated new software, which computes lateral acceleration, yaw angle, steering wheel angle and speed, SSC carries out instantaneous analysis of the car’s side slip angle, comparing it with reference data, thereby allowing smooth, controllable oversteer, and optimising both torque management (via F1-Trac traction control) and differential torque distribution between the two driven wheels (via the E-Diff electronic differential) for maximum vehicle response times.

With the Manettino set at RACE or CT OFF, the 458 Speciale will then make the most of available grip for improved acceleration out of corners, greater ease and control on the limit, and more consistent performance.

Also available on request is an advanced telemetry system which records data from track sessions which can then be accessed directly through the multimedia menu or via an external device such as an iPad or laptop. The system uses a series of high-precision GPS antennae installed in the car to pinpoint its position on a pre-loaded circuit or a recordable route. At the end of the session, the Virtual Track Engineer helps drivers analyse their performance, highlighting the main critical errors (e.g. braking too early or too late).

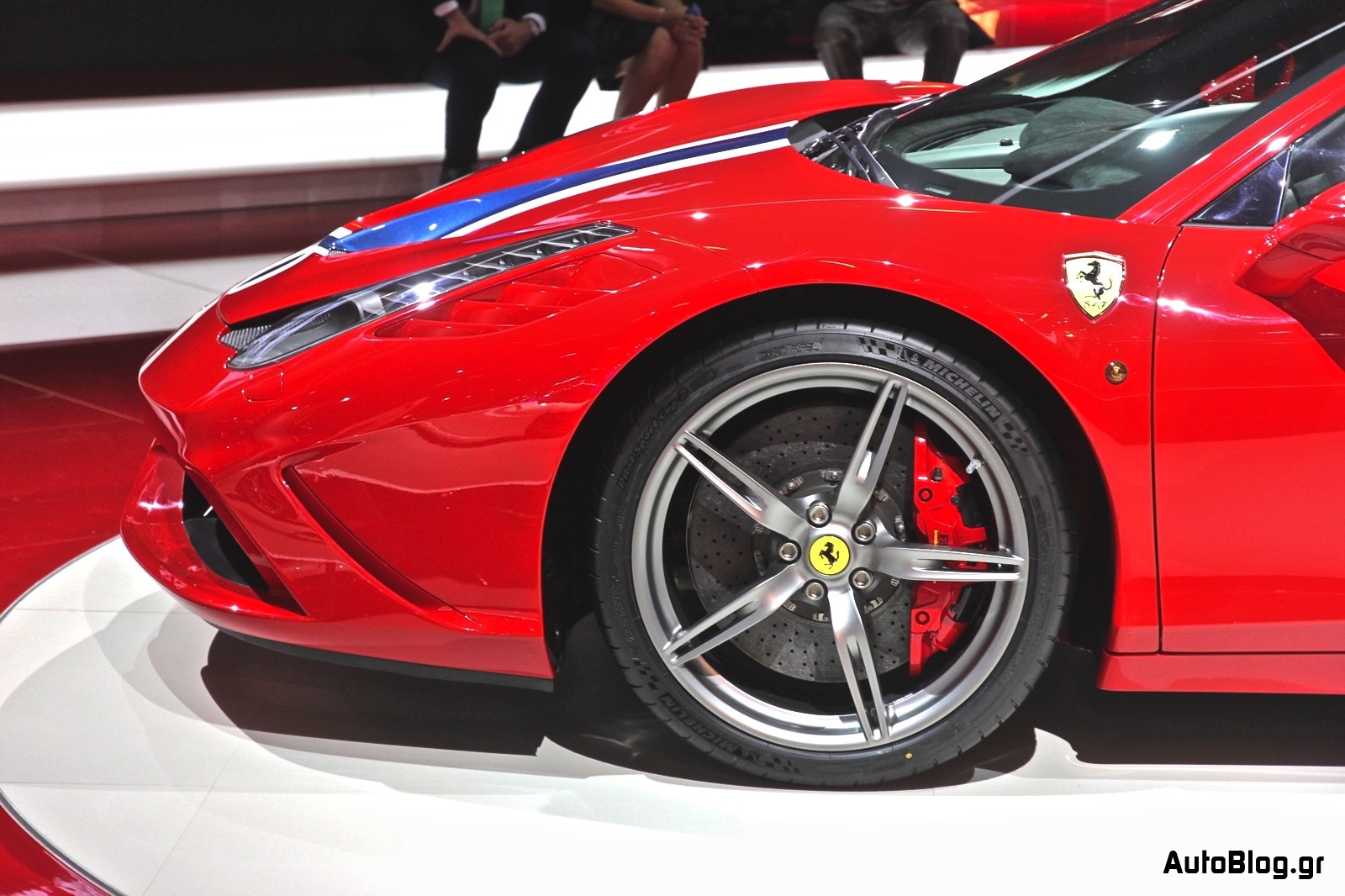

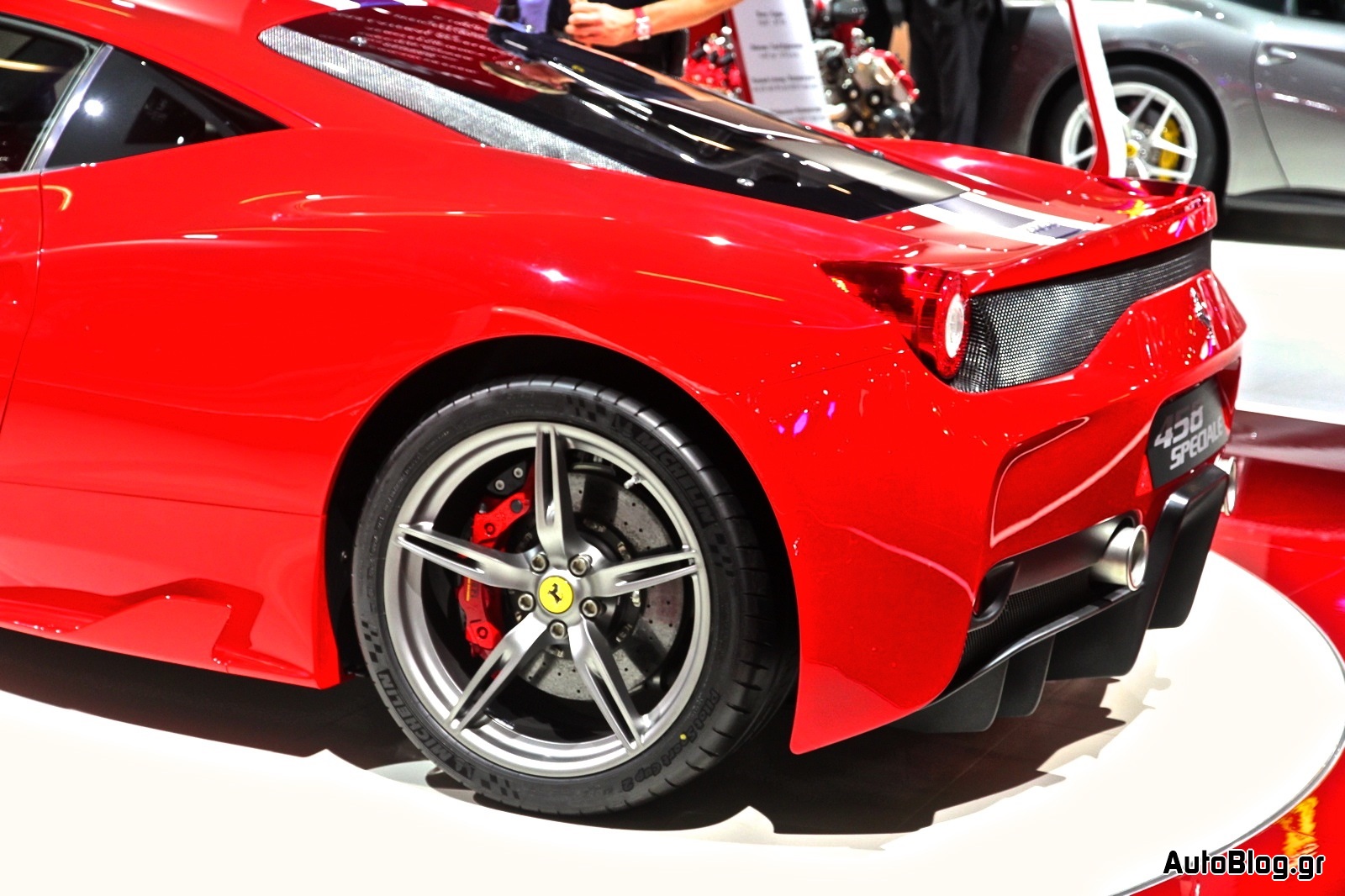

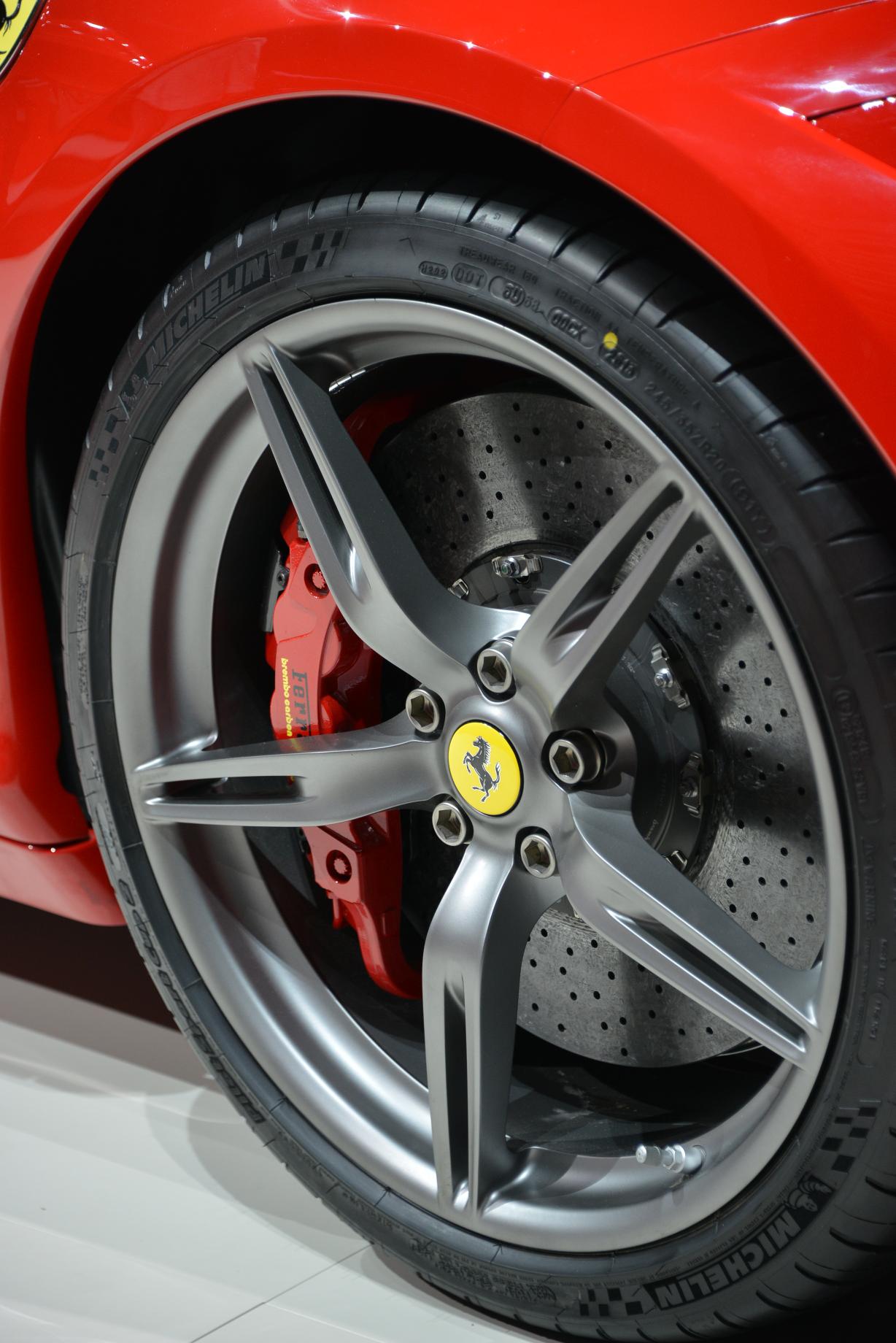

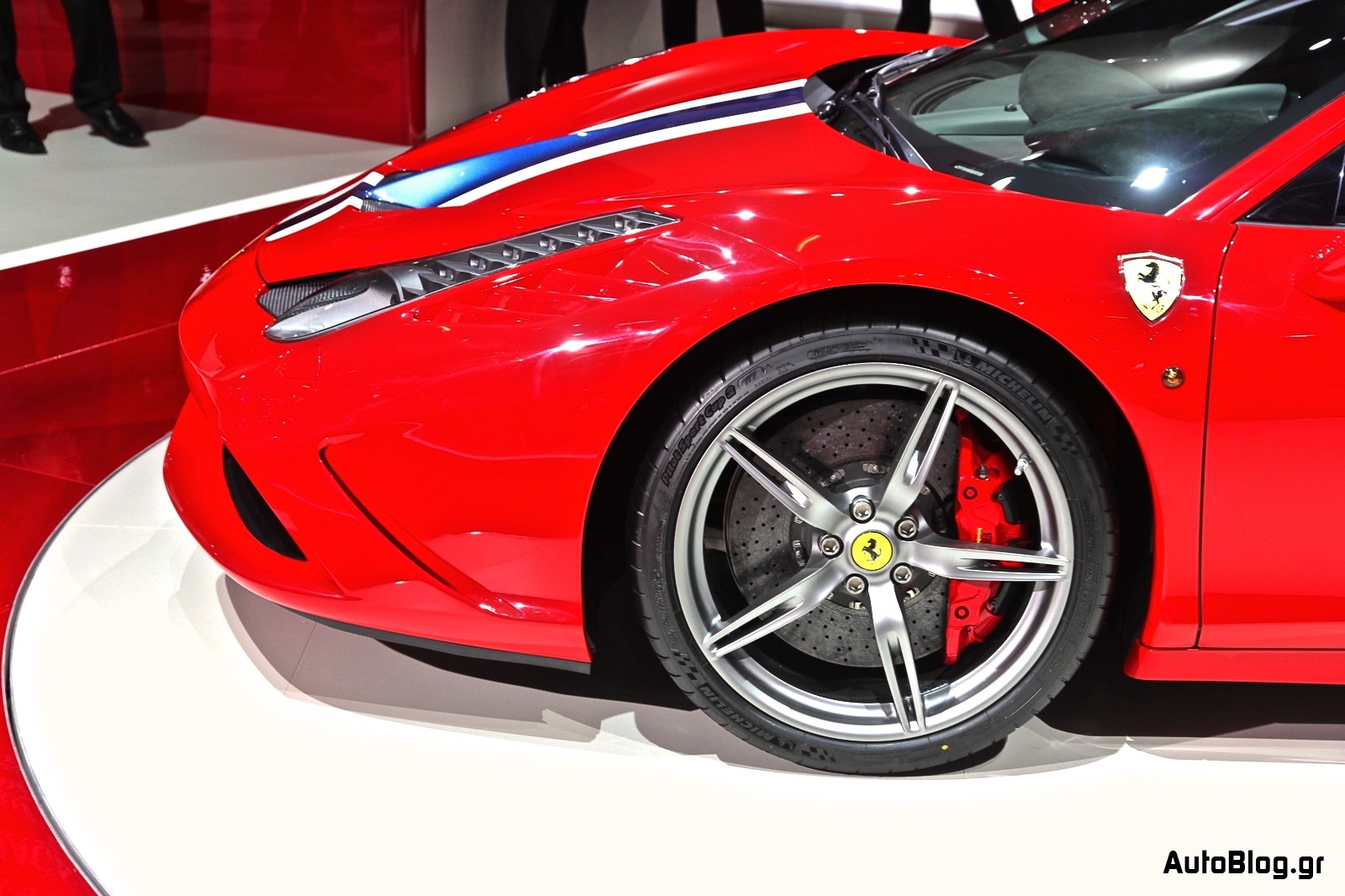

Braking system To cope with the demands of the car’s increased performance, all of the components in the Brembo braking system have been evolved from the solutions introduced on the LaFerrari. The 458 Speciale sports Extreme Design calipers, new generation HT2 discs with a higher percentage of silicon, and smaller front pads made from HY hybrid material for improved heat dissipation which is also boosted by special channels in the bodywork and is crucial in extreme driving situations. The result is shorter stopping distances (100 – 0 km/h in 31 m) without any compromises in weight, and more consistent performance under severe use.

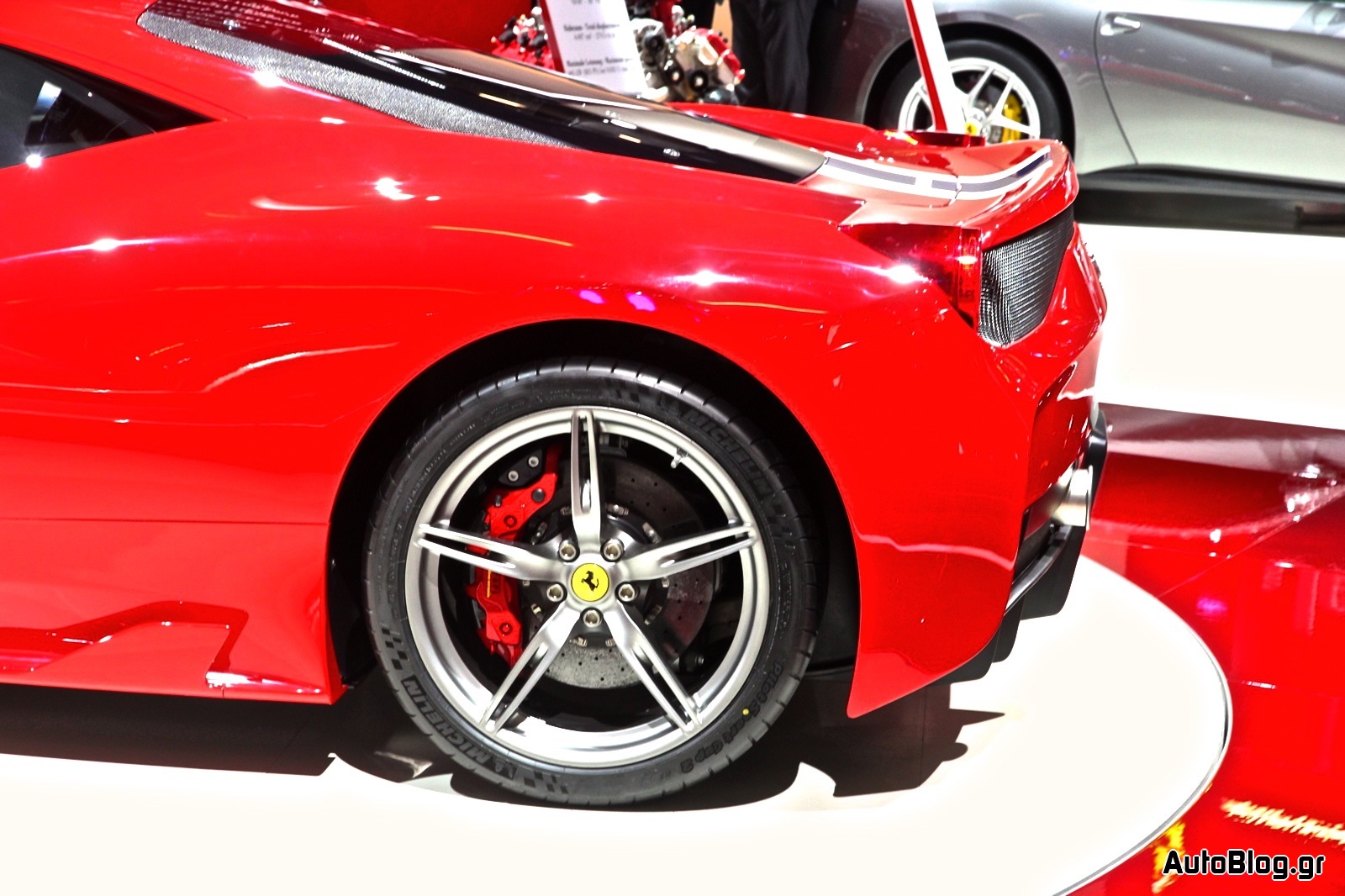

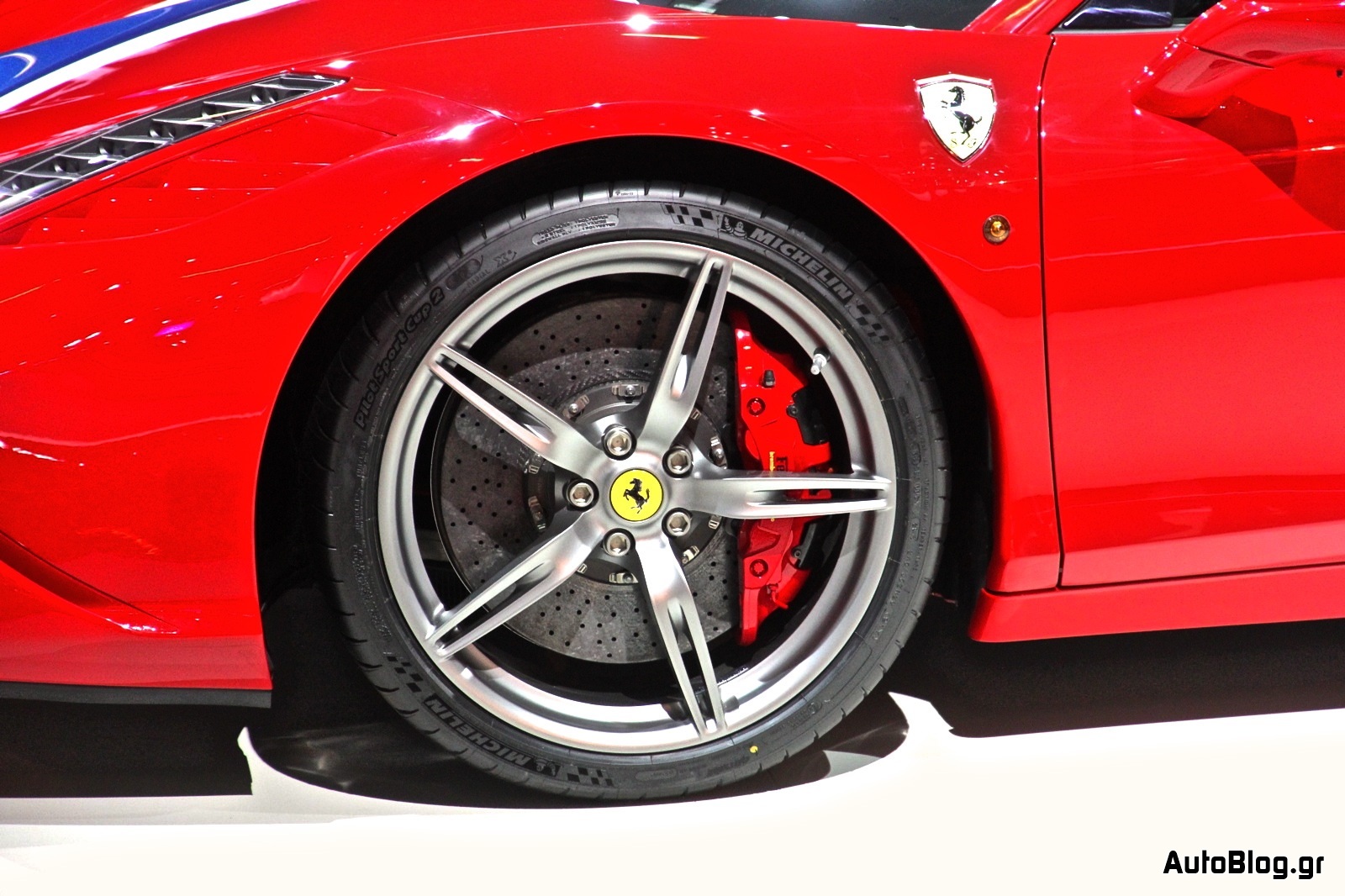

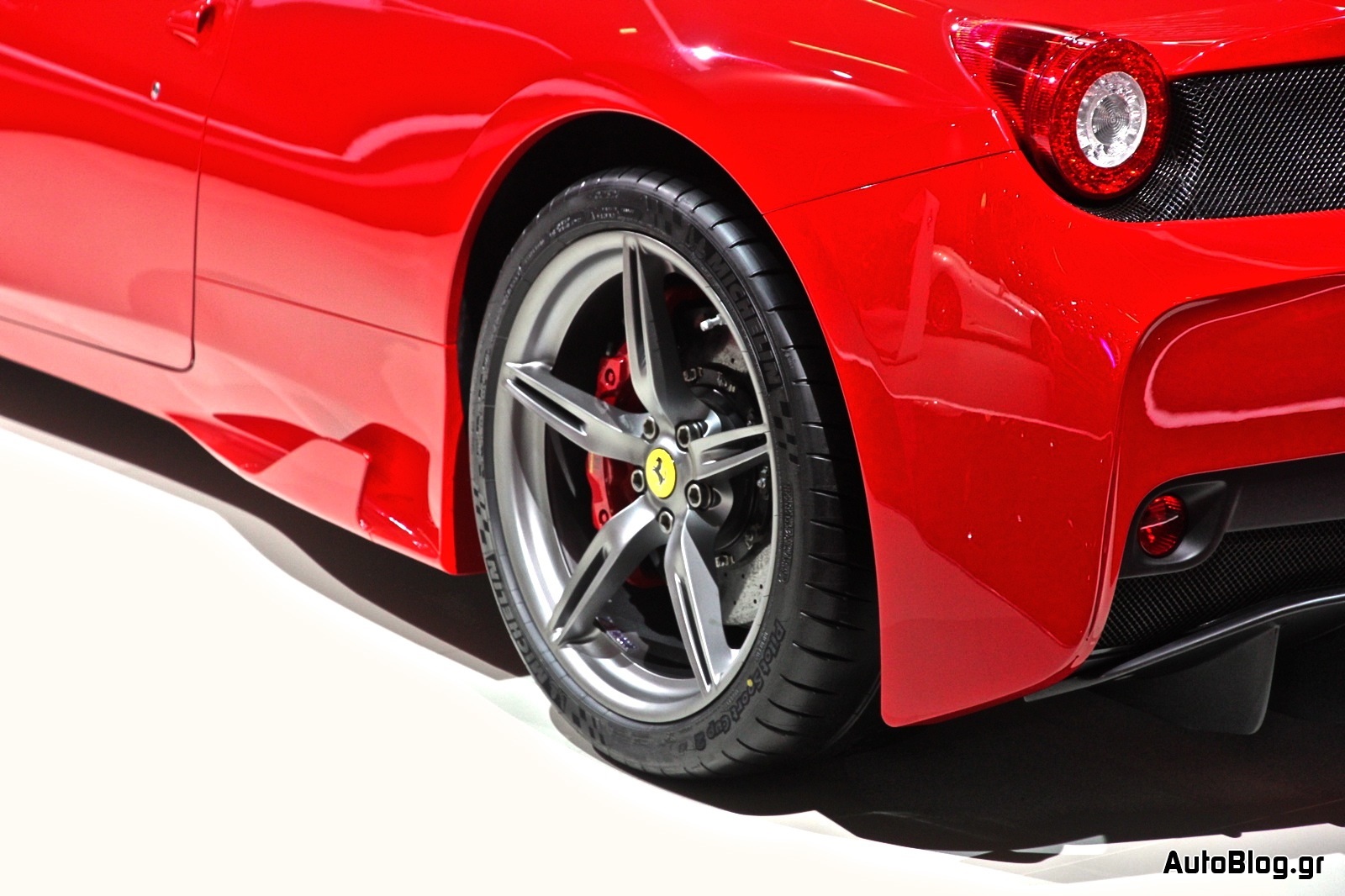

Tyres and wheels Part and parcel of the Speciale’s development included Michelin Pilot Sport Cup2 tyres which were specifically honed for it in an intensive collaboration programme involving lengthy track tests and simulator sessions.

Specially made for the 458 Speciale, they feature a compound obtained using specific additives to boost performance over a single lap in the dry as well as improving performance consistency over multiple laps. They also deliver 6 per cent more grip, which also translates into better grip even in the wet.

The forged 20” wheels feature a new design, resulting in a weight reduction of over 12 kg.

Suspension Thanks to being very flat through corners, the 458 Speciale is extremely efficient and satisfying in faster, sharper, more challenging changes of direction. This is due partly to its Frequency-Shaped SCM-E (Frs SCM-E) dampers which have twin solenoids, new CPU and new software that modifies the magnetic field every millisecond. The result is a much faster response and more precise body control.

These technical features guarantee exceptionally fast response to inputs from the road or the steering (0.060 s) and mean the car can deliver 1.33 g of lateral acceleration, a combination that ensures a genuinely extraordinary experience behind the wheel. The car, in fact, responds instantaneously and is easy to drive on the limit in all types of situations.

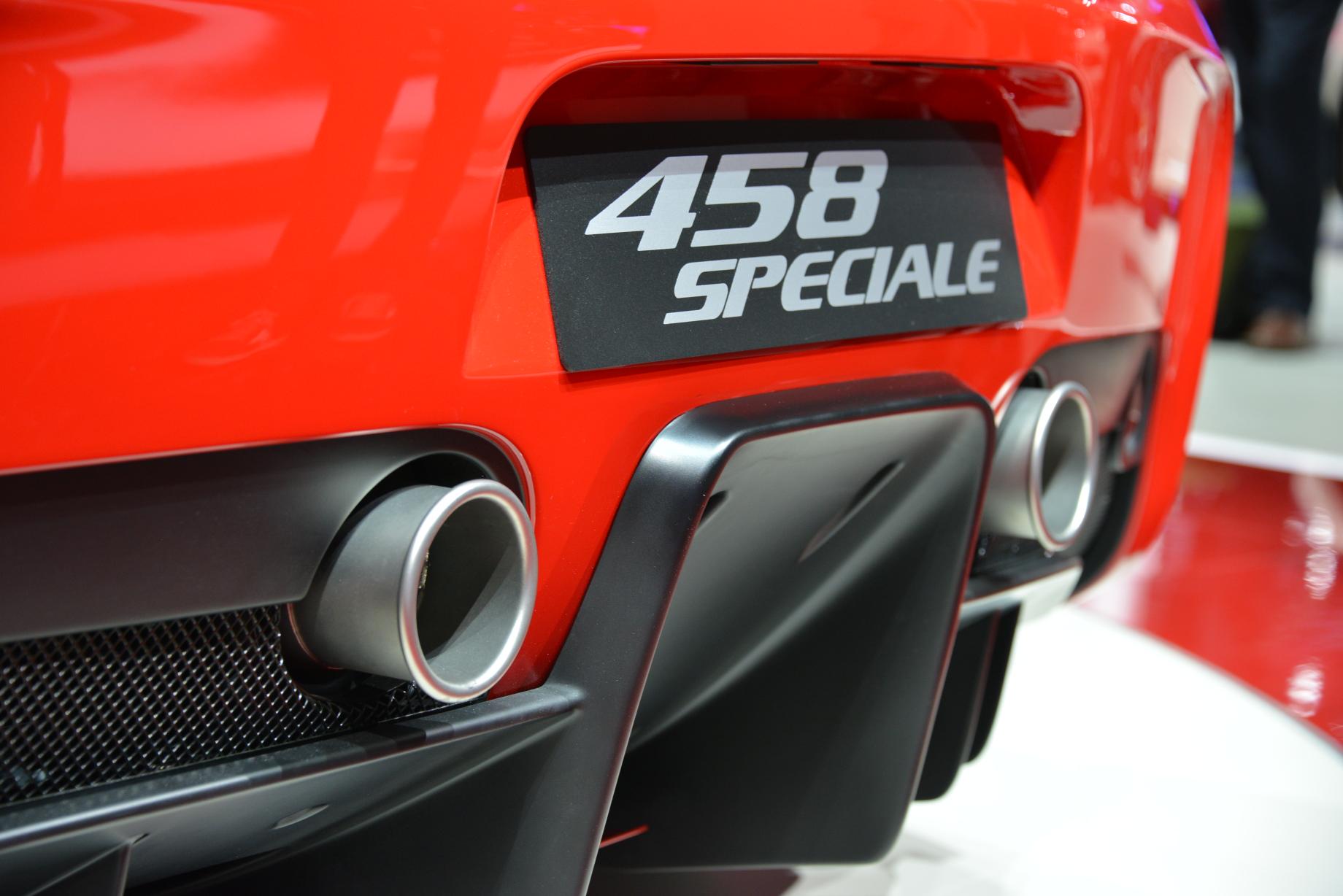

Soundtrack Like the rest of the car, the 458 Speciale’s soundtrack is both seductive and uncompromising, thanks to unprecedented intensity inside the cabin as well as outside. The position of the tailpipes lends the V8 the full-bodied low frequency soundtrack typical of Ferrari’s sportiest engines while the configuration of the silencers is designed to guarantee maximum intensity and exceptional clarity. The immense power and full-bodied nature of the sound inside the cabin were achieved by redesigning the inlet tract.

Gear-shift strategy The F1 dual-clutch transmission now features a new control logic that delivers an even keener sense of urgency during gear shifts. The car feels much sportier as it shifts up through the gears, with response time to commands more prompt than ever, thereby guaranteeing 40 per cent faster longitudinal acceleration with engine revs adapting 20 per cent more rapidly. Conversely with the Fast-Down Shift strategy, when down-shifting, the transient time required for engine revs to match the gear ratio is 44 per cent faster.

DESIGN

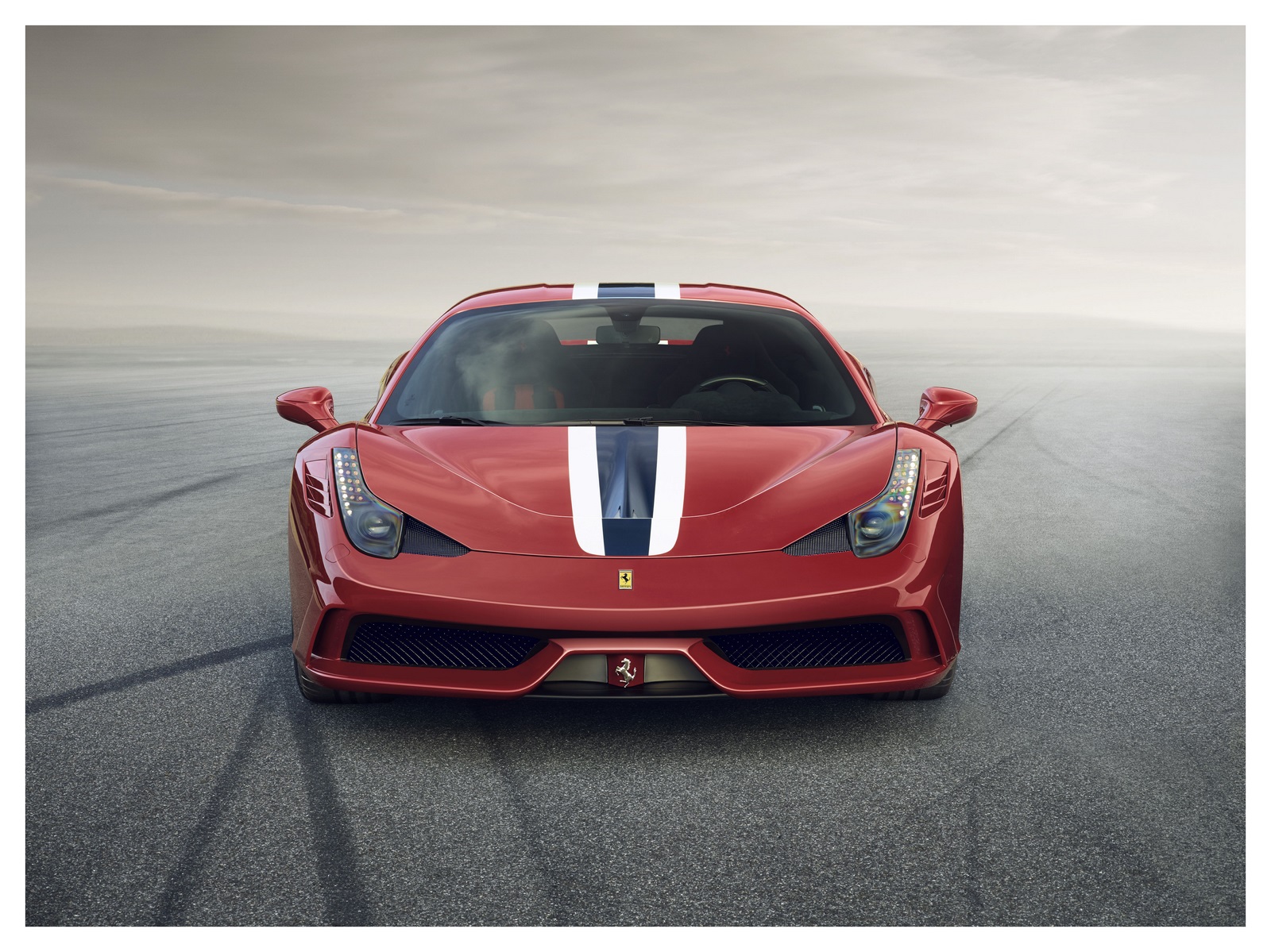

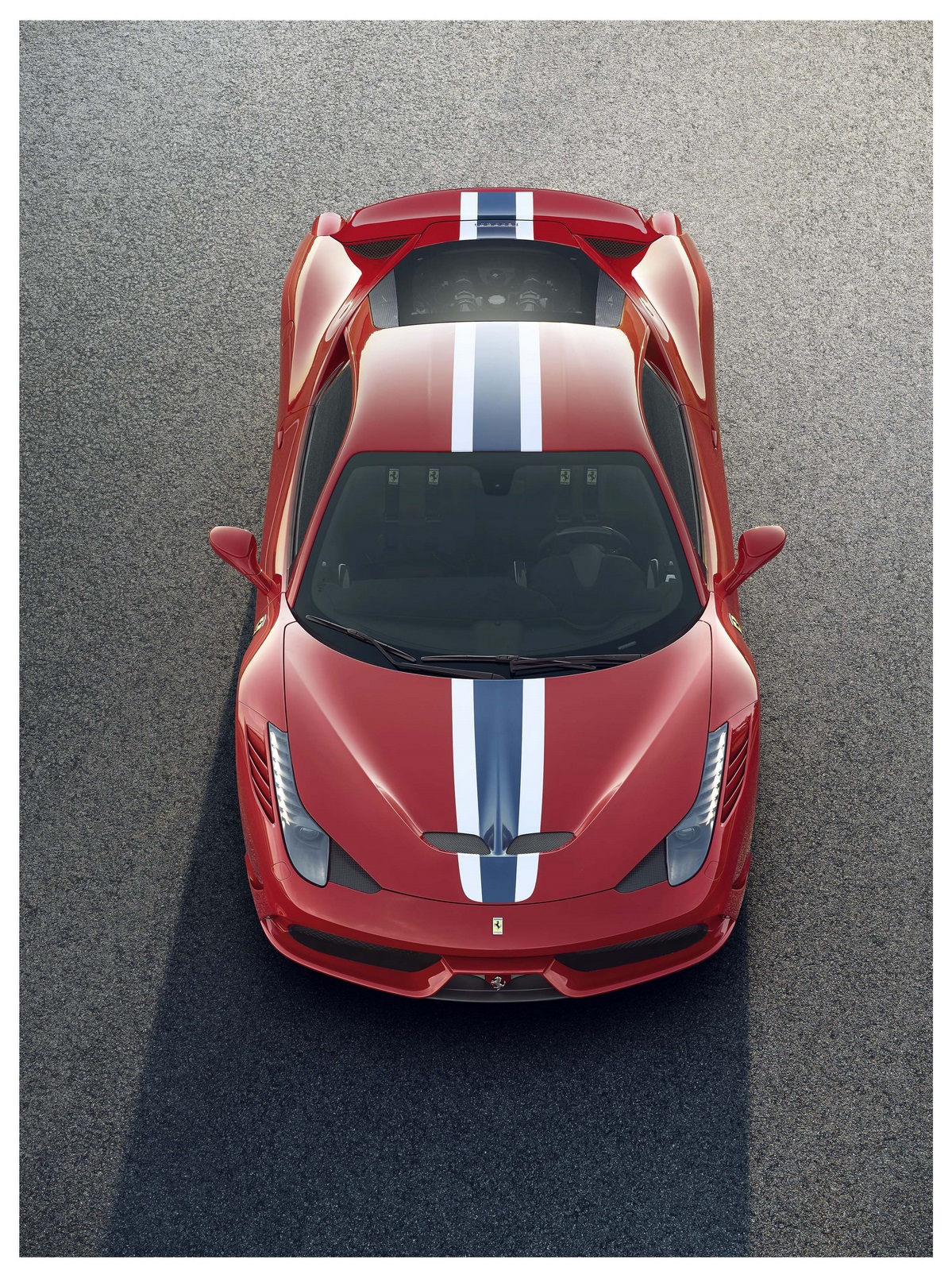

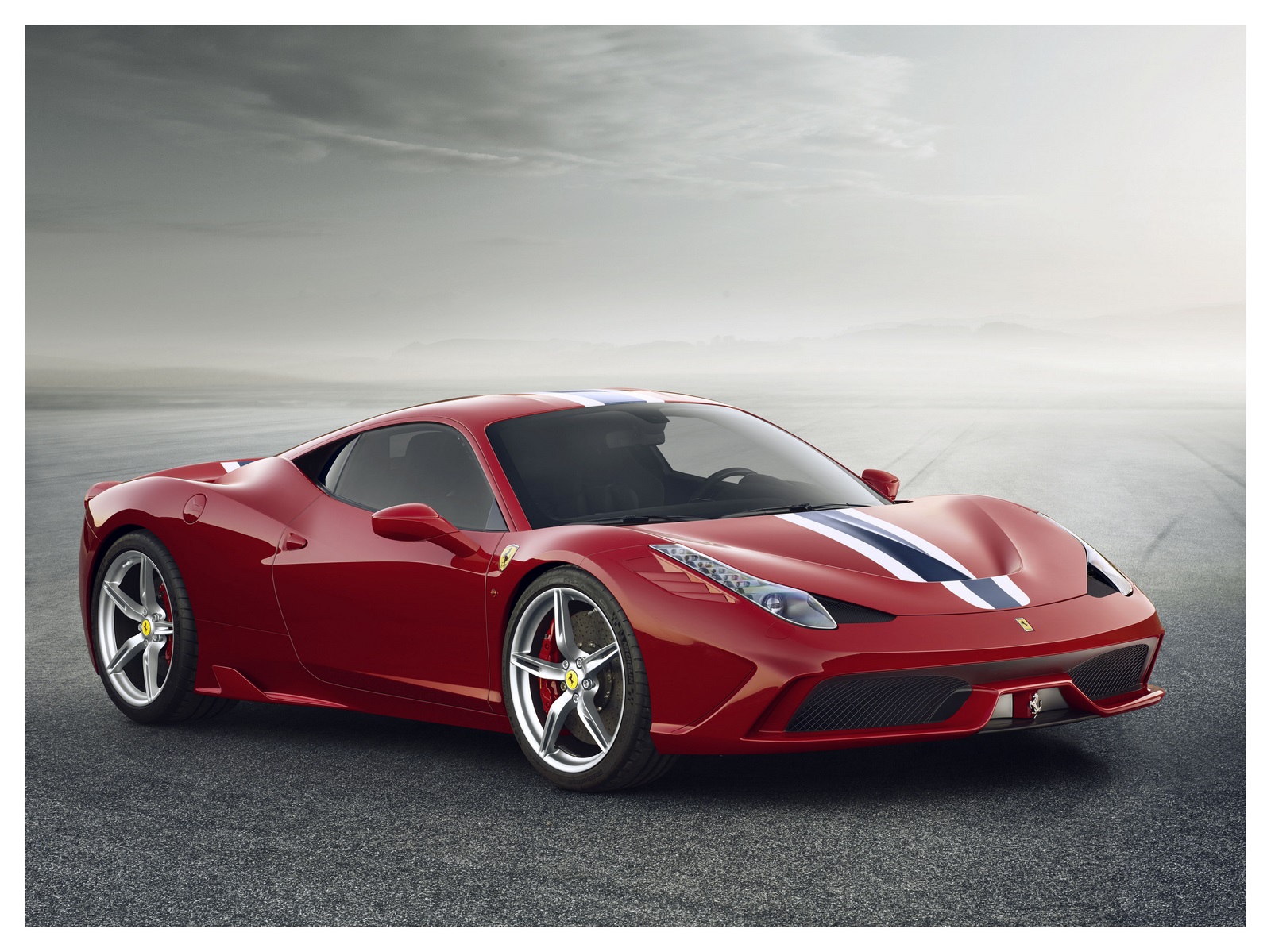

Exterior Aerodynamic requirements guided the work of the Ferrari Styling Centre which collaborated on the project with Pininfarina to sculpt forms that are more performance-oriented than ever, balancing aerodynamic requirements while staying true to Ferrari’s aesthetic philosophy.

Most of the bodywork panels have been redesigned without modifying either the passenger cell or the signature design features of the 458 Italia. The thickness of the glass used has been reduced to cut weight, while the rear windscreen is now a Lexan© panel.

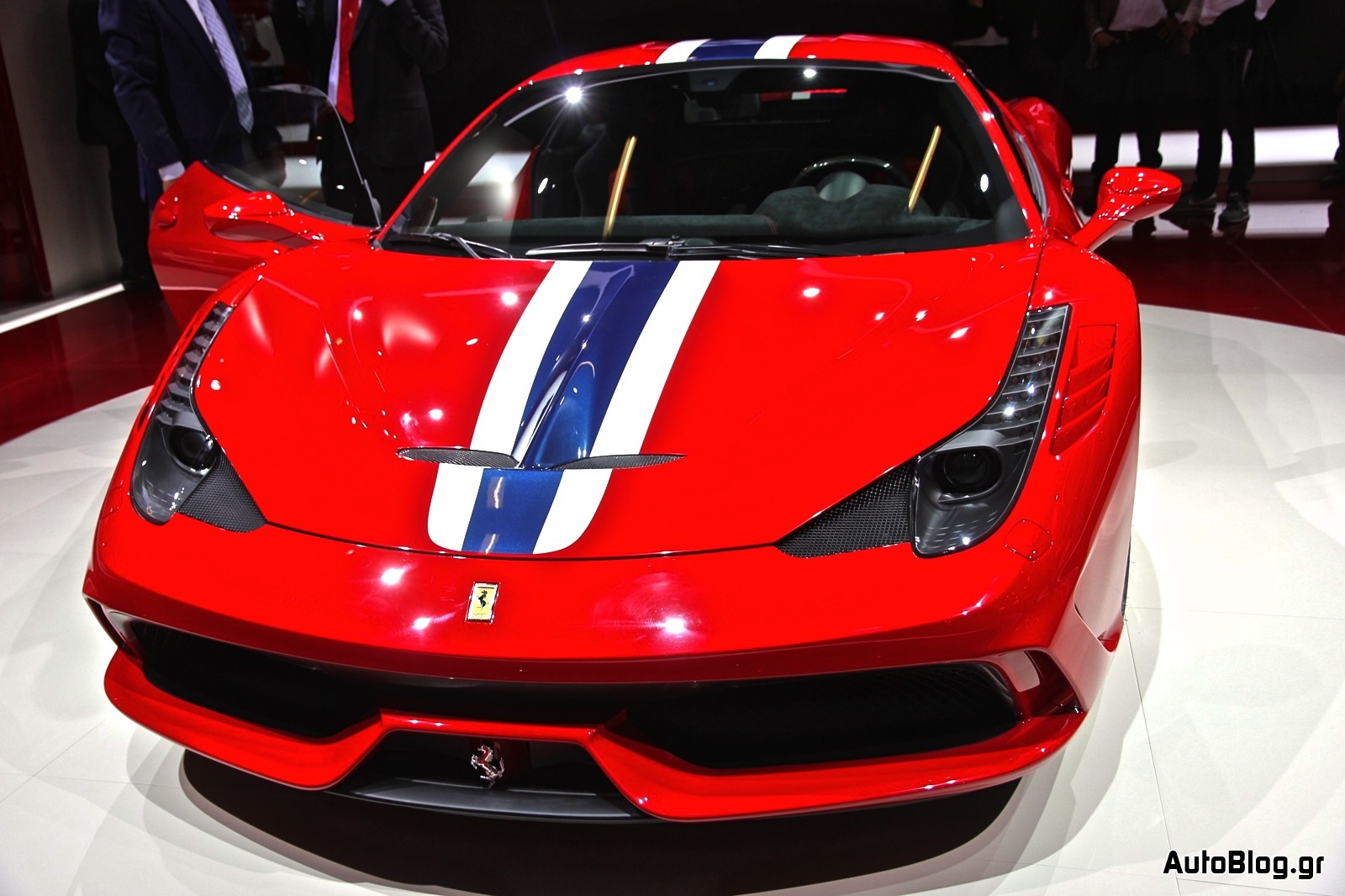

The composite bumpers have been redesigned and the front bonnet now features two deep air outlets to channel away the air exiting the radiator.

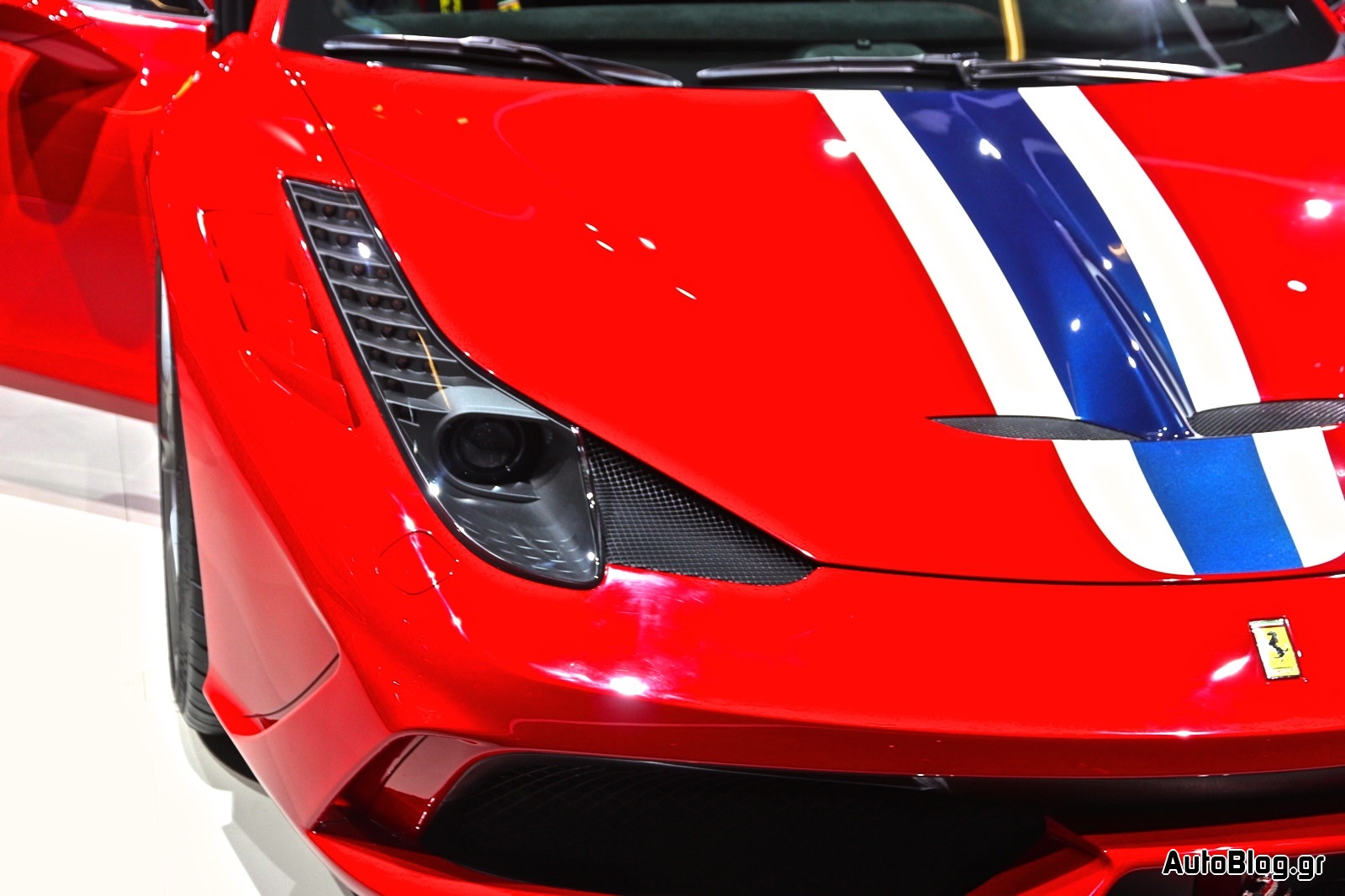

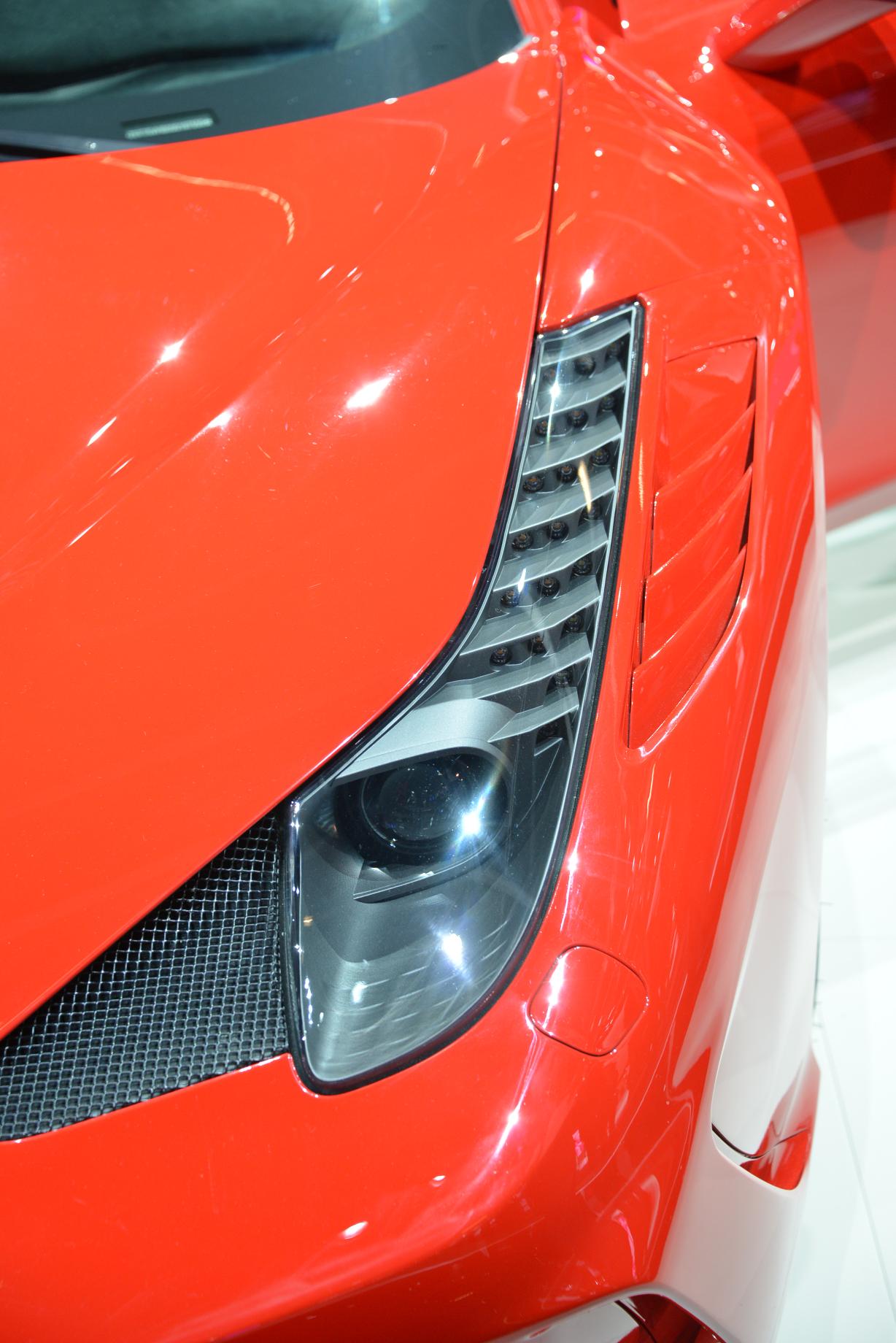

The air outlets to the side of the headlight assemblies now also include three louvers reminiscent of Ferraris of the past, from the 250 GTO to the F40. The rear features a Kamm tail with a full-width grille and twin exhausts.

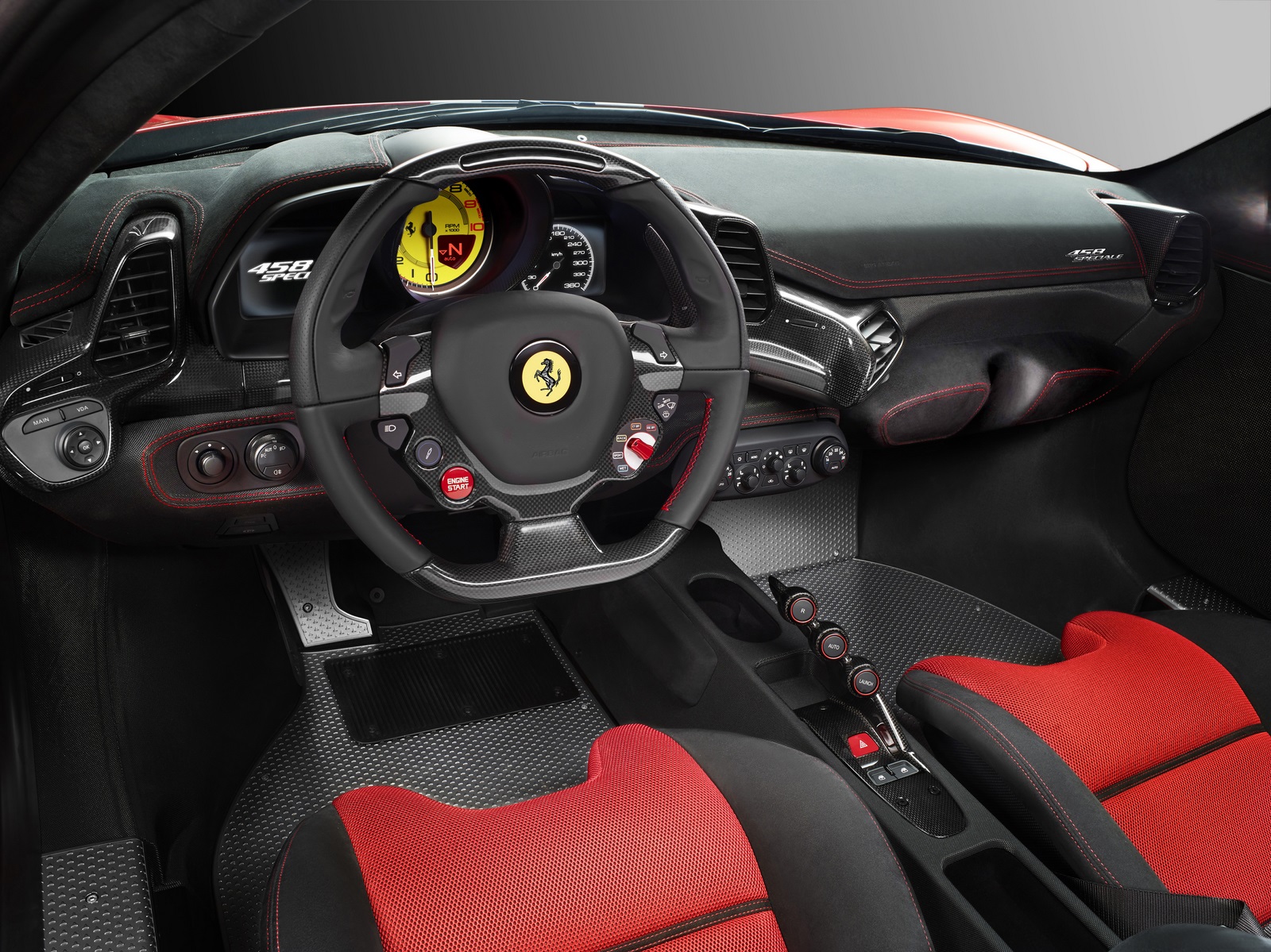

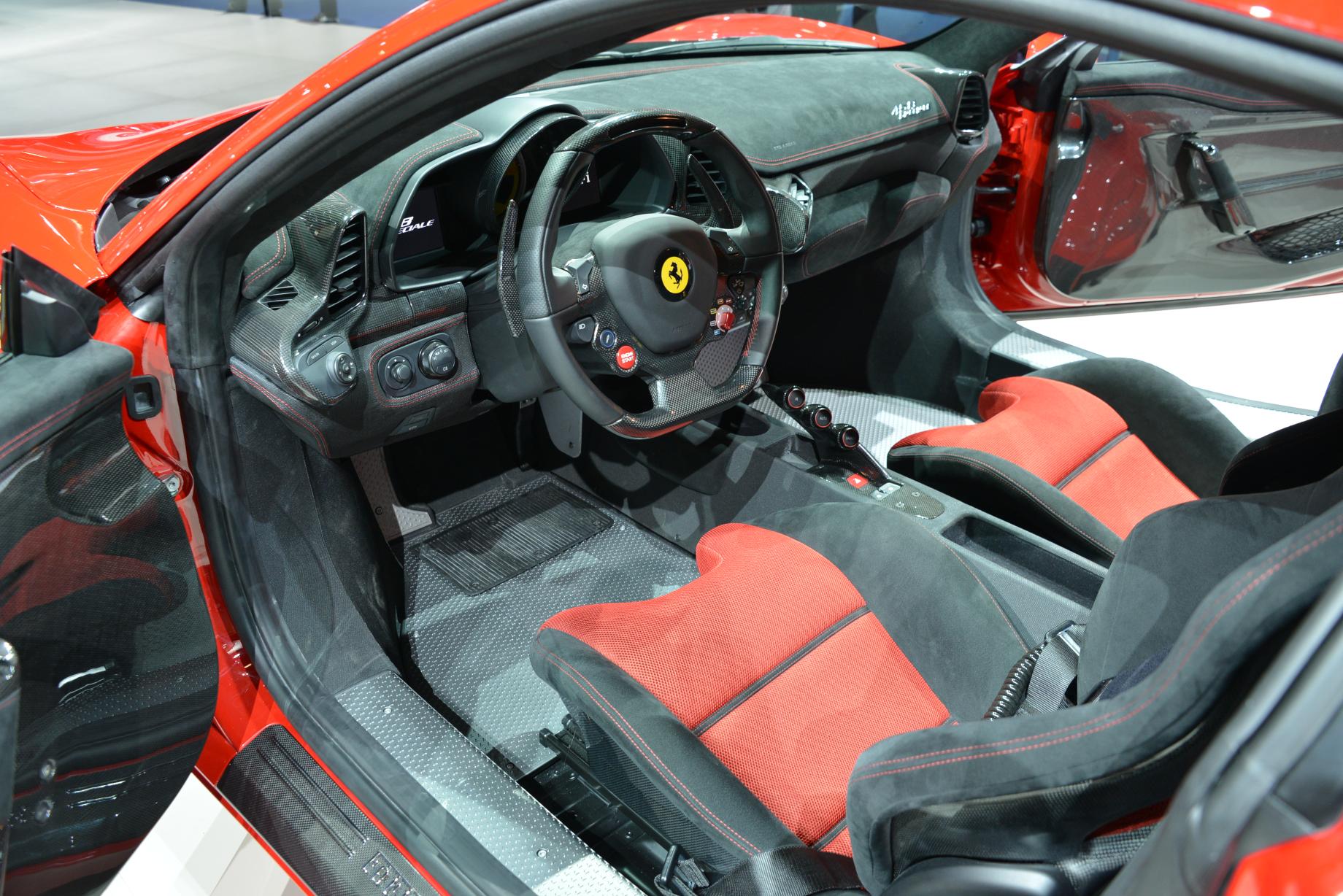

Interior The cockpit features a distinctly racing-inspired atmosphere, with simplicity the order of the day. Lightweight exclusive technical materials, such as Alcantara and carbon-fibre, are used extensively but meld seamlessly with the superb craftsmanship and sophistication typical of all Ferrari interiors, courtesy of exclusive details, contrasting hand-stitching, aluminium triangular-pattern tread plates and sills with a pewter grey finish, and particularly fluidly sculpted door panels.

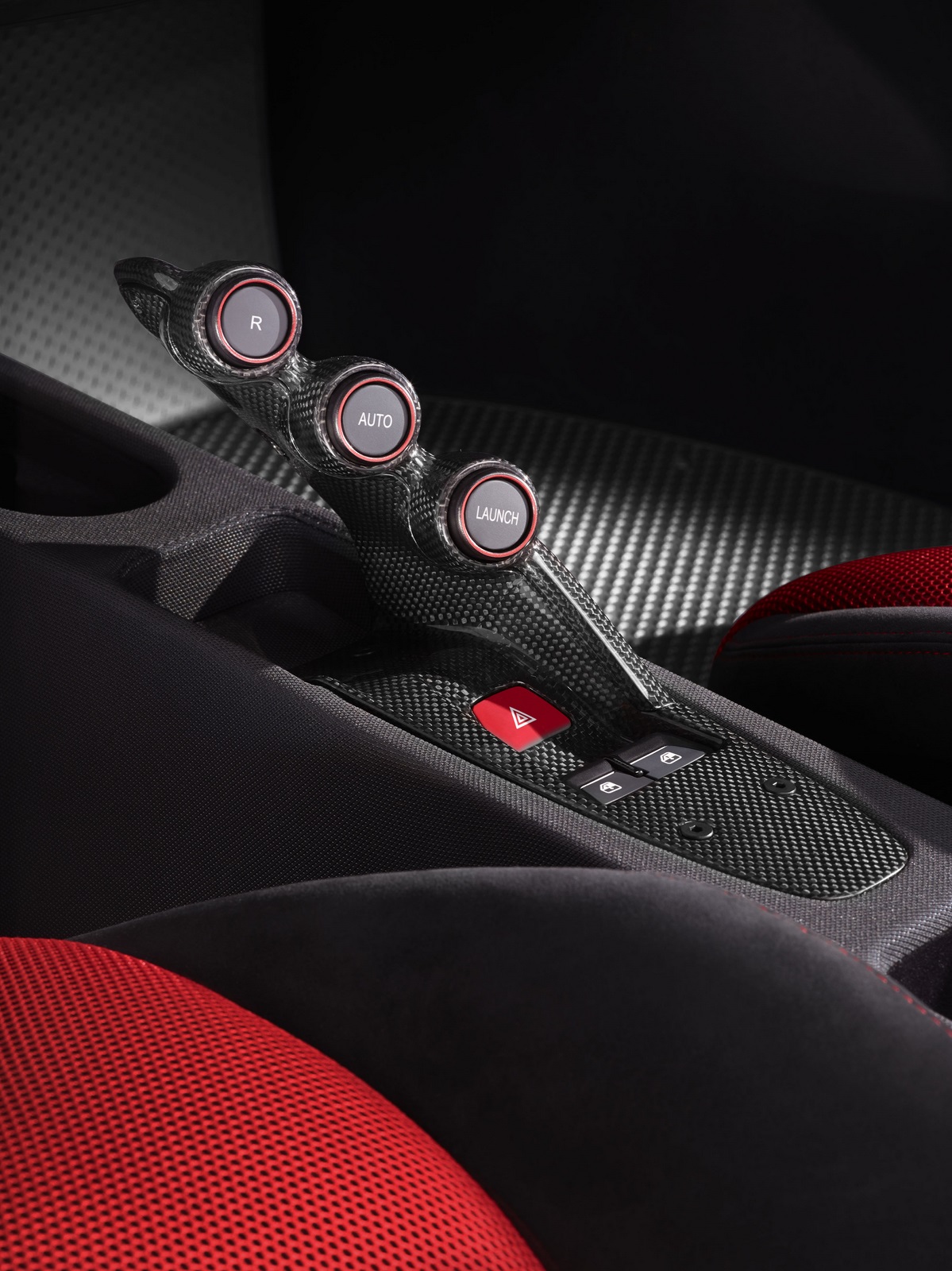

The glove compartment on the dash has been replaced with convenient odds and ends pockets on the tunnel and doors. This has significantly streamlined the volumes under the dash adding practical padding at knee level.

Onboard ergonomics are absolutely functional with all controls clustered around the driver and on the steering wheel. This concept has been further enhanced by the use of the iconic bridge, a carbon-fibre wing that extends over the central tunnel section, putting the F1 gearbox controls at an ideal angle to the driver. There is also a comfortable leg rest cushion on the driver’s side of the tunnel.

The Sabelt seats have carbon-fibre shells and boast excellent side bolstering thanks to an ergonomic design which also helps contain weight. The shoulder-rests are trimmed in Alcantara for improved grip while seated and the backrests are padded with a breathable 3D fabric to guarantee excellent air circulation and comfort.

The 458 Speciale is being unveiled in an unusual red livery featuring a blue and white central stripe inspired by the historic NART (North America Racing Team) livery which is available on request. Characterised by five exceptionally slender spokes, its newly designed forged wheels are available in gold, dark grey and black.

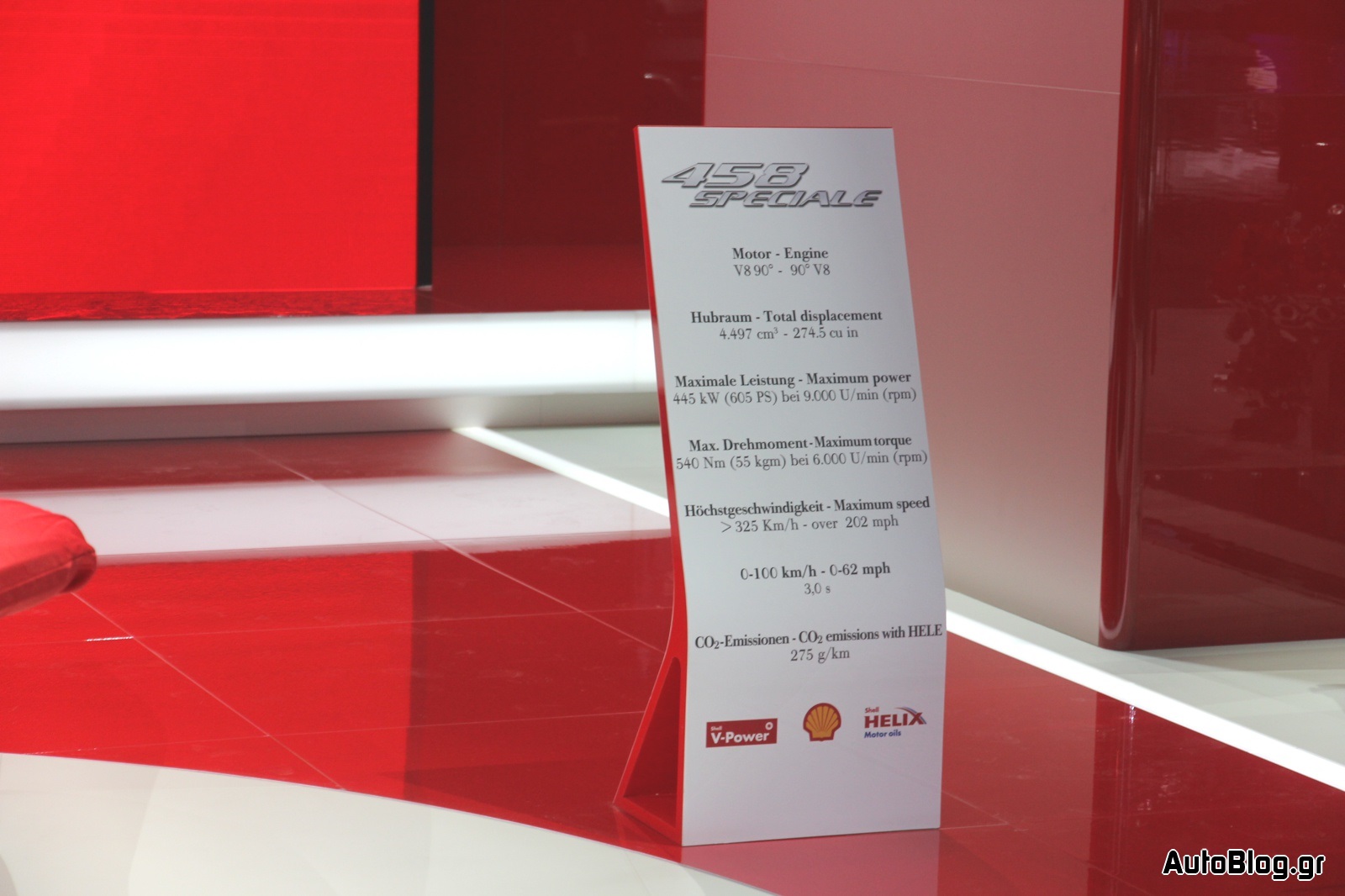

458 Speciale Technical Specifications

Engine
Type V8, 90° – Direct Injection – Dry Sump
Bore and stroke 94 x 81 mm (3.7 x 3.2 in)
Overall displacement 4497 cm3 (274.4 cu in)
Compression ratio 14.0:1
Maximum power** 445 kW (605 cv) at 9000 rpm
Specific power output 135 cv/l (1.62 kW/cu in)
Maximum torque 540 Nm (398 lb ft) at 6000 rpm
Maximum revs (limiter) 9000 giri/min
Dimensions and weight
Length 4571 mm (180.0 in)
Width 1951 mm (76.8 in)
Height 1203 mm (47.4 in)
Wheelbase 2650 mm (104.3 in)
Front track 1679 mm (66.1 in)
Rear track 1632 mm (64.3 in)
Dry weight* 1290 kgf (2844 lbf)
Kerb weight* 1395 kgf (3075 lbf)
Weight distribution 42% front, 58% rear
Weight/power ratio 2.13 kg/cv (6,39 lbf//kW
Fuel tank capacity 86 l (22.7 US gallon)
Tyres and wheels
Front 245/35 ZR20 J9”
Rear 305/30 ZR20 J11”
Carbon-ceramic braking system
Front 398x223x36 mm (15.7 x 8.8 x 1.4 in)
Rear 360x233x32 mm (14.2 x 9.2 x 1.3 in)
Electronic control systems
ESC Stability control
High performance ABS/EBD High performance anti-lock braking system/electronic brake force distribution
F1-Trac F1 traction control
E-Diff 3 Third generation electronic differential
SSC Side slip angle control
Frs SCM-E Magnetorheological suspension control with frequency analysis system and twin solenoids
Gearbox
7-speed F1 dual-clutch transmission
Performance
Maximum speed > 325 km/h (>202 mph)
0-100 km/h (0-62 mph) 3,0 sec
0-200 km/h (0-124 mph) 9,1 sec
0-400m (0-437 yd) 10,7 sec
0-1000m (0-1093 yd) 19,4 sec
100 – 0 km/h (62 – 0 mph) 31 m (101.7 ft)
Fiorano lap time 1’23’’5
Fuel consumption and emissions (ECE + EUDC combined cycle)
Fuel consumption*** 11,8 l/100 km
CO2 emissions*** 275 gr/km
*With optional equipment
**Including 3.7 kW by ram effect
*** Combined cycle with HELE system (ECE+EUDC)

458 Speciale: extreme technology for maximum excitement

Frankfurt, 10 September – The Ferrari 458 Speciale was officially launched this afternoon at the Frankfurt International Motor Show, by President Luca di Montezemolo and Managing Director Amedeo Felisa and Vice President Piero Ferrari. The new special edition from the Maranello company, like all cars produced by Ferrari, features a range of technical innovations which make this car unique and special, aimed at the most demanding sports-oriented owners, who are looking for maximum driving excitement. Patented by Ferrari and a world first, the innovations concern the car as a whole, in particular the power unit, the aerodynamics and the vehicle dynamics, which make the difference between it and the base model even more marked, when compared to past special editions, such as the Challenge Stradale and the 430 Scuderia. On road or track, the driver of a 458 Speciale will feel part of the vehicle system, which ensures immediate response to all inputs and total control in even the most complex of manoeuvres. All drivers can therefore attain high performance levels, experiencing great excitement at the wheel of Ferrari’s highest performance 8 cylinder car. The most powerful naturally aspirated engine (605 cv) and the one with the highest specific power output (135 cv/l) in the history of road-going Ferrari V8s, an amazing power to weight ratio (2.13 Kg/cv,) aerodynamic efficiency (index E equivalent to 1.5,) and electronic control of its set-up angle (SSC:) these are some, but not all, of the characteristics that make this car really ‘Speciale’ and which are destined to set the standard for Ferraris of the future. Agile and responsive, the new rear-mid engined 8 cylinder sports car has been designed with the aim of raising performance and excitement to the maximum level, especially on a mix of race tracks and twisty roads, featuring tight hairpins and high speed corners with a variety of gradients, ensuring that is it very controllable, whatever the situation.

A galaxy of stars alongside the 458 Speciale

Frankfurt, 10 September – While the 458 Speciale might be the highlight of the show, the Ferrari stand at the 65th Frankfurt International Motor Show is packed with stars. The new special series produced at Maranello rounds off the most extensive and exclusive range in the history of Ferrari. Alongside the 458 Speciale can be found the F12berlinetta with Ferro Met bodywork and black interior, as well as the 458 Spider in Nero Stellato and Sabbia interior, which represents the sports heritage of the Prancing Horse with its interpretation of the classic front-mid mounted V12 and the equally symbolic rear mounted V8 “en plein air.” The GT spirit is evoked by the California30, a convertible that marries performance and versatility. The car on the stand sports Bianco Italia bodywork and a Nero Daytona cockpit, flanked by the four-seater, four-wheel drive FF, in Rosso Maranello,with a panoramic glass roof.
The models on the stand are proof positive of constant investment into product development: in the past 5 years, 1,400 million Euro has been spent, while the forecast for the next five year period is for a 2,000 million Euro spend. These figures do not include investments in Formula One, the technological advances and knowledge from which are routinely transferred to production models, with the new car being unveiled today the perfect case in point. The range is also technically at the forefront when it comes to environmental responsibility. The investment in emissions and fuel consumption reduction has resulted in average power output being boosted by 100cv over the past five year, while slashing a massive 40% off CO2 emissions.
The business strategy, which today sees Ferrari present on 62 markets, focuses strongly on retaining its signature exclusivity to protect the brand and the value of the cars, while offering a range of unique, excellence-oriented service. These include the Tailor Made service for clients wishing to personalise their cars to a truly bespoke standard. The Tailor Made atelier has its own area on the show stand, featuring an FF in Grigio Abu Dhabi with detailing in vintage Grigio Ferro Met. The cabin boasts a luxury trim that encompasses buttery-soft “Soul Aretha” Frau leather in warm, deep hues, and also “Solaro”, a stunningly refined, elegant tailoring fabric with a wonderfully opulent, iridescent finish. Wood trim (teak and ash) and L-pattern stitching further enhance the unique allure of this car.

The 458 Speciale joins the Ferrari range alongside the 458 Italia and 458 Spider and, like all special-series Ferraris, is aimed at a specific kind of owner, in this case those looking for an even more focused sports car that offers extreme driving emotions.

Whether on the road or on the track, drivers will feel immediately at one with the 458 Speciale thanks to the speed with which it responds to every input and the consequently natural control that it offers, even in extreme manoeuvres. This finely-tuned handling balance enables the car to reach the highest performance levels of any Ferrari V8.

Ferrari’s core engineering philosophy centres around pushing the envelope with each new model whilst maintaining the innate chassis balance and handling that ensures that even non-professional drivers can extract maximum performance and driving pleasure. With the new 458 Speciale all clients will be able to drive on the limit on the track as well as experience the exhilaration of genuinely sporty driving even at lower speeds on demanding roads.

The new berlinetta is, in fact, the result of the search for extreme technology, driving thrills and performance, with the application of advanced technical solutions for the powertrain, aerodynamics and vehicle dynamics. Those achievements set it apart from the 458 Italia from which it is derived, to an extent unprecedented in the previous Challenge Stradale and 430 Scuderia special series.

The 458 Speciale’s performance is exceptional across the board, thanks to factors such as an extraordinary weight-power ratio of 2.13 kg/cv, 0-100 km/h longitudinal acceleration in 3 seconds, lateral acceleration of 1.33 g and a Fiorano lap time of 1’23”5. The 458 Speciale is an extremely entertaining car to drive even in less extreme situations, too: its unparalleled agility, in fact, is reflected in a response time to commands of just 0.060 seconds.

POWERTRAIN

The 458 Speciale’s mid-rear-mounted 4497 cc GDI engine is the most powerful naturally aspirated Ferrari 8-cylinder ever developed, punching out 605 cv at 9000 rpm and maximum torque of 540 Nm at 6000 rpm, while its record 135 cv/l specific power output is also the highest ever achieved by a naturally-aspirated road-going engine.

F1 technology transfer to the 458 Speciale was of fundamental importance to its development, including the production processes. The engine is produced in the factory’s in-house foundry using the same machinery and processes as employed by the F1 team for complex components with the extreme structural and dimensional characteristics needed for a naturally-aspirated engine capable of hitting 9000 rpm.

To achieve these results, Maranello’s engineers have maximised the 458’s V8 potential, carrying out detailed refinements to all the components to optimise combustion, volumetric and mechanical efficiency.

Maximum combustion efficiency is guaranteed by a highly evolved knock control system which senses the ionisation across the spark plug gap thereby optimising combustion across the entire rev range.

The other main challenge aside from boosting power was to improve torque across the entire power curve. This involved increasing the compression ratio to an exceptional 14:1, the highest value ever achieved by a naturally-aspirated V8, which was achieved by modifying piston geometries.

The fluid-dynamics of the combustion chamber were revised to optimise both the intake and exhaust phases. The intakes feature new geometry, both with regard to the manifolds and the cylinder heads, with shorter inlet ducts (-10 mm) in the former instance, and in the latter a higher valve lift (+5%). A new cam profile not only increases valve lift but also helps reduce average pressure during the pumping cycle.

The 458 Speciale’s increased power and torque are also the result of redesigning various engine components and reducing internal friction. The pistons are made from a new material that reduces overall mass.New materials were also used for the con-rod bushings while specific heat treatment (DLC: Diamond-Like Carbon) on the piston pins makes for greater fatigue and wear resistance. The crankshaft was also redesigned to optimise and improve lubrication of the main bearings in all conditions of use.

Around 8 kg was also slashed off the engine’s overall weight by the redesign of the intake (carbon-fibre plenums and air filter box as well as shortened inlet ducts) and exhaust (in aluminium) systems. Once again Ferrari drew heavily on its extensive F1 experience, particularly with regard to the intake system, which now has a new carbon-fibre plenum and filter box, new materials for the pistons and con-rod bearings.

AERODYNAMICS

One of the car’s main characteristics is new Ferrari-patented mobile aerodynamic solutions at the front and the rear of the car which ensure that different aerodynamic configurations can be adopted in cornering, where maximum downforce is essential, and on straights where, instead, drag must be reduced to a minimum.

The 458 Speciale has an excellent downforce (Cl) value of 0.53. Thanks to the aforementioned active aerodynamics, the latter does not penalise the Cd which is just 0.35.

Of particular note are the innovative solutions adopted at the front of the car, with two vertical flaps in the centre and the horizontal flap below them. At relatively low speeds, the vertical flaps are closed, channelling air into the radiators to guarantee the necessary cooling for the engine. However, at speeds in excess of 170 km/h, the flaps open, reducing the volume of air flowing into the radiators, thereby cutting drag. At speeds of over 220km/h the horizontal flap lowers to balance downforce between the front and rear axles, leading to a 20 per cent shift in overall downforce towards the rear.

The turning vanes at either side of the front bumper slow the air flow which increases downforce, thereby shifting the aerodynamic balance 4 per cent over the front. Thanks to their shape, the aerodynamic fins ahead of the rear wheels increase downforce very much in the same way as the front turning vanes.

The rear spoiler has a larger surface area and more pronounced shape which has improved the efficiency of the underbody, increasing downforce. Moving the position of the tailpipes also allowed a new diffuser to be designed which optimises the extraction capacity of the underbody. The rear flaps have two different configurations: raised for high downforce and lowered to minimise drag. Sophisticated sensors and a specific algorithm allow the flaps to be lowered by as much as a 17° angle, thereby stalling the diffuser and reducing Cd by 3 points.

DYNAMICS

The 458 Speciale’s dynamic behaviour guarantees maximum driving emotions in all situations, allowing drivers to match and improve their own limits with ease and delivering an intense driving experience even at lower speeds.

Nimble and responsive, the car is at its best over really twisty routes with demanding switchbacks and camber changes. New technical features have not only improved the 458 Speciale’s lap time over single laps, but also the repeatability of that performance on subsequent laps without needing to be a professional driver, offering unprecedented levels of driving pleasure.

Side Slip Angle Control (SSC)

The 458 Speciale sees the introduction of Side Slip Angle Control (SSC) for more effortless car control on the limit, thereby greatly enhancing driver enjoyment.

Thanks to sophisticated new software, which computes lateral acceleration, yaw angle, steering wheel angle and speed, SSC carries out instantaneous analysis of the car’s side slip angle, comparing it with reference data, thereby allowing smooth, controllable oversteer, and optimising both torque management (via F1-Trac traction control) and differential torque distribution between the two driven wheels (via the E-Diff electronic differential) for maximum vehicle response times.

With the Manettino set at RACE or CT OFF, the 458 Speciale will then make the most of available grip for improved acceleration out of corners, greater ease and control on the limit, and more consistent performance.

Also available on request is an advanced telemetry system which records data from track sessions which can then be accessed directly through the multimedia menu or via an external device such as an iPad or laptop. The system uses a series of high-precision GPS antennae installed in the car to pinpoint its position on a pre-loaded circuit or a recordable route. At the end of the session, the Virtual Track Engineer helps drivers analyse their performance, highlighting the main critical errors (e.g. braking too early or too late).

Braking system

To cope with the demands of the car’s increased performance, all of the components in the Brembo braking system have been evolved from the solutions introduced on the LaFerrari. The 458 Speciale sports Extreme Design calipers, new generation HT2 discs with a higher percentage of silicon, and smaller front pads made from HY hybrid material for improved heat dissipation which is also boosted by special channels in the bodywork and is crucial in extreme driving situations. The result is shorter stopping distances (100 – 0 km/h in 31 m) without any compromises in weight, and more consistent performance under severe use.

Tyres and wheels

Part and parcel of the Speciale’s development included Michelin Pilot Sport Cup2 tyres which were specifically honed for it in an intensive collaboration programme involving lengthy track tests and simulator sessions.

Specially made for the 458 Speciale, they feature a compound obtained using specific additives to boost performance over a single lap in the dry as well as improving performance consistency over multiple laps. They also deliver 6 per cent more grip, which also translates into better grip even in the wet.

The forged 20” wheels feature a new design, resulting in a weight reduction of over 12 kg.

Suspension

Thanks to being very flat through corners, the 458 Speciale is extremely efficient and satisfying in faster, sharper, more challenging changes of direction. This is due partly to its Frequency-Shaped SCM-E (Frs SCM-E) dampers which have twin solenoids, new CPU and new software that modifies the magnetic field every millisecond. The result is a much faster response and more precise body control.

These technical features guarantee exceptionally fast response to inputs from the road or the steering (0.060 s) and mean the car can deliver 1.33 g of lateral acceleration, a combination that ensures a genuinely extraordinary experience behind the wheel. The car, in fact, responds instantaneously and is easy to drive on the limit in all types of situations.

Soundtrack

Like the rest of the car, the 458 Speciale’s soundtrack is both seductive and uncompromising, thanks to unprecedented intensity inside the cabin as well as outside. The position of the tailpipes lends the V8 the full-bodied low frequency soundtrack typical of Ferrari’s sportiest engines while the configuration of the silencers is designed to guarantee maximum intensity and exceptional clarity. The immense power and full-bodied nature of the sound inside the cabin were achieved by redesigning the inlet tract.

Gear-shift strategy

The F1 dual-clutch transmission now features a new control logic that delivers an even keener sense of urgency during gear shifts. The car feels much sportier as it shifts up through the gears, with response time to commands more prompt than ever, thereby guaranteeing 40 per cent faster longitudinal acceleration with engine revs adapting 20 per cent more rapidly. Conversely with the Fast-Down Shift strategy, when down-shifting, the transient time required for engine revs to match the gear ratio is 44 per cent faster.

DESIGN

Exterior

Aerodynamic requirements guided the work of the Ferrari Styling Centre which collaborated on the project with Pininfarina to sculpt forms that are more performance-oriented than ever, balancing aerodynamic requirements while staying true to Ferrari’s aesthetic philosophy.

Most of the bodywork panels have been redesigned without modifying either the passenger cell or the signature design features of the 458 Italia. The thickness of the glass used has been reduced to cut weight, while the rear windscreen is now a Lexan© panel.

The composite bumpers have been redesigned and the front bonnet now features two deep air outlets to channel away the air exiting the radiator.

The air outlets to the side of the headlight assemblies now also include three louvers reminiscent of Ferraris of the past, from the 250 GTO to the F40. The rear features a Kamm tail with a full-width grille and twin exhausts.

Interior

The cockpit features a distinctly racing-inspired atmosphere, with simplicity the order of the day. Lightweight exclusive technical materials, such as Alcantara and carbon-fibre, are used extensively but meld seamlessly with the superb craftsmanship and sophistication typical of all Ferrari interiors, courtesy of exclusive details, contrasting hand-stitching, aluminium triangular-pattern tread plates and sills with a pewter grey finish, and particularly fluidly sculpted door panels.

The glove compartment on the dash has been replaced with convenient odds and ends pockets on the tunnel and doors. This has significantly streamlined the volumes under the dash adding practical padding at knee level.

Onboard ergonomics are absolutely functional with all controls clustered around the driver and on the steering wheel. This concept has been further enhanced by the use of the iconic bridge, a carbon-fibre wing that extends over the central tunnel section, putting the F1 gearbox controls at an ideal angle to the driver. There is also a comfortable leg rest cushion on the driver’s side of the tunnel.

The Sabelt seats have carbon-fibre shells and boast excellent side bolstering thanks to an ergonomic design which also helps contain weight. The shoulder-rests are trimmed in Alcantara for improved grip while seated and the backrests are padded with a breathable 3D fabric to guarantee excellent air circulation and comfort.

The 458 Speciale is being unveiled in an unusual red livery featuring a blue and white central stripe inspired by the historic NART (North America Racing Team) livery which is available on request. Characterised by five exceptionally slender spokes, its newly designed forged wheels are available in gold, dark grey and black.

458 Speciale Technical Specifications

Engine Type V8, 90° – Direct Injection – Dry Sump Bore and stroke 94 x 81 mm (3.7 x 3.2 in) Overall displacement 4497 cm3 (274.4 cu in) Compression ratio 14.0:1 Maximum power** 445 kW (605 cv) at 9000 rpm Specific power output 135 CV/l (1.62 kW/cu in) Maximum torque 540 Nm (398 lb ft) at 6000 rpm Maximum revs (limiter) 9000 rpm

Dimensions and weight

Length 4571 mm (180.0 in) Width 1951 mm (76.8 in) Height 1203 mm (47.4 in) Wheelbase 2650 mm (104.3 in) Front track 1679 mm (66.1 in) Rear track 1632 mm (64.3 in) Dry weight* 1290 kgf (2844 lb) Kerb weight* 1395 kgf (3075 lb) Weight distribution 42% front, 58% rear Weight/power ratio 2.13 kg/cv Fuel tank capacity 86 l (22.7 US gallon)

Tyres and wheels

Front 245/35 ZR20 J 9 Rear 305/30 ZR20 J 11

Carbon-ceramic (CCM3) braking system

Front 398x223x36 mm (15.7 x 8.8 x 1.4 in) Rear 360x233x32 mm (14.2 x 9.2 x 1.3 in)

Electronic control systems

ESC Stability control High performance ABS/EBD High performance anti-lock braking system/electronic brake force distribution F1-Trac F1 traction control E-Diff 3 Third generation electronic differential

SSC Side slip angle control Frs SCM-E Magnetorheological suspension control with frequency analysis system and twin solenoids

Gearbox 7-speed F1 dual-clutch transmission

Performance

Maximum speed >325 km/h (>202 mph) 0-100 km/h (0-62 mph) 3.0 sec 0-200 km/h (0-124 mph) 9.1 sec 0-400m (0-437 yd) 10.7 sec 0-1000m (0-1093 yd) 19.35 sec 100 – 0 km/h (62 – 0 mph) 31 m (101.7 ft) Weight/power ratio 2.13 kg/cv Fiorano lap time 1’23’’5

Fuel consumption and emissions (ECE + EUDC combined cycle) Fuel consumption*** 11.8 l/100 km CO2 emissions*** 275 gr/km

*With optional equipment **Including 3.7 kW by ram effect *** Combined cycle with HELE system (ECE+EUD
