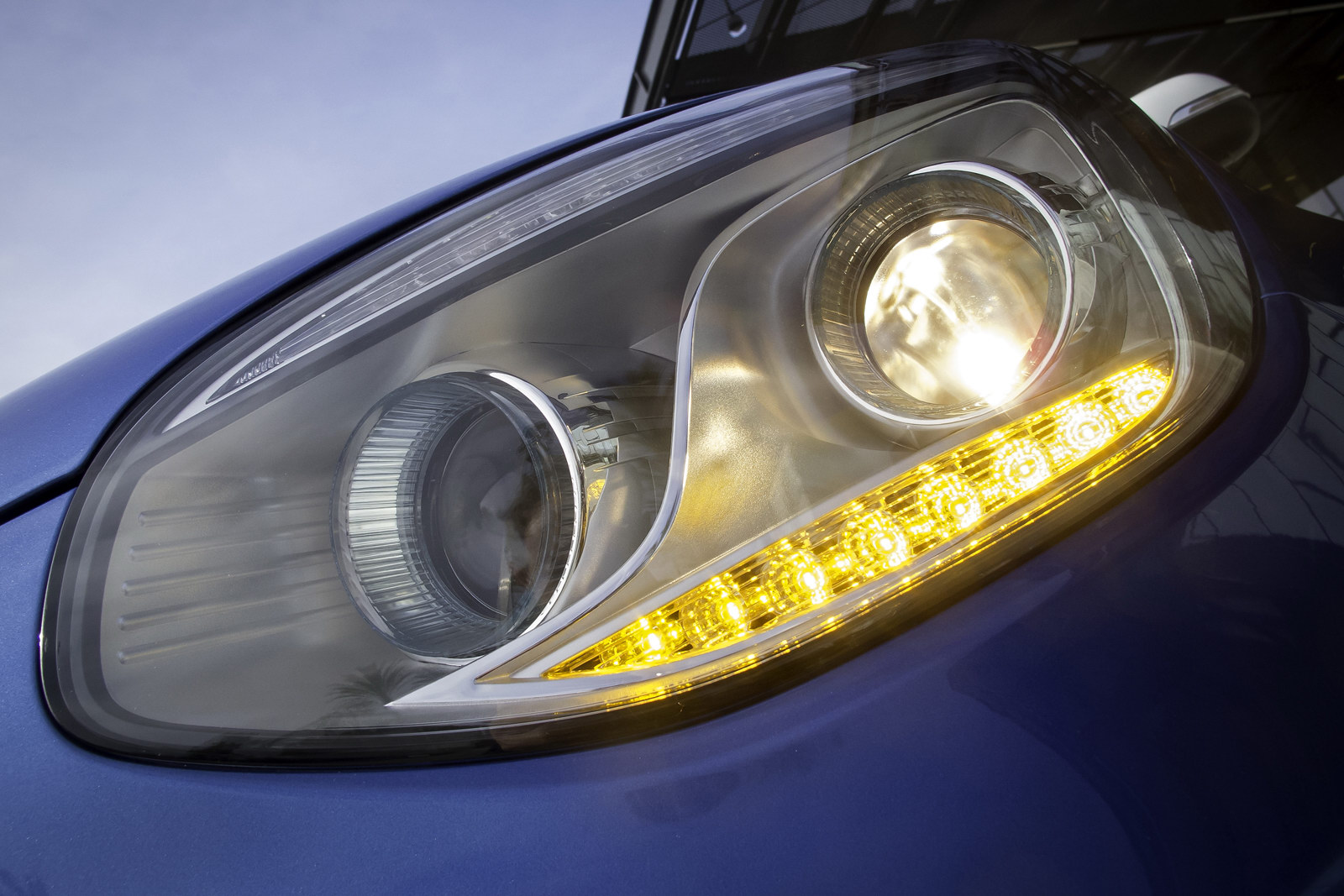

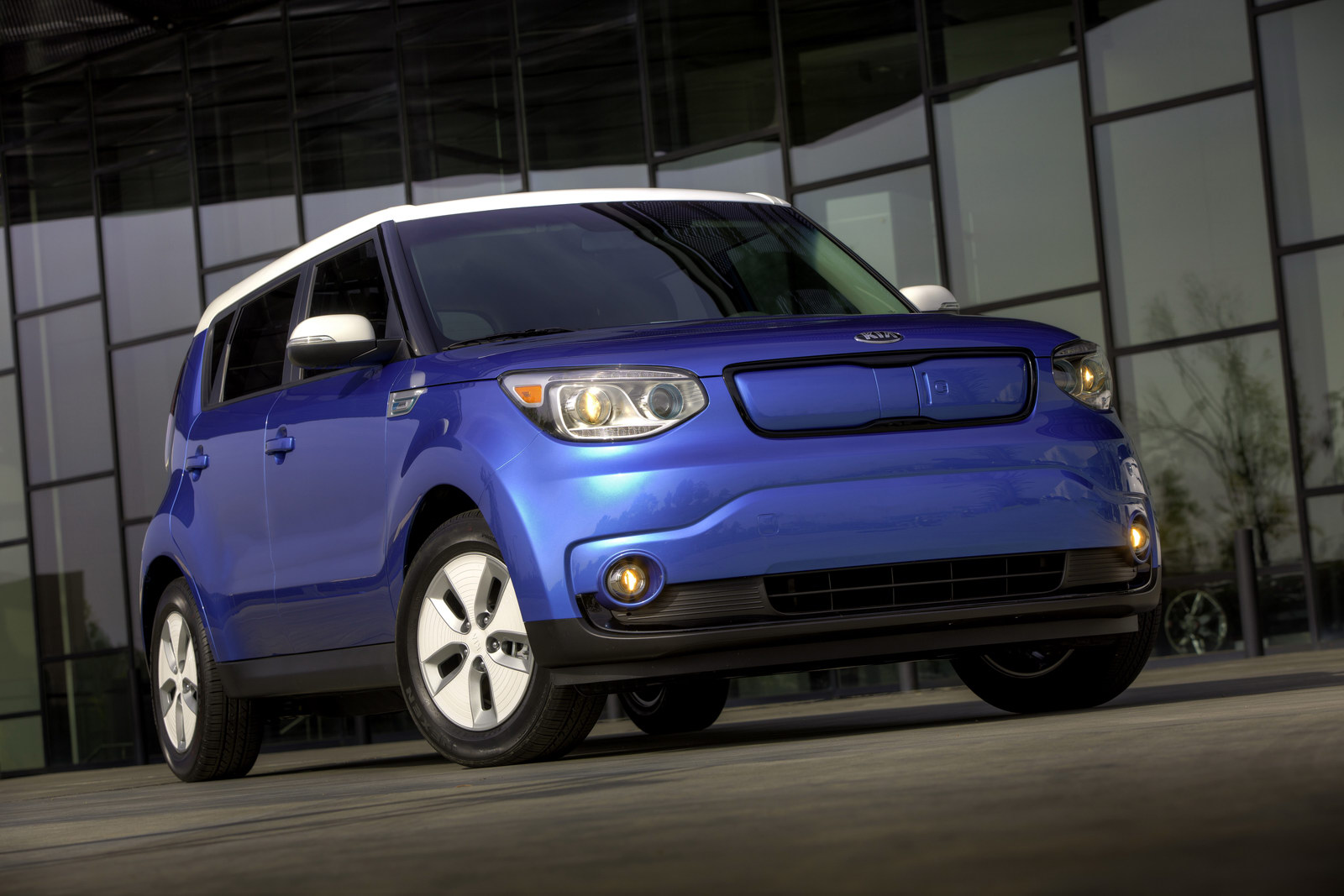

Στην έκθεση του Σικάγο η Kia παρουσίασε επίσημα το Soul EV, την ηλεκτρική έκδοση του Soul, το οποίο ξεχωρίζει από τη μεγαλύτερη γρίλια, εκεί όπου υπάρχει και η υποδοχή για την φόρτιση των μπαταριών του, τα LED φωτιστικά σώματα και τους νέους προφυλακτήρες.

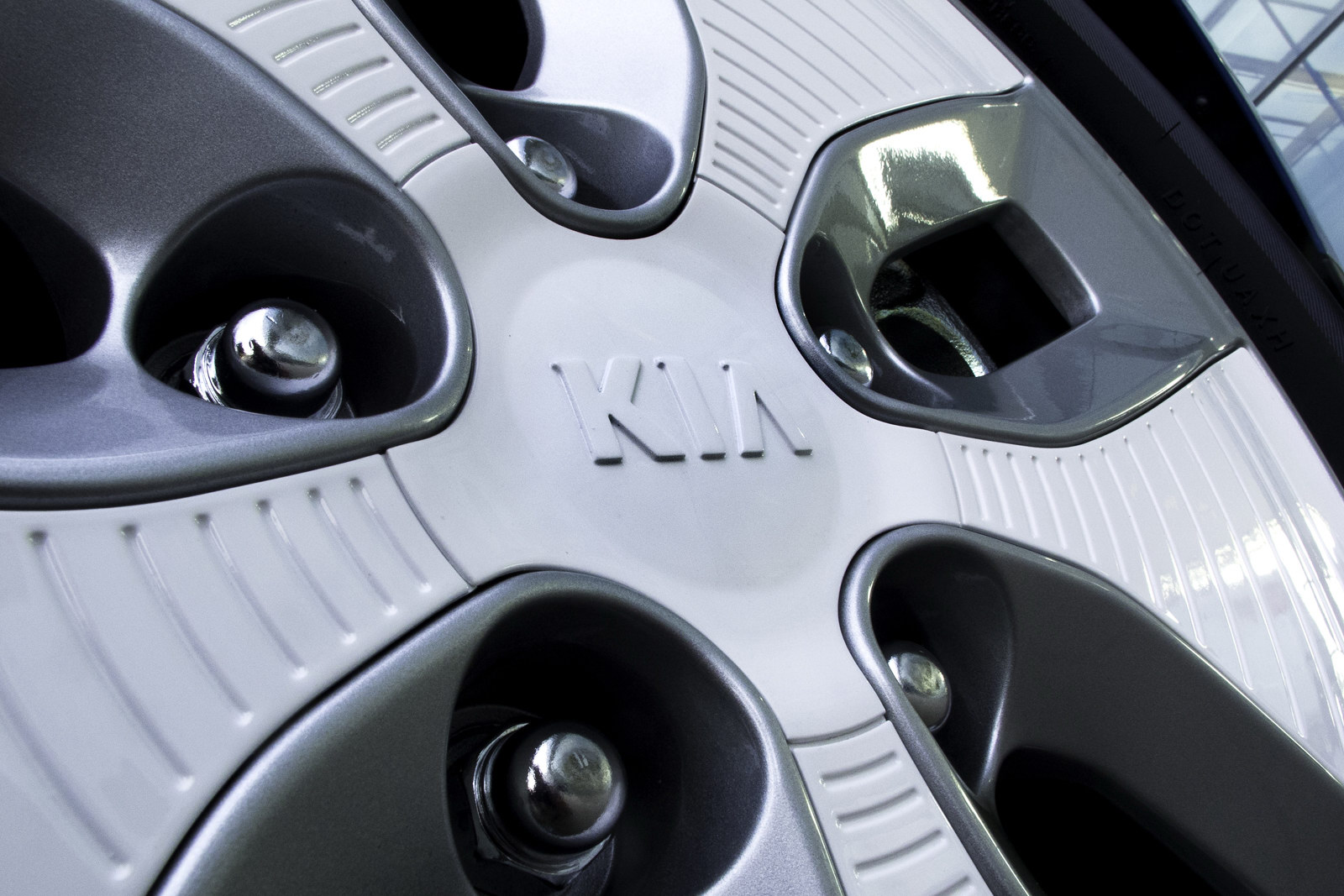

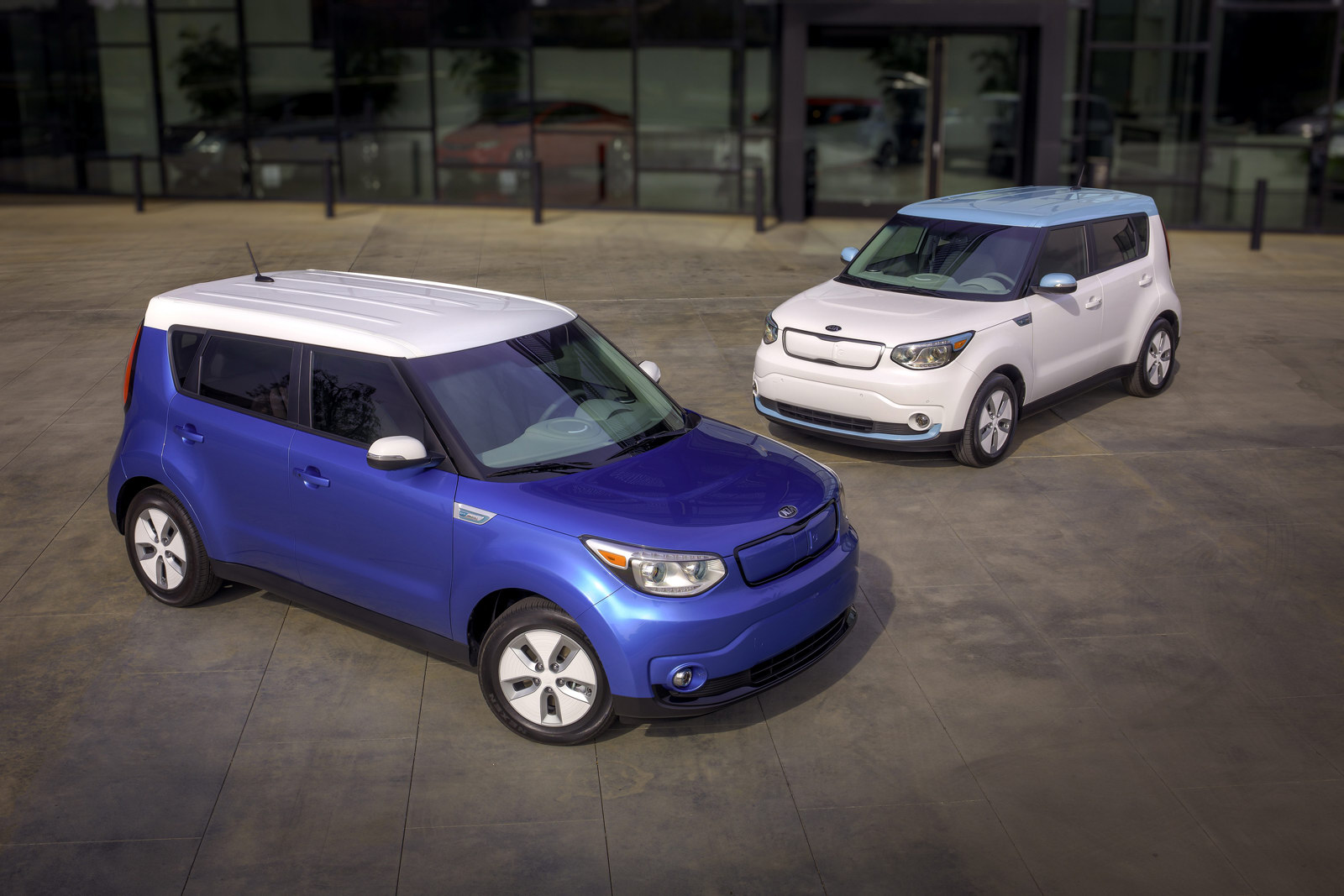

Είναι βαμμένο σε τρεις συνδυασμούς χρώματα (λευκό-θαλασσί, μπλε-λευκό και ασημί-λευκό) και πατά στη γη με ζάντες 16″, οι οποίες φορούν ελαστικά εξαιρετικής χαμηλής αντίστασης κύλισης (SLRR).
Έχει χώρο αποσκευών 541 λίτρα με το ηλεκτρικό Soul να είναι εξοπλισμένο με μία μπαταρία ιόντων λιθίου 27 kWh και έναν ηλεκτροκινητήρα απόδοσης 109 ίππων και 284 Nm ροπής. Το αυτοκίνητο έχει αυτονομία 130-160 περίπου χιλιομέτρων ενώ η φόρτιση όταν εξαντληθεί η μπαταρία, διαρκεί 5 ώρες μέσω οικιακής πρίζας 240 Volt, 24 ώρες μέσω οικιακής πρίζας 120 Volt, ενώ με χρήση ταχυφορτιστή 50 kW η μπαταρία φορτίζει κατά 80% μέσα σε 33 λεπτά.. Τα 0-96 χλμ/ώρα τα κάνει σε λιγότερο από 12 δευτερόλεπτα, με την τελική του ταχύτητα να περιορίζεται ηλεκτρονικά στα 145 χλμ/ώρα.
Οι πωλήσεις του θα ξεκινήσουν το τρίτο τρίμηνο του έτους στις πολιτείες της Καλιφόρνια, της Νέας Υόρκης, του Μέριλαντ, του New Jersey και του Όρεγκον.
SOUL EV LIGHTS UP 2014 CHICAGO AUTO SHOW
Kia’s First Mass Market Electric Vehicle Makes World Debut in the Windy City
New 2015 Kia Soul EV offers an expected 80-100 miles of range State-of-the-art 27kWh lithium polymer battery has 200 Wh/kg energy density EV-specific version of UVO eServices1 includes downloadable apps, EV charger locations and more
CLICK HERE TO VIEW THE 2014 CHICAGO AUTO SHOW PRESS KIT
CHICAGO, February 6, 2014– Set to the sounds of soulful electrified blues music, Kia Motors America (KMA) today hosted the global unveiling of the 2015 Soul EV at the Chicago Auto Show. Scheduled to go on sale in the third quarter of 2014, the Soul EV will be Kia’s first all-electric, zero-emissions car sold in the U.S. and expands the brand’s line of environmentally conscious vehicles. The Soul EV joined the refreshed 2014 Optima Hybrid on stage along with the Niro hybrid concept, illustrating Kia’s intent to lead the industry in providing technologically advanced vehicles that also reduce our dependency on non-renewable resources. Kia’s eco-friendly commitment was further underscored when Underwriters Laboratory (UL)1 honored the Soul EV with the organization’s first automotive environmental validation for its integration of more than 20 bio-friendly materials.
The new Soul EV is at the forefront of Kia’s ‘Clean Mobility’ program and will offer an even more environmentally friendly option to our customers when it goes on sale later this year,” said Orth Hedrick, vice president of product planning, KMA. “The Soul EV retains the fun and funky style as well as the packaging efficiency and utility that have made the gasoline-powered Soul such a huge hit with consumers. And to that winning combination it adds useable real-world range and multiple charging options, making it the perfect EV for everyone.”
The Soul EV will initially be sold in California and Oregon in the West and several Eastern states including New York, New Jersey and Maryland, the regions with the largest EV markets and infrastructure. KMA will look to offer the vehicle in other markets in the near future as infrastructure and demand grow. Pricing for the Soul EV will be announced closer to the vehicle’s launch.
High Energy Density Battery and Usable Power A top concern for EV buyers has commonly been range anxiety. The Soul EV addresses this issue by utilizing a highly energy-dense lithium-ion polymer battery. Located beneath the floor, the 27kWh, air-cooled, 200 watt-hour/kg battery is expected to yield a range of approximately 80-100 miles of real-world driving on a full charge, with internal testing and evaluation results exceeding 100 miles in some instances.
The 360 volt 96-cell lithium-ion polymer battery has been engineered for high capacity, thermal stability and safety. Accordingly, the battery features a nickel-cobalt-manganese cathode, which helps increase capacity, and a graphite-based anode, which increases durability while reducing weight. Additionally, the cells use a gel electrolyte, and each cell contains ceramic separators to significantly improve thermal stability and safety.
In an effort to maximize efficiency and range, the Soul EV uses Kia’s third-generation regenerative braking system to capture up to 12 percent of the car’s kinetic energy, which is fed back into the battery while the Soul EV is coasting and braking. Soul EV owners can choose between four different regeneration modes: “Drive” or “Brake” modes in Eco-mode “Off,” and “Drive” or “Brake” modes in Eco-mode “On” (the “Brake” setting with Eco-mode “On” producing the most regeneration).

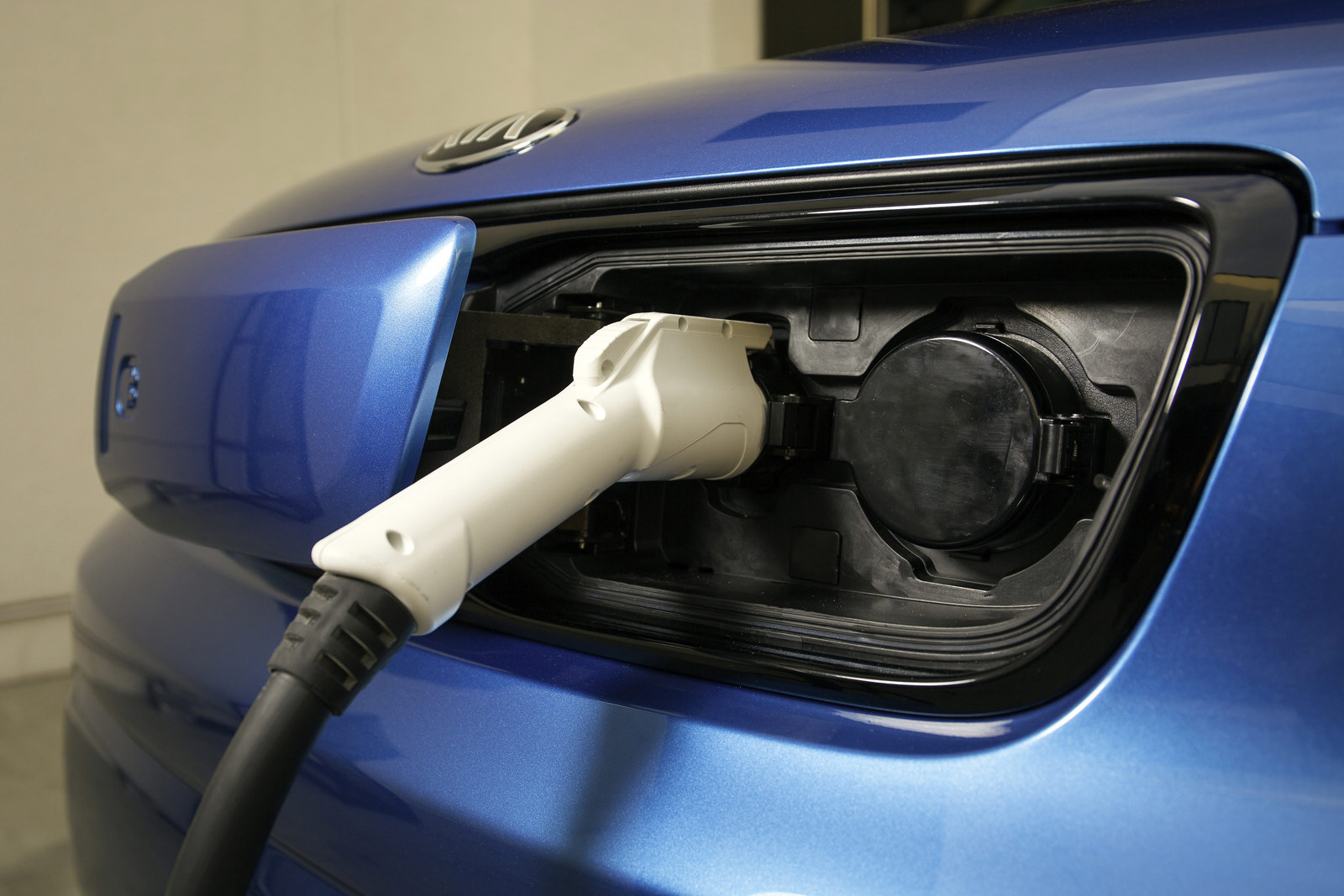

The Soul EV makes charging easy by plugging into any standard 120v outlet or a conventional 240v EV charger. Two charging ports are standard, including a SAE J1772 port for Level 1 and Level 2 AC, and a CHAdeMo DC fast-charging port (480v). Found behind a sliding door located in the front grille, the dual ports offer flexibility and increase the Soul EV’s go-anywhere appeal, making it more convenient to charge inside the owner’s garage or when on the road. Recharging times vary from 24 hours for a fully depleted battery using a standard 120-volt outlet and under five hours when plugged into a 240-volt outlet. An 80-percent charge can be achieved in as little as 33 minutes with a 50 kW-output charger. Kia has partnered with three charger providers – Bosch, Leviton and AeroVironment™ – which give Soul EV buyers an opportunity to select the unit best suited to their in-home needs. Additionally, Kia retailers who sell the Soul EV will offer charging at no cost to Soul EV owners, making charging even more convenient.

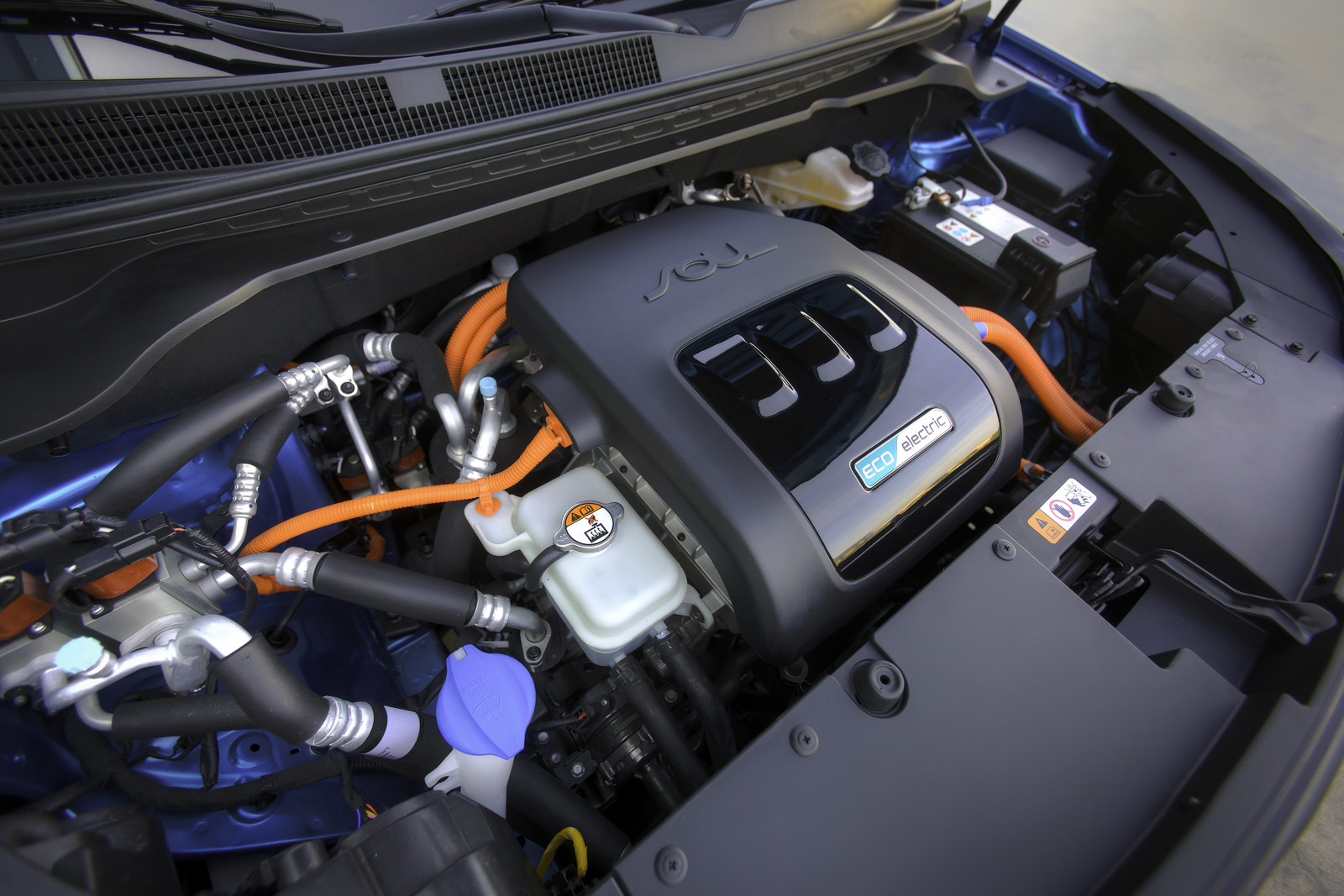

The front-wheel drive Soul EV is powered by an 81.4 kW, 109-hp electric motor, producing a generous 210 lb.-ft. of torque. The liquid-cooled AC synchronous permanent magnet motor uses multi-layer magnets to help improve efficiency and reduce the whine that’s commonly experienced with other electric vehicles. The motor delivers its power to the front wheels through a single-speed constant-ratio gear reduction unit. Acceleration from 0-60 mph is expected to take fewer than 12 seconds with a top speed electronically limited to approximately 90 mph. The battery’s location beneath the floor offers the stable feel of a lower center of gravity, which helps ride and handling and ensures that the EV remains true to the Soul’s fun-to-drive reputation. Additional cross bracing beneath the low-mounted battery contributes to a 5.9 percent improvement in torsional rigidity over the gasoline-powered Soul.
Improved aerodynamics and the absence of engine noise, combined with special sound-proofing materials, result in an exceptionally quiet ride. For the benefit of pedestrian safety, the Soul EV is equipped with a Virtual Engine Sound System (VESS) that emits an auditory alert at speeds below 12 mph and whenever the car is in reverse.
Minimal Battery Intrusion The Soul EV offers plenty of space inside the cabin thanks to minimal battery intrusion. Because of the battery’s flat design and location beneath the floor, there is only a slight 3.1-inch reduction to rear seat leg room (from 39.1 to 36 inches) from the non-EV Soul, yet Soul EV still offers more rear seat leg room than other key EV competitors. Rear shoulder and hip room remain unchanged from the gasoline-powered Soul, making Soul EV one of the roomiest in the segment. Rear cargo space is minimally impacted (reduced 5.1 cu.-ft. to 19.1) as the space under the cargo floor is utilized for the battery cooling fan and storage of the standard 120v portable charger.

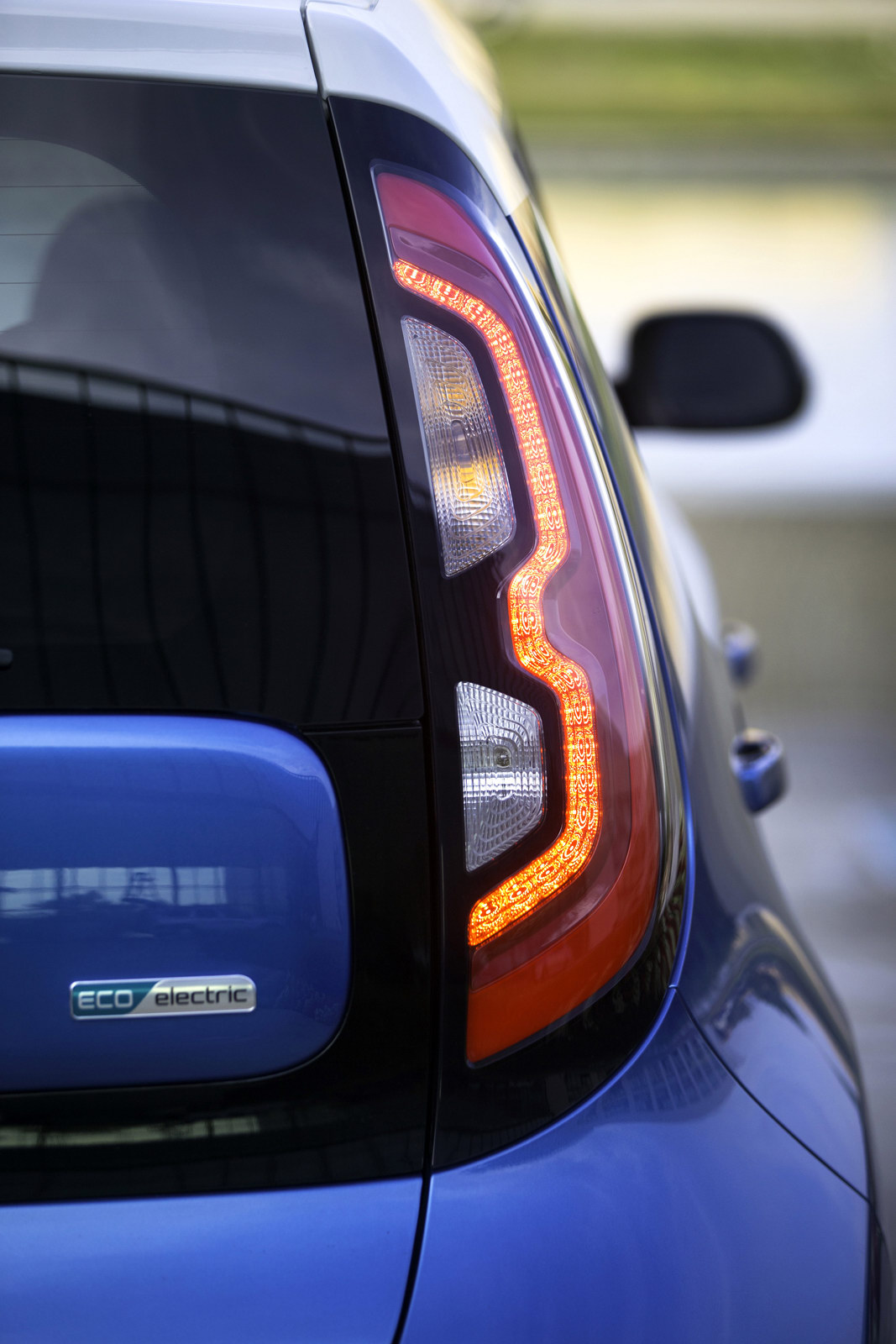

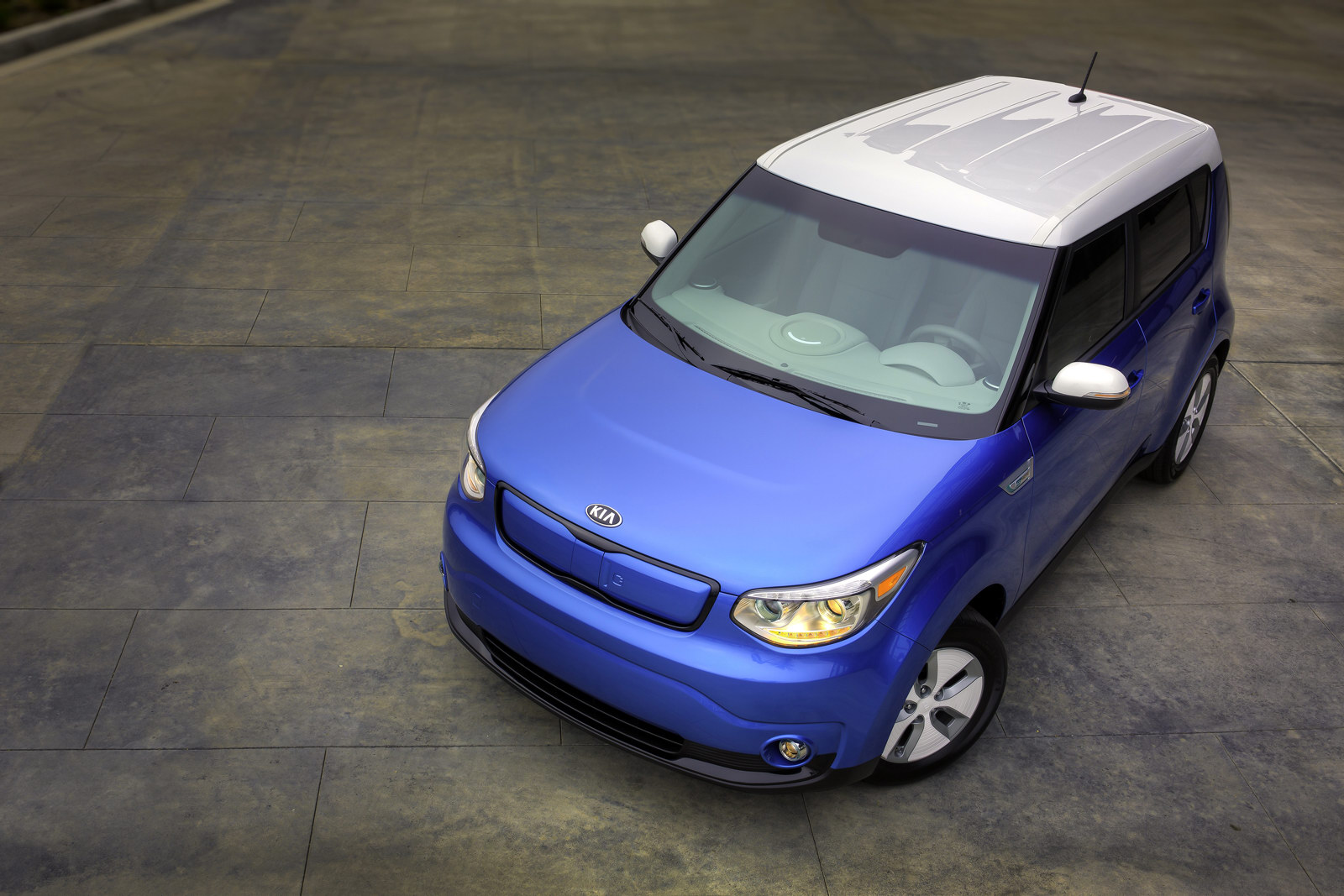

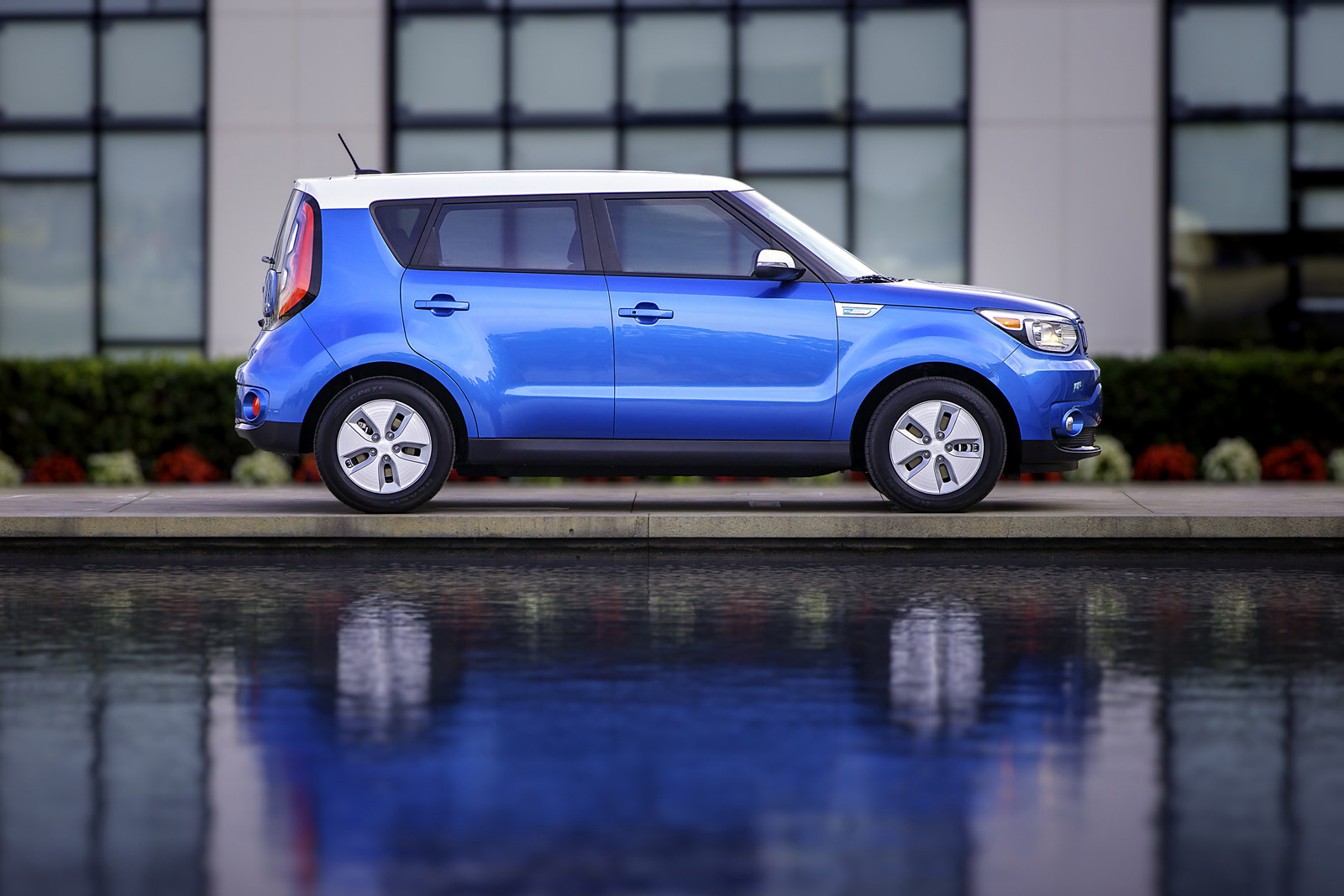

Uniquely Designed Inside and Out The Soul’s bold exterior design is also found on the EV. From the “floating” roof to the greenhouse that makes the car look like it is wearing wraparound sunglasses, the EV’s look is inspired by the 2012 Kia Track’ster concept and retains the iconic square-shouldered broad stance of the original Soul. Initially, the Soul EV will be offered in three color choices: Pearl White lower body with Electronic Blue roof, Caribbean Blue lower body with Clear White roof, and Bright Silver with Clear White roof. The signature two-tone paint theme is exclusive to the EV and was inspired by a similar treatment seen on the Track’ster. The EV-exclusive front fascia utilizes a larger grille to accommodate the charging ports, and other unique exterior Soul EV design features include color accent trim in the front and rear fascias, projector headlights, LED positioning lamps, and LED tail lights. “Eco Electric” fender badging replaces the “Soul” fender garnish found on the gasoline-powered car, and the Soul EV gets its own set of distinctive 16-inch alloy wheels wrapped with specially engineered Super Low Rolling Resistance (SLRR) tires that offer 10 percent less resistance than standard low rolling resistance tires, helping to improve range.

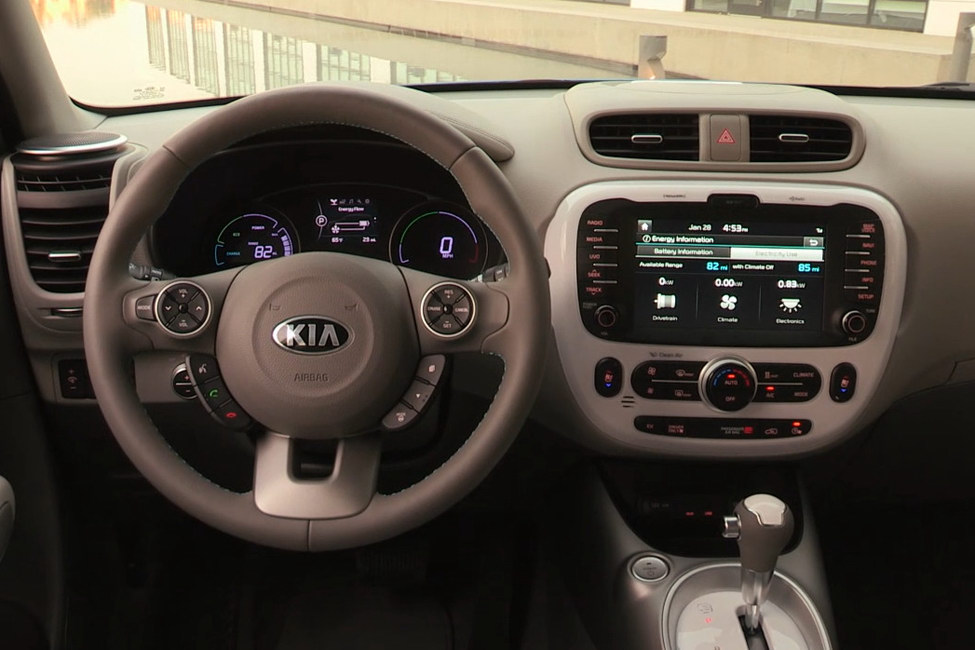

When launched in 2014, the all-new Soul was lauded for its premium interior and significantly reduced levels of NVH. The Soul EV will be instantly recognizable for these same qualities. Like its gasoline-powered sibling, a circular theme pervades the cabin and is a pleasing contrast to the exterior’s angular good looks. Inside, the Soul EV sets itself further apart from its gasoline-powered sibling with bright white accent trim on the center console, instrument panel and door panels, lending a light and modern feel to the passenger space. Distinguished by Kia’s most extensive use of bio-based materials, the Soul EV has received UL’s first ever automotive environmental claim validation for its 10.9 lbs. of bio-based organic content in interior plastic. Front and center is the use of BTX-free paint on the audio system surround, vent bezel and the floor console. Bio-based plastics derived from cellulose and sugar cane are found in many places within the cabin, including the door panels, headliner, seat trim, roof pillars and carpeting. In all, organic, bio-based materials are used in 19 different interior parts, making the Soul EV an electric-vehicle segment leader in eco-friendly material application. Separate from the bio-based content validation, extensive use of antibacterial materials also help to keep the cabin clean and are found on the gear selector, audio and HVAC controls, instrument panel switchgear and the floor-mounted center console. Combined, eco-friendly materials are used in 23 different interior parts, making the Soul EV an electric-vehicle segment leader in eco-friendly material application.
The Soul EV features exclusive interior color options that perfectly complement the exterior. Two interior seating materials will be offered: Standard eco-friendly cloth or optional leather. Both are gray with offsetting blue stitching on the cloth seats and blue piping on the leather seats. Additional blue stitching is found on the steering wheel and center console armrest.
Standard Soul EV amenities include navigation, Rear Camera Display2, Bluetooth®3 hands free operation, power windows, power driver’s seat, cruise control, 6.6kW on-board charger and an exclusive HVAC system designed to extend driving range by minimizing energy draw.

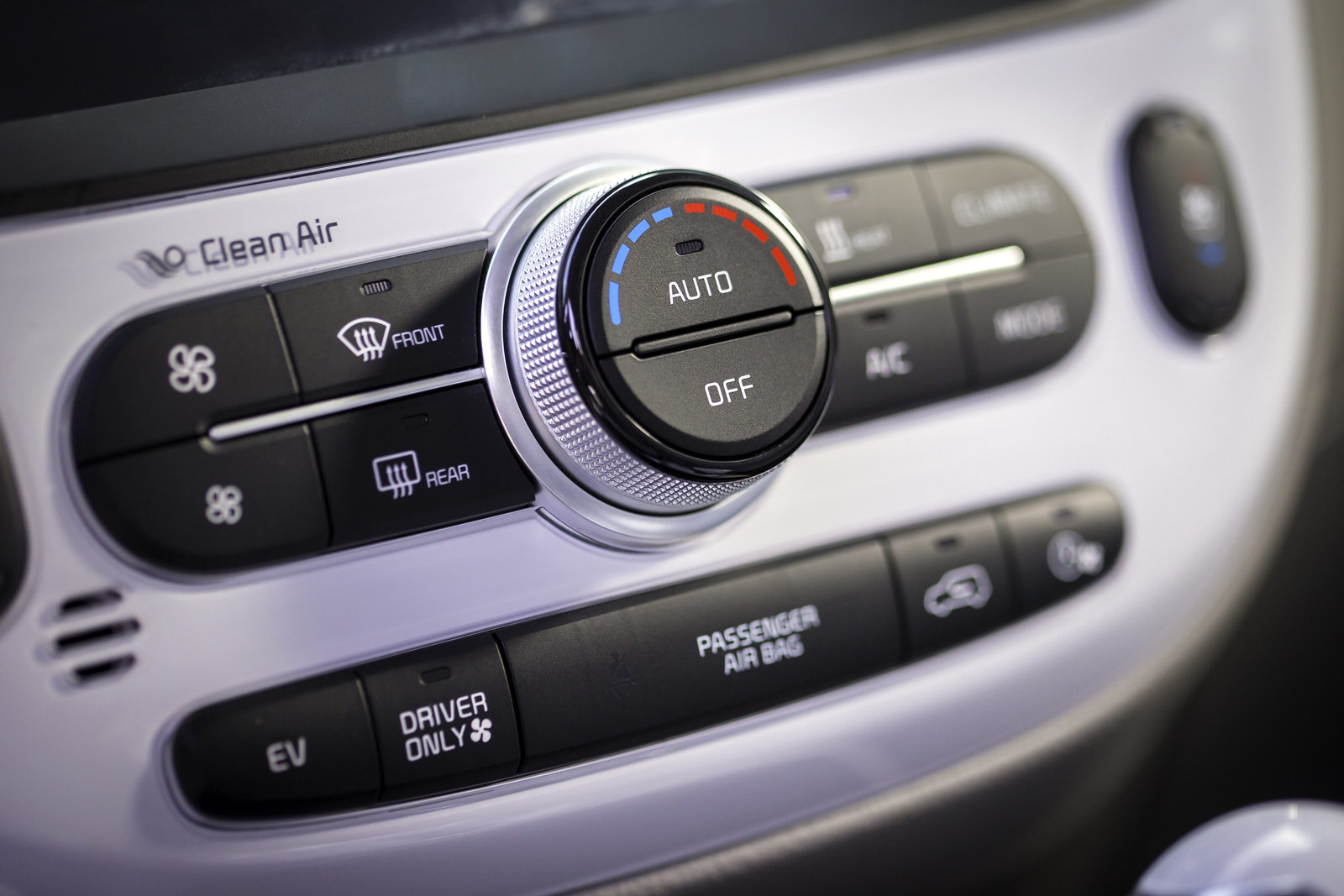

Air conditioning is one of the largest energy drains in any electric vehicle, but the Soul EV’s HVAC system is designed to provide optimum comfort while also helping to extend the car’s range by minimizing energy use. The Soul EV uses four key technologies to maximize HVAC efficiency: an available heat pump (optional on Base, standard on “+”), individual ventilation, scheduled ventilation, and air intake control. The heat pump and surplus heat recovered from the Soul EV’s electrical systems help heat cabin air. Individual ventilation allows selection of “Driver Only,” which stops airflow to the passenger side front dash and floor vents and the floor vents for the rear passenger compartment, thereby focusing airflow on the driver and reducing the amount of energy needed to reach a comfortable interior temperature. Scheduled ventilation reduces EV energy use by pre-heating or cooling the passenger compartment prior to starting the car, while it is still plugged into a charger. Air intake control regulates inner and outer air flow to minimize HVAC usage, regulating interior temperature by carefully managing recirculated cabin air.
Forward Thinking Technology Available at no cost for the first five years of ownership, UVO EV Services, a special version of Kia’s award-winning telematics and infotainment system, is put to even greater use in the Soul EV. Utilizing an embedded connectivity solution powered by the Verizon network and an integral smartphone app, UVO EV Services provides owners with an innovative, real-time, in-vehicle connectivity experience that includes navigation and added convenience features specifically tailored for the Soul EV that will help owners stay informed as to their vehicle’s charging status while on the go. UVO EV Services provides real-time battery-level status, distance to empty, and the ability to search for nearby charging stations. Also, via the UVO EV app, owners can preset charging time and charging level ratios, as well as precondition the vehicle cabin with remote control of the HVAC presets. Preconditioning the vehicle moderates cabin temperature in advance, helping reduce battery draw once the Soul EV is uncoupled from the charging station. At a glance, UVO will also update EV owners of their CO2 savings and their relative positive impact on the environment.

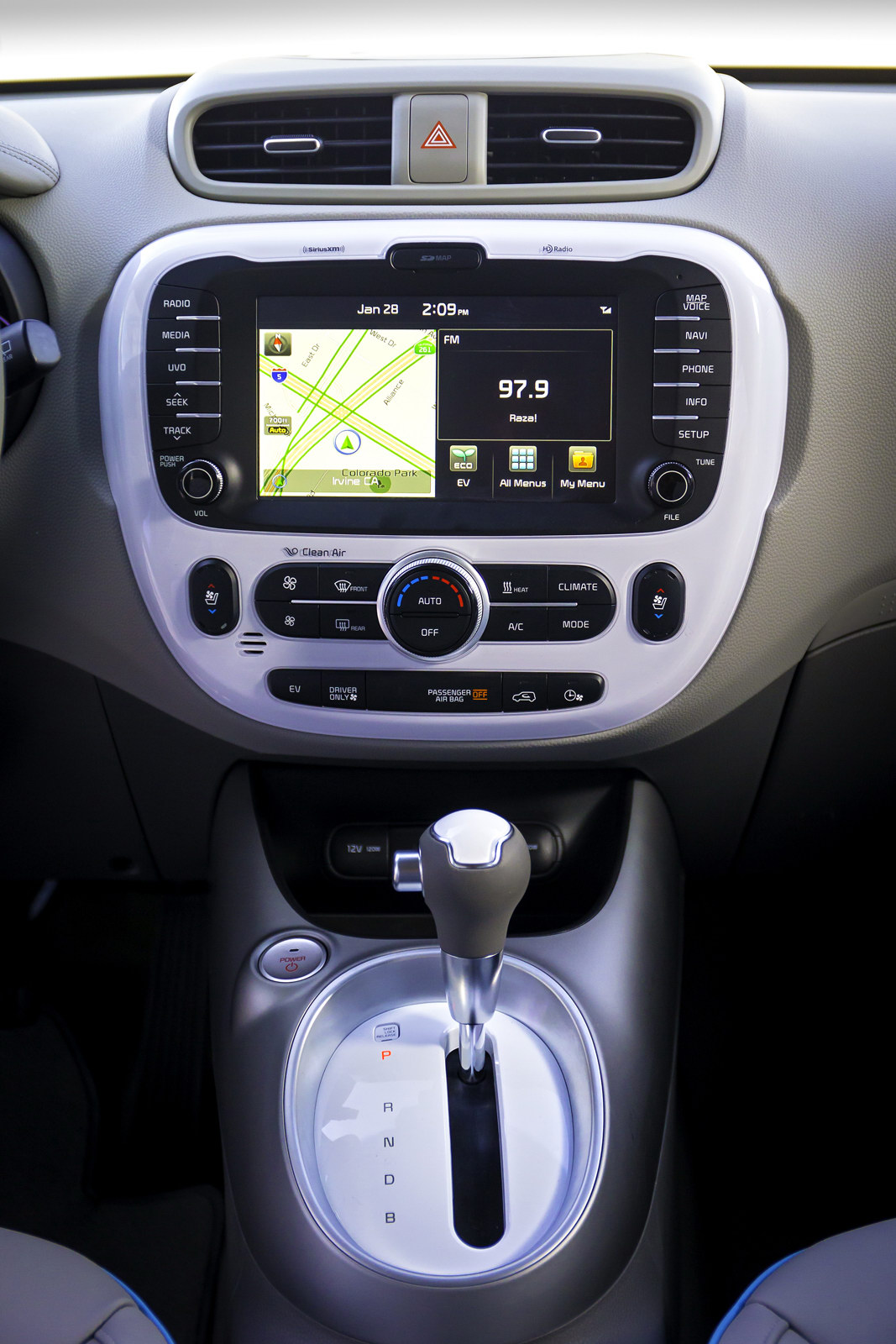

Introduced for the first time on the Soul EV, UVO EV Services includes downloadable apps that reside on the Soul EV’s standard 8-inch capacitive-touch navigation screen. EV owners may download Yelp®4, the online urban city guide that helps people find cool places to eat, shop, relax and play. Soul EV owners will also enjoy iHeartRadio, the free, all-in-one digital radio service that lets customers listen to their favorite live stations or create their own commercial-free, all-music custom stations. Sound Hound, which is also available and accessible through the touch screen, listens to what’s playing and displays all related information such as lyrics, the artist, title and album cover art.
Arriving with a five-year complimentary subscription to SiriusXM™5 Data Services and Travel Link, the Soul EV has access to charging stations and travel information such as road conditions, weather and security alerts as well as sports scores, movie times and stock prices through the screen’s graphical interface and electronic program guide.
The Soul EV also features Kia’s first use of Organic Light Emitting Diode (OLED) technology. Low energy consumption and virtually no heat build-up make OLED perfect for an electric-vehicle application. Found within the Soul EV’s exclusive Supervision instrument cluster, the 3.5-inch OLED screen is crystal clear and provides information on the vehicle’s energy flow, charging time, ECO driving level and energy economy, which measures how efficiently the battery is operating. Additionally, the OLED screen provides a three-stage alert for the Soul EV’s State of Charge (SOC), which allows the driver to quickly decipher how much charge remains within the battery and when it’s time to plug in to a charging unit.
About Kia Motors America
Kia Motors America (KMA) is the marketing and distribution arm of Kia Motors Corporation based in Seoul, South Korea. KMA proudly serves as the “Official Automotive Partner” of the NBA and LPGA and surpassed the 500,000 annual sales mark for the second consecutive year in 2013 following the launch of seven all-new or significantly redesigned vehicles. KMA offers a complete line of vehicles, including the flagship K900 rear-drive sedan, Cadenza premium sedan, Sorento CUV, Soul urban passenger vehicle, Sportage compact CUV, Optima midsize sedan, Optima Hybrid, the Forte compact sedan, Forte5 and Forte Koup, Rio and Rio 5-door sub-compacts and the Sedona minivan, through a network of more than 765 dealers across the United States. Kia’s U.S. manufacturing plant in West Point, Georgia, builds the Optima* and Sorento* and is responsible for the creation of more than 14,000 plant and supplier jobs.
Information about Kia Motors America and its full vehicle line-up is available at its website – www.kia.com. For media information, including photography, visit www.kiamedia.com. To receive custom email notifications for press releases the moment they are published, subscribe at http://www.kiamedia.com/us/en/newsalert.
CLICK HERE TO VIEW THE 2014 CHICAGO AUTO SHOW PRESS KIT
* The Sorento and Optima GDI (EX Trims and certain LX Trims only) and GDI Turbo are built in the United States from U.S. and globally sourced parts.
1 No subscription fee for UVO eServices. No charge for the UVO eServices app. App uses your smartphone cellular data service. Normal cellular service rates will apply.
2 UL and the UL logo are trademarks of UL LLC © 2014 All Rights Reserved.
3 The Rear-Camera Display is not a substitute for proper and safe backing-up procedures. The Rear-Camera Display may not display every object behind the vehicle. Always drive safely and use caution when backing up.
4 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Kia is under license. Other trademarks and trade names are those of their respective owners. A compatible Bluetooth® enabled cell phone is required to use Bluetooth® wireless technology.
5 Yelp and related marks are registered trademarks of Yelp.
6 Sirius services require subscriptions, sold separately after 5-year trial included with vehicle purchase/lease. Subscriptions governed by SiriusXM Customer Agreement at siriusxm.com© 2011 SiriusXM Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM Radio Inc.
Kia Soul EV earns world automotive industry’s first UL Environment Validation for Bio-based Organic Carbon Content
Kia Soul EV achieves UL Environment Validation for Bio-Based Organic Carbon Content for 10% of its interior plastic Soul EV to have its world premiere at the 2014 Chicago Auto Show
(SEOUL) February 3, 2014 — Kia Motors Corporation has announced that the company’s new Soul EV (electric vehicle), which will have its world premiere at the 2014 Chicago Auto Show starting later this week, has achieved UL Environment validation for bio-based organic carbon content for 10% of its interior materials. UL Environment is the environmental business unit of UL (Underwriters Laboratories), a global independent safety science company.
Various bio-based materials have been applied to the Soul EV, such as bio degradable plastic, bio-foam and bio-fabric. Unlike previous plastic materials that are based from oils, bio-based materials are derived from biomass, which is a photosynthate. Such modern biochemical technologies have replaced the majority of the existing chemistry industry by offering an alternative through development of new bio-materials.
The interior of Kia’s Soul EV includes various new materials such as 10% of bio-based plastic and anti-bacterial substances. Moreover, Kia has even applied five newly developed eco-friendly materials, including cellulose-based plastic and thermoplastic elastomer fabric.
In order to receive the UL Environment claim validation, Kia went through meticulous document review of the applied internal materials and onsite inspections of Kia’s manufacturing sites. UL Environment granted the validation to the Kia Soul EV for containing bio-based plastic of 23,942g and bio-based organic carbon content of 10%.
UL Environment presented Kia with validation badges for: 1) Weight of bio-based plastic 2) Content ratio of bio-based organic carbon materials, and 3) List of bio-based material application in the Kia Soul EV.
This achievement for the Kia Soul EV reflects the trend of the electric car transitioning from its original criteria of fuel efficiency and carbon emission to consideration of its product life cycle, which covers manufacturing, distribution and even discardment.
We are proud that our Kia Soul EV has achieved the auto industry’s and the world’s first UL Environmental claim validation for its bio-based organic carbon content for 10% of its interior materials,” said Jong-Dae Lim, Vice President of Material Development Center of Hyundai-Kia R&D Center. “We will continue our efforts to develop cutting-edge products that satisfy not only the evolving market, but also customer needs.”
Stephen Hwang, President of UL Korea said, “Receiving UL Environment’s claim validation for the Kia Soul EV shows the company’s strenuous efforts in developing cars with the environment in mind. UL Korea will continue to support Kia as it builds its environmental leadership in the marketplace.”
Kia Motors Corporation (www.kia.com) – a maker of quality vehicles for the young-at-heart – was founded in 1944 and is Korea’s oldest manufacturer of motor vehicles. Over 2.7 million Kia vehicles a year are produced in 10 manufacturing and assembly operations in five countries which are then sold and serviced through a network of distributors and dealers covering around 150 countries. Kia today has around 48,000 employees worldwide and annual revenues of over US$43 billion. It is the major sponsor of the Australian Open and an official automotive partner of FIFA – the governing body of the FIFA World Cup™. Kia Motors Corporation’s brand slogan – “The Power to Surprise” – represents the company’s global commitment to surprise the world by providing exciting and inspiring experiences that go beyond expectations.
