Το BAC Mono έκανε την KTM να παρουσιάσει το X-Bow R, το track car το οποίο φορά τον 2.0-λιτρο TFSI ο οποίος πλέον εφοδιάζεται με μεγαλύτερη τουρμπίνα, μεγαλύτερα μπεκ και επαναπρογραμματισμένη ECU αποδίδοντας έτσι 60 άλογα περισσότερα από το απλό X-Bow, αγγίζοντας τα 300 άλογα με 400 Nm ροπής.
Για να χειριστεί την επιπλέον δύναμη οι μηχανικοί της KTM τοποθέτησαν έναν βραχίονα ροπής ο οποίος είναι άμεσα συνδεδεμένος με το carbon monocoque σασί. Αυτό επιτρέπει στο X-Bow R να έχει σημαντικά αυξημένη στρεπτική ακαμψία και καλύτερη οδηγική συμπεριφορά. Επιπλέον το κέντρο βάρους του αυτοκινήτου έχει χαμηλώσει κατά 15mm με την ανάρτηση του να έχει βελτιωθεί χάρη στην τοποθέτηση σκληρότερων αμορτισέρ και ελατηρίων.
Πόσο κοστίζει θα αναρωτιέσαι; “Μόνο” €58.795 χωρίς φόρους και ΦΠΑ.
THE KTM X-BOW R CELEBRATES ITS DEBUT: FIRST EXCURSION TO THE RED BULL RING!

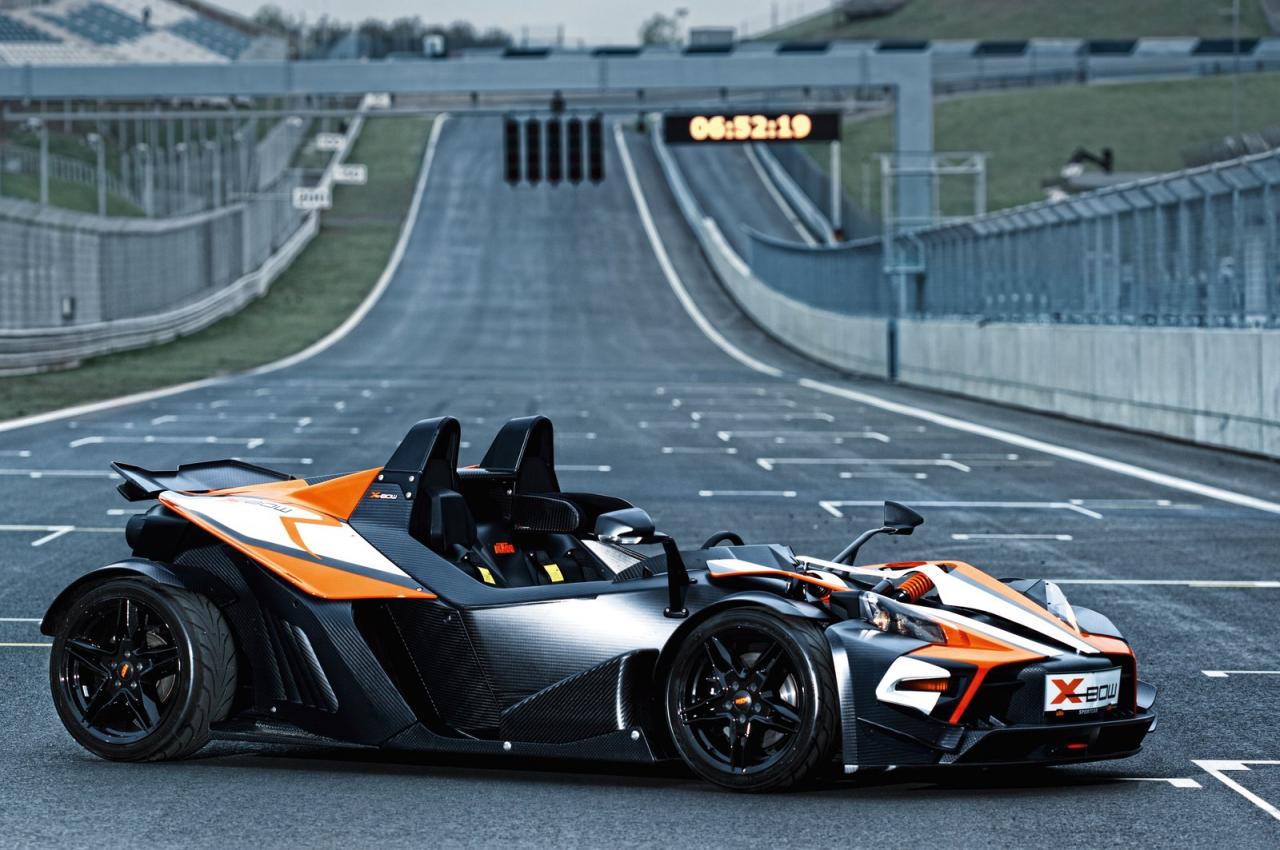

So now the new KTM X-BOW R is here. The completely revised, even more powerful super sports car from Austria has been presented to the public in the series version. Just two days after the official opening of the Red Bull Ring in the presence of national and international motorsports personalities, the “R” has been able to show just what it can do on this racing circuit. True to the KTM “Ready to Race” motto the “R” model was driven on the road straight from the assembly line in Graz directly onto the racing circuit.
And even if the new developments of the KTM X-BOW R are not obvious at first glance from its outward appearance, a lot of things have been changed around the carbon monocoque. The engineers did not restrict themselves to improvements to the engine. In fact there have been improvements in all other relevant components to ensure that an optimal performance can be achieved. And that is because the customers had clearly expressed their wishes that the super sports car that many of them want to take to the racing circuit weekend after weekend, should be even more extreme, even faster and even more powerful.
And what the customer wants is what KTM delivers. In 2011 the product range of the super sports car with the carbon monocoque includes the KTM X-BOW R, the most powerful version yet developed. The “R” is the result of concentrated further development of this spectacular lightweight sports car. In the rear of the “R” is a 300 h.p 2.0 Liter TFSI engine from Audi with a maximum torque of 400 Nm and this ensures an unbelievable driving experience both on and off the racing circuit, because naturally the KTM X-BOW R is homologated for use on the road.
At the German premium carmaker Audi, KTM chose one of the most efficient and powerful engines with a 2.0 litre displacement. This is all about an engine block that was used by the Ingolstadt-based company for a long time in the S3 model and which generated up to 265 h.p. there. It was later also used in the TT-S with 272 h.p. For use in the KTM X-BOW R, the reinforced block has a bigger turbo, an altered fuel injection system and the engine electronics have been additionally updated by Bosch Engineering Group (BEG). This means that the performance not only increases to 300 h.p but also the torque: to be exact 400 Nm are set free at 3,300 revs and results in a very smooth torque curve which provides impressive drive in all situations.
This was how the KTM X-BOW evolved into the ‘R’ but it was far from complete. For the engineers, the additional power meant that the entire periphery – from the engine mounting to the suspension had to be reviewed. And that is why, in addition to the engine, very many other parts of the vehicle were either changed or completely newly constructed.
The stay of the torque support arm has been completely changed
60 h.p more – a good 25 percent – caused far more extreme forces that meet and must be absorbed on the engine mounting points on the aluminium rear frame. It was the aim of the development not simply to meet the additional burden but to strengthen the rear beyond that of the 240 h.p model. The solution was to reposition the torque support arm. Up to date this had been attached to the rear frame, now it sits directly on the carbon monocoque. With this, the torsional stiffness is significantly increased, especially when accelerating out of corners and the KTM X-BOW R handles even better on the road as its “little brothers” the X-BOW Street and Clubsport.
The entire drive train unit has been lowered by 19 millimeters
By relocating the torque arm and its connection, the developers then faced another demand. The entire engine unit should be lowered to lower also the center of gravity. The initial target could be even exceeded thanks to clever construction so that the drive unit now sits lower in the rear frame by a massive 19 mm. The main effect: the vehicle’s already impressively low center of gravity has been moved even further down towards the road surface so that the central center of gravity of the vehicle is lower by 15 mm. As a direct consequence even higher cornering speeds and greater lateral acceleration of more than 1.5 g is possible and the handling of the KTM X-BOW R is significantly improved.
– The suspension has been significantly revised 25 percent more power, higher cornering speeds, greater G-loads. All this has resulted in a significant additional burden on the chassis, which in combination with the tires represents the final link in a long chain for achieving optimal contact with the road. The push rod suspension on the front axle, which comes directly from the Formula racing sport, but also the suspension on the rear axle has been revised. The first step was trying to reduce the friction on the wishbones of the X-BOW. For this purpose special Teflon washers have been used to reduce the friction and play, which at the same time improving the precision and the response of the suspension In addition to this the engineers devoted time to the springs and shock absorbers: stiffer springs in the front and rear suspension and new damping characteristics meant that the KTM X-BOW R is characterized by an additional increase in the handling, even more extremely exact and delicate than up to this stage of the development.
The price of the KTM X-BOW R is € 58, 795 (excluding national taxes and import duties).
The standard equipment in detail (extract) – Carbon fiber racing monocoque with crash box in visible carbon fiber – Audi 2.0 TFSI engine with direct fuel injection and 220 kW (300 hp) – Mechanical limited slip differential – Smooth surface racing underbody with a rear diffuser in aluminium composite – Individually adjustable pedals – Adjustable and removable multi functional steering wheel – Sports suspension, adjustable in rebound and compression damping – Keyless go system – Painted rims – 4-point safety belt – Special paint work in “R” design
