Έκθεση Γενεύης 2012: Toyota FT-Bh Small Hybrid Concept [w/video]

Η Toyota παρουσίασε στη Γενεύη το FT-Bh Concept. Πρόκειται για ένα νέο πρωτότυπο που θα δείχνει το πως θα μοιάζουν τα μοντέλα πόλης της Toyota στο μέλλον διαθέτοντας κατά 50% χαμηλότερες εκπομπές CO2, σε σχέση με τα υπόλοιπα αυτοκίνητα της κατηγορίας τους. Μηχανικά φορά έναν πλήρως υβριδικό δικύλινδρο Atkinson κινητήρα βενζίνης 1.0-λίτρου, ο οποίος συνεργάζεται με έναν ηλεκτροκινητήρα και καταναλώνει 2.1 λίτρα/100 χλμ εκπέμποντας 49 γρ/χλμ CO2, λιγότερο από το μισό του μέσου όρου των αυτοκινήτων της B κατηγορίας.

Ζυγίζει 786 κιλά και θα είναι κατασκευασμένο πάνω σε ένα σασί από υψηλής ποιότητα χάλυβα ενώ το σώμα του είναι κατασκευασμένο από ένα νέο αφρώδες υλικό υψηλής διόγκωσης που έχει τοποθετηθεί και στο εσωτερικό του. Ως αποτέλεσμα είναι να διαθέτει μια βελτιωμένη εσωτερική θερμική διαχείριση για την διατήρηση της θερμοκρασίας στη καμπίνα.

Η Toyota δηλώνει ότι εκτός από τον υβριδικό κινητήρα, θα είναι διαθέσιμο και με έναν υβριδικό κινητήρα φυσικού αερίου (CNG) με εκπομπές CO2 38 γρ/χλμ καθώς και με έναν plug-in υβριδικό με εκπομπές CO2 19 γρ/χλμ. Περισσότερες λεπτομέρειες μπορείς να βρεις στο δελτίο τύπου που ακολουθεί.

[Πηγή: Toyota]

[learn_more caption=”Δελτίο Τύπου”]

Next-generation Toyota Small Hybrid Concept Unveiled at 2012 Geneva Motor Show

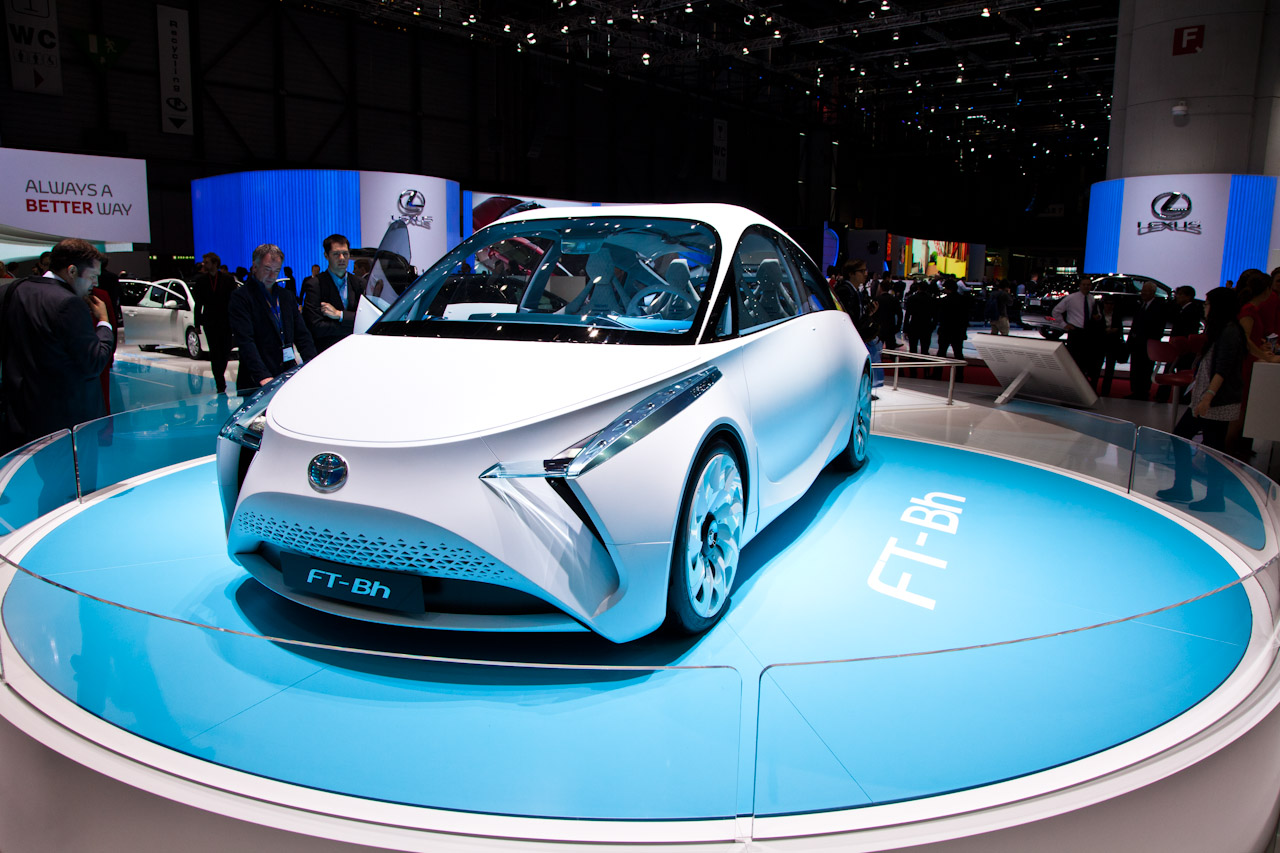

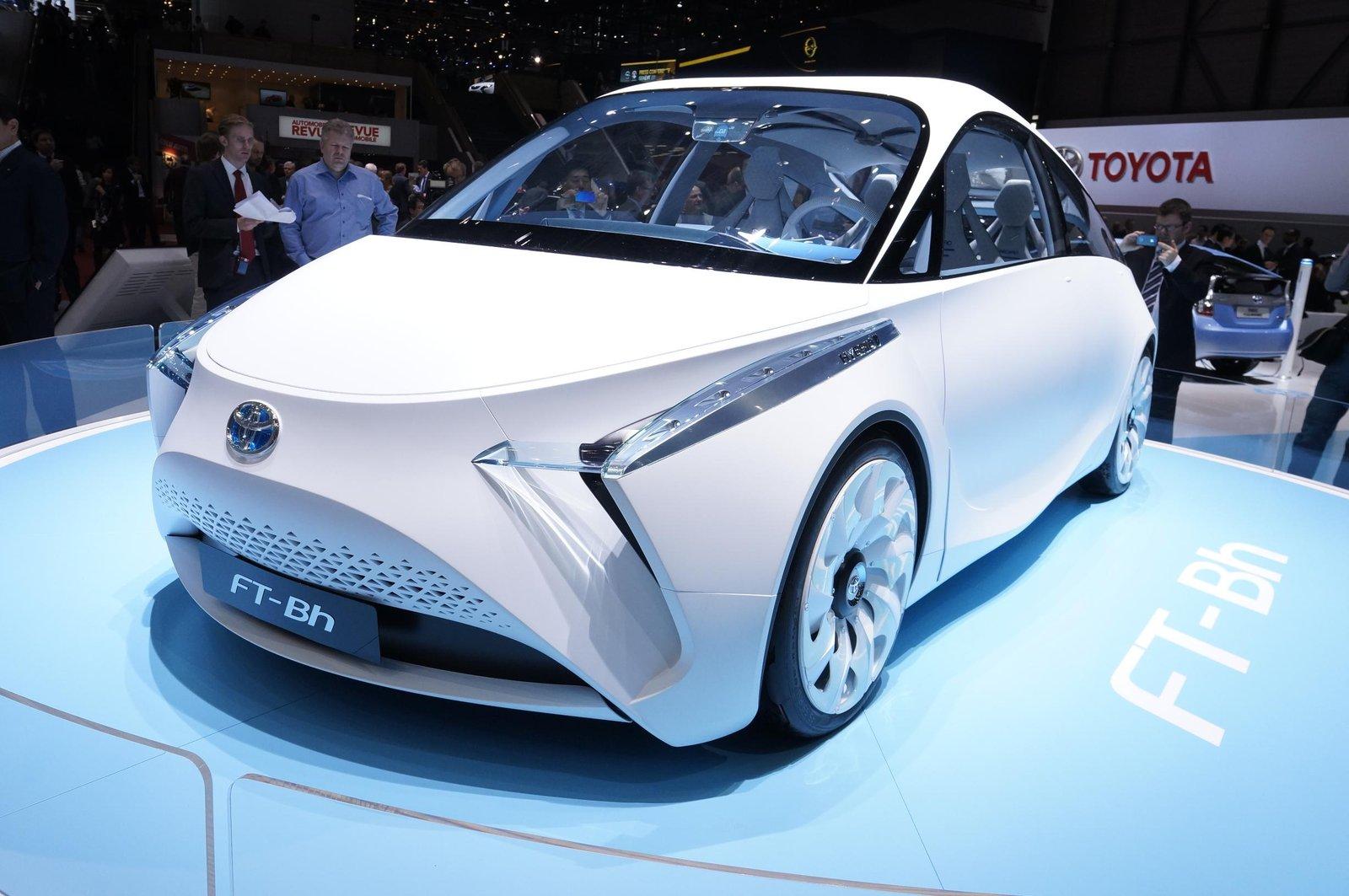

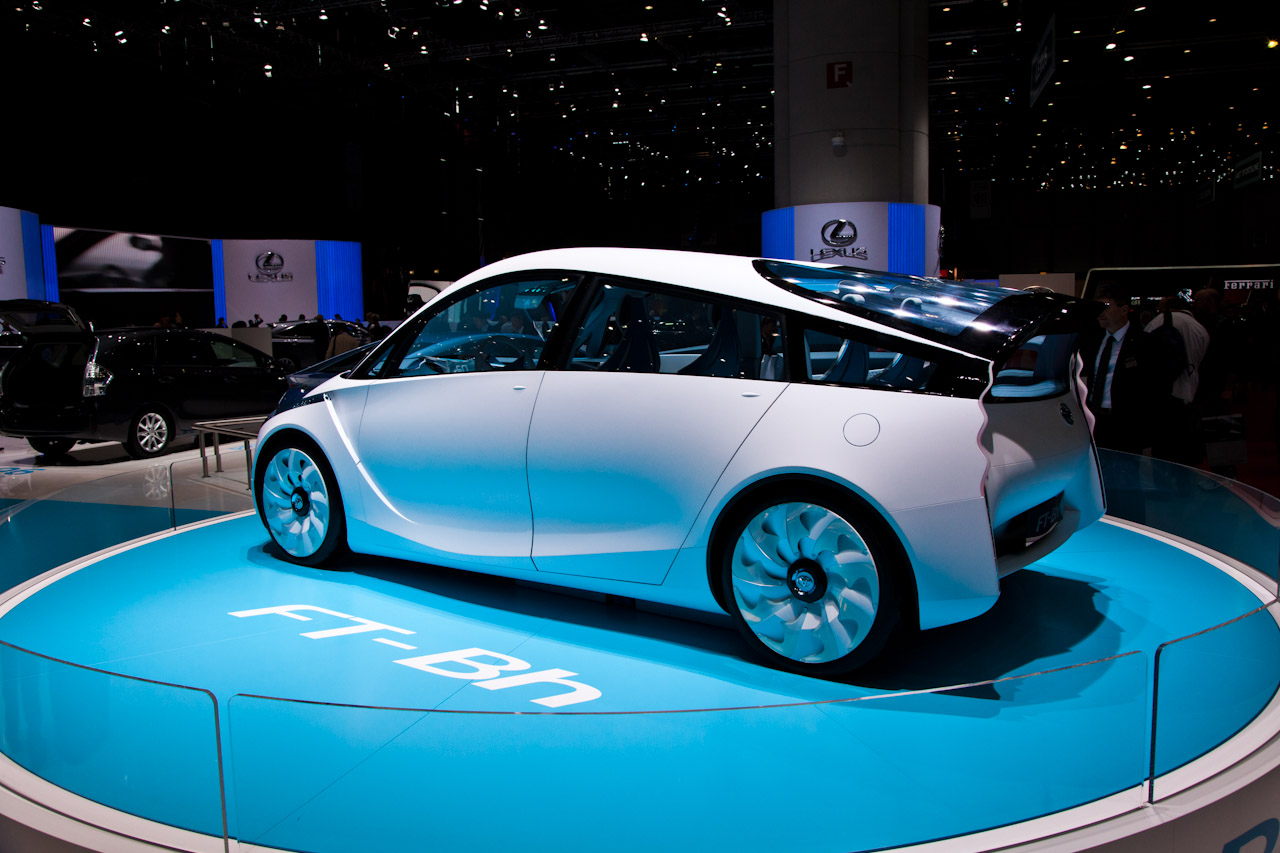

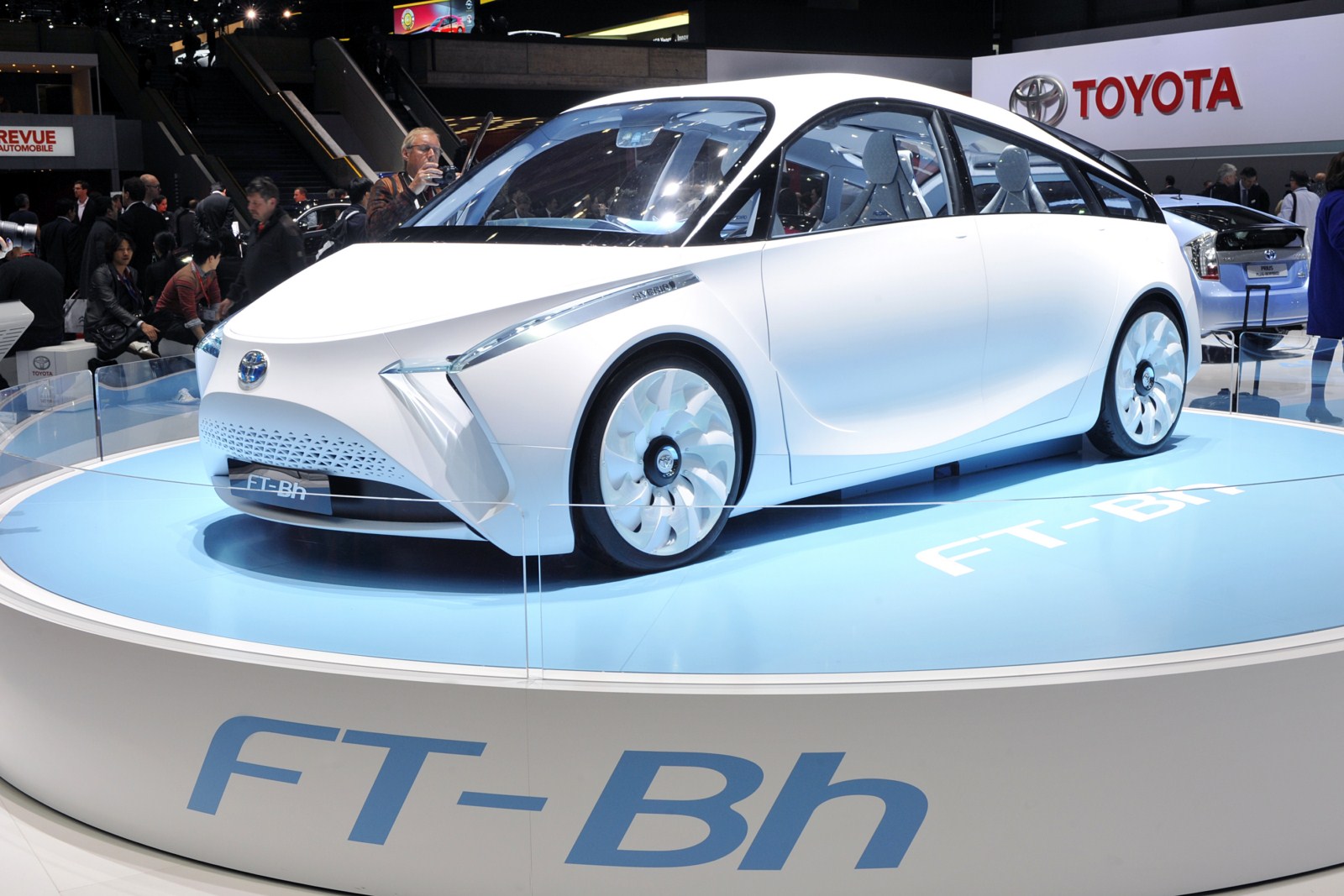

Geneva, Switzerland, March 6, 2012-Toyota Motor Corporation (TMC) unveiled the “FT-Bh”1, a lightweight, next generation small gasoline-electric hybrid concept car, here today at the 82nd Geneva International Motor Show2.

TMC, expecting hybrid vehicle use to become widespread in the second half of the 2010s, developed the FT-Bh as a B-segment, ultra fuel-efficient concept car under the theme of “ecomotion” (eco + emotion).  In addition to high environmental performance, the FT-Bh aims to provide an enjoyable driving experience through highly responsive and nimble operability.

By pursuing weight reduction, a more-efficient powertrain and reduced air resistance, the FT-Bh boasts a fuel efficiency of 2.1 liters per 100 kilometers under the New European Driving Cycle (NEDC), with CO2 emissions of just 49 g/km—less than half the current average for B-segment cars.

Adopting a small fuel tank placed under the rear seat together with the hybrid system’s lithium-ion battery gives the vehicle a low center of gravity, thus contributing to improved driving performance, which is the basic appeal of any car.

In addition to the FT-Bh on display, TMC has conceived two alternative versions: a compressed natural gas (CNG) hybrid version with CO2 emissions of 38 g/km and a plug-in hybrid version with CO2 emissions of just 19 g/km.

Vehicle Outline

Five Elements of Ultra-Low Fuel Consumption

• Reduced mass
  The curb weight3 of the FT-Bh is a mere 786 kg.  Assuming a mass-produced fuel-efficient vehicle, the FT-Bh body structure makes greater use of high-tensile-strength steel and does not require expensive materials such as carbon fiber for weight reduction.  In addition, a new high-expansion foam material is used inside the vehicle to improve interior thermal management and reduce the weight of interior components.  This allows other components, including the body frame, chassis and powertrain, to be made lighter.
• Reduced road and air resistance

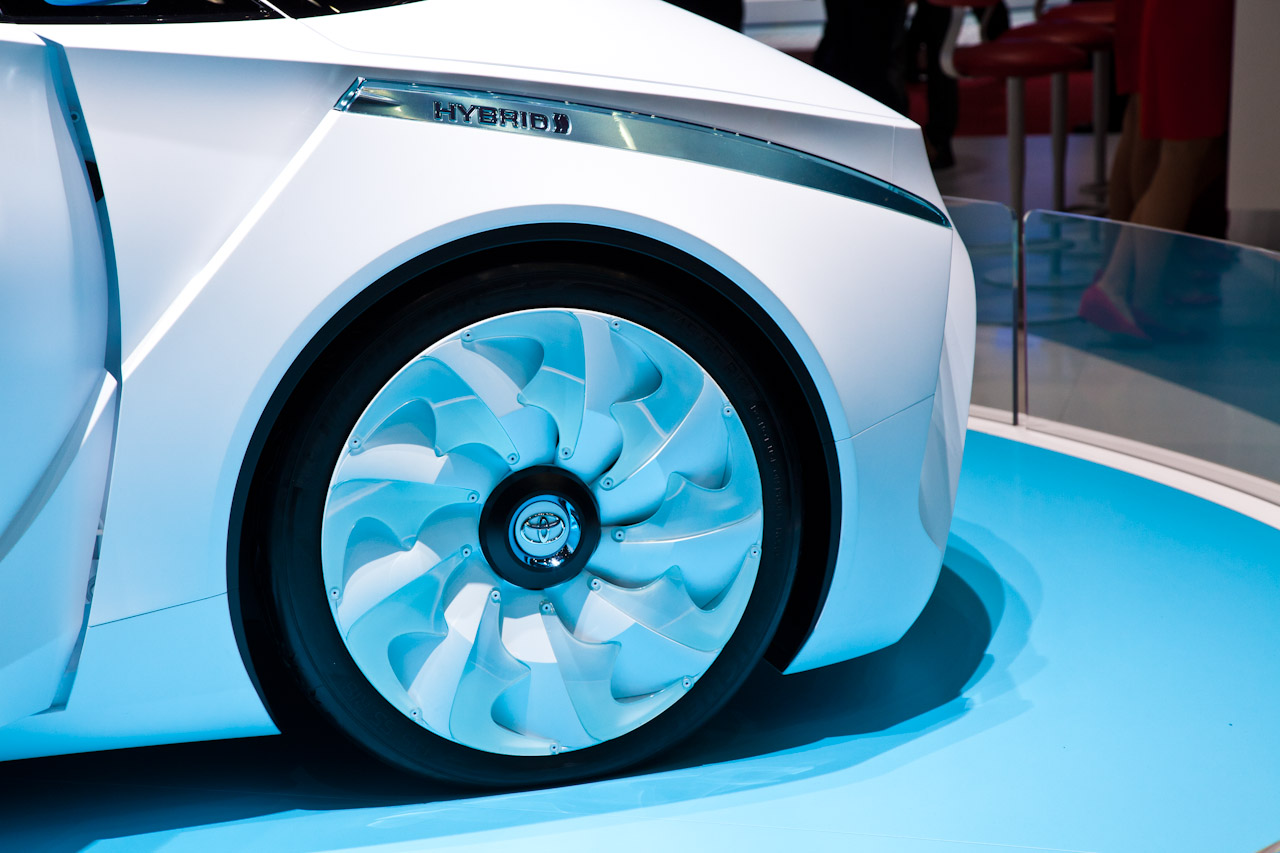

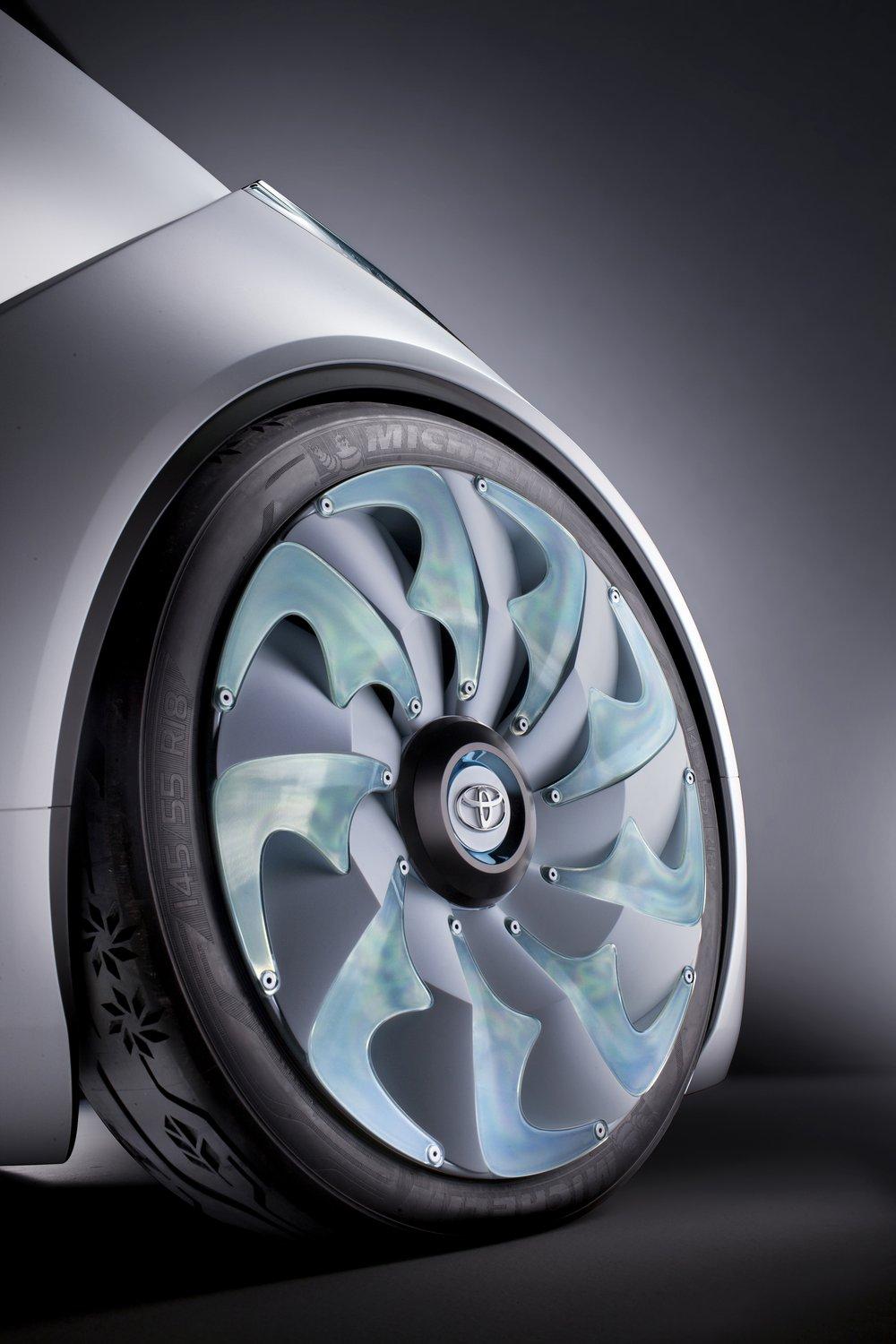

  The FT-Bh seats four adults comfortably in a body that is less than four meters long and that achieves an outstanding drag coefficient of just 0.235.  The newly developed Michelin 145/55R18 tires feature a large diameter for effective road resistance reduction, and a narrow width for substantial air resistance and weight reduction.
• Highly efficient powertrain
  For a high level of fuel efficiency, TMC developed a new, long stroke 1.0-liter, two-cylinder Atkinson cycle gasoline engine that achieves high environmental performance with CO2 emissions of only 49 g/km under the NEDC, along with improved hybrid system efficiency.
• Effective thermal energy management
  Through the application of high-expansion foam material to interior and weight reduction in the materials used for the seating and interior, the thermal capacity4 necessary for controlling cabin temperature is reduced.  In addition, comprehensive thermal management measures have been implemented, such as “air-zoning” that adjusts temperature only in necessary areas depending on the number of passengers.  Due to small amount of heat generated by high-efficiency engines, heat from both the engine and exhaust is used for heating the interior.
• Reduced power consumption
  Power consumption in the FT-Bh has been cut to half that of standard B-segment cars.  The adoption of LEDs in the head, tail and room lights, and reduction of standby power requirements necessary for electrical components such as power windows has substantially reduced overall power consumption.

Exterior and Interior Design

Styled under the theme “ecomotion”, the FT-Bh boasts a new design that evokes an image of the flowing wind and realizes a high level of aerodynamic performance.

• Exterior

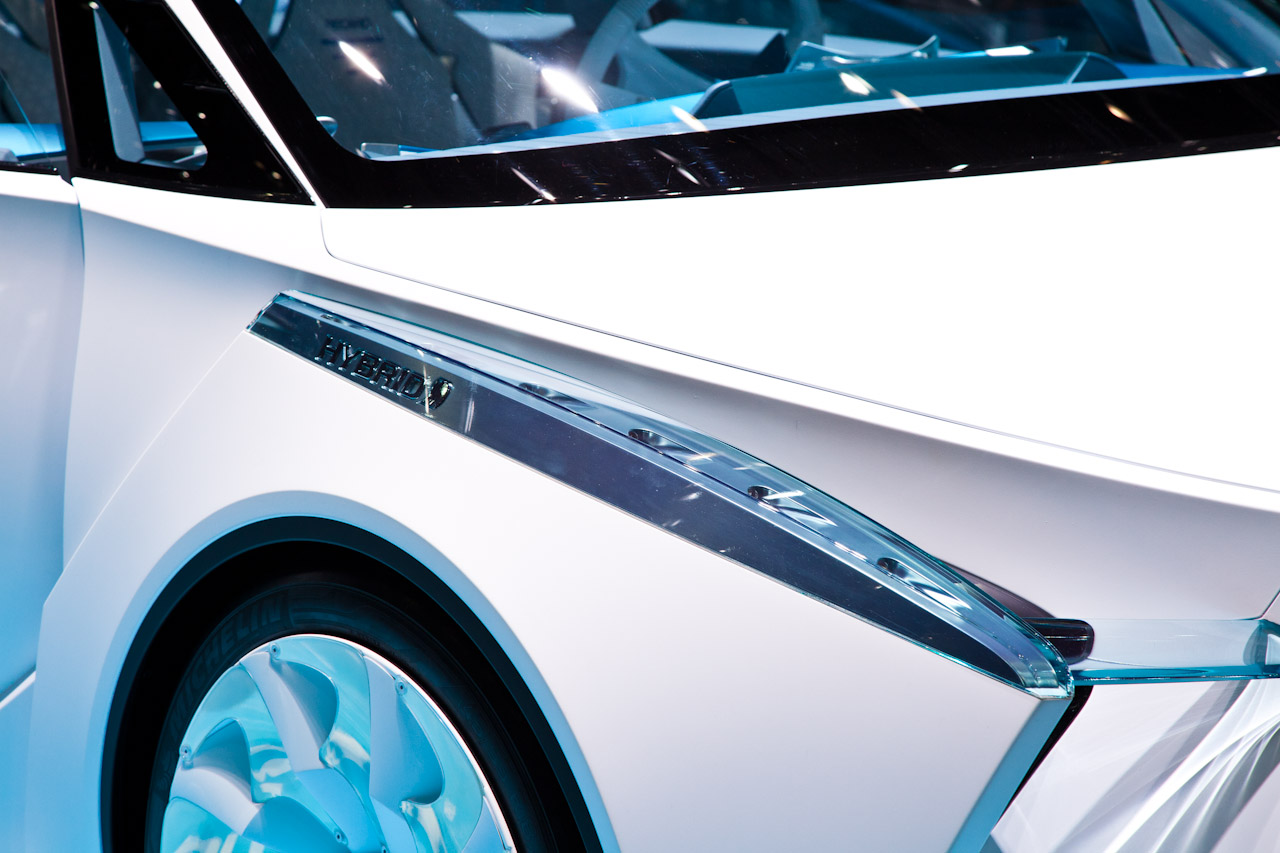

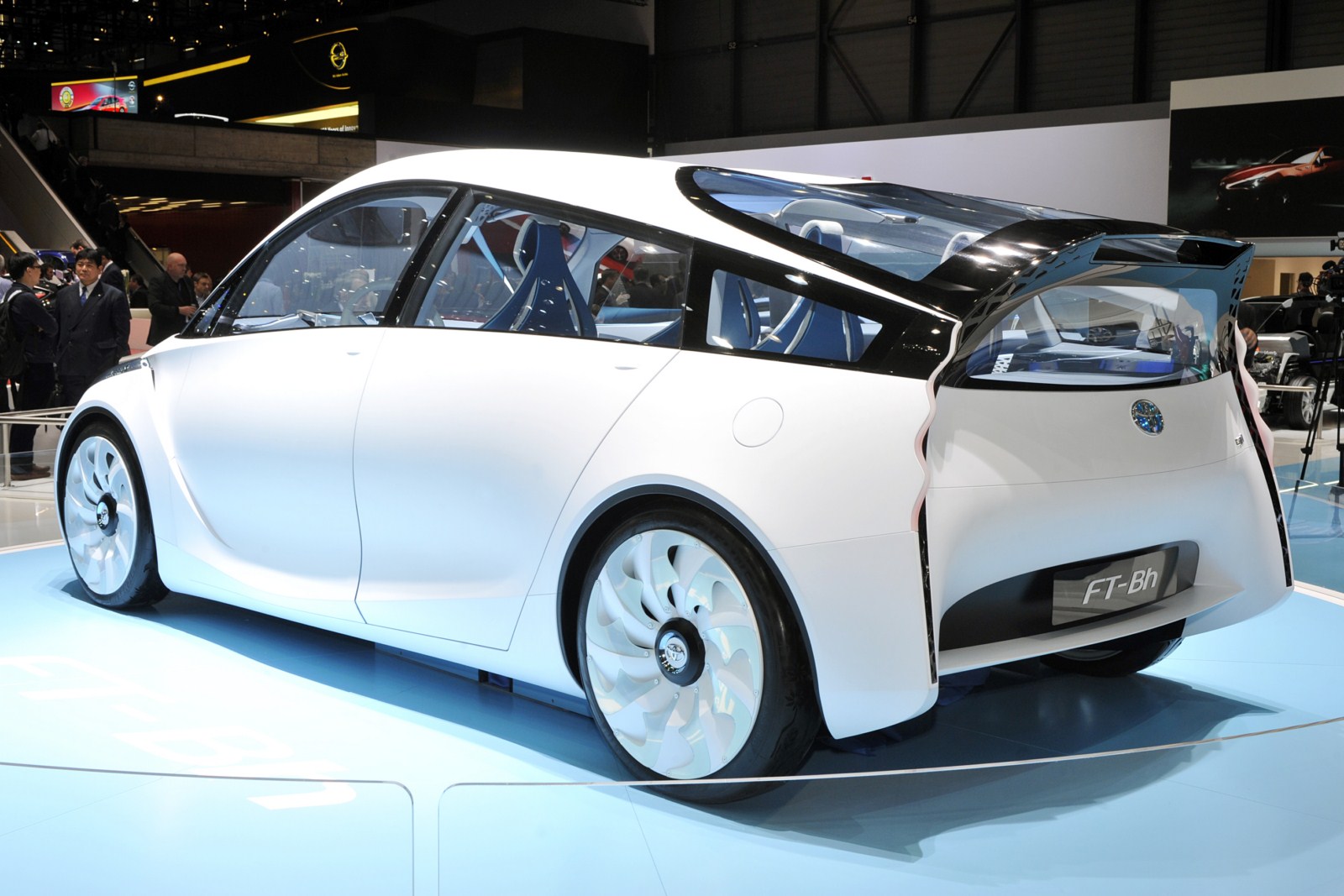

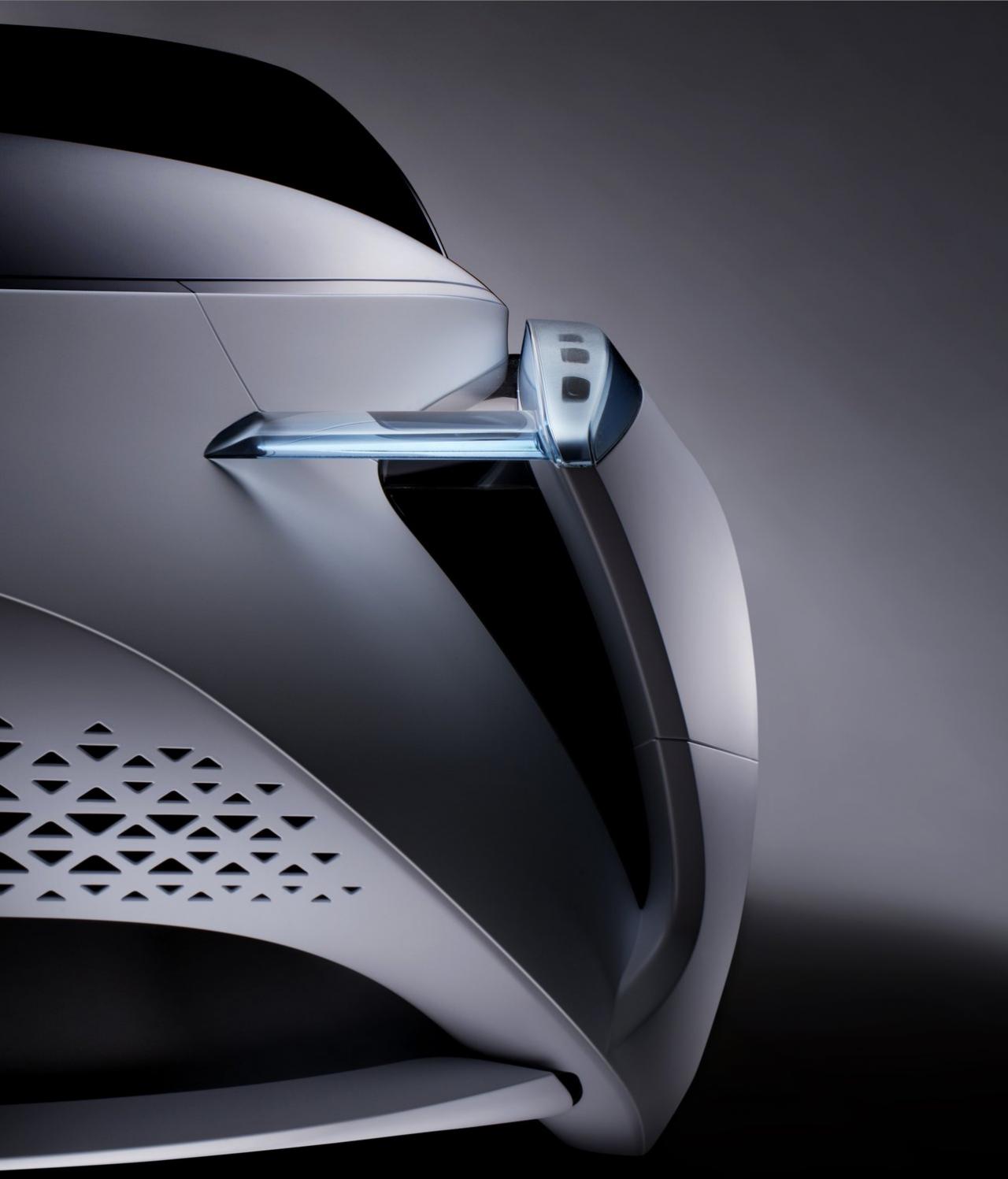

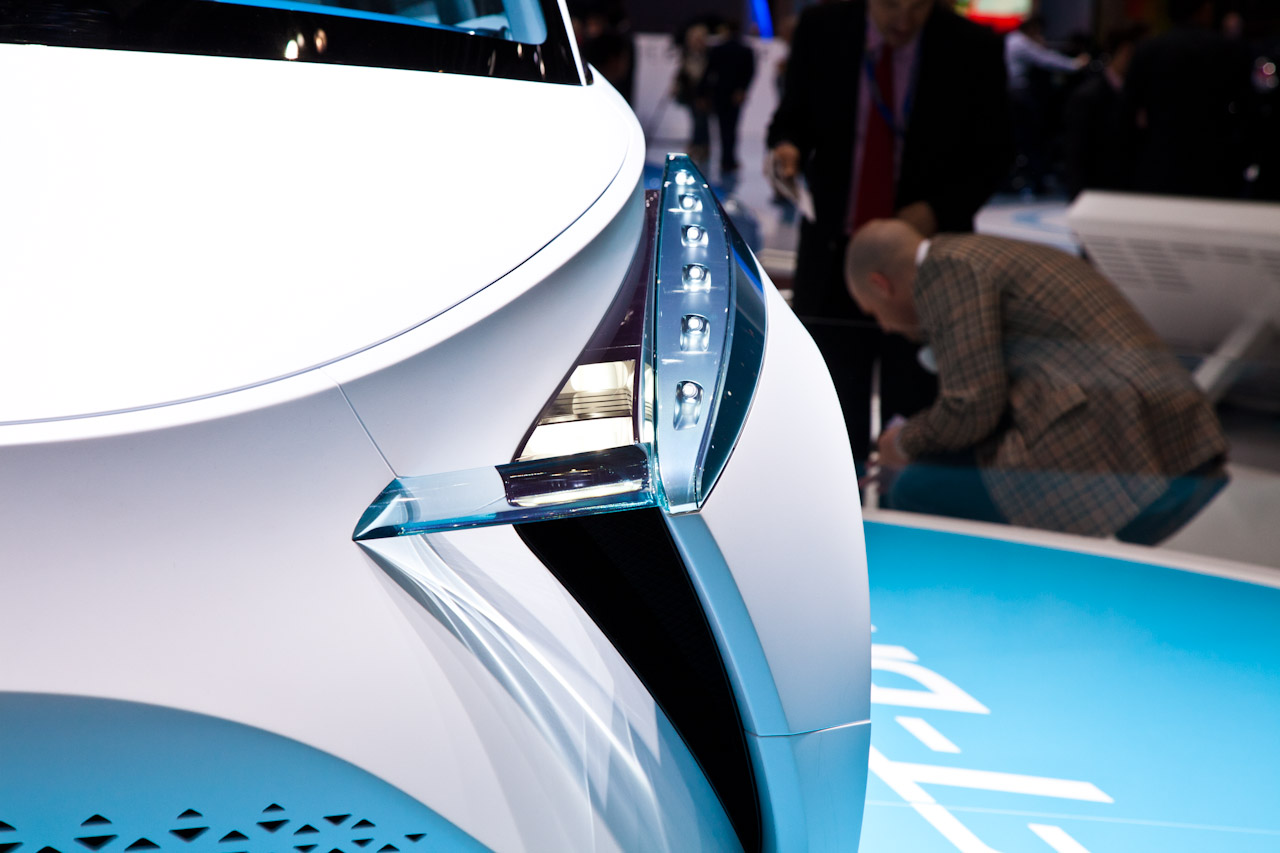

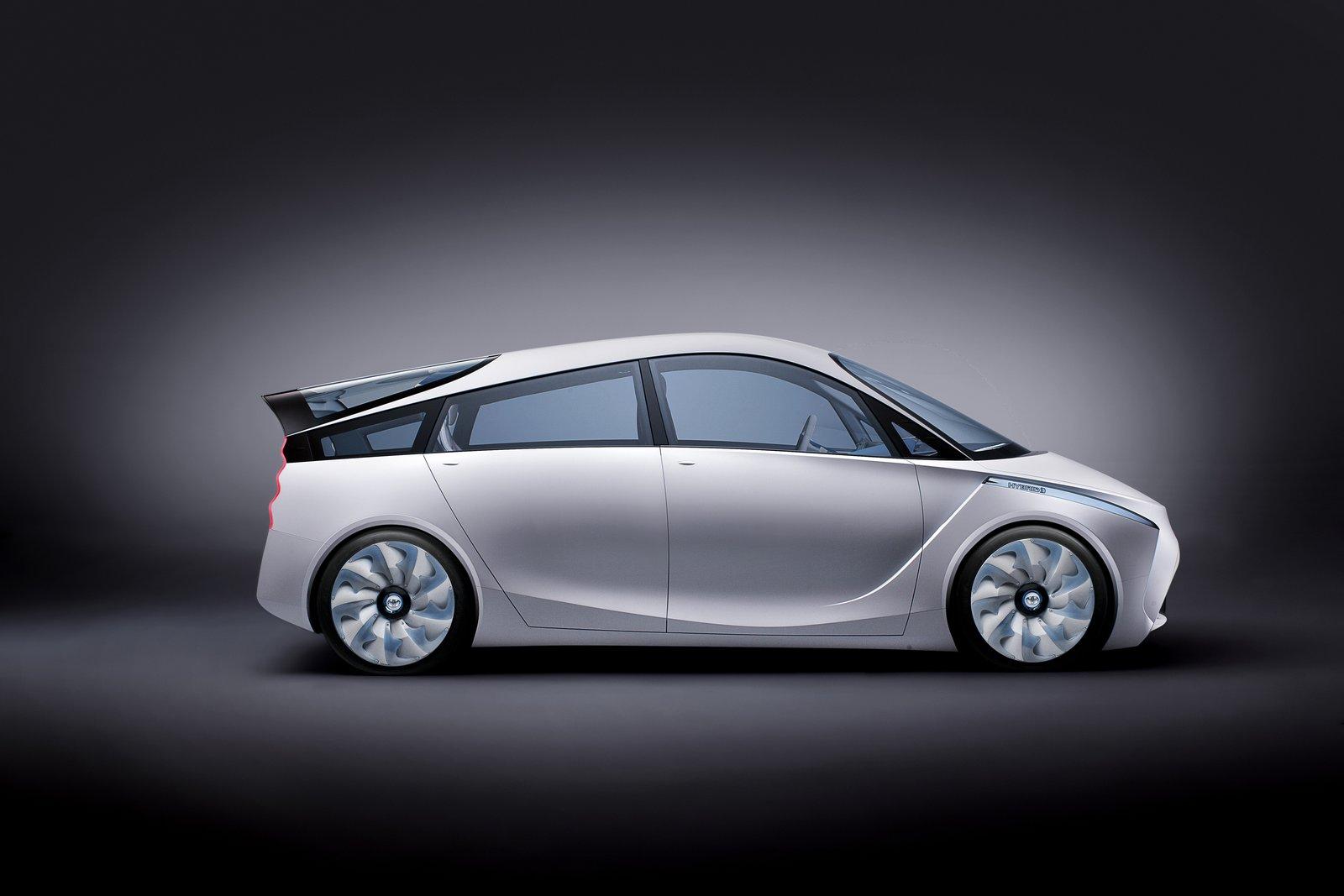

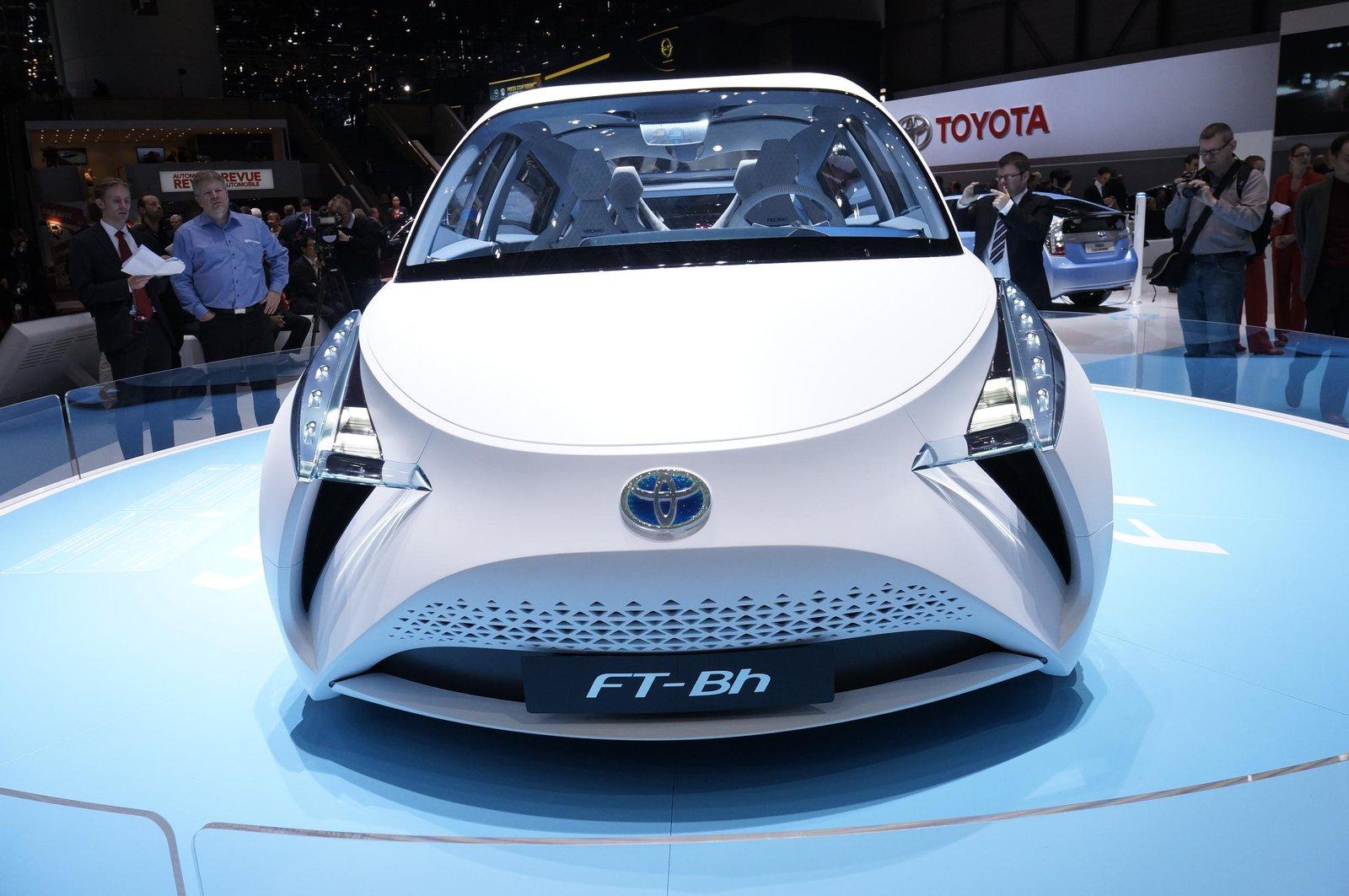

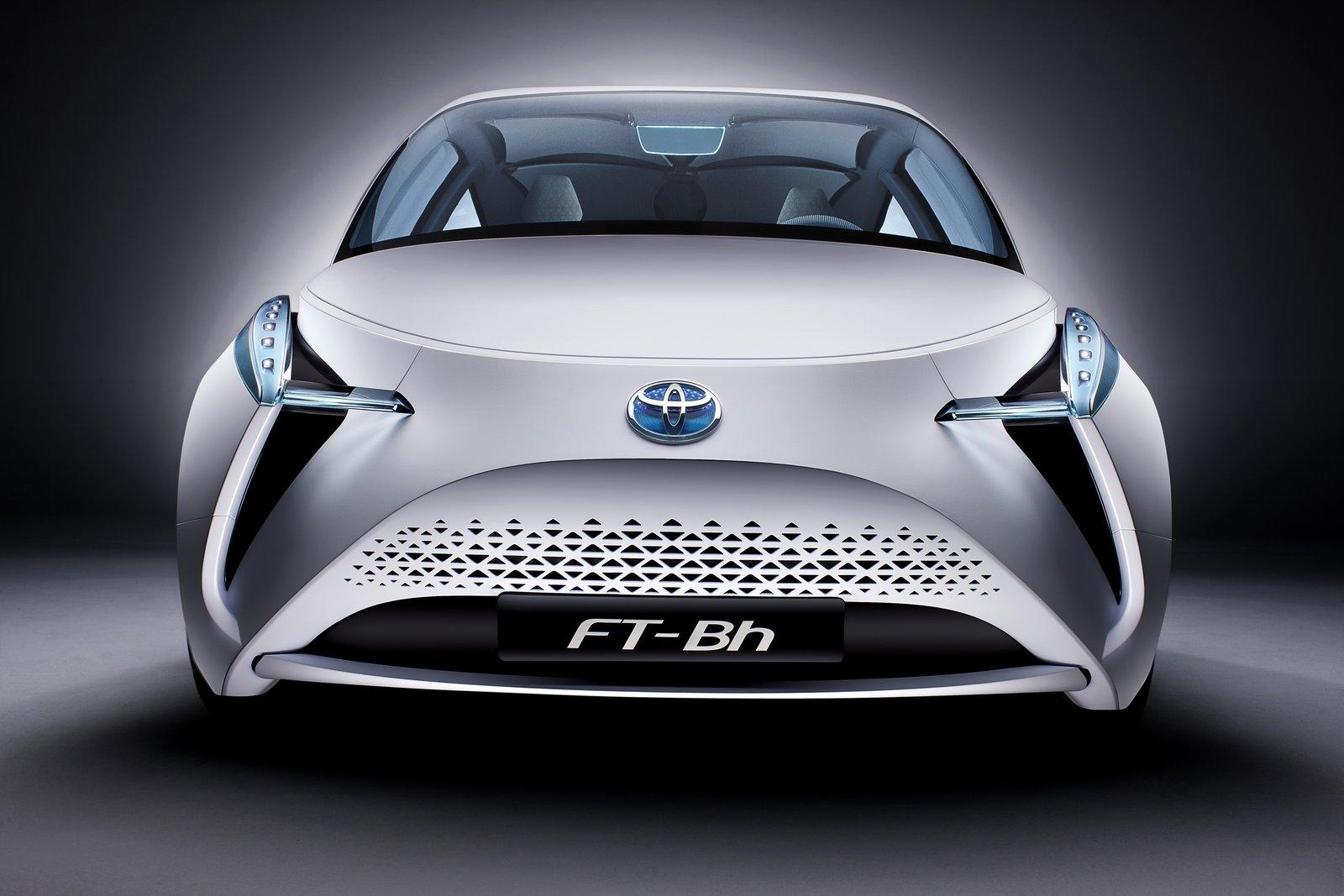

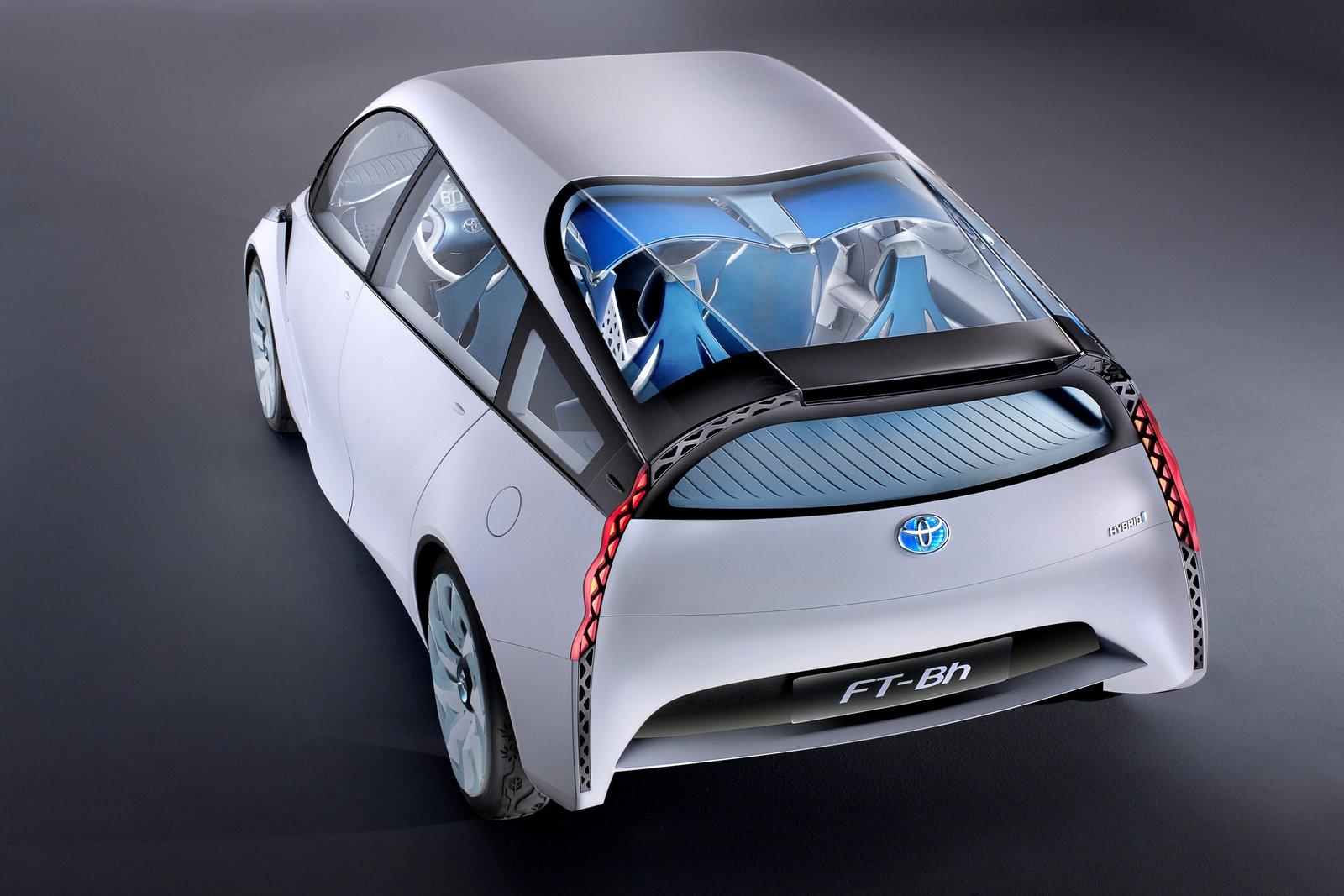

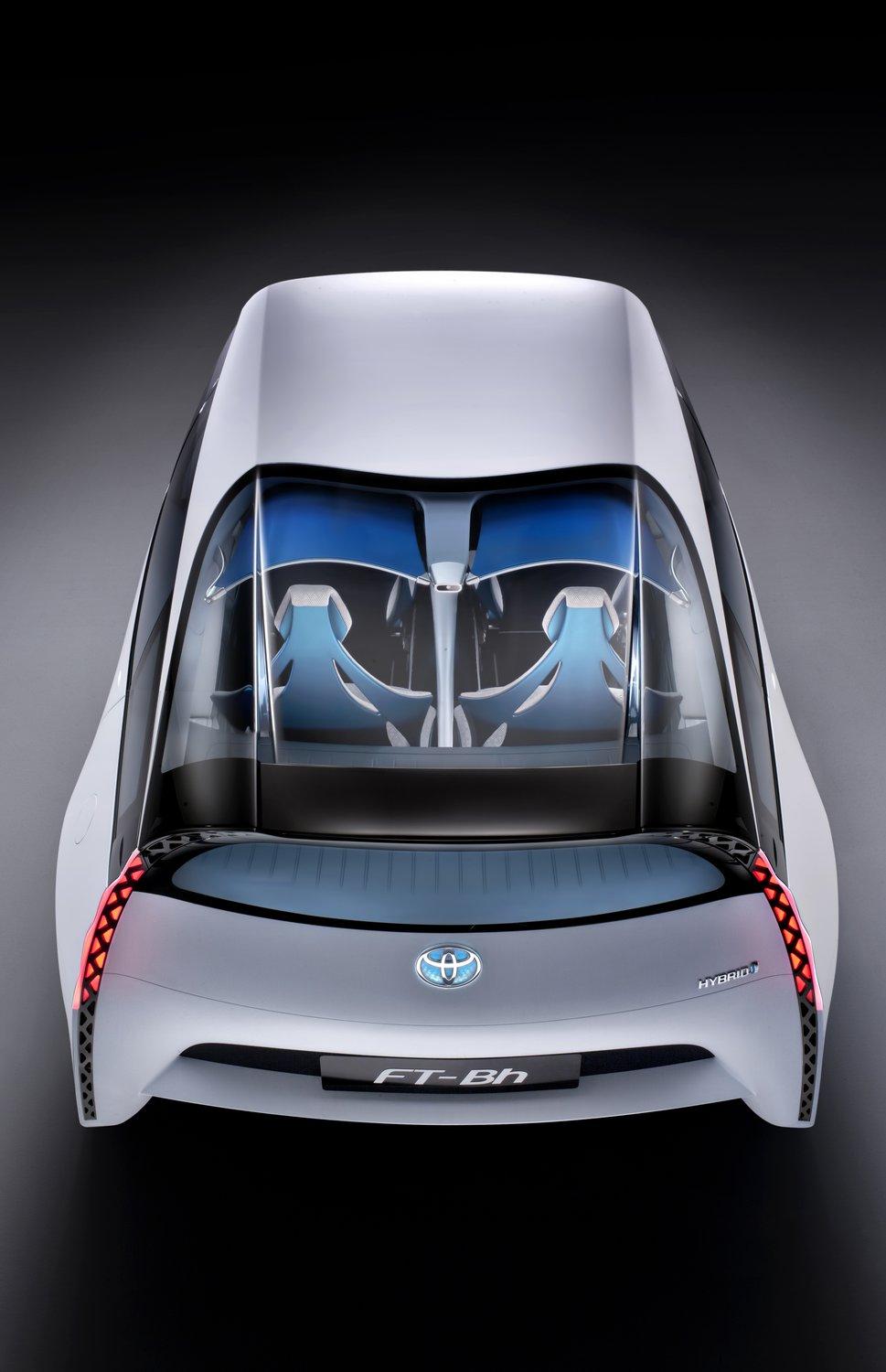

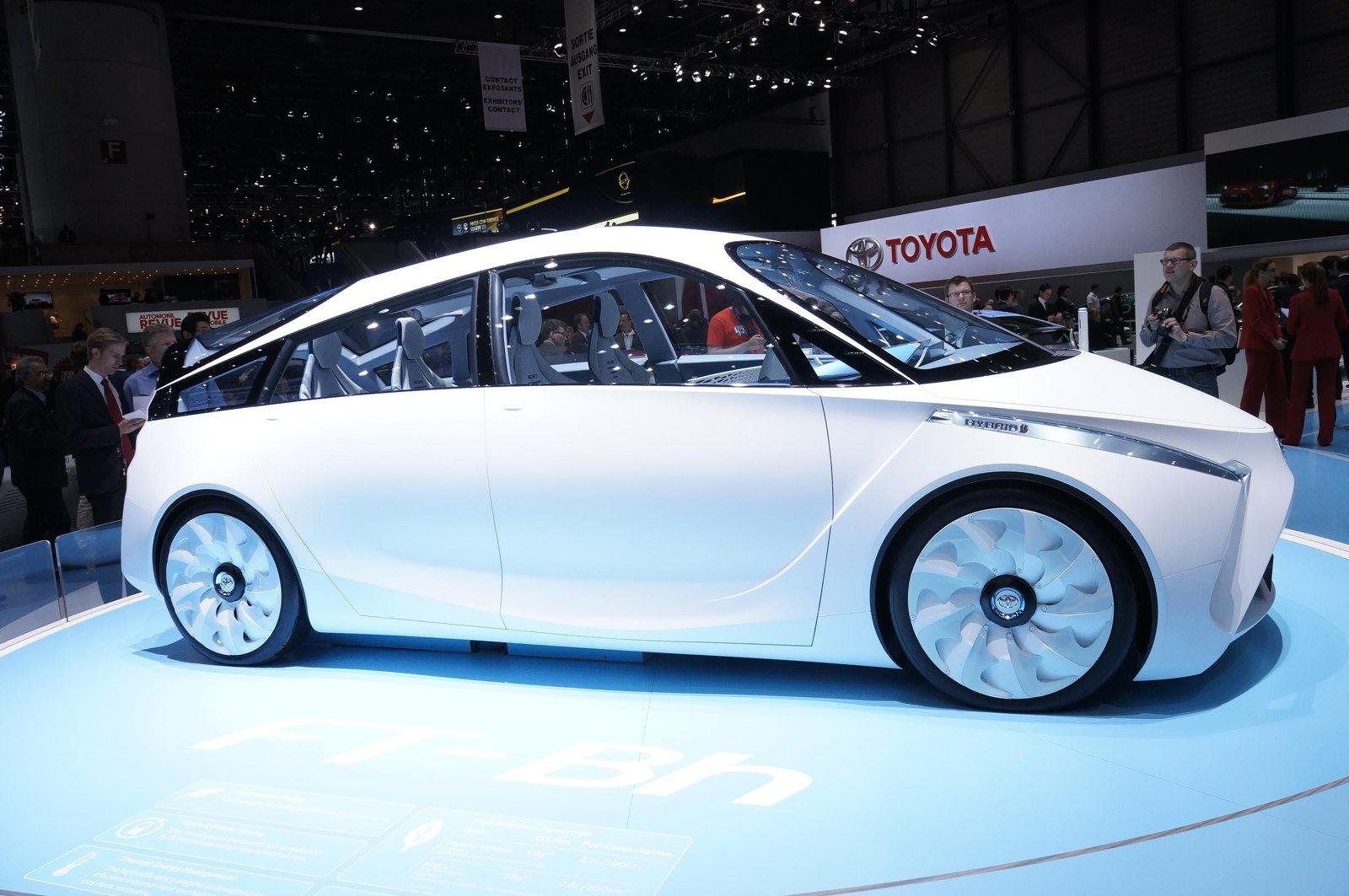

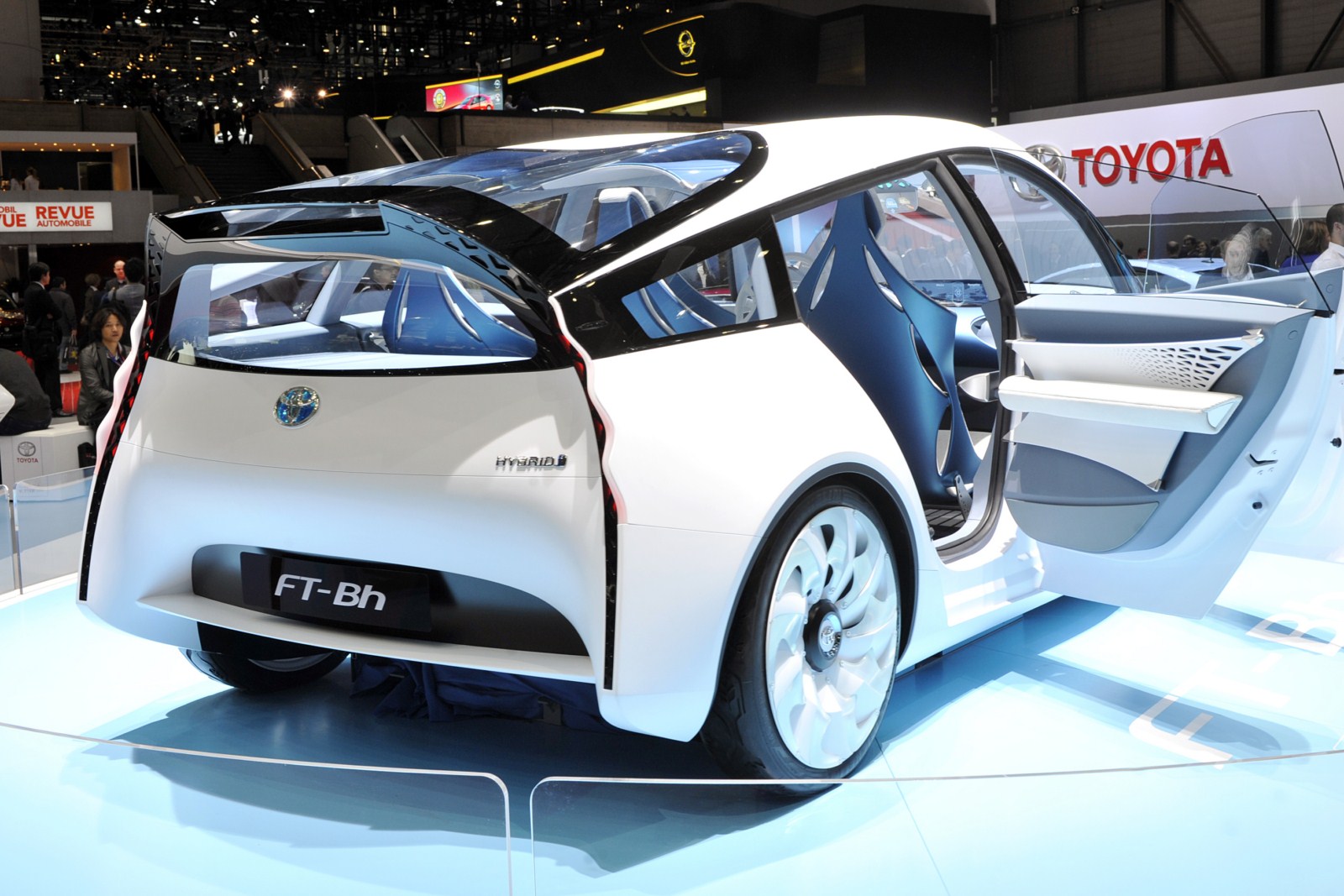

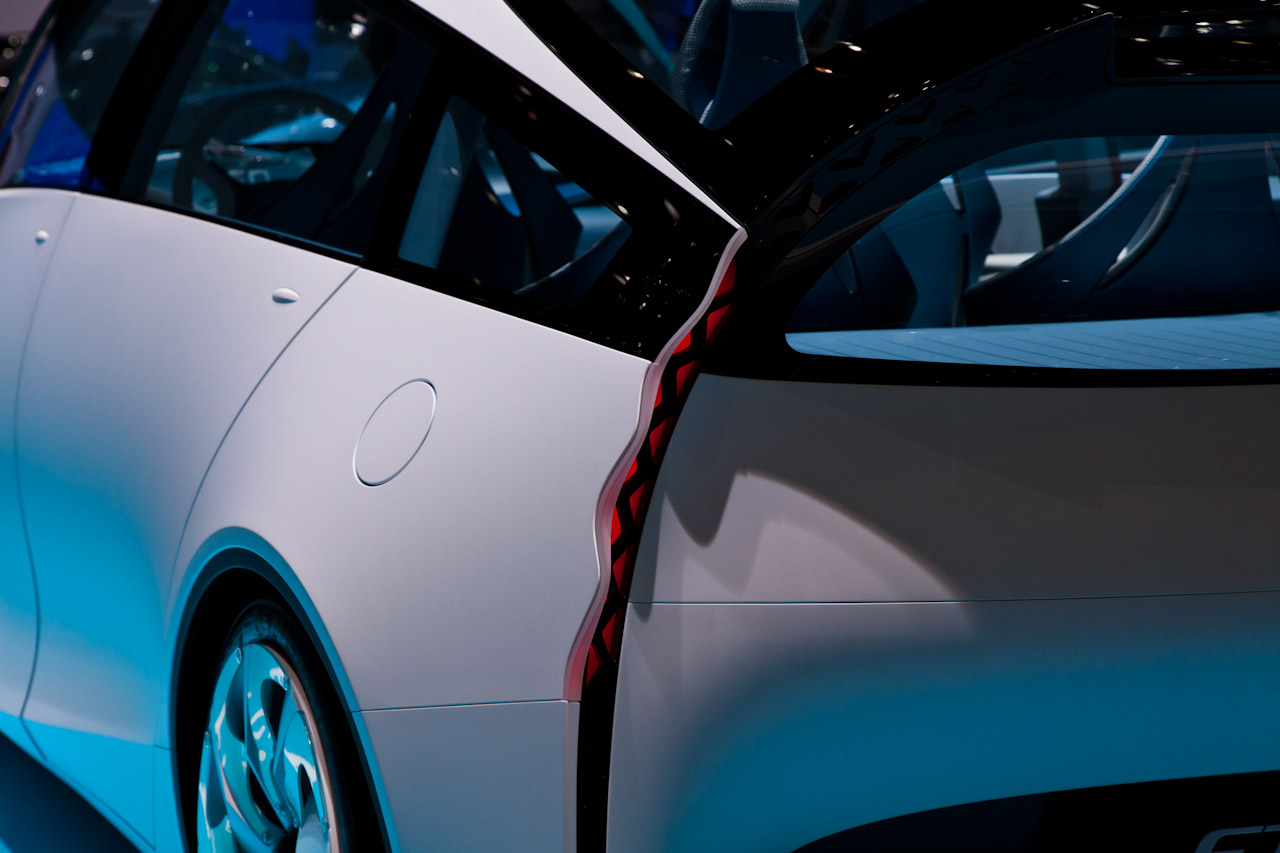

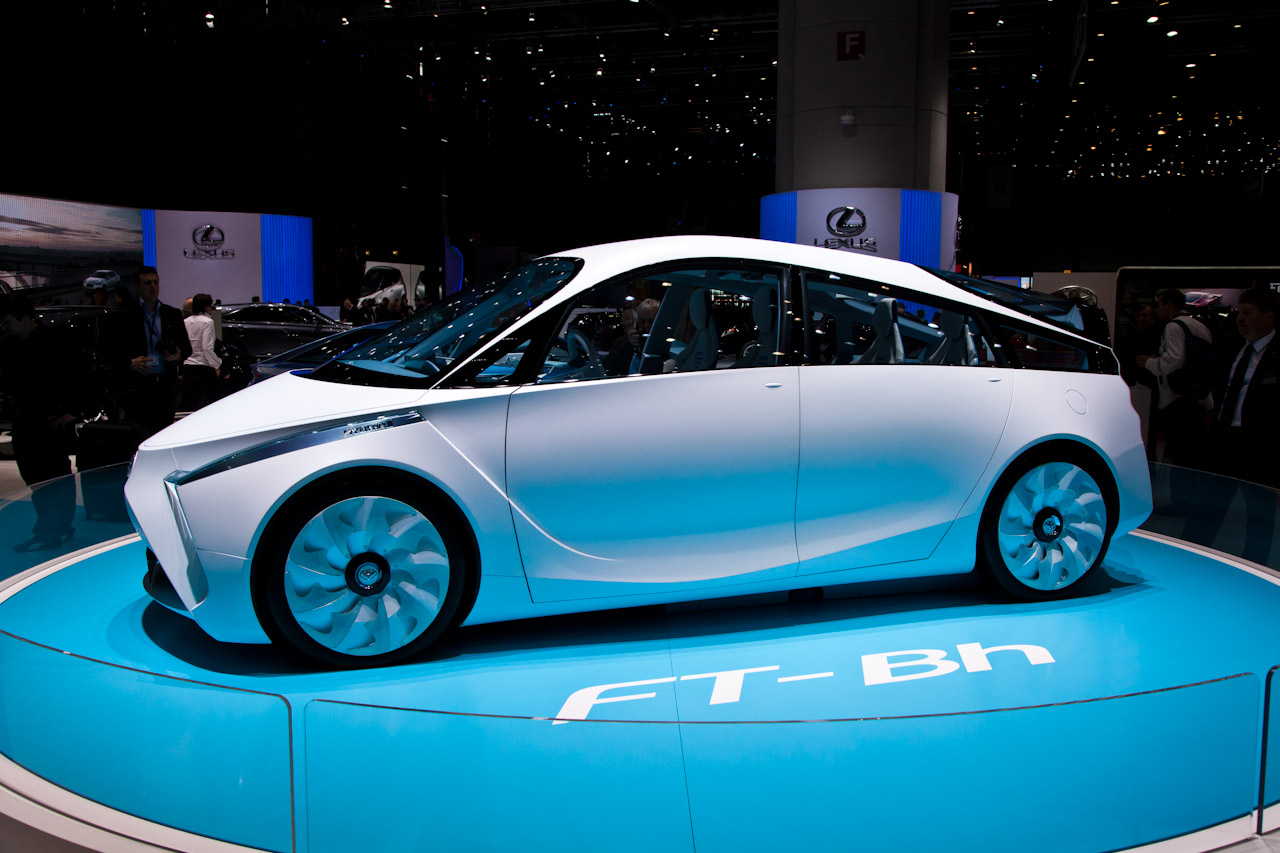

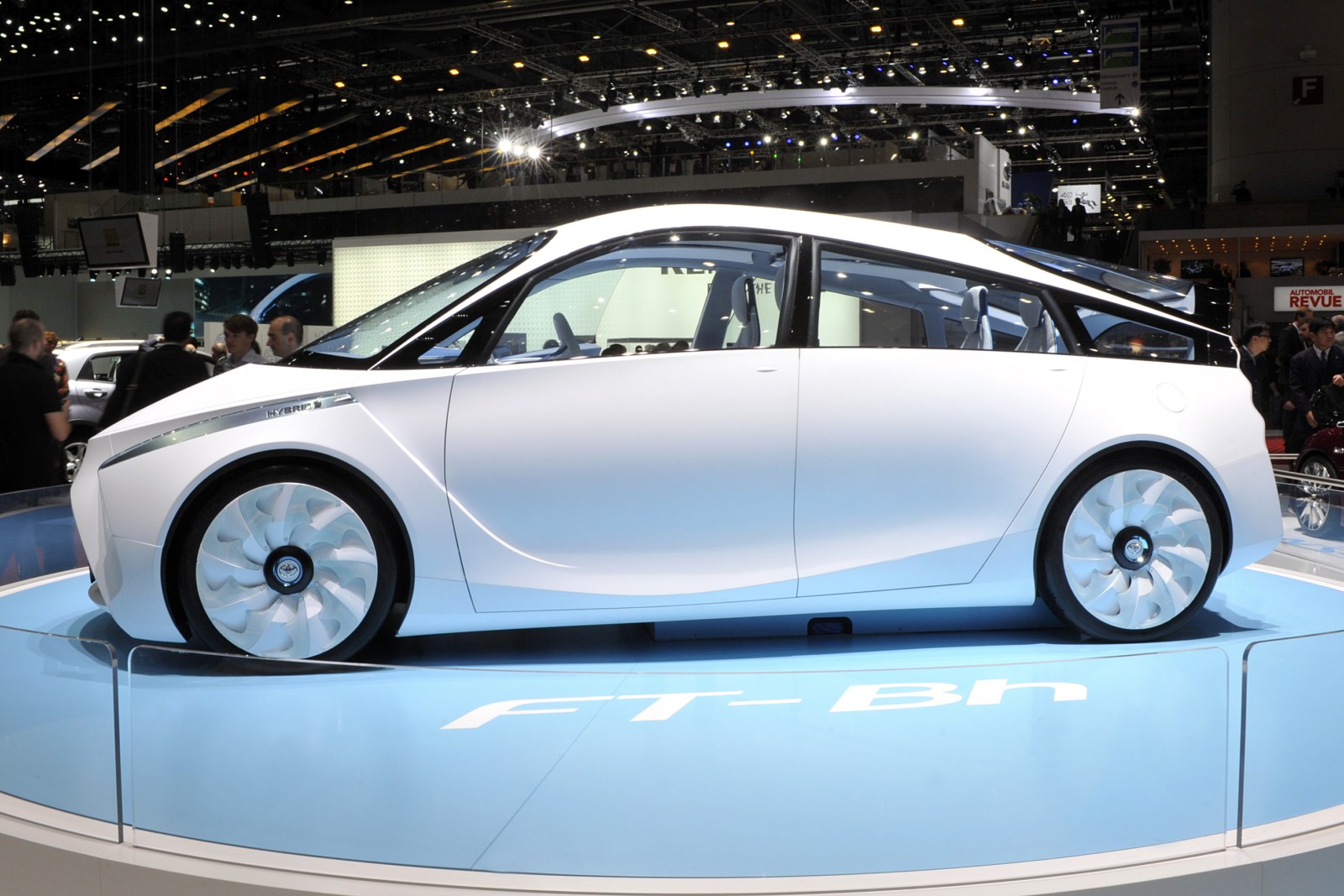

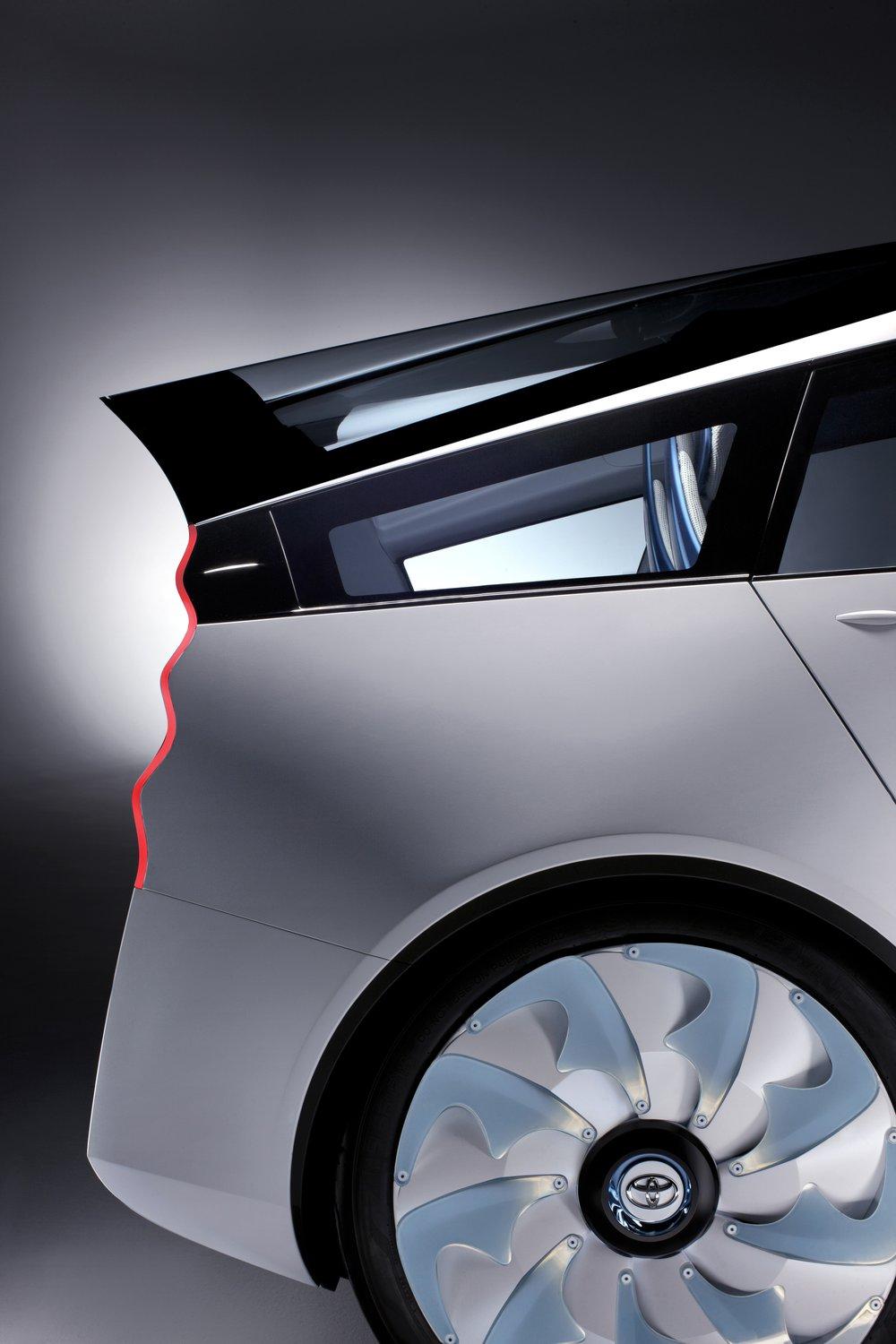

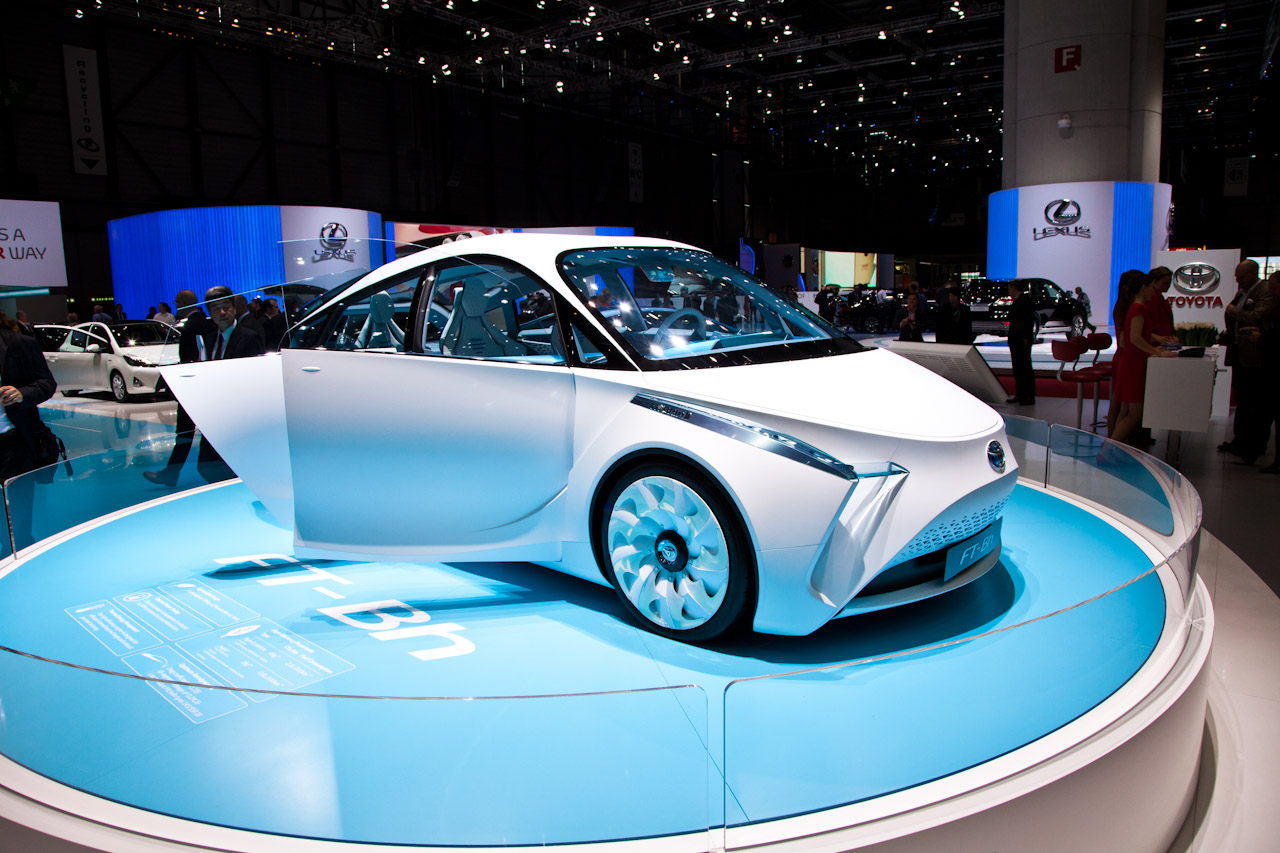

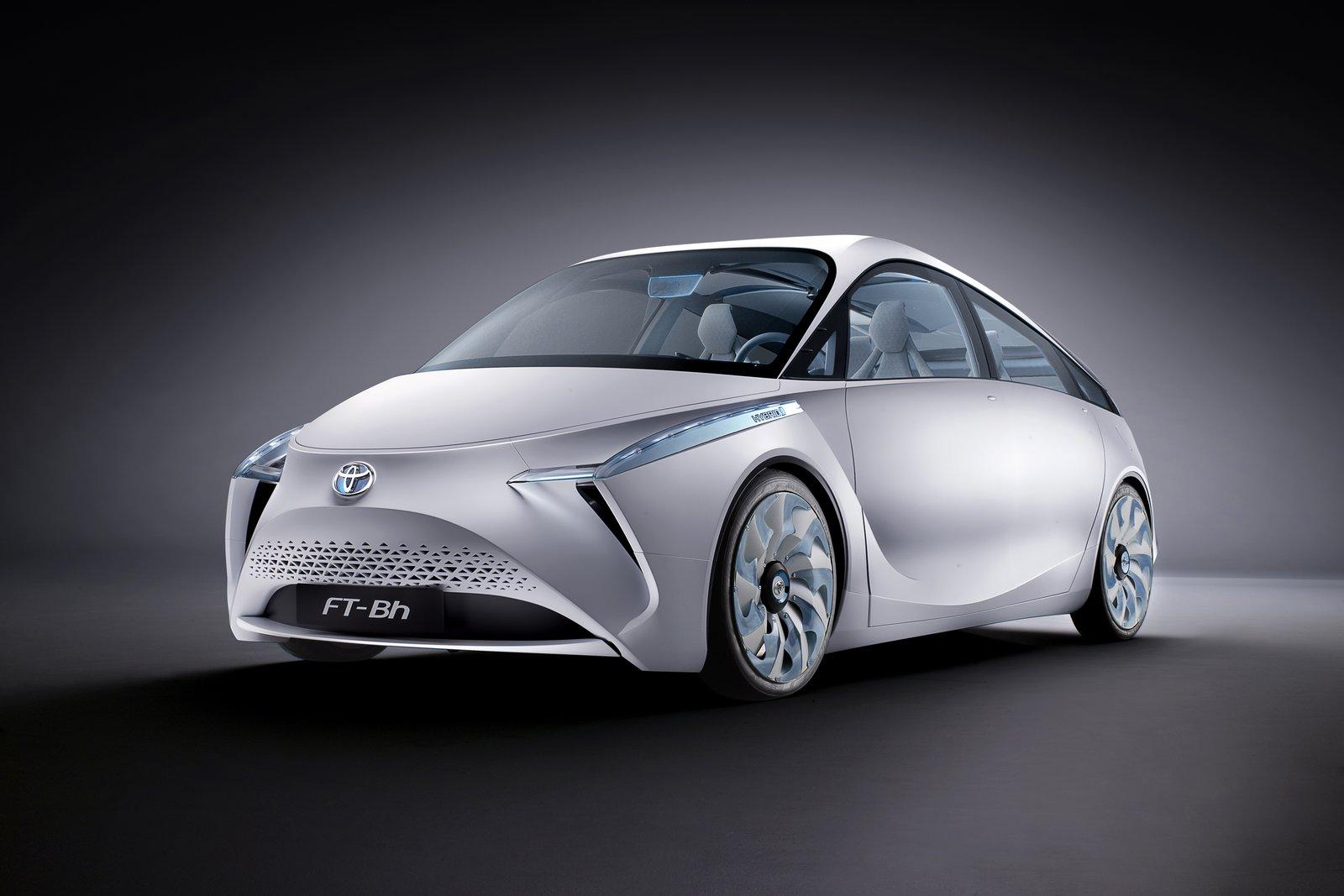

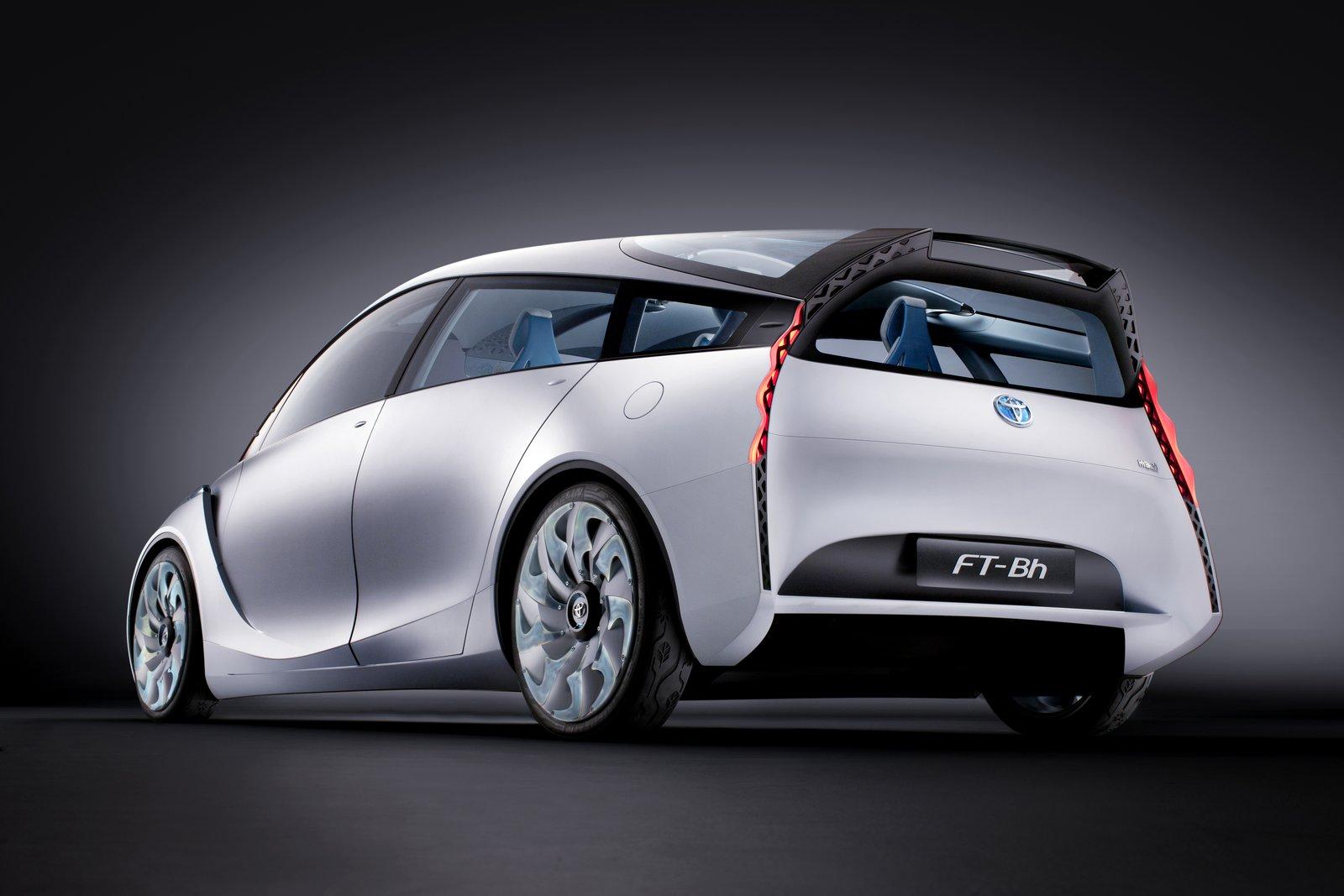

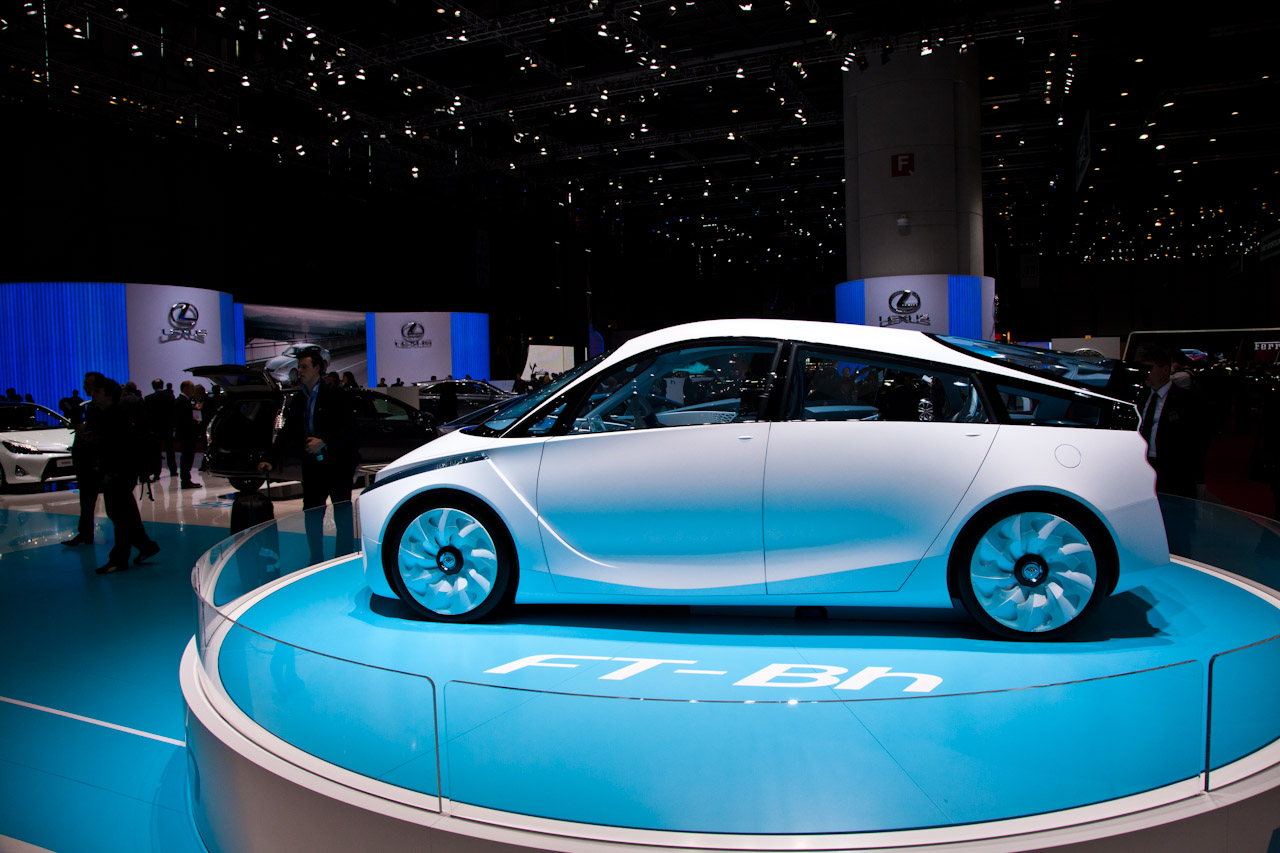

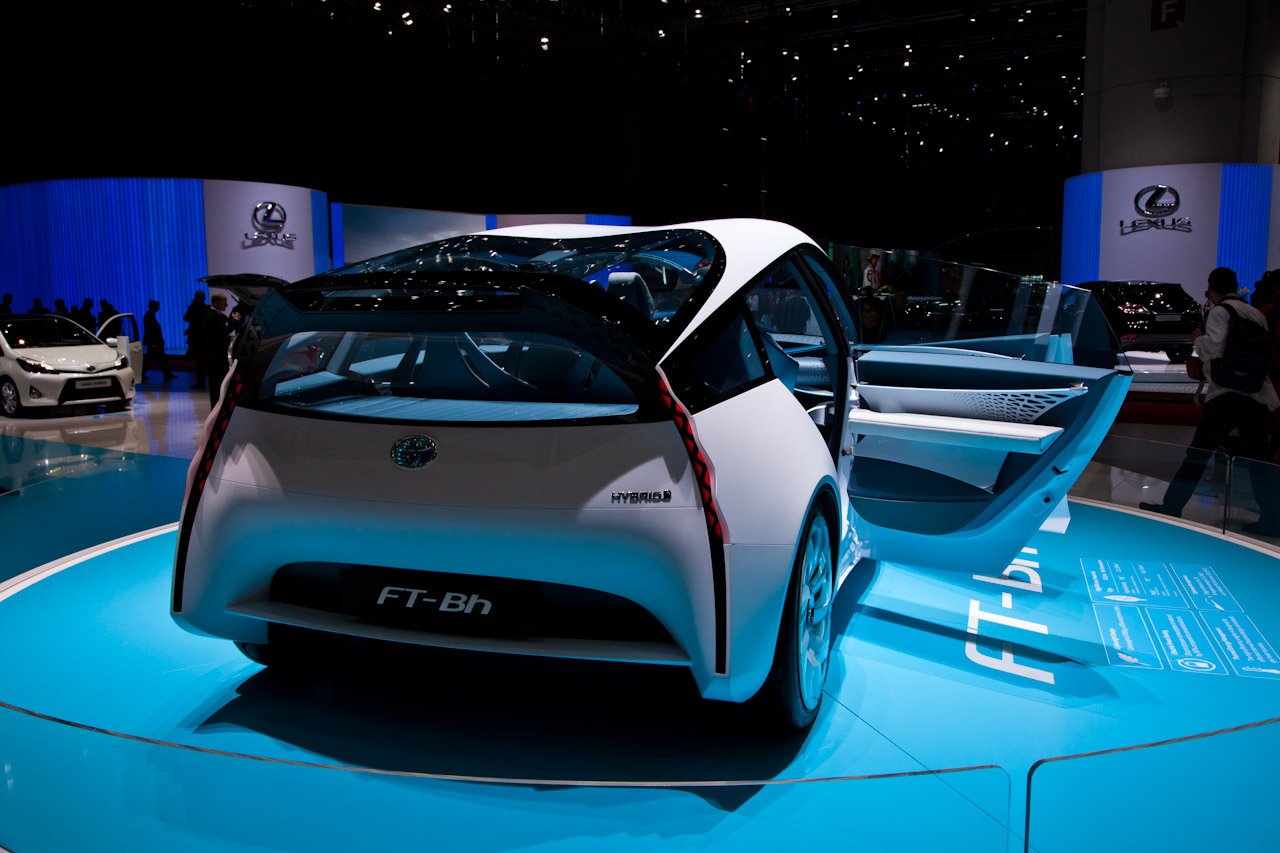

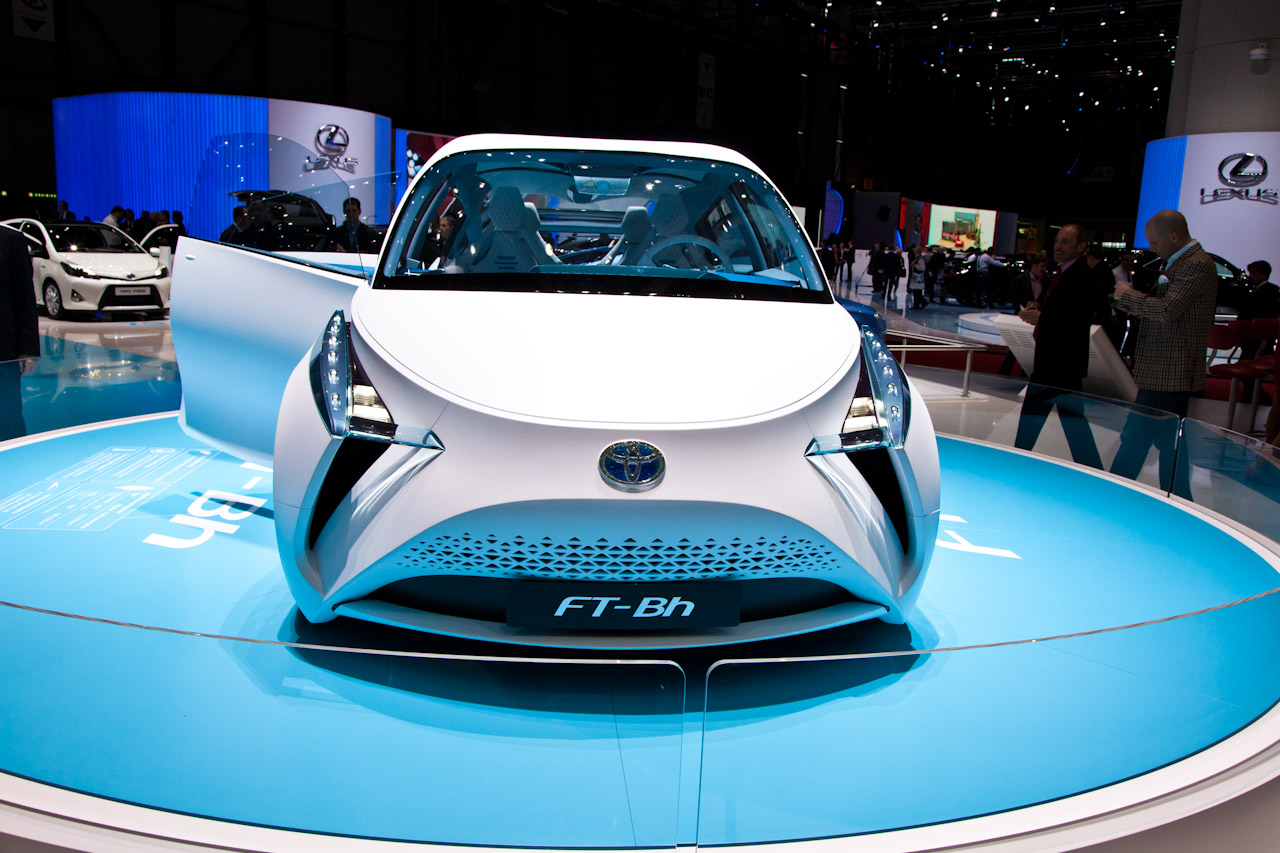

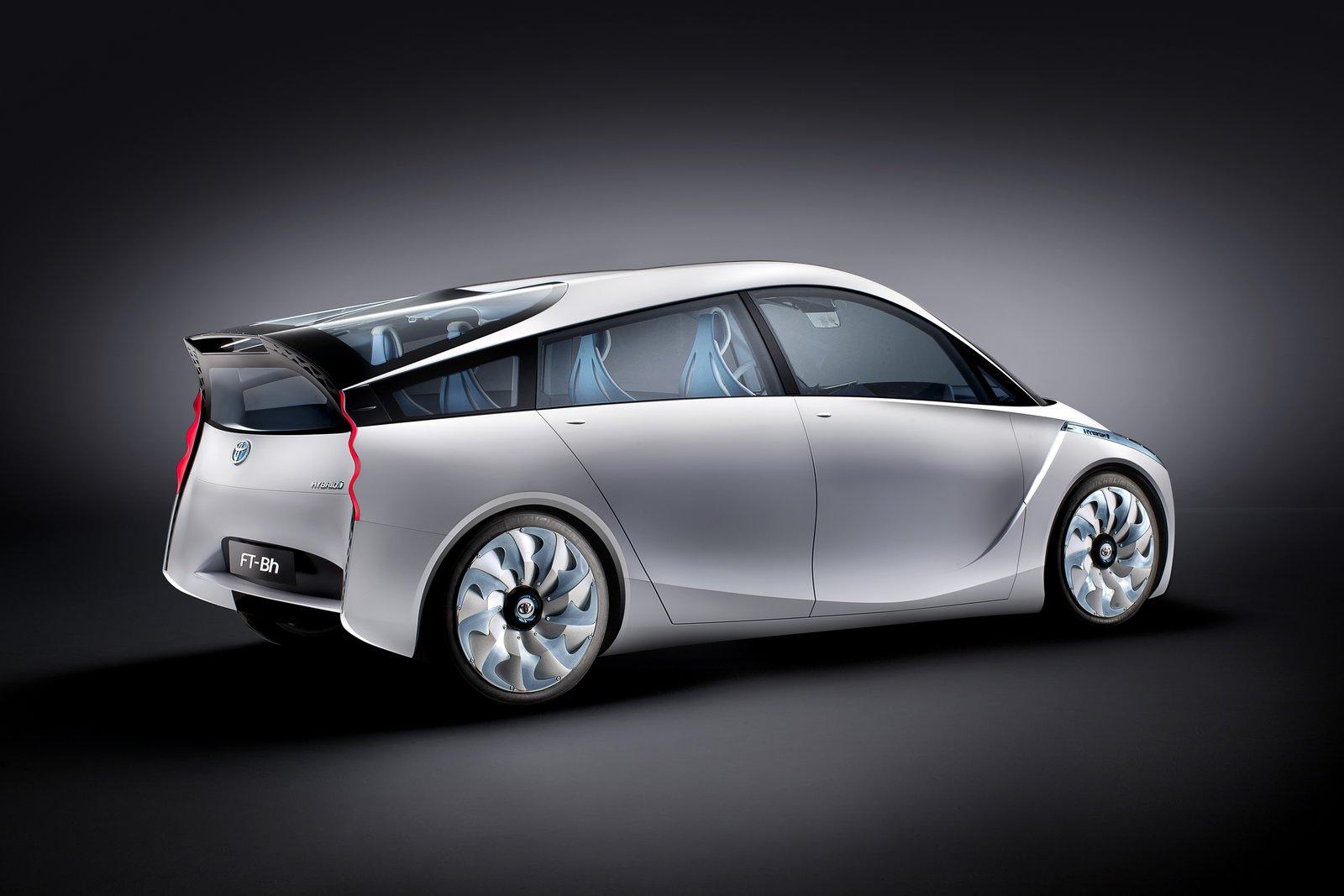

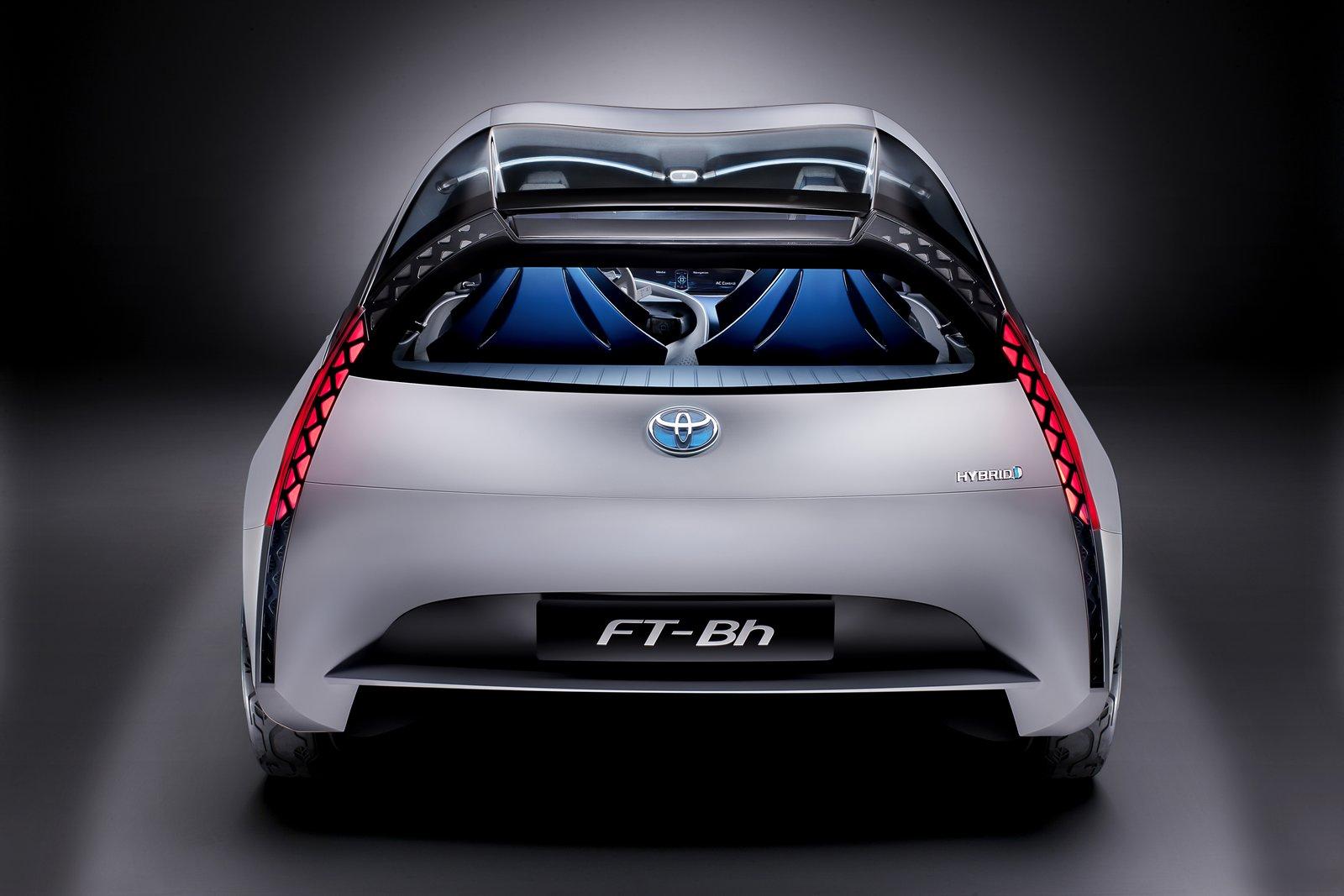

  The form of the FT-Bh pursues aerodynamic performance.  The bullet-shaped body features sleek, tapered proportions achieved by merging the long roof seamlessly with the protruding windshield, along with narrow pillars that maintain high visibility.Inheriting elements of Toyota’s next-generation “Keen Look”5 styling, the vehicle’s front features vertical lamps integrated into the fenders and a large lower grille that has both streamlining and cooling effects.  The tapered rear body and slightly concaved rear-end further reduce air resistance.
• Interior

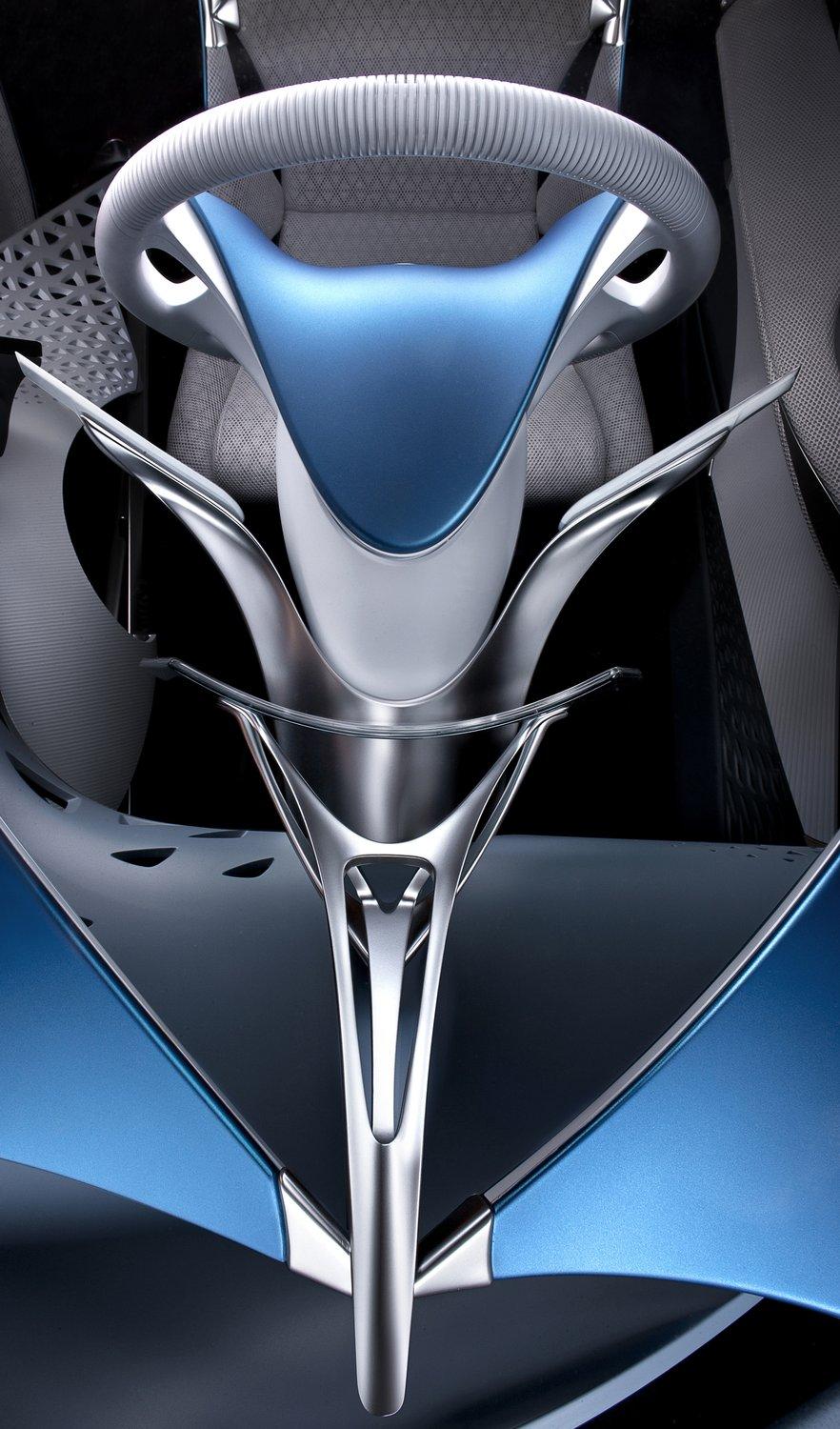

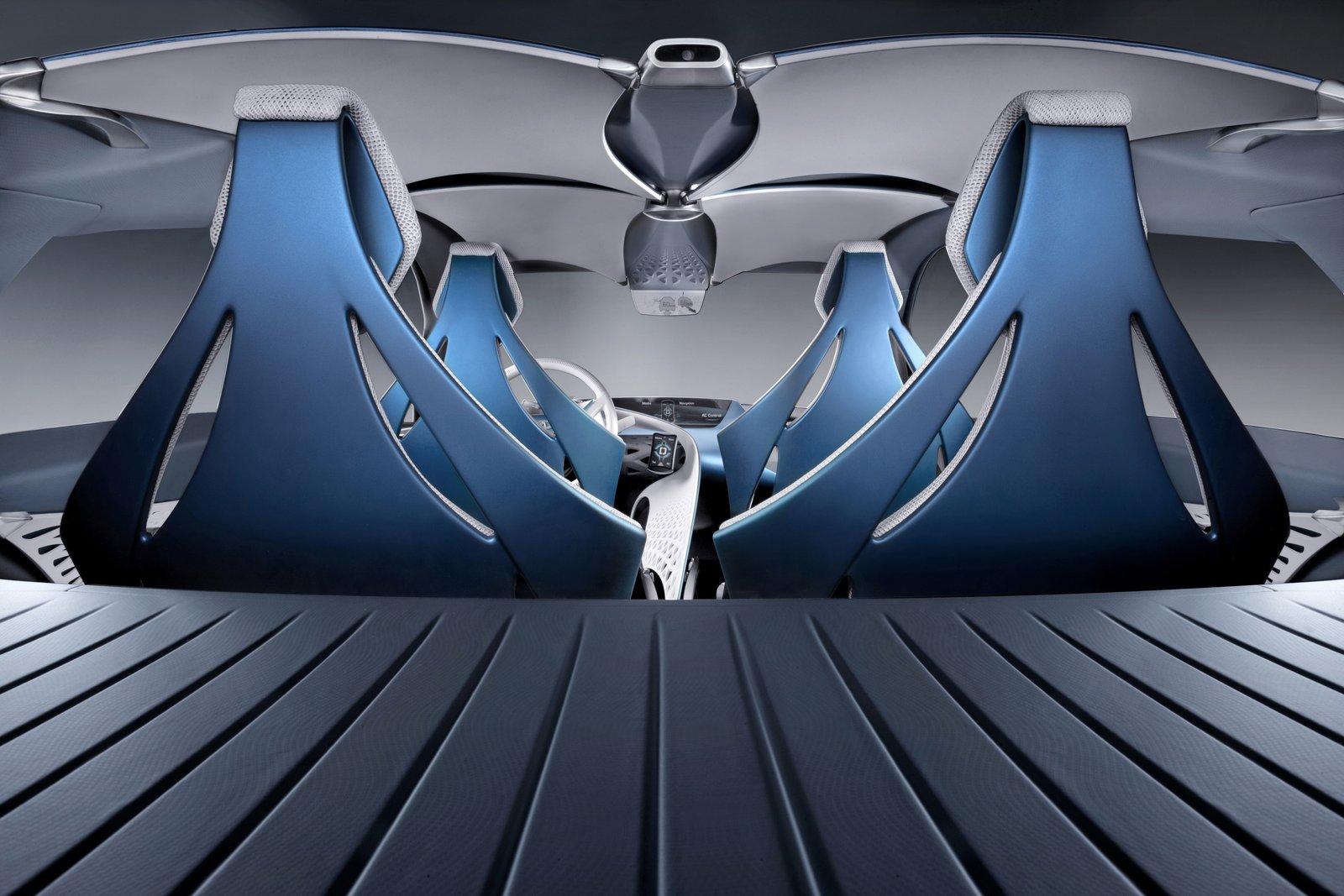

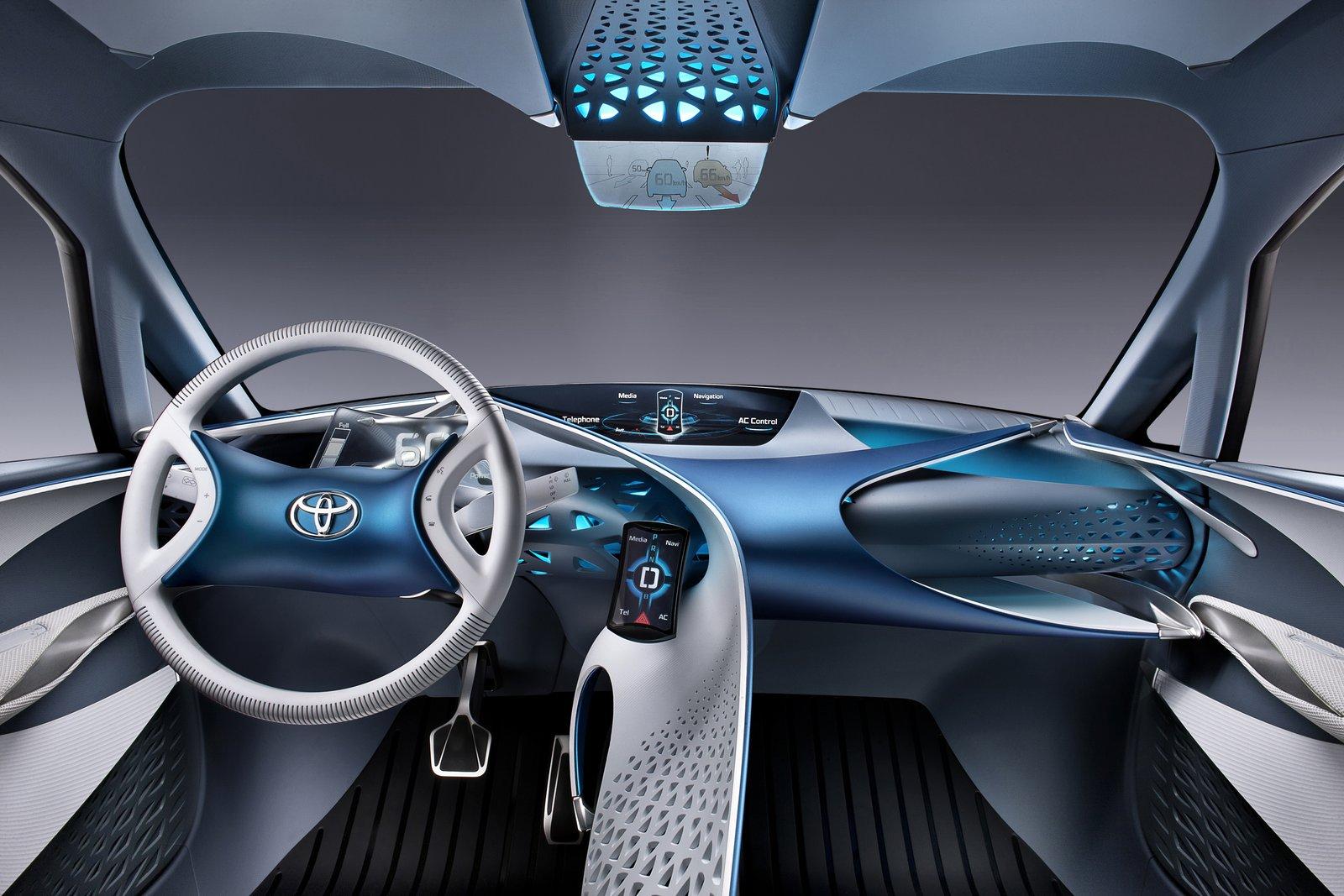

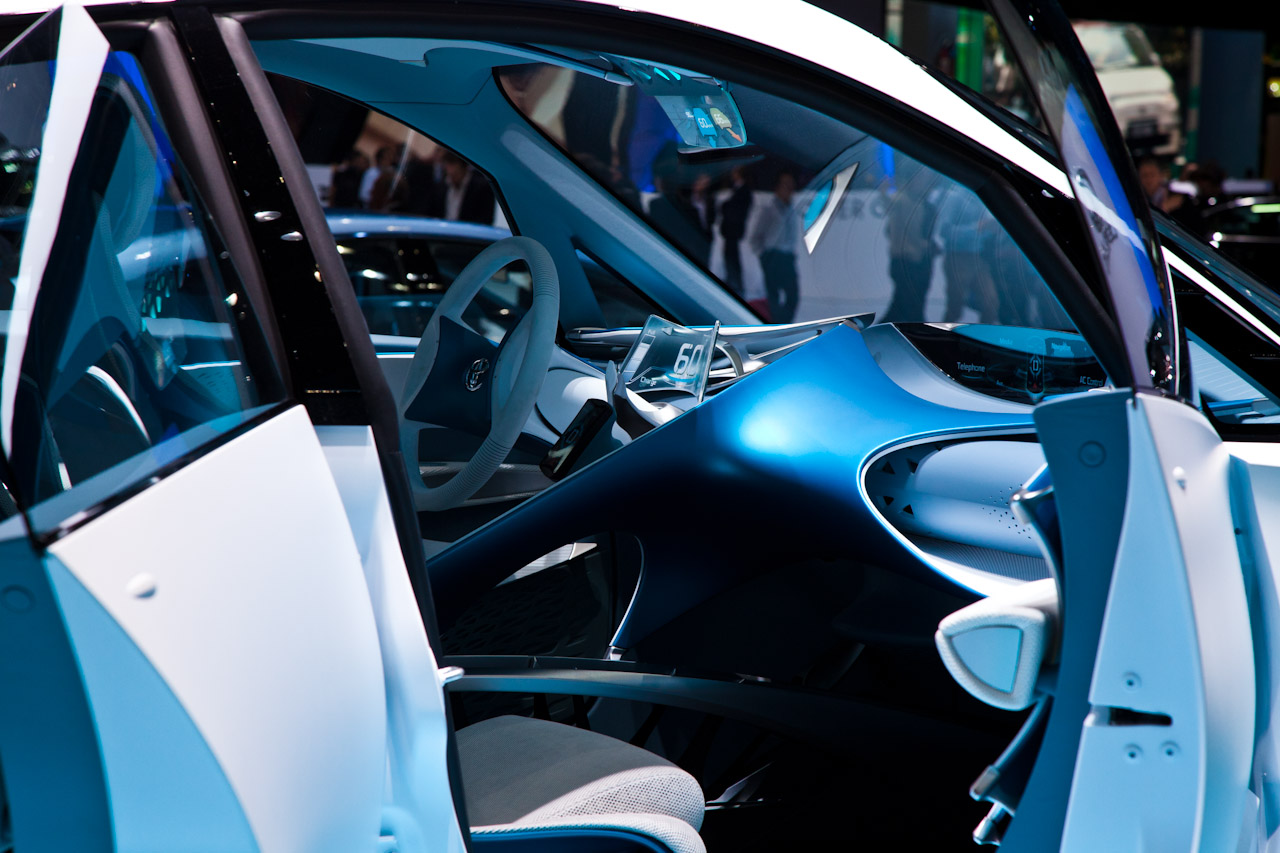

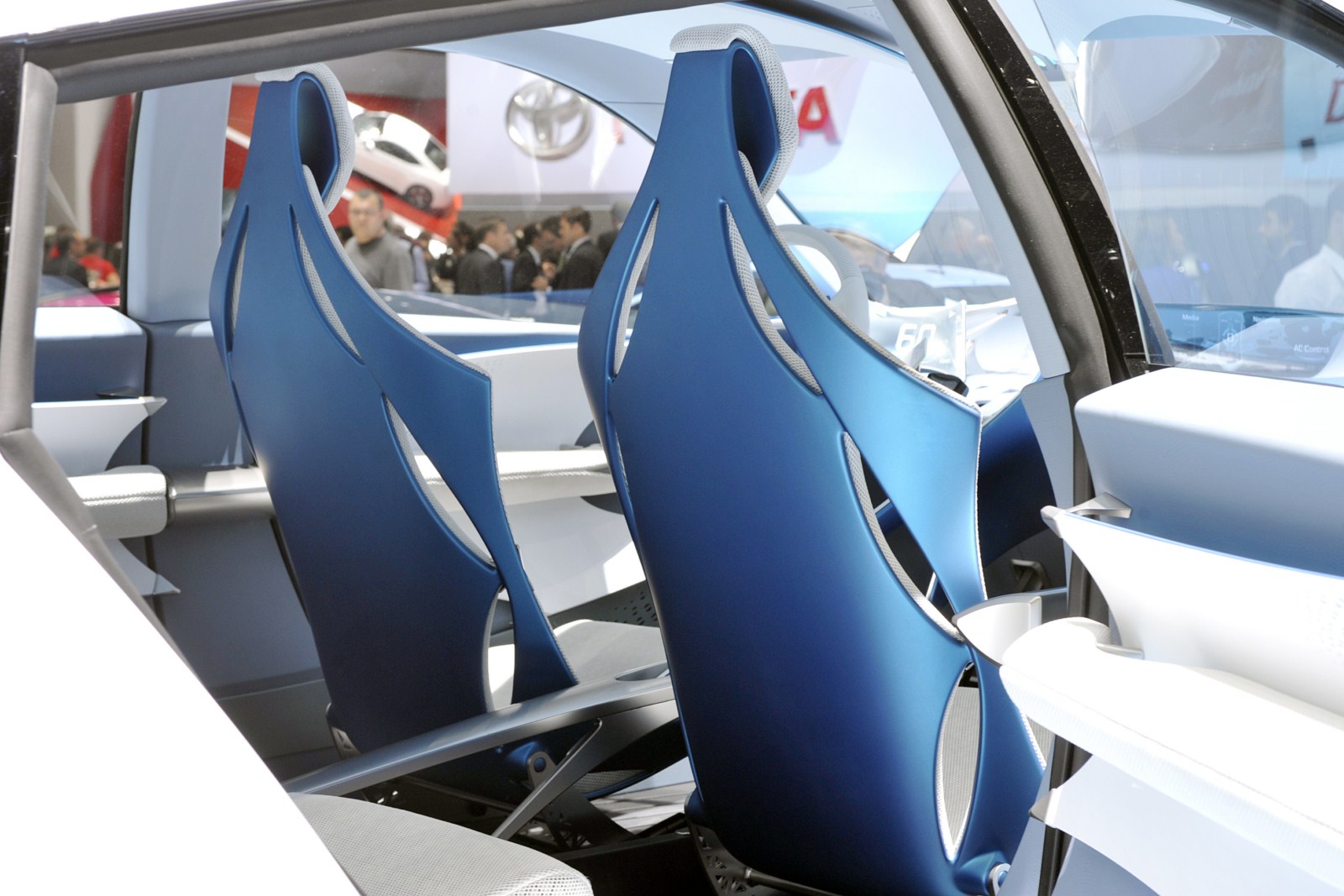

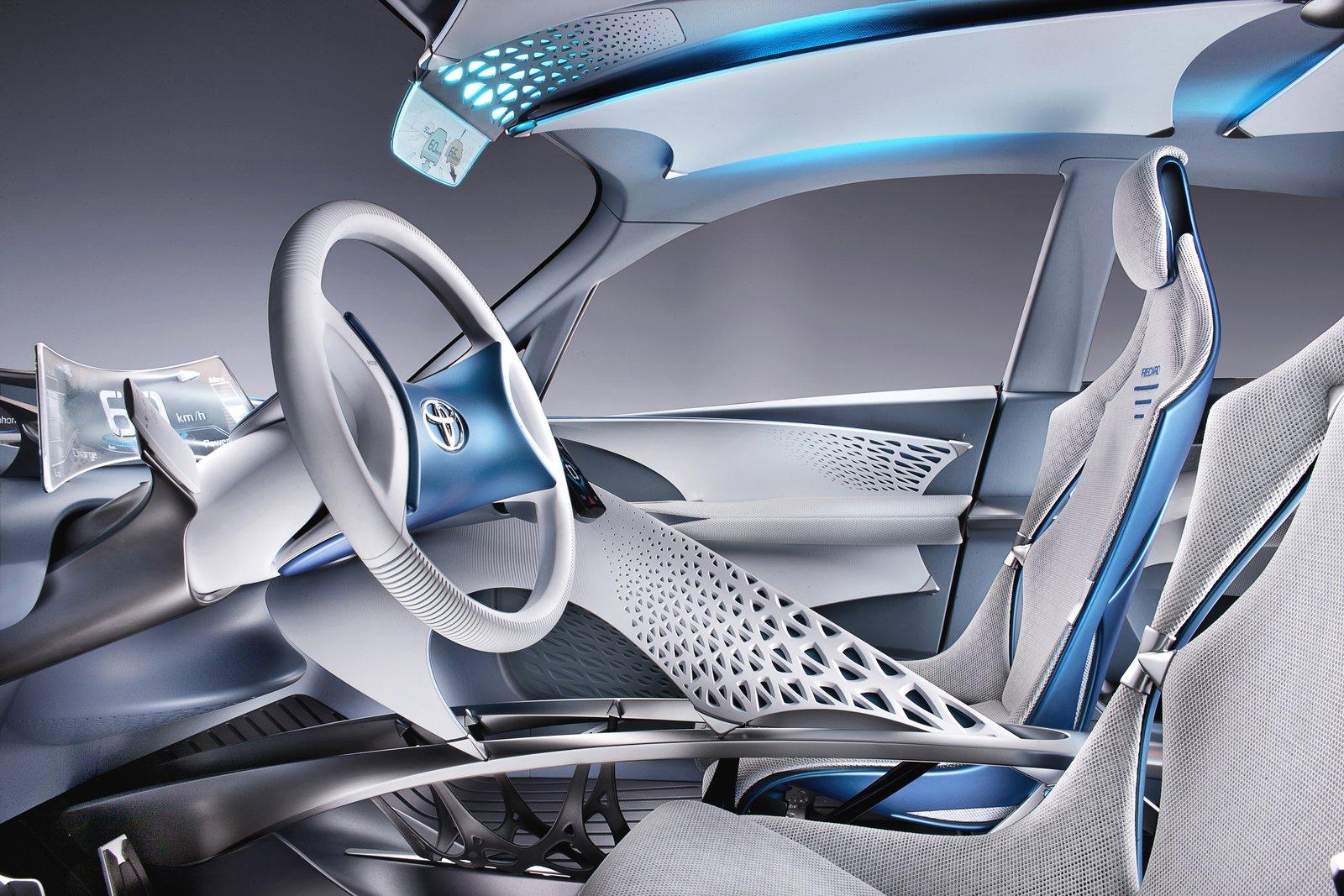

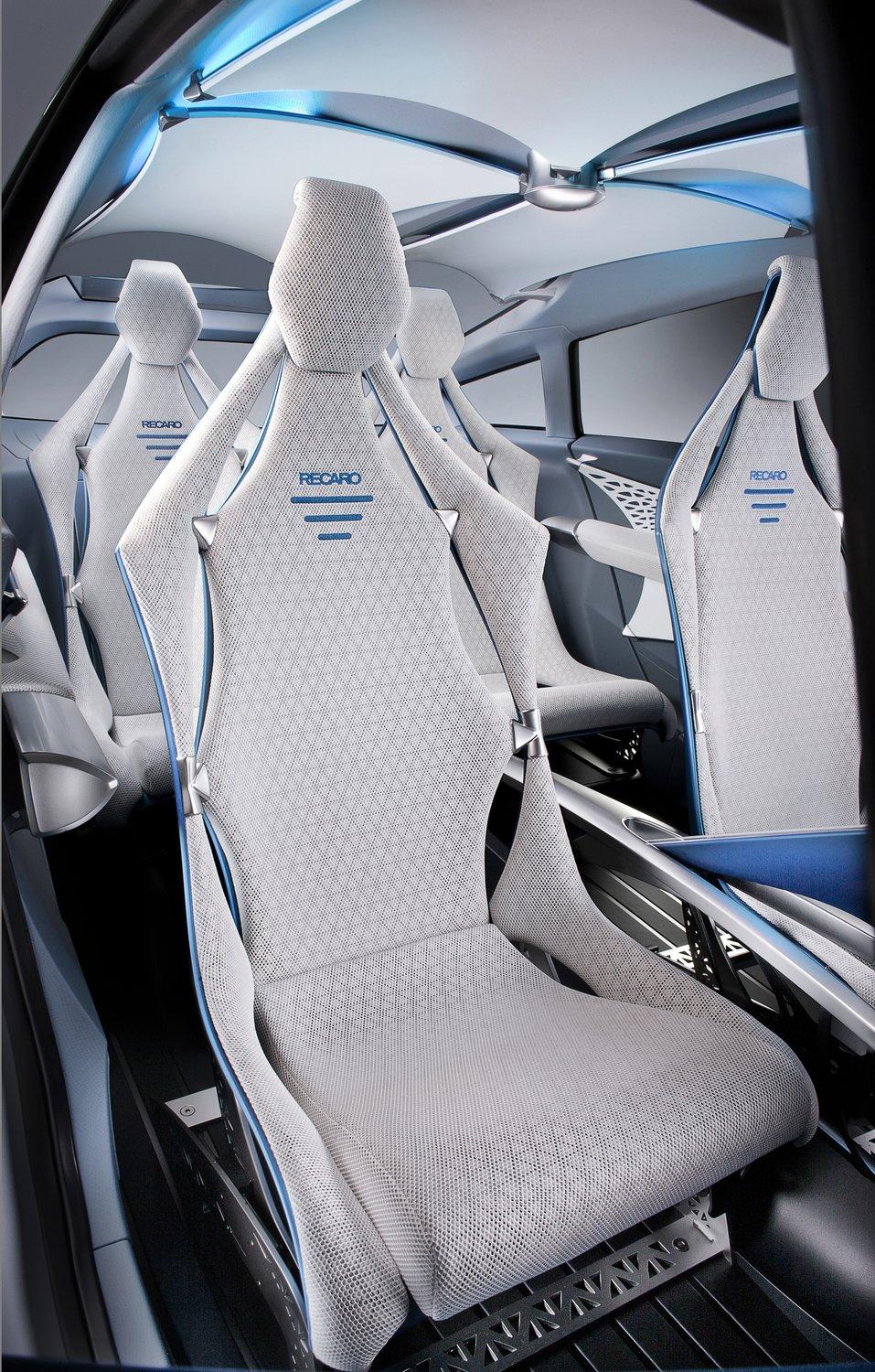

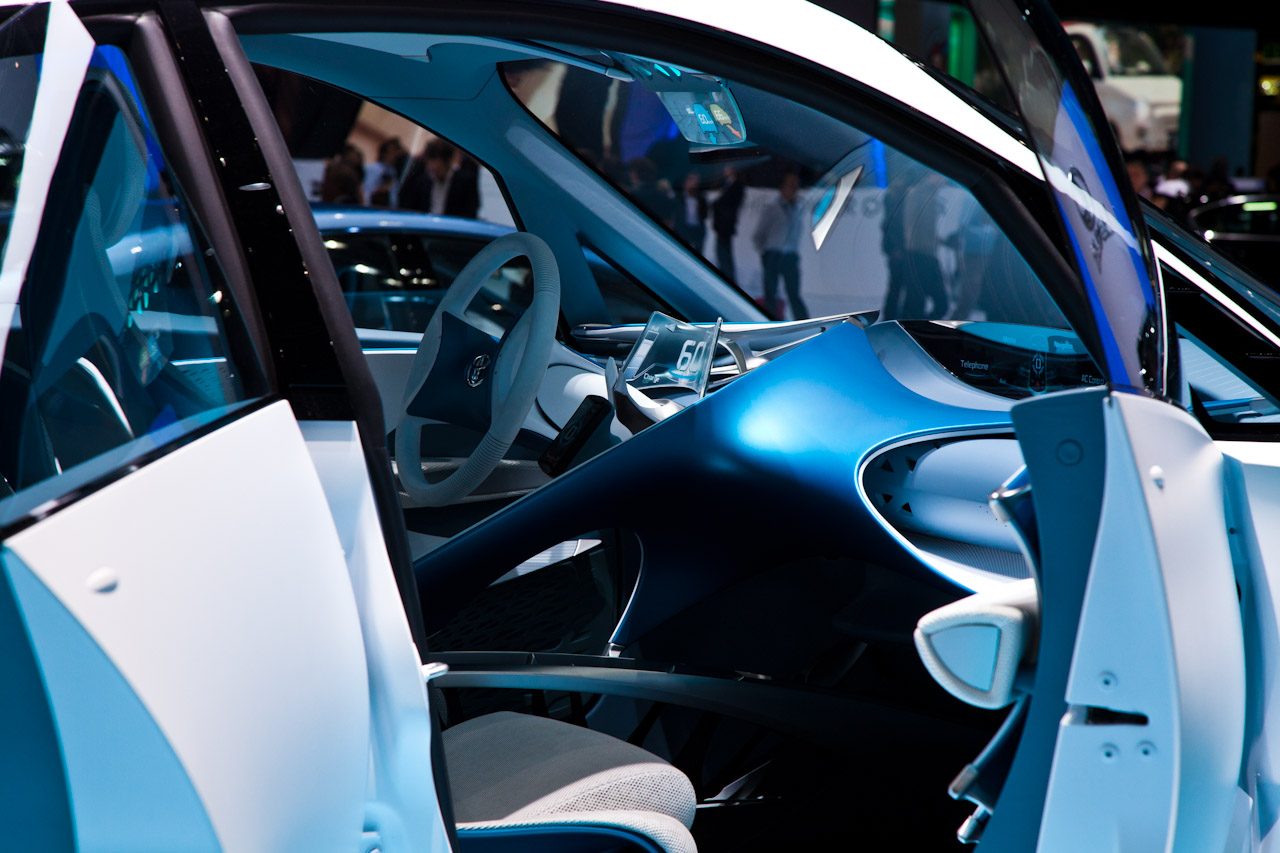

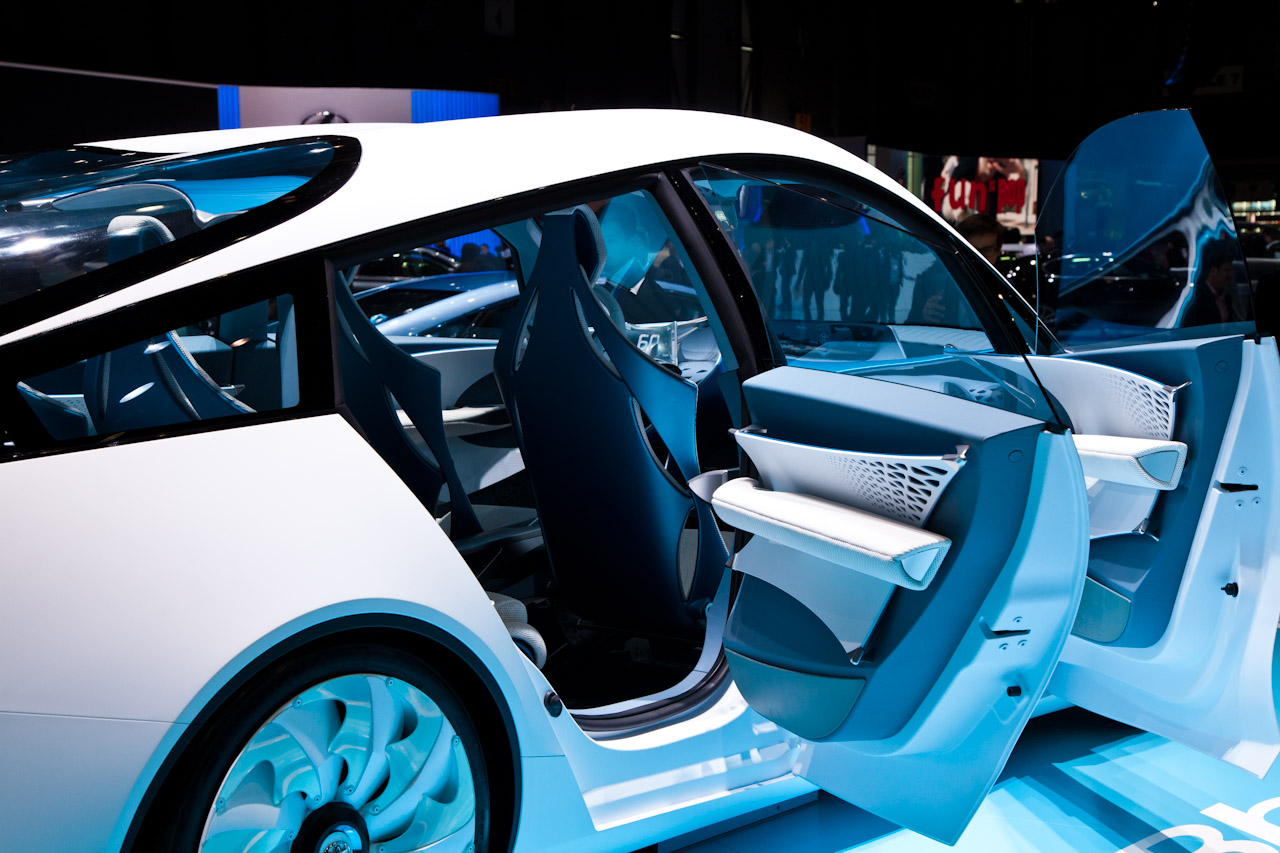

  The interior design concept features air zoning as well as an emotionally expressive design produced through the “tensional force” of tautly stretched fabric.Interior upholstery makes use of light and breathable materials, contributing to effective interior temperature management.  The ultra-thin shell seats bring a more comfortable ride along with more rear legroom.Safety-enhancement features include a center display located deep in the dashboard that shows rear views from three body-mounted cameras, and a rear-view mirror with an ambient superimposed display6 that provides information and warnings concerning vehicles reflected in the mirror and also other driver-targeted information.

FT-Bh Main Specifications

In addition to the FT-Bh world premiere, the Toyota booth at the Geneva Motor Show features four vehicles in their European premiere: the next-generation four-door “Toyota NS4” concept, the “FCV-R” next-generation fuel-cell hybrid sedan concept, the “Toyota diji” mobile-information-hub concept, and the rear-wheel-drive compact sports car “GT 86”. Also on display are vehicles soon to be launched in the European market, including the “Yaris Hybrid” and “Prius Plug-in Hybrid”.

1 Derived from “Future Toyota B-segment Hybrid”
2 Press days: March 6 and 7; public days: March 8 to 18
3 Vehicle weight excluding additional weight such as cargo and passengers
4 The amount of heat necessary to raise the temperature of an object by 1°C
5 Toyota’s new way of thinking for front-end design, which three-dimensionally emphasizes the brand emblem while the inverted-“U” shape open bumper combines with the lower grille to create a keen, sharp look
6Based on images obtained from the vehicle’s externally mounted cameras of such objects as nearby vehicles, facilities and road signs, essential information can be provided to the driver in an easy-to-understand manner

[/learn_more]
