H Volkswagen έδωσε στη δημοσιότητα αναλυτικές λεπτομέρειες σχετικά με το Golf blue-e-motion το οποίο θα βγει στην παραγωγή το 2014. Το άκρως πετυχημένο μικρομεσαίο αυτοκίνητο της VW, θα γίνει ηλεκτρικό και θα φορά έναν ηλεκτροκινητήρα μέγιστης ισχύς 85 kW (115 ίππων) με 27 κιλά ροπής. Ο κινητήρας θα παράγει συνεχόμενα 50 kW (69 άλογα), θα είναι διαθέσιμος μόνο στην 5θυρη έκδοση με την κίνηση να μεταφέρεται αποκλειστικά στους εμπρός τροχούς.

Οι μπαταρίες ιόντων λιθίου είναι χωρητικότητας 26.5 kWh και δίνουν αυτονομία 150 χλμ, αν και η VW αναφέρει ότι στην έκδοση παραγωγής, η αυτονομία θα έχει αυξηθεί ακόμη περισσότερο. Η μέγιστη ταχύτητα αγγίζει τα 135 χλμ/ώρα και τα 0-100 χλμ/ώρα έρχονται σε 11.8 δευτερόλεπτα. Η φόρτιση του γίνεται είτε μέσω οικιακής πρίζας είτε ταχυφορτιστή αλλά η VW δεν έδωσε λεπτομέρειες σχετικά με τον χρόνο φόρτισης.

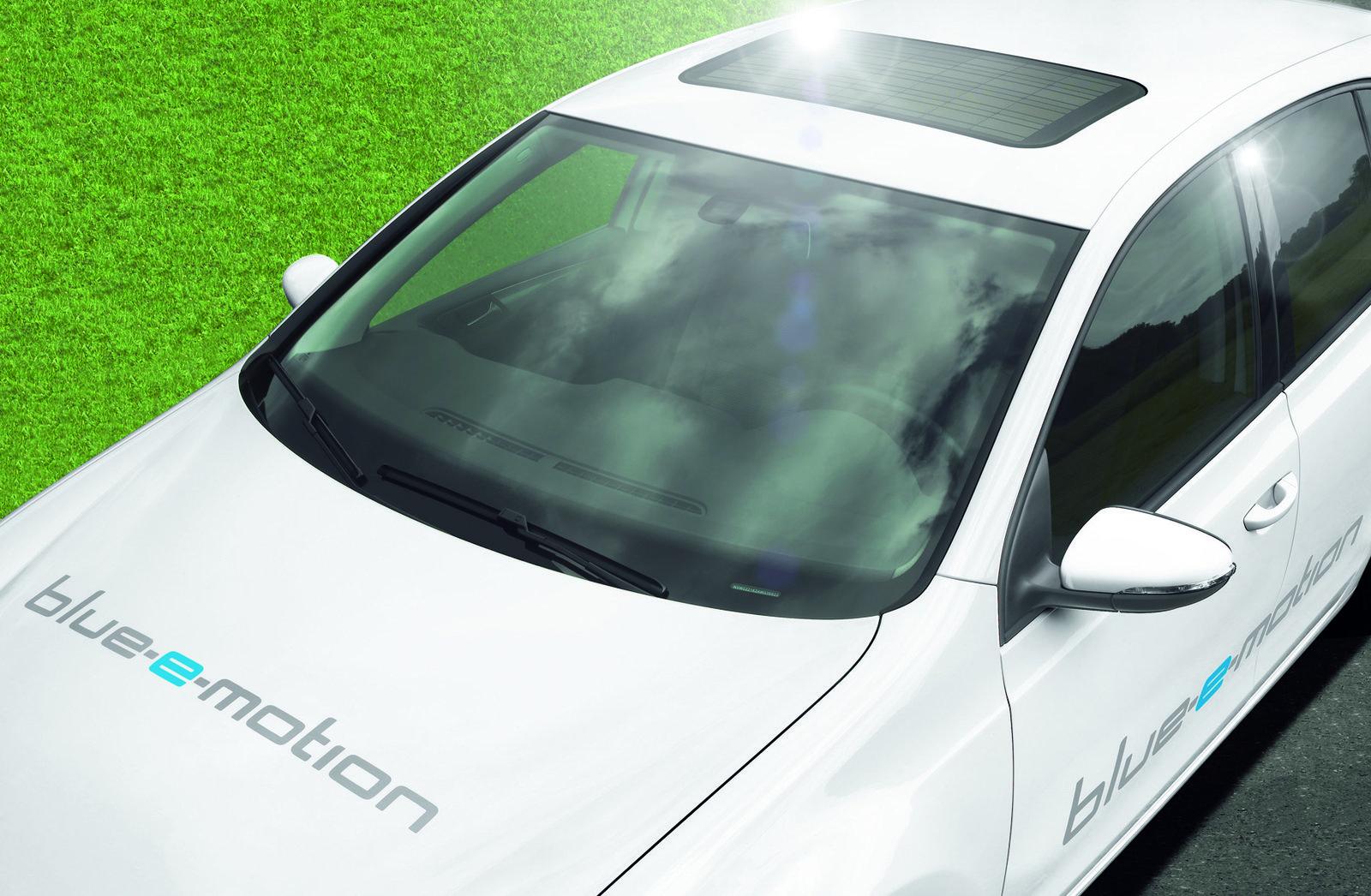

Στο εσωτερικό, υπάρχει νέος πίνακας οργάνων με το στροφόμετρο να έχει αντικατασταθεί από ένα όργανο ένδειξης kW το οποίο θα βοηθά τον οδηγό να κρατά όσο γίνεται χαμηλότερα τα kilowatt ώστε να αυξηθεί η αυτονομία του, ενώ η οροφή έχει φωτοβολταϊκά στοιχεία τα οποία φορτίζουν τις μπαταρίες

Η VW εφοδίασε επίσης το ηλεκτρικό Golf με ένα σύστημα ανάκτησης ενέργειας στο οποίο ο οδηγός μπορεί να ρυθμίζει το κατά πόσο το Golf blue-e-motion θα ανακτά ενέργεια κατά το φρενάρισμα. Υπάρχουν 4 επιλογές πάνω στον επιλογέα ταχυτήτων (D έως D3), με την πρώτη επιλογή D να επιτρέπει το αυτοκίνητο να κυλά κανονικά όταν ο οδηγός αφήσει το πόδι του από πεντάλ του γκαζιού μαζεύοντας λιγότερη ενέργεια, ενώ η D3 φρενάρει το αυτοκίνητο και συσσωρεύει όσο περισσότερη ενέργεια μπορεί.

Το Golf blue-e-motion έχει τρία προγράμματα οδήγησης, Normal, Comfort+ and Range+, τα οποία ενεργοποιούνται από το κουμπί που βρίσκεται μπροστά από τον επιλογέα του αυτόματου κιβωτίου.

[Πηγή: Volkswagen]

Δελτίο Τύπου

Golf blue-e-motion – Timeline in the framework of the Electro-Mobility Workshop

Key Aspects

Extreme torque, zero emissions: the Golf blue-e-motion

Zero-emissions Golf blue-e-motion to arrive on the market in 2014 Golf blue-e-motion to be driven by E-motor with maximum power of 85 kW

Wolfsburg, November 2010. With the Golf blue-e-motion – the purely electrically powered version of the most successful European car ever built – Volkswagen is forging new ties to the era of electric mobility. The five-door and five-seat version of the concept car is silently driven by an electric motor integrated in the front engine compartment with a maximum power of 85 kW / 115 PS and a continuous power output of 50 kW / 69 PS. Like all electric motors, the one in the Golf also delivers a very high maximum torque from a stop (270 Newton-metres). The result: more fun in zero-emissions driving. The electricity for powering the electric motor is stored in a lithium-ion battery with an energy capacity of 26.5 kilowatt-hours.

Today, using a lithium-ion battery, driving ranges of up to 150 kilometres can be realised in the front-wheel drive Golf blue-e-motion; the specific range depends on driving style and other factors (such as use of the air conditioning and heating system). At the car’s production launch, Volkswagen will announce final driving range data of the production version, which is expected to be significantly improved with the battery technology used then. In many locales, the needs of commuters are already met by a distance of 150 kilometres. Take Germany for example: According to the German Federal Statistical Office, 6 of every 10 people in the workforce commute by car – on average 45.8 percent drive less than 10 kilometres (one-way commute), another 28.1 percent between 10 and 25 kilometres and 16.2 percent over 25 kilometres. The Golf blue-e-motion can also handle the driving ranges typically covered by many service providers. In short-distance driving, the zero-emissions Golf represents a sustainable solution for private users as well.

Energy-conscious driving with impressive performance

More noticeably than on today’s modern petrol or diesel engines, the maximum range of an electric car is severely reduced when its maximum power is demanded frequently. Therefore, the 135 km/h fast and very aerodynamic Golf blue-e-motion (Cd value: 0.295) provides ample power reserves to move the car swiftly while consuming less energy, and it can even coast or “sail” as it is called in the professional jargon. “Sailing” occurs whenever the driver – adopting an anticipatory style of driving – releases the gas pedal, or rather the electric pedal. The motor is then controlled to the zero-torque curve so that the car can coast with the least possible drag. In this mode of driving, the Golf blue-e-motion even recovers kinetically generated energy by battery regeneration. The end result is that the zero-emissions Golf has enough performance potential to quickly execute manoeuvres such as passing. An index of the car’s very good dynamic qualities is its time for the sprint from 0 to 100 km/h: 11.8 seconds.

Lithium-ion battery

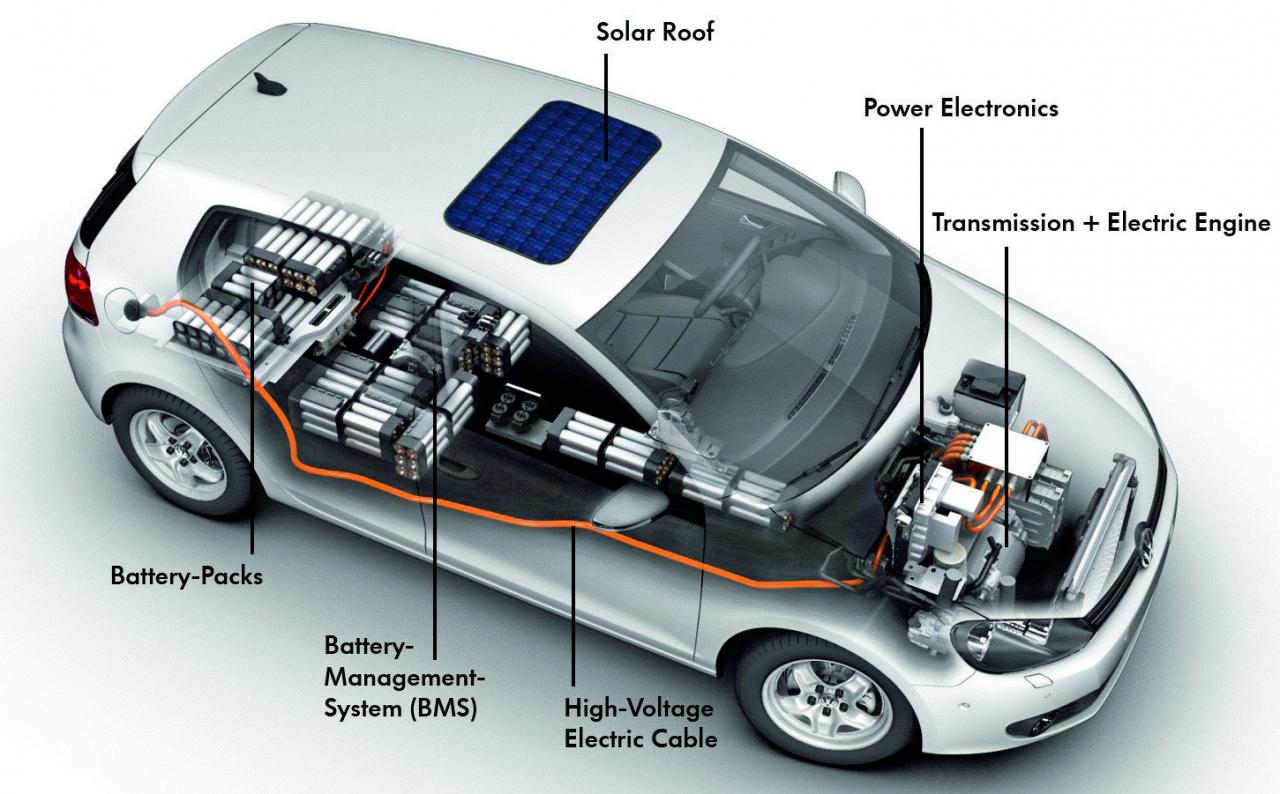

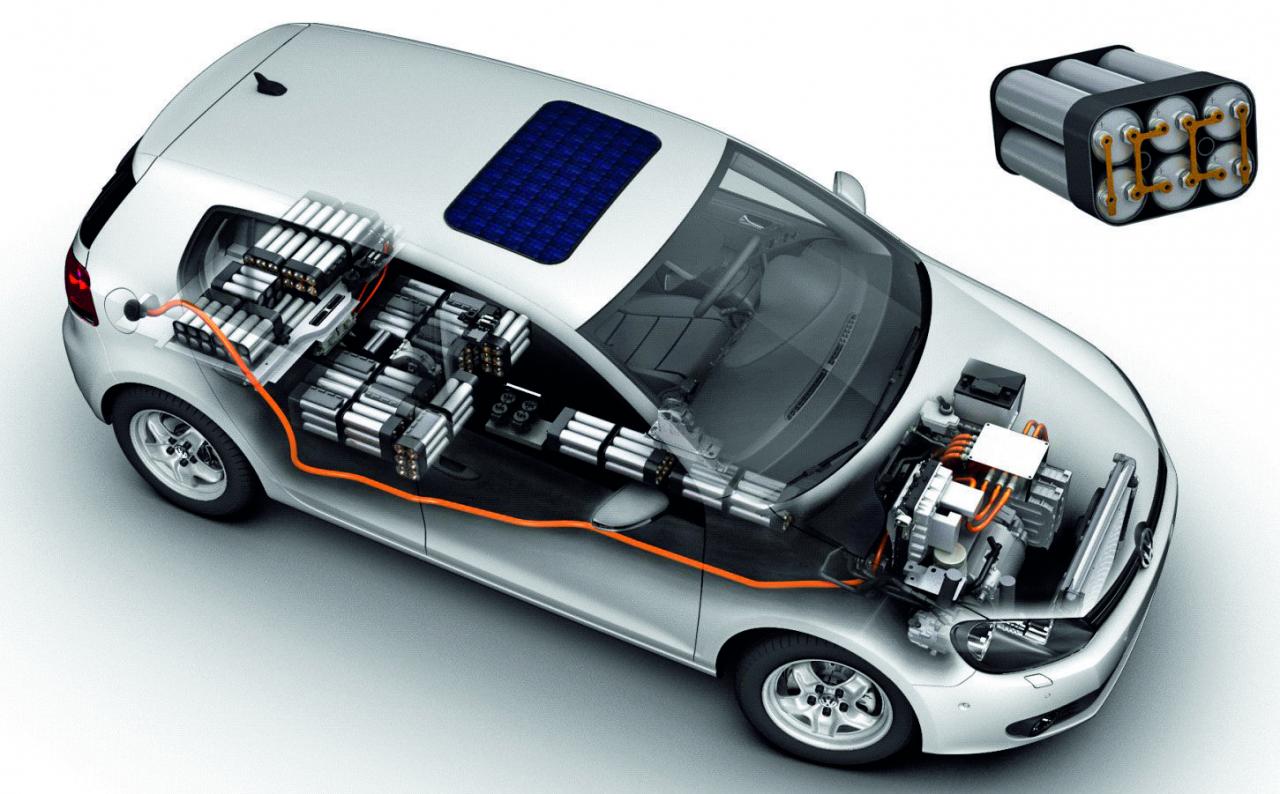

The concept car’s 30 battery modules – consisting of 180 lithium-ion cells (energy capacity: 26.5 kWh) – were installed in spaces adapted to the vehicle architecture. They can be found in the floor of the bootspace (fully usable cargo capacity: 275 litres), under the rear bench seat and in the center tunnel of the underbody (between the front seats). A separate air cooling system ensures a constant thermal environment in the battery compartment. The battery modules weigh a total of 315 kilograms.

Instruments tailored to electric driving

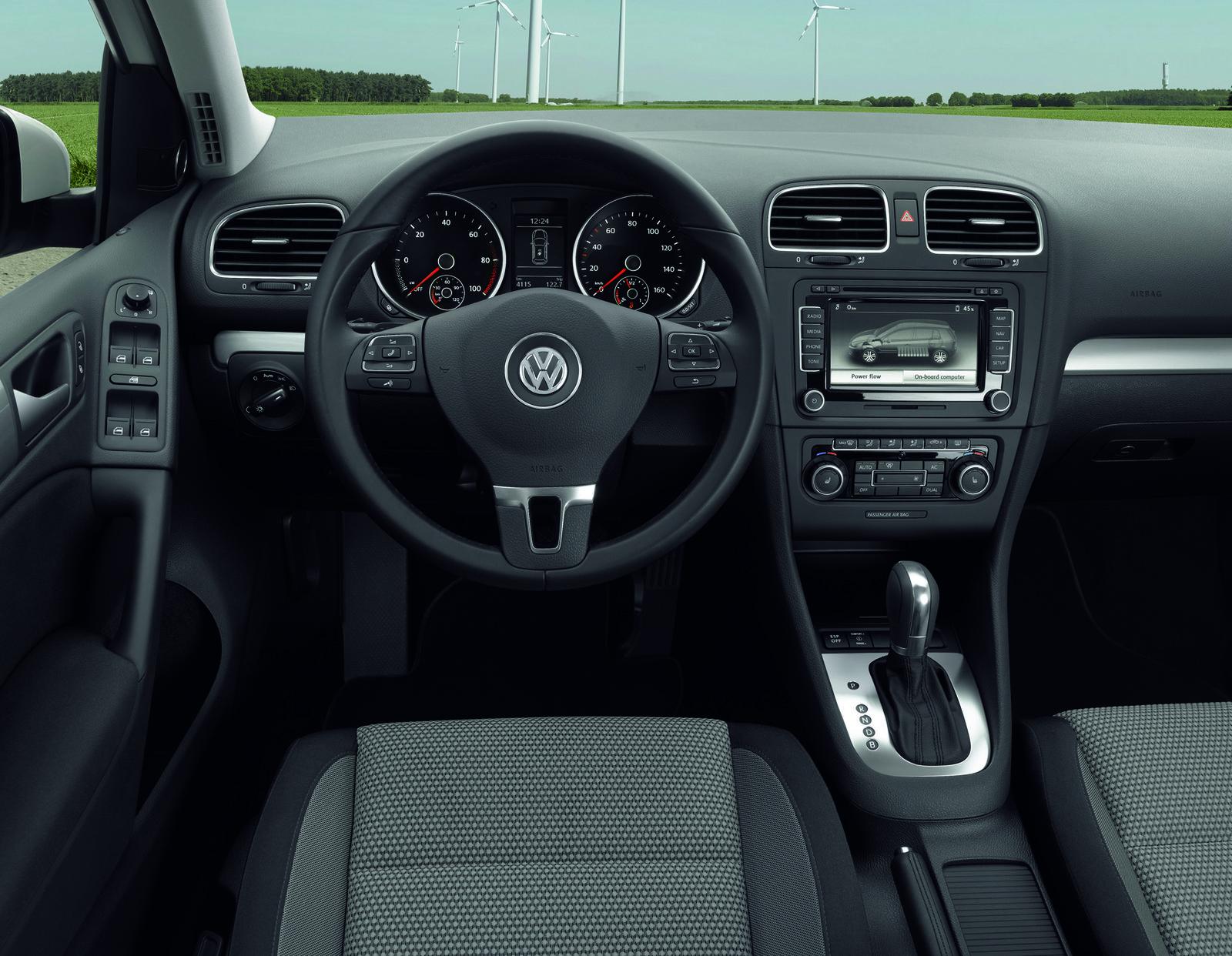

The driver can see how much energy is being demanded by the “electric pedal” at any given moment on the kW gauge (replaces the classic tachometer); drivers strive to keep the kW reading as low as possible practically intuitively. A range indicator is also integrated in this round instrument. The speedometer, located on the right side as usual, integrates another small gauge that provides information on the battery charge state.

Individual choices in battery regeneration

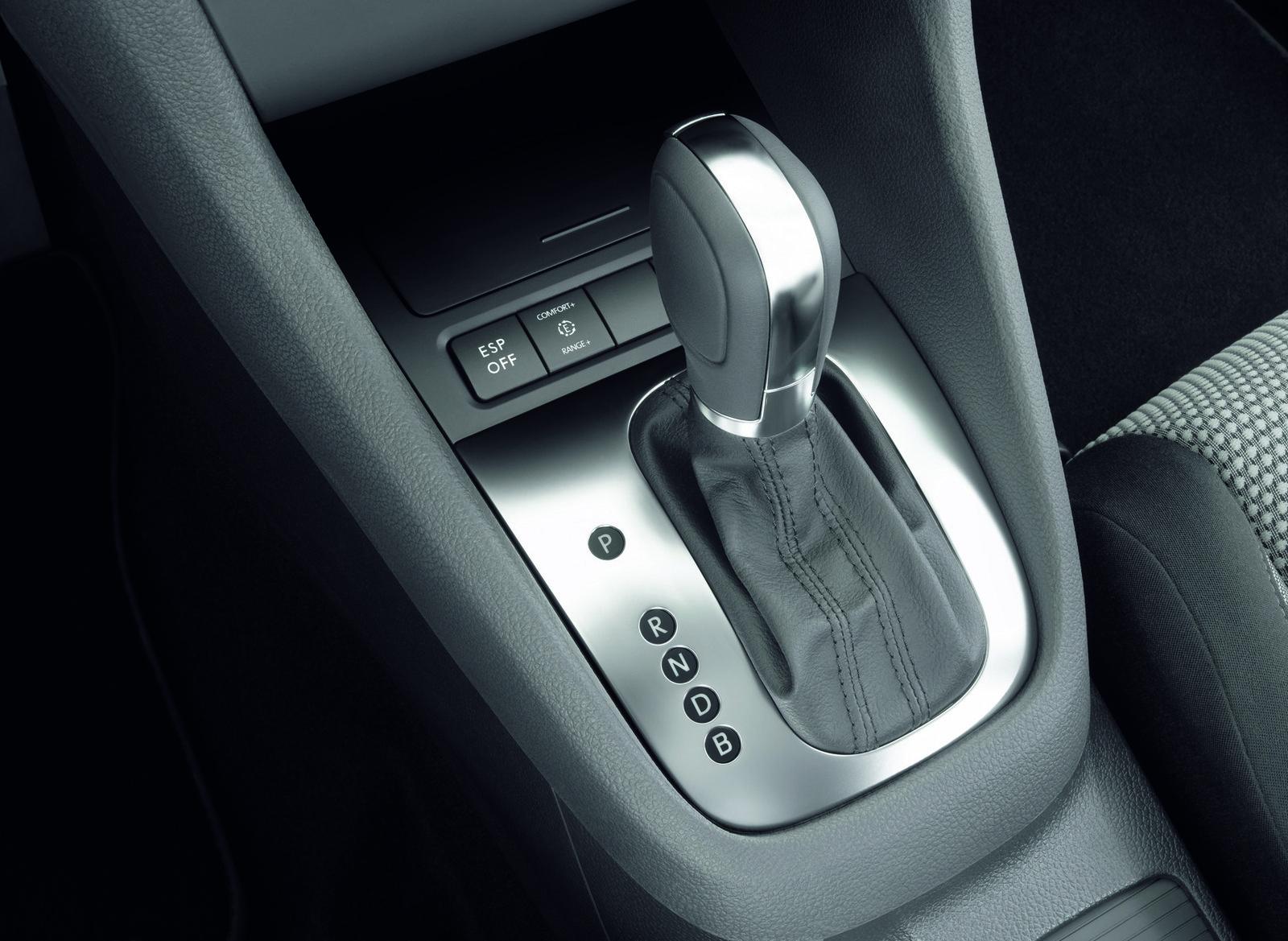

A new feature is the display of regeneration intensity in the multifunction display between the kW instrument and the speedometer. In battery regeneration, the driver has the option of pre-setting the braking energy recovery strategy over four stages (D to D3) via the automatic gearshift lever or gearshift paddles on the steering wheel. In the lowest stage (D), the car “sails” as soon as the driver’s foot leaves the “electric pedal” – now the Golf blue-e-motion moves with very low drag; it is only “slowed” by the rolling resistance of the tyres and air resistance. In the D3 stage, or B for braking, on the other hand, the maximum amount of kinetic energy is recovered and fed to the battery. In addition, the electrical energy consumption of the automatic climate control unit and its blower can be called up in the multifunction display.

Three driving profiles control comfort, dynamics and range

In addition, an active driving profile can be set; this lets the driver select priorities in advance: between maximum range, maximum comfort and maximum dynamics. The selected profile then pre-configures the power of the electric motor, air conditioning control, maximum speed and battery regeneration strategy.

The Golf blue-e-motion offers the three profiles “Normal,” “Comfort+” and “Range+.” In the “Comfort+” profile, the full 85 kW of power is available; in this mode the Golf blue-e-motion can attain the specified top speed of 135 km/h. When the driver activates the “Normal” mode, power is reduced to 65 kW and top speed is lowered to 115 km/h. In the “Range+” mode the engine controller limits power to 50 kW; in this case, the car can reach a maximum speed of 105 km/h. At the same time, the air conditioning system is completely deactivated. The selected profile is shown in the multifunction display.

Full charging via the VW logo

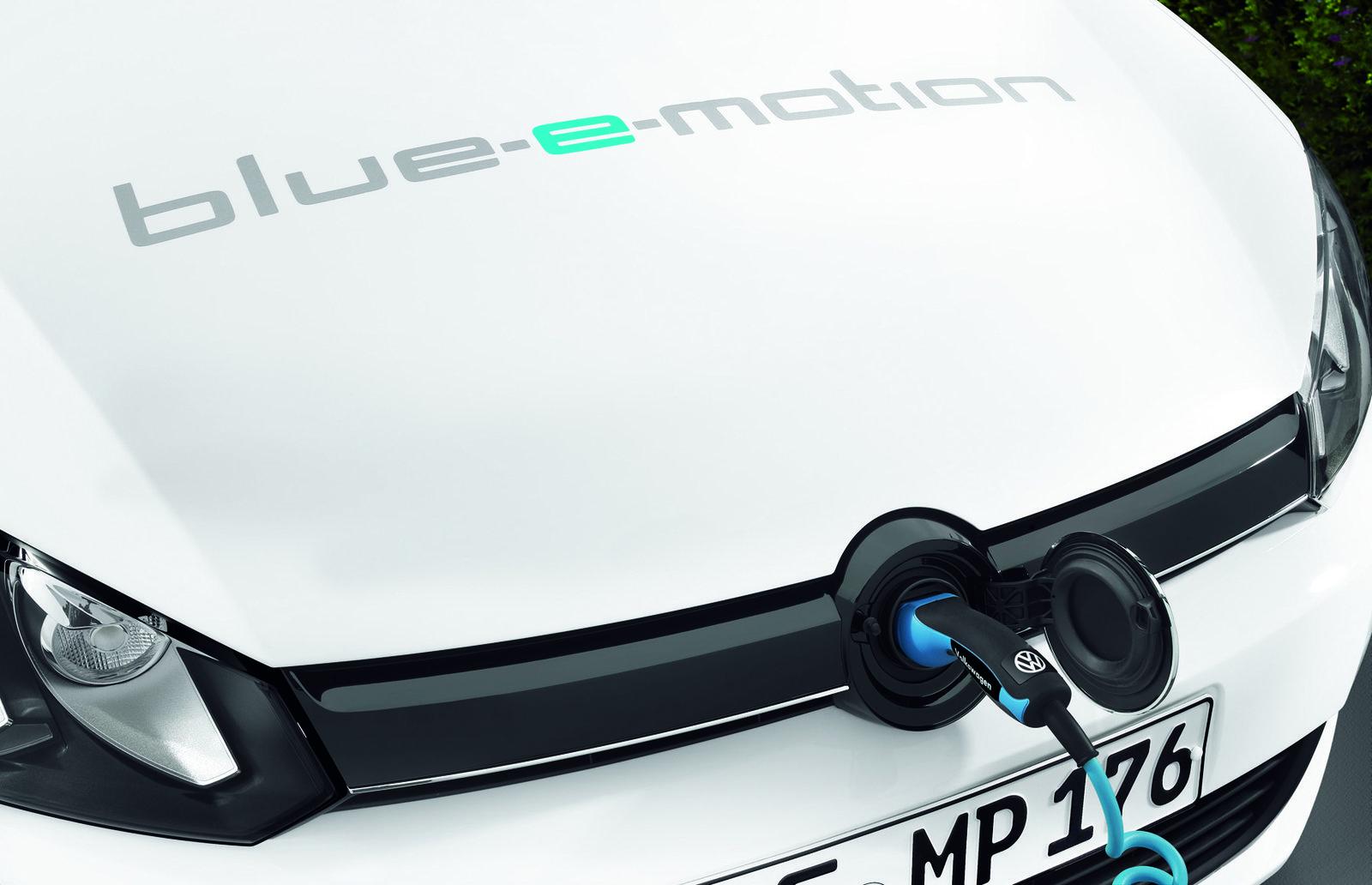

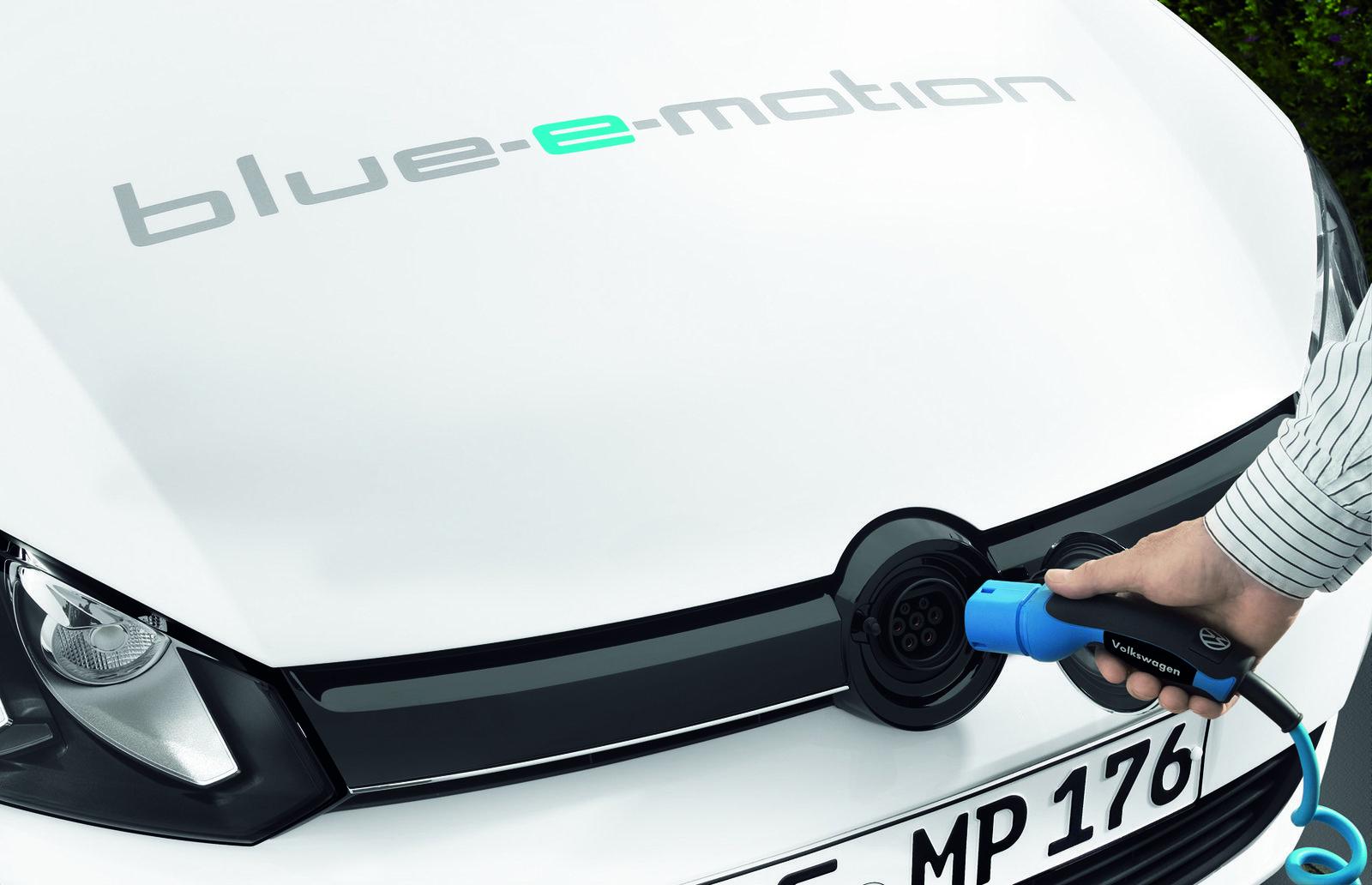

The Golf blue-e-motion is charged via a plug connector behind the folding VW logo on the radiator grille. A pictogram of a plug connector in the multifunction display indicates that the charging cable is correctly inserted and locked. During active charging an LED also flashes in the charge state indicator, and the charge level shown in the indicator is continually updated.

Packaging of the drive system

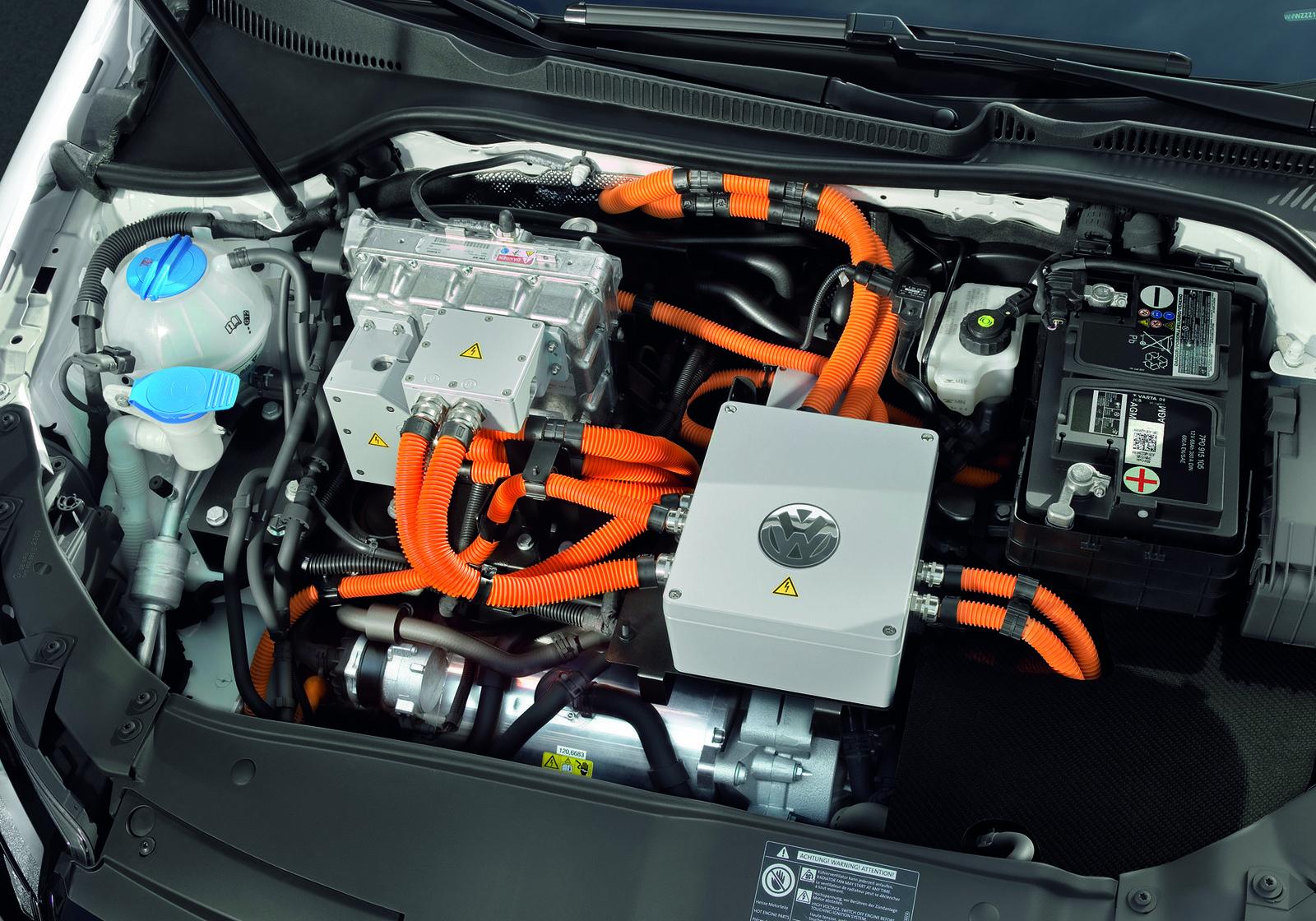

All key primary and secondary drive components were integrated in the front engine compartment. In arriving at this design, developers applied experience they had gained in numerous design studies. As in the Up! blue-e-motion concept car, for example, an integral form of electric drive is used in the Golf blue-e-motion. Core components of the integral drive are the lightweight 80 kg electric motor together with a transmission and differential. Energy management is handled by a high-voltage pulse-controlled inverter that is integrated in the compact integral drive – along with the 12 Volt electrical system’s DC/DC converter and charging module. The entire unit is relatively light and compact; the five-door and five-seat Golf blue-e-motion weighs just 205 kg more than a comparable Golf BlueMotion TDI with DSG – despite the fact that electric car batteries are known to be heavy and weigh 1,545 kg in the concept car. Yet, the car’s safety properties are identical.

Golf blue-e-motion Concept Car – Technical Data
Dimensions
Length 4,199 mm
Width 1,786 mm
Height 1,480 mm
Wheelbase 2,575 mm
Motor
Motor type Electric motor
Power (max. / continuous) 85 kW / 50 kW
Max. torque 270 Nm
Gearbox / Tyres
Gearbox EQ 210 (1-speed transmission)
Drive type Front-wheel drive
Tyre size 205/55 R16
Driving performance
0-100 km/h 11.8 s
Top speed (Comfort+ mode) 135 km/h
CO2 emissions with electricity generated from renewable resources Negligible
