Η Praga Cars ανακοίνωσε τις αναλυτικές λεπτομέρειες του R1, του νέου της track-car. Το αυτοκίνητο φορά στο κέντρο τον τετρακύλινδρο 2,0-λιτρο κινητήρα της Renaultsport απόδοσης 210 ίππων με 7.500 σ.α.λ με 220 Nm ροπής στις 4.500 σ.α.λ. Ζυγίζει 590 κιλά και έχει αναλογία 356 ίππων/τόνο. Η κίνηση μεταφέρεται στον πίσω άξονα μέσα ενός 6-τάχυτου σειριακού κιβώτιου Hewland JFR με πνευματικά paddles της KMP, με μπλοκέ διαφορικό.


Έχει μήκος 4.170 mm, πλάτος 1.800 mm, 965 mm ύψος και 2.527 mm μεταξόνιο Το σασί του είναι carbon monocoque και διαθέτει αγωνιστικό εξοπλισμό ασφαλείας, ζώνες ασφαλείας 6 σημείων, σύστημα πυρόσβεσης, πολυκαρβονικά παράθυρα και αγωνιστικό κάθισμα.

Τα φρένα του είναι τετραπίστονα της AP, ενώ φορά ρυθμιζόμενες αναρτήσεις της KONI με προοδευτικά αγωνιστικά ελατήρια και ρυθμιζόμενες αντιστρεπτικές. Οι ζάντες του είναι μονομπούλωνες διαστάσεων 15″ μπροστά και 16″ πίσω και φορά αγωνιστικά ελαστικά της Dunlop.

Κοστίζουν 98.000 ευρώ και θα συμμετέχει και στο νέο πρωτάθλημα Praga Cup το οποίο γίνεται σε αρκετές ευρωπαϊκές πίστες.

[Πηγή: Praga Cars]

Δελτίο Τύπου

Praga R1 – affordable racing dream come true

2013 Praga R1 highlights:

  • affordable two seater (low running costs, high reliability)
  • ultra light (only 590 kg, 1300 lbs dry weight)
  • 210 HP base model (3,58 kg/kW, 356 HP per tone)
  • production started in November 2012

New ideas tend to come from unexpected sources. Here is one that just stands out not only in the world of racing. From an unlikely place comes unbelievably beautiful and functional racing car ready to be driven on public roads if required. Praga R1 is ultra-light compact track car that is set to rewrite motorsport books in its most basic rule – cost/performance ratio. Above all genuine design solutions stands its purpose – to provide top track performance and unprecedented reliability for reasonable price and low running cost. Praga R1 is here to be driven hard and not to spend owner’s money and time in the garage.

Might be surprising, but R1 is by far not the first racing car from Praga Cars LTD company. In past three years, small yet strenuous team have created two other cars that made huge impression within the greatest circuits in the world. Small Attack R4 and later Praga R4S managed to scoop several race victories and podium results in 2010-2012 on circuits like Assen, Zolder, Monza, Donington and SPA Francorchamps. Competing against “heavyweight” racing legends like Corvette, Ferrari, Porsche, Mosler and Viper proved right Praga’s new concept and approach. They are the same for all Praga cars – low weight, agility and functional aerodynamics rather than brute power and big engine.

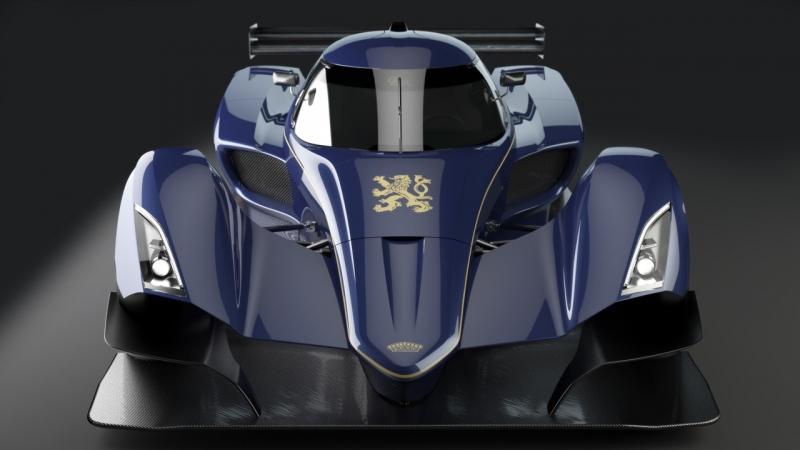

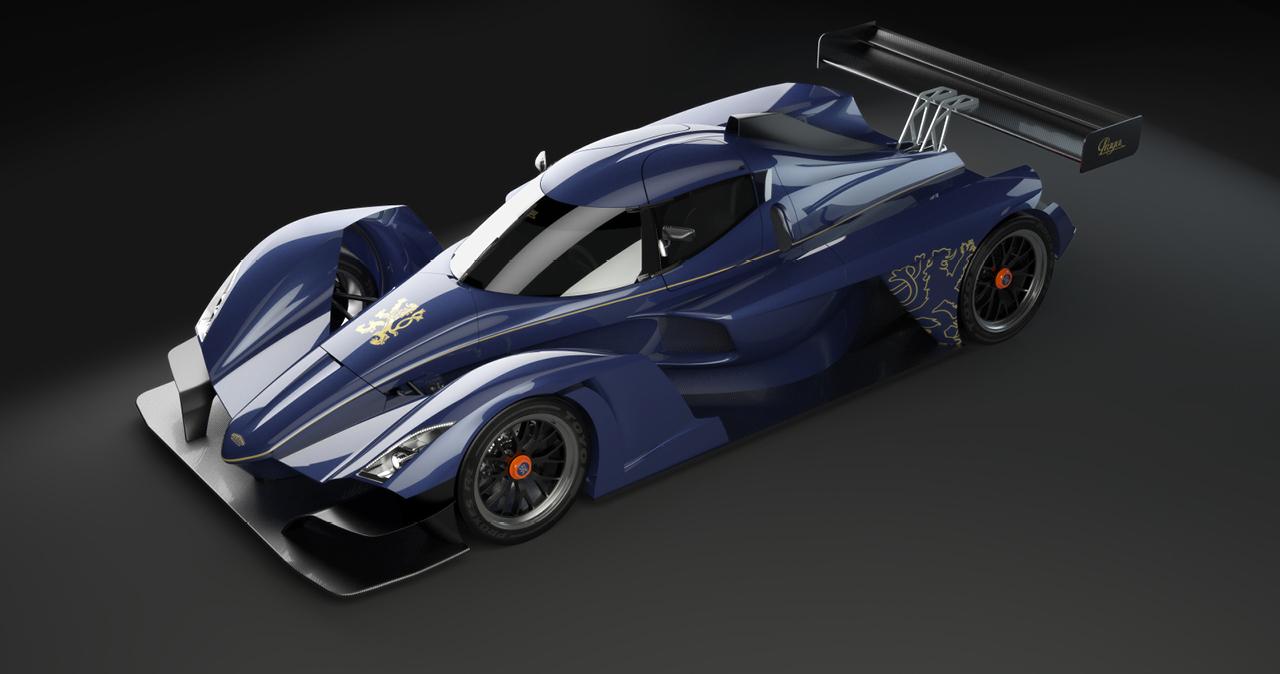

R1 is third race car hand built by the same team, completely from the ground up. Previous models (both still in production) found many satisfied owners over the last years. This newest one beautifully shows creator’s competence and deep understanding of design, aerodynamics and construction. Praga R1 is a masterpiece which grabs attention only by looking at its shape and proportions.

As lightweight as it can be, two seater Praga R1 is 4170 mm long, 1800 mm wide, only 995 mm tall with only 590 kilograms dry weight (1300 lbs). Yet pilots of Praga R1 get unprecedented level of passive safety and comfort. Closed cockpit provides safer and more convenient place for pilot and his passenger. Especially in wet and cold conditions. Carbon fibre monocoque reinforced by internal ribs and bulkheads, carbon fibre crumple zones for frond and side crash energy absorption, 6-point seatbelts, integrated fire extinguisher system, polycarbonate windows and safety fuel tank make it one of the safest racing cars.

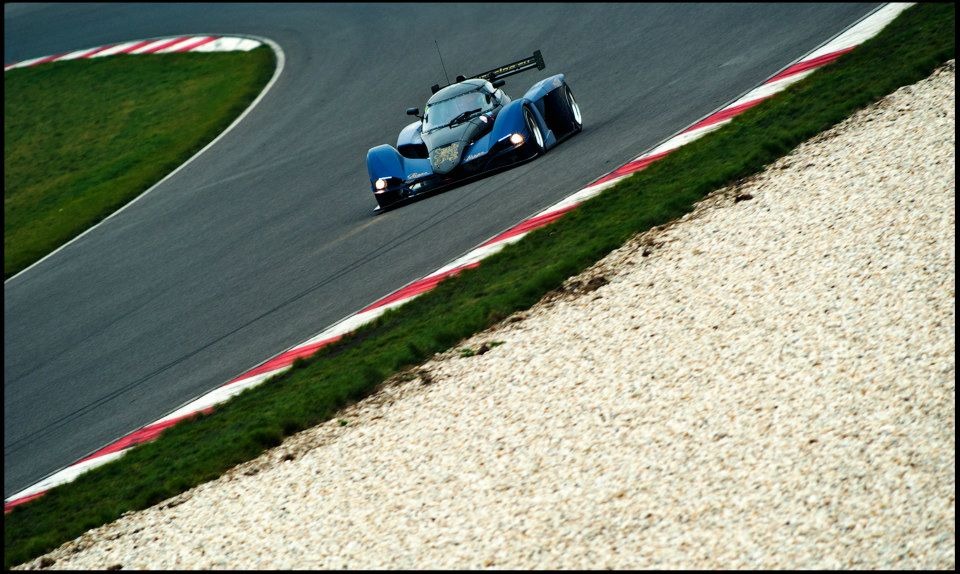

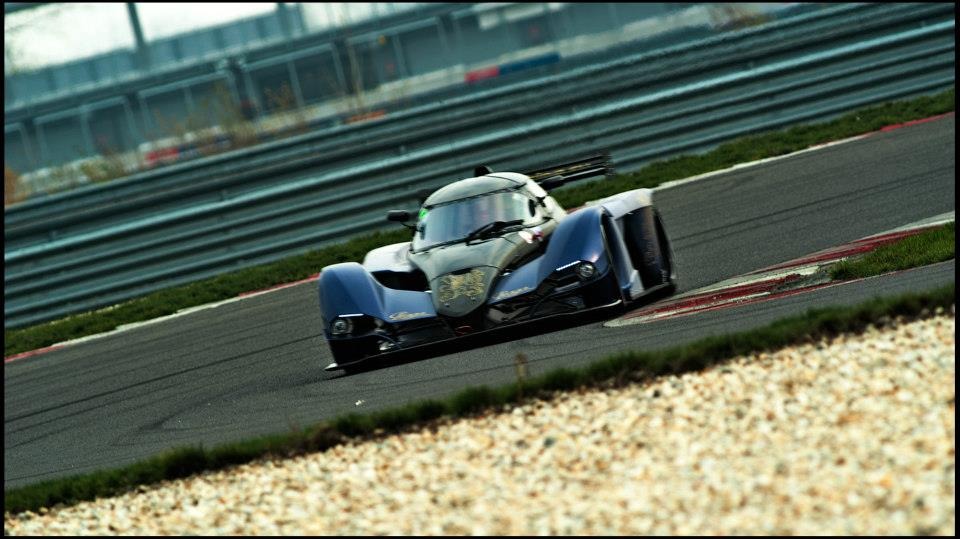

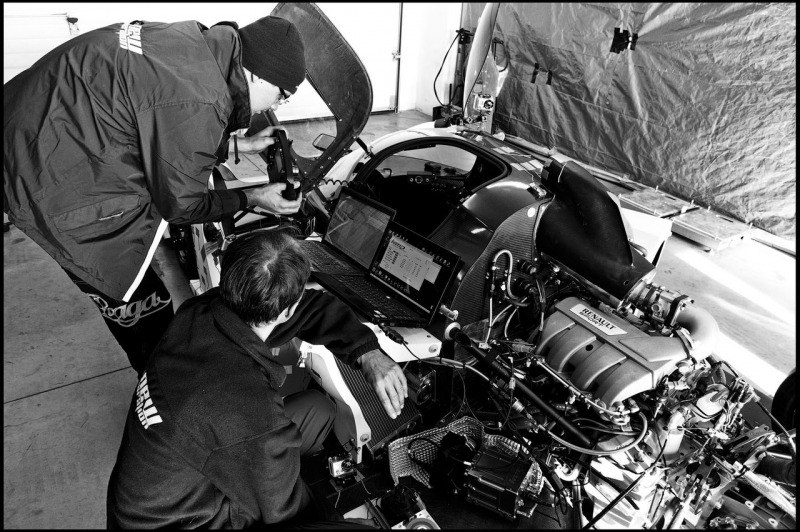

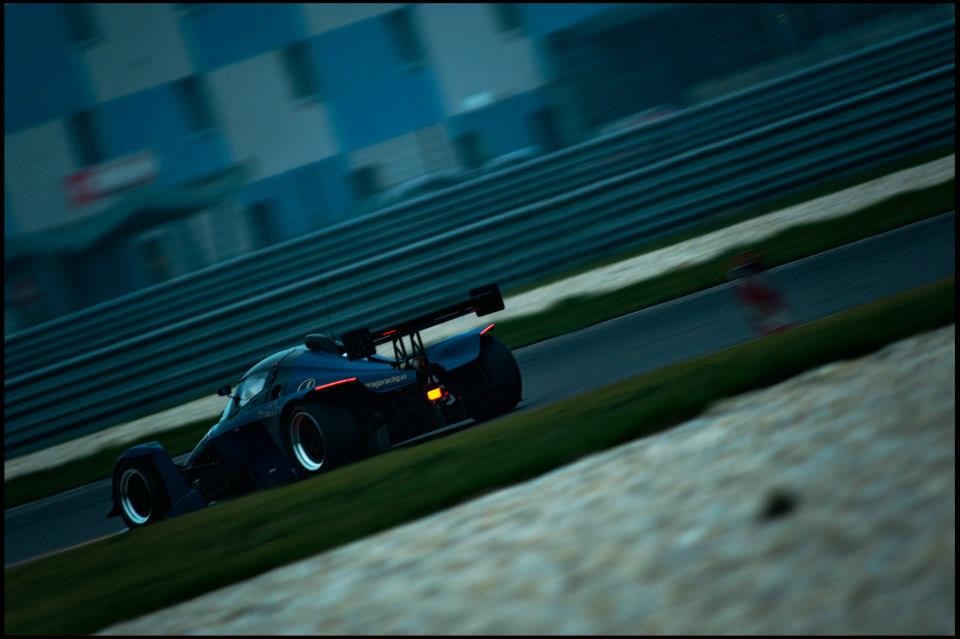

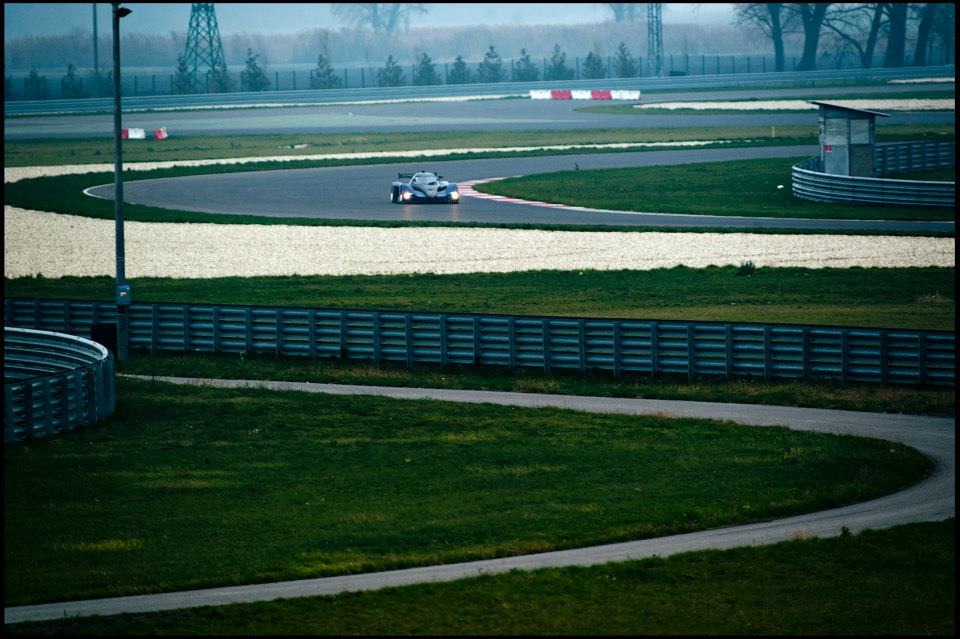

Base model uses naturally aspirated 2-litre 4-cylinder engine F4R 832 from Renault Sports Technologies with maximum 155 kW (210 PS) at 7500 rpm. This gives promising power to weight ratio of only 3,8 kg/kW (356 HP per tone). Located longitudinally almost exactly in the middle of the car together with specially prepared Hewland JFR 6-speed sequential transmission operated automatically via KMP pneumatic paddle shifting system gives the car extremely low centre of gravity and also little polar moment of inertia. Both these are essential for great handling, dynamics and overall performance. During October 2012, first prototype was hard tested on Praga Cars home racetrack Slovakia Ring near Bratislava, Slovak Republic. Thought through balance between beautiful shape and aerodynamics efficiency gives Praga R1 significant downforce which in return means higher cornering speeds and stability.

Praga Cars wants to offer the best, that is why R1 uses only the finest components from world renowned manufacturers such as AP racing brakes, Hewland transmission, Sachs racing clutch, KMP pneumatic paddle shifting, Renault Sport Engine, Cosworth ECU, ATL fuel tank, Koni dampers, OMP fire extinguisher system and many more.

Praga R1 is here to open the door into professional motorsport for those who prefer best price/performance ratio. Modern, sophisticated with cutting edge technologies, trouble free spare parts availability and low running cost. For 2013 season already Praga Cars is preparing first R1 cars to run it´s own Praga Cup series on professional European circuits.

PRAGA R1 Technical specification

General specification

Made in EU

Produced in 2013

Characteristics

Basic description Single-seater race car (two seater optional), carbon fibre monocoque

Weight (dry) 592 Kg

Dimensions (H x L x W) 965 x 4144 x 1800 mm

Wheel base 2527 mm

Wheels and tyres front Praga, centre locking 15 x 8, with 200/580R15 Dunlop racing tyre

rear Praga, centre locking 16 x 10.5, with 265/605R16 Dunlop racing tyre

Body and Interior

Construction Light weight and compact, longitudinal mid engine layout

Crashbox Front, rear and carbon fibre honeycombed crashbox complying with FIA Production

Sports Car Crash Test

Body panels Quick-release lightweight fibreglass body panels reinforced with carbon and Kevlar

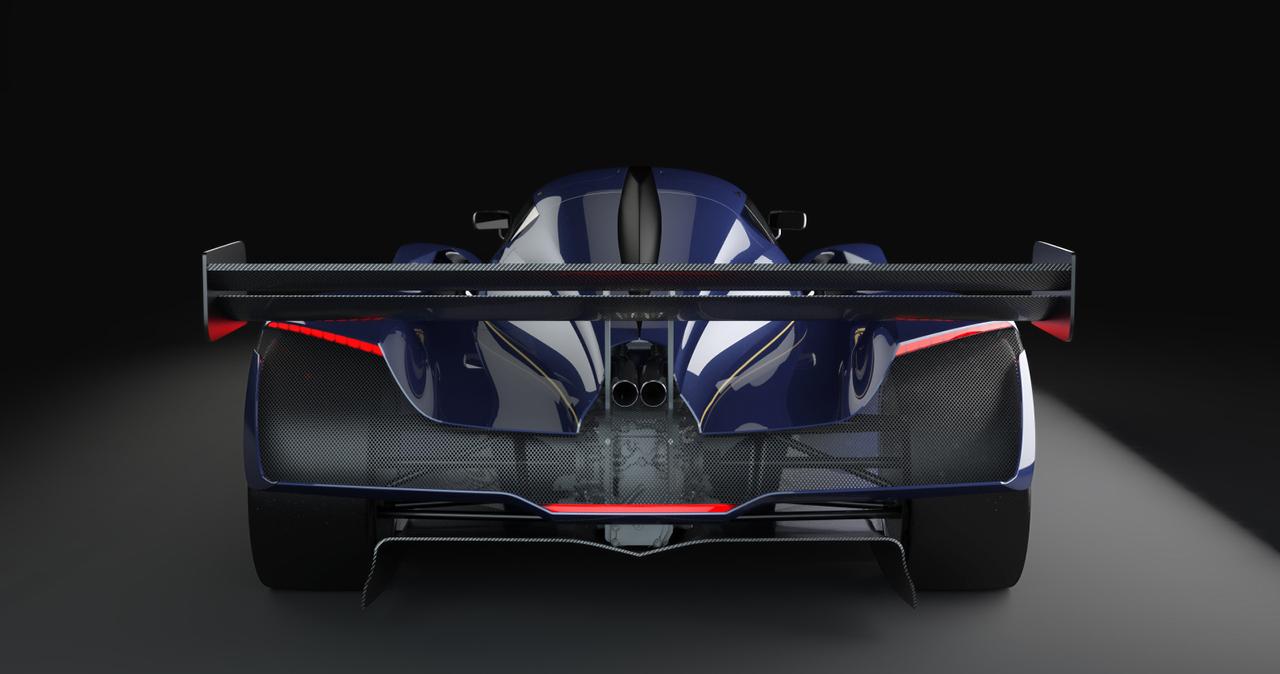

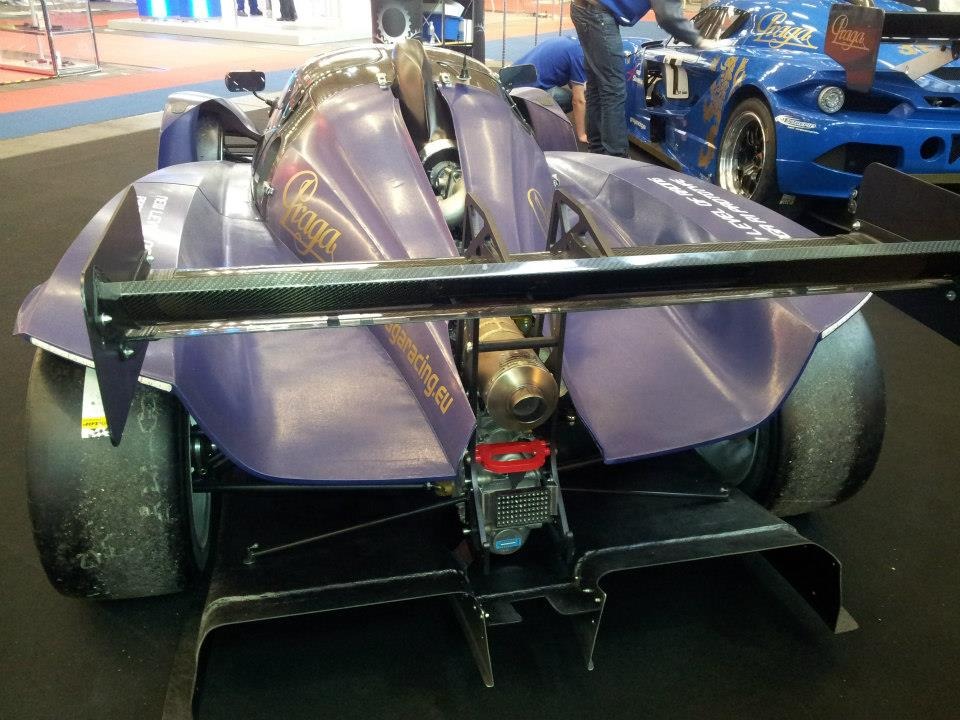

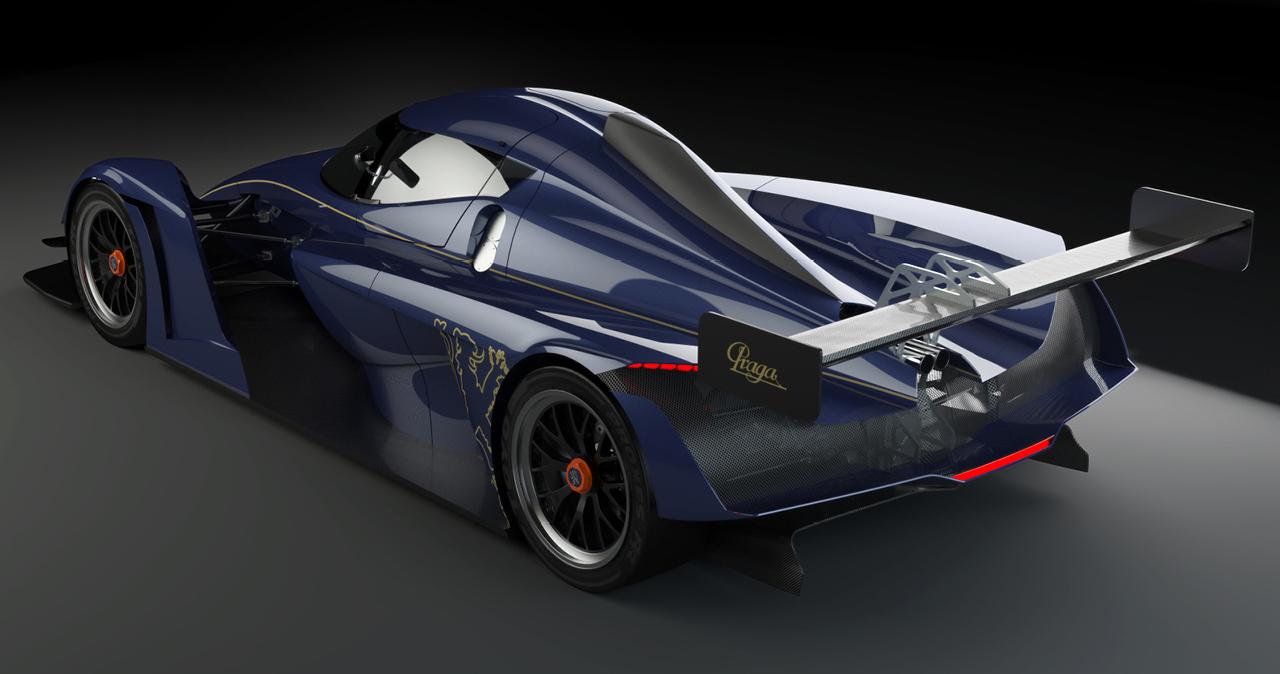

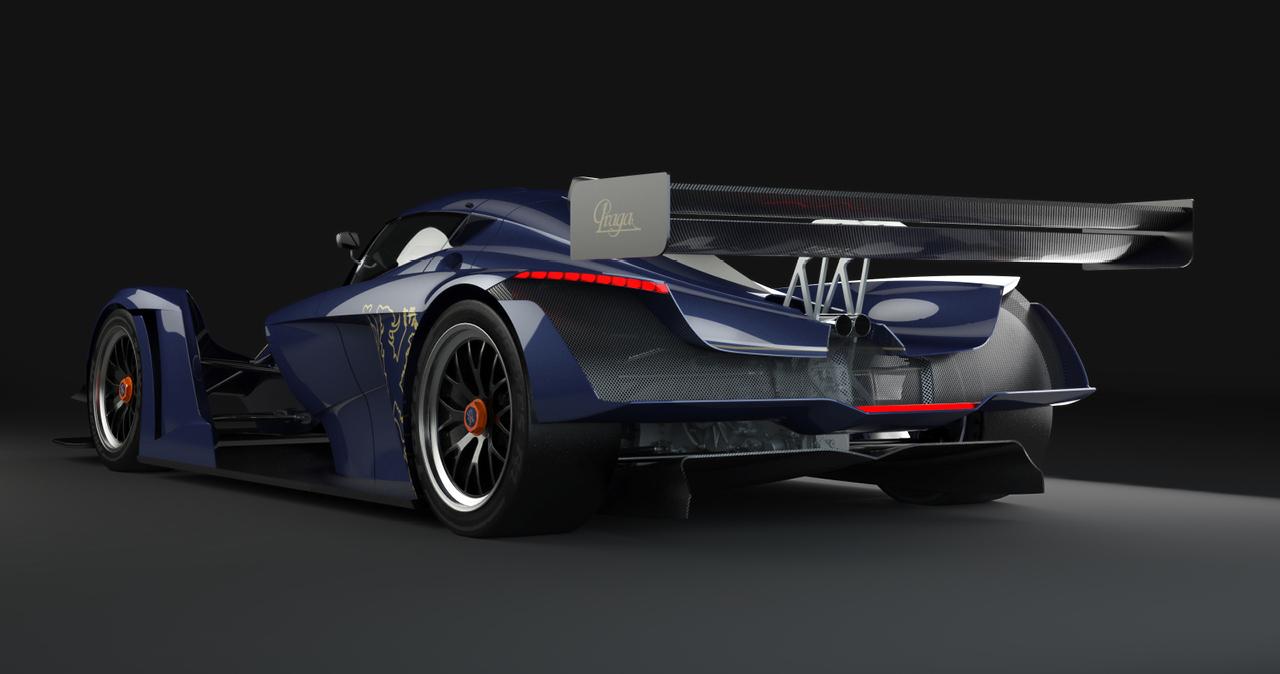

Rear wing Low-drag fine adjustable bi-plane rear wing (carbon fibre optional)

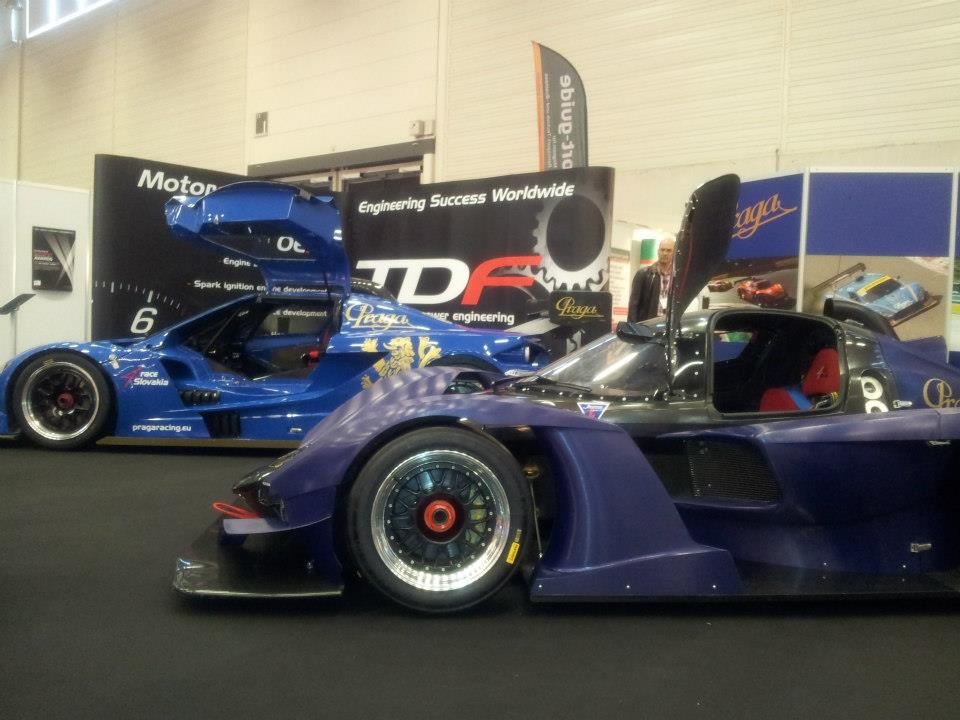

Doors Carbon fibre driver and passenger doors

Windows Custom made lightweight polycarbonate windows with anti-scratch protection

Fuel tank 60 litre foam-filled FIA approved ATL fuel tank located behind the seat (ATL dual quick

fill valve – optional)

Pedals & Steering wheel Adjustable pedals and 2-way adjustable quick release Cosworth steering wheel with

display and rotary switches

Seat Custom made Praga carbon Kevlar racing seat with side head rest

Seat belts FIA approved SCHROTH 6 point seat-belts for use with HANS

Communication system Built-in PELTOR / YAESU radio communication system (optional)

Suspensions Fully adjustable front and rear suspensions

− KONI 2-way adjustable, mono-tube, easy to adjust

− unequal length upper and lower wishbones

− CNC aluminum machined adjustable uprights

− forged steel centre lock hubs

− adjustable anti-roll bars

− custom made progressive racing coil springs

Fire extinguisher system Mechanically / Electrically-activated fire extinguisher system in engine bay (optional)

Lighting Rear lights including rain light and turn lights, (front lights optional)

Drivetrain

Engine Renault Sport Formula 2010 2.0 engine

Dampers Unique Praga compact bellhousing with dampers

Braking system AP Racing brakes with 4-piston calipers

Clutch Lightweight steel flywheel / competition twin plate ZF Sachs Racing clutch

Gearbox custom made HEWLAND JFR – six-speed sequential semi-automatic transaxle

gearbox, interchangeable gear sets

Shifting Pneumatic KMP paddleshift system with flat shifts and auto blip

Engine management ECU Cosworth / Pectel SQ6 with close loop lambda system, pit limiter speed control,

traction control and full sequential shifting

Engine

Configuration F4R 832

Cylinder / Valves 4 / 16

Location Mid, longitudinally mounted

Bore / Stroke 82.7 x 93 mm

3

Displacement 1998 cm

Engine Life 10 000 Km before rebuild

Engine Control System Cosworth / Pectel

Engine Loom Military specification wiring loom

Rev Limit 7500RPM

Power 210bhp @ 7250 RPM

Torque 220Nm @ 4500 RPM
