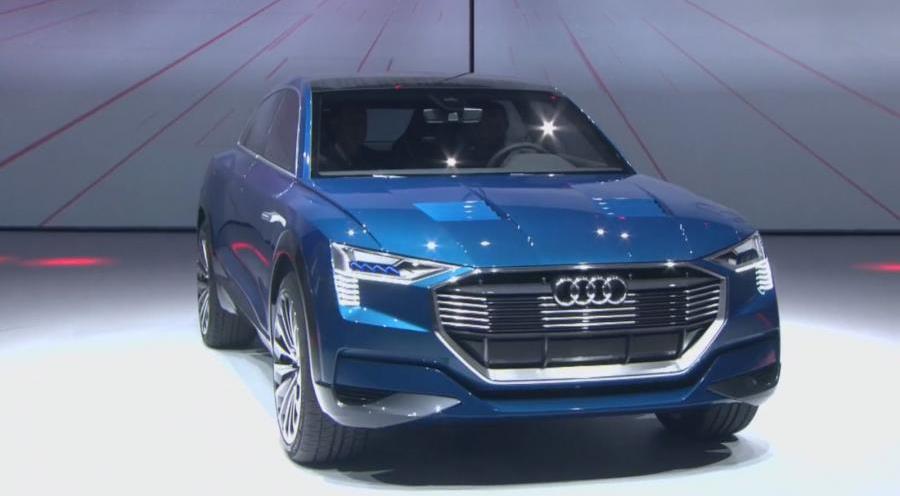

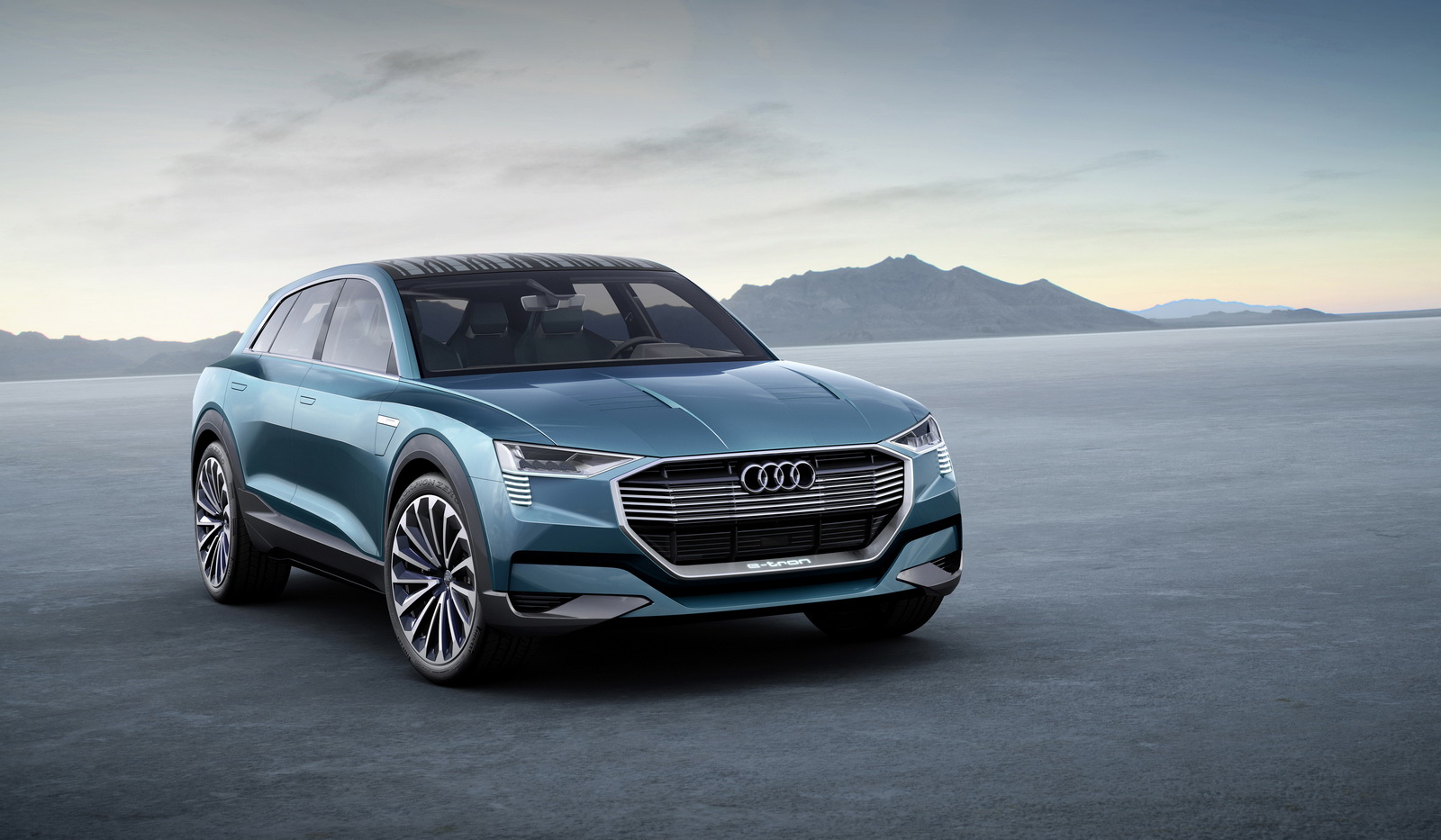

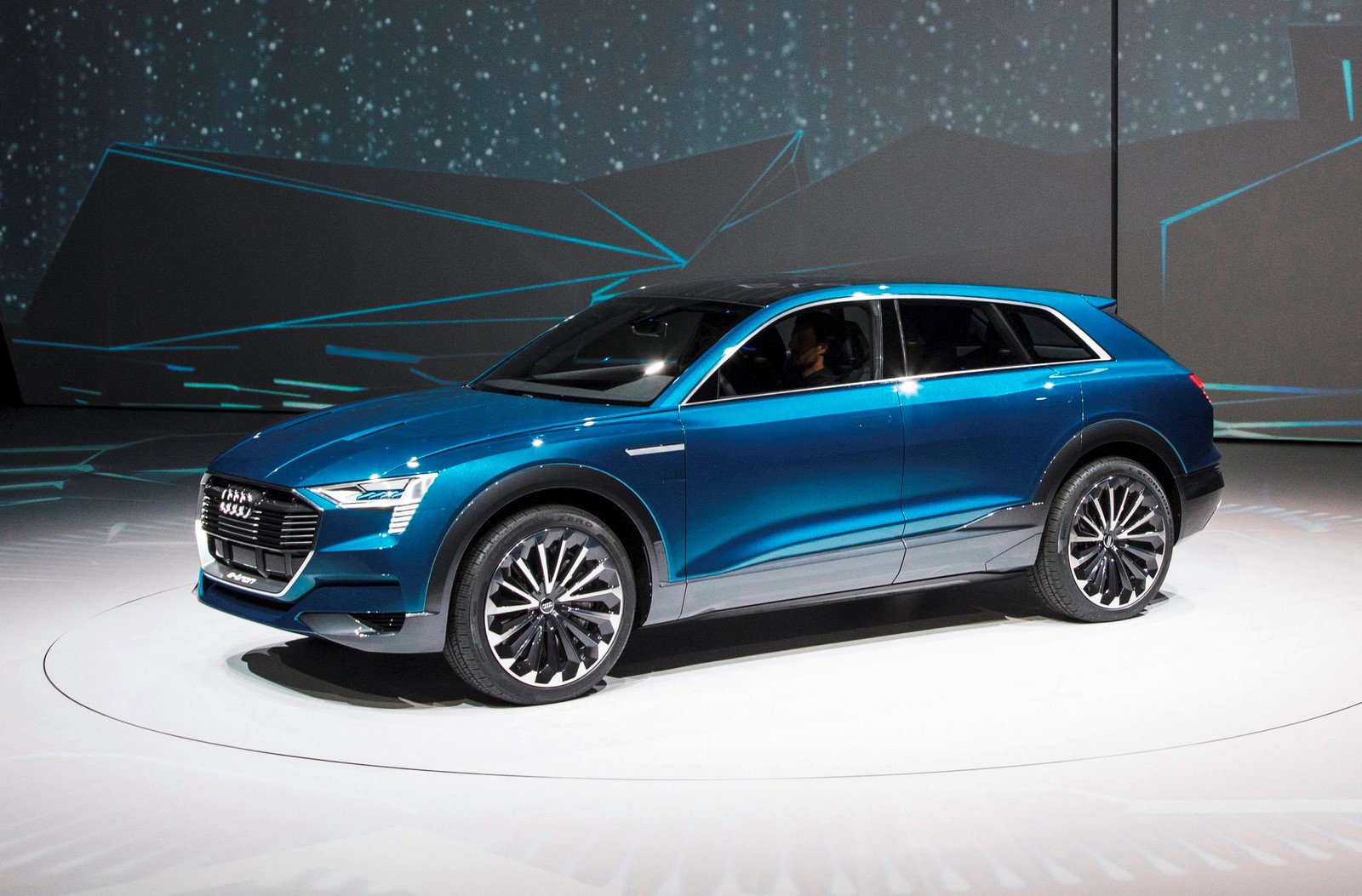

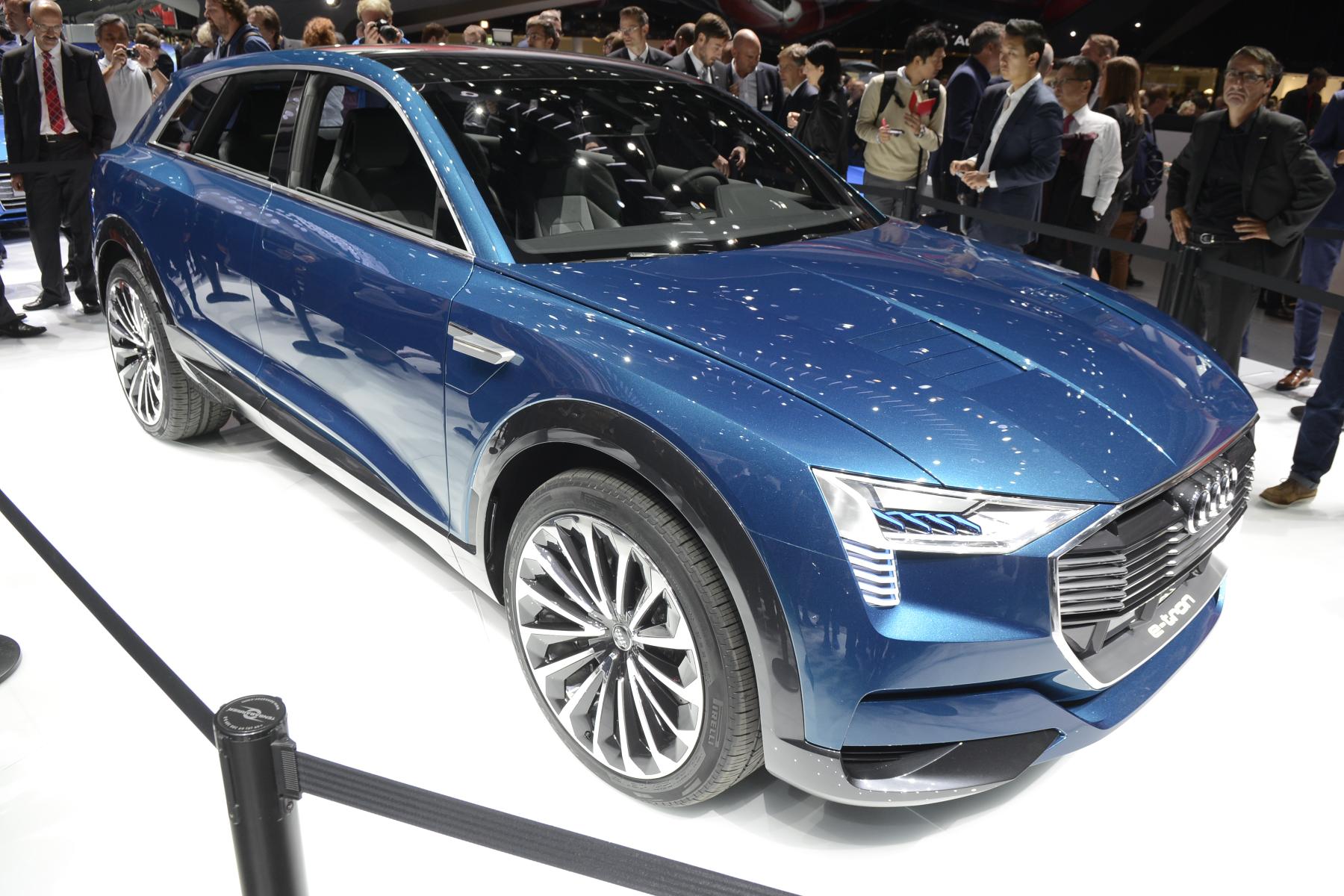

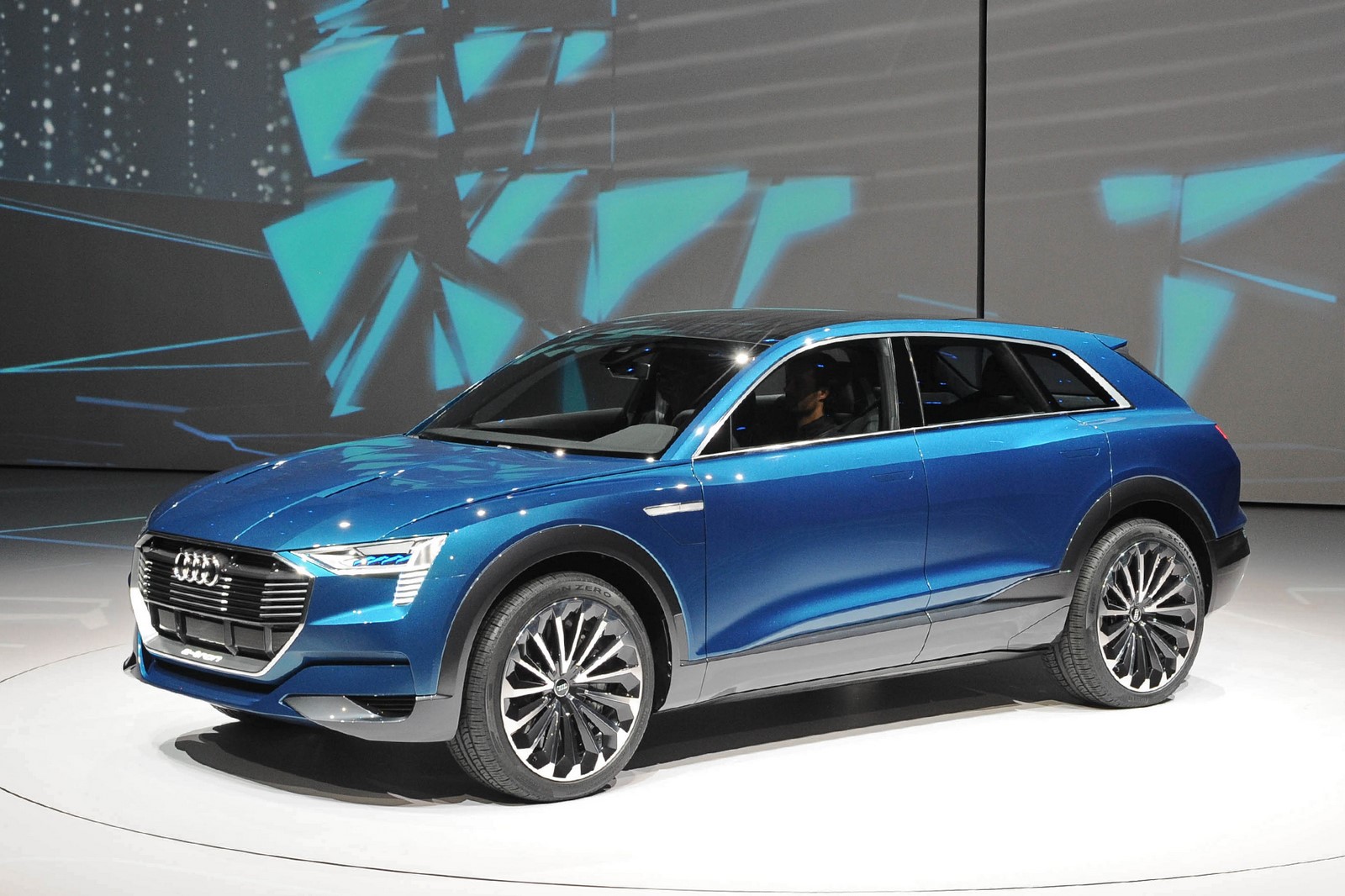

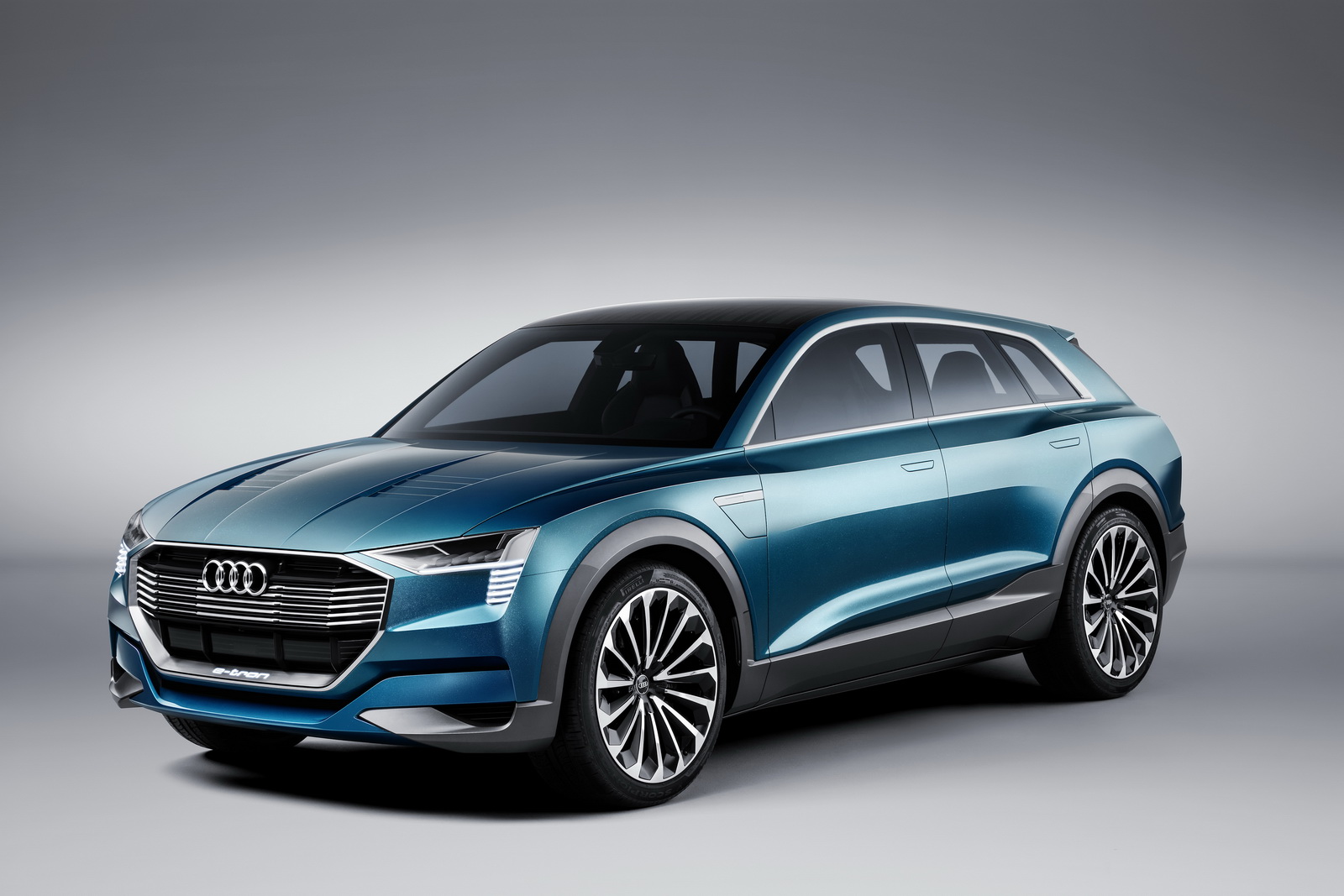

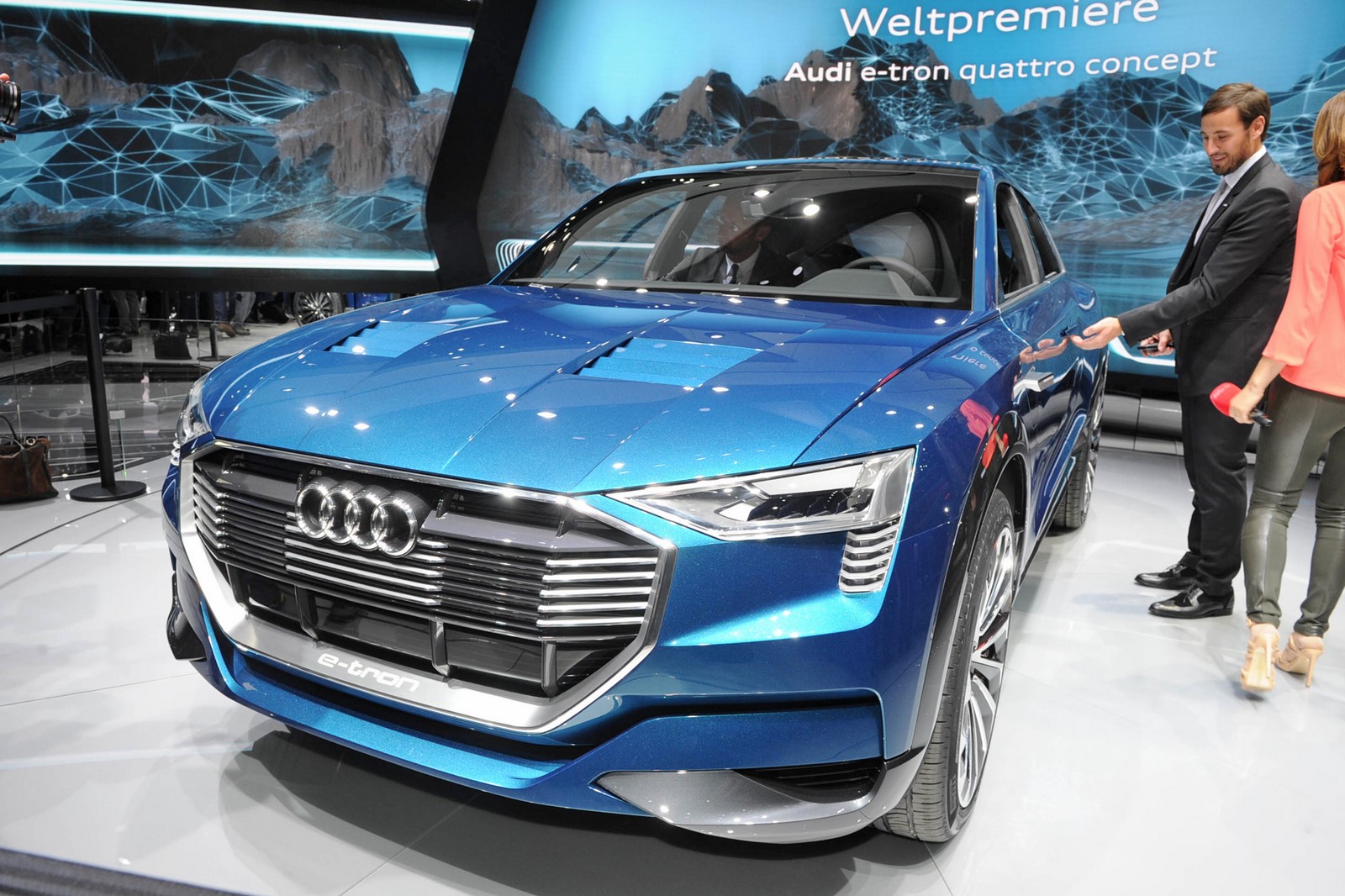

Στην έκθεση της Φρανκφούρτης η Audi παρουσιάζει το e-tron quattro concept. Το πρωτότυπο που μας δείχνει το πως θα μοιάζει το αμιγώς ηλεκτρικό Q6 που θα κυκλοφορήσει στην αγορά στις αρχές του 2018, είναι το πρώτο μεγάλο ηλεκτρικό SUV της Audi. Έχει αεροδυναμικό συντελεστή Cd 0.25, θέτοντας νέο ρεκόρ στη κατηγορία των SUV και σχεδιαστικά ξεχωρίζει η κεκλιμένη γραμμή οροφής, η εξάγωνη χρωμιομένη γρίλια, τα Matrix λέιζερ μπροστά φωτιστικά σώματα και τα OLED πίσω. Έχει μήκος 4,88 μέτρα, πλάτος 1,93 μέτρα, ύψος 1,54 μέτρα, διαθέτοντας ενεργή αεροδυναμική.

Σύμφωνα με τον Dr. Ulrich Hackenberg, μέλος του διοικητικού συμβουλίου της Audi και υπεύθυνου του τμήματος έρευνας και ανάπτυξης, το e-tron quattro concept συνδυάζει την οδηγική απόλαυση, με την εκφραστική σχεδίαση και την εξαιρετική άνεση. Το πρωτότυπο βασίζεται στην δεύτερη γενιά του της MLB Evo πλατφόρμας του VW Group, την οποία θα χρησιμοποιεί και η έκδοση παραγωγής.

Audi e-tron quattro concept (28)

Το ευρύχωρο εσωτερικό του προσφέρει χώρο για τέσσερα άτομα, με τον χώρο αποσκευών να αγγίζει τα 615 λίτρα. Εκεί υπάρχουν 4 OLED οθόνες αφής και μεταλλικά διακοσμητικά, ενώ το πρωτότυπο εφοδιάζεται με ψηφιακούς εξωτερικούς καθρέπτες.

volkswagengroupnight-nks-25

Το e-tron quattro concept δανείζεται την τεχνολογία του R8 e-tron και διαθέτει τρεις ηλεκτροκινητήρες, έναν στον μπροστά άξονα και δύο στους πίσω, που τροφοδοτούνται από μια μπαταρία ιόντων-λιθίου κατασκευής LG Chem και Samsung SDI, που είναι τοποθετημένη κάτω από την καμπίνα των επιβατών, μεταξύ των δύο αξόνων. Η επιλογή αυτή παρέχει χαμηλό κέντρο βάρους και ισορροπημένη κατανομή φορτίου ανά άξονα, κάτι που μεταφράζεται σε καλύτερη δυναμική συμπεριφορά και καλύτερη οδική ασφάλεια σε σχέση με άλλα οχήματα της κατηγορίας. Οι ηλεκτροκινητήρες παράγουν 435 άλογα με 800 Nm ροπής. Τα 0-100 χλμ/ώρα τα κάνει σε 4,6 δευτερόλεπτα, έχοντας τελική ταχύτητα 210 χλμ/ώρα (ηλεκτρονικά περιορισμένη).

0ccc5190-3dac-0133-b4e5-00163e17fa4b

Εξοπλίζεται με το σύστημα Torque Control Manager που κατανέμει την ροπή ανάμεσα στους δύο άξονες αναλόγως των συνθηκών, με την μπαταρία ιόντων λιθίου να είναι χωρητικότητας 95 kWh και να προσφέρουν στο πρωτότυπο αυτονομία 500 χλμ. Η φόρτιση της μπαταρίας γίνεται είτε από εναλλασσόμενο είτε από συνεχές ηλεκτρικό ρεύμα χάρη στο σύστημα Combined Charging System (CCS), με την πλήρη φόρτιση με συνεχές ρεύμα 150 kW να διαρκεί μόνο 50 λεπτά. Παράλληλα υπάρχει και ασύρματος, επαγωγικός φορτιστής.

Δελτίο Τύπου

Audi e-tron quattro concept: Electric driving pleasure with no compromises

  • A foretaste of the production version: The electric-powered Audi e-tron quattro concept
  • Range of more than 500 kilometers (310.7 mi) for full everyday usability
  • New concept combines aerodynamics and creative design solutions

Flow-enhanced design with a drag coefficient of 0.25; a powerful, all-electric e-tron quattro drive with up to 370 kW – Audi is presenting the Audi e-tron quattro concept at the International Motor Show (IAA) 2015 in Frankfurt. The car is the company’s statement about the future of electric mobility: It is sporty, efficient and suitable for everyday use.

“Audi will present an all-electric, luxury-class sport SUV in early 2018. The Audi e‑tron quattro concept provides a concrete foretaste of this,” says Prof. Dr. Ulrich Hackenberg, Member of the Audi Board of Management for Technical Development. “It combines driving pleasure with great range, an expressive design and excellent comfort.”

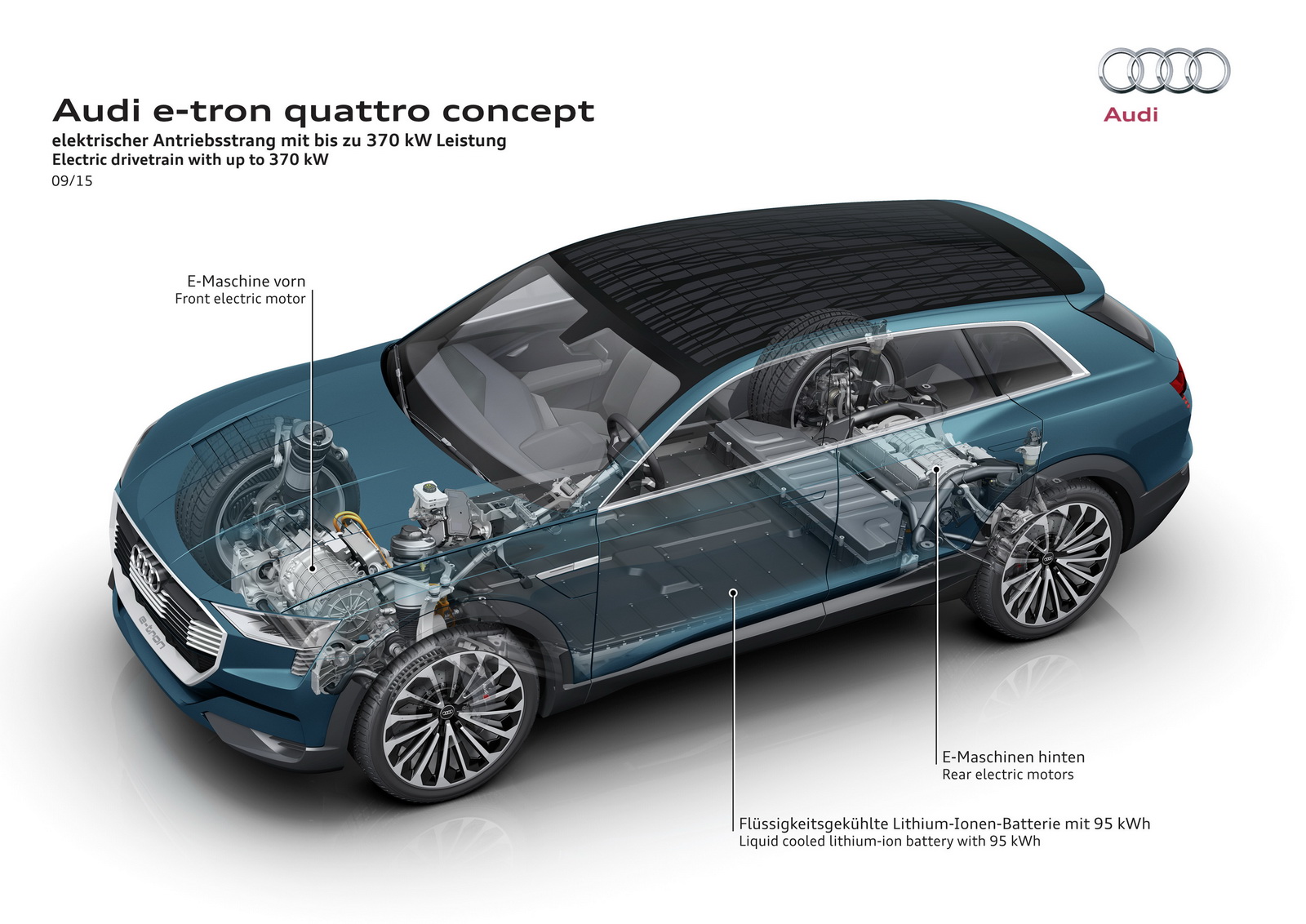

Electric power The Audi e‑tron quattro concept uses the power of three electric motors: One electric motor drives the front axle, the two others act on the rear axle. Total output is 320 kW. The driver can even mobilize 370 kW and over 800 Nm (590.0 lb-ft) of torque temporarily while boosting. The concept study thus performs like a sports car. When the driver floors the right pedal, the Audi e‑tron quattro concept sprints from a standstill to 100 km/h (62.1 mph) in 4.6 seconds and quickly reaches the electronically governed top speed of 210 km/h (130.5 mph).

The concept with three electric motors which Audi is presenting for the first time makes the technology study an e‑tron quattro. An intelligent drive management system controls the interplay between them as appropriate for the situation. The focus here is on the greatest possible efficiency. The driver decides on the degree of recuperation, the driving program S or D and the mode of the Audi drive select system.

During sporty driving on a winding road, the Torque Control Manager actively distributes the power between the rear wheels as necessary. This torque vectoring provides for maximum dynamics and stability.

The large lithium-ion battery is integrated into the floor of the passenger compartment. It gives the Audi e‑tron quattro concept a balanced axle load distribution and a low center of gravity – prerequisites for its dynamic handling. The battery’s capacity of 95 kWh enables a range of more than 500 kilometers (310.7 mi). The Combined Charging System (CCS) enables charging with DC or AC electrical current. A full charge with DC electrical current at a charging column with an output of 150 kW takes just around 50 minutes. As an alternative, the study is equipped with Audi Wireless Charging technology for contactless induction charging. The charging process is very convenient. The Audi e‑tron quattro concept uses a system for piloted parking that guides it to the proper position at the charging plate. In addition, a large solar roof provides electricity for the drive system battery on sunny days.

The chassis also expresses the high-tech character of the concept study. The adaptive air suspension sport, which features controlled damping, lowers the body at higher speeds to reduce drag. The dynamic-all-wheel steering combines a dynamic steering system on the front axle with a steering system for the rear wheels. Depending on speed and the driving situation, they steer either opposite or in the same direction as the front wheels. The Audi e‑tron quattro concept thus reacts even more spontaneously and stably, and is also very manoeuvrable at low speeds.

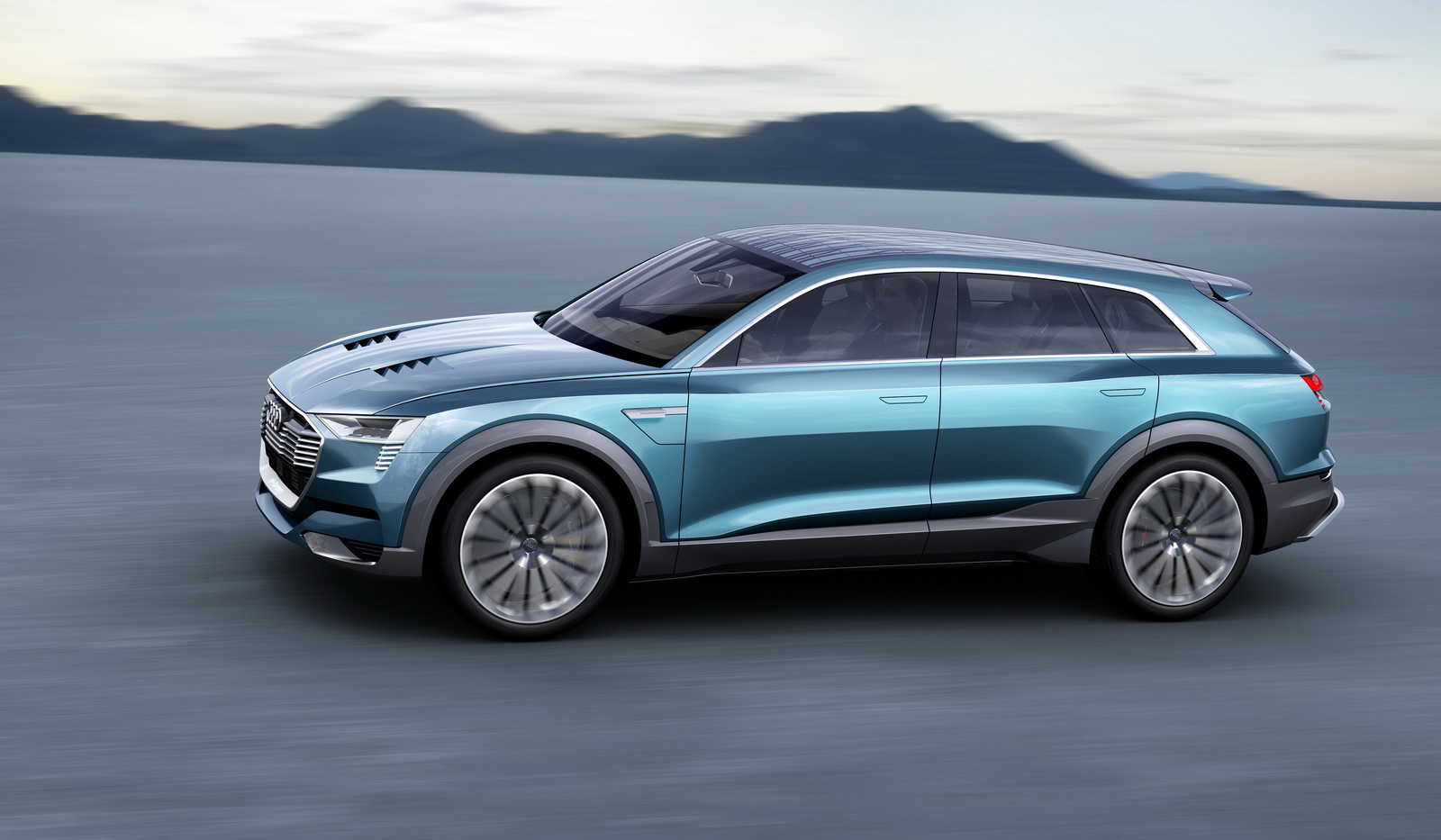

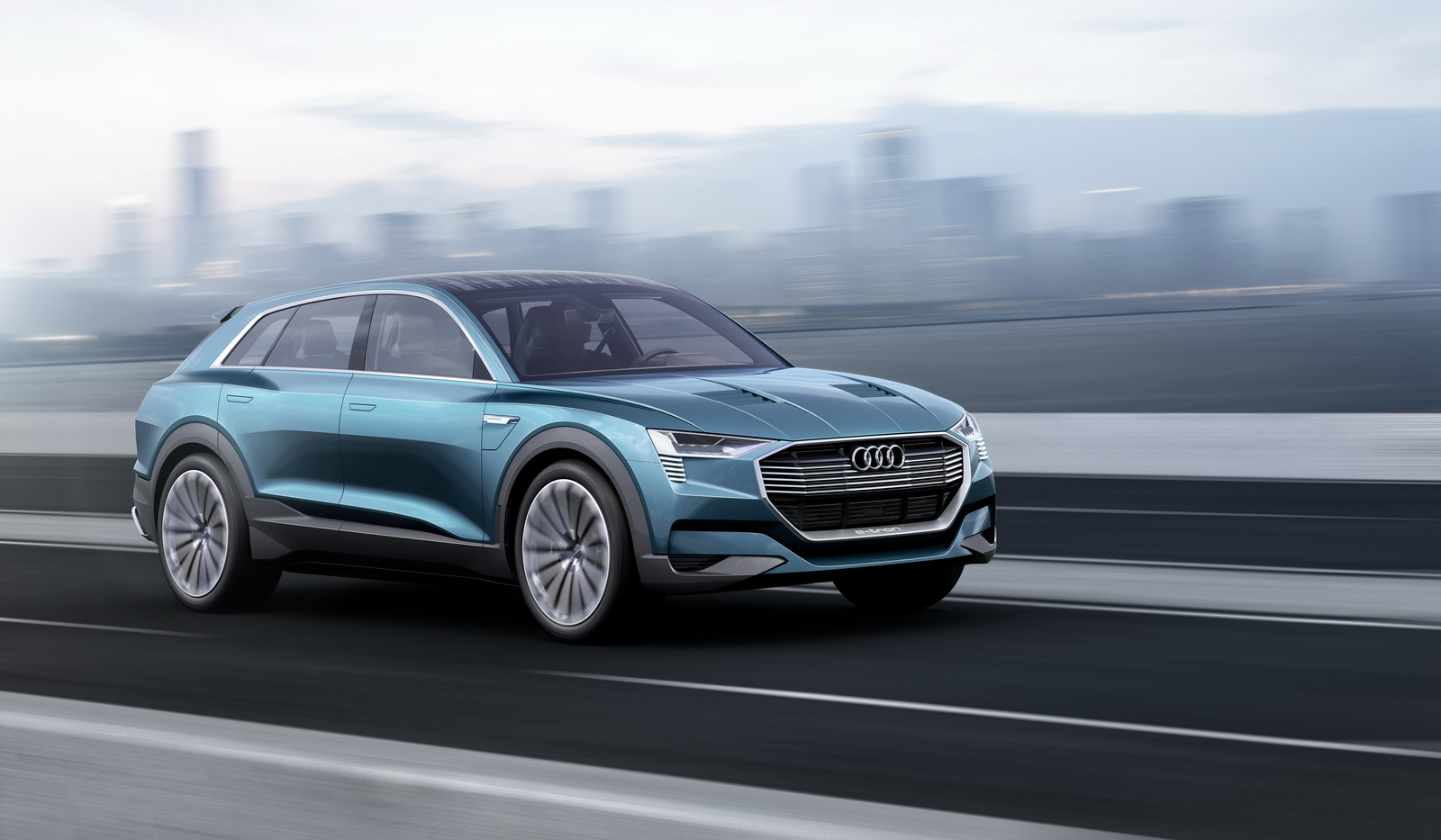

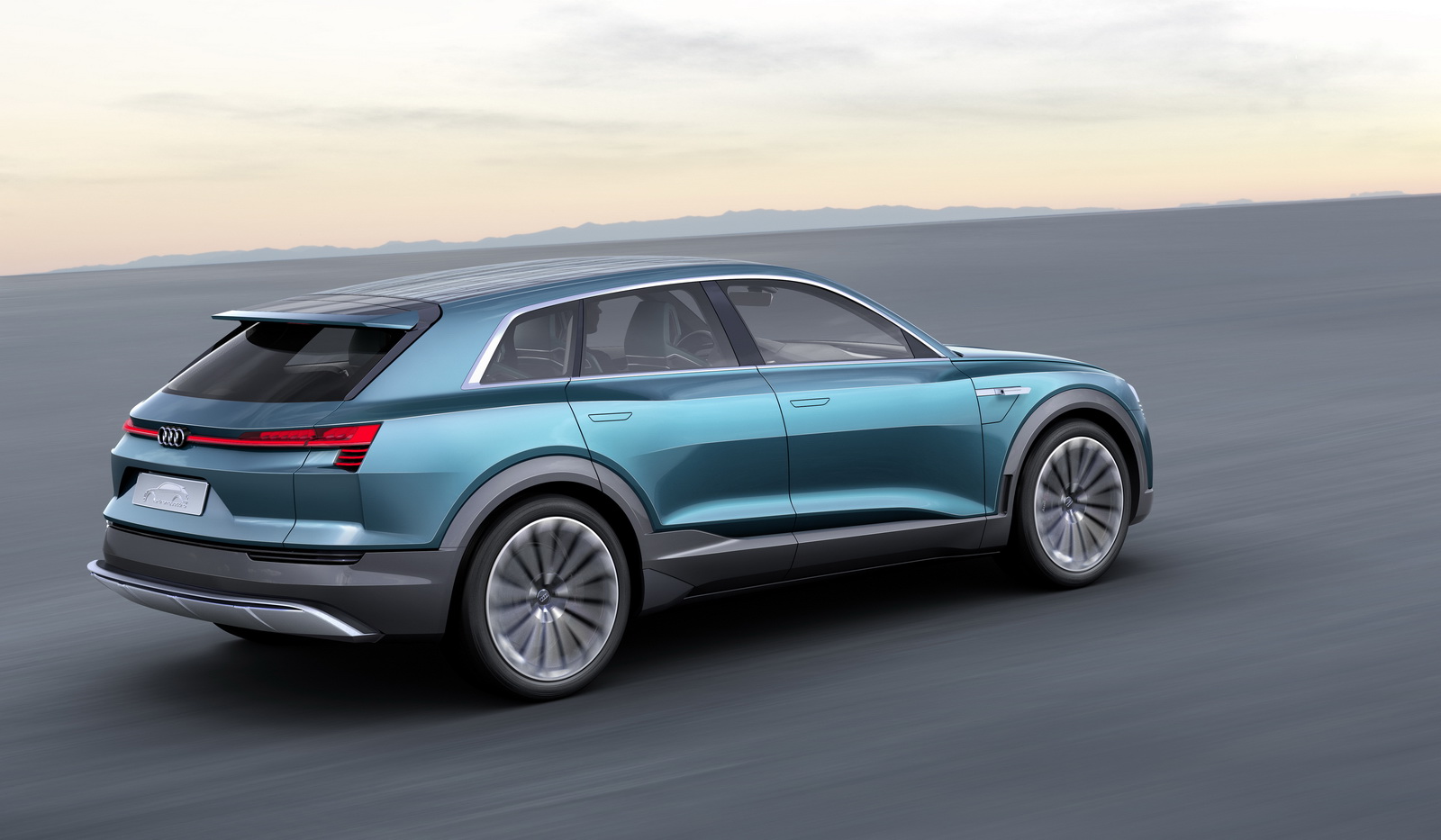

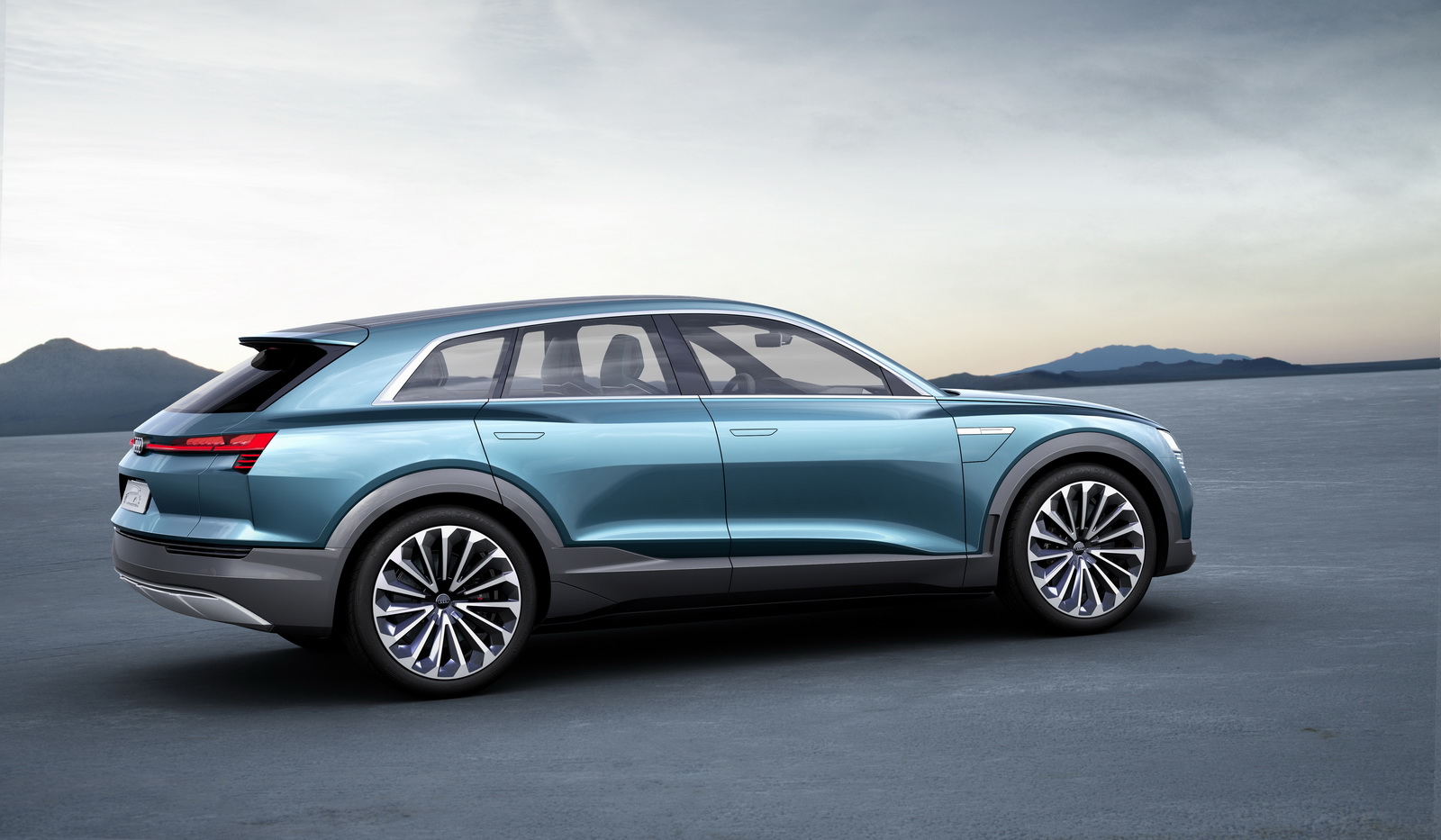

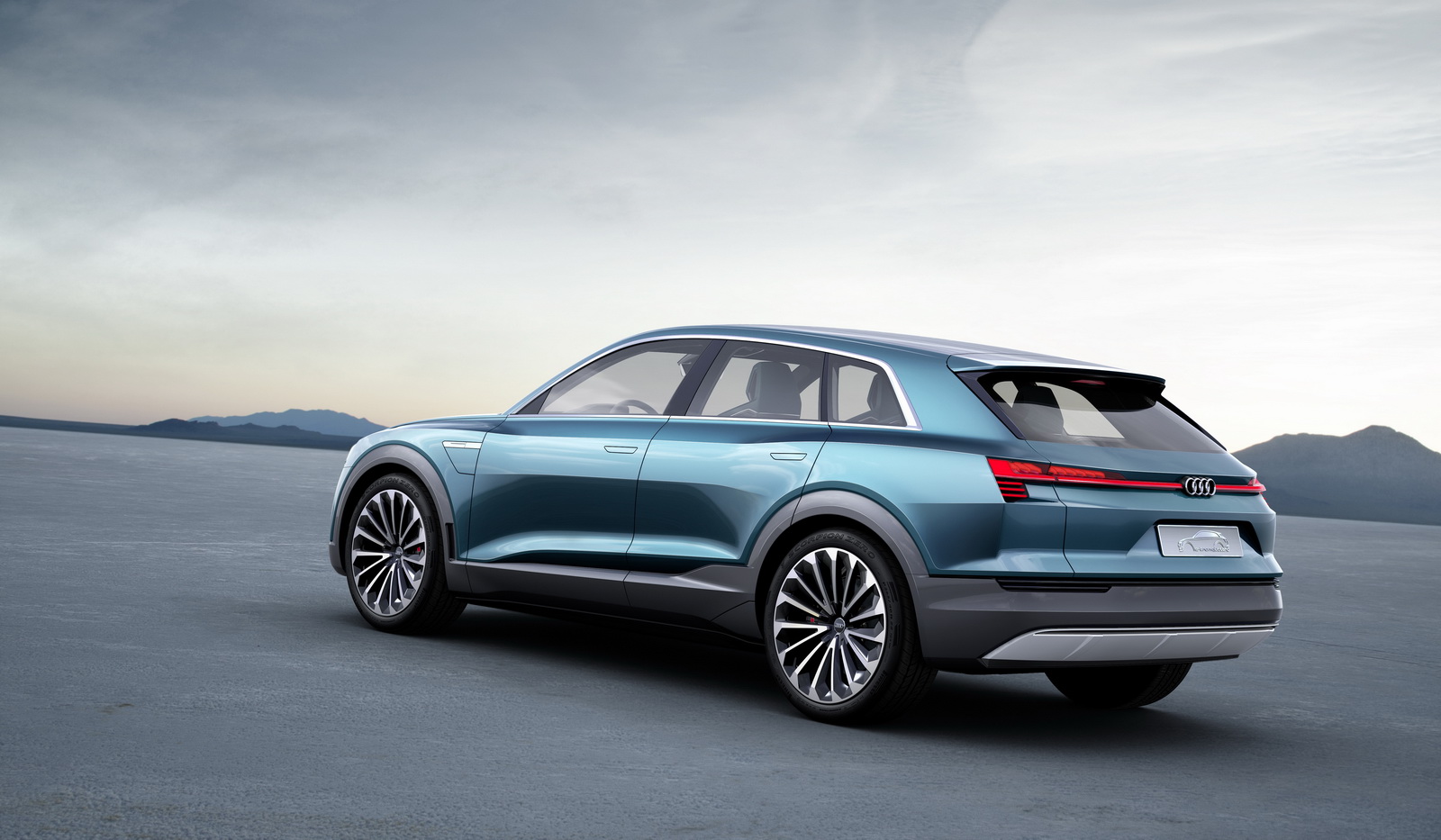

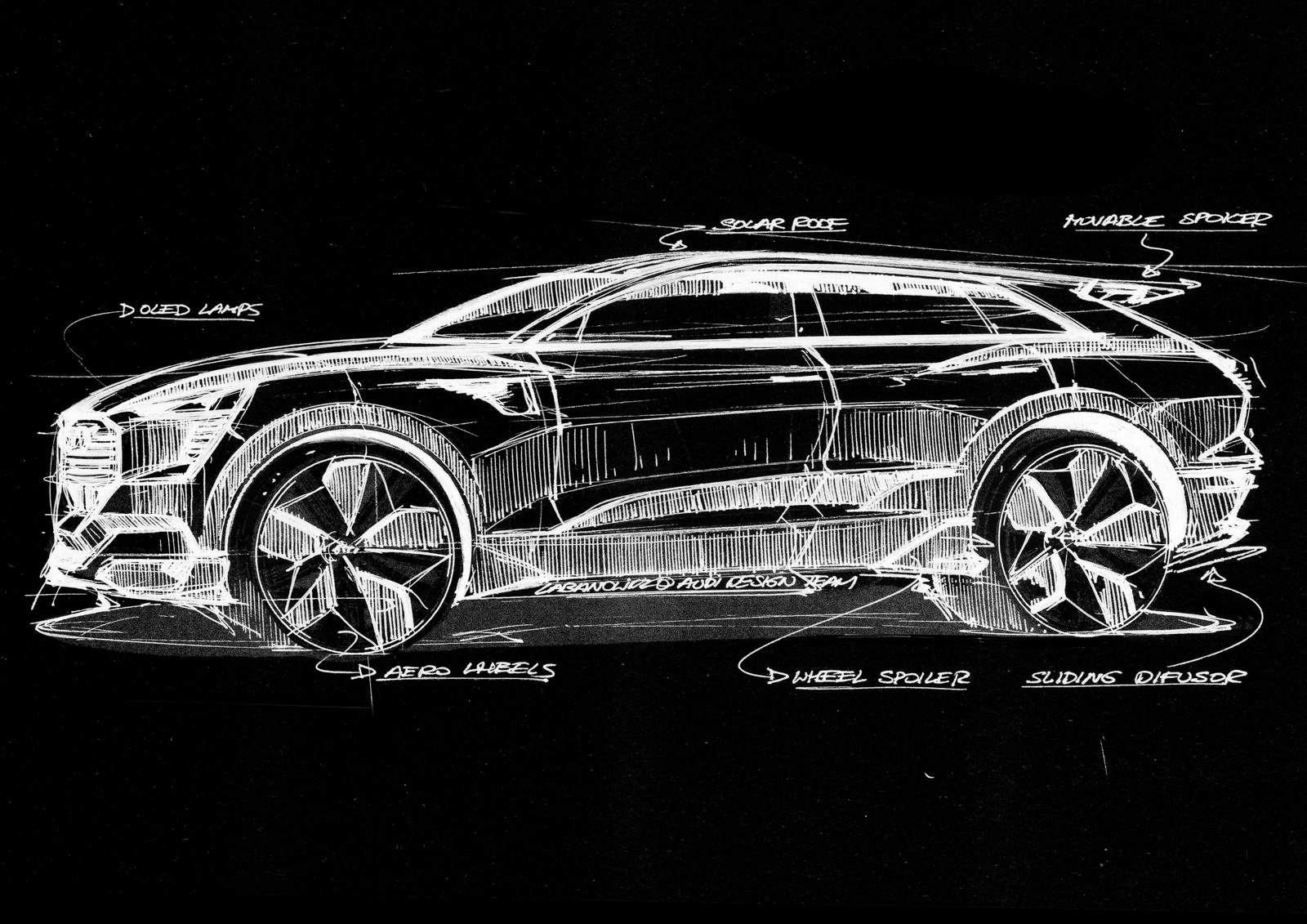

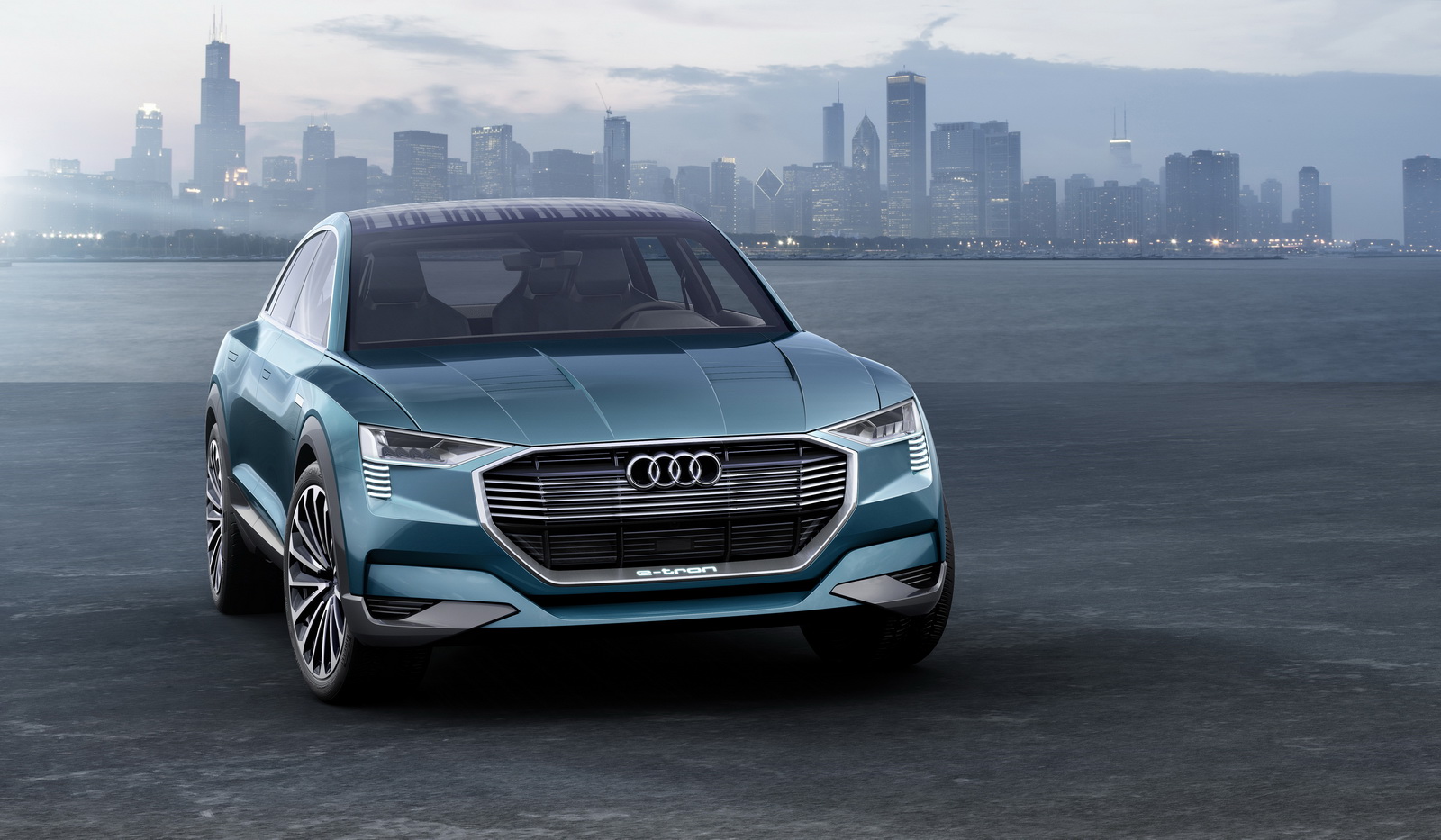

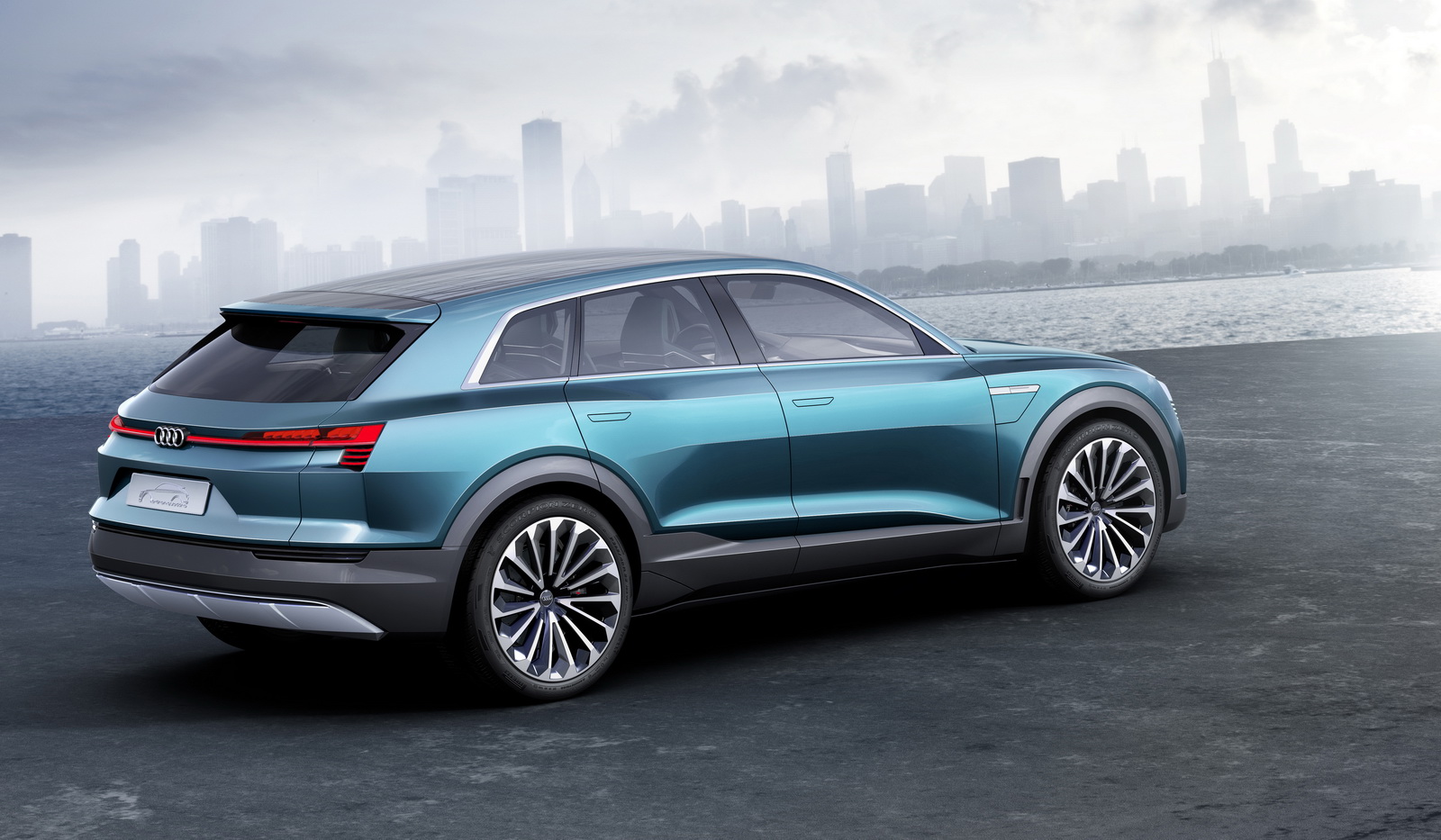

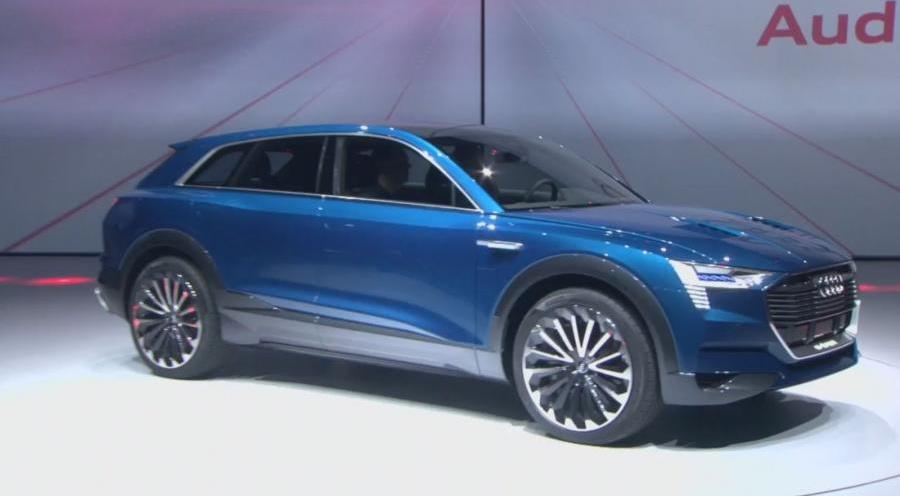

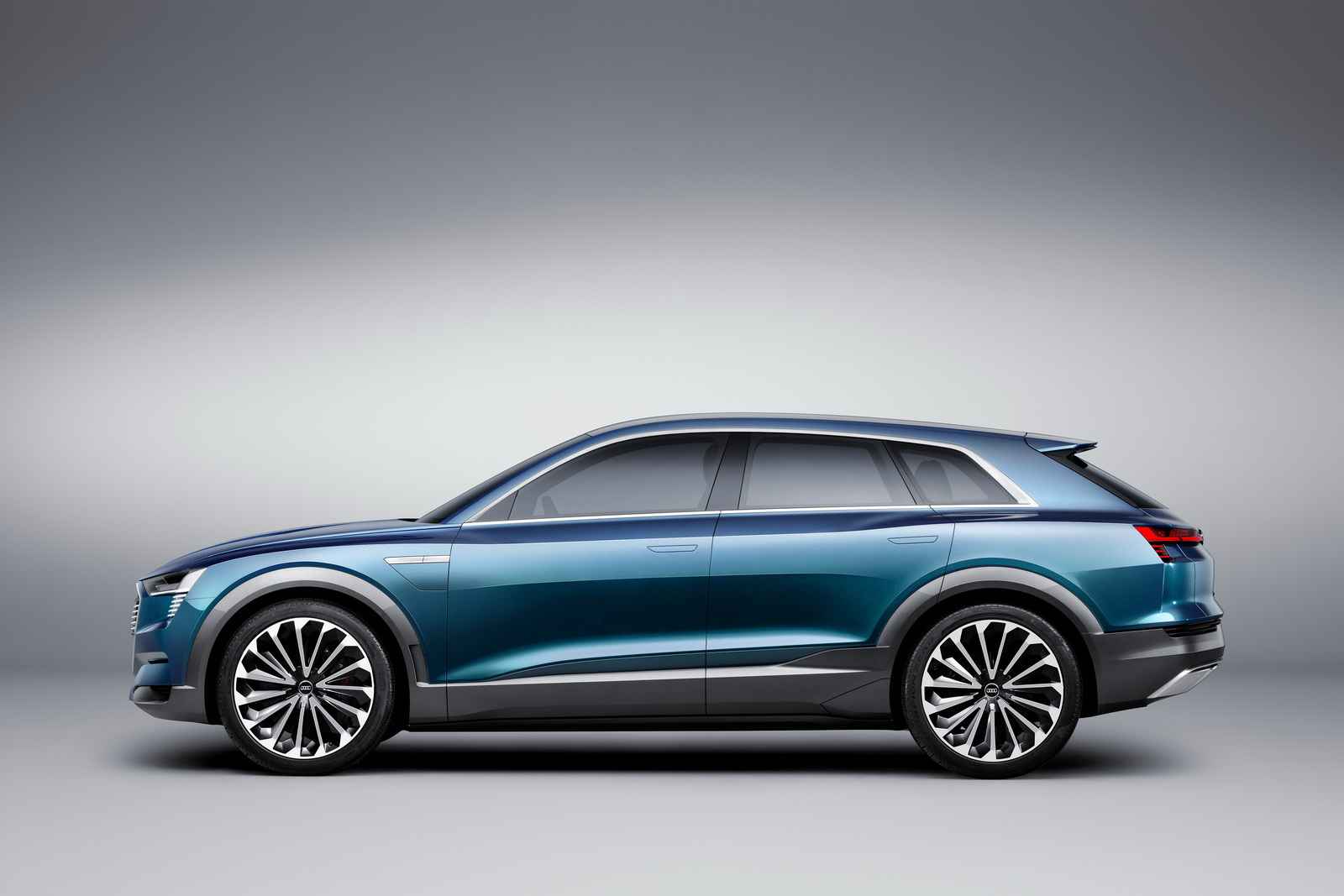

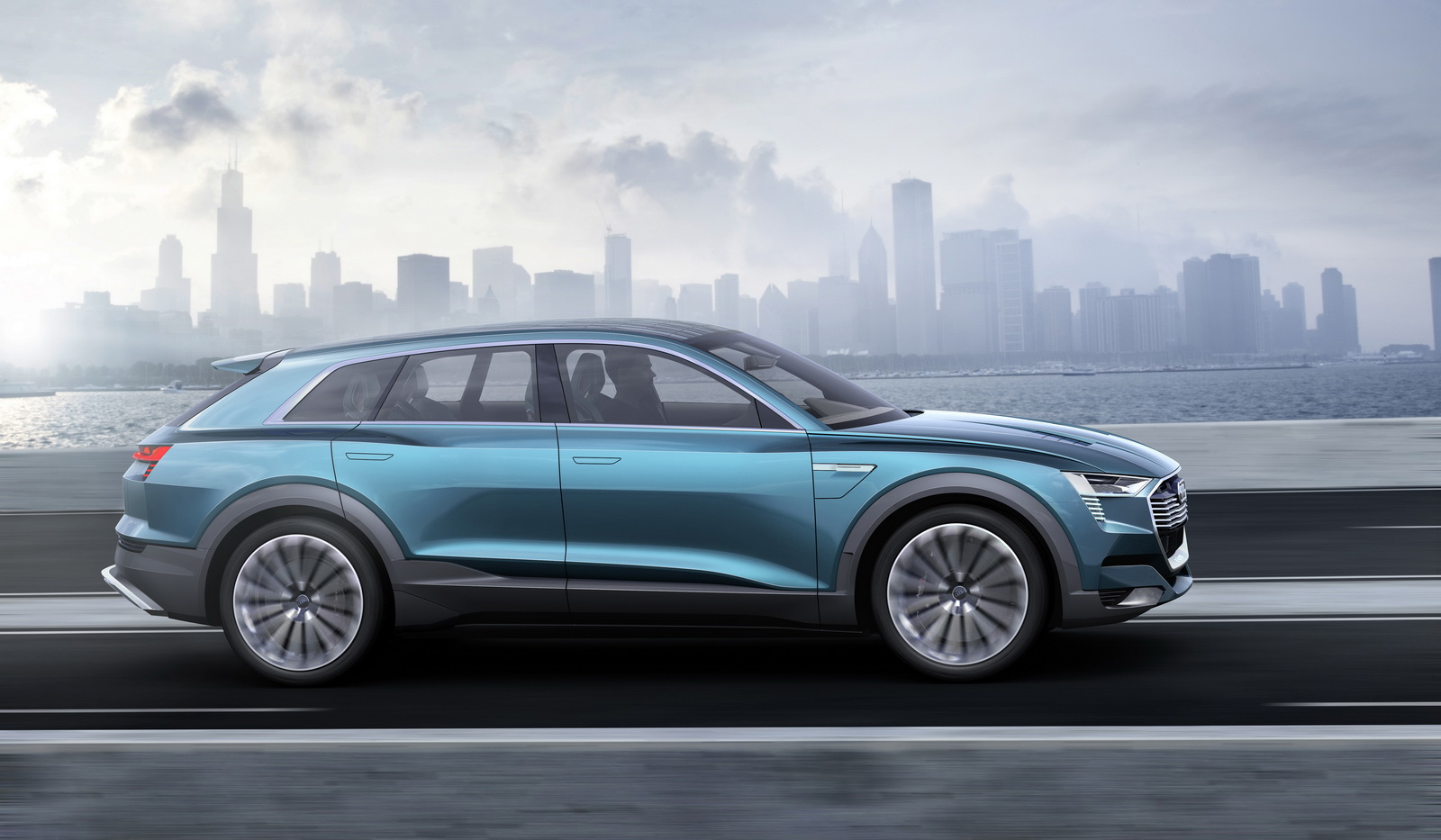

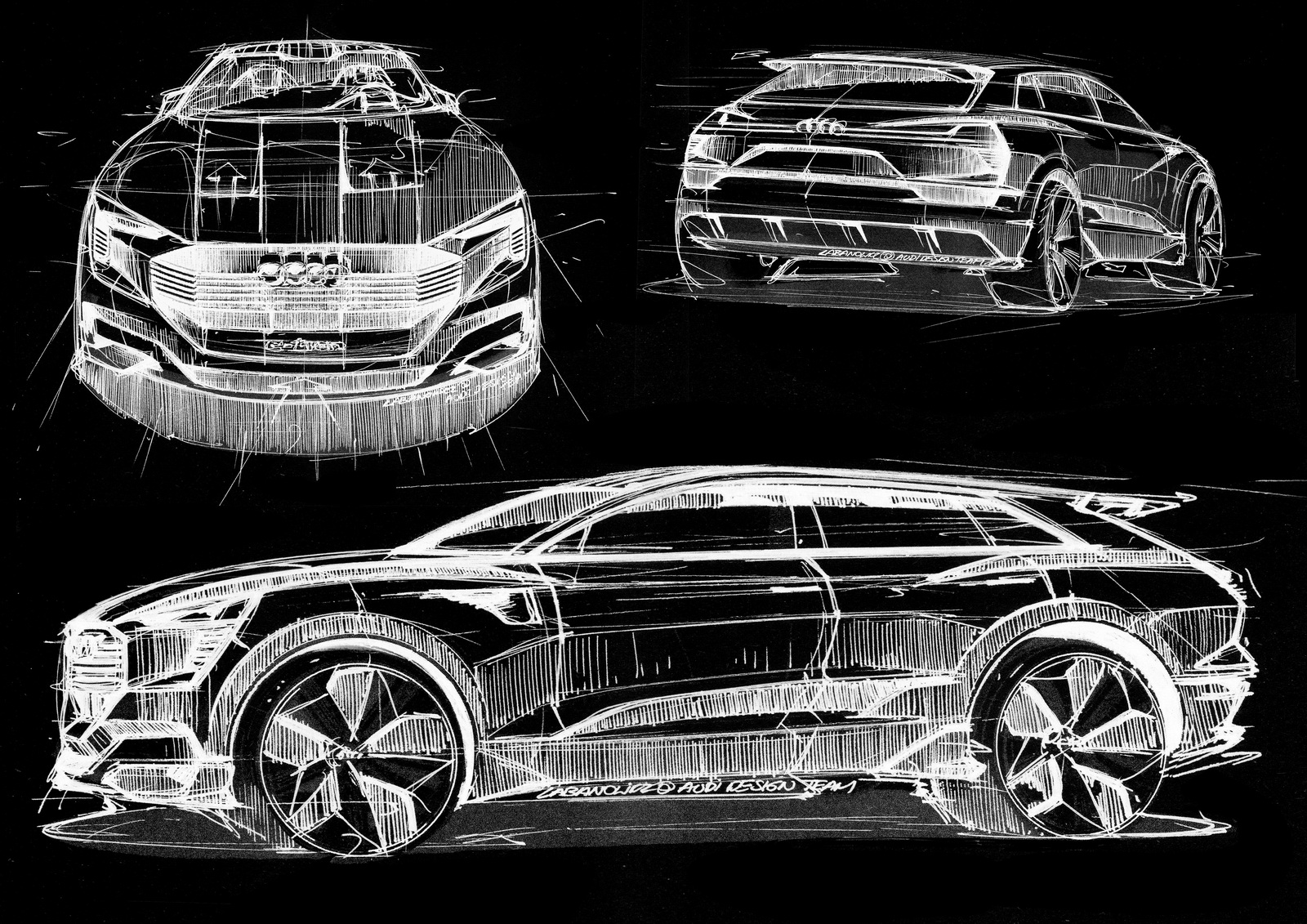

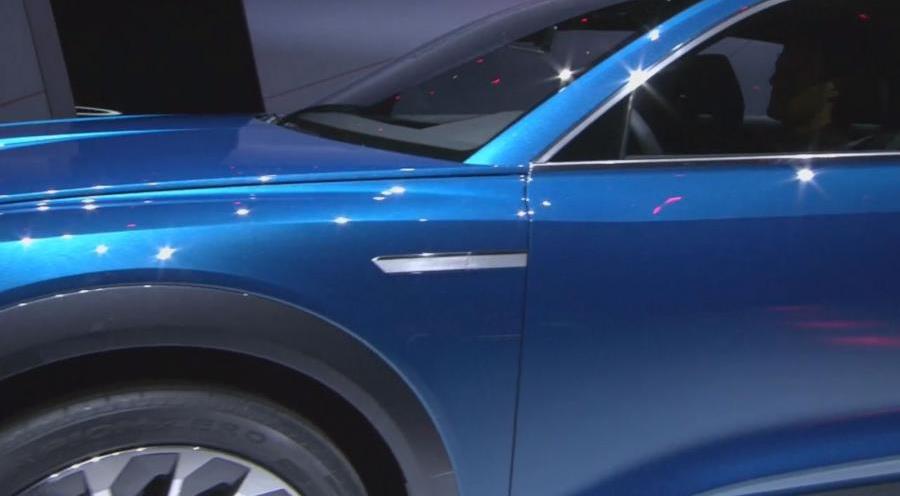

Aerodynamic: The exterior design The Audi e‑tron quattro concept harmoniously combines the design with the aerodynamics and all-electric drive system. The five-door technology study is 4.88 meters (16.0 ft) long, 1.93 meters (6.3 ft) wide and just 1.54 meters (5.1 ft) high. Its coupe-like silhouette with the extremely flat greenhouse that tapers strongly toward the rear lends it a very dynamic appearance. The car’s drag coefficient measures just 0.25 – a new best for the SUV segment, where figures are usually considerably over 0.30.

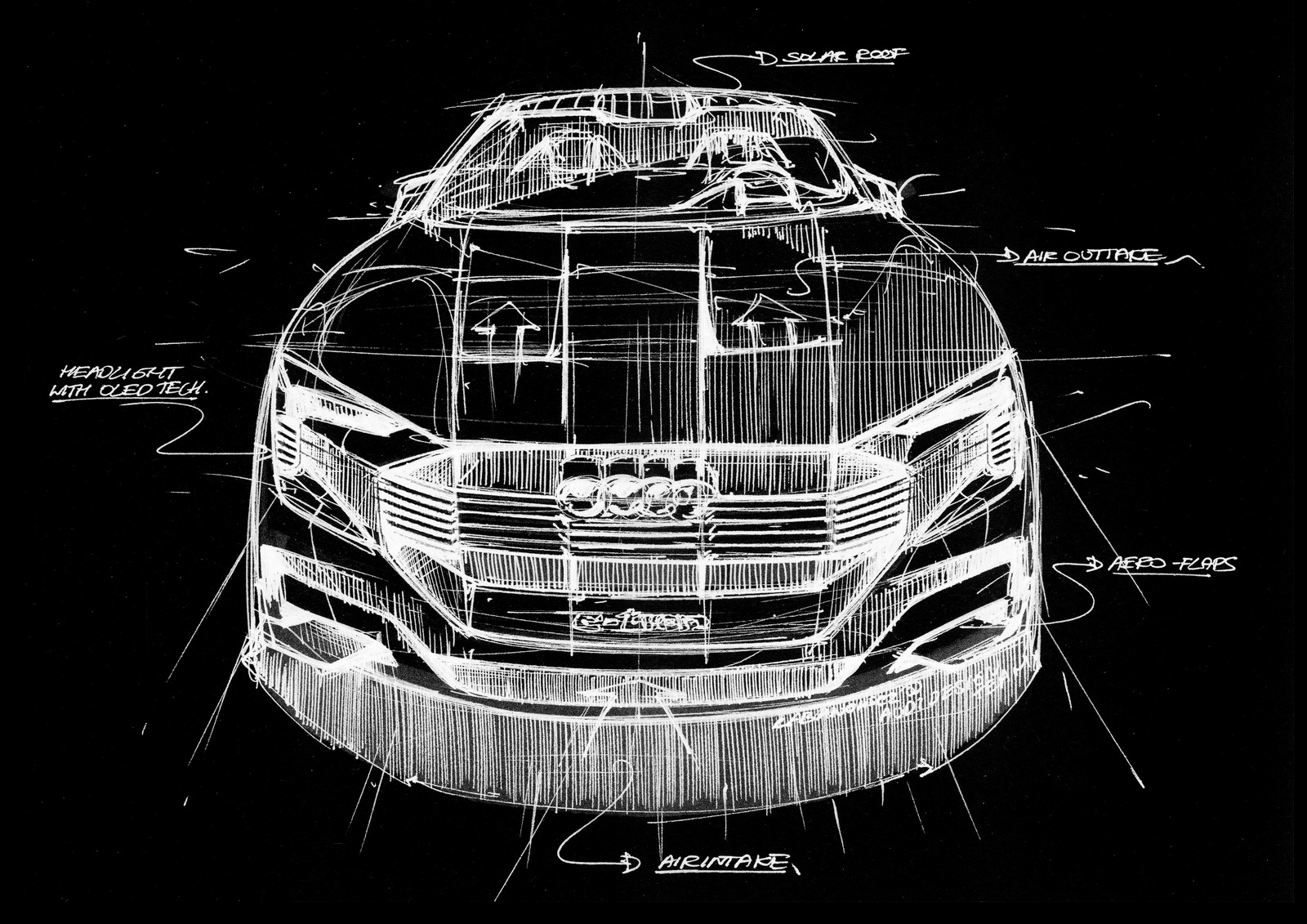

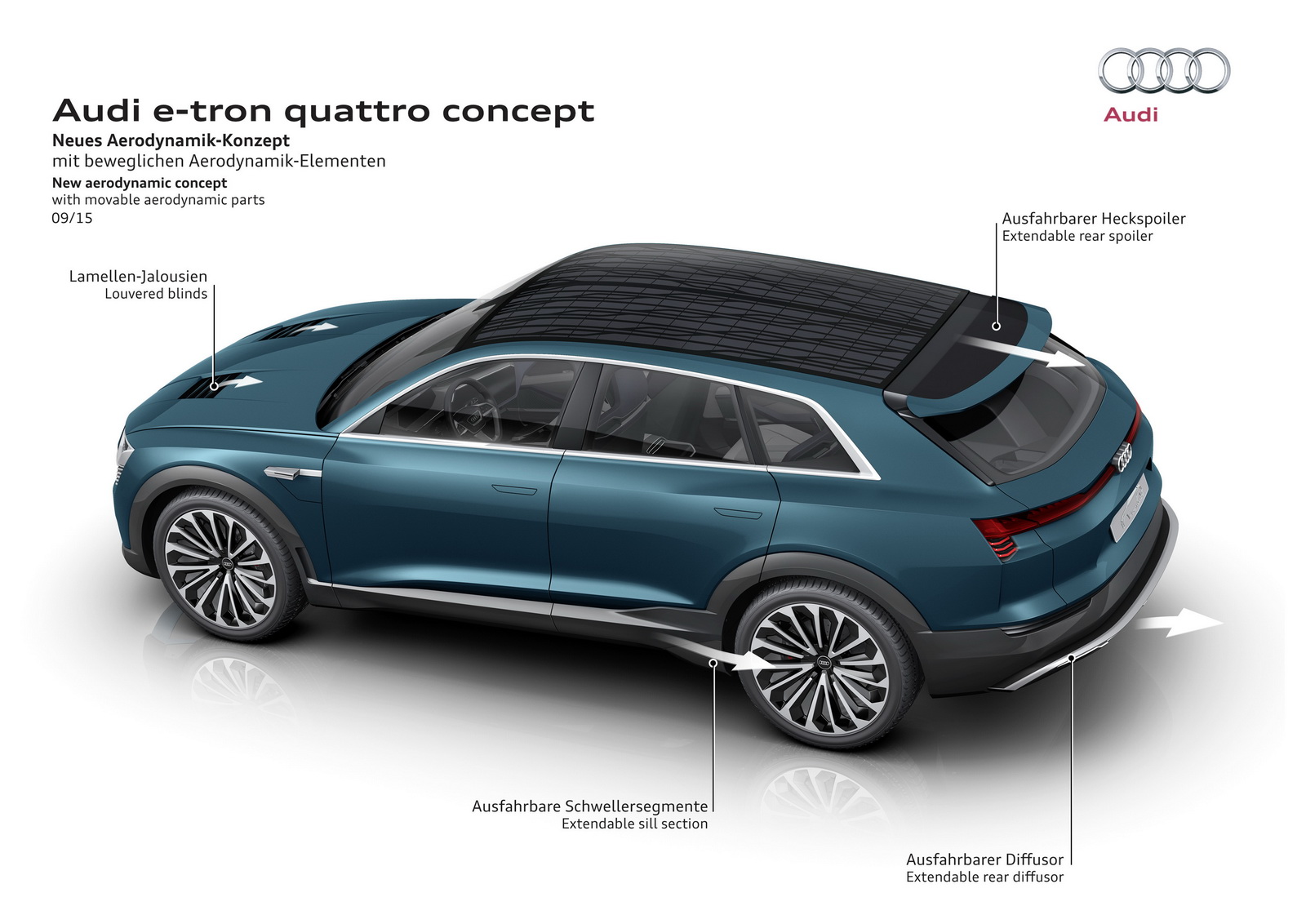

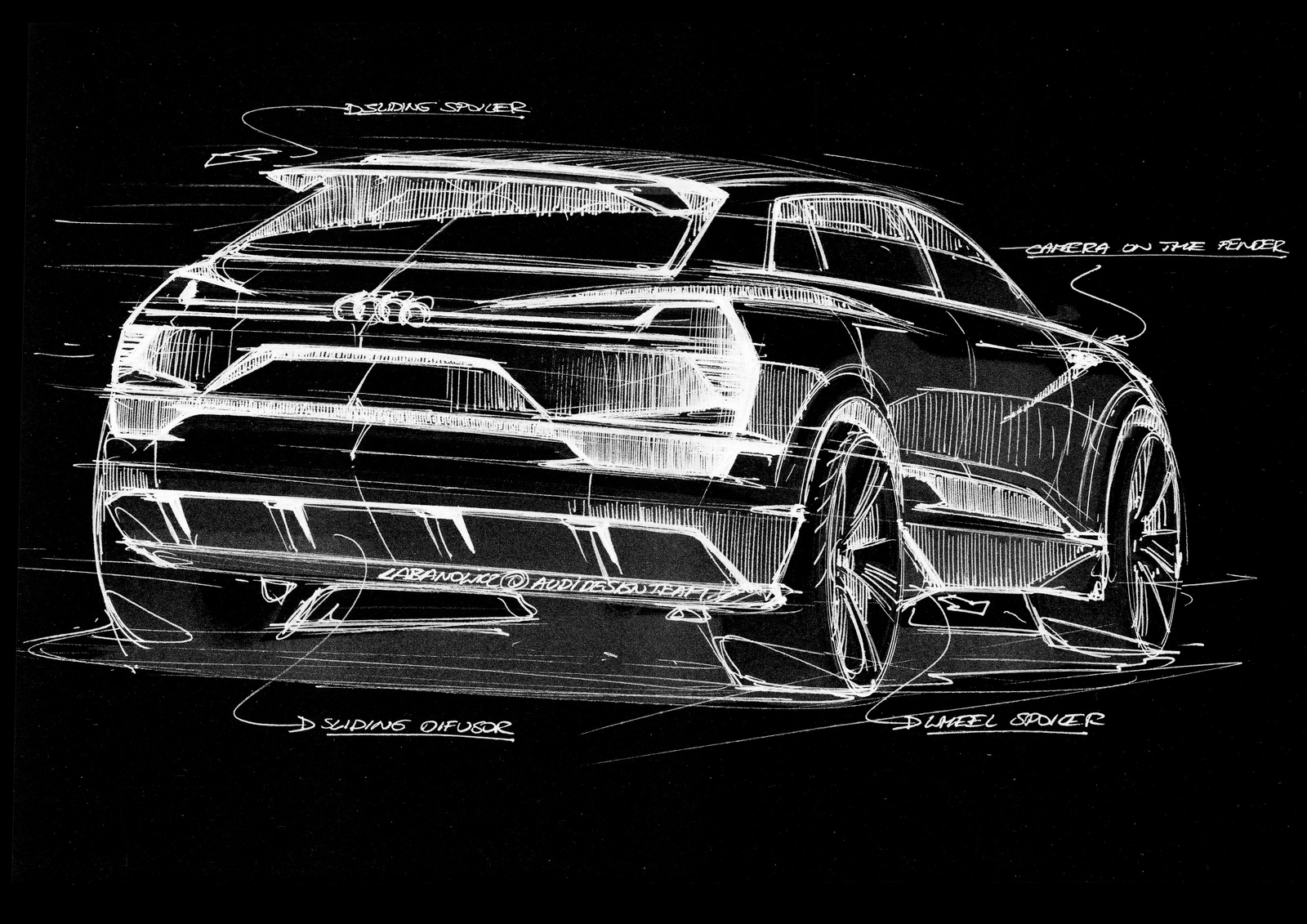

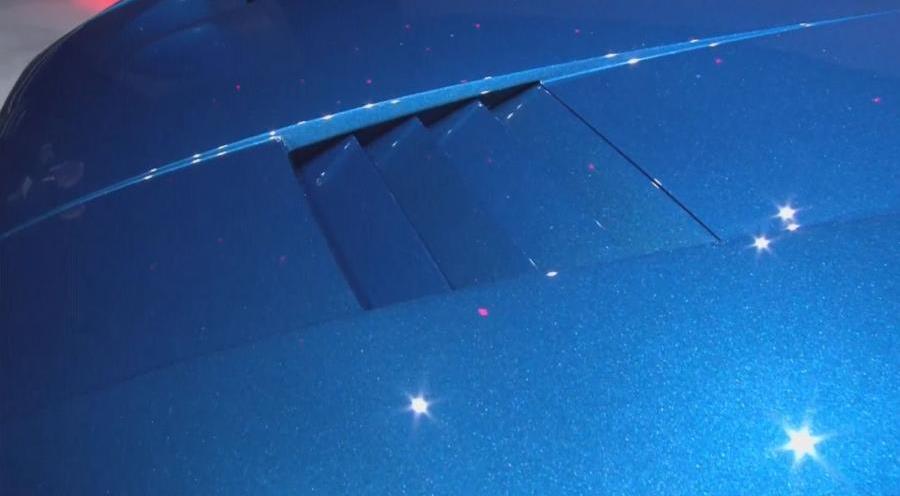

All of this contributes considerably to the long range of more than 500 kilometers (310.7 miles). At speeds from 80 km/h (49.7 mi), electrically actuated aerodynamic elements on the engine hood, the flanks and at the rear end direct the flow of air as needed to improve the flow through and around the vehicle. This is one example of the intensive development work in the wind tunnel. Wind noise is low on board the car, and there are no engine noises in an electric car in any case. The fascination of electric driving unfolds in near total silence.

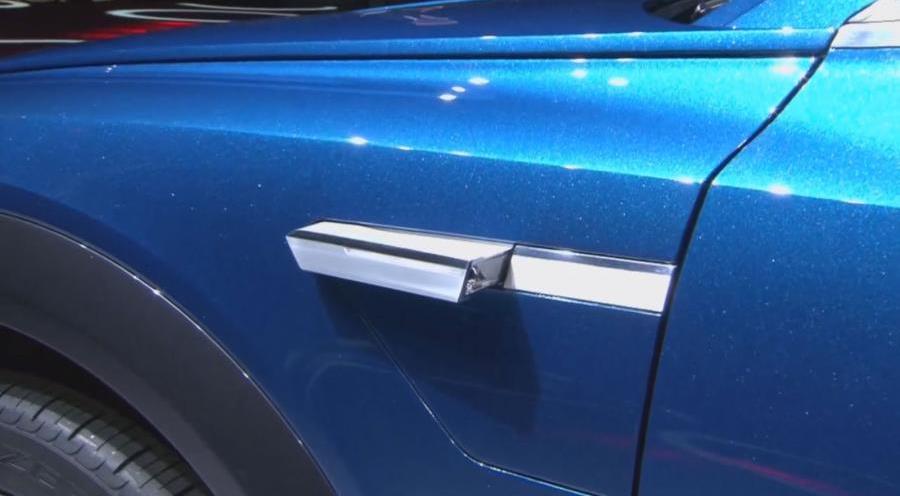

The vertical separating edges on the side panels and the fully enclosed floor pan with its newly designed microstructures contribute to reducing drag. Cameras replace the exterior mirrors – another contribution to the excellent aerodynamics and also a foretaste of the future of driving.

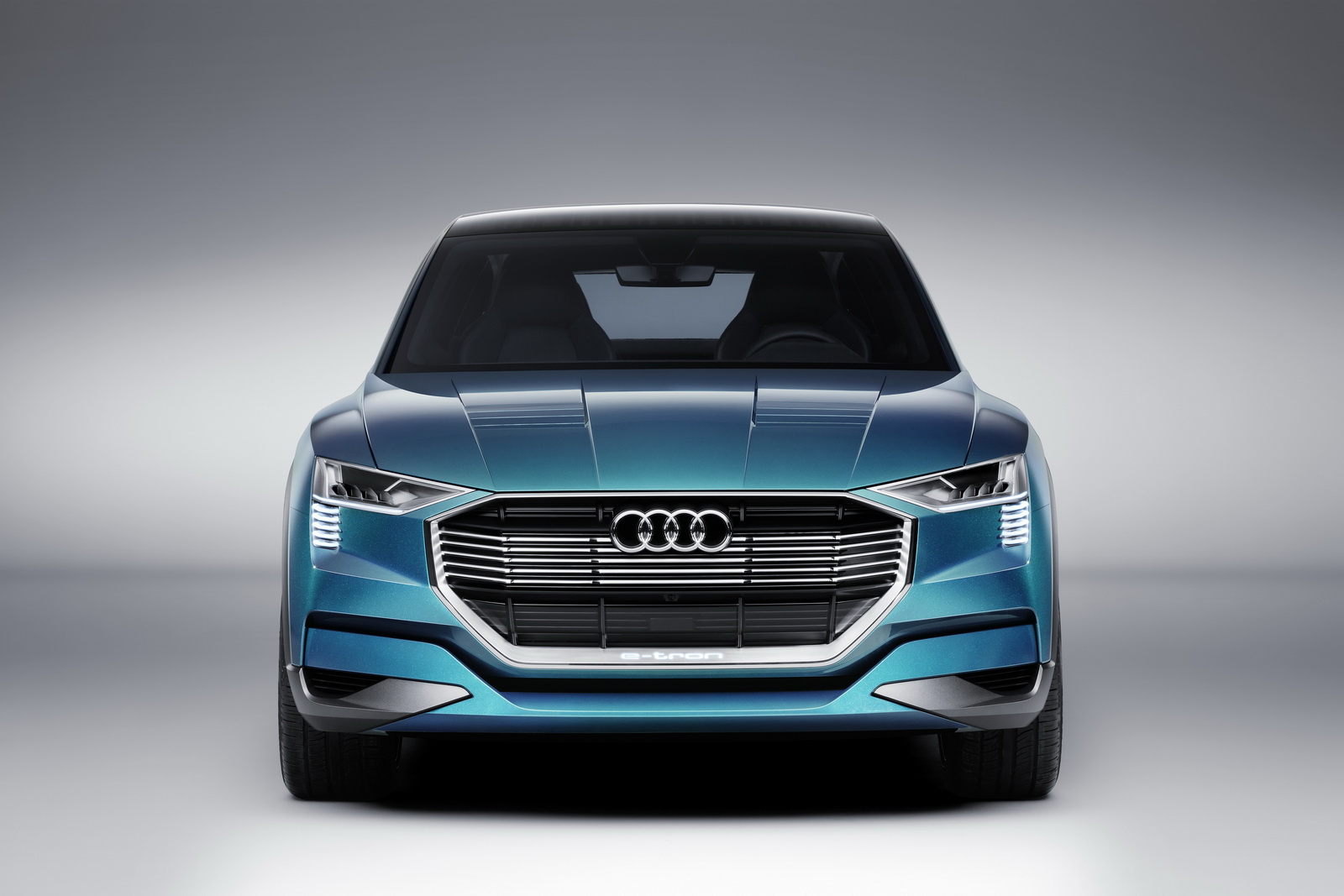

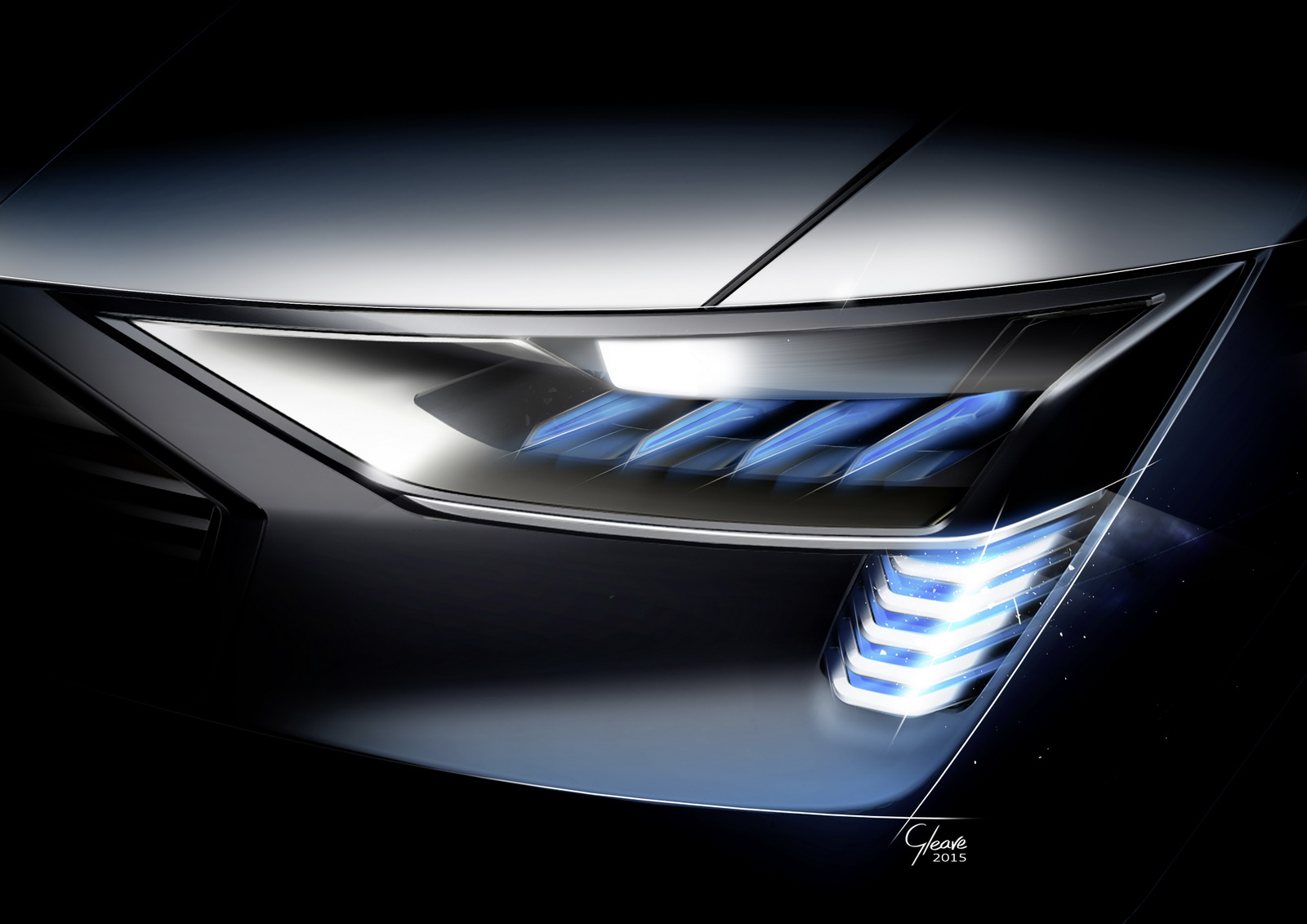

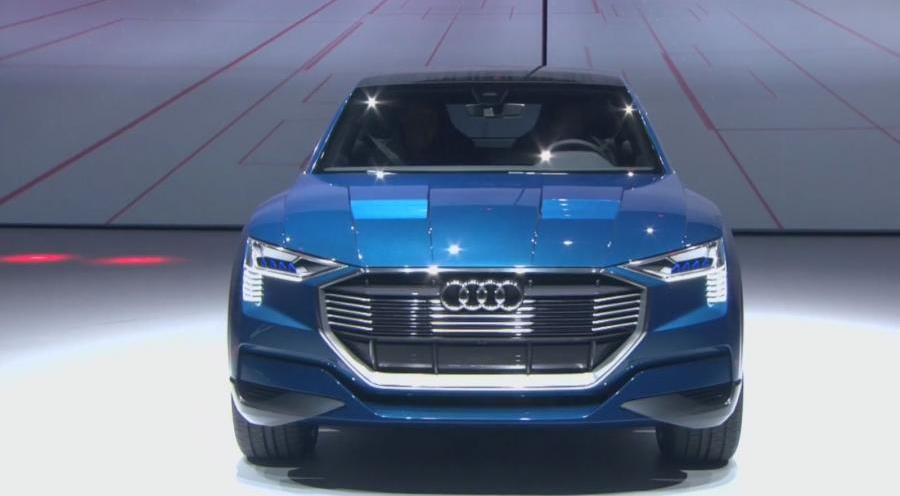

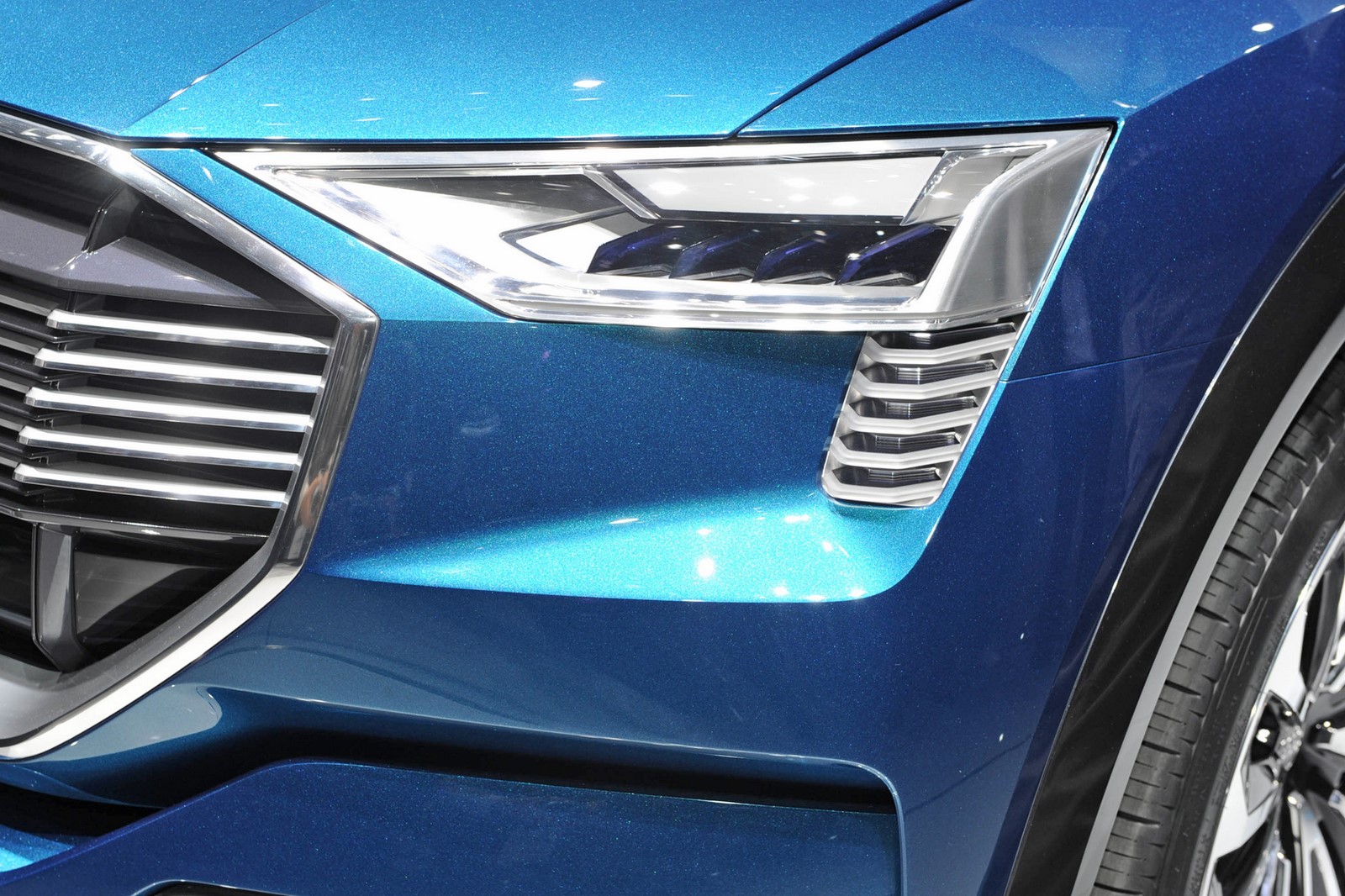

All the main lighting functions at the front of the car use Matrix laser technology. The bottom section houses a new, distinctive lighting signature comprising five lighting elements. Each of these combines an LED luminary with an extremely flat OLED element (organic light-emitting diode). Audi is developing Matrix OLED technology for use in production vehicles and is showing it for the first time in the concept study at the IAA.

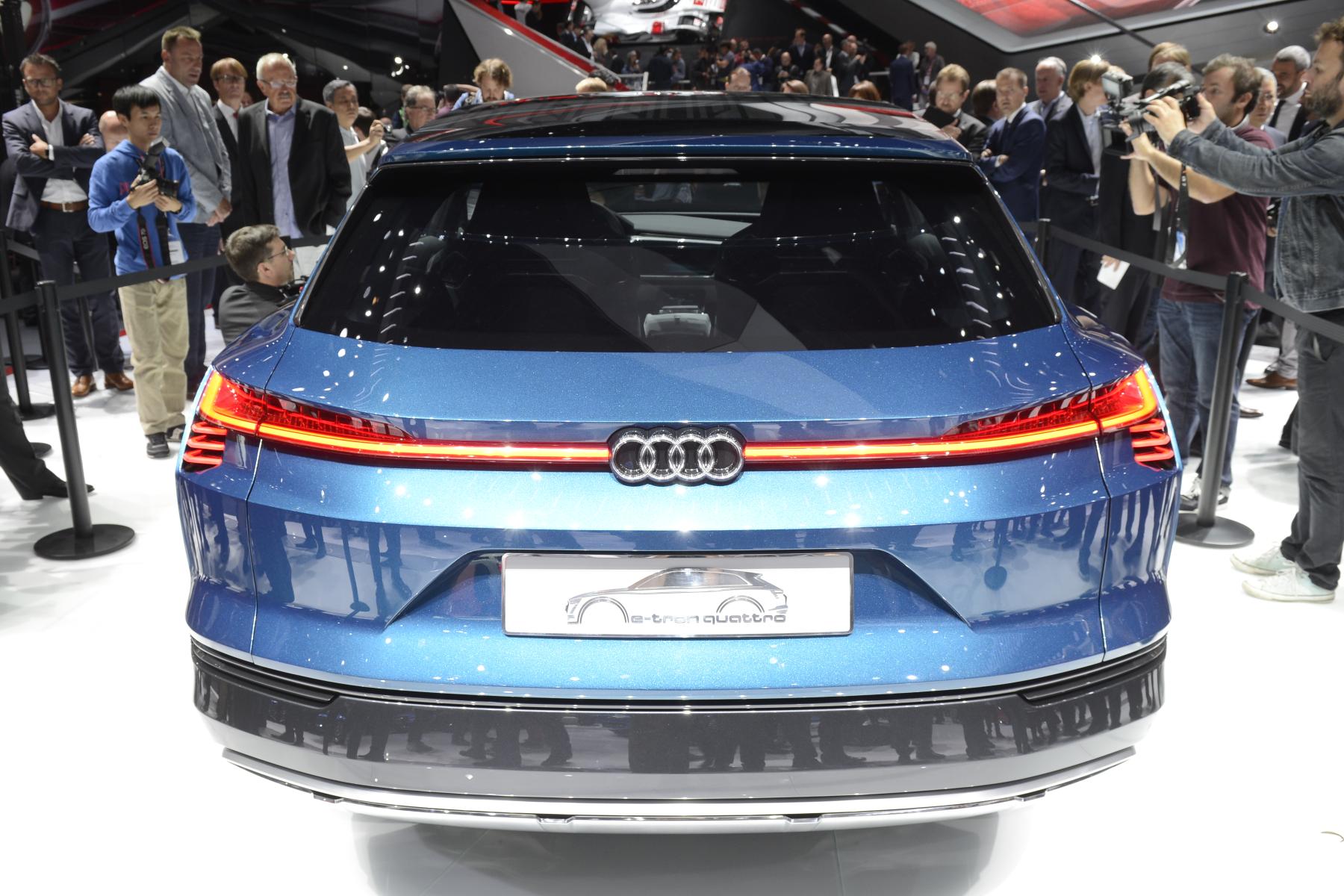

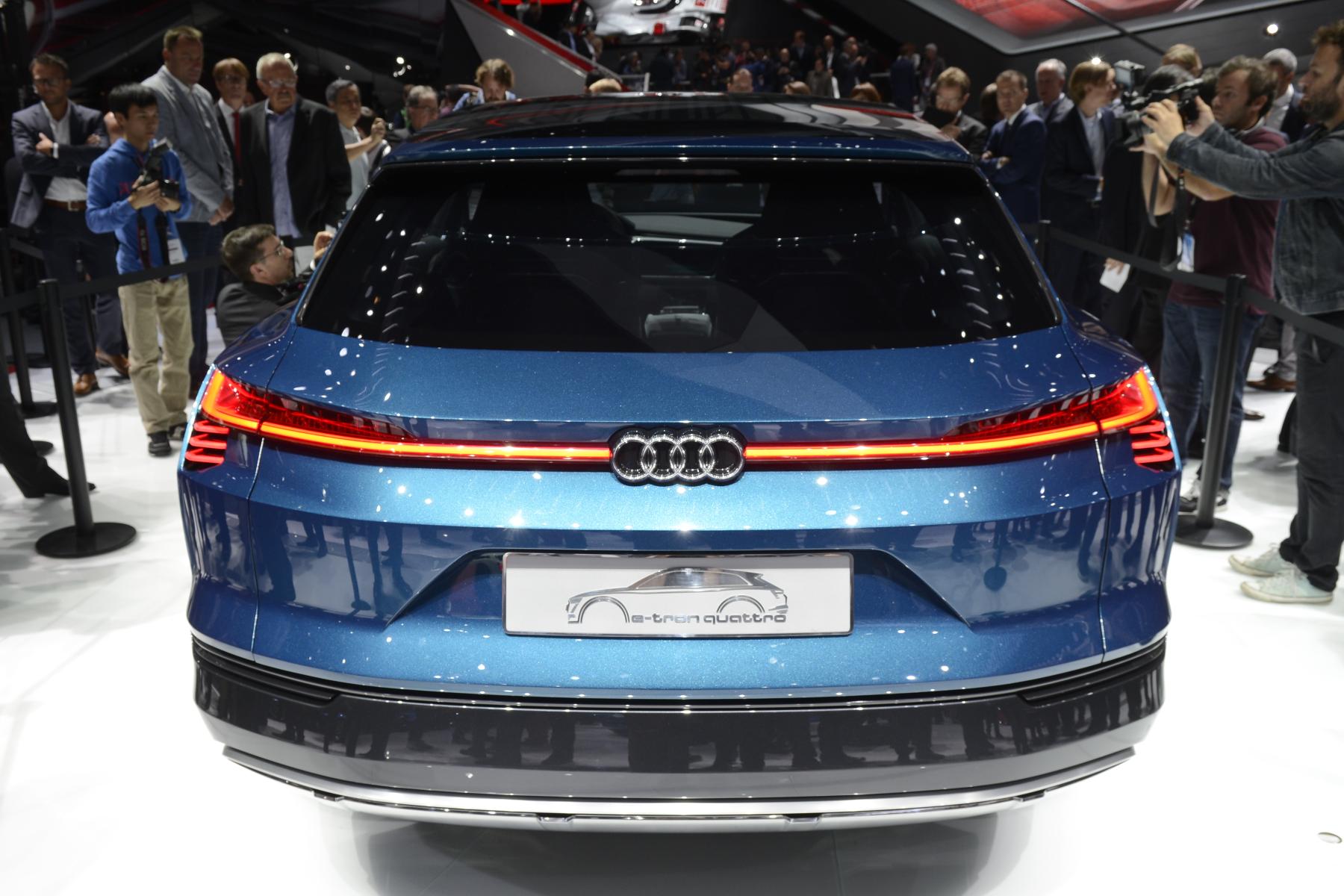

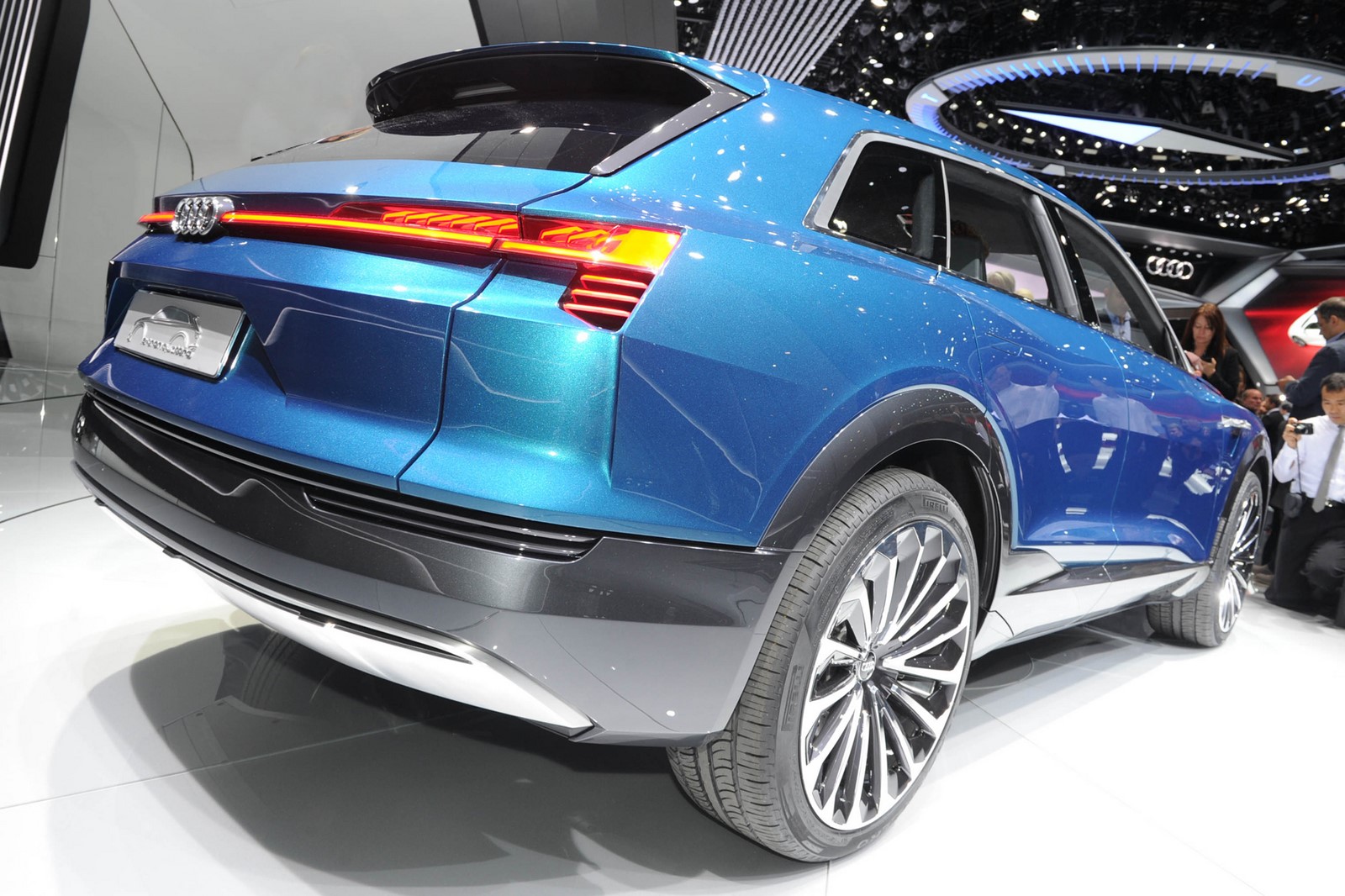

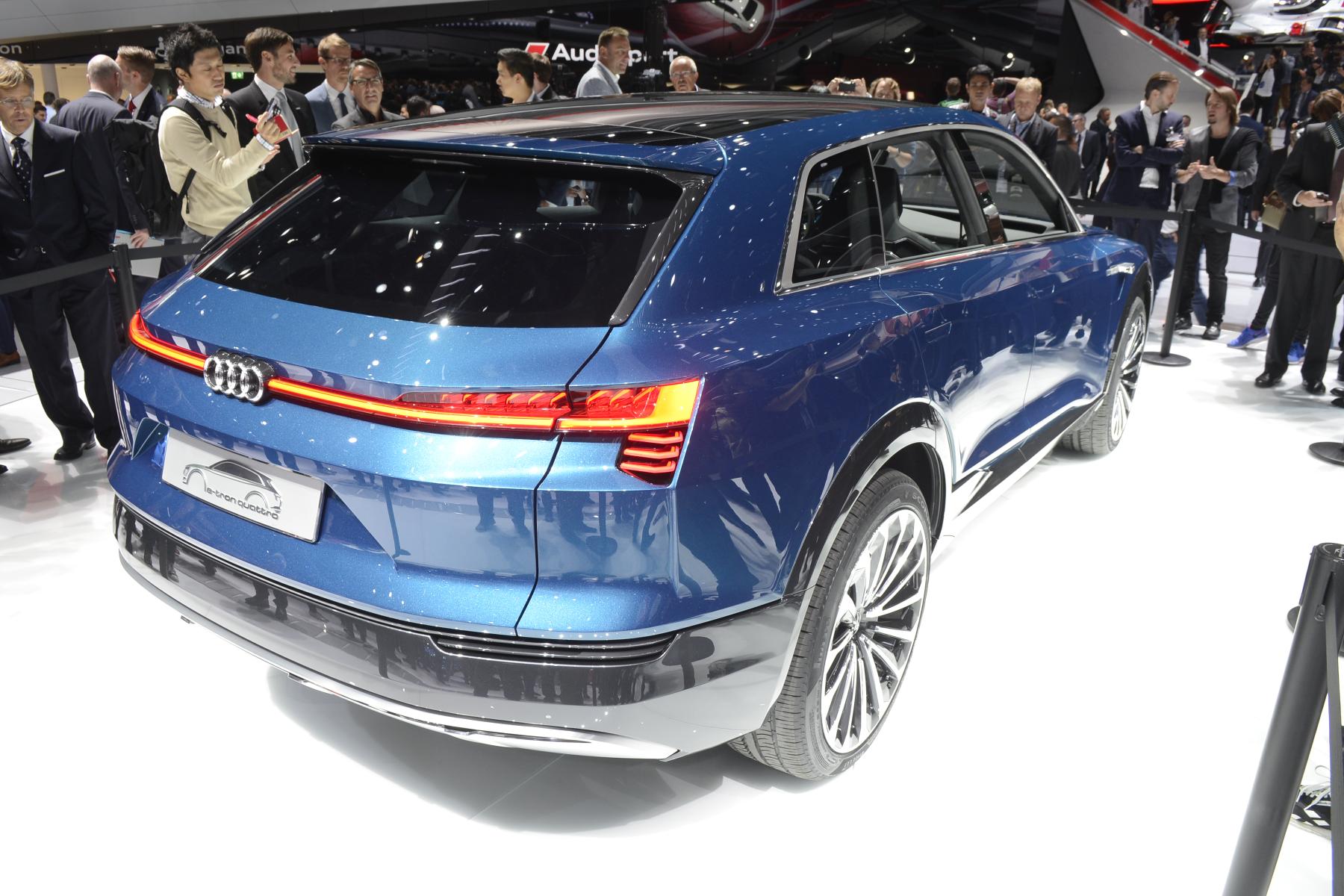

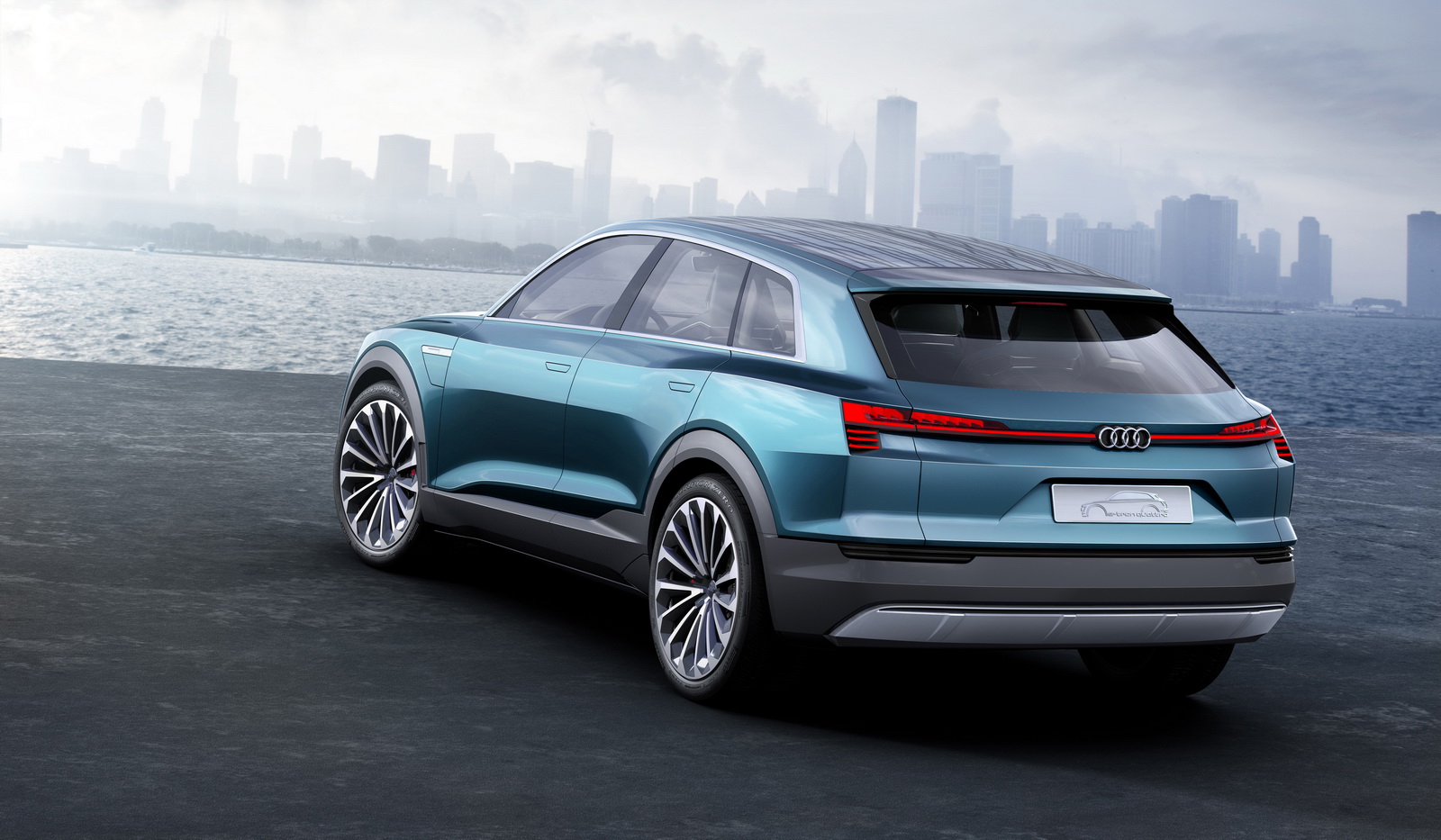

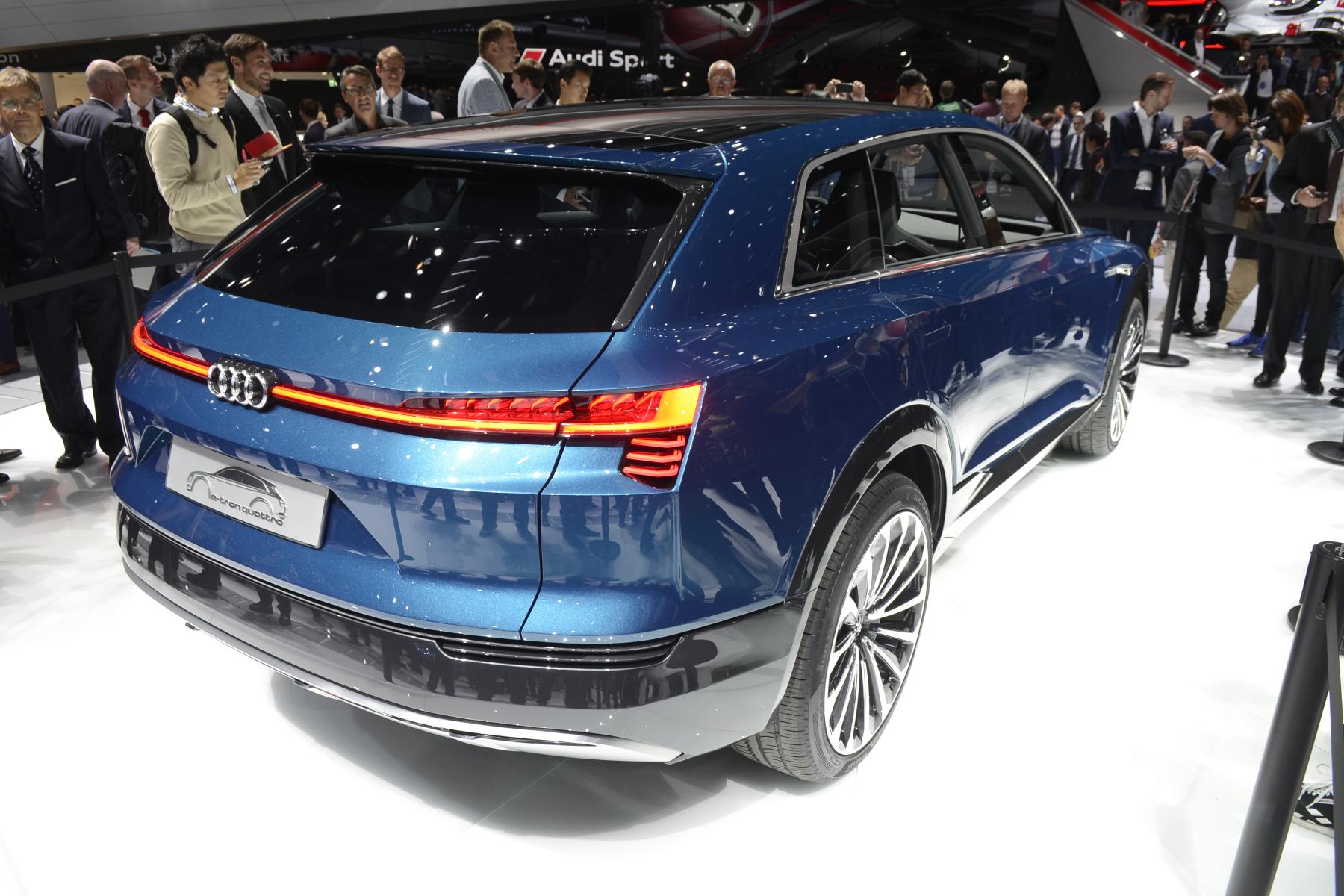

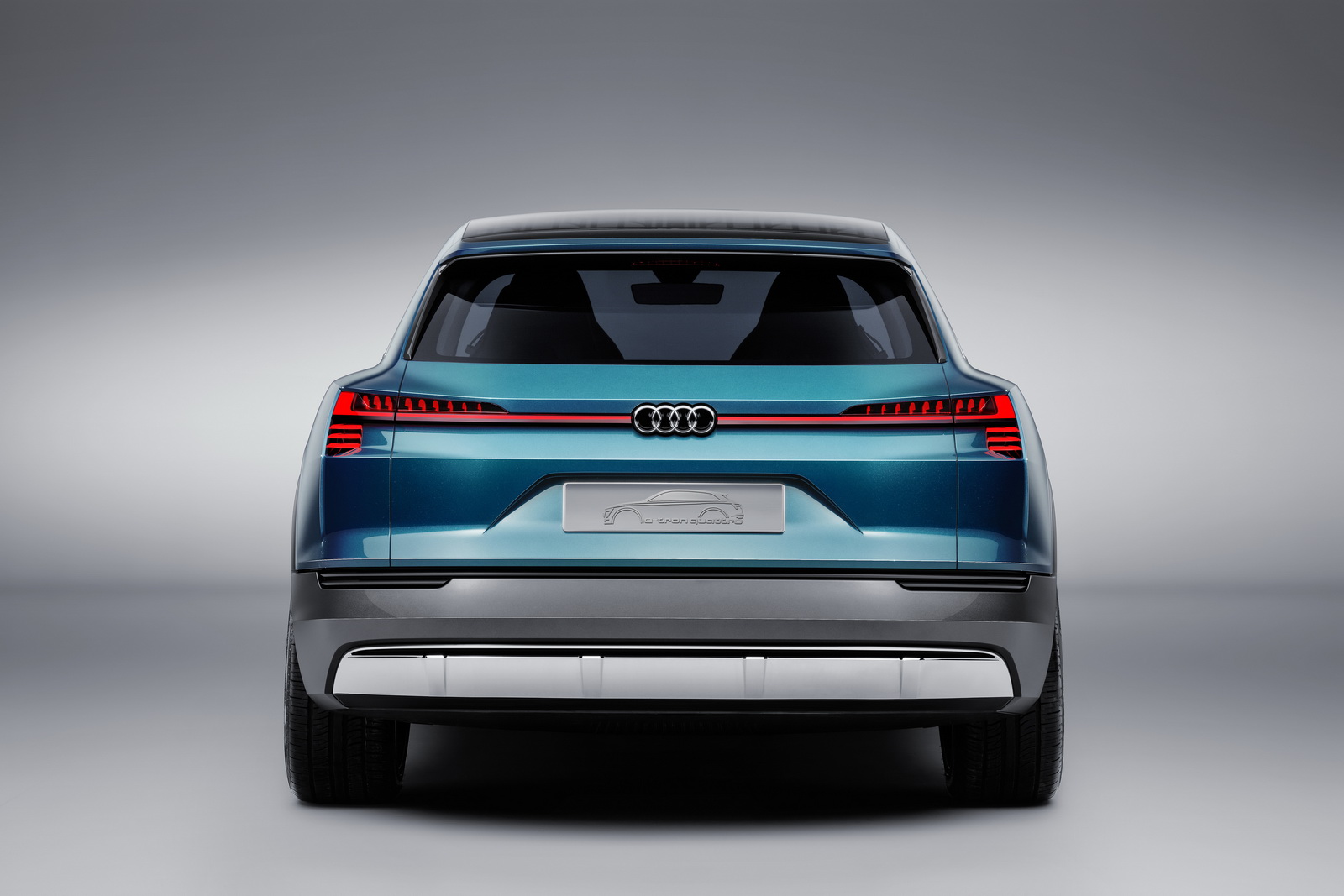

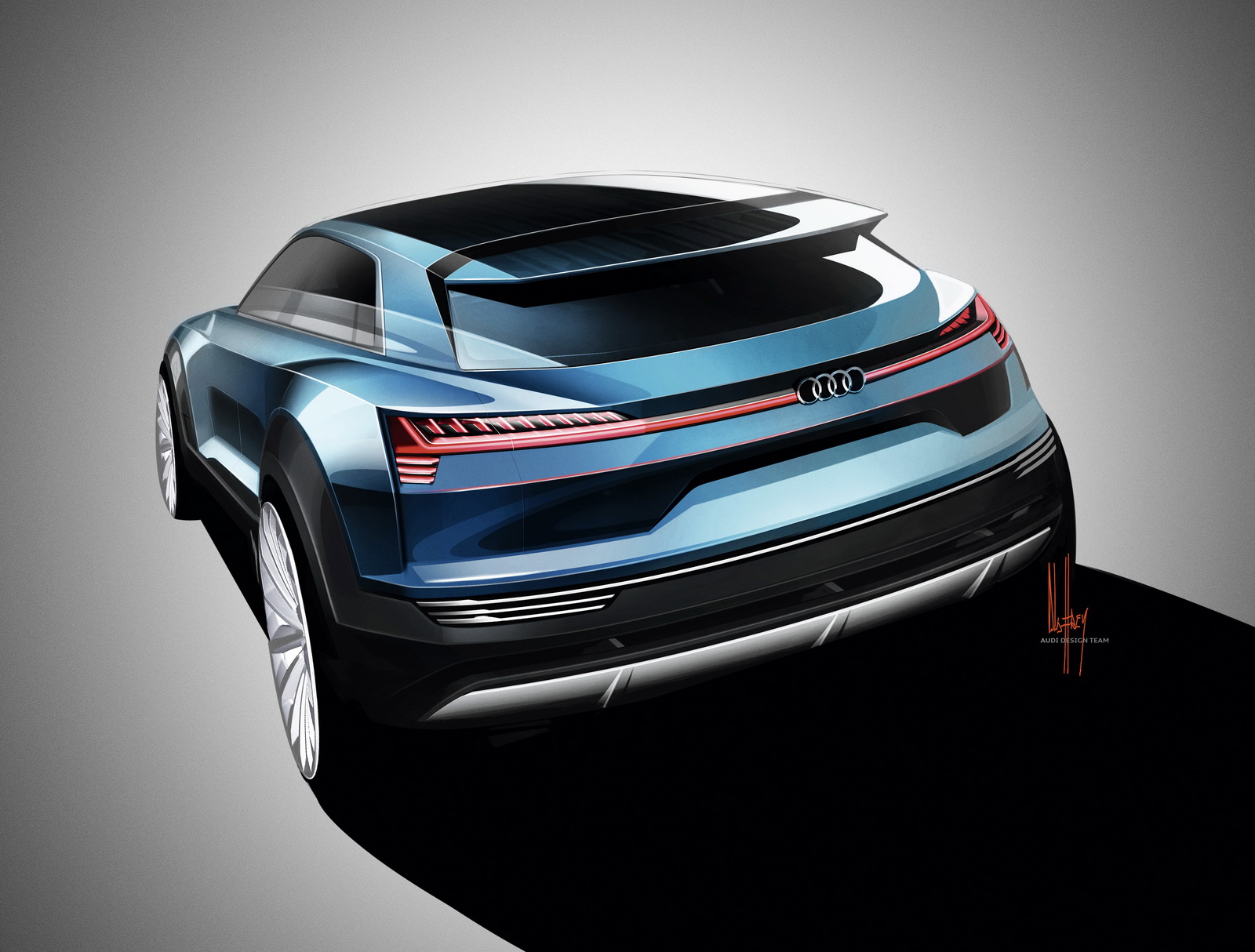

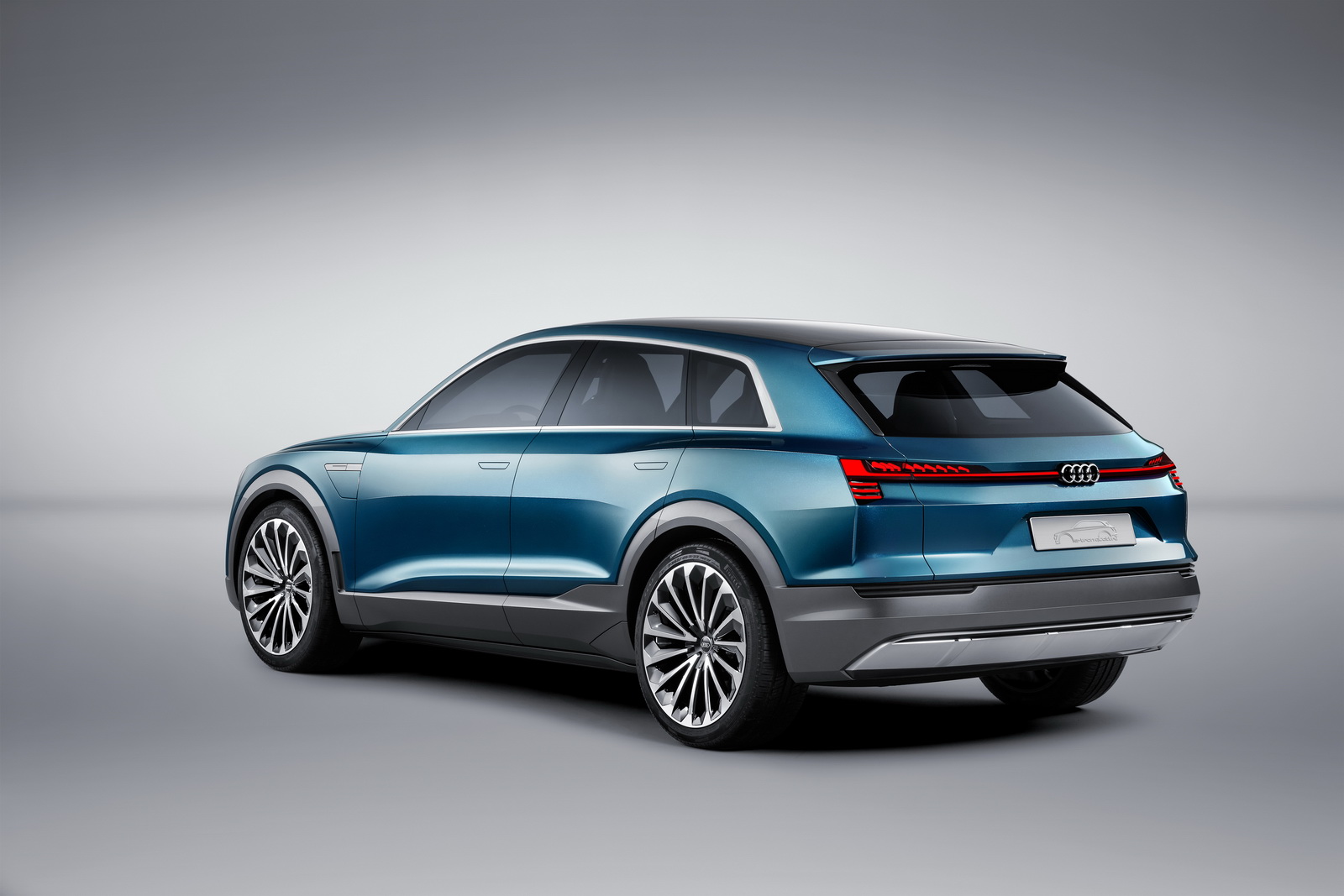

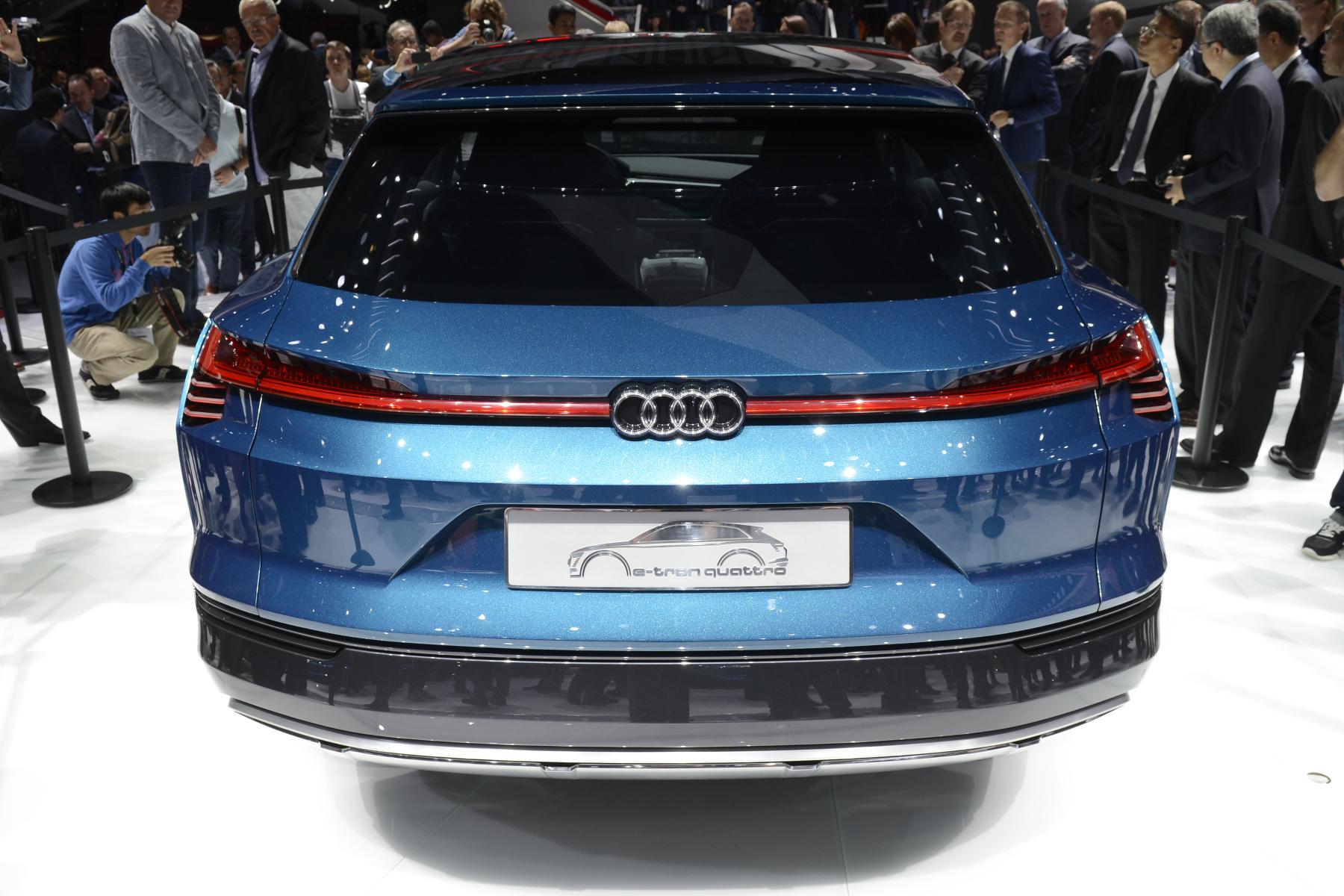

The rear lights also comprise two sections. Each of the top zones features nine red OLED units for the tail light function, with three more below.

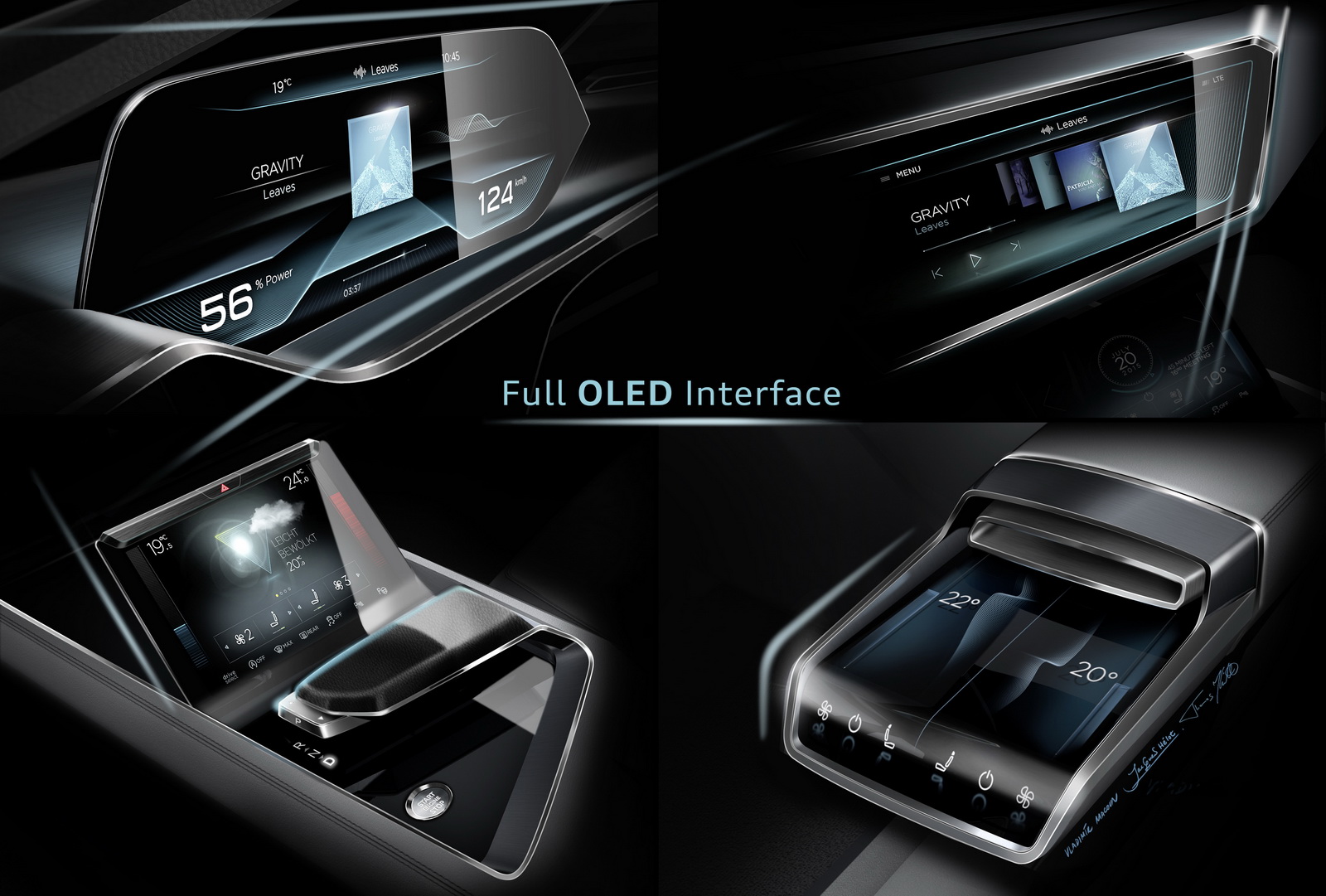

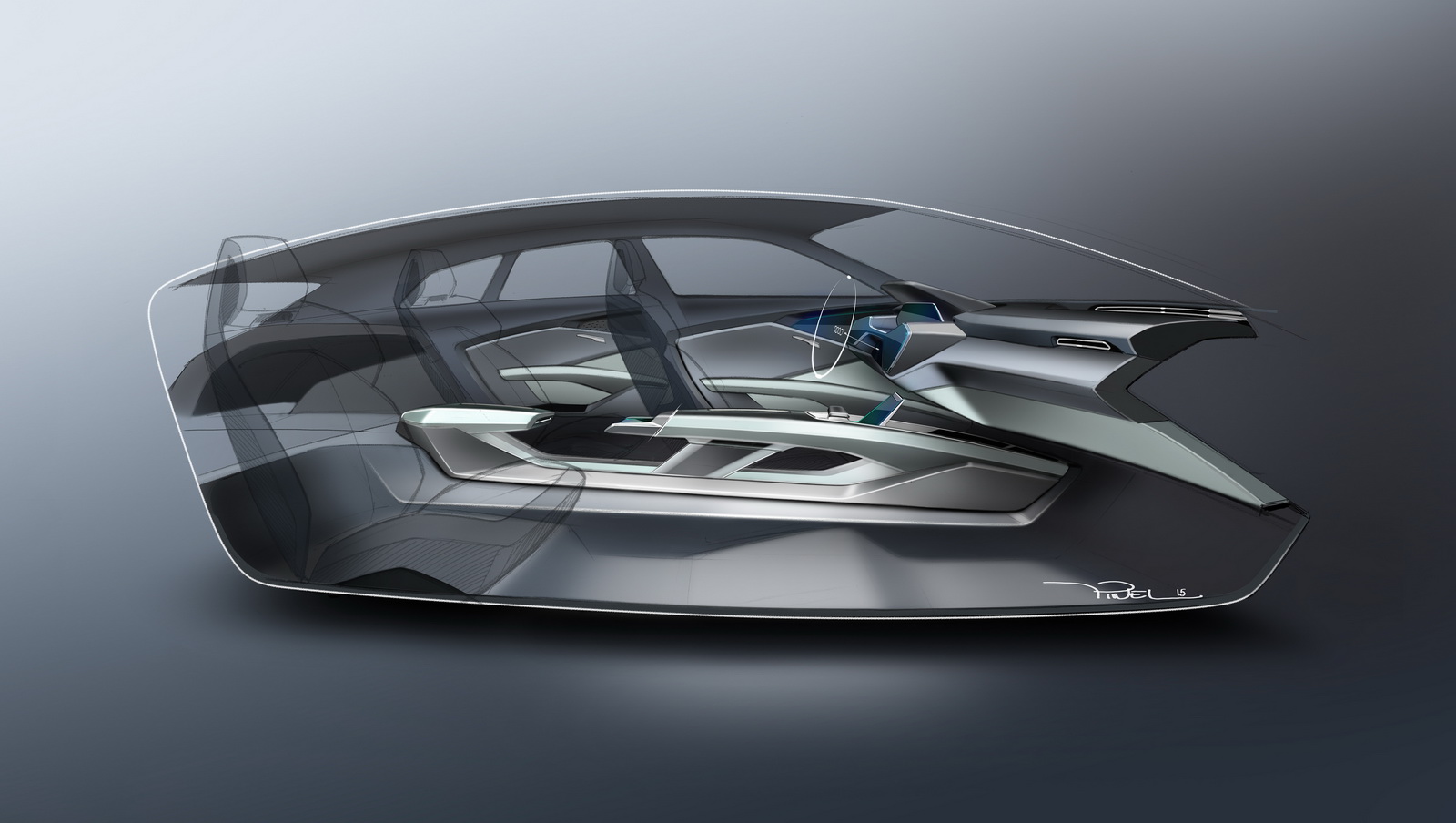

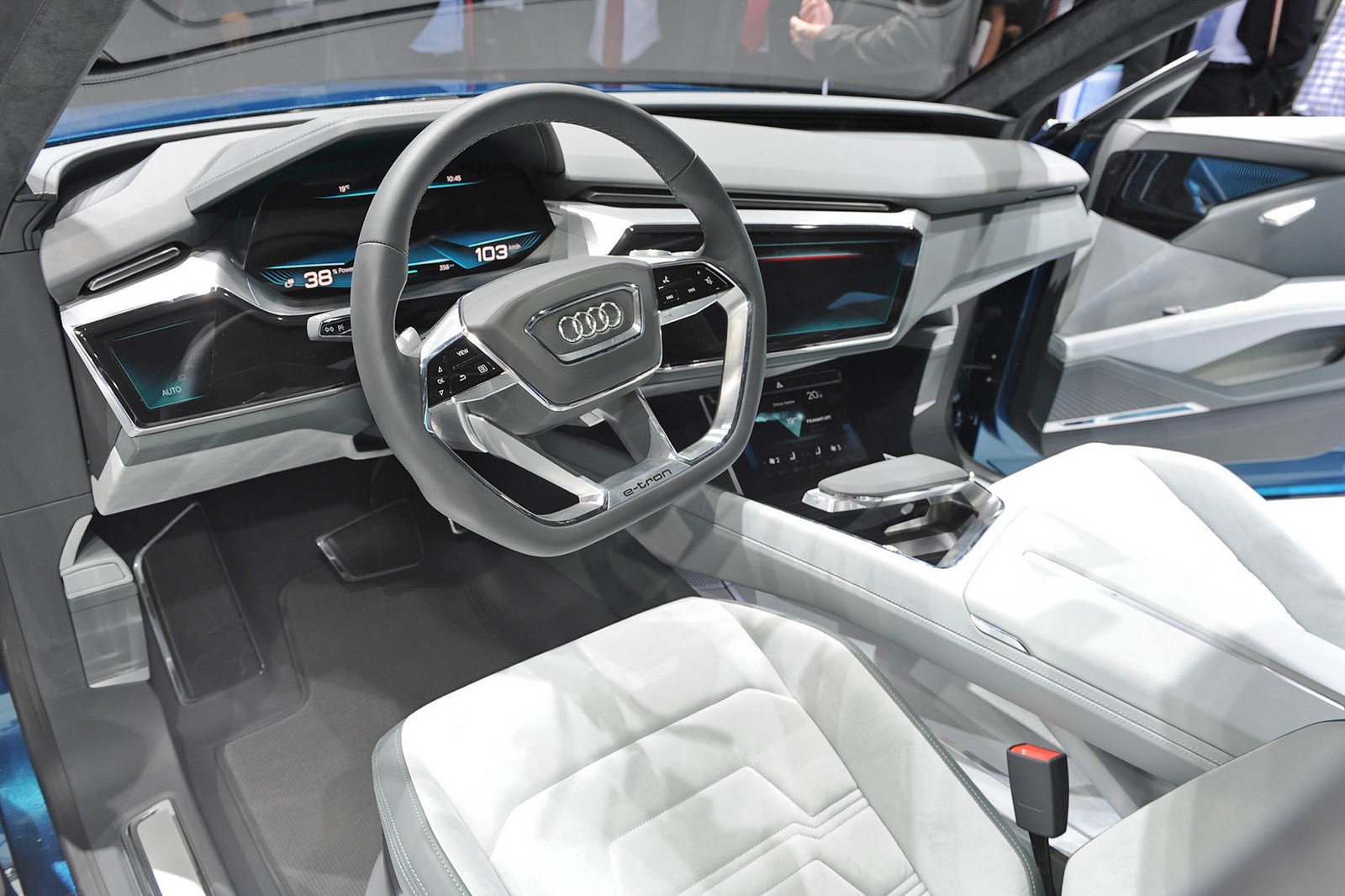

Deep integration: The interior The package of the Audi e‑tron quattro concept enables a spacious, comfortable interior for four persons and 615 liters (21.7 cu ft) of luggage. The interior has a light and open feel to it; its architecture melds harmoniously with the operating and display concept. All displays in the interior use OLED technology. The extremely thin films can be cut to any desired shape.

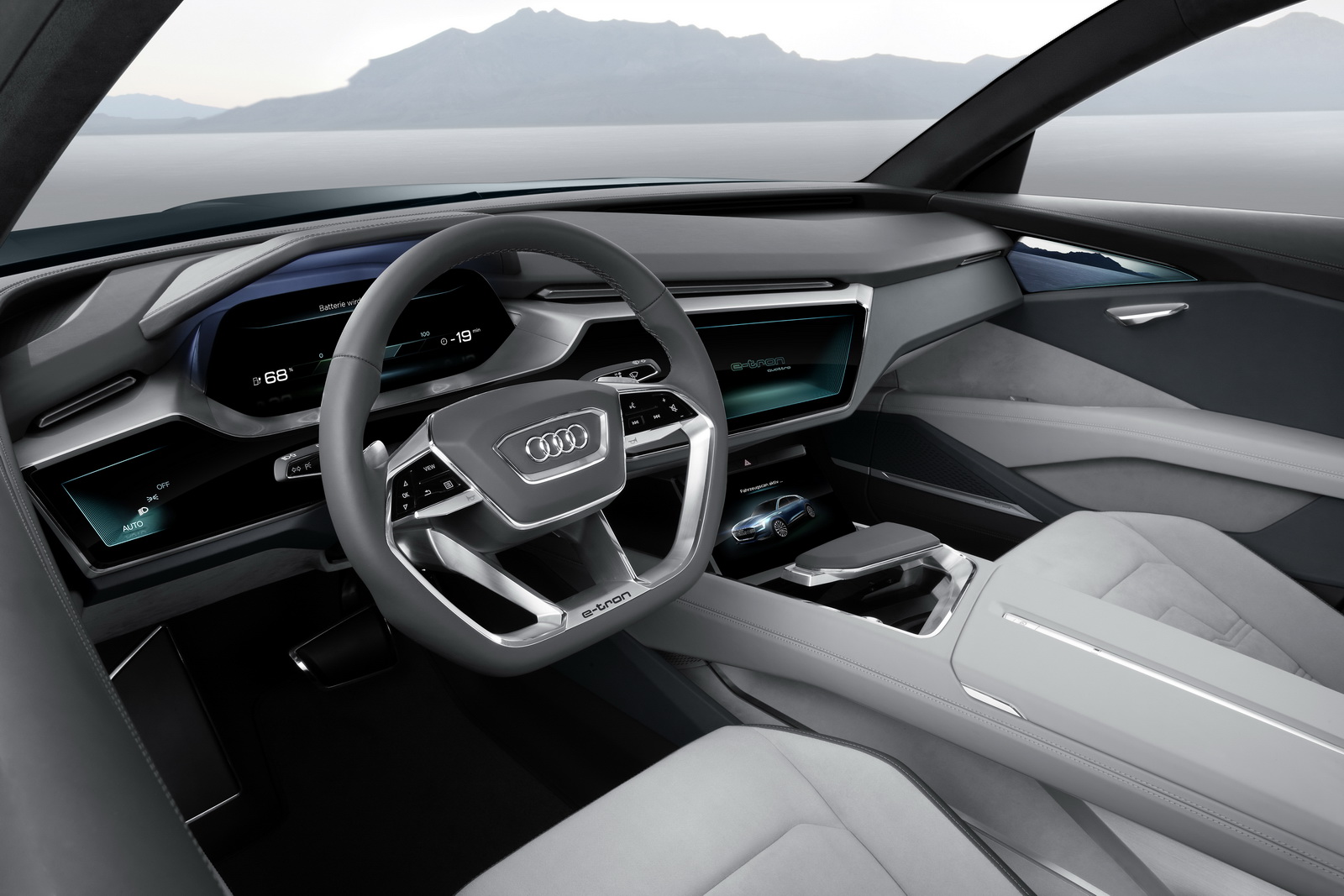

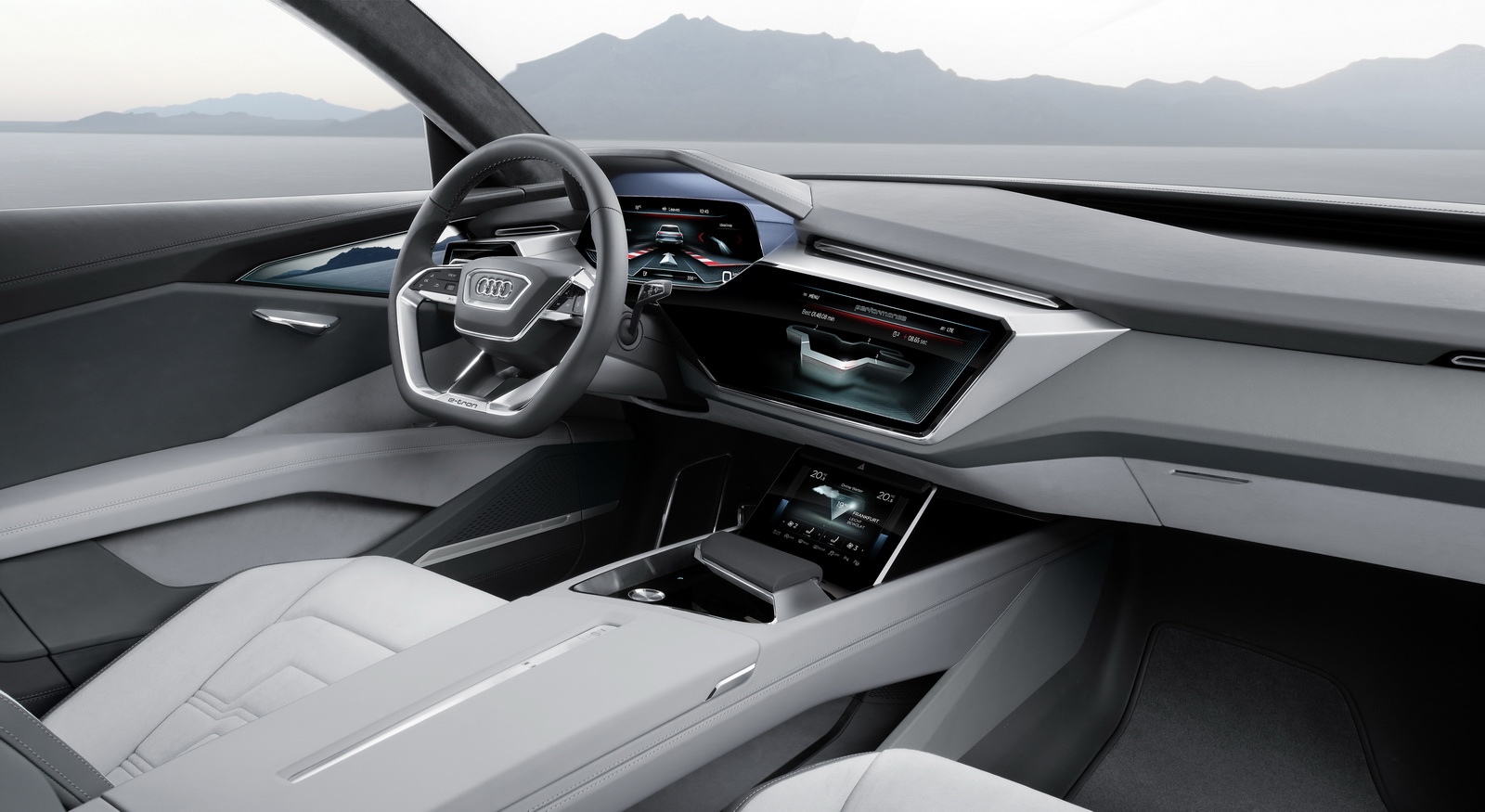

The new Audi virtual cockpit curved OLED is a further development of the Audi virtual cockpit that debuted in production vehicles in 2014. To the left and right below the fully-digital instrument cluster are two touch displays with black glass and a subtle aluminum frame. The driver controls the lights and the systems for piloted driving with the left display. The large display on the right is for media and navigation management. The steering wheel serves as an alternate control level. Its spokes are equipped with contoured touch surfaces.

Below the selector lever on the center tunnel console are two more OLED displays for the drive system status, climate control and freely programmable information functions. The curved displays in the front section of the doors serve as digital exterior mirrors.

The two rear passengers sit on comfortable individual seats. They can use the OLED displays on the center console to configure the climate control and infotainment for their area or to exchange data with the driver. An LTE module connects the Audi e‑tron quattro concept with the Internet. The connectivity features in the study are cutting edge.

The zFAS: Nerve center for piloted driving The concept study is equipped with all the technologies that Audi has developed for piloted driving: radar sensors, a video camera, ultrasonic sensors and a laser scanner. The data these supply come together in the central driver assistance controller (zFAS) in the luggage compartment. It computes a complete model of the car’s surroundings in real time and makes this information available to all assistance systems and the systems for piloted driving. These technologies are also nearly ready for use in production vehicles.
