Τον Οκτώβριο που έκανε ντεμπούτο στην έκθεση του Παρισιού το ανανεωμένο Captiva, η Chevrolet δεν είχε δώσει πολλές φωτογραφίες του. Τώρα, λίγες ημέρες προτού ξεκινήσουν οι πωλήσεις του, οι άνθρωποι έδωσαν μια τεράστια photogallery, video καθώς και περισσότερες λεπτομέρειες για το ανανεωμένο μοντέλο.

Σχεδιαστικά εναρμονίζεται με τη νέα εικόνα της εταιρίας και μηχανικά εφοδιάζεται με κινητήρες, δύο βενζίνης (2.4 λίτρων και 3.0 λίτρων) και επίσης 2 νέοι 2.2 λίτρων πετρελαίου τεχνολογίας common rail turbo. Το πιο ισχυρό σύνολο είναι ο νέος 3.0 λίτρων V6 που παράγει 258 άλογα, ενώ ο 2.4 λίτρων (με μεταβλητό χρονισμό βαλβίδων) αποδίδει 167 άλογα. Οι εκδόσεις ντίζελ αποδίδουν 163 και 184 άλογα αντίστοιχα. Όλοι οι κινητήρες μπορούν να συνδυαστούν είτε με τετρακίνηση (4Χ4) είτε με κίνηση μόνο στους εμπρός τροχούς (4Χ2), ενώ όλους τους κινητήρες θα τους συνοδεύει το standard 6τάχυτο κιβώτιο, χειροκίνητο ή αυτόματο. Οι εν λόγο κινητήρες είναι ρυθμισμένοι με στόχο την επίτευξη της καλύτερης και υψηλότερης απόδοσης και της οικονομίας καυσίμου.

Πέρα απ το γνωστό μας ABS, πολλά ηλεκτρονικά βοηθήματα θα κάνουν αισθητή την παρουσία τους στο νέο Captiva, όπως το ηλεκτρονικό σύστημα ευστάθειας (ESC), το Traction Control System (TCS), το σύστημα ενίσχυσης πέδησης (BAS) και το σύστημα υποβοήθησης σε ανηφόρες (Hill Start Assist), ώστε να προσφέρει ένα υψηλό επίπεδο ασφάλειας.

Στο εσωτερικό τώρα, διατηρείται η 7-θέσια διάταξη των καθισμάτων με νέες ταπετσαρίες και υφάσματα, ενώ αναβαθμισμένα είναι τα υλικά σε ταμπλό, πόρτες με μαλακότερη υφή, ενώ οι όποιες εργονομικές ατέλειες του παρελθόντος, απλά δεν υπάρχουν. Νέος είναι και ο φωτισμός στον πίνακα οργάνων που στο εξής θα είναι μπλε, ενώ το κλασσικό χειρόφρενο έχει πλέον γίνει ηλεκτρικό και έχει ενσωματώσει την λειτουργία Hill Start Assist, ενώ την θέση του στην κονσόλα πήραν δύο μεγάλες ποτηροθήκες.

Νέο είναι και το ηχοσύστημα με MP3 που περιλαμβάνει θύρες Aux-in, USB και συνδεσιμότητα Bluetooth. Επίσης μπορεί να παραγγελθεί με ένα σύστημα πλοήγησης με οθόνη αφής και κάμερα οπισθοπορείας κατά την στάθμευση.

Οι πωλήσεις του Captiva facelift στην Ευρώπη θα ξεκινήσουν την άνοιξη του 2011. Περισσότερες λεπτομέρειες μπορείς να βρεις στο δελτίο τύπου που ακολουθεί.

[Πηγή: Chevrolet]

[learn_more caption=”Δελτίο Τύπου”]

New Captiva packs more pace, power and purpose

• Four new engines, new manual and automatic six-speed transmissions
• Fresh, more aggressive exterior with distinctive Chevrolet ‘face’
• Enhanced, up-market interior
• Featuring Hill-Start Assist, electric park brake and rear view camera
• Five or seven seat versatility, plus front or all-wheel drive
• Inventor of the SUV – at home in growing segment

Louis Chevrolet would be proud of the latest SUV entry, the new Captiva. Chevrolet’s full blooded compact SUV has been given a major makeover for 2011, including a fresh exterior design to give it an even more confident and dynamic presence; an all-new range of the latest powerful and fuel efficient engines; chassis modifications to improve ride and handling and an upgraded interior.

Chevrolet was the creator of the first sports utility vehicle back in the 1930’s with the iconic Suburban, a nameplate that has spanned an incredible seven decades and is still going strong in the U.S. today.

“Captiva owners have already enjoyed plenty of choice, with five or seven seats and all-wheel or front-wheel drive,” says Wayne Brannon, president and managing director of Chevrolet Europe. “The 2011 Captiva offers four new engines mated with a new six-speed transmission; a 2.4 liter petrol unit, a 258 hp 3.0 liter V6 and two variants of our 2.2 liter turbo-diesel.”

Amid all the changes and improvements that have been made, the new Captiva retains the advantages of its adaptable, theater-style seating in three rows which comfortably accommodate up to seven passengers and the electronically controlled all-wheel drive system that distributes power as it’s needed.

“When the original Captiva came to market back at the end of 2006 it marked a turning point for the brand, a clear signal of Chevrolet’s intentions of becoming a mainstream player in the highly competitive European market. Four years on, the Captiva has brought many people to the Chevrolet brand for the first time, with the design, quality and sheer versatility being mentioned as particular highlights by owners,” Brannon continued.

Captiva captures the spirit of the age

The appeal of a vehicle like the Captiva is that it will fulfill its duties on the shopping run one day, it will then take half the football team to the match the next day, followed by some off-roading or a trip onto the beach on the weekend.

It is that kind of modern versatility and can-do attitude that encapsulates the spirit of a car like the Captiva, and why it is expected to appeal not only to family motorists but to anyone seeking an alternative to the conventional sedan or hatchback, a vehicle which says something about their lifestyle.

Wayne Brannon, Chevrolet Europe’s president and managing director, believes now is an excellent opportunity for the new Captiva to make further inroads into market share. “The new model is very much a car of the times, designed for families and their everyday requirements yes, but also for those looking to go out and have some adventures. That’s what an SUV like the Captiva is all about, it makes a statement and for many it’s an extension of their lifestyle. The new Captiva also personifies what the Chevrolet brand is all about in that it transcends social status or profession and will, we think, appeal to people from all walks of life.”

Across Europe, Captiva has sold around 120,000 units since the end of 2006, with its popularity not restricted to one region; strong sales have been recorded in Italy, Spain, Germany, Turkey, France and the U.K. The popularity of the SUV segment shows no signs of abating; back in 2005, it represented 6.2% of the total European market, while at the end of October 2010 its share of the market had rocketed to nearly 10%. In Western and Central Europe, the segment represents 9% of all sales, in line now with both the mid-size and mini car sectors, which only a few years ago would have eclipsed SUV sales.

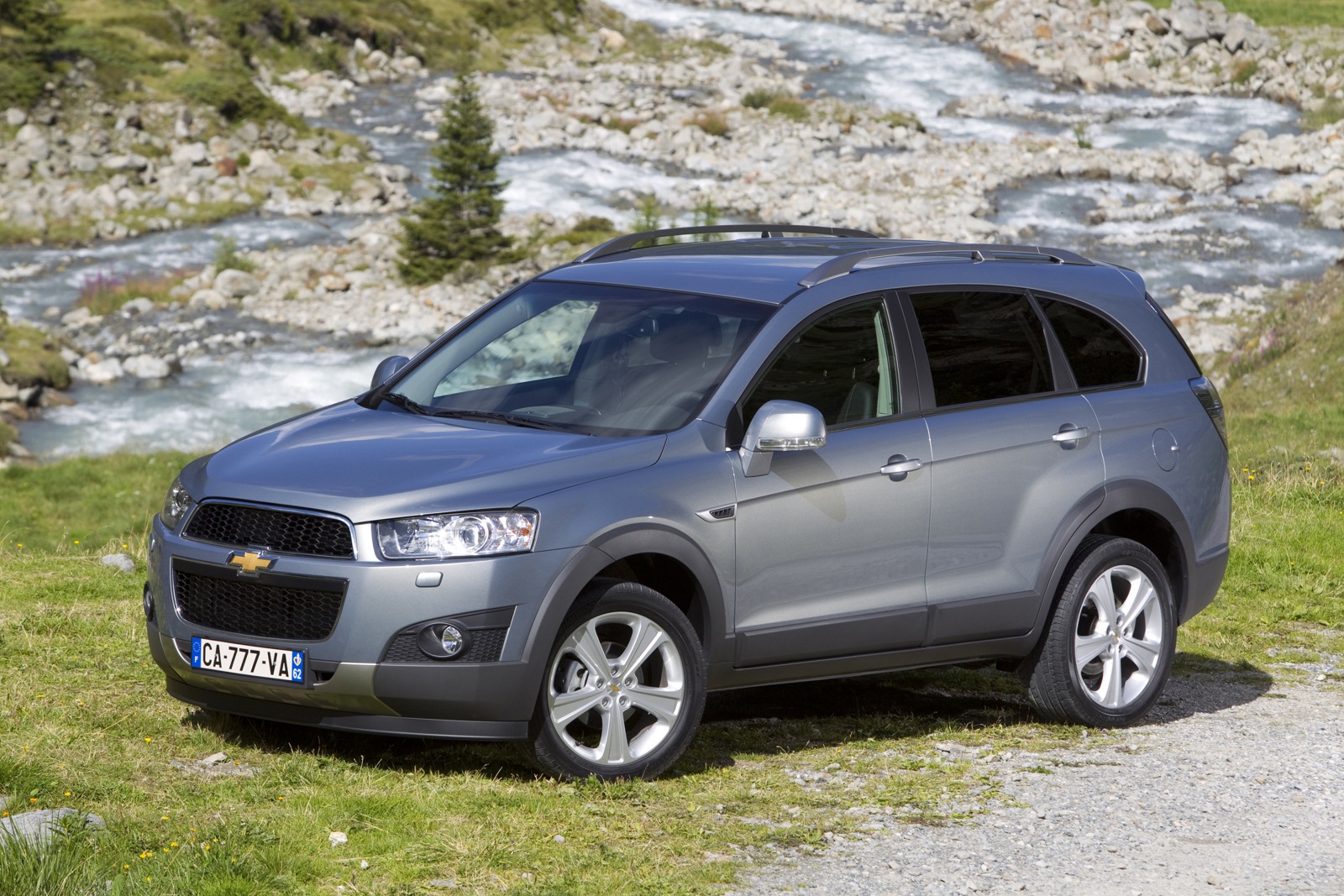

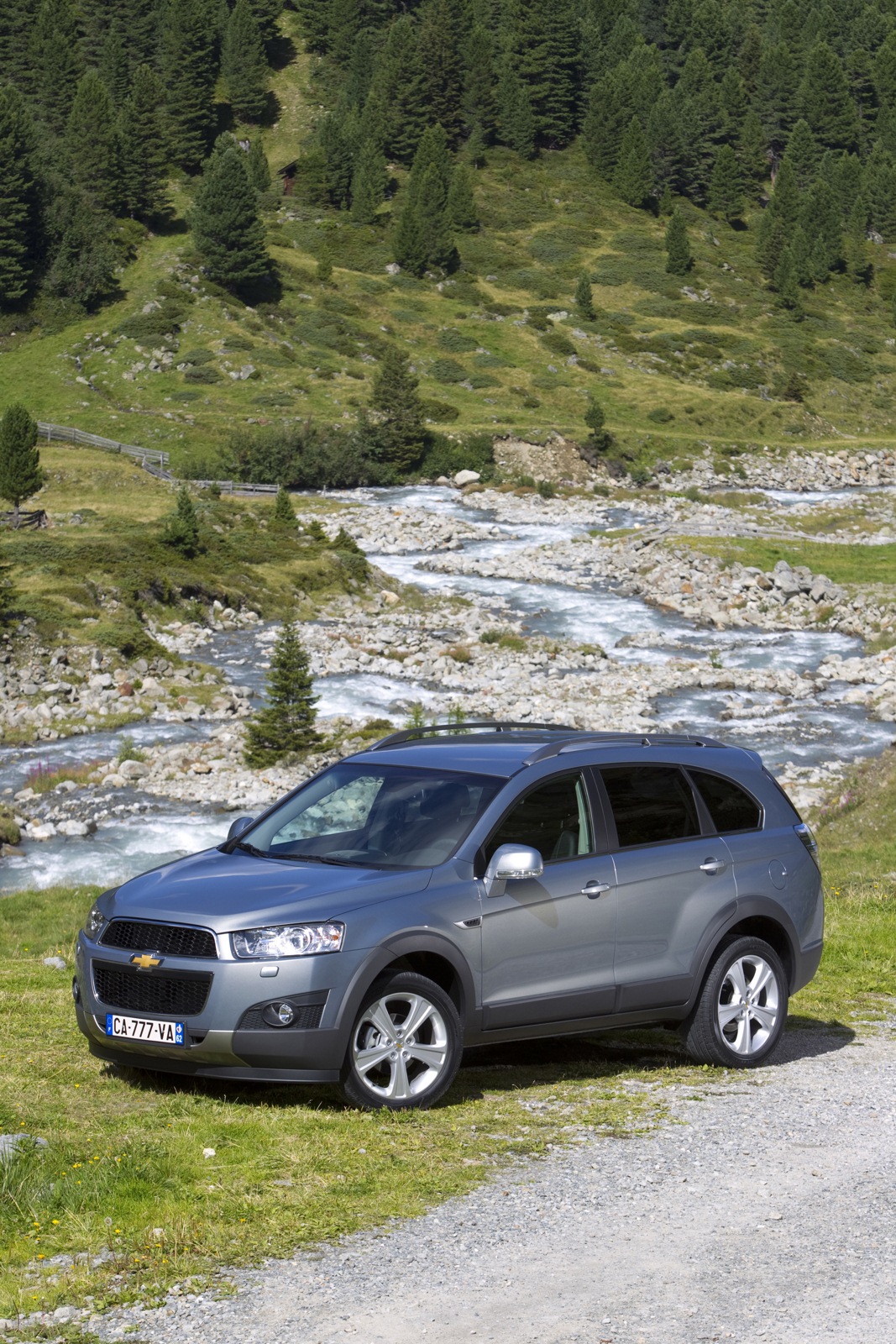

Strong exterior design

The Captiva has won many friends for its exterior design and with the new model it just got even better. A number of features are immediately noticeable when viewing the new Captiva from the front: the re-shaped and sharply sculptured hood, a new larger grille with the Chevrolet signatories such as the dual opening and the ‘bow-tie’ badge which sits proudly in the middle, and the new cylindrical prism-style headlamps and integrated turn signals on the outside rearview mirrors, all up-market features which belie the Captiva’s entry price point.

Moving round to the front fenders, the side air-vents now take on a more angular shape to emphasize the new Captiva’s sporting intentions. Viewing the new model from the A-pillars back, the Captiva retains its handsome profile, characterized by a subtle rising shoulder line. All of these design changes contribute to a stronger, more athletic stance but also ensure the new Captiva has a look that is immediately recognizable as one of the new breed of Chevrolets.

The re-sculptured and more muscular wheel arches will be able to accommodate wheel sizes of between 17 and 19 inches; and setting the Captiva’s body off perfectly is a new range of exterior colors.

Taewan Kim, GM Vice President of Design, in charge of the Captiva project: “The key ingredient of the new design that you see with Captiva is confidence. The changes we have made to the front profile give the new Captiva an even more athletic stance and strong overall character. We wanted to ensure that we lost none of the spirit of the original model, while giving it a stronger and more sophisticated appearance. Captiva has presence but without looking overly big; it looks capable but also compact.”

Power with efficiency – four new engines

It’s under the Captiva’s new hood that the most far reaching changes have taken place. No less than four new powerful engines will be available, combined with a new manual or automatic six-speed transmission. They will give Chevrolet customers a smooth, purposeful and efficient drive experience and make the new Captiva one of the most powerful compact SUVs on the European market.

The new engine line-up, which is comprised of two gasoline engines of 2.4 and or 3.0 liters, and two turbo-diesel variants both of 2.2 liter displacement, incorporates a host of advanced technologies, aimed at delivering an optimal balance of performance and fuel economy.

The new engines feature a number of firsts for Captiva, such as the variable valve timing (VVT) on the dual overhead cam 2.4 liter gasoline ECOTEC, helping to deliver its 167 hp and a fuel economy on the combined cycle of 8.9 liter/100 km for the manual version. Performance figures for the new Captiva with 2.4 liter gasoline engine include a 0–100 km/h time of 10.5 seconds.

With the introduction of a new 3.0 liter 258 hp V6 gasoline engine – available by mid-2011 – Captiva gets direct injection for the first time as well as variable valve timing, and with an engine torque figure of 288 Nm, Captiva becomes one of the most powerful compact SUVs on the market. Its performance is impressive, with a top speed of 198 km/h and a 0-100 km/h time of 8.6 seconds; fuel consumption on a combined cycle is 10.7 liter/100 km.

Many customers will opt for one of the diesels, and they can be sure of getting the latest in diesel technology and efficiency. The new 2.2 liter unit will be available in two power outputs of 163 or 184 hp. This latest generation engine is an advanced, four cylinder dual overhead cam (DOHC) turbo-charged unit featuring a high-pressure common rail fuel injection system and variable geometry turbo charger (VGT) with intercooler.

A reduced compression ratio when compared to previous generation diesels has enabled the new Captiva to achieve higher power output but with lower emissions. The engines’ CO₂ emission levels are below key CO₂ taxation thresholds, which translates into potential savings for customers.

Performance figures for the new Captiva using the 163 hp engine are a 0-100 km/h time of 9.9 seconds and maximum speed of 189 km/h, while for the 184 hp version 0 to 100 km/h is 9.4 seconds and it can reach a maximum speed of 200 km/h. Fuel consumption for both versions on a combined cycle is an identical 6.4 liter/100 km.*

An integral part of Captiva’s new powertrains is a new six-speed automatic transmission. The new automatic gearbox can be used in full automatic mode, or if the driver prefers, Driver Shift Control (DSC) allows for manual shifting.

The new automatic has been engineered with a wide spread of gear ratios to optimize the correlation between performance and fuel economy. So while first gear is ‘steep’ to enable fast take-off, a tall sixth gear lowers engines revs at higher speeds, maximizing fuel efficiency and reducing internal noise and vibration.

Alternatively, a six-speed manual gearbox can be specified with both, the 2.4 liter gasoline and 2.2 liter, turbo diesel engines.

The new Captiva’s chassis has been tuned to further enhance vehicle dynamics, improving cornering, roll characteristics and ride feel. With Electronic Stability Control (ESC), Traction Control System (TCS) and Braking Assist System (BAS) standard, the Captiva provides a high level of safety.

The electronically controlled speed-sensitive steering allows for better steering precision and requires lower steering effort by the driver. Hill Start Assist (HSA) features for the first time on Captiva. It holds the vehicle on gradients of 3% or steeper for 1.5 seconds after the brake pedal has been released, to assist in a smoother and safer drive away from standstill.

Both of the 2.2 liter turbo diesels as well as the 2.4 liter gasoline engine can be ordered in front or four-wheel drive configurations. New Captiva keeps the active on-demand four-wheel drive system, a practical as well as environmentally responsible solution which uses front-wheel drive under normal driving conditions and only utilizes all-wheel drive – which is activated automatically via an electronic clutch – when more traction is required, such as on slippery surfaces or for hill starts for example.

When four-wheel drive is activated, power between the front and rear wheels is distributed automatically, up to a ratio of 50:50. In addition to wheel spin, the system also senses engine speed, vehicle speed, yaw and steering angle. The all-wheel drive system is fully integrated into the ABS and ESC systems to increase control yet further.

Summary of key engine data

Figures for automatic transmissions in brackets.

* Figures are for FWD version.

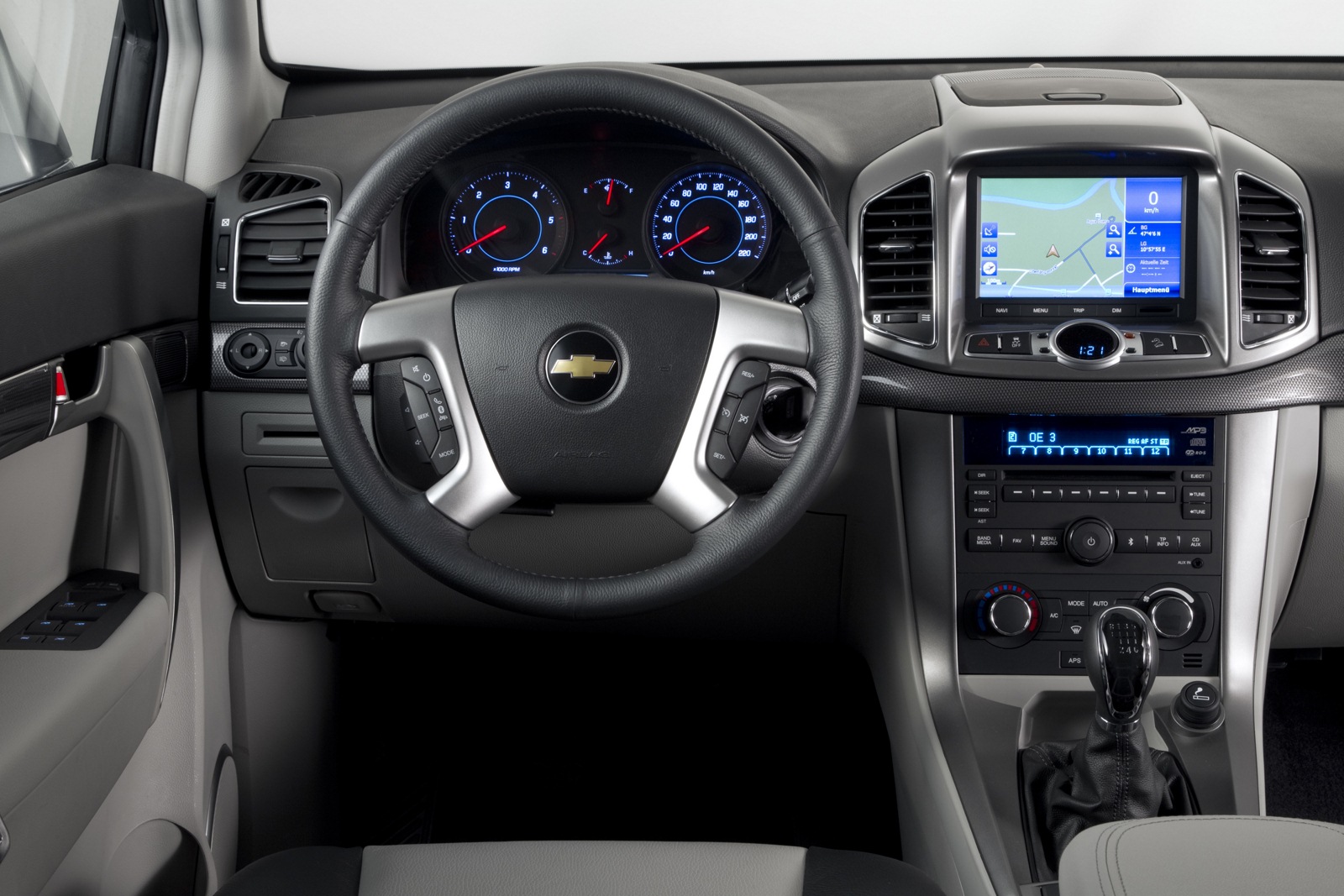

Major makeover for interior

Climb aboard the new Captiva and driver and passengers will still be welcomed by that airy and spacious interior, with storage space that is among best in class and with the option of either five or seven seats. Cargo volume with third row down is 769 liters (477 liters below window line), with second and third rows down it is 1,577 liters (942 liters below window line).

The Captiva’s upgraded interior now features an array of new finishes and textures including all-new seat fabrics and improved interior décor appointments like satin chrome rings around the vents, to give the car a more up-market feel and look. Designers have put to good use some of the elements featured on other new Chevrolet models, such as the ice-blue back lighting and the ‘wrap-round’ design of the front fascia which flows into the front driver’s and passenger doors, creating the Chevrolet dual-cockpit look.

Additional storage spaces have been cleverly integrated which add to the feeling of spaciousness and practicality; so for example with the new Captiva benefitting from Hill Start Assist, eliminating “roll-back” on hills and an electric park brake, space has been opened up for further storage in the center console, including two cup holders.

Passive safety is well catered for with the inclusion of six airbags – dual front and side airbags for the driver and front passenger and curtain airbags for the outer rear passengers – and three-point seat belts with belt tensioners and belt force limiters for the front seats. Isofix anchor points are fitted to the outer seats of the second row, to facilitate the quick and secure fitting of child seats.

The new Captiva’s audio system includes Aux-in and Bluetooth connectivity with commands integrated within the steering wheel as standard. A seven-inch navigation system is available with full European road coverage and integrated rear view camera for parking assistance. The audio speakers have been re-positioned in the doors, while passengers will enjoy their audio experience all the more thanks to a raft of engineering improvements to the interior acoustics, including improved isolation on the windshield, doors and headlining, all of which has resulted in reduced road, wind and engine noise.

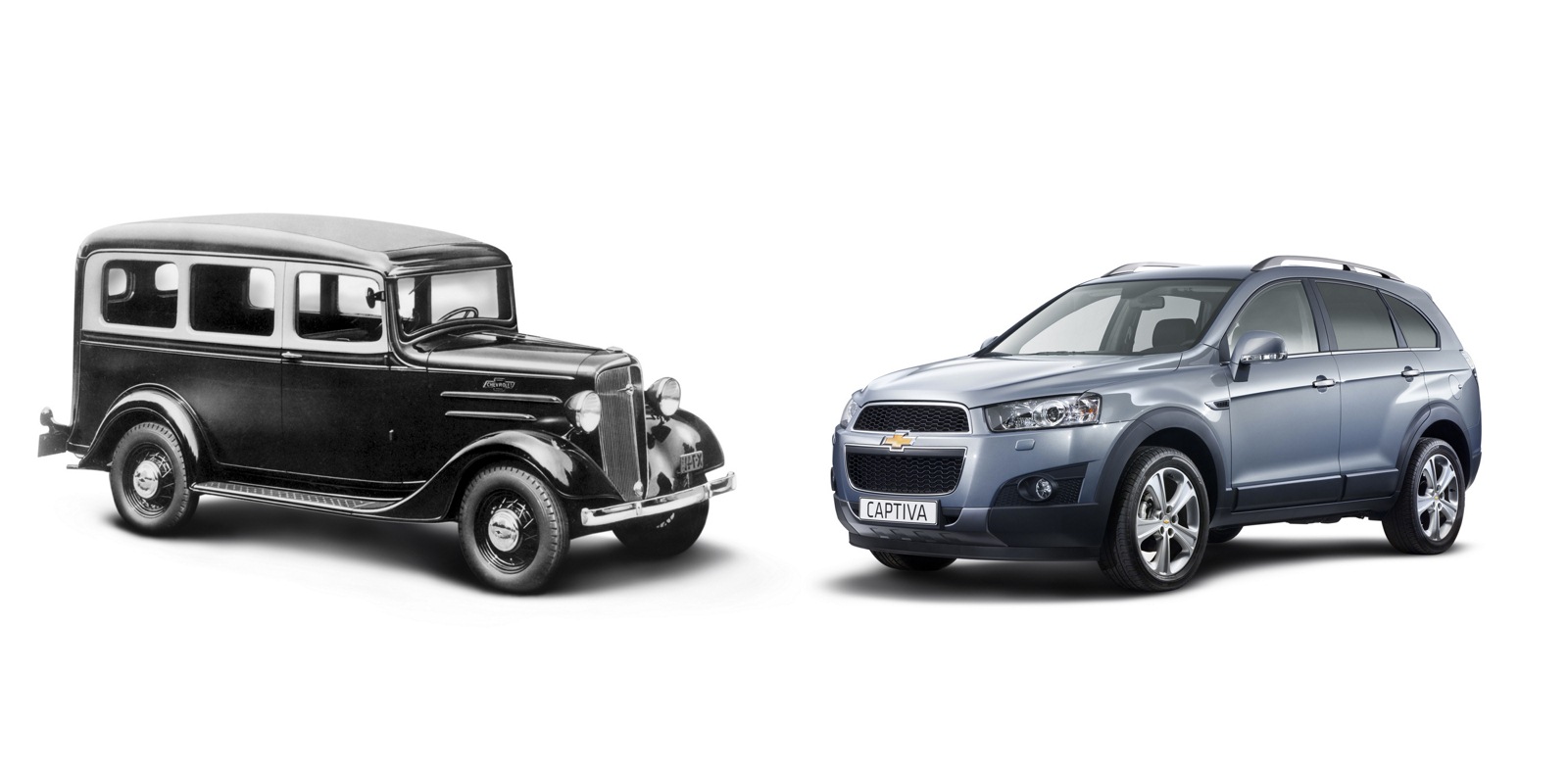

Chevrolet – inventor of the SUV

Chevrolet knows a thing or two about building sport utility vehicles. While the start of 2011 marks the launch of its latest SUV offering with the new Captiva, it was only last year in 2010, that the company commemorated 75 years worth of production of the iconic Suburban, widely hailed as the first ever SUV, first launched in 1935.

The 2010 75th Anniversary Edition Suburban that Chevrolet launched in the US might not share too many commonalities with the original incarnation (where a radio, heater and rear bumpers were extra cost options) but the first ever SUV could still seat 8 people and featured easy to remove seats to open up a generous cargo area. To that extent, the core capabilities of the Suburban have remained true for over seven decades and generations of people will testify that a Suburban will reliably haul people and their gear.

The new Captiva meanwhile will continue the Chevrolet heritage of innovative and value for money SUVs, offering powerful and efficient engines, all-wheel drive capability, versatility for up to seven passengers and an interior quality that belies its price.

Launch across European markets begins in spring 2011.

* Performance and fuel consumption figures quoted for manual FWD version.

Engines & Transmissions

Captiva’s four new engines combine power with efficiency

• Four new engines with latest technologies
• New 3.0 liter V6 gasoline offers great value performance
• 2.2 liter turbo diesel available in different power outputs
• New six-speed transmissions maximize engine efficiencies

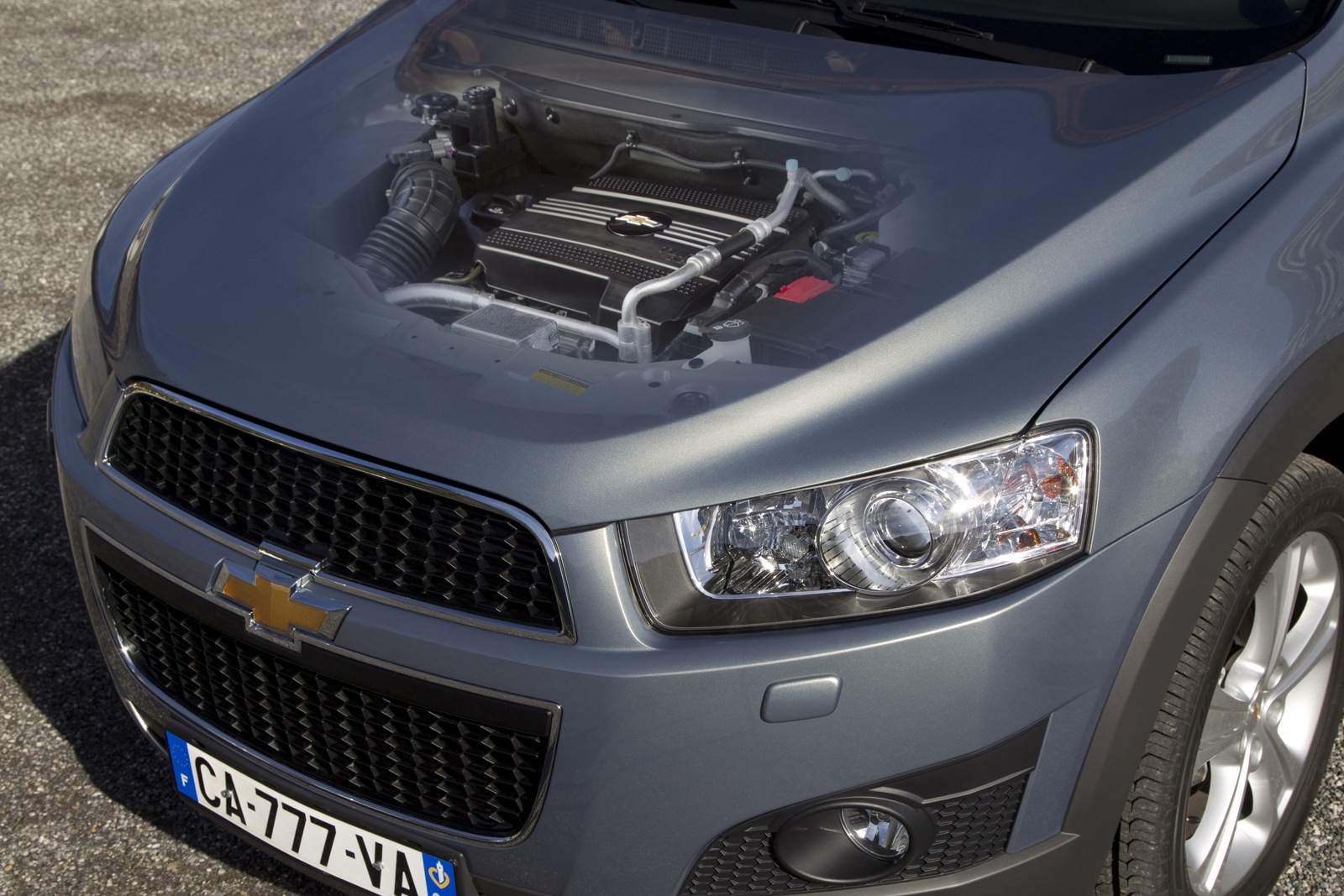

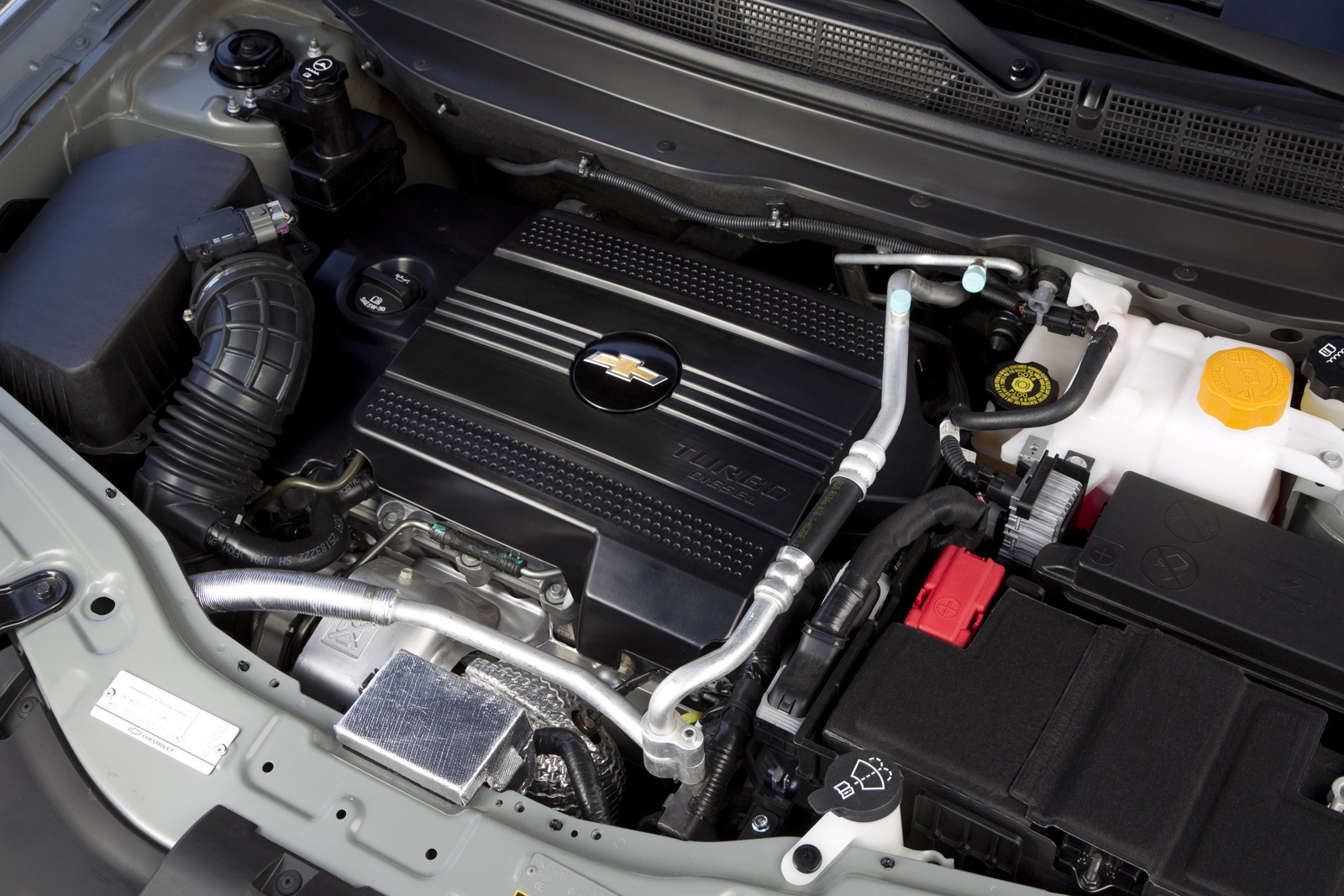

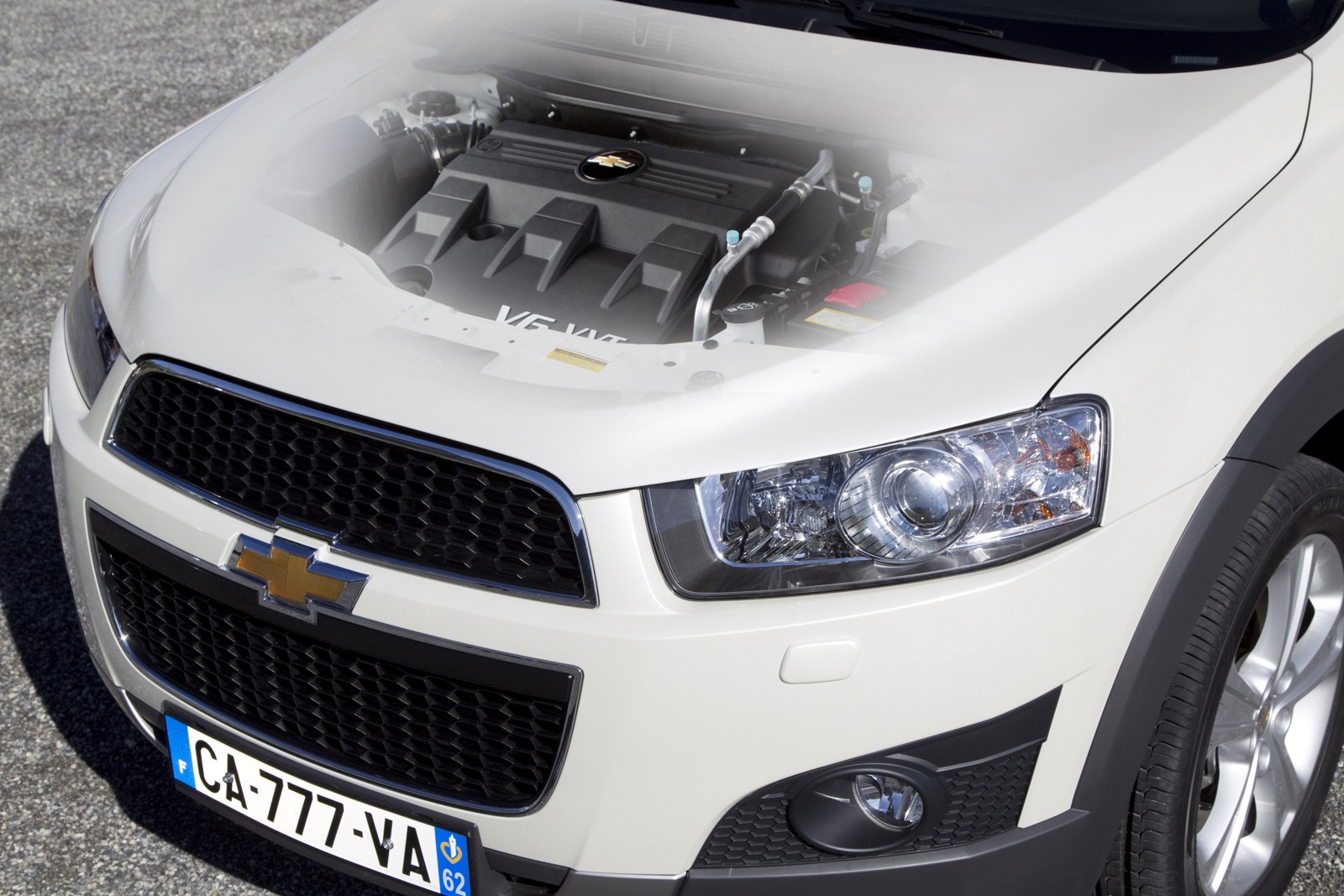

It’s under the Captiva’s handsome new hood that the most significant changes have been introduced. No less than four new powerful engines will be available, combined with a new manual or automatic six-speed transmission. Together they will give Captiva owners a purposeful and efficient drive experience and make the new Captiva one of the most powerful SUVs on the market.

The new engine line-up, which is comprised of two gasoline engines of 2.4 and 3.0 liters, and two turbo diesel variants both of 2.2 liter displacement, incorporates a host of advanced technologies aimed at delivering an optimal balance of performance and fuel economy.

Seen for the first time on Captiva is direct injection and variable valve timing (VVT) on the top of the range 3.0 liter V6. The new 2.4 liter gasoline engine also features VVT.

All engines will be coupled to either a manual six-speed gearbox, or a new six-speed automatic, the latter being a feature much more commonly seen on premium segment models.

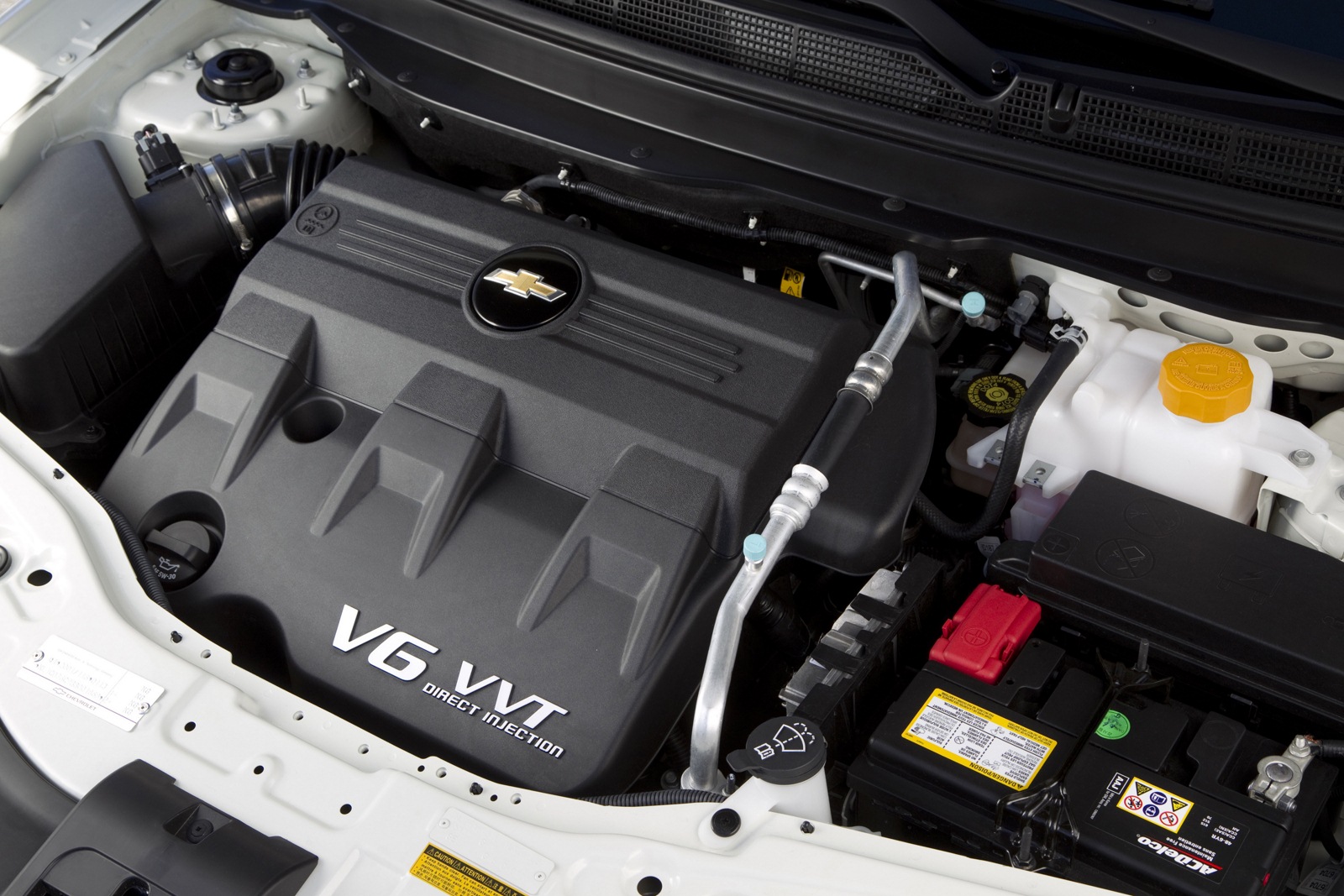

3.0 liter V6 offers more muscle for the money

With the introduction of a new 3.0 liter 258 hp V6 gasoline engine, available by mid 2011, Captiva gets direct injection for the first time as well as variable valve timing (VVT), and with an engine torque figure of 288 Nm, it becomes one of the most powerful compact SUVs on the market. European SUV buyers will be hard pressed to find more performance per pound or euro.

Captiva’s 3.0 liter direct injection engine is the latest in the GM family of high-tech V6 powertrains which has been developed and used around the world and includes the lauded 3.6 and 2.8 liter VVT engines. Direct injection delivers fuel directly to the combustion chamber to create a more complete burn of the air/fuel mixture. Less fuel is required than with a conventional port-injection system to produce the same horsepower and in the new Captiva’s case, the application of direct injection (DI) has contributed to a 15% horsepower increase, an 8% increase in engine torque and a 25% reduction of cold-start emissions from previous GM applications.

In fact, the 3.0 liter DI VVT has a long list of features which cement its position as one of GM’s most advanced gasoline engines: an aluminum engine block and cylinder heads, double overhead cams with four valves per cylinder, high pressure engine driven fuel pump, advanced multi-outlet fuel injectors, aluminum pistons and polymer piston skirts, electronic throttle control with integrated cruise control, an advanced engine control module and outstanding levels of noise and vibration damping.

The 3.0 liter DI VVT V6 engine is combined with the new six-speed automatic transmission as standard. Maximum engine output is 258 hp at 6900 rpm with maximum torque 288 Nm at 5800 rpm. Top speed for the new Captiva with this engine is 198 km/h; acceleration figures are 8.6 seconds for 0-100 km/h and 8.1 seconds between 80 and 120 km/h; fuel consumption on a combined cycle is 10.7 liter/100km and emissions are rated at 252 g/km.

2.4 liter gasoline engine with Variable Valve Timing

The four cylinder dual overhead cam (DOHC) 2.4 liter gasoline unit delivers a very healthy 167 hp and 230 Nm of engine torque at 4600 rpm, thanks to similar levels of development as on the its 3.0 liter stable-mate. It is available with both manual and automatic six-speed transmissions.

It too benefits from dual overhead cams, four valves per cylinder and variable valve timing – or cam phasing – which results in near peak delivery of engine torque over a wider rev range as well as reduced exhaust emissions.

Other highlights of the engine include optimized pistons for reduced engine noise and vibration, an all alloy engine block and heads to reduce weight and a vented start solenoid which enhances start-up performance in cold weather.

Performance figures for the FWD 2.4 liter VVT engine, when combined with the manual transmission, include a top speed of 190 km/h and a 0-100 km/h time of 10.5 seconds; in-gear (5th) acceleration from 80 -120 km/h is 15.5 seconds. Fuel consumption on a combined cycle is 8.9 liter/100km and emissions are 210 g/km.

Two 2.2 liter turbo diesels with high pressure common rail fuel injection

Customers who opt for one of the turbo diesels, can be sure of getting the latest in technology and efficiency. The new 2.2 liter engine will be offered in two power outputs, of 163 or 184 hp.

This latest generation engine is an advanced, four cylinder double overhead cam turbocharged unit, featuring a high pressure common rail fuel injection system and variable geometry turbo charger (VGT) with intercooler. A reduced compression ratio when compared to previous generation diesels has enabled the new Captiva to achieve higher power output but with lower emissions. The engine’s CO₂ levels are below key CO₂ taxation thresholds which translates into potential savings for customers.

A new DOHC cylinder head design for the 2.2 turbo diesel increases air flow and variable swirl to reduce engine knock to a minimum, while also improving performance and reducing diesel particulates. The engine is also fitted with a diesel particulate filter, maintenance free for its lifetime, and meets Euro 5 emission standards.

Captiva’s common rail fuel injection system works at a high pressure of 1800 bar, ensuring precise injection control and quality within the combustion chamber, to maximize fuel economy and reduce emissions.

A number of steps have been taken to maximize engine refinement and keep engine noise intrusion in the cabin to a minimum. These include the fitment of balance shafts integrated into the oil pump, while a dual mass flywheel eliminates rattle from the gearbox and low frequency resonance. The engine block has also been stiffened to improve noise and vibration characteristics further.

Both of the diesel engines have near identical technical specifications, essentially differing only in engine output and torque. For the higher powered version maximum power is 184 hp at 3800 rpm while maximum torque of 400 Nm is achieved at just 2000 rpm; the second version has a maximum engine power of 163 hp at 3800 and torque of 350 Nm at 2000 rpm.

Performance figures for the new Captiva using the lower output 163 hp engine and manual gearbox are a 0-100 km/h time of 9.9 seconds and maximum speed of 189 km/h, while for the 184 hp version 0 to 100 km/h is 9.4 seconds while it can reach a maximum speed of 200 km/h.

In-gear acceleration times are an impressive 9.6 and 11.6 seconds respectively, between 80 and 120 km/h in 5th gear.

Fuel consumption for both versions on a combined cycle is an identical 6.4 liter/100 km. Emissions are also identical at 170 g/km.*

Manual or automatic – it’s six-speed all round

Complementing Captiva’s new powertrains is a new six-speed automatic transmission. The new auto box can be used in full automatic mode, or if the driver prefers, Driver Shift Control (DSC) allows for manual shifting when the mood takes.

Two versions of the new automatic transmission have been developed, one to be mated with gasoline and all-wheel drive offerings and the other with the diesel engines, as each is designed to handle different levels of engine torque. Automatic is available as an option on all engines and comes as standard with the 3.0L DI VVT V6.

One of the great advantages of the new automatic is that it has enabled much more compact packaging than previously, as the entire powertrain unit is now much shorter fore-to-aft. This allowed the engineers to enhance crumple zones, increase interior space and lower the hood line.

The new automatic has been engineered with a wide spread of gear ratios to optimize the correlation between performance and fuel economy. So while first gear is ‘steep’ to enable fast take-off, a tall sixth gear lowers engine revs at higher speeds, maximizing fuel and reducing internal noise and vibration.

Standard supply in most markets for the new Captiva will be a six-speed manual gearbox, available with the 2.4 liter gasoline and 2.2 liter diesel engines.

*Note to Editors:

Performance and fuel consumption figures quoted for manual FWD version.

Summary of key engine data

Figures are for FWD version. Figures for automatic transmissions in brackets.

Ride & Handling

Improved chassis delivers more active safety and a rewarding drive

• Chassis re-tuned to improve ride and handling
• Active on-demand four-wheel drive for when you need it most
• Hill Start Assist introduced
• Advanced ESC for all models
• Chassis development at Pferdsfeld, Germany, and Milbrook, U.K.

Since its launch, Captiva has featured a range of chassis and active safety technologies such as ABS, ESC and TCS. However, a raft of improvements has been made to chassis hardware on the new model to make Captiva an even safer, more composed and enjoyable drive on the road.

The new Captiva’s credentials as a true sports utility are underpinned by the option of the latest active on-demand four-wheel drive, which means that Captiva not only has excellent safety reserves, but true to its nature, it can be taken off the beaten track when its occupants are feeling a little more adventurous.

The chassis features McPherson suspension at the front and an independent four-link axle at the rear. All four wheels are fitted with internally ventilated disc brakes – 296 mm at the front and 303 mm at the rear – and a modern ABS system, which features sensors on all wheels and is standard on all models. For new Captiva, improvements have been made to the ABS software to further reduce stopping distances.

New Captiva comes with electronically controlled, speed-sensitive steering as standard which means lower steering effort for the driver and better steering precision.

For the first time on Captiva, Hill Start Assist (HSA) will feature on all vehicles. This clever feature will ensure that no driver needs to worry about roll-back on hills when moving off from stationary; HSA holds the vehicle on gradients of 3% or steeper for 1.5 seconds after the brake pedal has been released, to assist in a smoother and safer drive away from standstill.

Out on the road is where owners of the new Captiva will feel the improvements made to the chassis hardware. Special attention has been paid to improve cornering characteristics by reducing body roll while also enhancing ride feel. Consequently, front spring rates are increased from 30 N/mm to 33 N/mm for better ride stability; the spring isolators have been softened to improve ride isolation; body roll is reduced through the use of a larger front stability bar while the front bushings are re-tuned to improve impact ‘feel’ and minimize road vibration.

At the rear, damper and spring rates are increased to improve isolation and a larger rear stabilizer bar is introduced to improve rear vehicle balance, while the use of a hydraulic rear link is introduced to reduce vertical floor shake.

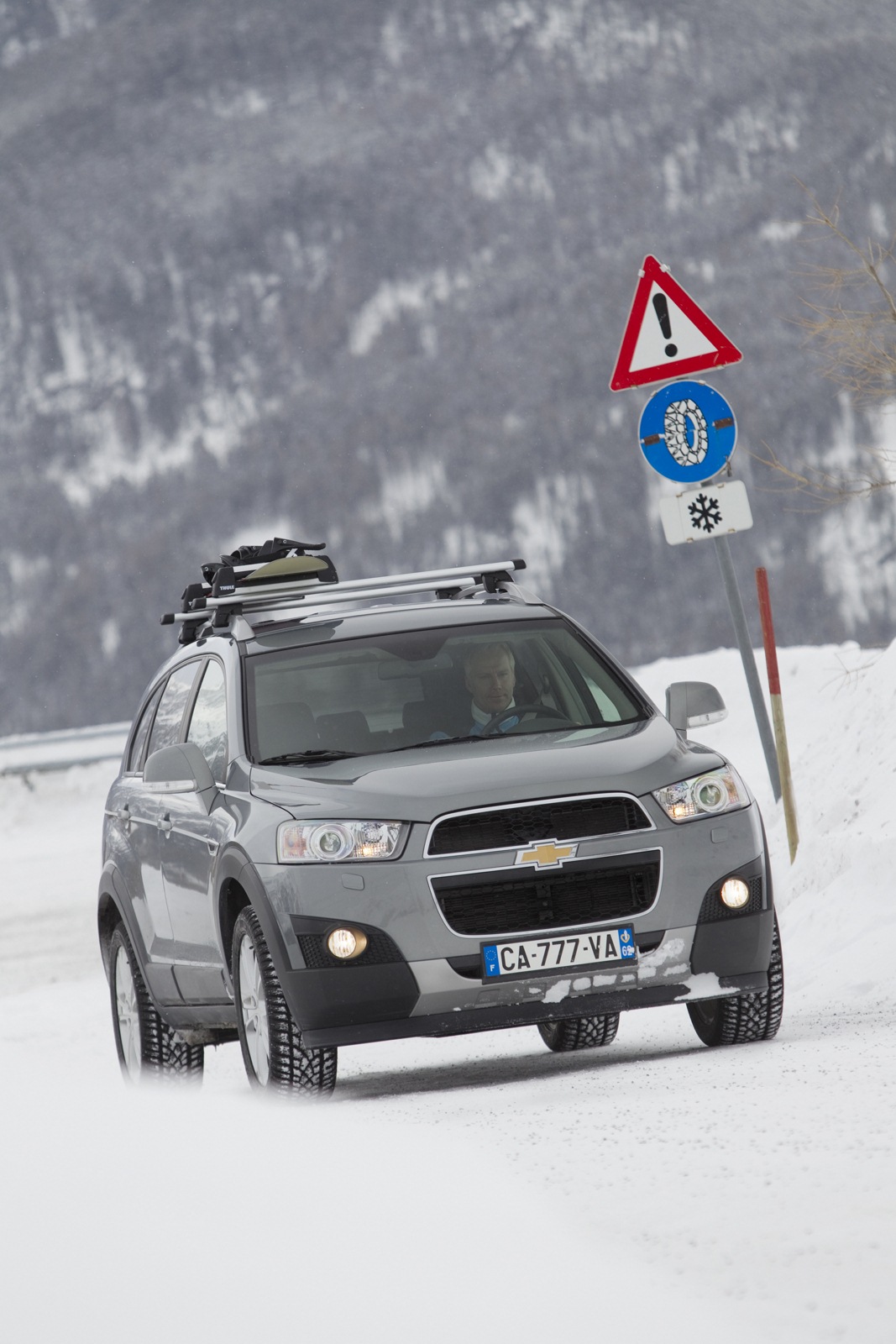

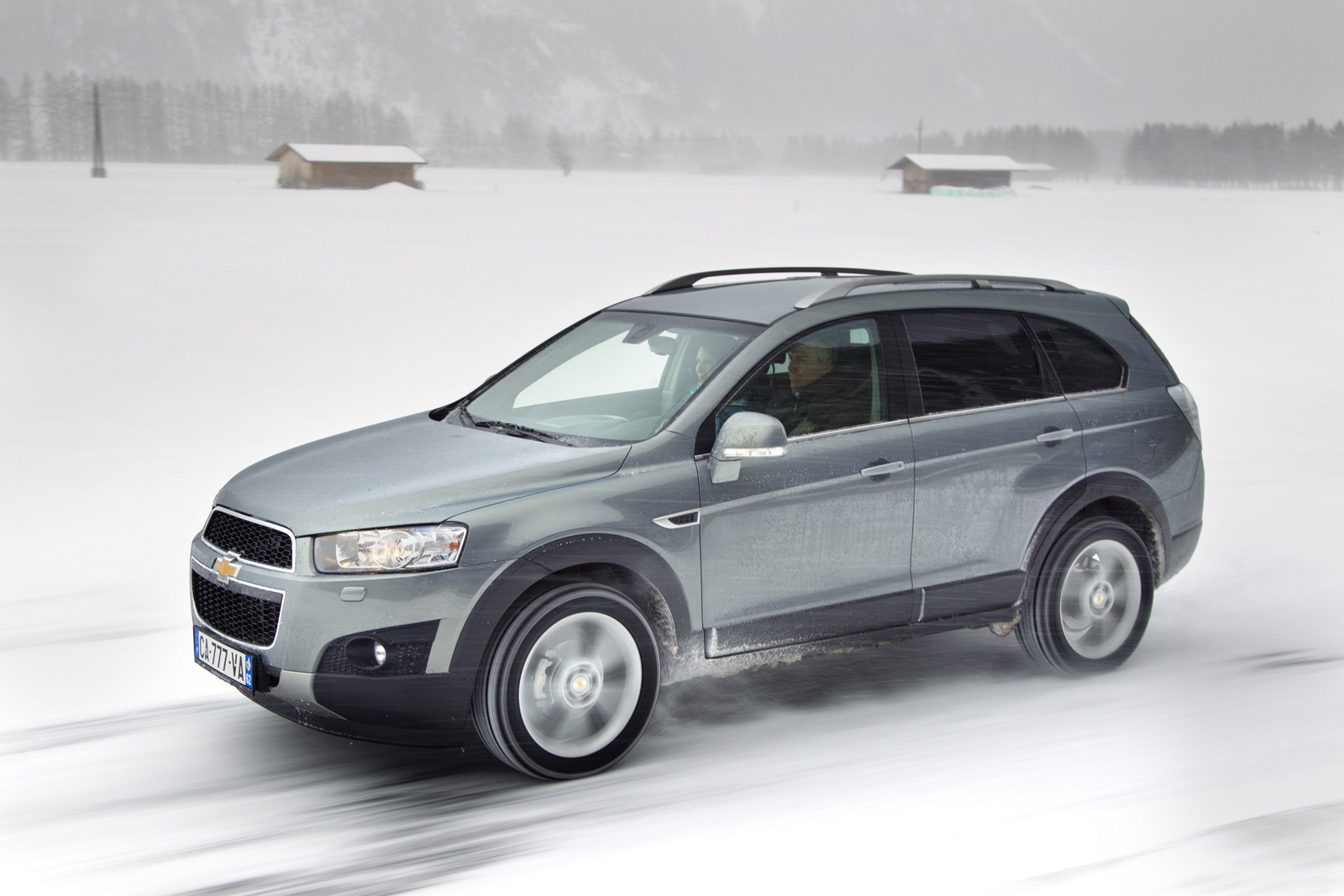

All-wheel drive when you need it

Customers will retain the option of choosing between two and four-wheel drive. The optional active on-demand four-wheel drive system brings the rear wheels into play via an electronically controlled clutch, for optimum traction in a flash when needed. Front-to-rear torque distribution can be varied continuously and automatically up to a ratio of 50:50. Under normal circumstances, 100% of drive is to the front wheels.

In addition to wheel slip, AWD also senses engine speed, vehicle speed, yaw and steering angle. The all wheel drive system is fully integrated into the ABS and ESC system to increase control yet further.

ESC has it all covered

New Captiva’s electronic stability control program is an advanced system which works on individual wheels to prevent loss of grip and therefore loss of control. By processing a range of data such as vehicle speed and steering and yaw angle, it automatically intervenes in a critical situation; so for example, if oversteer is detected it will brake the front wheel on the outside of the curve, while understeer is corrected by slowing the inside rear wheel.

ESC incorporates a number of individual functions, all of which have their specific active safety role to play and are controlled by high-speed CANBUS data line. Individual functions include Hydraulic Brake Assist, Descent Control System and Active Rollover Protection.

Hydraulic Brake Assist increases the braking force applied in an emergency by recognizing if the brake pedal has been applied suddenly by the driver, thus reducing overall braking distances; Descent Control System allows the driver to concentrate purely on steering by automatically slowing the vehicle on steep gradients, without the driver having to keep a heavy foot on the brake pedal.

With SUVs generally having a higher centre of gravity than other passenger cars, Active Rollover Protection is another guardian against more extreme situations. It is able to detect sudden lateral vehicle movements that might be typical of avoiding an obstacle for example, and in doing so, reduces lateral acceleration at the front wheel to prevent the onset of pitch and roll.

Wheel and tire combinations

Setting the new Captiva off perfectly and available for the first time, the top level LTZ trim comes as standard with a handsome 19-inch wheel. The new 19-inch rim is fitted with 235/50 R19 profile tires.

Other trim levels are also adorned with generous wheel and tire combinations, designed to not only enhance the Captiva’s profile but ensure that occupants get a smooth, quiet and comfortable ride. LT Plus models come with an 18-inch wheel and 235/55 R18 profile tires, while the LS and LT models come as standard with a 17-inch rim fitted with 235/60R17 profile tires. All alloy wheels are an attractive, rugged five or six-spoke design.

Development on the Captiva’s chassis had a distinctly European flavor, and was mainly carried out at GM’s facilities in Pferdsfeld, Germany, and at Millbrook Proving Ground in Bedfordshire, U.K.

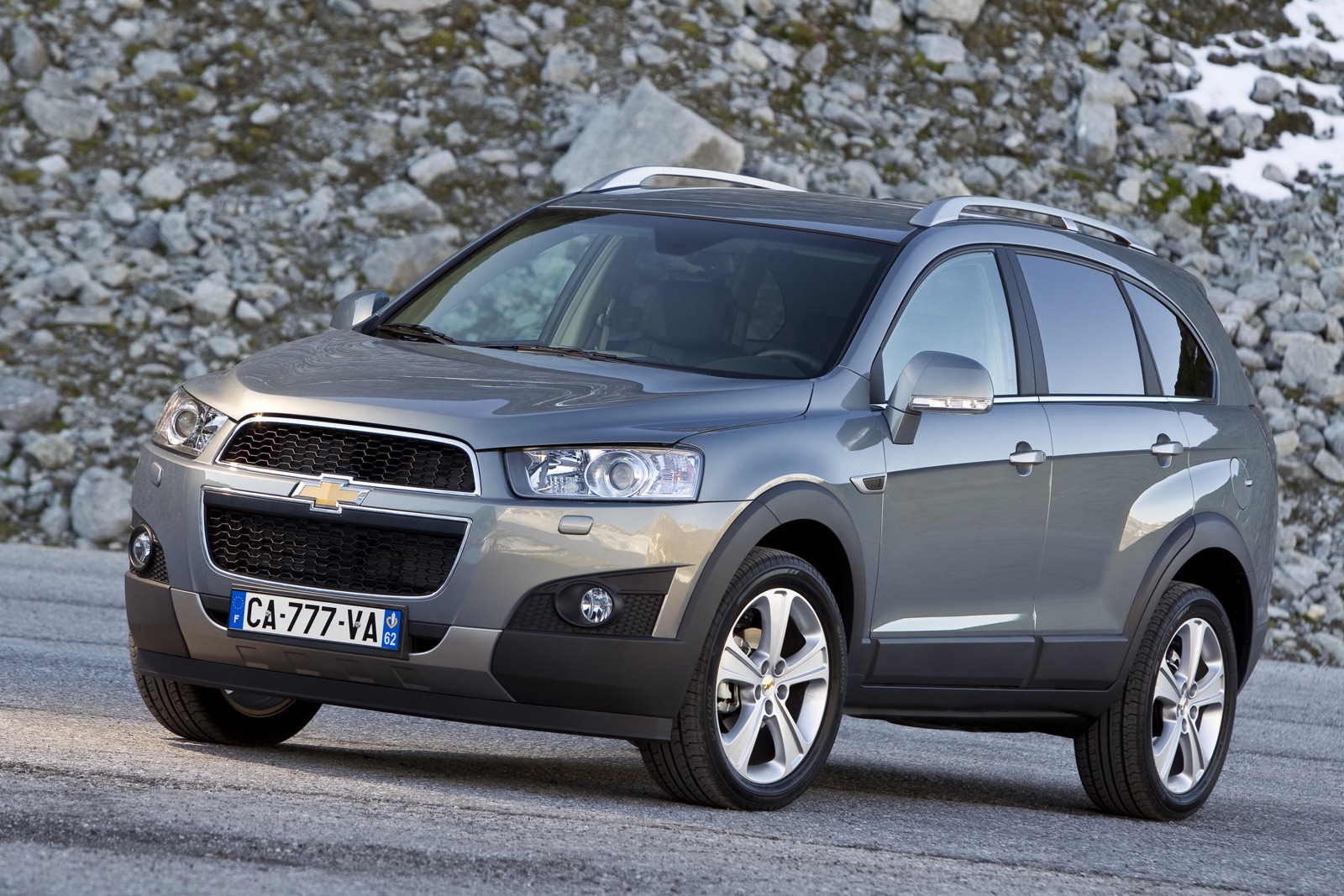

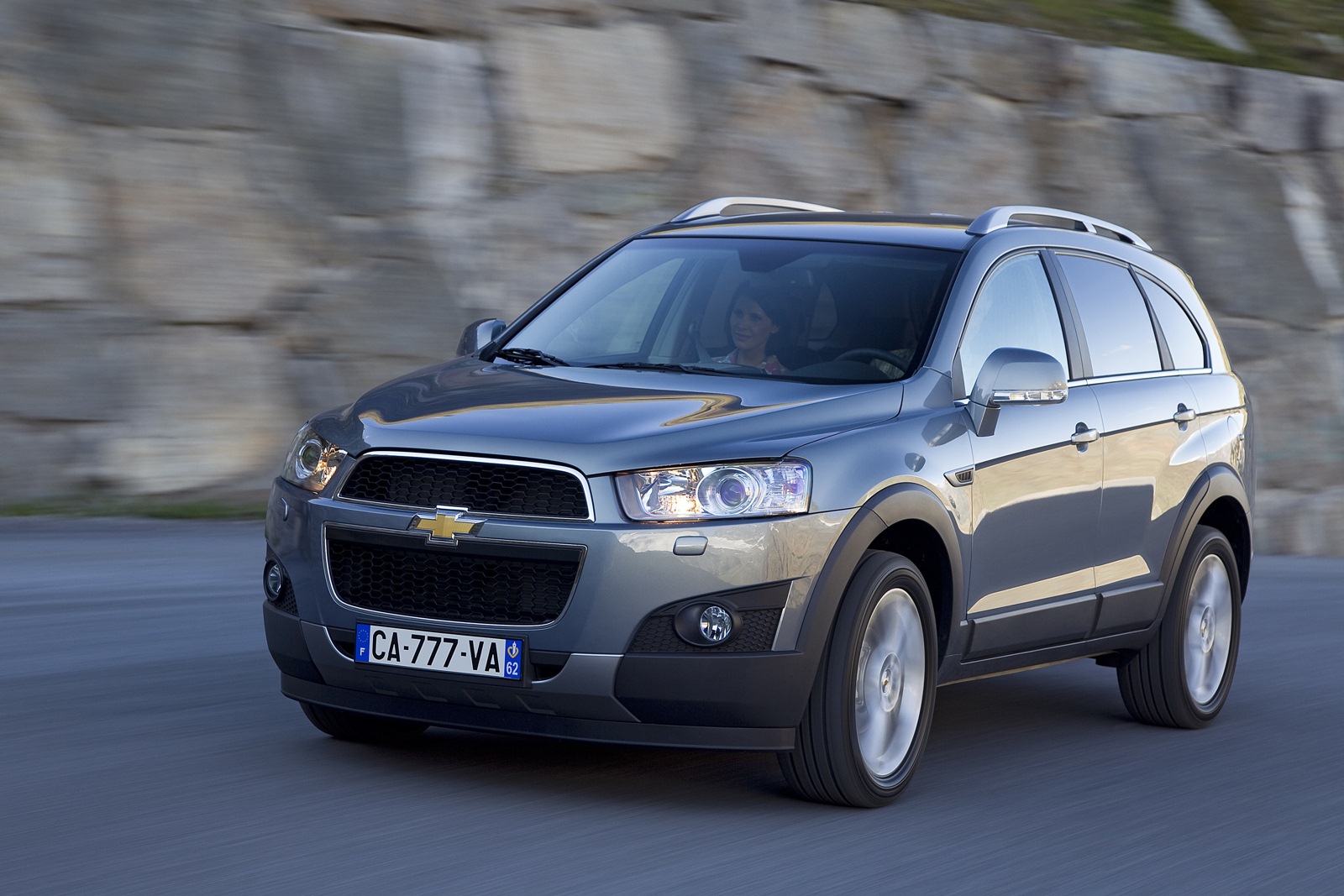

Exterior Design

New Captiva projects presence and purpose

• Bold face of Captiva reflects the new Chevrolet
• Exterior detailing takes Captiva up-market
• Distinctive profile retained

Few can deny the handsome profile and confident stance of the current Chevrolet Captiva, still looking as fresh and modern as the day it was launched – until perhaps you see the new Captiva, an example of an already strong design being honed in all the right areas to ensure it has a more dynamic presence, but without losing any of the original Captiva design essence.

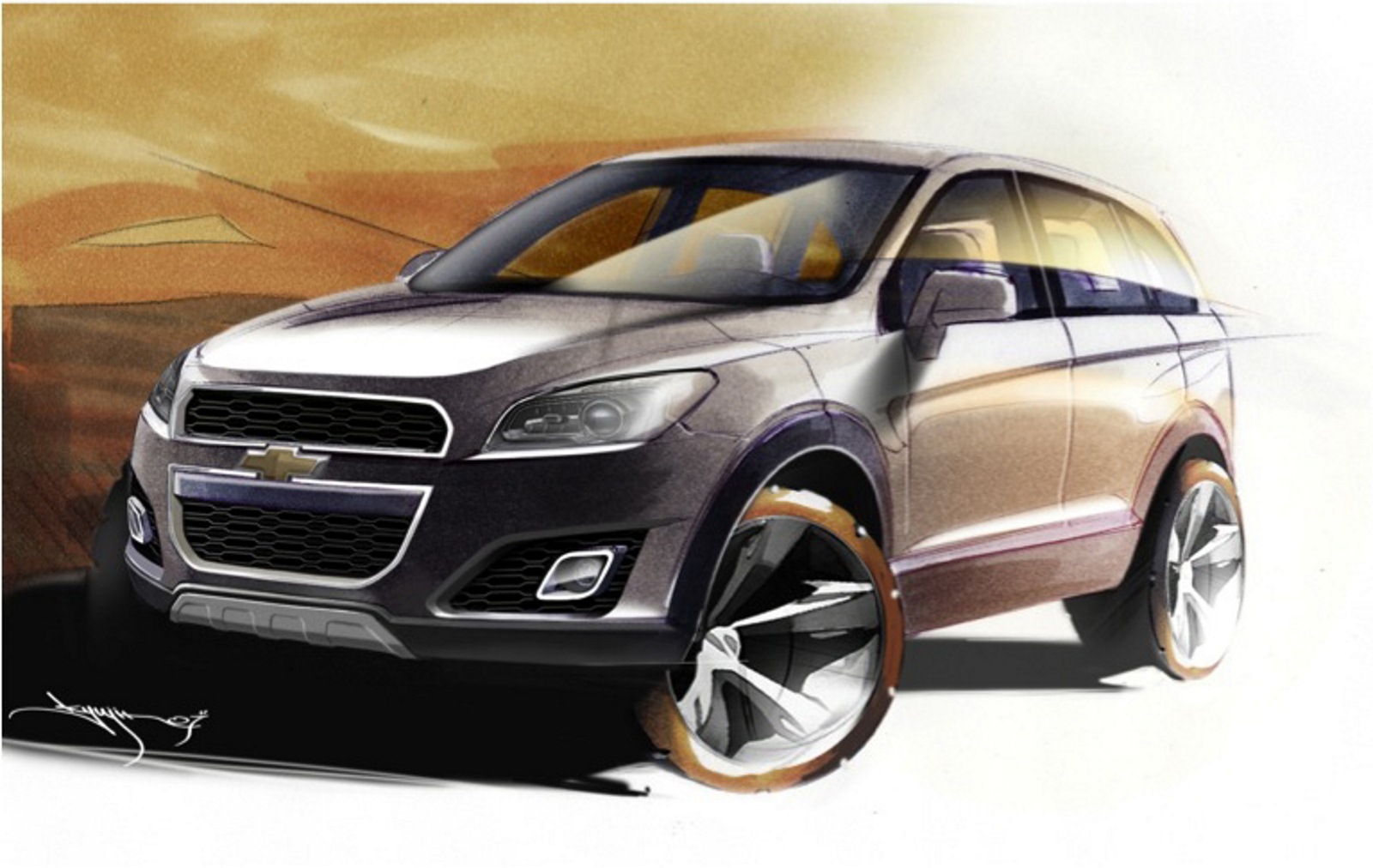

Taewan Kim, GM Vice President of Design, in charge of the Captiva project: “The key ingredient of the new design that you see with Captiva is confidence. The changes we have made to the front profile give the new Captiva an even more athletic stance and strong overall character. We wanted to ensure that we lost none of the spirit of the original model, while giving it a stronger and more sophisticated appearance. Captiva has presence but without looking overly big; it looks capable but also compact.”

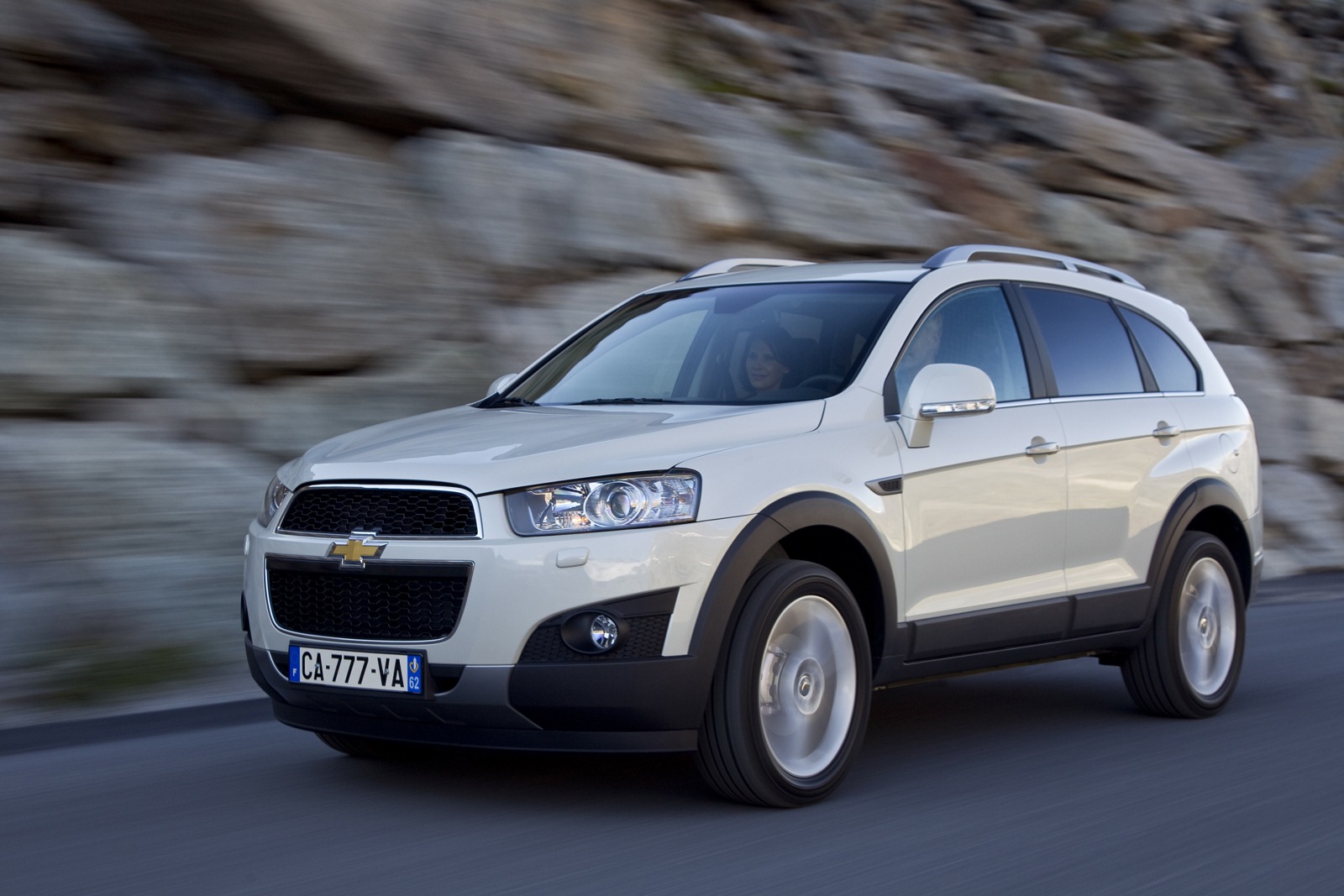

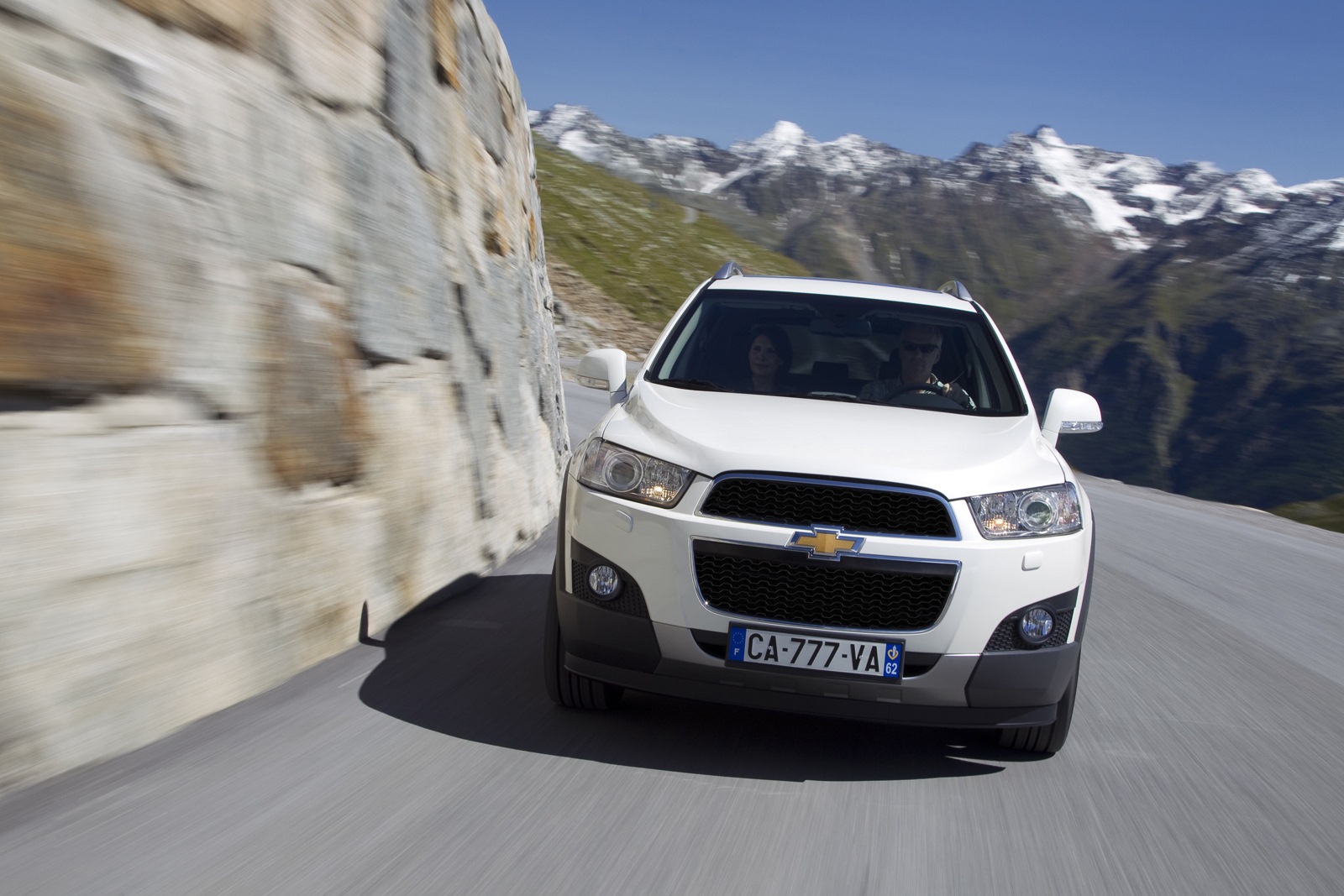

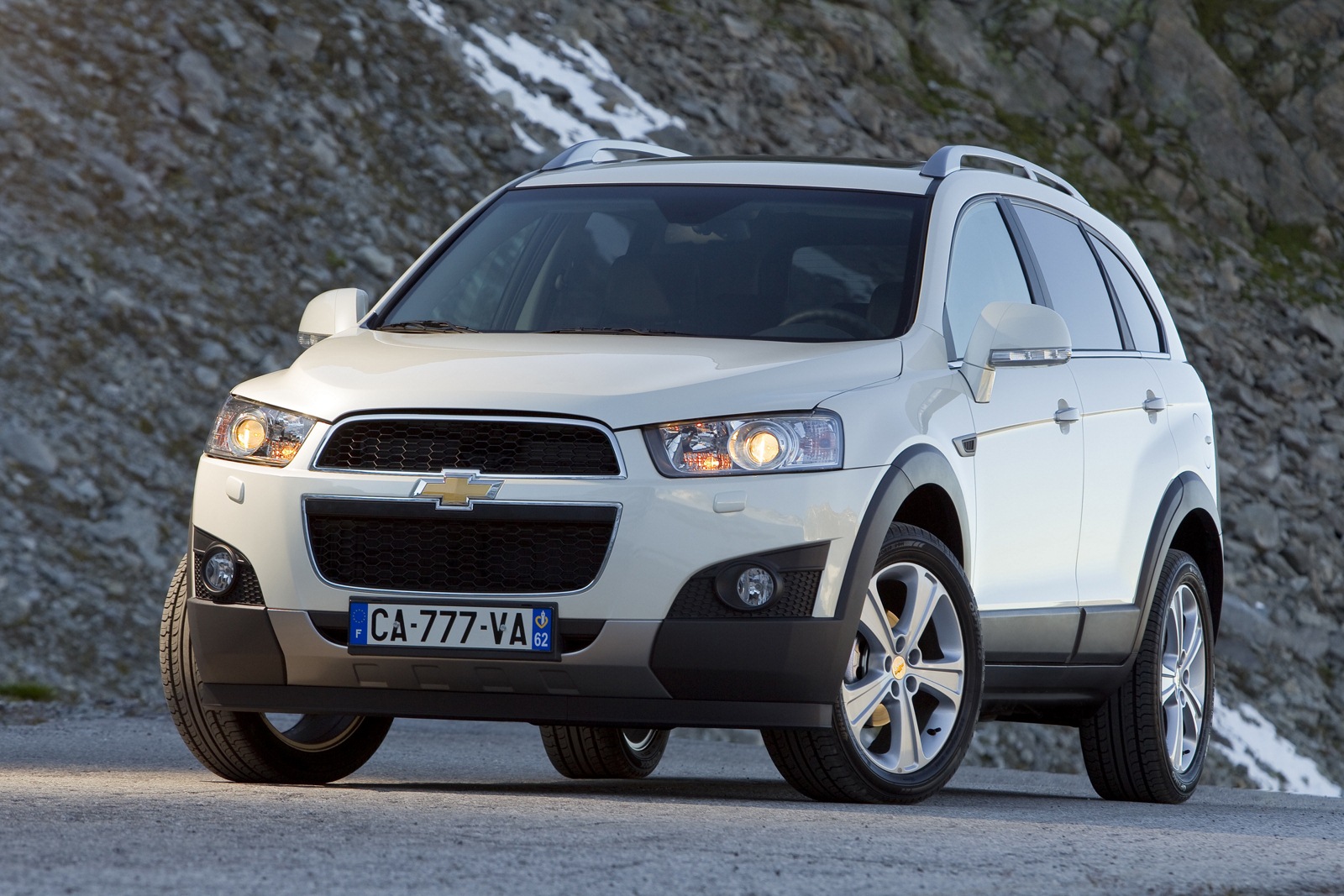

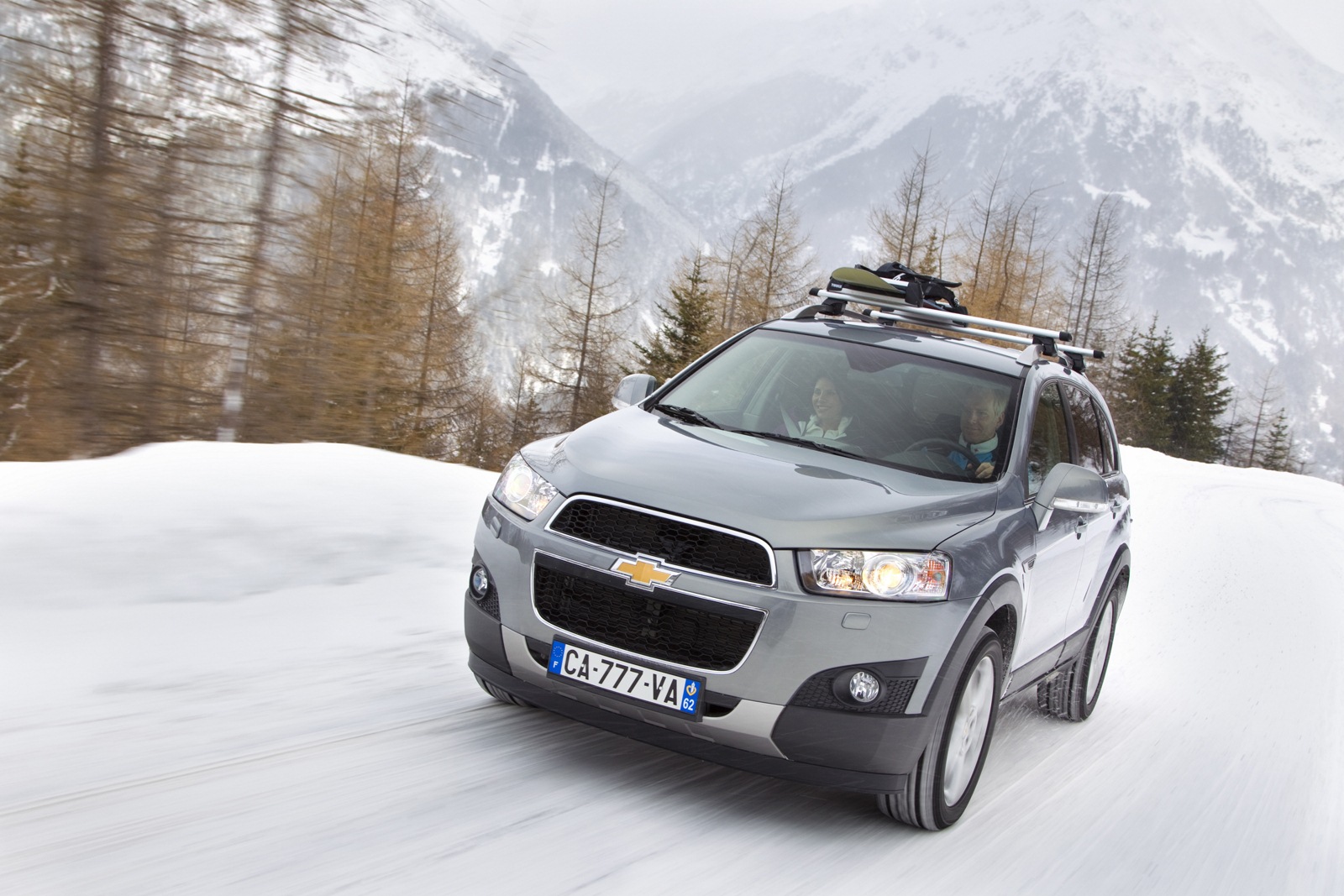

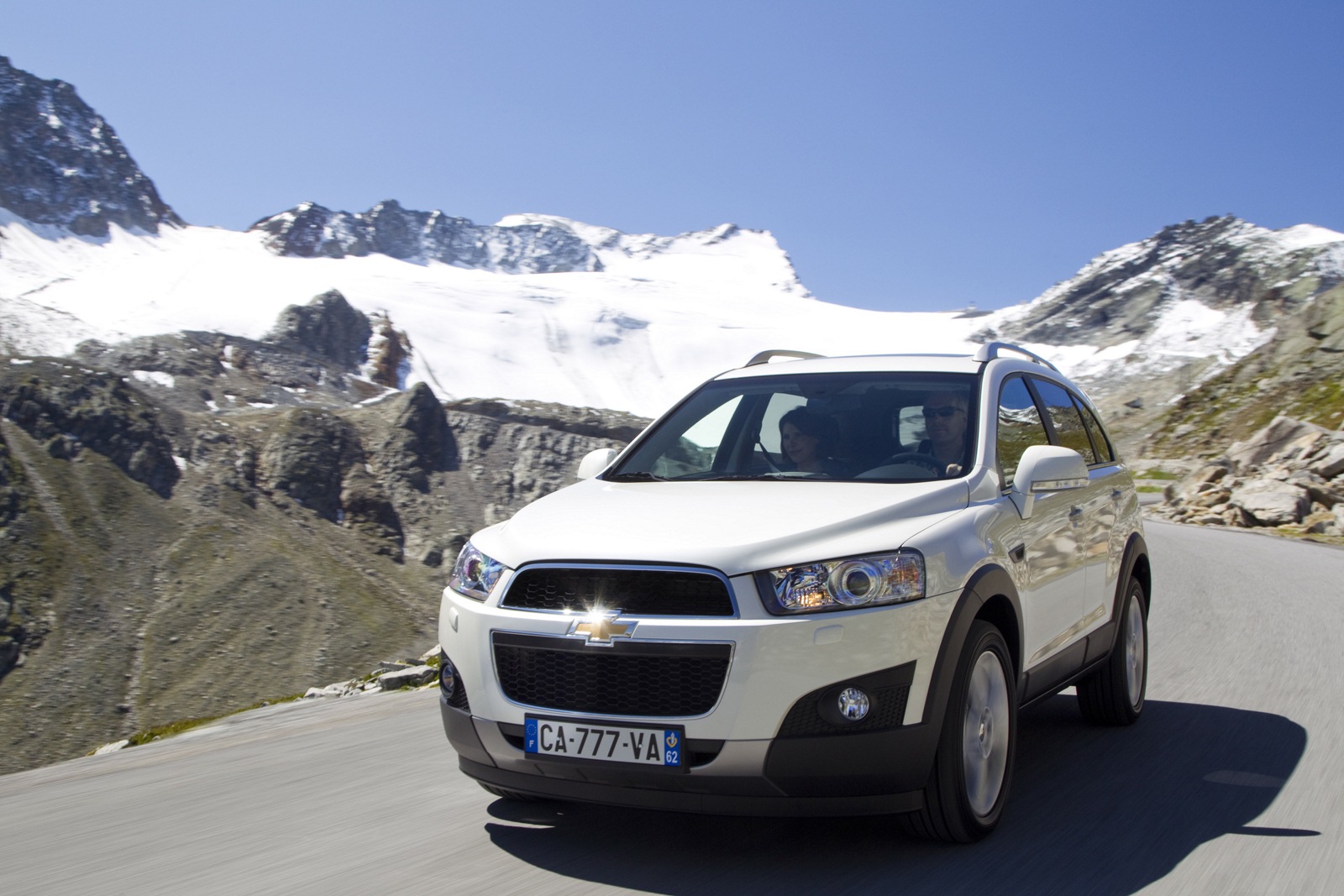

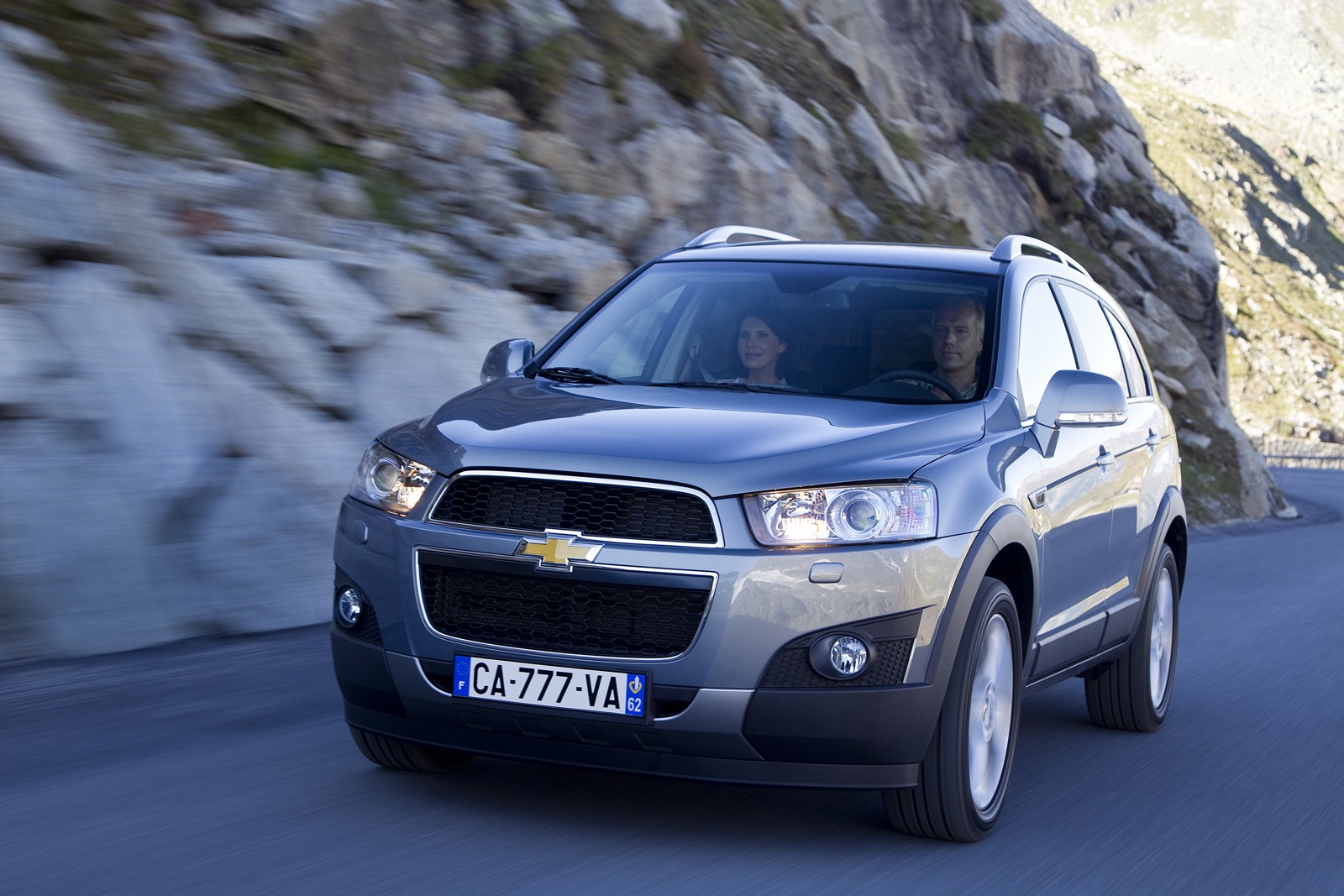

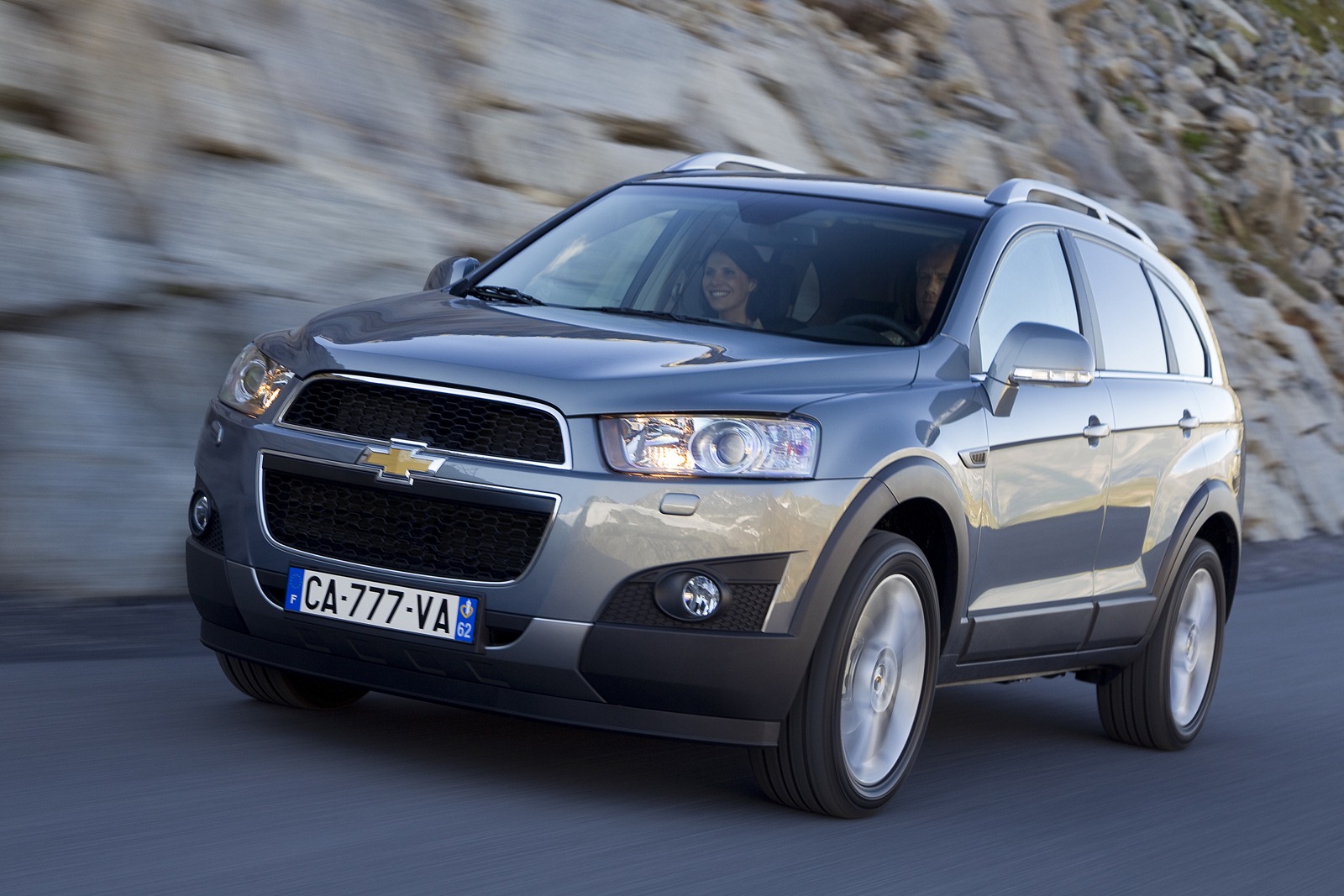

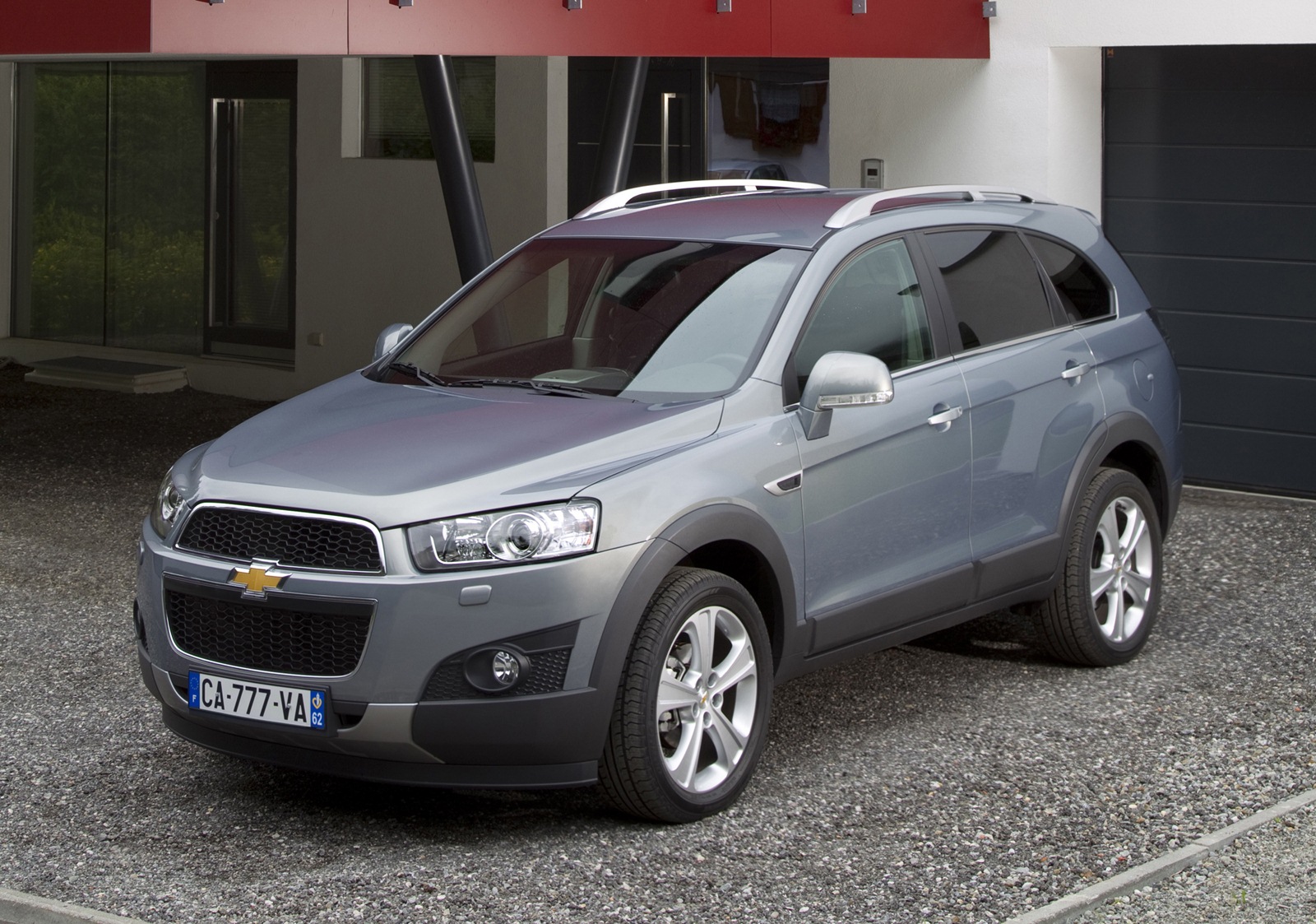

A number of features are immediately noticeable when viewing the new Captiva from the front. The dual-opening grille has become one of the Chevrolet signatures, and there is no mistaking its intention on Captiva: significantly larger than on the outgoing model, it looks distinctive and progressive with its unique flattened honey-comb texture and chrome surrounds, lending the new model an almost high-performance car feel.

Sitting in the center line between each grille is the prominent family Chevrolet bow-tie, ten percent larger than before and finished with a grained, gold surface.

Just above the grille, Captiva’s aluminum hood is all new, its concave and sculptured lines also designed to make the front profile more aggressive and powerful. Working in tandem with the new hood, the headlamps take on a more purposeful shape while the cylindrical, prism-type lamps, housed inside the casings, look high-end and modern.

The area around the front fog lamps in the lower section of the front bumper has received a lot of attention, so that the fog lamp outline now runs seamlessly into the skid plate, which gives the whole front a more unified look.

The designers also refer to the ‘character lines’ incorporated into the new shape front bumper. They have been cleverly shaped so that they sweep into the body sides which not only adds to Captiva’s more aggressive character at the front, but also contributes to the overall stance when viewing the new car in profile as the line rises toward the rear of the vehicle.

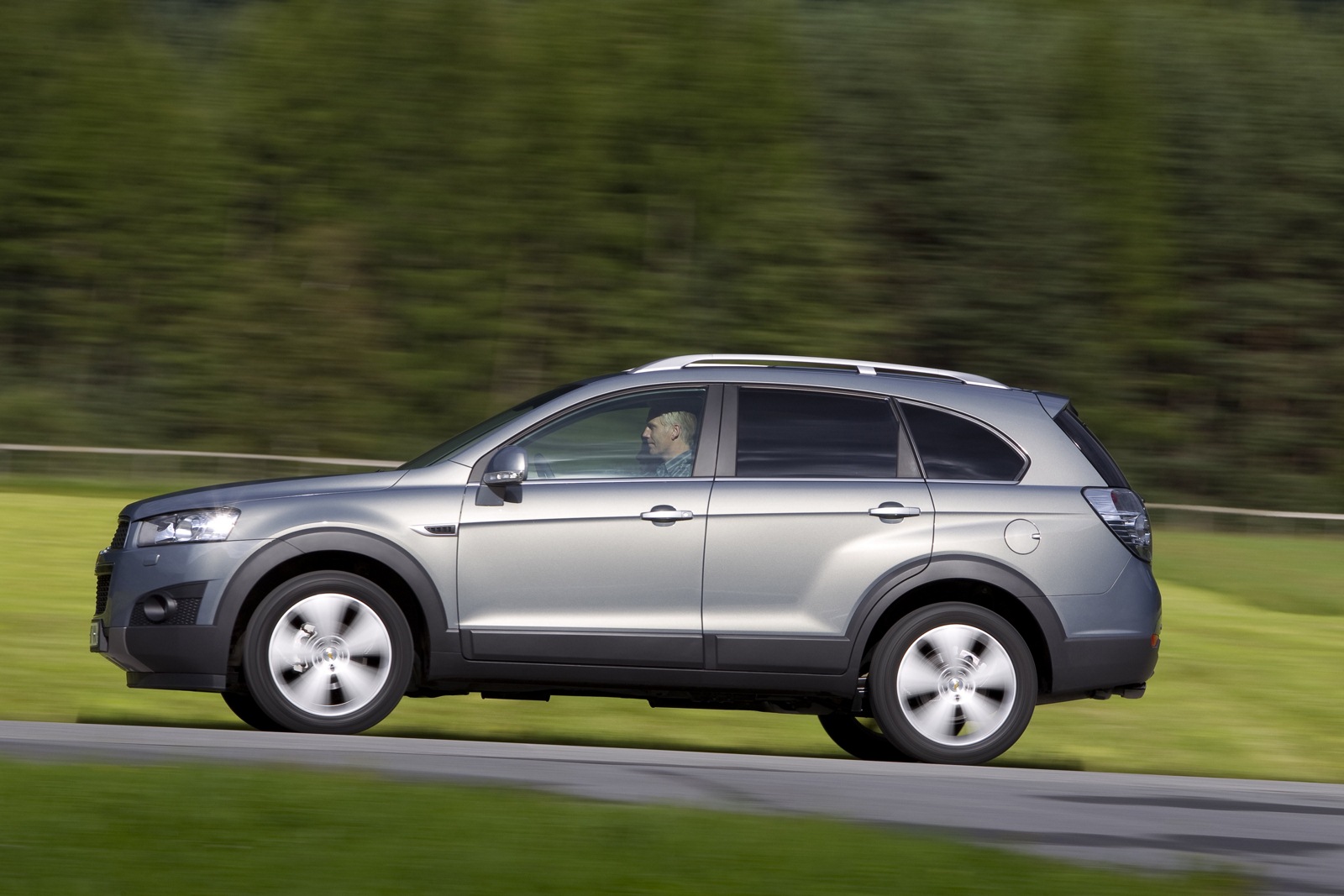

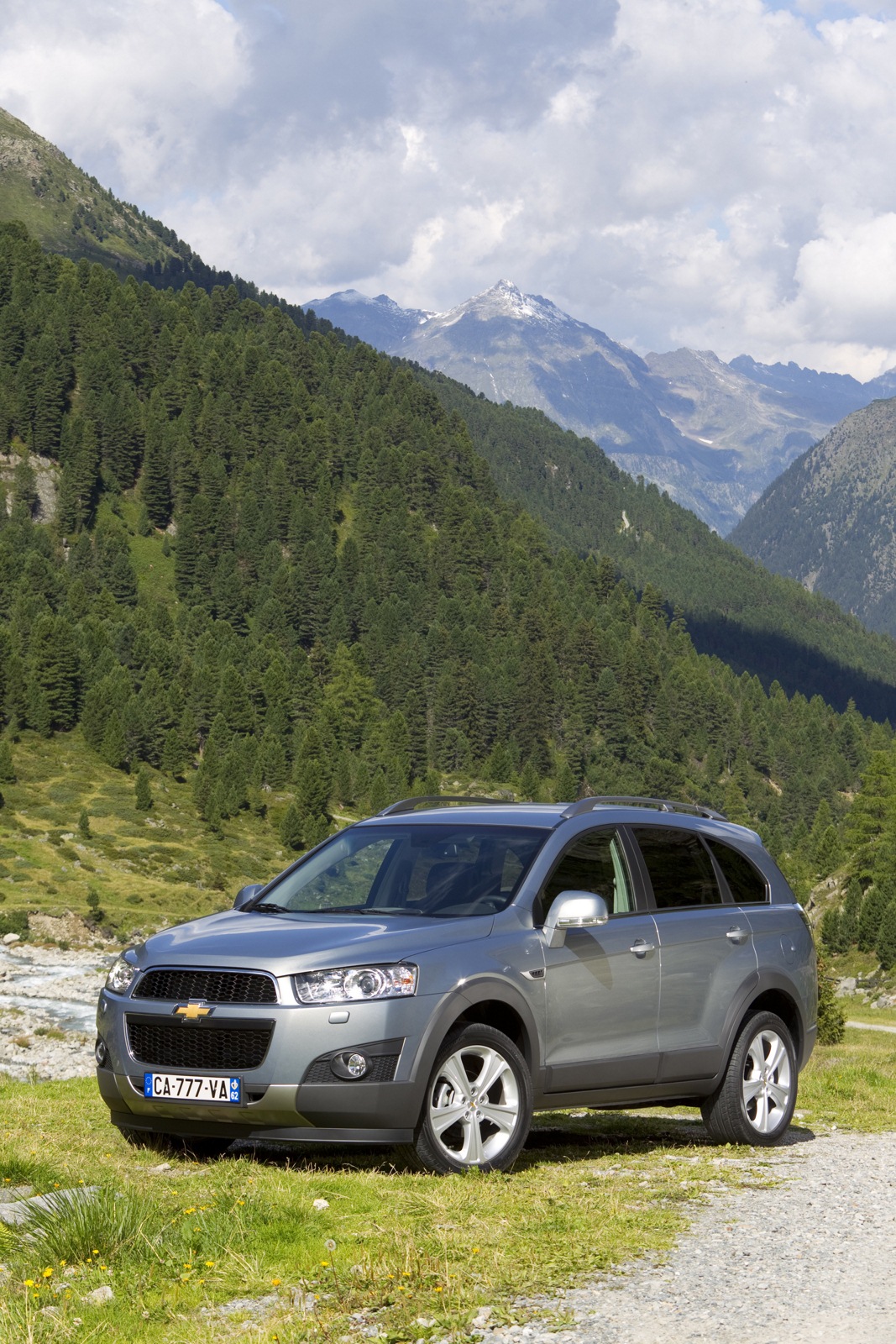

Sporty, muscular profile

Moving round to the front fenders, the side air-vents have been re-shaped and now take on a more angular shape to emphasize the new Captiva’s sporting intentions. They are positioned in line with the rising shoulder line which runs along the profile all the way to the rear light cluster and gives the new Captiva its overall stance.

Captiva’s front fenders now also have re-sculptured and more muscular wheel arches – complete with rugged protective moldings – and are able to accommodate increased wheel sizes of between 17 to 19-inches. The 19-inch wheel comes as standard fitment with top of the range models, but all Captivas come with generously sized alloy wheels which have attractive, rugged five or six-spoke design.

A number of detail features contribute to give the new Captiva an upscale look, such as the chrome strip that runs along the bottom edge of the windows and the turn signals integrated into the exterior wing mirrors, now a standard feature. Judiciously applied ‘brightwork’ has also been applied around the upper and lower grille surround, the fog lamp bezels, side body moldings and front fender vents. Depending on the trim, the Captiva comes with black roof-rail and body-colored door handles, or silver roof-rails and door handles.

Captiva’s characteristic kink in the C-pillar remains and along with the shape of the rear side window and the raked roofline, give the Captiva a coupe-like appearance toward the rear.

Regarding the new Captiva’s profile, Taewan Kim said: “Viewing the new model from the A-pillars back, the Captiva essentially retains its handsome silhouette. All of the design changes to the front are harmonious with the profile and contribute to a stronger, more athletic stance. They ensure the new Captiva has a look that is immediately recognizable as a member of the same Chevrolet family as Spark, Cruze and Orlando.”

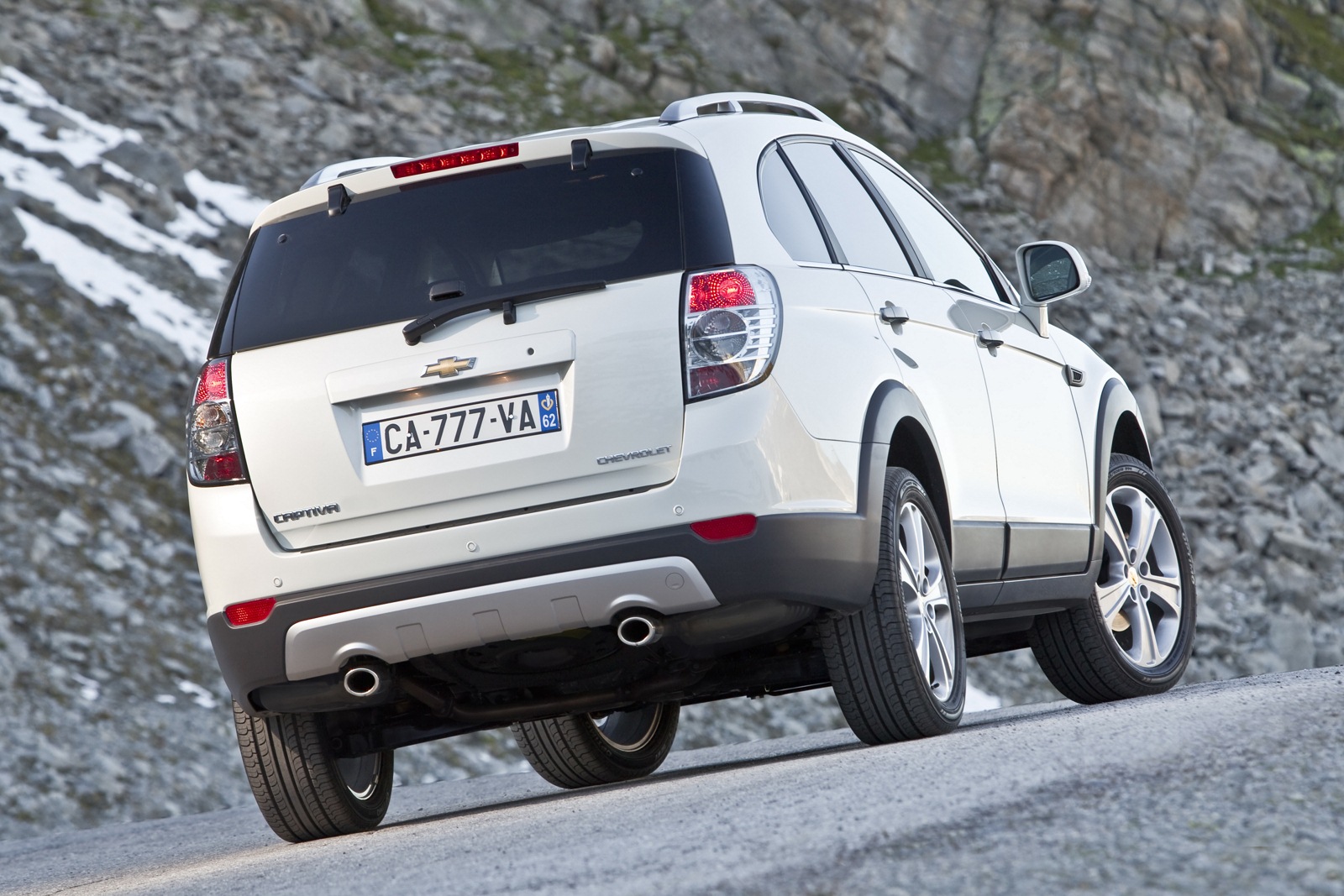

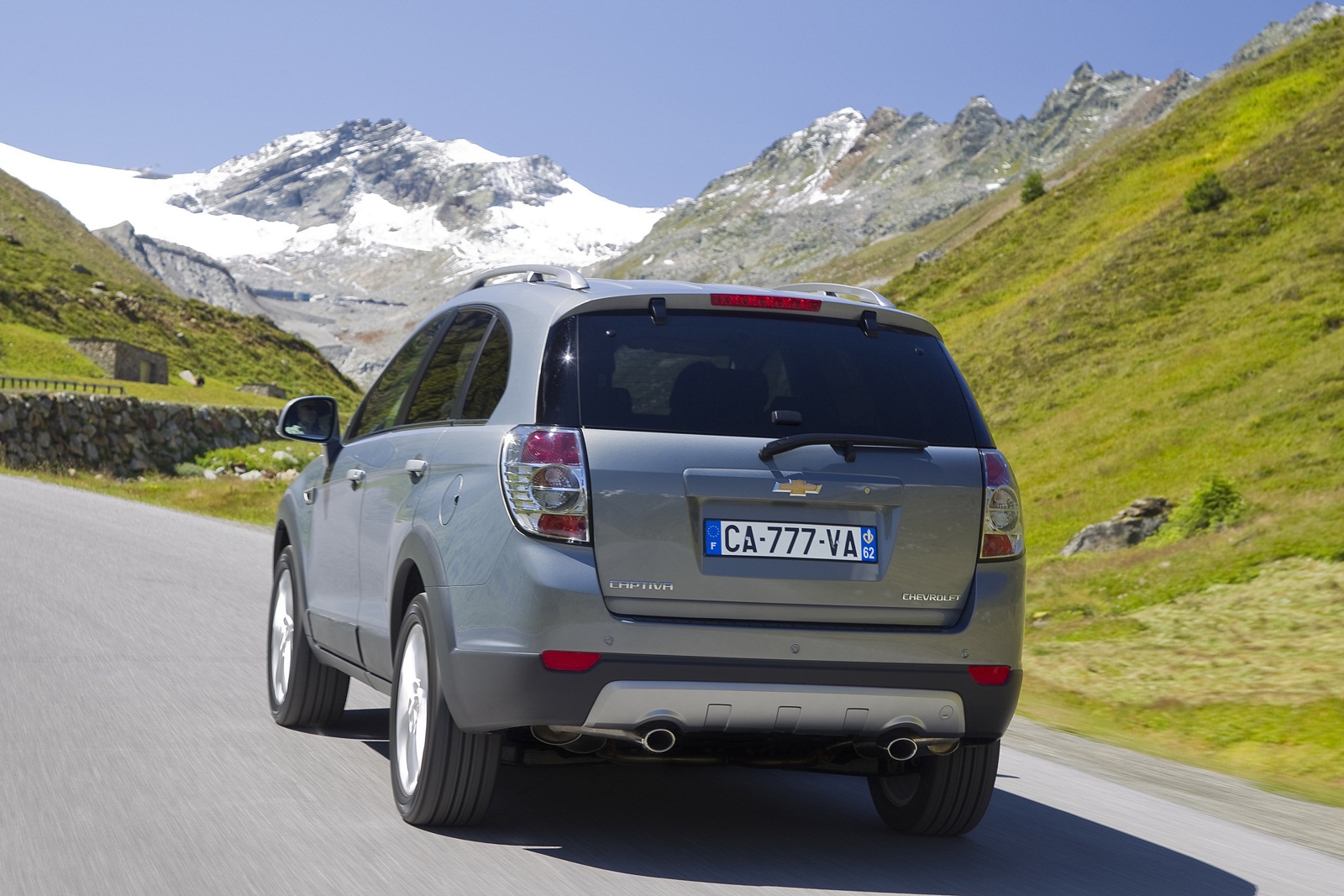

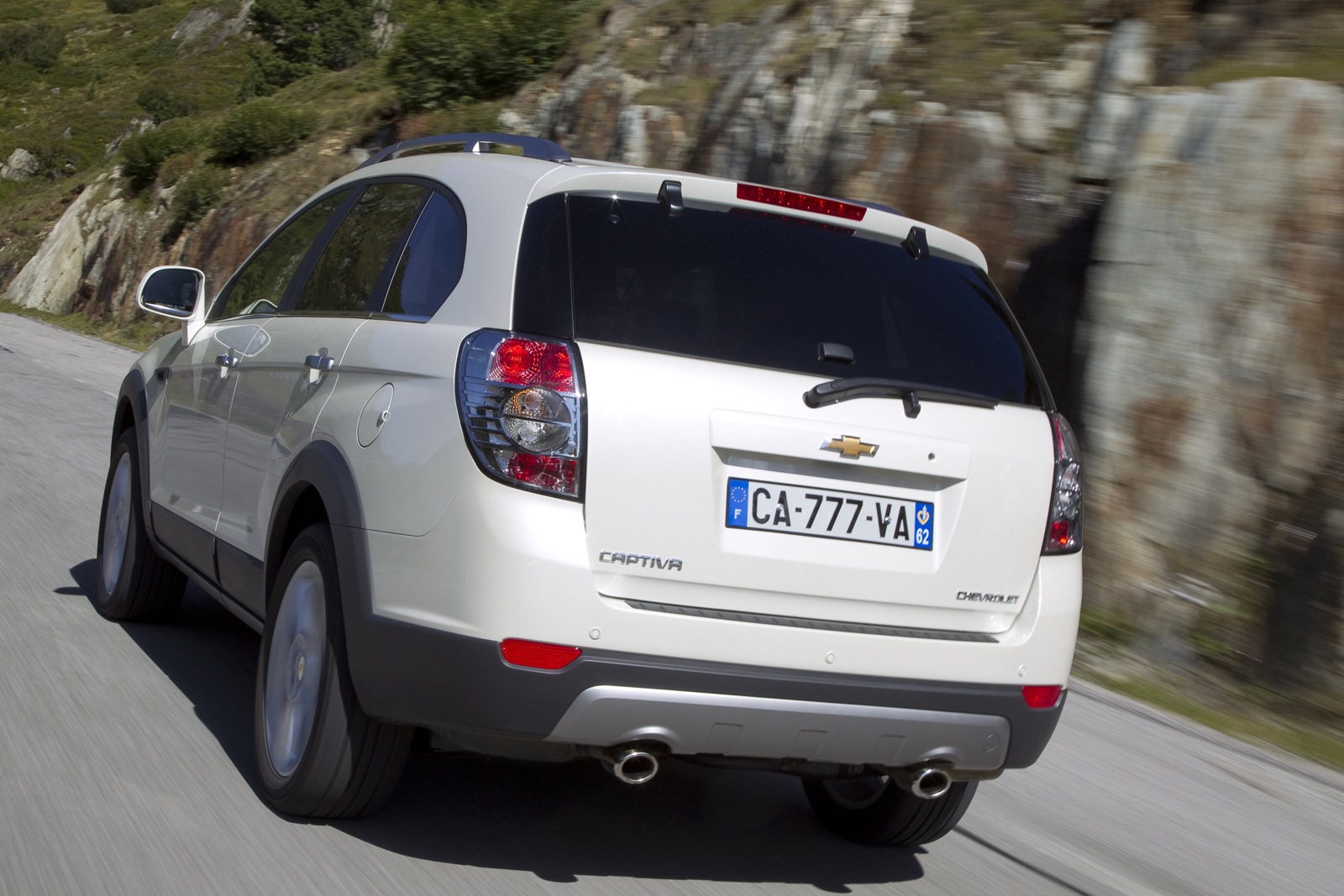

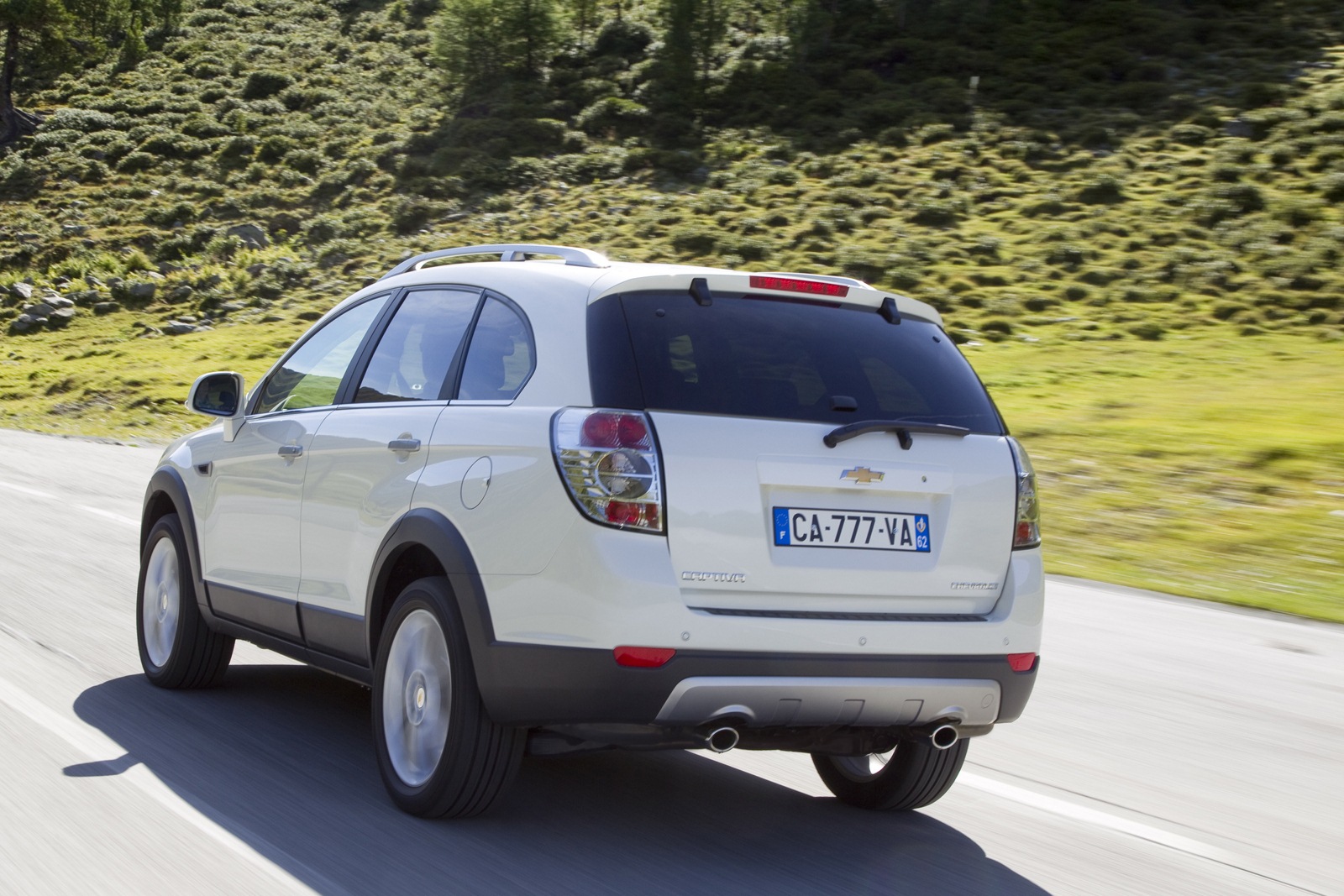

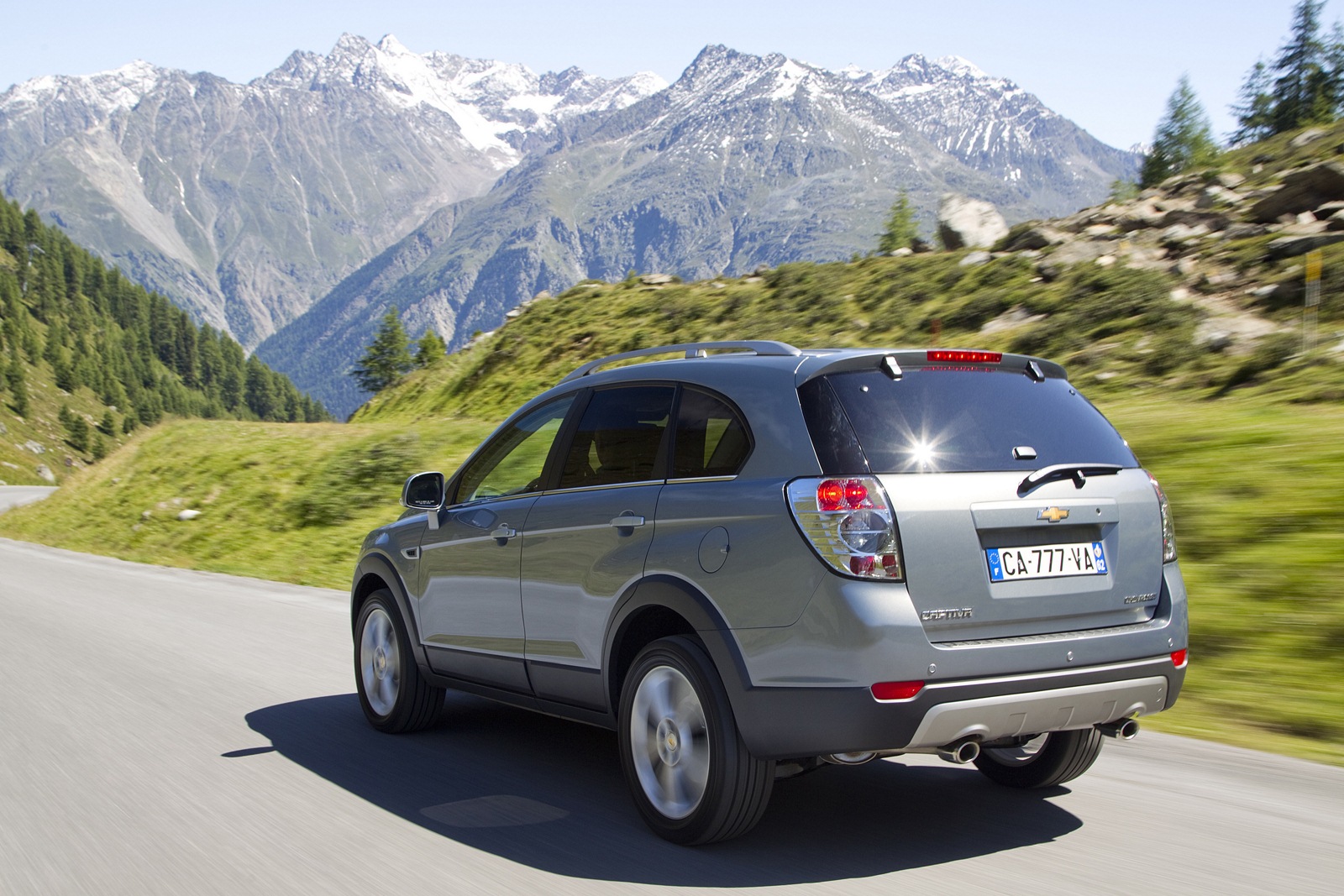

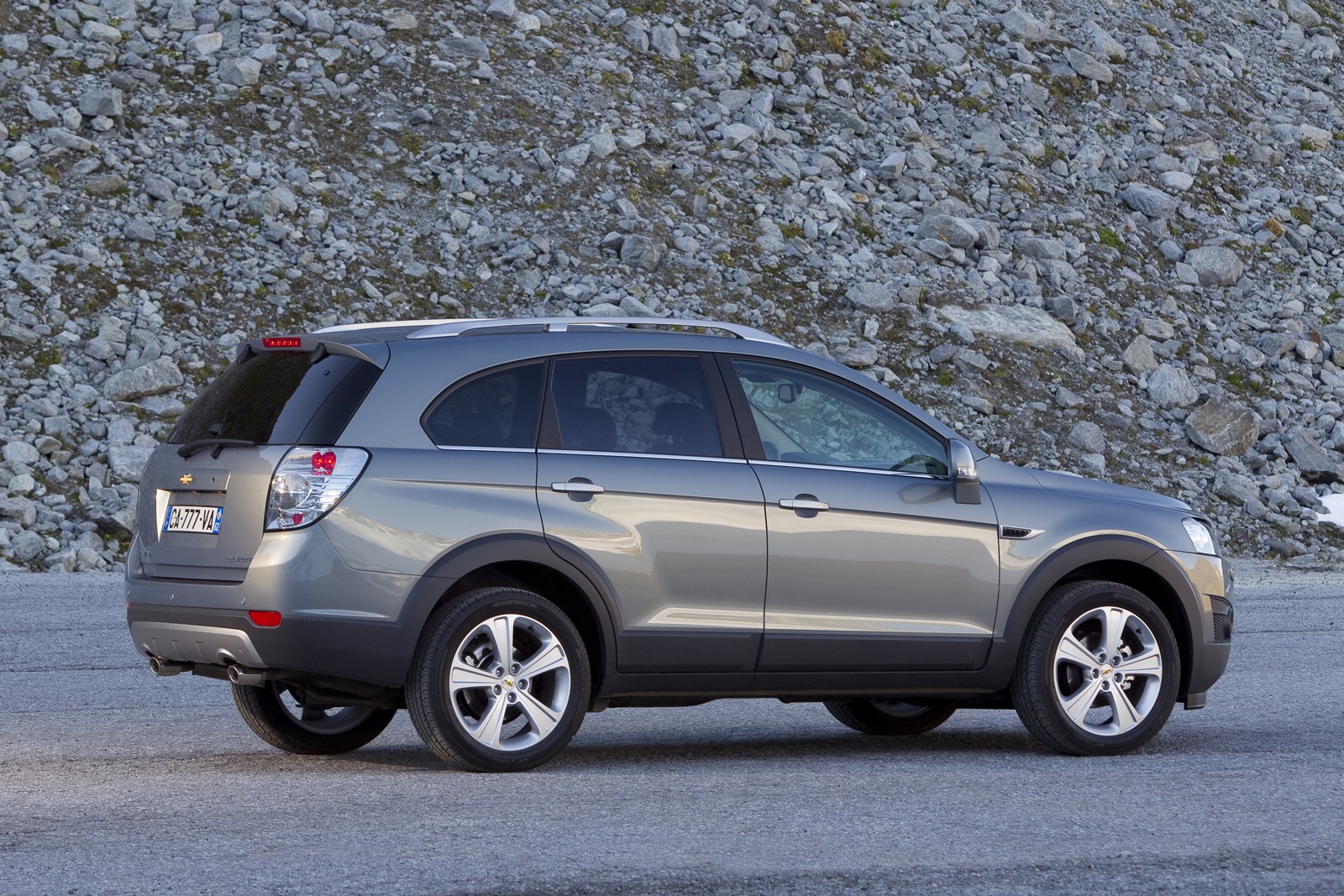

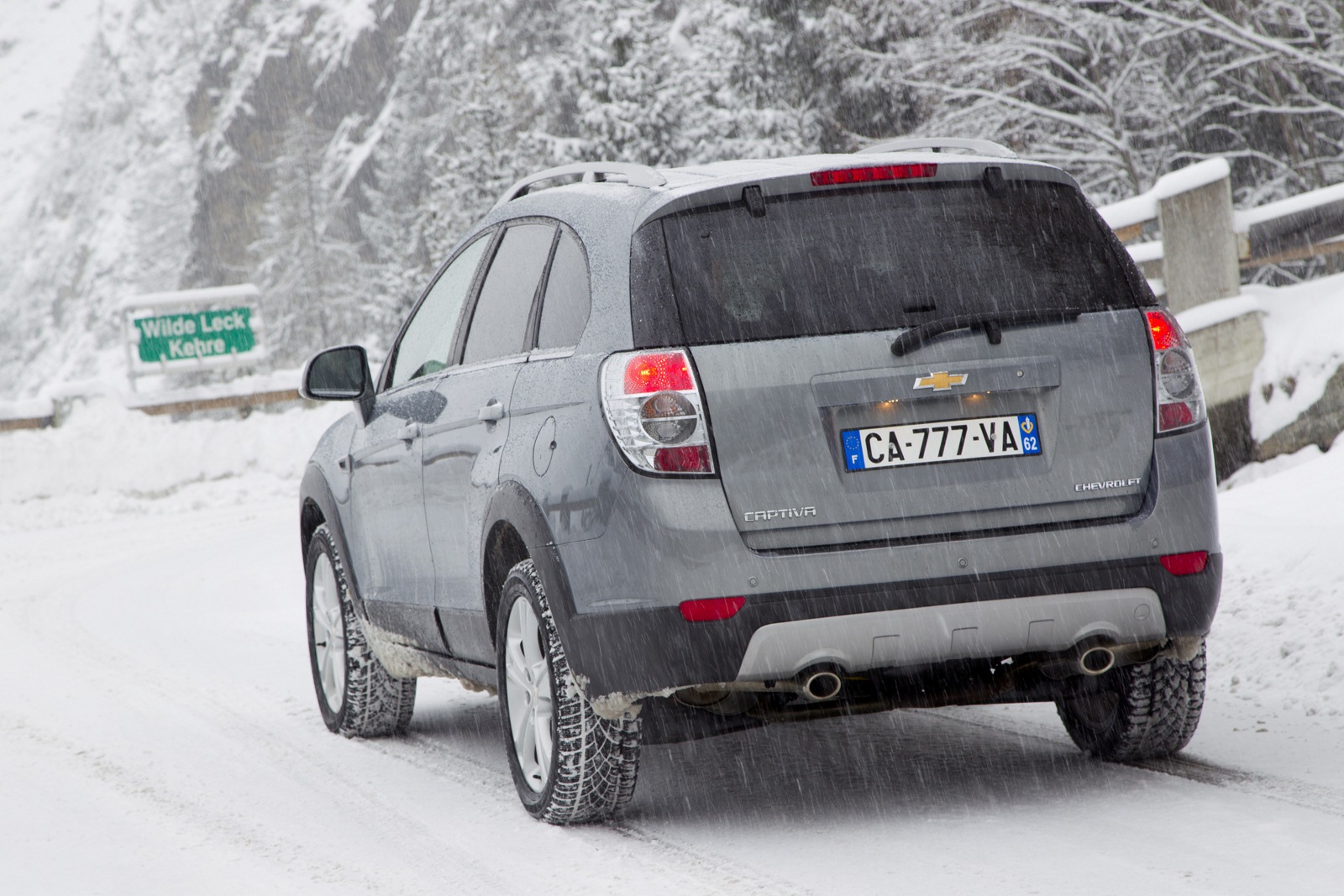

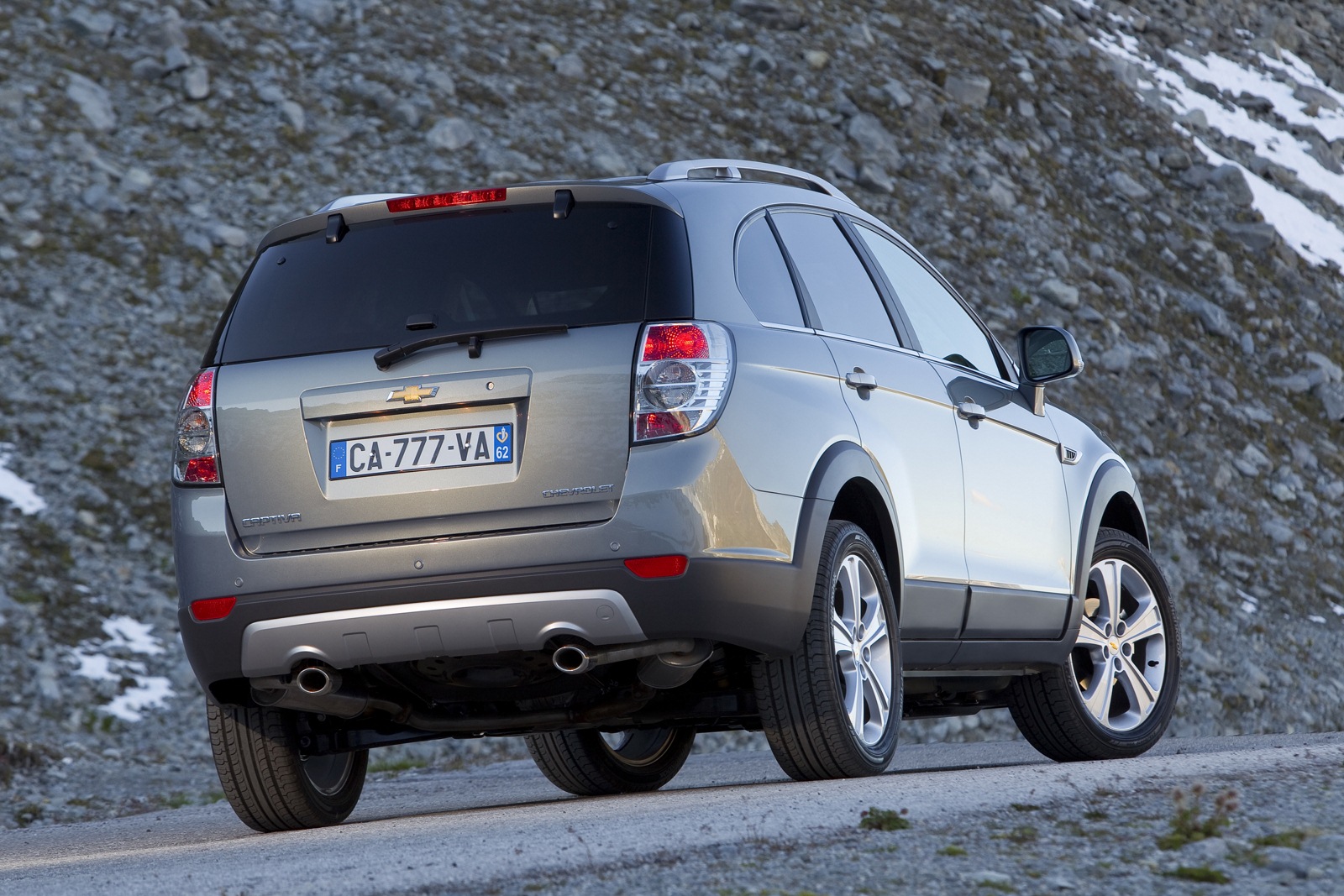

The rear of the new Captiva remains as it was, defined by a large rear tailgate with its split tailgate glass that opens independently; the large vertically shaped tail lamps with their internal circular shaped indicators and reversing lights; the exterior SUV-style tailgate hinges; the twin left and right hand exhausts and a prominent silver skid plate.

Finally, setting the Captiva’s body off perfectly is a new range of exterior colors.

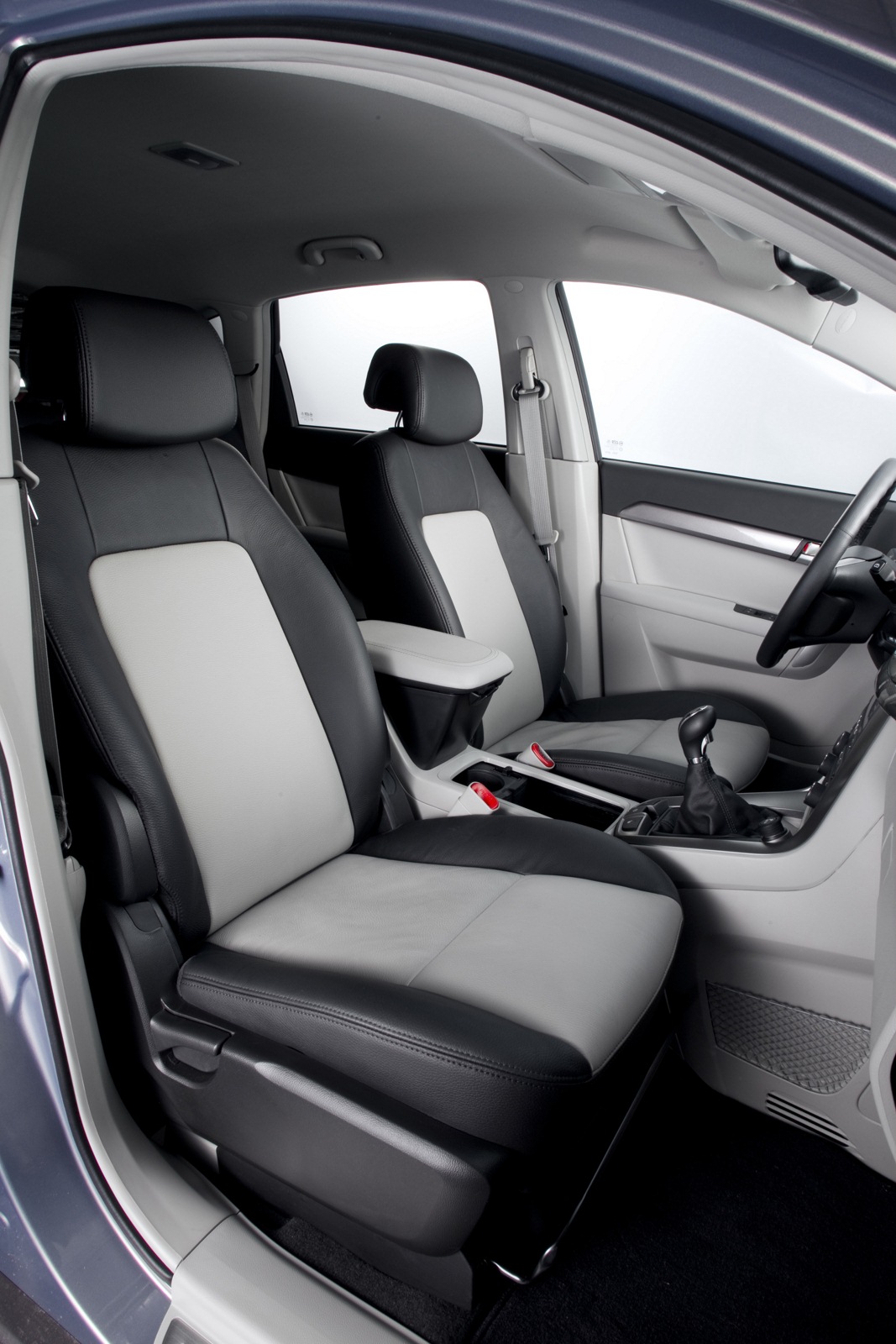

Interior Design

Interior goes upscale while losing nothing in practicality

• SUV versatility combined with sedan comfort
• Interior gets new décor and finishes
• Driver comfort and ergonomics improved

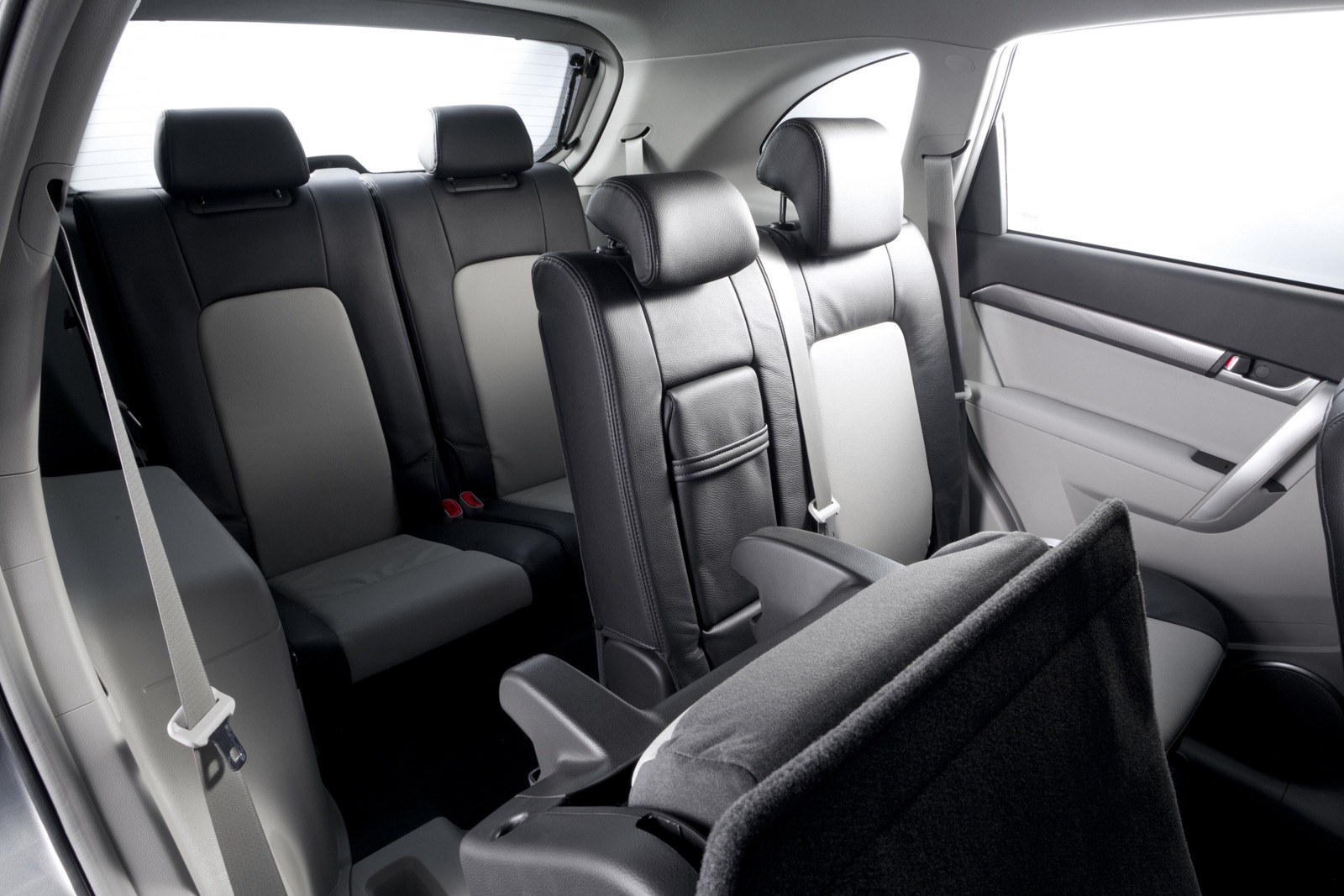

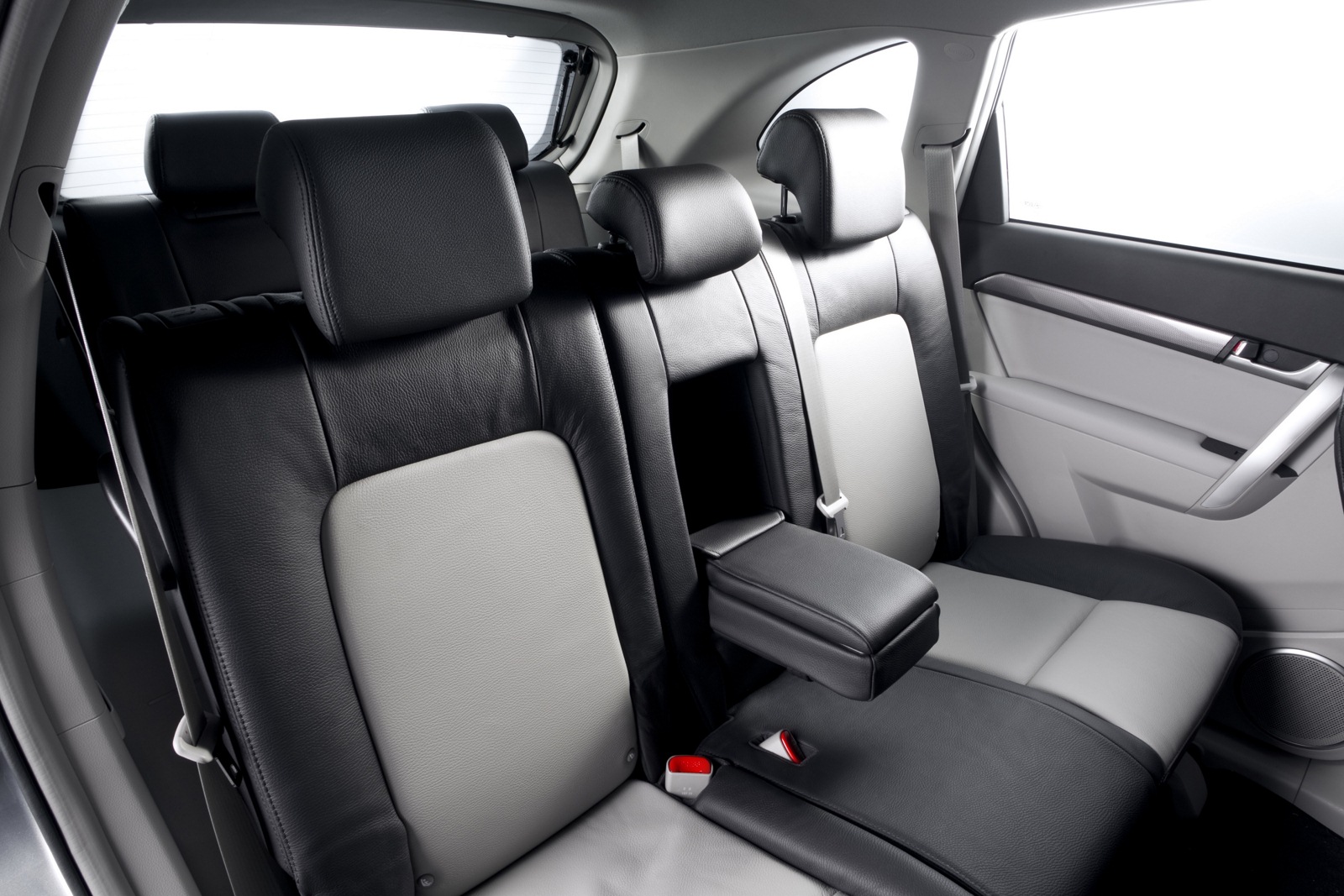

Climbing aboard the new Captiva, the first impression is one of abundant light and spaciousness. It’s a quality that has always been there with the Captiva, but now and in tandem with the enhancements to the exterior design, the interior’s ambience has been taken up several notches in terms of quality and functionality.

It is still available with five or seven seats and with storage space that is among the best in class. The Captiva’s new upgraded interior now features an array of new finishes and textures, taking the new model up-market in feel and look.

A number of the elements found in the cabin have recently been introduced on other new Chevrolets, to ensure the best of the family DNA runs consistently through the model range, while one or two others, like the electric park brake for example, are the kind of premium feature normally reserved for higher end vehicle segments.

Of the characteristics that can be found on other new Chevrolet interiors, one of the key signatures is the dual-cockpit design and wrap-around front fascia, something that is well illustrated inside the Captiva. The Corvette-inspired dual cockpit lends the cabin a natural symmetry, while the wrap around fascia, which flows from the dash into the top sections of the driver’s and front passenger doors, gives the front of the cabin a seamless, unified look.

GM Vice President of Design Taewan Kim, explains what the design team wanted to achieve with the new Captiva’s interior environment: “In taking a fresh look at the interior the aim was to offer a blend of high end sedan comfort combined with the spacious ambience and practicality associated with an MPV. We have achieved this by use of superior textures and finishes combined with the distinctive Chevrolet wrap-around interior of the instrument panel; at the same time the abundance of storage and the versatile packaging offered by the five or seven seats emphasizes Captiva’s space and practicality.”

Perceived quality improved

The perception of quality in the cabin has been significantly enhanced with the new Captiva. A raft of upgrades which may seem minor individually, when taken as a collective add up to a major overhaul, which takes the Captiva much more up-market.

Taewan Kim says:”The use of new and different finishes such as metallics and brightwork convey a sense of richness but also give the new interior a sense of width and spaciousness. They bring out some of the details, such as the switches, while giving the cabin a more upscale feel. Customers will feel they are getting great value for money when they see the new interior and its appointments.”

Particular examples of this include the new seat fabrics, the satin chrome rings which accent the cabin vents which have been re-shaped for better ventilation and de-misting performance, the horizontal trim which runs the full width of the interior between the lower and upper instrument panel and the re-designed more premium gearshift lever.

In line with Chevrolet interior DNA, the interior illumination in the control faceplates is now a crisp, high-tech ice-blue while the analogue instrument cluster itself has also been modernized.

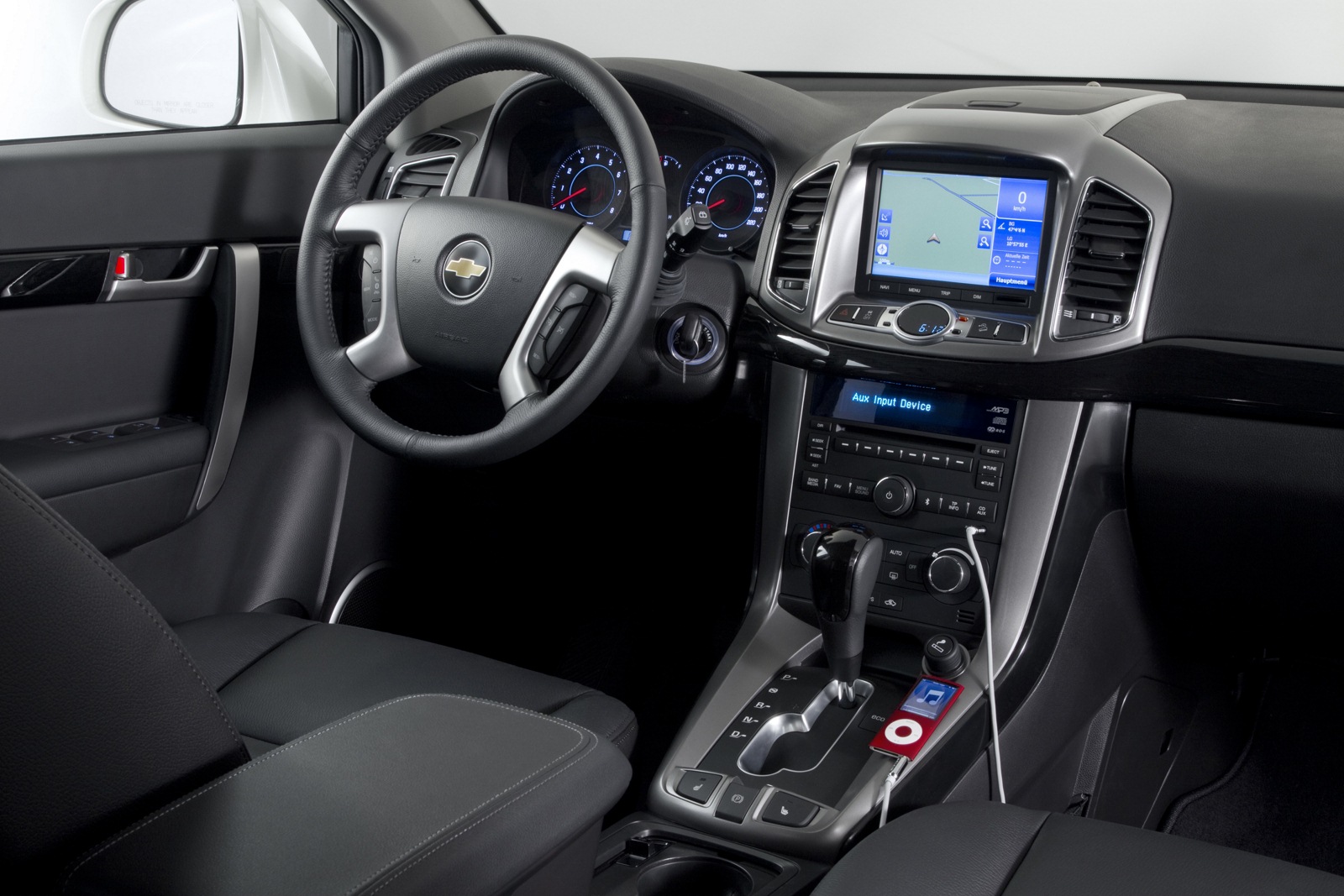

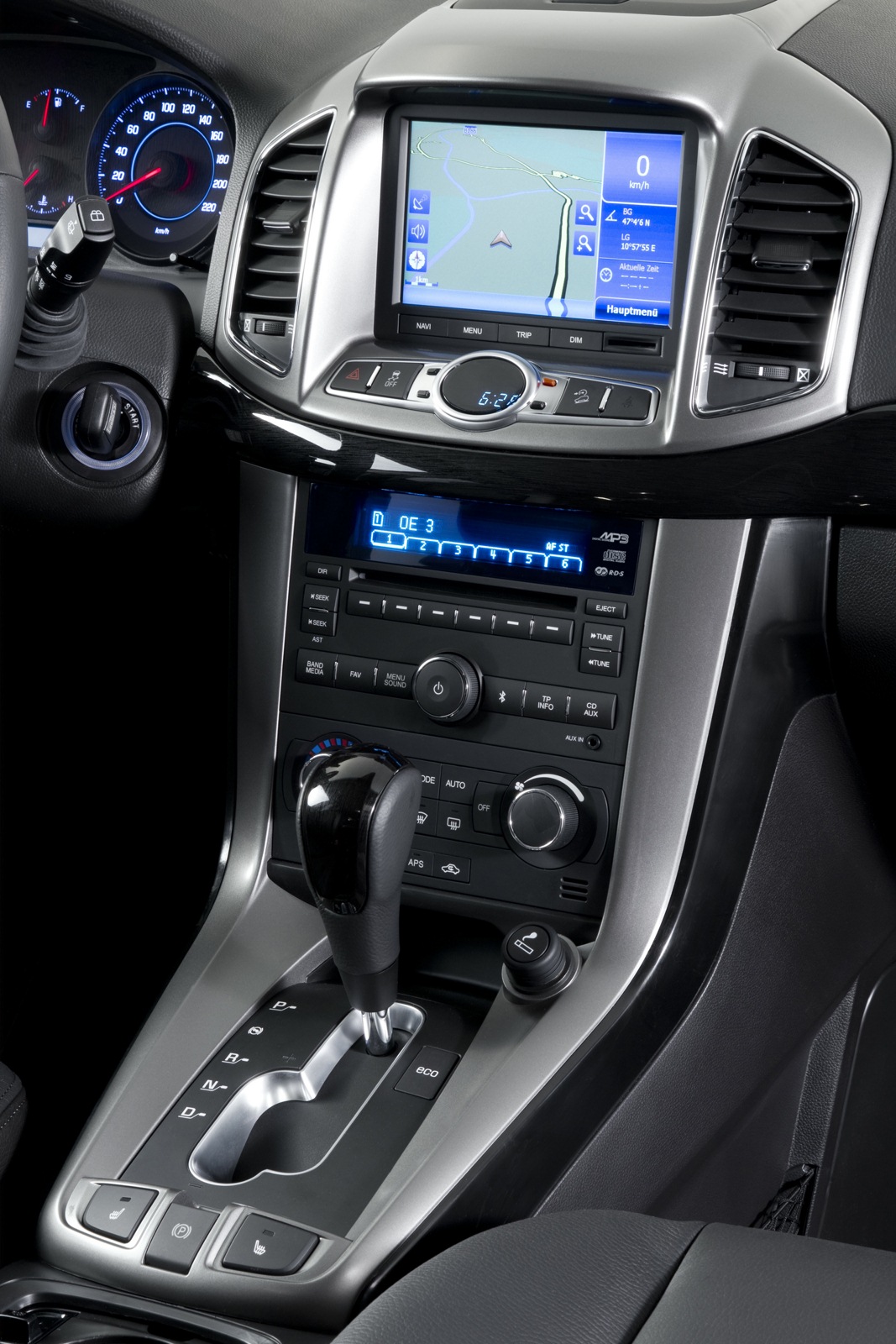

The center stack features a new digital clock while new switches for the heated seats are re-positioned at the base of the infotainment display for better ergonomics. Switches for the electric wing mirrors and headlamps have also been re-positioned for easier and safer reach for the driver.

The center console has been given a facelift with new vinyl surfacing and interior finish; it has also been repositioned marginally lower than previously – and is slightly longer – to improve the position of the armrest.

Practicality and versatility are still there

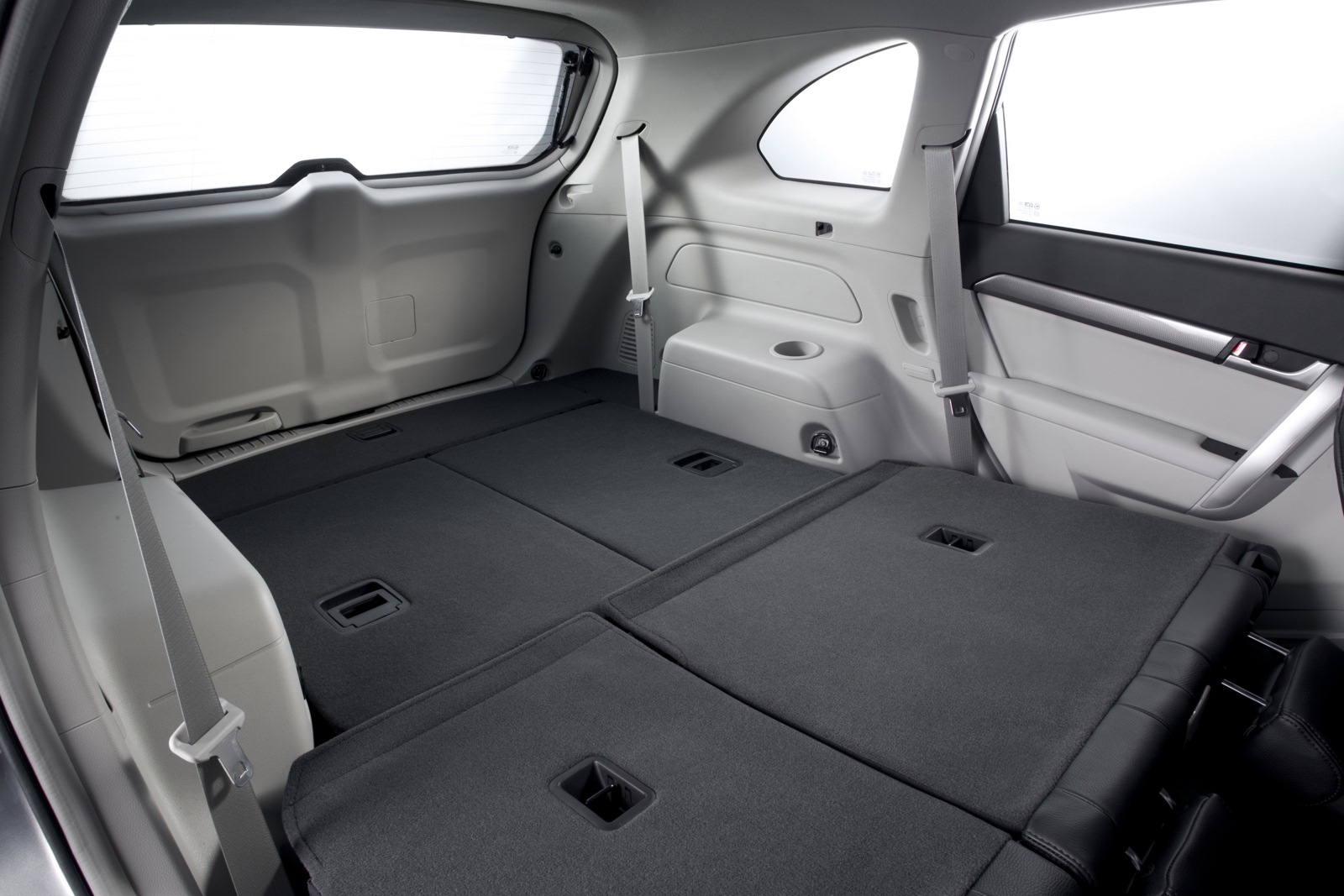

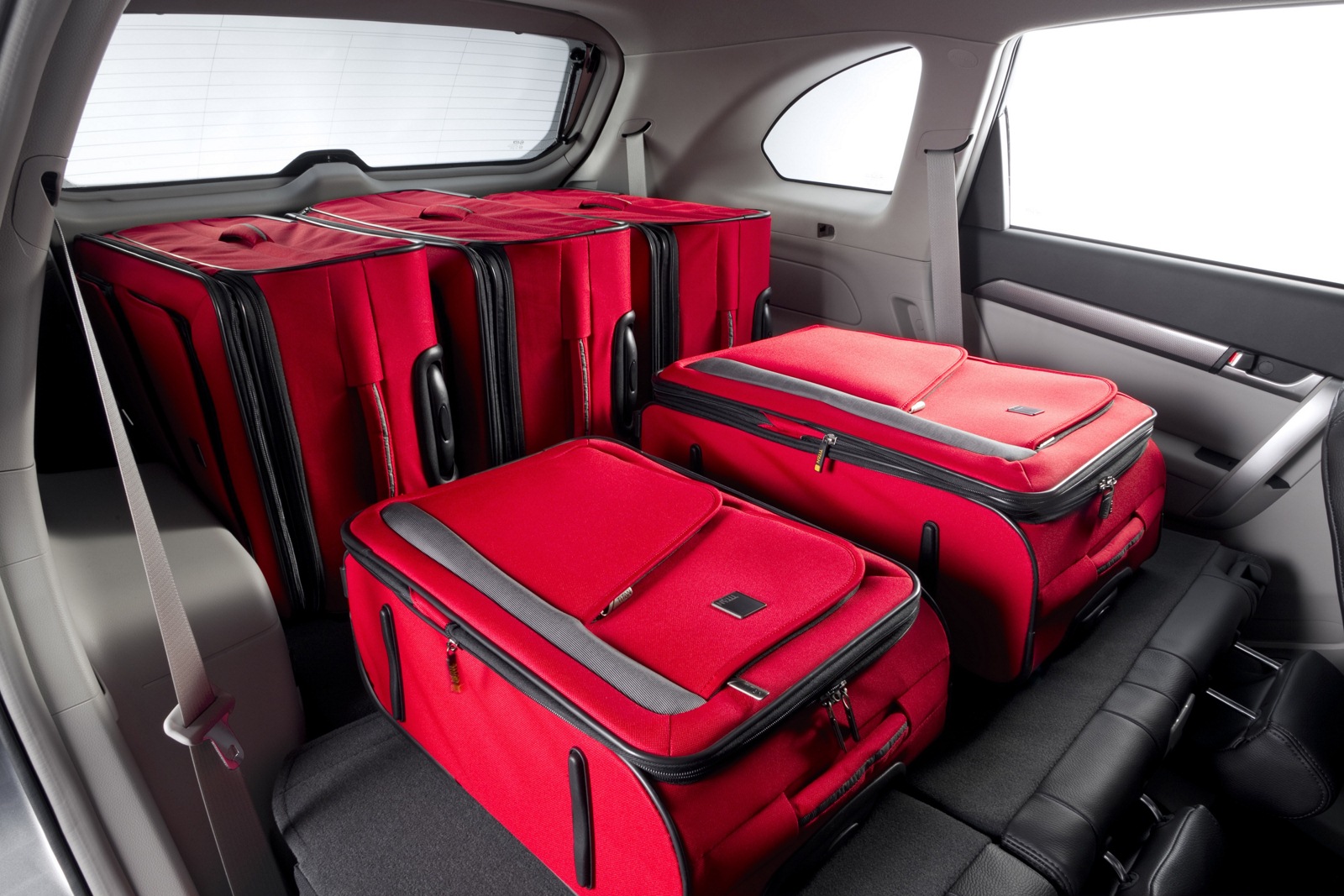

Practical considerations have not been lost amid the drive for better quality and finish. Consequently, the new Captiva’s cabin is as functional as it is attractive, with storage to cater for the increasingly diverse demands of today’s motorists.

Its reputation as one of the more versatile SUVs on the market is retained with the continued availability of a seven-seater version, whereby the additional two seats are accommodated in theater style seating across a third row. Access is straightforward as the second row can be easily folded forward and tumbled. When the third row of seats isn’t required, it can be folded virtually flush, producing a cargo volume to the second row of 769 liters (477 liters below window line). By folding flat both the second and third rows the cargo area is increased so that it is one of the most voluminous in the compact SUV class at 1,577 liters (942 liters below window line). Even with the third row of seats in place, the Captiva maintains a useful 97 liters of available space.

A significant area has been opened up by the fitment of an electric park brake, the switch for which is placed at the base of the center console. Full use has been made of the rear console space as a result, including the integration of dual cup holders that slide underneath the console armrest to reveal a further storage compartment.

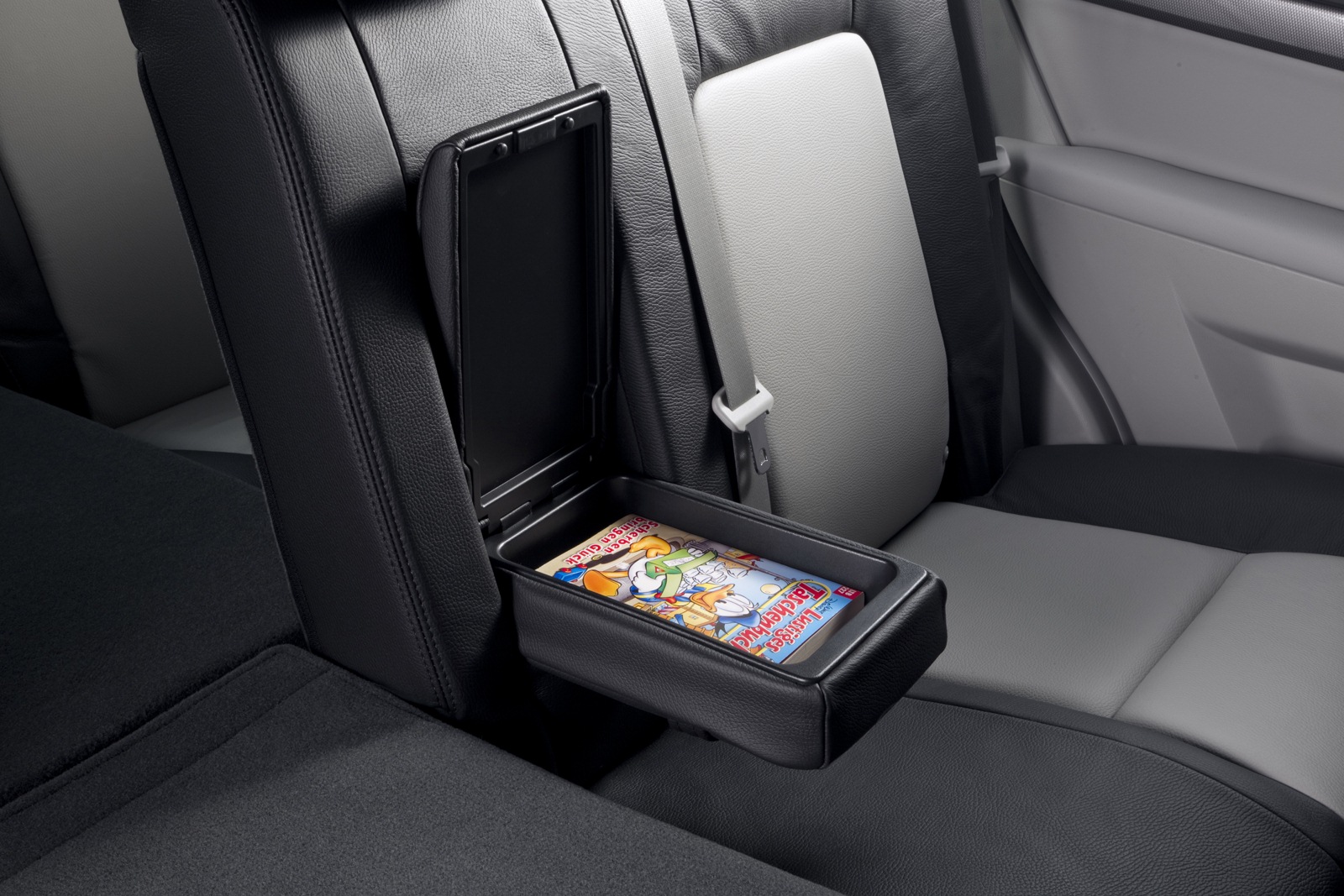

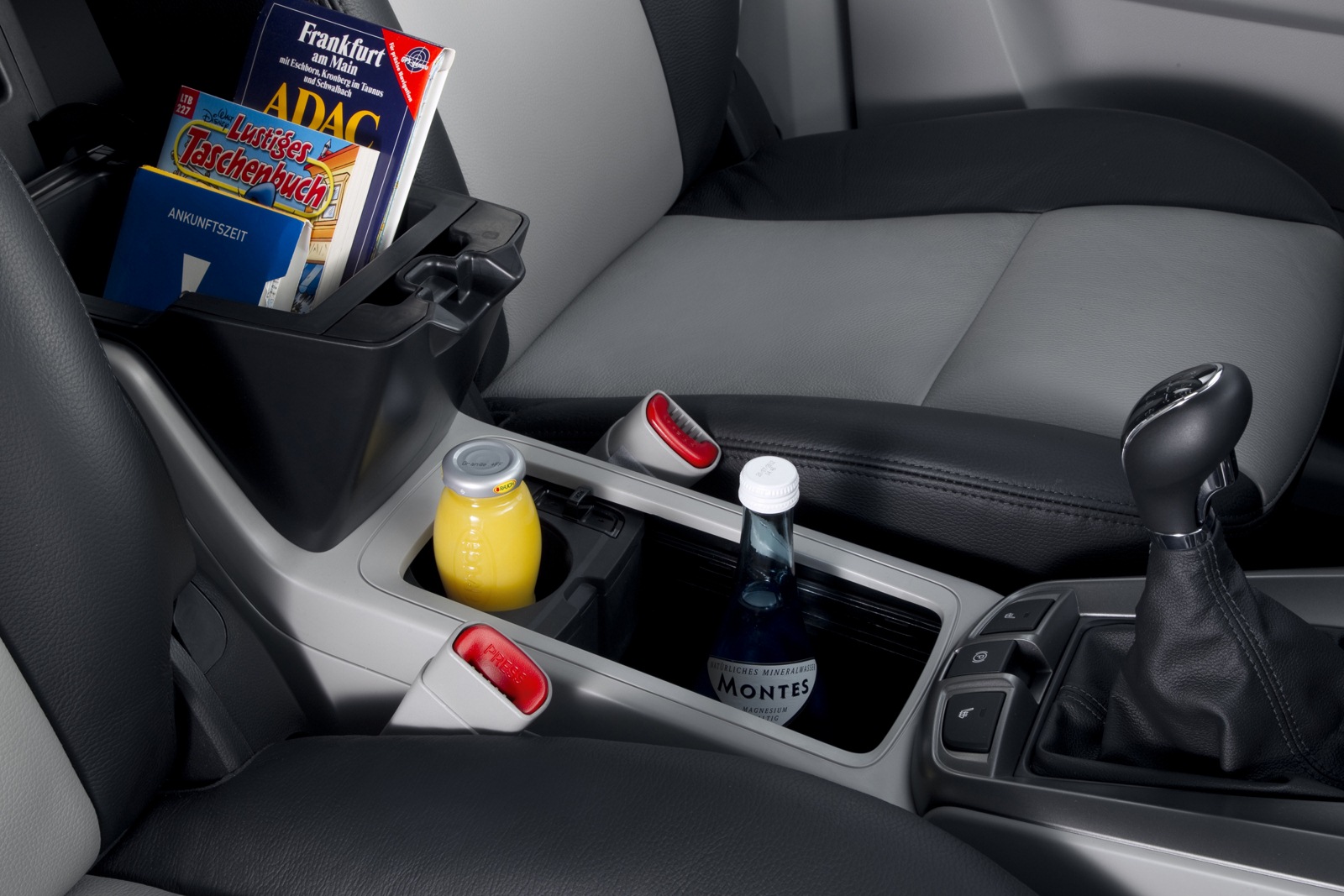

Further storage includes pockets to the back of the front seats, large compartments in the doors and on models with LT or LTZ trim, a drawer beneath the front passenger seat.

New Captiva retains its generous interior dimensions; shoulder room in the first and second row of seats is 1455 mm while leg room is 1036 mm in the front and 946 mm at the rear; headroom is 1026 mm in the front and 1017 mm in the rear.

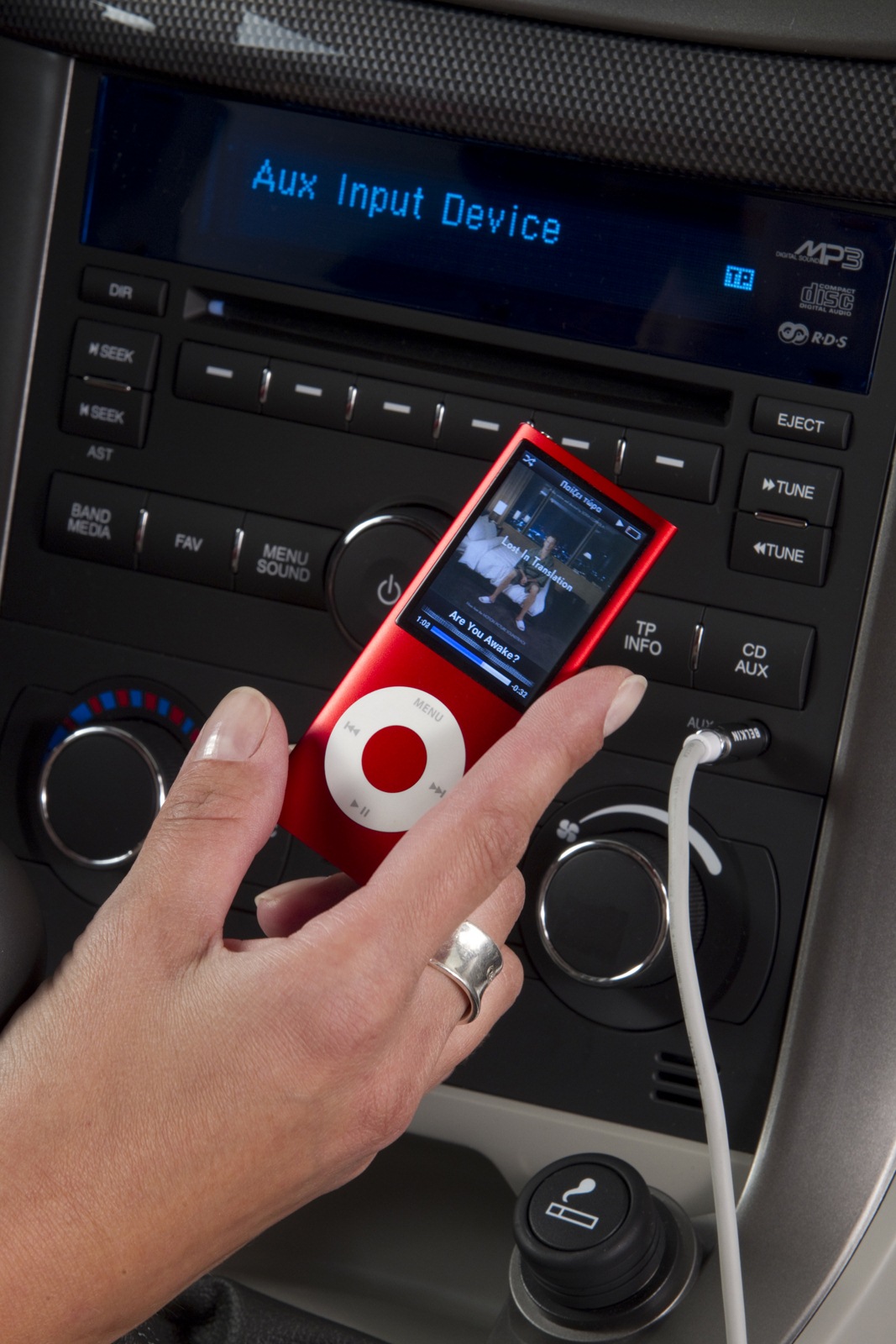

The Captiva comes with Aux-in and Bluetooth connectivity with commands integrated on the steering wheel as standard, as well as a USB port offered with the 7 inch screen navigation system.

Sound quality inside the cabin has been improved, as the audio speakers have been re-positioned in the doors and a raft of engineering improvements to the interior acoustics – including on the windshield, doors and headlining – have resulted in reduced road, wind and engine noise.

Engineering & Quality

New Captiva makes for easy listening

• Electricals upgraded
• New noise, vibration and harshness package for better refinement
• Cabin acoustics enhanced

Pride of place in the glossy showroom brochure may go to Captiva’s handsome front design, the performance if its new range of engines or the up-market ambience of the rejuvenated cabin. However, the work that has gone on under the skin to make ownership a better experience is of equal importance.

It may not always grab the head-lines, but it is the kind of engineering attention to detail that leads directly to improved refinement, comfort and quality for driver and passengers. And it’s here that the new Captiva has benefited in a number of areas: electrics, noise and vibration improvements and enhanced acoustics.

One or two of the electrical advances – like those inside the cabin – are more obvious and include the Aux-in and Bluetooth connectivity with commands integrated in the steering wheel, standard on all trims. New Captiva however also benefits from improved fuel economy and an increased life of its electrical components thanks to ‘out of sight’ technologies like the application of Regulated Voltage Control (RVC), an ‘intelligent’ system that continually regulates the Captiva’s electrical voltage.

Owners of the new model can expect the air temperature and atmosphere inside the cabin to be better controlled and monitored. A new Heating, Ventilating, and Air Conditioning (HVAC) module and cabin air filter improve temperate control and air distribution around the cabin, while also reducing particles, dust and other pollution from the outside. The system features new fans which run at reduced noise levels, but without sacrificing efficiency.

A lot of has been carried out in the area of noise, vibration and harshness (NVH) to improve overall refinement. Some of these changes relate to the Captiva’s chassis, so for example the AWD system has improved mount isolation which enables lower engine speeds to be used without unsettling vibration; the engine has a new hydraulic mounting which reduces vibration at idle; the engine sound intensity inside the cabin has been reduced and is now more than 3db lower than the outgoing model while a new front cradle structure also improved NVH performance.

Because the Captiva’s new body has been stiffened it has improved low frequency boom inside the cabin, but it also features a new sealing package to reduce wind noise around the vehicle.

Cabin acoustics are crystal clear

Much of the development work on NVH took what the engineers call a ‘holistic approach’, to ensure the end result was that passengers inside the cabin can converse easily and enjoy noise levels which are comfortable.

To improve the acoustics therefore, and to reduce the amount of objectionable intrusion, a number of applications have been incorporated into a total package and include a new acoustic laminated windshield for reduced wind noise, updated door seals, better damping patches in the rear quarter panels to increase isolation between passengers and the cargo compartment, updated acoustic wheelhouse liners for damping road noise and an updated acoustic headliner.

SUV Heritage

New Captiva brings 75 years of Chevrolet SUV heritage

• Chevrolet – inventor of the SUV
• Chevrolet Suburban Carryall – first launched in 1935
• Tahoe, Eqinox, Traverse crossover and new Captiva represent the SUV concept today
• Chevrolet Suburban – key development dates

Chevrolet knows a thing or two about building sport utility vehicles. In fact, the company is widely acknowledged as the creator of an entire genre which has lasted 75 years, for while the start of 2011 marks the launch of its latest SUV model with the new Captiva, it was only last year in 2010 that Chevrolet commemorated 75 years’ worth production with the iconic Suburban model, first launched in 1935.

The 2010 75th Anniversary Edition Suburban that Chevrolet launched in the U.S. might not have too much in common with the original incarnation – where a radio, heat for the cabin and rear bumpers were extra cost options – but the first ever SUV could still seat eight people and featured easy to remove seats to open up a generous cargo area.

True to its name of the Suburban Carryall, the first SUV in history could carry the whole family and all its gear. Chevrolet used a conventional truck chassis with a ladder frame, but rather than fit the chassis with the usual truck body, it was adorned with a generously sized passenger compartment which could accommodate up to eight passengers across three rows of seats – an example of pioneering flexibility which hadn’t been seen in the automotive world, and a spirit that has continued within GM ever since.

The first Suburban models also had a split rear door where the lower half could be folded down (reminiscent of the split rear window on the Captiva today) and was powered by Chevrolet’s Stovebolt six-cylinder engine with 60 hp and rear wheel drive. Base price of the 1935 Suburban Carryall was $675 (the equivalent of around $11,000 in 2010) but was of course considerably more utilitarian by comparison!

Onset of World War II disrupted the production and development of the Suburban, already becoming a household name across the U.S. Nevertheless, some modifications were introduced such as the use of hydraulic brakes and sealed beam headlights and a new exterior body complete with Art Deco design cues.

In 1955 however, the Suburban got a major makeover with an all new design considered revolutionary for its day, complete with wrap-around windshield and deletion of running boards; Suburban’s body was also now flush with the front fenders. A number of new technological advances were also introduced including GM’s famous small-block V8, along with hydra-matic auto transmission and tubeless tires.

Over the latter part of the 1950’s and early 60’s as automotive development continued apace, so did the Suburban offering: four wheel drive was installed for the first time, so too was independent front suspension and factory fit air-conditioning. The issue of safety was taking on ever greater significance at this time, so features such as dual cylinder brake systems, laminated glass and energy absorbing steering columns became standard fitment.

The flashy 70’s

It was in 1973 that the iconic SUV was offered in a conventional 4-door body-style for the first time, and perhaps reflecting the decadence of those times, Chevrolet began to equip the Suburban ever more lavishly with such items as simulated buffalo hide vinyl upholstery and wood grain dash inserts.

By the 1980’s, the Chevrolet Suburban had cemented its place in the minds of the U.S. buying public and so Chevrolet stuck with a formula that had found great popularity, while at the same time drip feeding technical advances such as fuel injection and ABS. With the SUV formula proving so popular it was no surprise the Suburban’s development was evolutionary at this time. In 1992 however, an all new model was introduced and in 1998, the Suburban went truly global when a right-hand-drive version went on sale in Australia under the Holden brand.

The current model was launched in 2007, and with the 2010 75th Anniversary Edition being a limited production run sporting white diamond tricoat paint and 20-inch rims on the outside and navigation system, Bluetooth, rearview camera, remote starting, heated seats and cashmere interior on the inside, it’s fair to say that the Suburban has travelled a long and successful road gathering legions of loyal customers along the way.

Chevrolet’s SUV expertise is not just seen in the Suburban; other models on sale in the U.S. for 2011 include the Tahoe – long considered the benchmark for full size SUVs in the U.S. market – as well as the Equinox and Traverse crossovers.

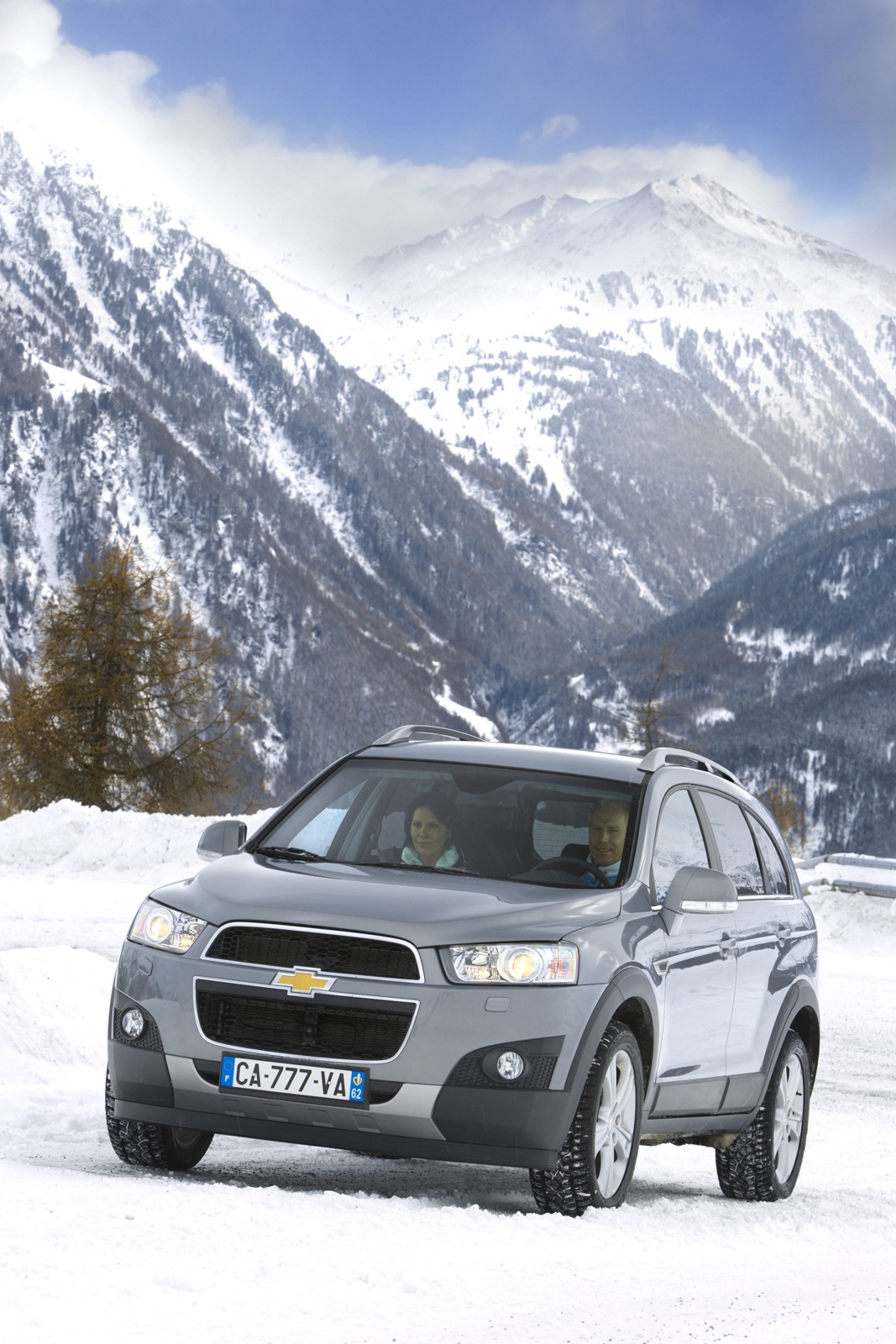

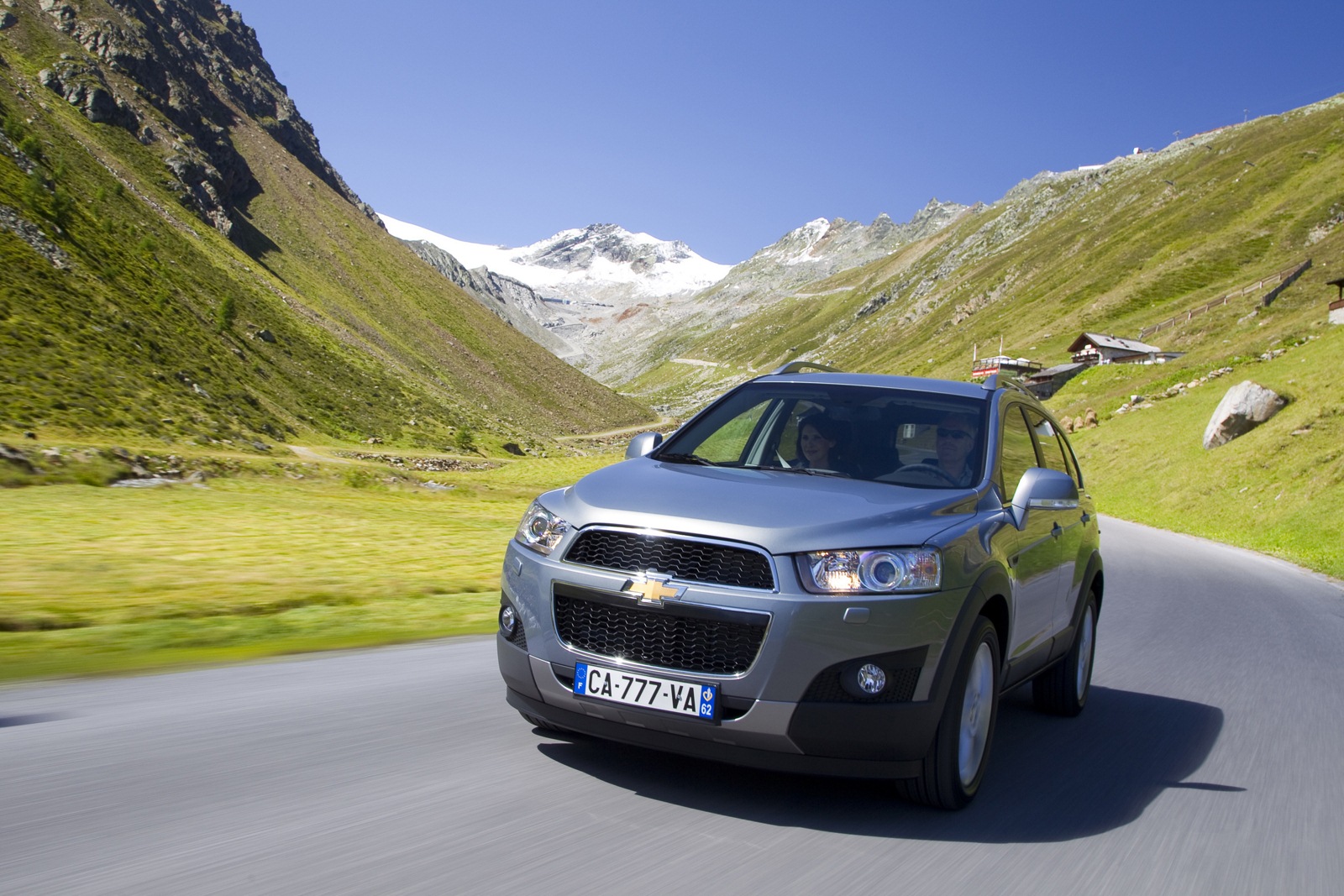

The new Captiva continues the long Chevrolet heritage of innovative and value for money sport utility vehicles, albeit developed for the very different requirements of a demanding European market and the necessity to downsize from the XL tastes in the U.S. But, like the Suburban, it offers powerful efficient engines, all-wheel drive capability, and interior versatility and quality that belie its price.

Chevrolet Suburban: key dates & developments

1935: Suburban Carryall introduced with two-door body style that would last until 1967. Powered by Chevrolet’s Stovebolt inline-six that produced 60 horsepower (45 kW).

1936: Hydraulic brakes introduced.

1937: New exterior styling with Art Deco cues; engine power increased to 79 hp (59 kW). New safety glass is introduced.

1940: Sealed beam headlights introduced, offering significantly improved visibility.

1947: The first significant redesign. Increased engine torque gives Suburban excellent towing capability. Flow-through ventilation improves driving comfort.

1955: Second series design launched; small-block V-8, Hydra-Matic automatic transmission, 12 volt electrical system, tubeless tires all introduced.

1957: Factory-installed four-wheel drive is offered.

1960: Independent front suspension (torsion bars) is introduced.

1967: All-new styling carries unique three-door arrangement with a single door on the driver’s side and two doors on the passenger side. New safety features include dual-cylinder brake system, energy-absorbing steering column, thicker laminated safety glass windshield.

1971: Standard front disc brakes and engines tuned to run on unleaded gasoline.

1973: Suburban offered in four-door body style for the first time. Increased focus on interior comfort and amenities.

1981: Updated styling.

1987: Electronically controlled fuel-injection and a four-speed overdrive introduced.

1988: Antilock brakes offered for the first time.

1992: An all-new Suburban; updates include four-wheel anti-lock brakes, Insta-Trac on four-wheel-drive models and new independent front suspension.

1996: Push-button 4WD activation and daytime running lights debut.

1998: OnStar added; right-hand drive version in Australia offered through Holden brand.

2000: Next-generation Suburban brings new styling, interiors and powertrains. Four-wheel disc brakes and a load-leveling suspension system.

2007: Latest generation launched.

2010: 75th anniversary is marked with a limited-edition model.

[/learn_more]
