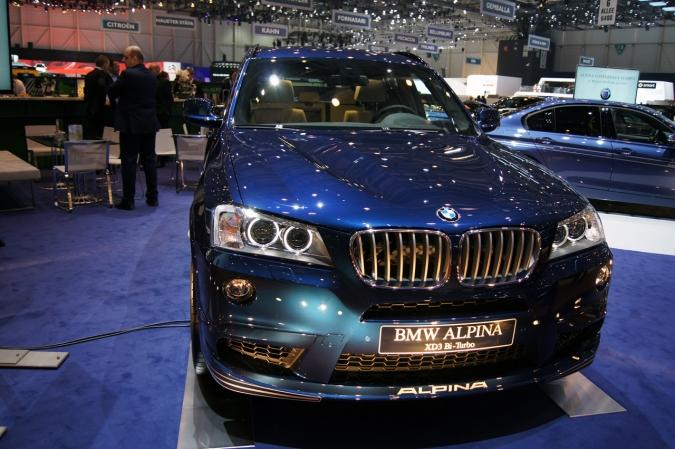

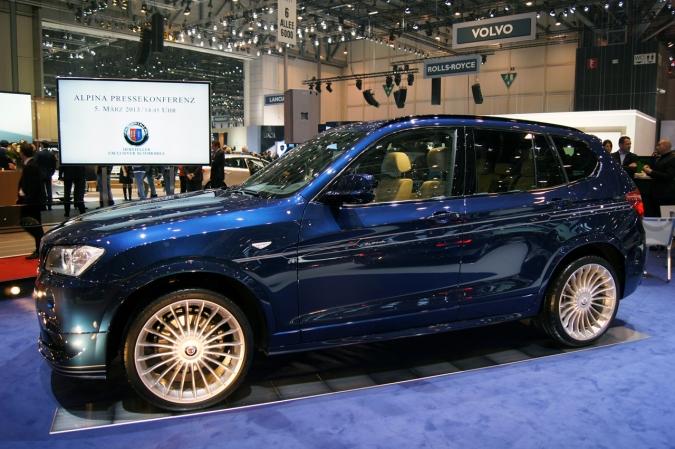

H Alpina έχει φέρει στη Γενεύη και την XD3 Biturbo, μια βελτιωμένη X3. Μηχανικά φορά έναν 3,0-λιτρο twin-turbo κινητήρα απόδοσης 350 ίππων στις 4.000 σ.α.λ με 700 Nm ροπής διαθέσιμα από τις 1.500 έως τις 3.000 σ.α.λ. Συνδυάζεται με το 8-τάχυτο αυτόματο κιβώτιο της ZF και έχει μέση κατανάλωση 6,8 λίτρα/100 χλμ και εκπέμπει 180 γρ/χλμ CO2.
Οι Γερμανοί της έχουν τοποθετήσει ηλεκτρονικά ρυθμιζόμενα αμορτισέρ, 20″ ζάντες με ελαστικά Michelin Pilot Super Sport. νέα ανοξείδωτη εξάτμιση με τετραπλές απολήξεις, σπορ τιμόνι, μαρσπιέ και νέα πατάκι.
[Πηγή: Alpina]
[learn_more caption=”Δελτίο Τύπου”]
Besides the core competence of developing a small but fine selection of exclusive BMW ALPINA automobiles with the aim of delivering excellent comfort, performance and
driving characteristics, ALPINA is also in a position to respond to very specific customer demands.
BMW originally conceptualised and defined the term Sports Activity Vehicle, the success of which remains undamped irrespective of market. Superior seating position,
representative looks, versatile dimensions, dynamic handling and all-wheel drive – in short, the BMW X3 is an on-going success story.
Combined with another success story, namely the extraordinary straight six-cylinder diesel engine from the BMW ALPINA D5 Bi-Turbo, logic defines that the result should be
compelling. The new BMW ALPINA XD3 Bi-Turbo trumps with extraordinary performance and traction while maximising efficiency. It is intended for customers seeking the
fastest diesel SUV available today.
DRIVE
The drivetrain of the XD3 Bi-Turbo utilises the excellent attributes of the BMW full aluminium 3 litre straight six cylinder engine with modern common-rail direct injection
and two turbochargers with variable turbine geometry.
With the aim of further maximising the potential of this engine and using the freedom that small series production allows, ALPINA engineers have worked extensively on
optimising the air intake flows. The new air intake ducts have substantially larger diameters and feature optimised radii which lead to a 30% reduction in loss of pressure. This
effective means of ‘de-restricting‘ the air flow between the air intake and the air filter housing allows the engine to breathe more freely, resulting in improved performance
and a more lively character. In combination with the realisation of appropriate turbo charging and injection pressures this leads to a maximum output of 350hp (257kW) at
4000rpm and 700Nm torque between 1500 and 3000rpm.
The performance and effectiveness of the entire cooling system has a direct influence on the stability and output of turbo charged engines – as a result, the cooling
system in the new XD3 Bi-Turbo is of central importance. A large volume intercooler (+38%), with an optimised inlet and outlet design, feeds the engine with air.
Two additional separate water coolers, which are situated in front of the wheelhouse and lie perfectly within the air flow from the front spoiler, ensure that all cooling
mediums (via oil/water-heat exchangers) are kept at optimum temperatures, even during maximum thermodynamic loads. The operating parameters and components
of the cooling system are managed by a cooling system control unit which features an intelligent operation of the electric cooling fan to directly influence performance
under full loads.

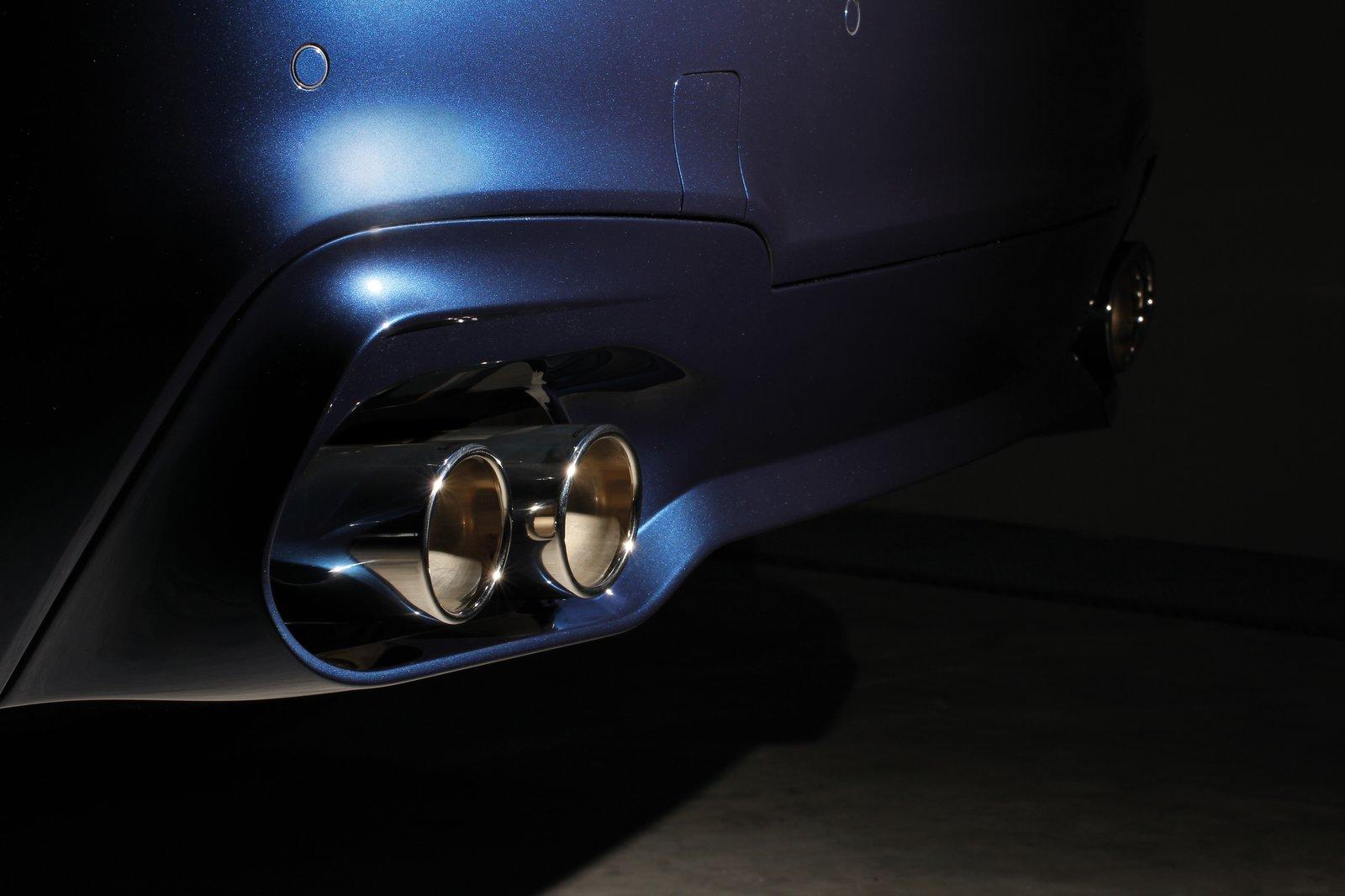

An exhaust manifold made from high-strength material allows for higher exhaust gas temperatures (+50?C) which result from the increased power output. From the middle
silencer backwards the exhaust system is carried out in stainless steel and finishes with two double-ended tailpipes which carry discrete ALPINA and Akrapovi? lettering.
Sound engineering and the reduction of silencer volumes has resulted in a for diesel engines surprisingly throaty exhaust sound, especially at higher rpms. The character of
the engine overall is unusually lively for a diesel engine, revving freely past 4500rpm.
Despite the engine‘s high specific power output of 117hp per litre, the XD3 Bi-Turbo achieves class-leading efficiency figures: 6.8l/100km (41.5mpg) and 180g/km CO2
(Combined, measured according to ECE norm).TRANSMISSION
Adapted and tested in co-operation with ZF, the advanced SWITCH-TRONIC 8-Speed Sport-Automatic transmission features specific hardware modifications demanded by
the high torque, these include special mechatronic components and an adapted torque converter.
ALPINA engineers have spent many development and test hours working on the software to ensure that the transmission provides unparalleled levels of both comfort
and performance. The blend of eight speeds and high levels of torque makes for super comfortable gear changes with no noticeable interruption to the delivery of power.
In Automatic (D) Shift Mode the XD3 Bi-Turbo excels at cruising along at speeds in high gears at minimum rpm, this benefits both consumption and comfort. Using the
Sport (S) Shift Mode the transmission becomes noticeably crisper and unmistakably immediate, gear changes become quicker and take place at higher shift points. The
ALPINA SWITCH-TRONIC buttons, which are ergonomically and unobtrusively positioned on the back of the steering wheel, activate the Manual (M) Shift Mode which
allows the driver to take complete control of the transmission. The system also allows for multi-simultaneous down-shifts in milliseconds, hereby the transmission will skip
several gears depending on engine loads and rpm. In this manner the 8-Speed Sport-Automatic transmission with ALPINA SWITCH-TRONIC reveals itself as extremely
multifaceted, providing the right shift characteristic for any and all situations. In combination with the Sport setting of the Drive Performance Control which further sharpens
suspension and transmission, the new XD3 Bi-Turbo will sprint from 0 to 100km/h in only 4,9s and reach a segment leading top speed of 253km/h (157mph).
CHASSIS
To fulfil the seemingly contradictory demands for comfort, everyday usability and dynamic handling, the XD3 Bi-Turbo is equipped with electronically-adjustable dampers.
This system is tied into other system parameters controlling steering assistance, torque cushioning and the Dynamic Stability Control system. Featuring Drive Performance
Control with Normal, Sport and Sport+ settings, the XD3 Bi-Turbo can transition effortlessly from cultivated luxury to thorough-bred sportiness. Light steering, comfortable
suspension, a smooth transmission and BMW’s excellent xDrive all-wheel drive system make it an ideal everyday partner – whatever the conditions. At the same time, the
XD3 Bi-Turbo will dive into and accelerate out of corners with such ferocity and traction, that powerful sporting saloons will find hard to beat.

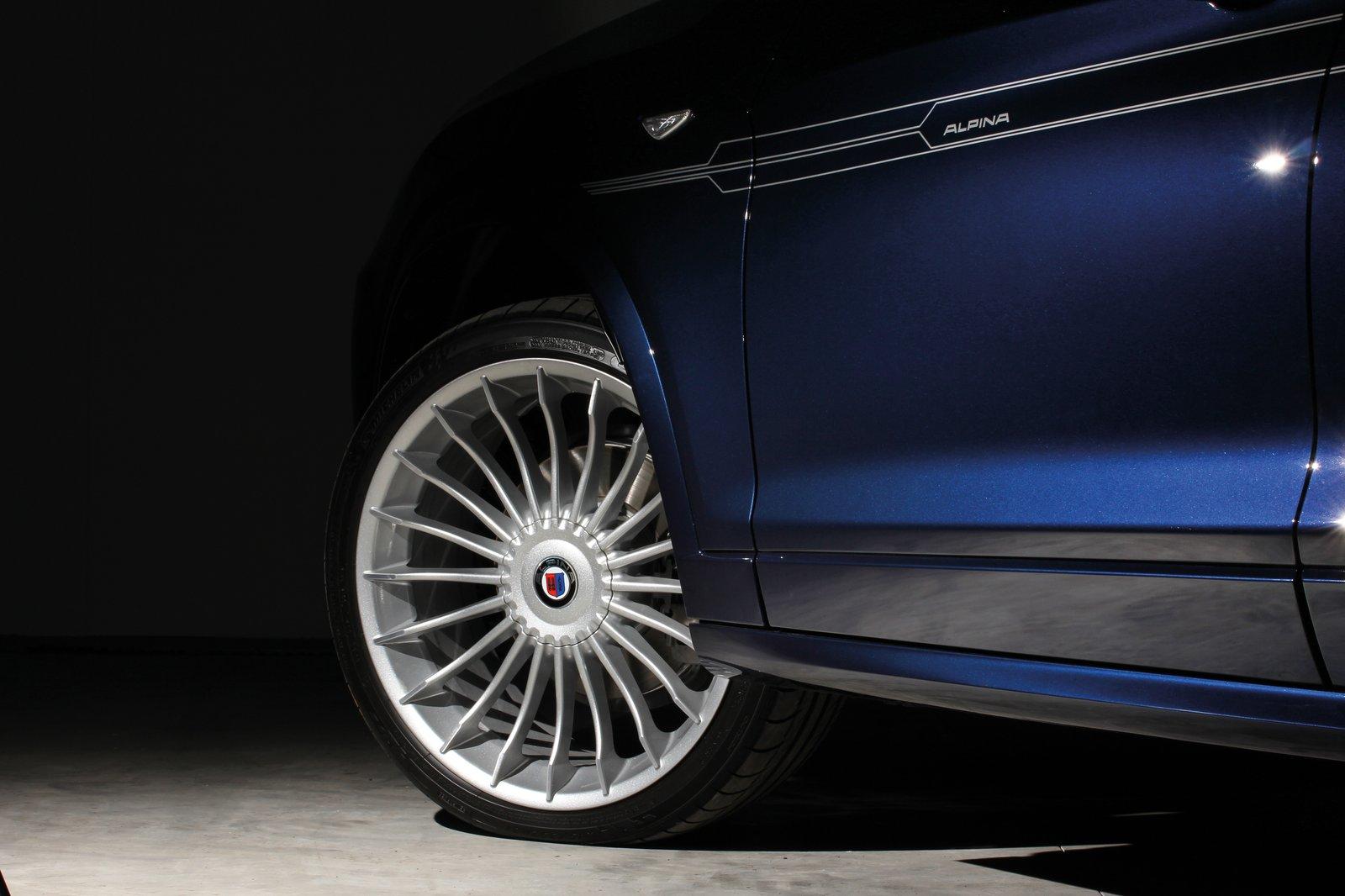

The wheel and tyre set-up comprising 20” ALPINA CLASSIC wheels with MICHELIN Pilot Super Sport tyres measuring 255/40 ZR20 (101Y) EL, E/A/ 71 dB front and 285/35
ZR20 (104Y) EL, E/A/ 73 dB rear is to a large extent responsible for the agile and sure-footed handling of the XD3 Bi-Turbo. The low-profile tyres, which forego run-flat
technology for the sake of slow-speed damping, combine well with BMW’s Variable Sport Steering to achieve precise turn-in. This can be further enhanced by means of an
optional 21” ALPINA CLASSIC wheel and tyre set-up.

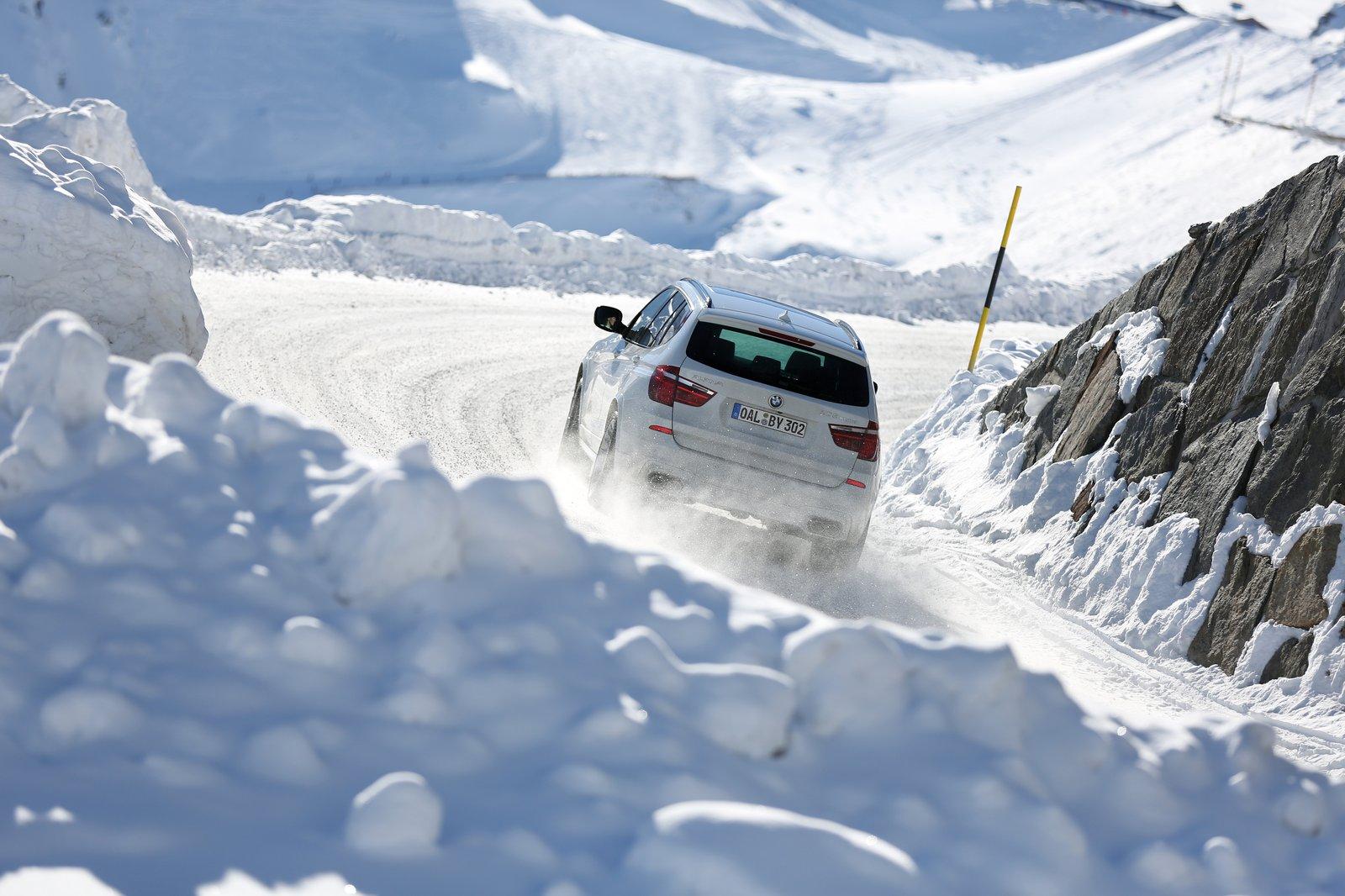

In order to travel safely, dynamically and at speed even in the winter months, a 20” ALPINA CLASSIC winter wheel and tyre set-up is available in the dimensions 255/40 R20 101W
front and 285/35 R20 104W rear.
DESIGN & EQUIPMENT

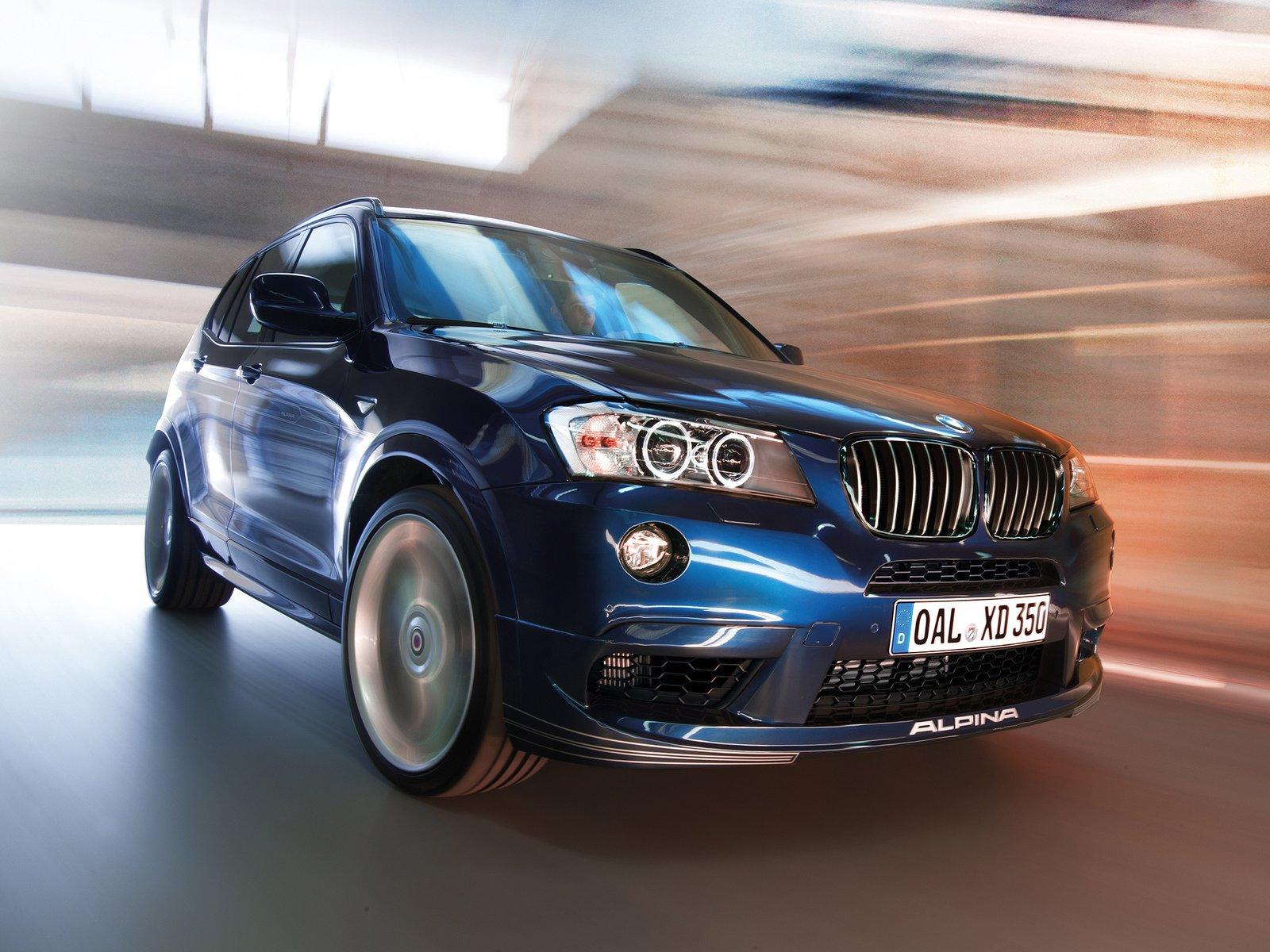

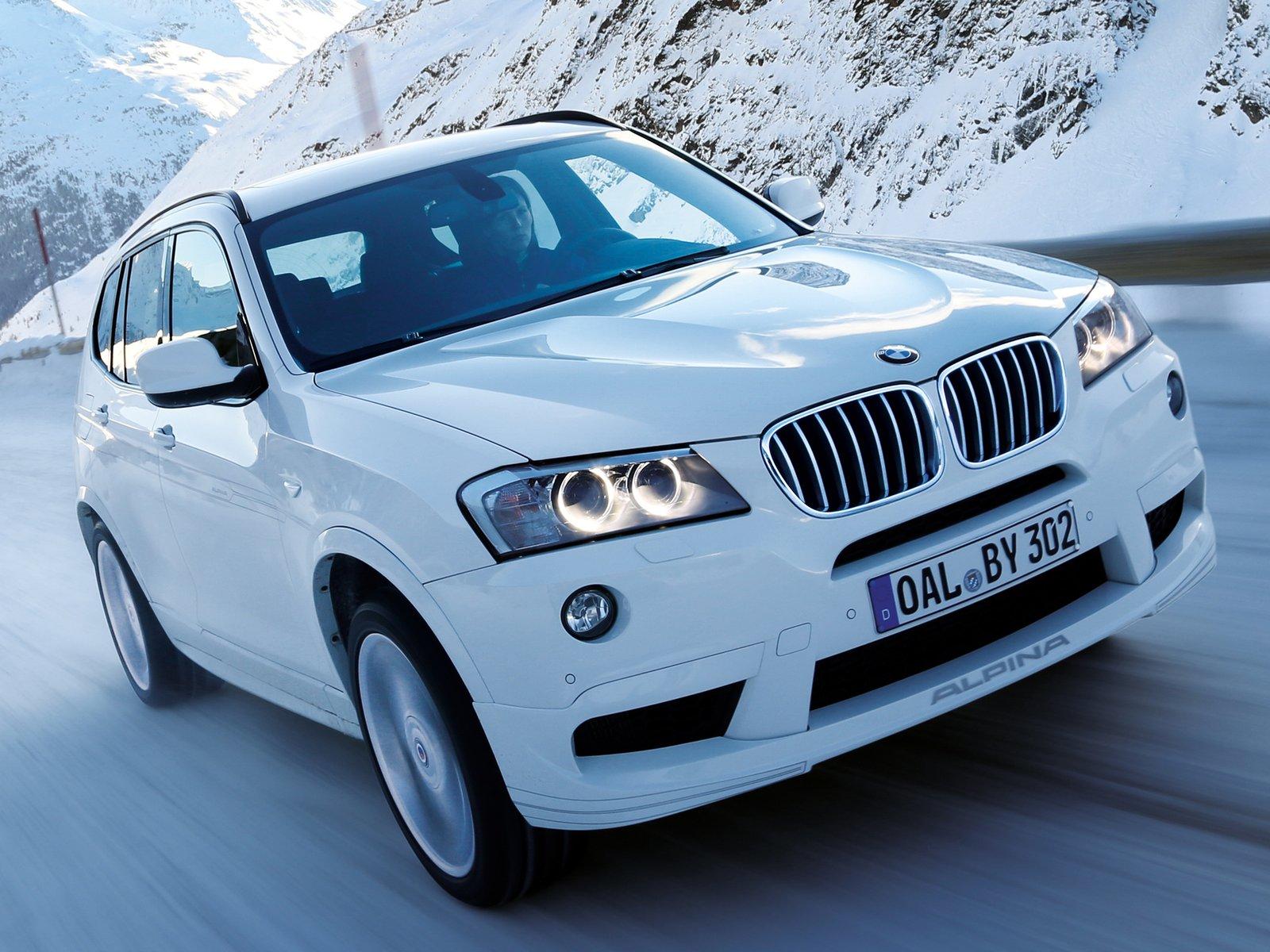

ALPINA typical design cues and aerodynamic refinements integrate well into the overall design of the XD3 Bi-Turbo and give it purposeful appearance. The athletic front with

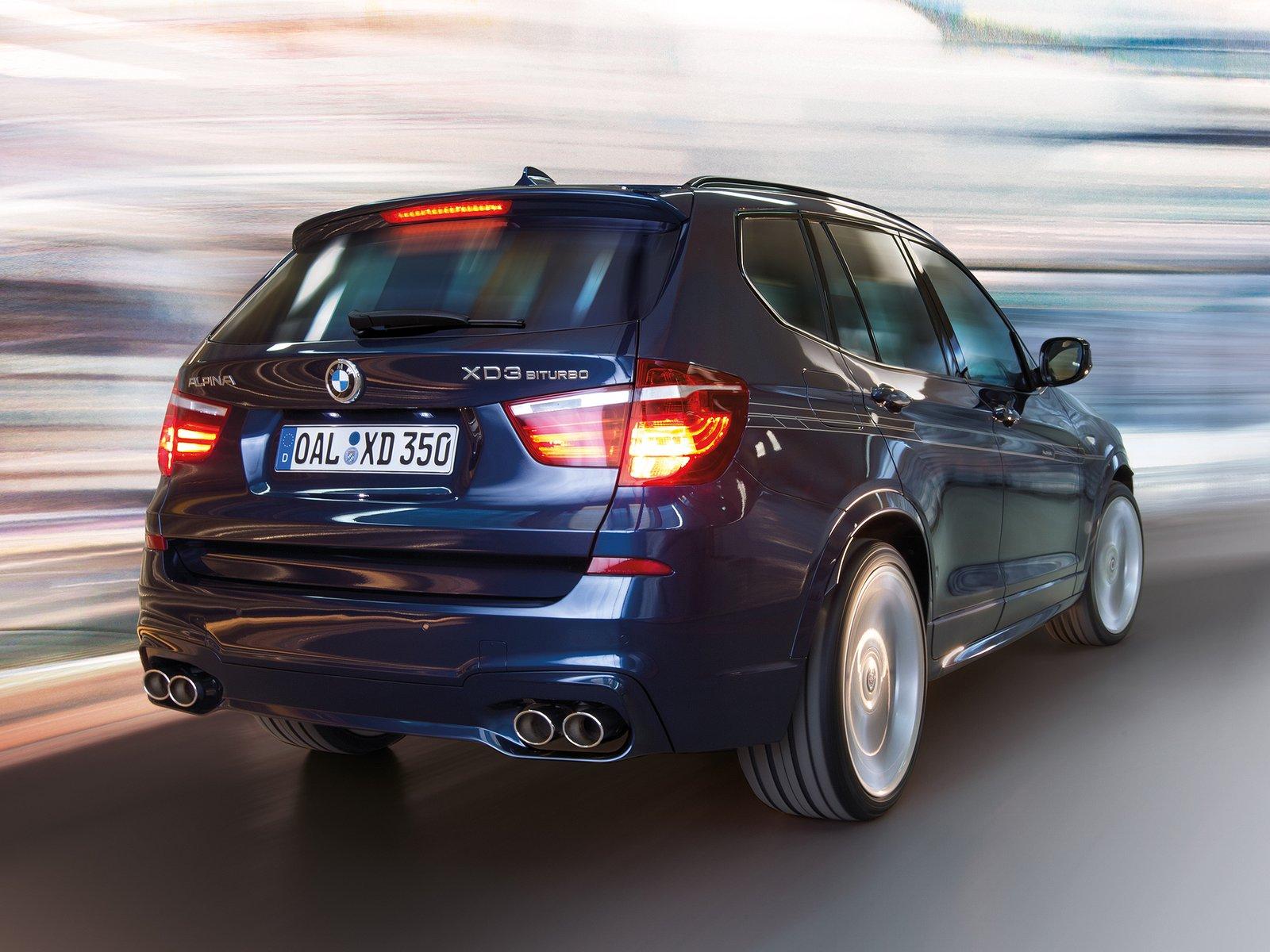

ALPINA spoiler has a dynamic design and integrates functional air intakes for an optimum air flow to the coolers.The rear features ALPINA trademark slightly elliptical double-ended tailpipes which are integrated into an ALPINA rear valance which has been constructed to allow the use
of an optional towbar.

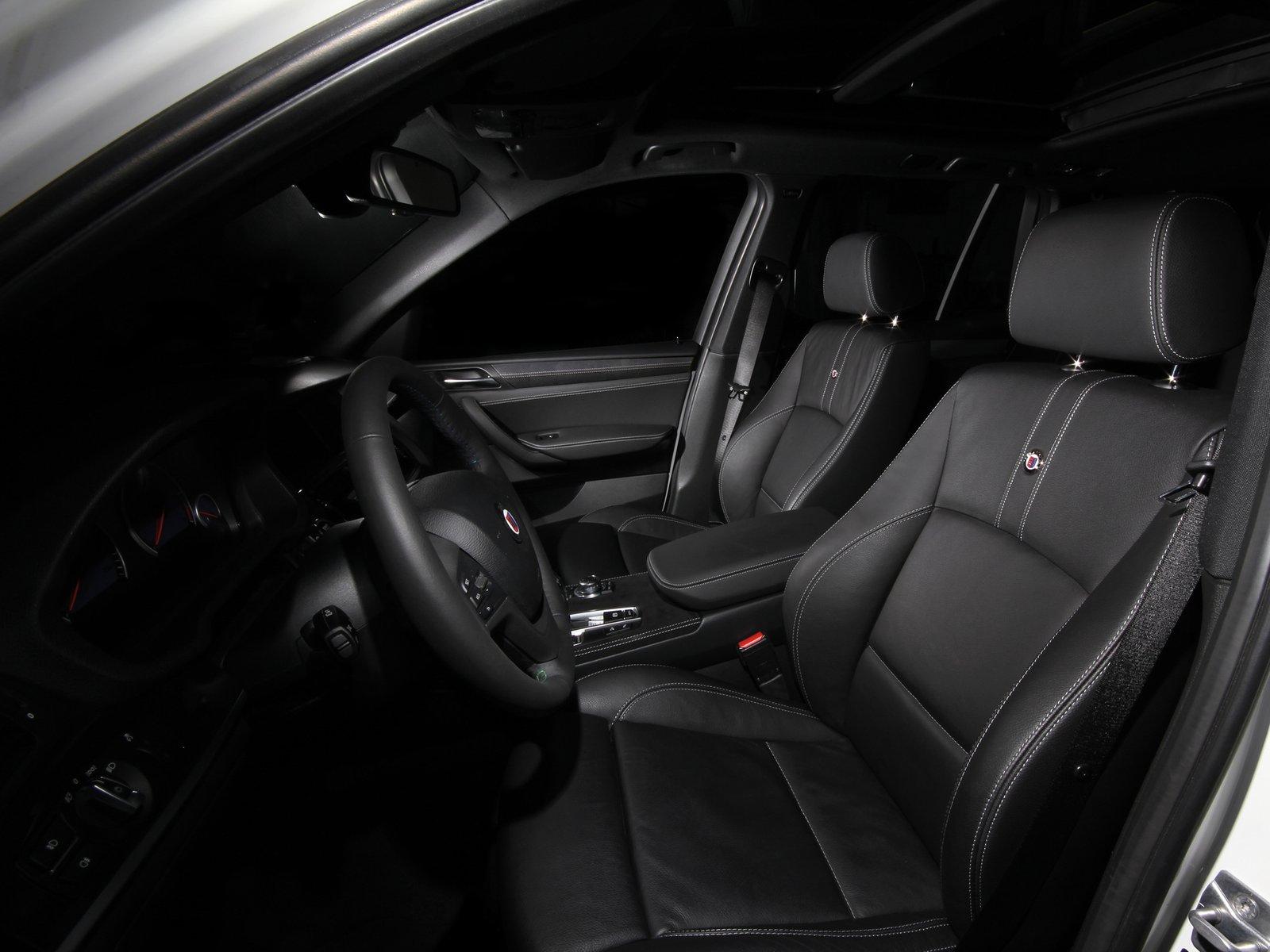

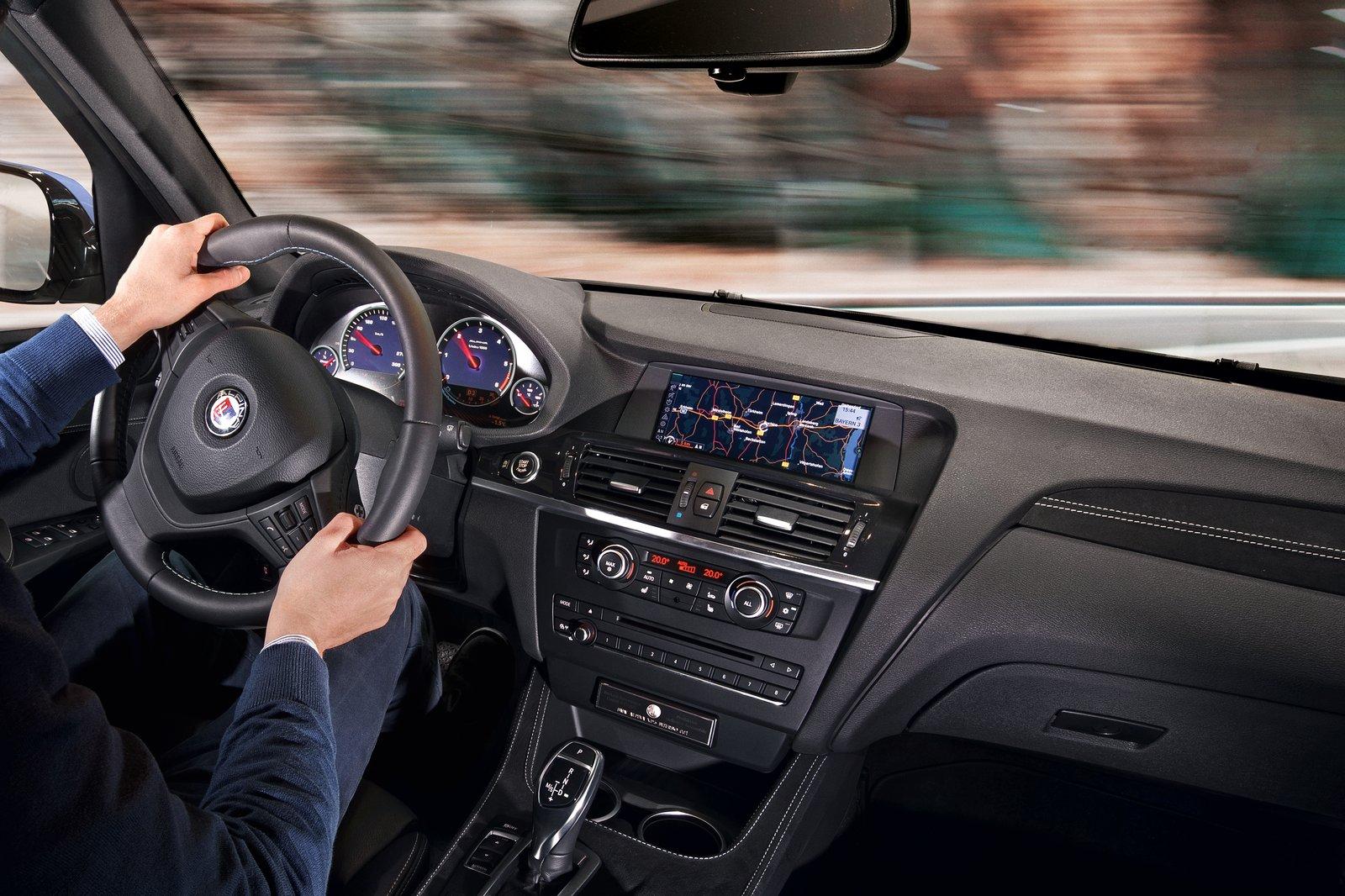

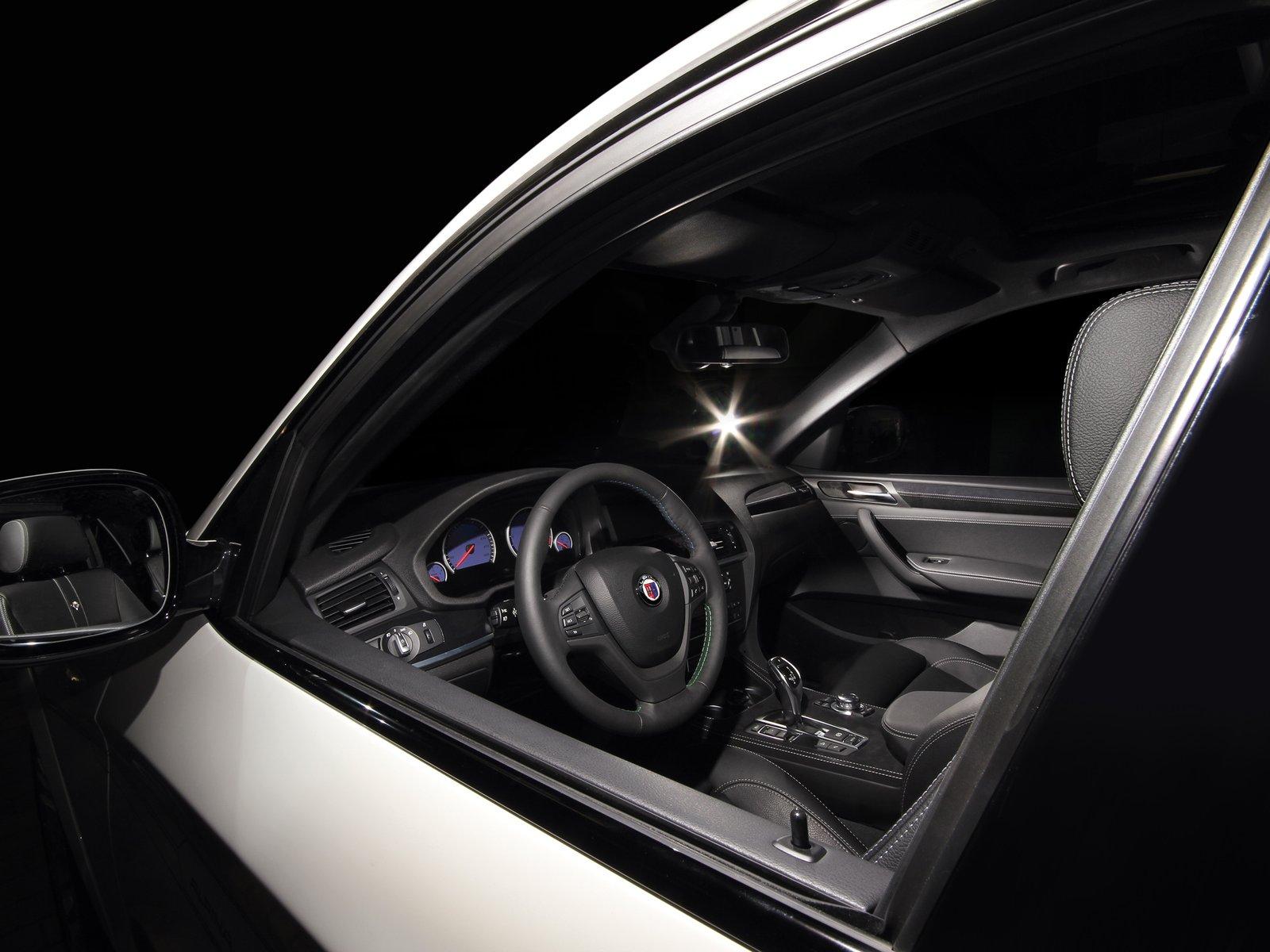

The comprehensive standard equipment level features Leather Upholstery, supportive Sport Seats, Xenon Headlights, Cruise Control and Park Distance Control. The handfinished ALPINA LAVALINA sport steering wheel with Blue/Green stitching connects driver and car while the ALPINA instrument panel with black-panel LCD technology

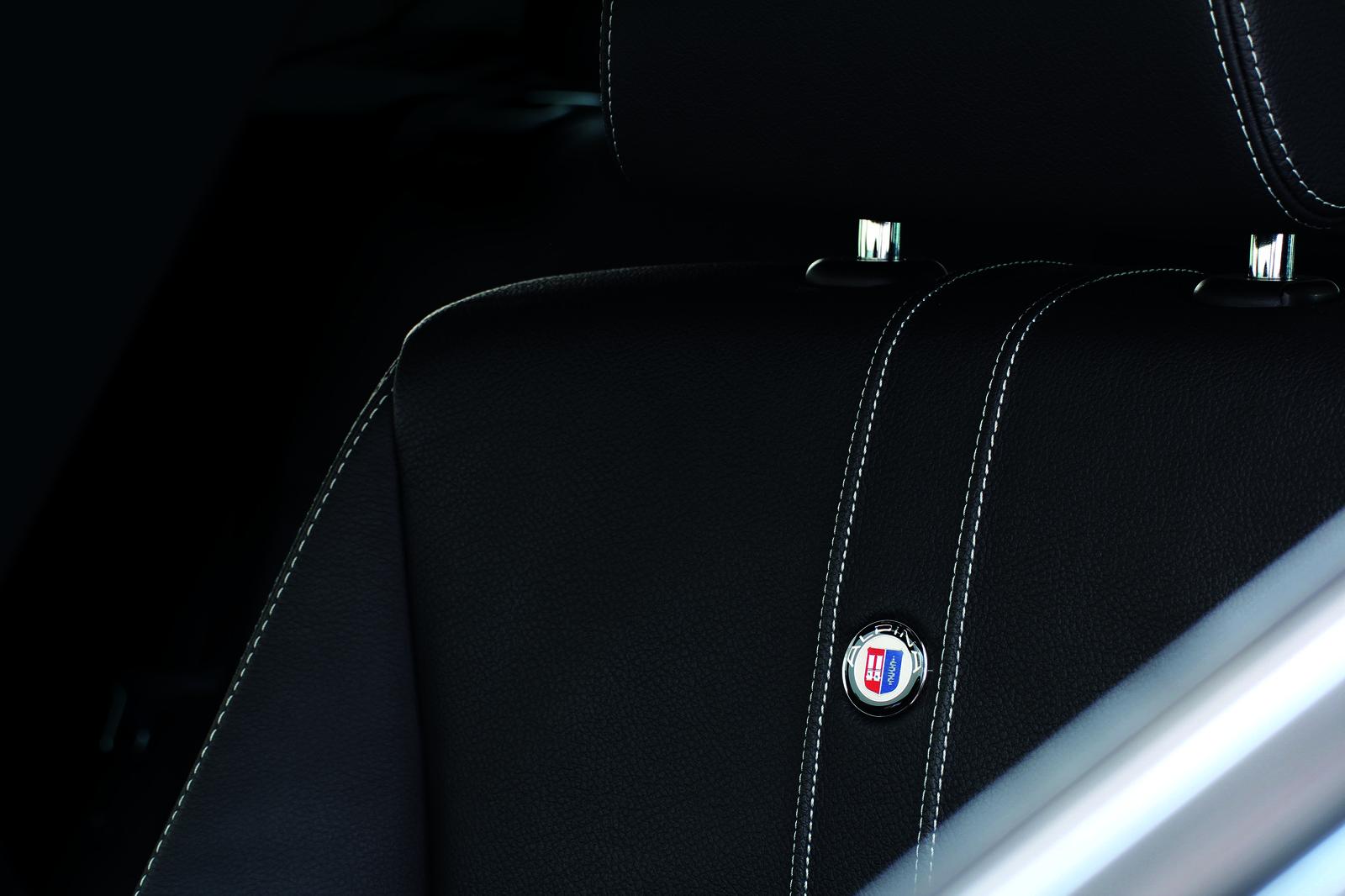

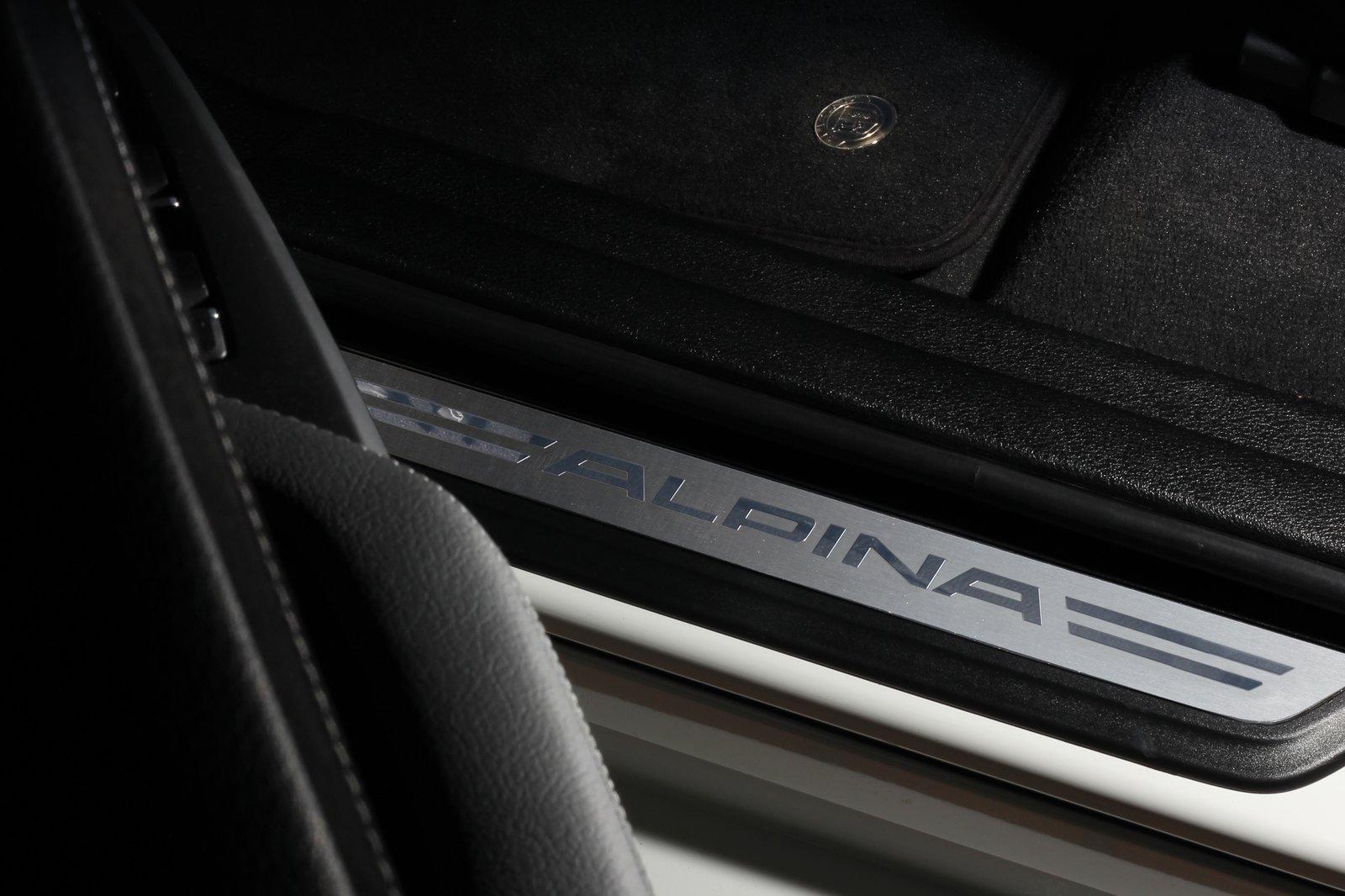

displays vital information, including a digital speed read-out and gear indicator. ALPINA door sills, floor mats and emblems in the seatbacks provide discreet hints to the XD3

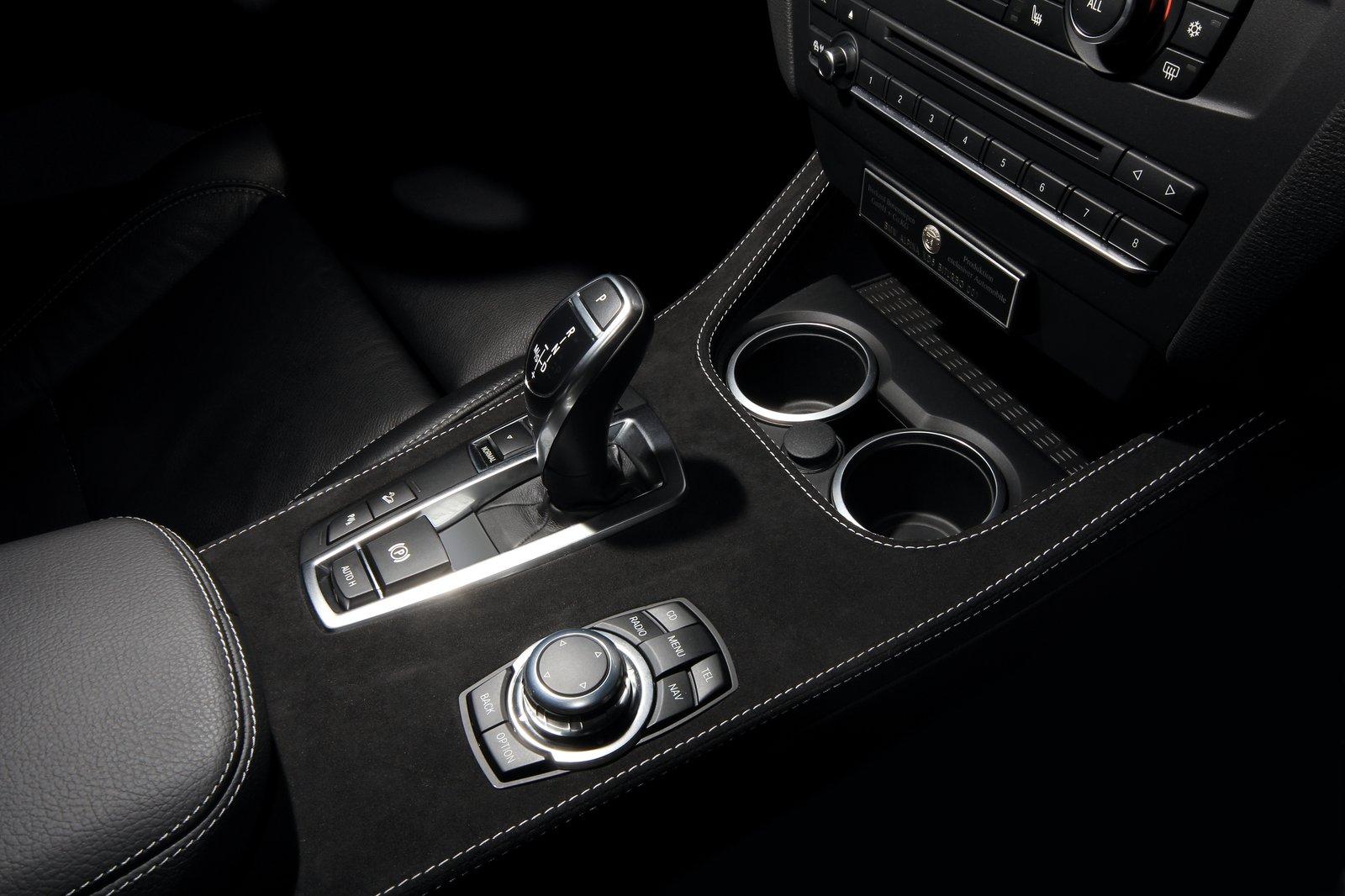

Bi-Turbo’s provenance. Optional interior trim finished in Alcantara with contrasting stitching makes for a decidedly more sporty ambiance.
Buchloe, March 2013XD3 BITURBO EN
TECHNICAL DATA BMW ALPINA XD3 BITURBO
WEIGHT
TRANSMISSION
WHEELS & TYRES
DIMENSIONS
ALPINA CLASSIC weight-optimised light alloy wheels, 20-spoke design with
concealed tyre valves behind lockable hub caps, with MICHELIN Pilot Super
Sport tyres:
front 8.5 x 20” with 255/40 ZR20 (101Y) EL
EU-tyre label* E/A/ 71 dB
rear 9.5 x 20” with 285/35 ZR20 (104Y) EL
EU-tyre label* E/A/ 73 dB
Length mm 4647
Width mm 1901
Height, unladen mm 1670
Wheelbase mm 2810
Track, front mm 1614
Track, rear mm 1609
Luggage capacity (DIN) l 550-1600
Fuel tank, approx. l 67
Unladen (DIN) kg 1910
Max permissible kg 2440
Permitted load kg 590
Max axle load, front kg 1160
Max axle load, rear kg 1320
Max trailer load, braked kg 2400
Max trailer load, unbraked kg 750
ENGINE PERFORMANCE
FUEL CONSUMPTION
Cylinders 6 in line
Capacity cm³ 2993
Bore mm 84.0
Stroke mm 90.0
Compression ratio : 1 16.5
Max output kW/hp 257/350
at rpm 4000
Max torque Nm/lbs-ft 700/516
at rpm 1500-3000
Engine management BOSCH
DDE 7.31
Fuel type Diesel
Emission classification Euro 5
Urban l/100km 7.8
Extra-urban l/100km 6.3
Combined l/100km 6.8
CO2 emissions g/km 180
Efficiency category C
Acceleration 0-100km/h / 0-62mph s 4.9
Acceleration 0-200km/h / 0-125mph s 21.7
Top speed km/h 253
Further information on specific fuel consumption and specific CO2 emissions of new passenger cars is given in „Leitfaden über den Kraftstoffverbrauch, die CO2-Emissionen und den Stromverbrauch neuer Personenkraftwagen“ which can be obtained free of charge at all points of sale
and from the ‘Deutsche Automobil Treuhand GmbH (DAT), Helmut-Hirth-Str. 1, 73760 Ostfildern-Scharnhausen‘.
Gearbox 8-speed Sport-Automatic (ZF 8HP70)
with SWITCH-TRONIC
Gearbox ratios 1st gear 4.71 5th gear 1.29
2nd gear 3.14 6th gear 1.00
3rd gear 2.11 7th gear 0.84
4th gear 1.67 8th gear 0.67
Reverse 3.32
Final drive ratio :1 2.81
*EU-tyre label =fuel efficiency/wet grip/external rolling noise class Modifications and errors exceptedALPINA Burkard Bovensiepen GmbH + Co. KG
