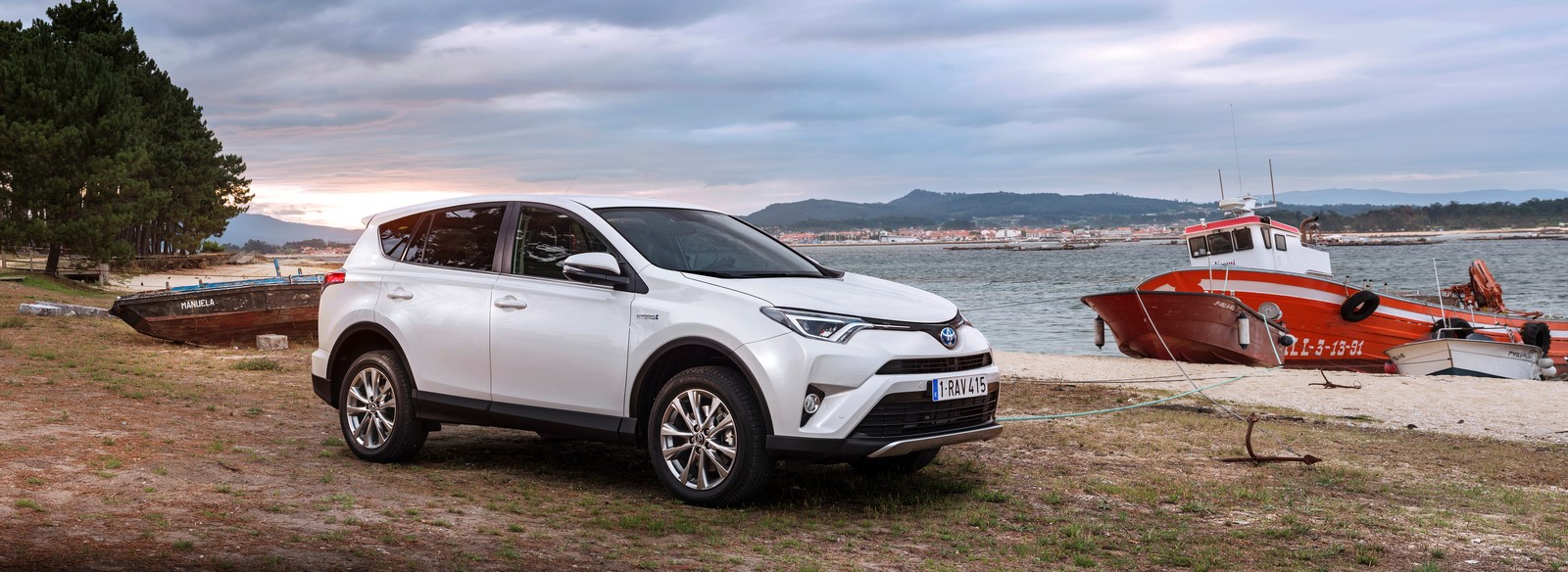

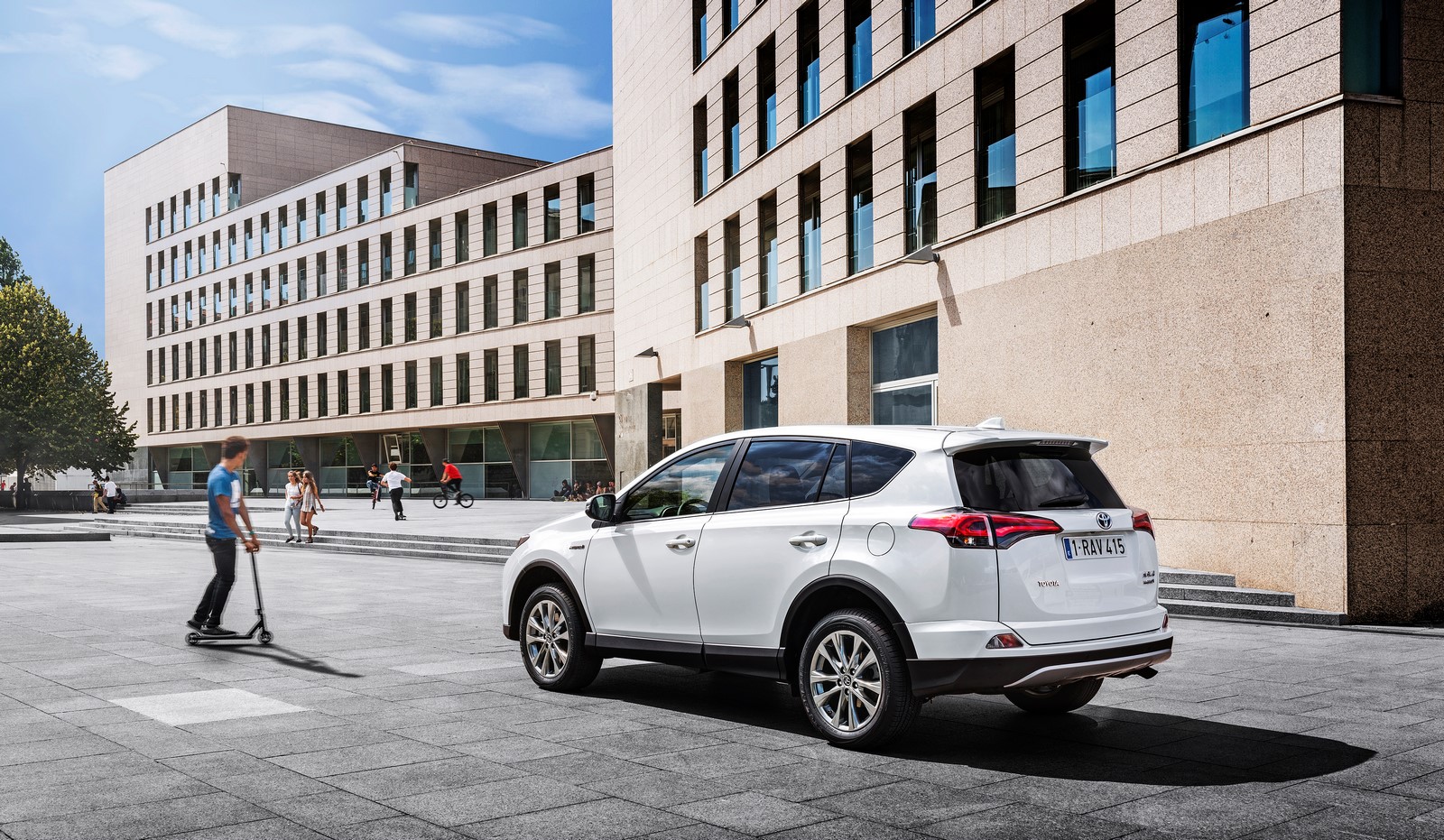

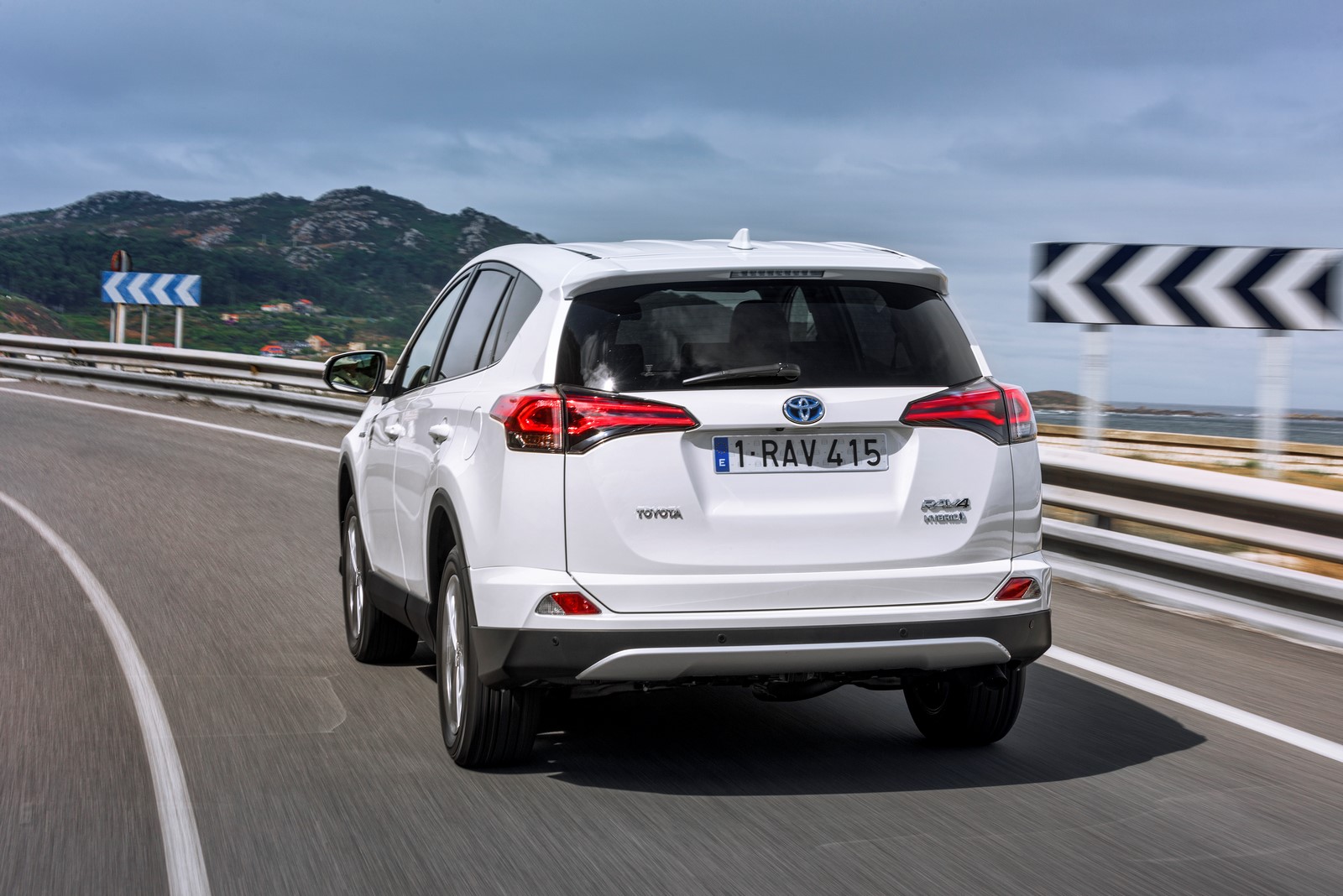

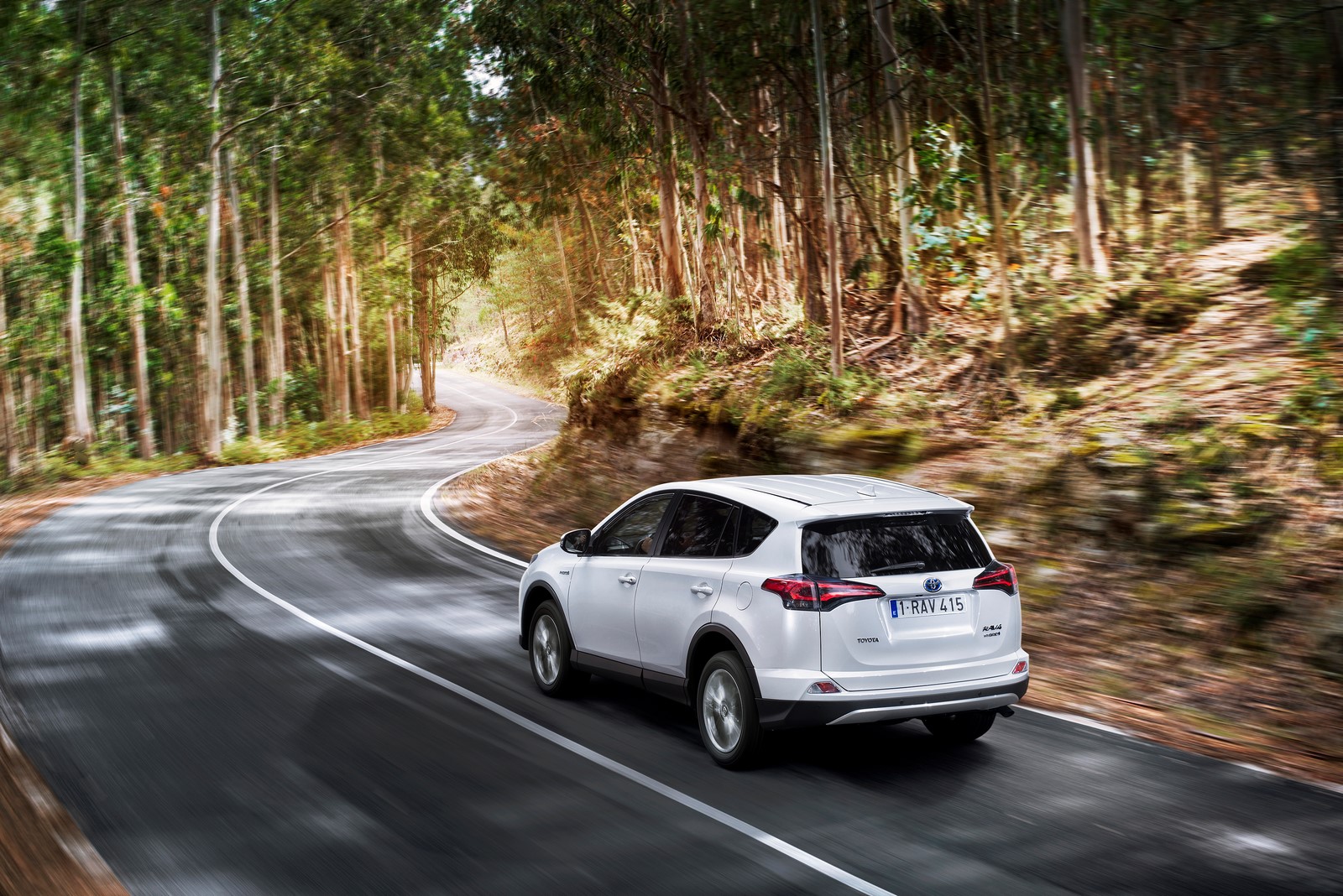

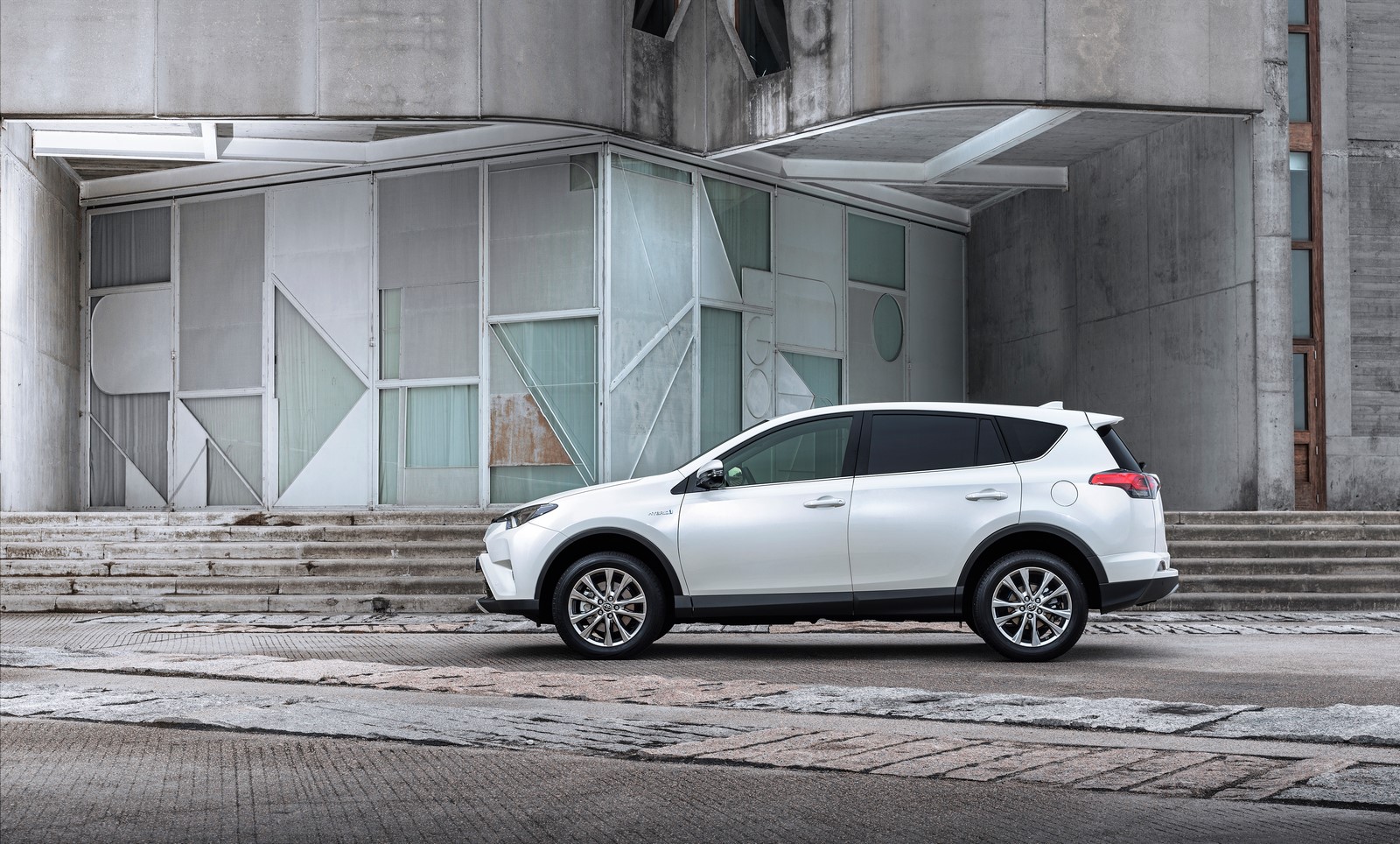

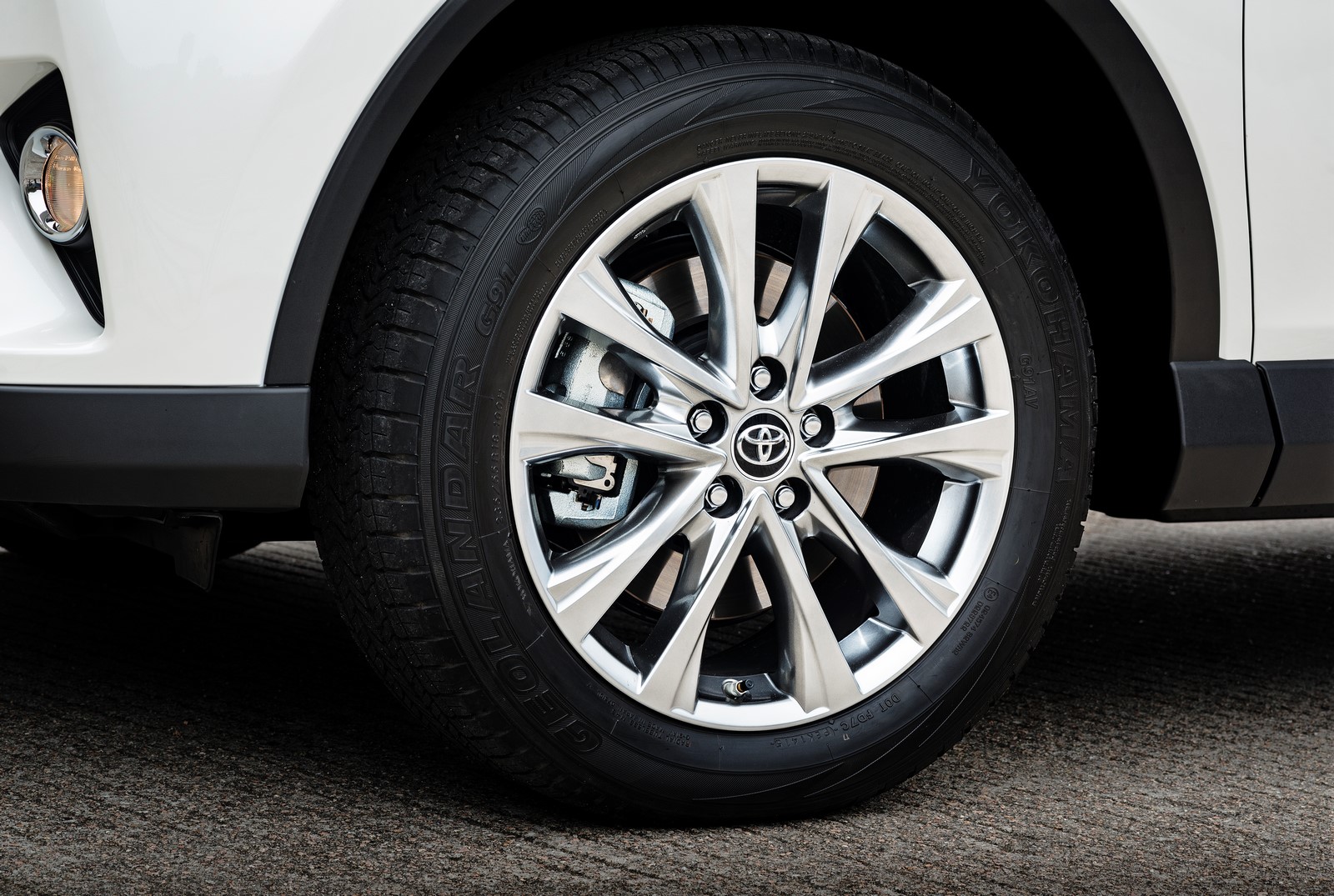

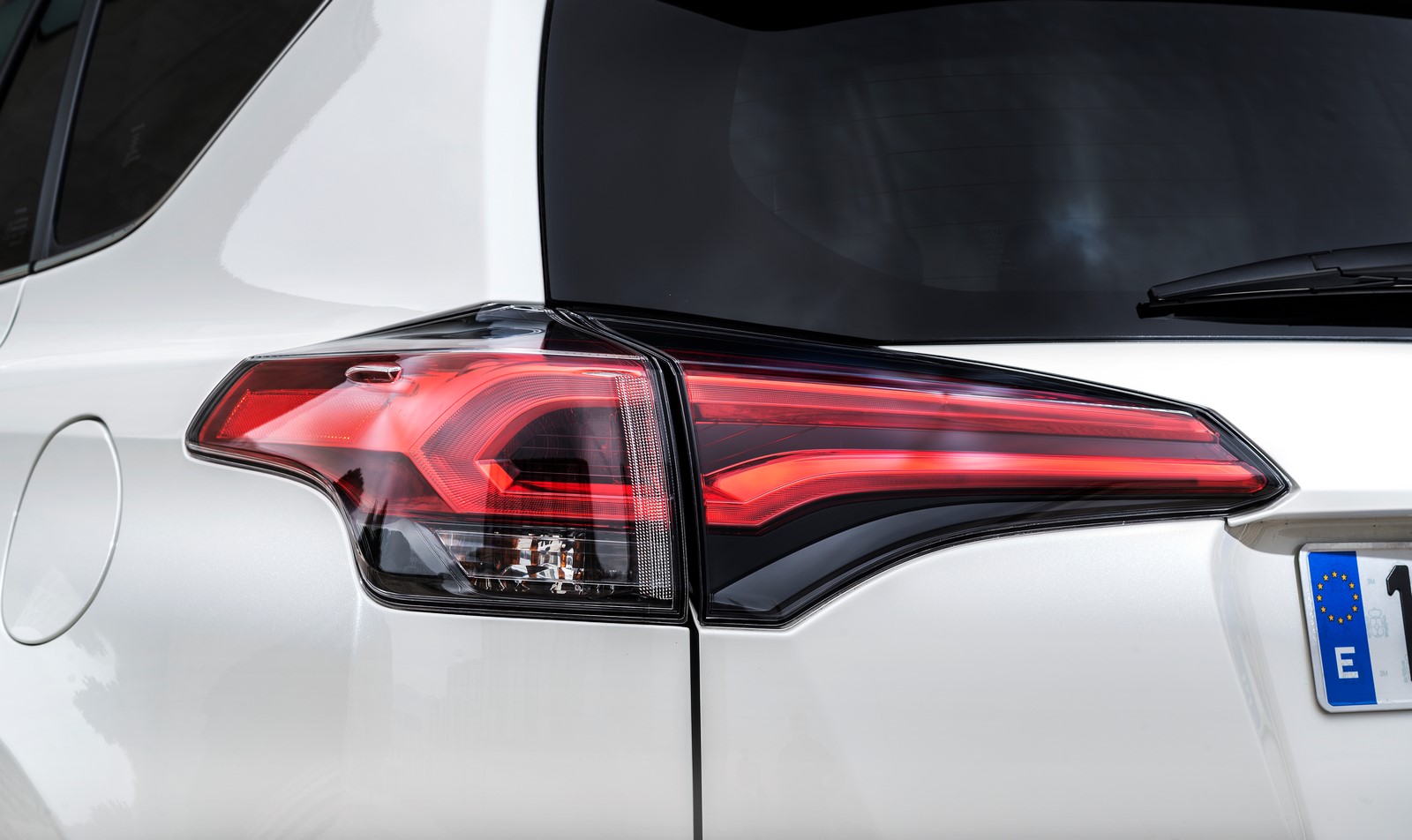

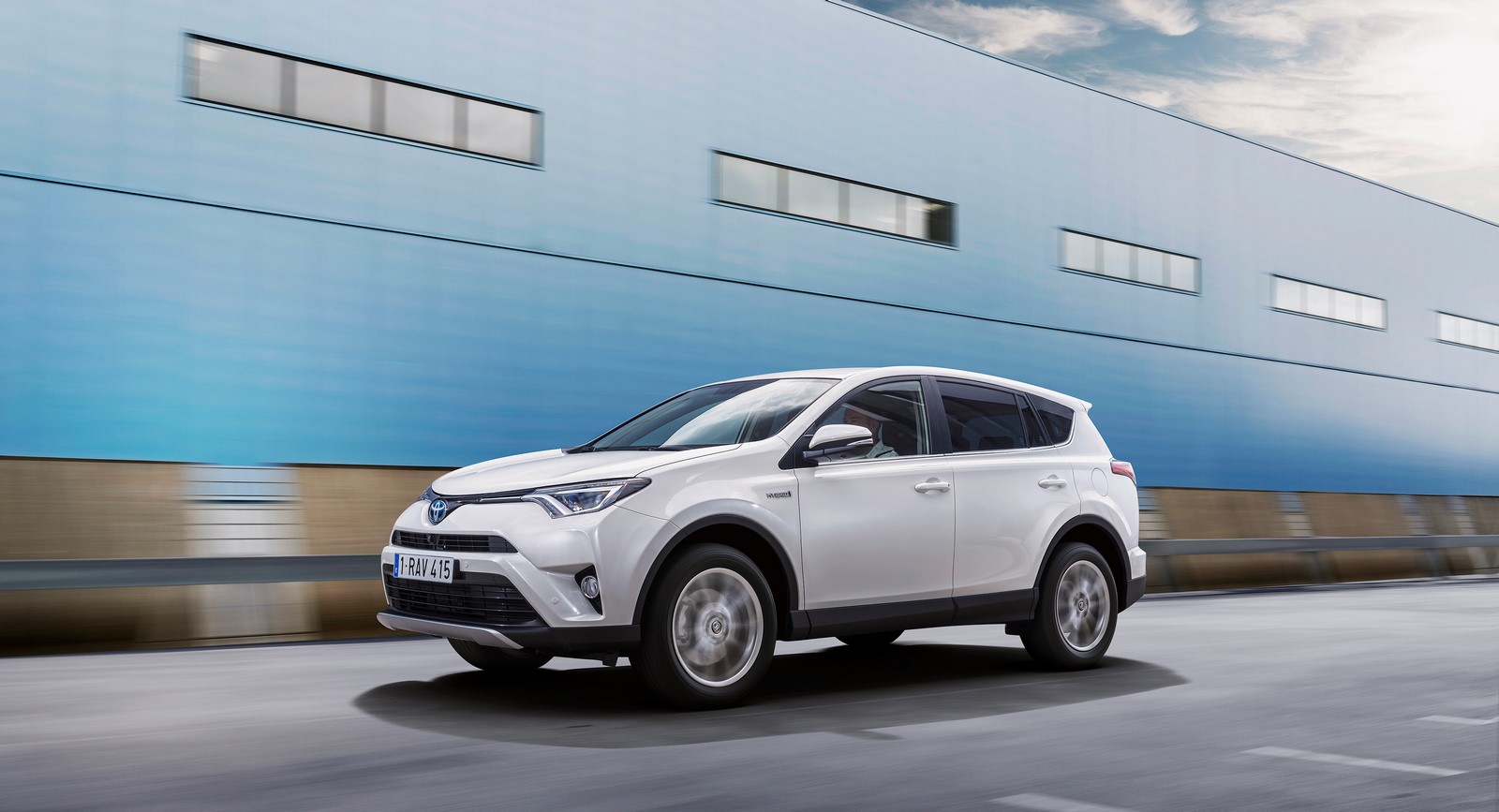

Η Toyota με την παρουσίαση του RAV4 Hybrid στην έκθεση της Φρανκφούρτης, αυτό έγινε το πρώτο compact υβριδικό SUV της εταιρίας για την Ευρωπαϊκή αγορά. Αρχικά είχε παρουσιαστεί στην έκθεση της Νέας Υόρκης τον περασμένο Απρίλιο με το αυτοκίνητο να έχει νέα εμφάνιση, που θα περάσει και στο απλό RAV4, διαθέτοντας νέους προφυλακτήρες, νέα LED φωτιστικά σώματα, LED φώτα ημέρας, αεροτομή, νέα κεραία και νέας σχεδίασης ζάντες 17″.
Στο εσωτερικό έχουν χρησιμοποιηθεί ποιοτικότερα υλικά, νέα διακοσμητικά, ενώ συναντάμε επίσης νέο πίνακα οργάνων με οθόνη 4,2″ πολλαπλών πληροφοριών, οθόνη αφής 7″, δύο ποτηροθήκες, θύρα USB και νέο δερμάτινο τιμόνι. Εξοπλίζεται με τις τέσσερις κάμερες του συστήματος 360-degree Panoramic View Monitor, ενώ διαθέτει και το πακέτο ασφαλείας Toyota Safety Sense (TSS).
Κίνηση παίρνει από έναν 2,5-λίτρων τετρακύλινδρο κινητήρα βενζίνης που λειτουργεί στο κύκλο του Atkinson και έναν ηλεκτροκινητήρα, ενώ ένας δεύτερος ηλεκτροκινητήρας κινεί τον πίσω άξονα. Η μπαταρία είναι υβρίδιο μετάλλων νικελίου 204 κελιών και τοποθετείται κάτω από τα πίσω καθίσματα. Αποδίδει 194 άλογα και συνδυάζεται με ένα E-CVT (ηλεκτρικό κιβώτιο συνεχούς μεταβαλλόμενης σχέσης) και για τα 0-100 χλμ/ώρα χρειάζεται 8.7 δευτ., με την μέση κατανάλωση να ανακοινώνεται στα 4,9λίτρα/100 χλμ. και τις εκπομπές CO2 στα 115 γρ/χλμ.
NEW TOYOTA RAV4 HYBRID
Prestige, comfort and efficiency
The launch of the new RAV4 model range marks the introduction of Toyota’s first hybrid compact SUV to the highly competitive European C-SUV segment.
The Power of Two The perfect response to the demands of a more mature, sophisticated and competitive C-SUV market, Toyota’s new RAV4 Hybrid combines the company’s unparalleled experience gained through over 20 years of compact SUV evolution with the latest generation of its innovative, full hybrid powertrain technology. The new RAV4 Hybrid marries dynamic styling, premium interior quality, ingenious packaging and versatility with a full hybrid powertrain offering customers improved driving feel for an even more a sophisticated driving experience. The new RAV4 hybrid offers class-leading fuel consumption figures and remarkably low CO2emissions, promoting significant taxation and Benefit-in-Kind savings. On top the RAV4 hybrid AWD offers the same benefits in combination with Toyota’s ingenious E-Four electric motor-powered AWD system with increased traction and towing capacity.
Hybrid Powertrain The RAV4 Hybrid’s full hybrid system features a 2.5 litre Atkinson Cycle petrol engine, a powerful electric motor, a generator, a 204 cell nickel-metal hydride battery located under the rear seats, a power control unit, and a power split device. On the AWD version, Electric all-wheel drive (E-Four) capability is provided by a second, rear-mounted electric motor, thus avoiding the added weight, cost and complexity of central prop shaft. Total system output is 145 kW/197 hp, equipping the RAV4 Hybrid with a 0-100 km/h acceleration time of 8.7 seconds and a maximum speed of 180 km/h. Conversely, the RAV4 Hybrid returns class-leading fuel consumption figures of only 4.9 l/100 km* in the European homologation combined cycle, and remarkably low, highly tax-efficient CO2 emissions of just 115 g/km*. The Hybrid system uses power from both the petrol engine and electric motor in tandem, as well as alone, maximising the efficiencies of both units to achieve the optimum balance of driving performance and fuel efficiency. During deceleration and under braking, the electric motors act as a high-output generator to effect regenerative braking. Normally wasted as heat, kinetic energy is recovered as electrical energy for storage in the high performance battery. The system’s seamless, E-CVT electric continuously variable transmission is controlled by Shift-by-Wire technology, using an electronic shift lever system. The RAV4 Hybrid features four ‘on-demand’ drive modes to increase the capabilities of the full hybrid powertrain, including a full hybrid-unique, EV mode which allows for ultra-quiet running on electric motor power alone, resulting in zero fuel consumption and CO2, NOx and PM emissions. The full hybrid powertrain is designed to eliminate the need for the petrol engine as often as possible during city driving. Toyota’s own data show that the cumulative effect of full hybrid operation leads to high proportions of zero-emissions, EV driving.
E-Four electric powered Hybrid AWD system A first for Toyota vehicles in Europe, the RAV4 Hybrid AWD is equipped with a 50 kW high-voltage, high-speed rear electric motor which gives the vehicle all-wheel drive capability without the need for a central prop shaft. Operating independently from the hybrid system’s front electric motor and driving the rear wheels alone, E-Four smoothly switches the RAV4 to all-wheel drive status on slippery road surfaces and from stationary starts, maximising traction, stability and controllability under the most demanding driving conditions. Generating drive torque through the efficient use of power from the vehicle’s hybrid system E-Four system not only optimises all-wheel drive performance in a variety of dri-ving conditions, but also reduces energy loss, contributing to better fuel economy than that normally associated with AWD vehicles. The significant extra traction provided by the E-Four system also provides considerable recreational benefits, equipping the new RAV4 Hybrid AWD with a 1,650 kg towing capacity -one of the highest capacities yet achieved by a hybrid vehicle. Improved Driving Feel, Sequential Shiftmatic and Power Mode The control logic of the Hybrid Synergy Drive system’s seamless, planetary gear transmission has been designed to give a smooth, natural feeling to vehicle acce-leration, with a close relationship between vehicle speed and engine revs, for a more engaging driving experience. The addition of both a Sequential Shiftmatic gear change function and a Power mode to the RAV4 Hybrid’s ‘on-demand’ drive modes offers customers a more spor-ting drive, improving responsiveness and throttle response on winding and mountainous roads. By selecting the Sequential Shift gear lever position, engine braking force is enhanced and, because engine rpm is kept higher than in the standard, ‘D’ lever position, throttle response is also improved. Activating Power mode increases traction force.
Driving dynamics – Enhanced Ride Comfort and Steering Feel The new RAV4 model range benefits for numerous measures designed to enhance ride comfort and driver involvement without sacrificing either stability or controllability. The number of spot welds on the rear cross-member support has been increased from 105 to 138, and patches were added to the rear suspension member and floor cross-member. The resultant increase in rear bodyshell rigidity not only improves vehicle stability, but also enhances harshness damping and reduces high frequency waves, improving ride quality. The new RAV4 shares the MacPherson strut front and lightweight trailing arm double-wishbone rear suspension of its predecessor. However, the shock absorbers and coil springs of both systems have been revised to give a flatter, more comfortable ride and enhance straight line stability. The linear-type shock absorber had been changed to combine degressive- and choke-type valves, allowing for better adaptation of damping force to differing vehicle speeds and road conditions, and improving ride comfort. The coil spring constant has also been optimised to create a flatter ride feel. The steering gear box benefits from an increase in rigidity of the installation faste-ning points, promoting a better steering feel.
Improved NVH for a Quieter Cabin With a particular emphasis on rear seat occupant comfort and ease of conversation within the cabin, the NVH (Noise, Vibration and Harshness) performance of the new RAV4 has been comprehensively improved. The surface area of the floor silencer has been increased by some 55%, the rear finish plate reshaped, and sound absorbing material added in several locations around the rear deck, reducing road, tire and exhaust noise. The sound insulation efficiency of both front and rear doors has been improved through an increase in sound absorbing material and the addition of door trim outer insulator, further lowering wind and road noise. And the instrument panel silencer size has been increased to reduce the transmission of engine noise into the cabin.
Innovation – Safety and Advanced Technology The new RAV4 range is equipped with ‘Toyota Safety Sense’, a newly developed set of active safety technologies designed to help prevent or mitigate collisions across a wide range of traffic situations. Combining a camera and millimetre-wave radar for a high level of detection performance, the RAV4’s Toyota Safety Sense system features a Pre-Collision System (PCS) with a Pedestrian Detection function, Lane Departure Alert (LDA), Adaptive Cruise Control (ACC) and Automatic High Beam (AHB) technology. At speed ranges of between 10 km/h and the vehicle’s top speed Pre-Collision System detects objects ahead of the vehicle and reduces the risk of hitting the car in front. When there is a possibility of a collision it prompts the driver to brake with an audible and visual alert. PCS also primes the brake system to deliver extra stopping force when the driver presses the brake pedal. If the driver fails to react in time, the system automatically applies the brakes, reducing speed by approximately 40 km/h or even bringing the car to a complete stop, in order to prevent the collision or mitigate the force of impact. The system is also able to detect potential collisions with pedestrians, in the event of which automated braking operates at relative speeds of between 10 to 80 km/h, and can reduce speed by approximately 30 km/h. Adaptive Cruise Control helps the driver to keep a safe distance from the car in front. It detects preceding vehicles and determines their speed. ACC then adjusts vehicle speed (within a set range) to ensure that there is a safe distance between both cars. By using the forward-facing camera and millimetre-wave radar in combination to monitor vehicles merging into or out of the lane ahead, ACC helps maintain smooth acceleration and deceleration while driving. The Lane Departure Alert system monitors lane markings and helps prevent accidents and head-on collisions caused by leaving lanes. If the vehicle starts to deviate from the lane without the indicators having been engaged, LDA warns the driver with an audible and visual alert, and can provide steering input depending on the model. Automatic High Beam helps ensure excellent forward visibility during night-time driving. It detects both the headlights of oncoming vehicles and the tail lights of preceding vehicles, automatically switching between high and low beams to avoid dazzling other drivers. By using high beams more frequently the system enables earlier detection of pedestrians and obstacles. Thanks to the reduced risk of being involved in traffic accidents, vehicles equipped with Toyota Safety Sense can benefit from lower insurance costs or a more advantageous insurance reclassification. New RAV4 will continue to offer Blind Sport Monitor and Rear Cross Traffic Alert within its safety equipment on top of newly introduced Toyota Safety Sense.

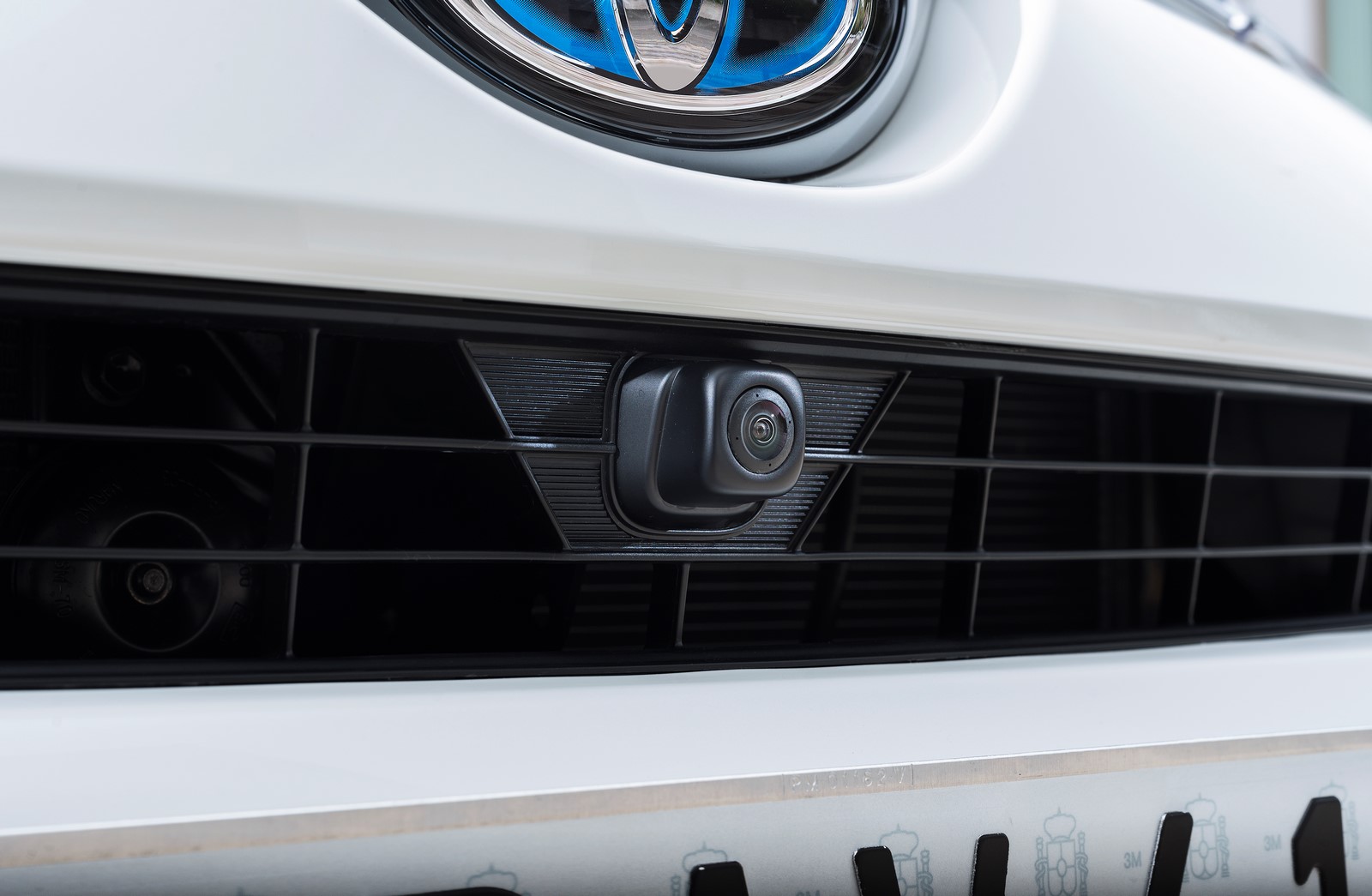

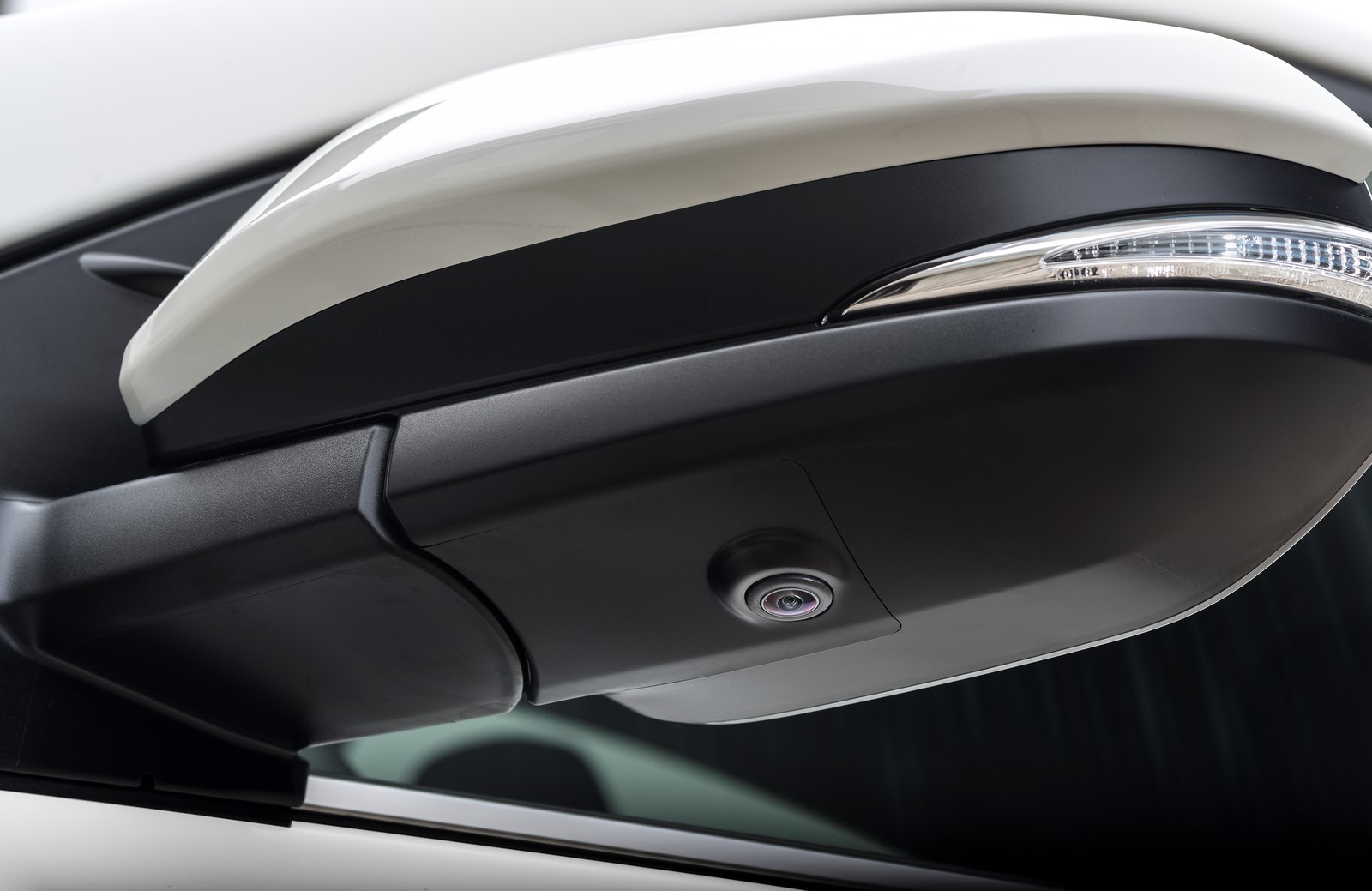

Panoramic View Monitor A new Panoramic View Monitor uses four cameras, mounted on the underside of each door mirror, and the front and rear of the new RAV4 to display a 360 degree, bird’s-eye view of the vehicle’s immediate surroundings. Unique to Toyota, the system may be activated to give a clear, 3D visualisation of the surroundings whilst the vehicle is still parked, before a gear is selected and the parking brake released. The monitor can display a composite view which combines the images from any of the four cameras, as well as the path guidance lines of the Rear View Monitor system, providing an invaluable aid to parking and slow speed manoeuvring. The system’s wide, 180 degree front and rear view screen projections allow the driver to check blind spots to the front and rear sides of the vehicle. The side cameras remain operable even when the door mirrors are retracted. And a panoramic zoom view function allows for the closer observation of nearby objects that would otherwise be difficult to see.
4.2” Multi-information Screen The newly designed instrument binnacle of the RAV4 is equipped with a 4.2” colour TFT (Thin Film Transistor) multi-information screen. Controlled by the steering wheel switch gear, with the possibility to coordinate its display with that of the 7” full-colour centre console screen, the multi-information screen offers a wide variety of functions and displays. These include the customisation of vehicle settings, trip computer information, Smart Stop & Start telemetry, a hybrid powertrain energy monitor, turn-by-turn navigation and real-time AWD vehicle posture and steering lock indication.

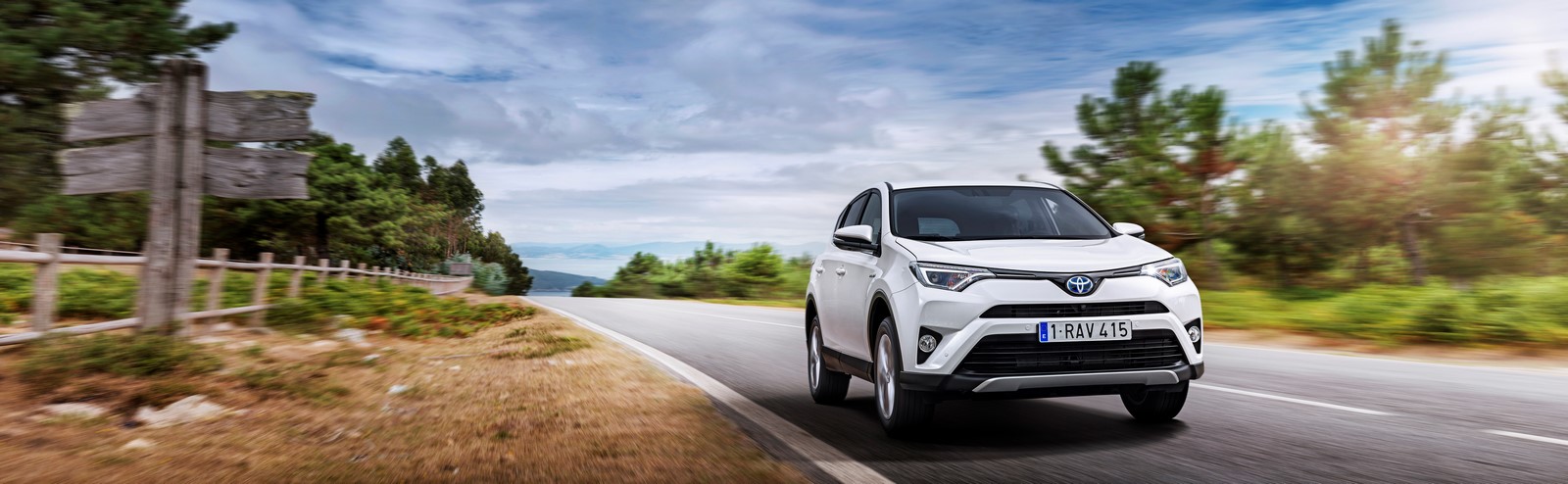

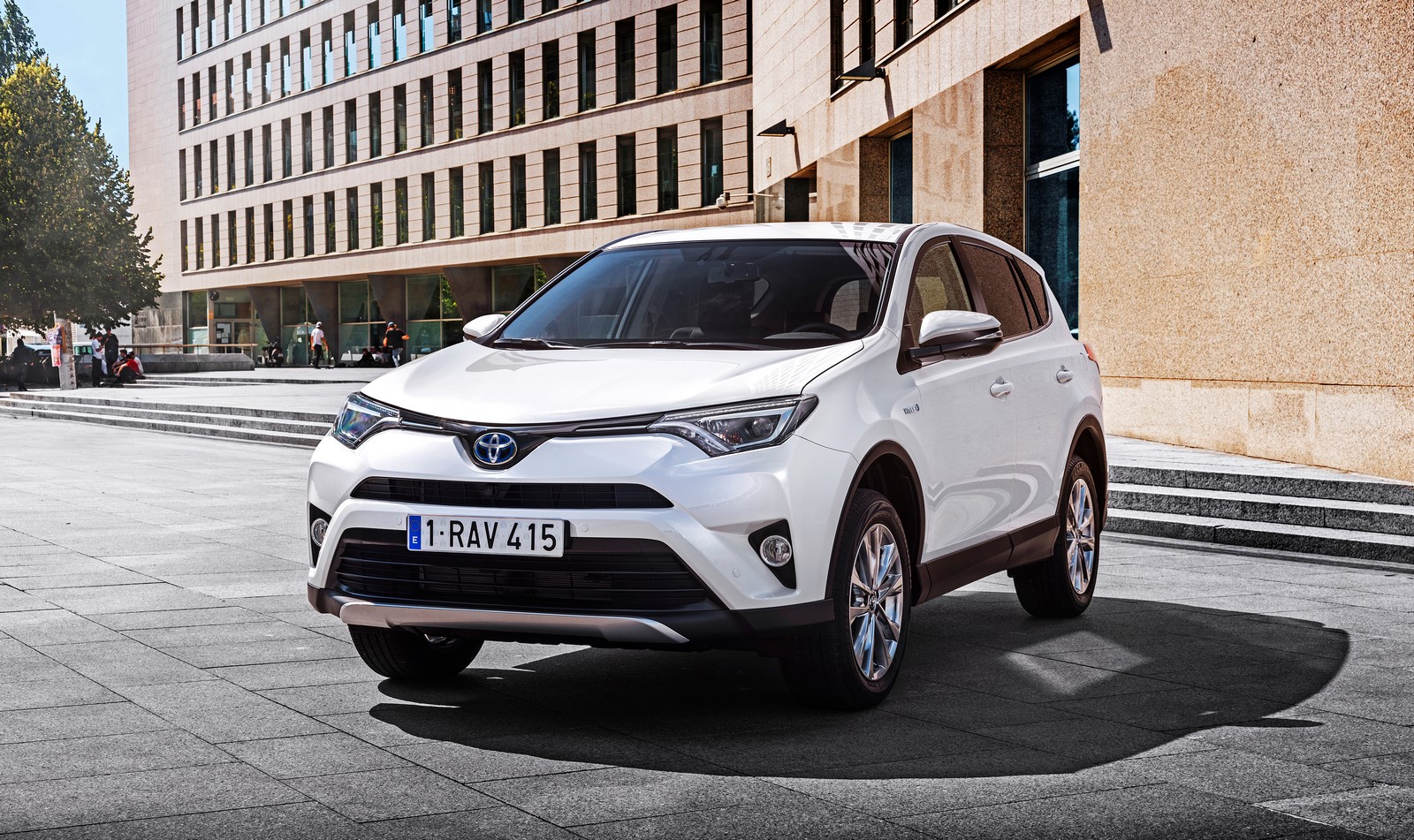

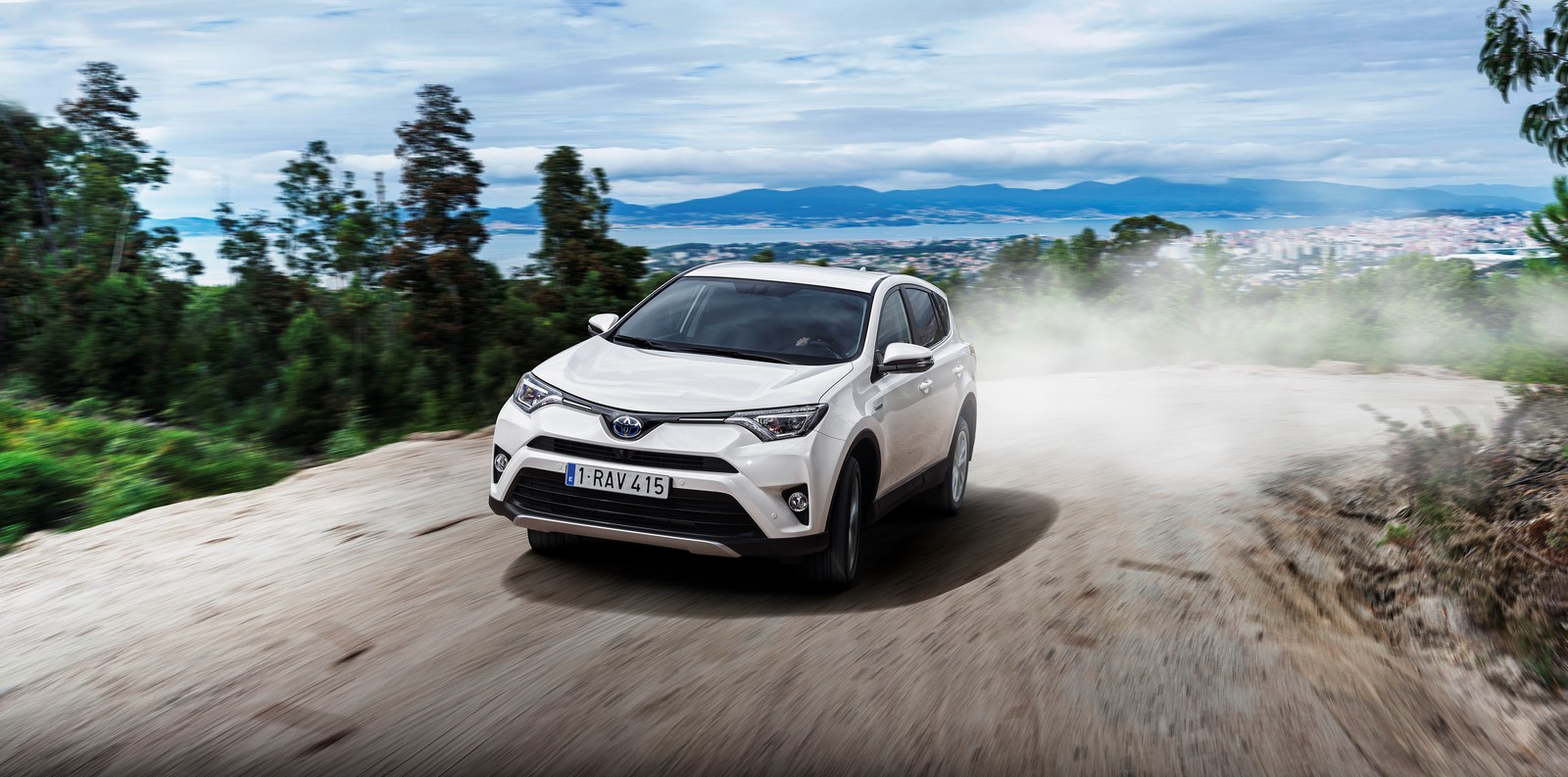

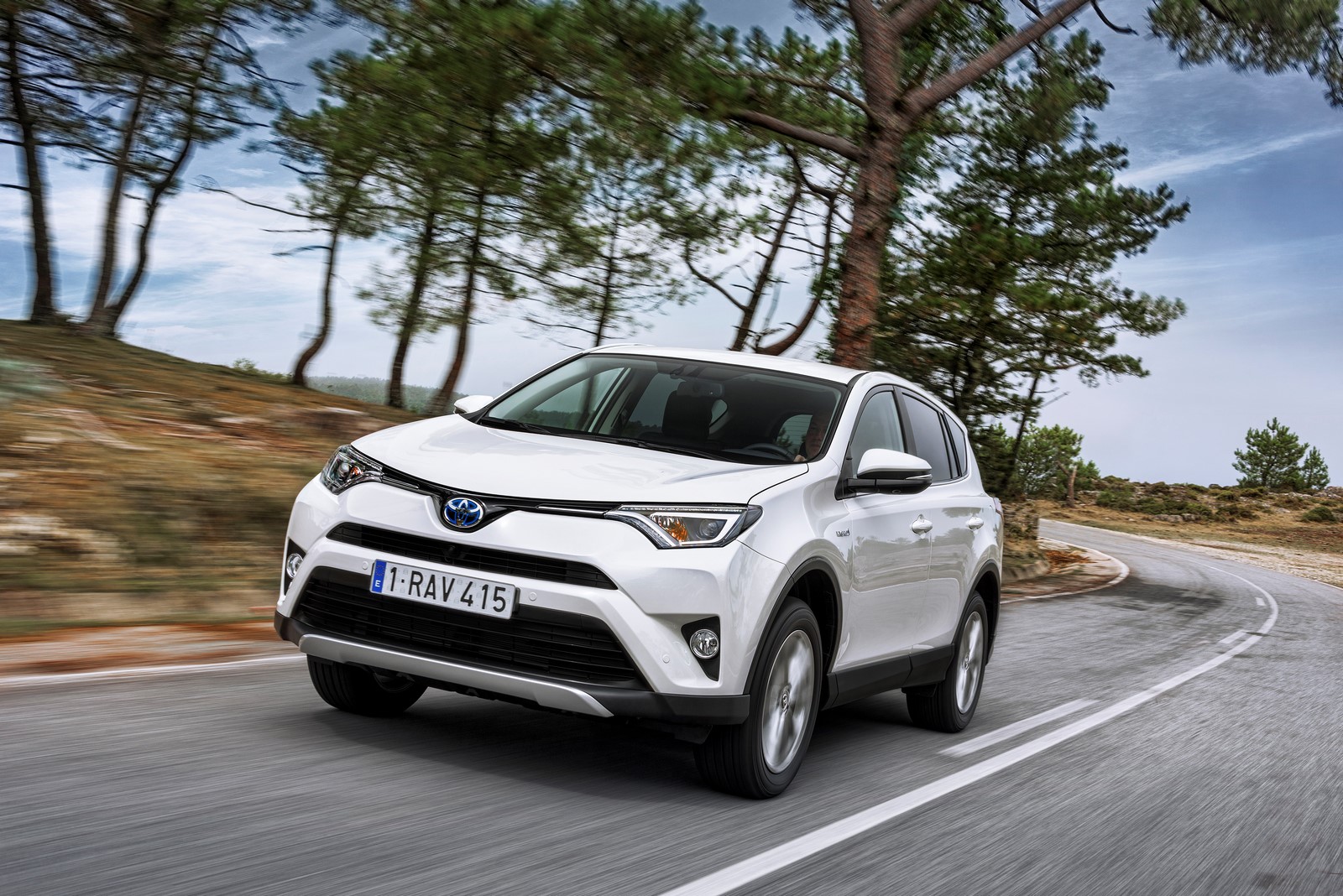

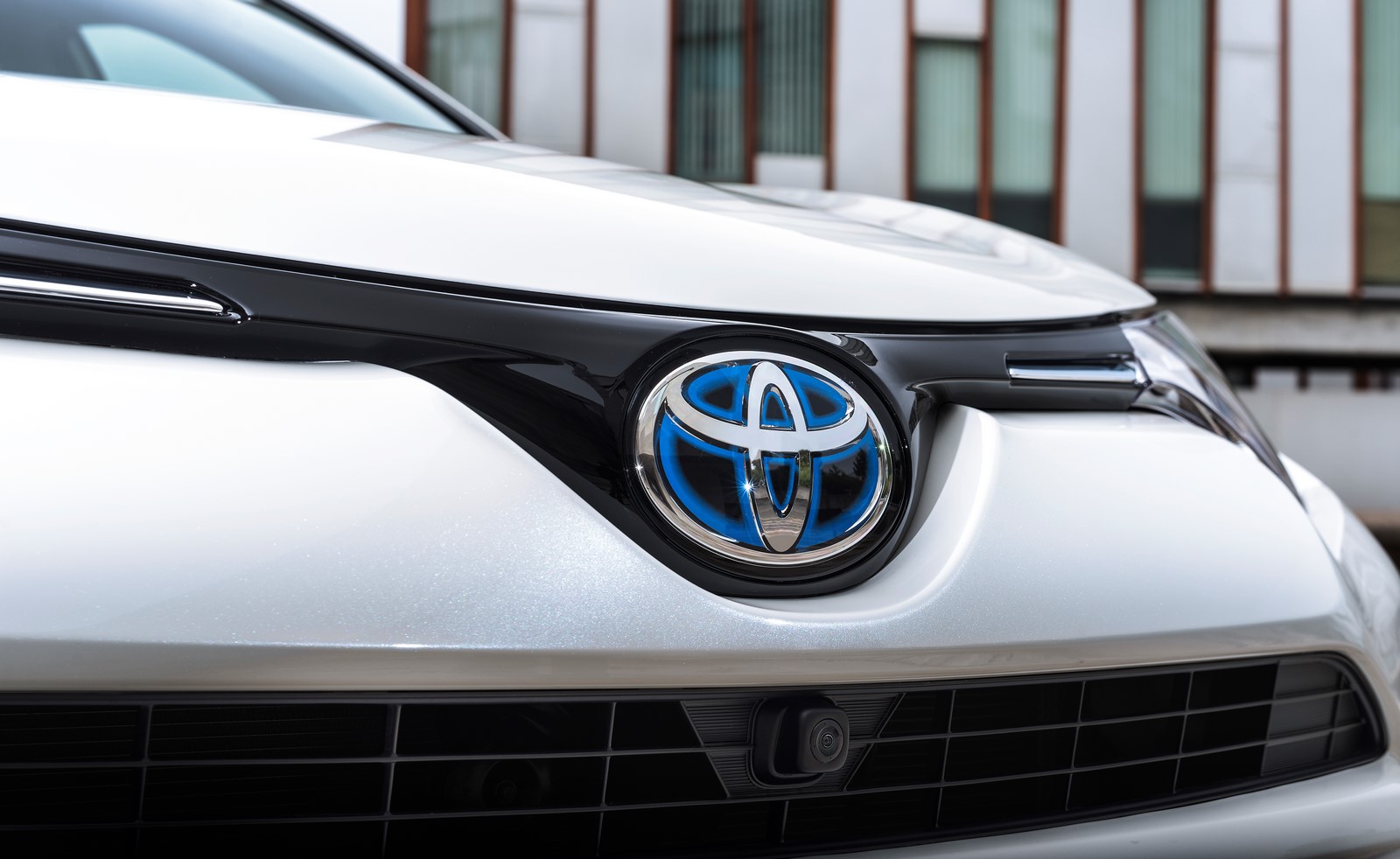

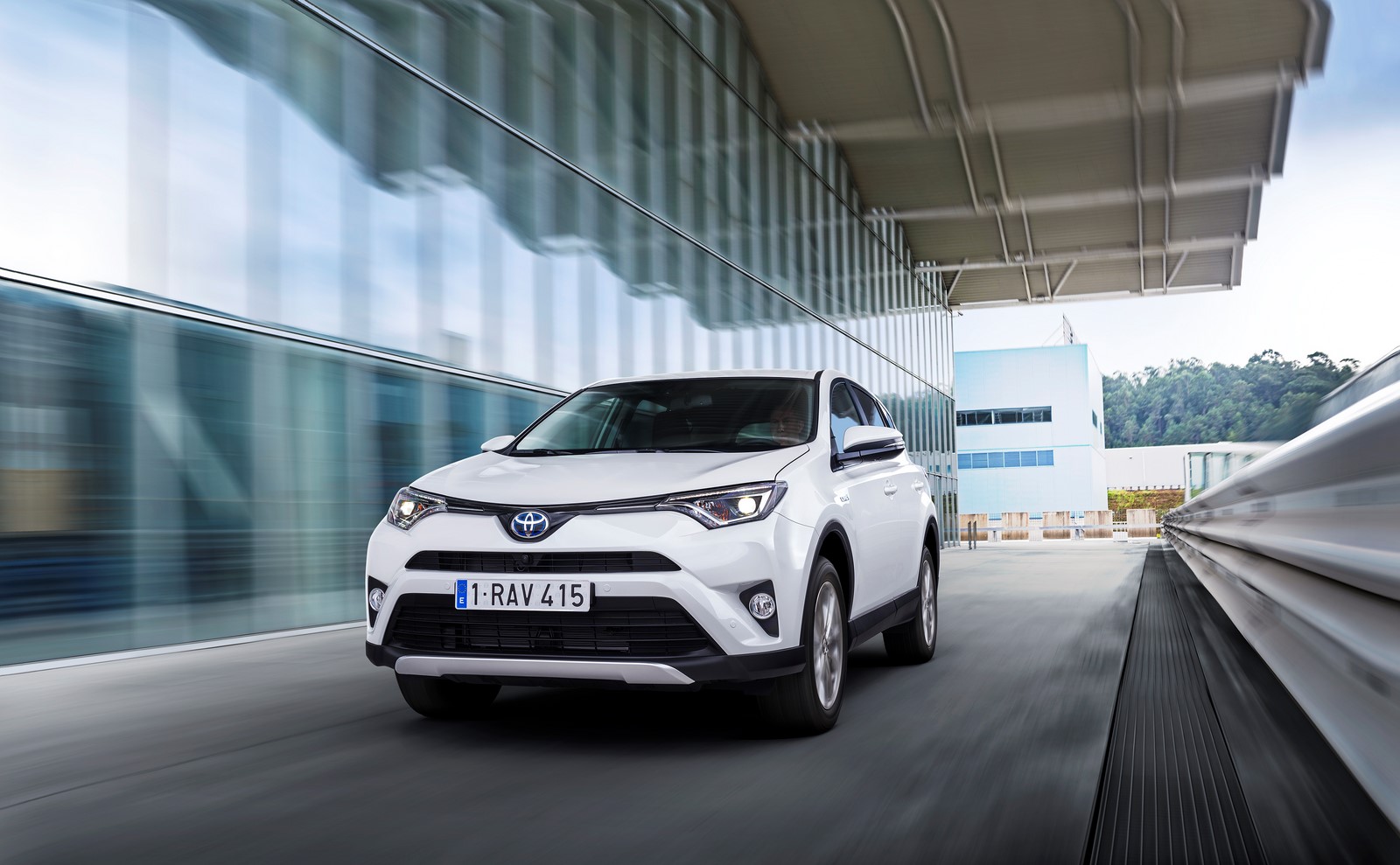

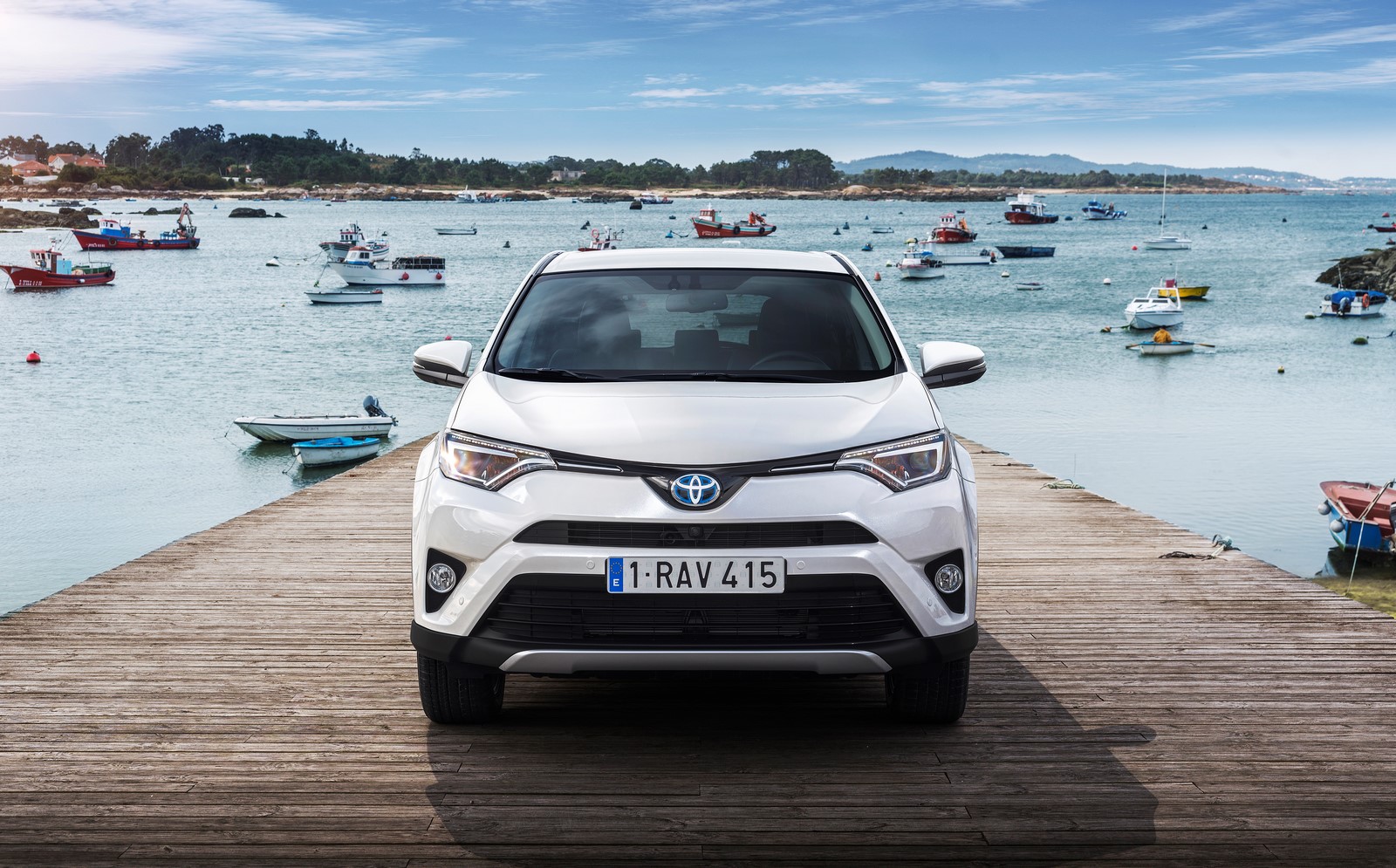

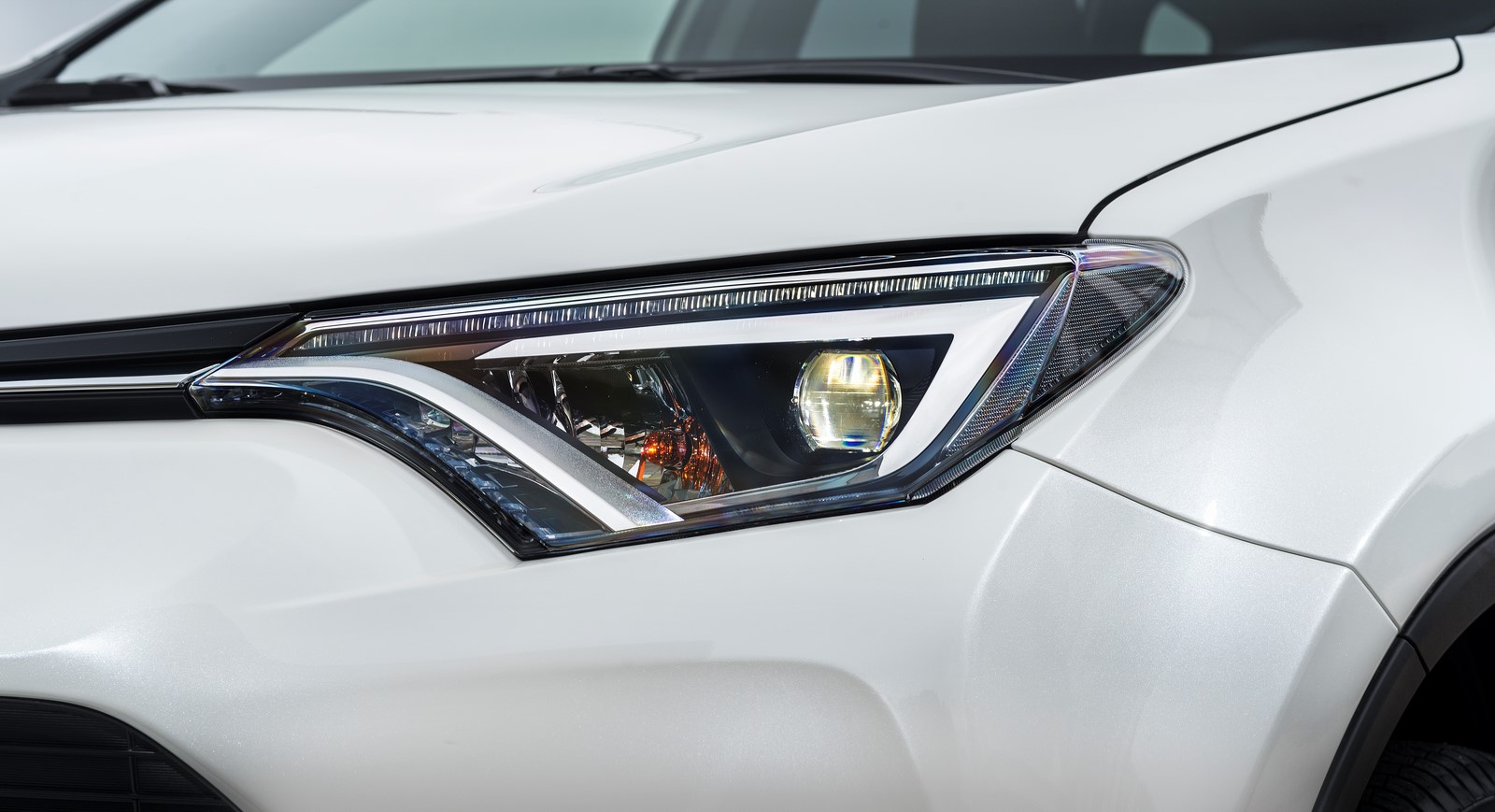

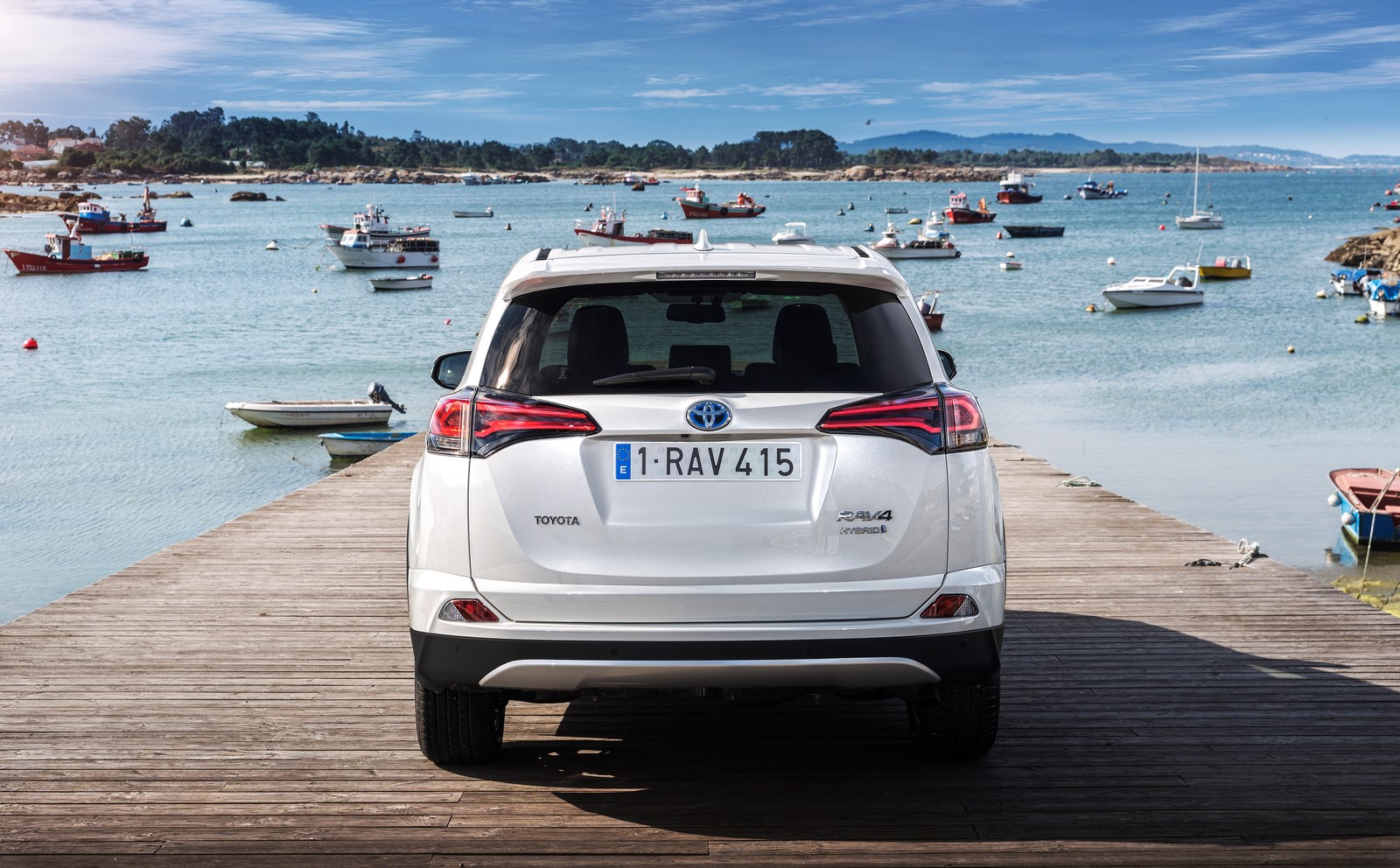

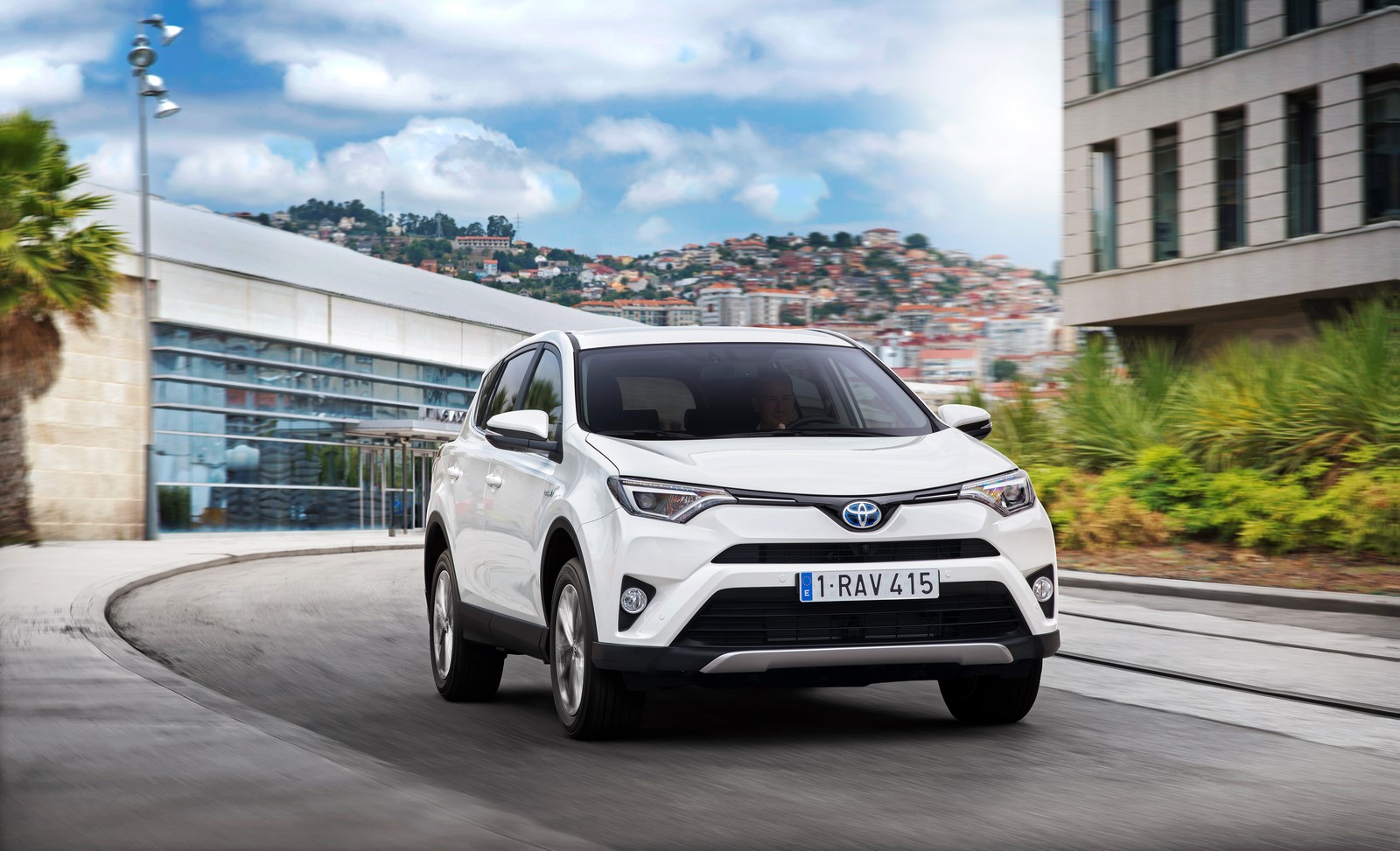

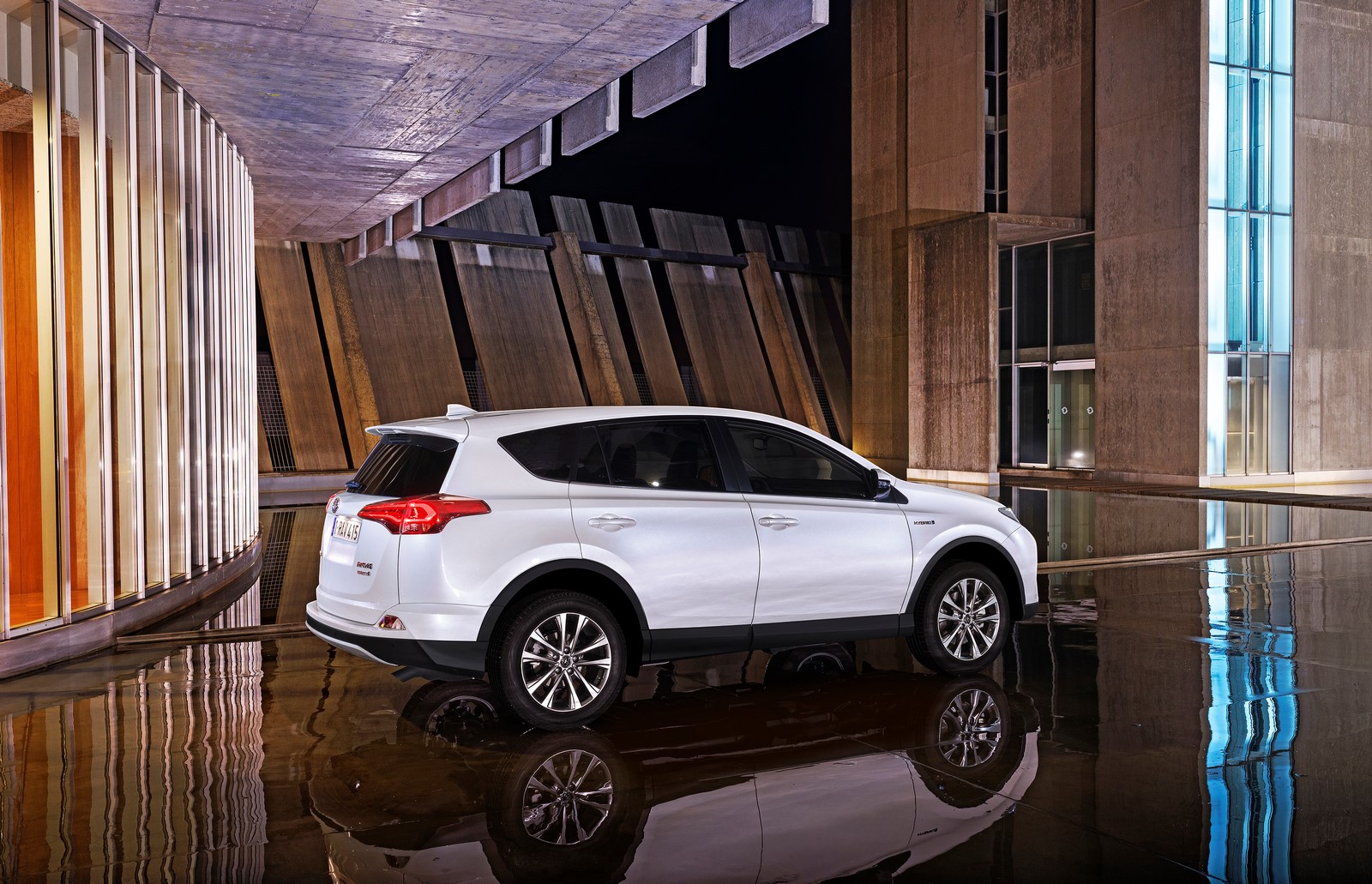

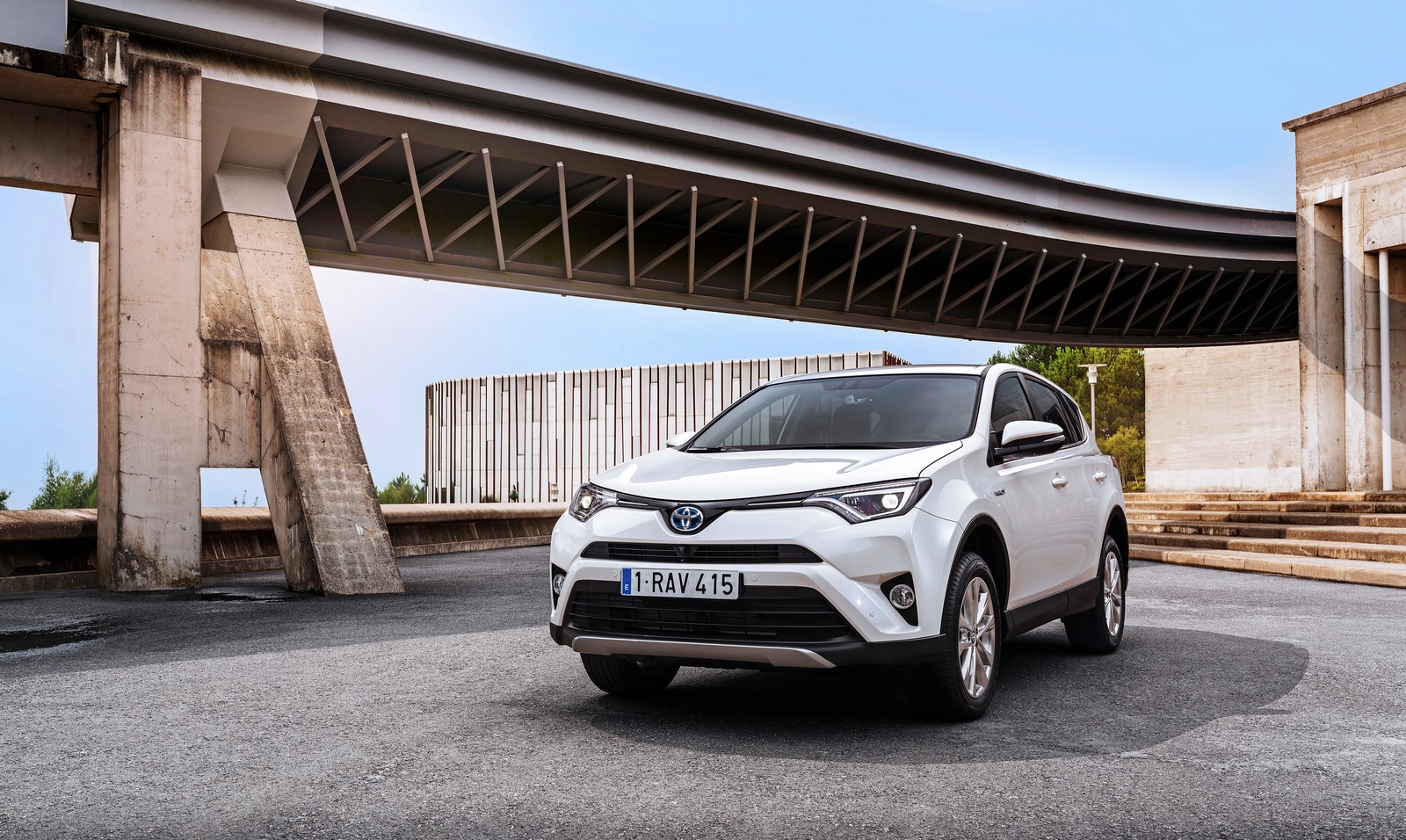

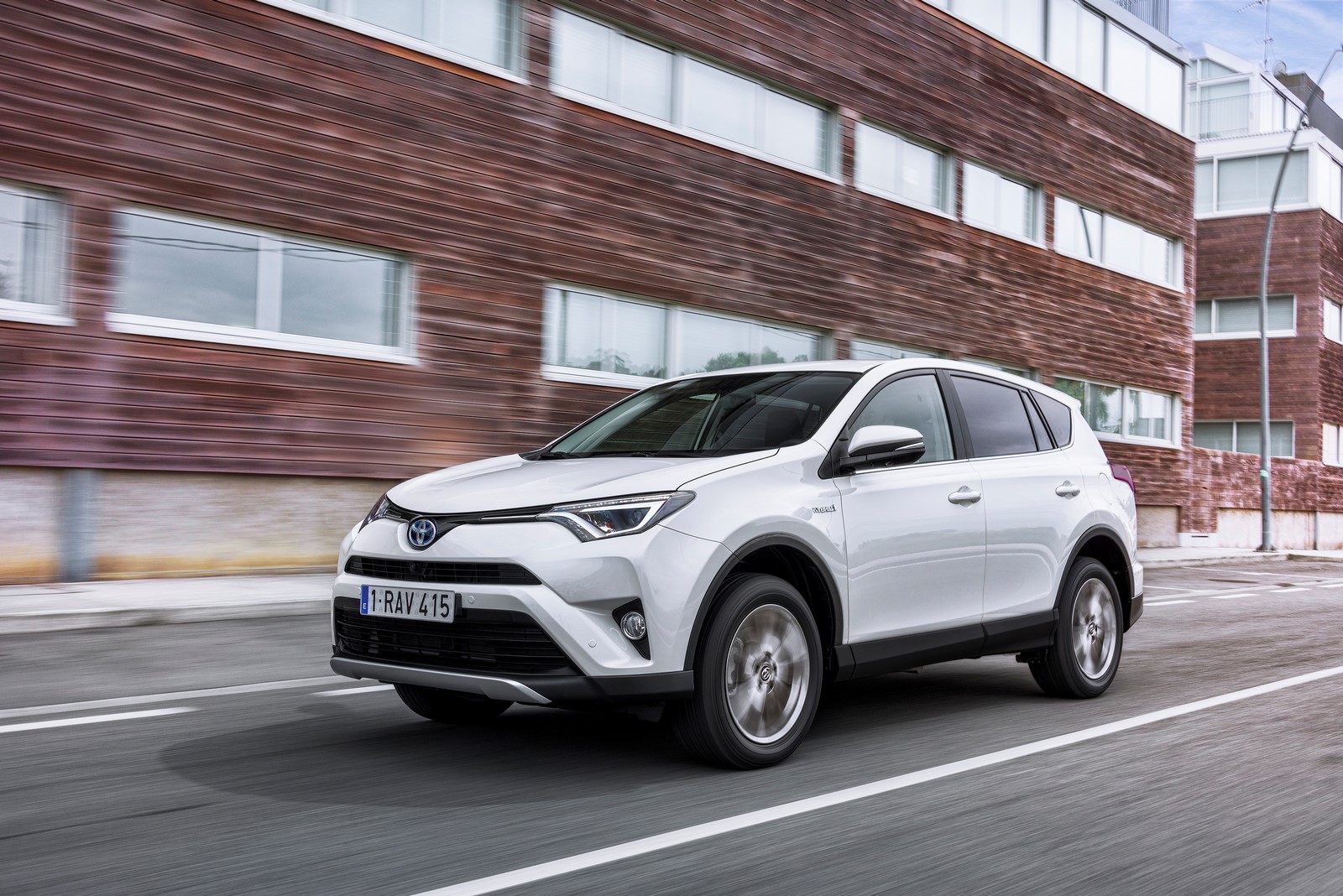

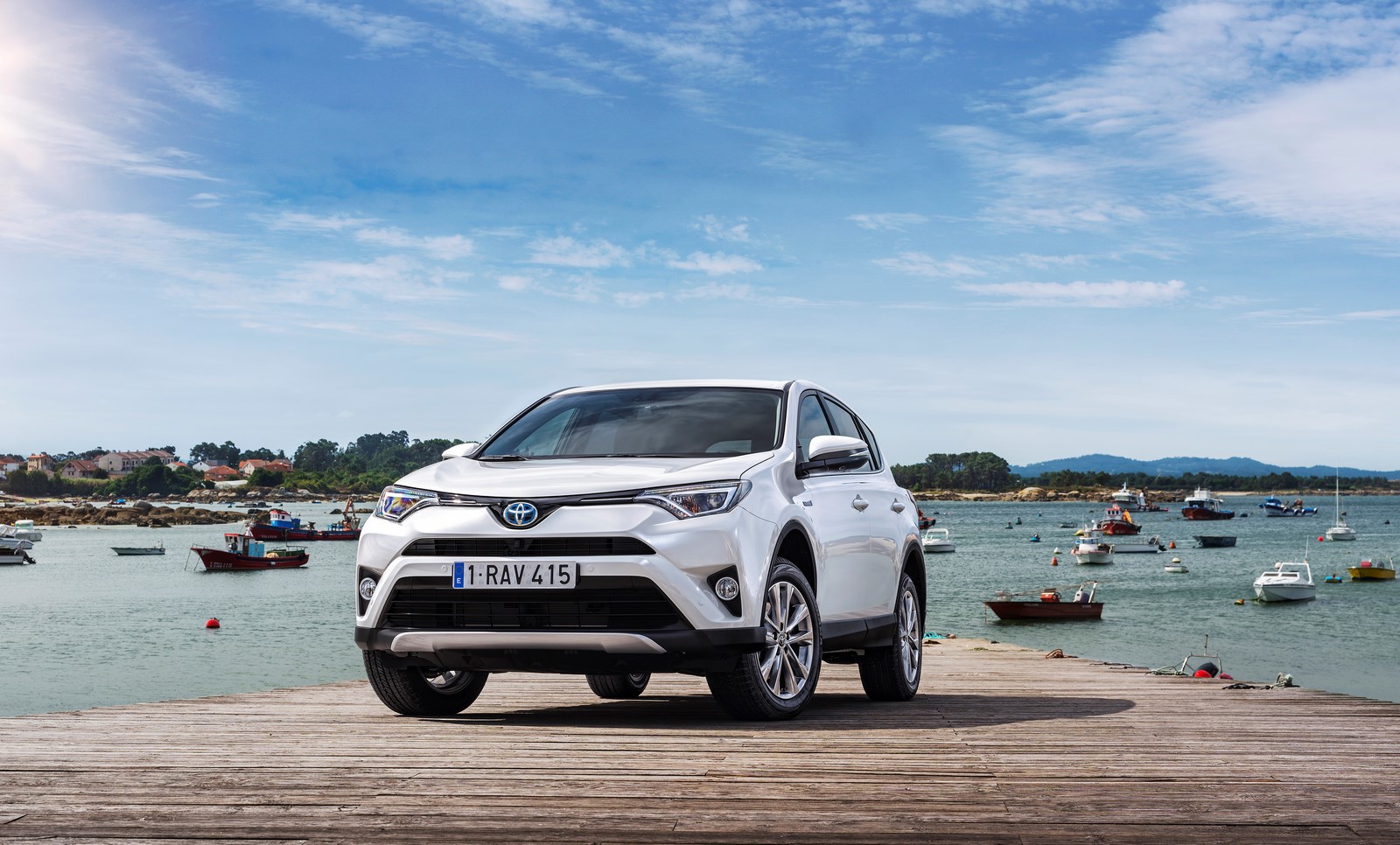

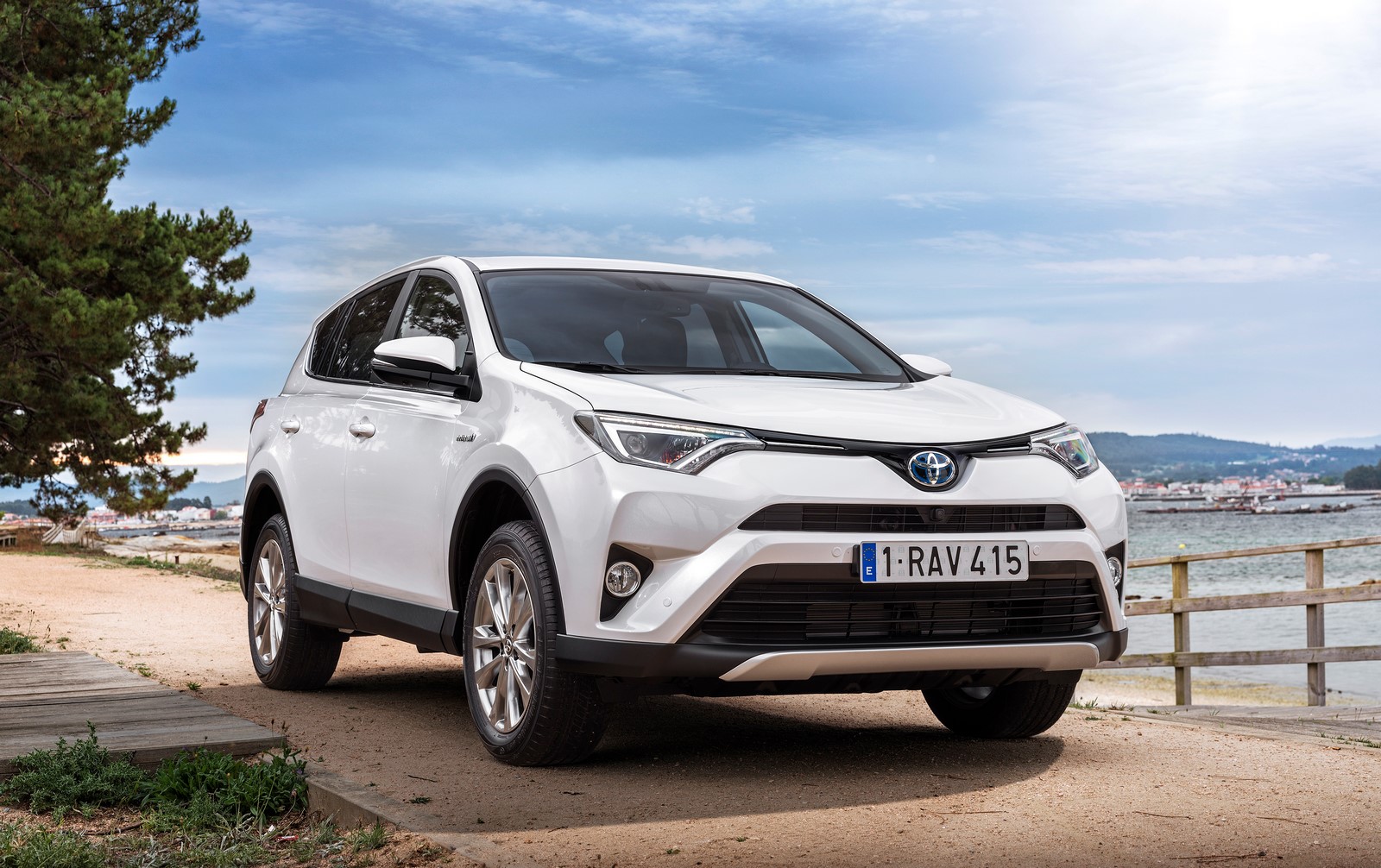

Exterior Design – Stronger, More Dynamic Image The front of the new RAV4 reflects its stronger, more dynamic styling with a po-werful, more prominent execution of Toyota’s Under Priority and Keen Look design language. The Toyota logo is prominently set within a slender upper grille which anchors new, Keen Look LED or halogen headlamp clusters, both of which incorporate LED Daytime Running Lights (DRL) to give the new compact SUV a readily identifiable frontal signature. The middle grille has been widened, and the lower, trapezoidal grille significantly enlarged in keeping with Toyota’s Under Priority family model styling. The extremities of both middle and lower grille combine to form deep, foglamp-housing pockets placed at the very extremities of the front bumper to emphasises the RAV4’s wide, stable front track. The front underguard has been restyled to give it a stronger visual emphasis, reinforcing the new SUV’s rugged, off-road credentials. To the side, a new wheel arch and rocker garnish places a cleaner, bolder emphasis on a vehicle profile further enhanced by a choice of new 17” and 18” alloy wheel designs. The rear of the vehicle features new rear lamp clusters incorporating LED techno-logy, giving the new RAV4 a high-tech light signature. The bumper has been restyled to give it greater prominence and place a greater emphasis on the vehicle’s width and broad stance. And the rear underguard has also been redesigned to give it greater visual prominence. The model range flagship, the RAV4 Hybrid may be identified through the use of exclusive, hybrid blue logos and ‘Hybrid’ badging, as well as model-specific 17” alloy wheels. The new RAV4 will be available in choice of nine exterior body colours, of which two -Dark Red metallic and Blue metallic- are new.

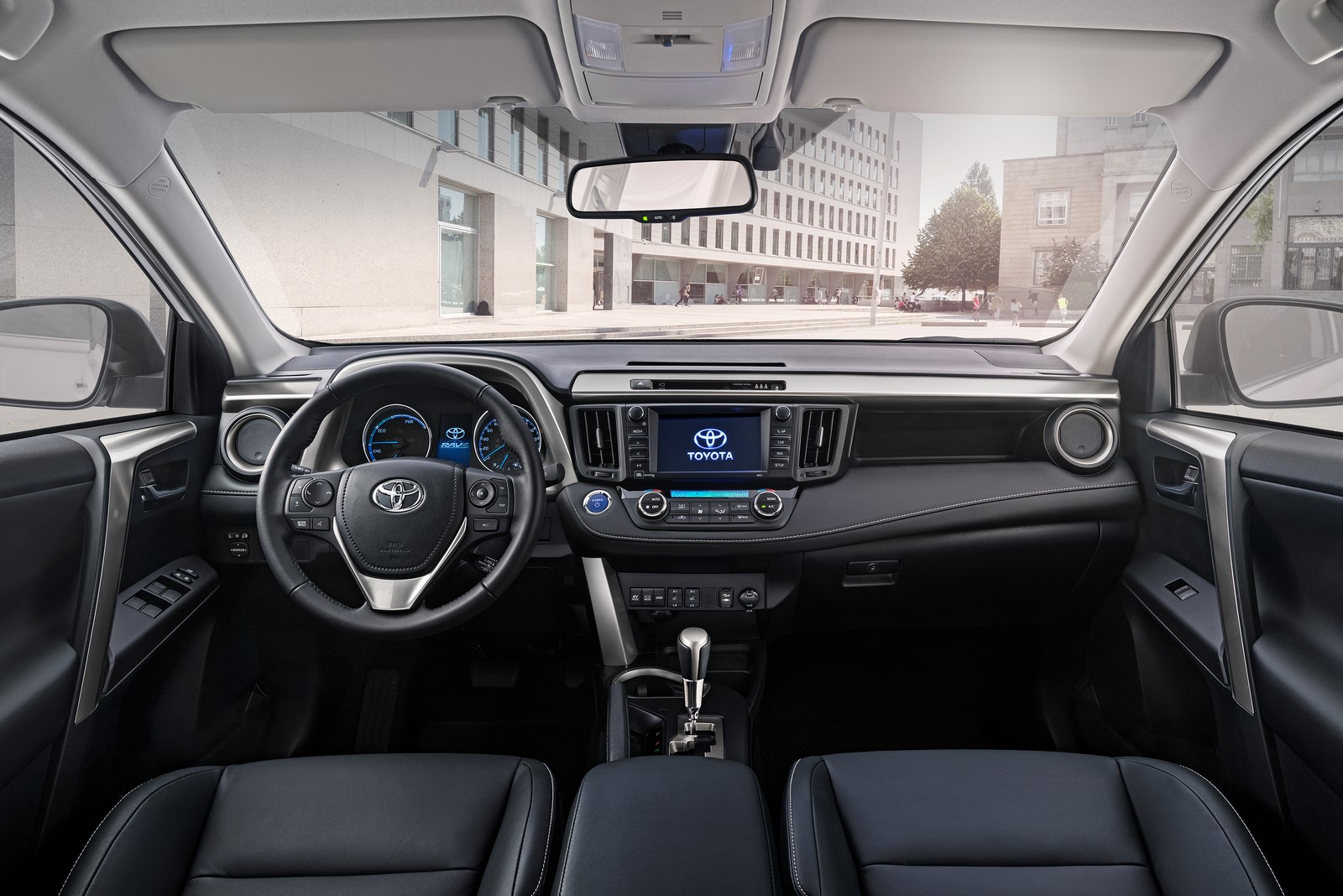

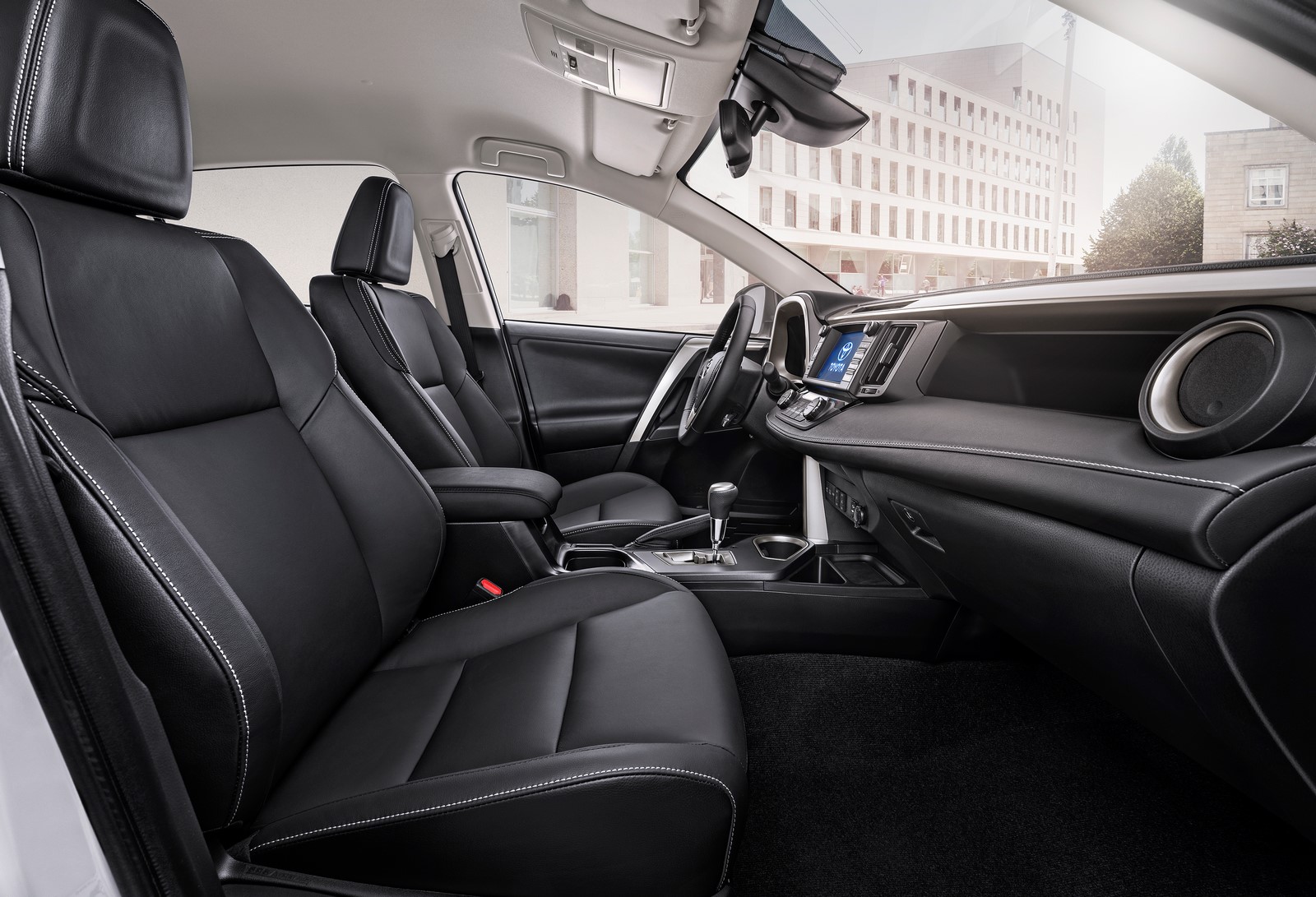

Interior Design -Improved Sensory Quality and Functionality The sophisticated and stylish architecture of the RAV4 interior has been enhanced to combine better functionality with greater visual harmony and consistency and improved sensory quality. The driver’s instrument binnacle, centre console and gear lever surround console have been redesigned, the dashboard, door panel and centre armrest trims restyled, and new, more consistent, premium quality finishes adopted throughout. The driver’s instrument binnacle now features a prestigious, twin analogue dial design incorporating a 4.2” multi-information screen. The centre console panel has been redesigned to incorporate a large, 7” multimedia system touch-screen. The dashboard, door panel and centre armrest trims have been restyled for greater comfort and tactility, and matt black and neutral silver finishes applied throughout for improved sensory quality. Further interior visual harmonisation has been achieved through the use of consistent, blue back-lit instrument, and ambient, lighting. An expanded range of interior colour schemes will be available, including four high grade leather upholstery choices, Beige and Grey being refreshed in colour and style while Tan being the new offer.
*Subject to final homologation
