Η Ford ανακοίνωσε ένα νέο προηγμένο σύστημα φωτισμού για τα μπροστά σώματα. Το σύστημα χρησιμοποιεί κάμερα και GPS και έχει σχεδιαστεί για να αυξήσει την ασφάλεια. Η κάμερα ανιχνεύσει τις σημάνσεις από τις λωρίδες κυκλοφορίας και μπορεί να προβλέπει την καμπυλότητα του δρόμου, έτσι ώστε οι προβολείς των φωτιστικών σωμάτων να αλλάζουν τη γωνία τους, ώστε να παρέχουν στον οδηγό και στους επιβάτες καλύτερο φωτισμό.
Παράλληλα το σύστημα μέσω υπέρυθρης κάμερας, είναι σε θέση να ανιχνεύει πεζούς, ποδηλάτες και μεγάλα ζώα και μπορεί να παρακολουθήσει μέχρι και οκτώ διαφορετικά αντικείμενα σε απόσταση έως 120 μέτρα μακριά.
FORD DEVELOPING ADVANCED HEADLIGHTS THAT POINT OUT PEOPLE, ANIMALS IN THE DARK, AND WIDEN BEAMS AT TRICKY JUNCTIONS
- Ford is developing advanced lighting technology that enables drivers to more easily see potential hazards when driving at night
- Camera-Based Advanced Front Lighting System widens beam at junctions and roundabouts after interpreting traffic signs
- GPS-enabled system uses forward-facing camera to remember roadways and direct lighting to help drivers better see bends in the road – effectively lighting the way home on previously travelled routes
- Spot Lighting uses infra-red camera to detect pedestrians, cyclists, and animals, and highlight the potential hazards; system can detect up to eight potential hazards and highlight two highest priorities using specially designed headlights and on-screen display
AACHEN, Germany, July 17, 2015 – Driving at night, particularly on unlit roads, can be a nerve-wracking experience. Ford is developing new lighting technologies that will enable drivers to more easily identify potential hazards, including pedestrians, cyclists and animals.

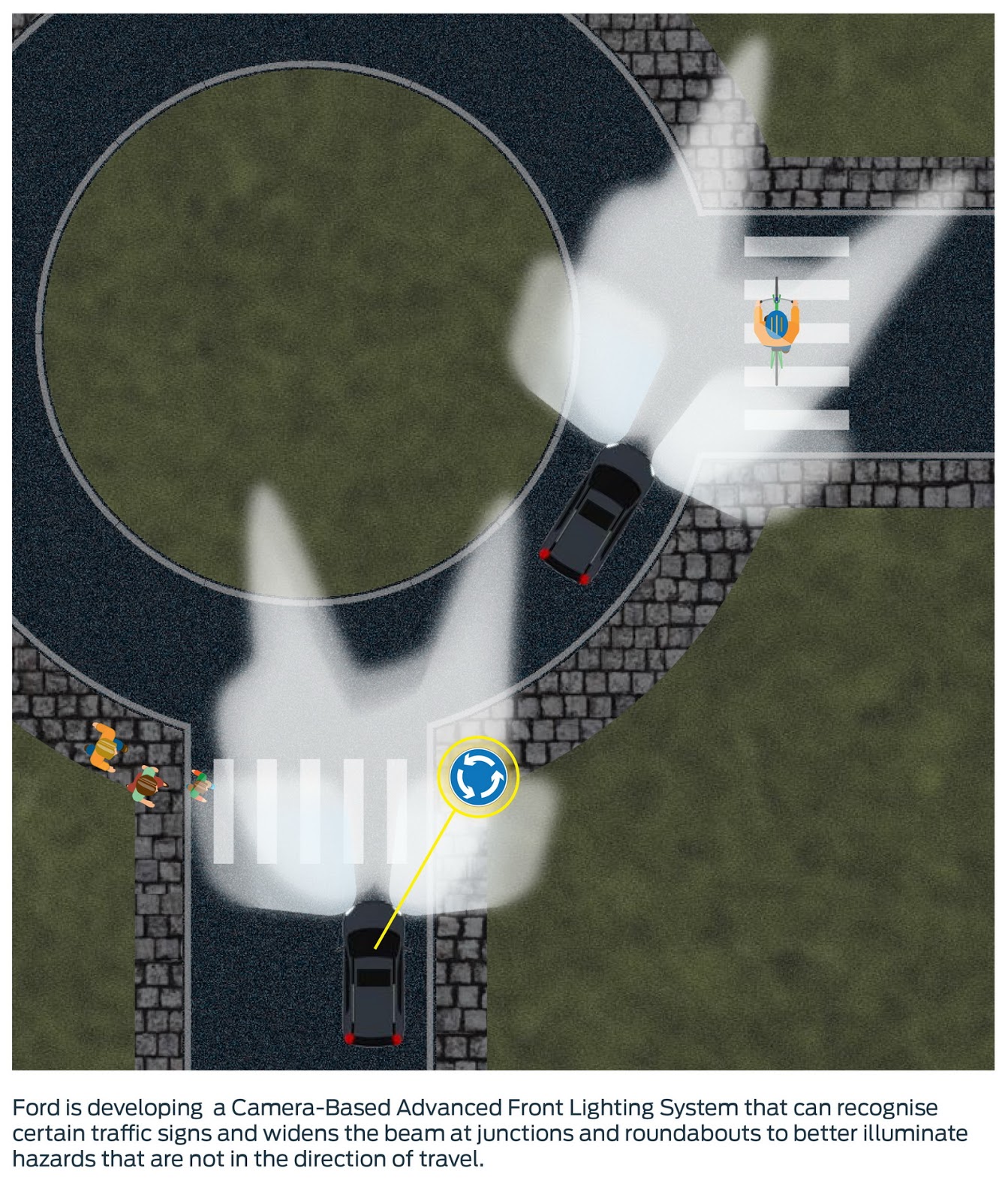

Ford’s Camera-Based Advanced Front Lighting System can widen the beam at junctions and roundabouts to better illuminate hazards that are not in the direction of travel. New Spot Lighting technology helps draw the driver’s attention to pedestrians, cyclists and even large animals in the vehicle’s path or even just off the road.
“Many people who drive at night have had to quickly react to someone or something suddenly appearing in the road – as if from nowhere. Ford’s Camera-Based Advanced Front Lighting System and Spot Lighting help ensure the driver is quickly alerted to people or animals that could present a danger,” said Ken Washington, vice president, Ford Research and Advanced Engineering.
Camera-Based Advanced Front Lighting System builds upon Ford’s Adaptive Front Lighting System and Traffic Sign Recognition, which are already available in Ford vehicles, to provide drivers with improved visibility at roundabouts, stop, and give way or yield signs.

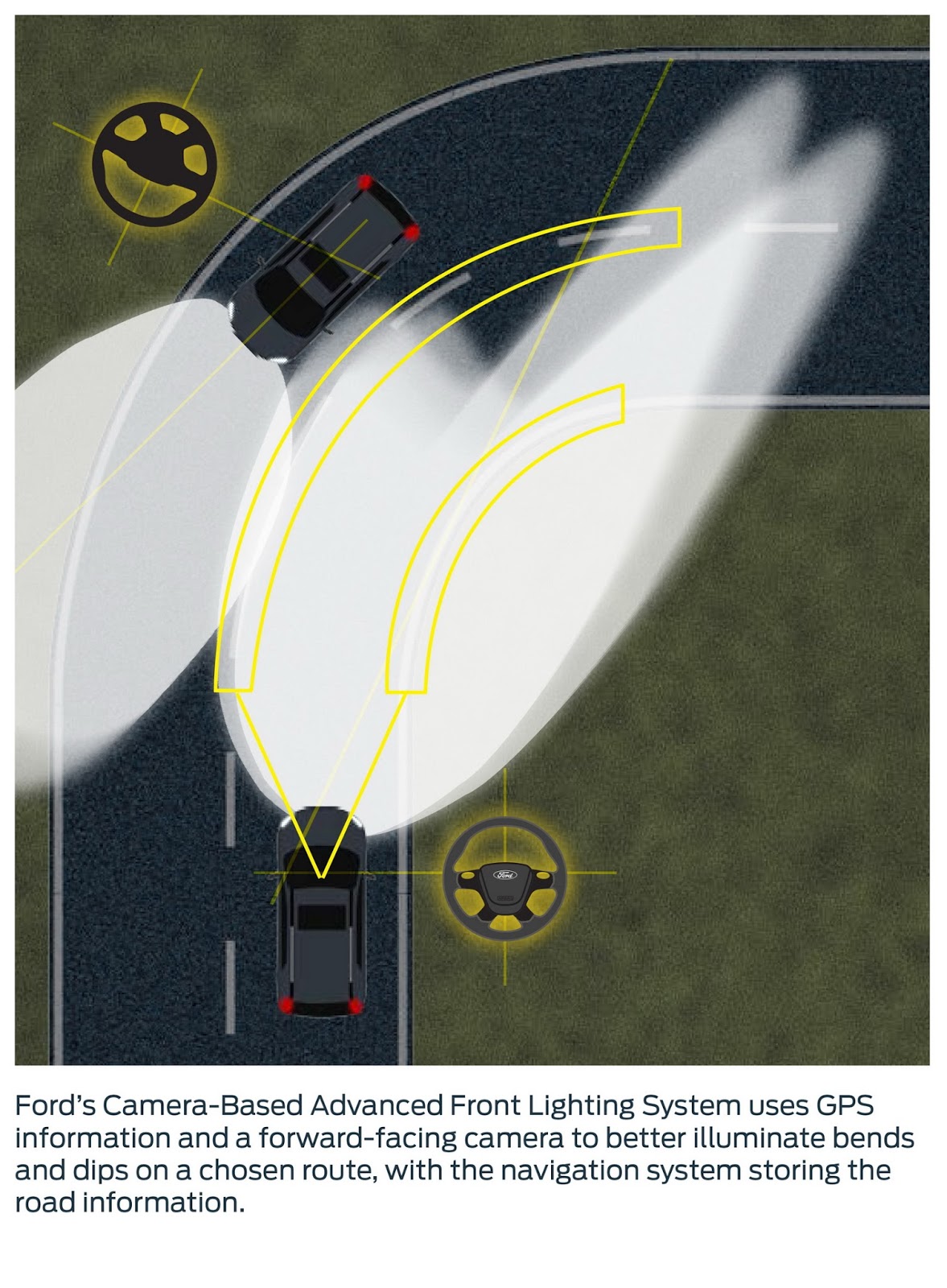

The system also uses GPS information to better illuminate bends and dips on a chosen route. Where GPS information is not available the technology uses a forward-facing video camera mounted in the rear-view mirror base to detect lane markings and predict the road’s curvature, using the information to illuminate the area more effectively.
In a further evolutionary step, in those instances, the camera stores the information in the navigation system. When next the driver uses the same road again, the headlights adapt to the course of the road automatically to better light the way.
Camera-Based Advanced Front Lighting System was developed at Ford’s European Research and Innovation Centre in Aachen, Germany, and Ford expects the technology to be available for customers in the near term.

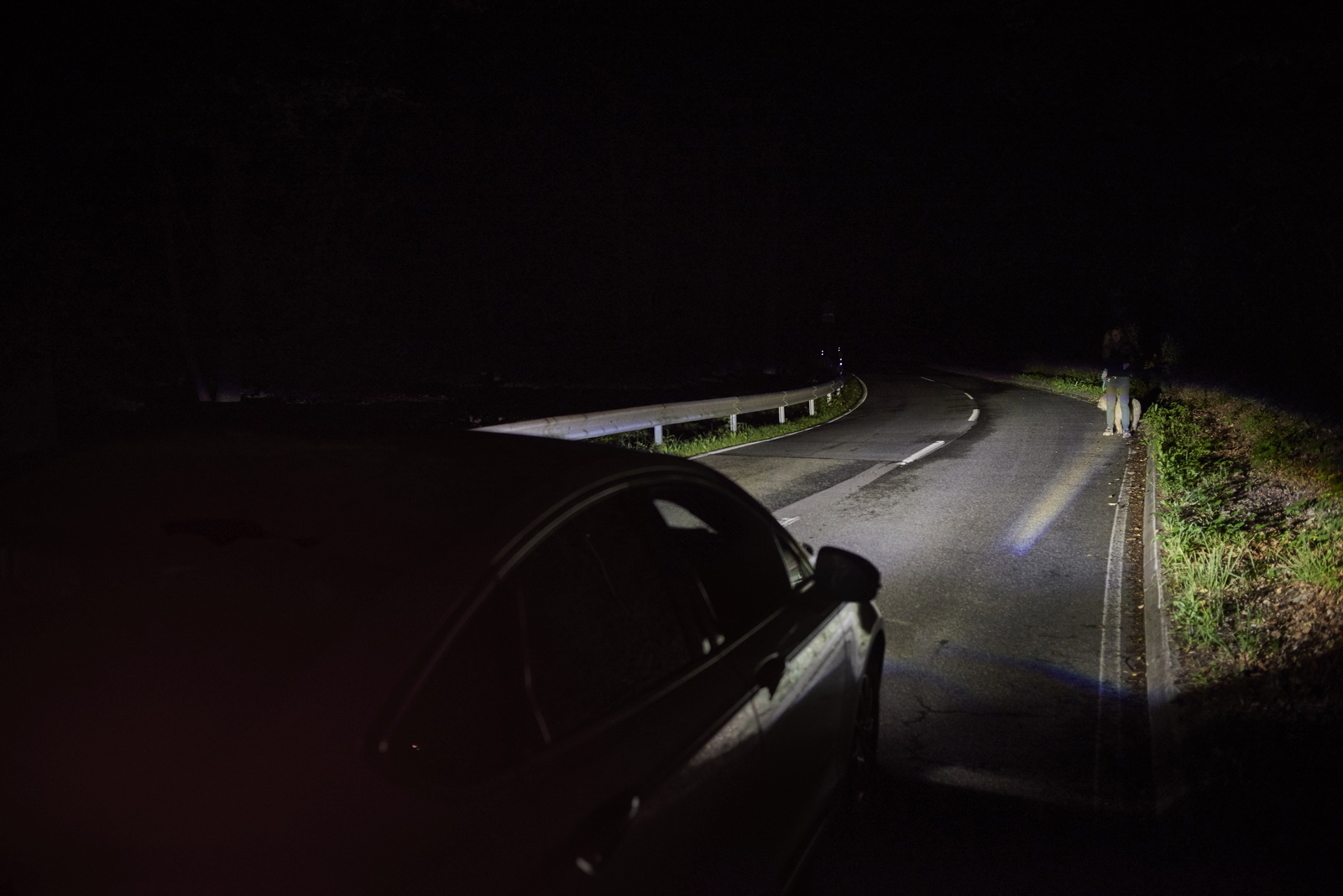

Spot Lighting – currently in the pre-development phase with Ford engineers in Aachen – uses an infra-red camera in the front grille to simultaneously locate and track up to eight people and bigger animals, including larger dogs, at a range of up to 120 metres.

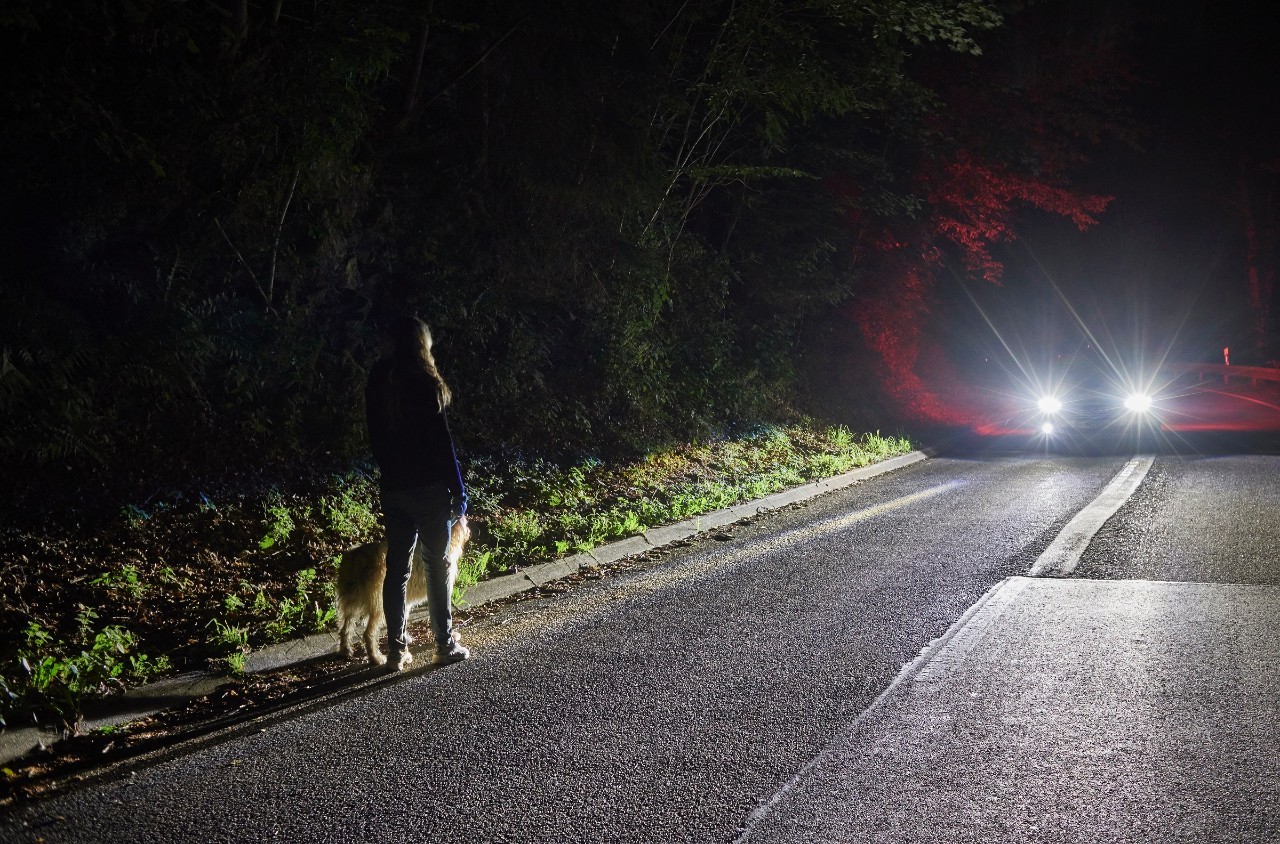

The system can spotlight two hazards for the driver with a spot and a stripe on the road surface, illuminated by two special LED lamps next to the fog lights. The highlighted objects are displayed on the screen inside the car, marked in a red or yellow frame, according to the proximity of the object and the level of danger presented.
“Camera-Based Advanced Front Lighting can help make it easier for the driver to travel at night in unfamiliar surroundings, and to more easily see unexpected hazards. At roundabouts, for example, our system helps the driver to clearly see the exits – and check if cyclists and pedestrians are crossing the road,” said Michael Koherr, research engineer, Lighting Systems, Ford of Europe. “Spot Lighting makes potential hazards in the road ahead more easily visible to the driver – whether that is a pedestrian, a cyclist, or even a large animal.”
Road safety reports show that on unlit roads there is a significantly increased likelihood of accidents, and that such accidents could involve personal injuries, or fatalities.* Ford is a leading innovator in lighting technology. Systems currently available on Ford vehicles include:
Dynamic LED Headlights which combines full-LED headlamps offering daylight-mimicking light clarity with Ford’s Adaptive Front Lighting System. The system adjusts the headlight beam angle and intensity to match the driving environment. It can choose one of seven settings according to vehicle speed, ambient light conditions, steering angle, distance to the vehicle in front and windscreen wiper activation
Glare-Free Highbeam technology for the adaptive LED headlamps. The system detects vehicles ahead and fades out light that could dazzle oncoming drivers, while retaining maximum illumination for other areas
Auto High Beam Control detects oncoming vehicles and automatically switches to dipped beam, before switching back to high beam once it detects the vehicle has passed
* The Handbook of Road Safety Measures, Elvik
