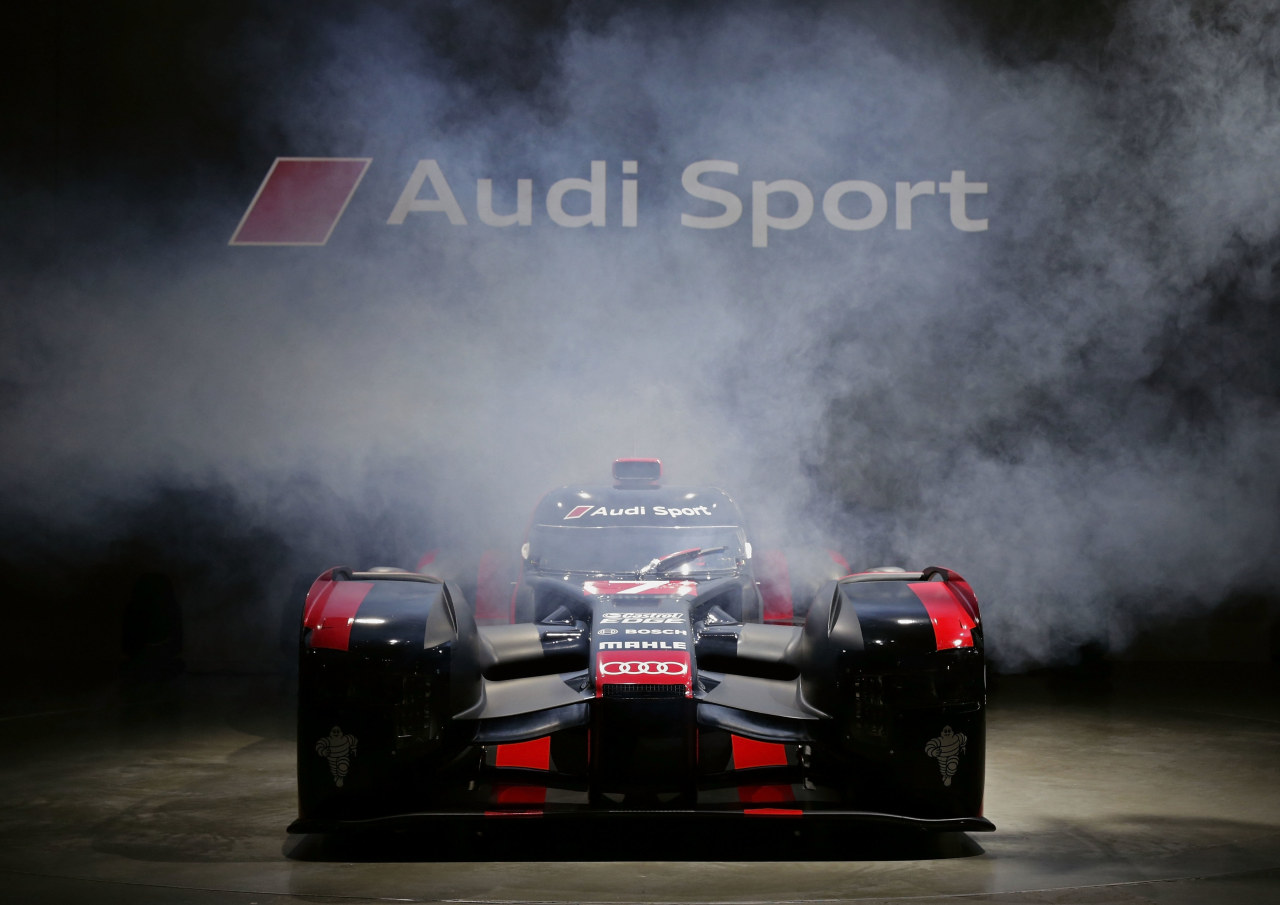

Audi_R18_e-tron_quattro_2016_05

Το αγωνιστικό τμήμα της Audi παρουσίασε σήμερα το R18, το οποίο θα συμμετάσχει στο παγκόσμιο πρωτάθλημα αντοχής (WEC) της FIA, καθώς φυσικά και στον 24ώρο αγώνα του Le Mans.

Η γερμανική εταιρία αναφέρει ότι το νέο R18 έχει επανασχεδιάσει από λευκό χαρτί, μη έχοντας σχεδόν τίποτα κοινό με τον προκάτοχο του, καθώς ακόμα και το μονοκόκ σασί είναι νέο και διαθέτει βελτιωμένες αναλογίες. Η πρώτη σημαντική αλλαγή –που είναι και άμεσα εμφανής– είναι στην αεροδυναμική του αγωνιστικού και ειδικότερα, στο εμπρός μέρος του.

Audi_R18_e-tron_quattro_2016_03

Η δεύτερη σημαντική αλλαγή, είναι η επικέντρωση στην οικονομία καυσίμου με σκοπό να πληρούν τους νέους κανονισμούς της FIA, που μείωσε της κατανάλωσης κατά 10 MJ ανά γύρο στο Le Mans, κάτι που σημαίνει ότι χρησιμοποιεί 10% λιγότερο καύσιμο. Το αγωνιστικό, πλέον θα συμμετέχει στην κατηγορία των 6 MJ, ενώ έχει αντικατασταθεί και το σύστημα αποθήκευσης ενέργειας με βολάν, με ένα πιο συμβατικό σύστημα μπαταριών ιόντων-λιθίου. Η μετάβαση στην “μεσαία” κατηγορία των 6 MJ θα δει το 2016 R18 e-tron quattro να πλησιάζει αρκετά τις επιδόσεις των βενζινοκίνητων ανταγωνιστών του που βρίσκονται στην κατηγορία των 8 MJ. Η MGU (Motor Generator Unit) βρίσκεται στον εμπρός άξονα και μετατρέπει την κινητική ενέργεια σε ηλεκτρική κατά το φρενάρισμα, με την μέγιστη ενέργεια που μπορεί να προσφέρει η MGU, βάσει κανονισμών, να είναι 408 άλογα (300 kW). To νέο αγωνιστικό της Audi δεν γυρνά την πλάτη στον 4-λιτρο V6 TDI, με την συνολική απόδοση του υβριδικού power unit να φτάνει τα 1.000 άλογα.

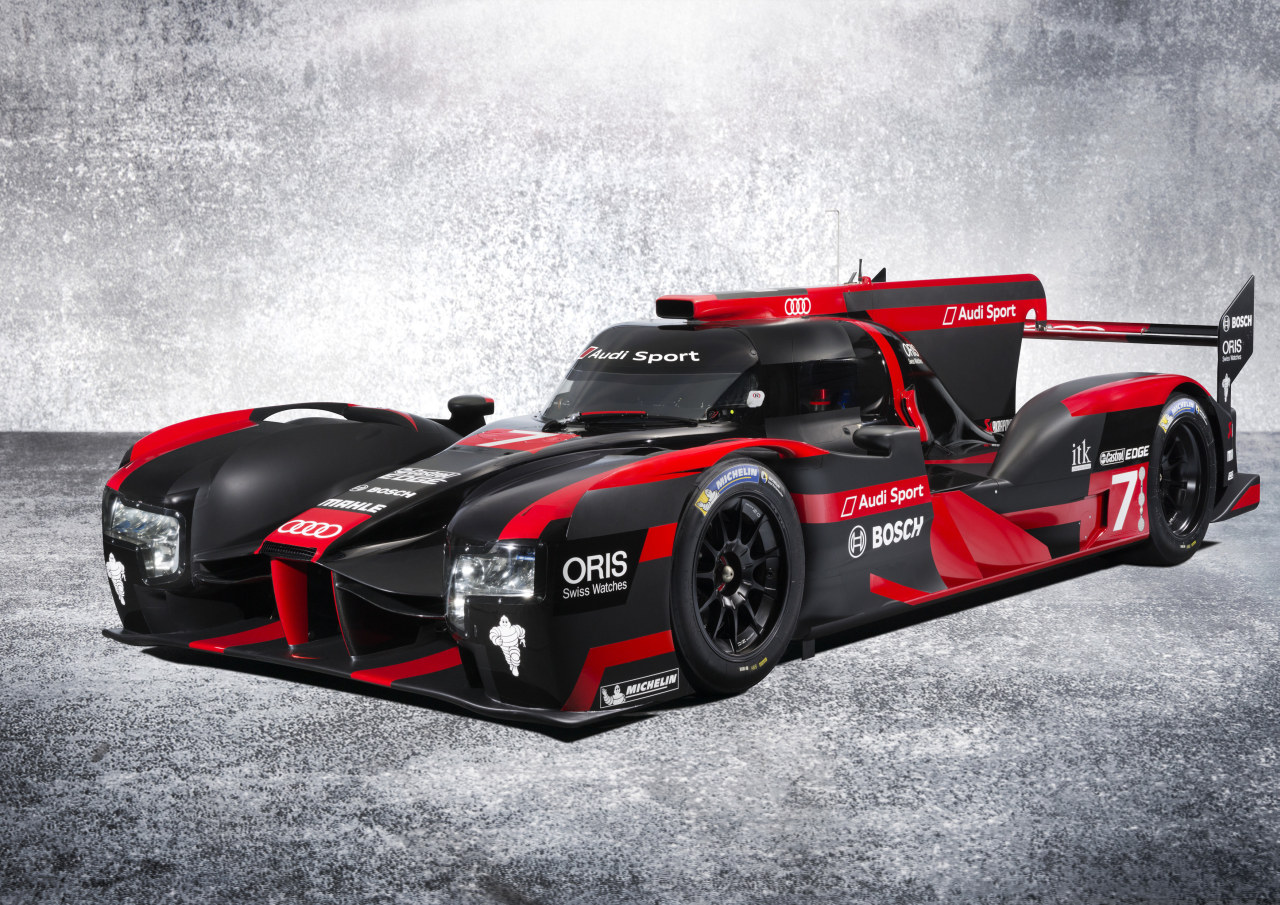

Audi_R18_e-tron_quattro_2016_02

Οι παραπάνω βελτιώσεις έχουν οδηγήσει σε 32,4% καλύτερη οικονομία καυσίμου του diesel κινητήρα, σε σχέση με την πρώτη γενιά το 2011, με την Audi να χρησιμοποιεί ελαφρύτερο και πιο αποτελεσματικό turbo, ενώ ορισμένα εξαρτήματα του κινητήρα είναι τοποθετημένα με διαφορετικό τρόπο, ώστε να δημιουργηθεί χώρος για τις νέες αεροδυναμικές λεπτομέρειες.

Τα πληρώματα των αγωνιστικών της Γερμανικής ομάδας, με τα νούμερο 7 και 8 παραμένουν απαράλλαχτα, κάτι που σημαίνει ότι το 2016 R18 θα οδηγήσουν οι: Marcel Fassler, Andre Lotterer, Benoit Treluyer και Lucas di Grassi, Loic Duval, Oliver Jarvis.

[learn_more caption=”Δελτίο Τύπου”]

Audi in the WEC 2016

Audi is competing in the 2016 FIA World Endurance Championship WEC with its all-new Audi R18.

Innovation boost for new hybrid sports car
For the FIA World Endurance Championship (WEC) and the Le Mans 24 Hours,
Audi is emphasizing focal areas in the 2016 season: The Audi R18 that has
been redesigned from scratch has almost nothing in common anymore with its
predecessor. It features a more radical aerodynamics concept, including a new
safety cell, its hybrid drive system is battery-operated for the first time, the V6
TDI engine has been revised, and new system solutions have been added. As a
result, Audi’s LMP1 sports car is a vehicle that is more powerful and – once
more – clearly more efficient than its predecessor. While the new R18 is Audi’s
strongest race car to date, it consumes less fuel than any of the generations
before it.
Power output of more than 1,000 hp delivered by the TDI and hybrid powertrain, ten
percent less fuel consumption than before – Audi is achieving new best marks under
the efficiency regulations. The FIA WEC regulations have been providing automobile
manufacturers with incentives to build increasingly efficient race cars since 2014.
Starting in the 2016 season, this competition will intensify, as the upper limit for fuel
consumption will considerably decrease by 10 megajoules per lap at Le Mans. “The
result is a race car that manages energy even more effectively than before. This is an
objective we’re pursuing for our road-going automobiles as well,” says Head of Audi
Motorsport Dr. Wolfgang Ullrich. “This type of motorsport continues to set an example
for automotive engineering. For Audi, production relevance has been a core topic of
all racing programs for 35 years.”
All development engineers at Audi Sport were challenged to enhance the efficiency of
the Audi R18. As a result of switching to the 6-megajoule class, the hybrid system,
due to the regulations, now recovers 50 percent more energy. The car’s
aerodynamics concept is fundamentally new. Nearly all vehicle systems have been
refined or redesigned. Consequently, energy consumption decreases, the race car
has become lighter, and allows for more favorable packaging of the component
assemblies. This has resulted in an R18 which even visually clearly differs from its
predecessor.

New structure for optimized aerodynamics
No other race car embodies the philosophy of optimized aerodynamics as
consistently as the LMP1 sports cars that render a futuristic impression. When looking

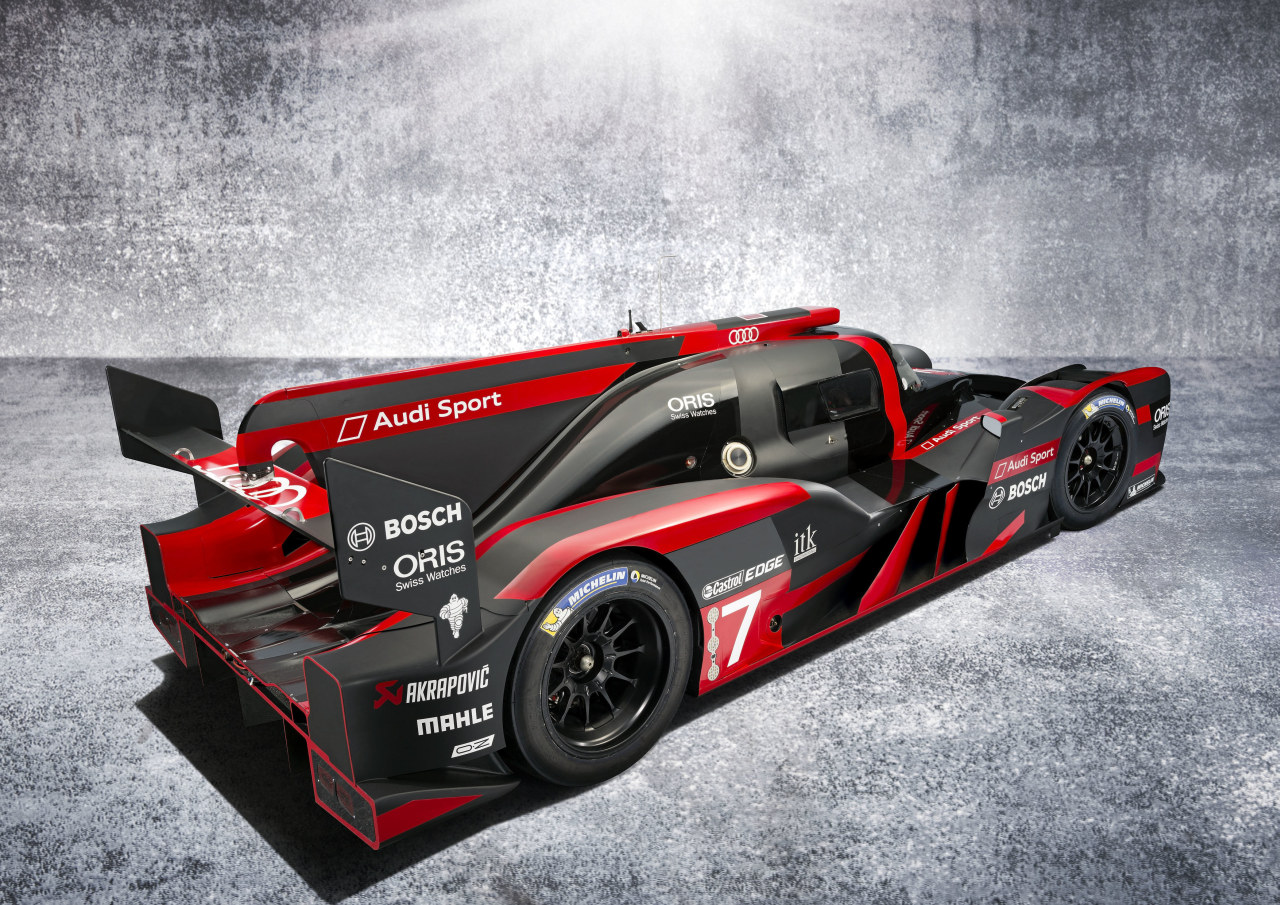

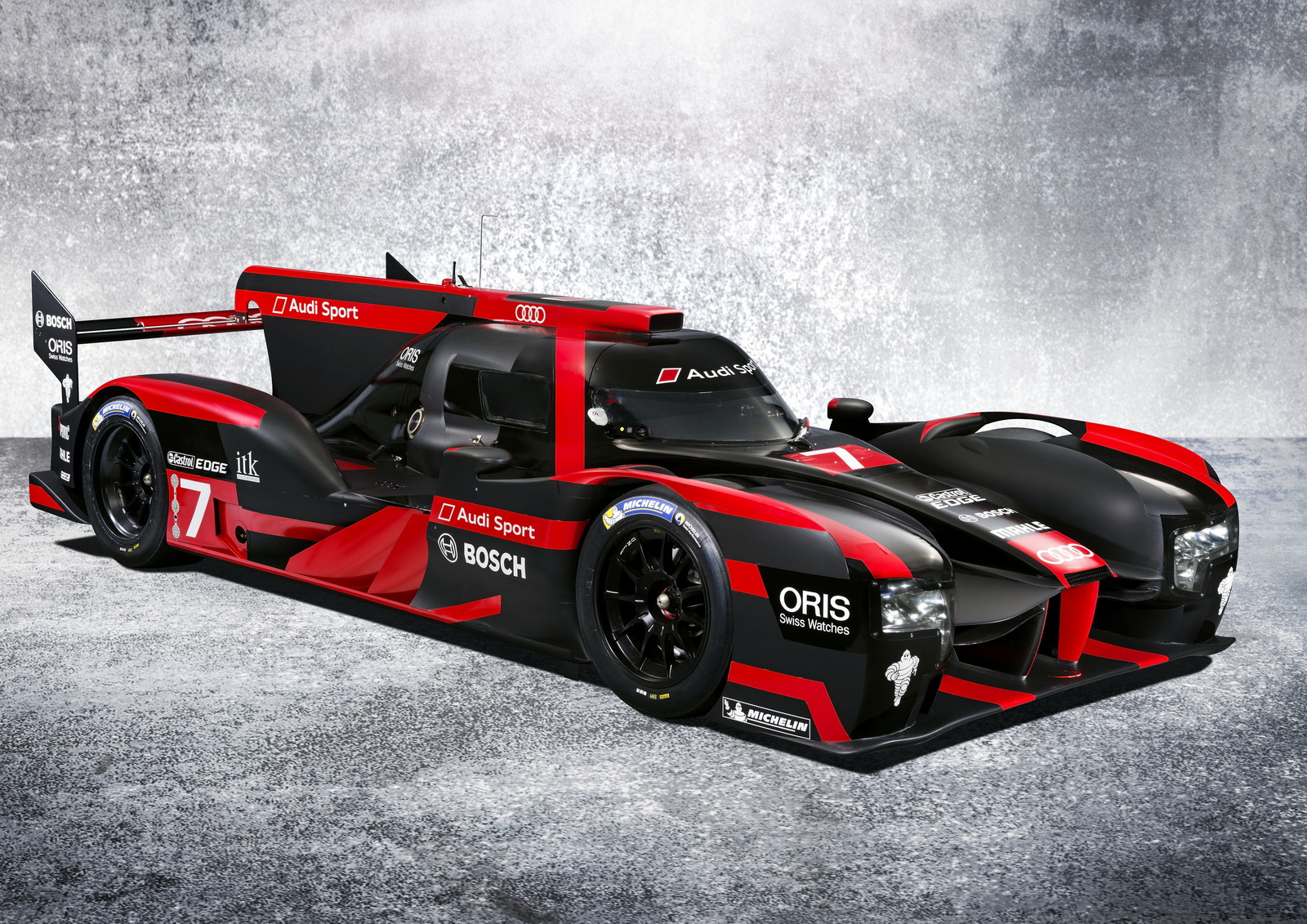

at the new Audi R18, a significantly altered exterior strikes the eye. The proportions of
the front end and the cabin within the overall vehicle length have changed and the

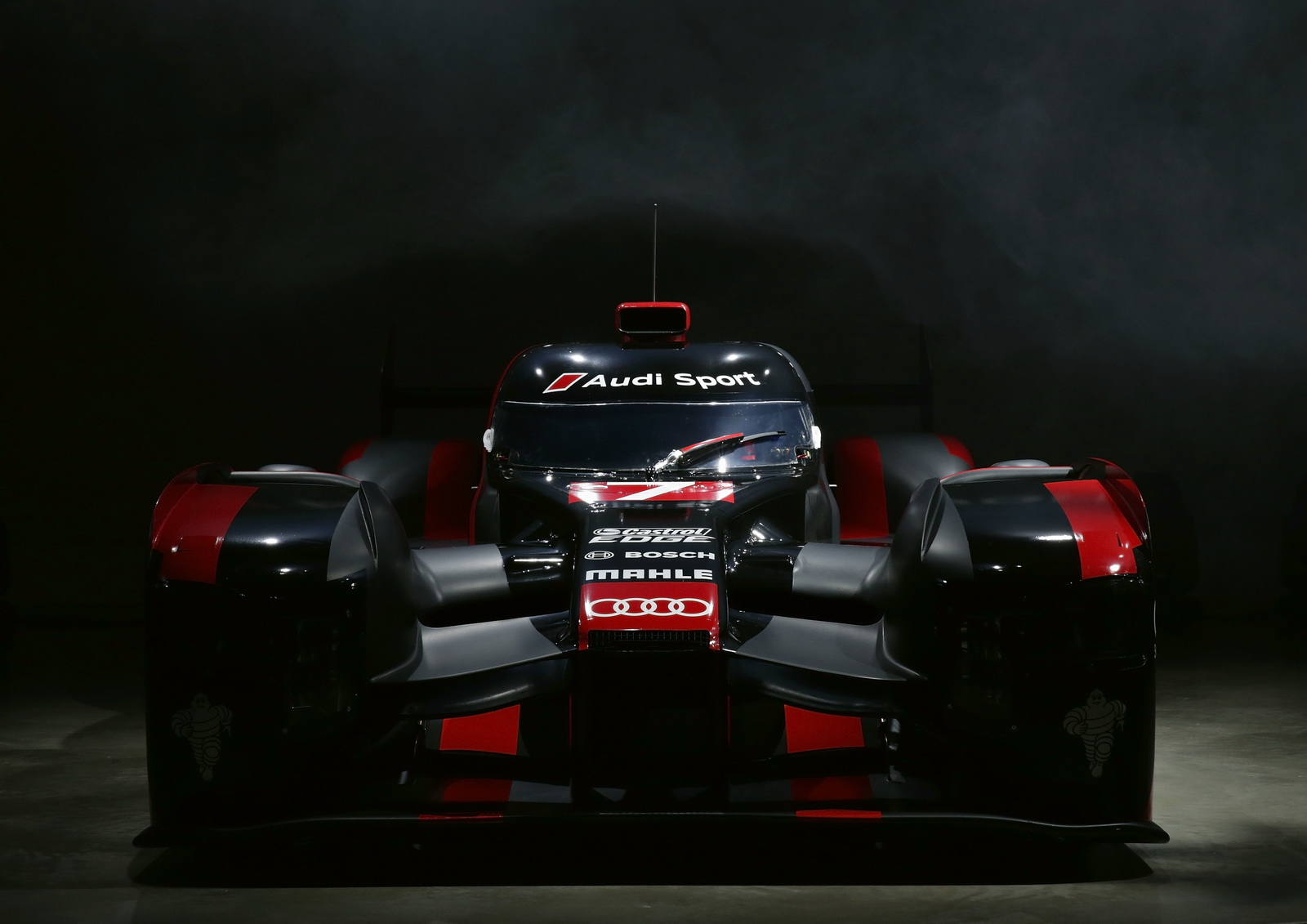

conspicuous nose of the race car is clearly slimmer than before.
“The new proportions influence weight distribution and aerodynamics,” explains Jörg
Zander, Head of Engineering at Audi Sport. “Our most important objective was to
improve airflow.” At the front end, airflow has to be directed across the top of the race
car and between the wheel wells, enter the cooling ducts through the body shell, and
optimally approach the underfloor. “In this process, vortices must be avoided, as this
costs energy,” says Zander. Undesirable vortices and turbulent flow would reduce the
energy in the airflow and increase resistance. The smaller the space which the
monocoque – the central stressed structure and safety cell of the race car – occupies
in this area the larger are the clearances for low-loss airflow. Thanks to the new
proportions, the new Audi R18 directs airflow even more effectively to optimally
approach the underfloor. At the rear, the air exits again through the diffusor. As a
result, it produces a major portion of the downforce under the race car, which is
beneficial in cornering. Audi developed a new monocoque, modified the proportions
within the prescribed maximum length of 4,650 millimeters, and designed all the
component assemblies accordingly.
New as well are the dimensions and positions of the prescribed openings in the front
wheel arches. They are intended to reduce undesirable aerodynamic lift effects in the
case of lateral airflow. Their areas have been enlarged by 45 percent compared with
the 2015 season.
Creative detailed solutions in the chassis
This new concept requires innovations in many other areas. The suspension is a case
in point. Due to the new monocoque, the mounting points for the front suspension
have significantly changed. To make them more compatible with the position of the
drive shaft for the hybrid system, the new mounting points have been rearranged.
Suspension kinematics has been significantly revised. Wishbones featuring a new
design are now used for wheel guidance. The lift and roll spring-damper elements are
actuated via pushrods at the front. The rear suspension kinematics has been

optimized as well. As in the case of the previous-generation vehicle, the springdamper
elements are controlled using pullrods. Optimum balance of the race car in all
speed ranges is guaranteed by balancers of the Linked Suspension System (LSS) in
the chassis.
The transmission is a new design as well. Audi’s simulations revealed that the
optimized engine allows a very good gear ratio spread with minimal rpm jumps even
in combination with a six-speed instead of the previous seven-speed unit. As a result,
the engineers managed to further reduce the weight of the transmission. In the other
areas of the vehicle’s structure, Audi rigorously pursued its lightweight design
approach as well, while retaining the high torsional stiffness of the chassis.
In addition, new solutions for the actuators of individual systems of the Audi R18 help
reduce weight. While in the previous-generation vehicle electrical actuators were still
operating in the braking, transmission and engine systems, the new Audi R18 uses
an all-new development of a high-pressure central hydraulic system. The regulations
prescribe a minimum weight of 875 kilograms for the LMP1 hybrid sports cars. In
spite of a more powerful and therefore necessarily heavier hybrid system, Audi does
not exceed this limit.
New approaches to hybrid drive
Hybrid pioneer Audi, the first manufacturer to have won the Le Mans 24 Hours with
an energy recuperation system, was using a flywheel energy storage system from
2012 to 2015. Now the time is ripe for the next step. In the future, a battery will be
accumulating the energy. Electrokinetic technology is being replaced by an
electrochemical storage system. “The flywheel accumulator definitely proved viable
for the lower energy classes,” explains Thomas Laudenbach, Head of Electrics,
Electronics and Energy Systems at Audi Sport. “But due to the fact that we now have
to process even more energy than before, a technology change suggested itself.” The
previous flywheel accumulator guaranteed high power density. Now, favorable energy
density has to be achieved as well, as Audi is switching to a higher hybrid energy
class. Starting in the 2016 season, the amount of energy will increase by 50 percent
to 6 megajoules. When comparing this level with the one from the 2014 season, the
engineers have even tripled the amount of recuperated energy within this period of
time.

For the first time, Audi will be relying on a lithium-ion accumulator as the hybrid
energy storage system. Since 2009, the batteries for the electrical system of the LMP
sports cars with the four rings have been based on this technology. The productionbased
cells of the new hybrid storage system use advanced and powerful cell
chemistry and are serially connected. The system is located within the high-strength
safety structure in the monocoque and separately encapsulated once more. Electrical
and electronic safety systems monitor various parameters – from individual cells
through to the overall high-voltage system – and will intervene if necessary. The
shutoff logic naturally includes crash detection.
The energy stored by the system is generated by an MGU (Motor Generator Unit) at
the front axle. The Audi R18 converts the rotary motion of the front wheels into
electrical energy when the driver brakes before entering a turn and feeds it into the
storage system. This way, the hybrid sports car utilizes energy that would otherwise
be lost. If the race driver accelerates again on exiting the turn, the current flows in the
opposite direction to power the MGU. As a result, the front axle of the R18 helps
accelerate the race car again. A low-temperature cooling circuit, which is separate
from the engine cooling system, cools the battery cells, MGU, and power electronics.
From the 2016 season on, there will be a track-specific limitation imposed on power
output in addition to the previous energy classes. Although the MGU may recuperate
any desired amount of energy, it may now only supply 300 kW (408 hp) in the race at
Le Mans. Audi has designed its MGU for an output of more than 350 kW (476 hp) in
order to recover as much energy as possible. The reason is that even when braking
at high speed, the braking phases of an LMP1 race car last only three to five
seconds. The high system output helps efficiently recover the required energy. At Le
Mans, the system may only supply 300 kW during subsequent acceleration.
Accordingly, the energy from the hybrid system will be available for a longer period of
time. This limit does not apply to the other FIA WEC rounds.
By opting for the 6-megajoule class, Audi has presented its most powerful MGU so
far. In 2012, Audi started with about 150 kW (204 hp) of electrical power output. To
date, this level has far more than doubled. Conceptually, the previous and the new
MGU are akin to each other. However, the power electronics, stator, and rotor are
new developments. This generation of the hybrid drive system delivers high output
and develops strong torque, as a result of which the loads acting on the components
that transmit power to the front axle increase accordingly. Audi uses a limited slip
differential at the front axle to transfer torque with minimal loss.

Less energy for the powerful and more efficient V6 engine
The developers of the hybrid drive system were allowed to increase output. The
engine development team headed by Ulrich Baretzky was confronted with the
opposite challenge for the 2016 season. The 4-liter V6 power-plant receives clearly
less fuel, which initially reduces its output. Two factors have to be considered in this
respect. Audi switched to a higher hybrid energy class – and the regulations allocate
less fuel to race cars which recuperate large amounts of energy. This aspect results
in a minus of about three percent. At the same time, another change is taking effect.
The speed of the LMP1 race cars continually increases. To control it, the officials of
the FIA, the WEC and the Le Mans organizer ACO allocate clearly less fuel energy to
the hybrid race cars. “This is a development which, as a manufacturer, we principally
support in order to control the lap times,” says Dr. Wolfgang Ullrich.
The basic concept of the V6 TDI engine dates to 2011. With its double-flow VTG
mono turbocharger, 120-degree cylinder bank angle, the exhaust gas side within the
V angle, and innovative detailed solutions the unit tends to be regarded as unusual.
The initial displacement volume of 3.7 liters increased to four liters in 2014. “We’re
now using the basic engine concept for the sixth consecutive year. This shows how
sound the basic idea still is,” says Ulrich Baretzky. “Due to efficiency increases, we
partially compensate for the lower amount of fuel.”
Among other things, the turbocharger is now lighter and more efficient. Externally, the
V6 TDI has changed as well. Individual components are now arranged differently in
order to make room for the new aerodynamics concept. The prescribed limitation of
the charge pressure to a factor of 4 does not change the engine’s torque of more than
850 Newton meters. The higher efficiency pays off, as the fuel cell capacity of the
race car has been reduced further as well – by eight percent to 49.9 liters.
Overall concept clearly more efficient
The efficiency increases of the race car are remarkable in a historic comparison. The
current V6 TDI consumes 32.4 percent less fuel than the first generation did in 2011.
This progress is even more substantial in a comparison with the original year of 2006.
Back then, Audi used TDI technology for the first time. Thanks to this technology, the
brand with the four rings has since clinched eight victories, a distance record, plus
two world championship titles. Today, Audi’s LMP1 race car with the current engine

uses 46.4 percent less fuel at Le Mans. Still, it achieves lap times that are ten to 15
seconds better than a decade ago. All of this is possible thanks to the sum of all the
advances that have been made in the areas of aerodynamics, lightweight design and
the powertrain.
Distinctive safety
In terms of safety, the LMP1 race cars will continue to set standards in the future as
well. Audi complements the exacting requirements of the regulations by in-house
research that far exceeds these rules. In the field of active safety – in other words the
detection of hazards and accident prevention – the Audi drivers can draw on a wealth
of tools. While the driver information monitor in the cockpit to display race control flag
signals is prescribed, Audi assists its drivers with a number of additional solutions.
For instance, Matrix LED headlights combined with Audi laser light optimize the light
beam of the race cars that can reach speeds of up to 340 km/h. Since 2015, Audi
customers have been able to order laser light in the second generation of the Audi R8
as well. Matrix LED technology has been making its way into a growing number of
model ranges.
Particularly good rearward vision is provided by a lightweight and energy-efficient
camera system in combination with an ultramodern AMOLED screen that serves as a
digital rear view mirror. Since the 2001 season, the drivers and pit crews have been
keeping their eye on tire inflation pressure using a tire pressure monitoring system.
And, last but not least, the Audi R18 automatically controls brake force distribution
with respect to the hybrid system in the respective operating condition.
In the event that an accident cannot be avoided, the passive safety systems take
effect. The monocoque consists of a high-strength CFRP structure with an aluminum
honeycomb core and has a front crash nose for energy absorption. In 2011, Audi was
the first manufacturer to use a single-piece monocoque. The cell has been provided
with additional side impact protection, as Zylon layers integrated into the cockpit walls
prevent the intrusion of objects. In rear-end collisions a CFRP structure at the
transmission absorbs the impact energy. Double wheel tethers have been
successfully used since the 2014 season and reduce the risk of wheels separating
from the race cars in accidents. Due to their rotary motion, wheels have high levels of
kinetic energy. The high-voltage protection systems ensure that the electrical currents
in the hybrid system can be safely controlled. There is no other motorsport discipline

that uses an equal amount of high technology to protect the driver before or during an
accident.
Be it in terms of the performance capabilities and safety of the race cars or the
furthering of efficiency and innovations: in the sum of all technological features, the
LMP1 class remains unique around the globe and therefore of utmost relevance for
the future of the automobile.

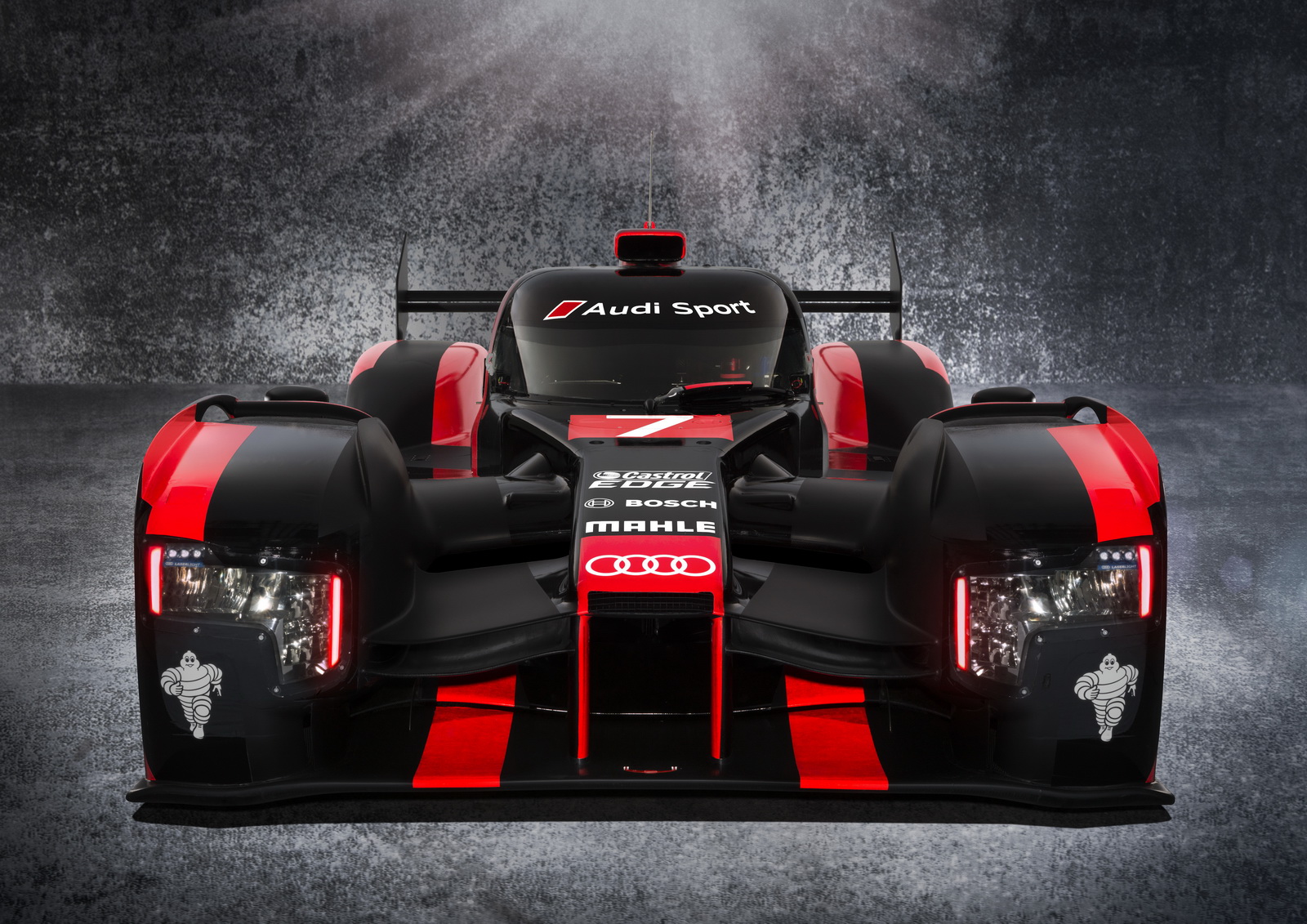

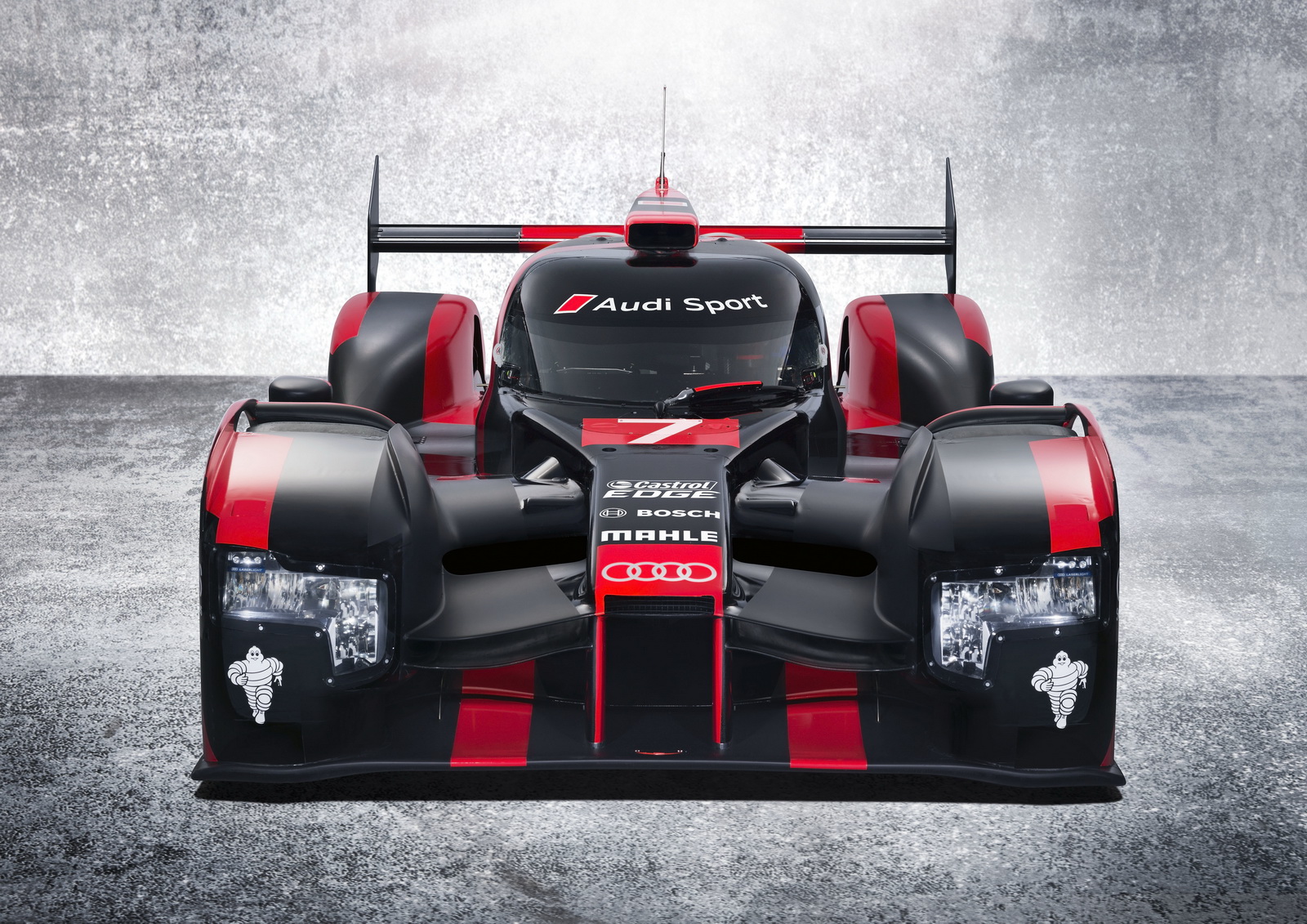

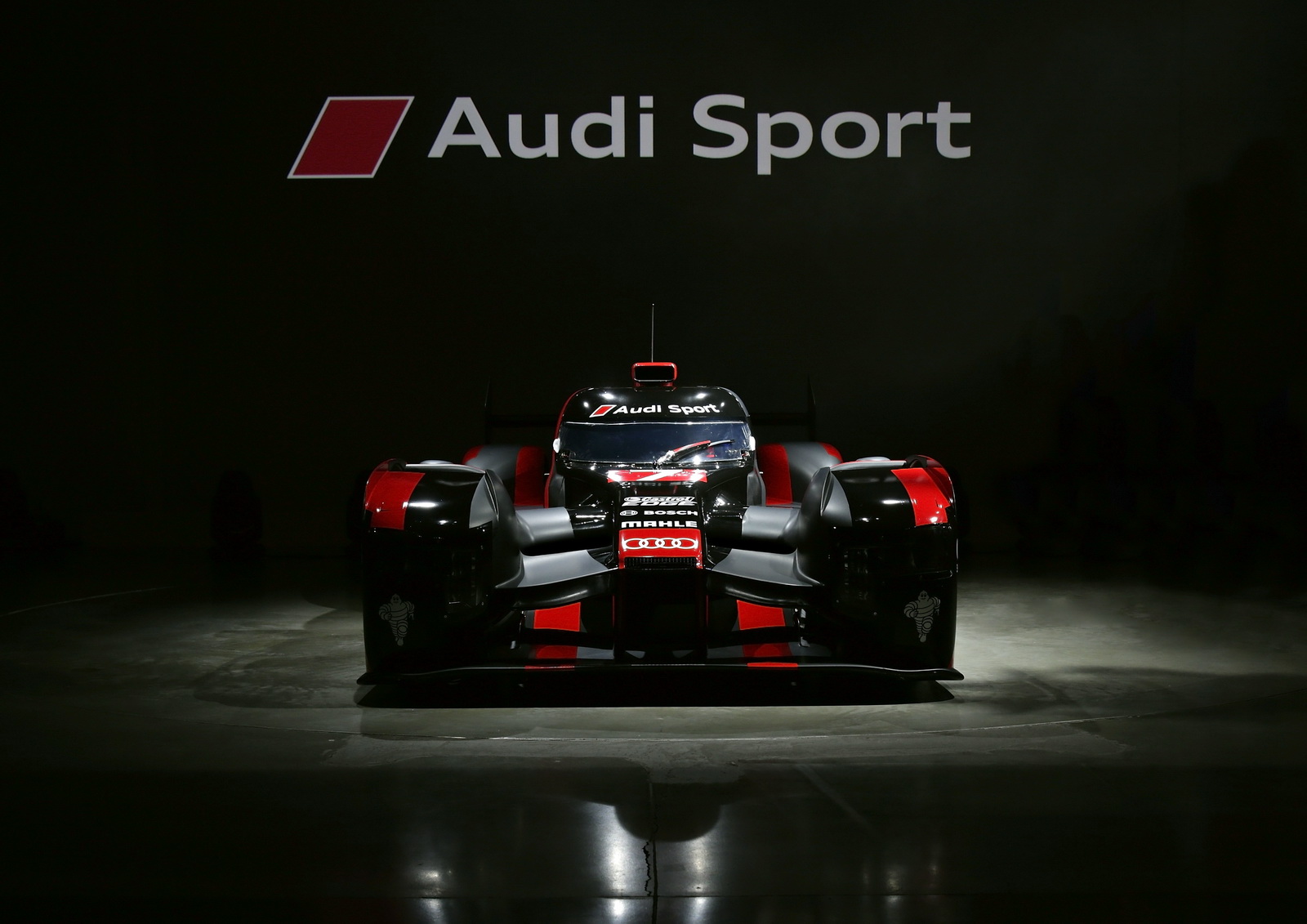

Technical data Audi R18 (2016)
As of: March 2016
Model Audi R18 (2016)
Vehicle
Vehicle type Le Mans prototype (LMP1)
Monocoque Composite fiber construction of carbon fibers with aluminum
honeycomb core and Zylon side panels, tested acc. to the strict FIA
crash and safety standards, front and rear CFRP crashers
Battery for electrical system Lithium-ion battery
Engine
Engine Audi TDI, V6 engine with turbocharger, 120-degree cylinder angle,
4 valves per cylinder, 1 Garrett VTG turbocharger, TDI diesel direct
injection, aluminum cylinder crankcase, fully stressed
Cubic capacity 4,000 cc
Power output Over 378 kW (514 hp)
Torque Over 850 Nm
Hybrid system
Type of storage system Electrochemical due to lithium-ion battery,
over 2 MJ of usable storage capacity
Motor Generator Unit (MGU) One MGU at the front axle, integrated limited slip differential. Lowtemperature
cooling circuit for MGU, integrated power electronics and
energy storage. MGU output: over 350 kW for recuperation/boost
(300 kW for boost at Le Mans)
Output class ERS 6 MJ (valid for Le Mans race track)
Drivetrain/transmission
Type of drive Rear-wheel drive, traction control (ASR),
e-tron quattro four-wheel drive in hybrid mode
Clutch CFRP clutch
Transmission Sequential 6-speed racing transmission
Differential Limited slip differential rear
Transmission housing CFRP with titanium inserts
Drive shafts Constant-velocity tripod-type plunge joints
Suspension/steering/brakes
Steering Servo-assisted rack and pinion steering
Suspension Front and rear independent suspension on upper and lower wishbones,
pushrod system at the front axle and pullrod system at the rear axle
with adjustable dampers, two wheel tethers per wheel
Brakes Hydraulic dual-circuit braking system, monoblock light-alloy brake
calipers, ventilated carbon fiber brake discs front and rear
Wheels OZ magnesium forged wheels
Tires Michelin Radial,
Front: 31/71-18, rear: 31/71-18
Weight/dimensions
Length 4,650 mm
Width 1,900 mm
Height 1,050 mm
Minimum weight 875 kg
Fuel cell capacity 49.9 liters

[/learn_more]
