Η EDAG στη Γενεύη μας παρουσιάσει το Genesis Concept, ένα νέο πρωτότυπο φουτουριστικό όχημα το οποίο το περιγράφει ως ένα αυτοκίνητο που θα μας δείχνει το μέλλον της αυτοκινητοβιομηχανίας.
Πηγή έμπνευσης γι’αυτό αποτέλεσαν οι χελώνες, με το εξωτερικό κέλυφος του αυτοκινήτου να προστατευτεί τον σκελετό του. Το σημείο με το μεγαλύτερο ενδιαφέρον του συγκεκριμένου αυτοκινήτου είναι η διαδικασία κατασκευής του, με την εταιρία να γνωρίζει πως ακόμη απαιτούνται πολλά χρόνια ώστε να περάσουν στη παραγωγή τεχνολογίες όπως επιλεκτική τήξη και πήξη με λέιζερ, στερεολιθογραφία και Fused Deposition Modeling, μια διαδικασία η οποία μπορεί να κατασκευάσει μέρη ενός αυτοκινήτου, μόνο από ένα μονοκόμματο κομμάτι από θερμοπλαστικά υλικά και carbon, έτσι ώστε να επιτευχθεί η απαιτούμενη αντοχή και ακαμψία.
[Πηγή: EDAG]
[learn_more caption=”Δελτίο Τύπου”]
“EDAG GENESIS” world premiere at the Geneva Motor Show 2014
With its latest exhibit, “EDAG GENESIS “, EDAG offers a visionary outlook for the future of automotive development and production.
A component, module, or even a complete, one-piece vehicle body produced in one single production process! Impossible? Current advances in additive manufacturing have brought what still sounds like Utopia one step closer to reality! Reason enough for EDAG, one of the leading engineering service providers in the automotive industry, to assess the status quo of additive manufacturing processes with a view to their industrial application for components, modules and complete vehicle bodies, and analyse a possible time frame.

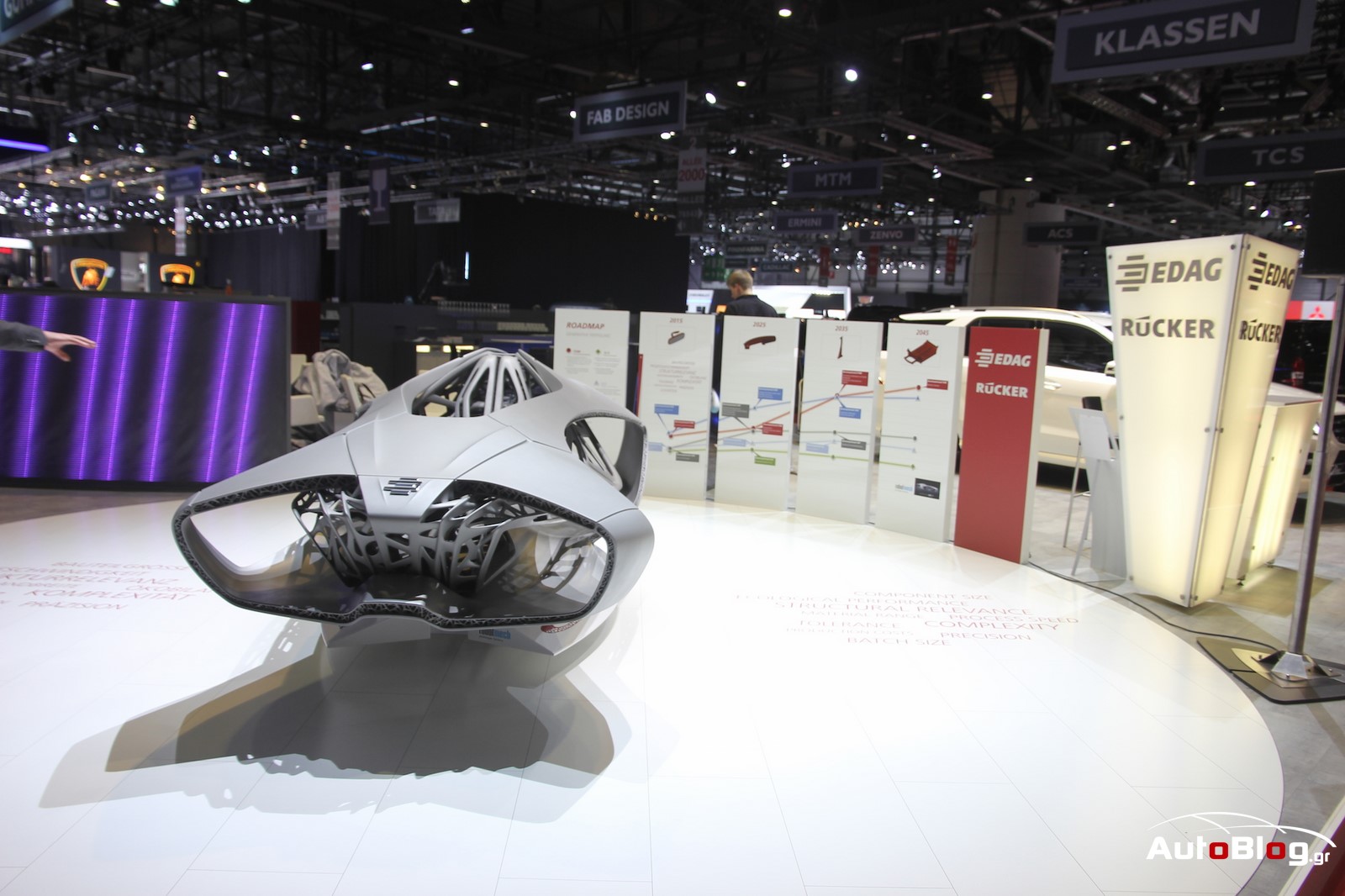

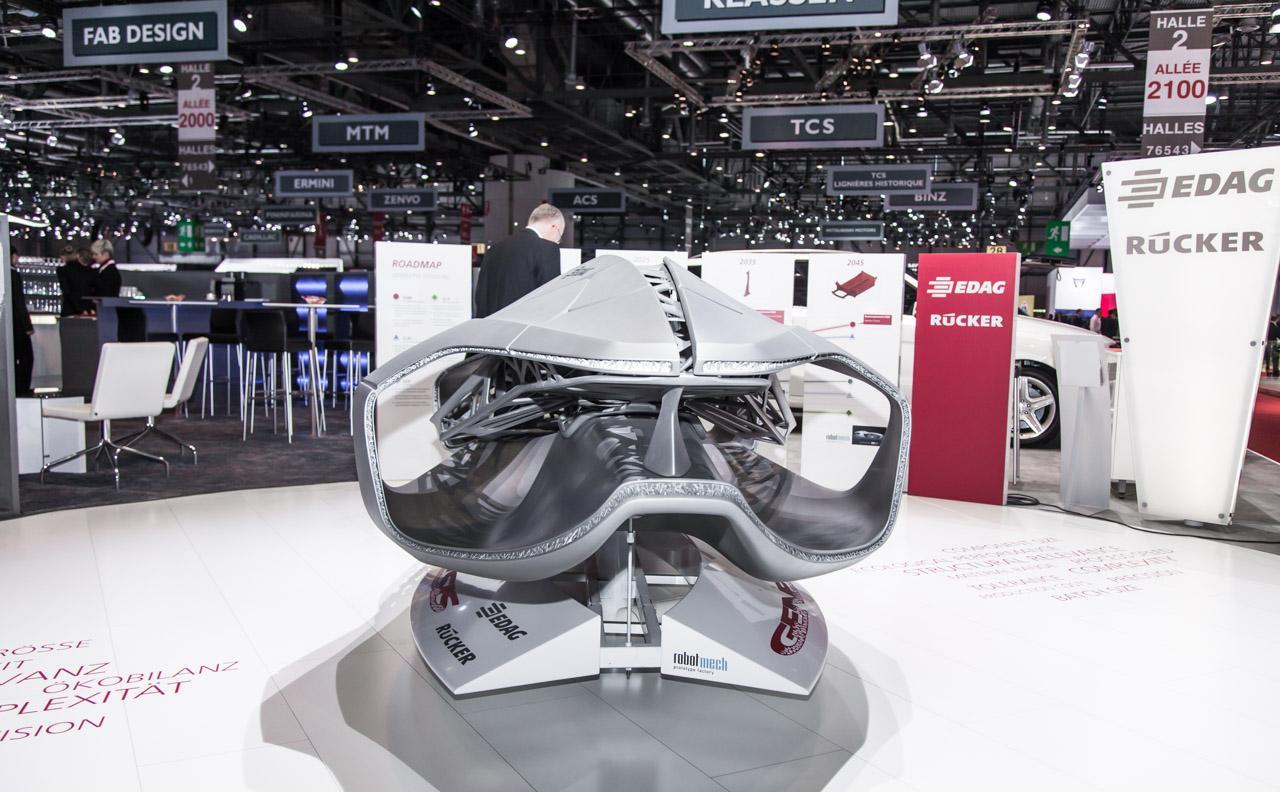

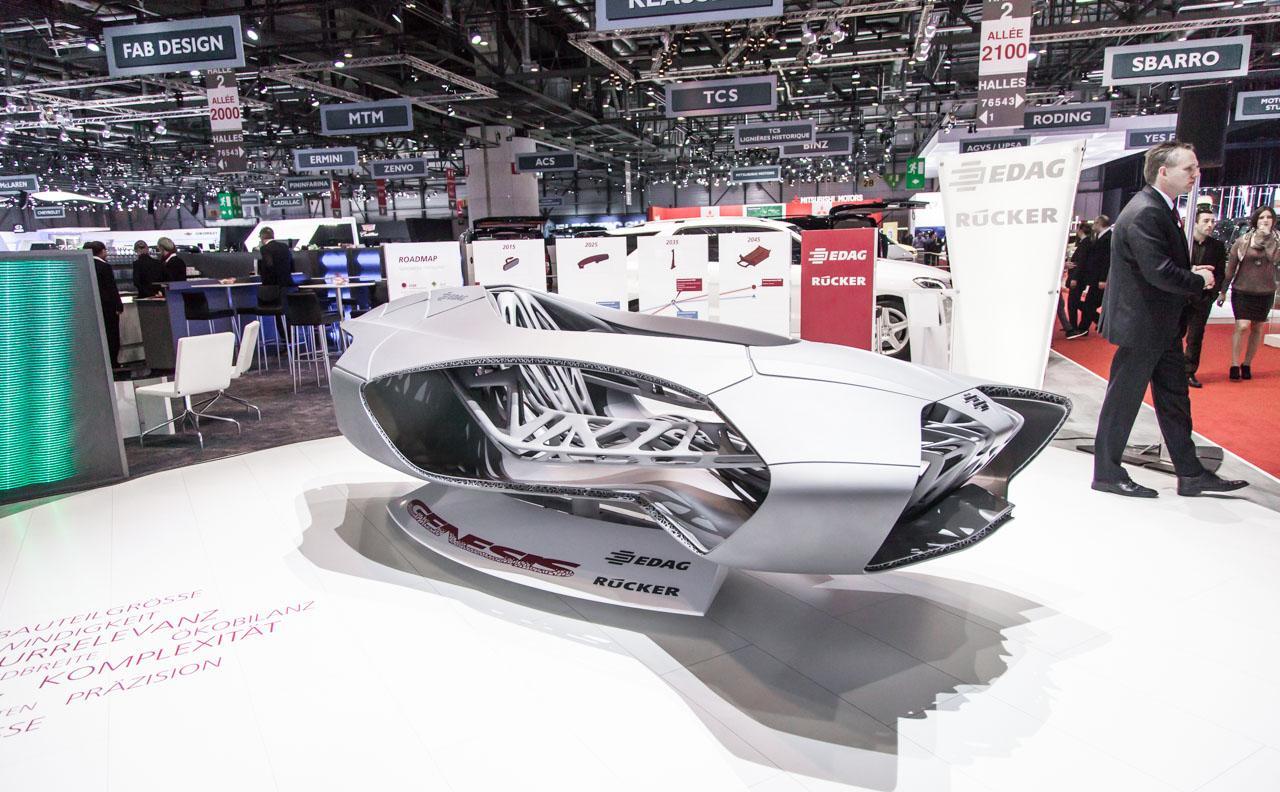

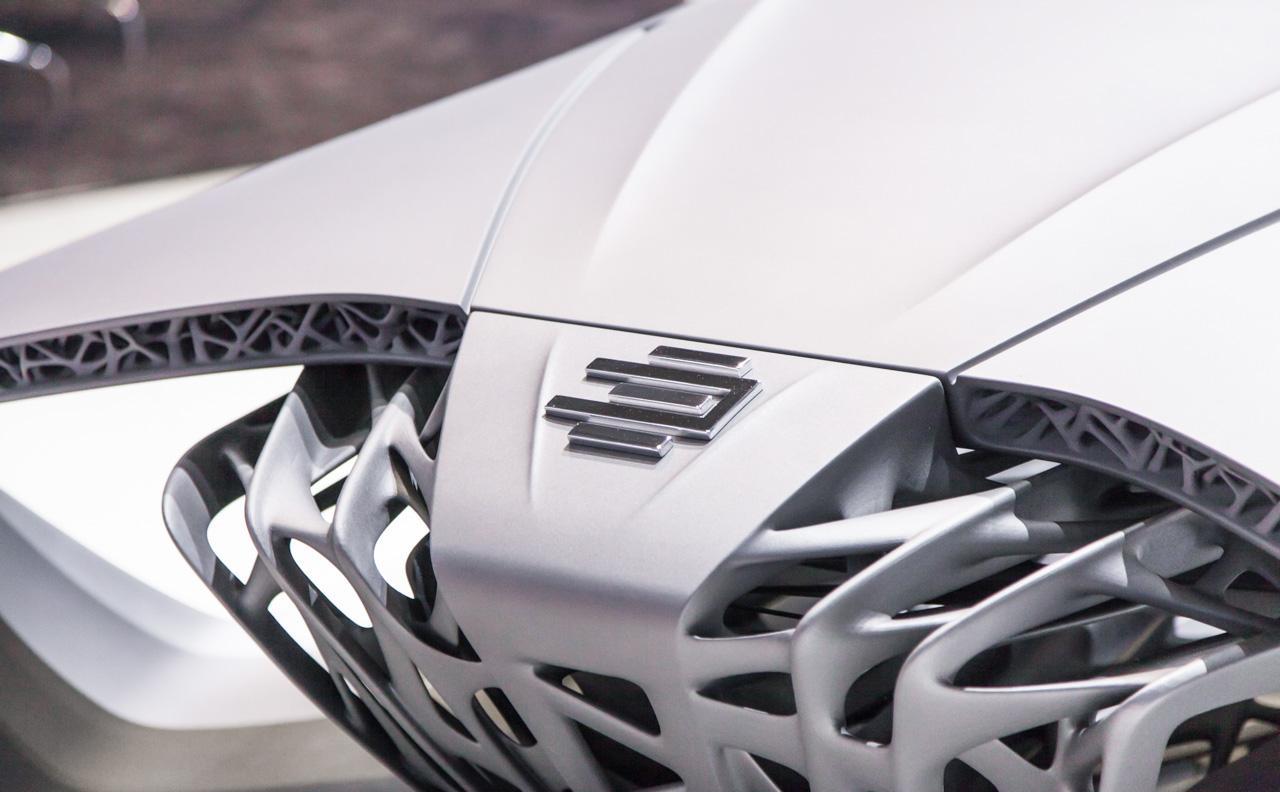

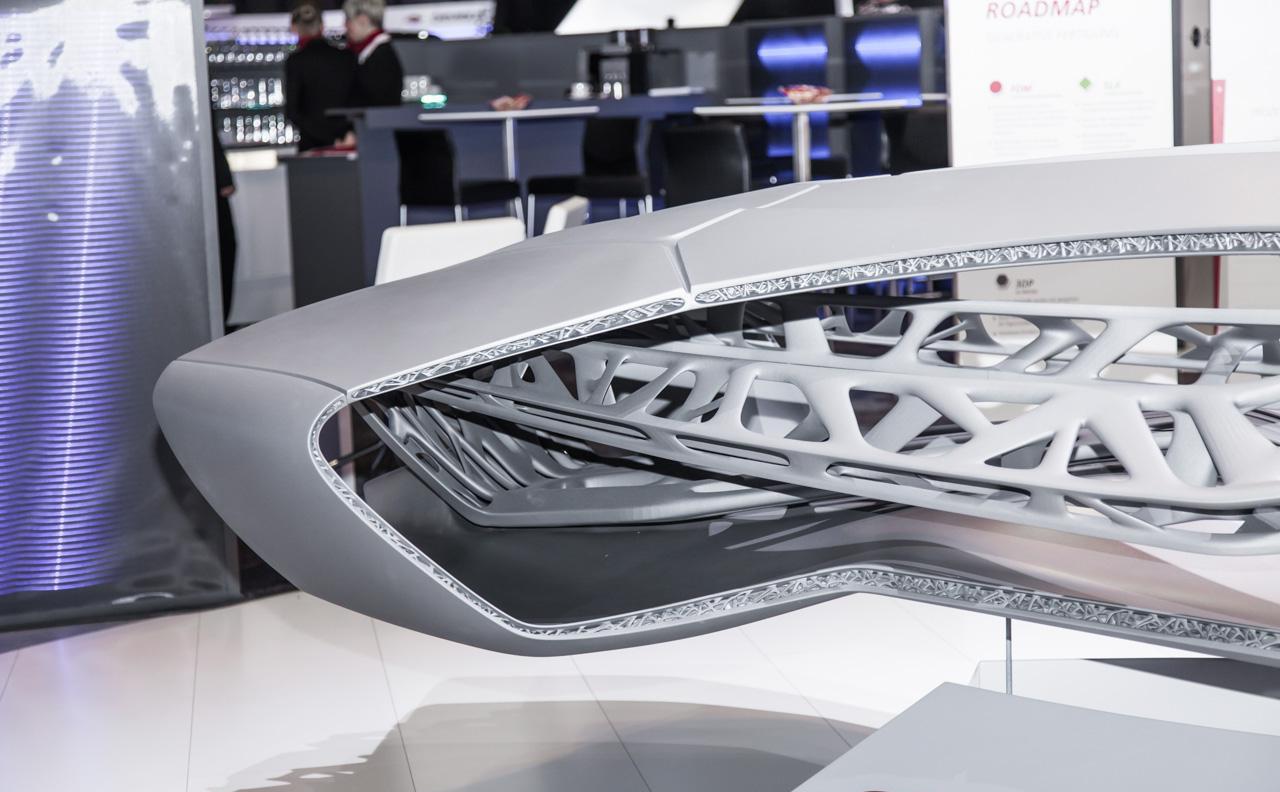

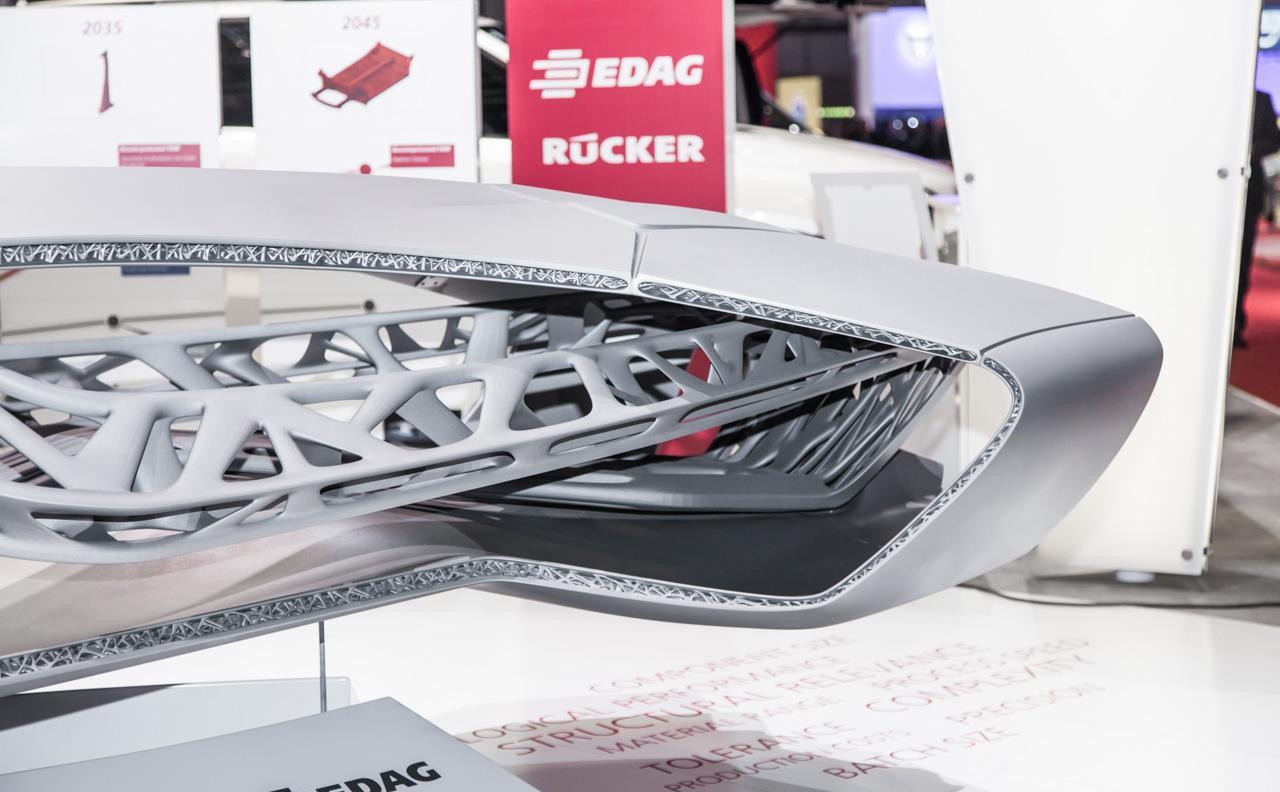

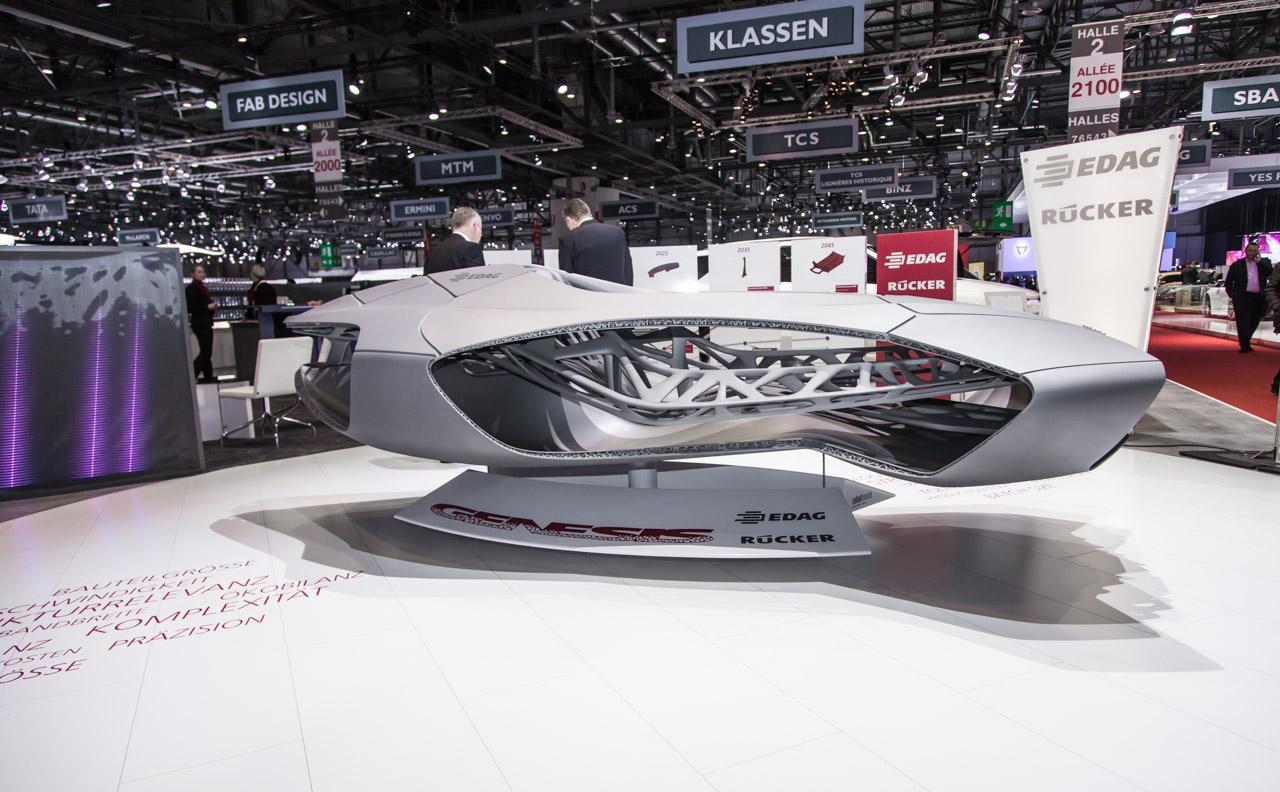

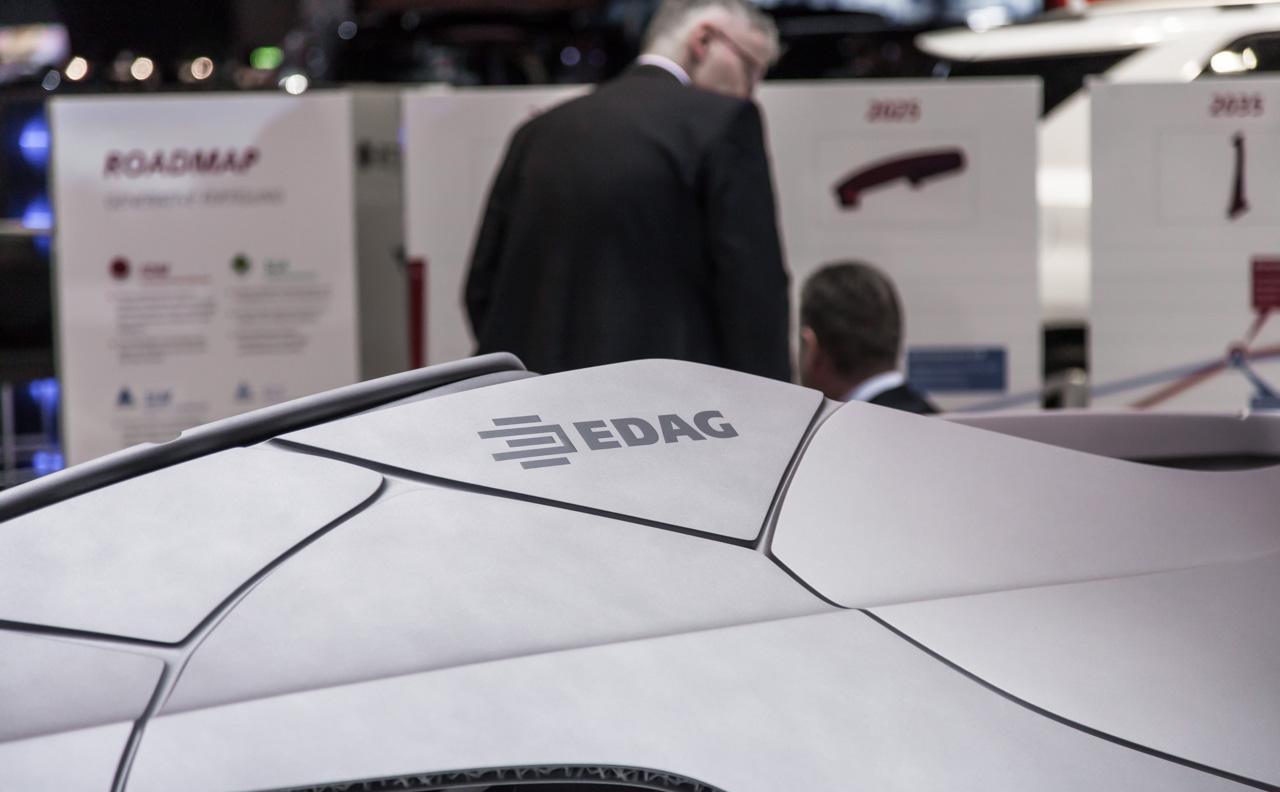

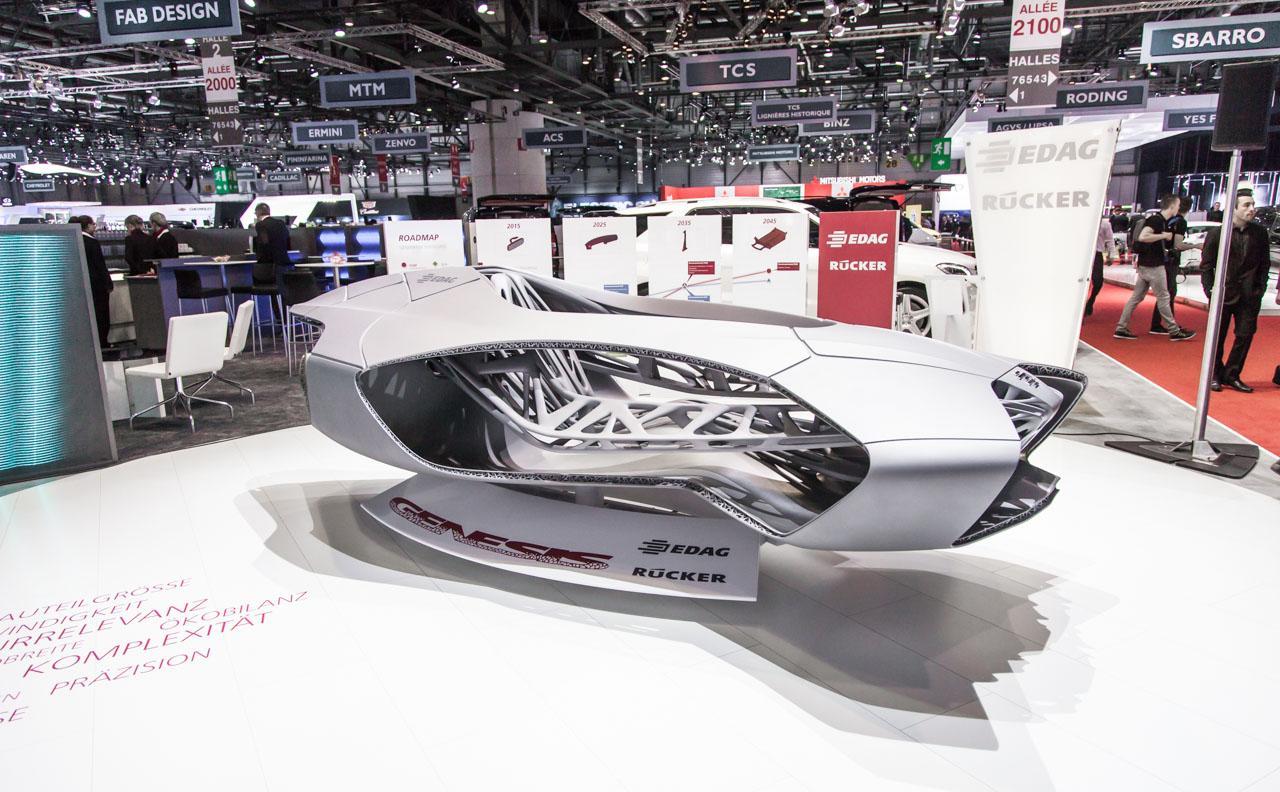

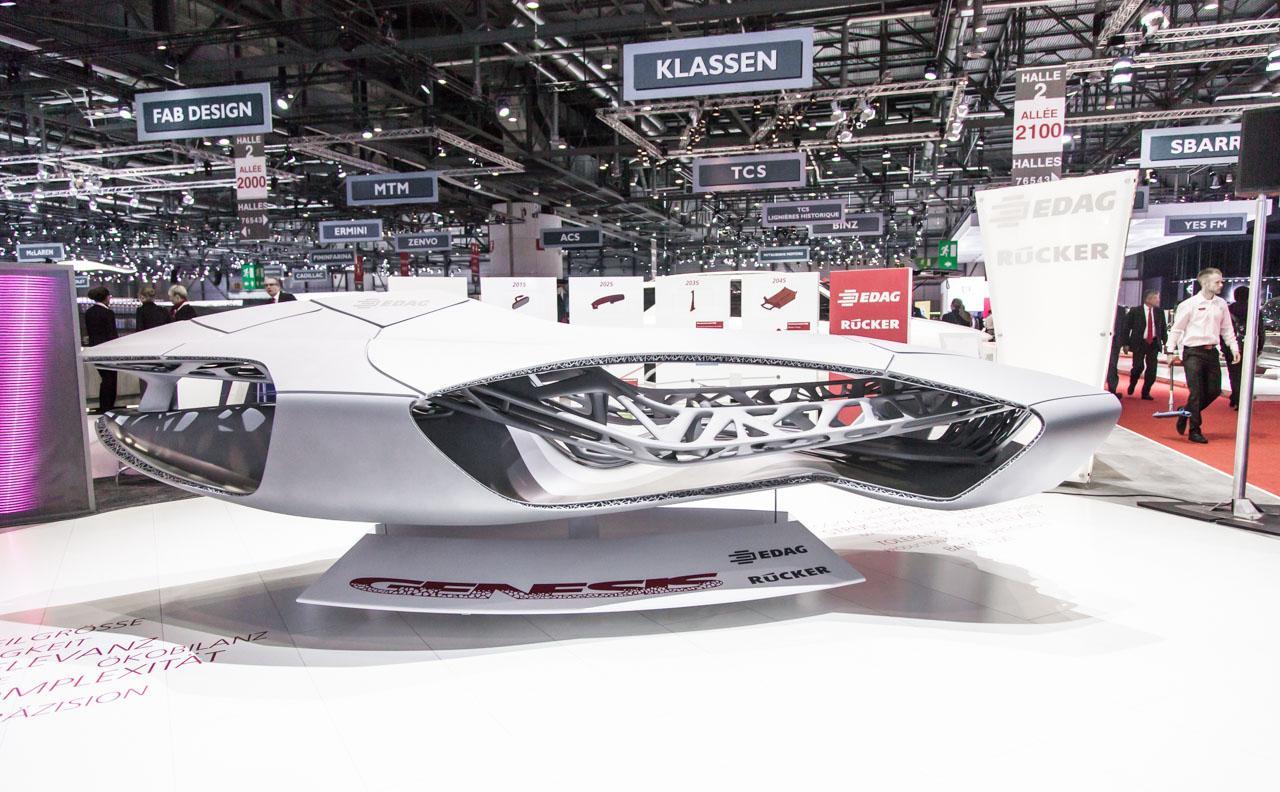

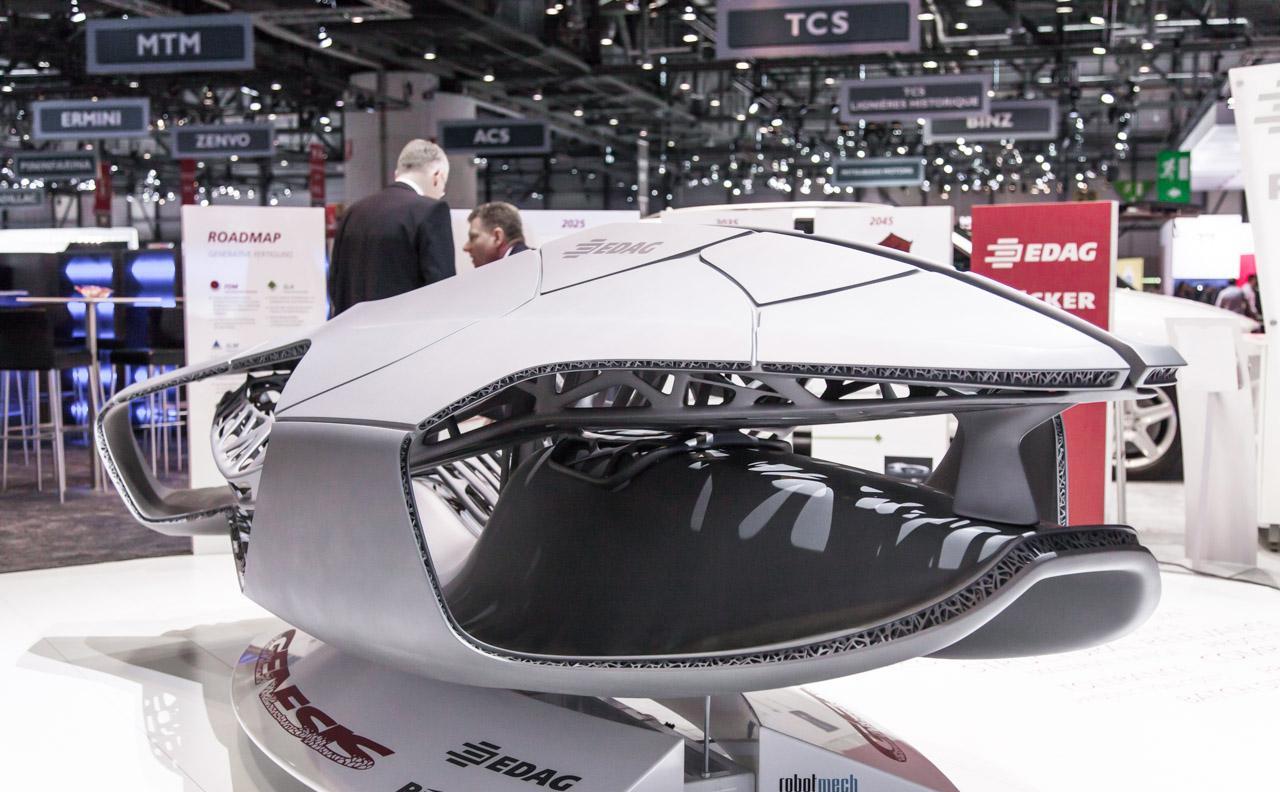

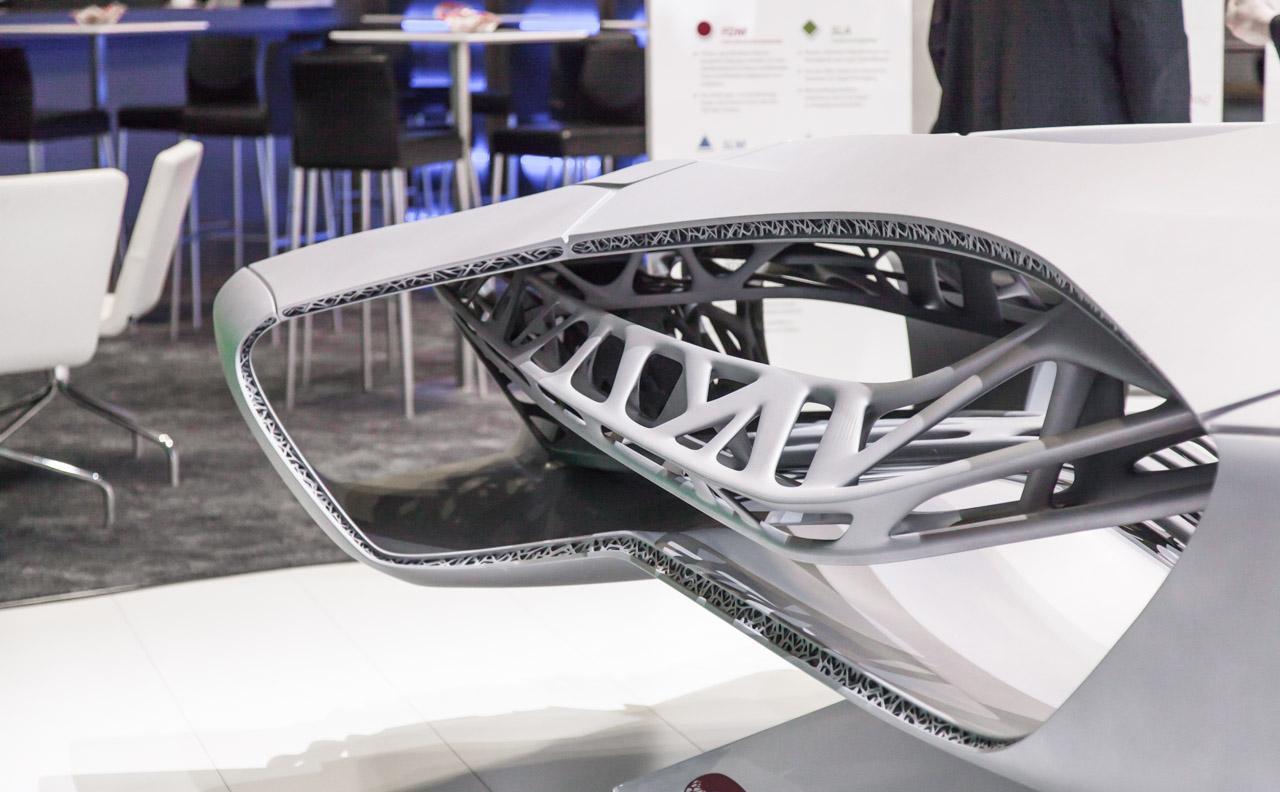

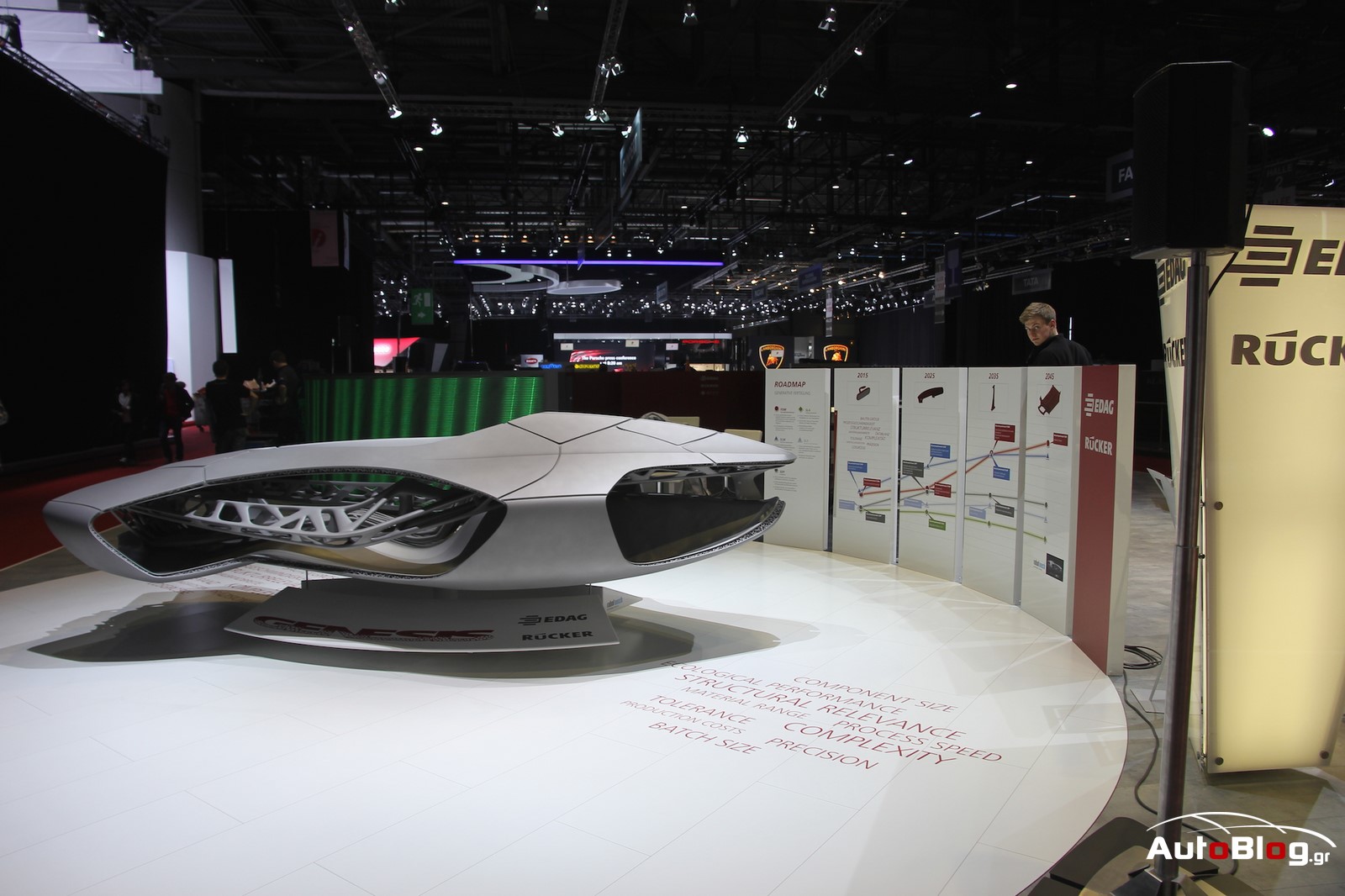

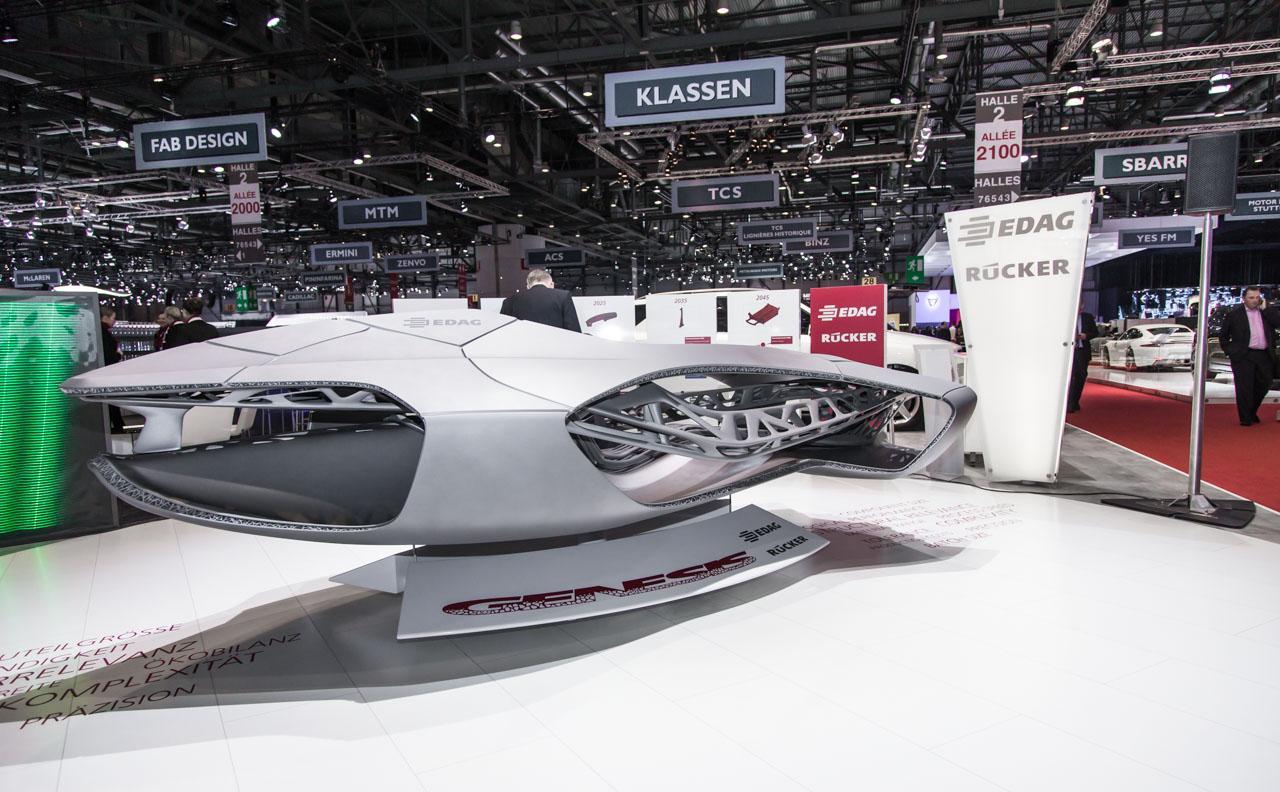

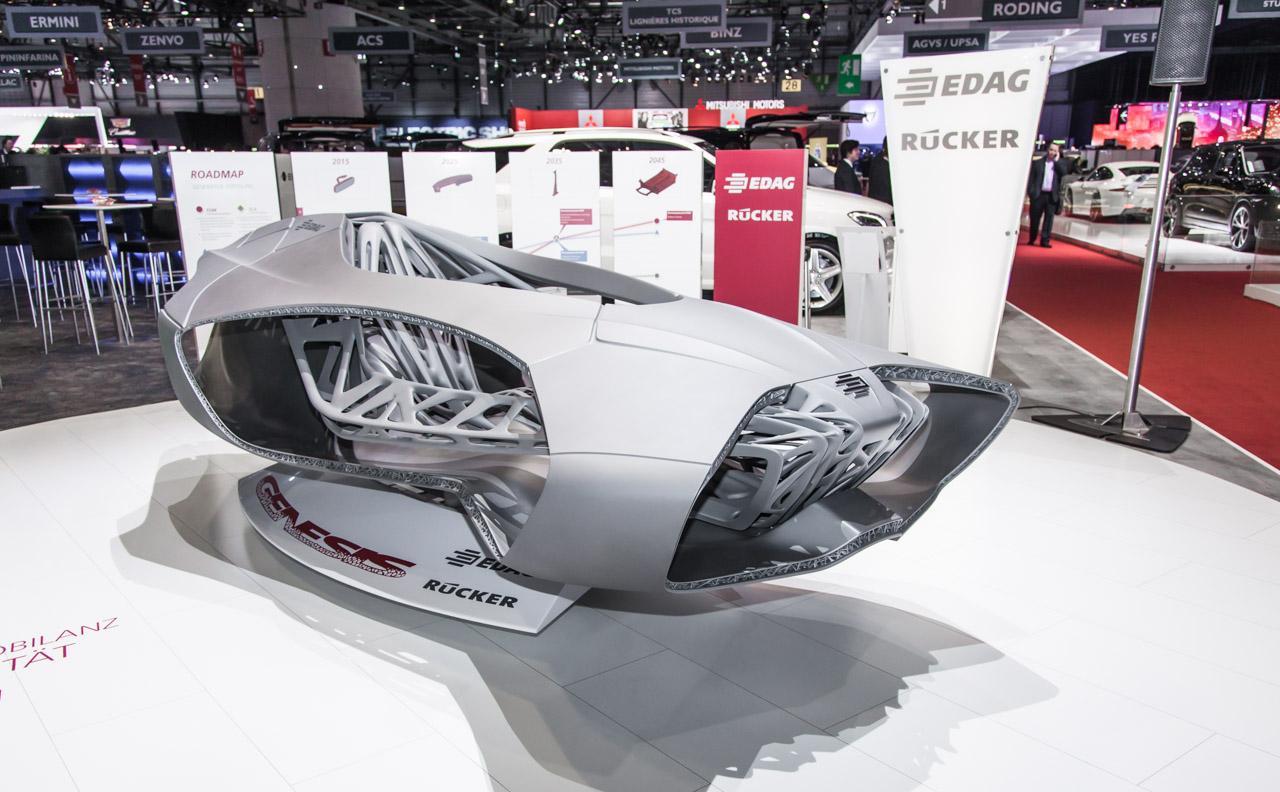

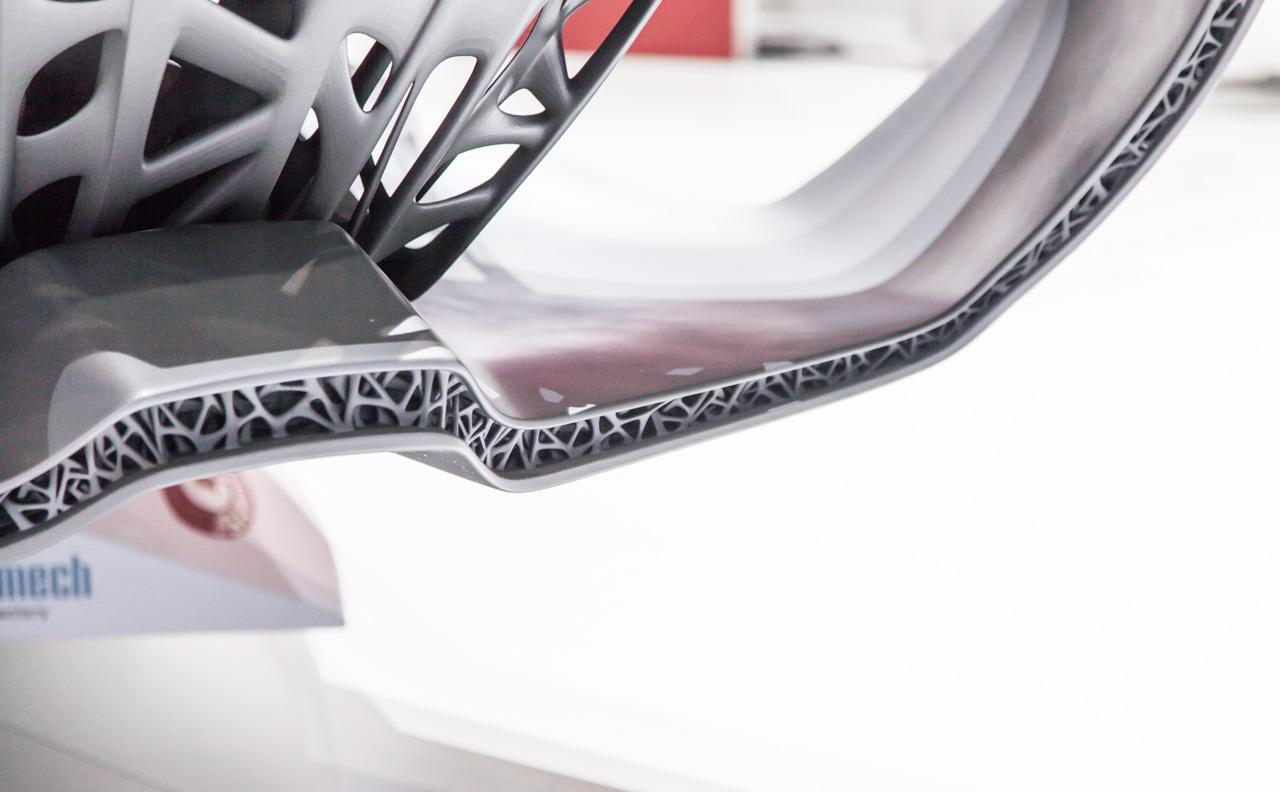

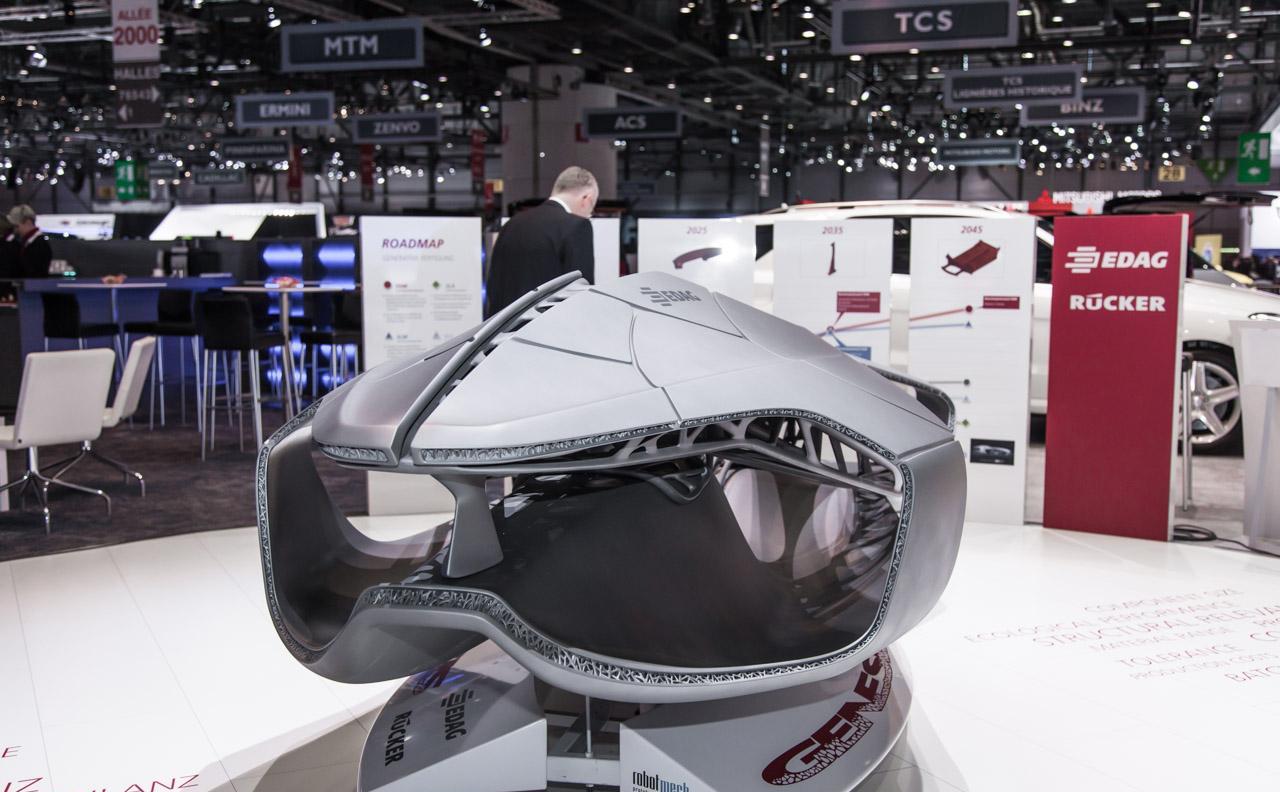

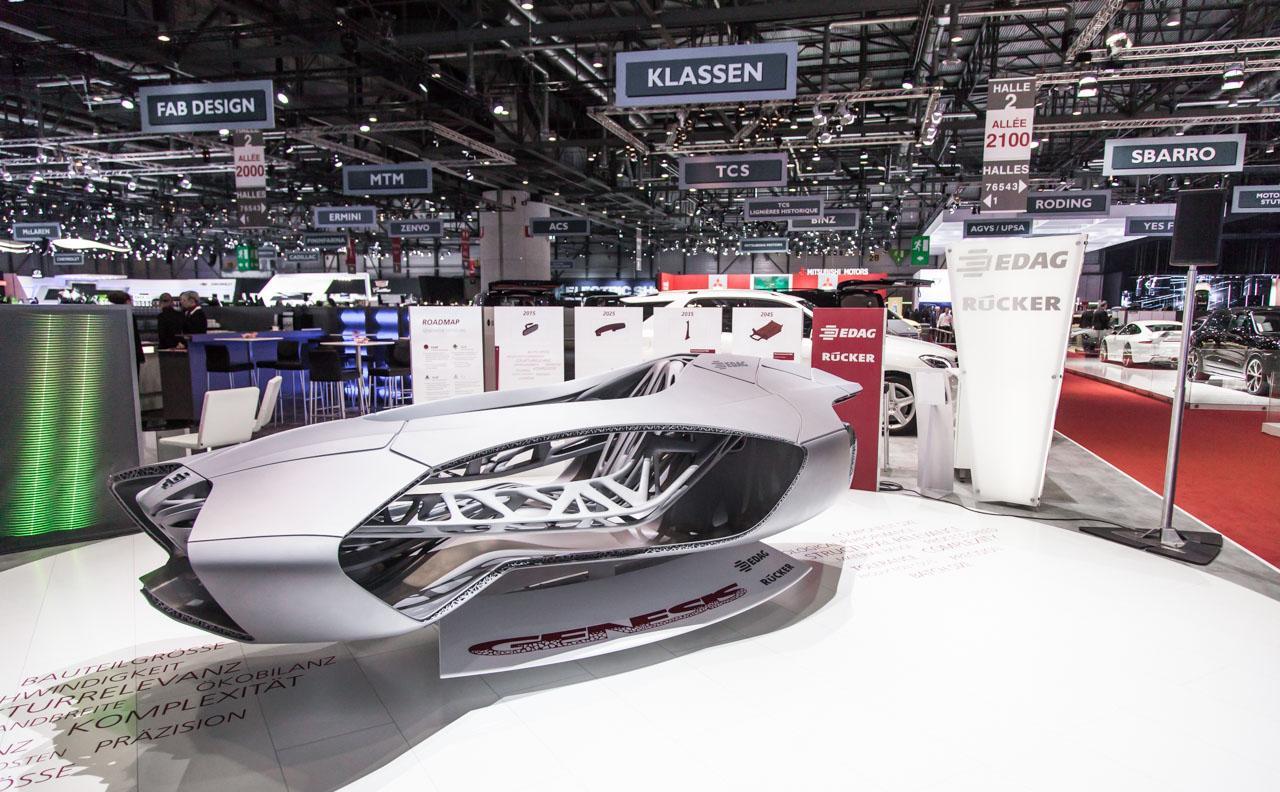

At the Geneva Motor Show, EDAG will be presenting a futuristic vehicle sculpture “EDAG GENESIS”, which, using the example of a body structure, is designed to demonstrate the revolutionary potential of additive manufacturing. “EDAG GENESIS” is based on the bionic patterns of a turtle, which has a shell that provides protection and cushioning and is part of the animal’s bony structure. The framework of the exhibit calls to mind a naturally developed skeletal frame, the form and structure of which should make one thing perfectly clear: these organic structures cannot be built using conventional tools! In the future, additive manufacturing could benefit designers and engineers by opening up enormous freedoms and new design options for development and production.
Future or Utopia? The EDAG analysis supplies the answers!
A multi-disciplinary team of EDAG designers and specialists from the EDAG Competence Centre for Lightweight Construction took a close look at the potential of a number of promising additive manufacturing processes, and discussed them with research and industrial experts. Possible candidates for the situation analysis of additive manufacturing were technologies such as selective laser sintering (SLS), selective laser melting (SLM), stereolithography (SLA), and fused deposition modelling (FDM).
In the assessment, a specially developed evaluation matrix was used to quantify the technologies; this included criteria such as structural relevance, possible part size, production tolerance and manufacturing costs. The results showed that a refined FDM process also looked to be a promising candidate for the future-oriented subject of additive manufacturing. Unlike other technologies, FDM makes it possible for components of almost any size to be produced, as there are no pre-determined space requirements to pose any restrictions. Instead, the structures are generated by having robots apply thermoplastic materials. Complex structures are built up layer by layer in an open space – without any tools or fixtures whatsoever. By introducing endless carbon fibres during the production process, it is also possible to achieve the required strength and stiffness values. Even though industrial usage of additive manufacturing processing is still in its infancy, the revolutionary advantages with regard to greater freedom in development and tool-free production make this technology a subject for the future.
From today’s point of view, the production of components, and in the next stage modules, is completely feasible. As for the target of using additive manufacturing to produce complete vehicle bodies: there is still a long way to go before this becomes an industrial application, so for the time being, it remains a vision.
The EDAG Group will be keeping a close watch on the evolution of additive manufacturing. The target: to develop and present practicable and valid applications for use in component development and production. The first stage will be small structural parts; however, we intend to make a real contribution to the development of the revolutionary idea of additive manufacturing.
ONE COMPONENT – ONE MODULE – ONE BODY – ONE VISION
