Volkswagen Golf Variant HyMotion

H Volkswagen στην έκθεση του Los Angeles παρουσίασε το Golf SportWagen HyMotion που όπως εύκολα καταλαβαίνεις, διαθέτει κινητήρα υδρογόνου, όπως το Audi A7 Sportback h-tron quattro concept, το Toyota Mirai και το Honda FCV concept. Περιγράφεται ως ένα “προοδευτικό ερευνητικό αυτοκίνητο κυψελών υδρογόνου”, με την VW να λέει πως η πηγή ενέργειας του μέλλοντος είναι το υδρογόνο.

Το Golf SportWagen HyMotion κάνει τα 0-100 χλμ/ώρα σε 10 δευτερόλεπτα, με το υδρογόνο να αποθηκεύεται σε τέσσερα ρεζερβουάρ κατασκευασμένα από carbon, τοποθετημένα στο κάτω μέρος του αυτοκινήτου, δίνοντας αυτονομία 500 χλμ στο αυτοκίνητο. Ο ανεφοδιασμός των ρεζερβουάρ γίνεται μέσα σε 3 τρία λεπτά, με το σύστημα κυψελών να αποδίδει 136 άλογα, με την Volkswagen να έχει τοποθετήσει μια μπαταρία ιόντων λιθίου, στην οποία αποθηκεύεται η κινητική ενέργεια που ανακτάται κατά το φρενάρισμα. Αυτή η ενέργεια βοηθά στην αρχική φάση της κυψέλης υδρογόνου, με την κυψέλη να παίρνει κίνηση από έναν ηλεκτροκινητήρα που προέρχεται από το e-Golf. Από το ηλεκτρικό Golf προέρχεται και το σύστημα μετάδοσης.

Volkswagen Golf Variant HyMotion

H Volkswagen με το πρωτότυπο αυτό θέλησε να δείξει πως είναι δυνατό να υπάρξει ένα αυτοκίνητο υδρογόνου κατασκευασμένο πάνω στην MQB πλατφόρμα της και πως είναι σε θέση να το περάσει στη παραγωγή, αρκεί πρώτα να έχουν δημιουργηθεί οι υποδομές, όπως πρατήρια και εργοστάσια παραγωγής υδρογόνου, σε όλο τον κόσμο, τα οποία θα χρησιμοποιούν ως πρωτογενή ενέργεια, αυτή που θα έχει παραχθεί από ανανεώσιμες πηγές ενέργειας. Ήδη η Volkswagen έχει τοποθετήσει το σύστημα υδρογόνου του Golf SportWagen HyMotion σε μερικά αμερικάνικα Passat, με τα Passat HyMotion να σημειώνουν ήδη χιλιόμετρα δοκιμών στους δρόμους της Καλιφόρνια.

[learn_more caption=”Δελτίο Τύπου”]

Golf SportWagen HyMotion with hydrogen fuel cell

  • Golf SportWagen HyMotion transfers fuel cell technology to high-volume production
  • Golf is the world’s first car to offer all drive types that can be implemented today

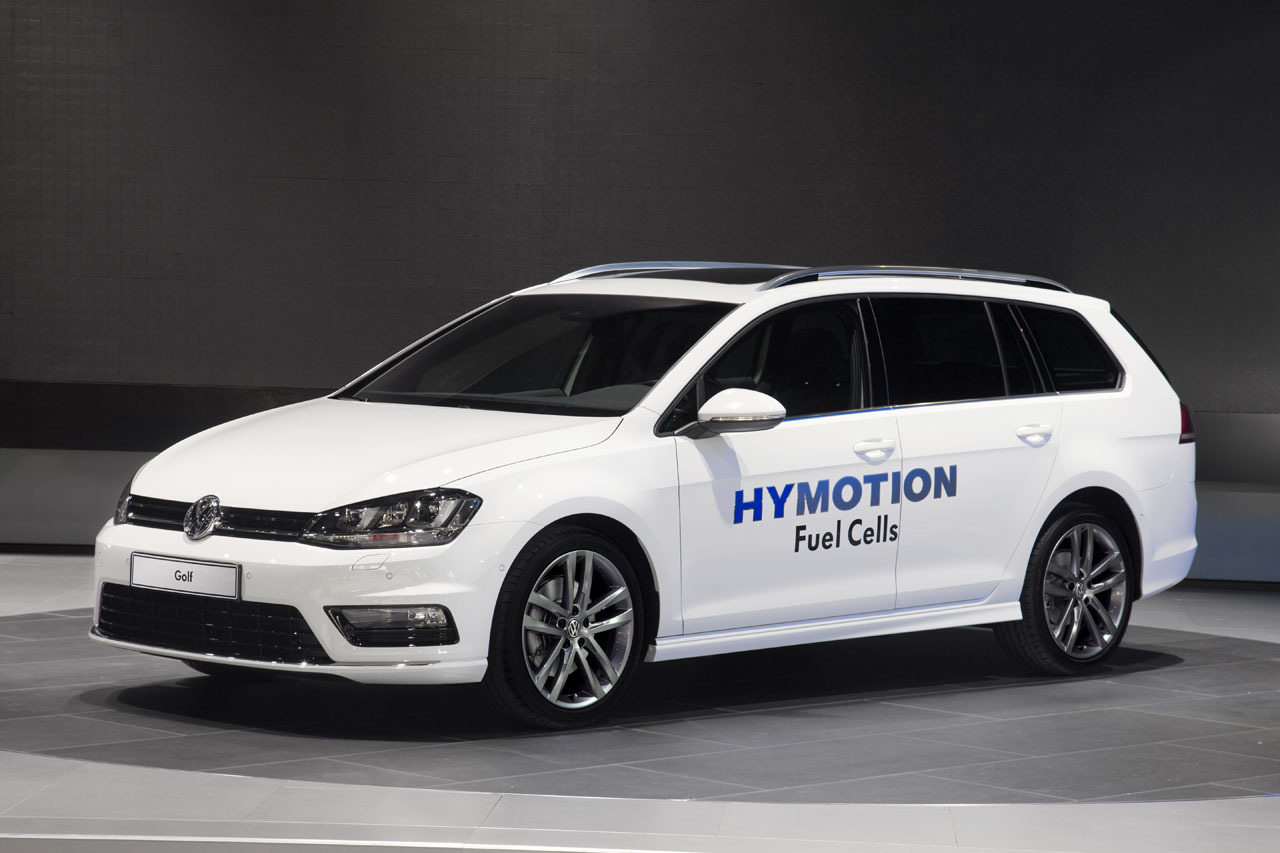

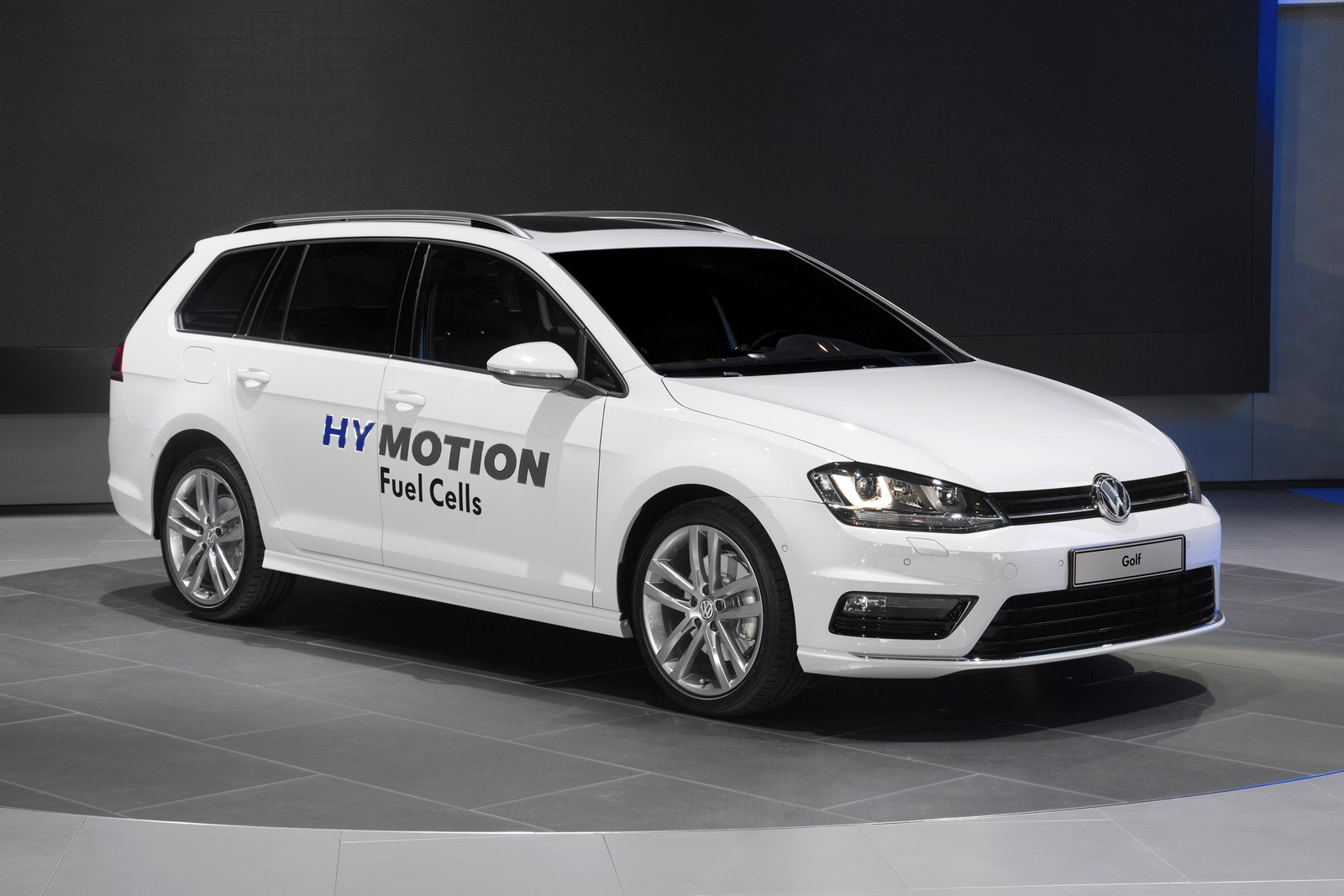

At the Los Angeles Auto Show, Volkswagen is presenting the world premiere of the Golf SportWagen HyMotion – a progressive research vehicle with a fuel cell drive.

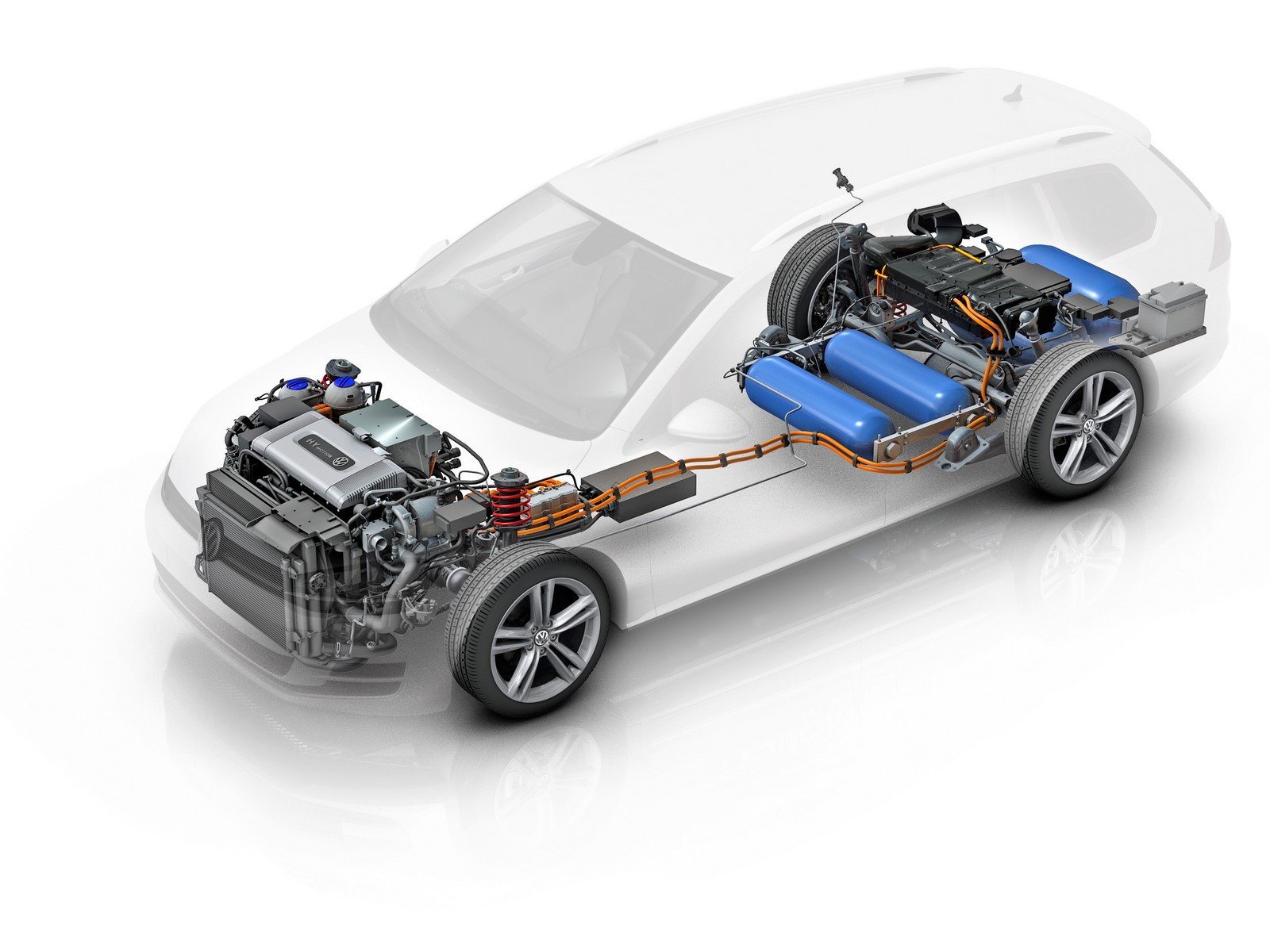

As the power source of the future, hydrogen and oxygen are combined in the fuel cell to form pure water. Energy is released in this “cold combustion” process – drive energy for an electric motor that turns with zero emissions. The front wheel drive Golf SportWagen HyMotion accelerates to 62 mph in 10.0 seconds. The hydrogen is stored safely in four high-tech carbon-fiber tanks, which are located in a space-saving way in the underbody. Their fuel capacity enables a driving range of 310 miles. Refilling of the fuel tank of the concept car takes just three minutes.

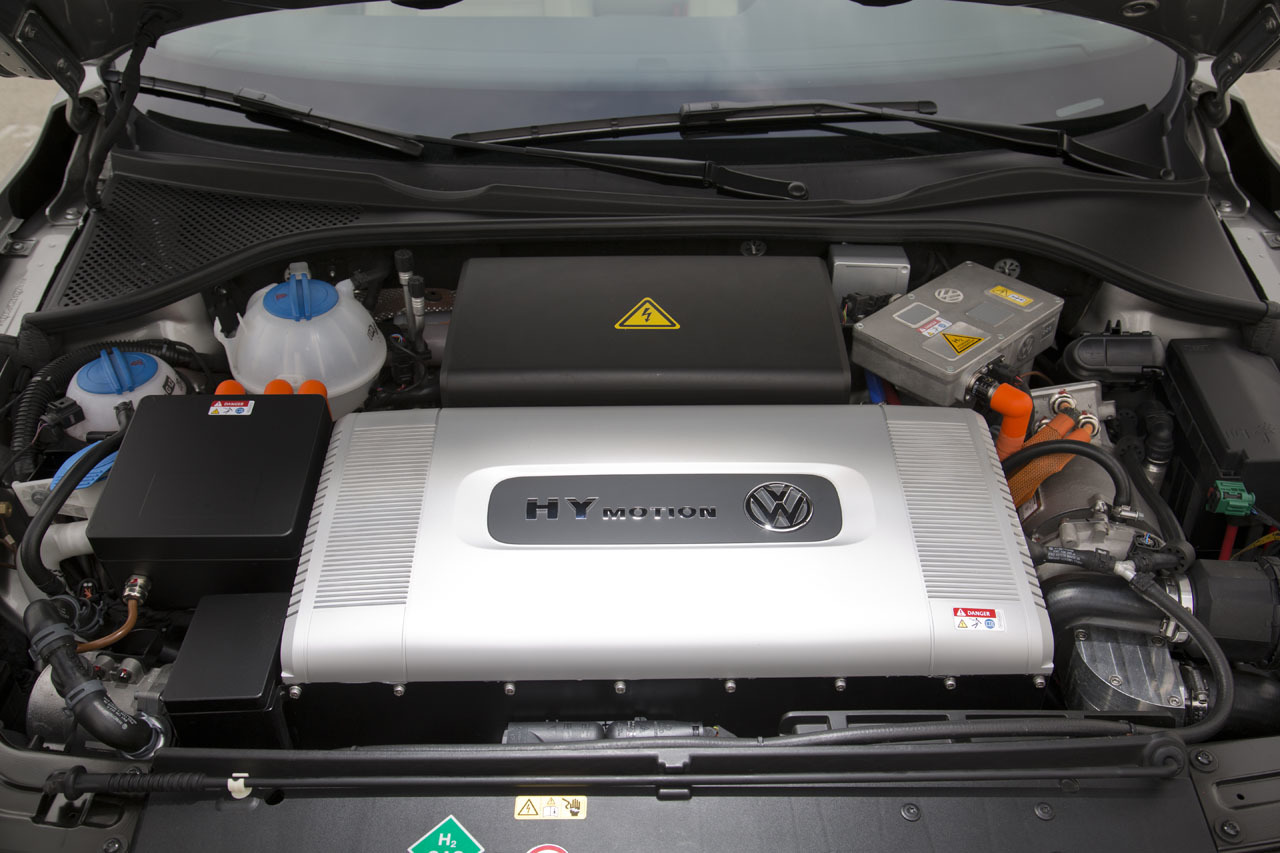

The key drive components of the Golf SportWagen HyMotion were developed by Volkswagen Group Research in Germany. The fuel cell system, which has a driving power of 100 kW, was conceptualized at the Volkswagen Technology Center for Electric Traction. In addition, the concept car has a high-voltage lithium-ion battery, which stores the kinetic energy recovered from regenerative braking, assists in the starting phase of the fuel cell and adds a dynamic boost to the maximum acceleration of the Golf SportWagen. The fuel cell and battery drive an electric motor adapted from the e-Golf.

The mechanical design for this innovative car build is based on the modular transverse matrix (MQB) which was developed by Volkswagen and is used throughout the Group. Thanks to use of the MQB, the current Golf hatchback versions and the new Golf SportWagen have advanced to become the world’s first vehicle model series that can host all conceivable drive types. Today, the Golf is already offered with gasoline engines (TSI), diesel engines (TDI), a natural gas drive (TGI)1, an electric drive (e-Golf)2 and a plug-in hybrid drive (Golf GTE)3. No other car offers such a variety of drive types.

Volkswagen is showing the Golf SportWagen HyMotion to demonstrate for the first time how a hydrogen fuel cell could be implemented based on the MQB as soon as research and development work has been completed and a solution could be developed whose price would be acceptable to new car buyers. Before the market launch, a hydrogen infrastructure must first be created. This means not only a broad network of hydrogen fuel stations, but also the production of the hydrogen itself. Because hydrogen only makes sense as a source of drive energy if the primary energy used to produce it comes from renewable energy sources.

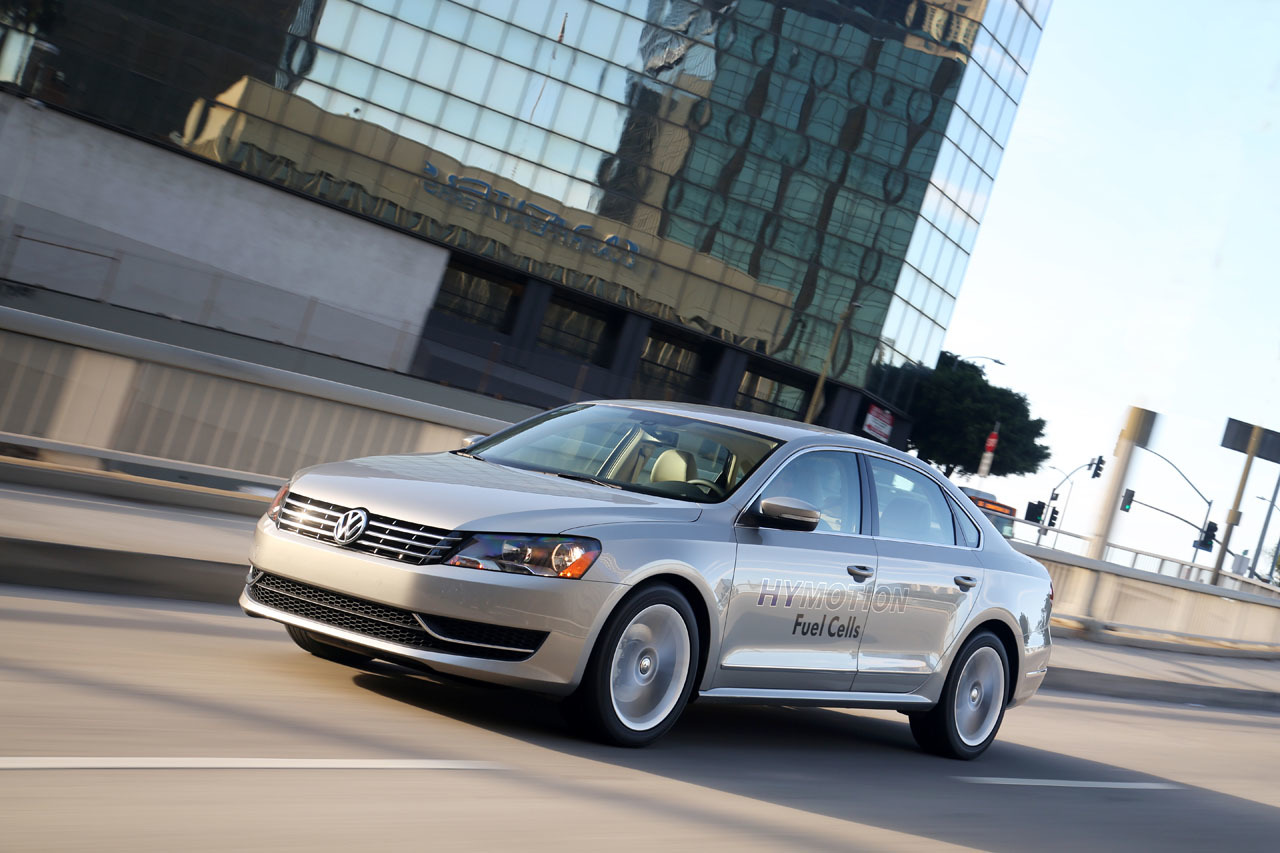

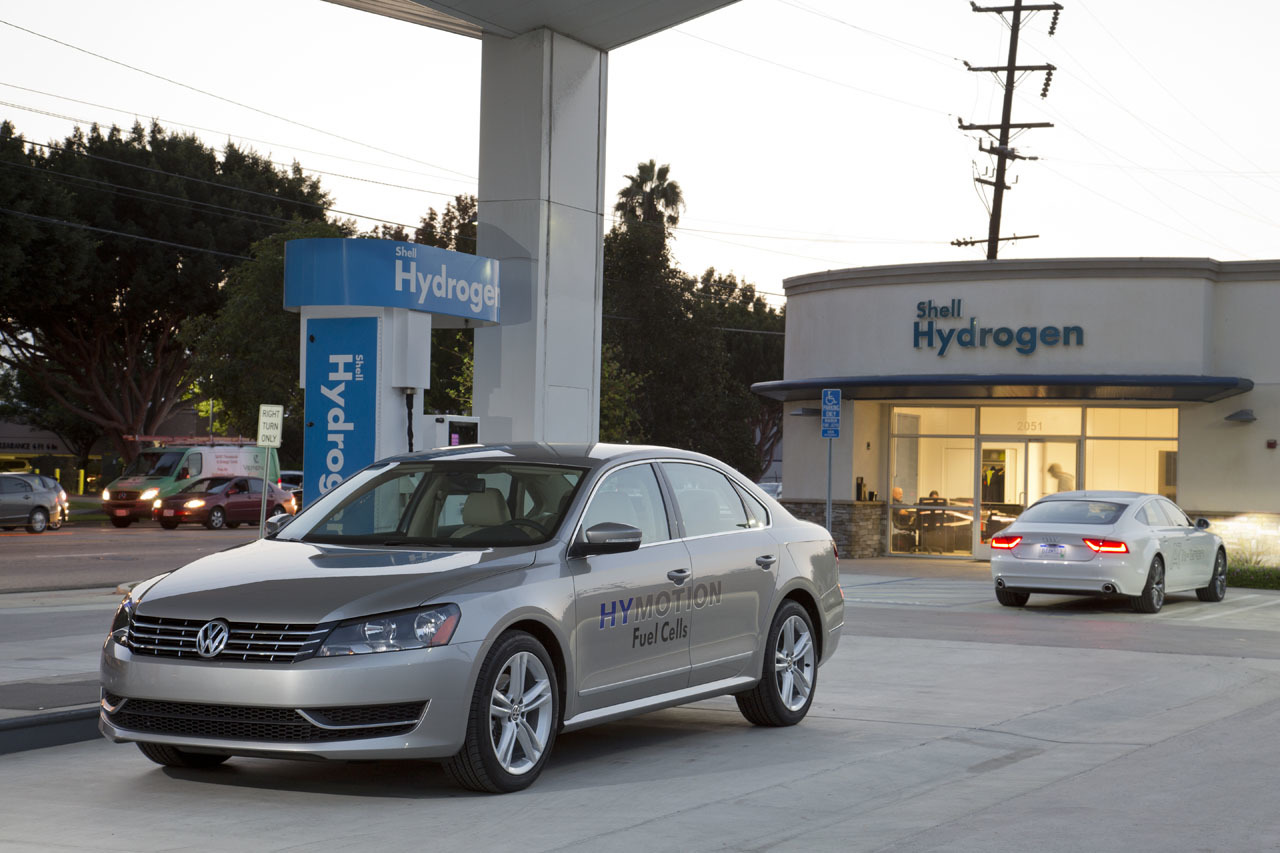

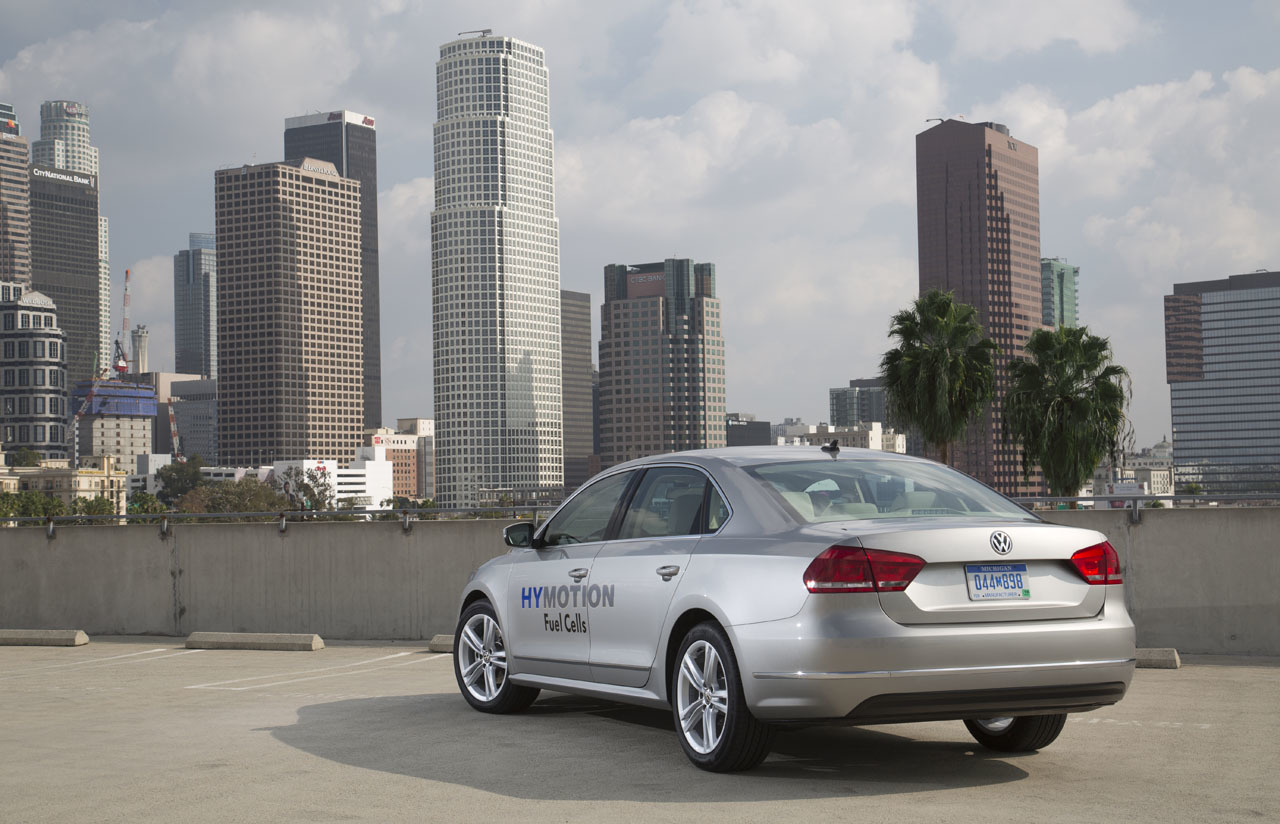

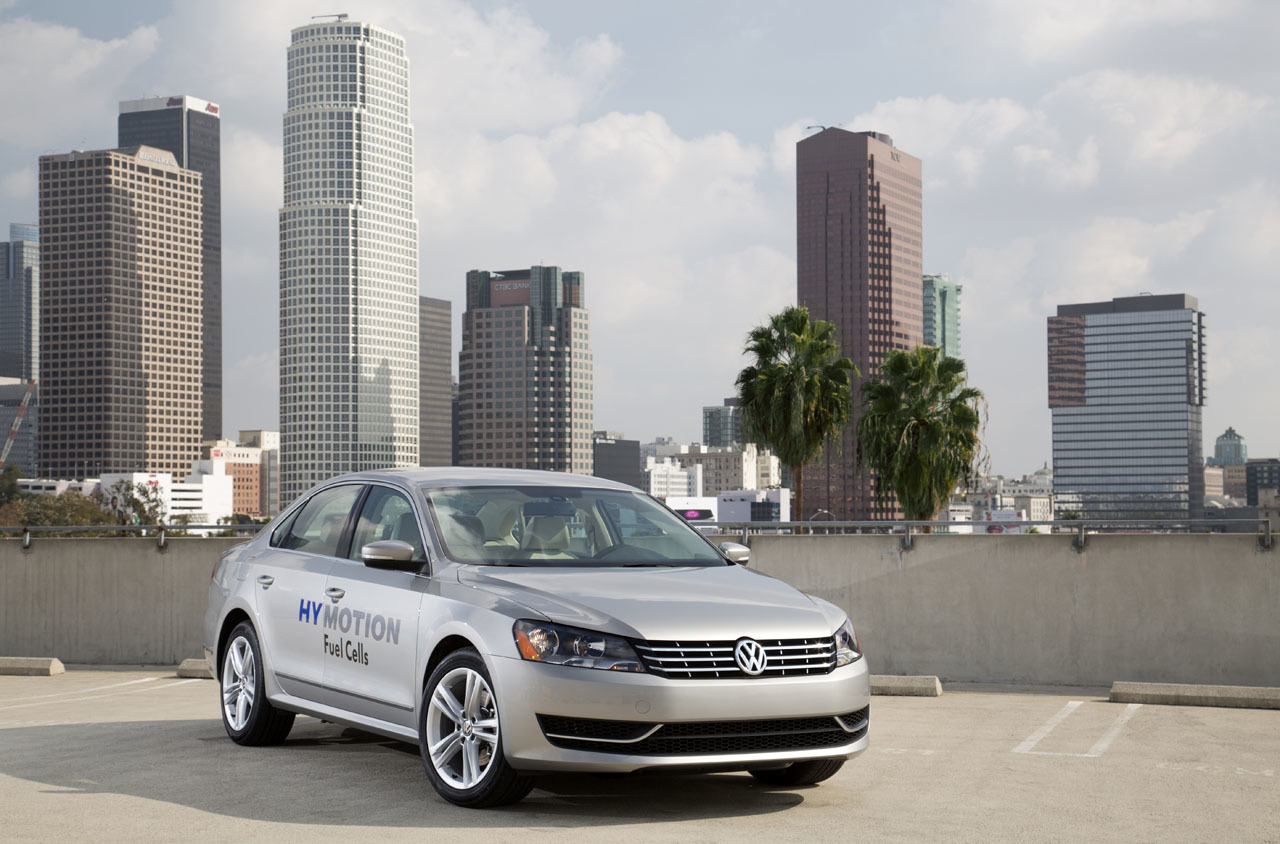

Unlike many of its competitors, Volkswagen is following the strategy of implementing its alternative drives in high-volume production vehicles. That is, precisely as the all-electric e-Golf and the Golf GTE that is equipped with a plug-in hybrid drive, future fuel cell drives would also be integrated into a production model that has everyday practicality, has been optimally engineered and is offered at an attractive price. It was with this objective in mind that several research vehicles were built based on the American Passat, in which the same drive components are used as in the Golf SportWagen HyMotion. The fleet of Passat HyMotion vehicles is currently being tested on the streets of California.

1Golf TGI BlueMotion: Fuel consumption in natural gas mode, kg/100 km: urban 4.5 – 4.4 / extra-urban 2.9–2.8 / combined 3.5-3.4, CO2 emissions combined 94 – 92 g/km/ -efficiency class: A+

Golf SportWagen TGI BlueMotion: Fuel consumption in natural gas mode, kg/100 km: urban 4.5 – 4.4 / extra-urban 2.9 / combined 3.5; CO2 emissions combined 97 – 95 g/km/ efficiency class: A+

2e-Golf: electrical consumption in kWh/100 km: 12.7 (combined); CO2 emissions in g/km: 0 (combined); efficiency class: A+

3 Golf GTE: fuel consumption (combined) 1,5 l/100 km, CO2 emissions (combined): 35 g/km, efficiency class: A+
