Η Rimac παρουσιάζει το Concept_One παραγωγής που θα κάνει ντεμπούτο στην έκθεση της Γενεύης την ερχόμενη εβδομάδα. Με το όνομα Concept_One να δημιουργεί μια σύγχυση, το μοντέλο είναι έτοιμο να κυκλοφορήσει στους δρόμους του κόσμου και να αφήσει ελεύθερα τα 1.088 άλογα που παράγουν οι τέσσερις ηλεκτροκινητήρες του.

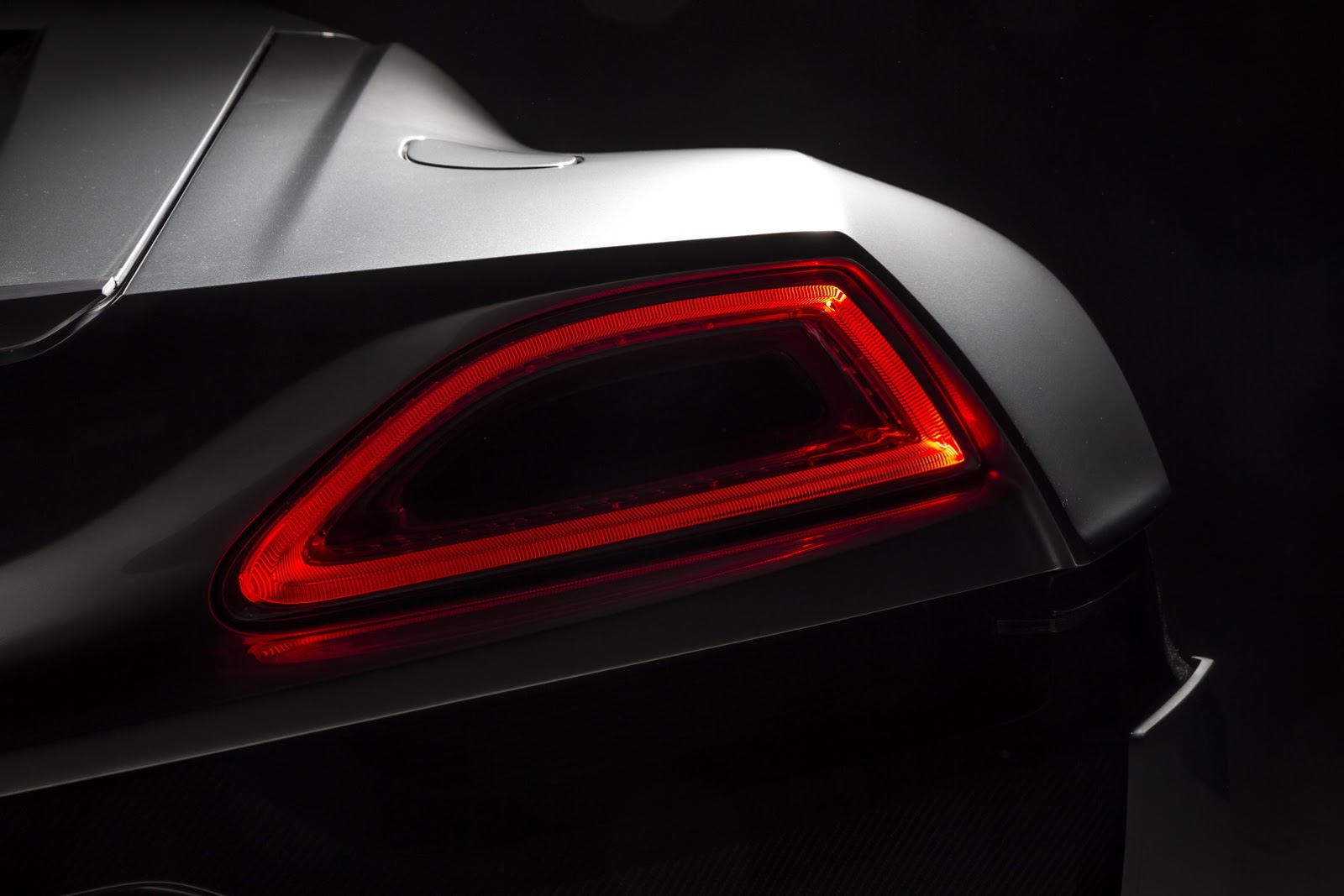

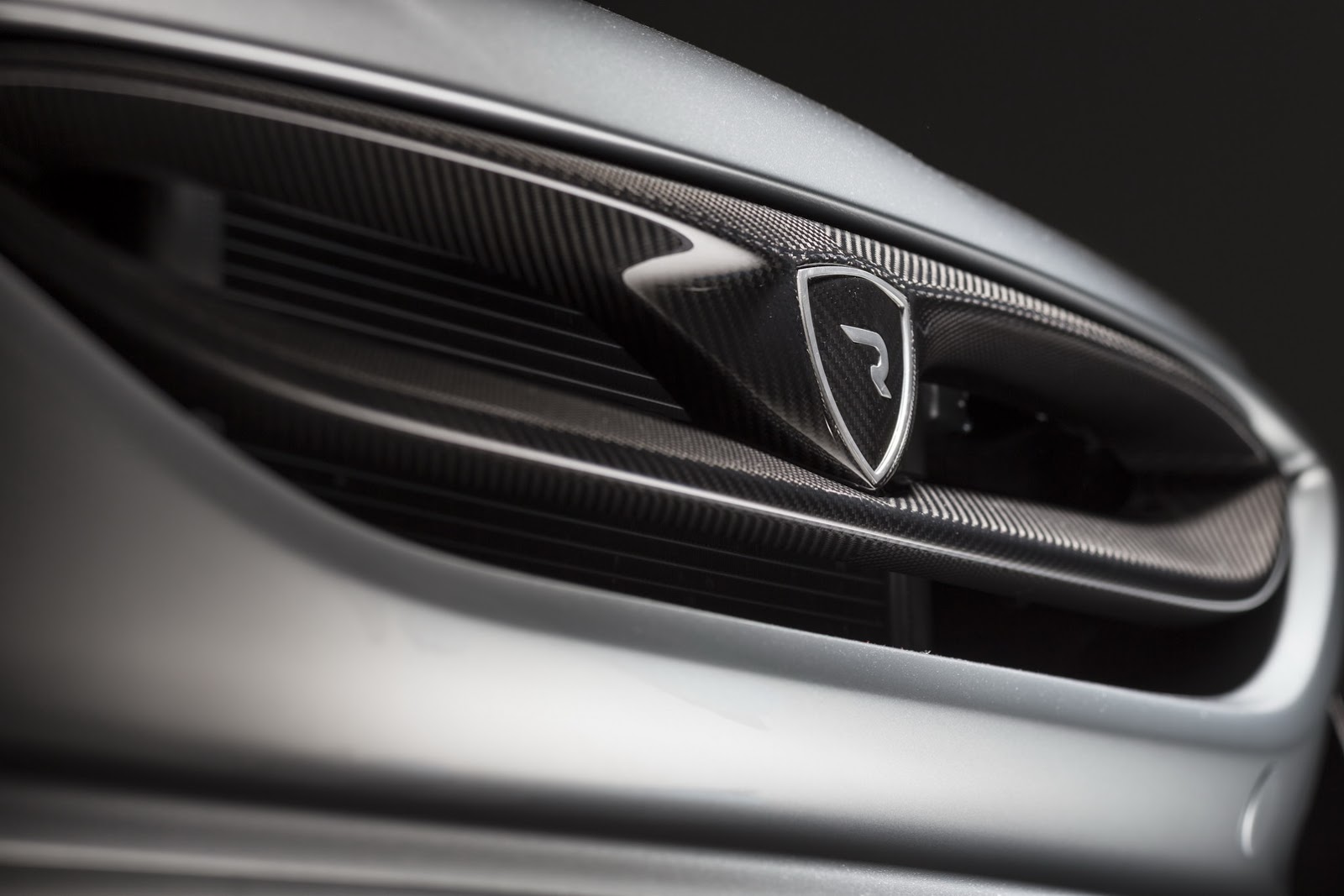

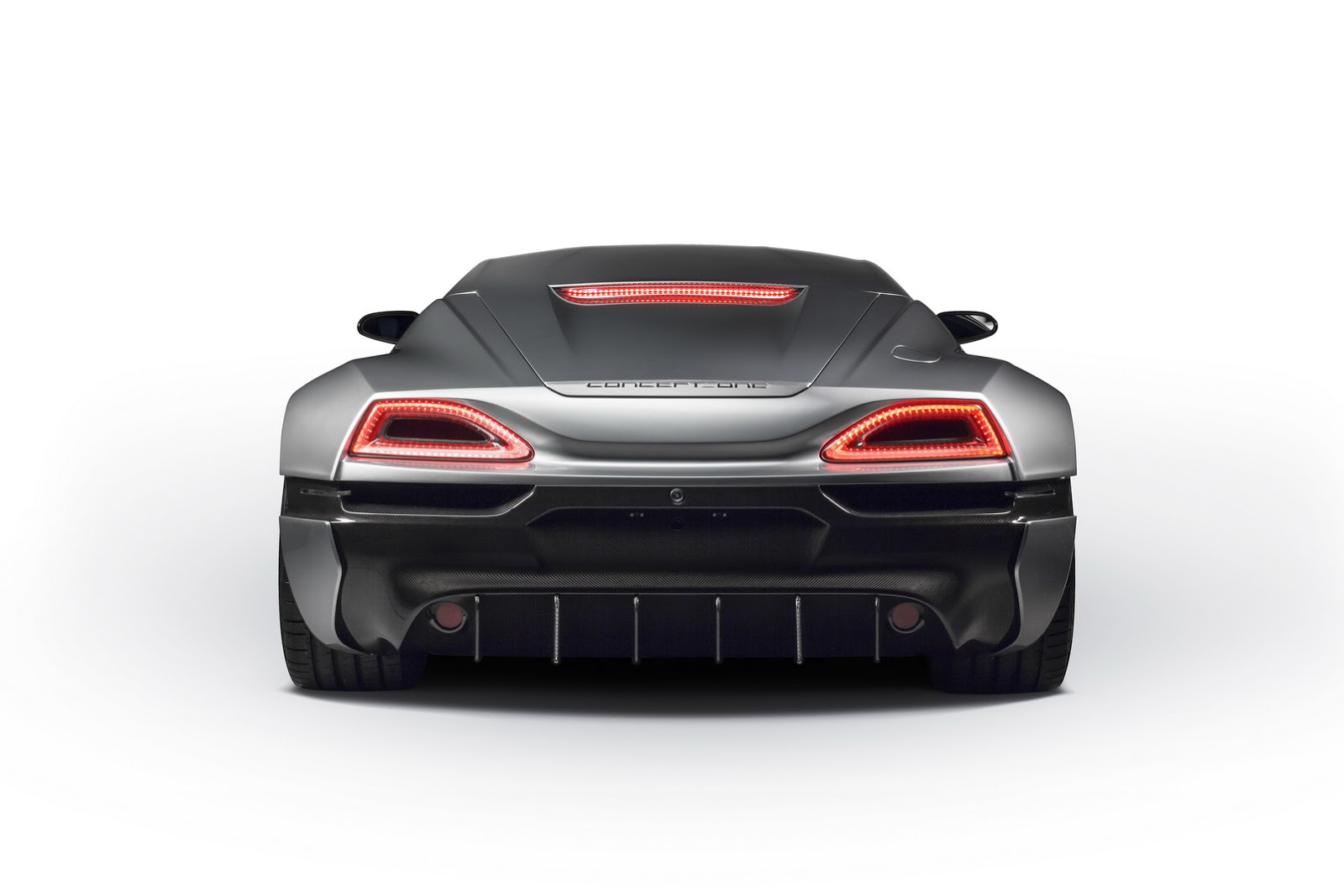

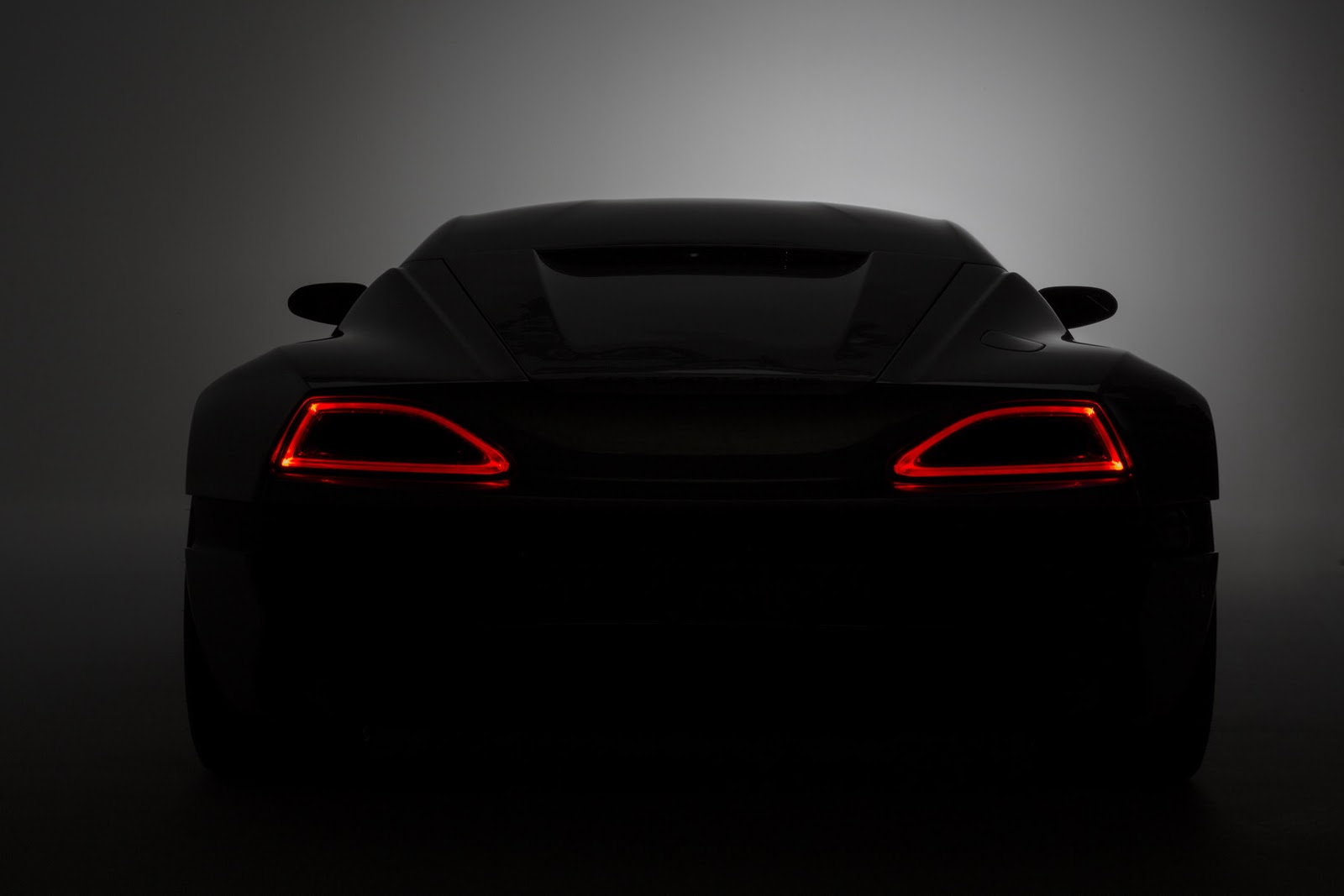

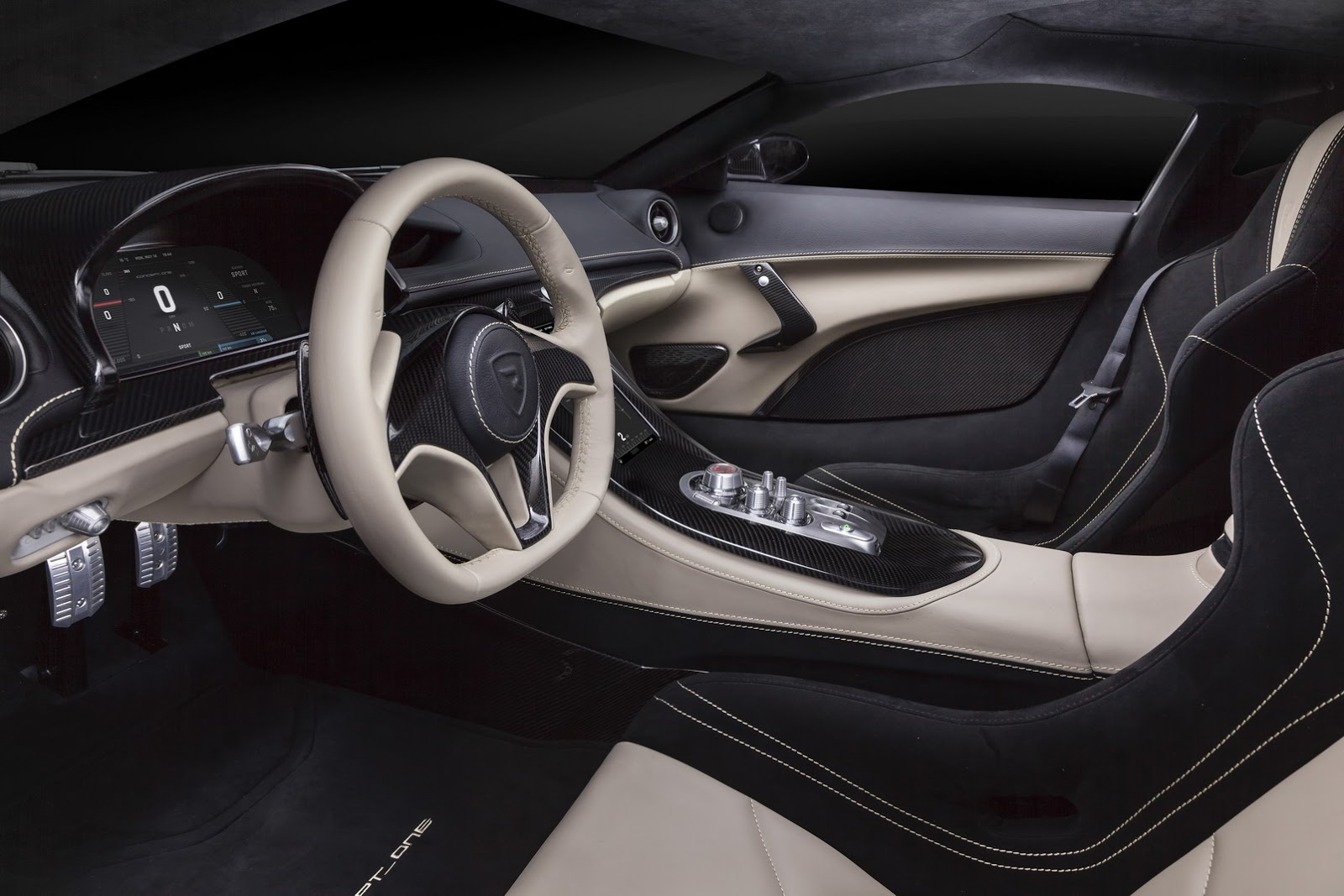

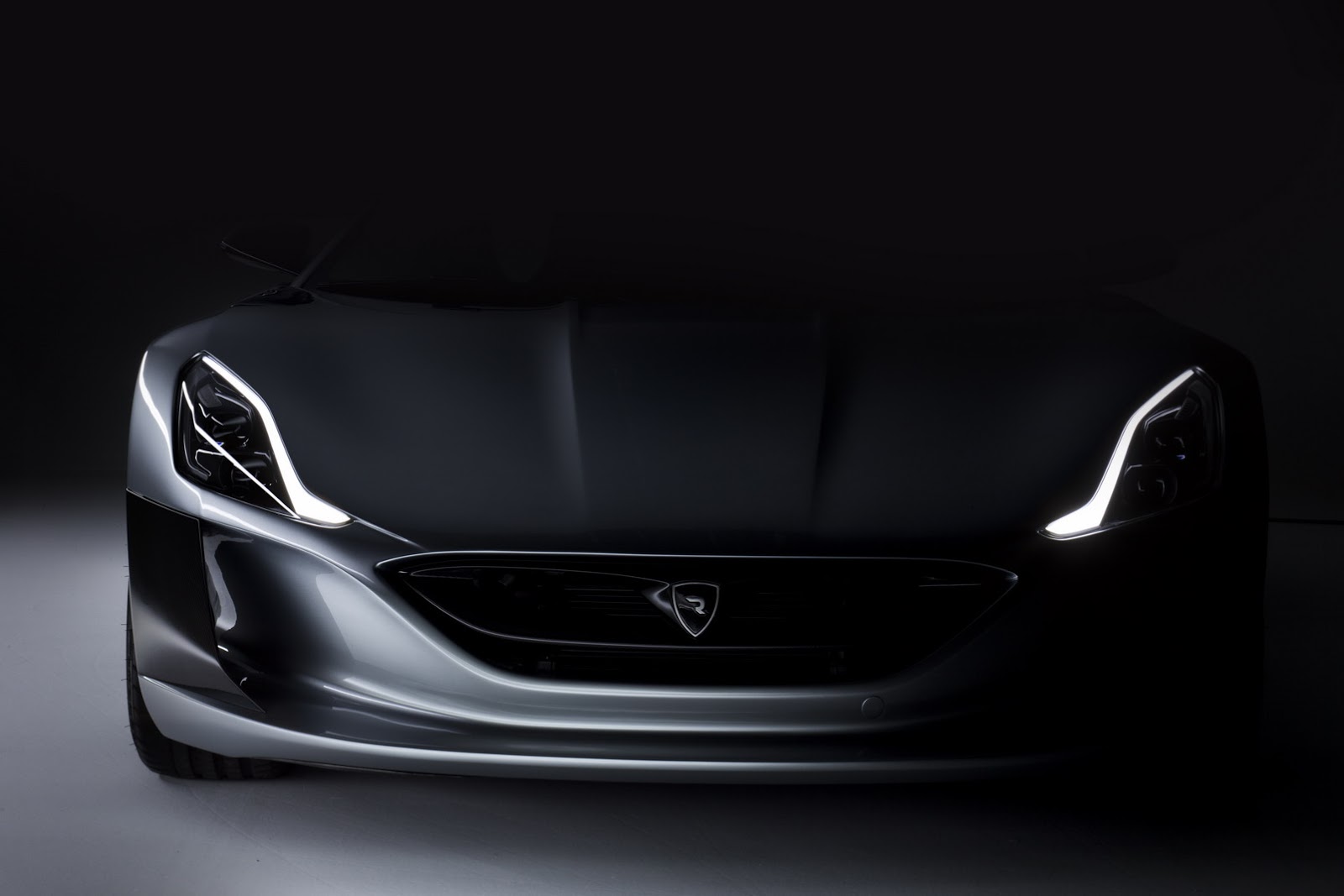

Σε σχέση με το πρωτότυπο που παρουσιάστηκε στην έκθεση της Φρανκφούρτης τον Σεπτέμβριο του 2011, το μοντέλο παραγωγής έχει νέα λεπτή γρίλια, νέο καπό, νέο καπό, νέο διαχύτη από carbon, νέα σχεδίασης πίσω φωτιστικά σώματα και ελαφριές ζάντες αλουμινίου με ελαστικά Pirelli P Zero διαστάσων 245/35 μπροστά και 295/30 πίσω. Στο εσωτερικό τα πάντα είναι κατασκευασμένα από αλουμίνιο και από carbon, ενώ υπάρχουν Alcantara επενδύσεις, ψηφιακός πίνακας οργάνων, ένα προηγμένο σύστημα ενημέρωσης και ψυχαγωγίας με 4G σύνδεση, ενώ εντυπωσιάζει η απουσία πλαστικού, μιας και όσο και να ψάξει κανείς, δεν θα βρει ούτε ένα πλαστικό μέρος στο εσωτερικό του αυτοκινήτου.
Οι τέσσερις ηλεκτροκινητήρες, ένας για κάθε τροχό, τροφοδοτούνται από μια μπαταρία 82 kWh και διαθέτουν τέσσερα κιβώτια ταχυτήτων. Οι μπροστά ηλεκτροκινητήρες έχουν κιβώτια μιας σχέσης, ενώ οι πίσω έχουν carbon διπλού συμπλέκτη δύο ταχυτήτων.
Οι ηλεκτροκινητήρας αποδίδουν 1.088 άλογα, 1600 Nm ροπής, με τα 0-100 χλμ/ώρα να τα κάνει σε 2,6 δευτερόλεπτα, τα 0-200 χλμ/ώρα σε 6,2 δευτερόλεπτα, τα 0-300 χλμ/ώρα σε 14,2 δευτερόλεπτα, έχει τελική ταχύτητα 355 χλμ/ώρα, φρενάρει από τα 100 χλμ στα 0 σε 31,5 μέτρα, με το βάρος του αυτοκινήτου να αγγίζει τα 1.850 κιλά, έχοντας έτσι αναλογία 588 άλογα/τόνο. Το μήκος του Concept_One αγγίζει τα 4.187 mm, το πλάτος τα 1.842 mm, το ύψος τα 1.070 mm, με την αναλογία βάρους να είναι 42% μπροστά και 58% πίσω.
Οι τέσσερις ηλεκτροκινητήρες έχουν ένα torque vectoring σύστημα τετρακίνησης R-AWTV που υπολογίζει με ακρίβεια την βέλτιστη κατανομή ροπής μεταξύ των τροχών, έχοντας τέσσερα προγράμματα λειτουργίας (comfort, control, track και drift), λειτουργώντας παράλληλα ως σύστημα ελέγχου πρόσφυσης, ως σύστημα ελέγχου ευστάθειας και ως ηλεκτρικό ABS. Μάλιστα δίνει εντολή στο σύστημα ανάκτησης ενέργειας των ηλεκτροκινητήρων να φρενάρει το αυτοκίνητο με 0,6 g επιτάχυνσης και 400 kW ενέργειας, χωρίς να ενεργοποιηθούν τα carbon-κεραμικά φρένα του αυτοκινήτου. Η παραγωγή θα περιοριστεί σε μόλις 8 μονάδες και για την ώρα η τιμή του δεν έχει ανακοινωθεί.
Concept_One production version to be unveiled in Geneva

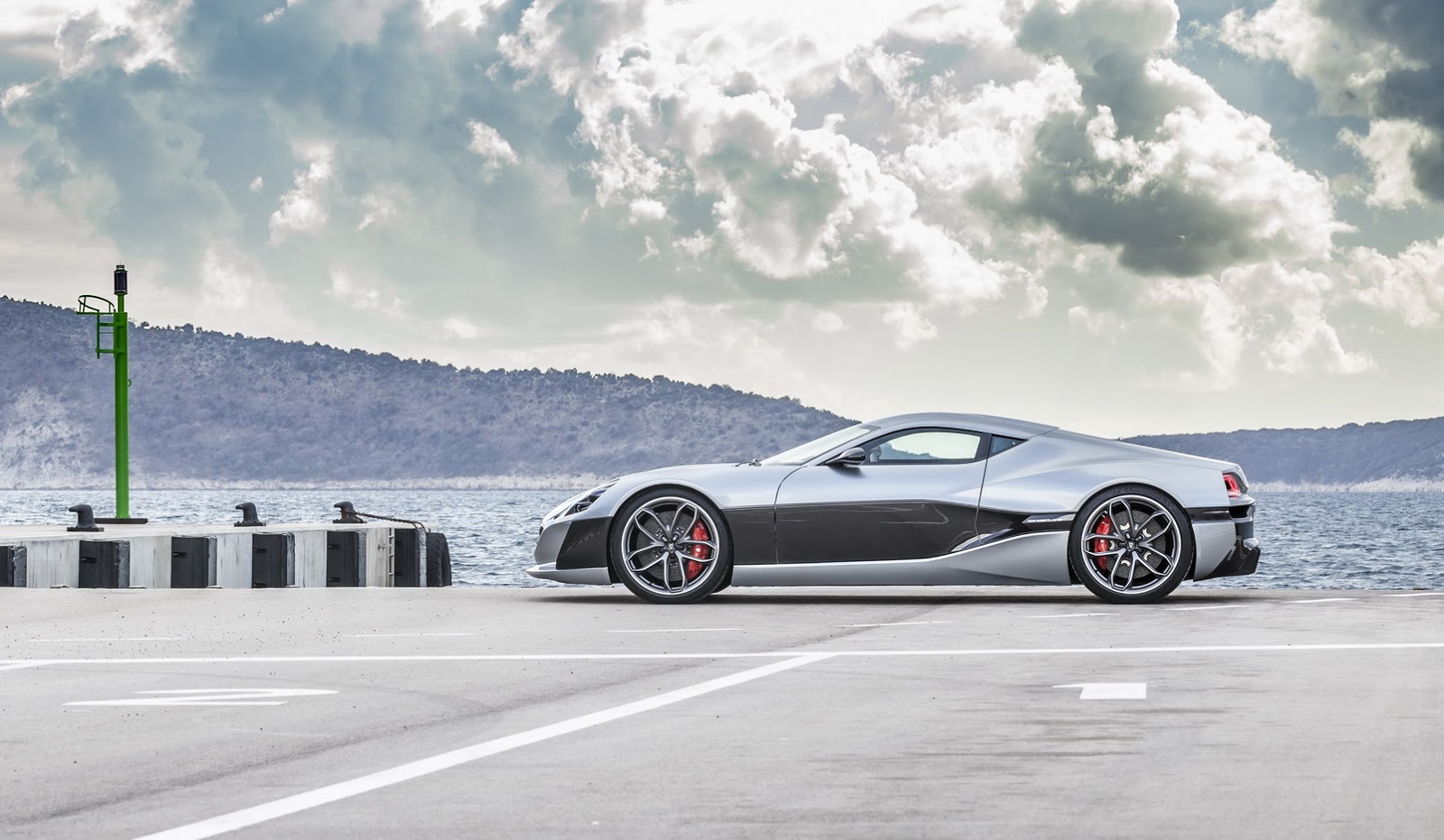

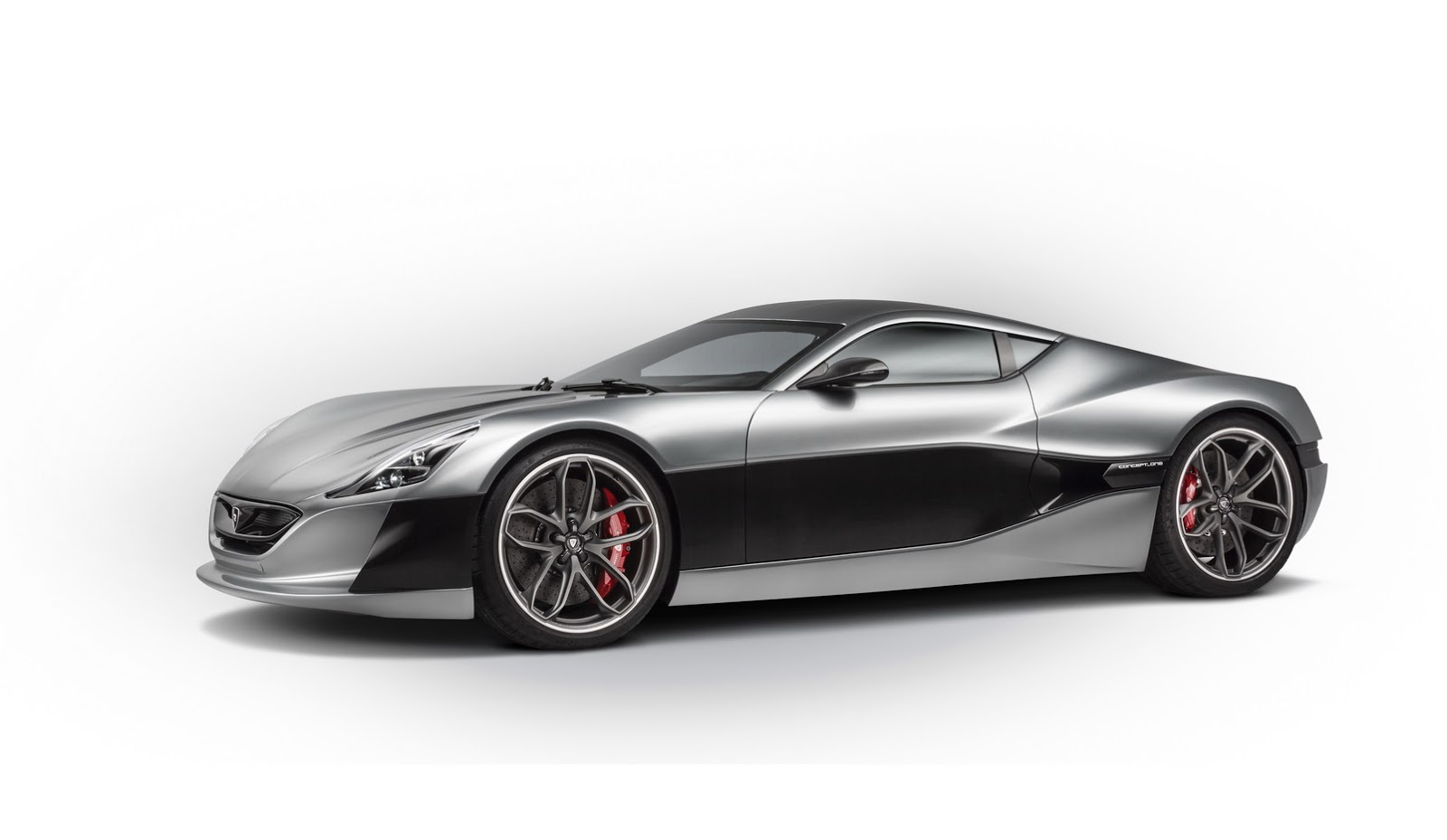

Rimac Automobili will unveil the production version of the world’s first all-electric hypercar, the Concept_One, at the Geneva Motor Show 2016.
The Concept_One was born of the idea that an electric powertrain can make a sportscar not only faster but also more adjustable, agile and fun. Rimac Automobili was founded to push the limits of technology and electric powertrains – the Concept_One combines all the know-how, technology and experience that the company has created since its founding.

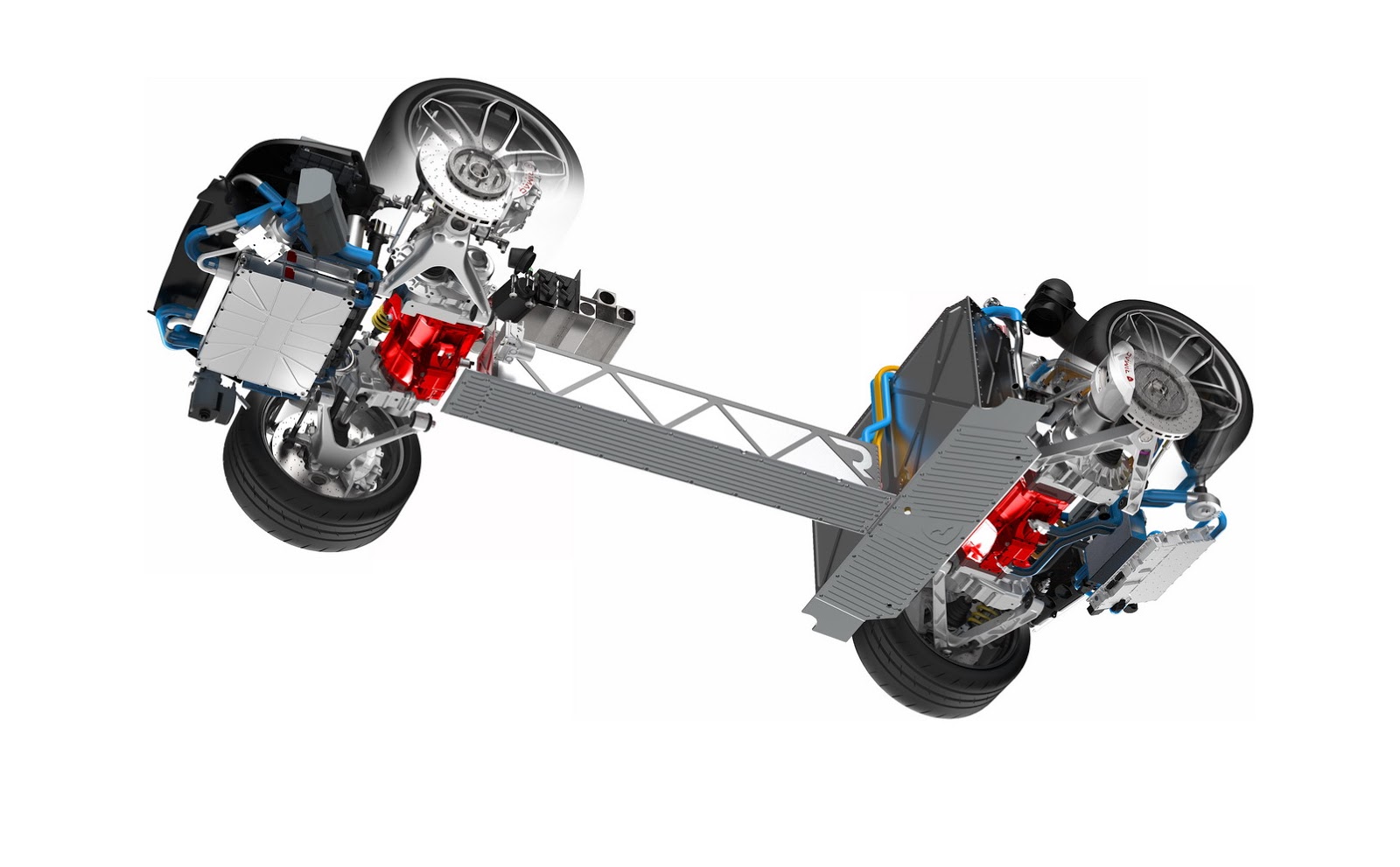

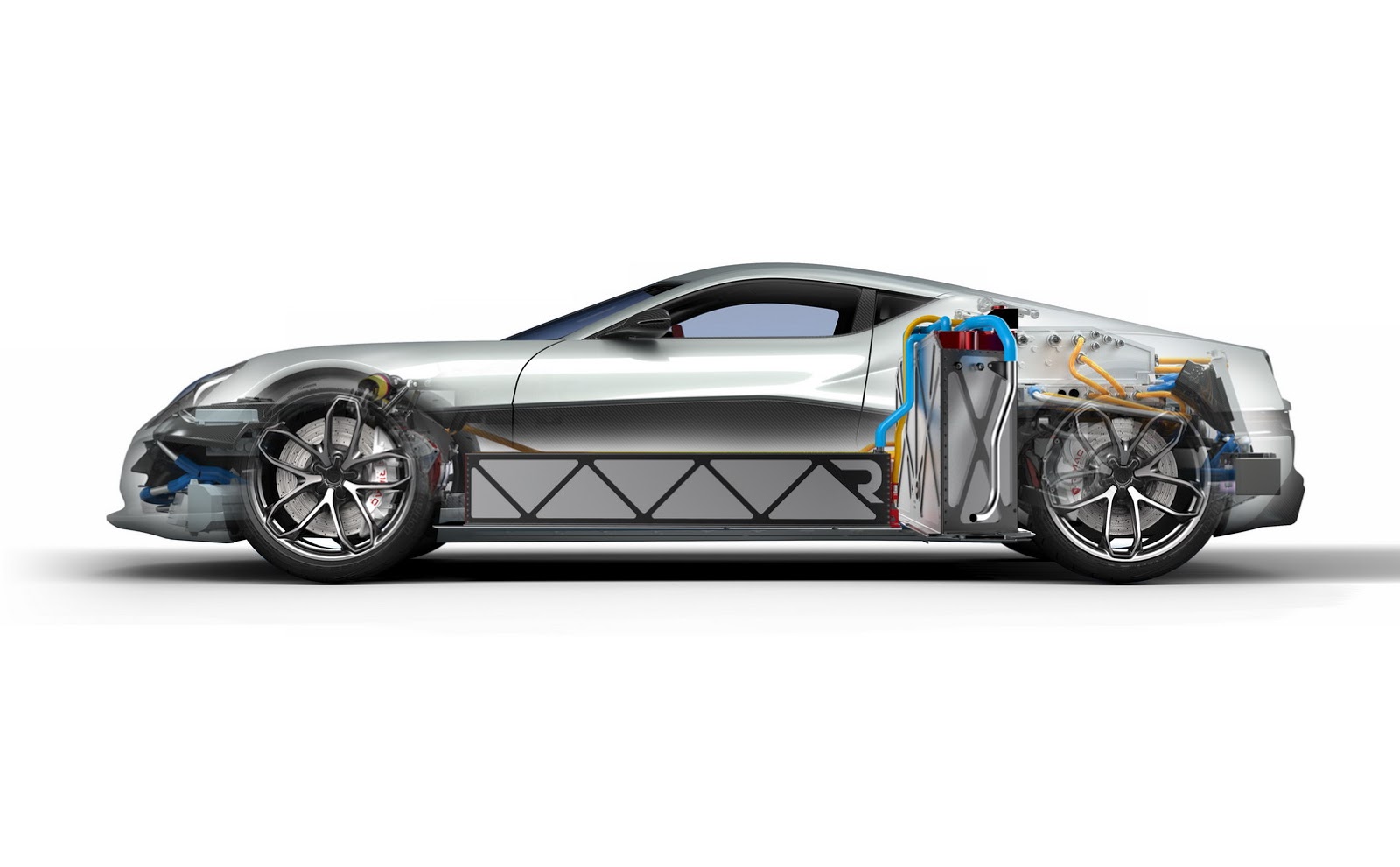

The Concept_Oneis powered by four extremely powerful permanent magnet electric motors, one for each wheel, located in the centre of both axles. The architecture is radically different compared to traditional combustion engines so a completely new vehicle platform had to be developed to use all the advantages that such a layout brings. In order to reduce weight and make it possible to package such a powerful powertrain system into the chassis, all powertrain systems were developed alongside within the same team to enable a high degree of integration between the components. The result is a perfect weight distribution and extremely low centre of gravity. Distributing a total of800 kW / 1088 HP and 1600 Nmof torque, theRimac All Wheel Torque Vectoring(R-AWTV)system precisely calculates the optimum torque for each wheel.R-AWTVuses inputs from several precise sensors strategically positioned around the chassis and suspension to calculate the optimal torque distribution between the wheels through complex mathematical models and control algorithms. The system provides unseen flexibility and grip by controlling each motor individually one hundred times per second. This enables the Concept_One to accelerate from standstill to 100 km/h in just2,6 secondsand, to200 km/h in6,2 and to300 km/hin mind-blowing 14,2seconds.

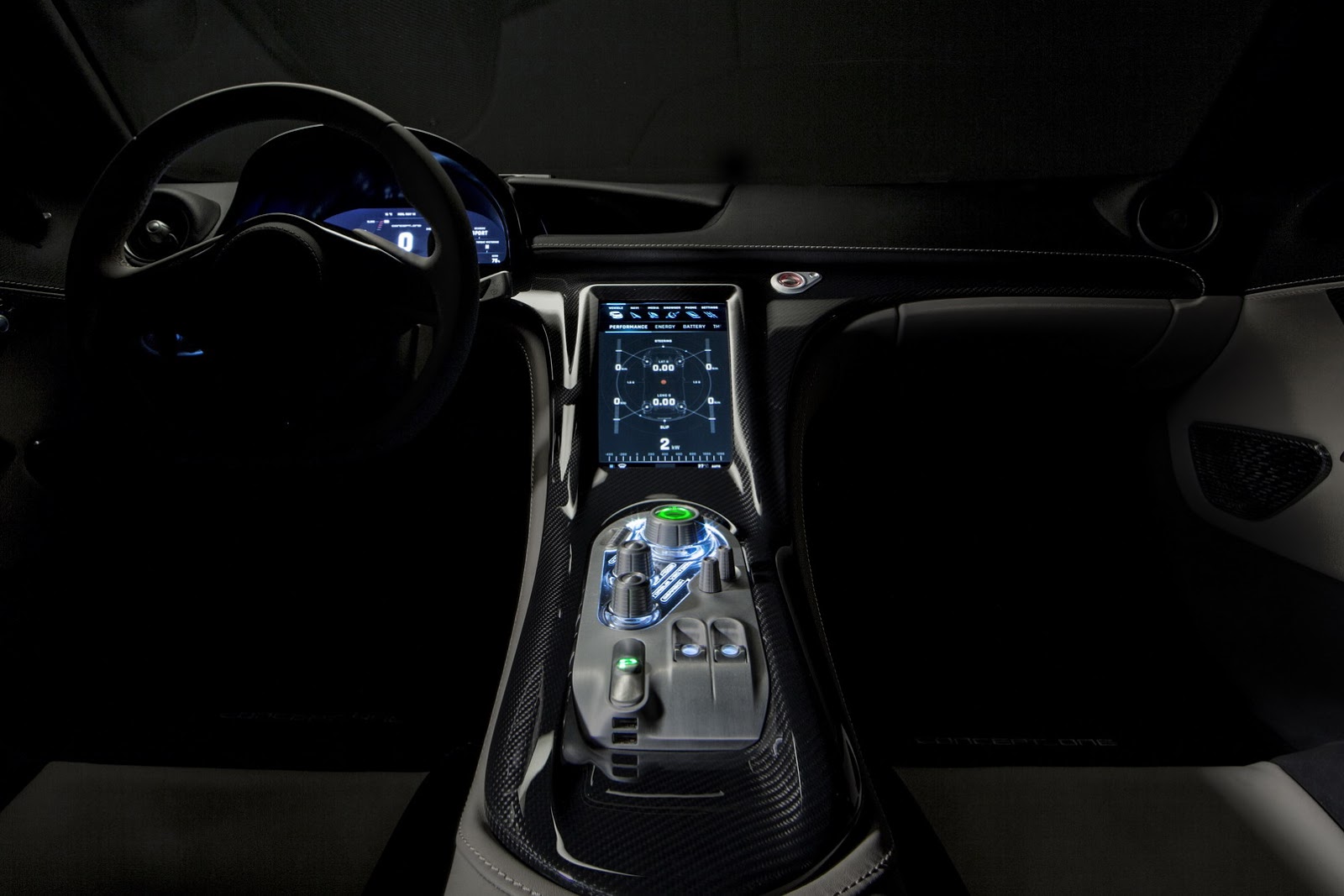

The R-AWTV functions as a traction control, stability control and “electric ABS” system that also commands the 4-wheel regenerative braking of up to400 kWthat works together with thecarbon-ceramicbraking system. To match the character, innovation excellence and sleek design of the Concept_One, a trulybespoke infotainment systemwas developed and manufactured in-house. All vehicle dynamics and powertrain functions such as the Rimac All Wheel Torque Vectoring System are controlled through physical buttons, machined from billet aluminium while secondary functions are controlled through the central touch-screen. The system shows an abundance of information through beautifully optimised graphics and gives insights into the Concept_One’s nervous system. Browsing through the menus on the central display, the driver can change the settings of the Rimac All Wheel Torque Vectoring system, brake force distribution, torque distribution, as well as various other functions. By changing the settings, the driver alternates the nature of the car depending on his preferences, from a calm and neutral setting to a track-oriented setup or the extremedrift modethat helps experienced drivers to have fun on a closed track.
From basic energy consumption information via regenerative braking and Rimac All Wheel Torque Vectoring settings to telemetry data – the Rimac Infotainment system gathers information from over500different sensors and projects them in beautiful graphics on the central display in real time. The data is stored in the internal memory and sent to the Cloud via high-speed4G Internet link. The telemetry data can be analysed during or after a lap on the racetrack, via the touch-screen, a PC or smartphone.
Handmade technology of the future In the five years of development, the Concept_One went through numerous iterations and development phases to fulfil the highest criteria of performance and quality.
In the words of the founder and CEO of Rimac Automobili,Mate Rimac: “My goal was to not to create an electric version of existing supercars. I wanted to create technology to make the supercar considerably better in every regard – faster, more fun and more efficient. I wanted to make the supercar of the 21st century. The Concept_One showcases performances which were not considered possible for electric cars a few years ago. To reach that level of performance, we first had to develop the technology and then the car. The Concept_One has gone through four iterations from a concept to the production car. In every iteration, we have redesigned almost all systems from scratch in order to achieve the level of performance and quality that we have set for ourselves in the beginning. I am also extremely proud of our vertical integration – the Concept_One is a true Rimac Automobili product – down to the smallest details.”
Rimac Automobili’s Head of Design,Adriano Mudri: “It is quite unique that a whole car can be designed, developed and manufactured under one roof. Rimac Automobili’s extreme broadness of know-how and skill sets opens an array of possibilities for chasing perfection on every level.”
The Concept_One continues the journey that the supercars with conventional drive have started. Similar to today’s supercar classics, which marked an important part in automotive history, the Concept_One also began its life on a piece of paper. Starting from the first sketch to the hand-written mathematical theory of the Rimac All Wheel Torque Vectoring system down to the basic functions and the software code which brought it to life. Just like body panels of historical supercar legends were made by precise hits of a skilled hands to form sheet metal into beautiful shapes, an almost artistic manual process creates the Concept_One’s numerous components. From laying carbon-fibre, machining light alloy parts, tailoring the wiring loom, to the artistically woven interior while carefully finishing each unique part, the Concept_One represents the harmony of skills developed throughout the years of car making.
“The Concept_One represents the perfect symbiosis of modern technology developed here in our company and traditional automotive craftsmanship for which we have the utmost respect. We stay true to the roots of motorsport and old skills of car makers and engineers who created the automotive world which made a profound influence on us when we were children. Every single part of the Concept_One has been through a hand-finishing process and is carefully assembled at our facilities. We invest tremendous effort into developing the feeling which this car gives to the driver. Not only in terms of driving characteristic but also the feeling and the sound from the driver’s perspective. For example, all controls in the interior are beautifully crafted mechanisms similar to the world’s best watches, with hundreds of individual components, carved from solid blocks of metal. There are no plastic parts; everything the driver touches is carbon, aluminium or Alcantara. We wanted to achieve that solid feeling of classic supercars. The goal was to achieve a true connection between the driver and the machine – and that is only possible with passion, attention to details and craftsmanship. The Concept_One is a truly hand-made car.” saidMate Rimac.

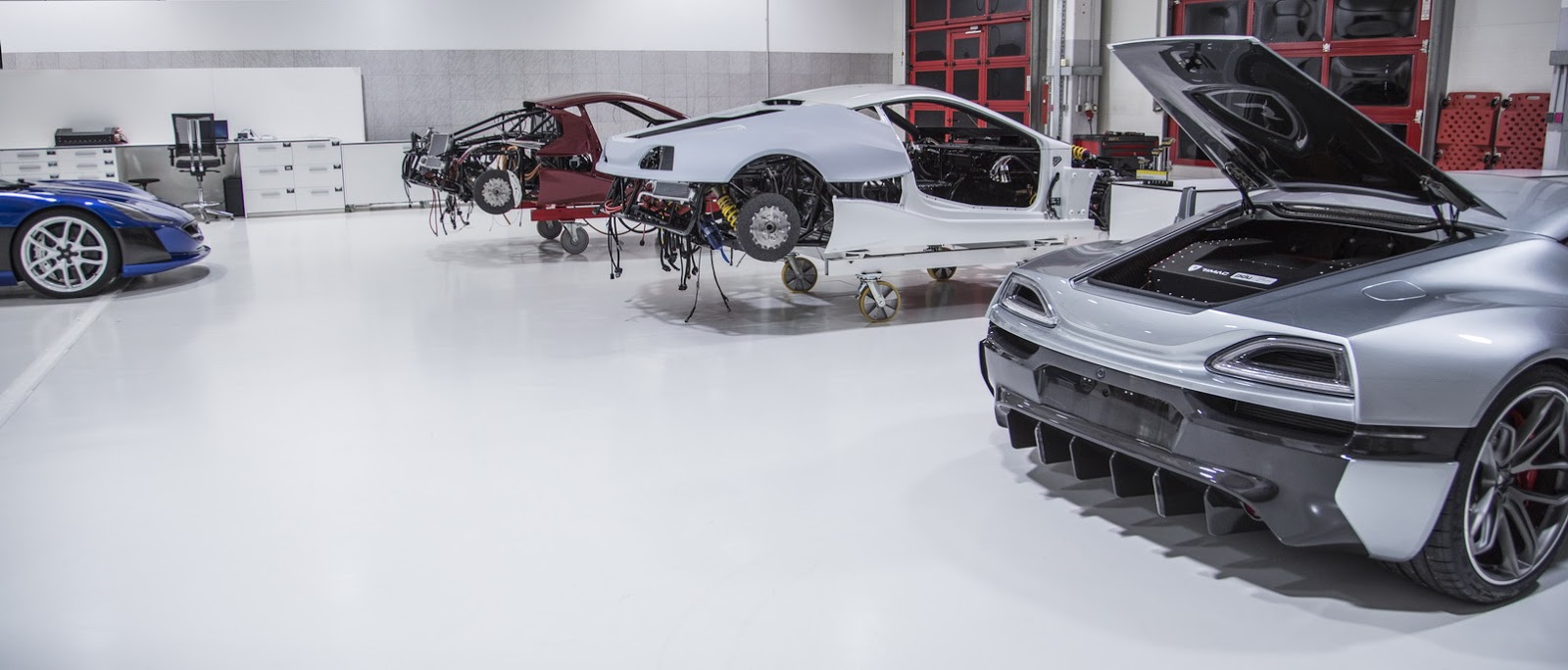

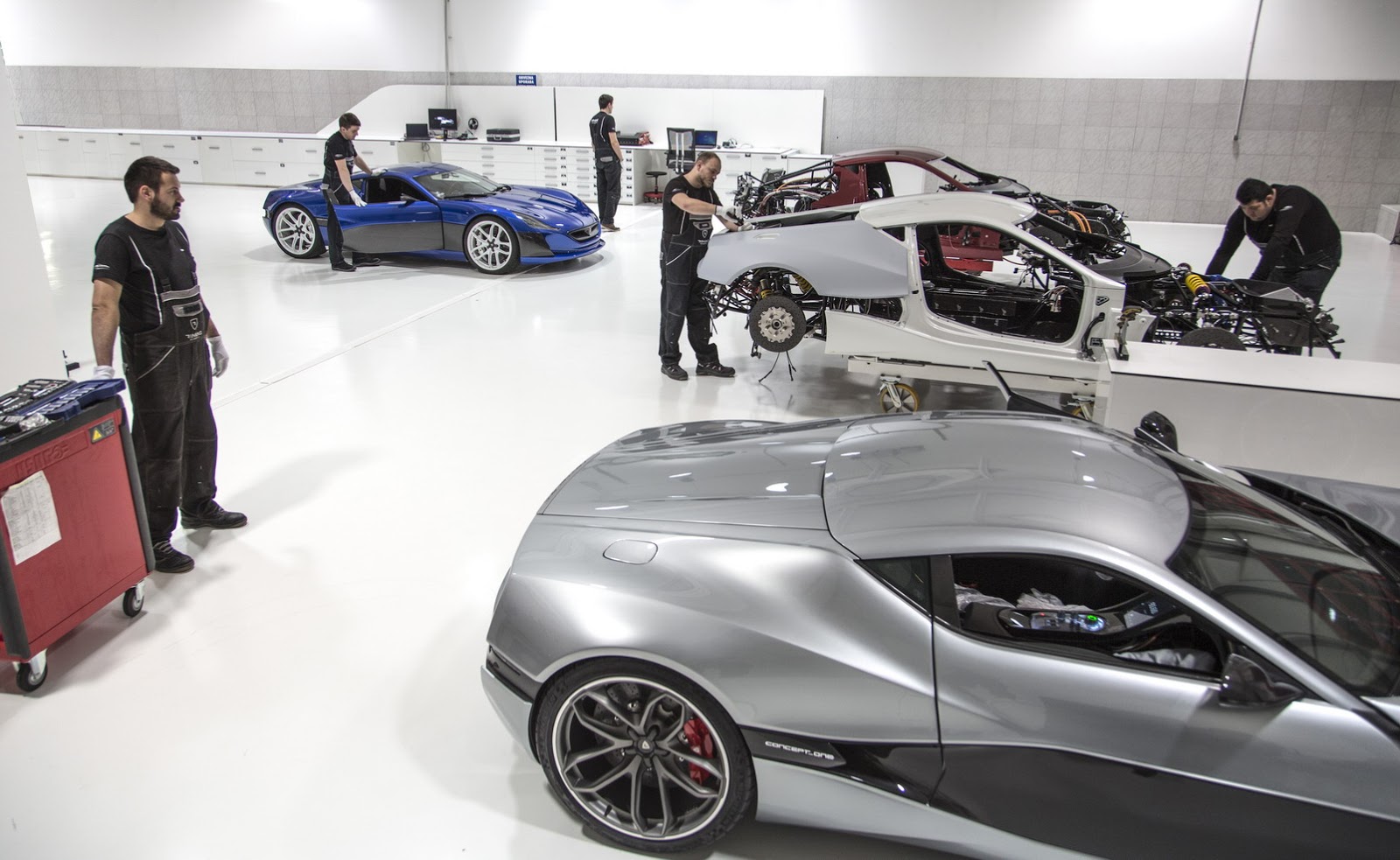

In-house production The ambitious goal Rimac Automobili set themselves is to produce as much as possible in-house. Painstaking attention to every detail requires high quality, which can best be maintained and controlled if the engineering and manufacturing teams are under the same roof.
Thousands of metal, electric and carbon fibre parts have to be manufactured, assembled and tested for each Concept_One. Even the tools, jigs and moulds are designed and produced by Rimac Automobili. Most of the parts start their lives as aluminium blocks or raw bare carbon fabrics which don’t leave the Rimac facilities in Sveta Nedelja before they are assembled into cars.

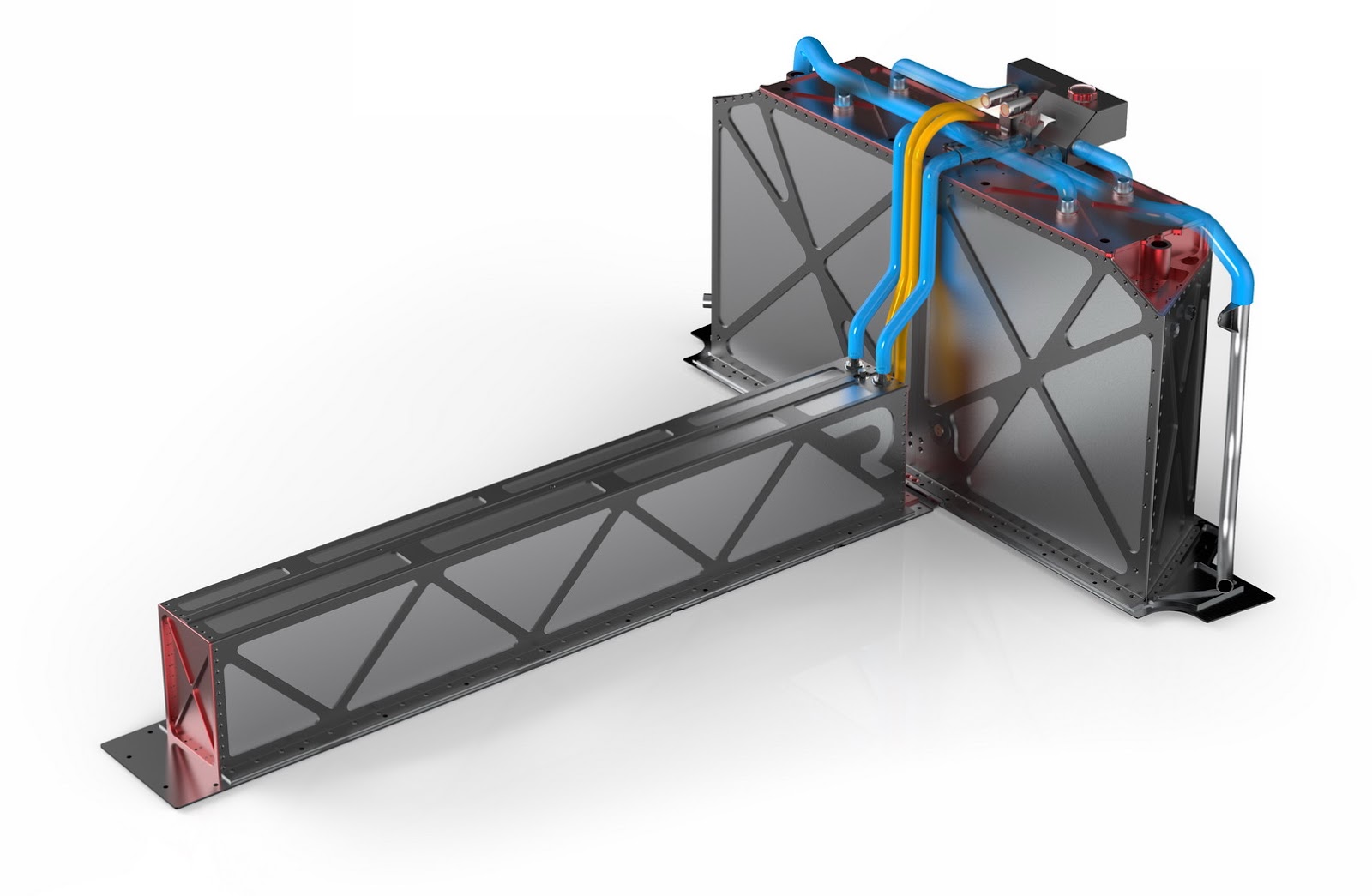

Battery pack Electric vehicle batteries are usually challenged by capacity requirements. While it is challenging to develop a battery system that holds sufficient energy for an acceptable range, Rimac Automobili has faced an additional challenge: delivering one megawatt of power.
The Concept_One’s battery pack is designed to deliver 1000 kW or 1MW of power during acceleration and to absorb 400 kW during braking. A unique liquid thermal management and low-resistance conducting system had to be developed in order to master this challenge. The result is a highly advanced high-performance battery pack that is designed for demanding track- use, high power delivery and safety. Each of the8450battery cells is individually controlled through the in-house developed Rimac Battery Management System, which ensures optimal conditions for a long battery life and long-term performance.
Rimac All Wheel Torque Vectoring Conceived in a road car, perfected on the most demanding road in the world – the hill climb toPikes Peak.
Rimac All Wheel Torque Vectoring system is designed and developed by Rimac Automobili and is currently the only system in the world with this principle available on a production car. The advantages of theR-AWTVover conventional drivetrains was most noticeable on the most demanding hill-climb race in the world –Pikes Peak Hill Climbin Colorado.Nobuhiro Monster Tajimadrove the Tajima Rimac e-Runner, a race car developed by Rimac Automobili, on the Pikes Peak International Hill Climb 2015 and finished in front of all combustion engine powered cars. The invaluable experience gathered during the Pikes Peak project has been implemented in the development of the Concept_One’sR-AWTVsystem. The result is a refined, yet powerful system that works in the background to enhance the natural potential of the vehicle. Compared with a conventional powertrain with four-wheel drive where the torque on each wheel is controlled either by braking through a hydraulic braking system or cutting the power of the engine and thus the power on all four wheels, the Concept_One does not have to make any compromises.
R-AWTV can reduce or raise the torque on any wheel at any given moment, depending on the situation and driver input, without any limitations. R-AWTV also increases safety as it can react faster and use the potential of each tire better than traditional stability systems. A dynamic “electric ABS” is moreover included in theR-AWTVsystem. The Concept_One’s regenerative braking system can slow the car down with up to400 kWof regenerative braking energy or up to0,6gof deceleration, without activating the carbon-ceramic brakes.R-AWTVcan distribute the brake force smoother, faster and with greater precision than conventionalABS systemsthus ensuring the maximum vehicle stability in cases of braking on surfaces at different grip levels. Still, the driver can also chose to disable regenerative braking and use friction brakes only. The throttle-off regenerative braking function can be adjusted separately. Depending on the wishes and driving skills of the driver, the R-AWTV can change the character of the car. The driver can choose betweenfourdriving modes:comfort, control, track and drift mode, or set-up a custom setting with customised power distribution, regenerative braking settings, etc. The R-AWTV can also be completely turnedoff.

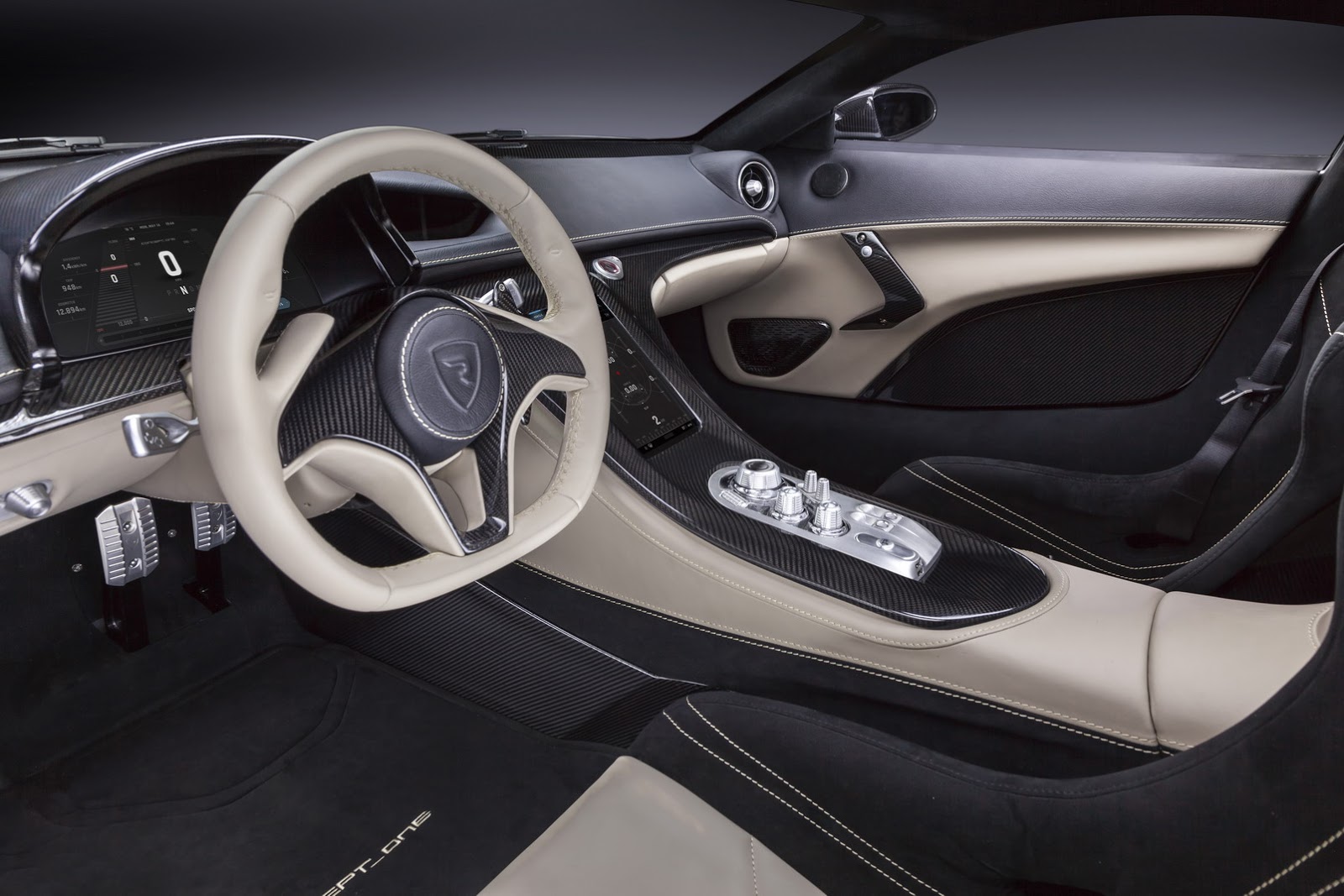

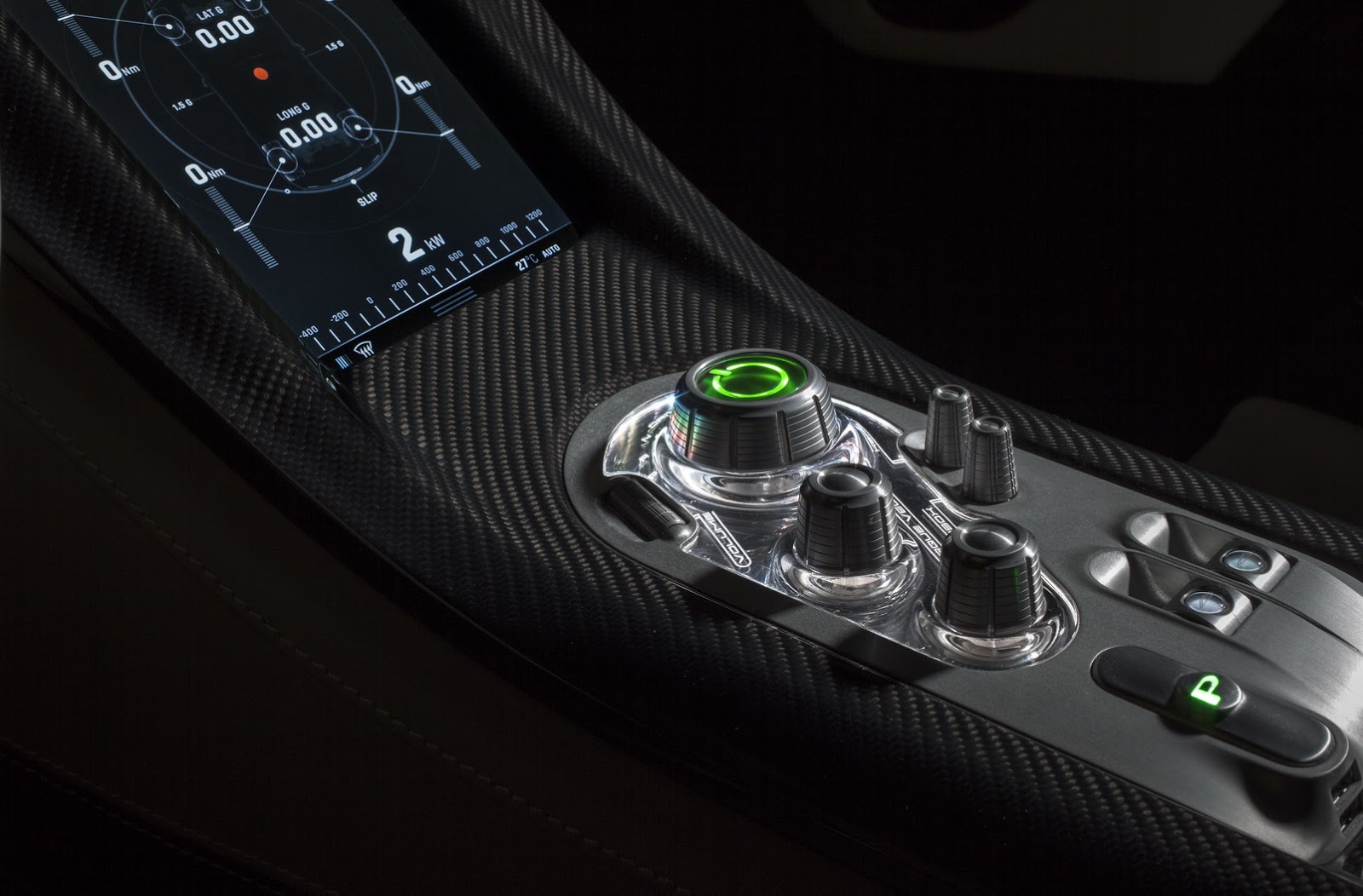

The driver can choose the driving modes via knobs on the central console. Depending on the chosen mode the car will act differently on the limit of grip. It can tend to understeer, be neutral, or for the more experienced drivers, have a tendency to oversteer and thus enable more aggressive driving style through corners.
Rimac Automobili’s test driverMiroslav Zrnčevićexplains the endless possibilities that the Concept_One has to offer: “Thanks to its unique architecture and features, the Concept_One can use the maximum potential of the tires. Depending on the driver’s preferences and R-AWTV setup, it offers multiple cars in one. The Concept_One represents the pinnacle of technology and design that we can give as a company. Every unit carries its romantic story. Concept_One is a different driving experience. A car that gives a new dimension of driving experience.”

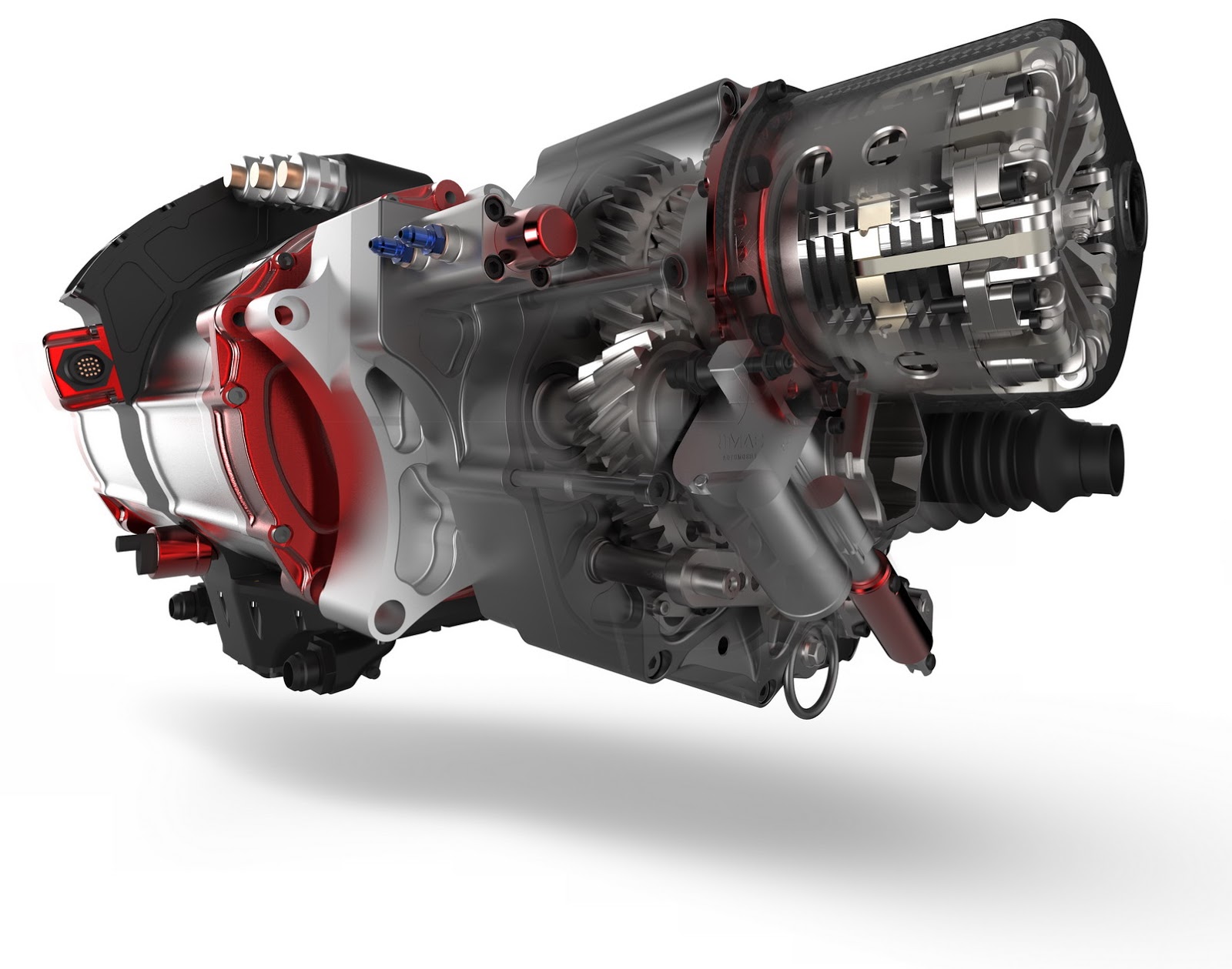

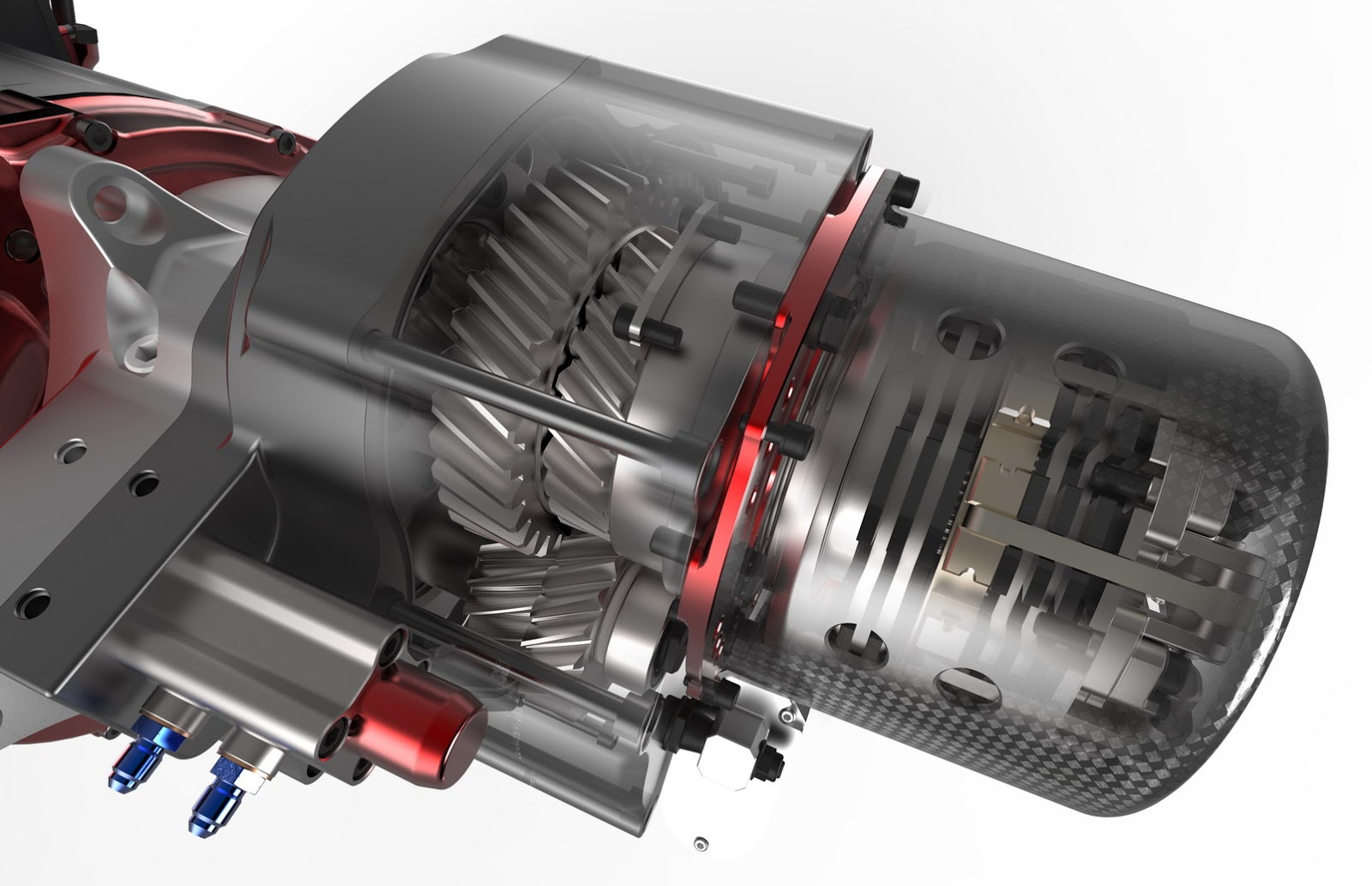

Four motors, four gearboxes Despite having full torque from zero RPM, electric motors still need a transmission to meet maximum efficiency and performance. Most electric vehicles use a single-speed transmission that forces their designers to compromise between acceleration and top-speed.
Rimac Automobili is all about innovation and pushing the limits – not about compromises. We wanted to achieve lightning-fast acceleration, and a top speed worthy of a true supercar. In order to meet those targets, we had to come up with a unique solution. Each of the four Concept_One’s motors is coupled to a proprietary gearbox system. While the front motors feature single-speed gearboxes, the rear motors carry something truly unique – atwo-speed double-clutch gearbox on each side. A proprietary carbon fibre double clutch system with Formula 1 clutch-disks enables either extremely fast or smooth and comfortable shifts that are supported by synchronising motor speed forinterruption-free shifting. While the dual-speed transmission unlocks new performance levels at any speed, the Concept_One can be driven in one gear all the time as it has enough torque to outperform almost any sportscar even if driven in one gear only.
Limited production The Concept_One will be produced in the total of eight units.
Rimac Automobili’s collaborate philosophy is to share ideas and technologies with other manufacturers in various industries to accelerate the shift to a more efficient and better transportation system. As a showcase of its main business, Rimac Automobili will, in addition, display its technologies and abilities that are available to other companies. A special edition of theGreyp G12S bike, made by Rimac’s sister company Greyp Bikes, will also be shown in Geneva.
Technical data Performance Maximum power: 1088 KS (800 kW) Maximum torque: 1600 Nm from 0 to 6500 rpm Top speed: 355 km/h Acceleration: 0-100 km/h (0-62 mph) 2,6 seconds; 0-200 km/h 6,2 seconds, 0-300 km/h 14,2 km/h Braking distance: 31.5m (100-0 km/h) Lateral g-force: 1.4 g Charging: 22 kW on-board charger, DC-Combo fast charger (up to 120kW) Power to weight: 588 HP/T
Dimensions Weight: 1850 kg Length: 4187 mm Width: 1842 mm Height: 1070 mm Front tires: Pirelli P Zero 245/35 R20, Rear tires: Pirelli P Zero 295/30R 20 Weight distribution: 42% front, 58% rear
Battery package Voltage: 650V nominal Capacity: 82 kWh Rimac Automobili Battery and Thermal Management Systems
Chassis Cro-Mo space-frame with aluminium and carbon fibre semi-stressed members Front and rear suspension: Double wishbones, fully adjustable, pushrod operated Hydraulically adjustable ride height

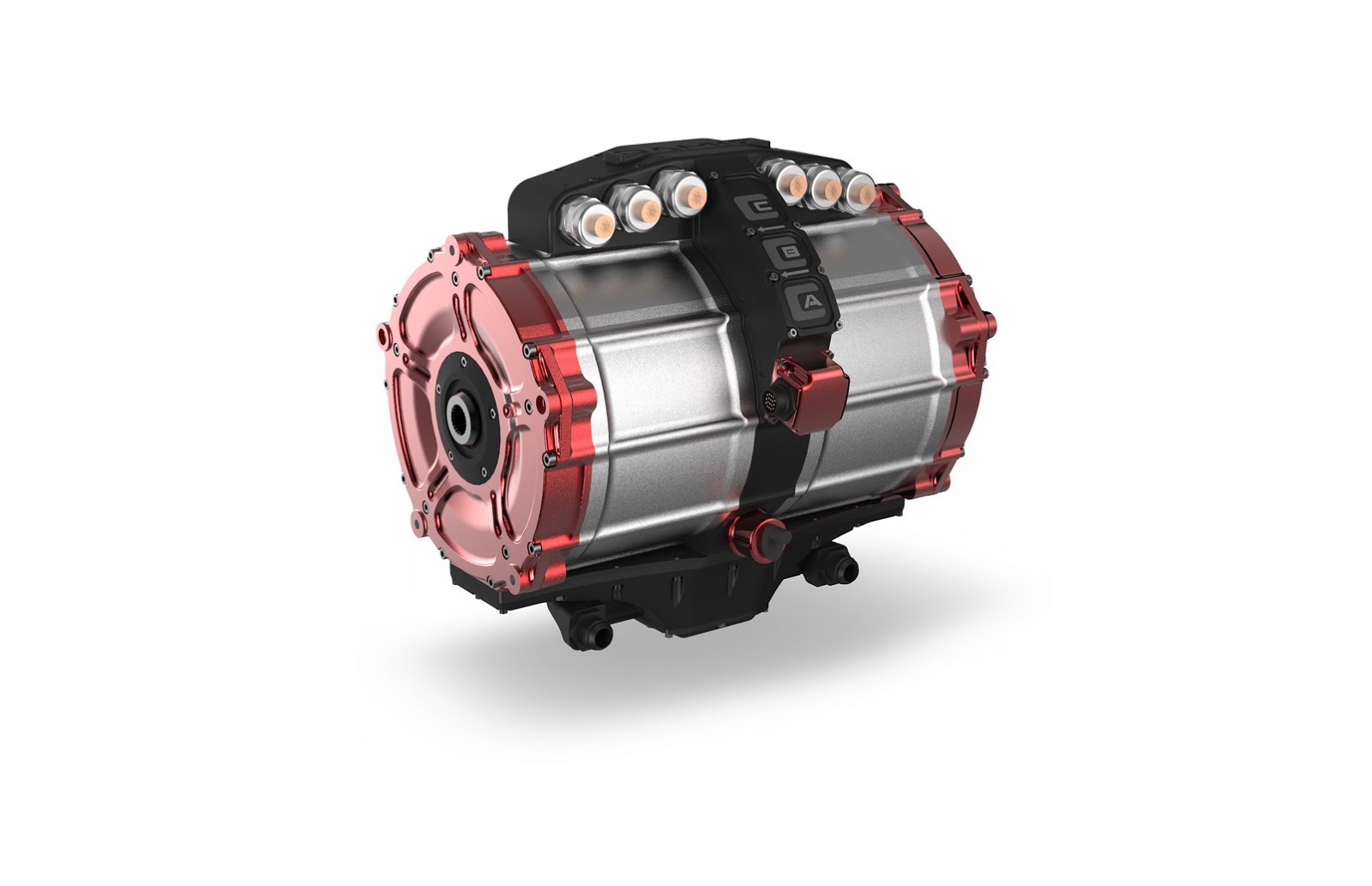

Powertrain Front: Rimac Automobili D-PM-OC-500 – high speed dual permanent magnet oil cooled motors, 500 kW peak, 12.000 RPM, up to 97% efficiency. 2 single speed gearboxes Rear: Rimac Automobili D-PM-OC-600 – high speed dual permanent magnet oil cooled motors, 600 kW peak, 12.000 RPM, up to 97% efficiency. Two double clutch two-speed gearboxes. Rotor and stator oil cooling Milled aluminium housings
Steering system Electro-hydraulic servo system

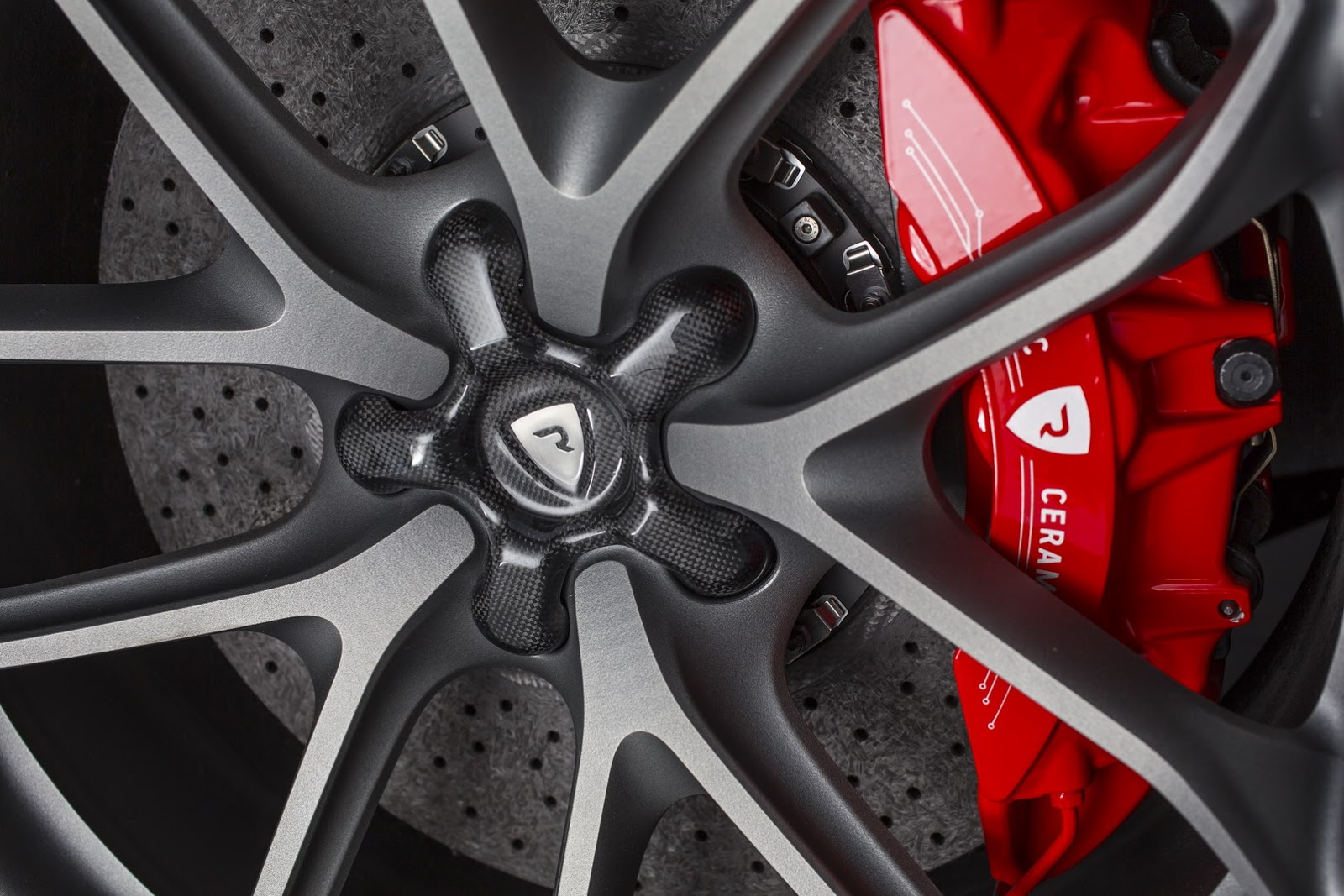

Brakes Front brakes: Ventilated ceramic discs Ø 390 mm, 36 mm wide. 6-piston callipers, power-assisted. Rear brakes: Ventilated ceramic discs Ø 380 mm, 34 mm wide. 4-piston callipers, power-assisted. Up to 400 kW of regen-braking (adjustable)
Safety Systems ABS Torque Vectoring with stability function Safety disconnect systems in case of a crash Multiple ECU architecture for monitoring of safety-relevant electronic systems
